CMA CGM THAMES
9674567 | 9HA3851 | 9674567 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:CMA CGM THAMES

IMO Code:9674567

Call Sign:9HA3851

Line Operator:9674567

Class Name for Sister Ships:CMA

Year Built:2015

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:071

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:9,331

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

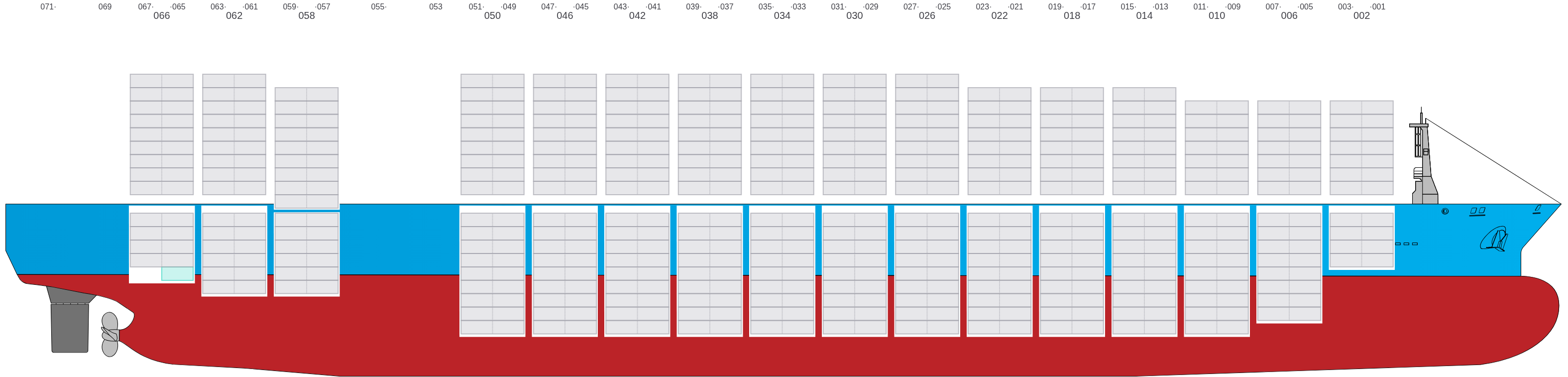

Side View

Side view of CMA CGM THAMES

Hatch-Covers View

Deck view of CMA CGM THAMES

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

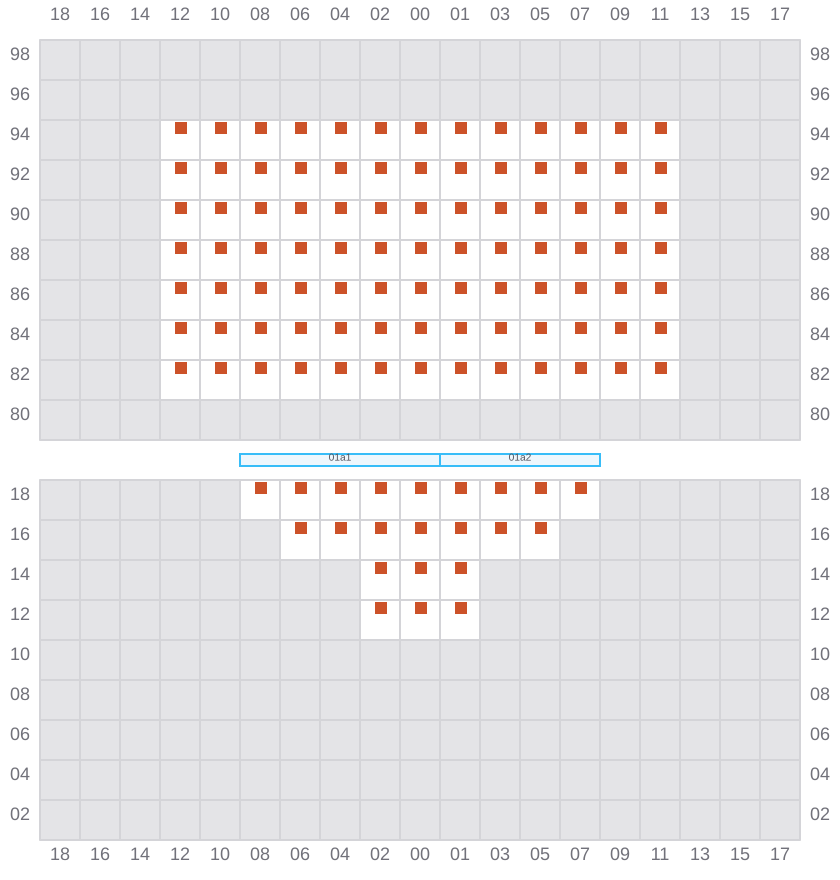

001

→

Bay 001 view and slots of CMA CGM THAMES

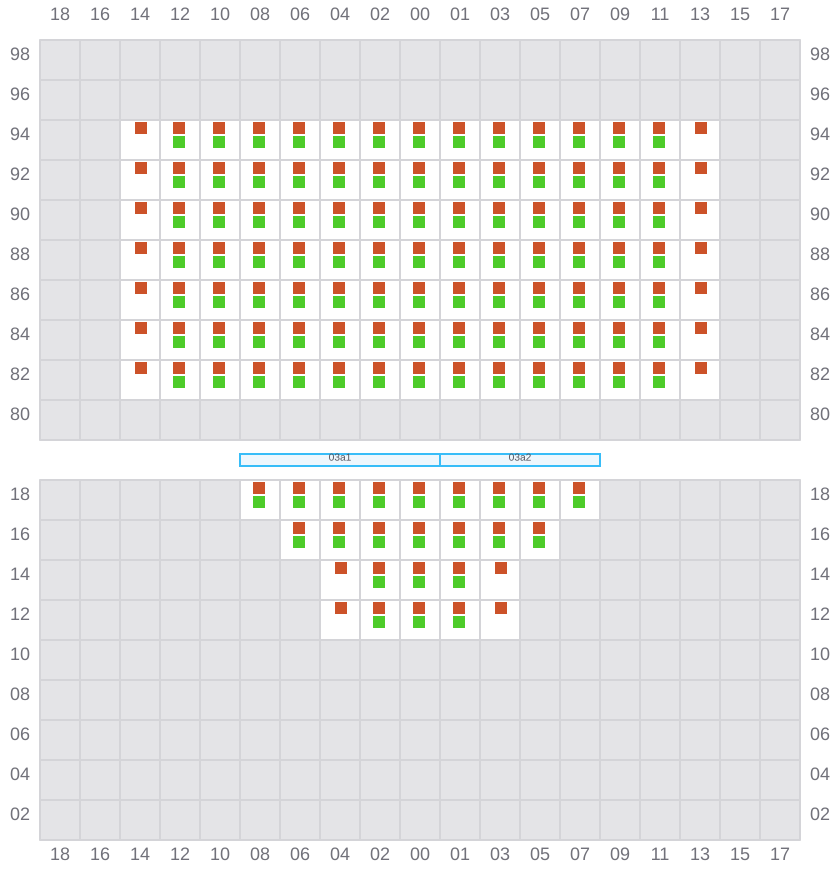

003 (002)

←

Bay 003 view and slots of CMA CGM THAMES

005

→

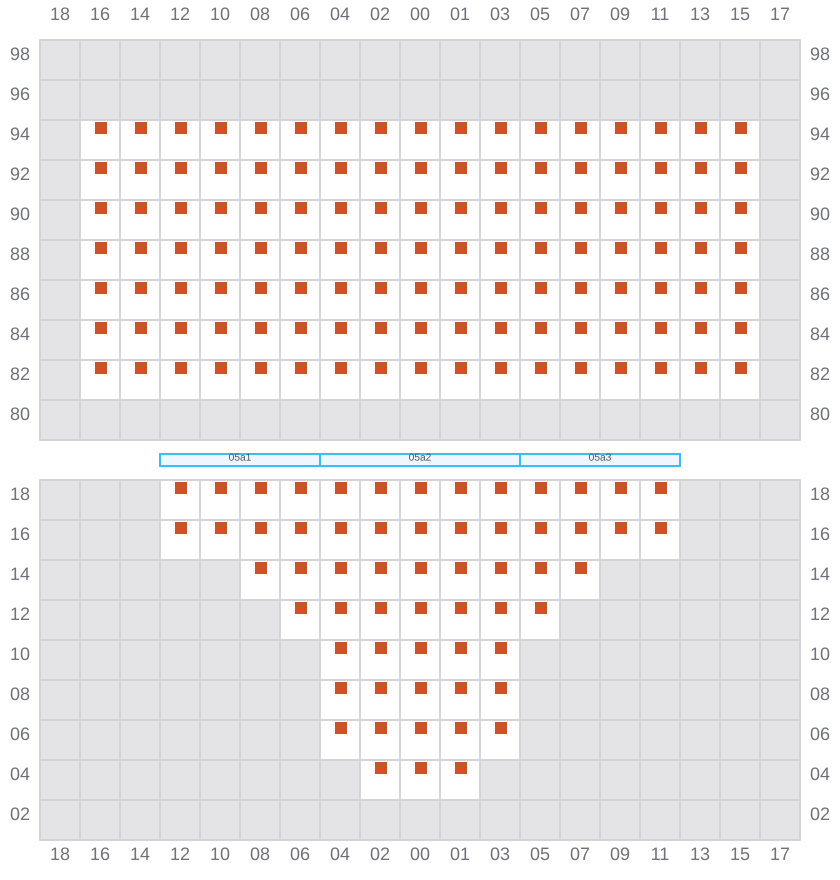

Bay 005 view and slots of CMA CGM THAMES

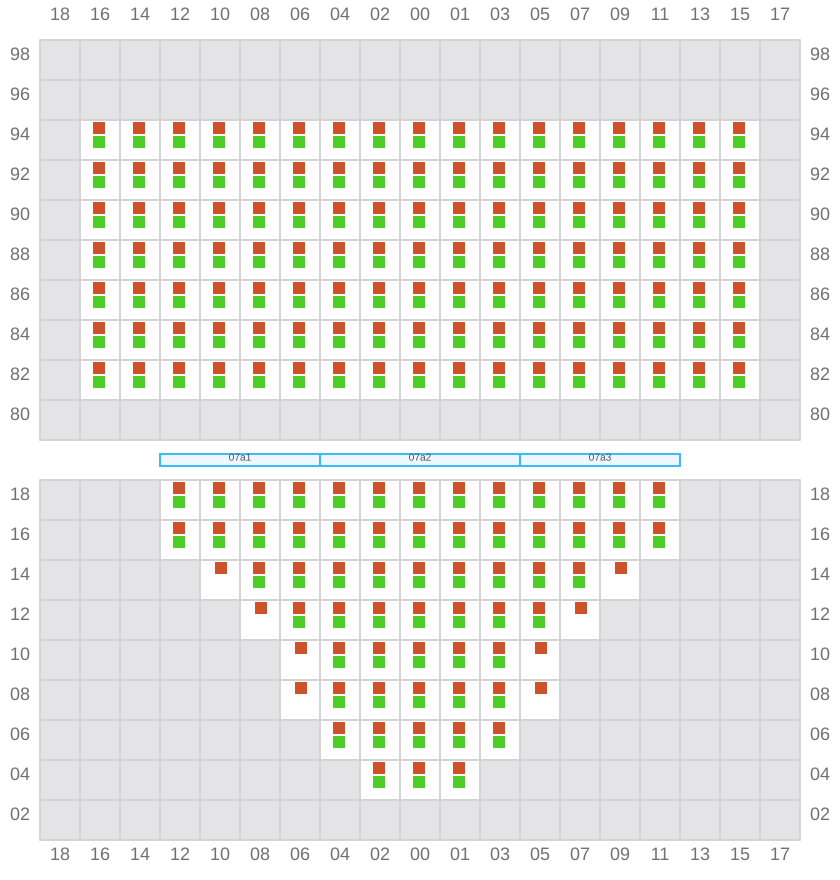

007 (006)

←

Bay 007 view and slots of CMA CGM THAMES

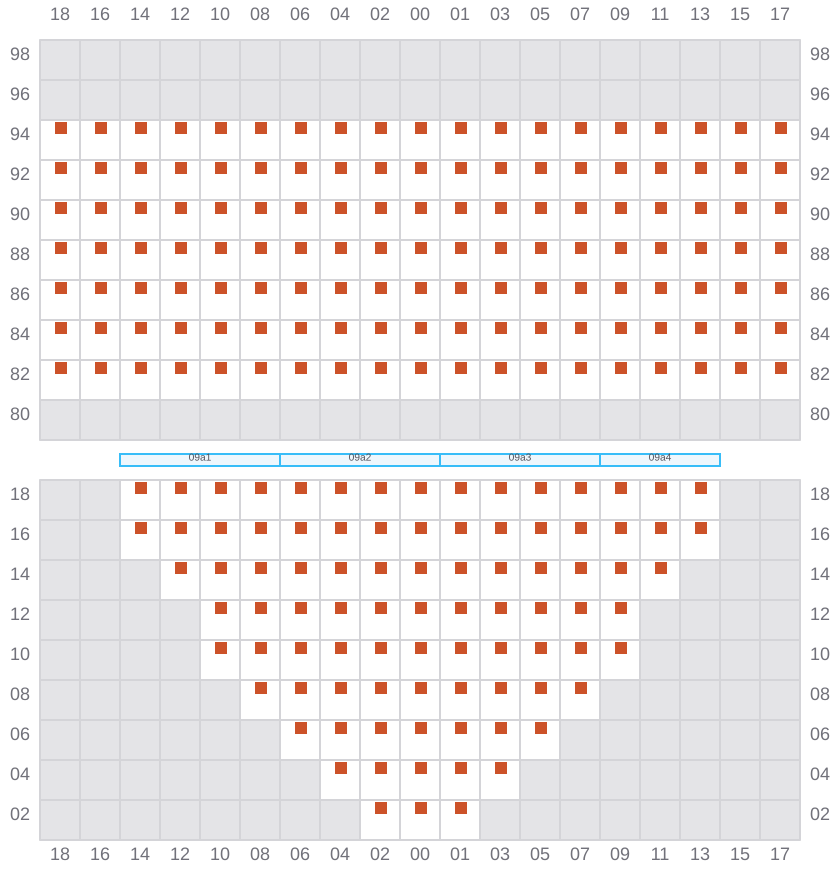

009

→

Bay 009 view and slots of CMA CGM THAMES

011 (010)

←

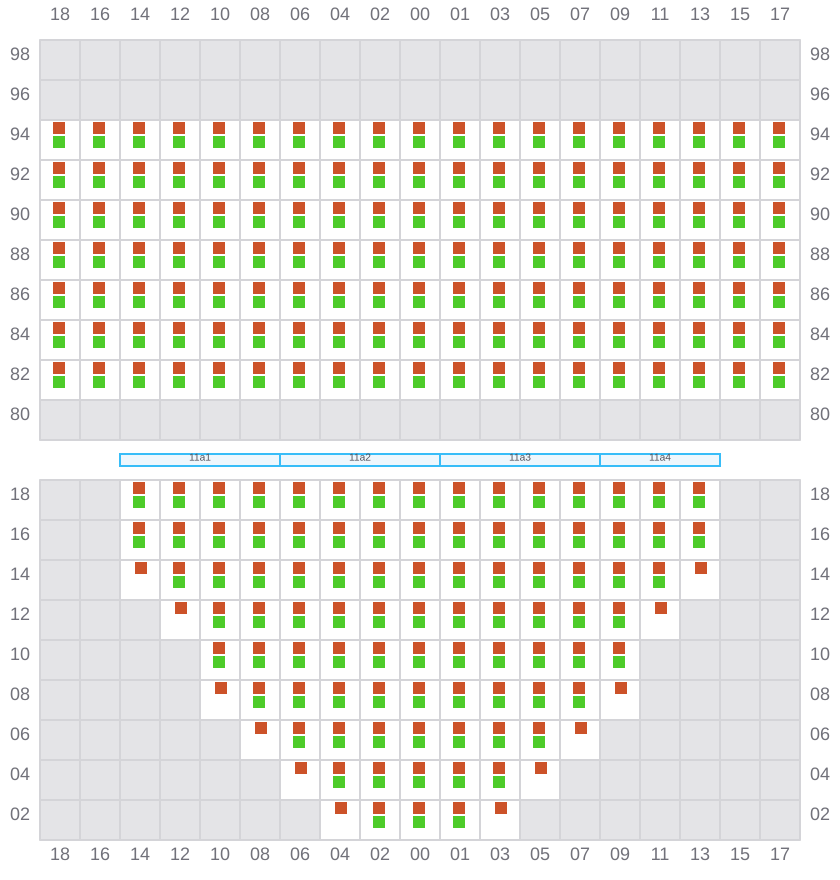

Bay 011 view and slots of CMA CGM THAMES

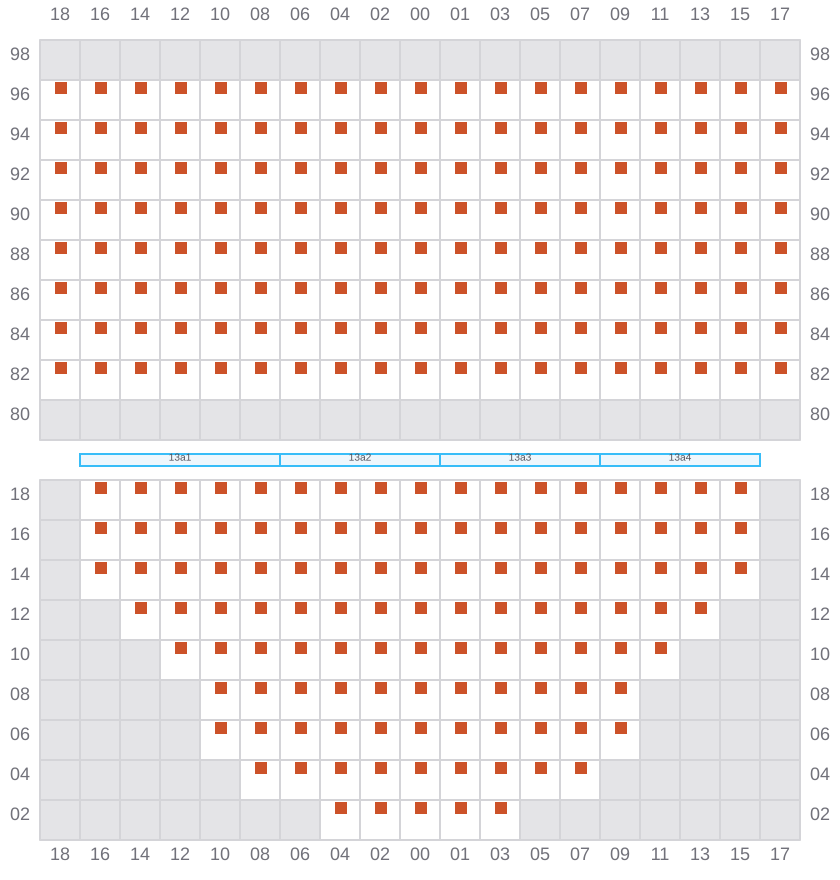

013

→

Bay 013 view and slots of CMA CGM THAMES

015 (014)

←

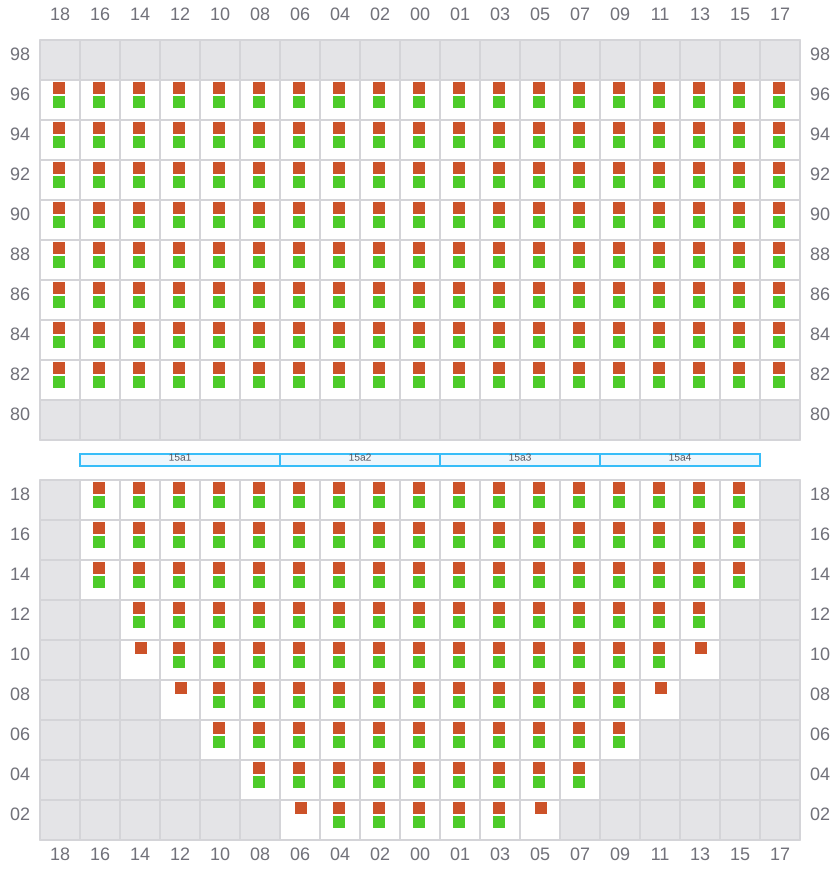

Bay 015 view and slots of CMA CGM THAMES

017

→

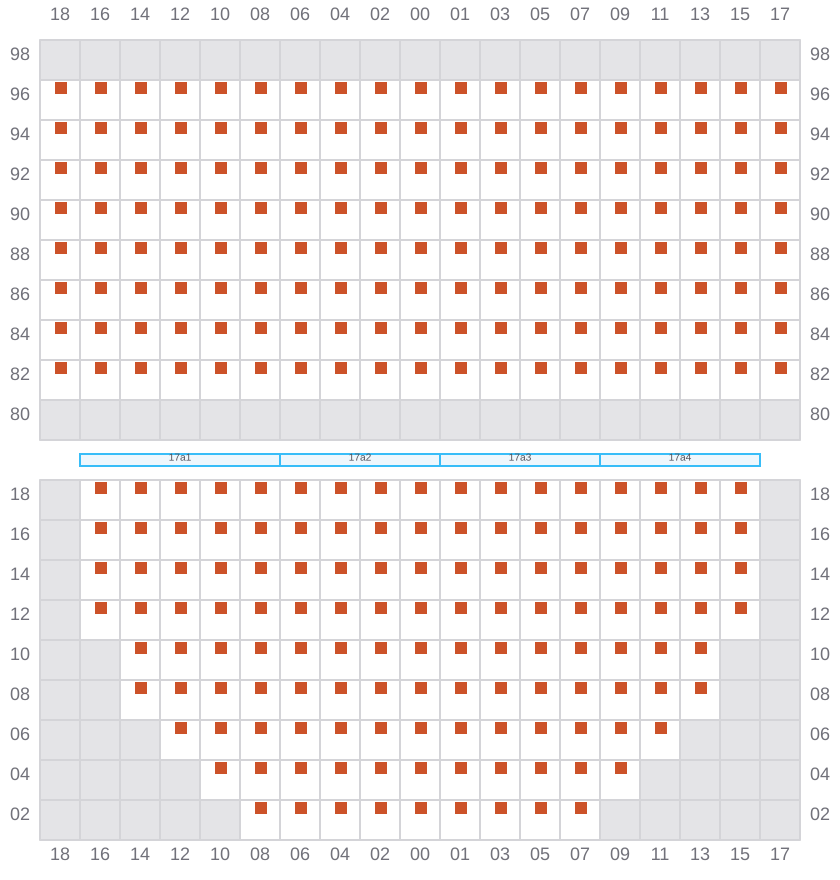

Bay 017 view and slots of CMA CGM THAMES

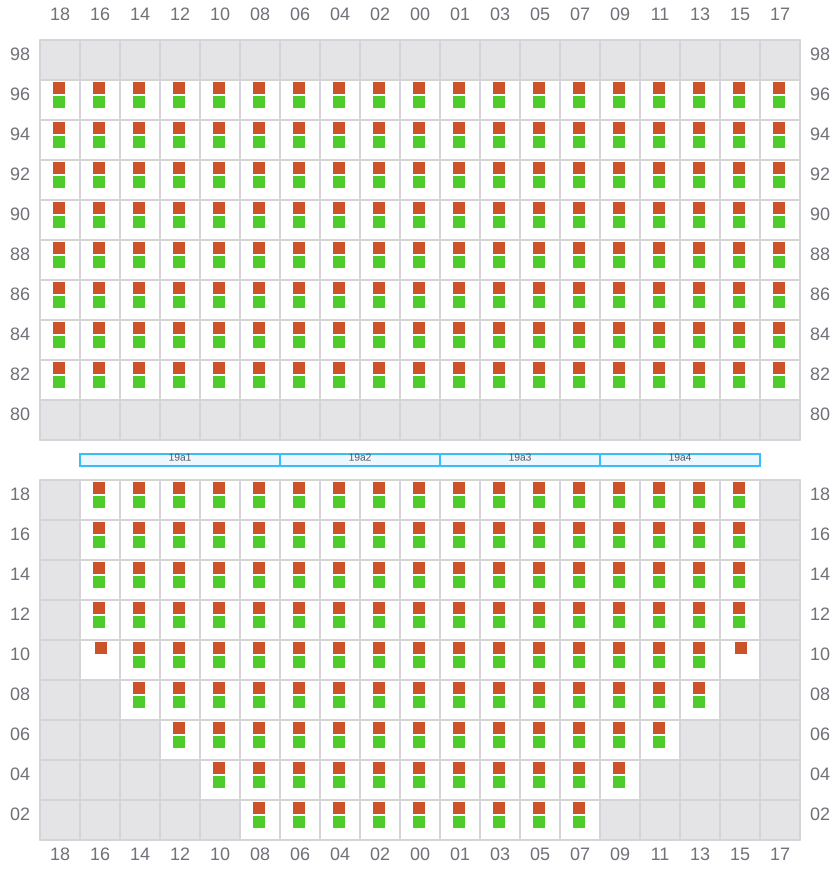

019 (018)

←

Bay 019 view and slots of CMA CGM THAMES

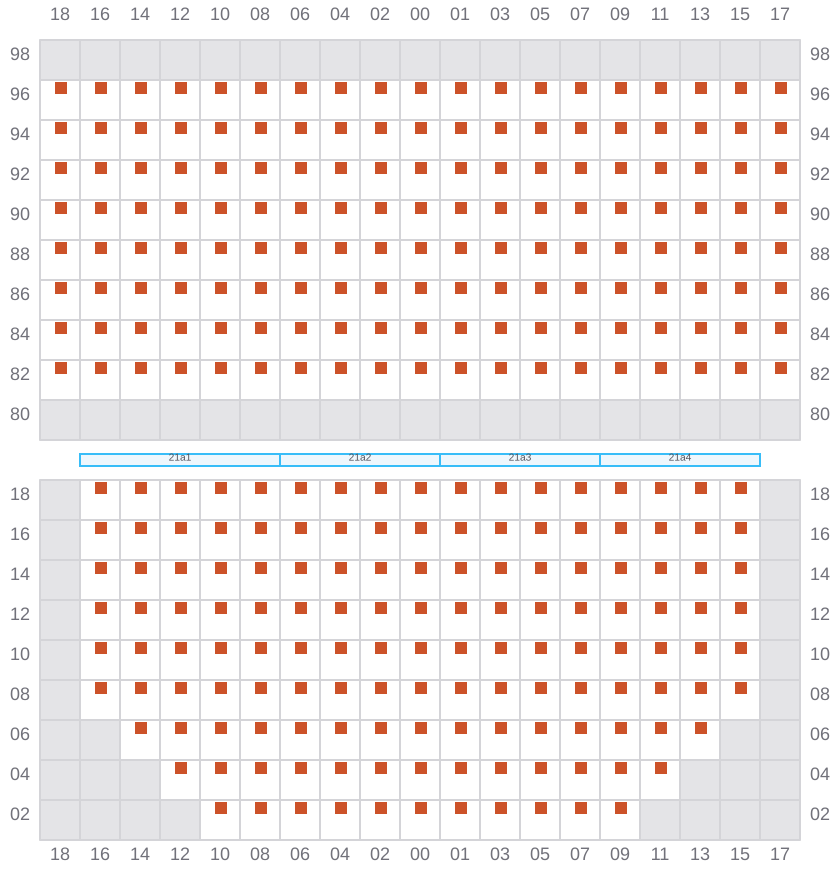

021

→

Bay 021 view and slots of CMA CGM THAMES

023 (022)

←

Bay 023 view and slots of CMA CGM THAMES

025

→

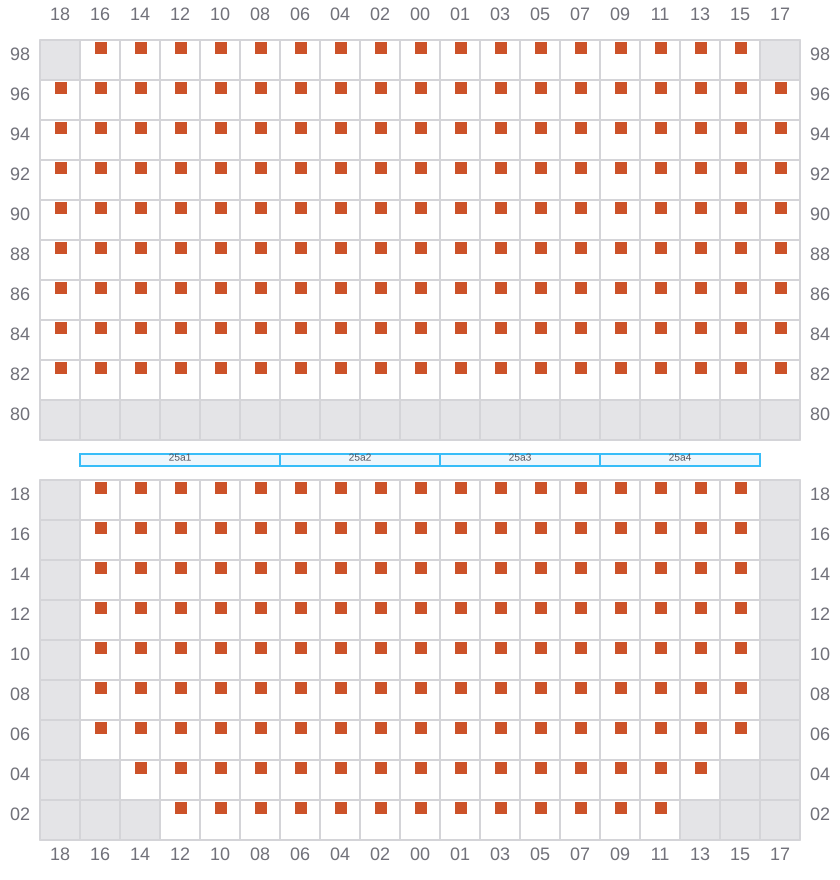

Bay 025 view and slots of CMA CGM THAMES

027 (026)

←

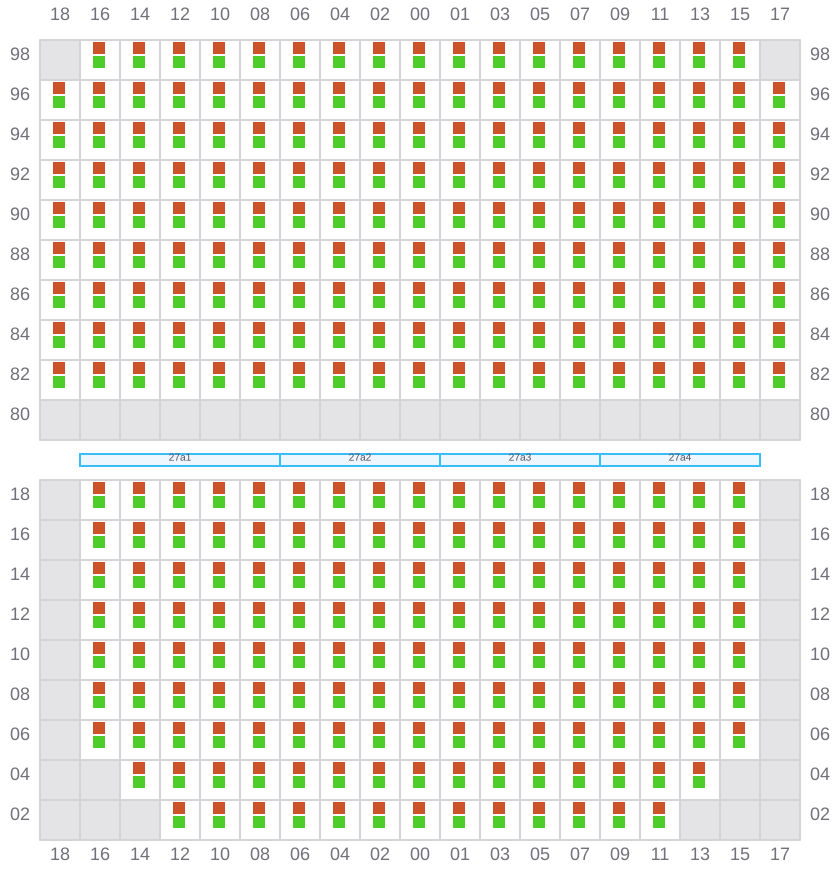

Bay 027 view and slots of CMA CGM THAMES

029

→

Bay 029 view and slots of CMA CGM THAMES

031 (030)

←

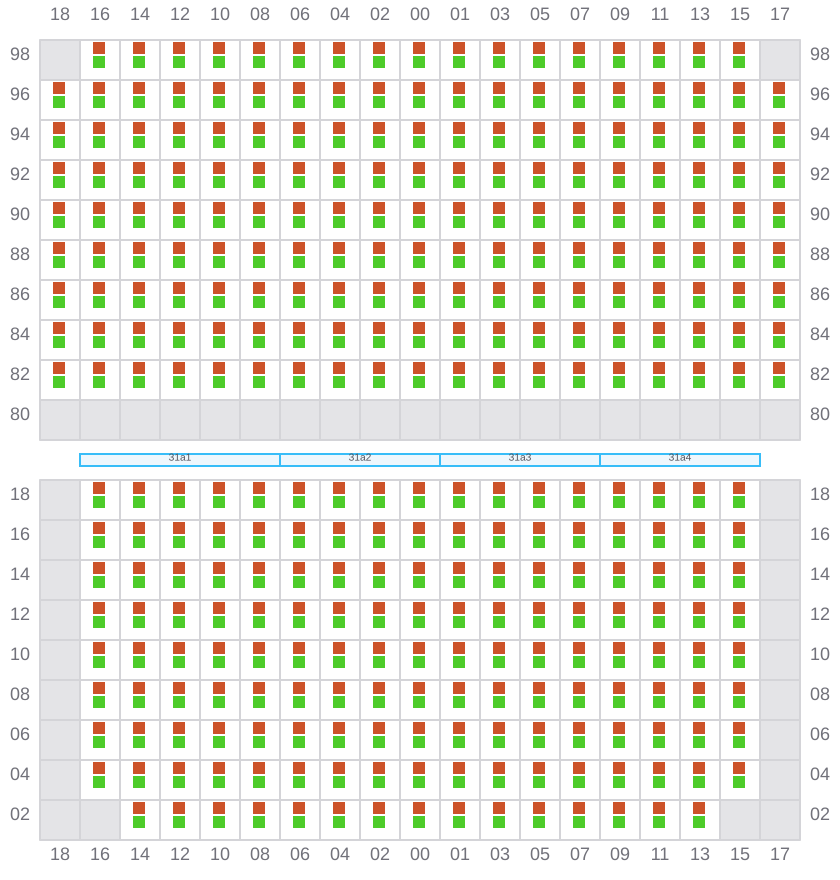

Bay 031 view and slots of CMA CGM THAMES

033

→

Bay 033 view and slots of CMA CGM THAMES

035 (034)

←

Bay 035 view and slots of CMA CGM THAMES

037

→

Bay 037 view and slots of CMA CGM THAMES

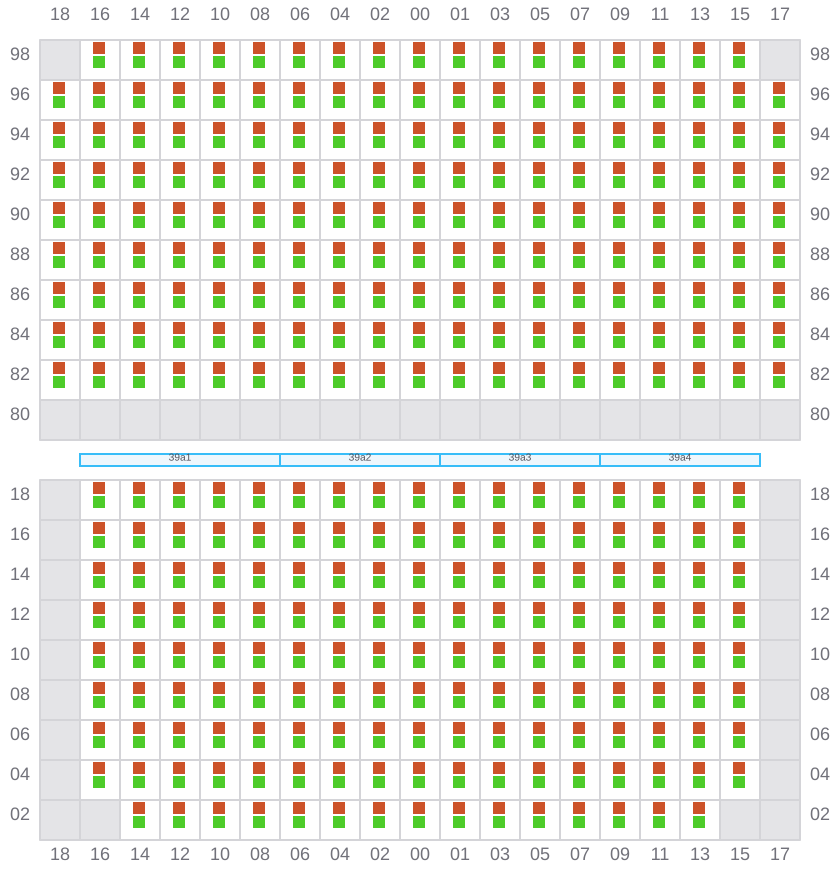

039 (038)

←

Bay 039 view and slots of CMA CGM THAMES

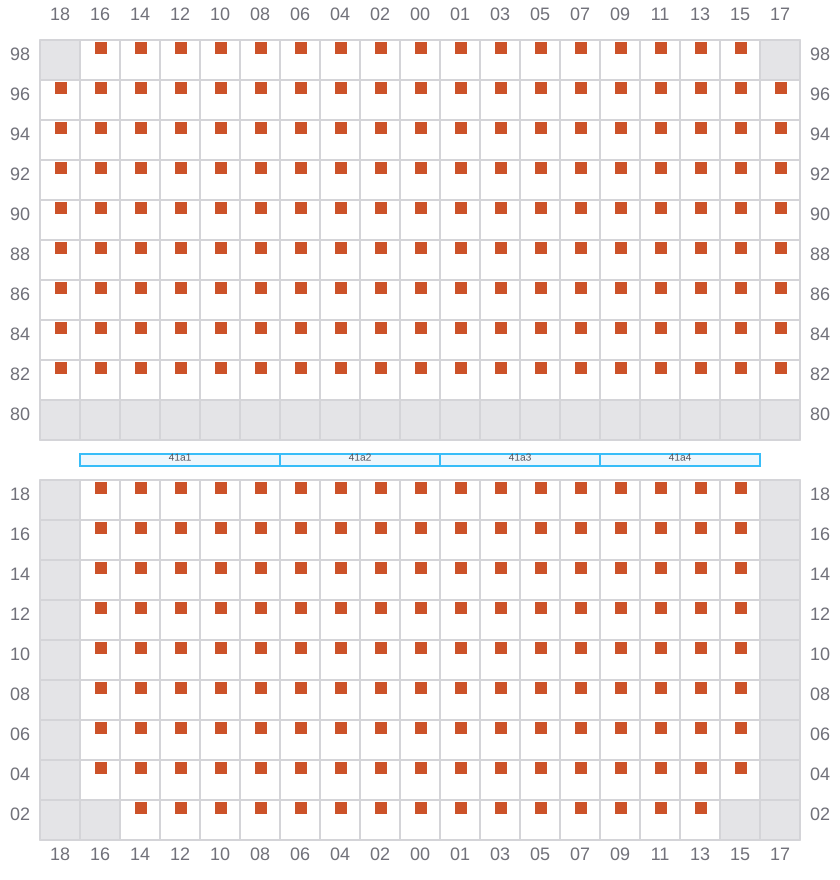

041

→

Bay 041 view and slots of CMA CGM THAMES

043 (042)

←

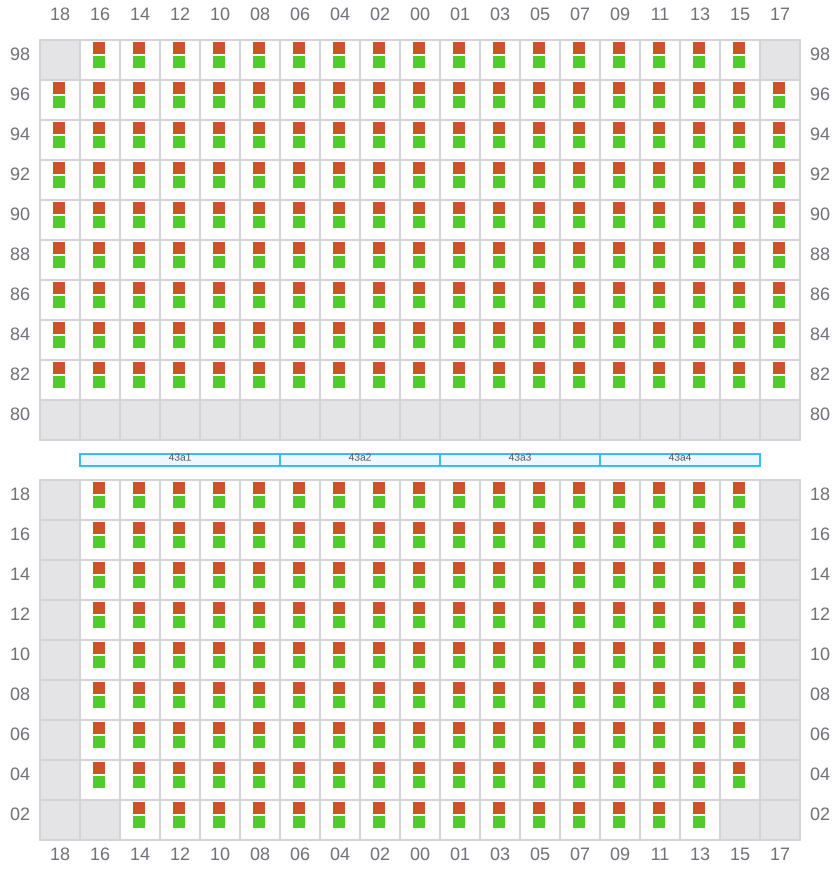

Bay 043 view and slots of CMA CGM THAMES

045

→

Bay 045 view and slots of CMA CGM THAMES

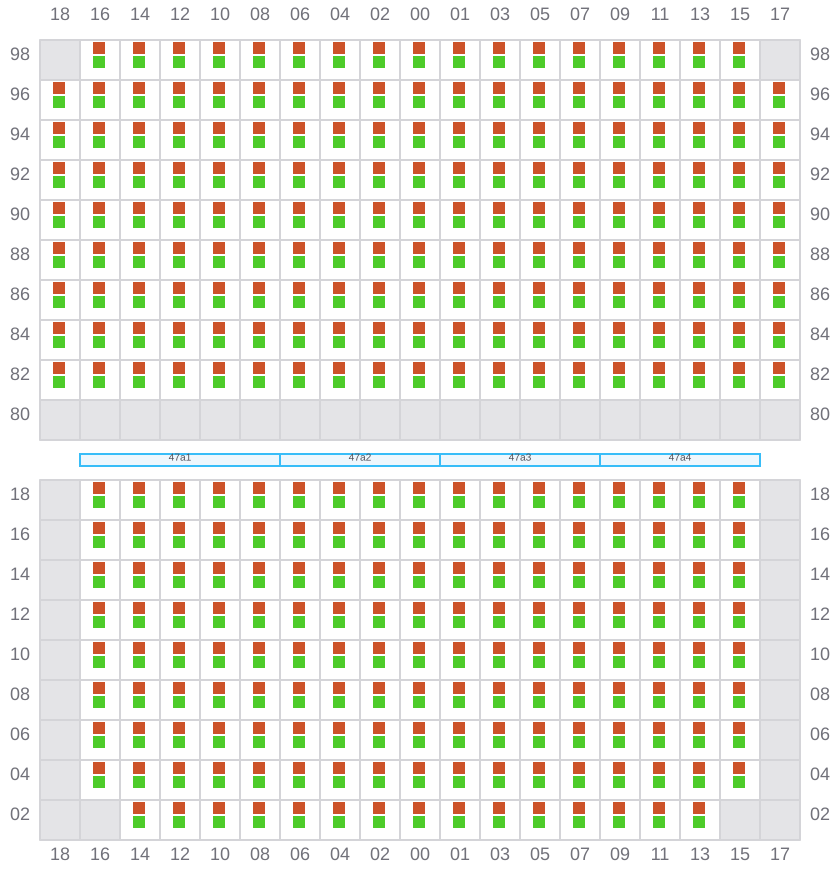

047 (046)

←

Bay 047 view and slots of CMA CGM THAMES

049

→

Bay 049 view and slots of CMA CGM THAMES

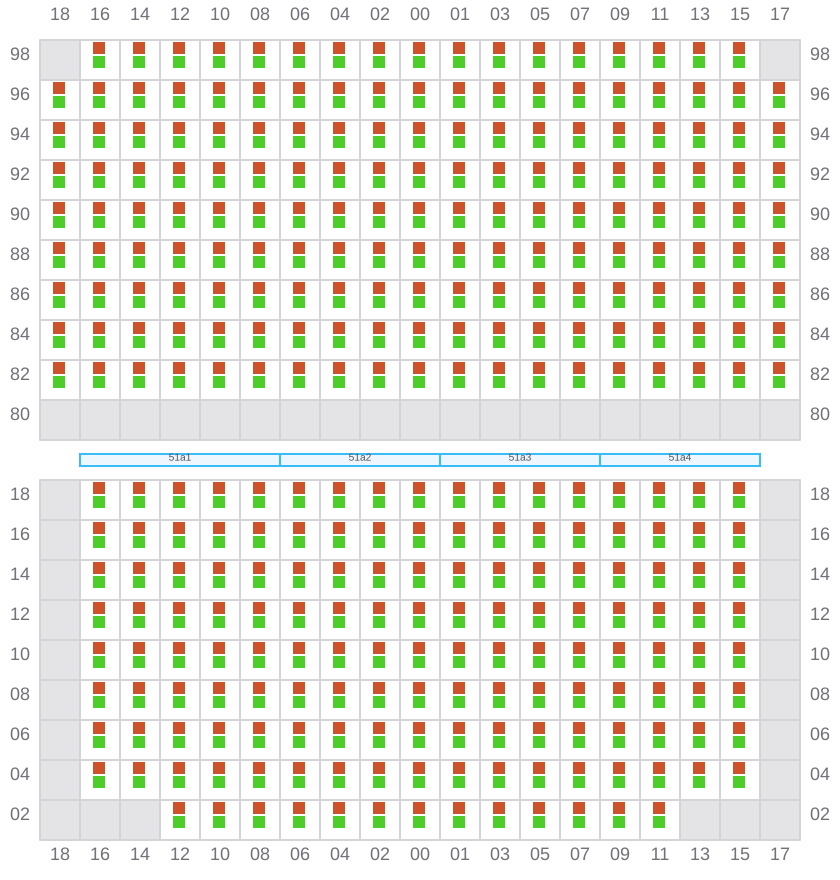

051 (050)

←

Bay 051 view and slots of CMA CGM THAMES

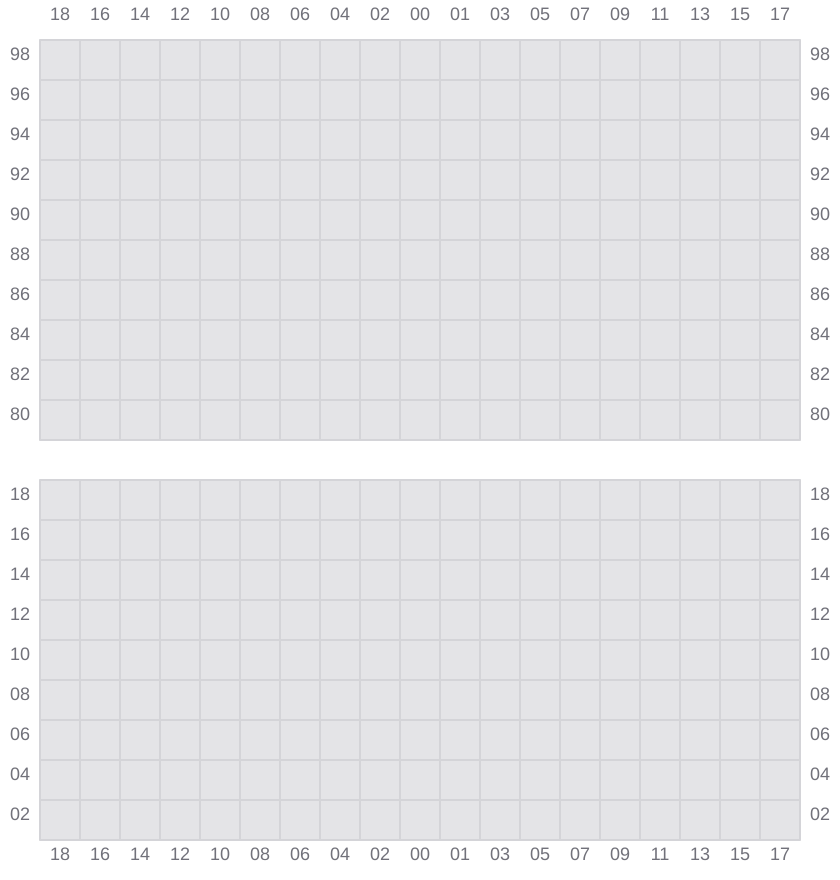

053

Bay 053 view and slots of CMA CGM THAMES

055 (054)

^← / _?

Bay 055 view and slots of CMA CGM THAMES

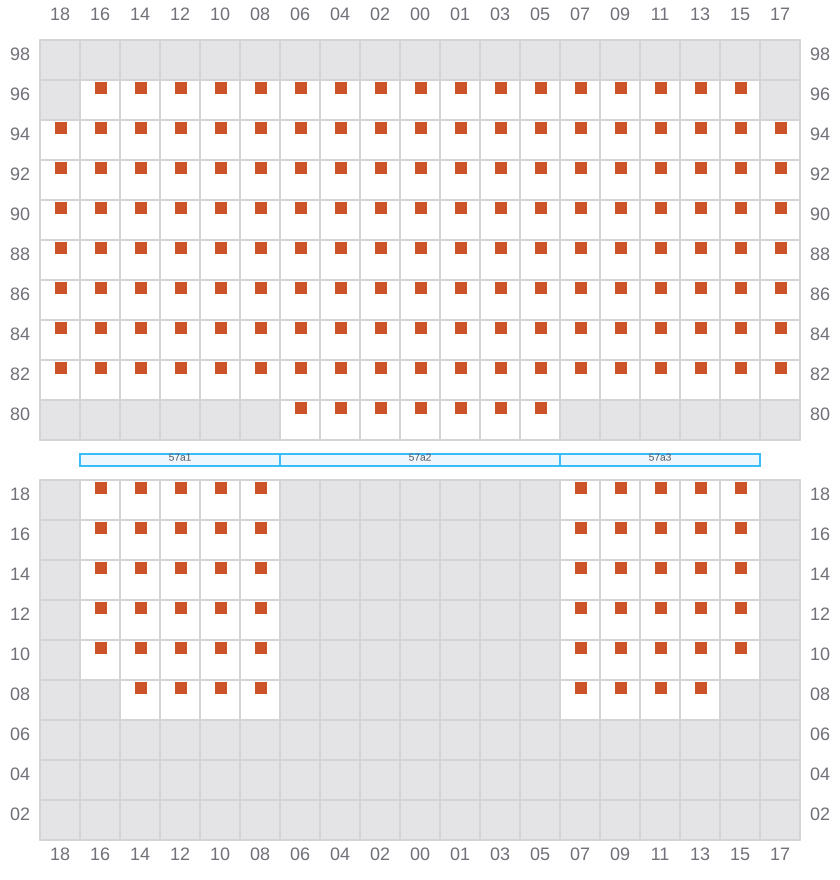

057

→

Bay 057 view and slots of CMA CGM THAMES

059 (058)

←

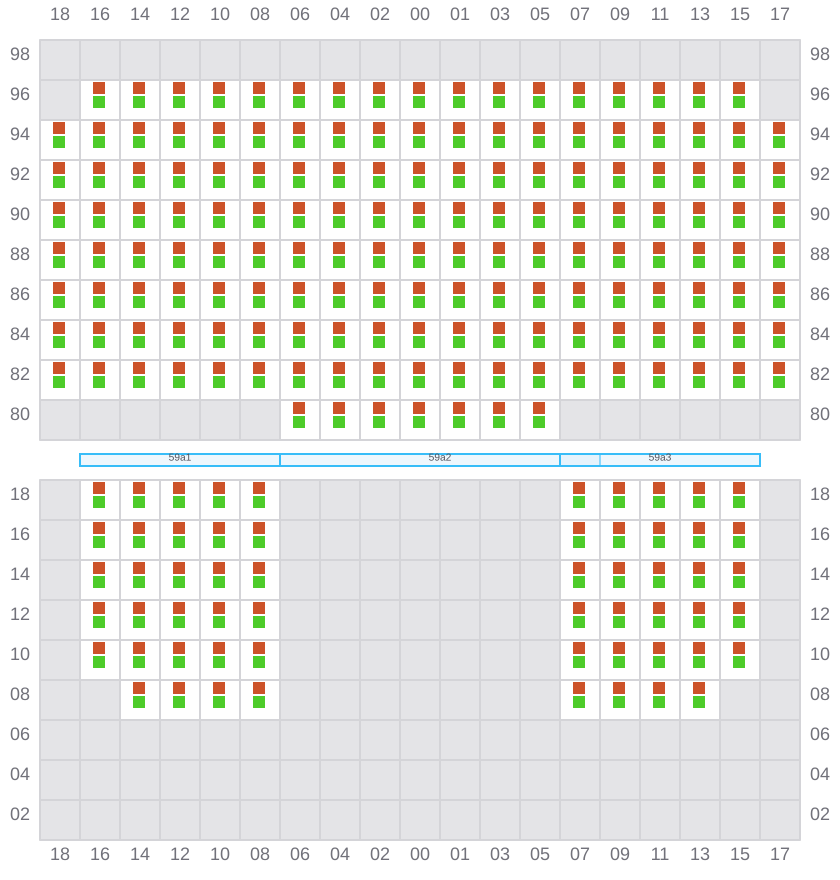

Bay 059 view and slots of CMA CGM THAMES

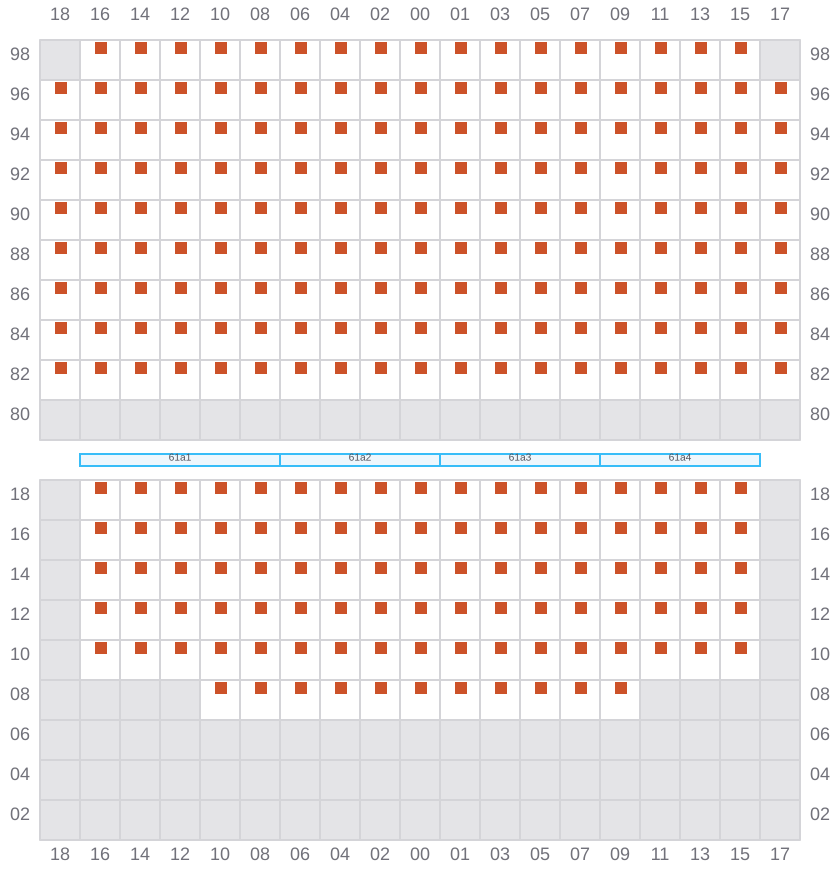

061

→

Bay 061 view and slots of CMA CGM THAMES

063 (062)

←

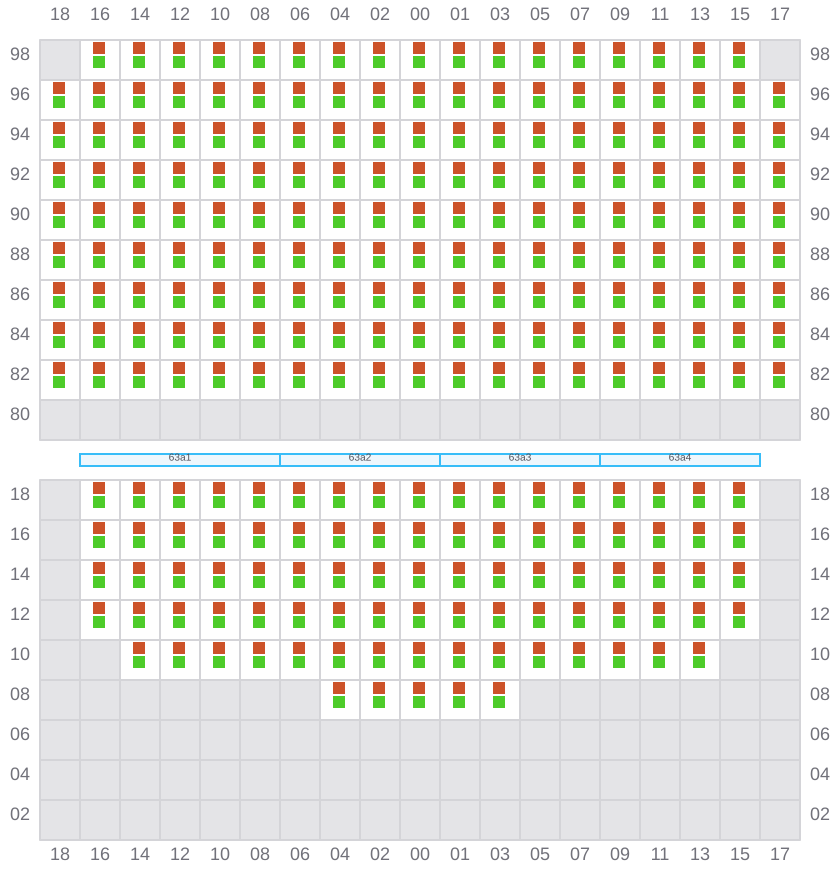

Bay 063 view and slots of CMA CGM THAMES

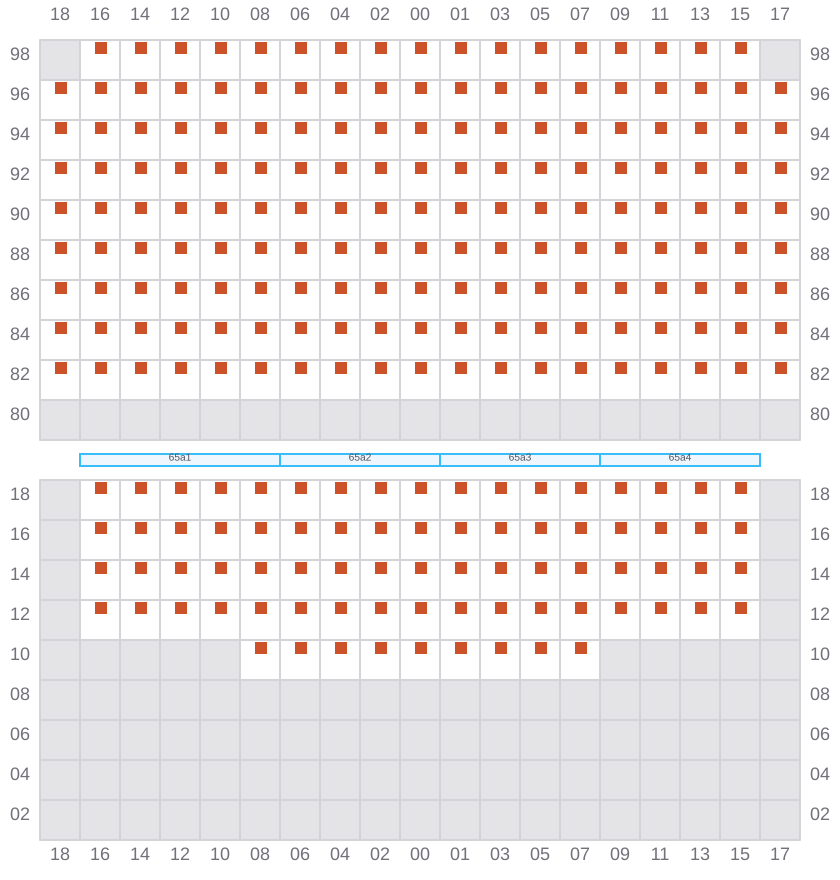

065

→

Bay 065 view and slots of CMA CGM THAMES

067 (066)

←

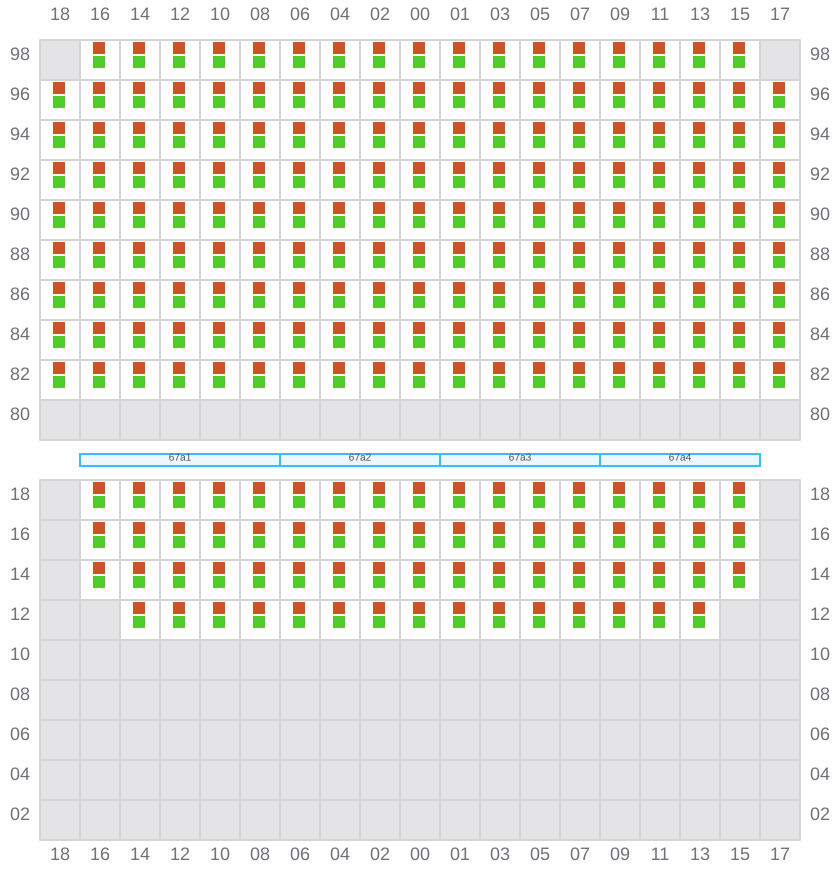

Bay 067 view and slots of CMA CGM THAMES

069

Bay 069 view and slots of CMA CGM THAMES

071 (070)

^← / _?

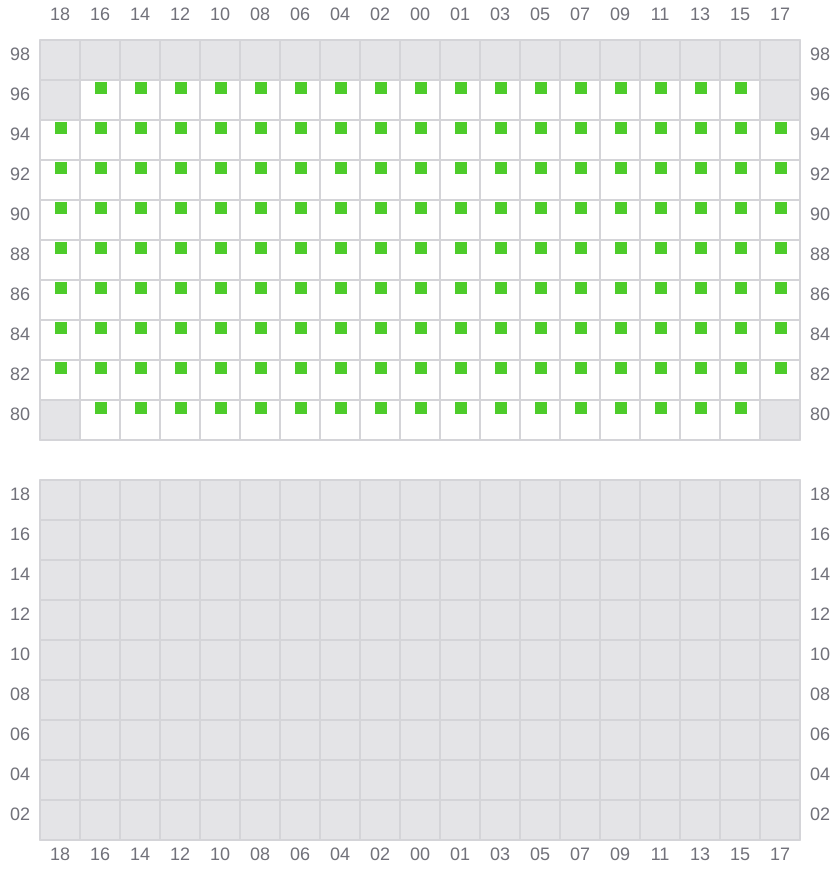

Bay 071 view and slots of CMA CGM THAMES
