CMA CGM TITAN
9399222 | 9HA2146 | 9399222 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:CMA CGM TITAN
IMO Code:9399222
Call Sign:9HA2146
Line Operator:9399222
Class Name for Sister Ships:CMA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:11,388

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

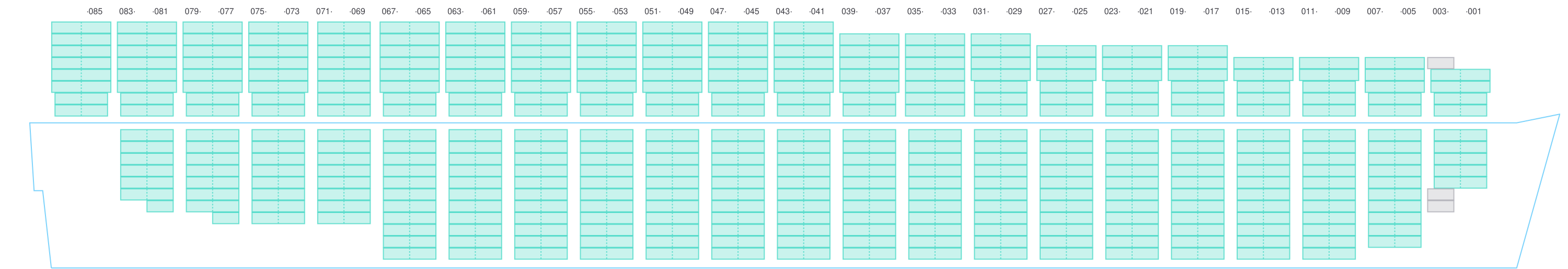

Side view of CMA CGM TITAN

Hatch-Covers View

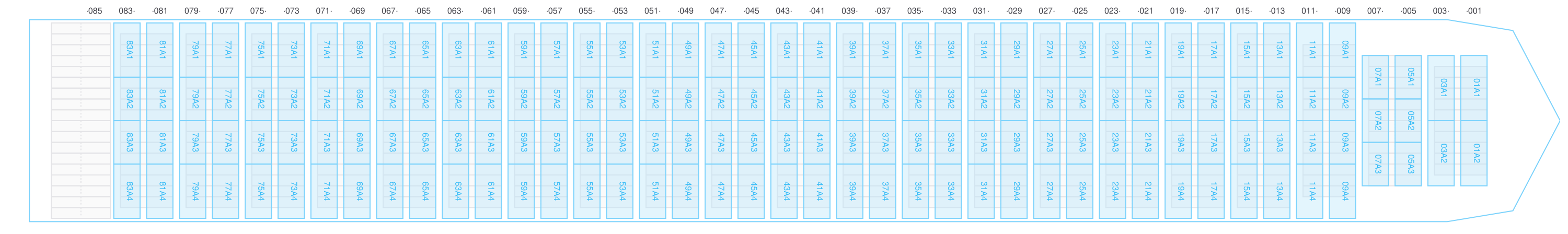

Deck view of CMA CGM TITAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

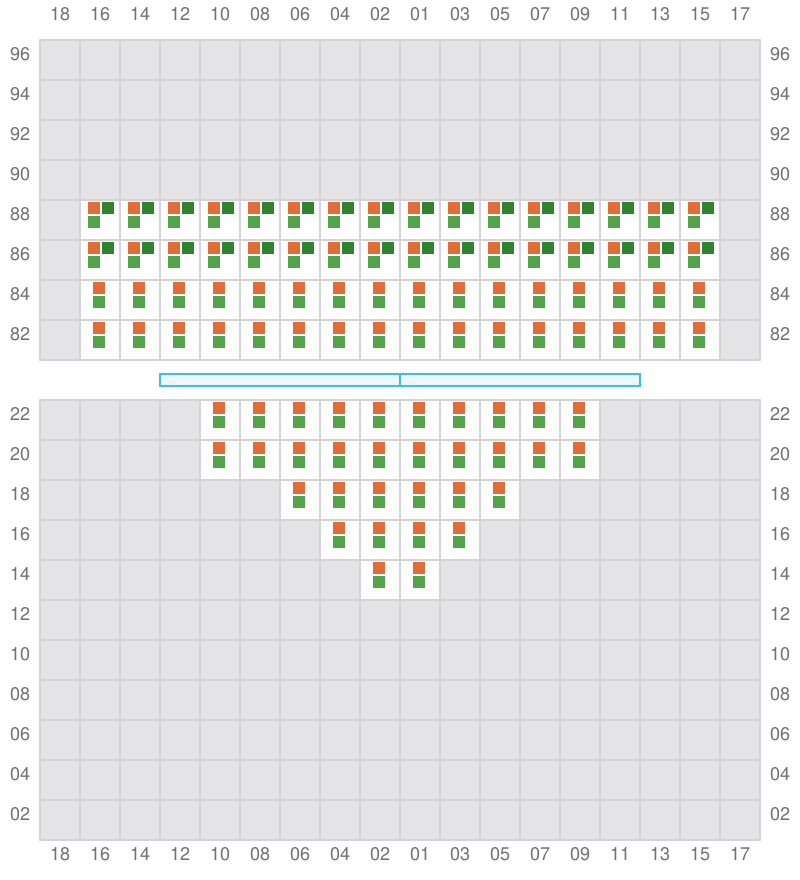

001 (002)

Bay 001 view and slots of CMA CGM TITAN

003

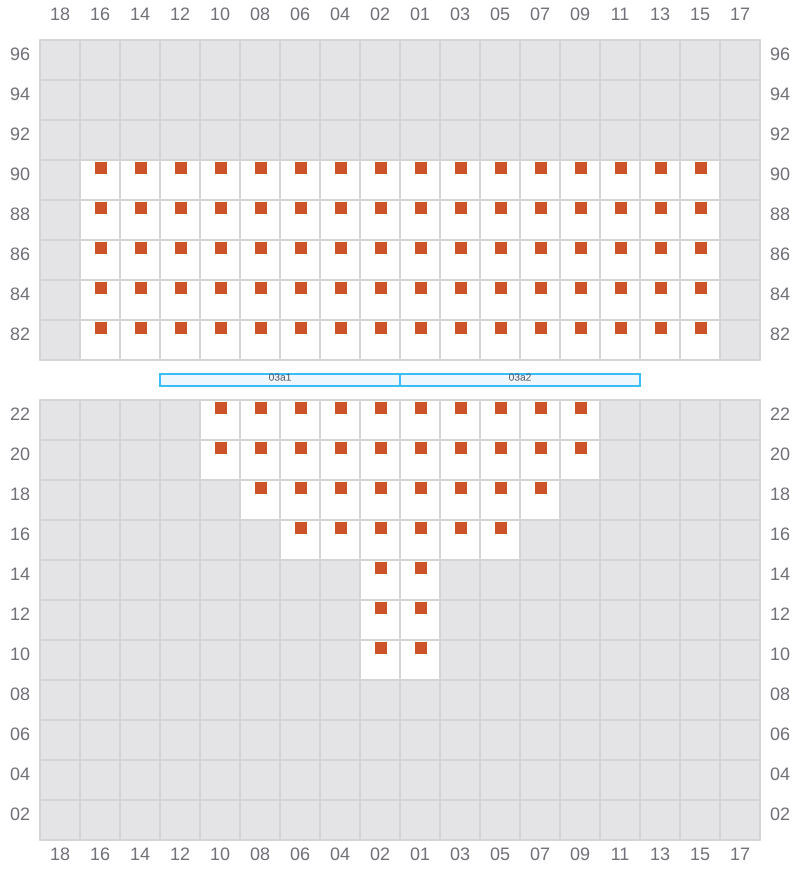

Bay 003 view and slots of CMA CGM TITAN

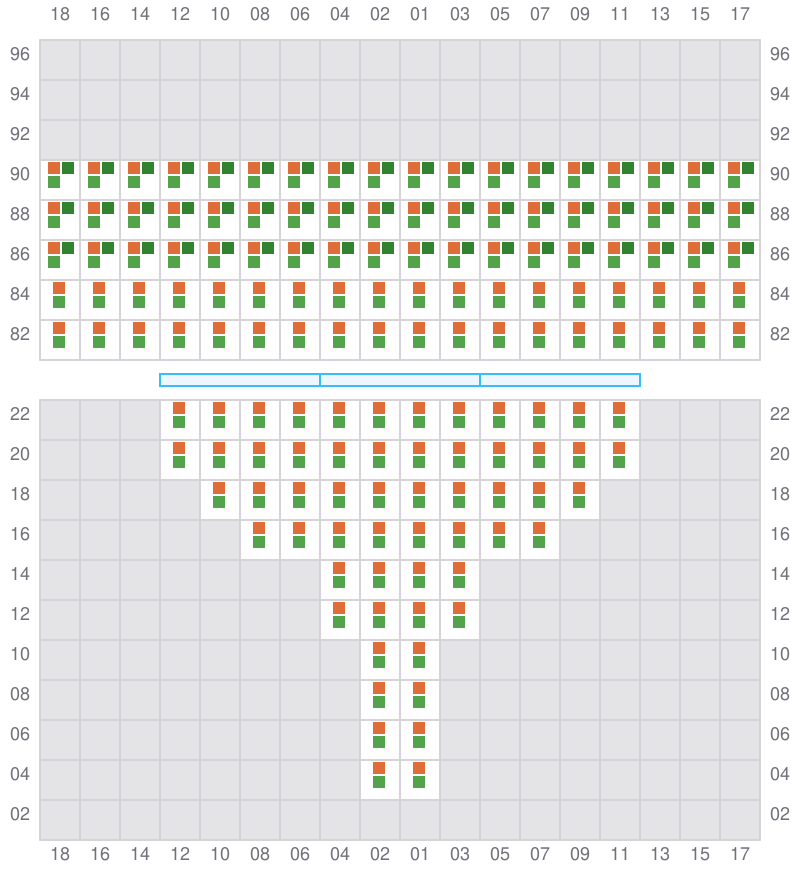

005 (006)

Bay 005 view and slots of CMA CGM TITAN

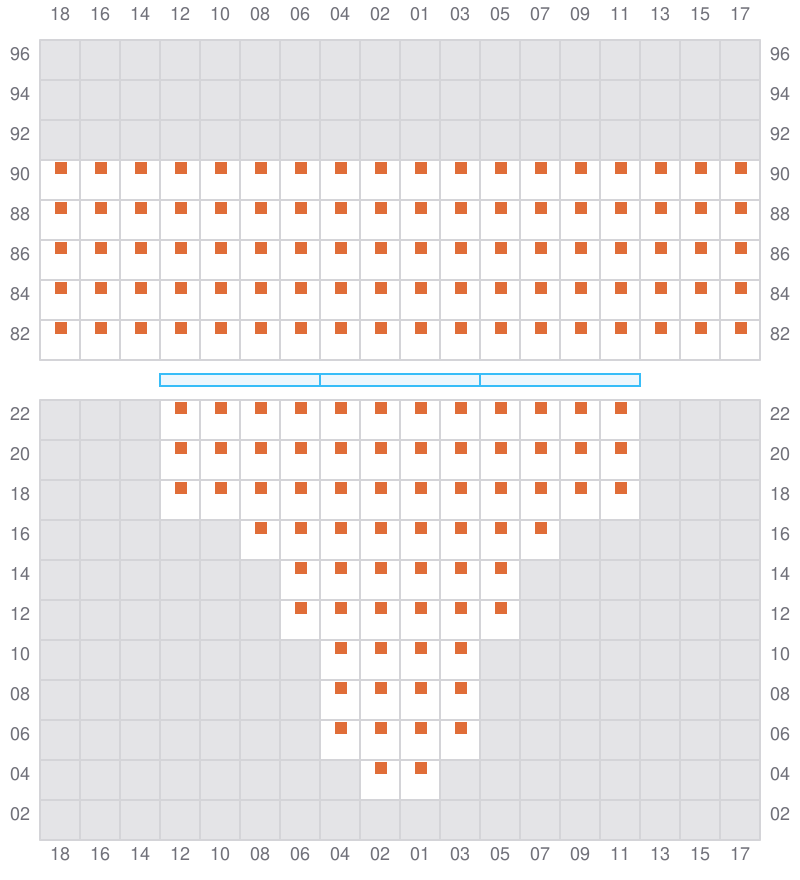

007

Bay 007 view and slots of CMA CGM TITAN

009 (010)

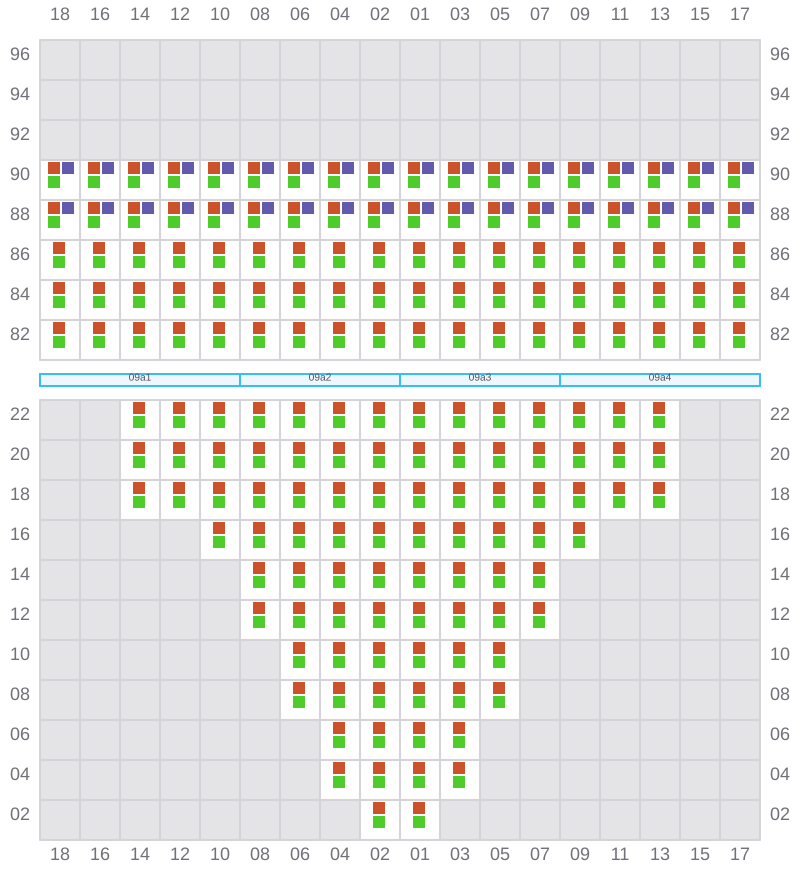

Bay 009 view and slots of CMA CGM TITAN

011

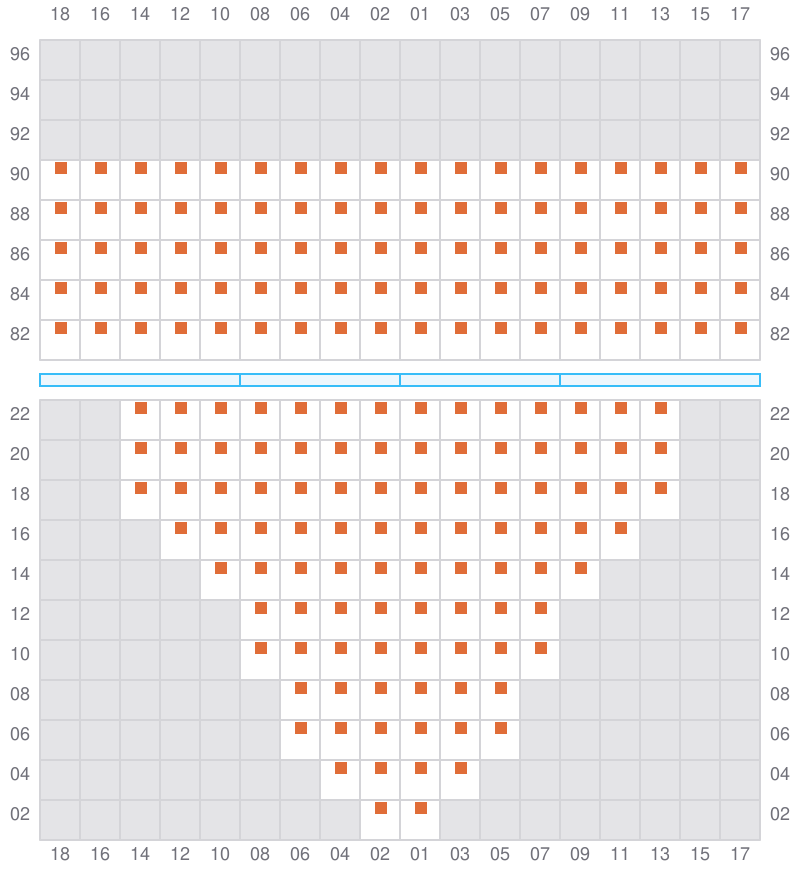

Bay 011 view and slots of CMA CGM TITAN

013 (014)

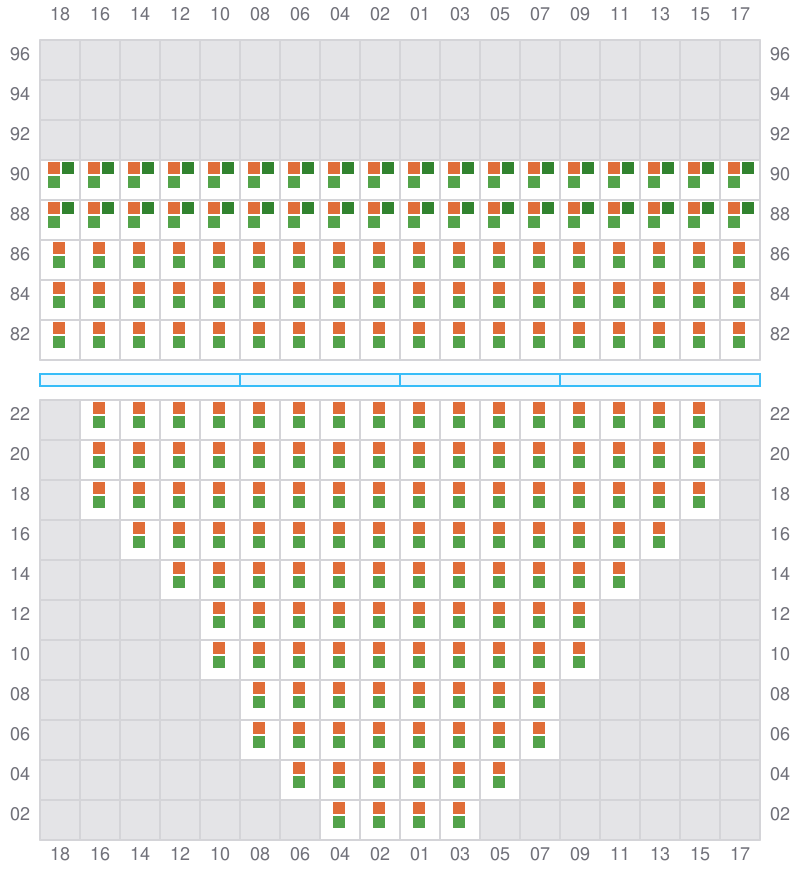

Bay 013 view and slots of CMA CGM TITAN

015

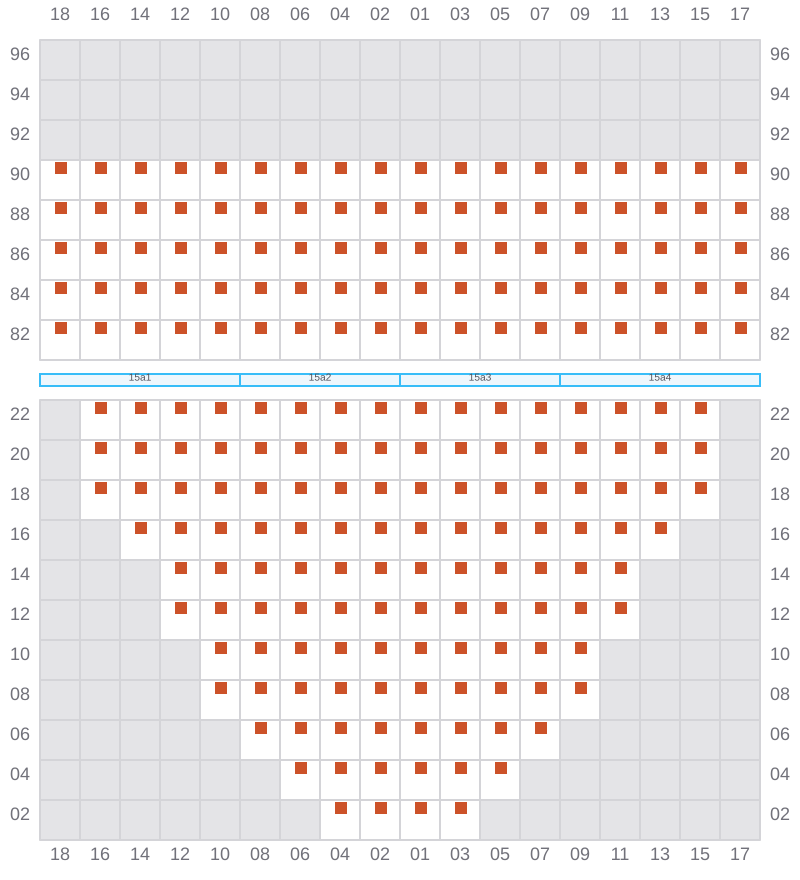

Bay 015 view and slots of CMA CGM TITAN

017 (018)

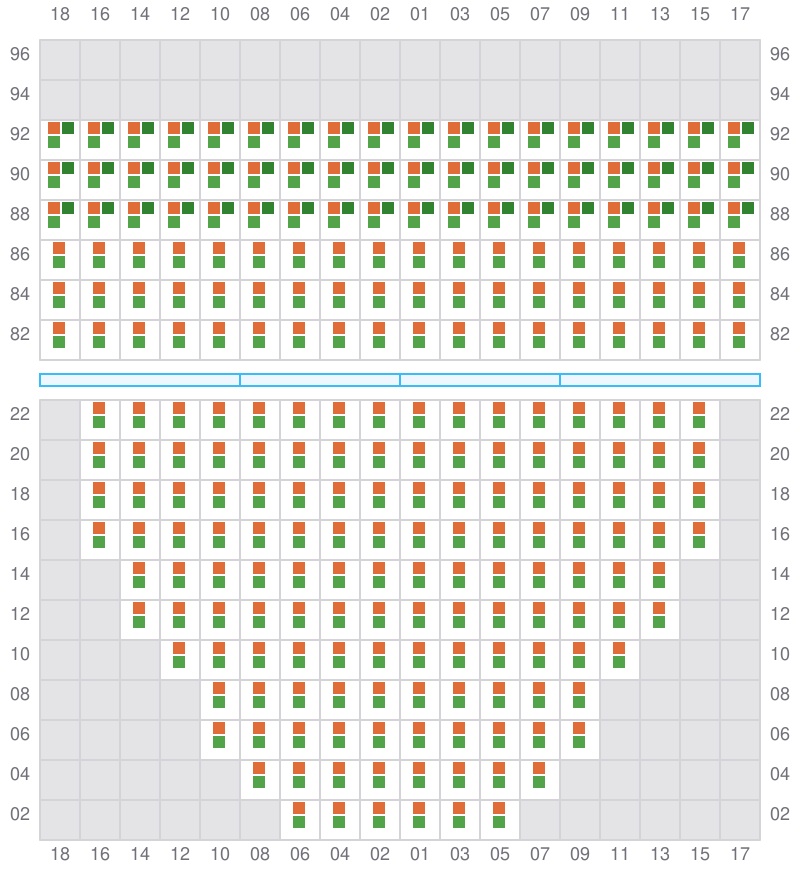

Bay 017 view and slots of CMA CGM TITAN

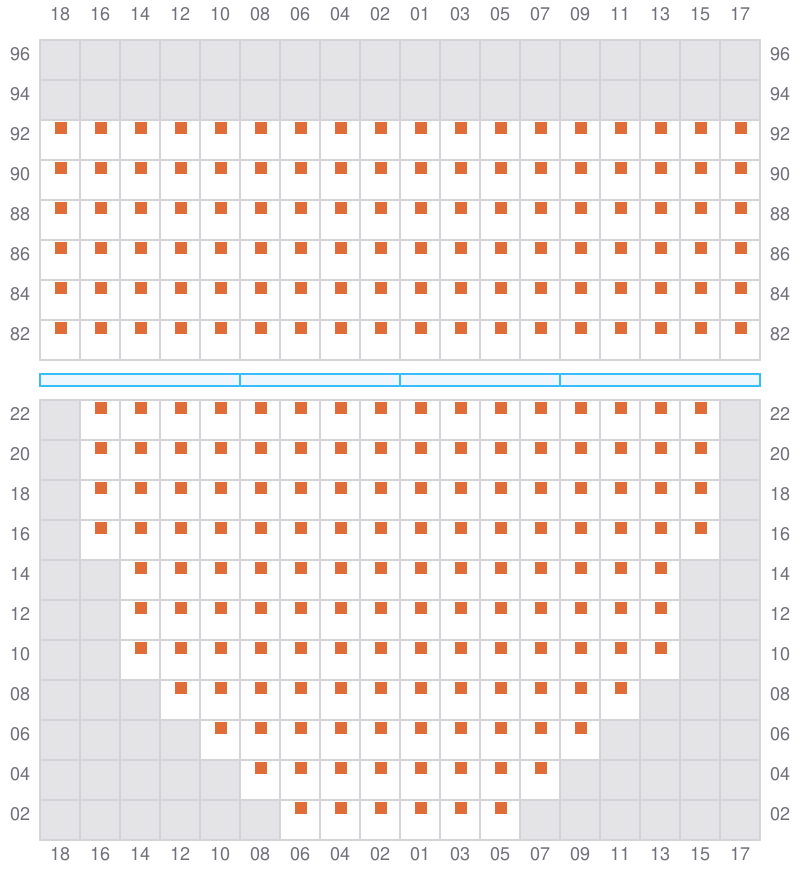

019

Bay 019 view and slots of CMA CGM TITAN

021 (022)

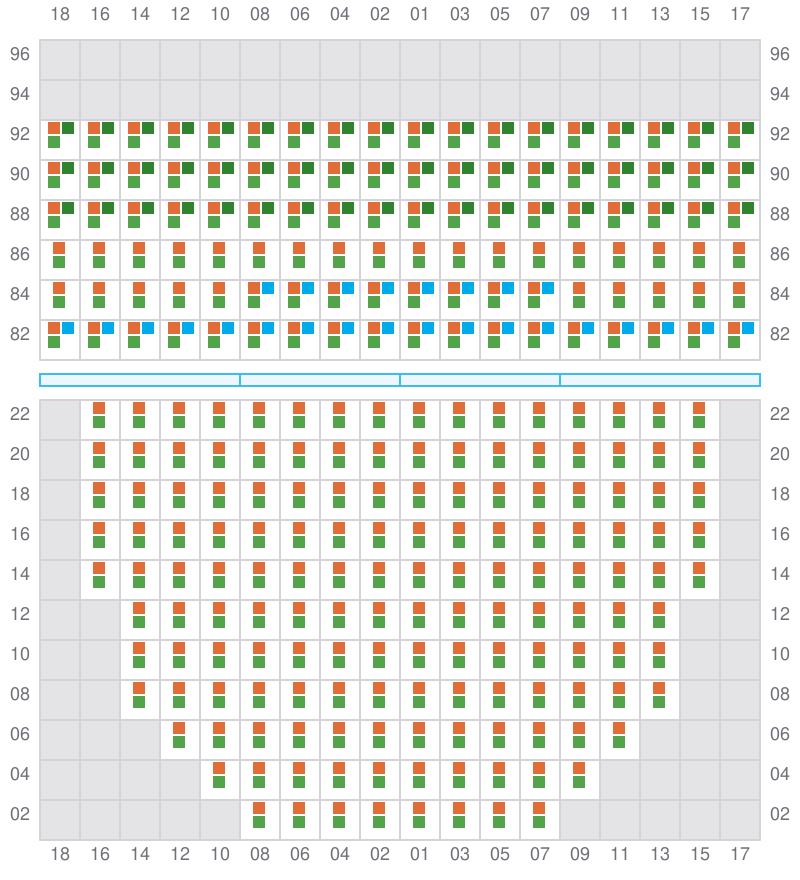

Bay 021 view and slots of CMA CGM TITAN

023

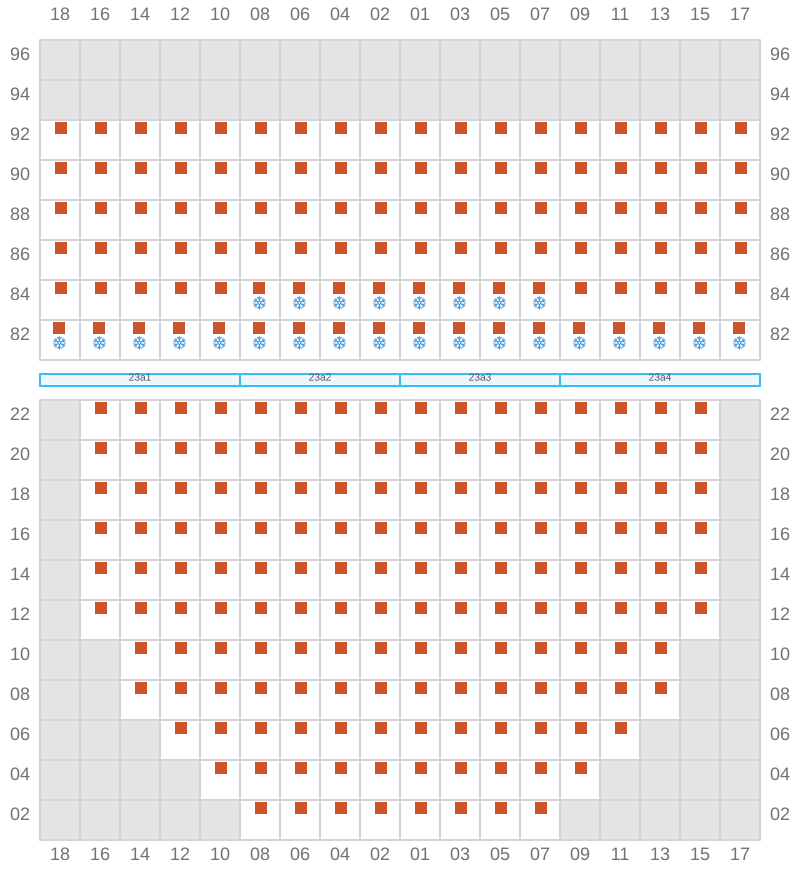

Bay 023 view and slots of CMA CGM TITAN

025 (026)

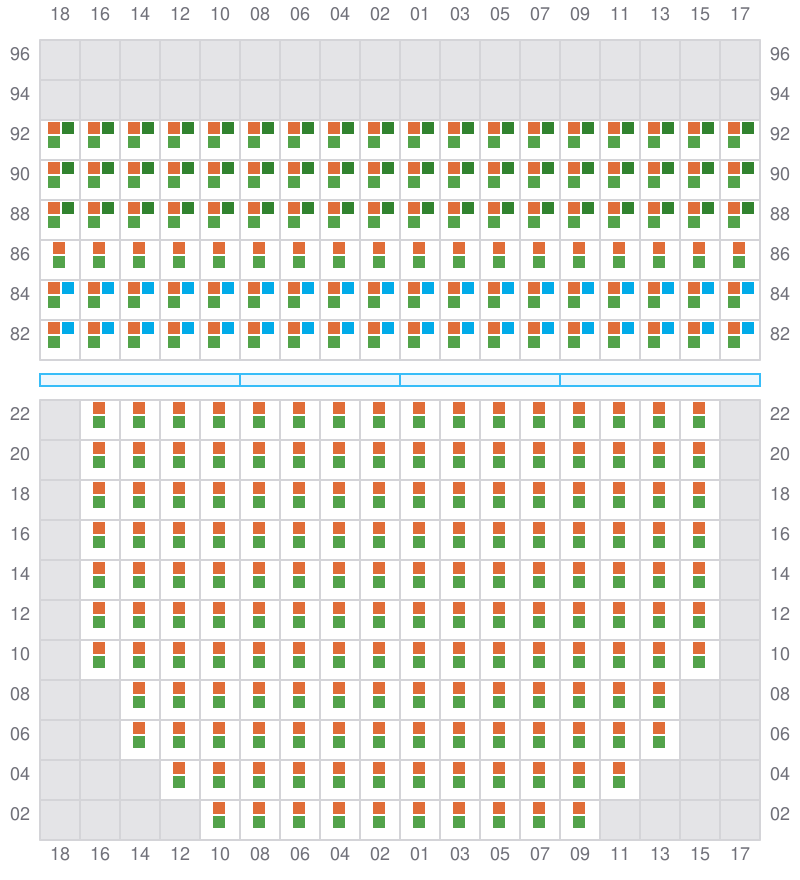

Bay 025 view and slots of CMA CGM TITAN

027

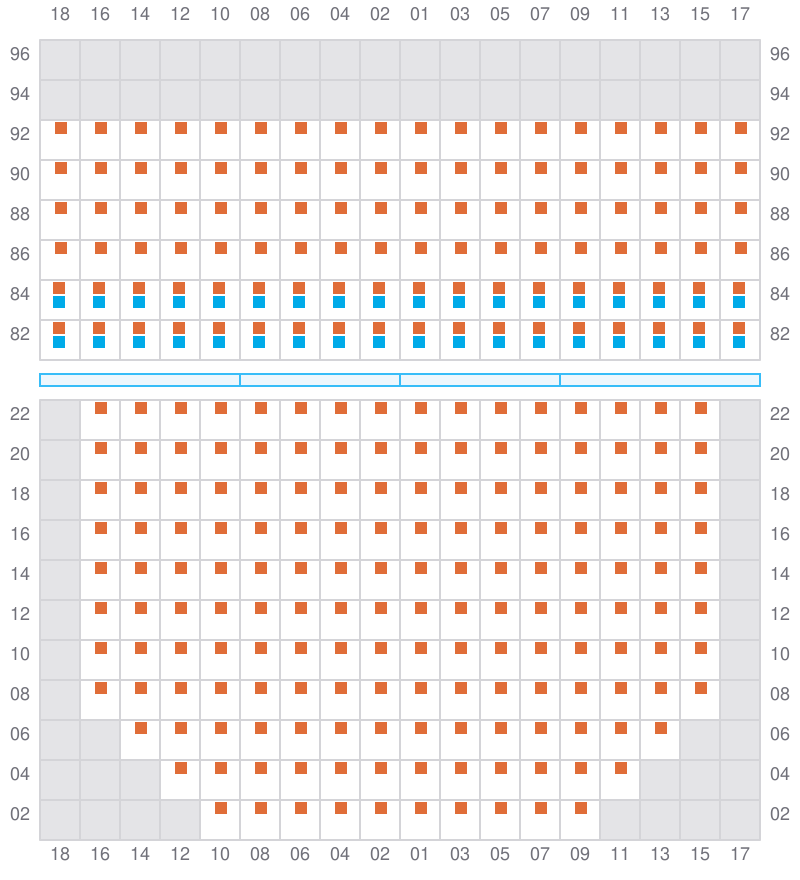

Bay 027 view and slots of CMA CGM TITAN

029 (030)

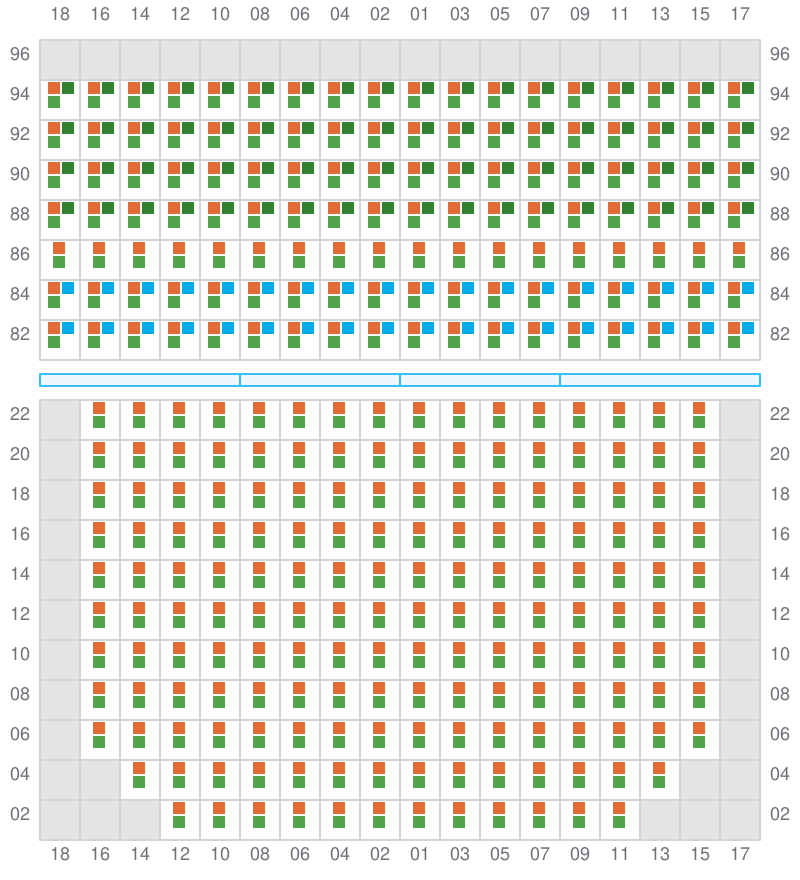

Bay 029 view and slots of CMA CGM TITAN

031

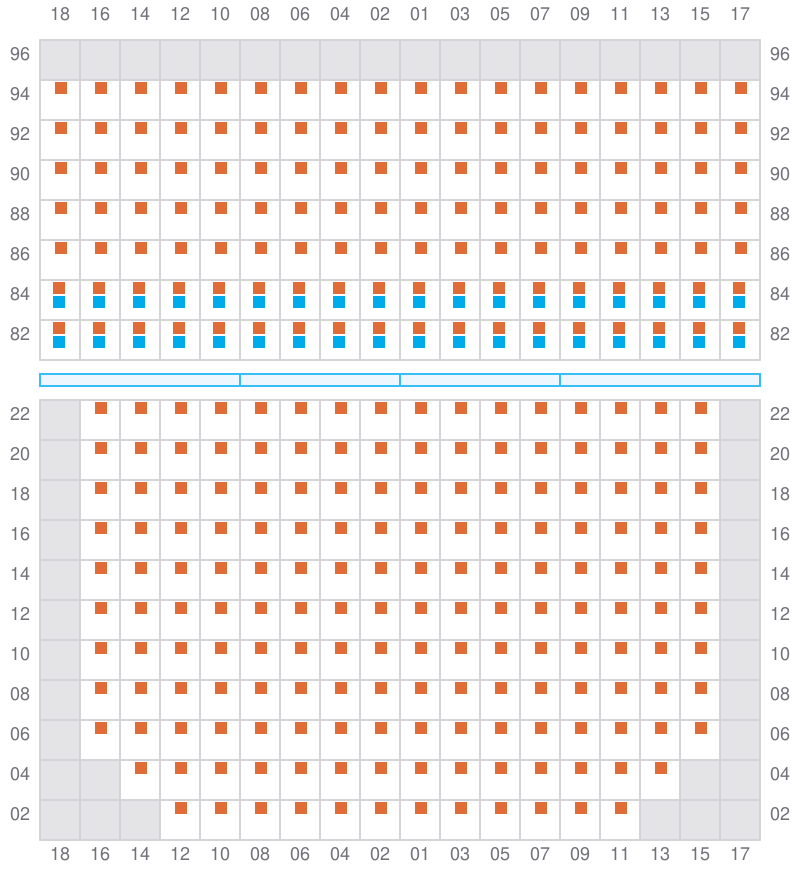

Bay 031 view and slots of CMA CGM TITAN

033 (034)

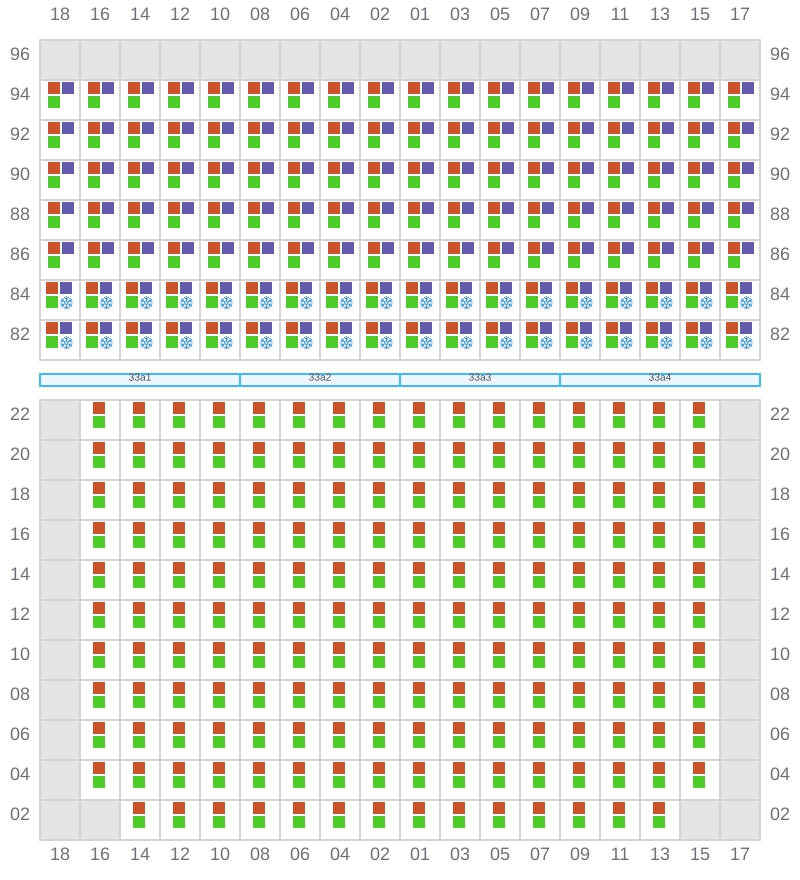

Bay 033 view and slots of CMA CGM TITAN

035

Bay 035 view and slots of CMA CGM TITAN

037 (038)

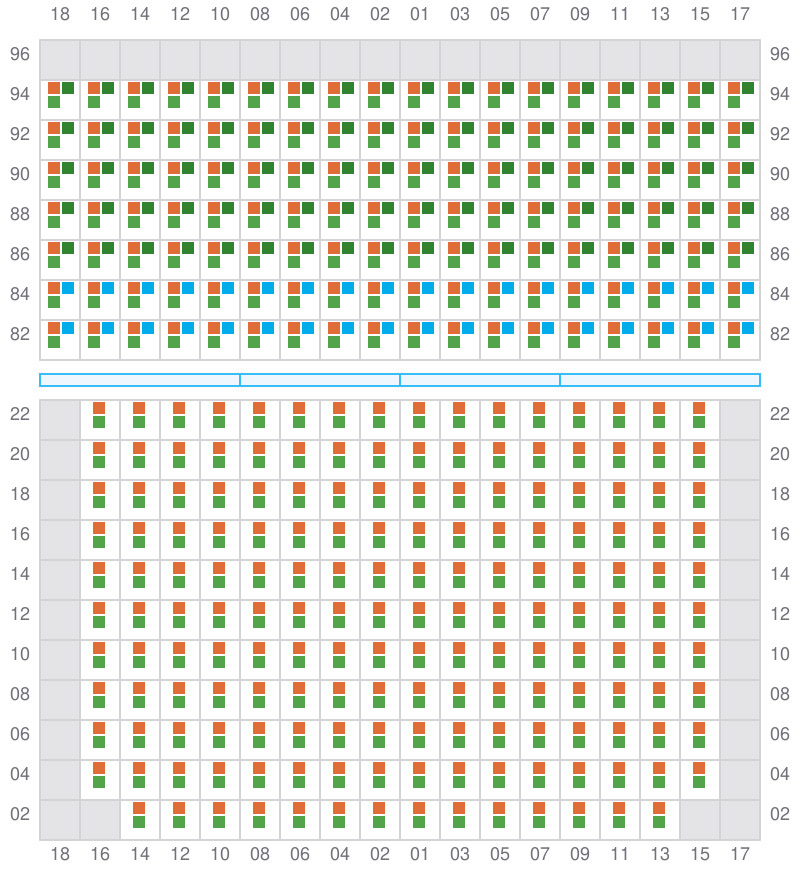

Bay 037 view and slots of CMA CGM TITAN

039

Bay 039 view and slots of CMA CGM TITAN

041 (042)

Bay 041 view and slots of CMA CGM TITAN

043

Bay 043 view and slots of CMA CGM TITAN

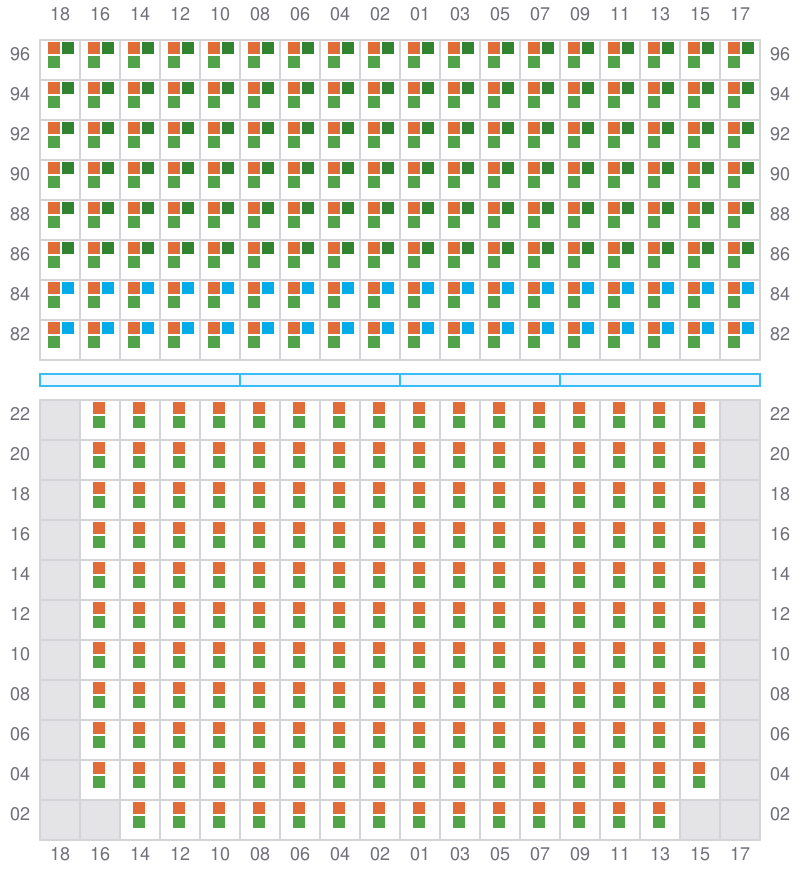

045 (046)

Bay 045 view and slots of CMA CGM TITAN

047

Bay 047 view and slots of CMA CGM TITAN

049 (050)

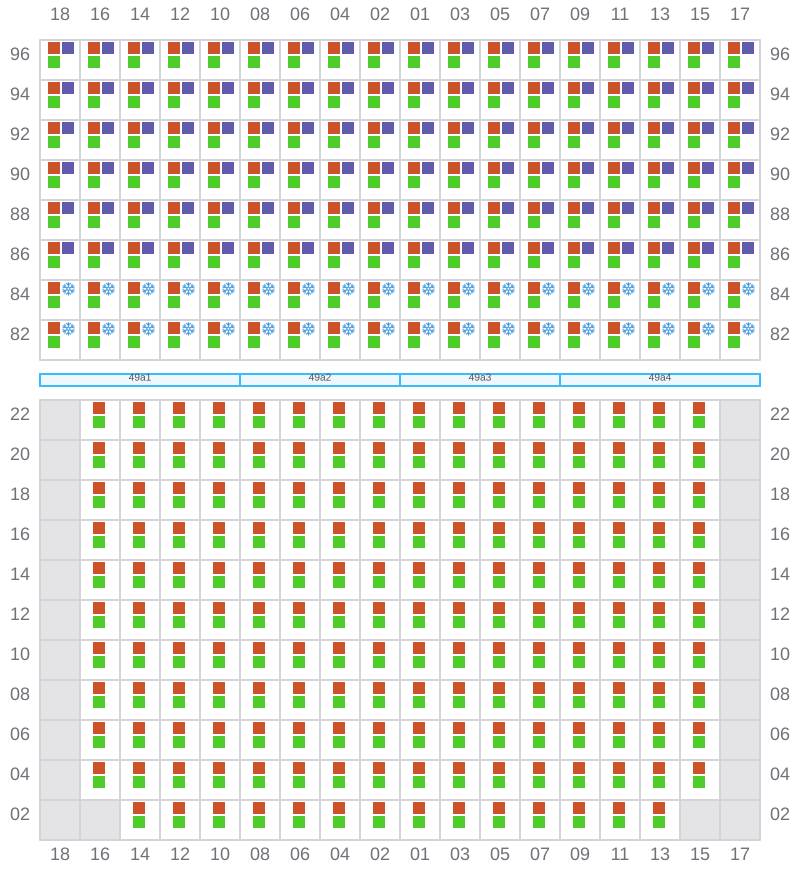

Bay 049 view and slots of CMA CGM TITAN

051

Bay 051 view and slots of CMA CGM TITAN

053 (054)

Bay 053 view and slots of CMA CGM TITAN

055

Bay 055 view and slots of CMA CGM TITAN

057 (058)

Bay 057 view and slots of CMA CGM TITAN

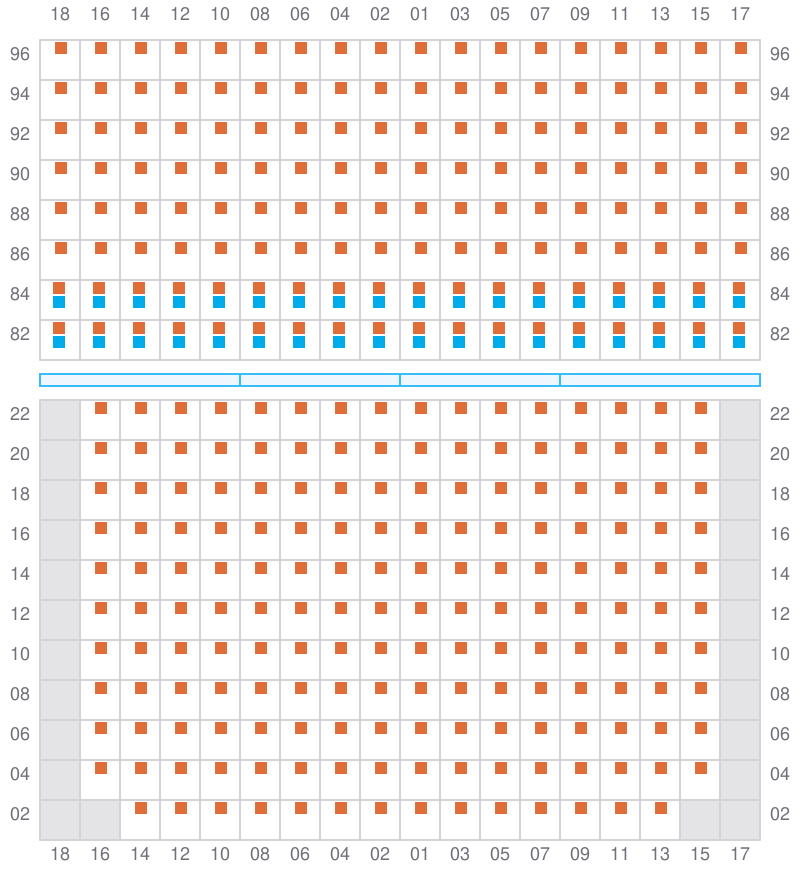

059

Bay 059 view and slots of CMA CGM TITAN

061 (062)

Bay 061 view and slots of CMA CGM TITAN

063

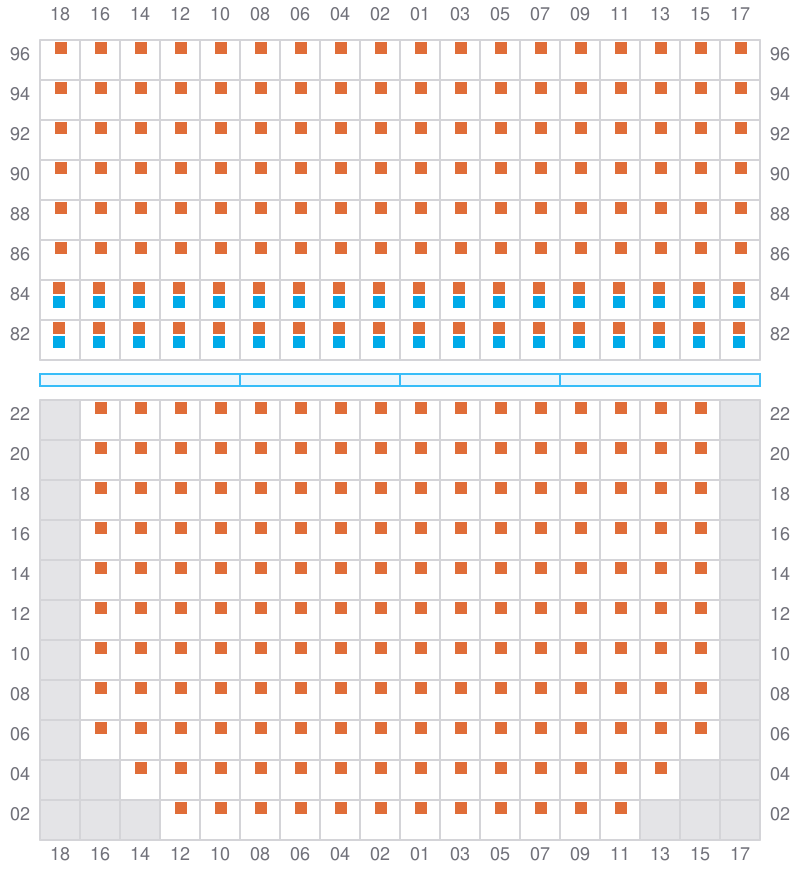

Bay 063 view and slots of CMA CGM TITAN

065 (066)

Bay 065 view and slots of CMA CGM TITAN

067

Bay 067 view and slots of CMA CGM TITAN

069 (070)

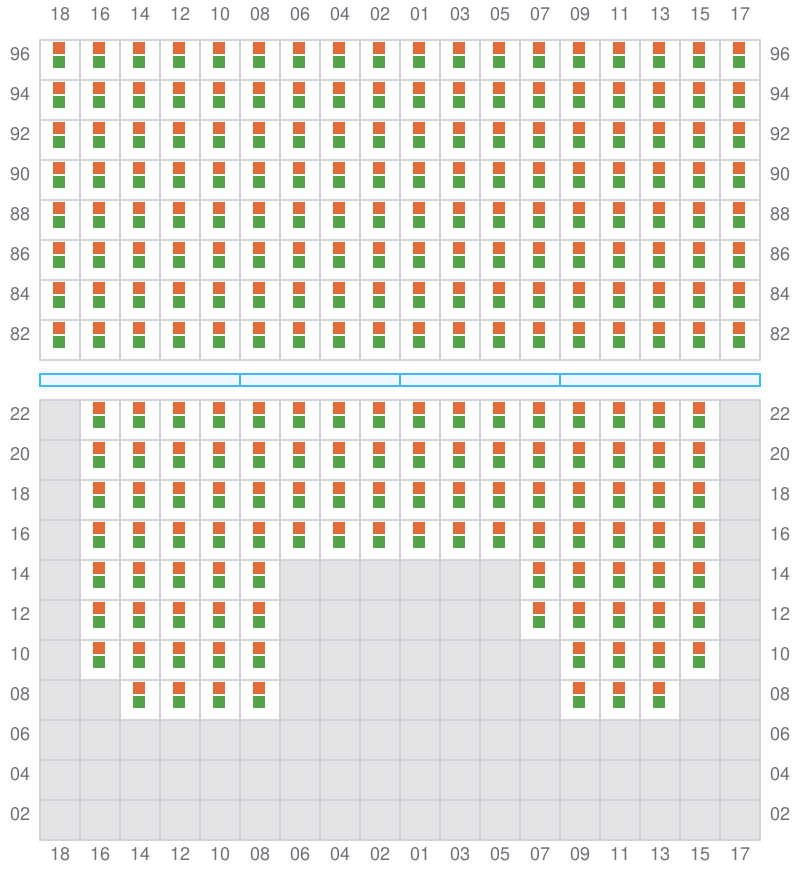

Bay 069 view and slots of CMA CGM TITAN

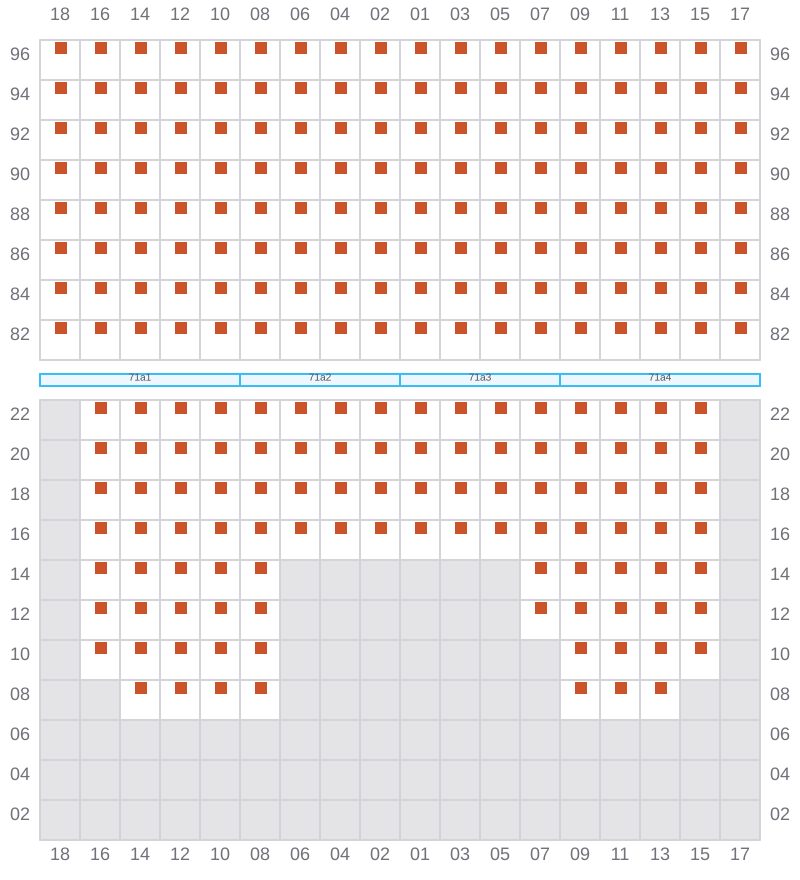

071

Bay 071 view and slots of CMA CGM TITAN

073 (074)

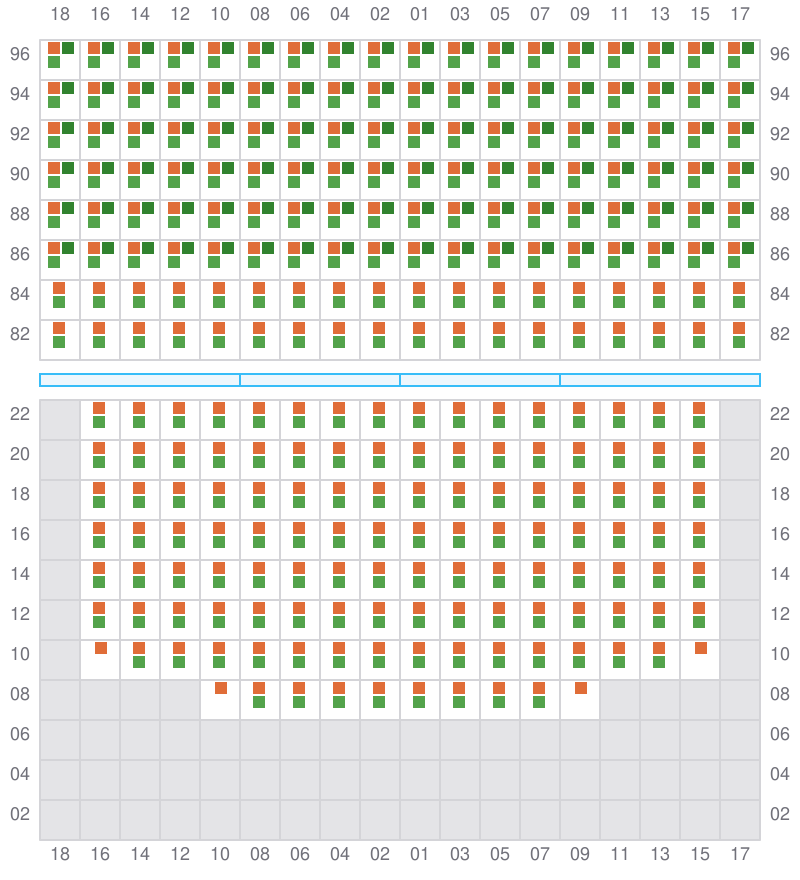

Bay 073 view and slots of CMA CGM TITAN

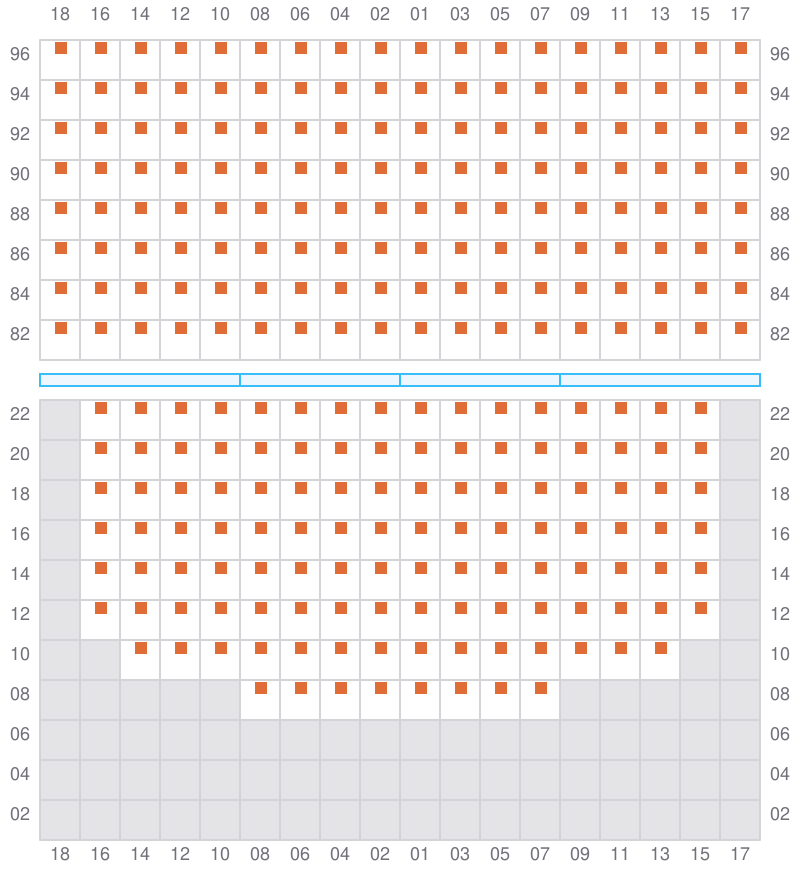

075

Bay 075 view and slots of CMA CGM TITAN

077 (078)

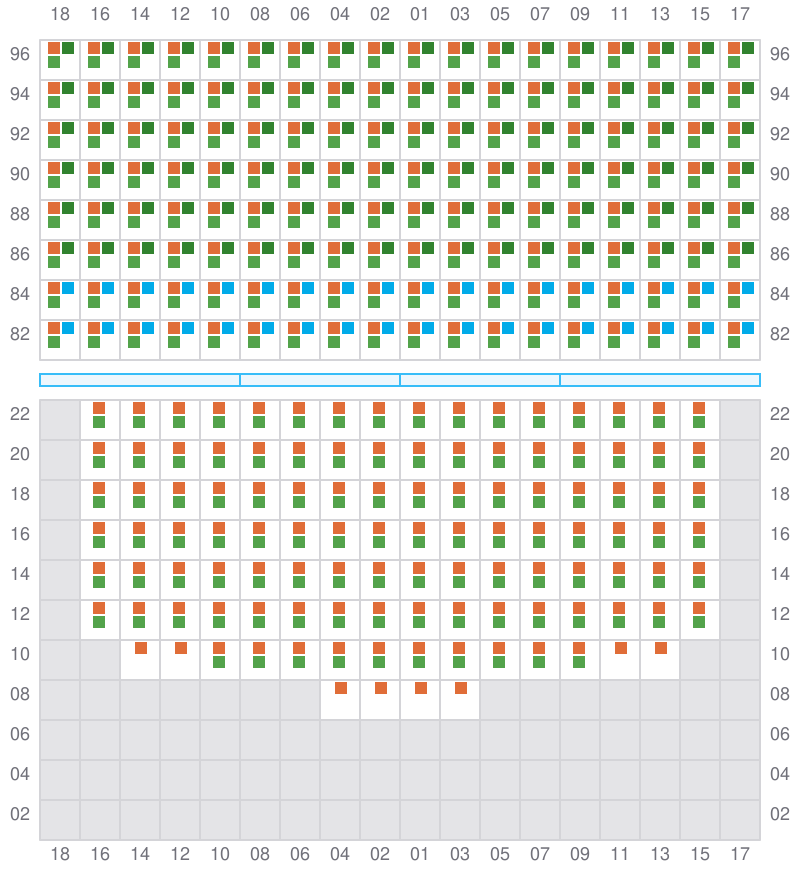

Bay 077 view and slots of CMA CGM TITAN

079

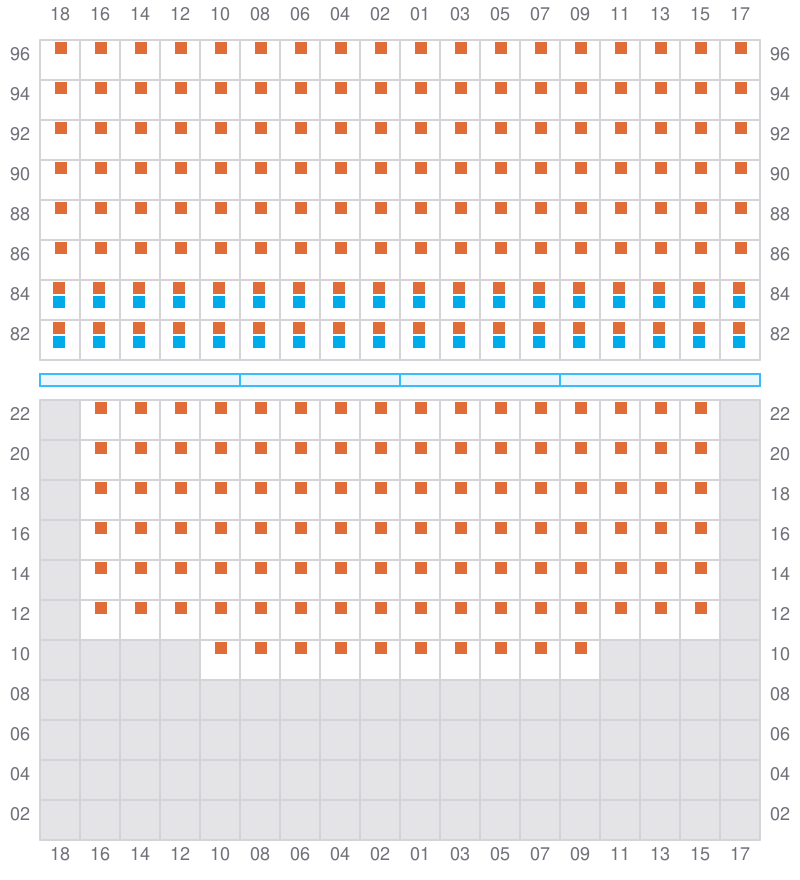

Bay 079 view and slots of CMA CGM TITAN

081 (082)

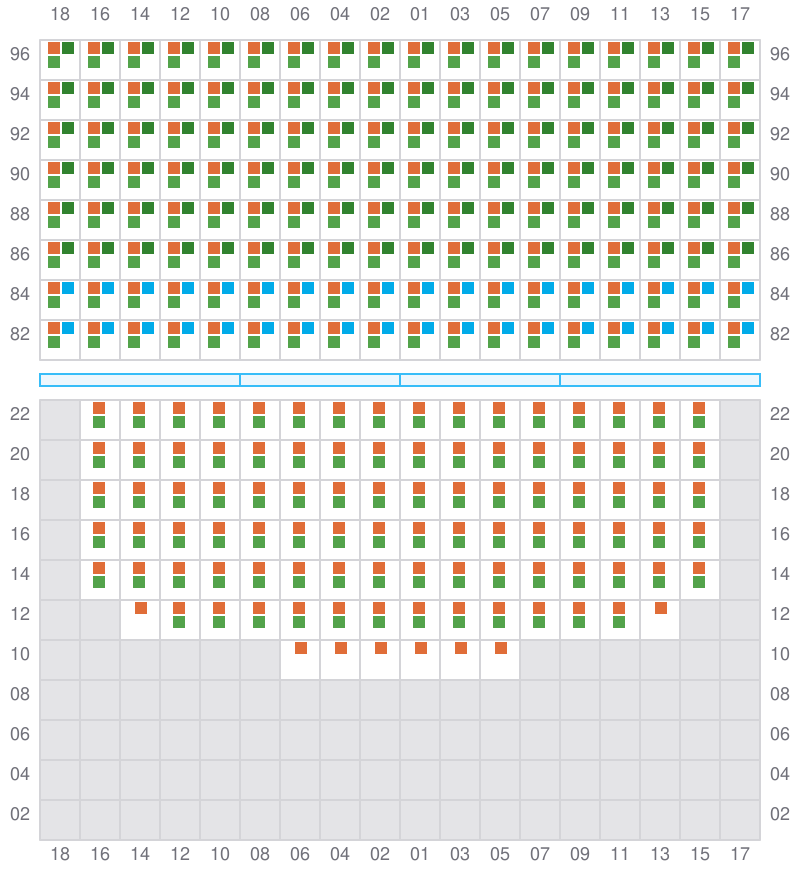

Bay 081 view and slots of CMA CGM TITAN

083

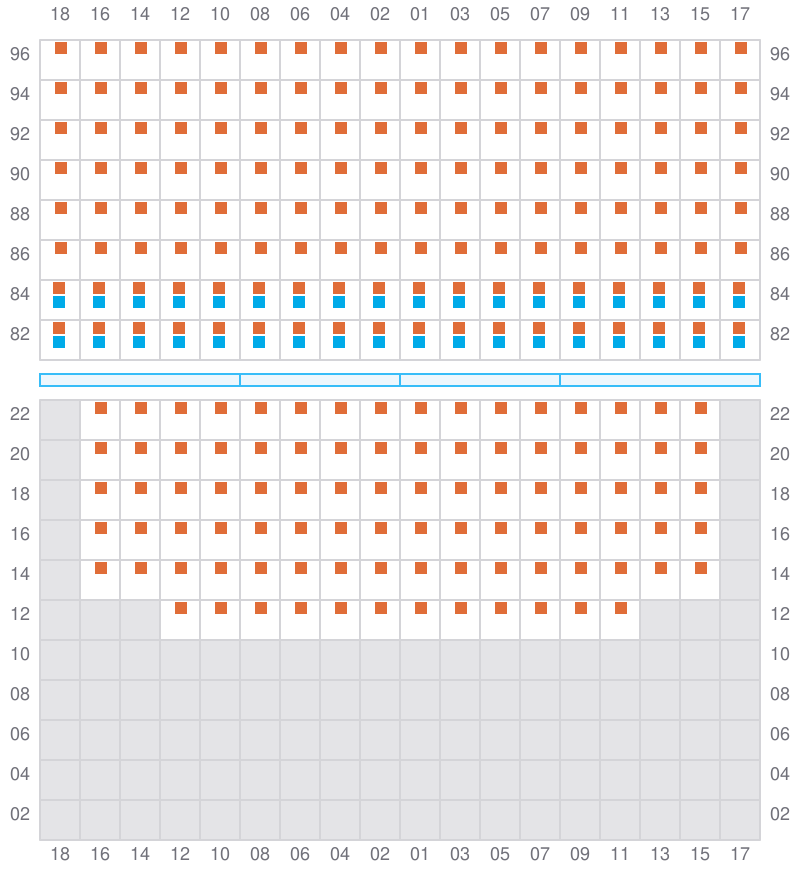

Bay 083 view and slots of CMA CGM TITAN

085 (086)

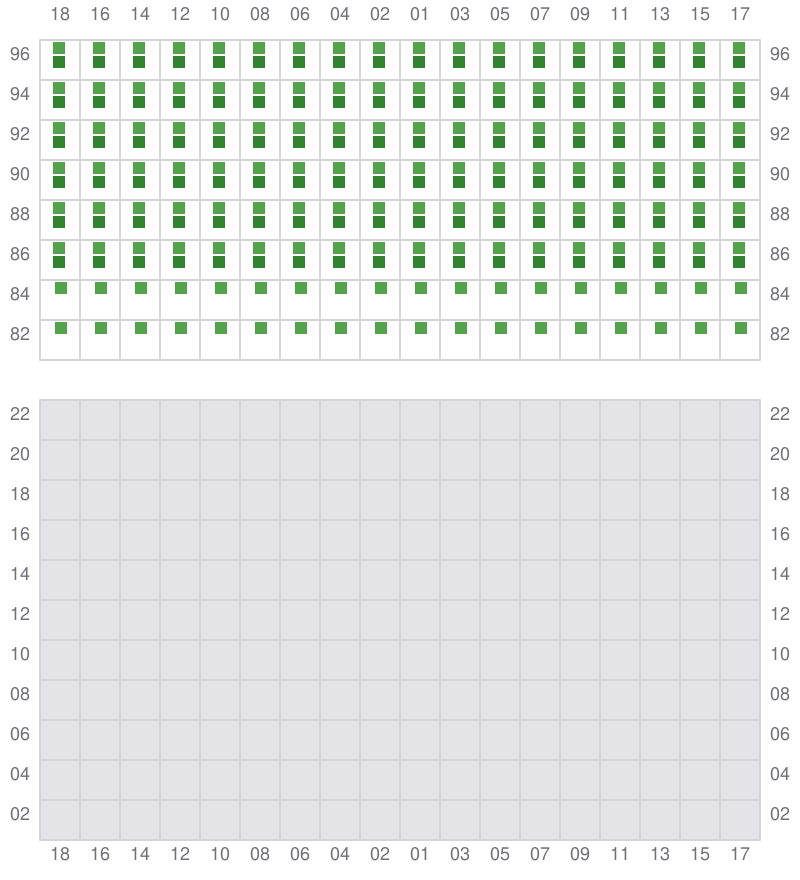

Bay 085 view and slots of CMA CGM TITAN
