CMA CGM TITUS
9450636 | FLVP | CMA by *********************** Last update: Thu Jan 30 2025

General Info

Ship Name:CMA CGM TITUS
IMO Code:9450636
Call Sign:FLVP
Line Operator:CMA
Class Name for Sister Ships:CGTT
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,435

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CMA CGM TITUS

Hatch-Covers View

Deck view of CMA CGM TITUS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM TITUS

003

  • ←
  • →
Bay 003 view and slots of CMA CGM TITUS

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of CMA CGM TITUS

007

  • ←
  • →
Bay 007 view and slots of CMA CGM TITUS

009 (010)

  • →
  • → / ?
  • →

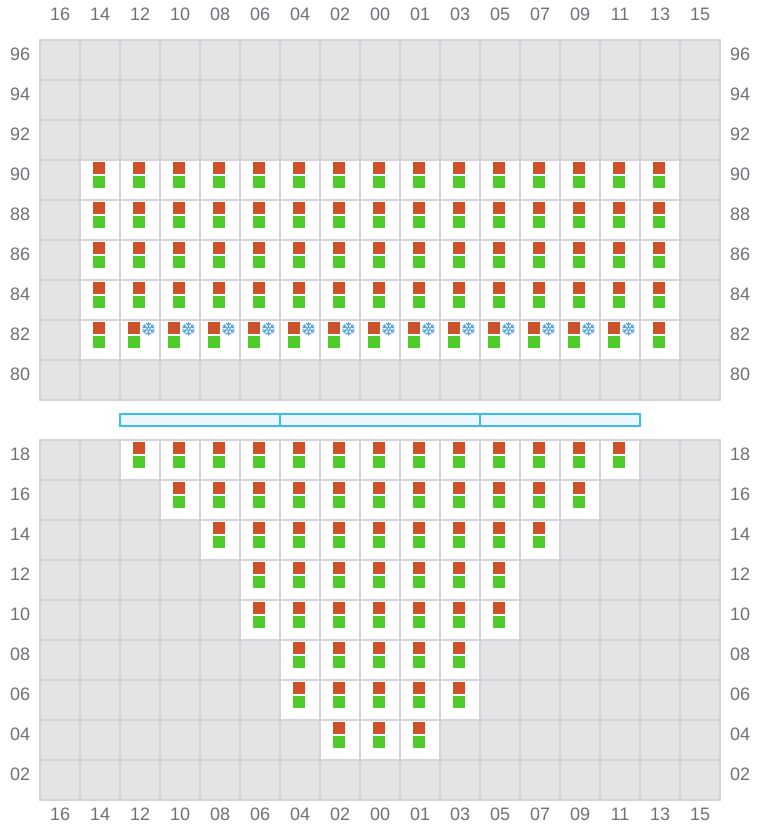

Bay 009 view and slots of CMA CGM TITUS

011

  • ←
  • →

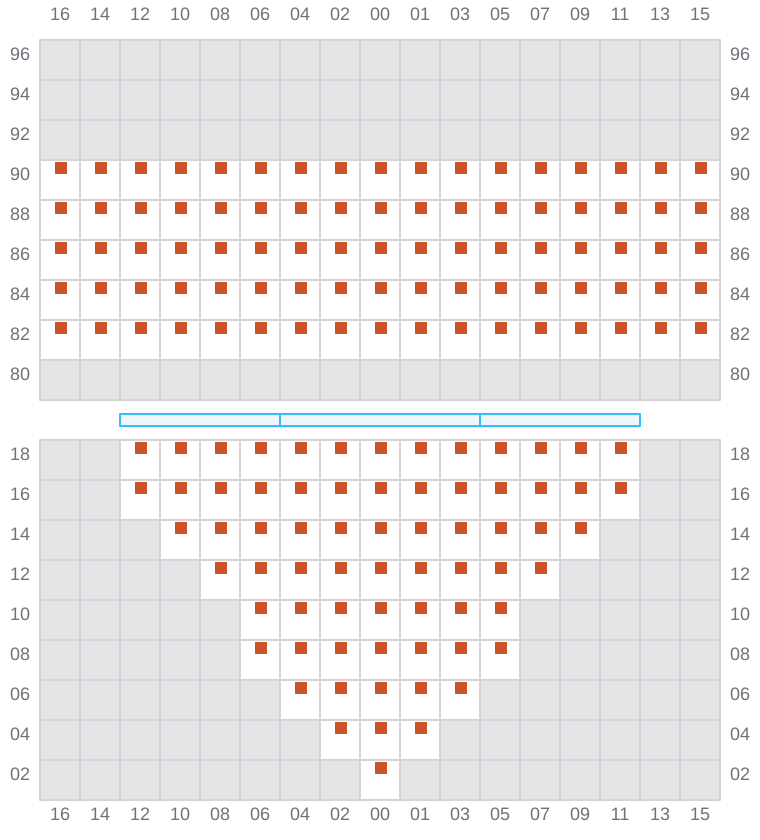

Bay 011 view and slots of CMA CGM TITUS

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of CMA CGM TITUS

015

  • ←
  • →

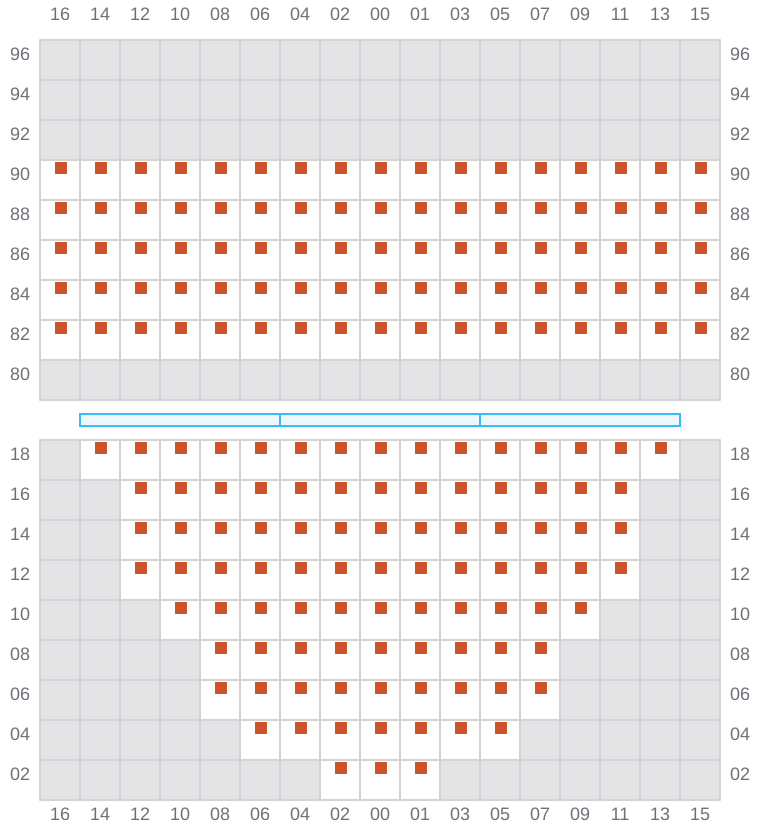

Bay 015 view and slots of CMA CGM TITUS

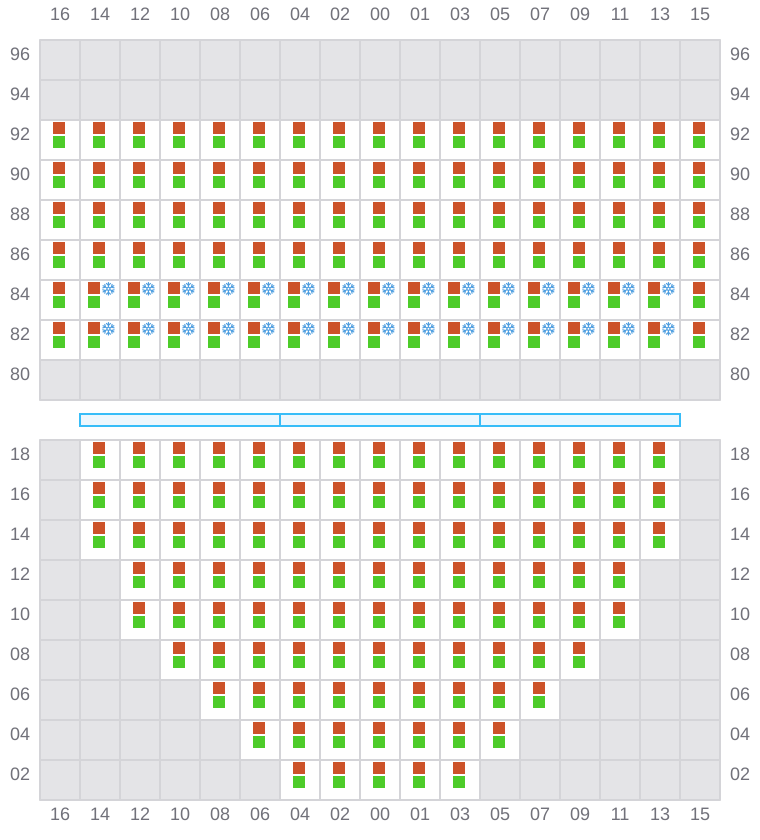

017 (018)

  • →
  • → / ?
  • → / ?
Bay 017 view and slots of CMA CGM TITUS

019

  • ←
  • →

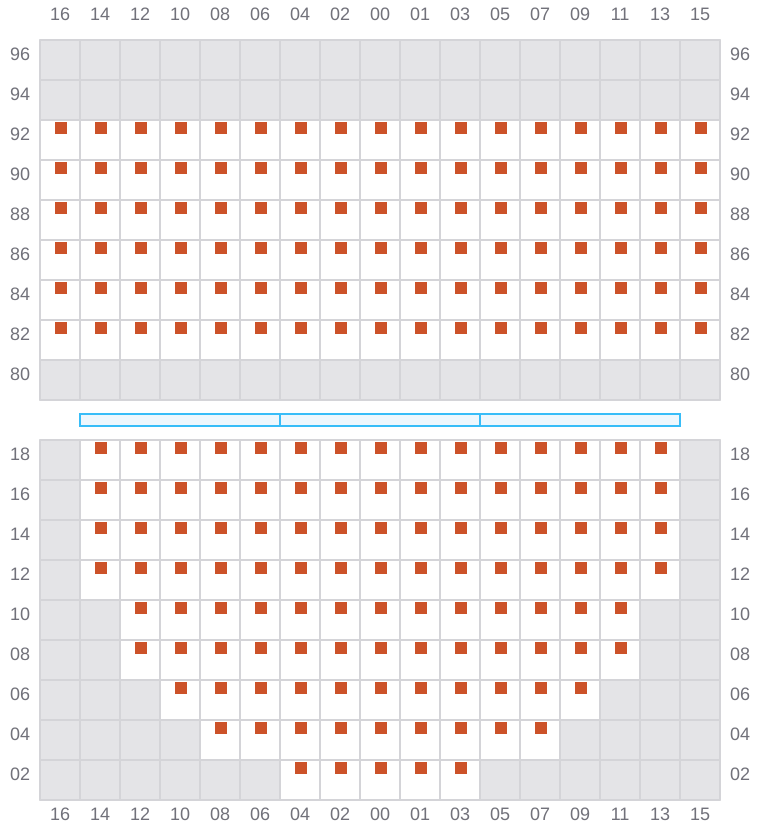

Bay 019 view and slots of CMA CGM TITUS

021 (022)

  • →
  • → / ?
  • →

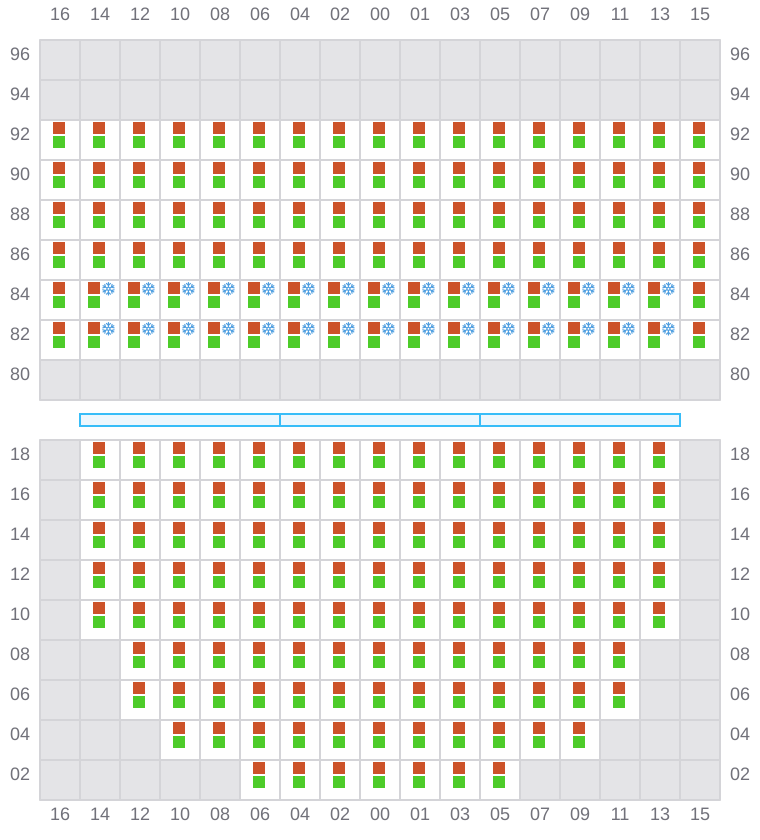

Bay 021 view and slots of CMA CGM TITUS

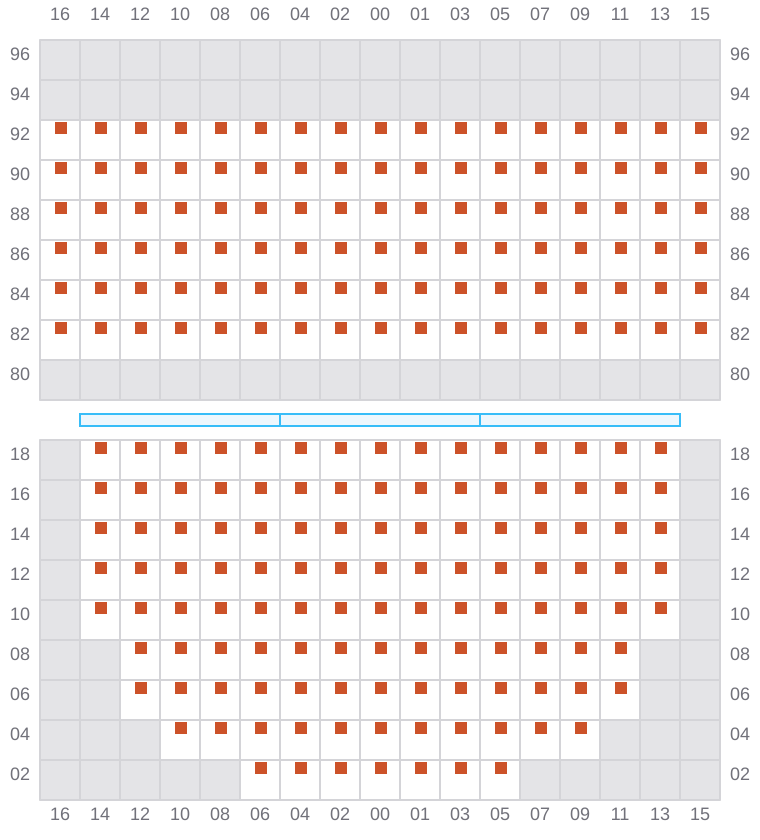

023

  • ←
  • →
Bay 023 view and slots of CMA CGM TITUS

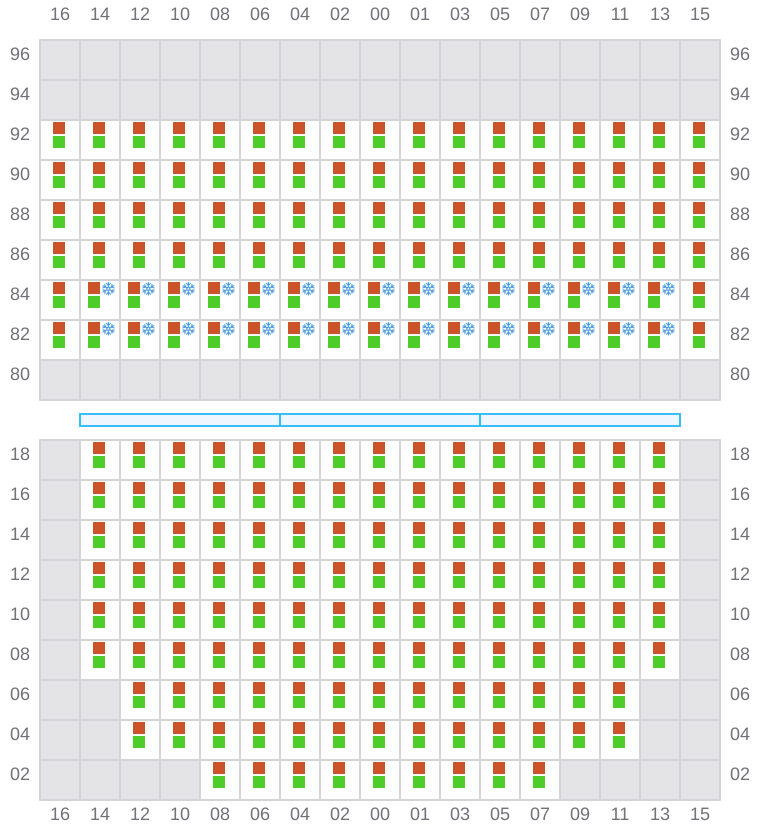

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of CMA CGM TITUS

027

  • ←
  • →
Bay 027 view and slots of CMA CGM TITUS

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM TITUS

031

  • ←
  • →
Bay 031 view and slots of CMA CGM TITUS

033 (034)

  • →
  • → / ?
  • →

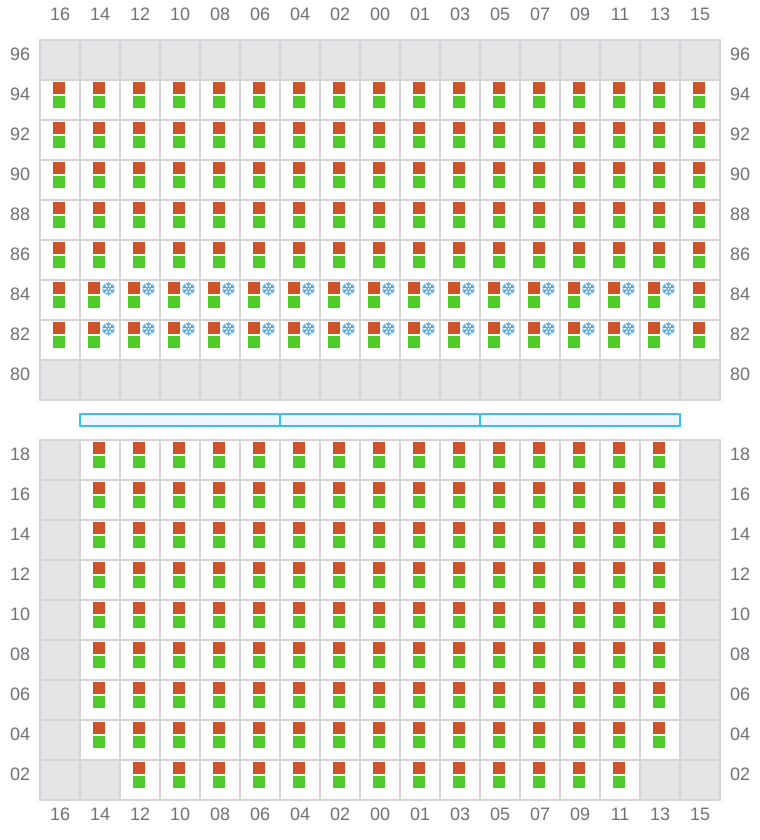

Bay 033 view and slots of CMA CGM TITUS

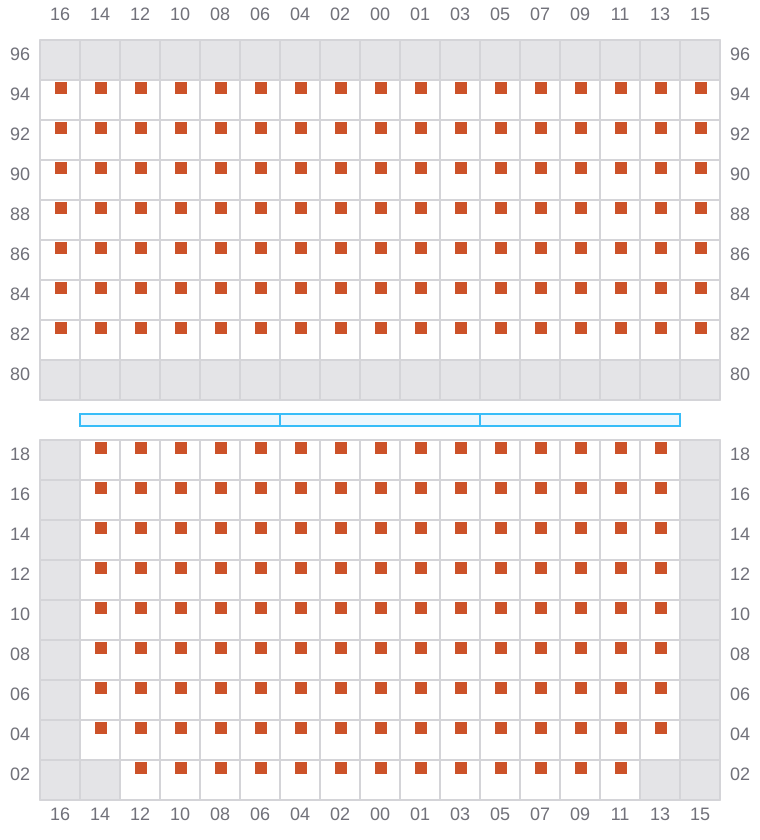

035

  • ←
  • →
Bay 035 view and slots of CMA CGM TITUS

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM TITUS

039

  • ←
  • →
Bay 039 view and slots of CMA CGM TITUS

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of CMA CGM TITUS

043

  • ←
  • →
Bay 043 view and slots of CMA CGM TITUS

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM TITUS

047

  • ←
  • →

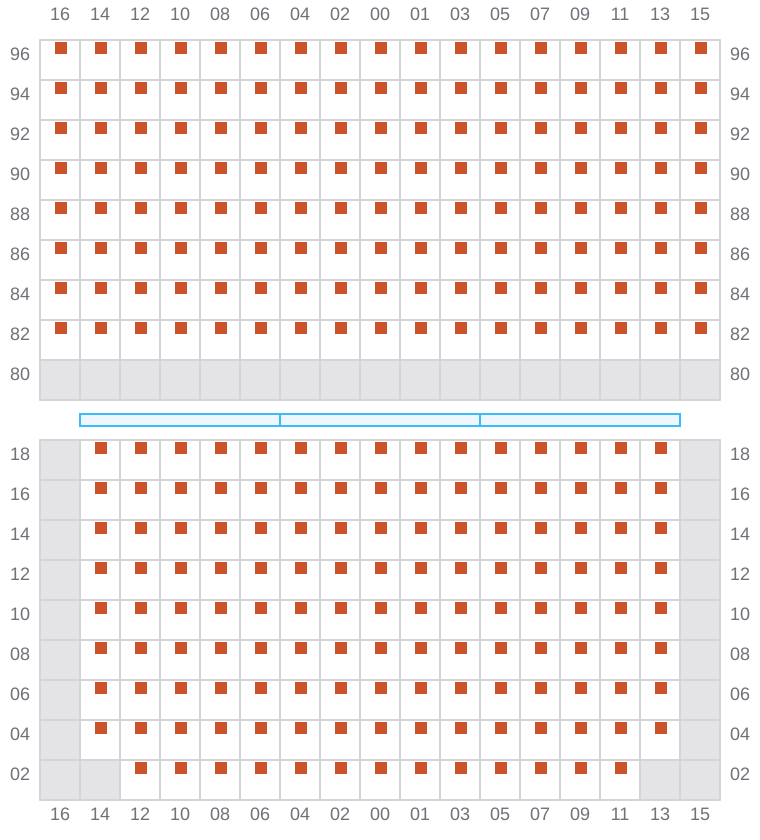

Bay 047 view and slots of CMA CGM TITUS

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of CMA CGM TITUS

051

  • ←
  • →
Bay 051 view and slots of CMA CGM TITUS

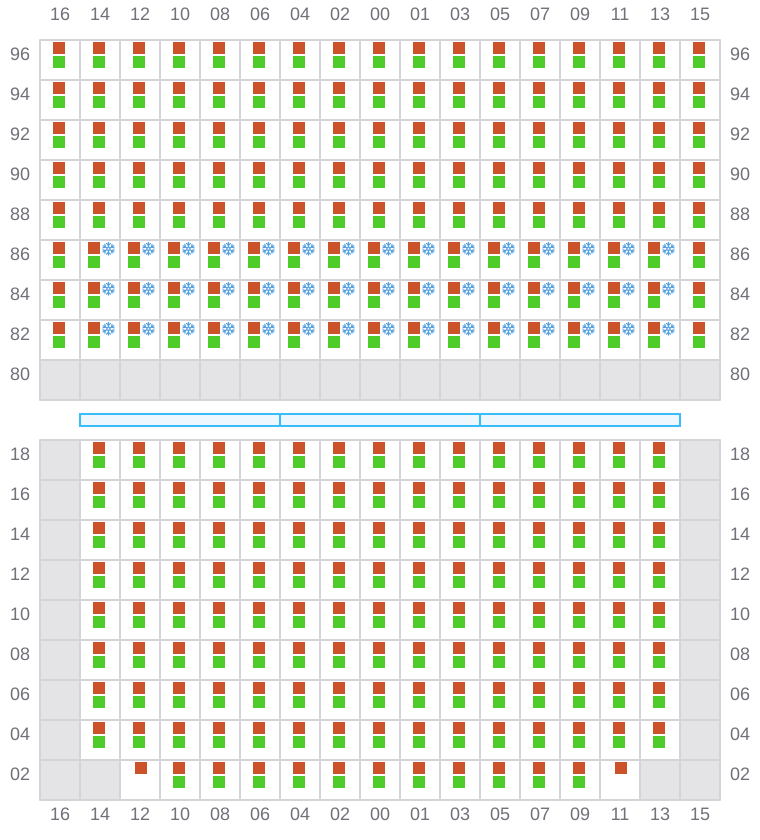

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM TITUS

055

  • ←
  • →

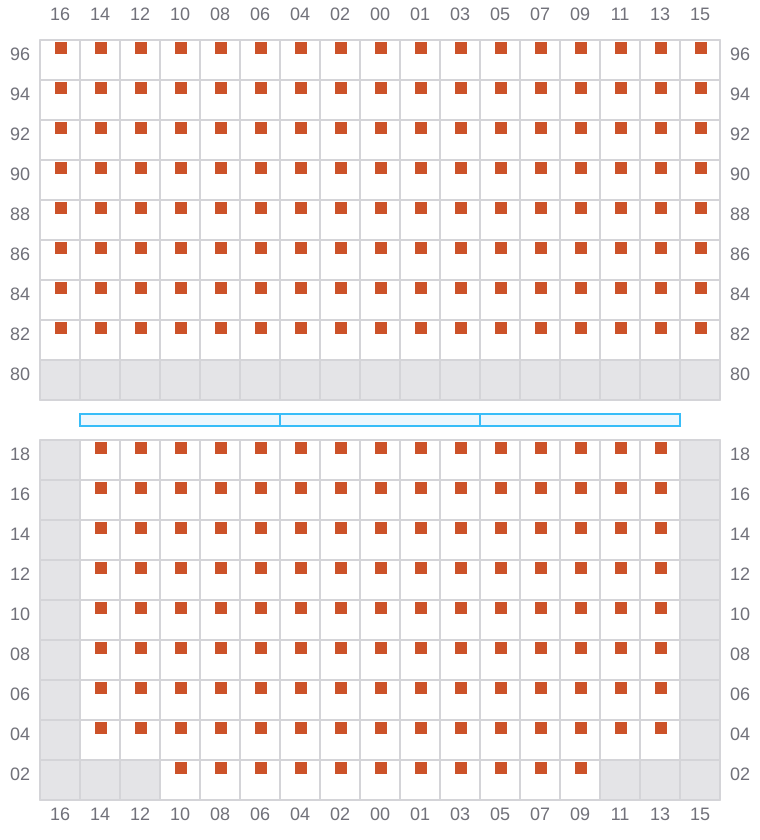

Bay 055 view and slots of CMA CGM TITUS

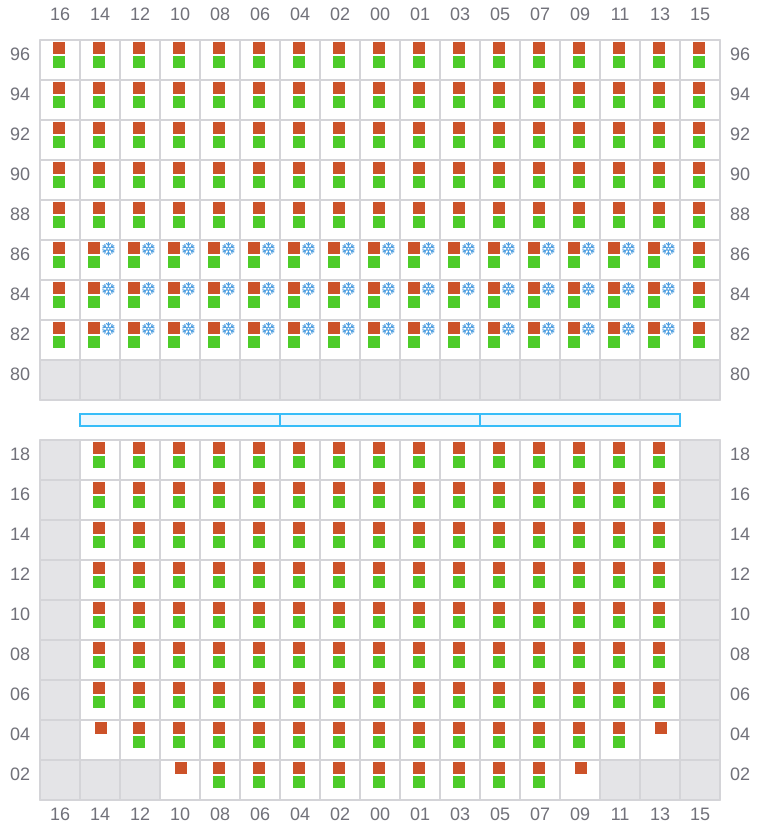

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of CMA CGM TITUS

059

  • ←
  • →

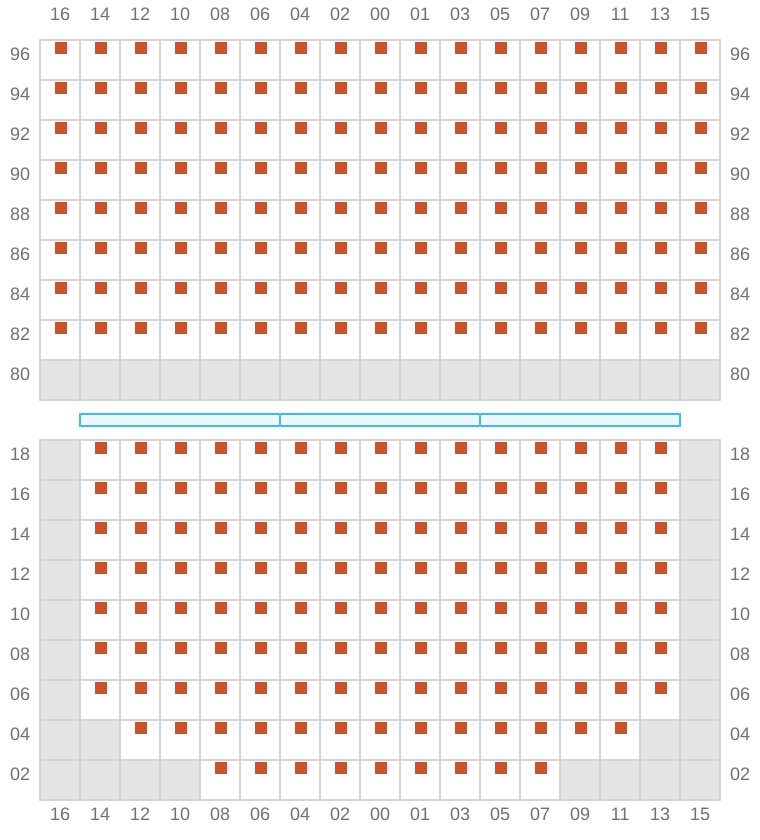

Bay 059 view and slots of CMA CGM TITUS

061 (062)

  • →
  • → / ?
  • →

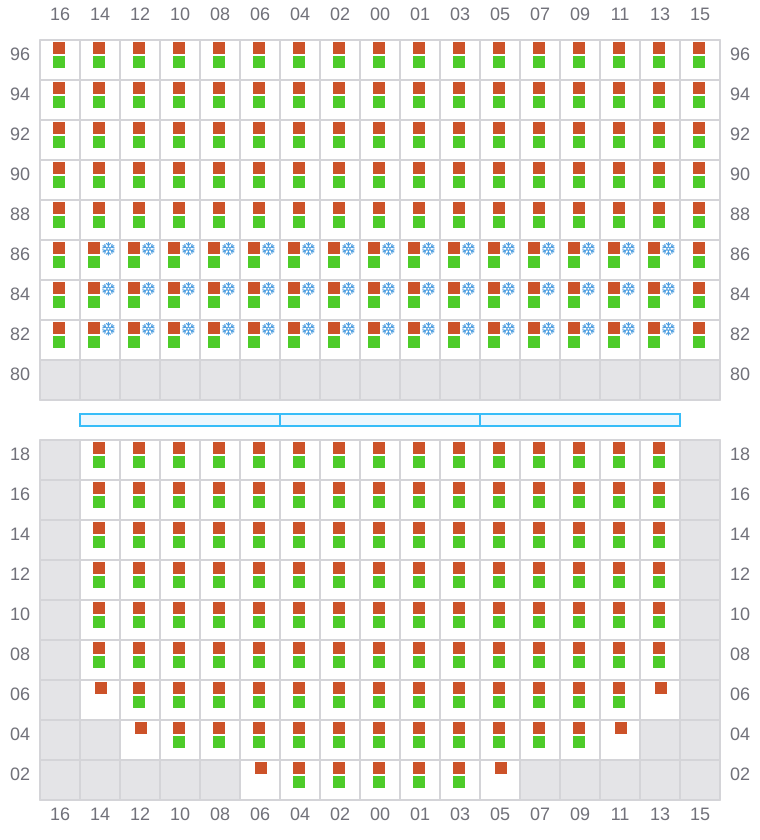

Bay 061 view and slots of CMA CGM TITUS

063

  • ←
  • →
Bay 063 view and slots of CMA CGM TITUS

065 (066)

  • →
  • ← / ?
  • →
Bay 065 view and slots of CMA CGM TITUS

067

  • ←
  • →

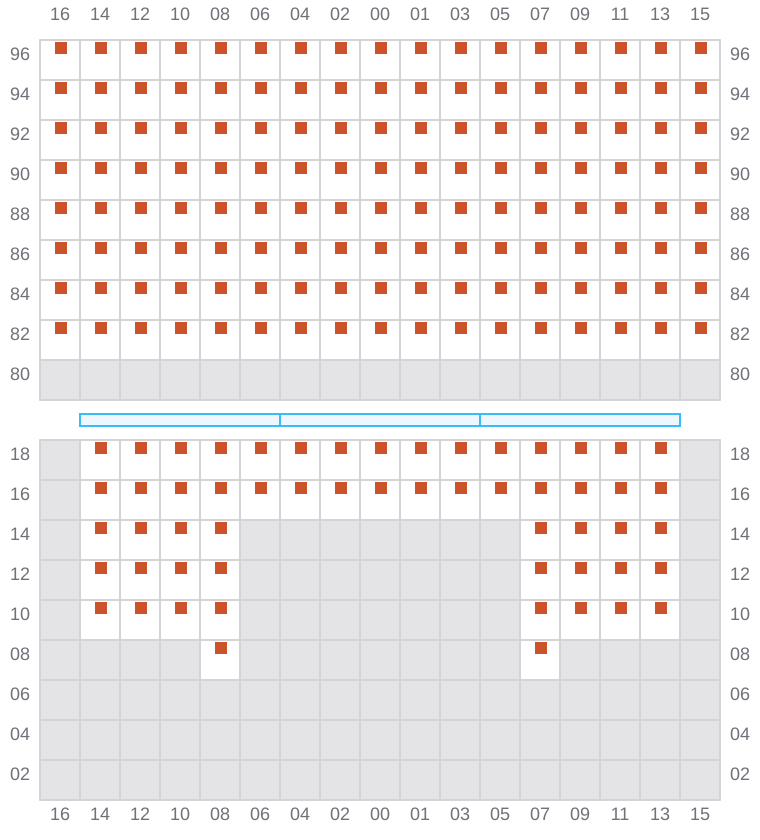

Bay 067 view and slots of CMA CGM TITUS

069 (070)

  • →
  • ← / ?
  • →

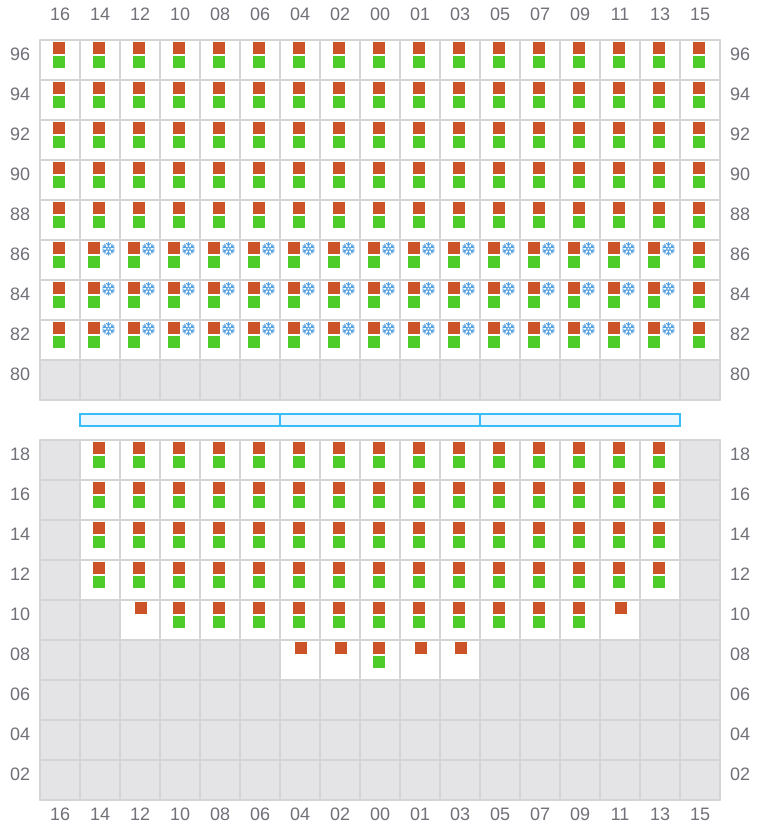

Bay 069 view and slots of CMA CGM TITUS

071

  • ←
  • →
Bay 071 view and slots of CMA CGM TITUS

073 (074)

  • →
  • ← / ?
  • →
Bay 073 view and slots of CMA CGM TITUS

075

  • ←
  • →

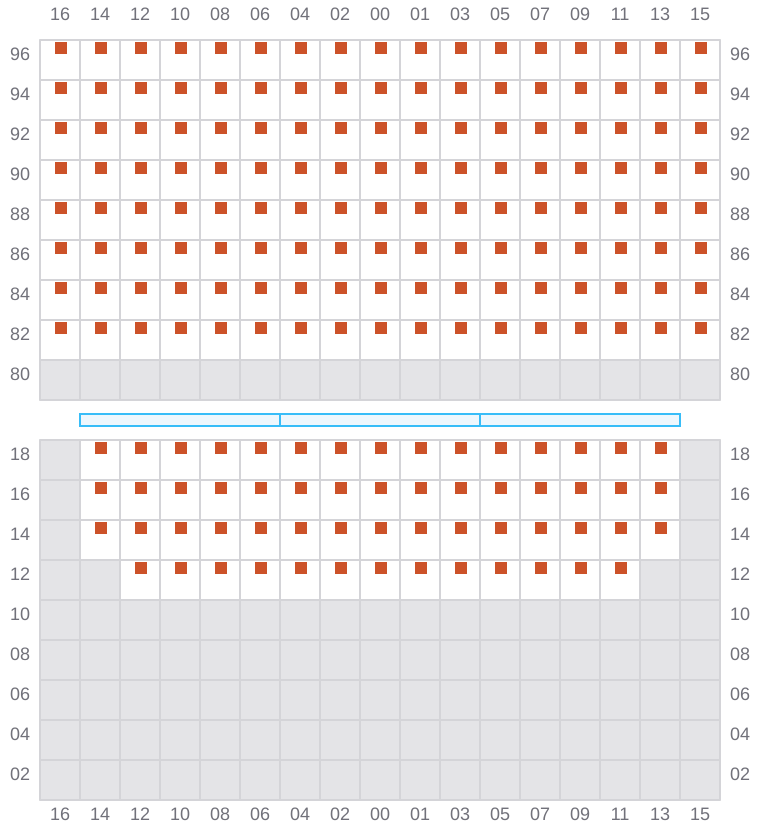

Bay 075 view and slots of CMA CGM TITUS

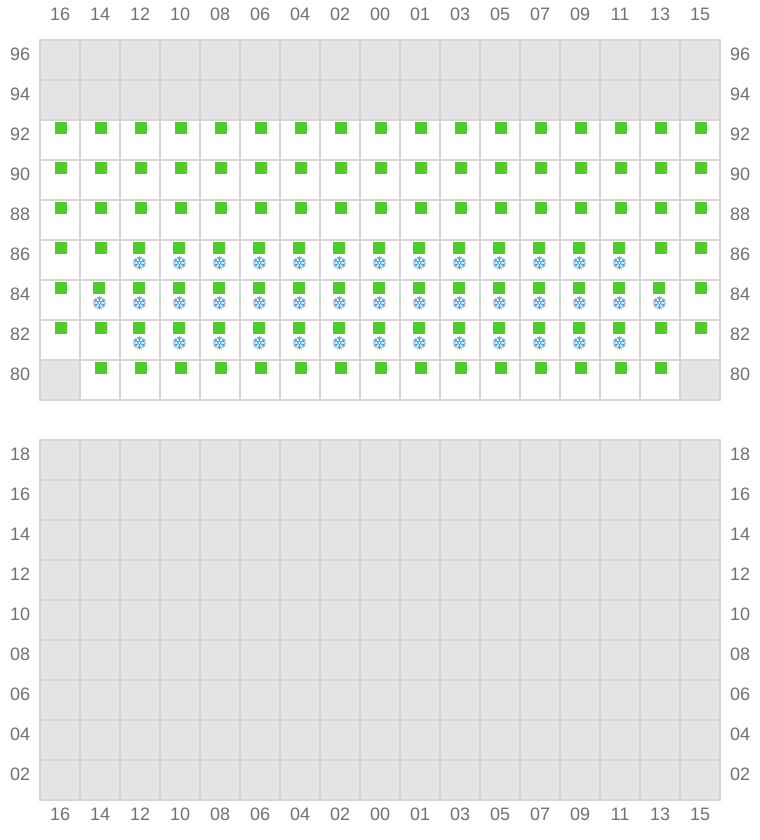

077 (078)

  • → / ?
  • ← / ?
  • → / ?
Bay 077 view and slots of CMA CGM TITUS
