CMA CGM VALPARAISO
9294185 | 9HA5559 | 9294185 by ********* Last update: Tue Apr 30 2024

General Info

Ship Name:CMA CGM VALPARAISO
IMO Code:9294185
Call Sign:9HA5559
Line Operator:9294185
Class Name for Sister Ships:79D
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):210.00
LOA (Length Overall):222.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,906

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

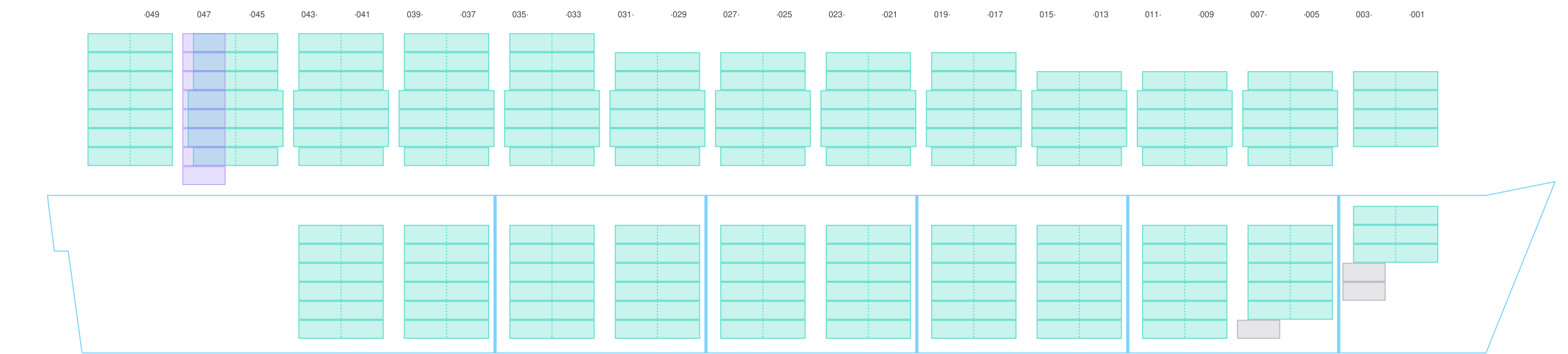

Side View

Side view of CMA CGM VALPARAISO

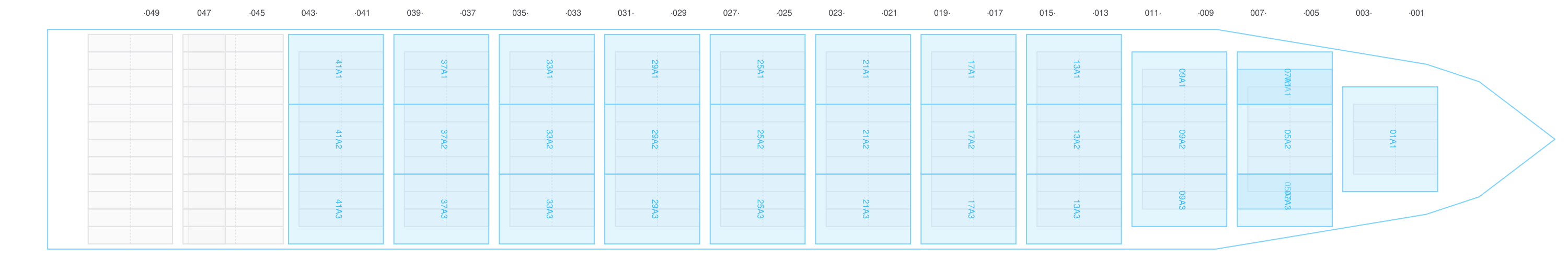

Hatch-Covers View

Deck view of CMA CGM VALPARAISO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

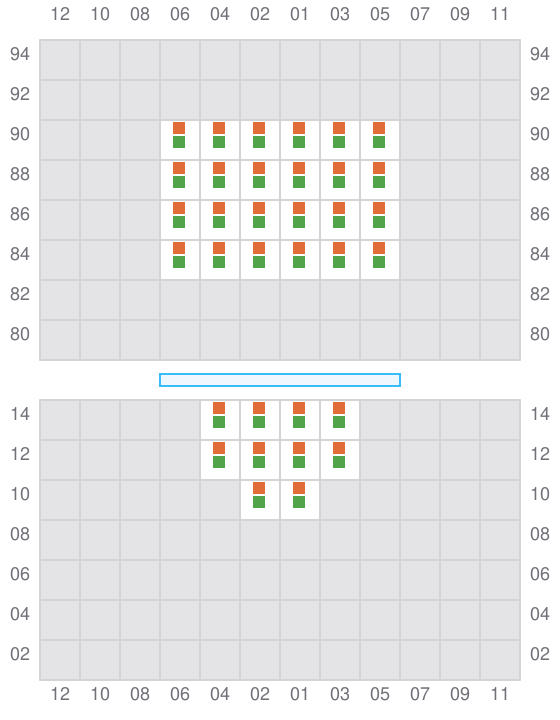

Bay 001 view and slots of CMA CGM VALPARAISO

003

  • ←
  • ← / ?

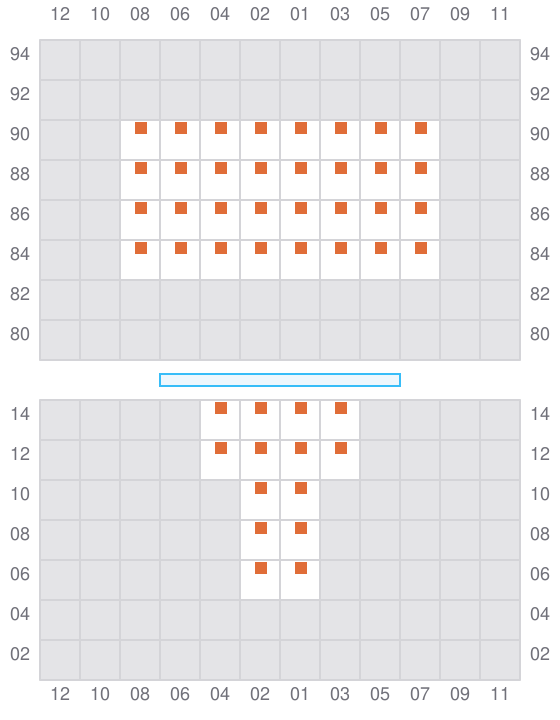

Bay 003 view and slots of CMA CGM VALPARAISO

005 (006)

  • →
  • ← / ?

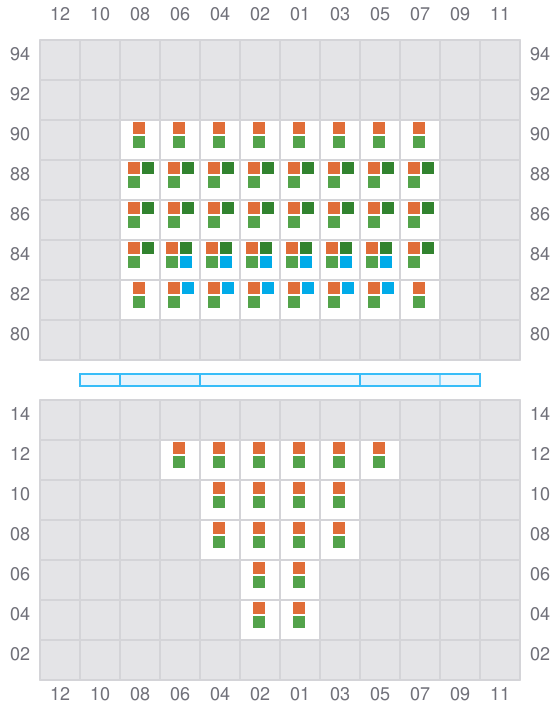

Bay 005 view and slots of CMA CGM VALPARAISO

007

  • ←
  • → / ?
Bay 007 view and slots of CMA CGM VALPARAISO

009 (010)

  • →
  • ← / ?

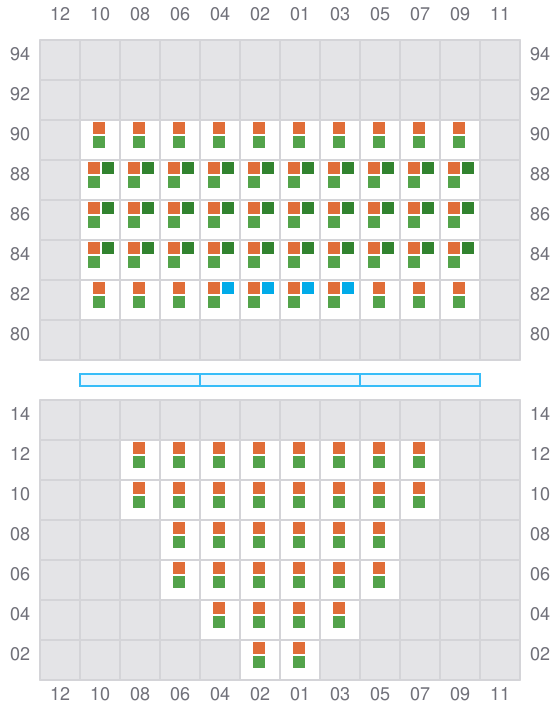

Bay 009 view and slots of CMA CGM VALPARAISO

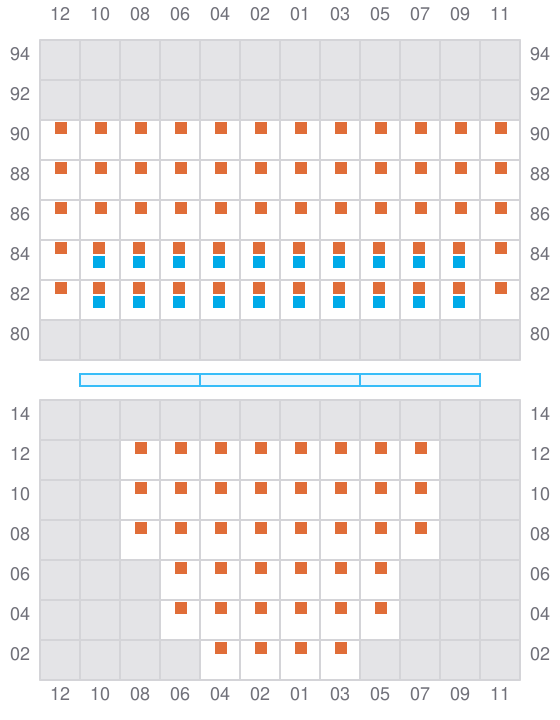

011

  • ←
  • → / ?
Bay 011 view and slots of CMA CGM VALPARAISO

013 (014)

  • →
  • ← / ?

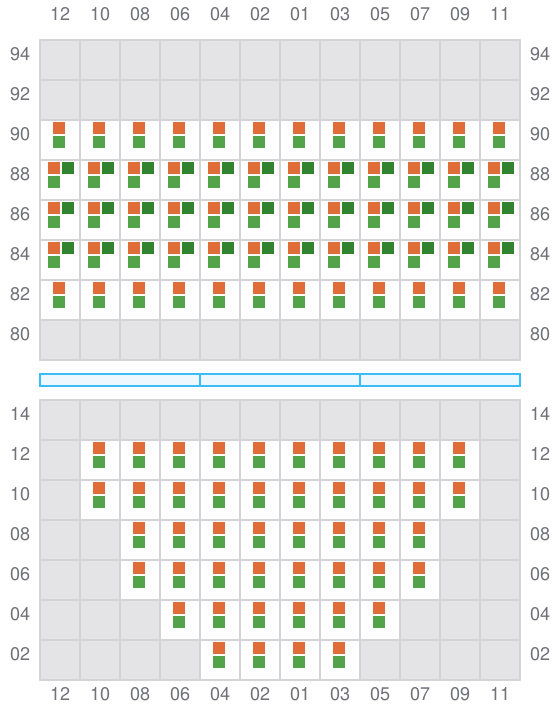

Bay 013 view and slots of CMA CGM VALPARAISO

015

  • ←
  • → / ?

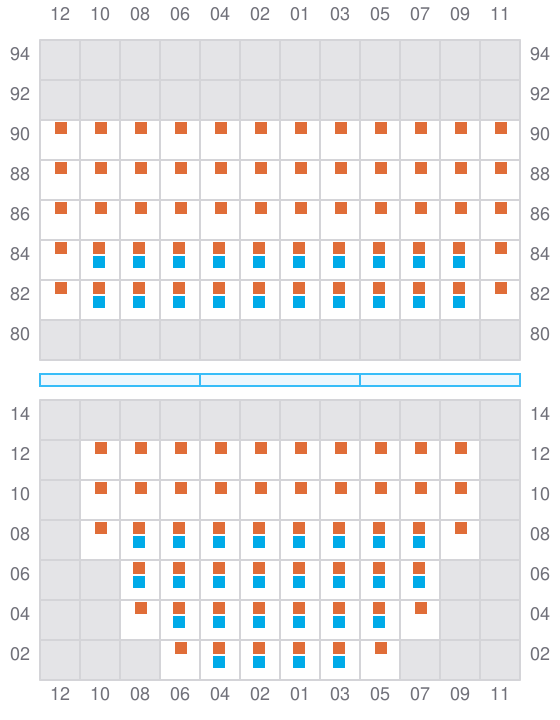

Bay 015 view and slots of CMA CGM VALPARAISO

017 (018)

  • →
  • ← / ?

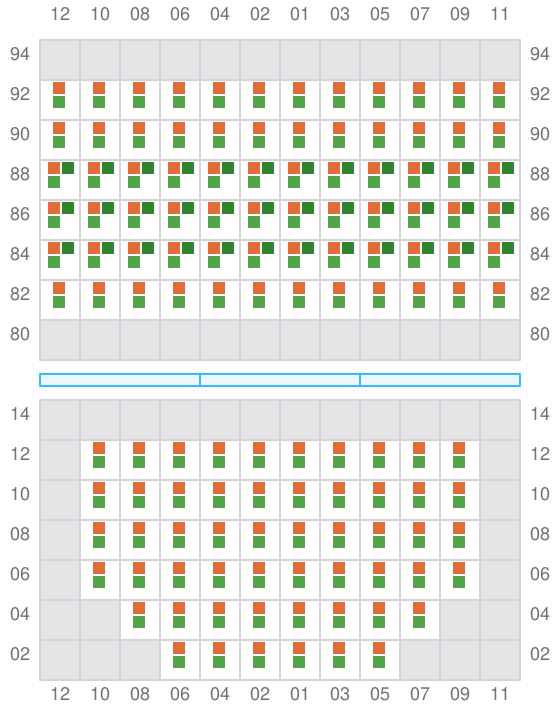

Bay 017 view and slots of CMA CGM VALPARAISO

019

  • ←
  • → / ?
Bay 019 view and slots of CMA CGM VALPARAISO

021 (022)

  • →
  • ← / ?

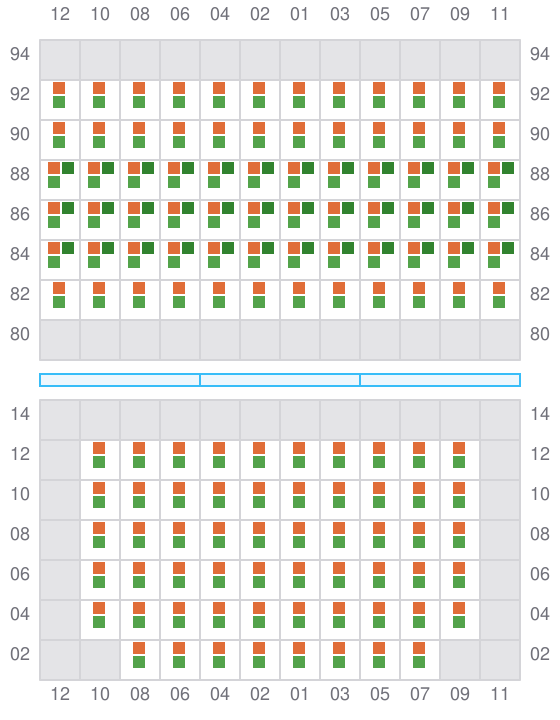

Bay 021 view and slots of CMA CGM VALPARAISO

023

  • ←
  • → / ?
Bay 023 view and slots of CMA CGM VALPARAISO

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of CMA CGM VALPARAISO

027

  • ←
  • → / ?
Bay 027 view and slots of CMA CGM VALPARAISO

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of CMA CGM VALPARAISO

031

  • ←
  • → / ?

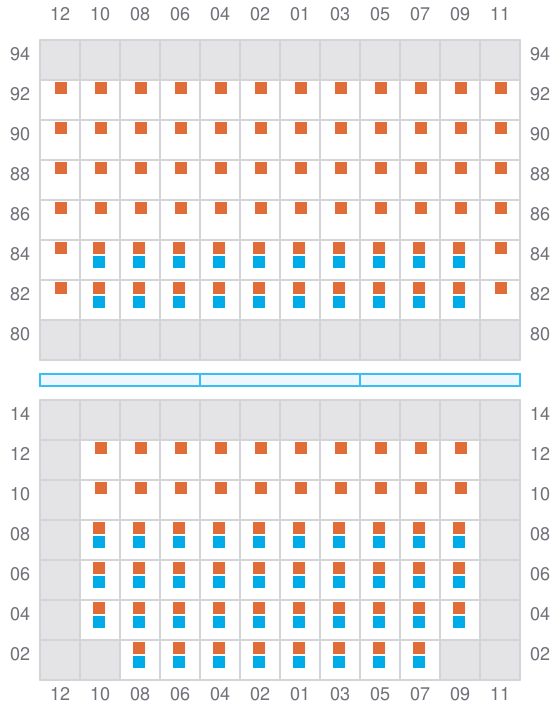

Bay 031 view and slots of CMA CGM VALPARAISO

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of CMA CGM VALPARAISO

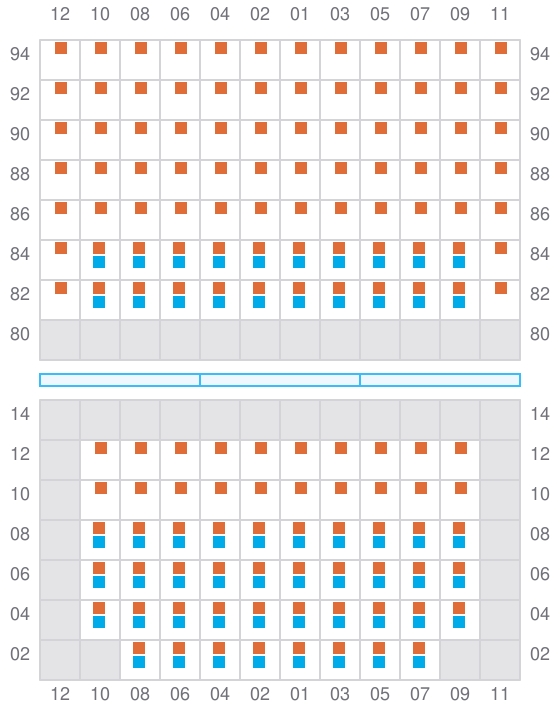

035

  • ←
  • → / ?
Bay 035 view and slots of CMA CGM VALPARAISO

037 (038)

  • →

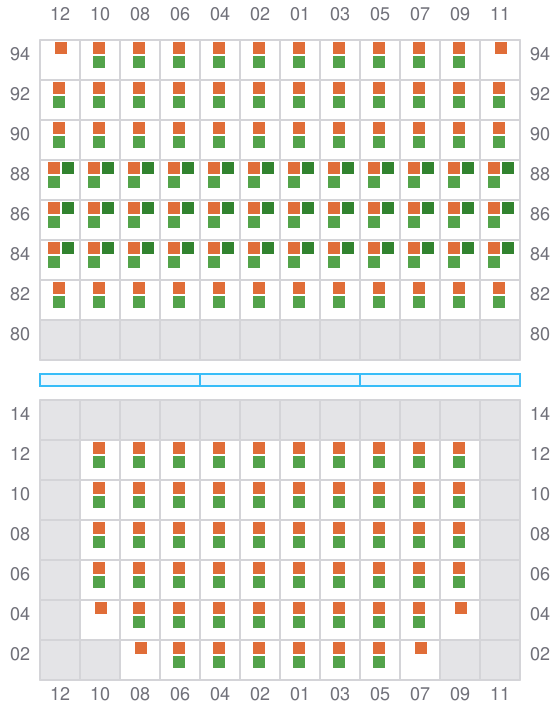

Bay 037 view and slots of CMA CGM VALPARAISO

039

  • ←
  • → / ?

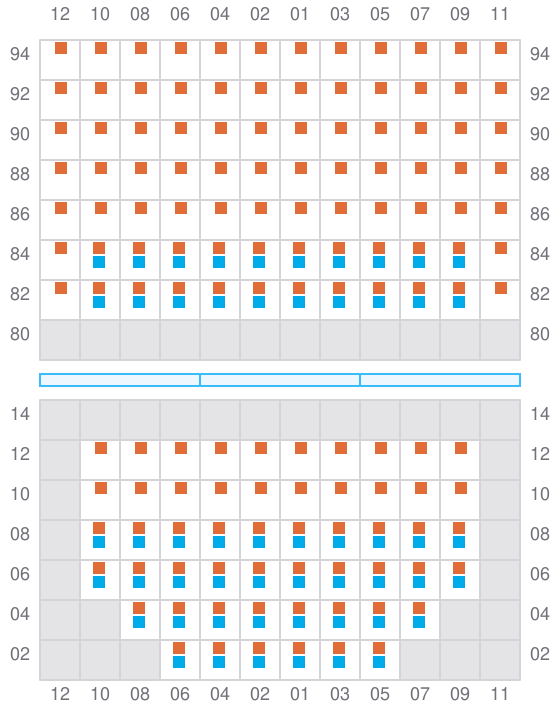

Bay 039 view and slots of CMA CGM VALPARAISO

041 (042)

  • →
  • ← / ?

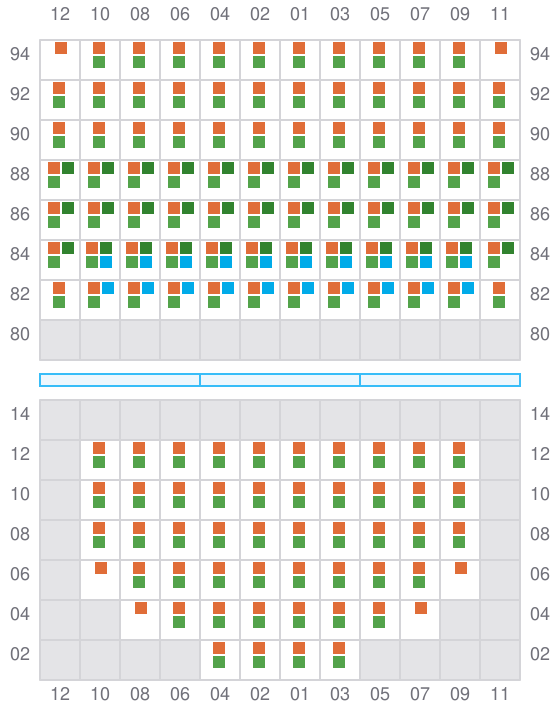

Bay 041 view and slots of CMA CGM VALPARAISO

043

  • ←
  • → / ?

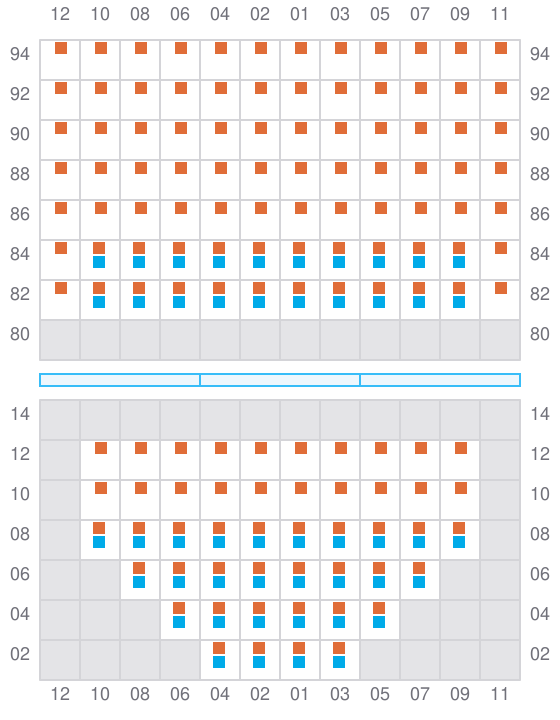

Bay 043 view and slots of CMA CGM VALPARAISO

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of CMA CGM VALPARAISO

047

  • → / ?
Bay 047 view and slots of CMA CGM VALPARAISO

049 (050)

  • → / ?

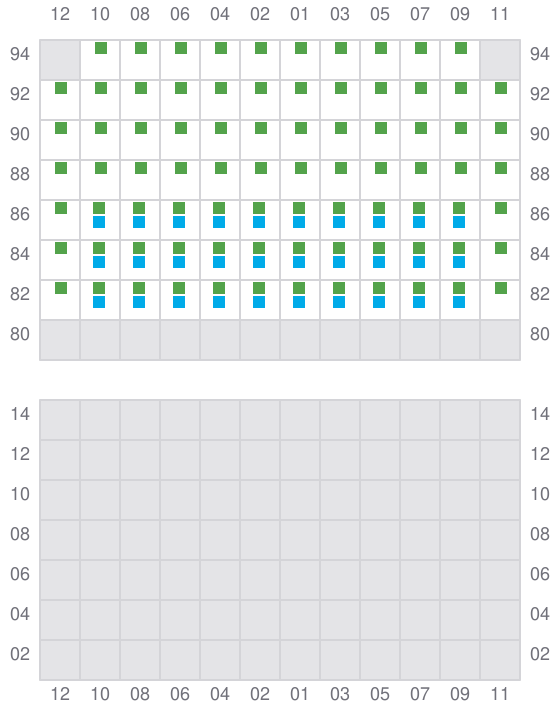

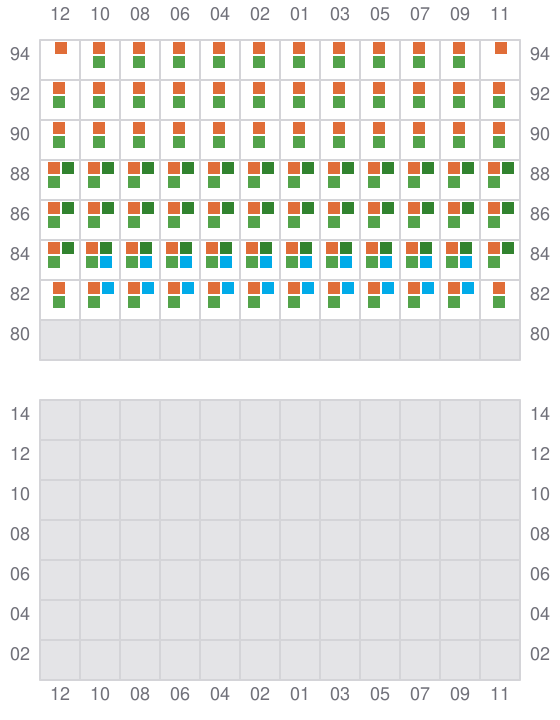

Bay 049 view and slots of CMA CGM VALPARAISO
