CMA CGM VERACRUZ
9418377 | PU7643 | 9418377 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:CMA CGM VERACRUZ
IMO Code:9418377
Call Sign:PU7643
Line Operator:9418377
Class Name for Sister Ships:MCC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,426

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CMA CGM VERACRUZ

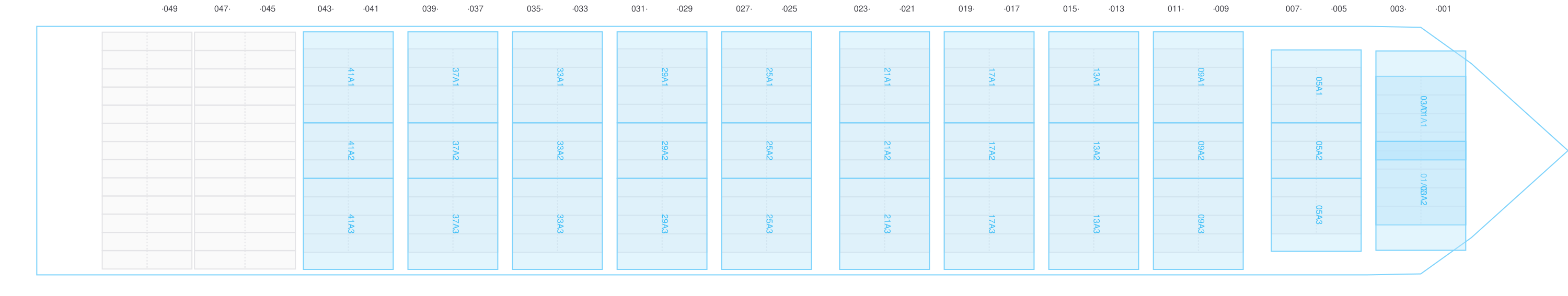

Hatch-Covers View

Deck view of CMA CGM VERACRUZ

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

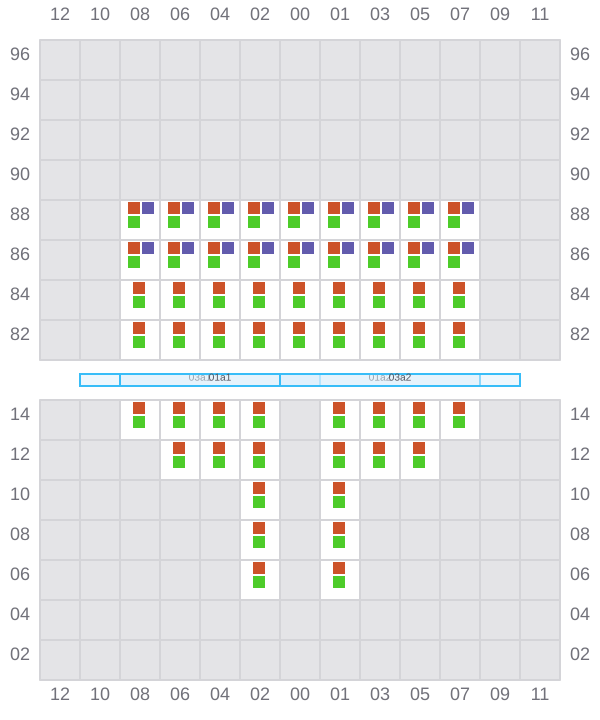

Bay 001 view and slots of CMA CGM VERACRUZ

003

  • ←

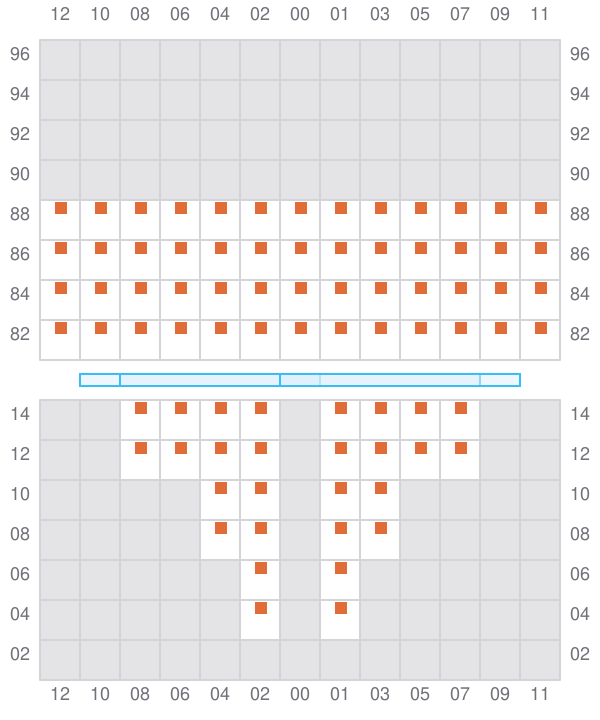

Bay 003 view and slots of CMA CGM VERACRUZ

005 (006)

  • →

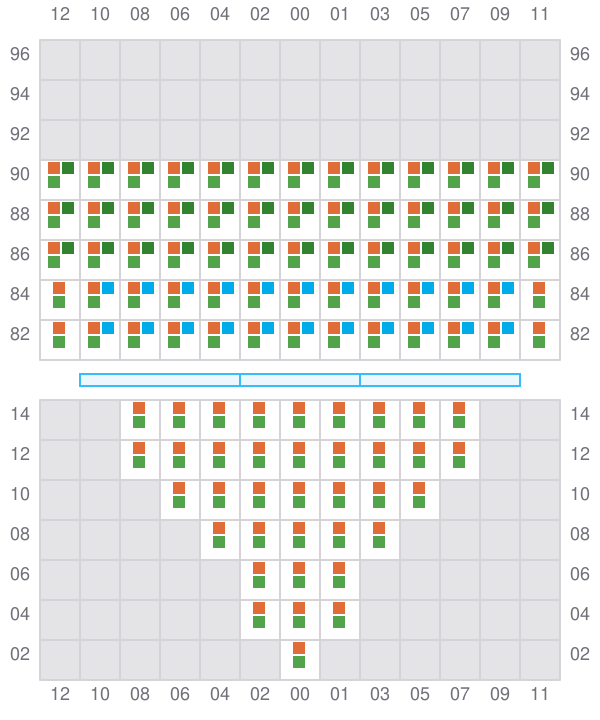

Bay 005 view and slots of CMA CGM VERACRUZ

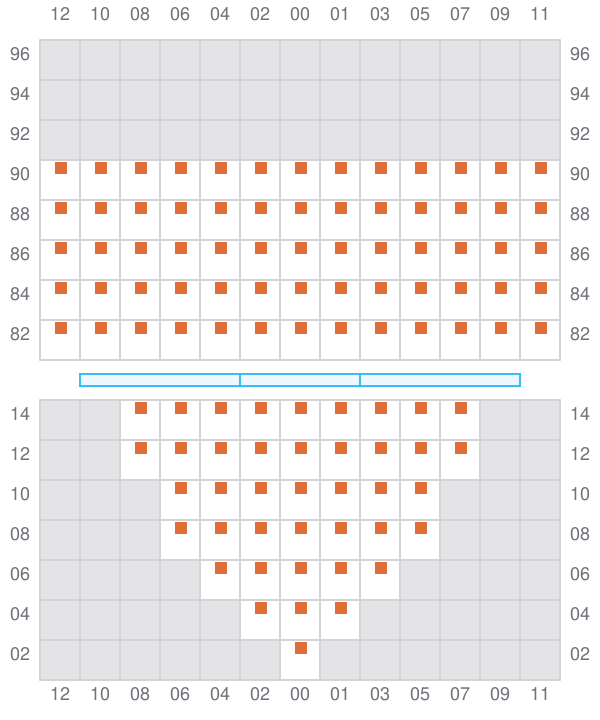

007

  • ←
  • → / ?
Bay 007 view and slots of CMA CGM VERACRUZ

009 (010)

  • →

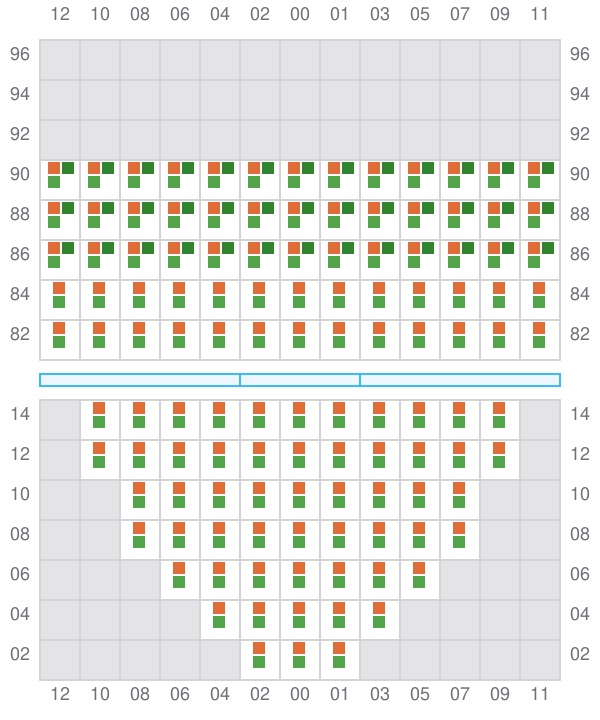

Bay 009 view and slots of CMA CGM VERACRUZ

011

  • ←
  • → / ?

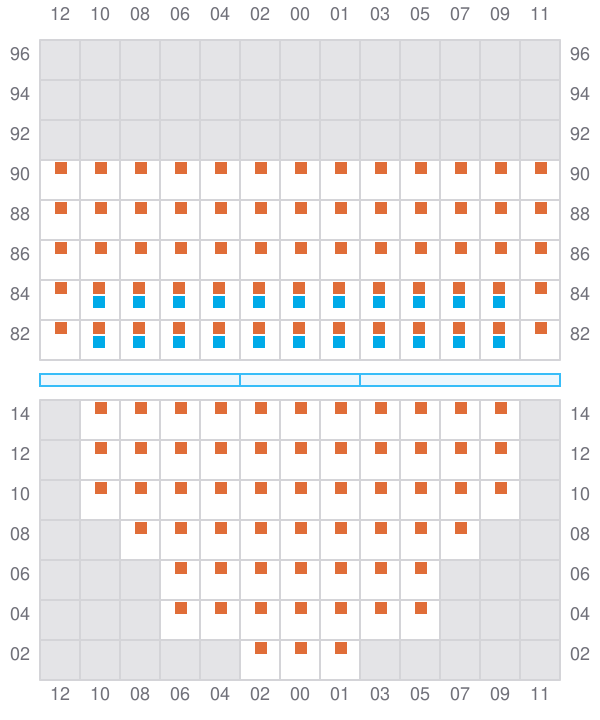

Bay 011 view and slots of CMA CGM VERACRUZ

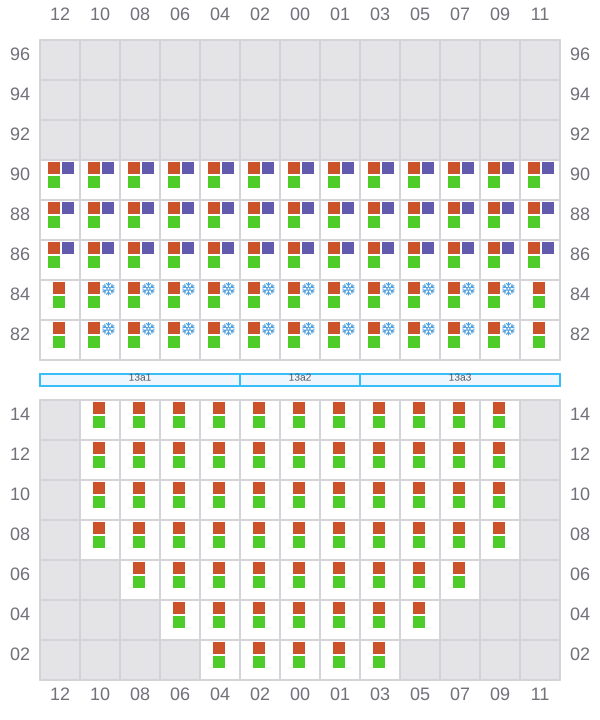

013 (014)

  • →
Bay 013 view and slots of CMA CGM VERACRUZ

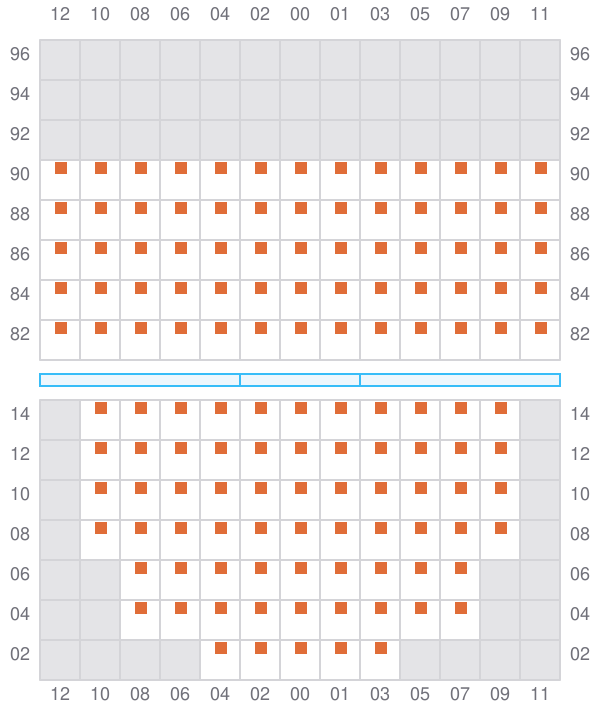

015

  • ←
  • → / ?
Bay 015 view and slots of CMA CGM VERACRUZ

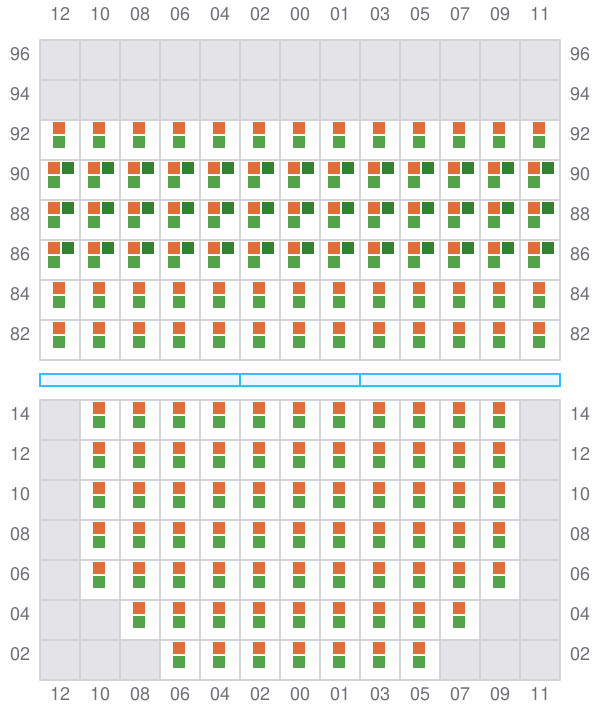

017 (018)

  • →
Bay 017 view and slots of CMA CGM VERACRUZ

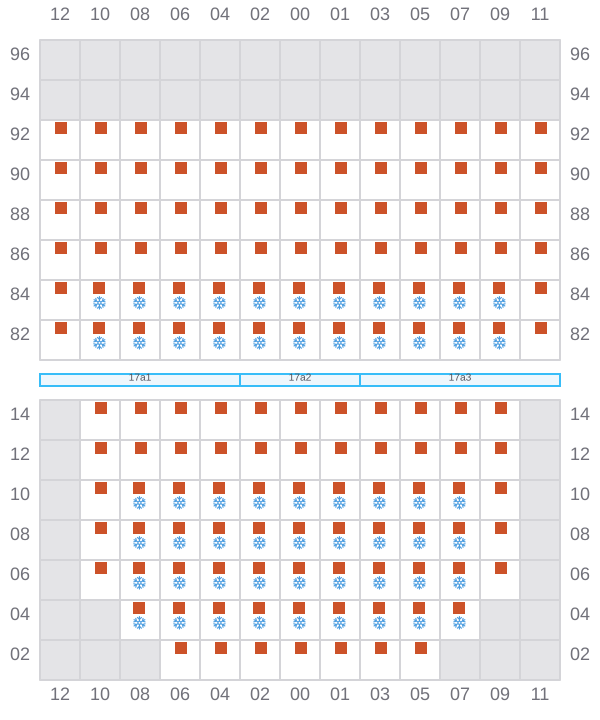

019

  • ←
  • →
Bay 019 view and slots of CMA CGM VERACRUZ

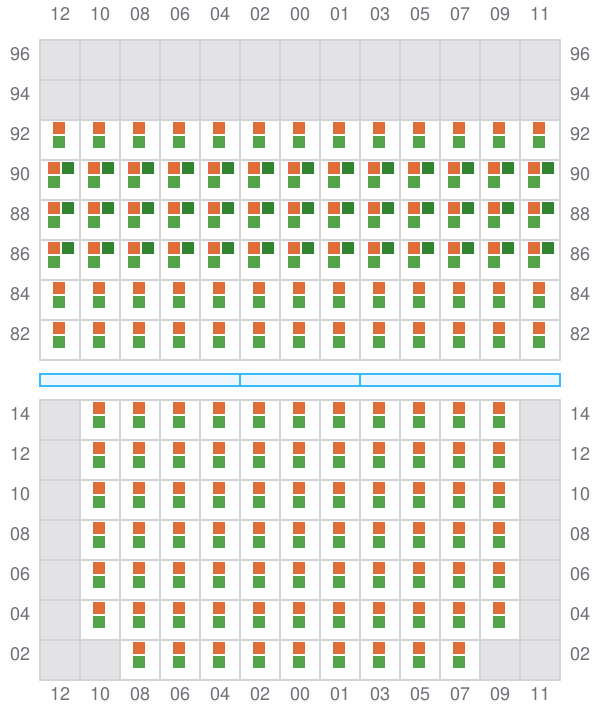

021 (022)

  • →
Bay 021 view and slots of CMA CGM VERACRUZ

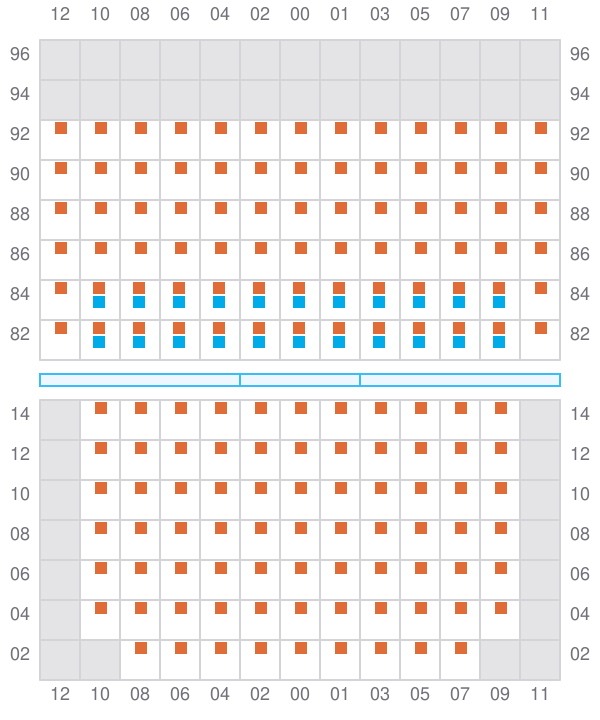

023

  • ←
  • → / ?
Bay 023 view and slots of CMA CGM VERACRUZ

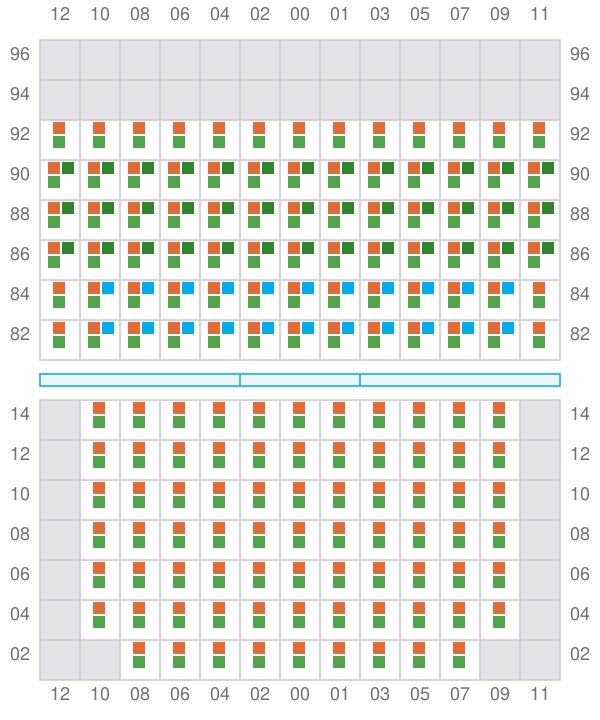

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of CMA CGM VERACRUZ

027

  • ←
  • → / ?

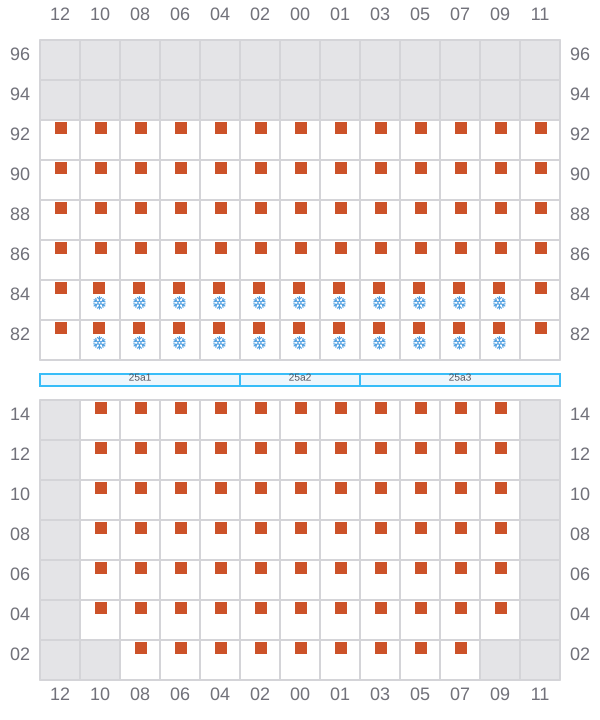

Bay 027 view and slots of CMA CGM VERACRUZ

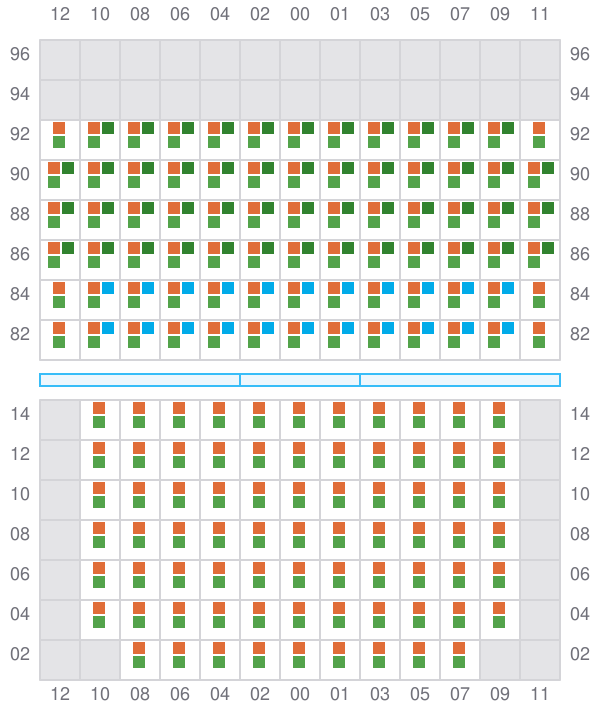

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of CMA CGM VERACRUZ

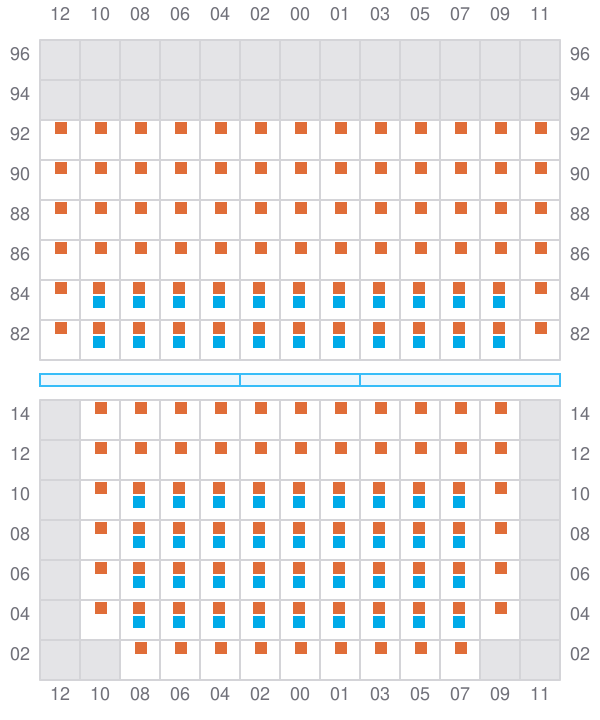

031

  • ←
  • →
Bay 031 view and slots of CMA CGM VERACRUZ

033 (034)

  • →
  • ← / ?
Bay 033 view and slots of CMA CGM VERACRUZ

035

  • ←
  • → / ?
Bay 035 view and slots of CMA CGM VERACRUZ

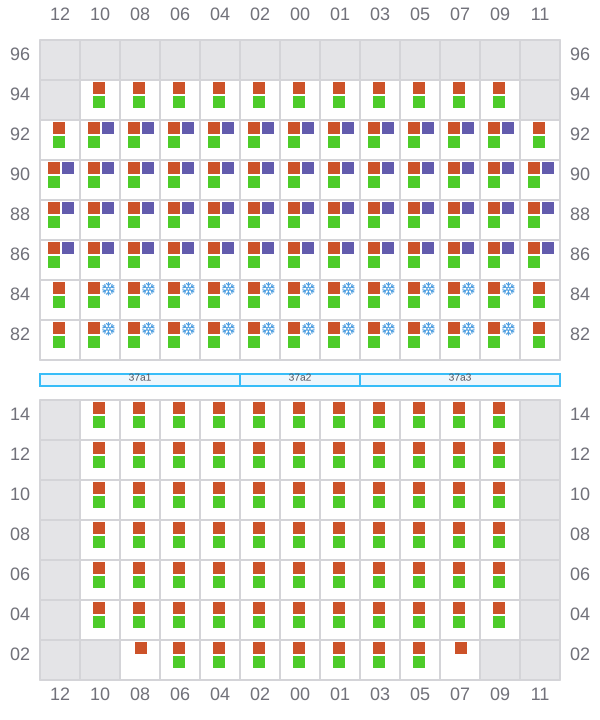

037 (038)

  • →
  • ← / ?

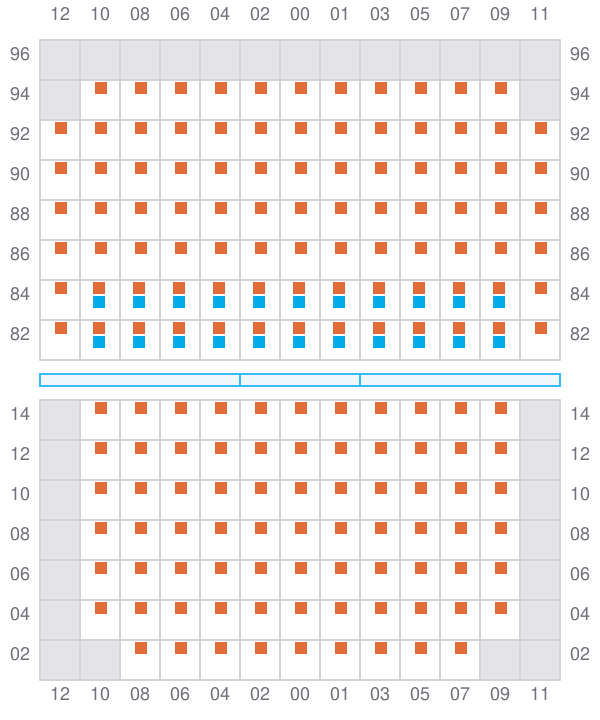

Bay 037 view and slots of CMA CGM VERACRUZ

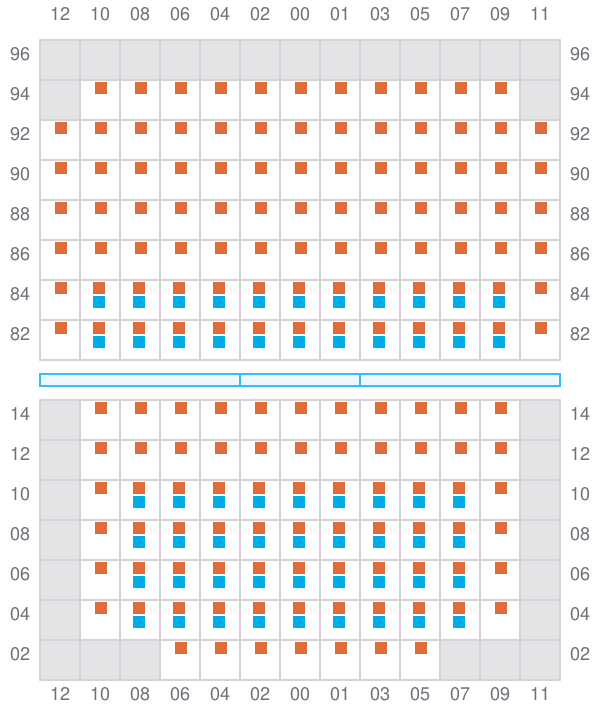

039

  • ←
  • →
Bay 039 view and slots of CMA CGM VERACRUZ

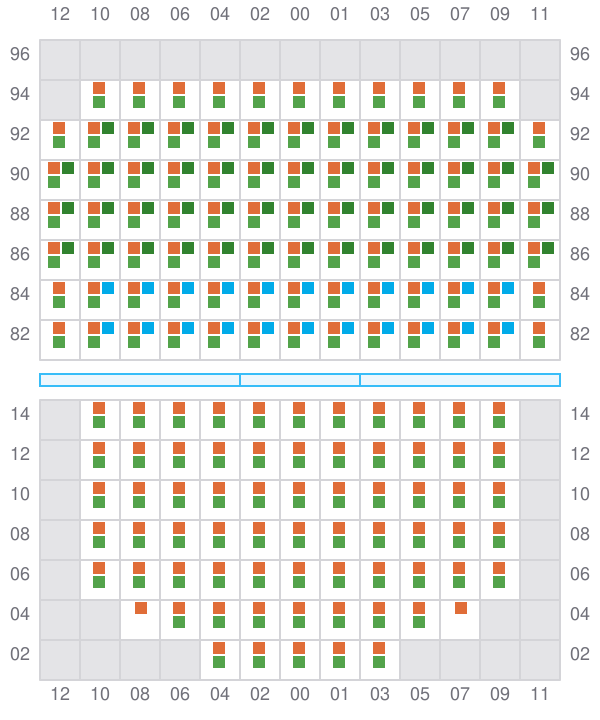

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of CMA CGM VERACRUZ

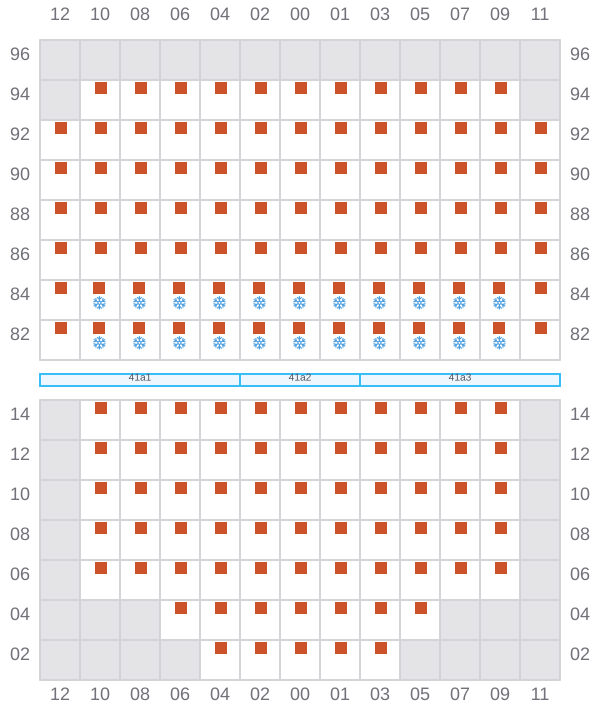

043

  • ←
  • → / ?
Bay 043 view and slots of CMA CGM VERACRUZ

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of CMA CGM VERACRUZ

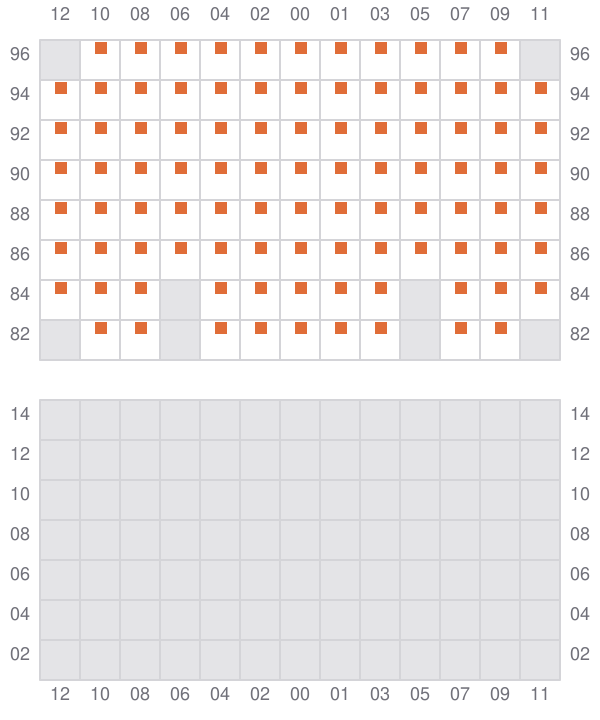

047

  • ← / ?
Bay 047 view and slots of CMA CGM VERACRUZ

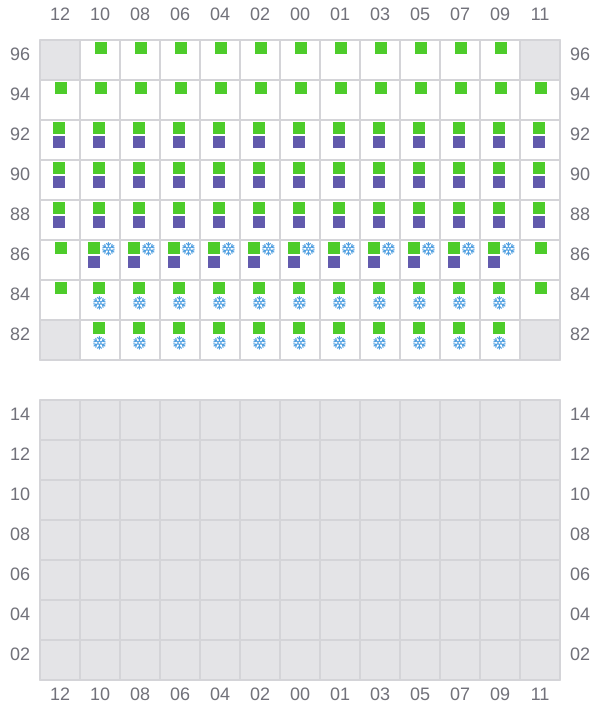

049 (050)

  • → / ?
  • → / ?

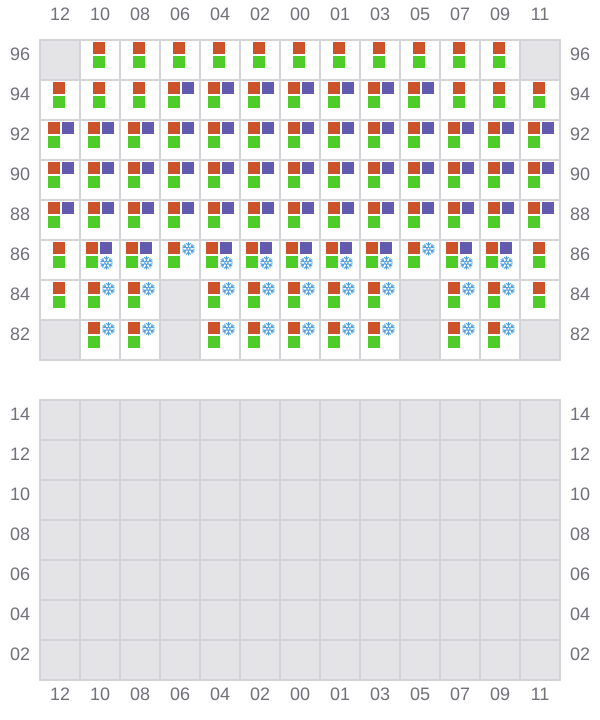

Bay 049 view and slots of CMA CGM VERACRUZ
