CMA CGM ZANZIBAR
9367827 | 9HA5637 | 9367827 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:CMA CGM ZANZIBAR
IMO Code:9367827
Call Sign:9HA5637
Line Operator:9367827
Class Name for Sister Ships:HL
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,652

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

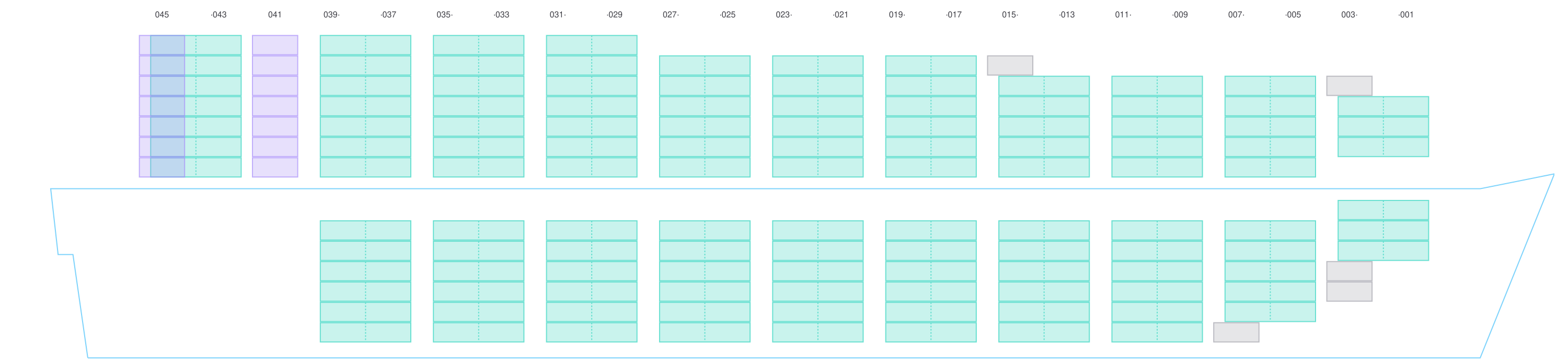

Side View

Side view of CMA CGM ZANZIBAR

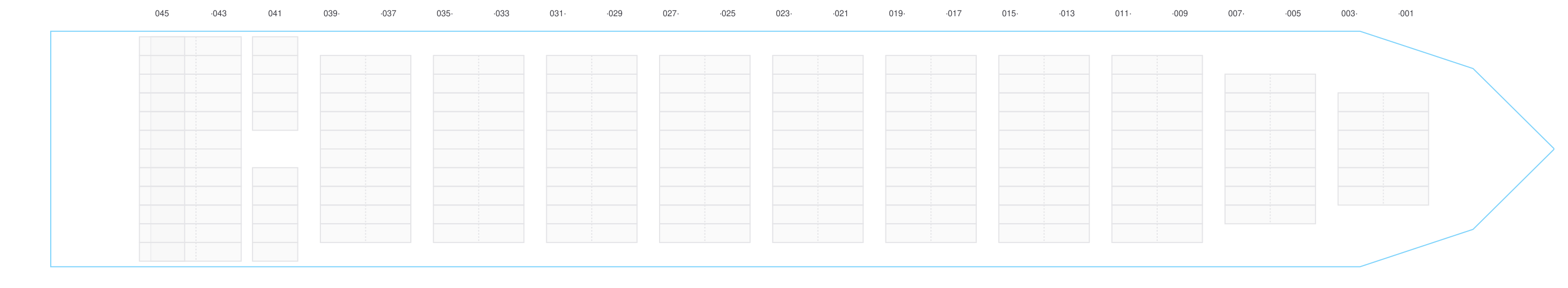

Hatch-Covers View

Deck view of CMA CGM ZANZIBAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

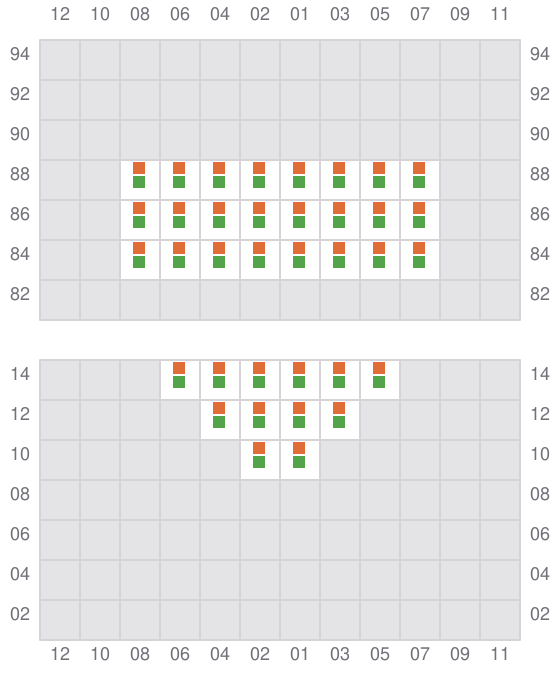

001 (002)

  • →
Bay 001 view and slots of CMA CGM ZANZIBAR

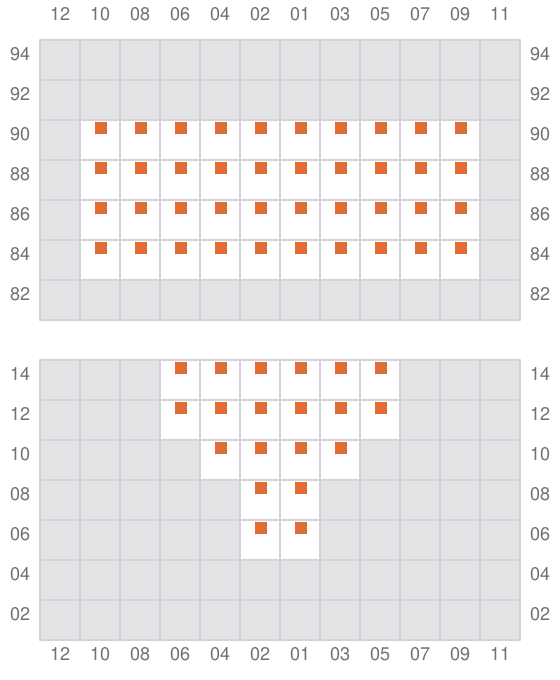

003

  • ←
Bay 003 view and slots of CMA CGM ZANZIBAR

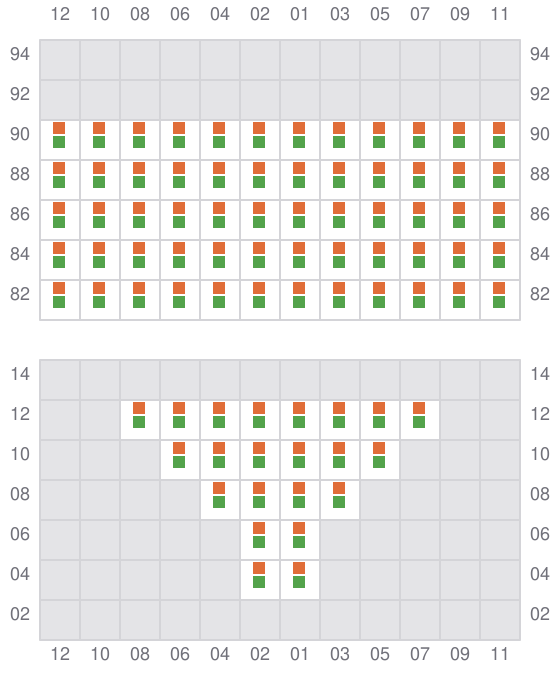

005 (006)

  • →
Bay 005 view and slots of CMA CGM ZANZIBAR

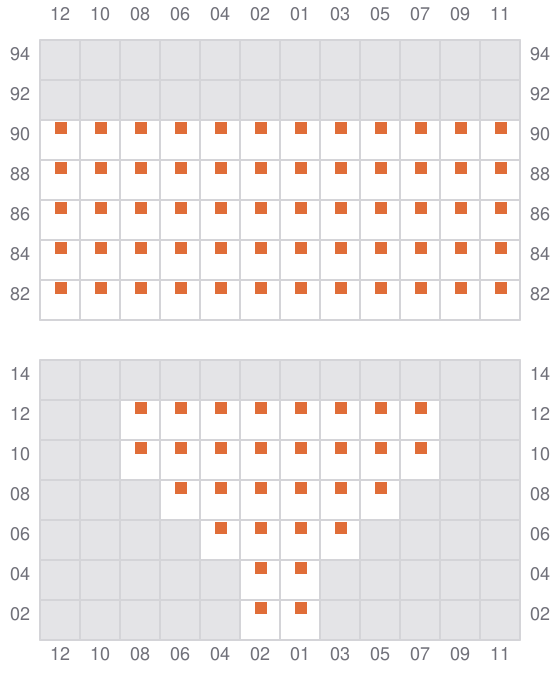

007

  • ←
Bay 007 view and slots of CMA CGM ZANZIBAR

009 (010)

  • →

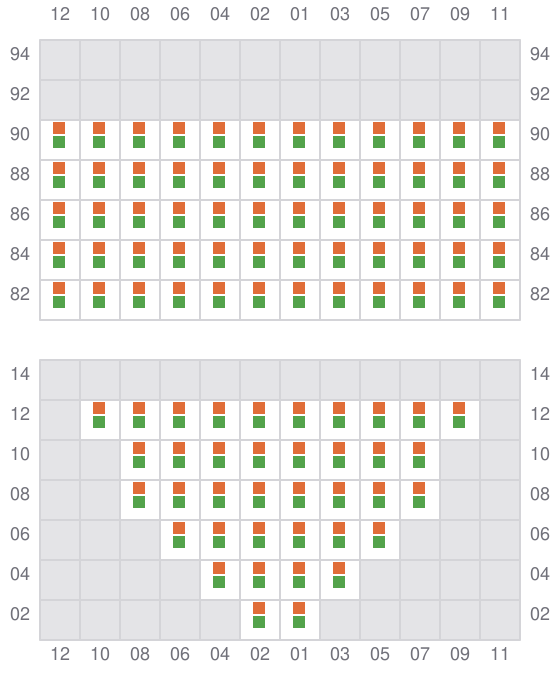

Bay 009 view and slots of CMA CGM ZANZIBAR

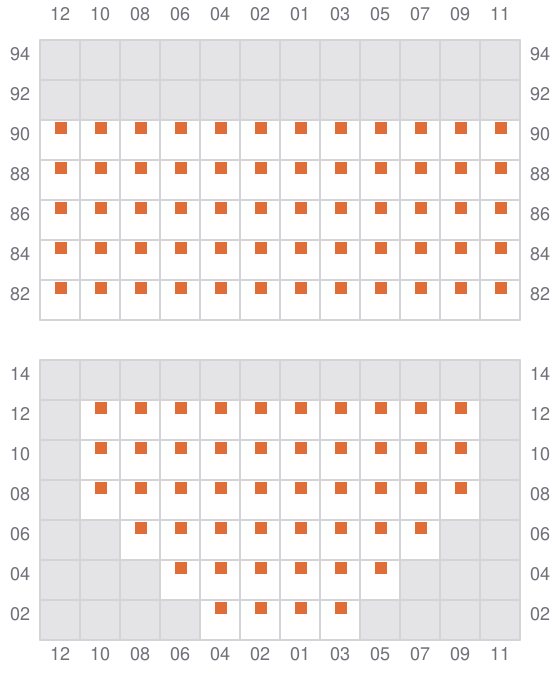

011

  • ←
Bay 011 view and slots of CMA CGM ZANZIBAR

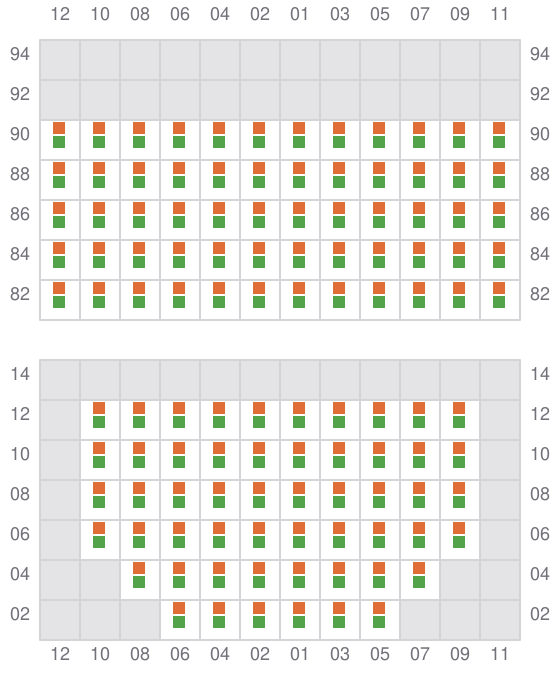

013 (014)

  • →
Bay 013 view and slots of CMA CGM ZANZIBAR

015

  • ←

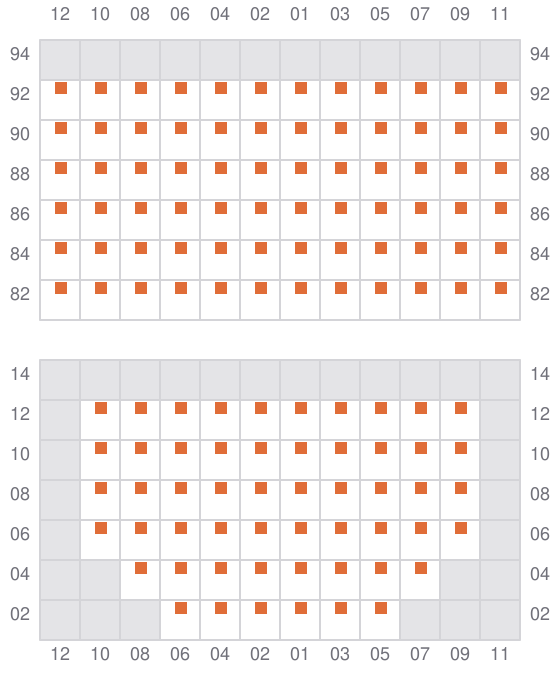

Bay 015 view and slots of CMA CGM ZANZIBAR

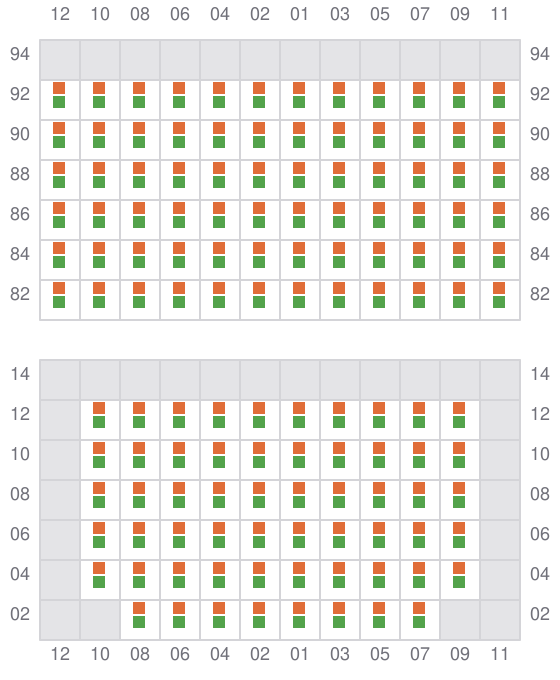

017 (018)

  • →
Bay 017 view and slots of CMA CGM ZANZIBAR

019

  • ←
Bay 019 view and slots of CMA CGM ZANZIBAR

021 (022)

  • →
Bay 021 view and slots of CMA CGM ZANZIBAR

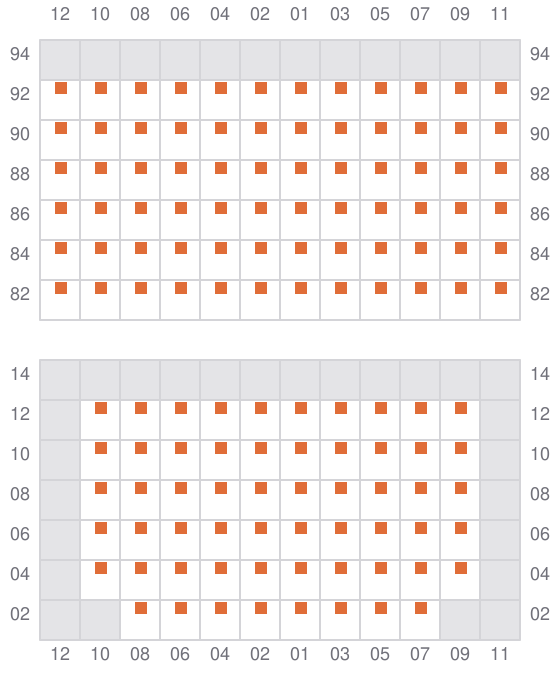

023

  • ←
Bay 023 view and slots of CMA CGM ZANZIBAR

025 (026)

  • →
Bay 025 view and slots of CMA CGM ZANZIBAR

027

  • ←
Bay 027 view and slots of CMA CGM ZANZIBAR

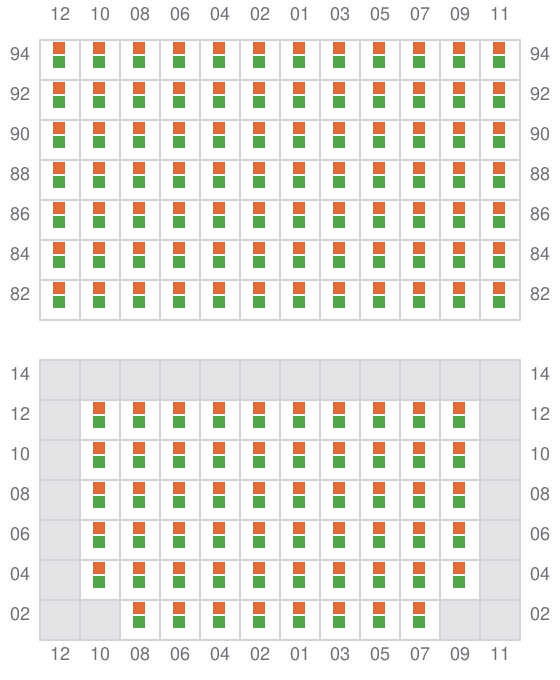

029 (030)

  • →
Bay 029 view and slots of CMA CGM ZANZIBAR

031

  • ←
Bay 031 view and slots of CMA CGM ZANZIBAR

033 (034)

  • →
Bay 033 view and slots of CMA CGM ZANZIBAR

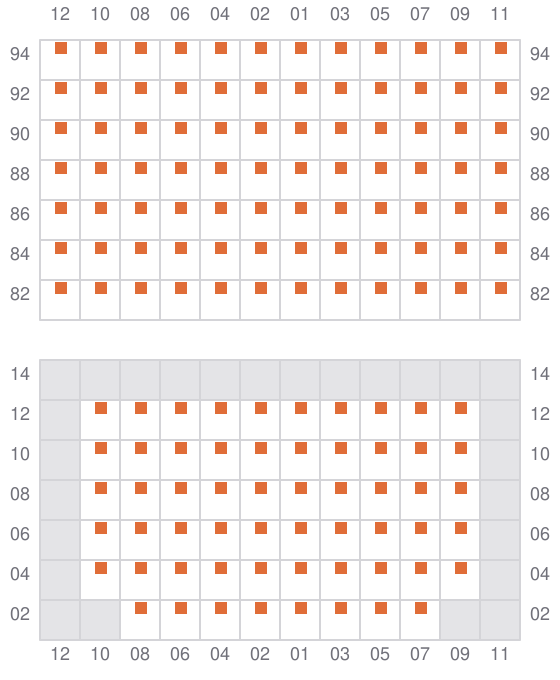

035

  • ←
Bay 035 view and slots of CMA CGM ZANZIBAR

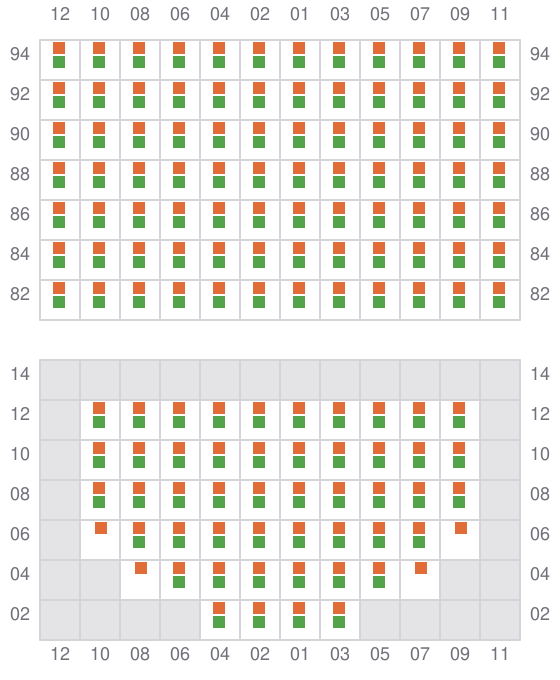

037 (038)

  • →
Bay 037 view and slots of CMA CGM ZANZIBAR

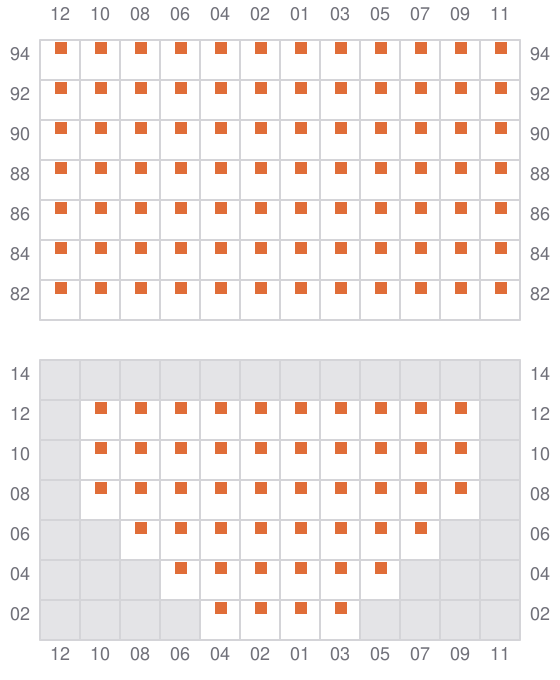

039

  • ←
Bay 039 view and slots of CMA CGM ZANZIBAR

041

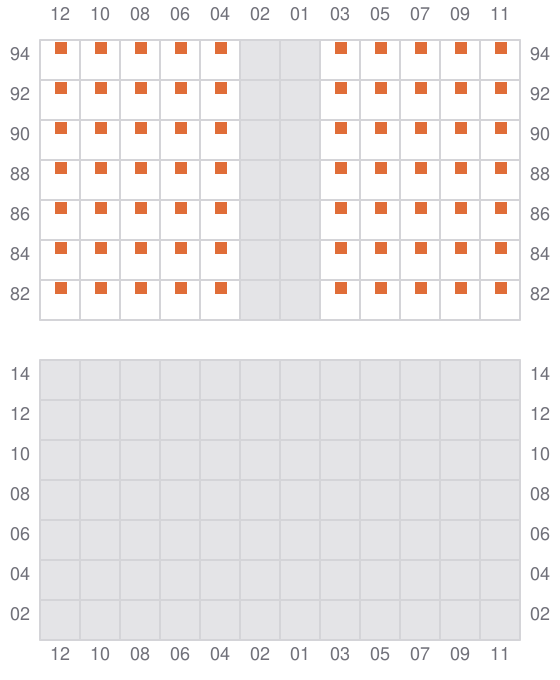

Bay 041 view and slots of CMA CGM ZANZIBAR

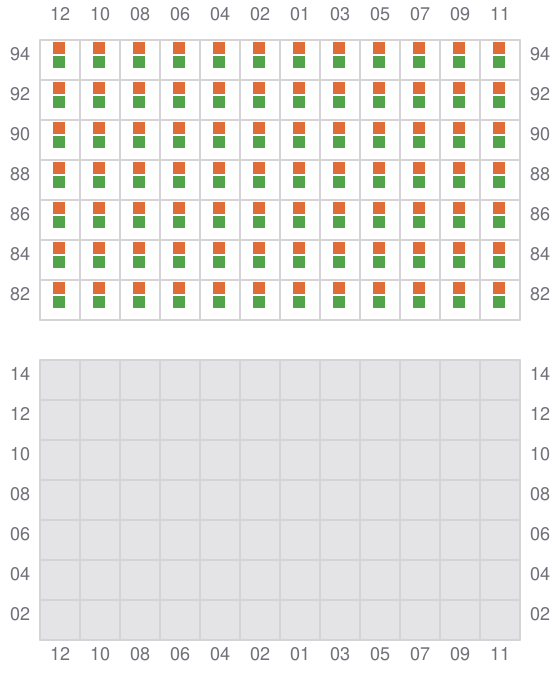

043 (044)

  • → / ?
Bay 043 view and slots of CMA CGM ZANZIBAR

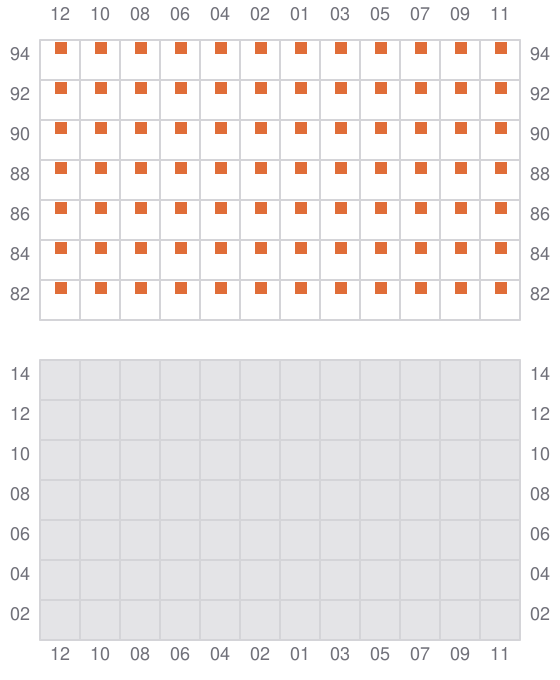

045

Bay 045 view and slots of CMA CGM ZANZIBAR
