CMA CGM ZHENG HE
9706906 | 9HA5009 | CMA by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:CMA CGM ZHENG HE

IMO Code:9706906

Call Sign:9HA5009

Line Operator:CMA

Class Name for Sister Ships:CGZH

Year Built:2015

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:093

Max ISO Row:20

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:68

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:18,045

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

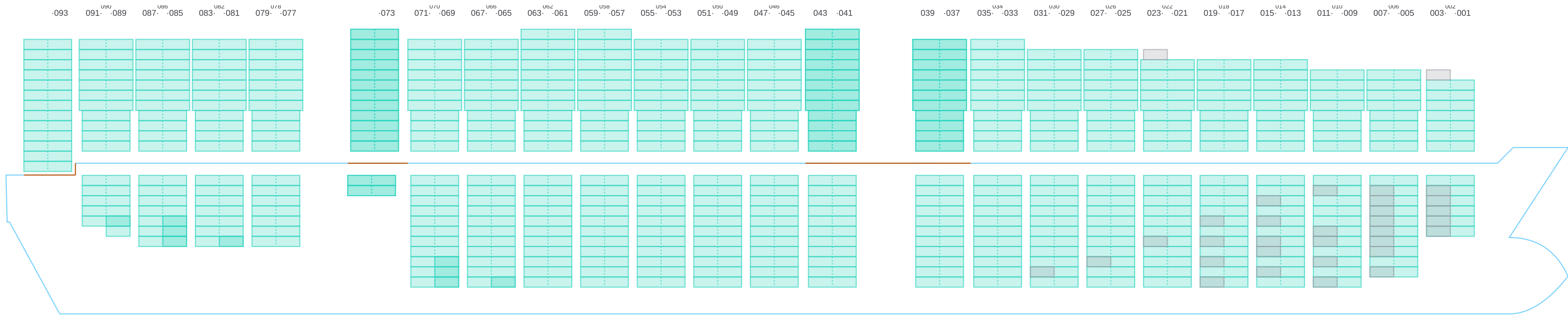

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

Bay 001 view and slots of CMA CGM ZHENG HE

003

←
^→ / _?
→

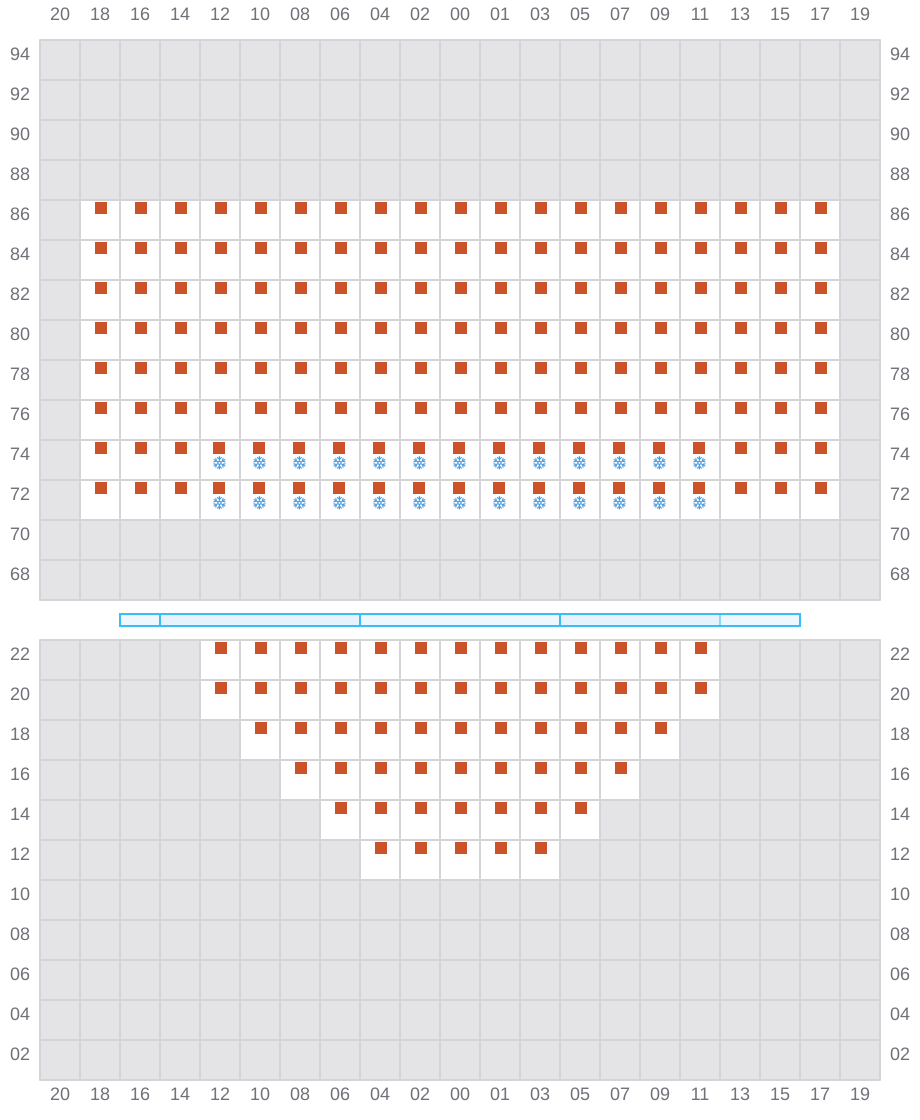

Bay 003 view and slots of CMA CGM ZHENG HE

005 (006)

→
^→ / _?
→

Bay 005 view and slots of CMA CGM ZHENG HE

007

←
^→ / _?
→

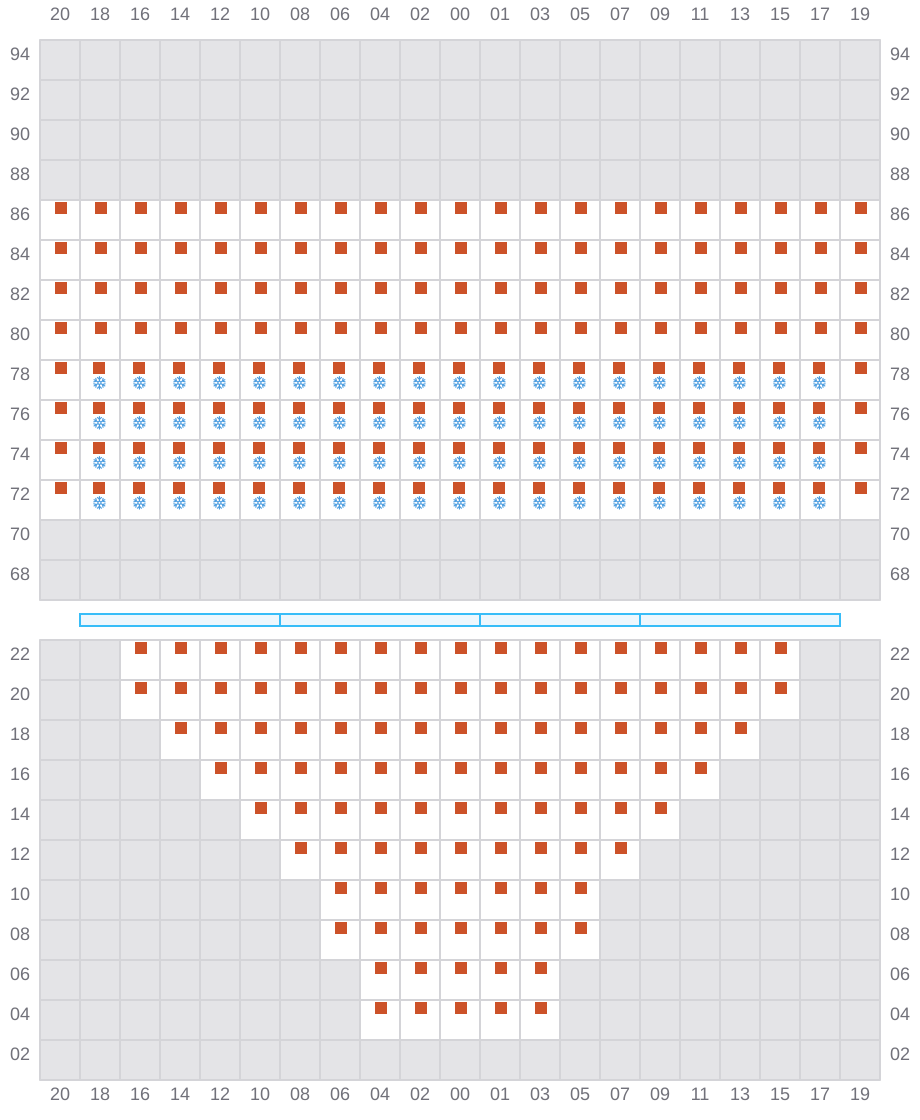

Bay 007 view and slots of CMA CGM ZHENG HE

009 (010)

→
^→ / _?
→

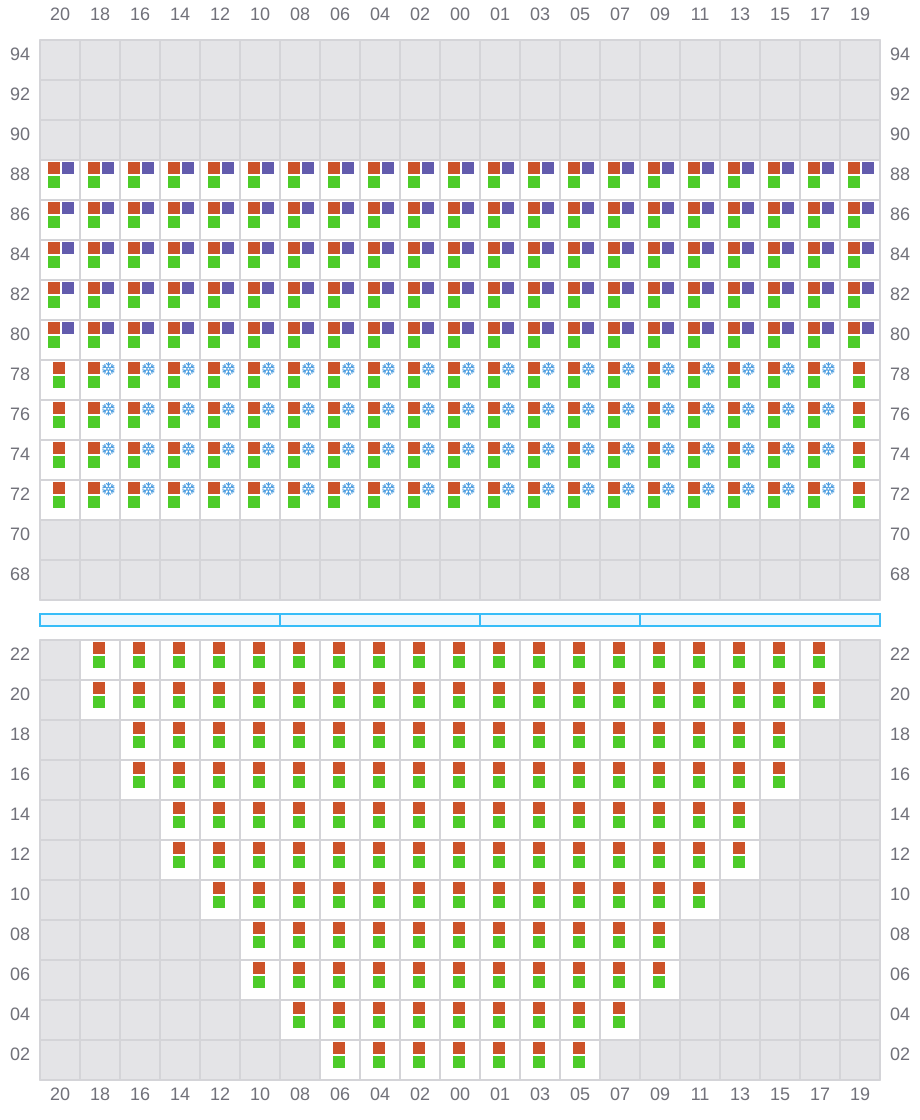

Bay 009 view and slots of CMA CGM ZHENG HE

011

←
^→ / _?
→

Bay 011 view and slots of CMA CGM ZHENG HE

013 (014)

→
^→ / _?
→

Bay 013 view and slots of CMA CGM ZHENG HE

015

←
^→ / _?
→

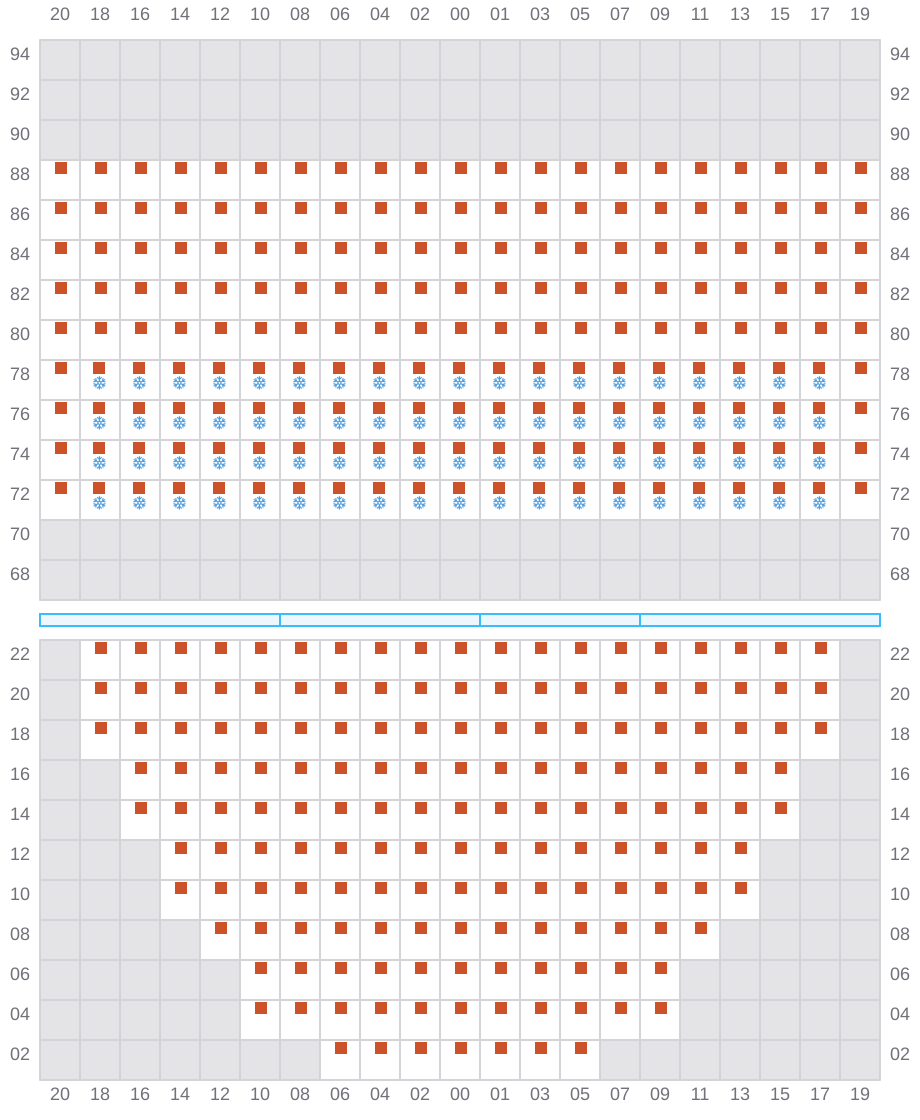

Bay 015 view and slots of CMA CGM ZHENG HE

017 (018)

→
^→ / _?
→

Bay 017 view and slots of CMA CGM ZHENG HE

019

←
^→ / _?
→

Bay 019 view and slots of CMA CGM ZHENG HE

021 (022)

→
^→ / _?
→

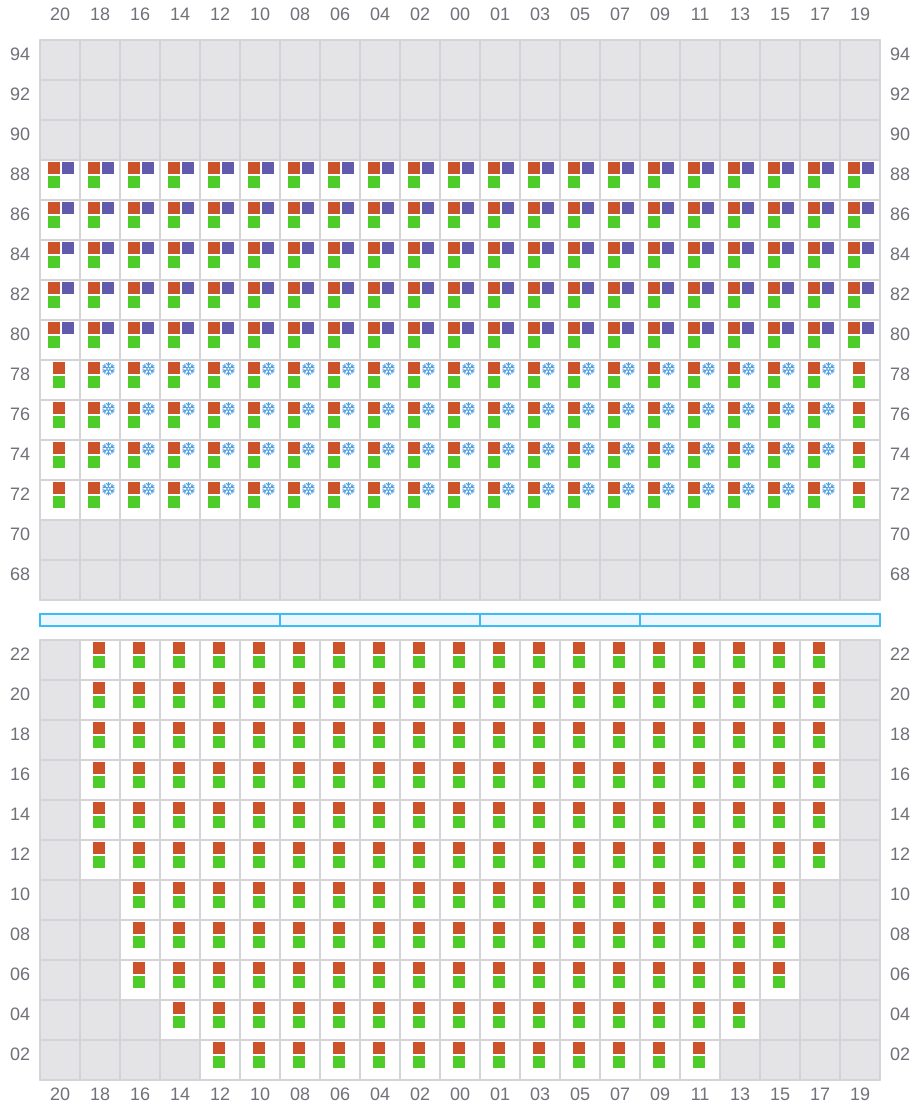

Bay 021 view and slots of CMA CGM ZHENG HE

023

←
^→ / _?
→

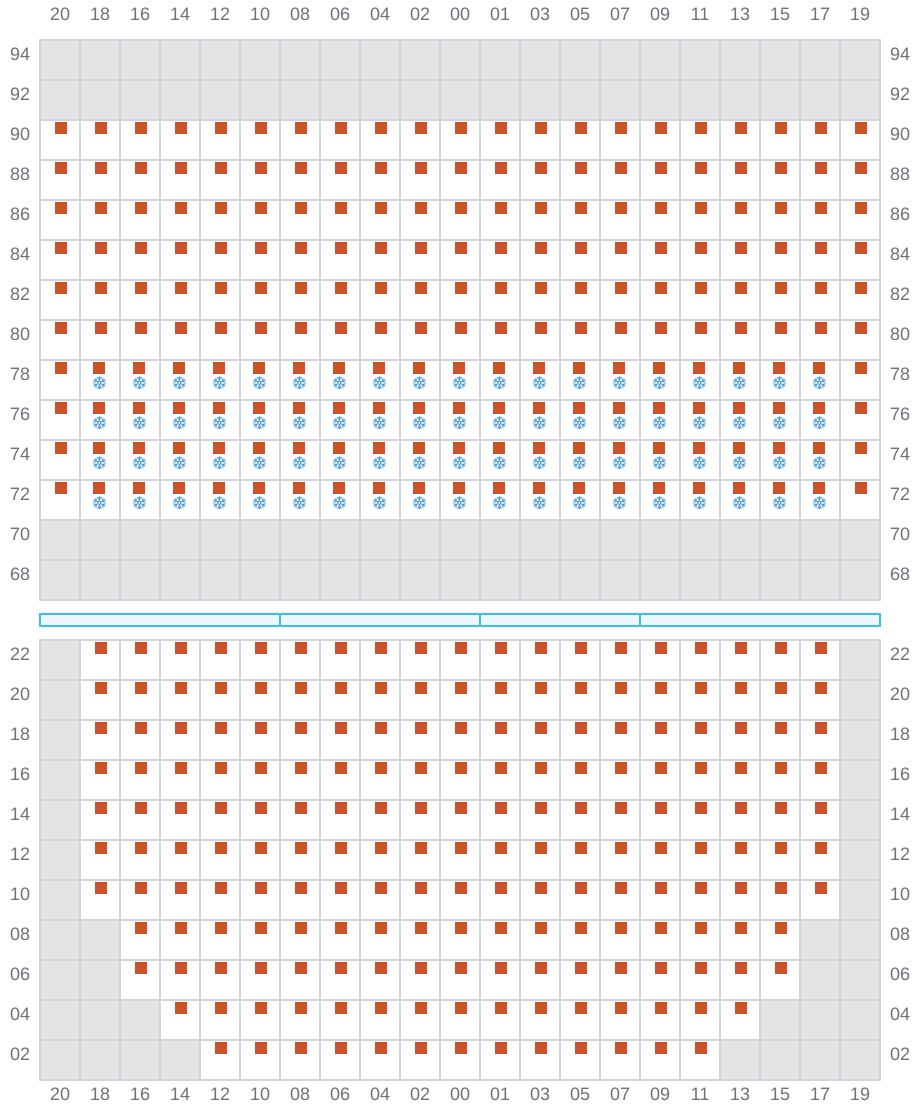

Bay 023 view and slots of CMA CGM ZHENG HE

025 (026)

→
^→ / _?
→

Bay 025 view and slots of CMA CGM ZHENG HE

027

←
^→ / _?
→

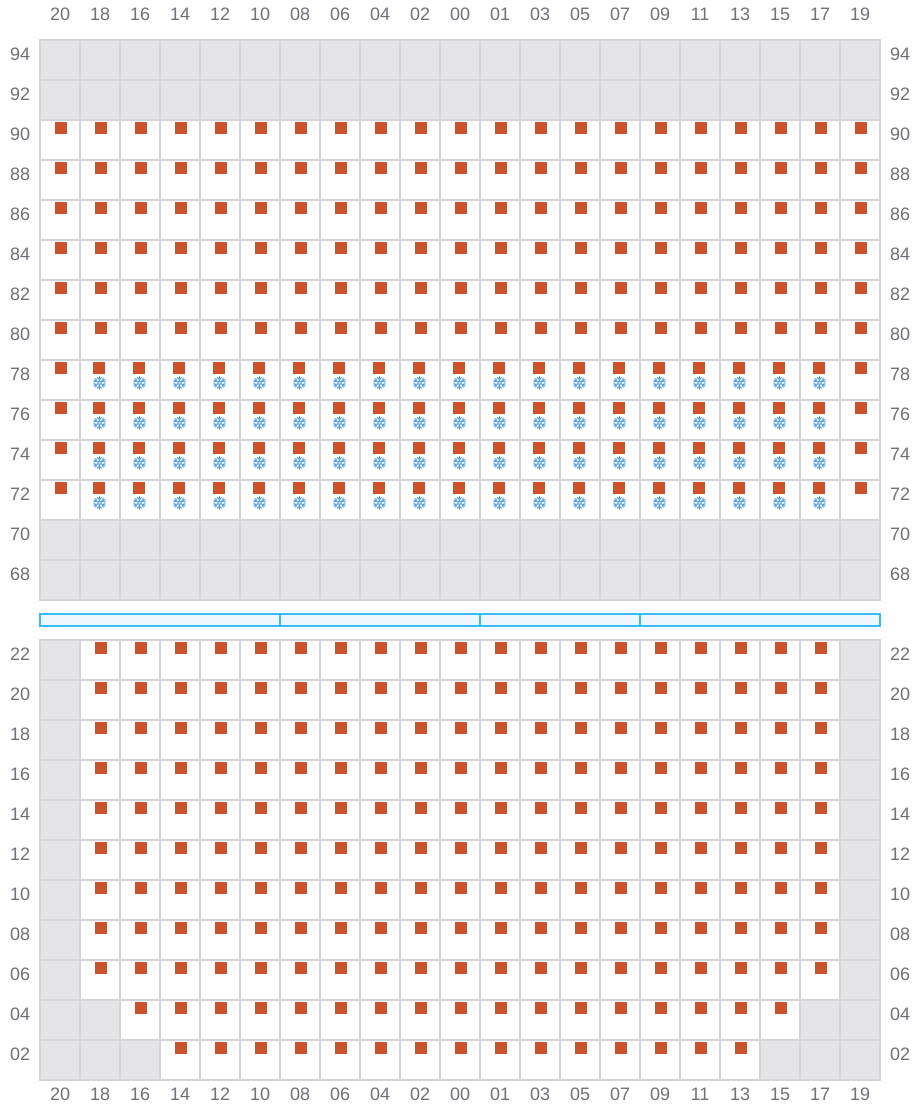

Bay 027 view and slots of CMA CGM ZHENG HE

029 (030)

→
^→ / _?
→

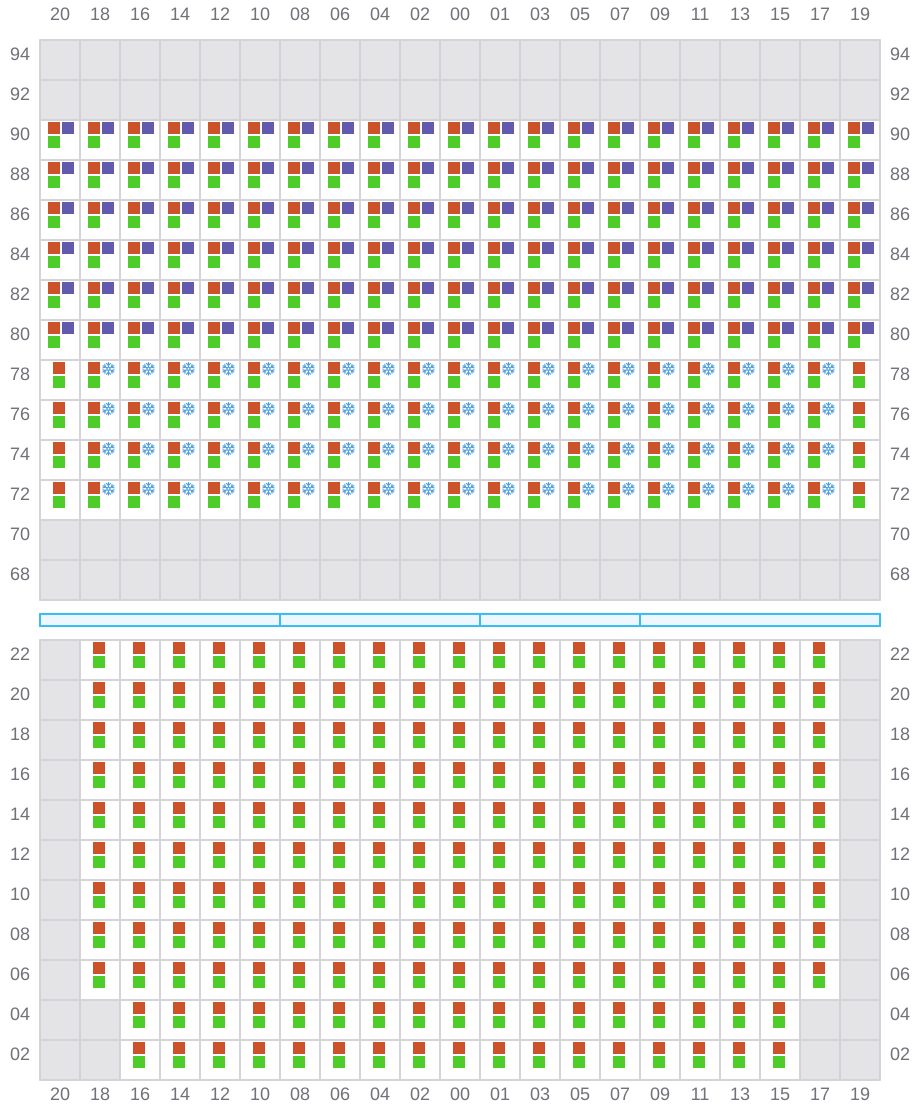

Bay 029 view and slots of CMA CGM ZHENG HE

031

←
^→ / _?
→

Bay 031 view and slots of CMA CGM ZHENG HE

033 (034)

→
^→ / _?
→

Bay 033 view and slots of CMA CGM ZHENG HE

035

←
^→ / _?
→

Bay 035 view and slots of CMA CGM ZHENG HE

037 (038)

→
^→ / _?
→

Bay 037 view and slots of CMA CGM ZHENG HE

039

^? / _←
^? / _→

Bay 039 view and slots of CMA CGM ZHENG HE

041 (042)

→
^→ / _?
→

Bay 041 view and slots of CMA CGM ZHENG HE

043

^? / _←
^? / _→

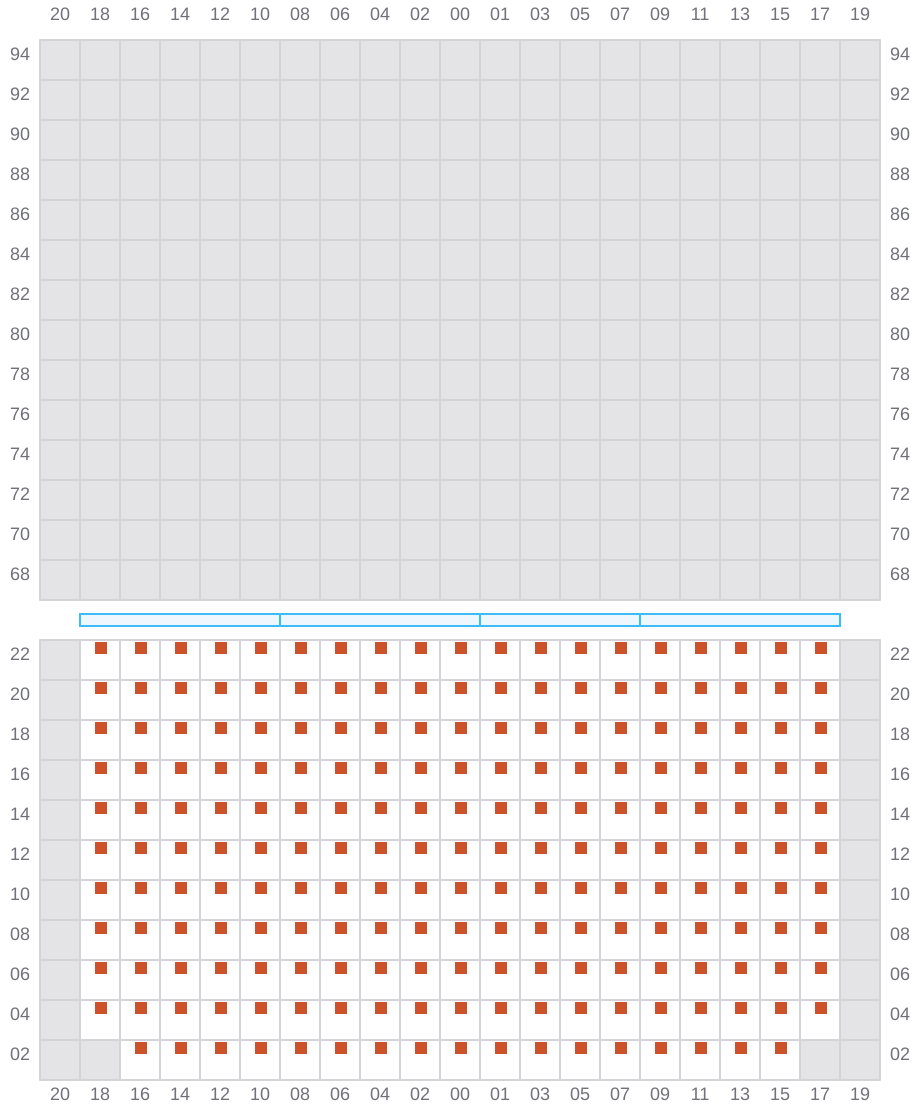

Bay 043 view and slots of CMA CGM ZHENG HE

045 (046)

→
^→ / _?
→

Bay 045 view and slots of CMA CGM ZHENG HE

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM ZHENG HE

049 (050)

→
^→ / _?
→

Bay 049 view and slots of CMA CGM ZHENG HE

051

←
^→ / _?
→

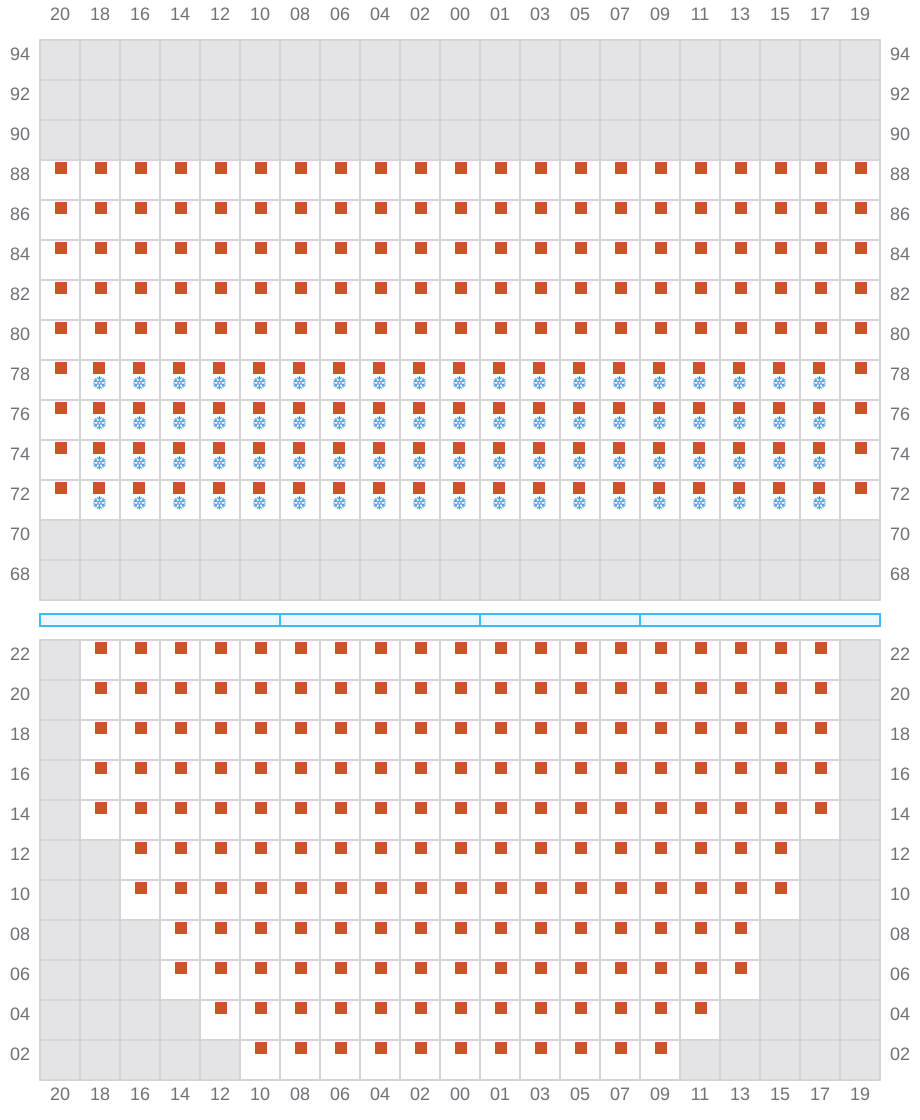

Bay 051 view and slots of CMA CGM ZHENG HE

053 (054)

→
^→ / _?
→

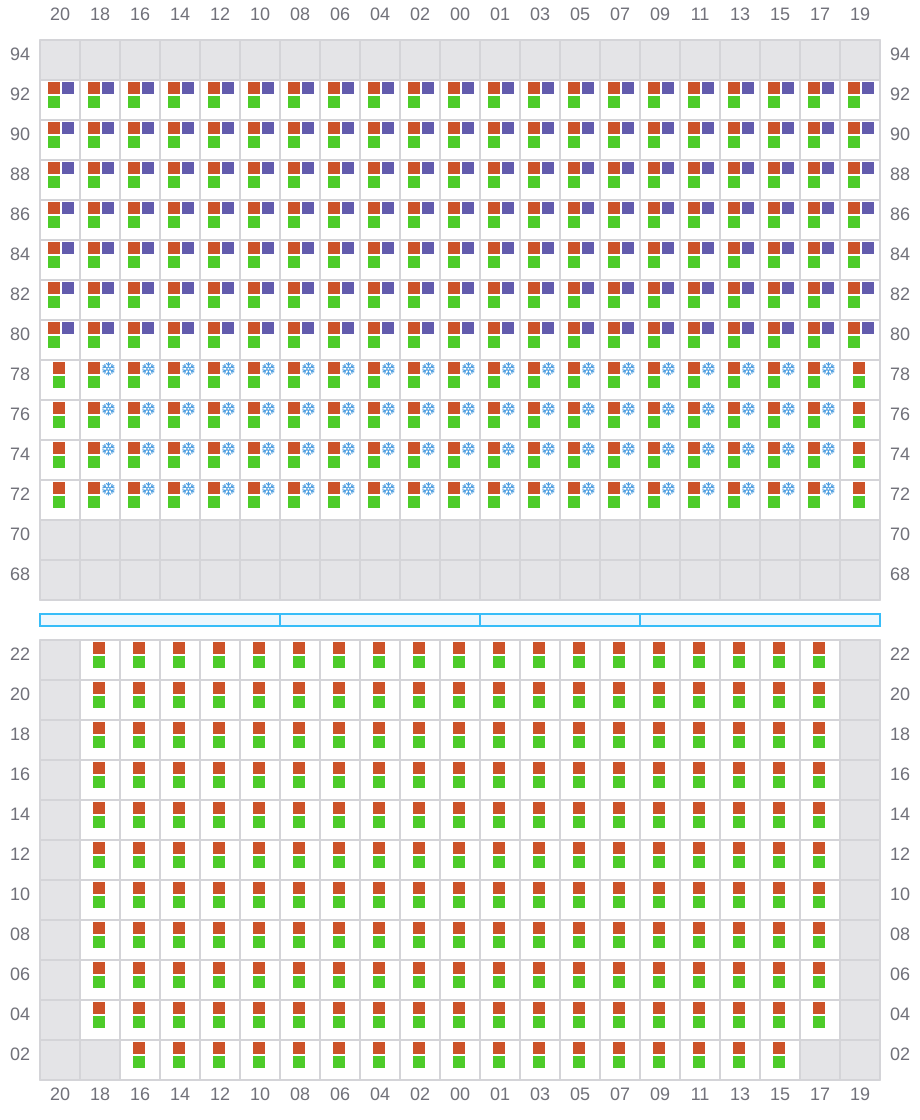

Bay 053 view and slots of CMA CGM ZHENG HE

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM ZHENG HE

057 (058)

→
^→ / _?
→

Bay 057 view and slots of CMA CGM ZHENG HE

059

←
^→ / _?
→

Bay 059 view and slots of CMA CGM ZHENG HE

061 (062)

→
^→ / _?
→

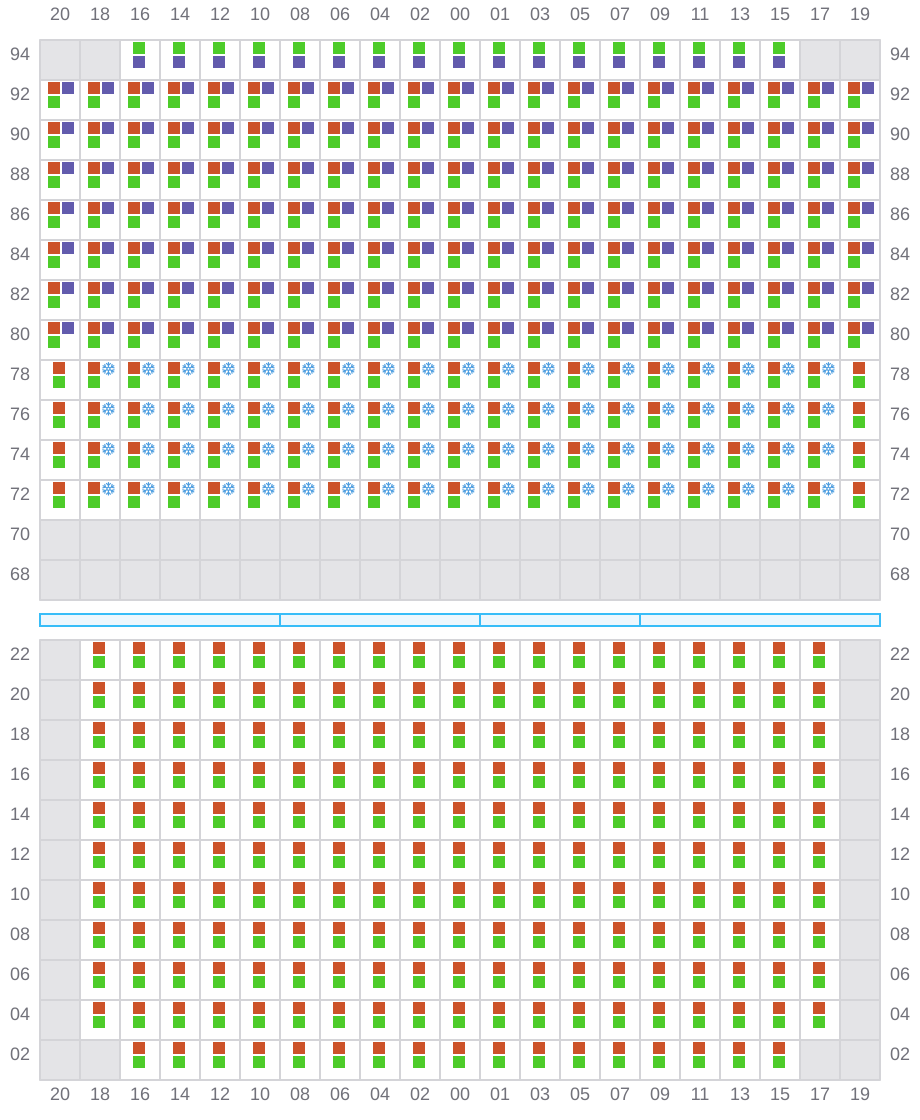

Bay 061 view and slots of CMA CGM ZHENG HE

063

←
^→ / _?
→

Bay 063 view and slots of CMA CGM ZHENG HE

065 (066)

→
^→ / _?
→

Bay 065 view and slots of CMA CGM ZHENG HE

067

←
^→ / _?
→

Bay 067 view and slots of CMA CGM ZHENG HE

069 (070)

→
^→ / _?
→

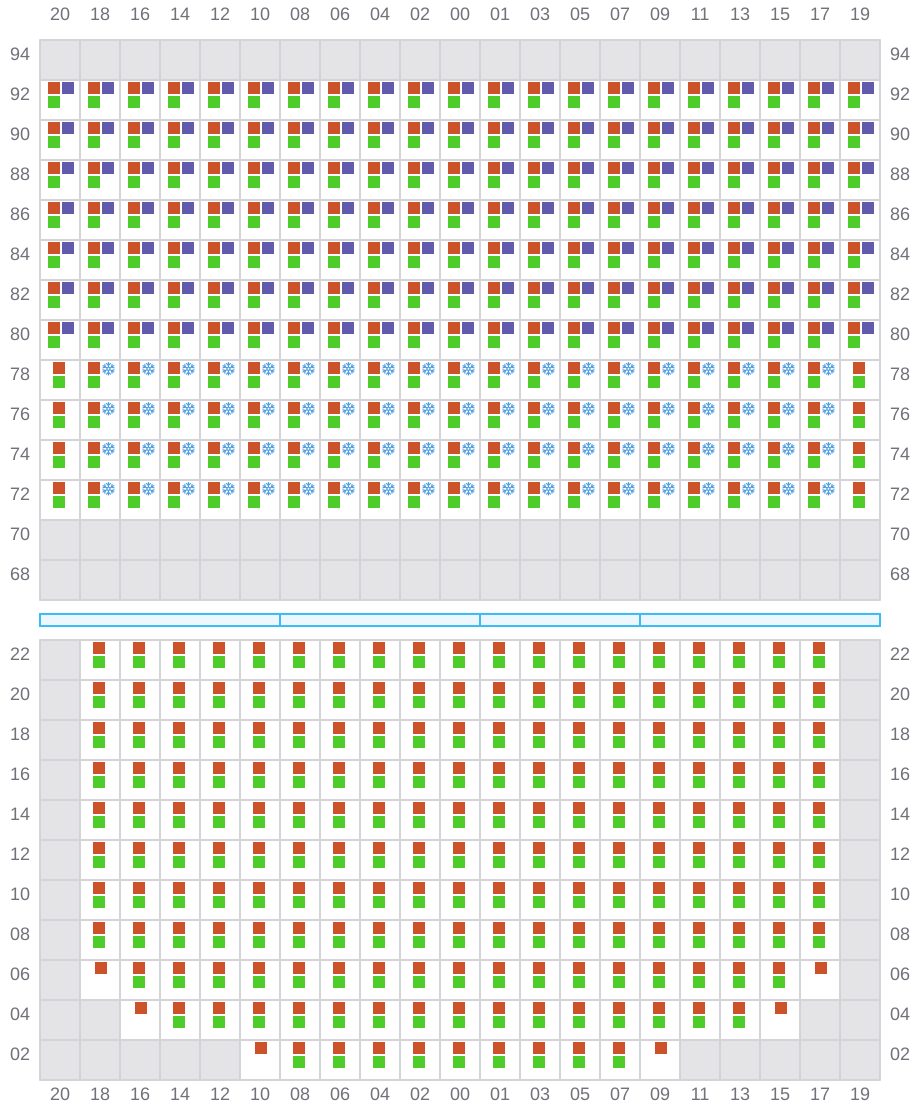

Bay 069 view and slots of CMA CGM ZHENG HE

071

←
^→ / _?
→

Bay 071 view and slots of CMA CGM ZHENG HE

073 (074)

Bay 073 view and slots of CMA CGM ZHENG HE

075

Bay 075 view and slots of CMA CGM ZHENG HE

077 (078)

→
^→ / _?
→

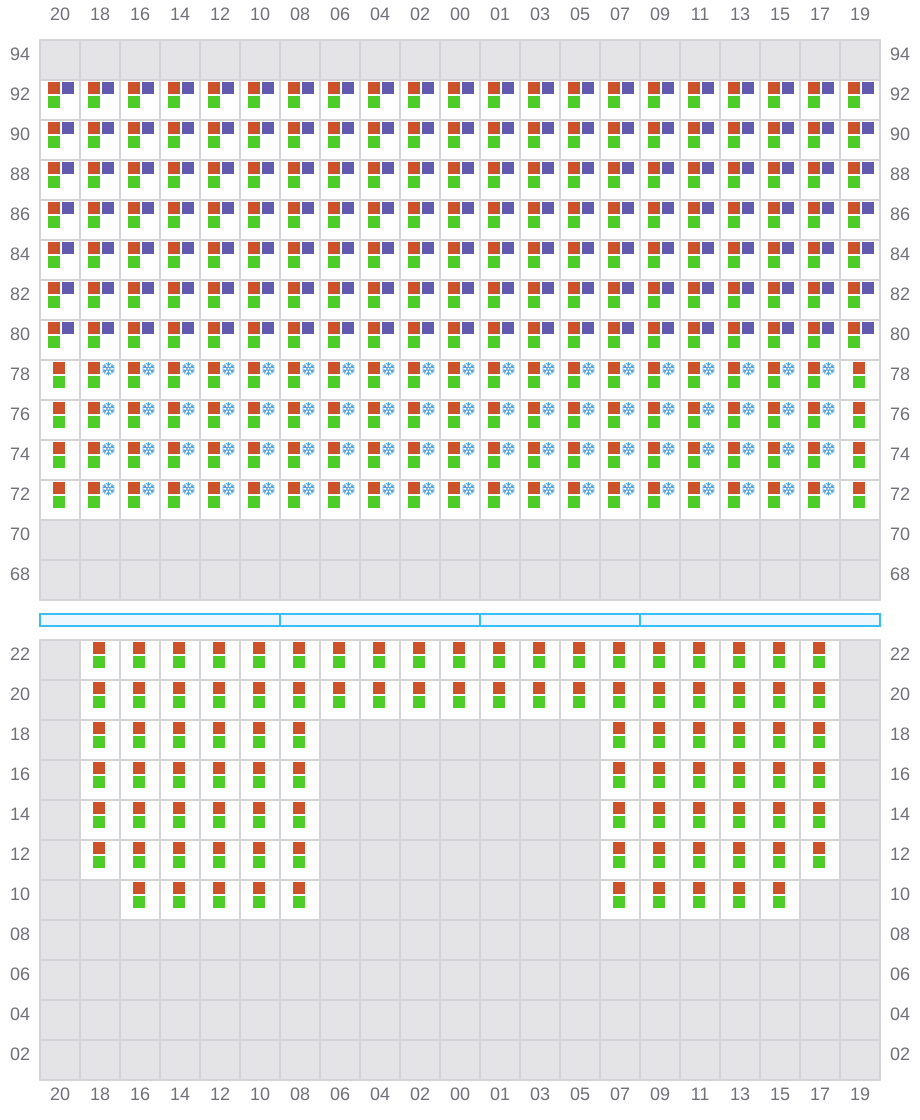

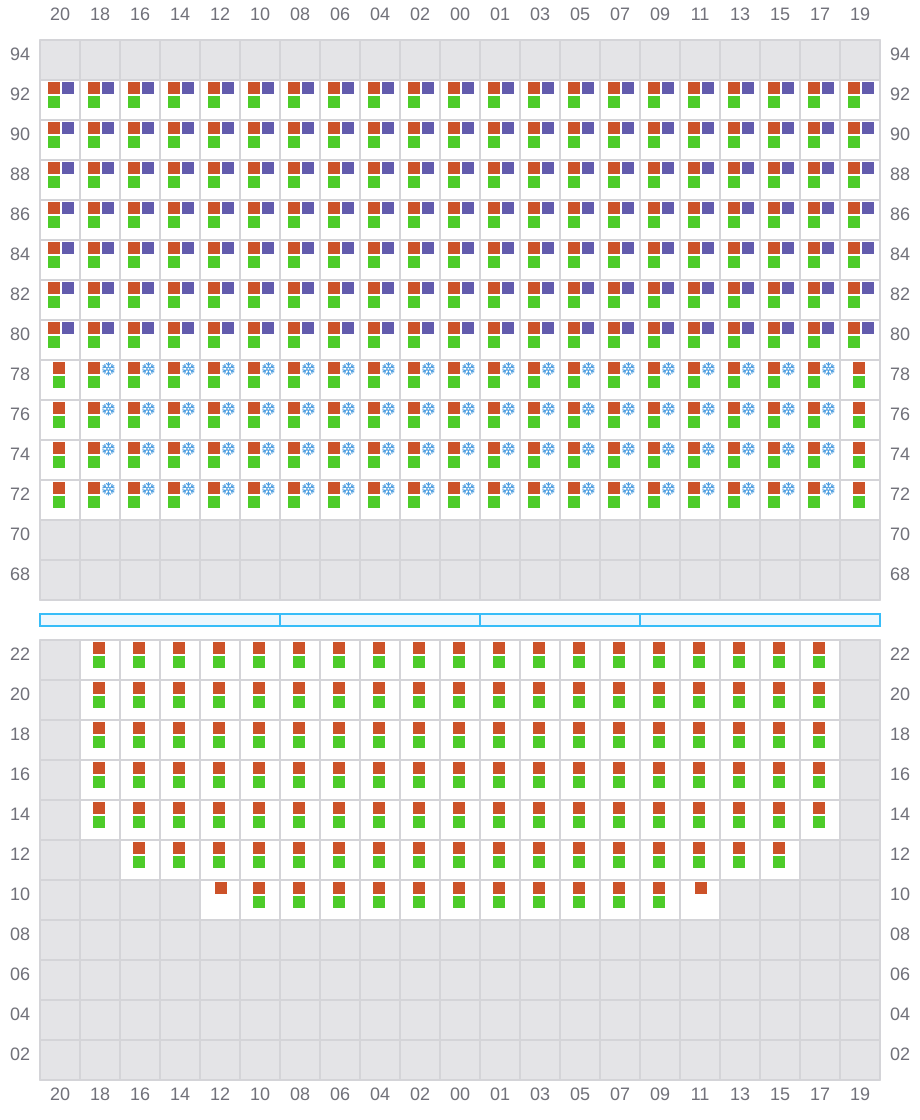

Bay 077 view and slots of CMA CGM ZHENG HE

079

←
^→ / _?
→

Bay 079 view and slots of CMA CGM ZHENG HE

081 (082)

→
^→ / _?
→

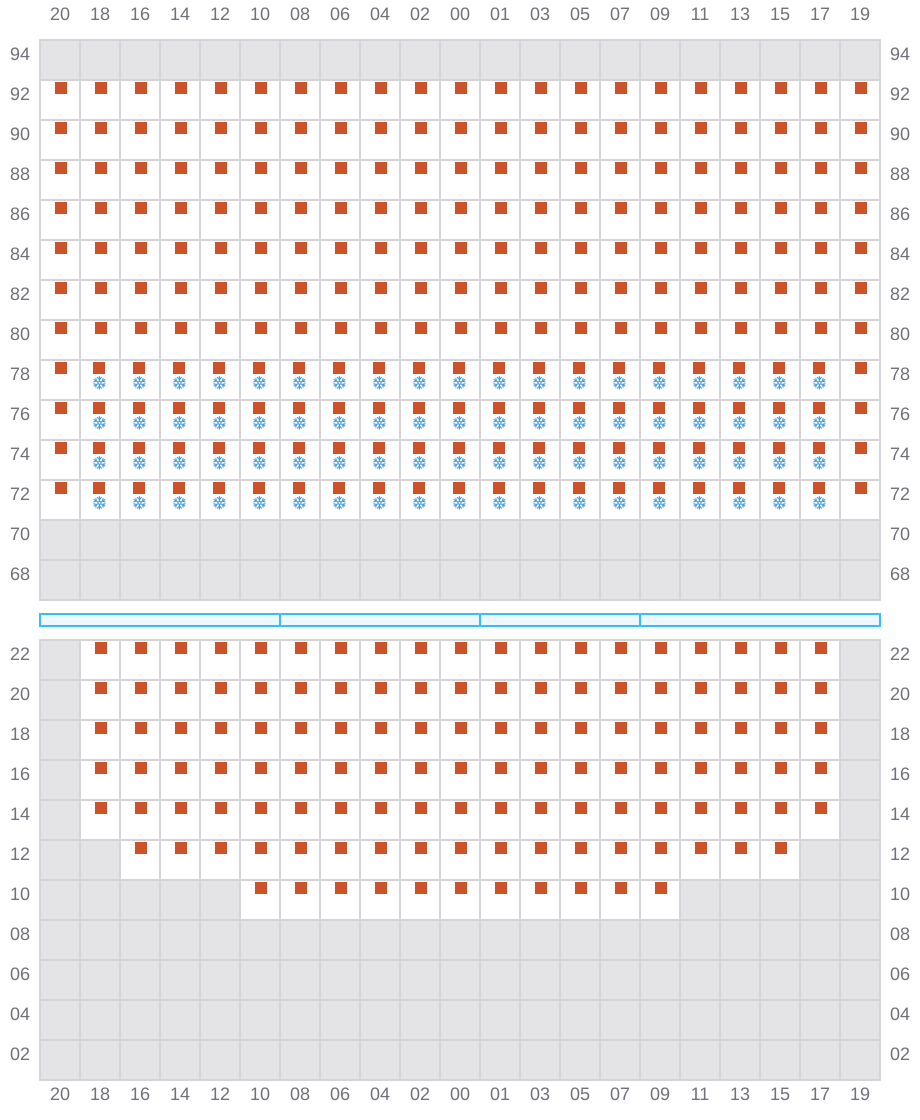

Bay 081 view and slots of CMA CGM ZHENG HE

083

←
^→ / _?
→

Bay 083 view and slots of CMA CGM ZHENG HE

085 (086)

→
^→ / _?
→

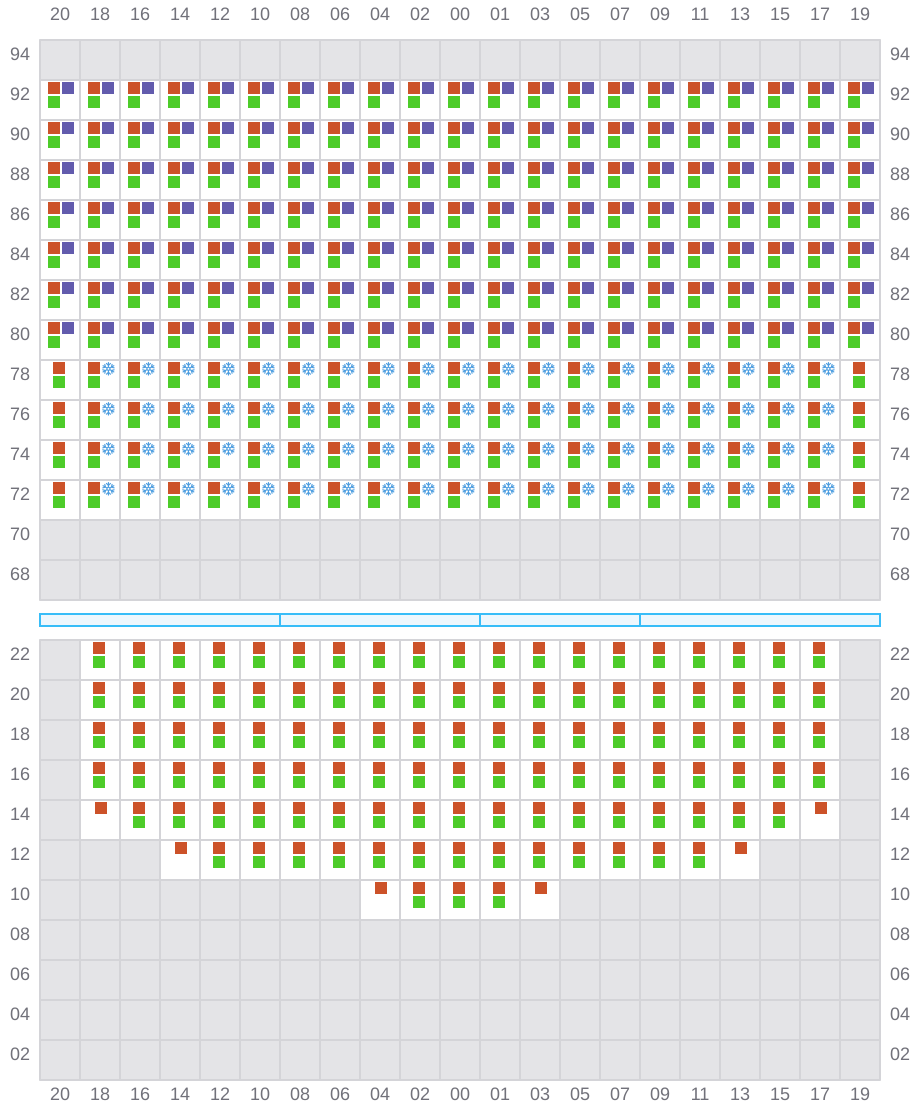

Bay 085 view and slots of CMA CGM ZHENG HE

087

←
^→ / _?
→

Bay 087 view and slots of CMA CGM ZHENG HE

089 (090)

→
^→ / _?
→

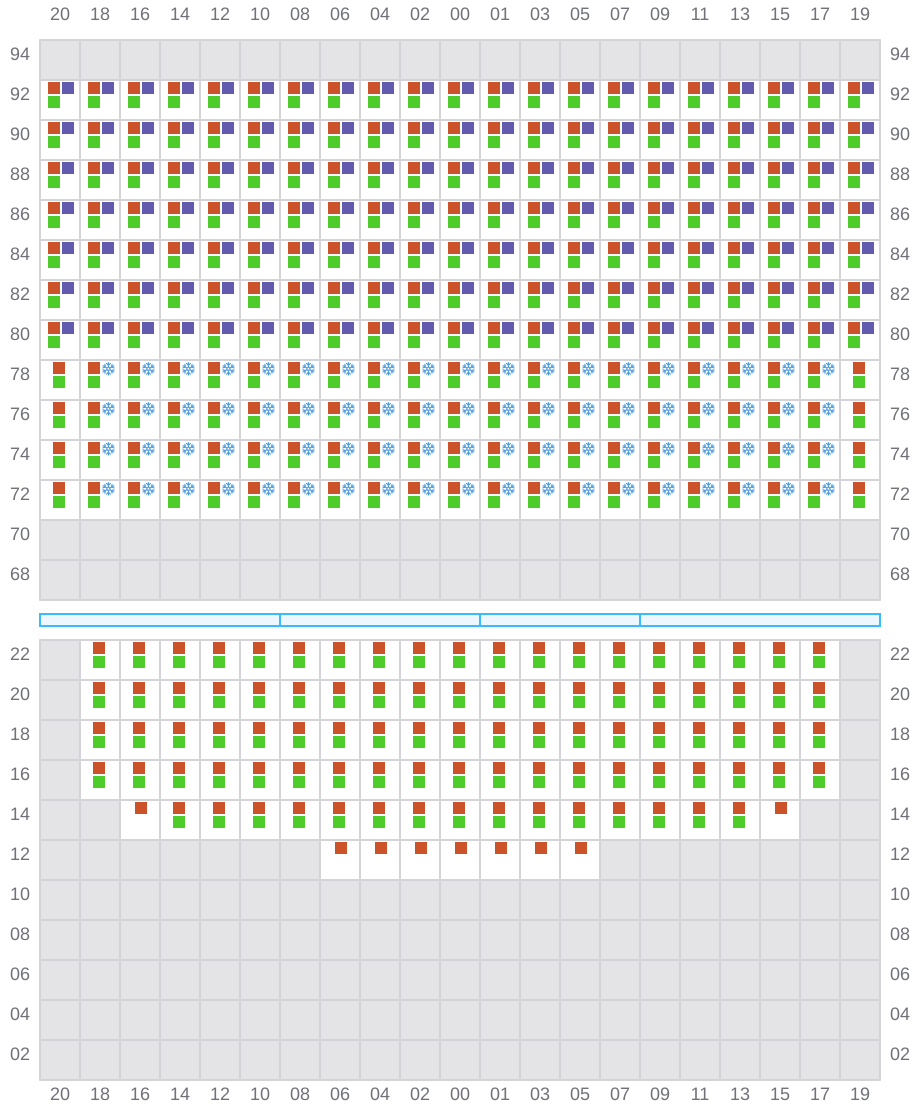

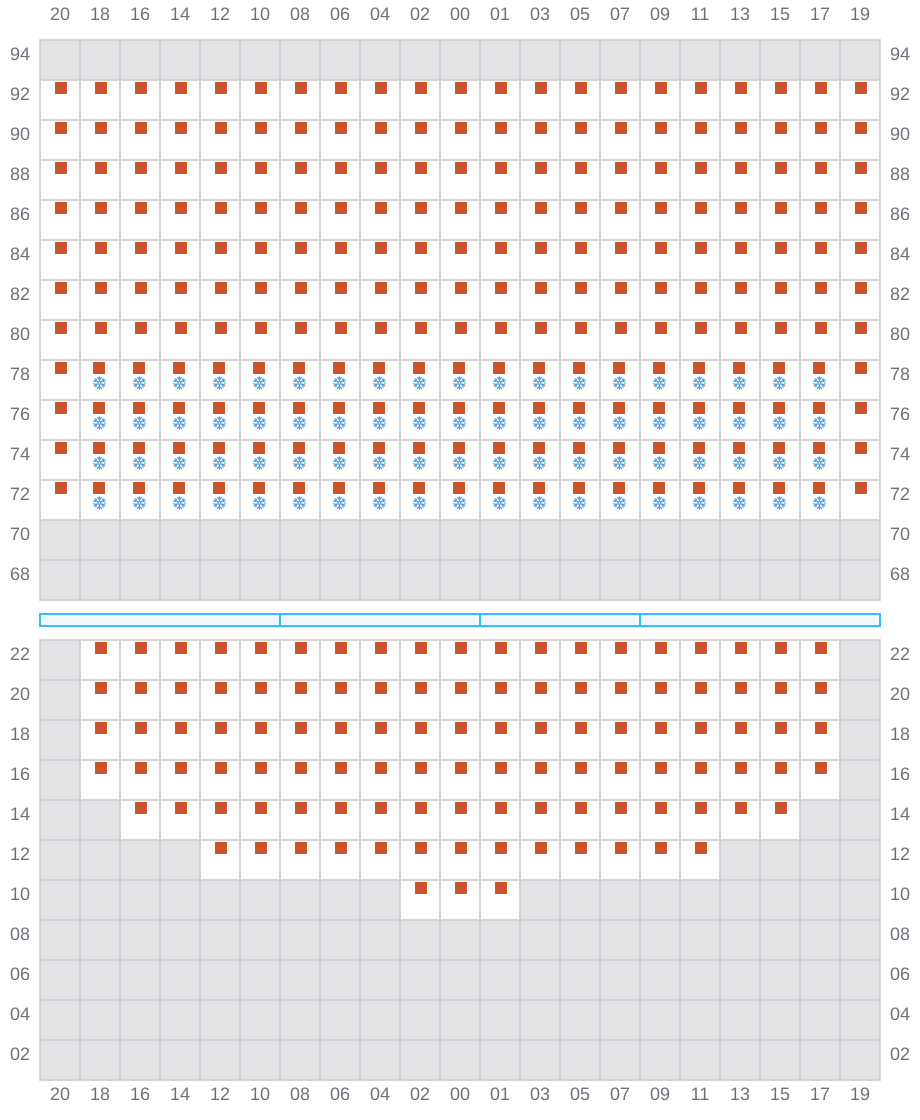

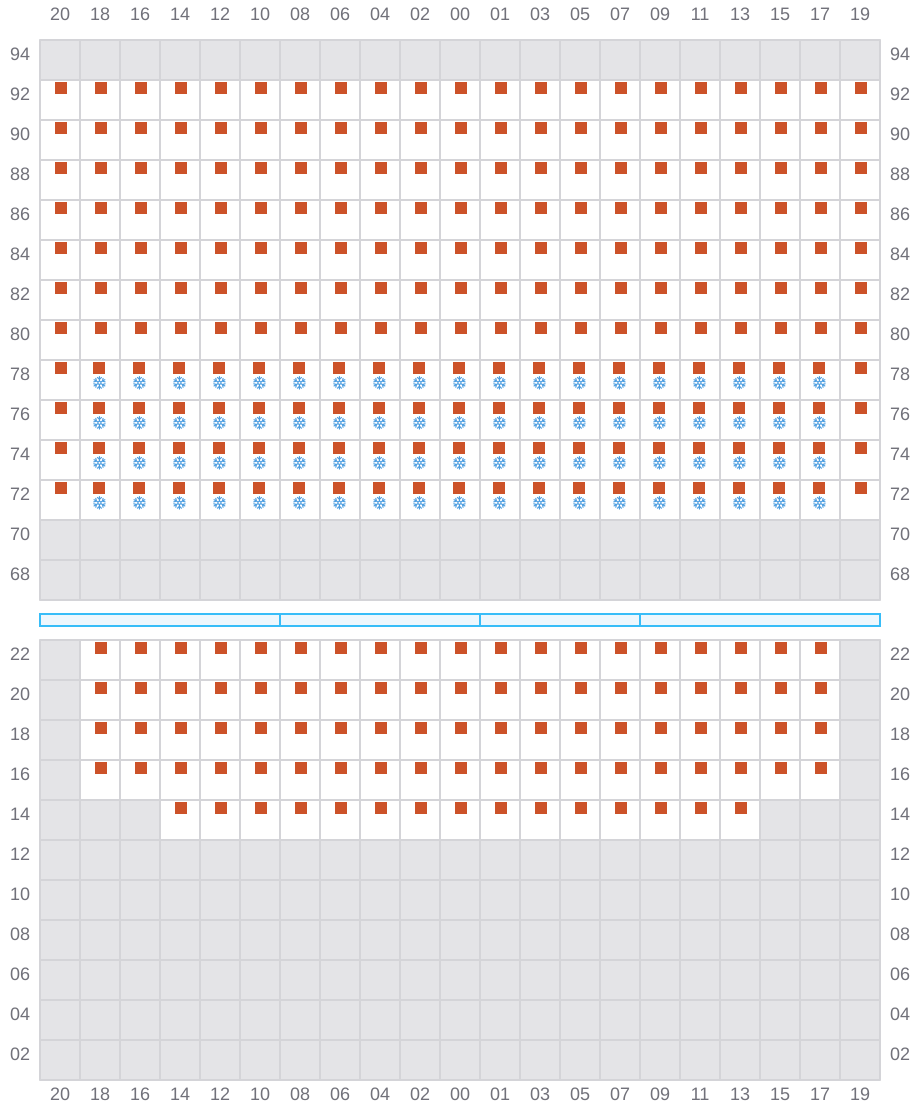

Bay 089 view and slots of CMA CGM ZHENG HE

091

←
^→ / _?
→

Bay 091 view and slots of CMA CGM ZHENG HE

093 (094)

^→ / _?
^→ / _?

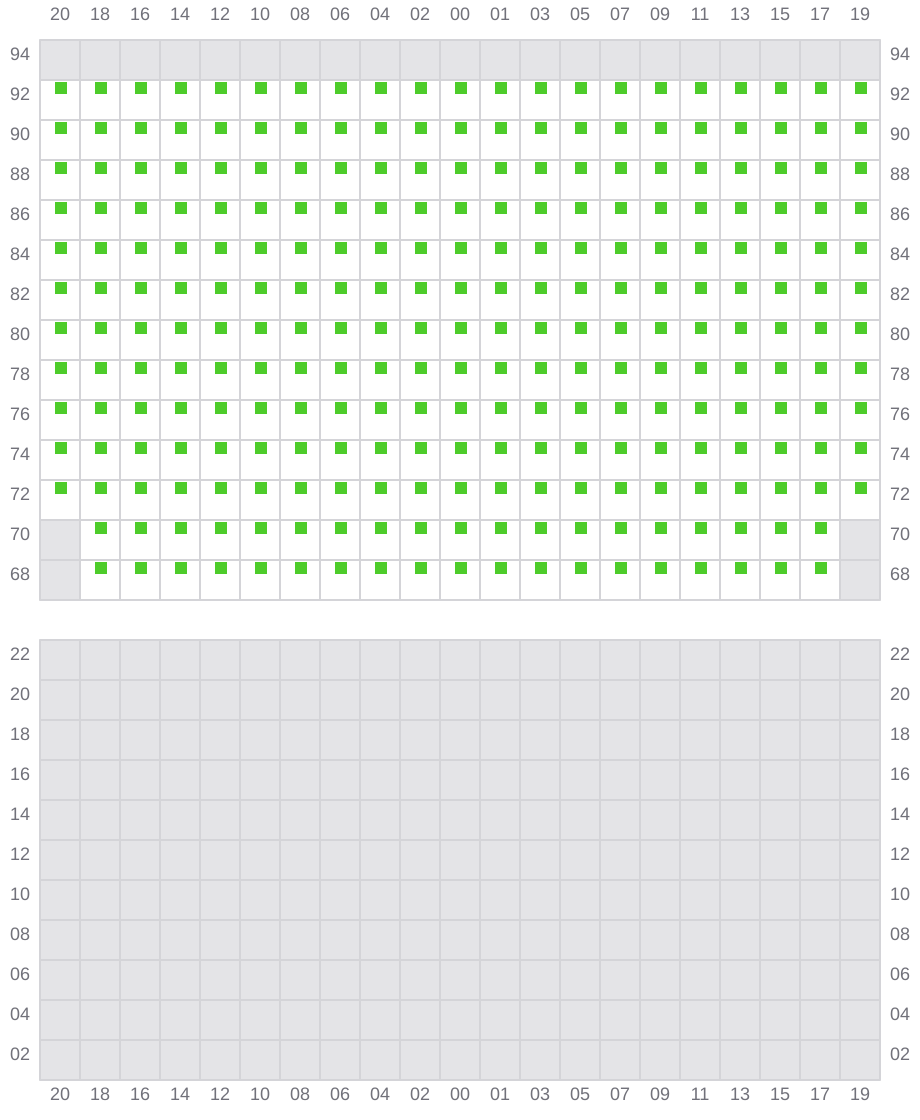

Bay 093 view and slots of CMA CGM ZHENG HE
