CMACGM SAN FRANCISCO
9225615 | D5TZ4 | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:CMACGM SAN FRANCISCO
IMO Code:9225615
Call Sign:D5TZ4
Line Operator:MSC
Class Name for Sister Ships:FMA
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,778

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

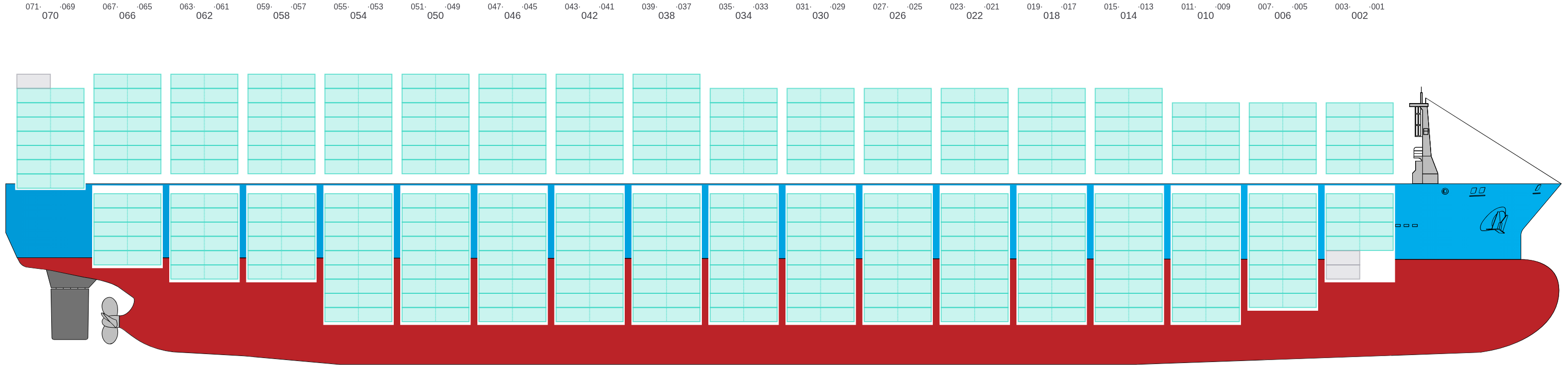

Side View

Side view of CMACGM SAN FRANCISCO

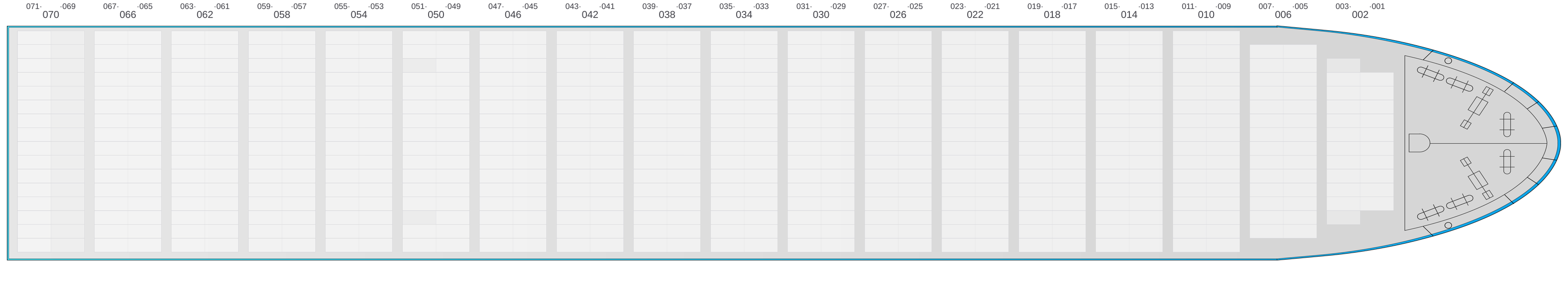

Hatch-Covers View

Deck view of CMACGM SAN FRANCISCO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

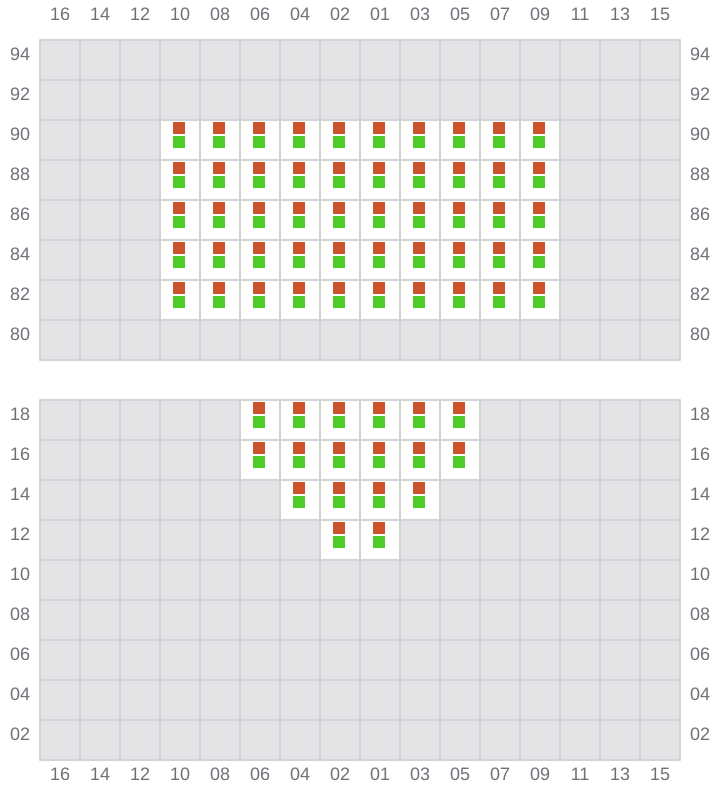

Bay 001 view and slots of CMACGM SAN FRANCISCO

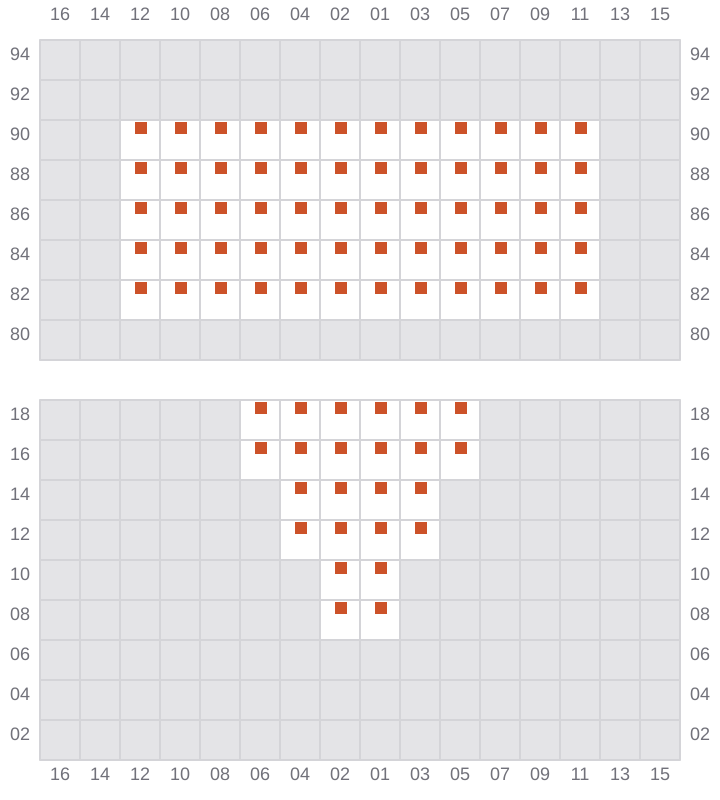

003

  • ←
Bay 003 view and slots of CMACGM SAN FRANCISCO

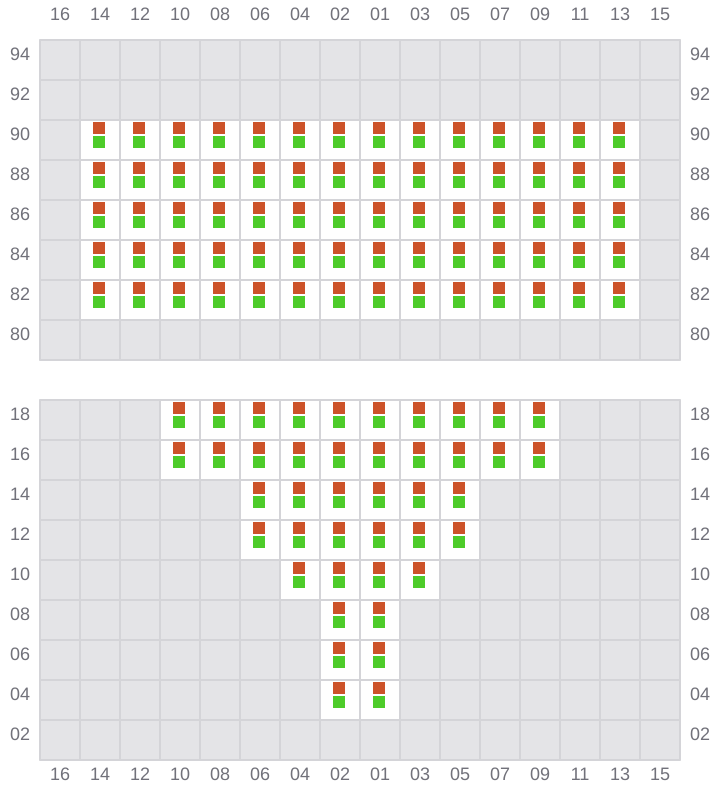

005 (006)

  • →
Bay 005 view and slots of CMACGM SAN FRANCISCO

007

  • ←

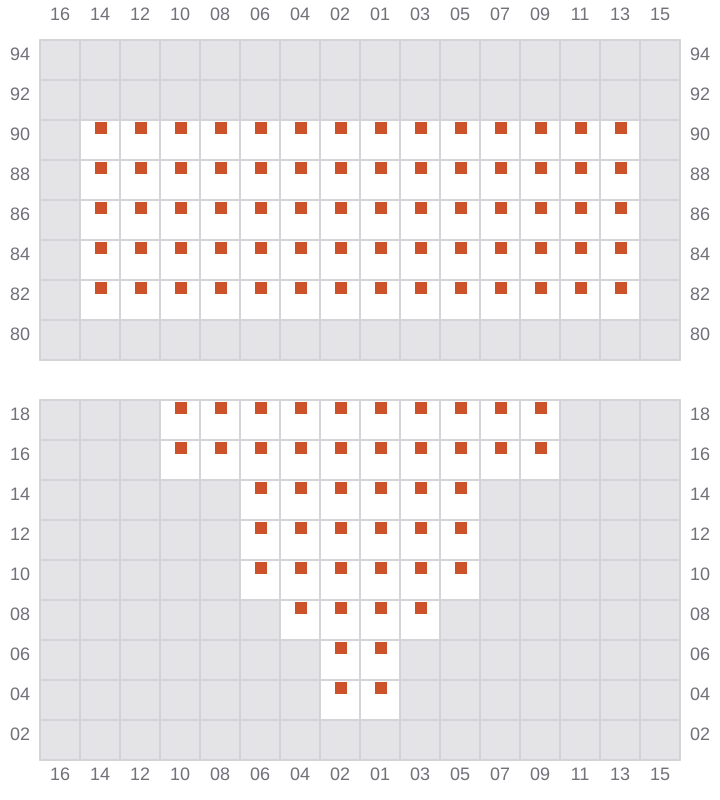

Bay 007 view and slots of CMACGM SAN FRANCISCO

009 (010)

  • →

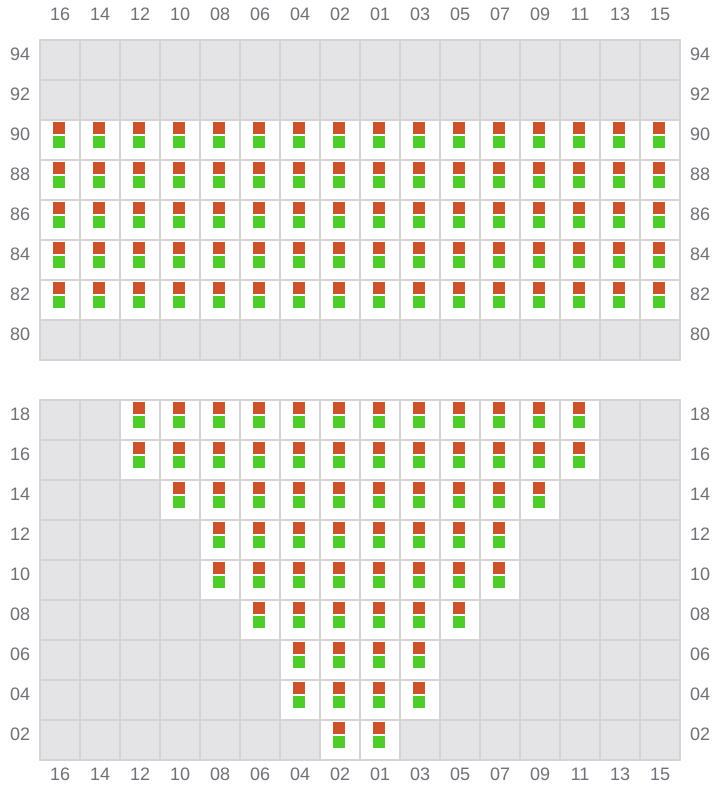

Bay 009 view and slots of CMACGM SAN FRANCISCO

011

  • ←

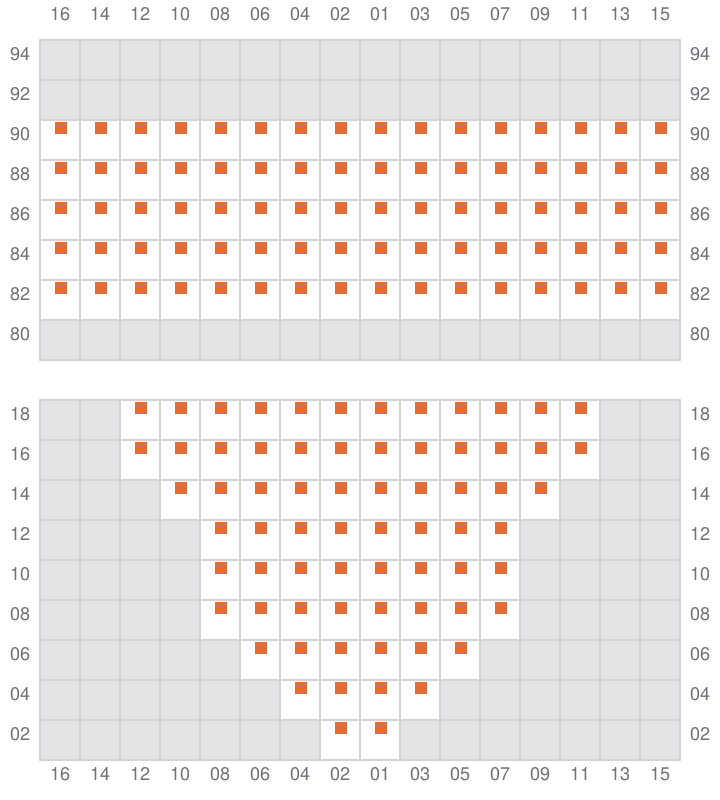

Bay 011 view and slots of CMACGM SAN FRANCISCO

013 (014)

  • →

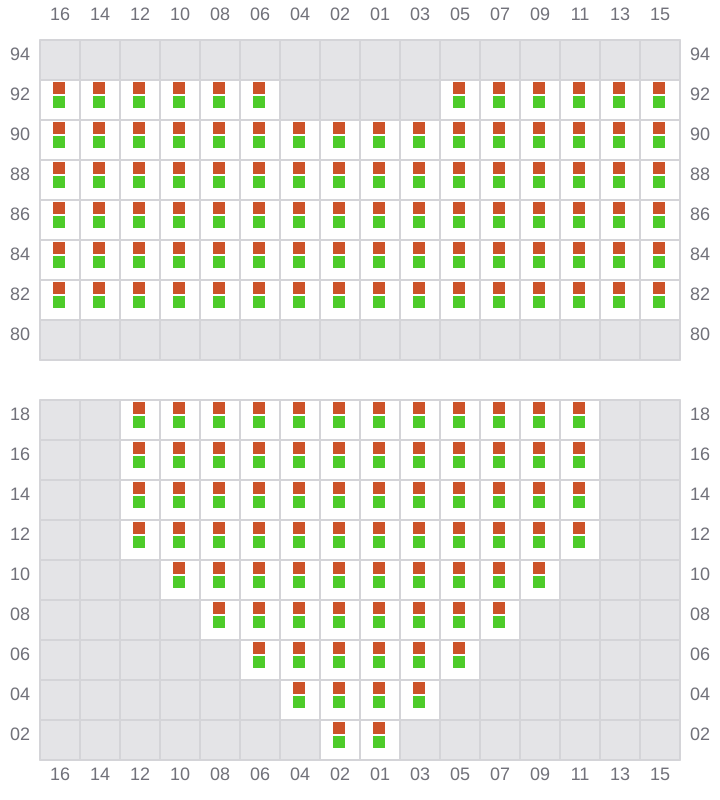

Bay 013 view and slots of CMACGM SAN FRANCISCO

015

  • ←

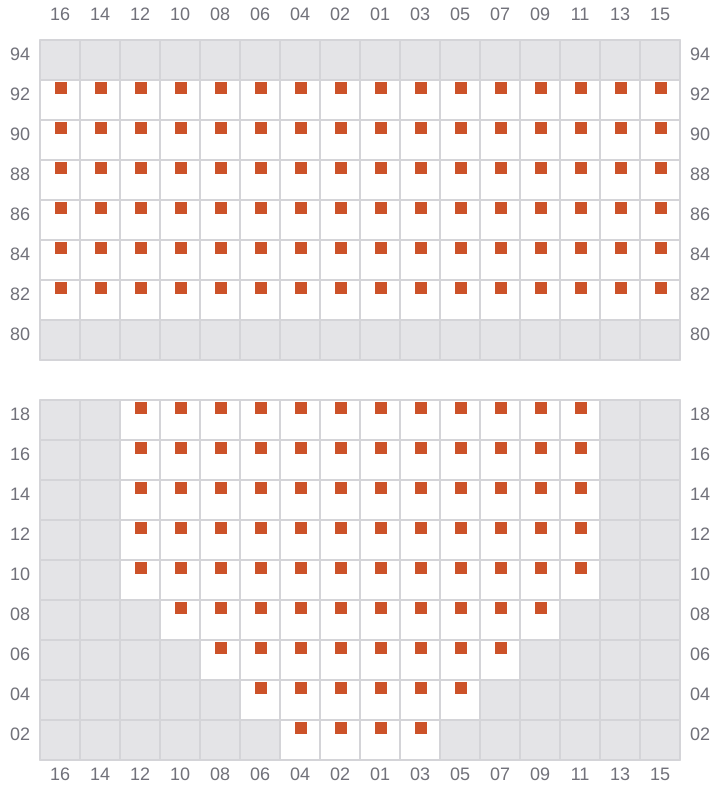

Bay 015 view and slots of CMACGM SAN FRANCISCO

017 (018)

  • →

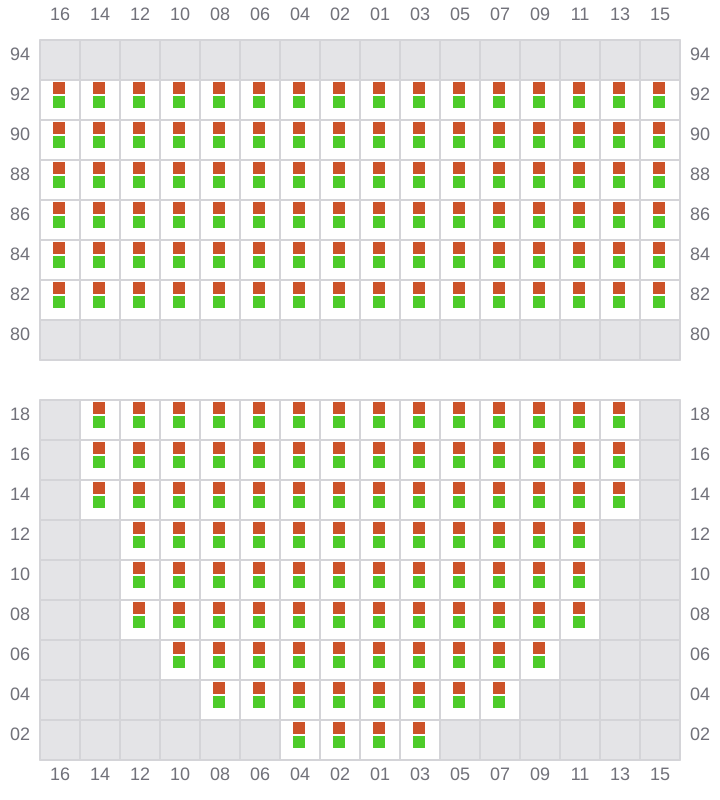

Bay 017 view and slots of CMACGM SAN FRANCISCO

019

  • ←

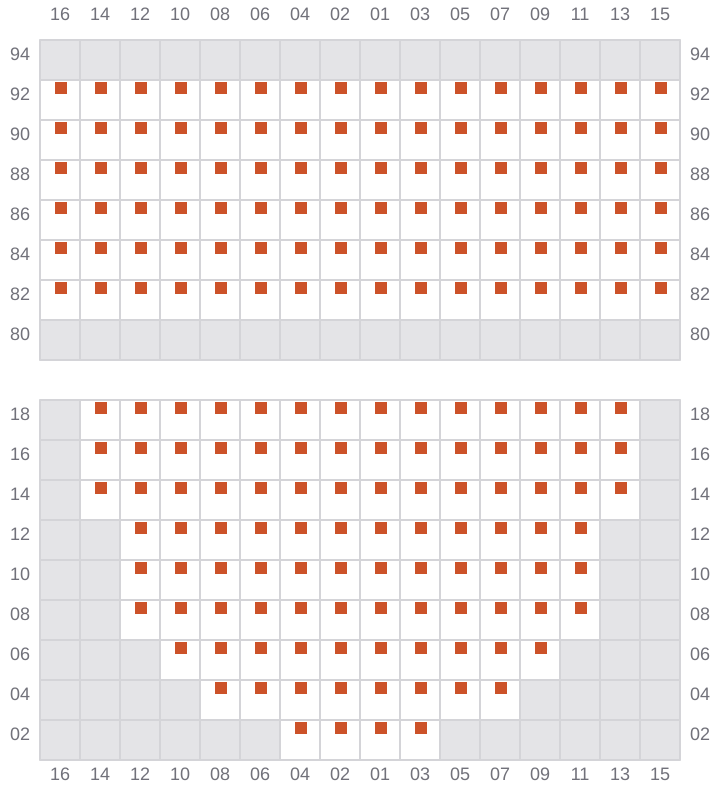

Bay 019 view and slots of CMACGM SAN FRANCISCO

021 (022)

  • →
Bay 021 view and slots of CMACGM SAN FRANCISCO

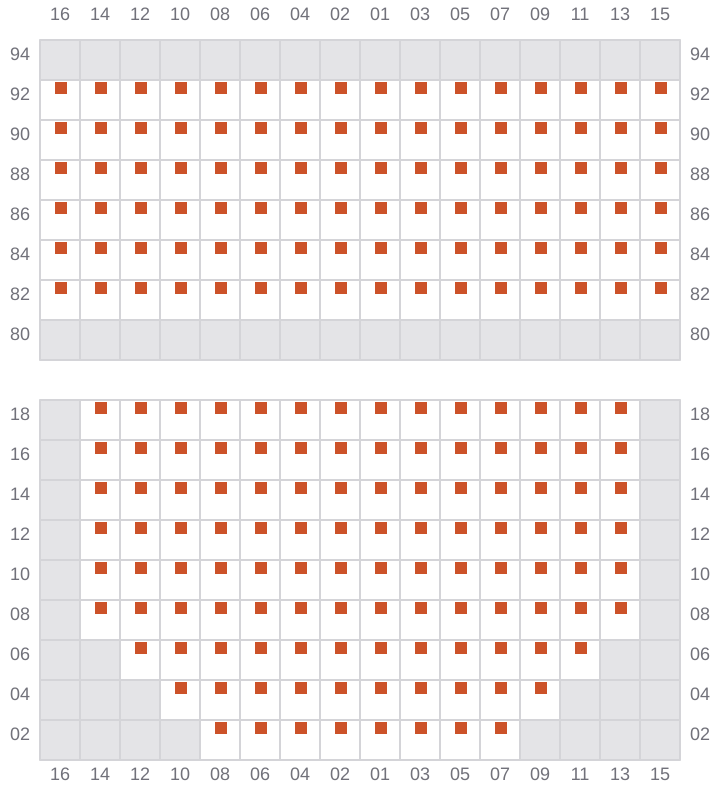

023

  • ←

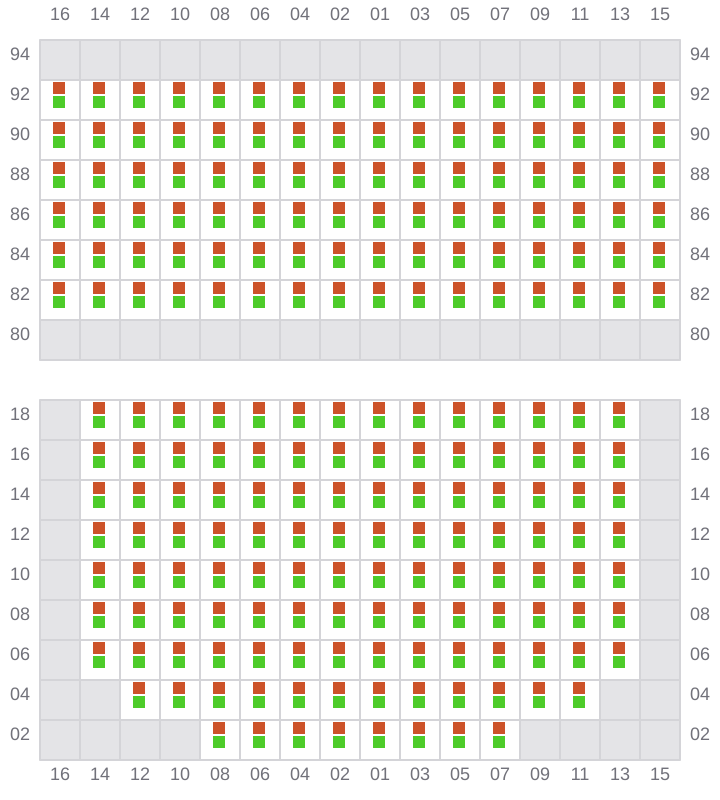

Bay 023 view and slots of CMACGM SAN FRANCISCO

025 (026)

  • →
Bay 025 view and slots of CMACGM SAN FRANCISCO

027

  • ←

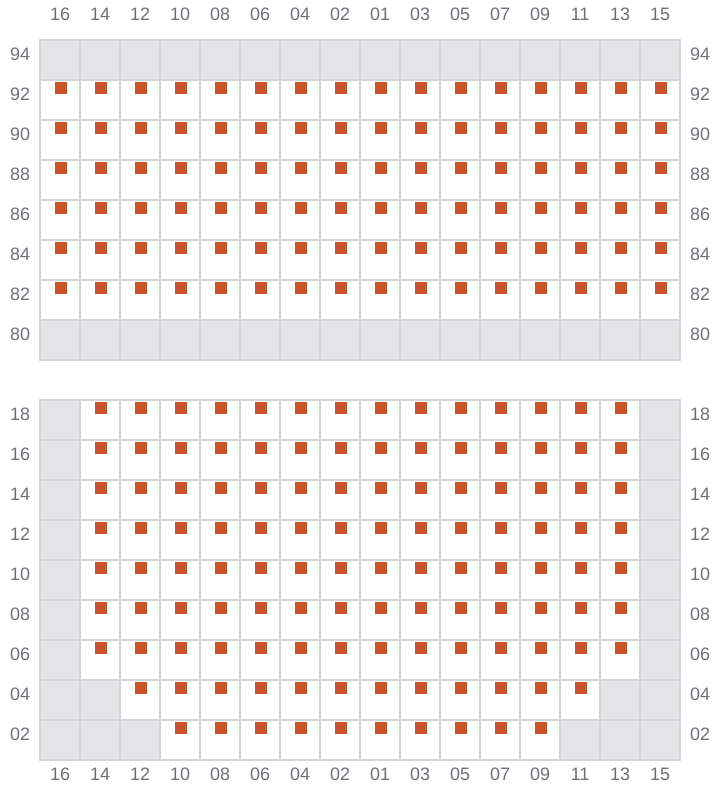

Bay 027 view and slots of CMACGM SAN FRANCISCO

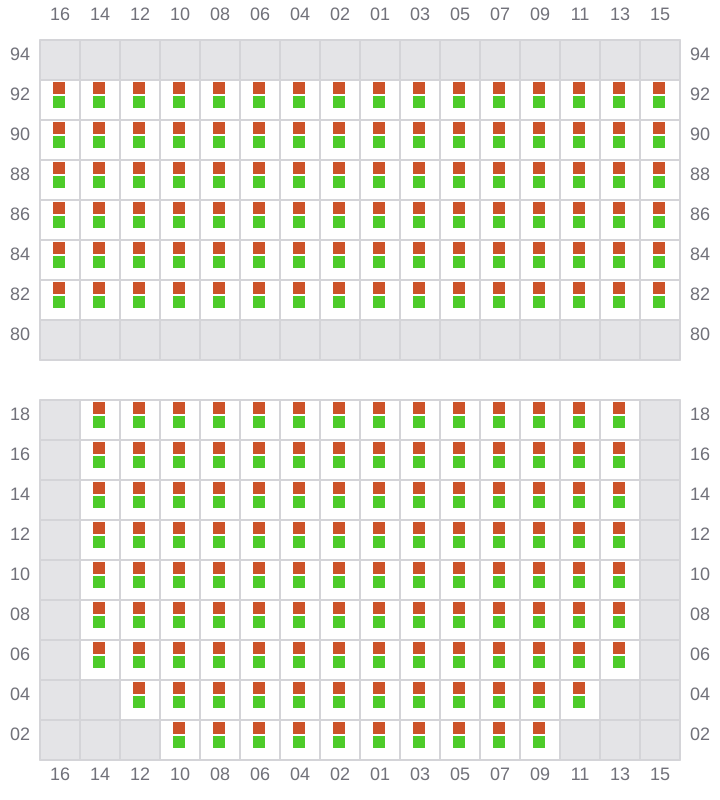

029 (030)

  • →
Bay 029 view and slots of CMACGM SAN FRANCISCO

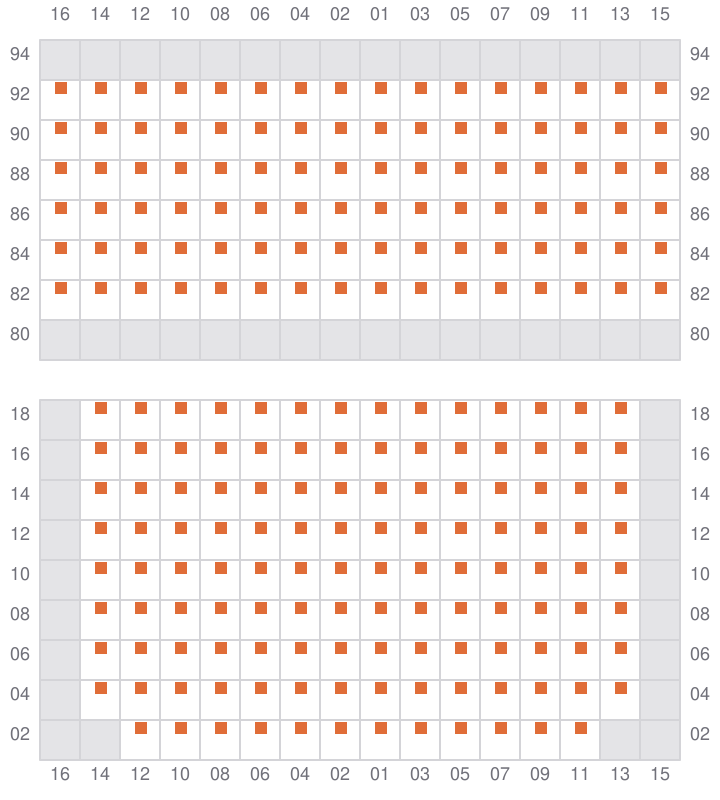

031

  • ←
Bay 031 view and slots of CMACGM SAN FRANCISCO

033 (034)

  • →
Bay 033 view and slots of CMACGM SAN FRANCISCO

035

  • ←

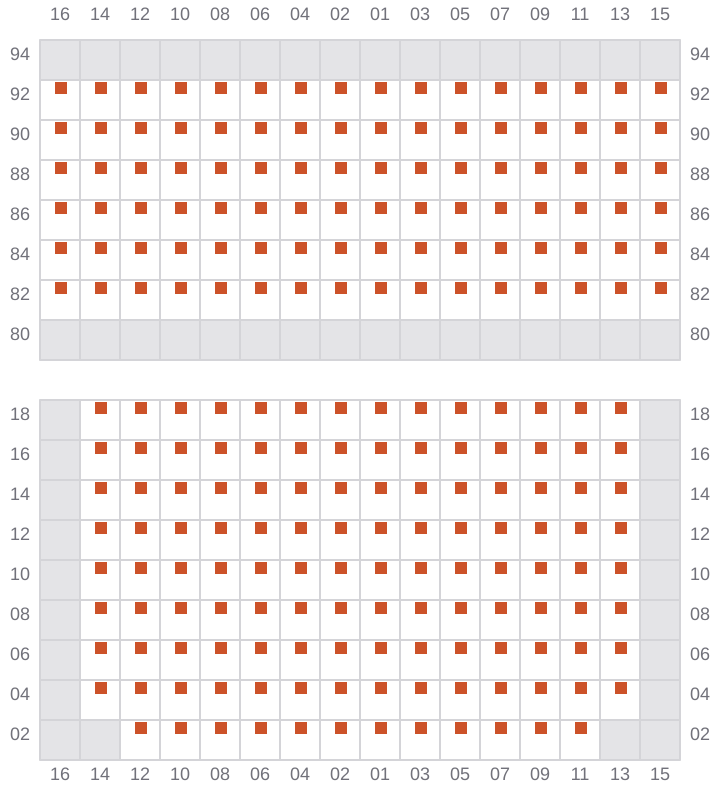

Bay 035 view and slots of CMACGM SAN FRANCISCO

037 (038)

  • →
Bay 037 view and slots of CMACGM SAN FRANCISCO

039

  • ←
Bay 039 view and slots of CMACGM SAN FRANCISCO

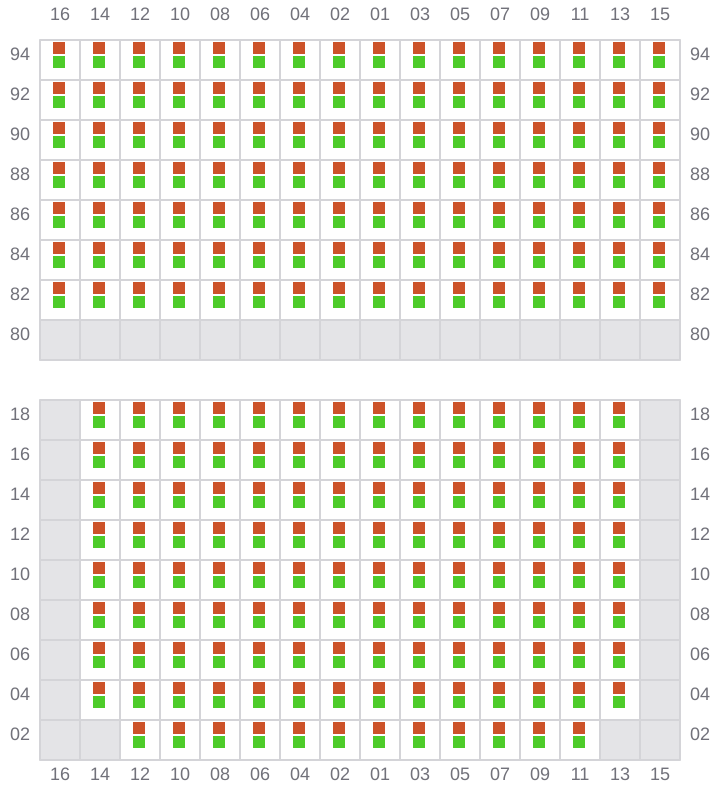

041 (042)

  • →
Bay 041 view and slots of CMACGM SAN FRANCISCO

043

  • ←

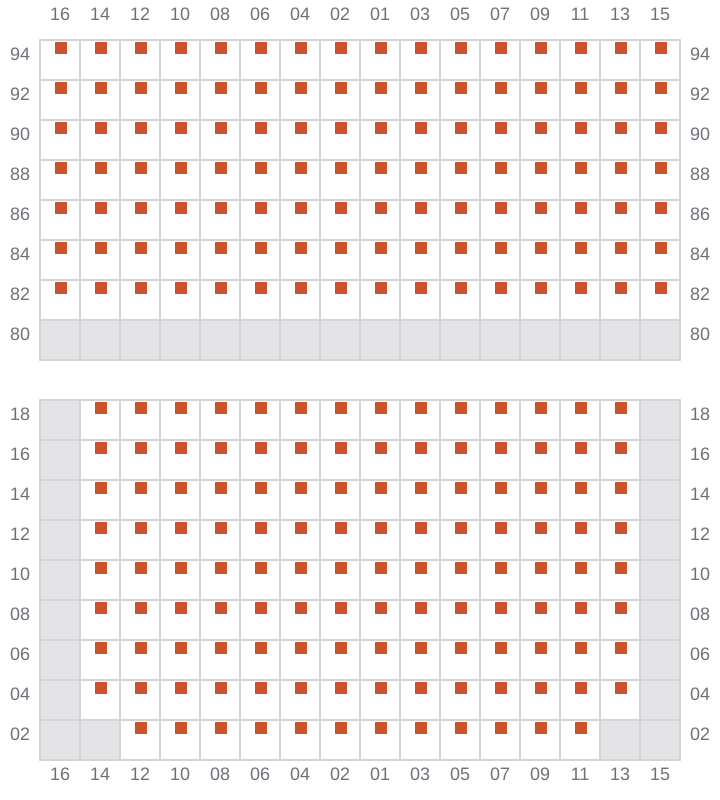

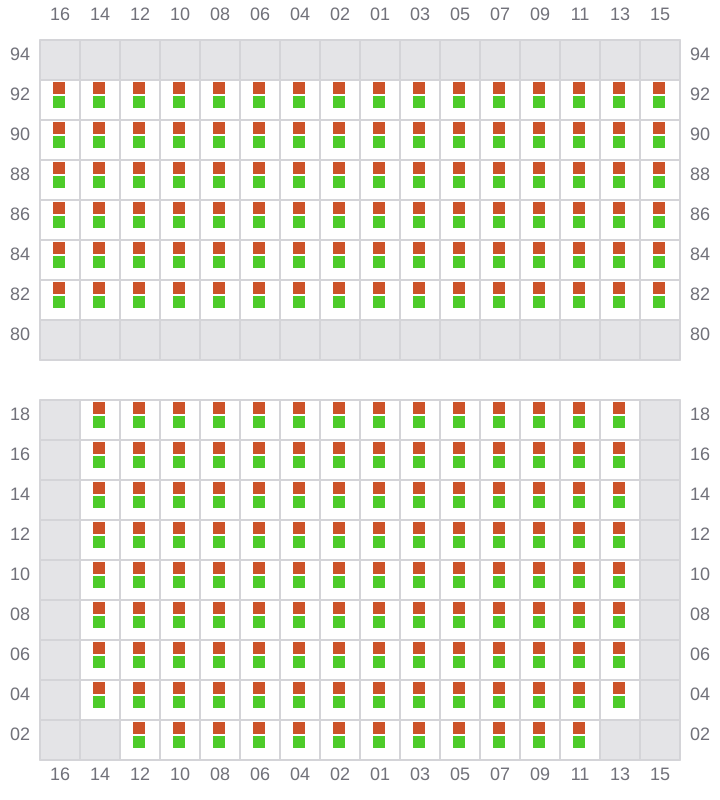

Bay 043 view and slots of CMACGM SAN FRANCISCO

045 (046)

  • →
Bay 045 view and slots of CMACGM SAN FRANCISCO

047

  • ←

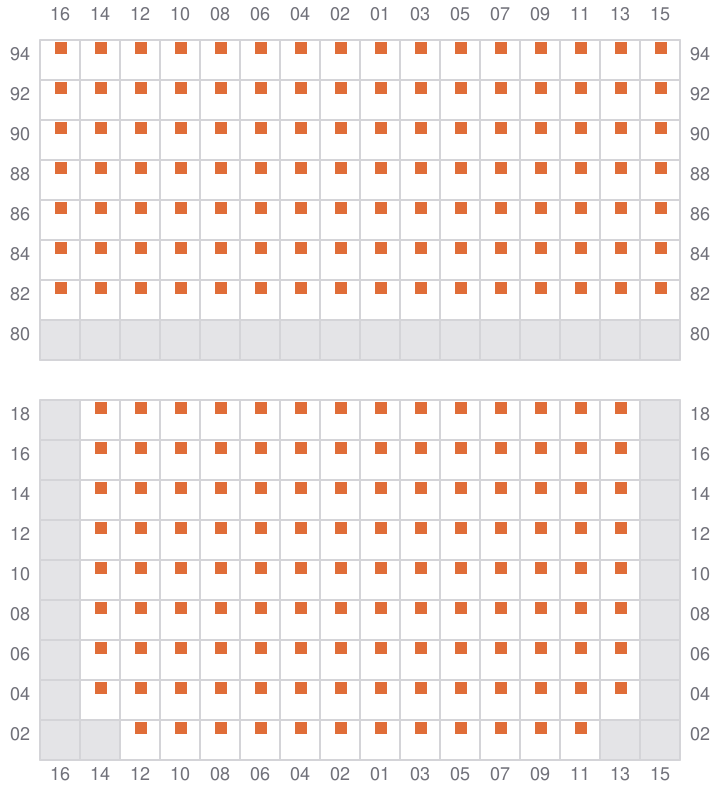

Bay 047 view and slots of CMACGM SAN FRANCISCO

049 (050)

  • →

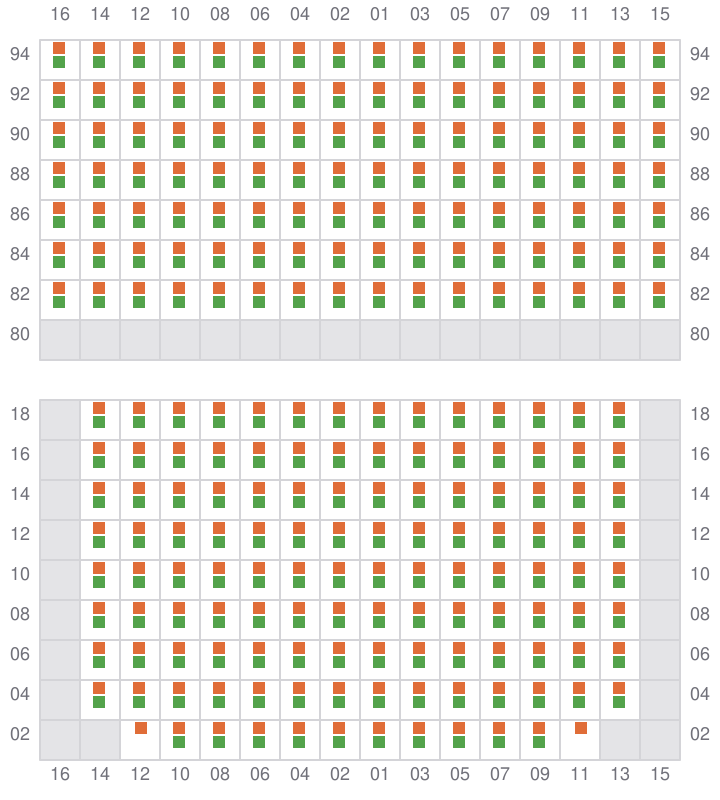

Bay 049 view and slots of CMACGM SAN FRANCISCO

051

  • ←

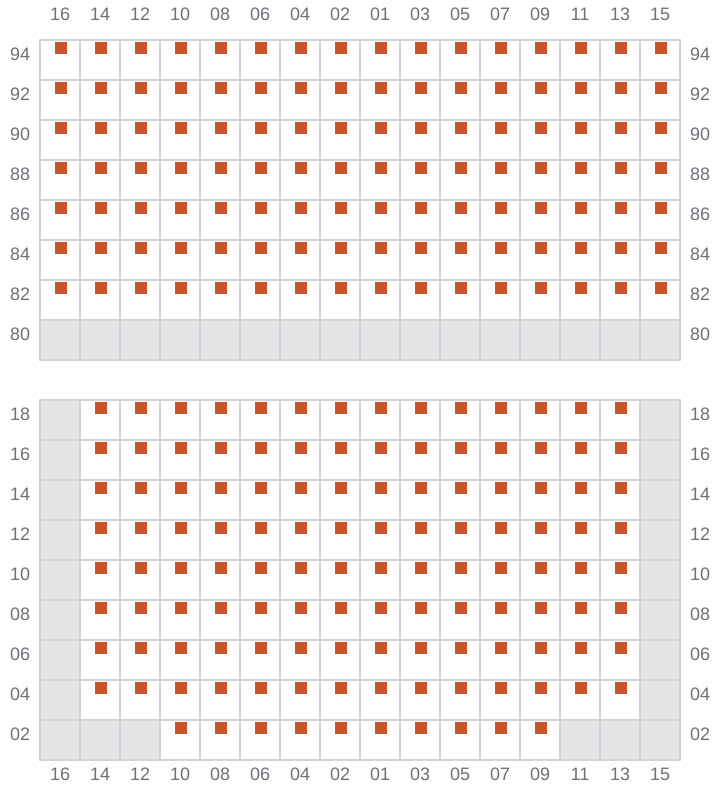

Bay 051 view and slots of CMACGM SAN FRANCISCO

053 (054)

  • →
Bay 053 view and slots of CMACGM SAN FRANCISCO

055

  • ←

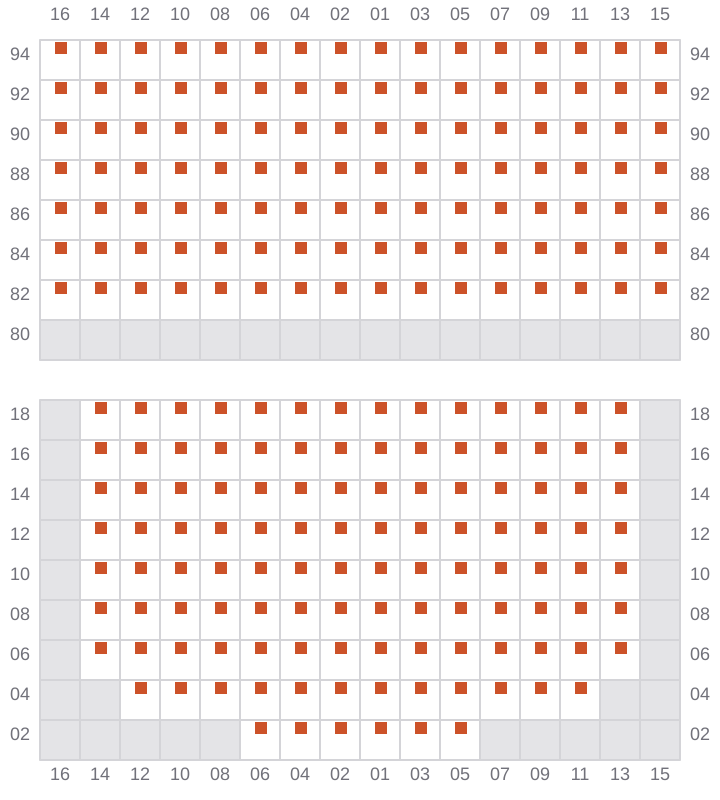

Bay 055 view and slots of CMACGM SAN FRANCISCO

057 (058)

  • →

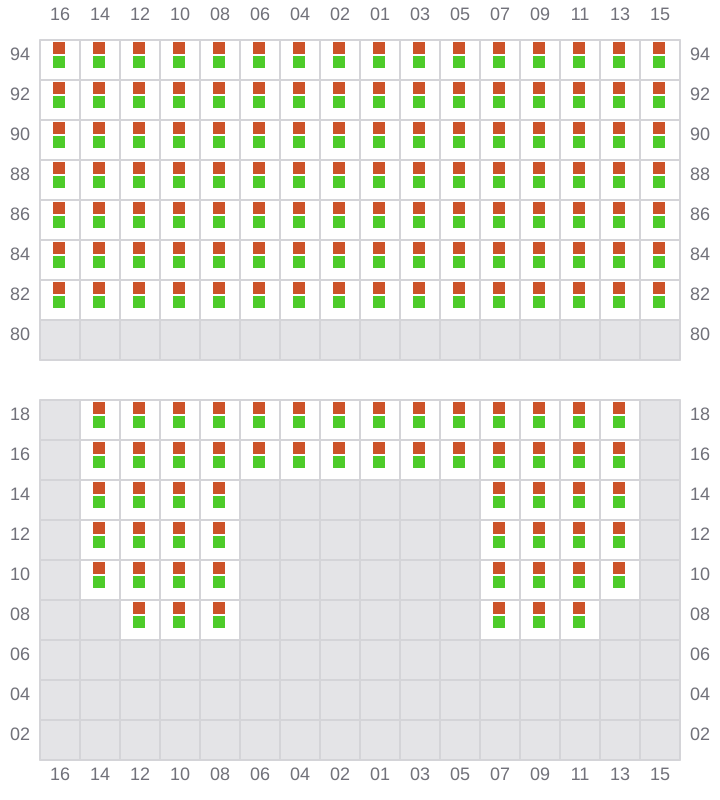

Bay 057 view and slots of CMACGM SAN FRANCISCO

059

  • ←
Bay 059 view and slots of CMACGM SAN FRANCISCO

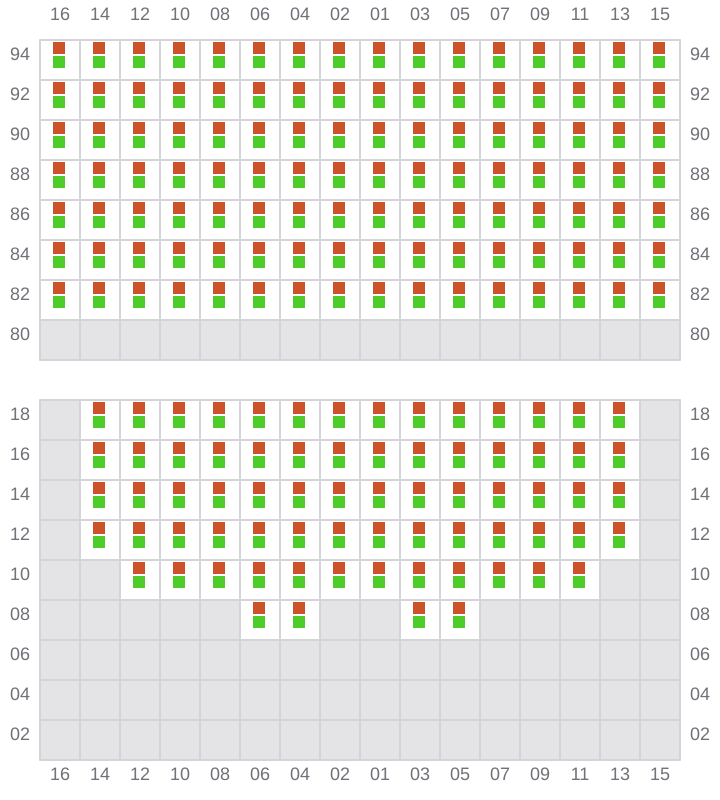

061 (062)

  • →
Bay 061 view and slots of CMACGM SAN FRANCISCO

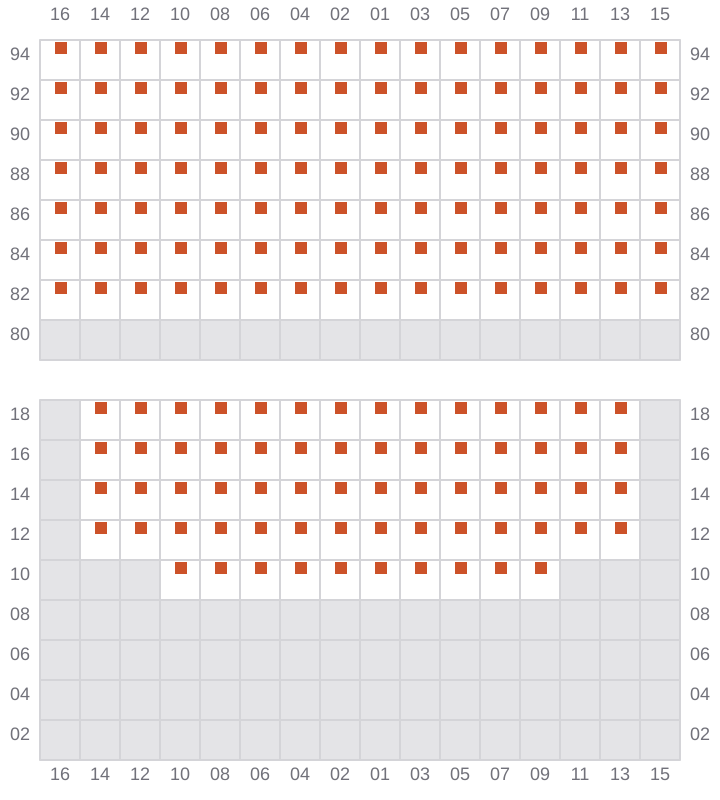

063

  • ←
Bay 063 view and slots of CMACGM SAN FRANCISCO

065 (066)

  • →
Bay 065 view and slots of CMACGM SAN FRANCISCO

067

  • ←

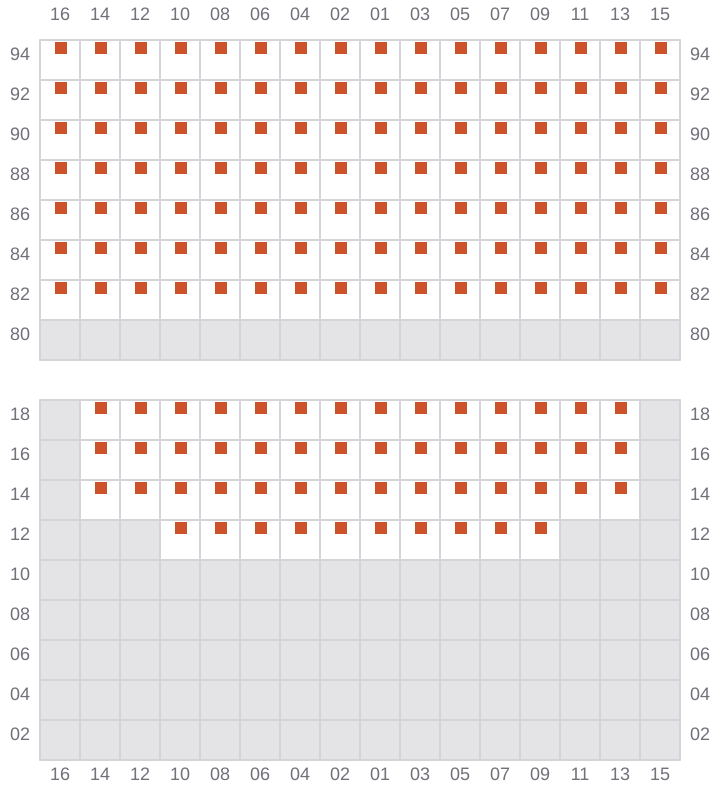

Bay 067 view and slots of CMACGM SAN FRANCISCO

069 (070)

  • → / ?
  • → / ?

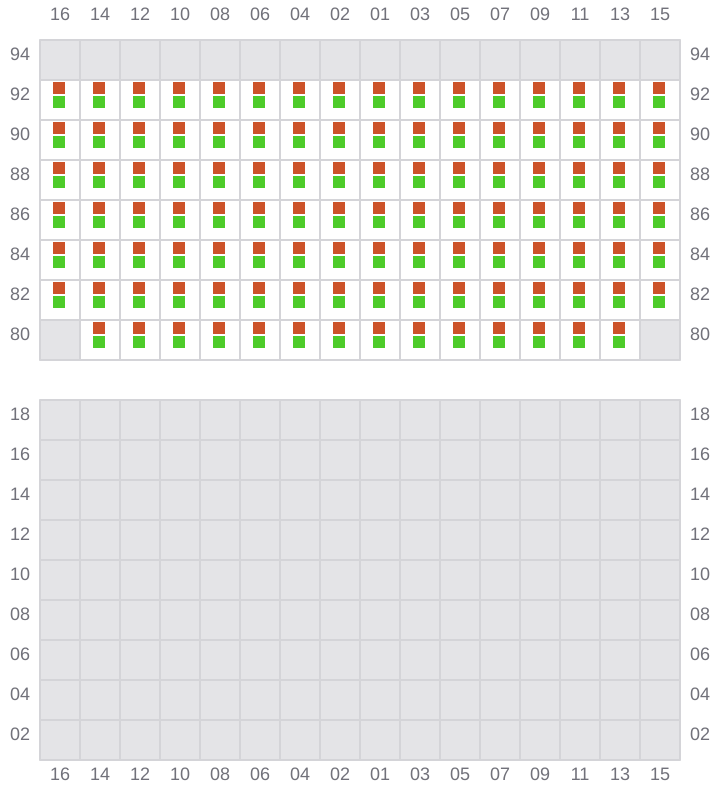

Bay 069 view and slots of CMACGM SAN FRANCISCO

071

  • ← / ?

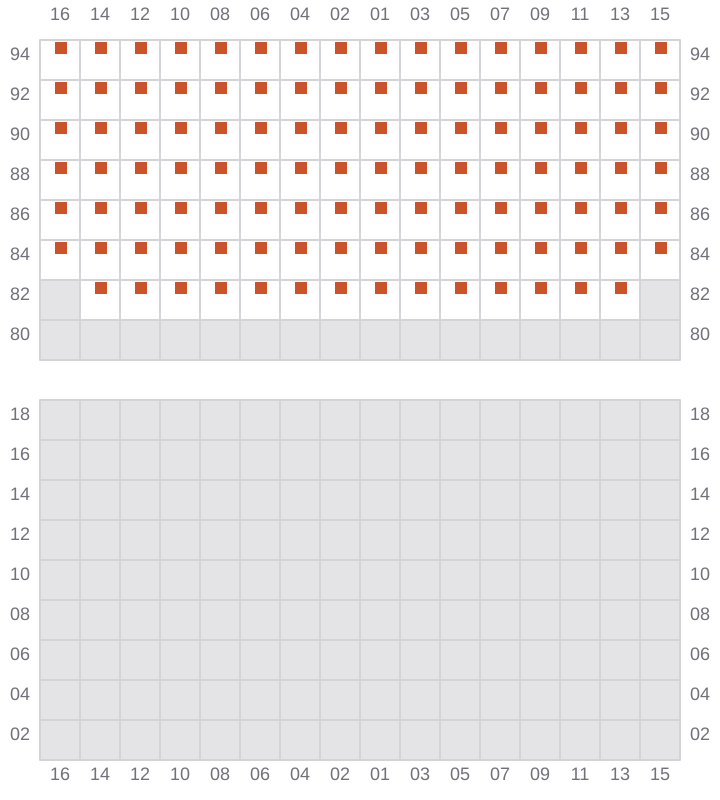

Bay 071 view and slots of CMACGM SAN FRANCISCO
