CMACGM SAN FRANCISCO
9225615 | D5TZ4 | FMA2 by ******** Last update: Mon Mar 25 2024
General Info
Ship Name:CMACGM SAN FRANCISCO
IMO Code:9225615
Call Sign:D5TZ4
Line Operator:FMA2
Class Name for Sister Ships:MSC
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):190.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,778
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

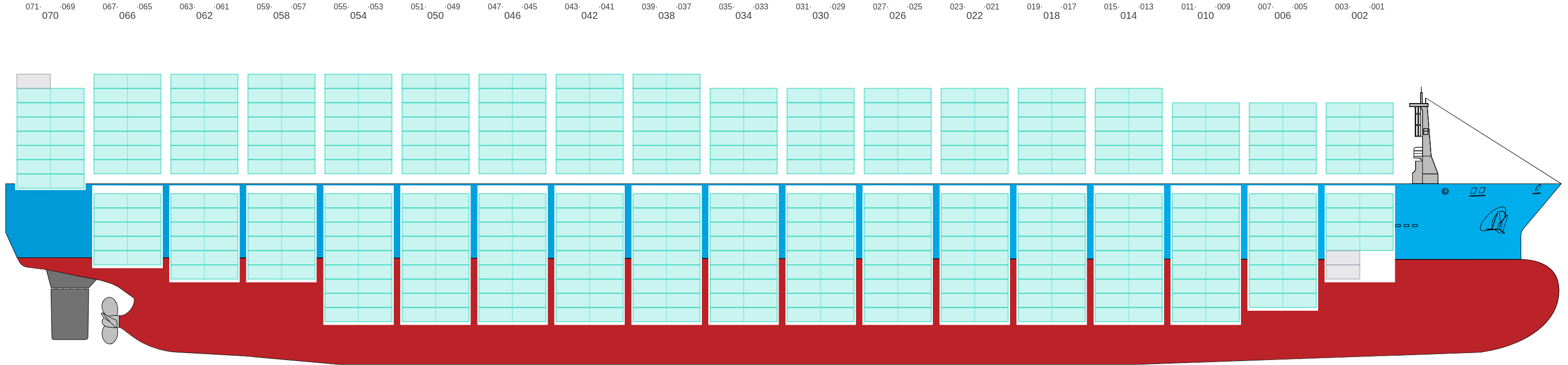

Side View
![Side view of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-sideView.png?v=1711405022202)

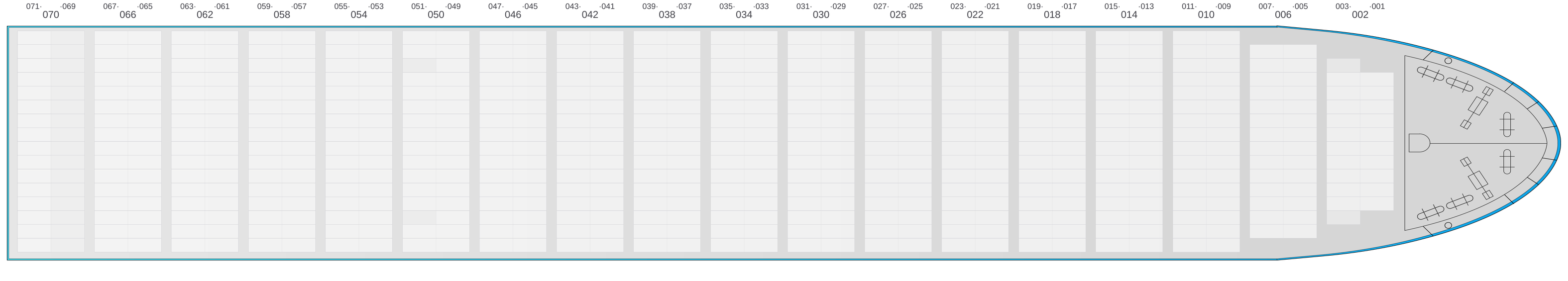

Hatch-Covers View
![Deck view of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-deckView.png?v=1711405022202)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

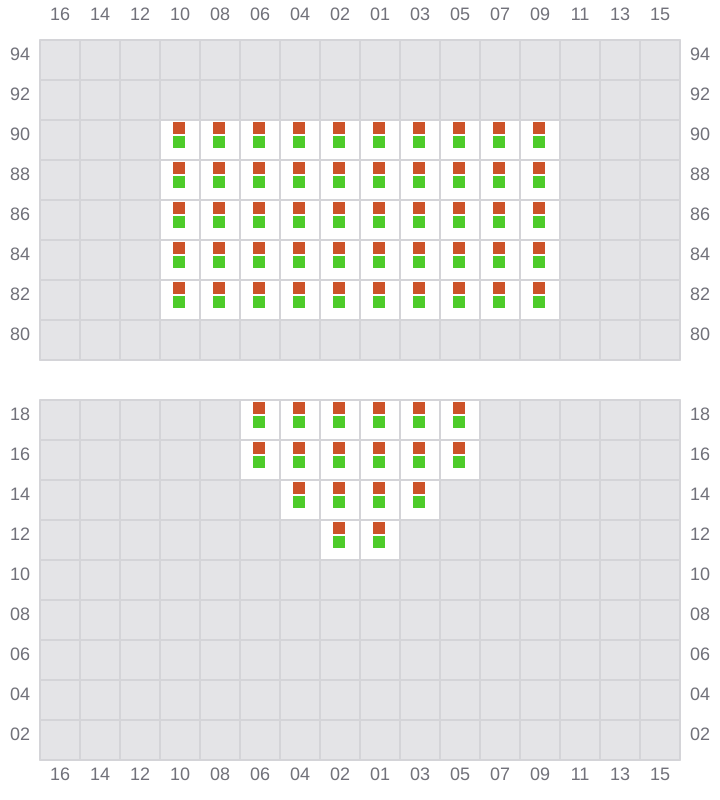

001 (002)
- →
![Bay 001 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b001.png?v=1711405022202)
003
- ←
![Bay 003 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b003.png?v=1711405022202)

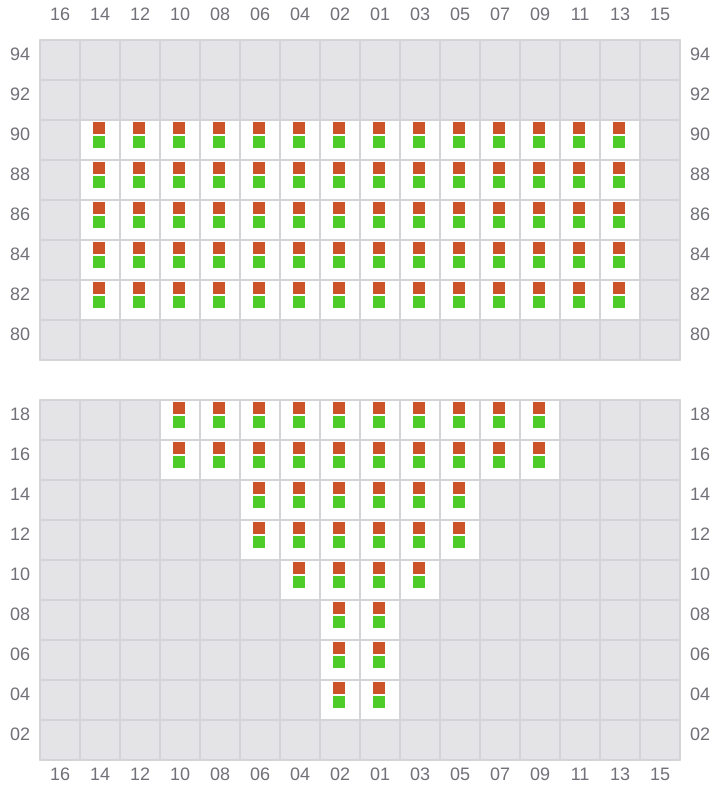

005 (006)
- →
![Bay 005 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b005.png?v=1711405022202)

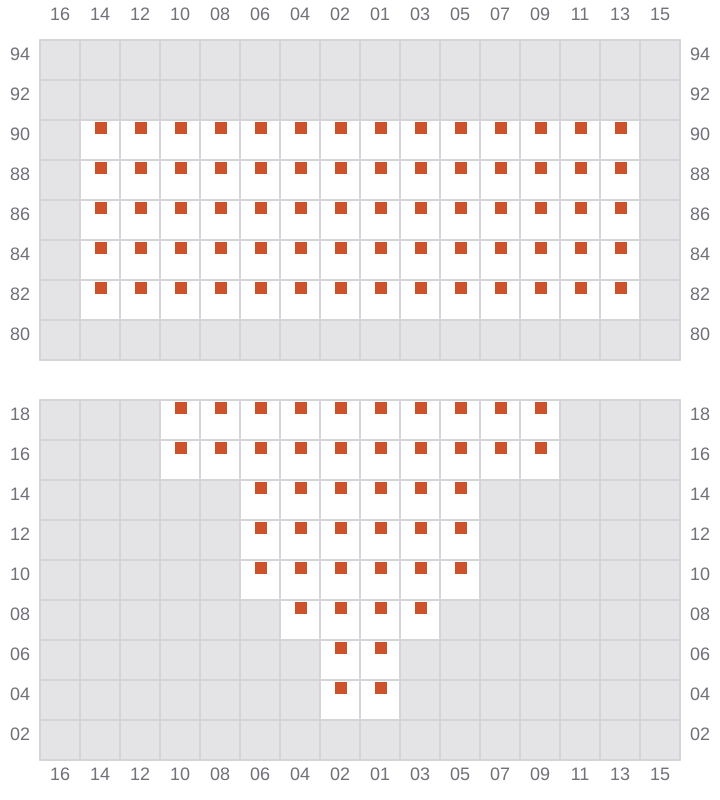

007
- ←
![Bay 007 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b007.png?v=1711405022202)

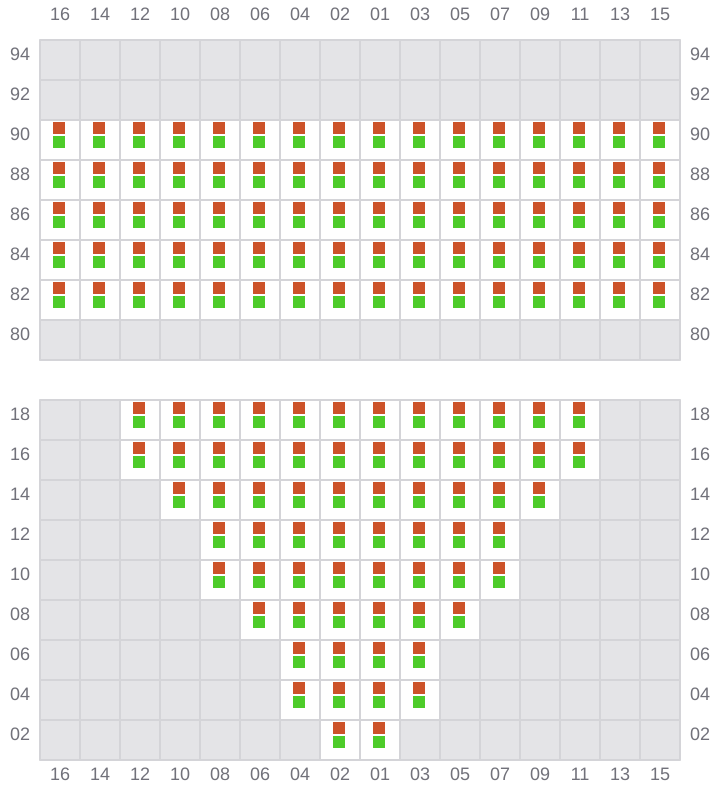

009 (010)
- →
![Bay 009 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b009.png?v=1711405022202)

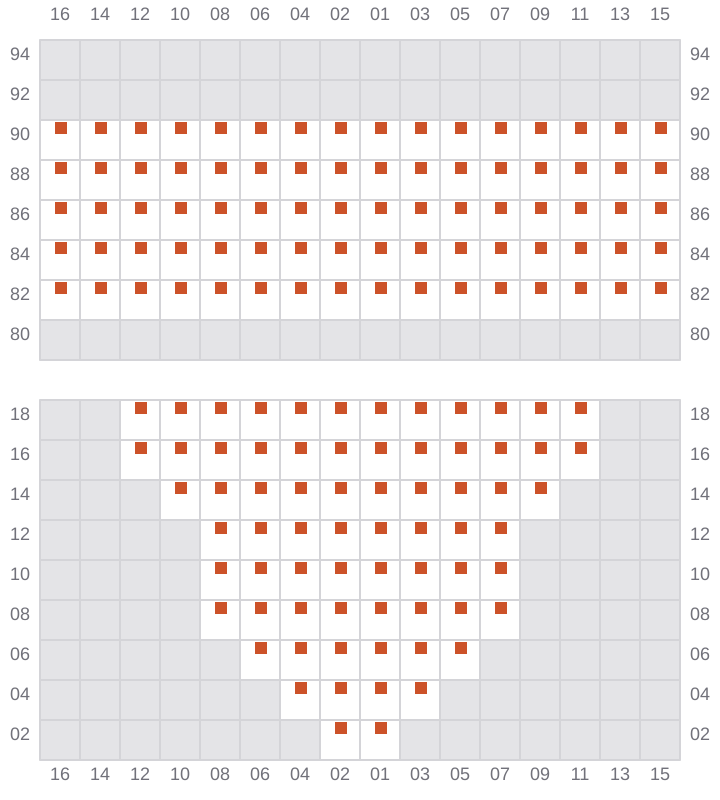

011
- ←
![Bay 011 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b011.png?v=1711405022202)

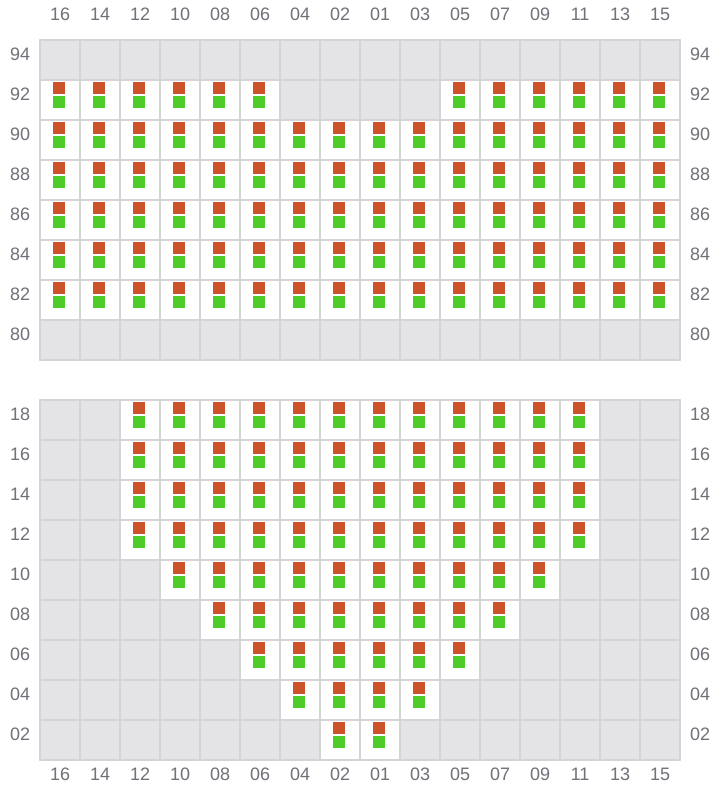

013 (014)
- →
![Bay 013 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b013.png?v=1711405022202)

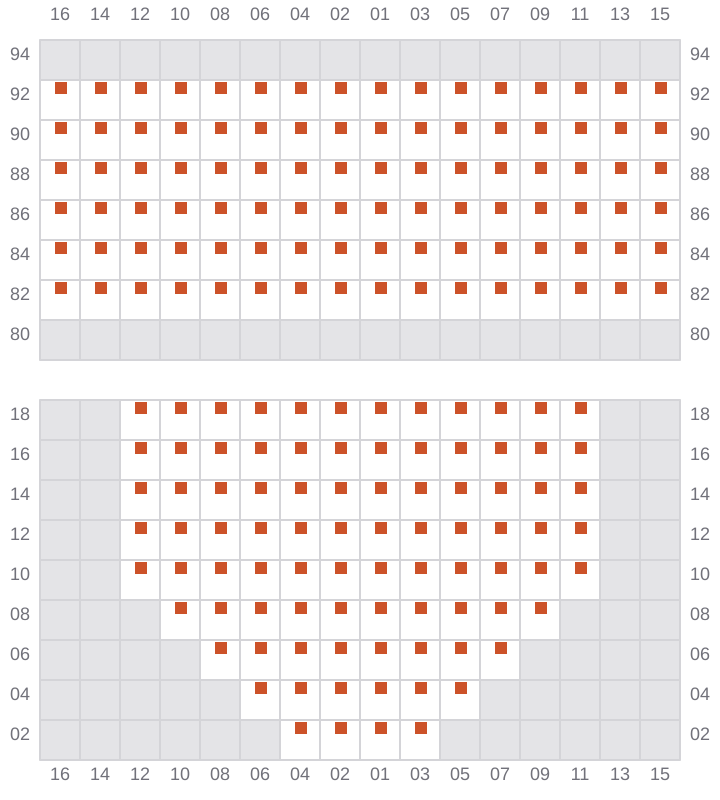

015
- ←
![Bay 015 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b015.png?v=1711405022202)

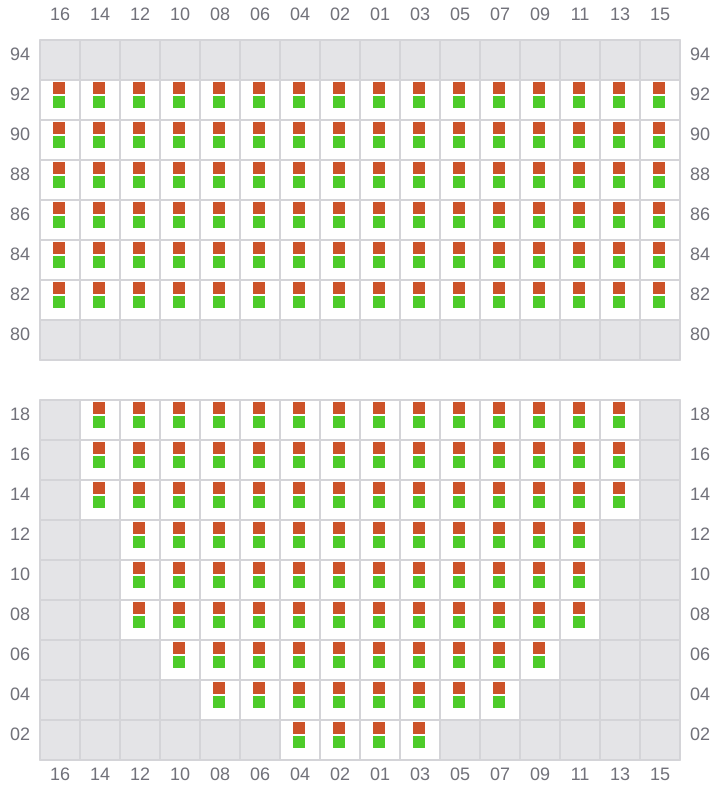

017 (018)
- →
![Bay 017 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b017.png?v=1711405022202)

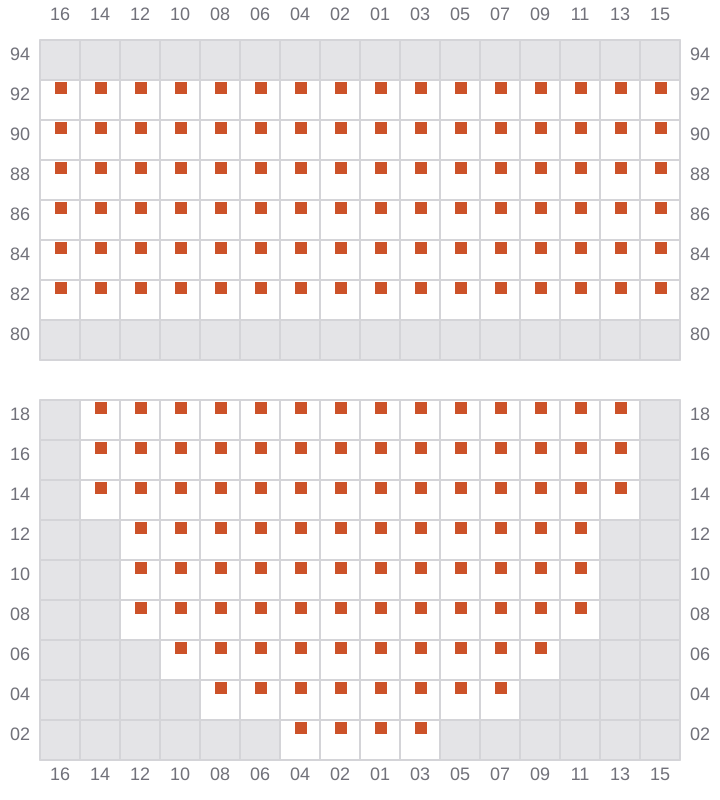

019
- ←
![Bay 019 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b019.png?v=1711405022202)

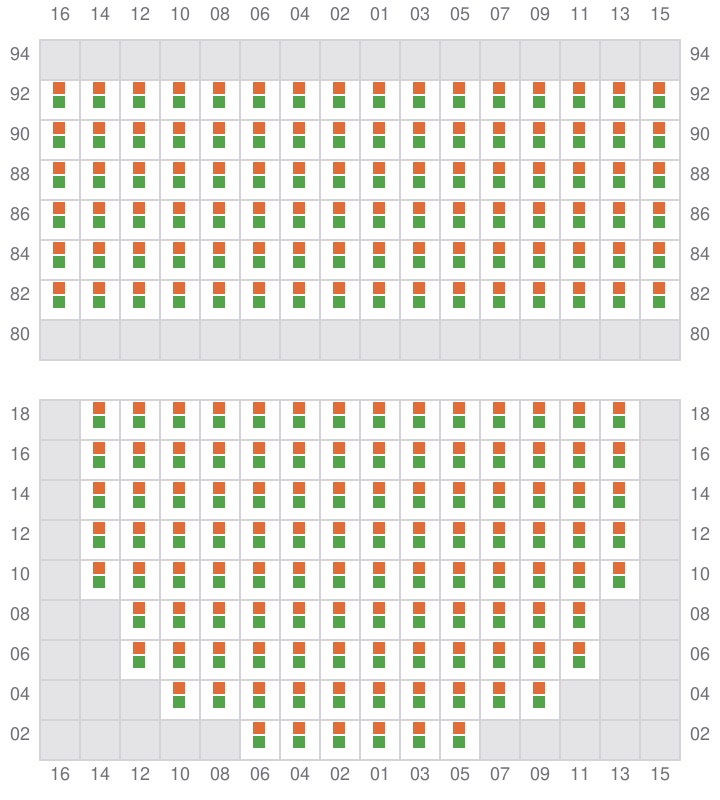

021 (022)
- →
![Bay 021 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b021.png?v=1711405022202)

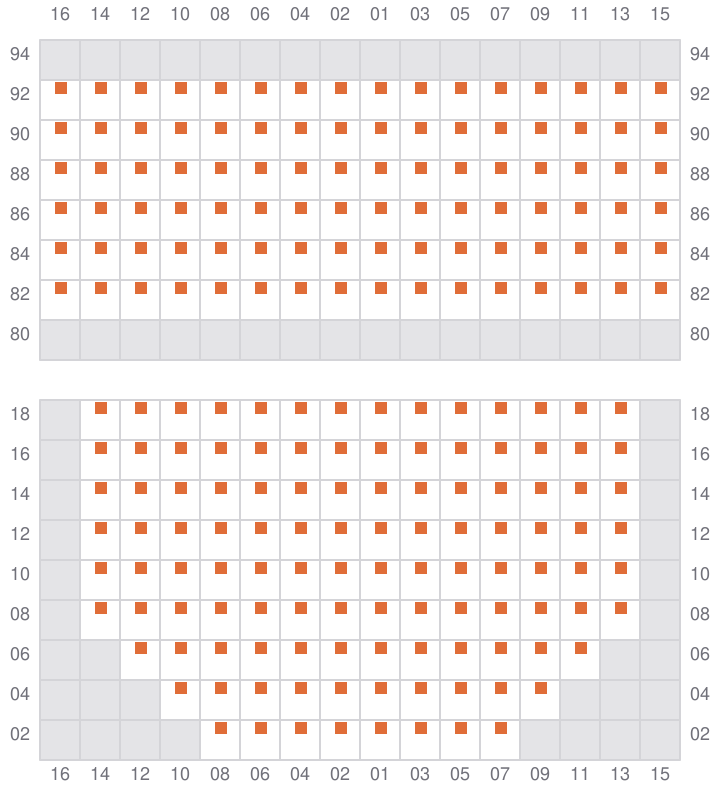

023
- ←
![Bay 023 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b023.png?v=1711405022202)

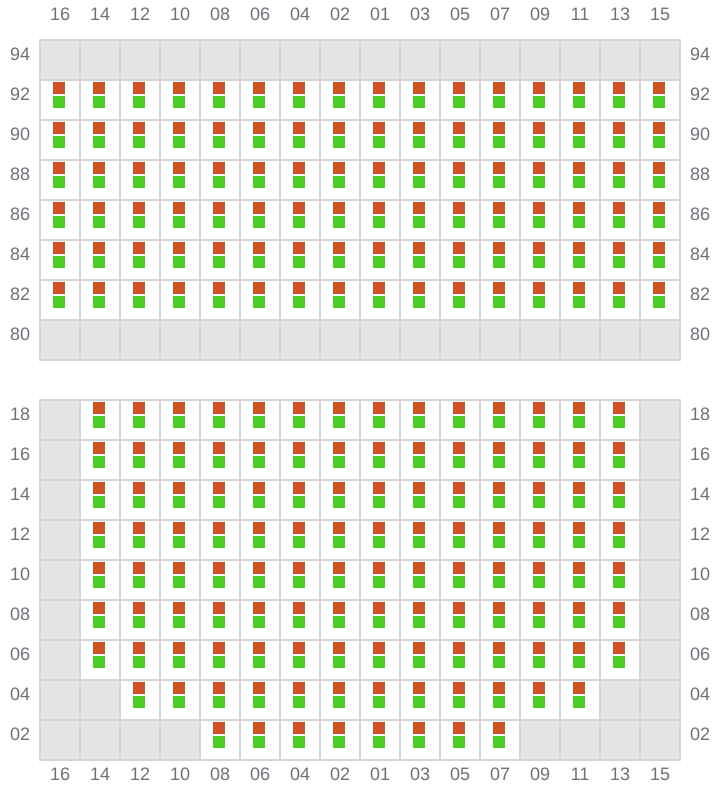

025 (026)
- →
![Bay 025 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b025.png?v=1711405022202)

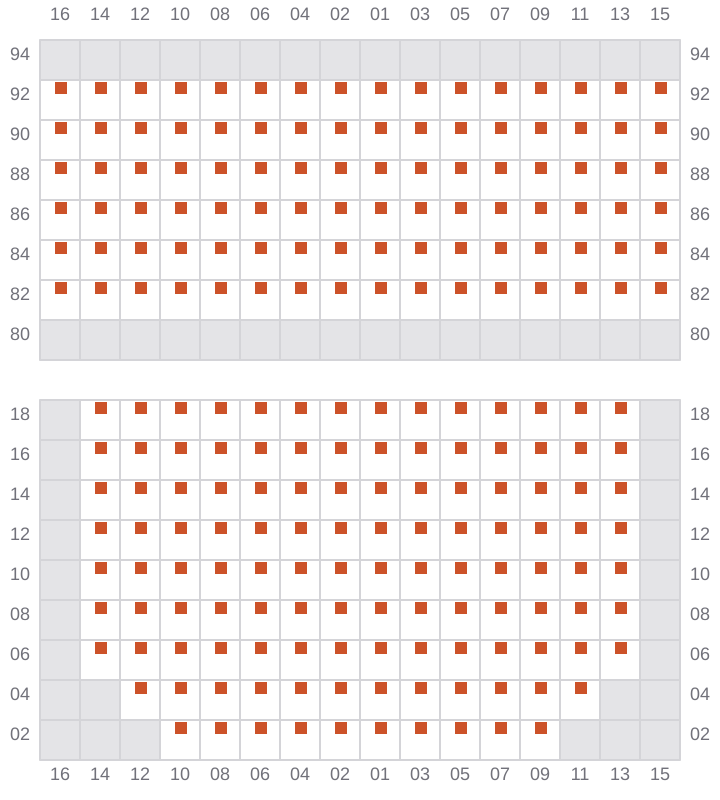

027
- ←
![Bay 027 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b027.png?v=1711405022202)
029 (030)
- →
![Bay 029 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b029.png?v=1711405022202)

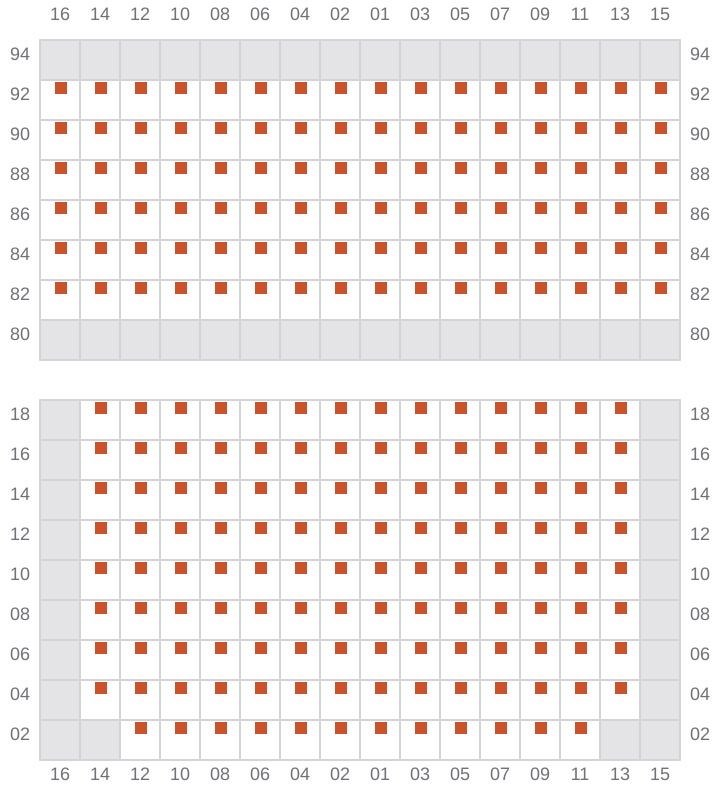

031
- ←
![Bay 031 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b031.png?v=1711405022202)

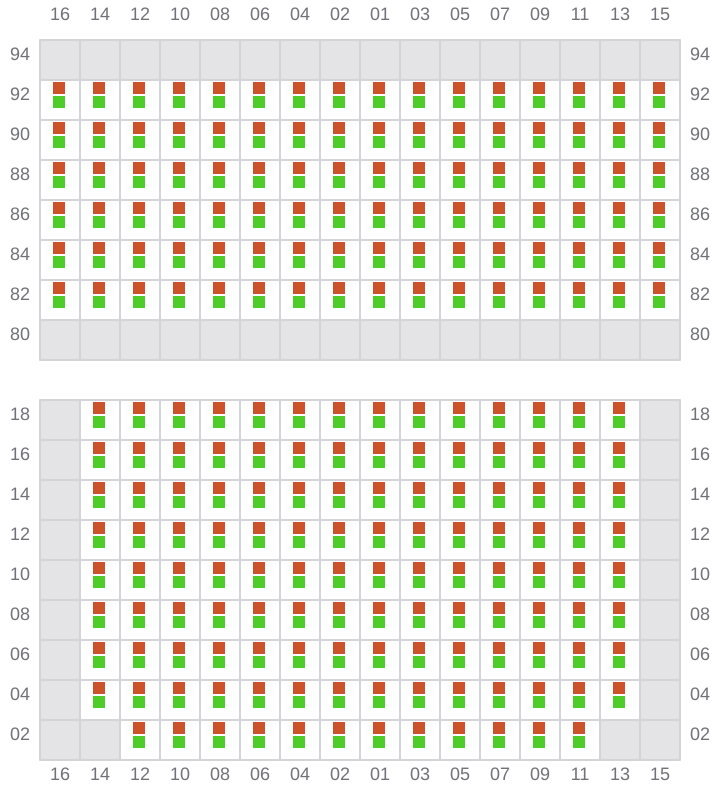

033 (034)
- →
![Bay 033 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b033.png?v=1711405022202)

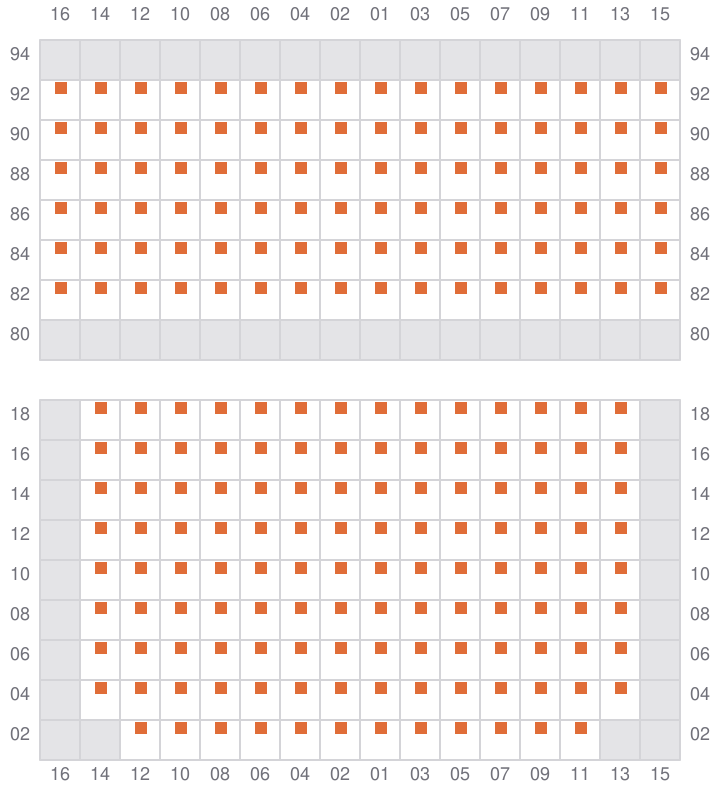

035
- ←
![Bay 035 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b035.png?v=1711405022202)
037 (038)
- →
![Bay 037 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b037.png?v=1711405022202)

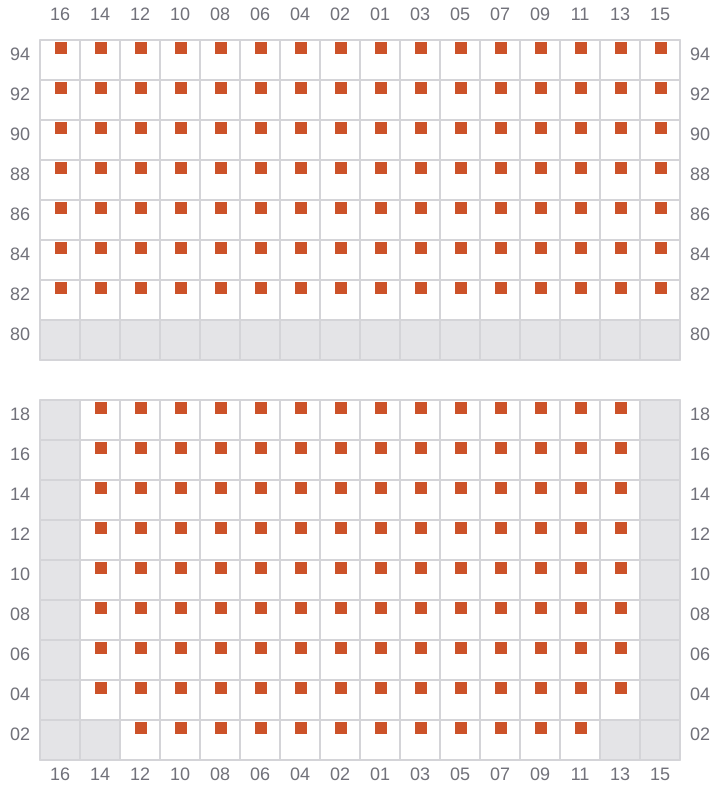

039
- ←
![Bay 039 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b039.png?v=1711405022202)
041 (042)
- →
![Bay 041 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b041.png?v=1711405022202)
043
- ←
![Bay 043 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b043.png?v=1711405022202)

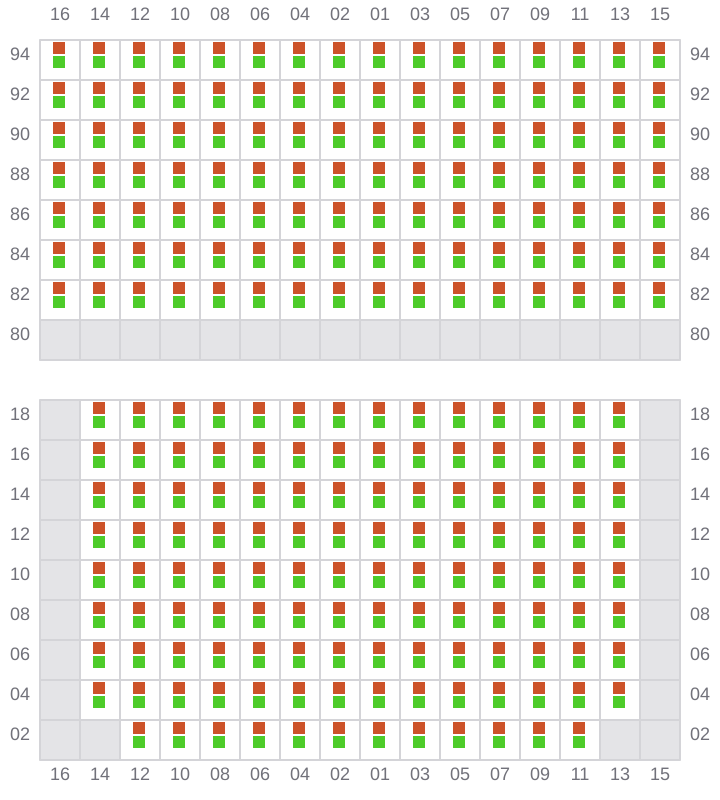

045 (046)
- →
![Bay 045 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b045.png?v=1711405022202)

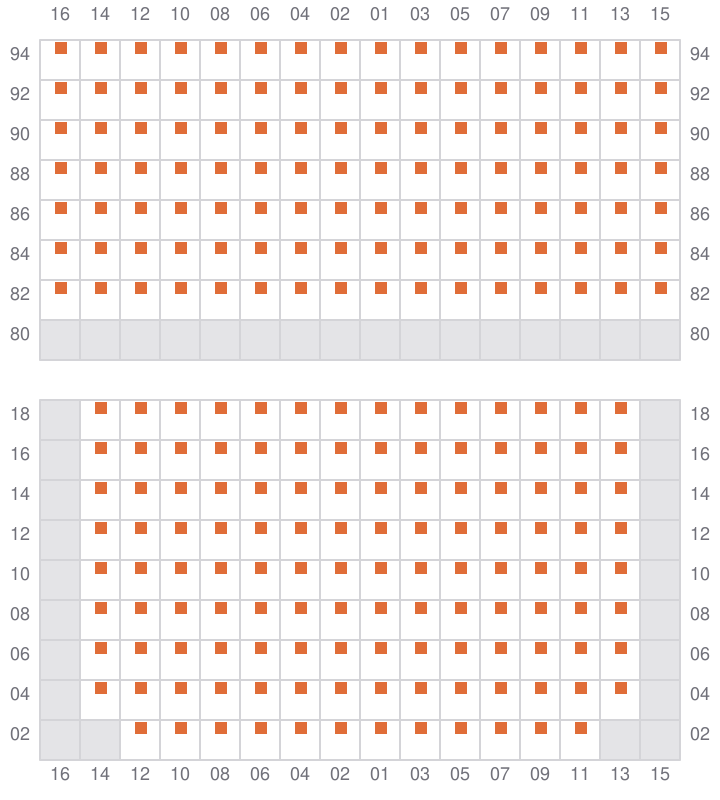

047
- ←
![Bay 047 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b047.png?v=1711405022202)
049 (050)
- →
![Bay 049 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b049.png?v=1711405022202)

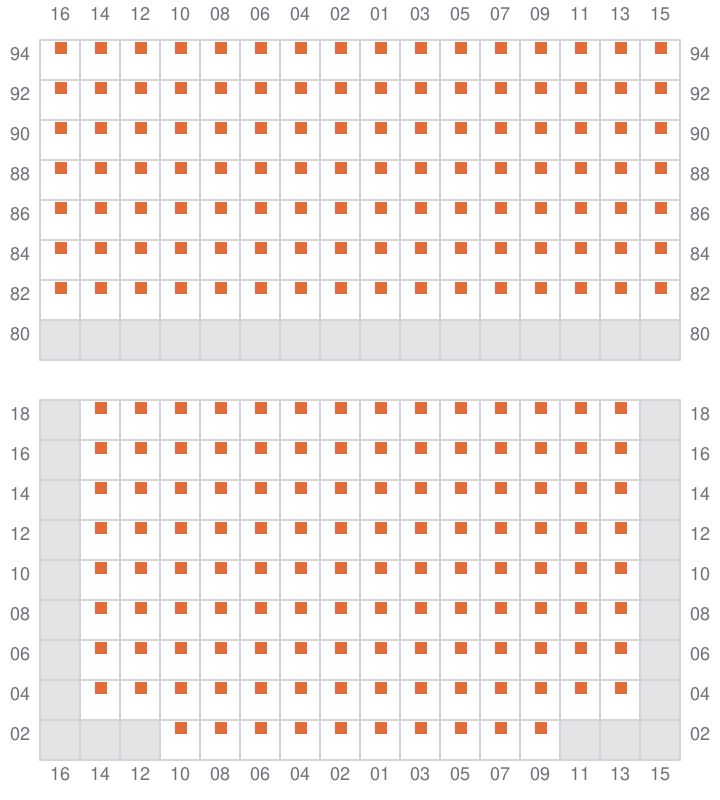

051
- ←
![Bay 051 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b051.png?v=1711405022202)

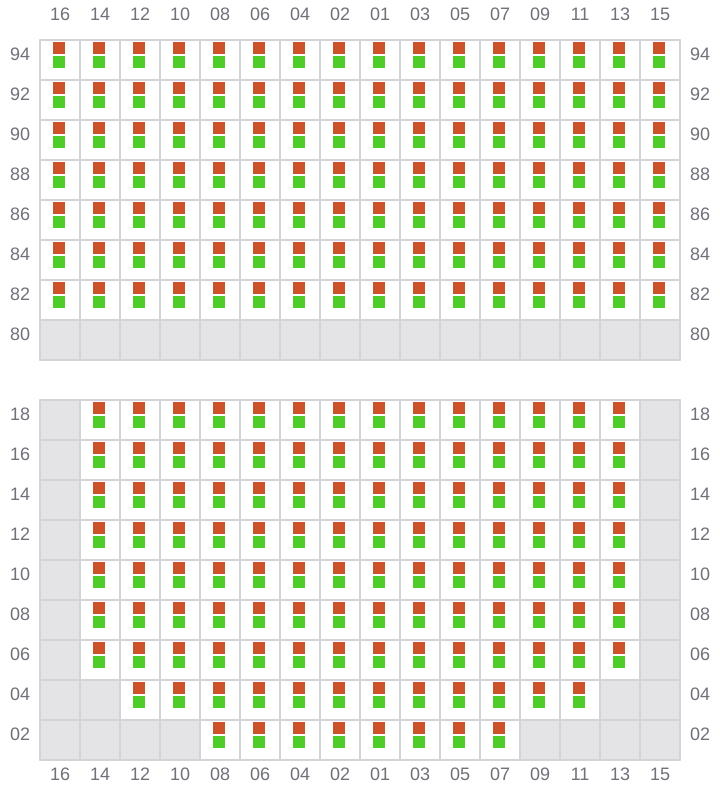

053 (054)
- →
![Bay 053 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b053.png?v=1711405022202)

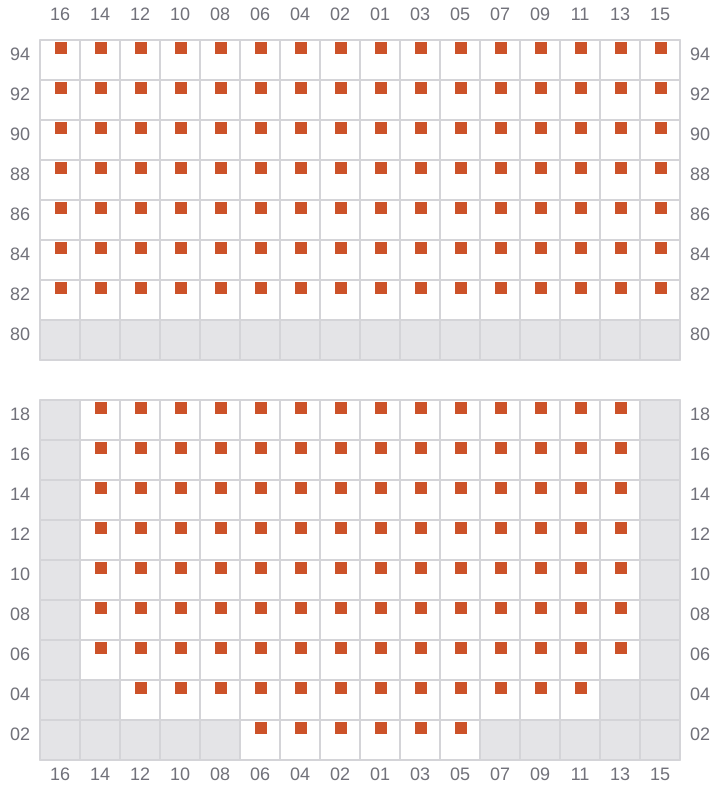

055
- ←
![Bay 055 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b055.png?v=1711405022202)

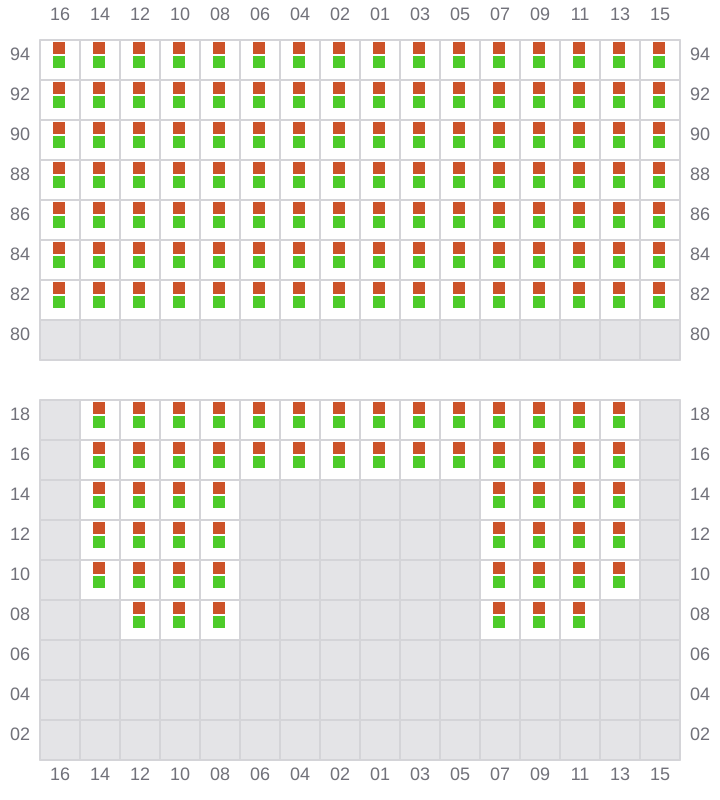

057 (058)
- →
![Bay 057 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b057.png?v=1711405022202)

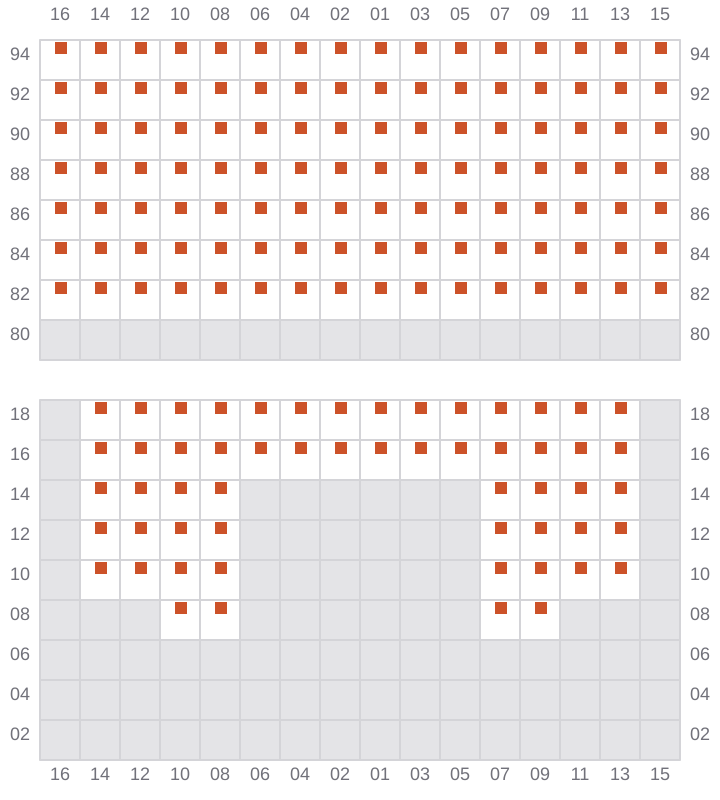

059
- ←
![Bay 059 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b059.png?v=1711405022202)

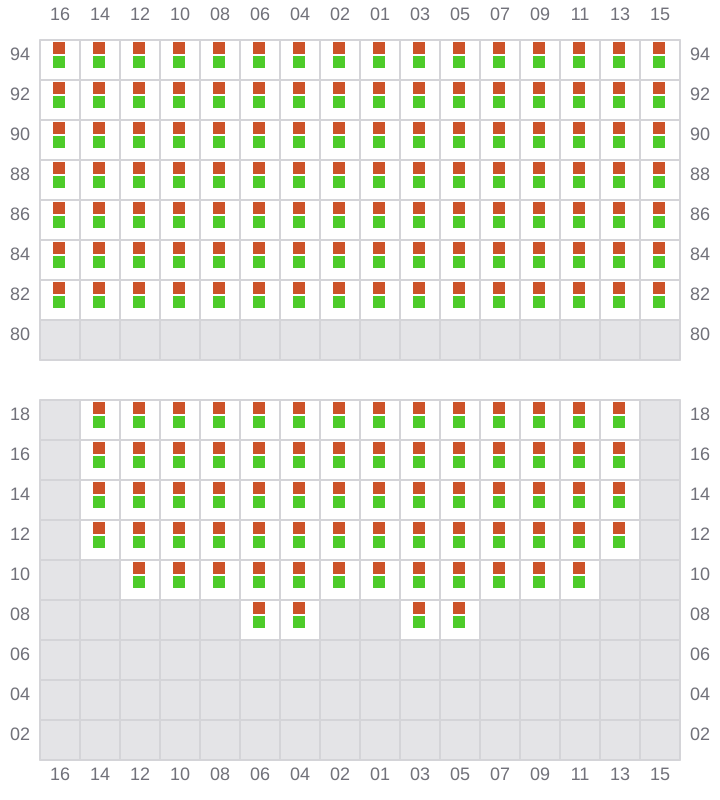

061 (062)
- →
![Bay 061 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b061.png?v=1711405022202)

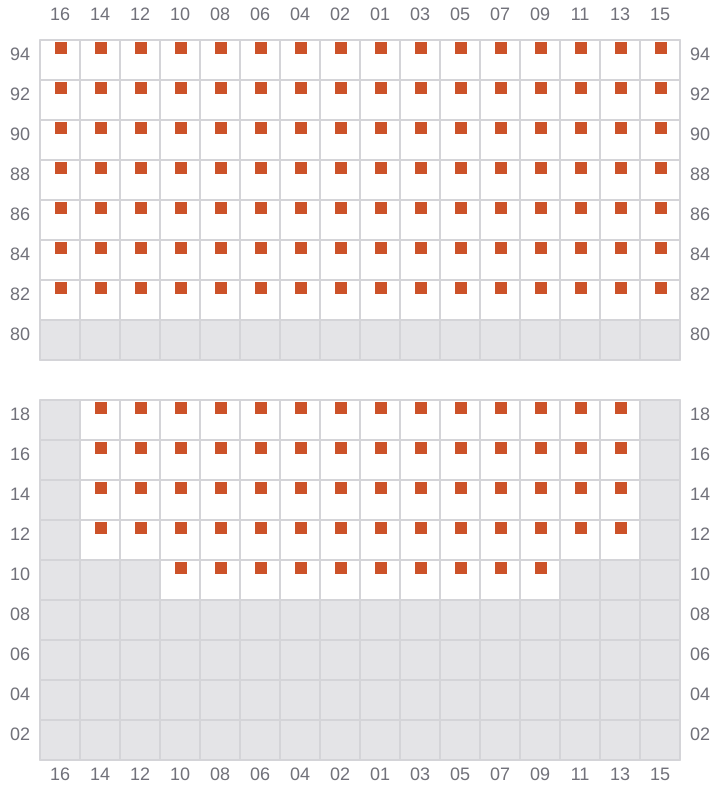

063
- ←
![Bay 063 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b063.png?v=1711405022202)

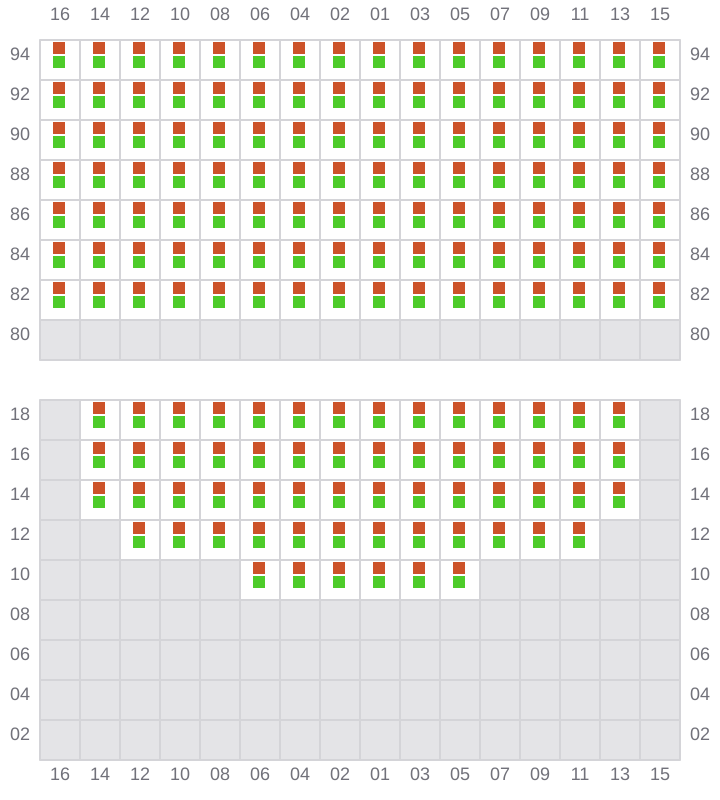

065 (066)
- →
![Bay 065 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b065.png?v=1711405022202)

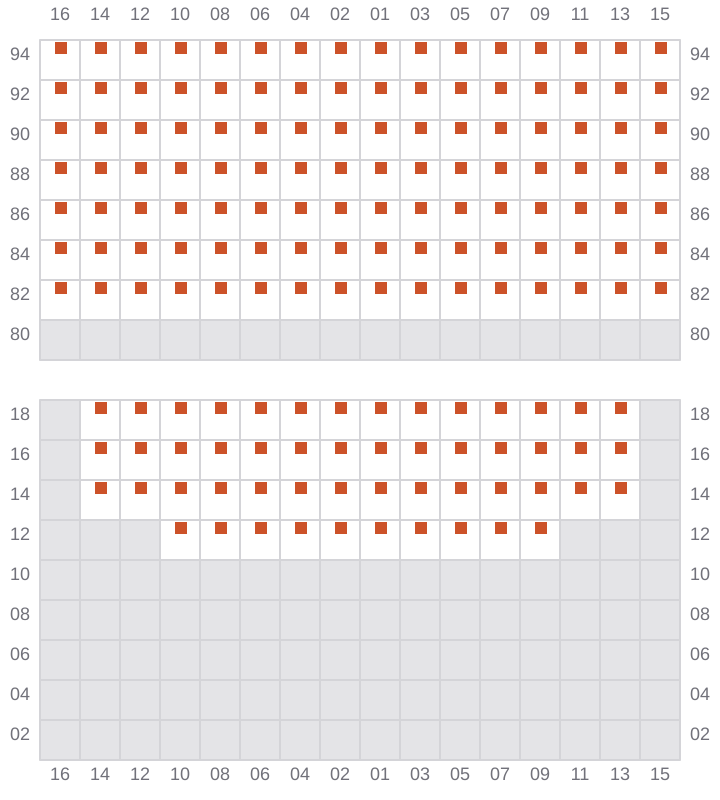

067
- ←
![Bay 067 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b067.png?v=1711405022202)

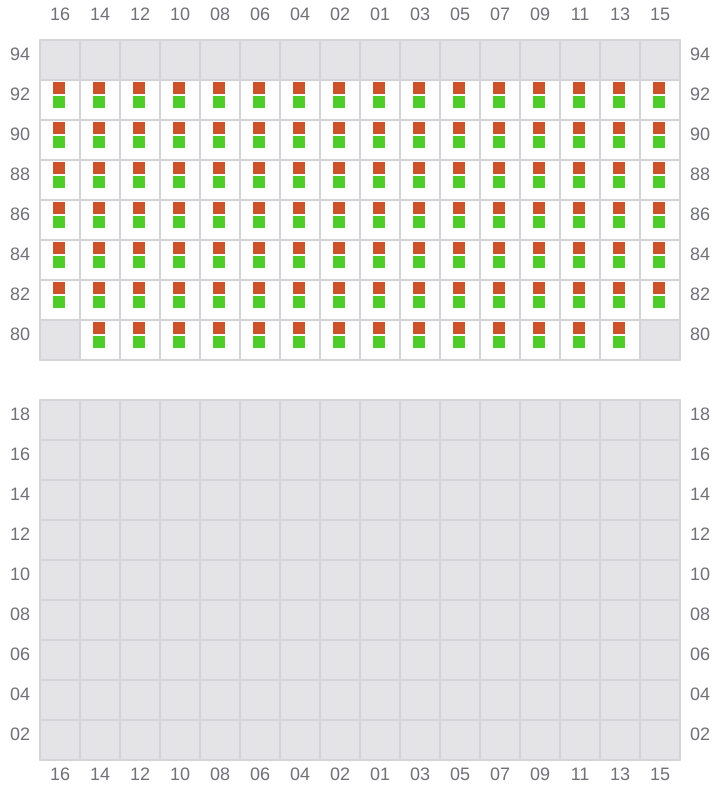

069 (070)
- → / ?
- → / ?
![Bay 069 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b069.png?v=1711405022202)

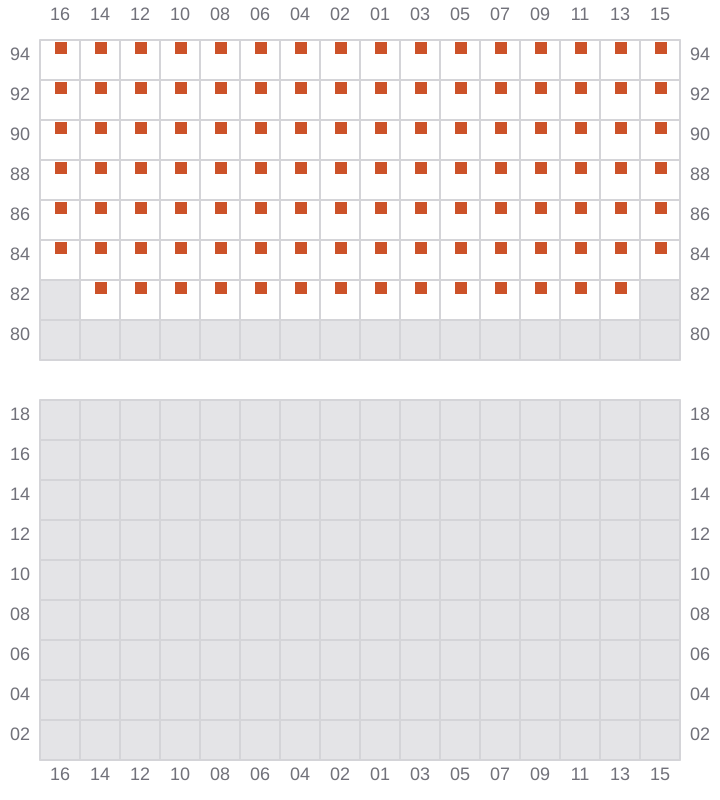

071
- ← / ?
![Bay 071 view and slots of CMACGM SAN FRANCISCO](/vessel-images/2fc09dcd-f99f-4db4-8347-c5797a8cc565-b071.png?v=1711405022202)
