CMACGM SAN FRANCISCO
9225615 | D5TZ4 | CMA by *********************** Last update: Tue Jan 14 2025

General Info

Ship Name:CMACGM SAN FRANCISCO
IMO Code:9225615
Call Sign:D5TZ4
Line Operator:CMA
Class Name for Sister Ships:CGSF
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):289.06
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CMACGM SAN FRANCISCO

Hatch-Covers View

Deck view of CMACGM SAN FRANCISCO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CMACGM SAN FRANCISCO

003

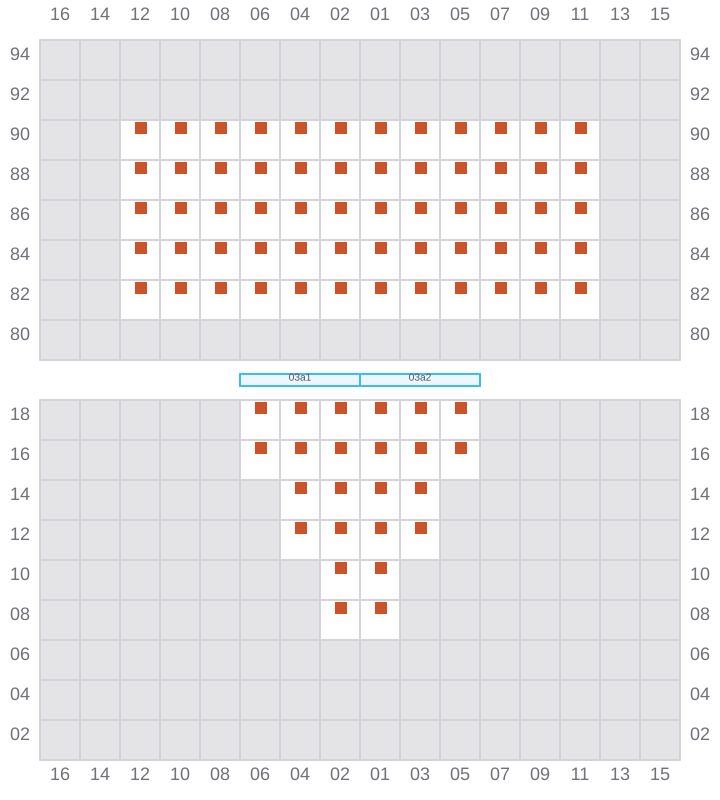

Bay 003 view and slots of CMACGM SAN FRANCISCO

005 (006)

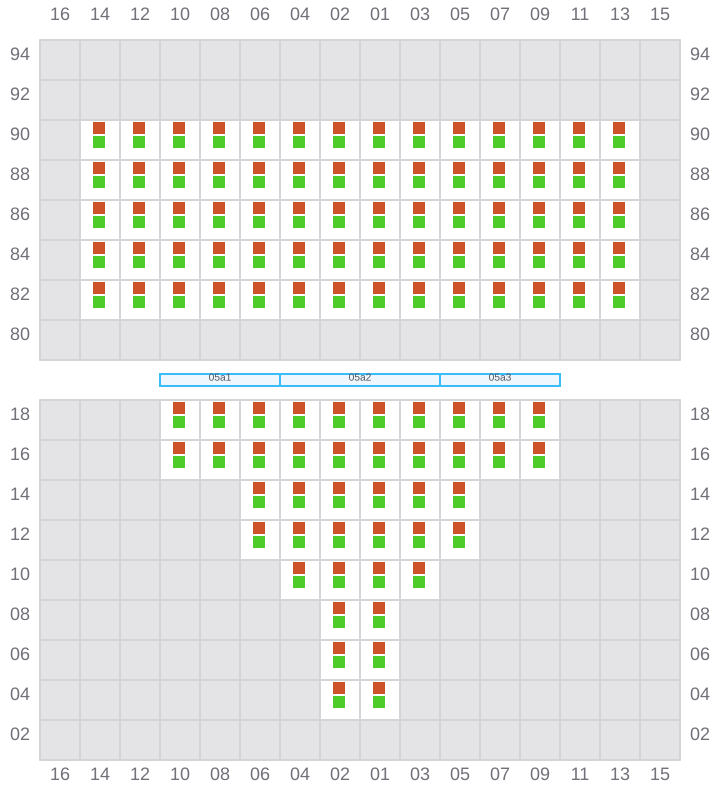

Bay 005 view and slots of CMACGM SAN FRANCISCO

007

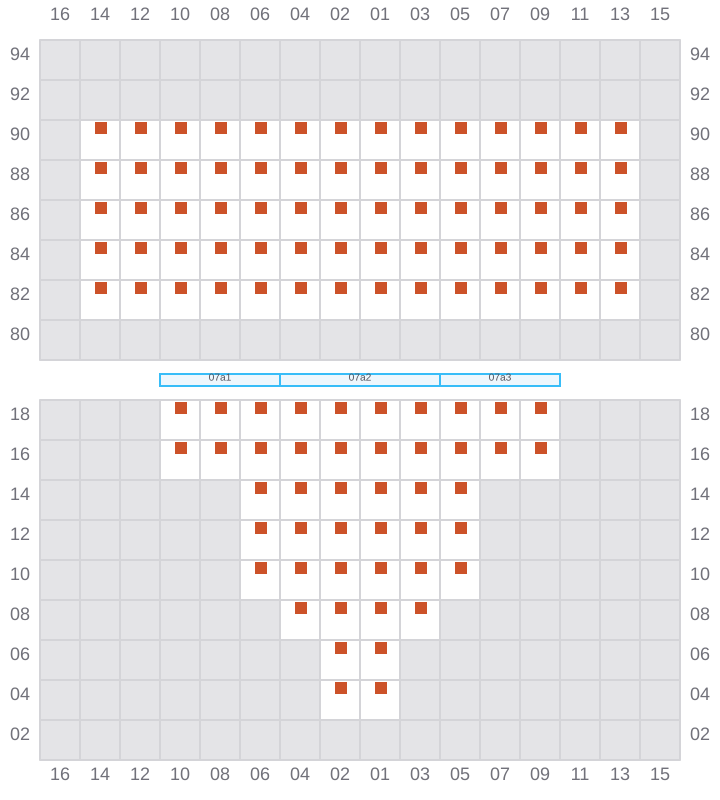

Bay 007 view and slots of CMACGM SAN FRANCISCO

009 (010)

Bay 009 view and slots of CMACGM SAN FRANCISCO

011

Bay 011 view and slots of CMACGM SAN FRANCISCO

013 (014)

  • / ?
Bay 013 view and slots of CMACGM SAN FRANCISCO

015

  • / ?
Bay 015 view and slots of CMACGM SAN FRANCISCO

017 (018)

  • / ?
Bay 017 view and slots of CMACGM SAN FRANCISCO

019

  • / ?
Bay 019 view and slots of CMACGM SAN FRANCISCO

021 (022)

Bay 021 view and slots of CMACGM SAN FRANCISCO

023

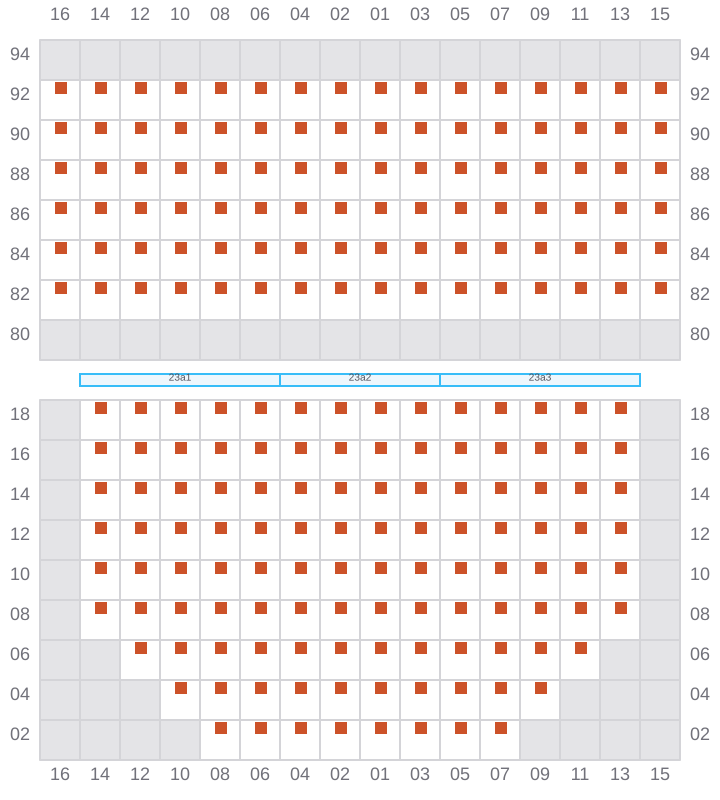

Bay 023 view and slots of CMACGM SAN FRANCISCO

025 (026)

  • / ?

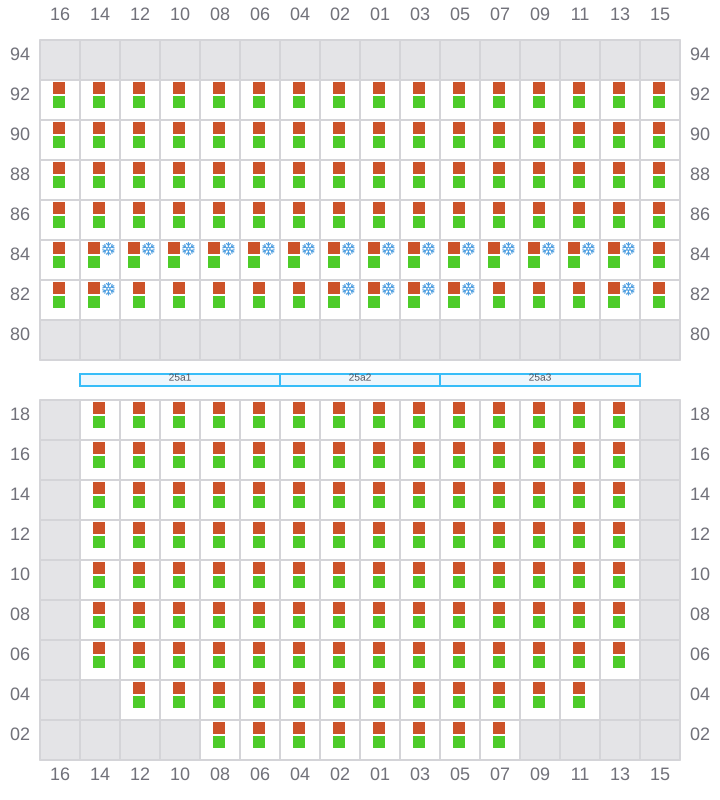

Bay 025 view and slots of CMACGM SAN FRANCISCO

027

  • / ?

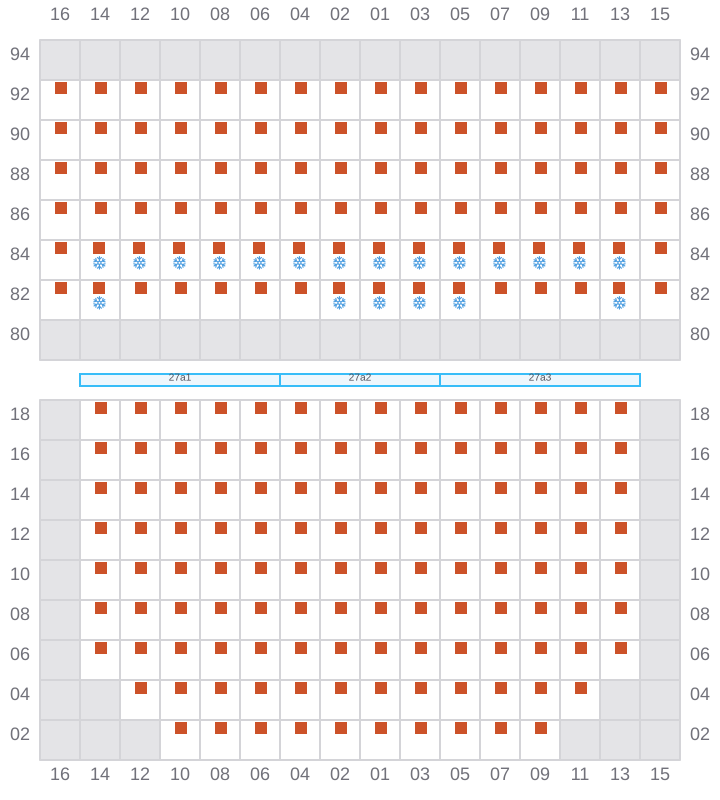

Bay 027 view and slots of CMACGM SAN FRANCISCO

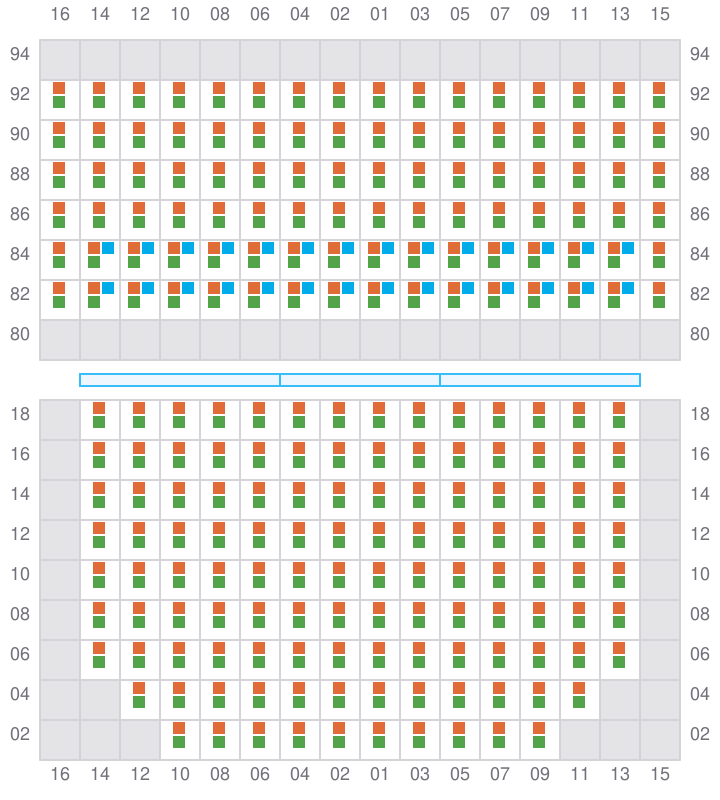

029 (030)

  • / ?
Bay 029 view and slots of CMACGM SAN FRANCISCO

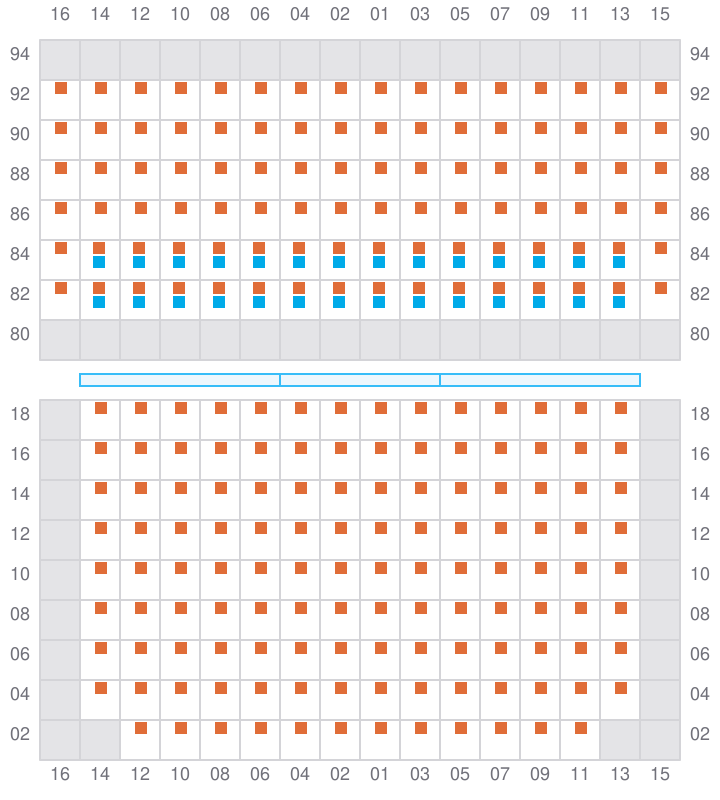

031

  • / ?
Bay 031 view and slots of CMACGM SAN FRANCISCO

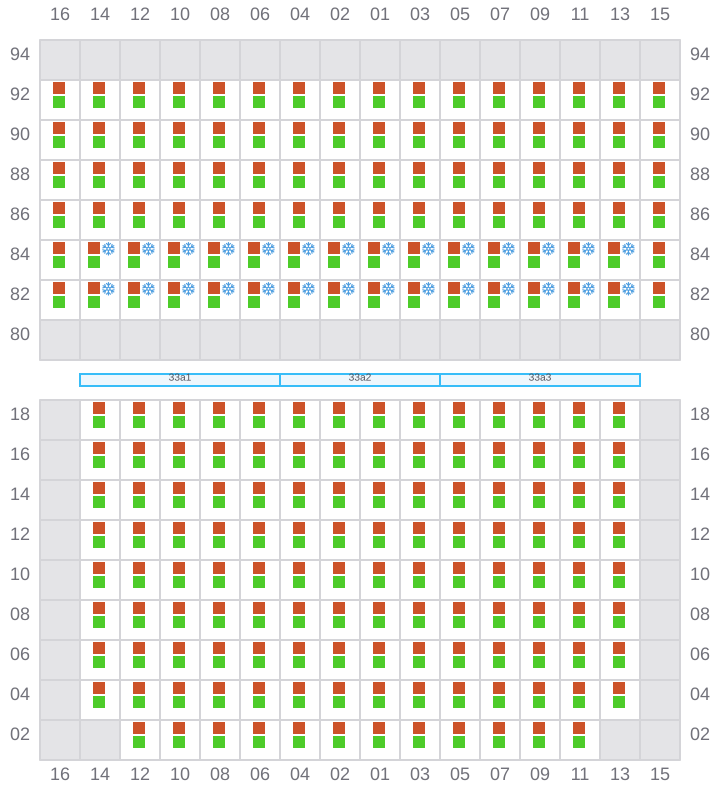

033 (034)

  • / ?
Bay 033 view and slots of CMACGM SAN FRANCISCO

035

  • / ?
Bay 035 view and slots of CMACGM SAN FRANCISCO

037 (038)

  • / ?
Bay 037 view and slots of CMACGM SAN FRANCISCO

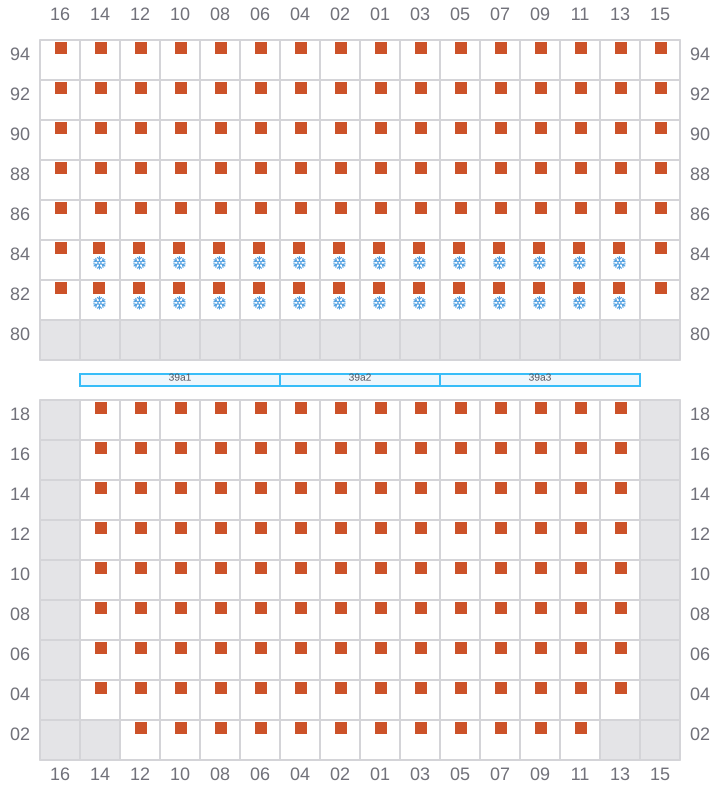

039

  • / ?
Bay 039 view and slots of CMACGM SAN FRANCISCO

041 (042)

  • / ?
Bay 041 view and slots of CMACGM SAN FRANCISCO

043

  • / ?
Bay 043 view and slots of CMACGM SAN FRANCISCO

045 (046)

  • / ?

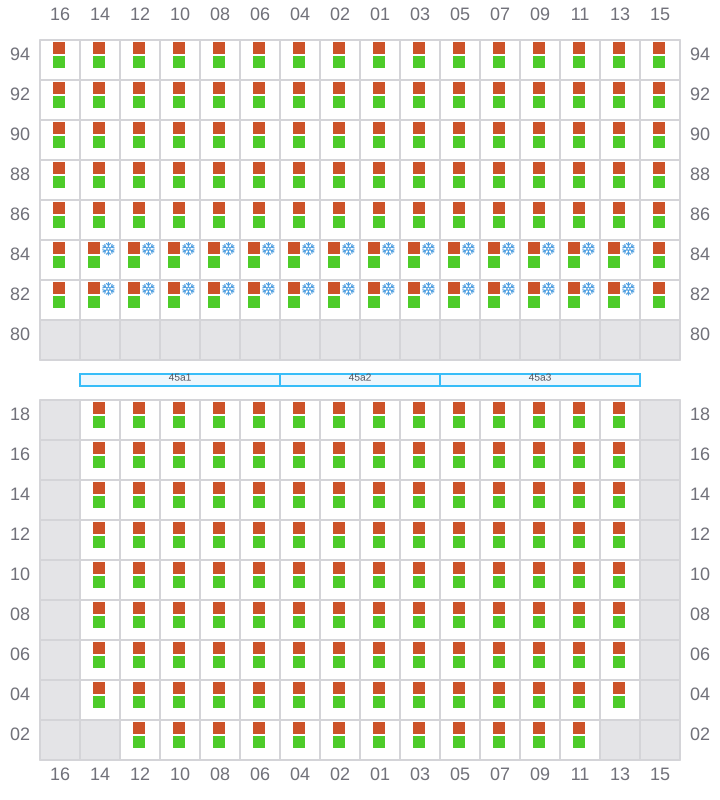

Bay 045 view and slots of CMACGM SAN FRANCISCO

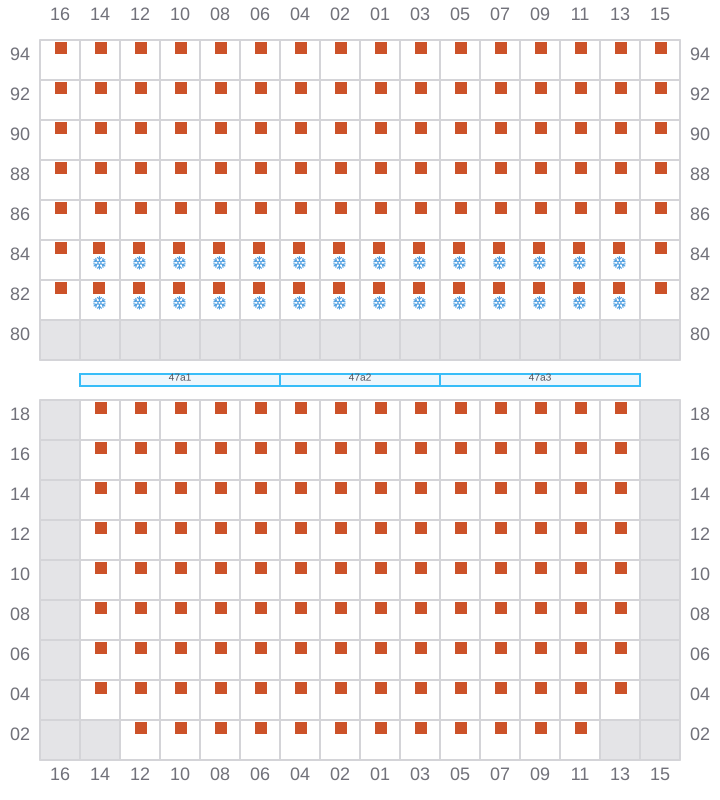

047

  • / ?
Bay 047 view and slots of CMACGM SAN FRANCISCO

049 (050)

  • / ?

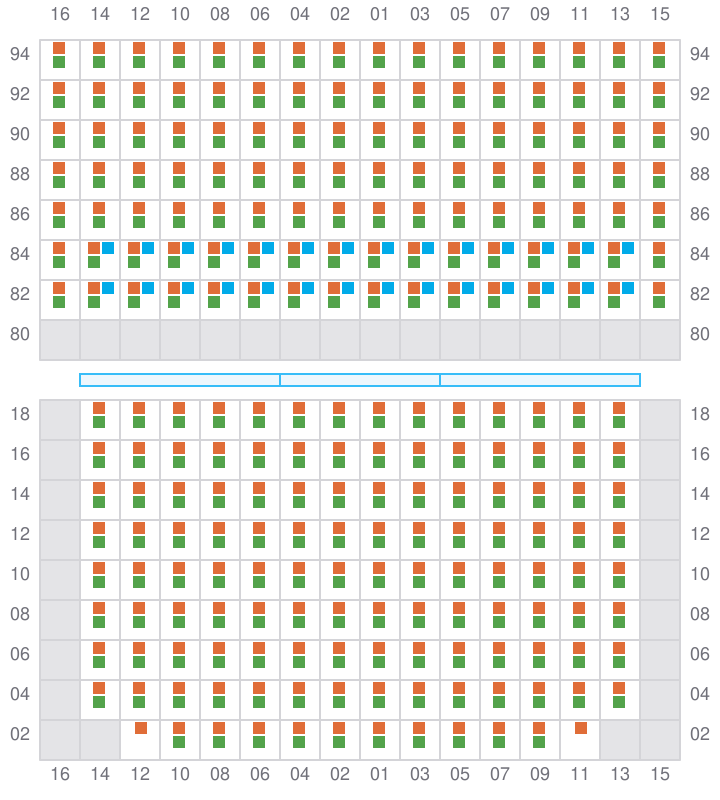

Bay 049 view and slots of CMACGM SAN FRANCISCO

051

  • / ?
Bay 051 view and slots of CMACGM SAN FRANCISCO

053 (054)

  • / ?
Bay 053 view and slots of CMACGM SAN FRANCISCO

055

  • / ?

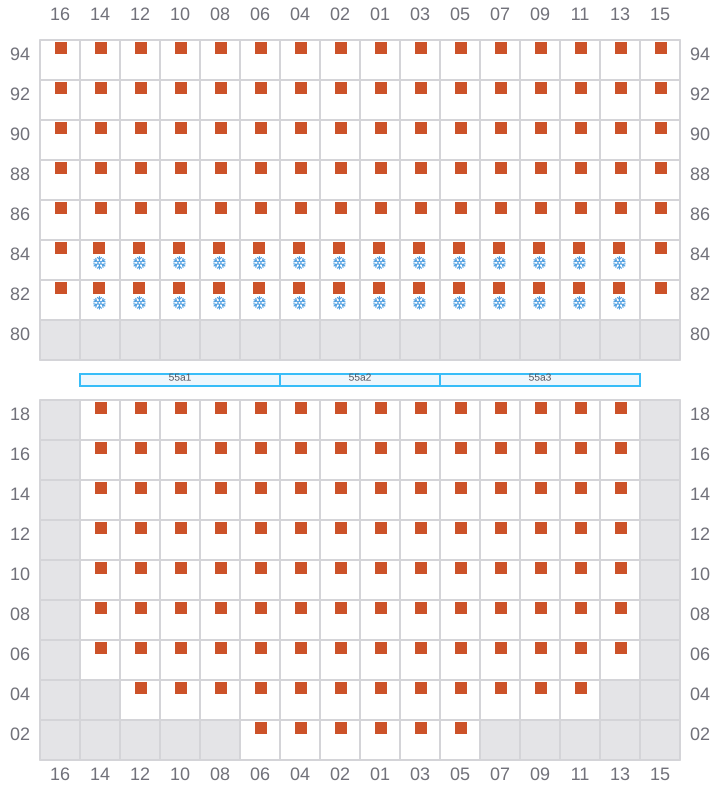

Bay 055 view and slots of CMACGM SAN FRANCISCO

057 (058)

  • / ?

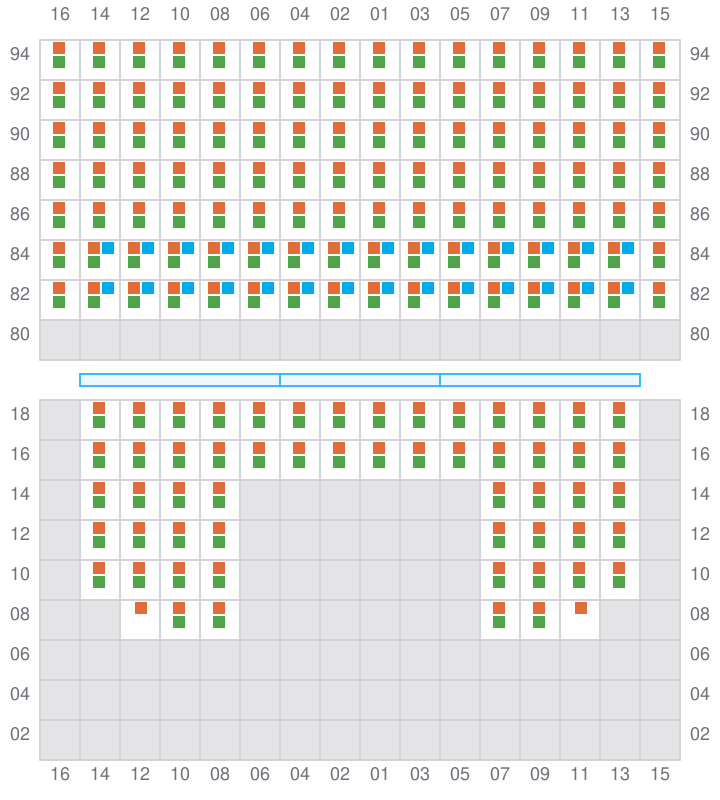

Bay 057 view and slots of CMACGM SAN FRANCISCO

059

  • / ?

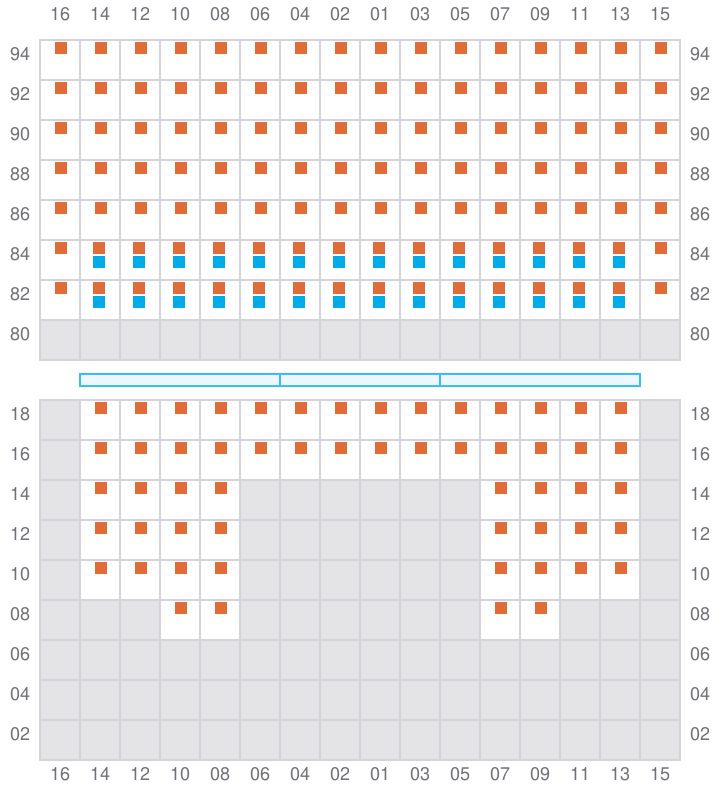

Bay 059 view and slots of CMACGM SAN FRANCISCO

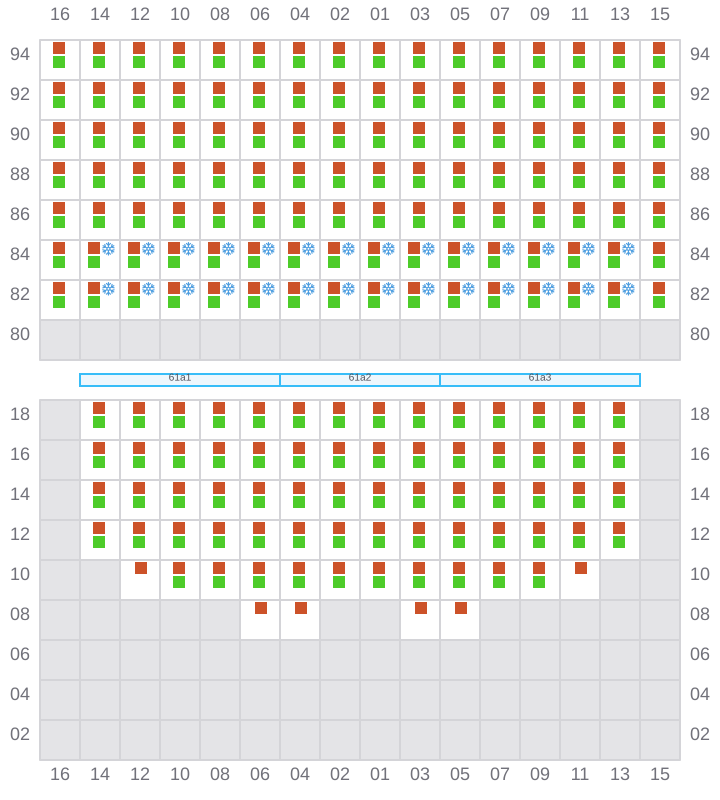

061 (062)

  • / ?
Bay 061 view and slots of CMACGM SAN FRANCISCO

063

  • / ?

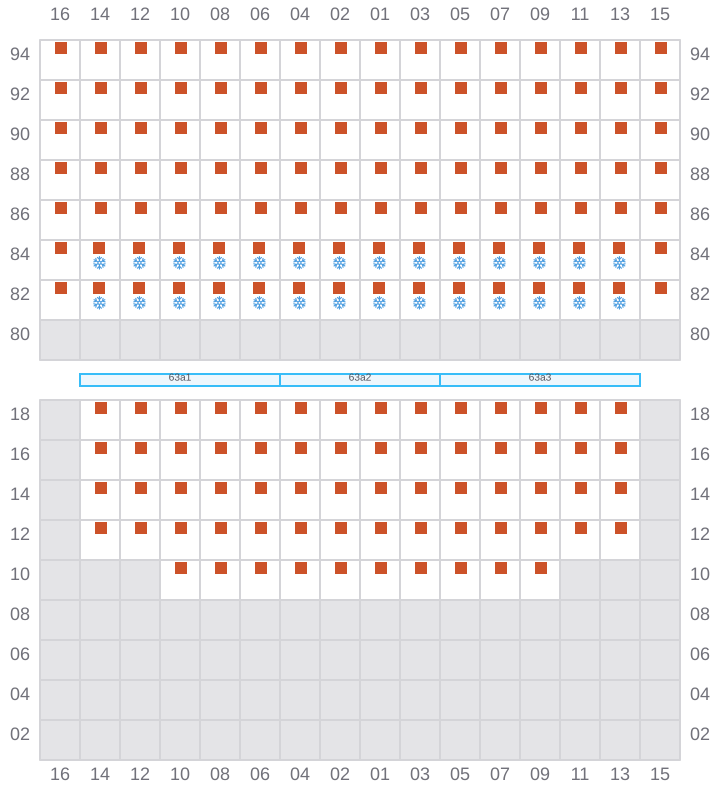

Bay 063 view and slots of CMACGM SAN FRANCISCO

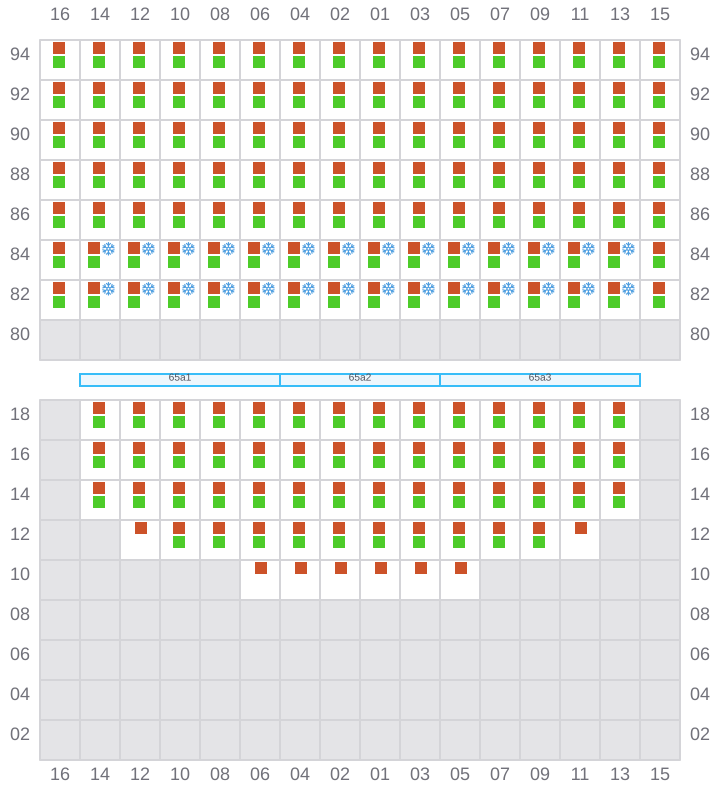

065 (066)

  • / ?
Bay 065 view and slots of CMACGM SAN FRANCISCO

067

  • / ?
Bay 067 view and slots of CMACGM SAN FRANCISCO

069 (070)

  • / ?

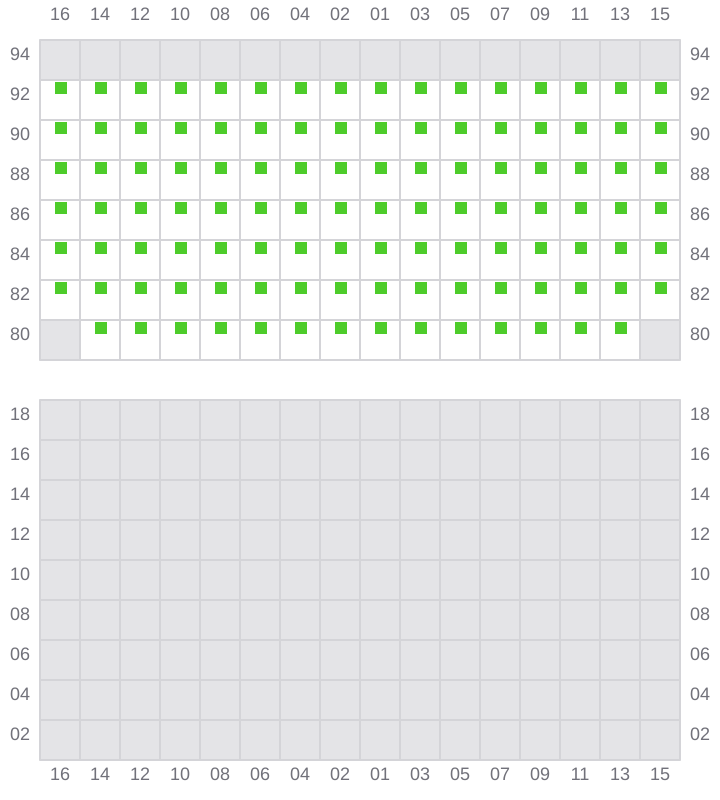

Bay 069 view and slots of CMACGM SAN FRANCISCO
