CMACGM VILA DO CONDE
9434929 | 9HA5786 | 9434929 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:CMACGM VILA DO CONDE
IMO Code:9434929
Call Sign:9HA5786
Line Operator:9434929
Class Name for Sister Ships:27B
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:95
Min Above ISO Tier:81
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,592
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-sideView.png?v=1711393105612)

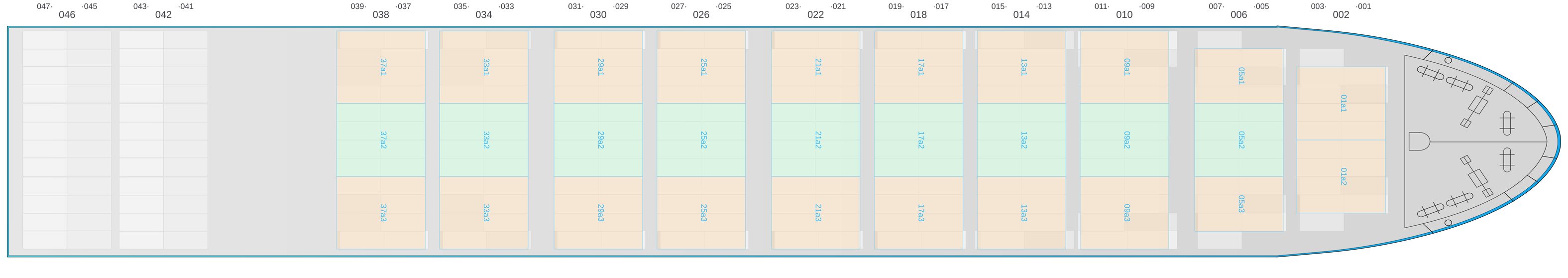

Hatch-Covers View
![Deck view of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-deckView.png?v=1711393105612)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

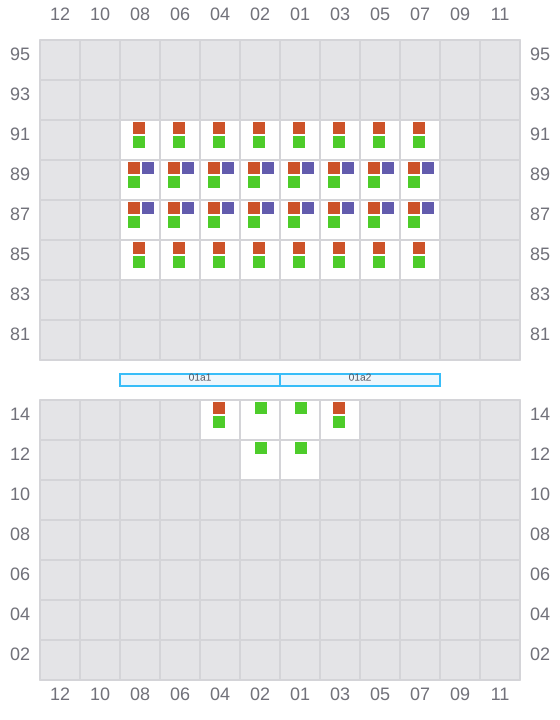

001 (002)
- →
![Bay 001 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b001.png?v=1711393105612)

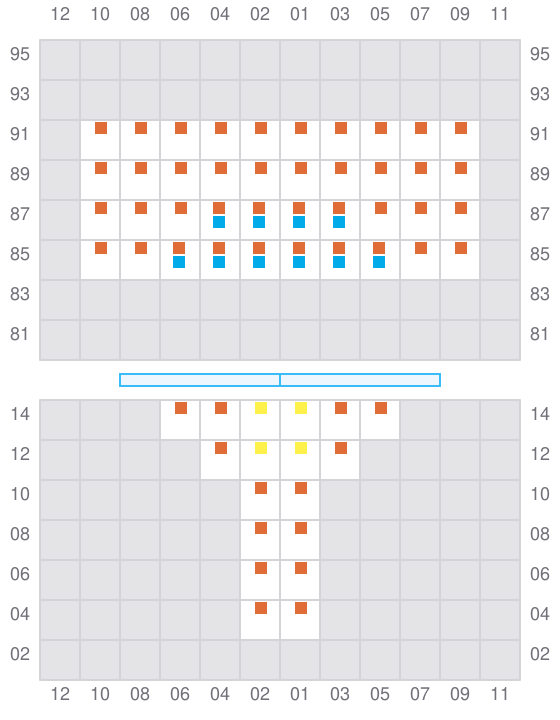

003
- ←
- → / ?
![Bay 003 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b003.png?v=1711393105612)

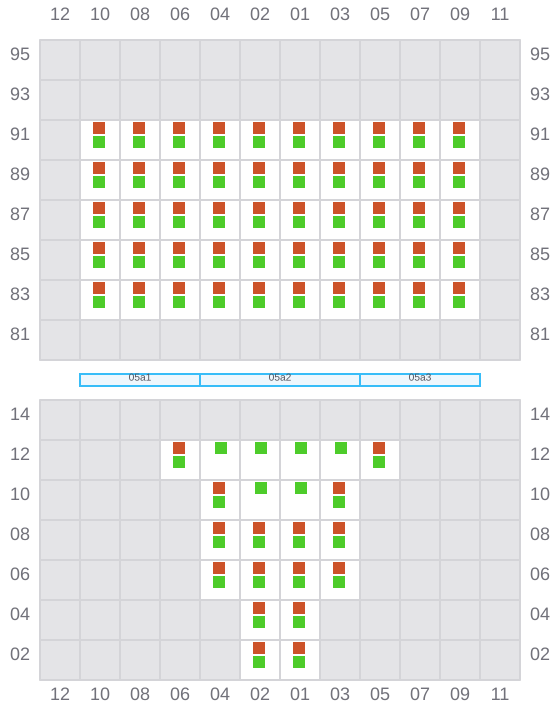

005 (006)
- →
![Bay 005 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b005.png?v=1711393105612)

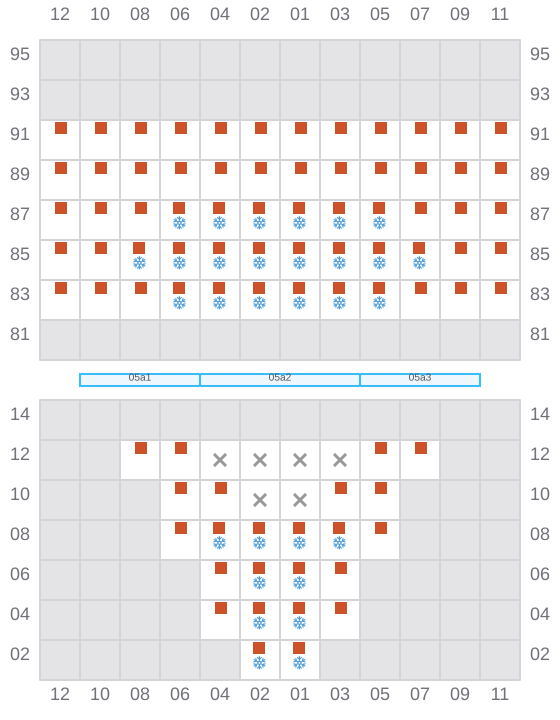

007
- ←
- →
![Bay 007 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b007.png?v=1711393105612)

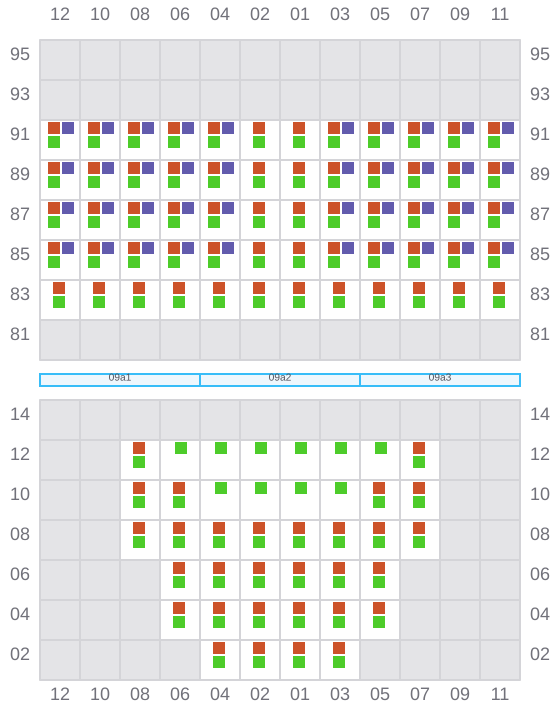

009 (010)
- →
![Bay 009 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b009.png?v=1711393105612)

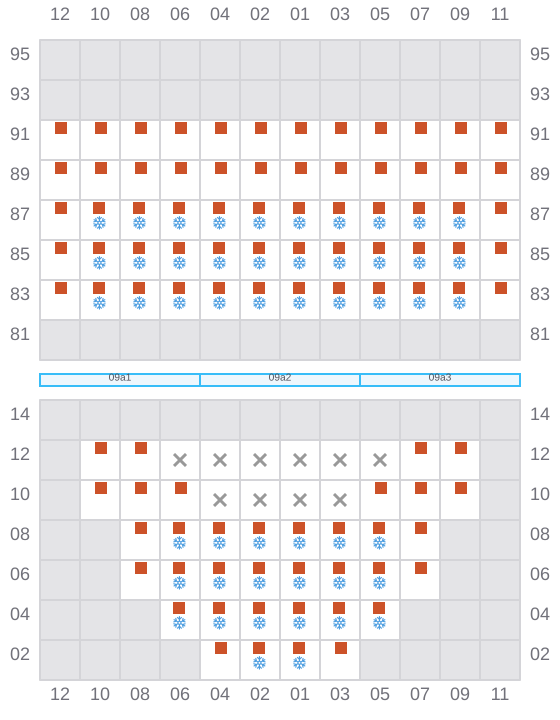

011
- ←
- →
![Bay 011 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b011.png?v=1711393105612)

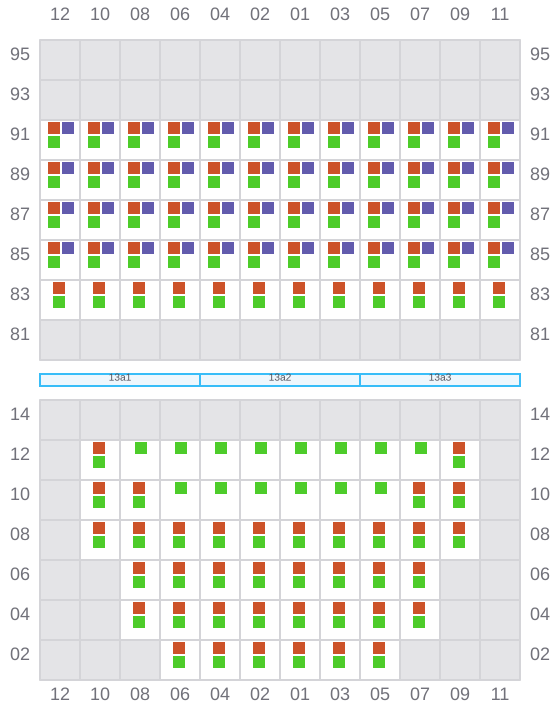

013 (014)
- →
![Bay 013 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b013.png?v=1711393105612)

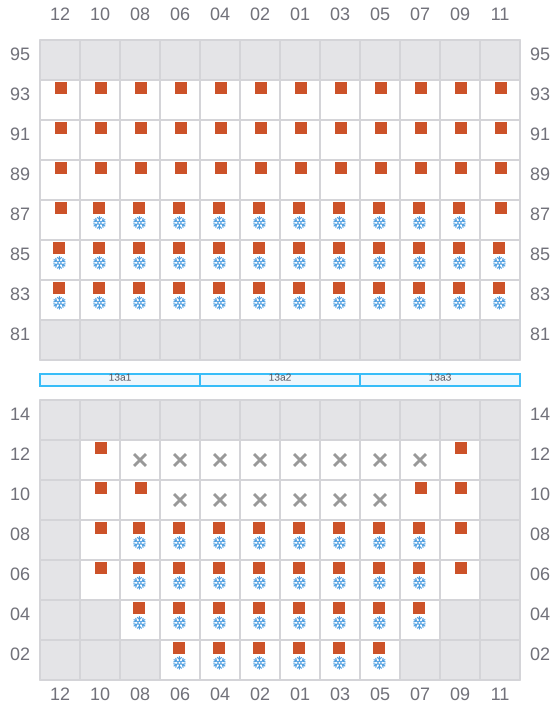

015
- ←
- →
![Bay 015 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b015.png?v=1711393105612)

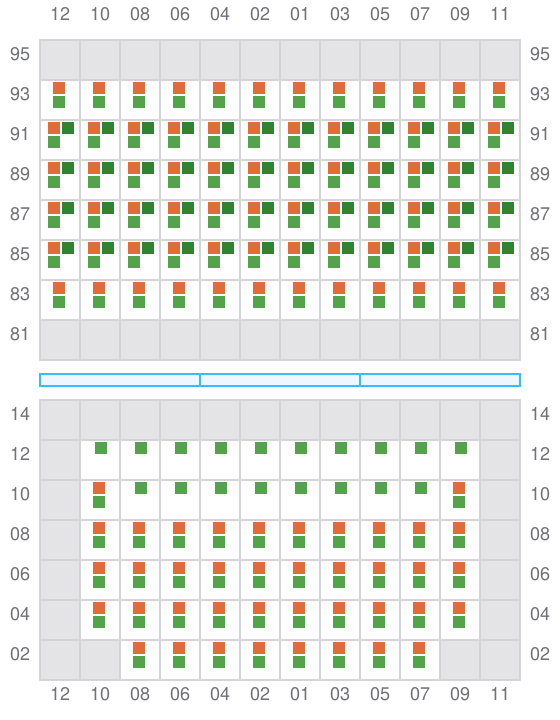

017 (018)
- →
![Bay 017 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b017.png?v=1711393105612)

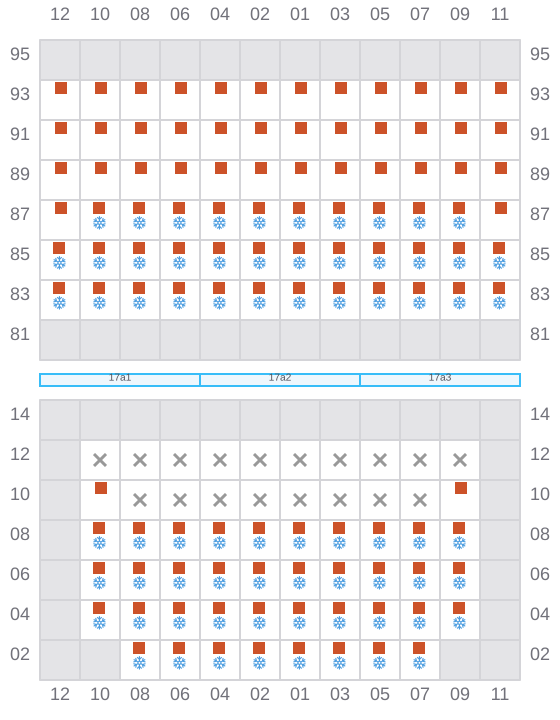

019
- ←
- →
![Bay 019 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b019.png?v=1711393105612)

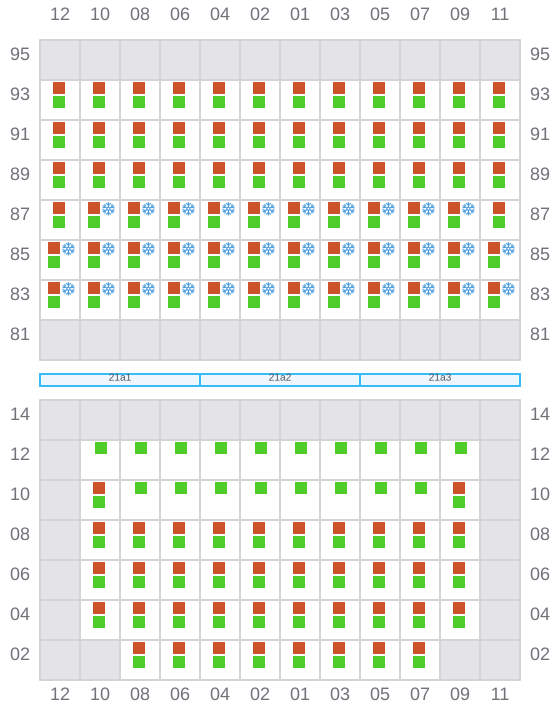

021 (022)
- →
- ← / ?
![Bay 021 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b021.png?v=1711393105612)

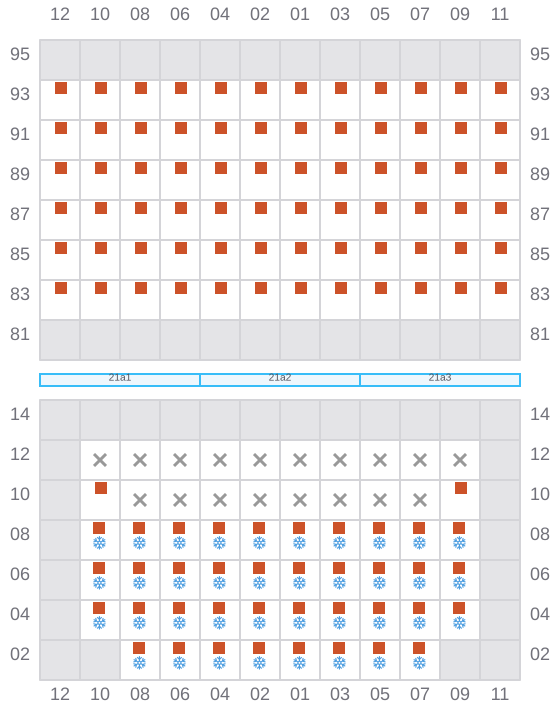

023
- ←
- →
![Bay 023 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b023.png?v=1711393105612)

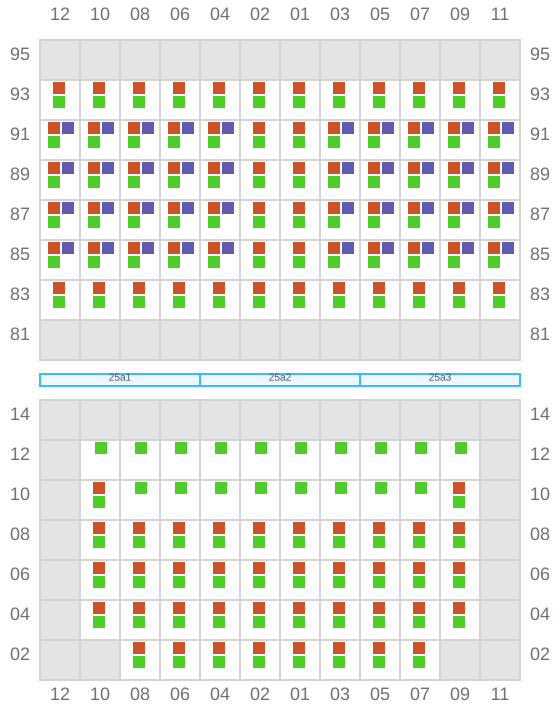

025 (026)
- →
![Bay 025 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b025.png?v=1711393105612)
027
- ←
- →
![Bay 027 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b027.png?v=1711393105612)

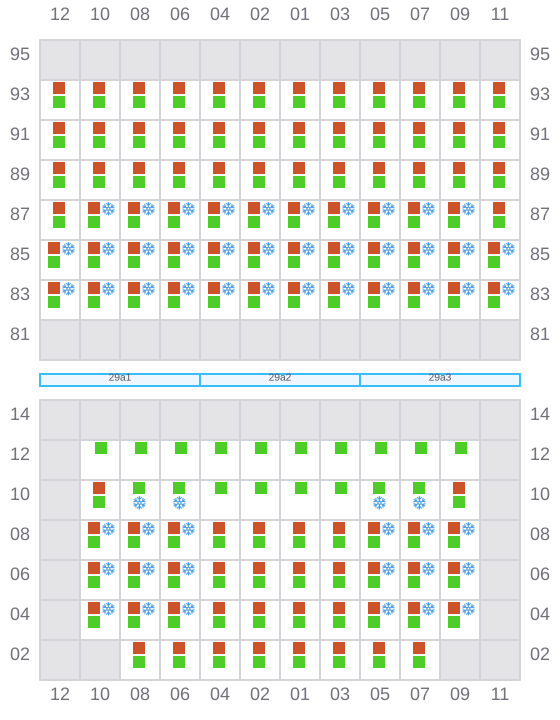

029 (030)
- →
- ←
![Bay 029 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b029.png?v=1711393105612)

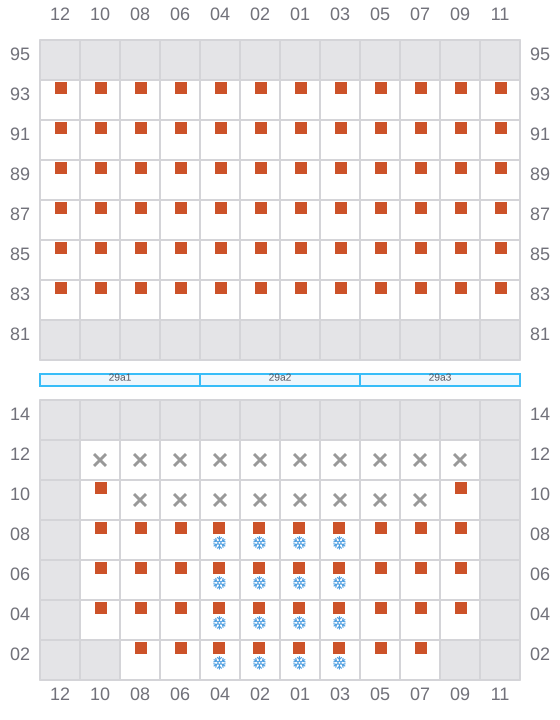

031
- ←
- → / ?
![Bay 031 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b031.png?v=1711393105612)

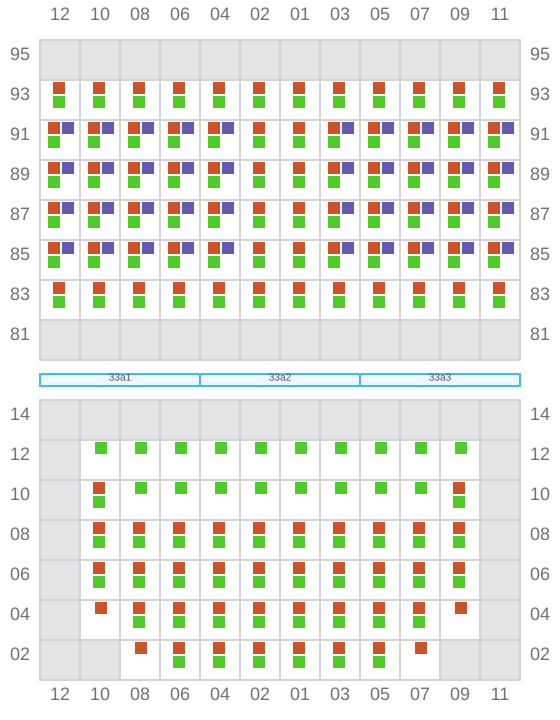

033 (034)
- →
![Bay 033 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b033.png?v=1711393105612)

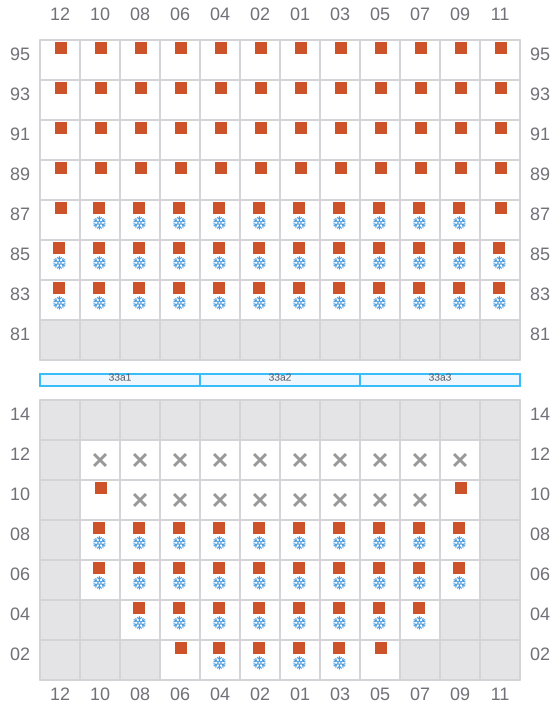

035
- ←
- → / ?
![Bay 035 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b035.png?v=1711393105612)

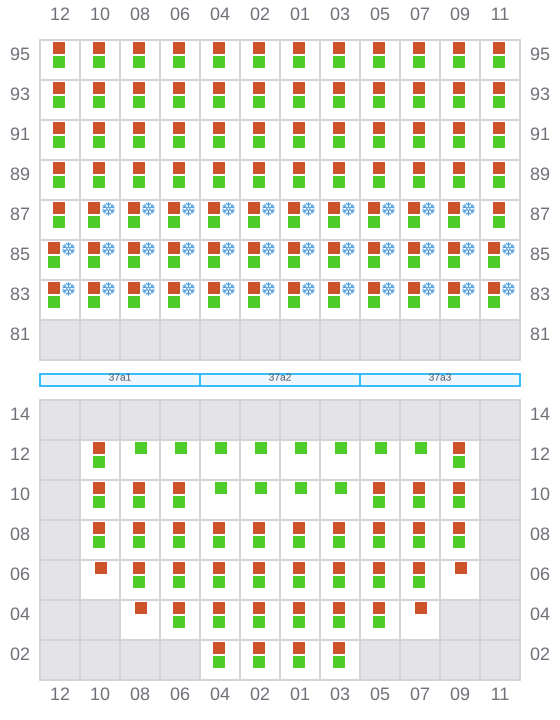

037 (038)
- →
- ← / ?
![Bay 037 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b037.png?v=1711393105612)

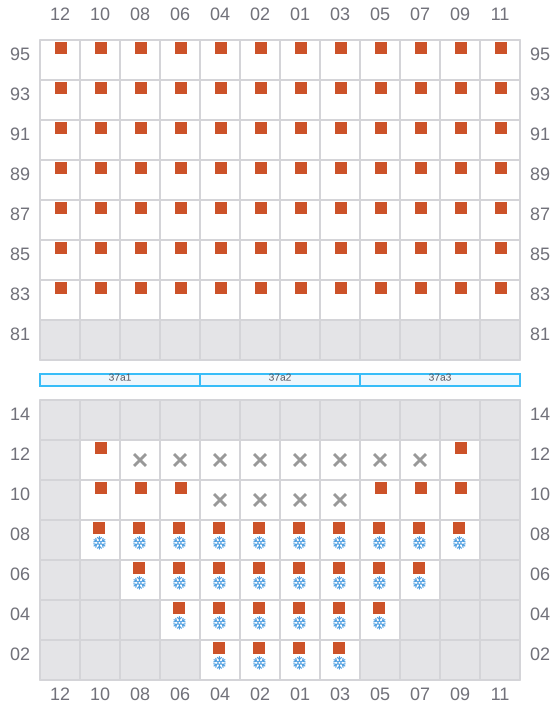

039
- ←
![Bay 039 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b039.png?v=1711393105612)

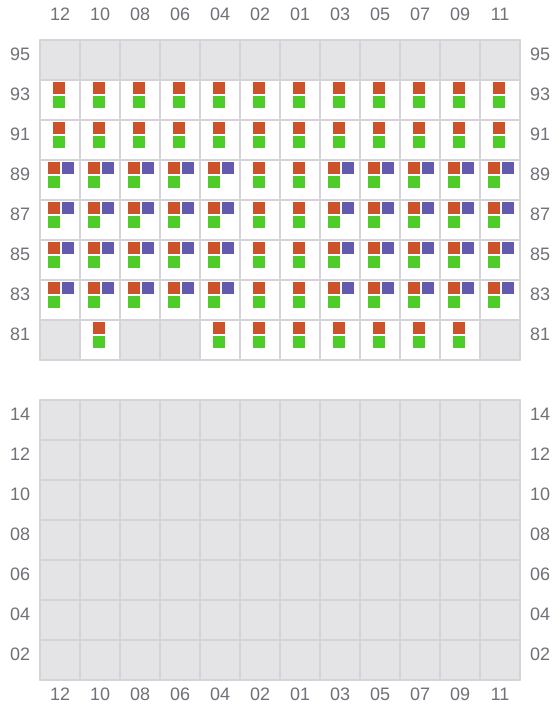

041 (042)
- → / ?
![Bay 041 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b041.png?v=1711393105612)

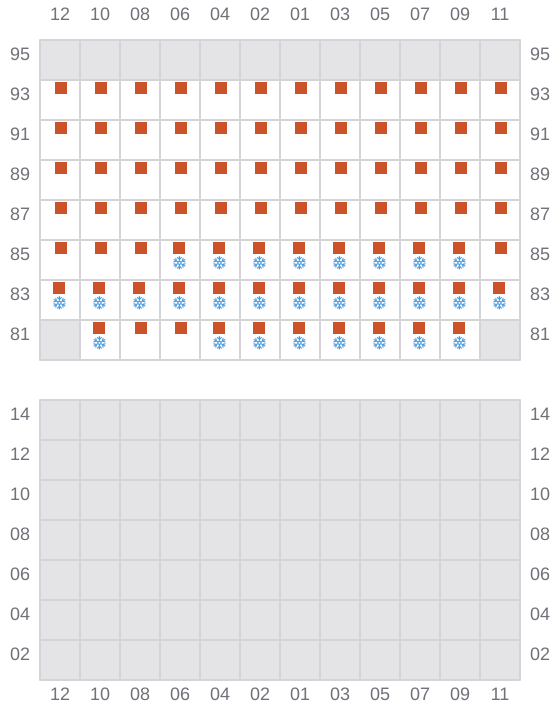

043
- ← / ?
![Bay 043 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b043.png?v=1711393105612)

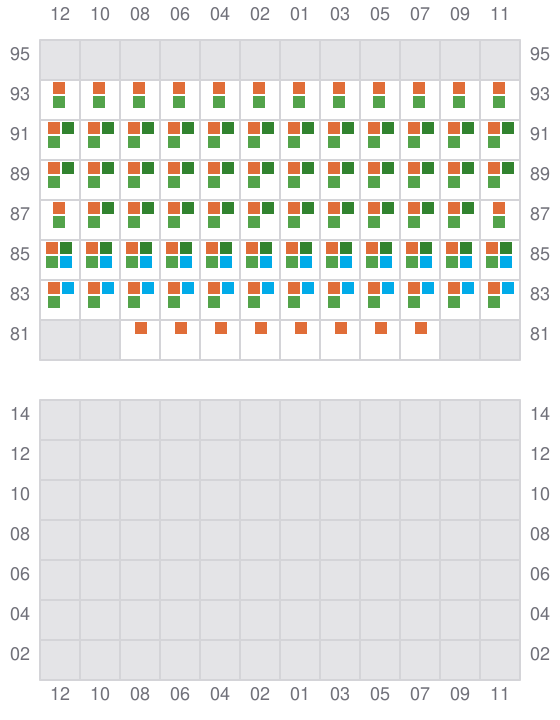

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b045.png?v=1711393105612)

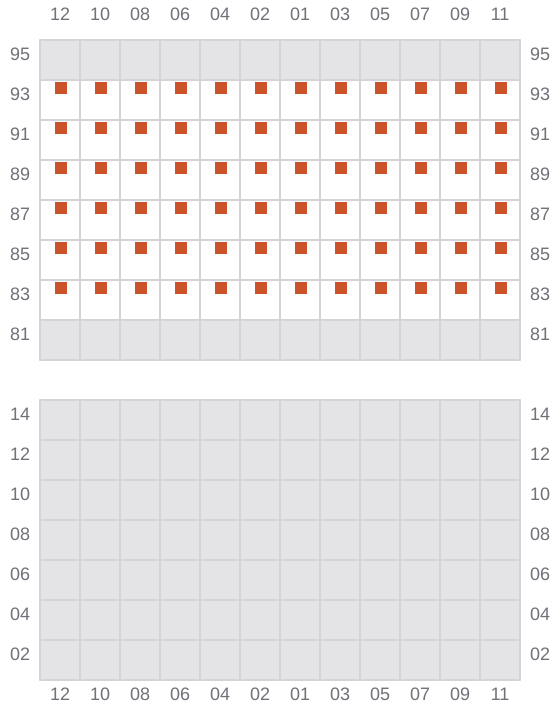

047
- ← / ?
![Bay 047 view and slots of CMACGM VILA DO CONDE](/vessel-images/90d22ee1-a3c2-4a87-8028-a31fe39017aa-b047.png?v=1711393105612)
