CNC SATURN
9836684 | 9HA5327 | 9836684 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:CNC SATURN
IMO Code:9836684
Call Sign:9HA5327
Line Operator:9836684
Class Name for Sister Ships:APL
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:78
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,410
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

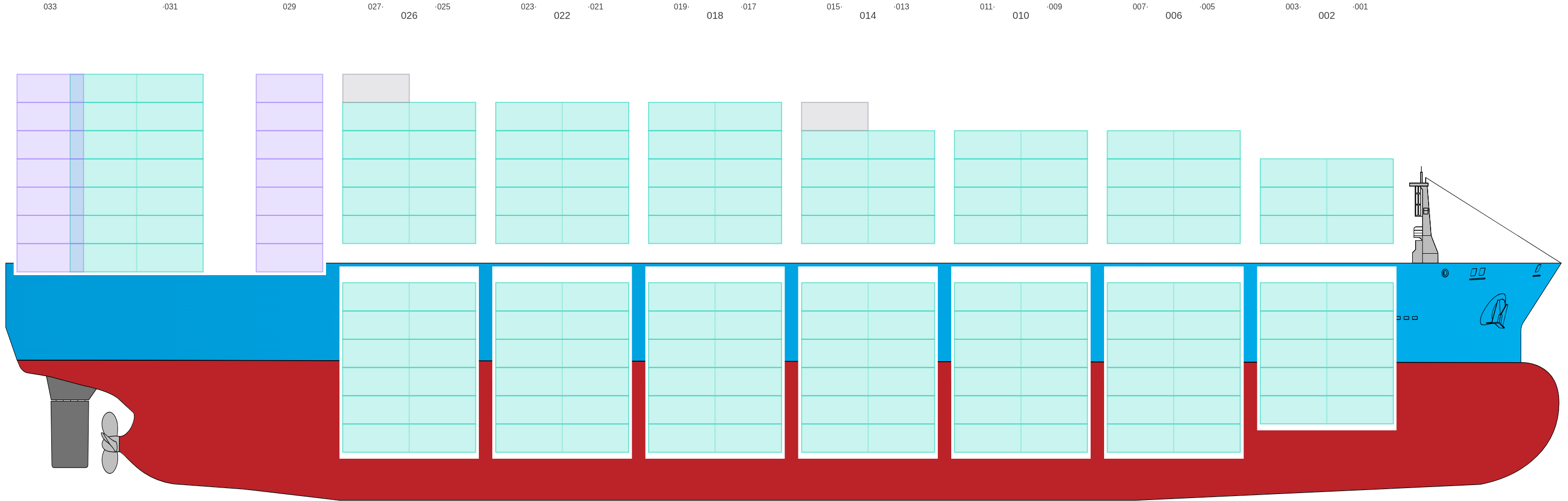

Side View
![Side view of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-sideView.png?v=1712260922369)

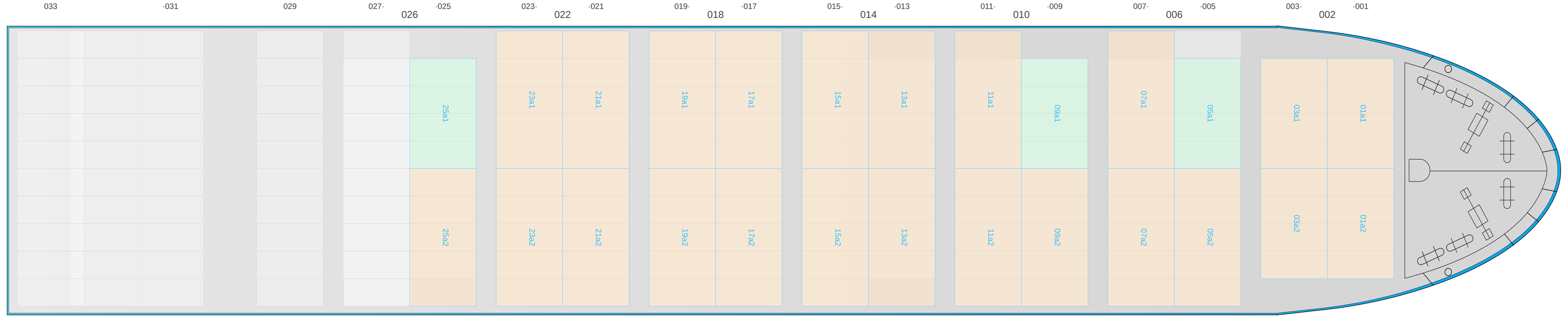

Hatch-Covers View
![Deck view of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-deckView.png?v=1712260922369)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

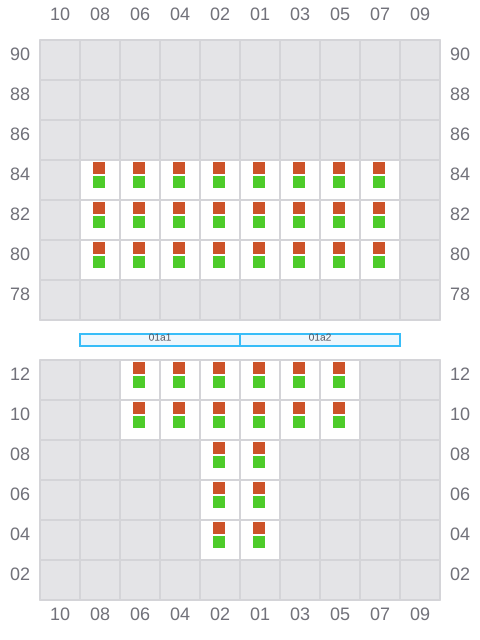

001 (002)
- →
![Bay 001 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b001.png?v=1712260922369)

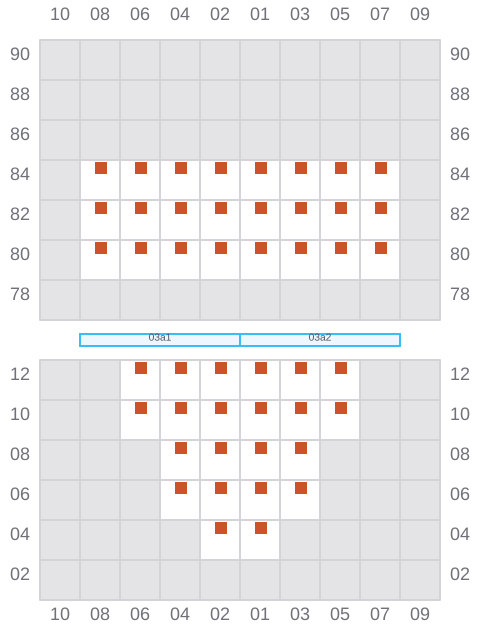

003
- ←
![Bay 003 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b003.png?v=1712260922369)

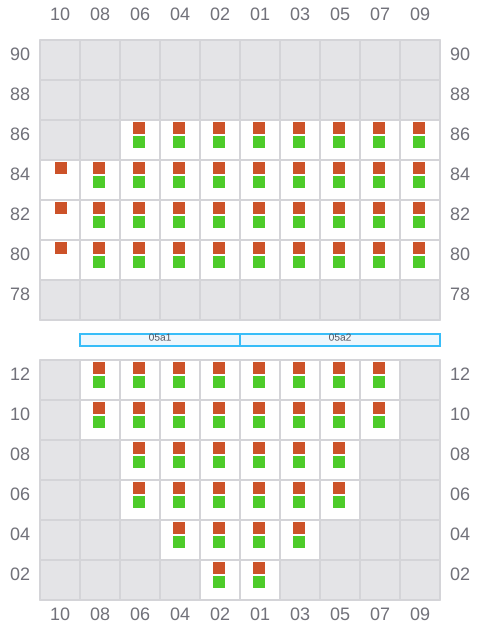

005 (006)
- →
![Bay 005 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b005.png?v=1712260922369)
007
- ←
![Bay 007 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b007.png?v=1712260922369)

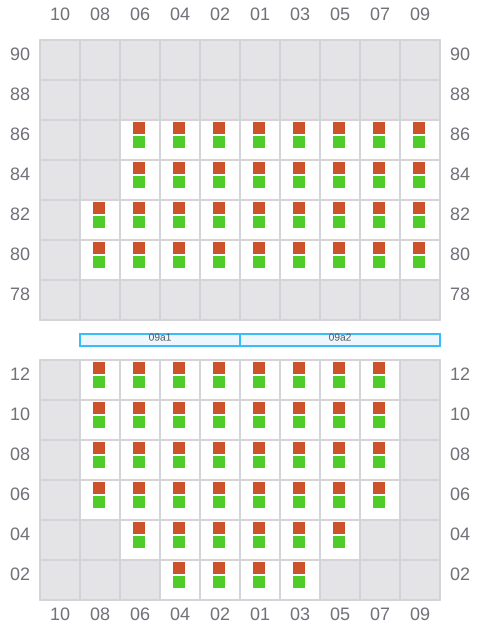

009 (010)
- →
![Bay 009 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b009.png?v=1712260922369)
011
- ←
![Bay 011 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b011.png?v=1712260922369)
013 (014)
- →
![Bay 013 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b013.png?v=1712260922369)
015
- ←
![Bay 015 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b015.png?v=1712260922369)
017 (018)
- →
![Bay 017 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b017.png?v=1712260922369)

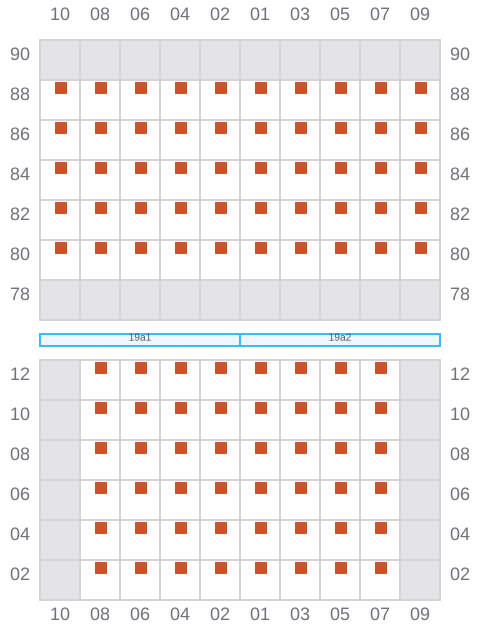

019
- ←
![Bay 019 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b019.png?v=1712260922369)

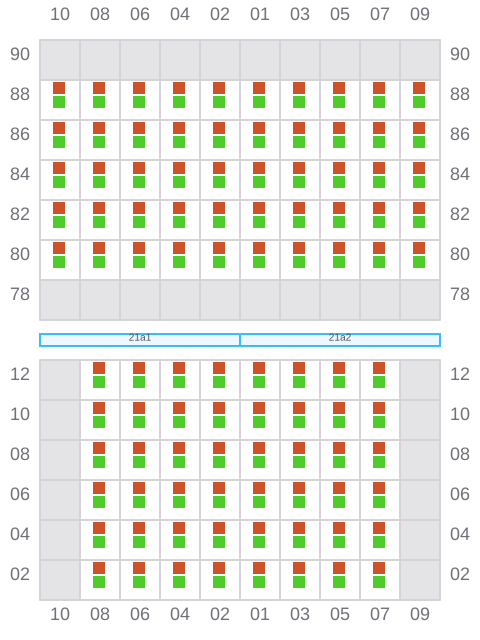

021 (022)
- →
![Bay 021 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b021.png?v=1712260922369)
023
- ←
![Bay 023 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b023.png?v=1712260922369)

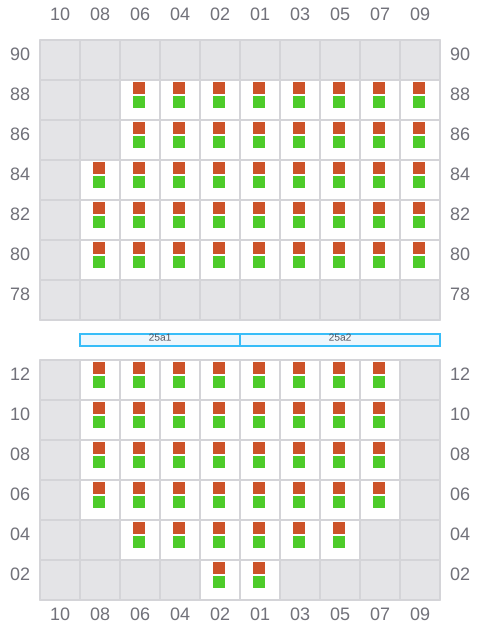

025 (026)
- →
![Bay 025 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b025.png?v=1712260922369)

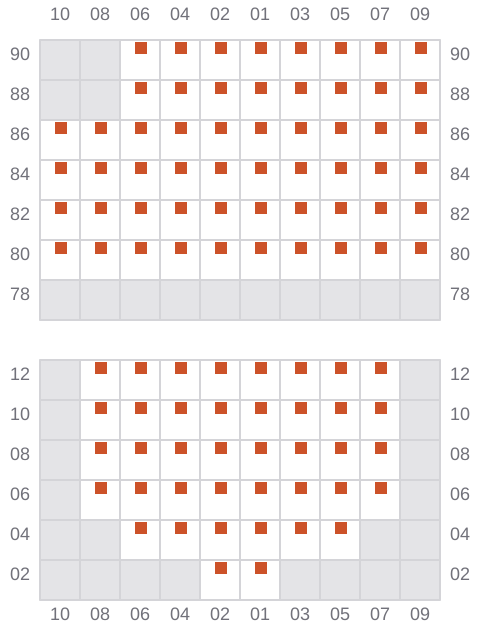

027
- ←
![Bay 027 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b027.png?v=1712260922369)

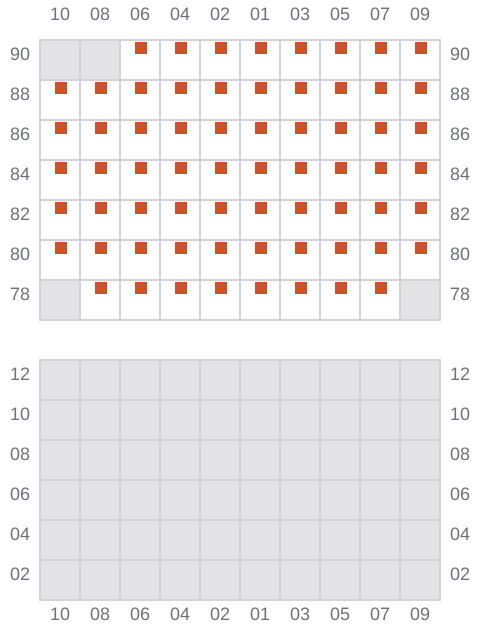

029
![Bay 029 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b029.png?v=1712260922369)

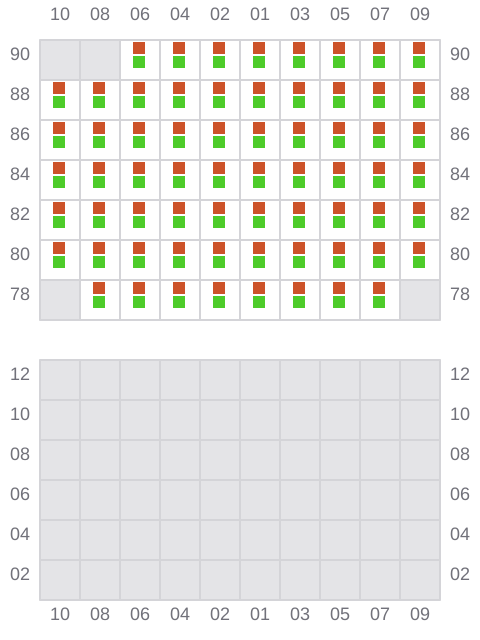

031 (032)
- → / ?
![Bay 031 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b031.png?v=1712260922369)
033
![Bay 033 view and slots of CNC SATURN](/vessel-images/c5654d05-debb-4d13-8375-17d0309773ca-b033.png?v=1712260922369)
