COLOMBIA EXPRESS
9635664 | V7ZT7 | 9635664 by ********* Last update: Tue Jul 30 2024

General Info

Ship Name:COLOMBIA EXPRESS
IMO Code:9635664
Call Sign:V7ZT7
Line Operator:9635664
Class Name for Sister Ships:MAE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):258.01
LOA (Length Overall):270.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,921

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

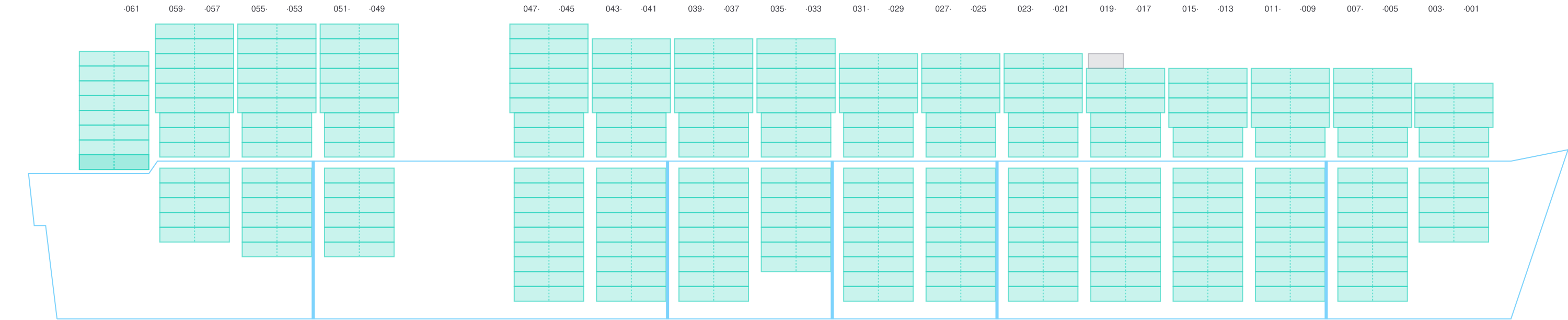

Side View

Side view of COLOMBIA EXPRESS

Hatch-Covers View

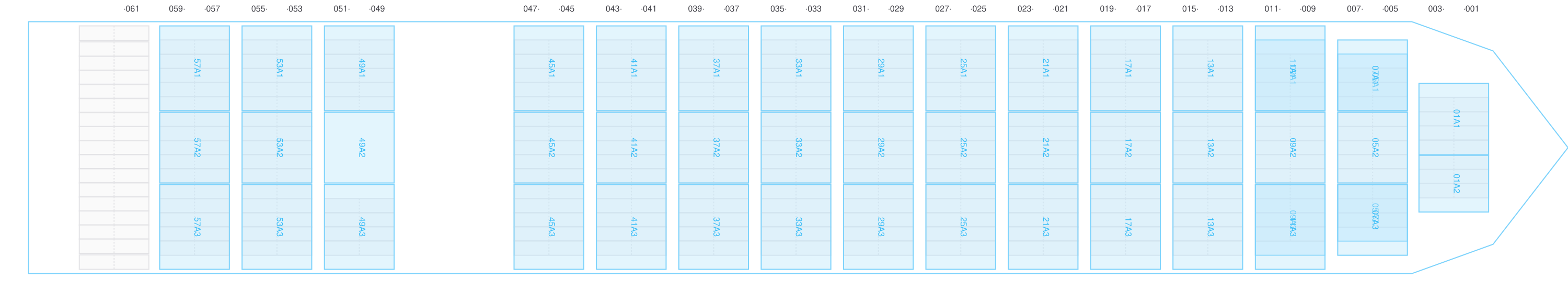

Deck view of COLOMBIA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

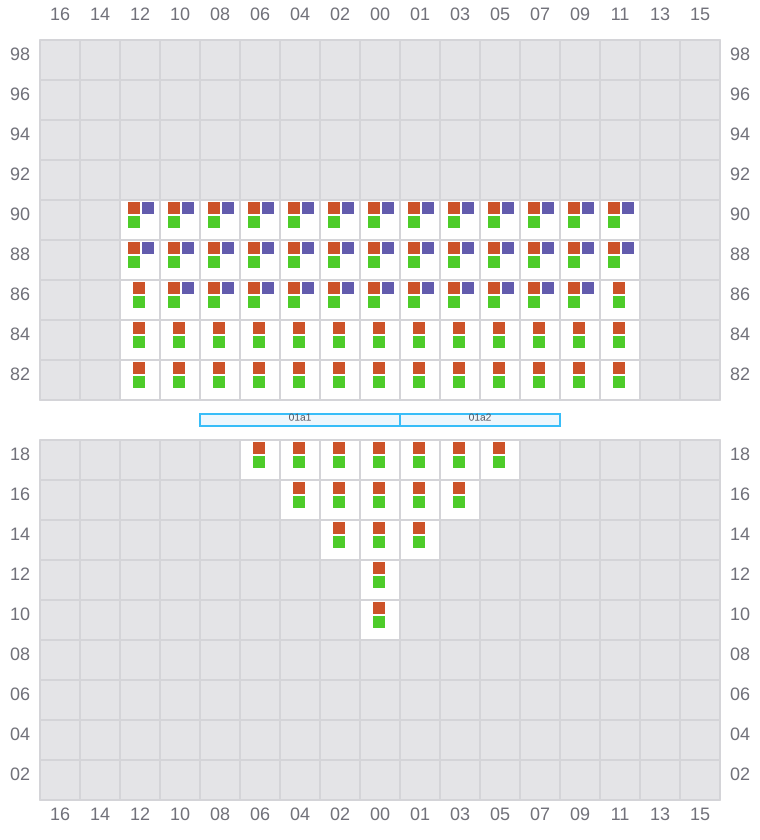

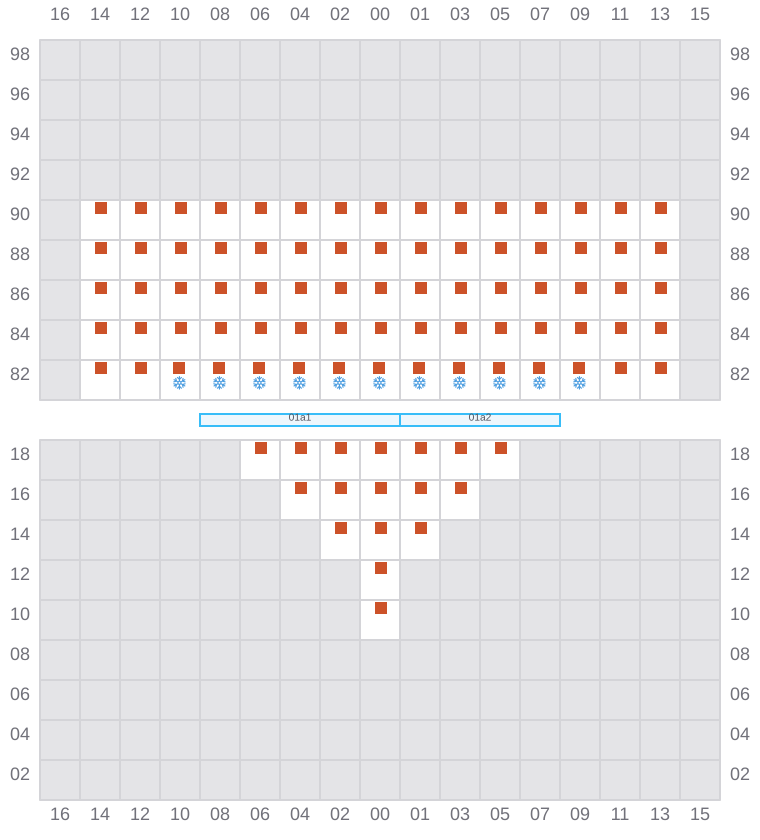

Bay 001 view and slots of COLOMBIA EXPRESS

003

Bay 003 view and slots of COLOMBIA EXPRESS

005 (006)

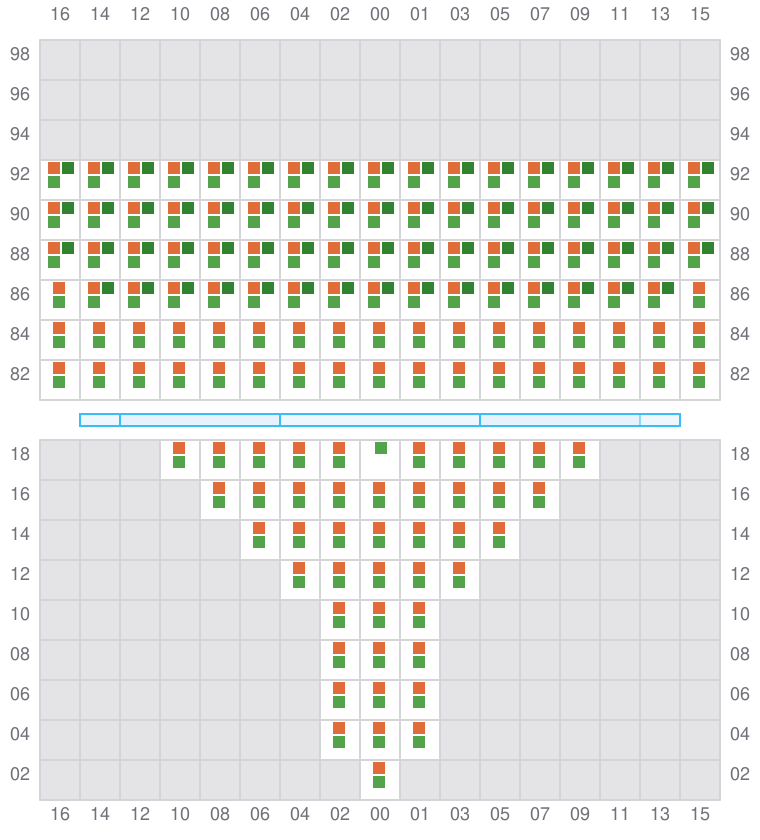

Bay 005 view and slots of COLOMBIA EXPRESS

007

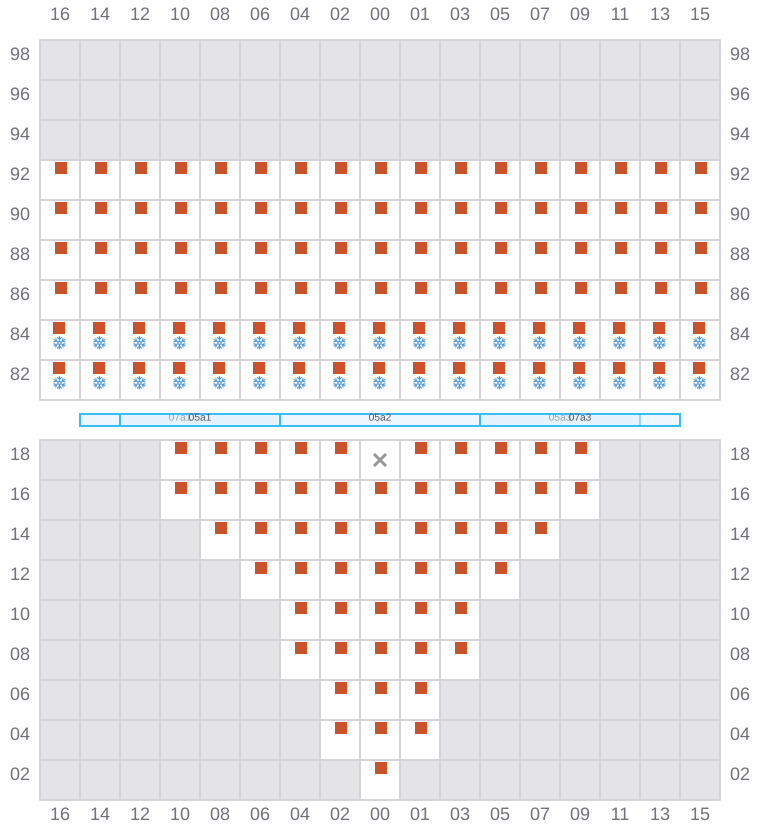

Bay 007 view and slots of COLOMBIA EXPRESS

009 (010)

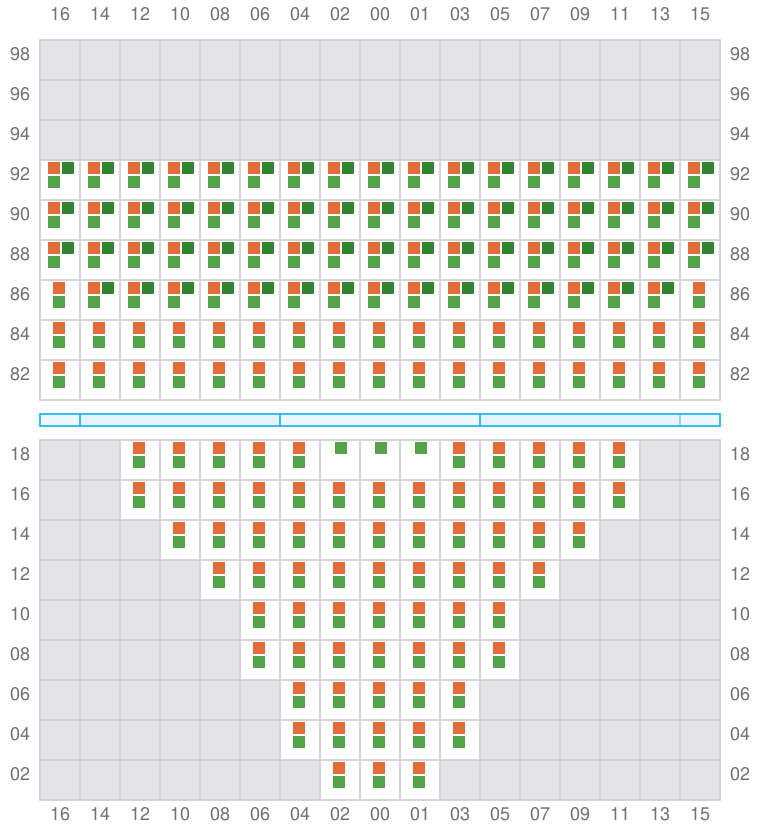

Bay 009 view and slots of COLOMBIA EXPRESS

011

Bay 011 view and slots of COLOMBIA EXPRESS

013 (014)

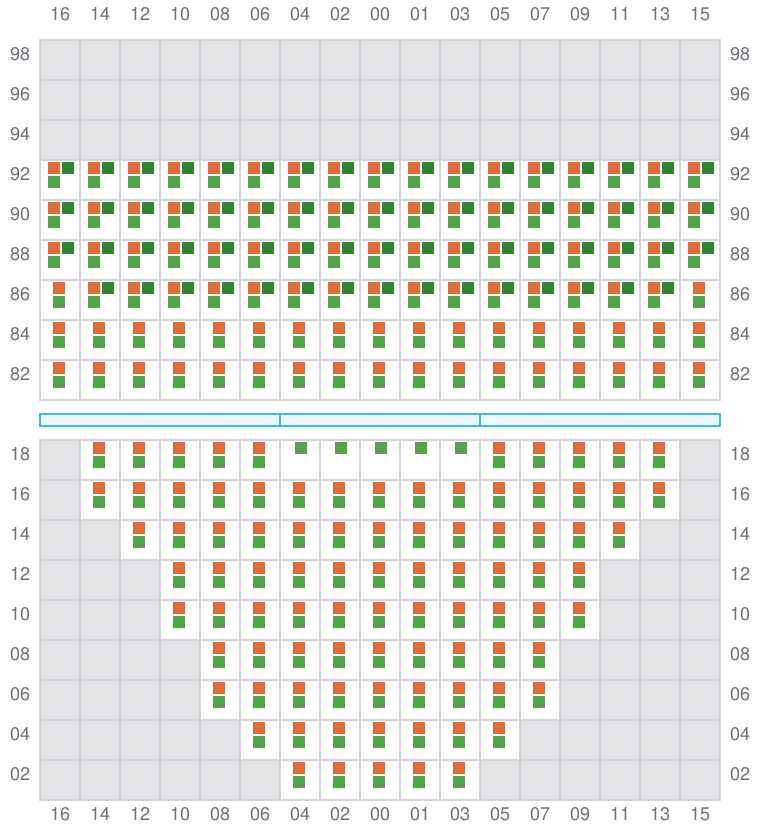

Bay 013 view and slots of COLOMBIA EXPRESS

015

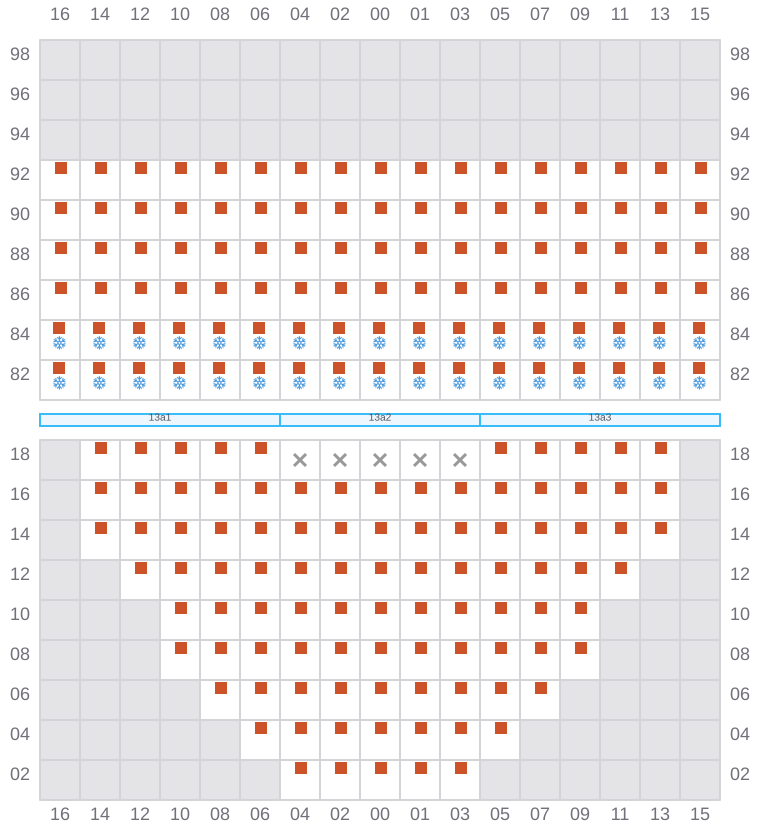

Bay 015 view and slots of COLOMBIA EXPRESS

017 (018)

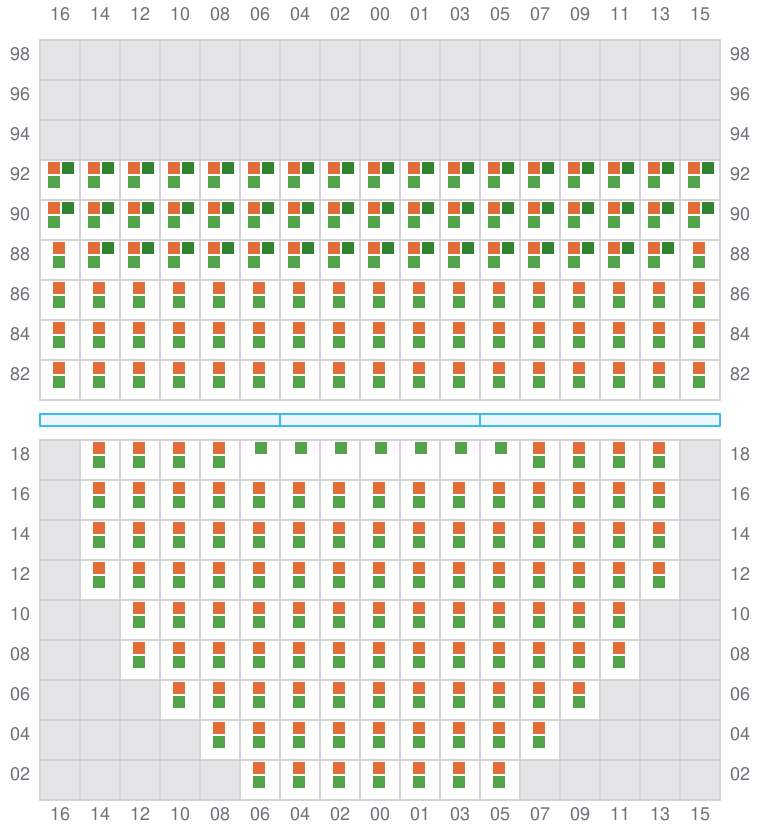

Bay 017 view and slots of COLOMBIA EXPRESS

019

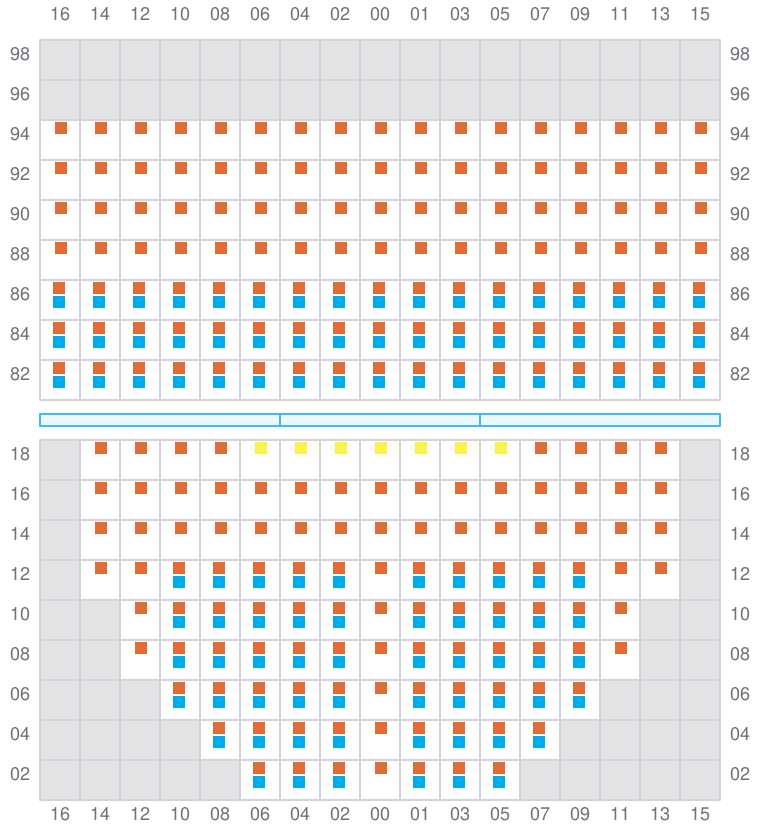

Bay 019 view and slots of COLOMBIA EXPRESS

021 (022)

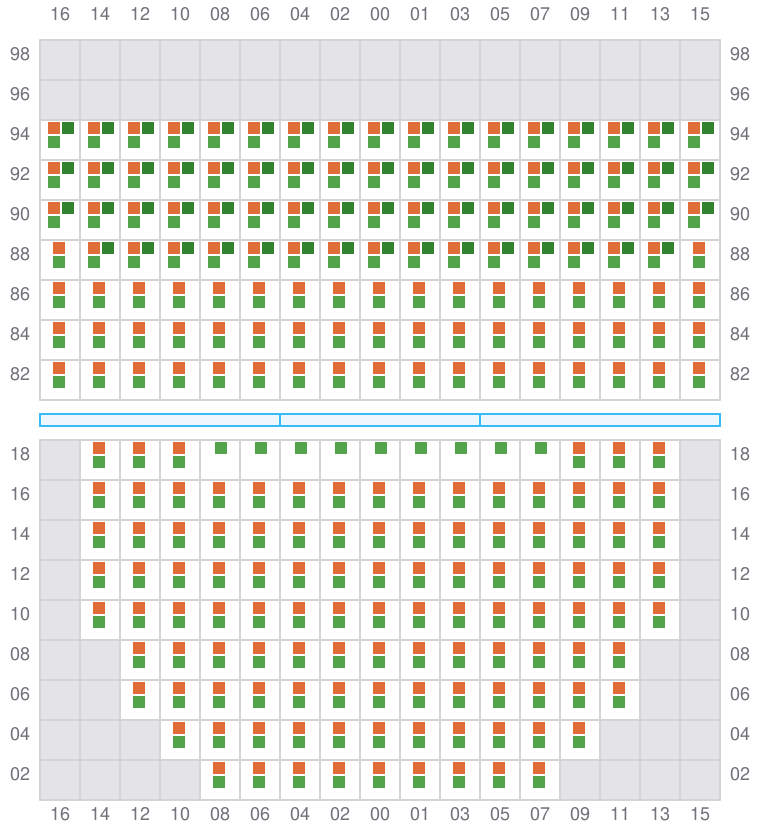

Bay 021 view and slots of COLOMBIA EXPRESS

023

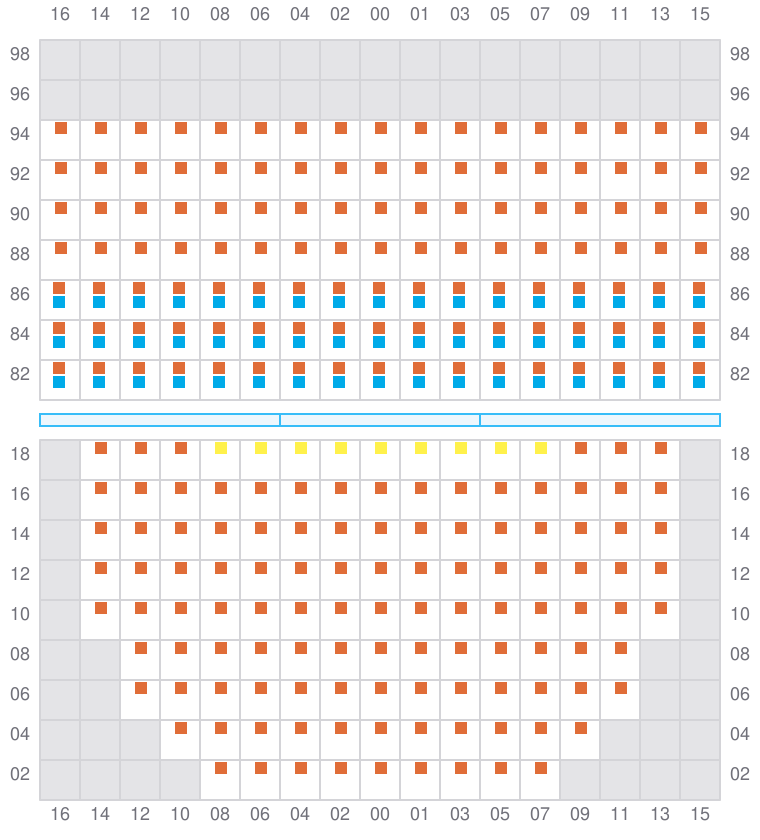

Bay 023 view and slots of COLOMBIA EXPRESS

025 (026)

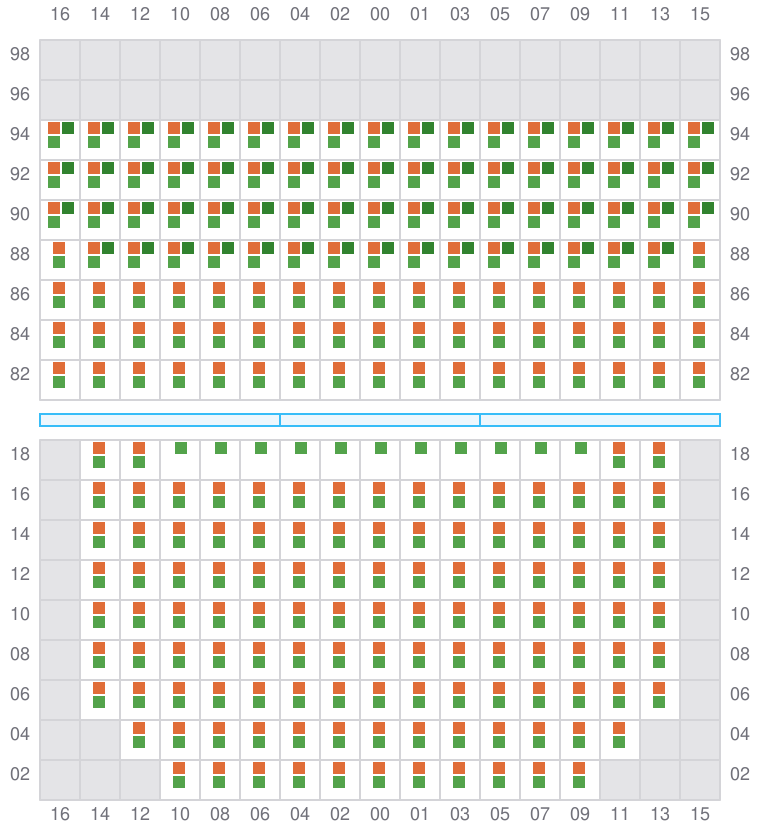

Bay 025 view and slots of COLOMBIA EXPRESS

027

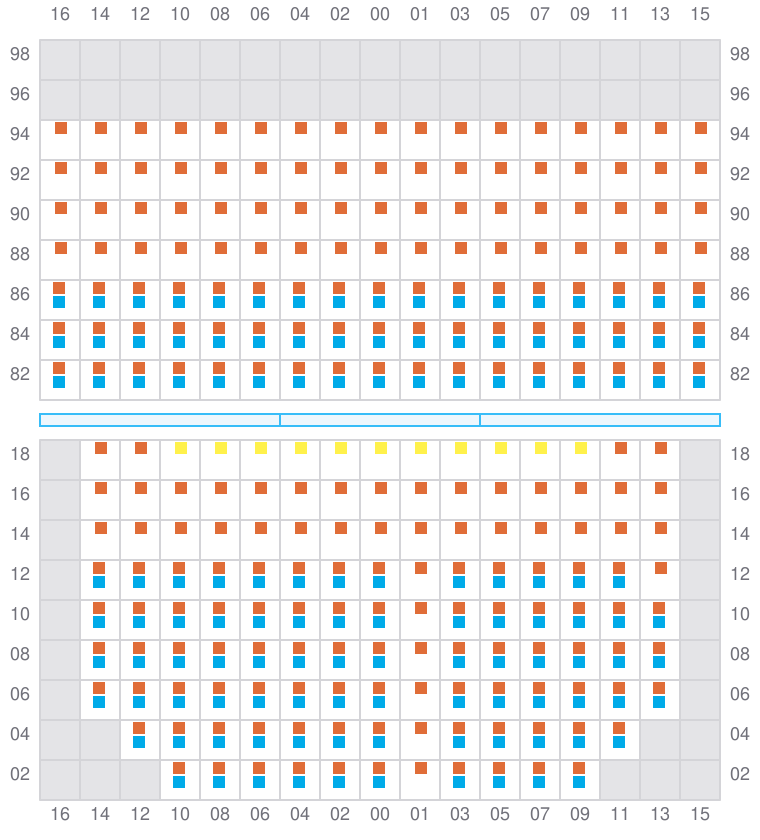

Bay 027 view and slots of COLOMBIA EXPRESS

029 (030)

Bay 029 view and slots of COLOMBIA EXPRESS

031

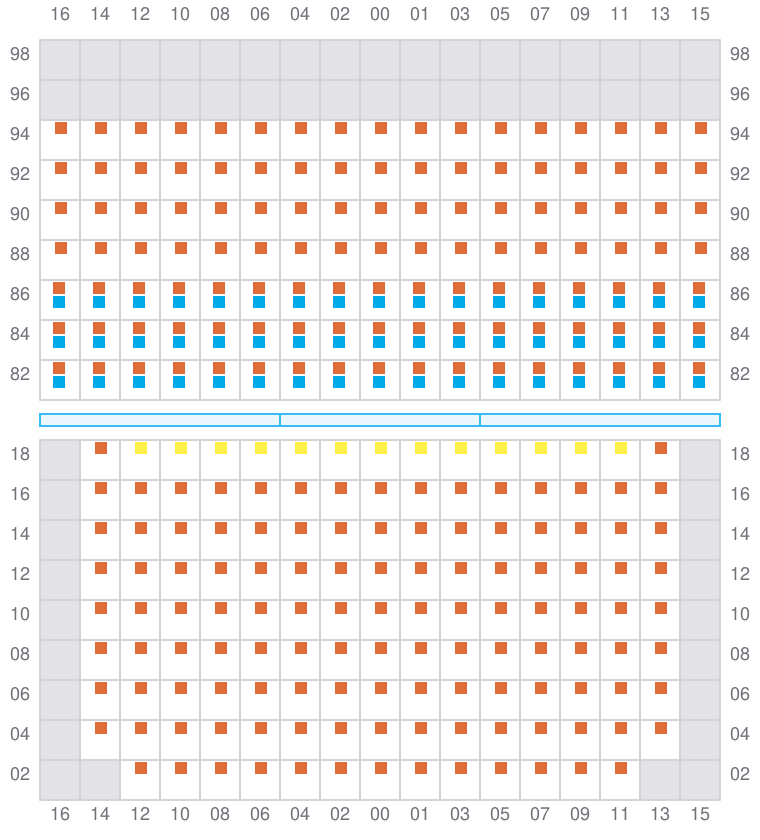

Bay 031 view and slots of COLOMBIA EXPRESS

033 (034)

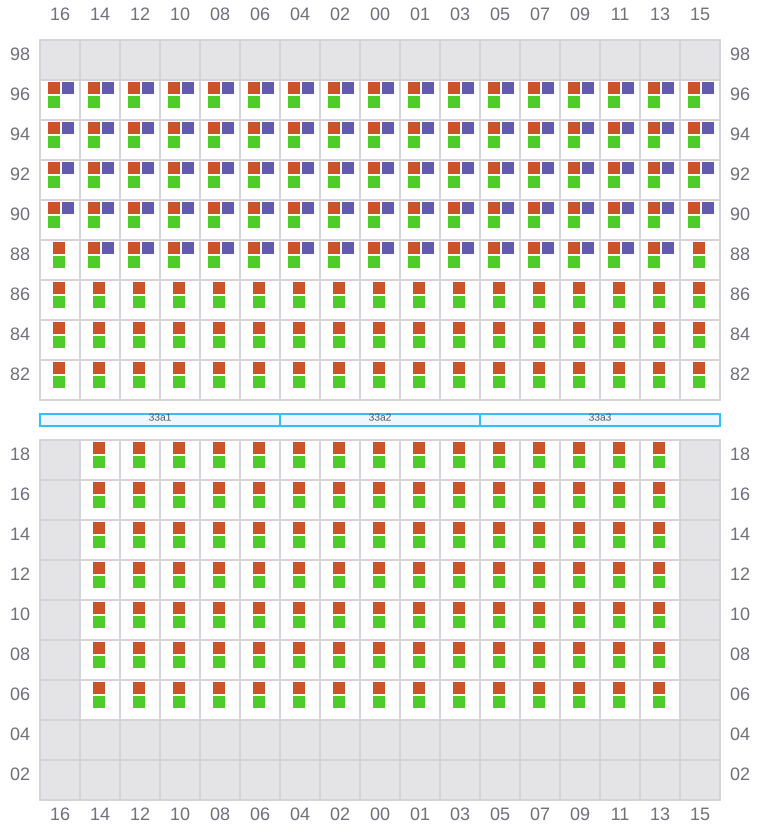

Bay 033 view and slots of COLOMBIA EXPRESS

035

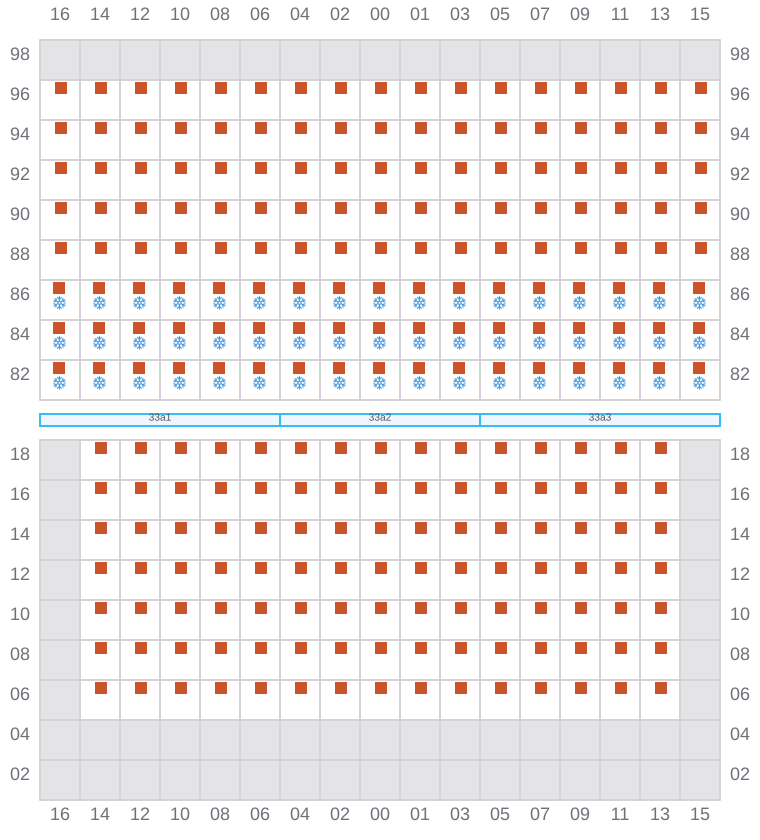

Bay 035 view and slots of COLOMBIA EXPRESS

037 (038)

Bay 037 view and slots of COLOMBIA EXPRESS

039

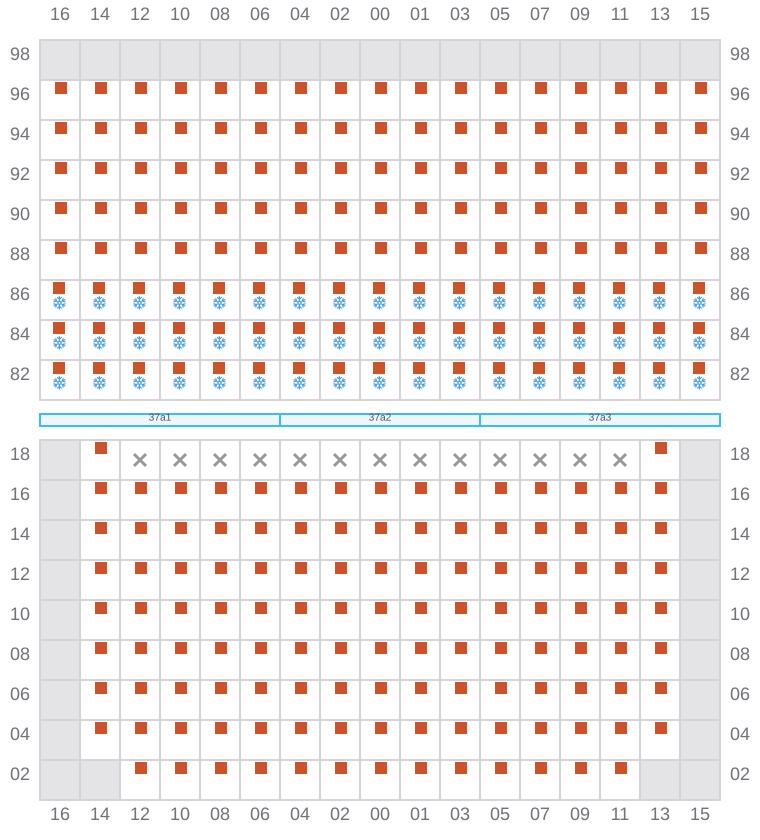

Bay 039 view and slots of COLOMBIA EXPRESS

041 (042)

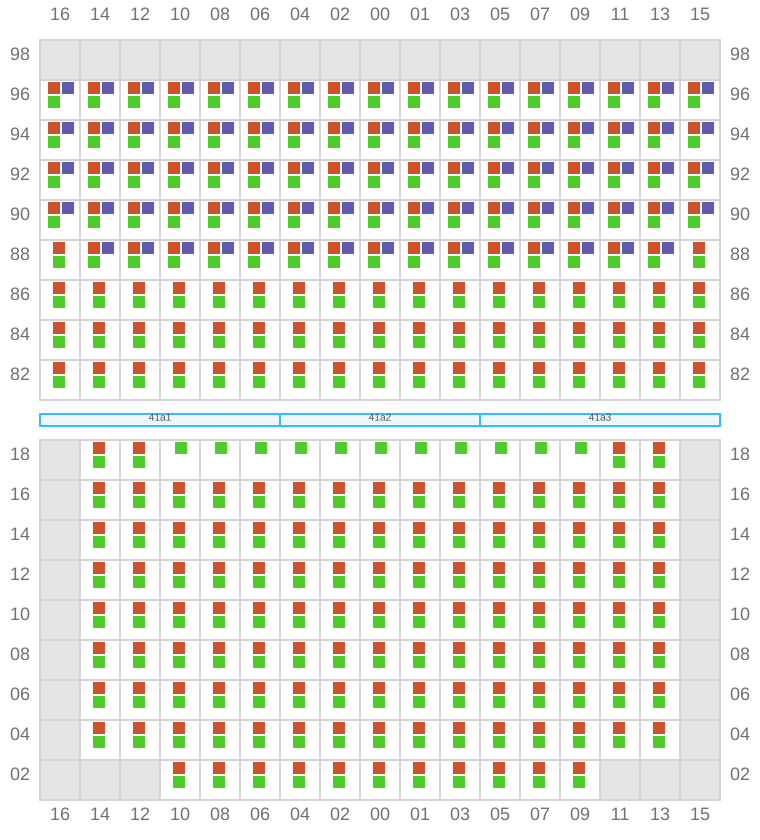

Bay 041 view and slots of COLOMBIA EXPRESS

043

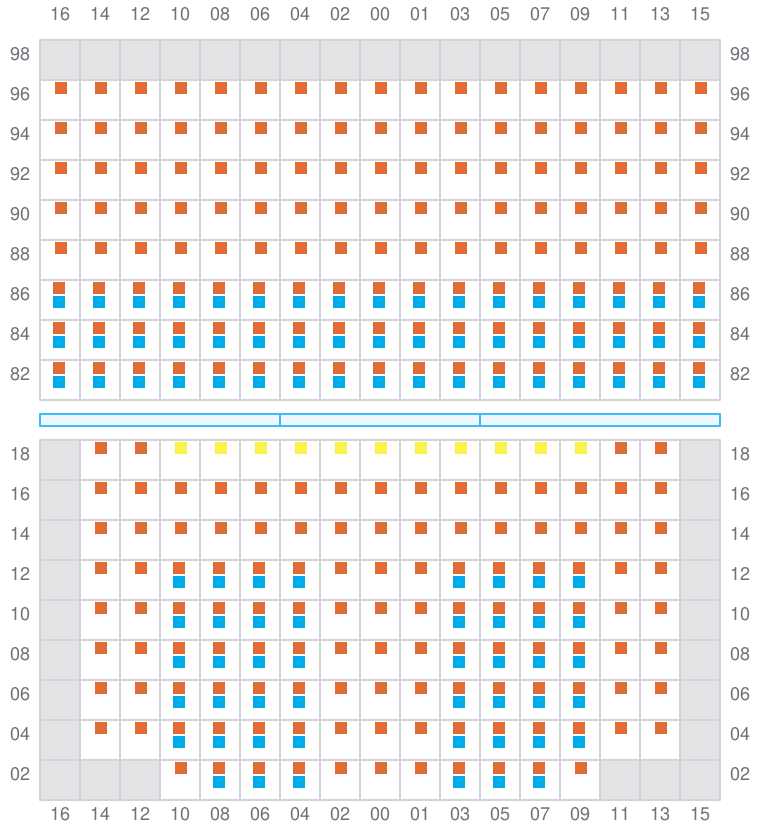

Bay 043 view and slots of COLOMBIA EXPRESS

045 (046)

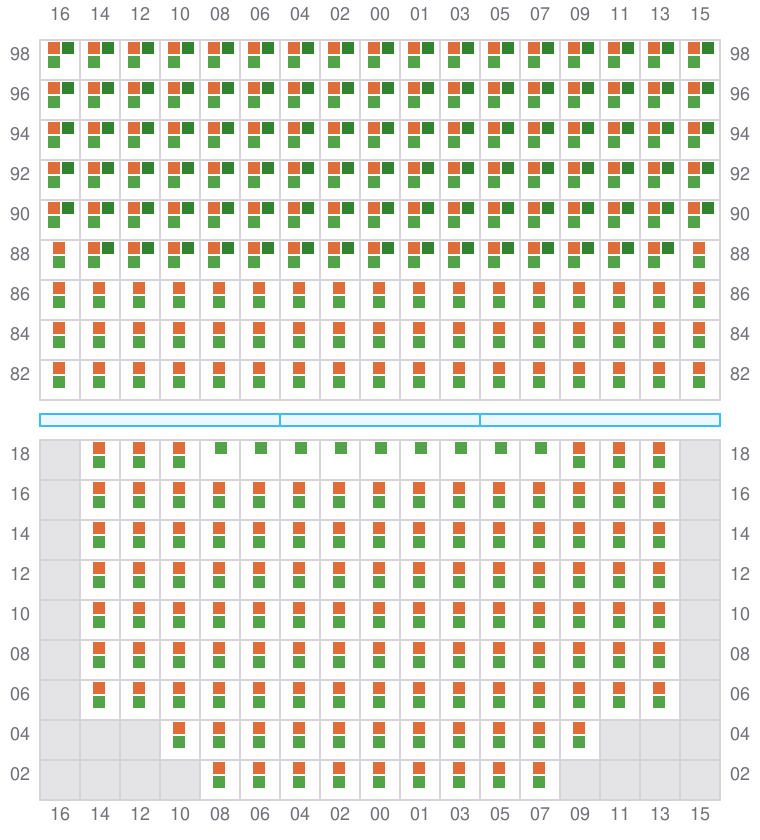

Bay 045 view and slots of COLOMBIA EXPRESS

047

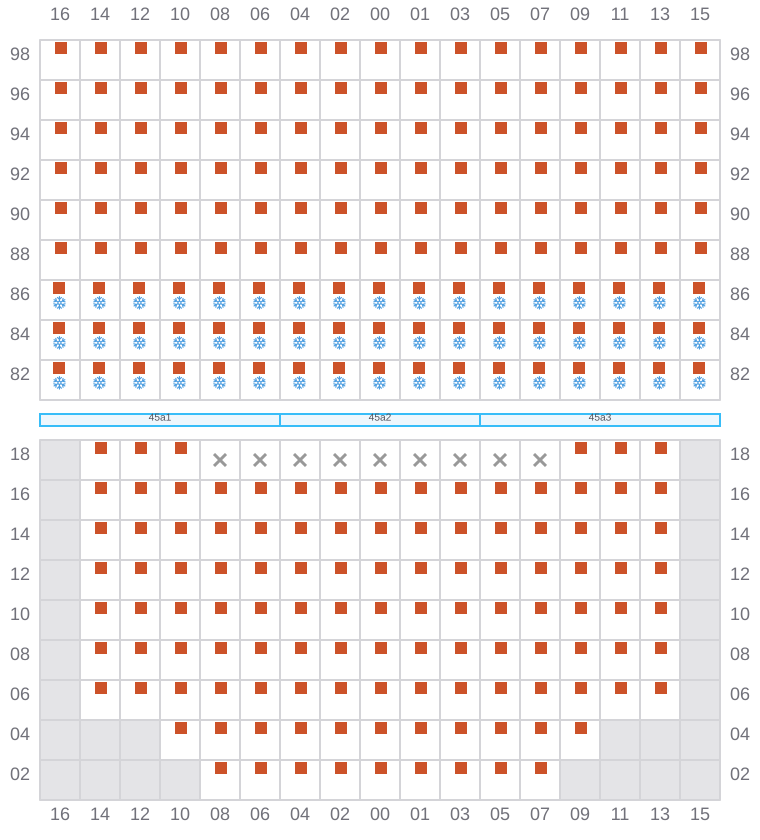

Bay 047 view and slots of COLOMBIA EXPRESS

049 (050)

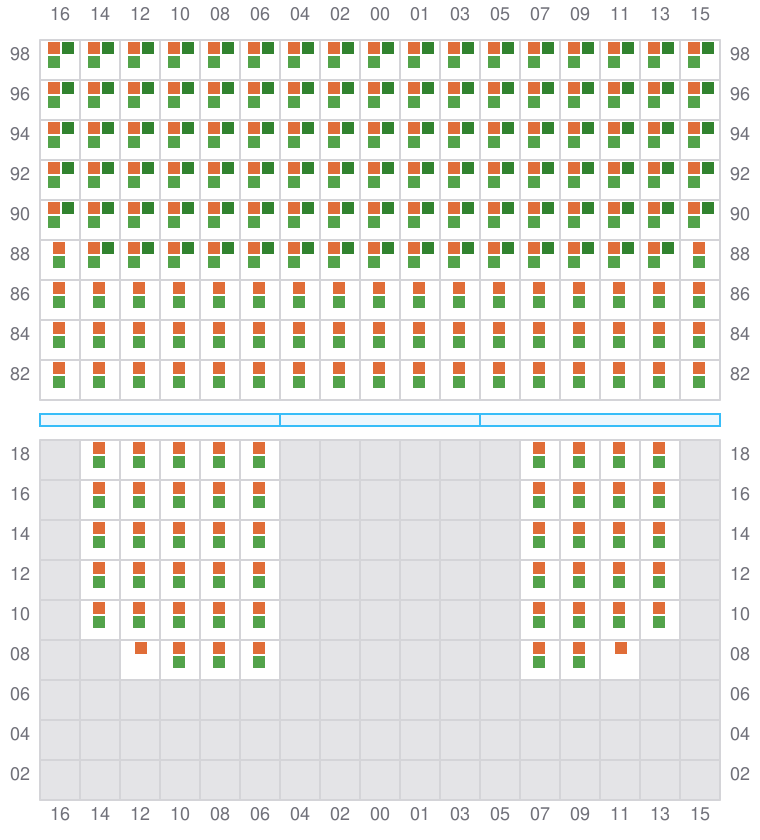

Bay 049 view and slots of COLOMBIA EXPRESS

051

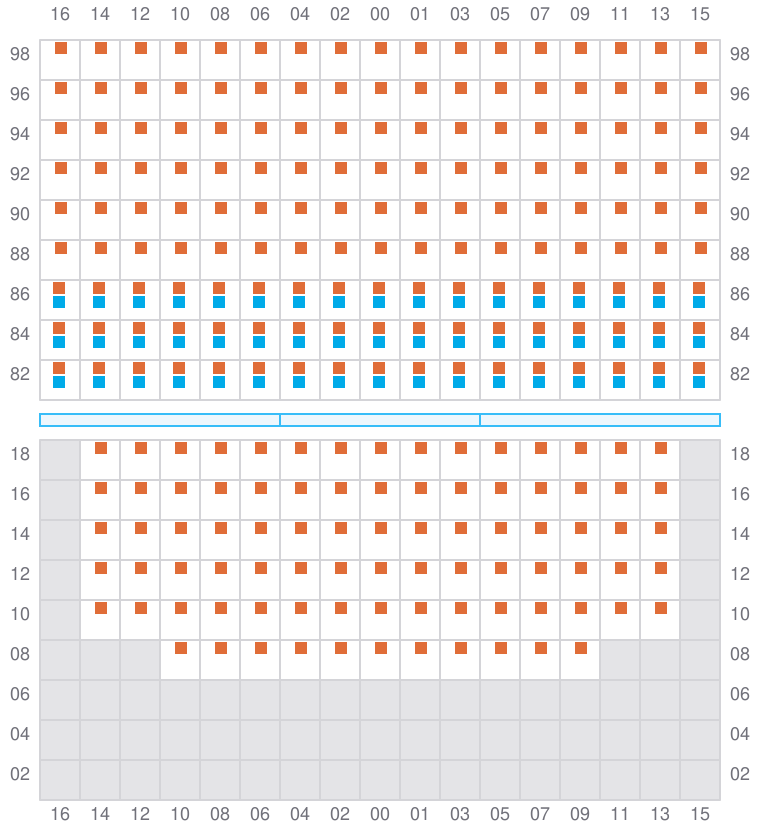

Bay 051 view and slots of COLOMBIA EXPRESS

053 (054)

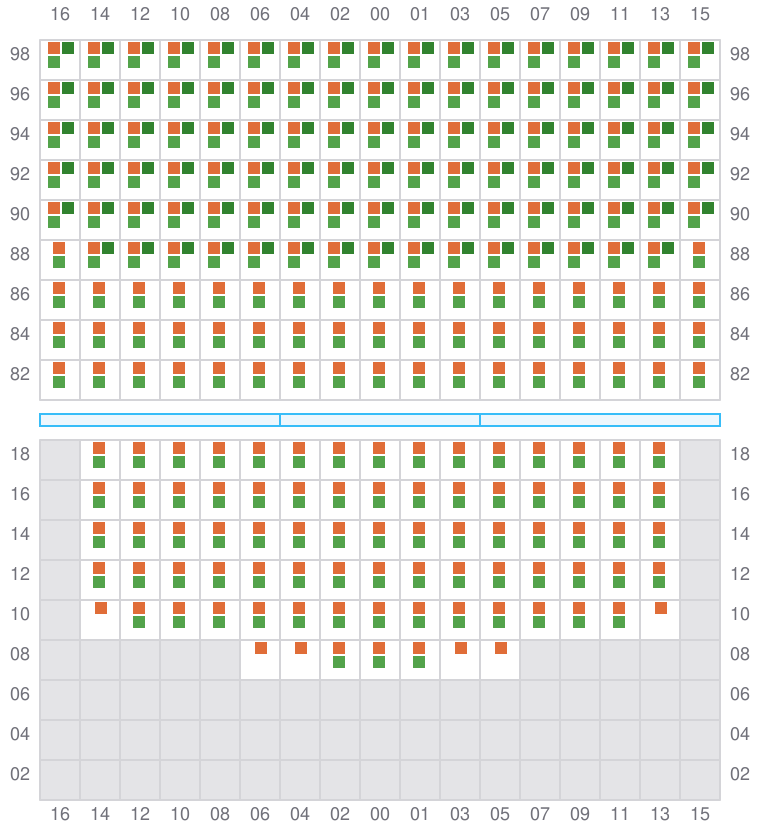

Bay 053 view and slots of COLOMBIA EXPRESS

055

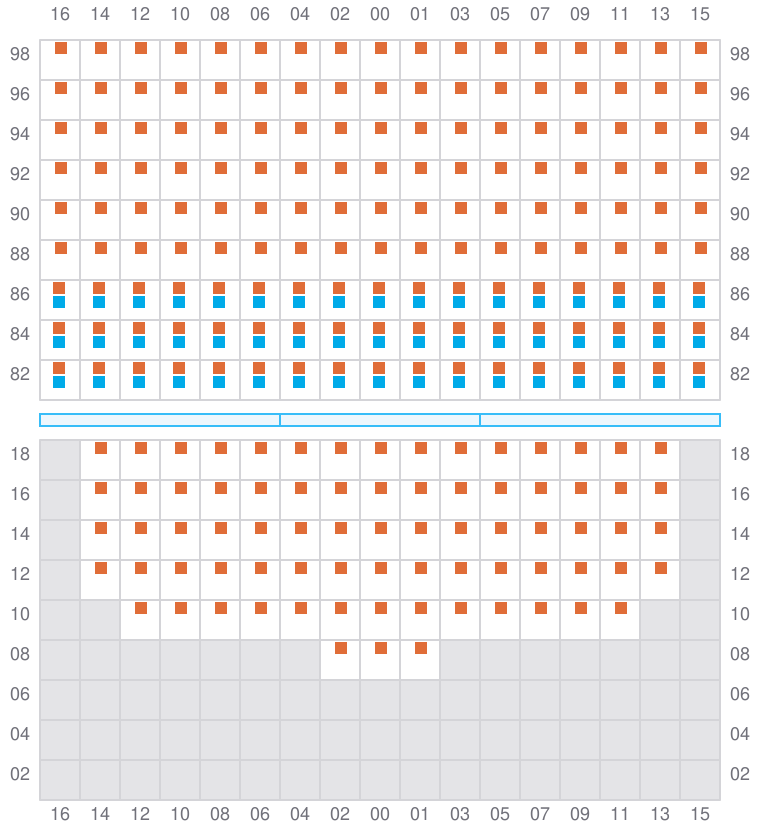

Bay 055 view and slots of COLOMBIA EXPRESS

057 (058)

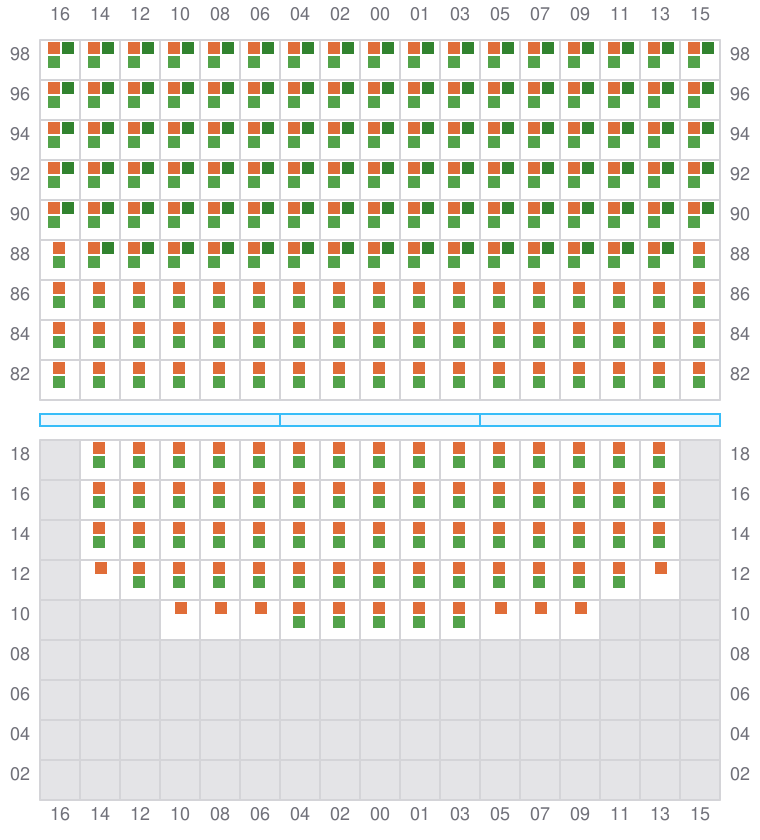

Bay 057 view and slots of COLOMBIA EXPRESS

059

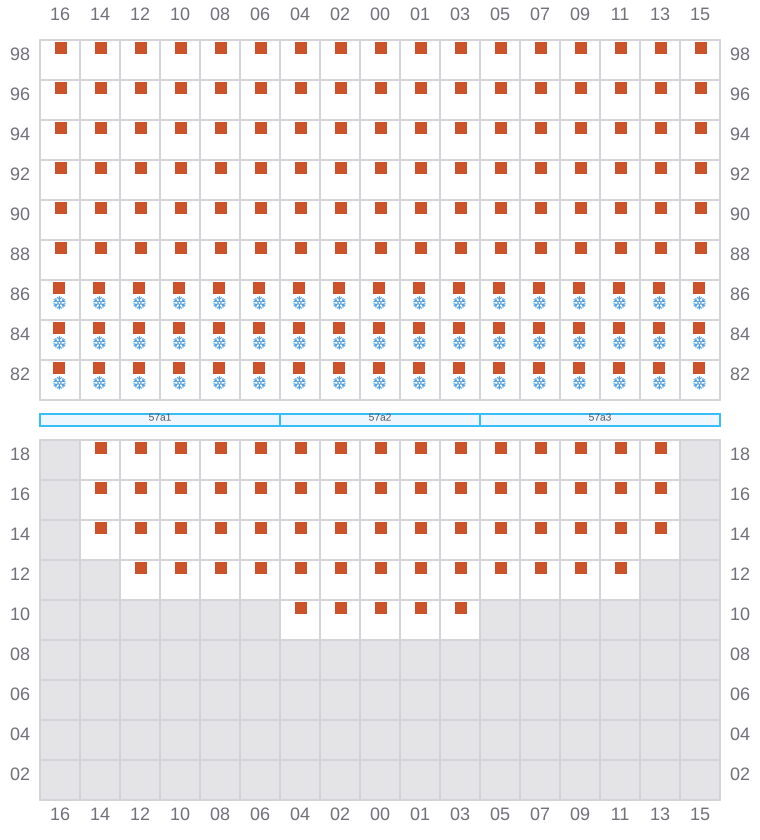

Bay 059 view and slots of COLOMBIA EXPRESS

061 (062)

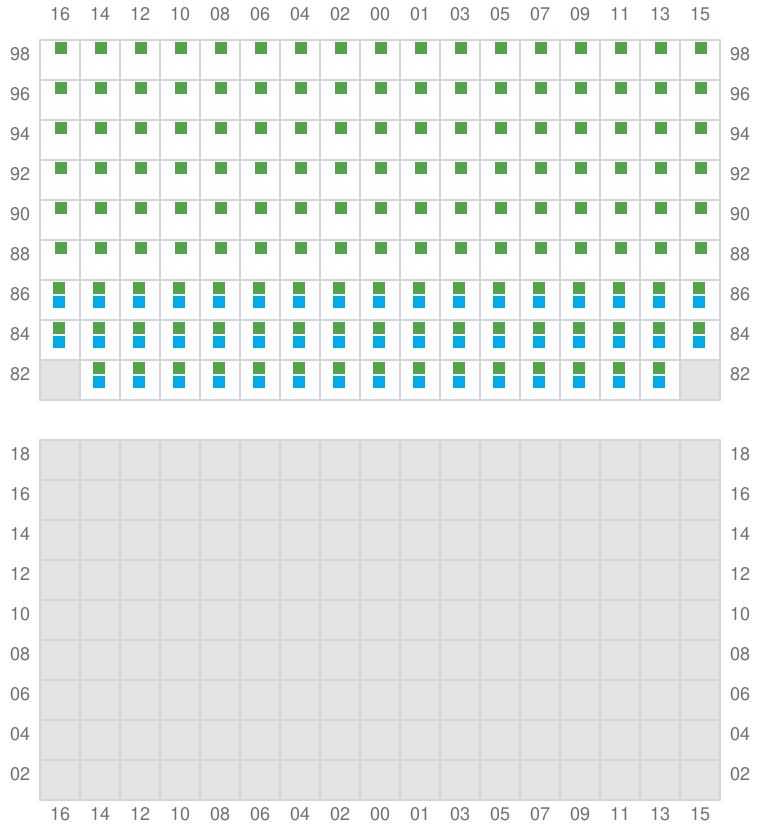

Bay 061 view and slots of COLOMBIA EXPRESS
