COLOMBO EXPRESS
9295244 | 5LKU2 | HLC by *********************** Last update: Tue Jan 21 2025

General Info

Ship Name:COLOMBO EXPRESS
IMO Code:9295244
Call Sign:5LKU2
Line Operator:HLC
Class Name for Sister Ships:COEX
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,600

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of COLOMBO EXPRESS

Hatch-Covers View

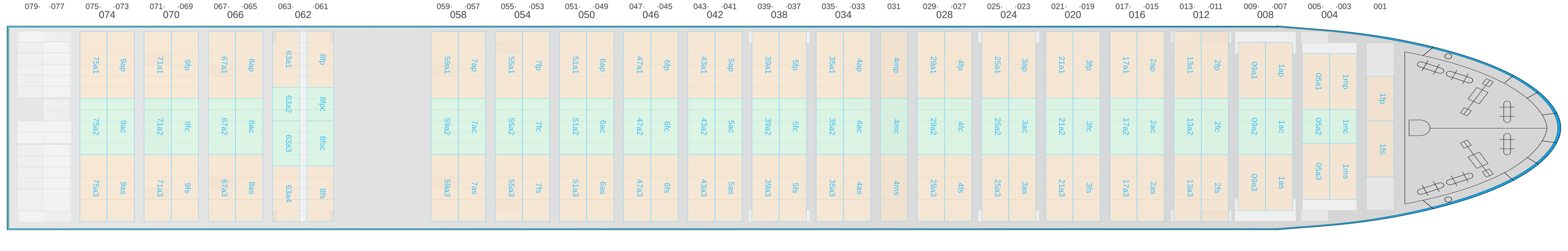

Deck view of COLOMBO EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

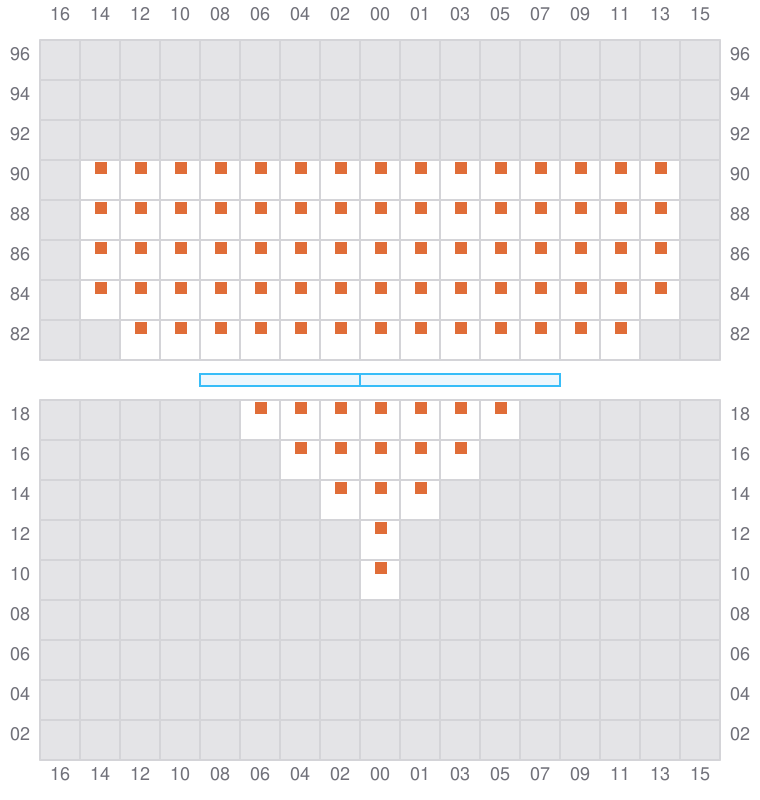

Bay 001 view and slots of COLOMBO EXPRESS

003 (004)

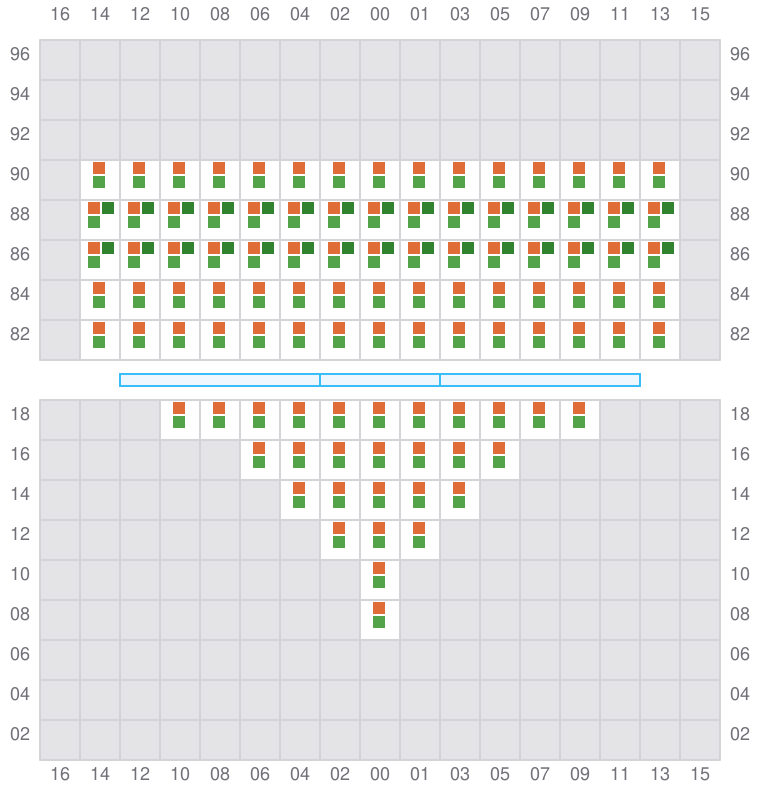

Bay 003 view and slots of COLOMBO EXPRESS

005

  • / ?

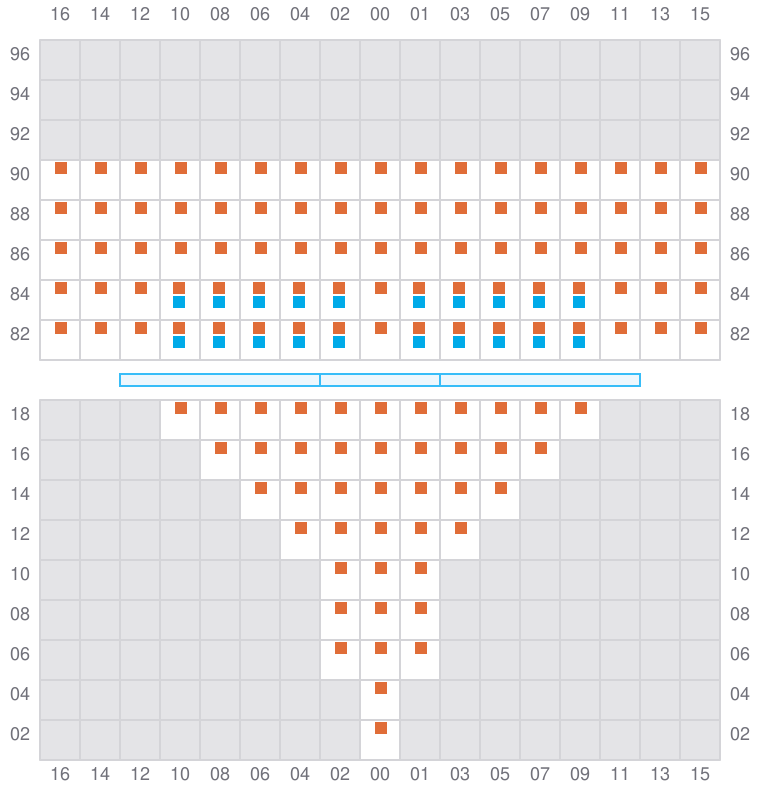

Bay 005 view and slots of COLOMBO EXPRESS

007 (008)

Bay 007 view and slots of COLOMBO EXPRESS

009

  • / ?

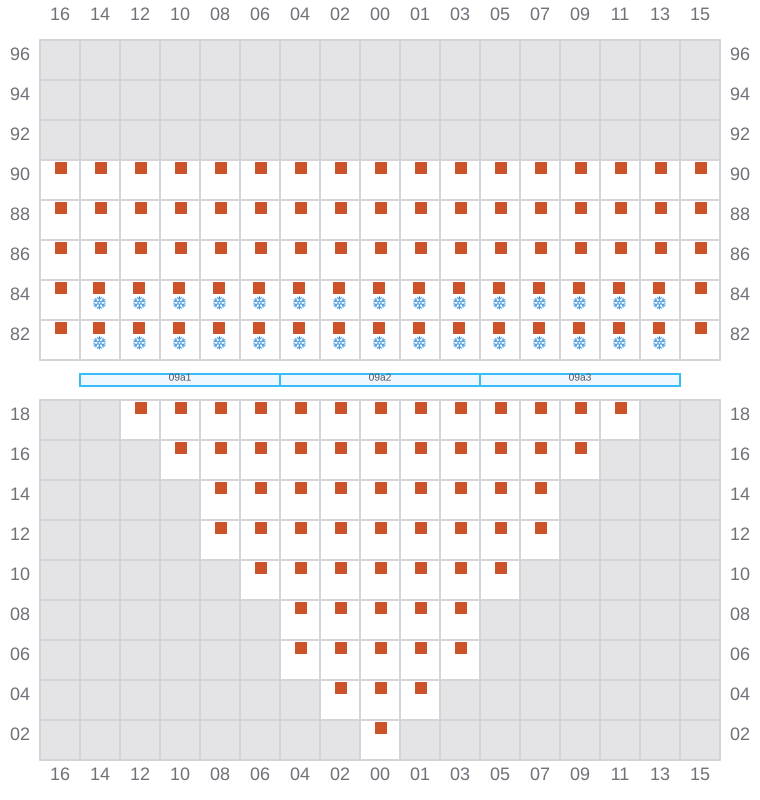

Bay 009 view and slots of COLOMBO EXPRESS

011 (012)

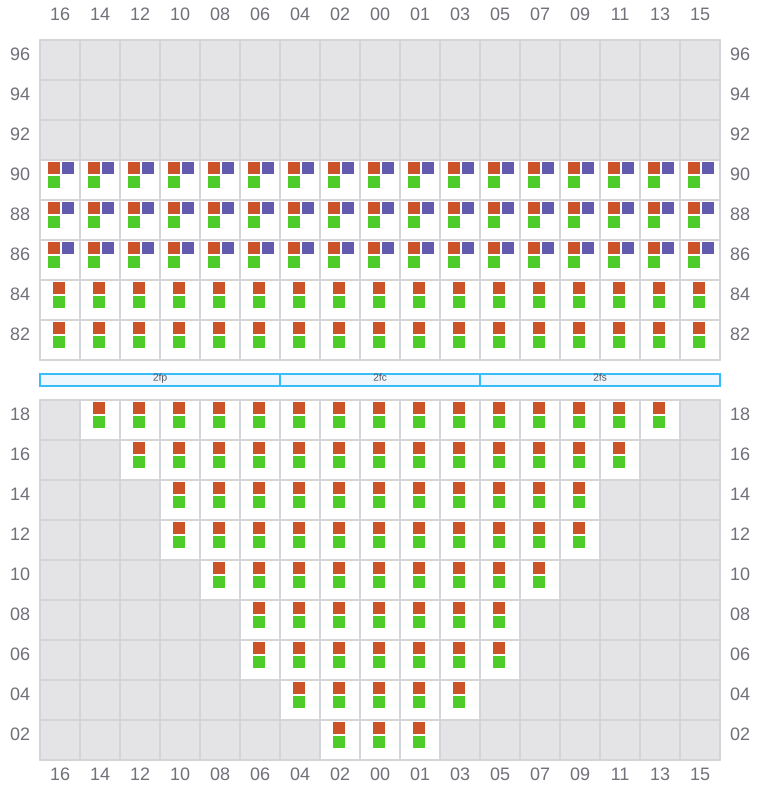

Bay 011 view and slots of COLOMBO EXPRESS

013

  • / ?
Bay 013 view and slots of COLOMBO EXPRESS

015 (016)

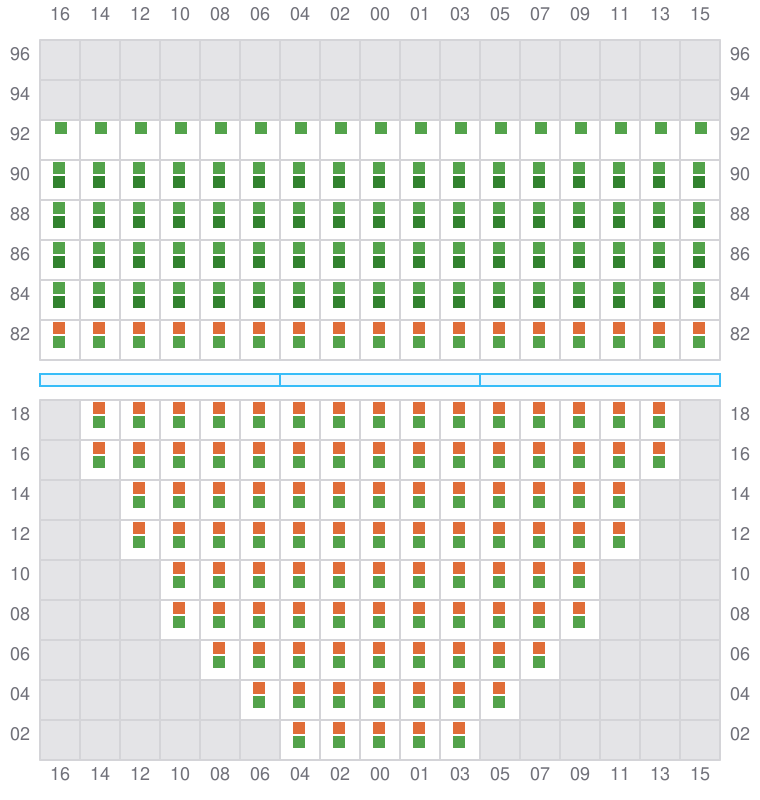

Bay 015 view and slots of COLOMBO EXPRESS

017

  • / ?

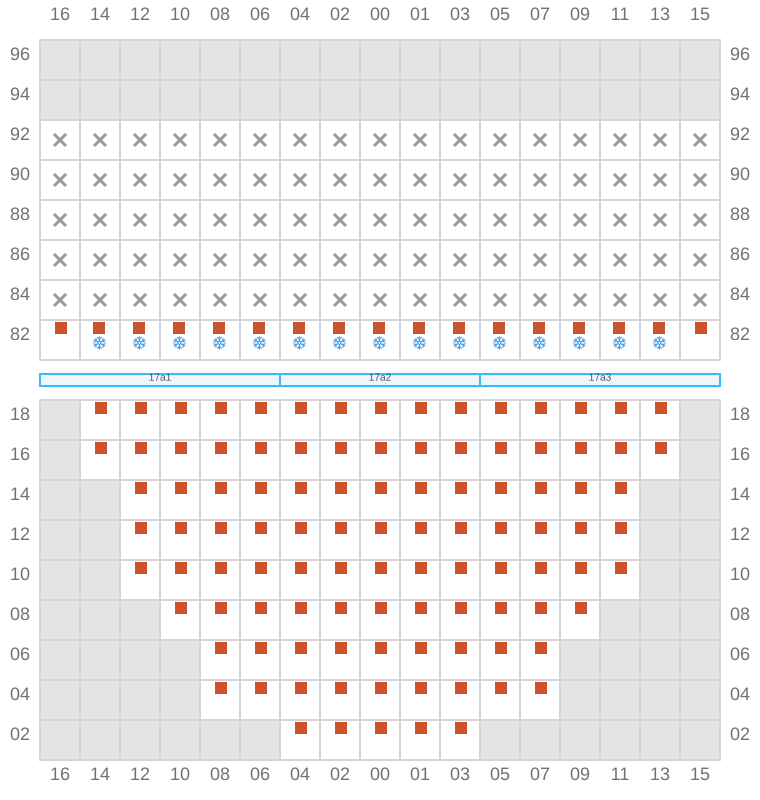

Bay 017 view and slots of COLOMBO EXPRESS

019 (020)

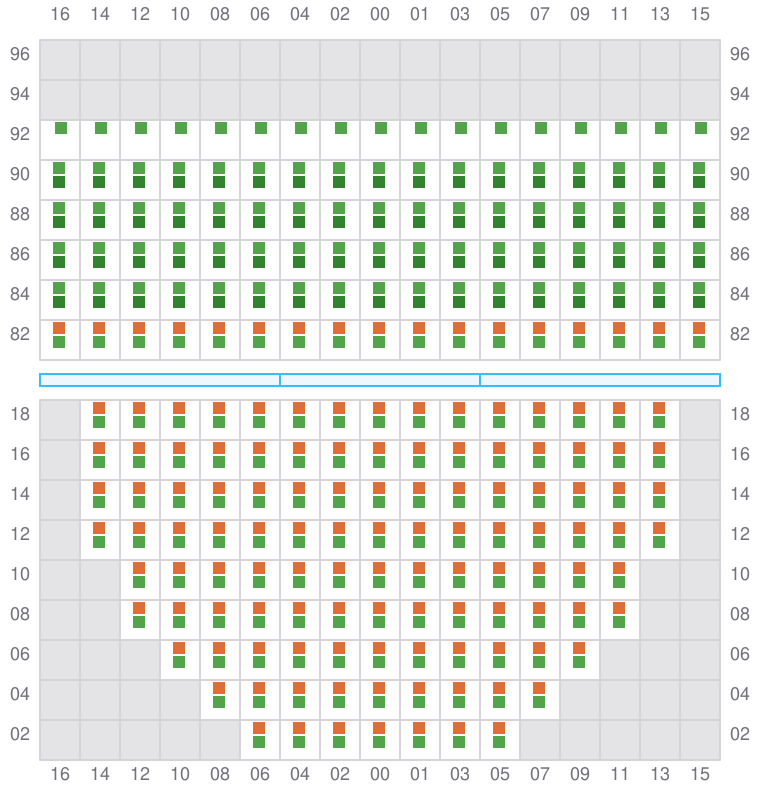

Bay 019 view and slots of COLOMBO EXPRESS

021

  • / ?

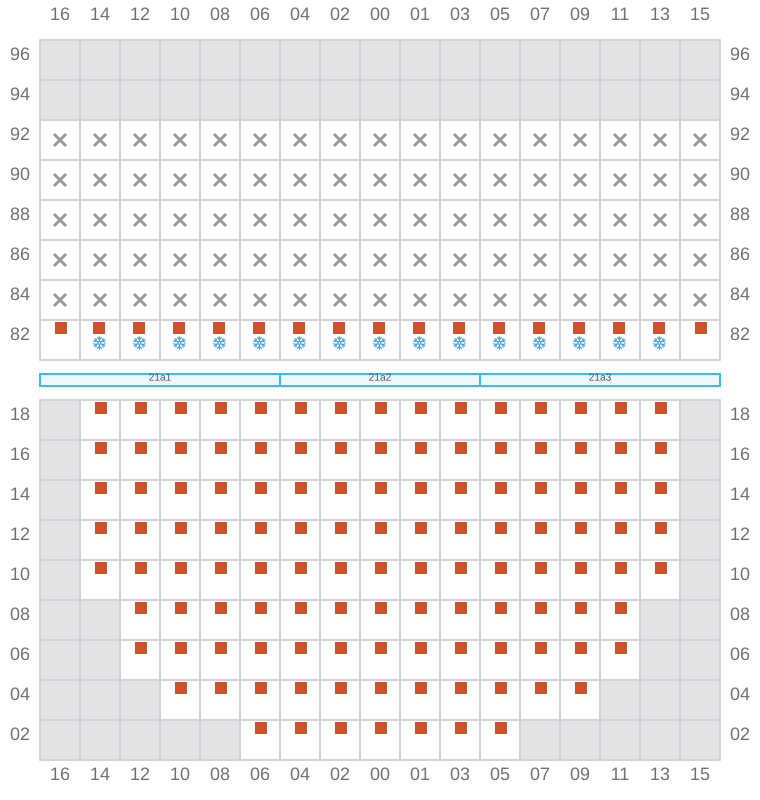

Bay 021 view and slots of COLOMBO EXPRESS

023 (024)

Bay 023 view and slots of COLOMBO EXPRESS

025

  • / ?

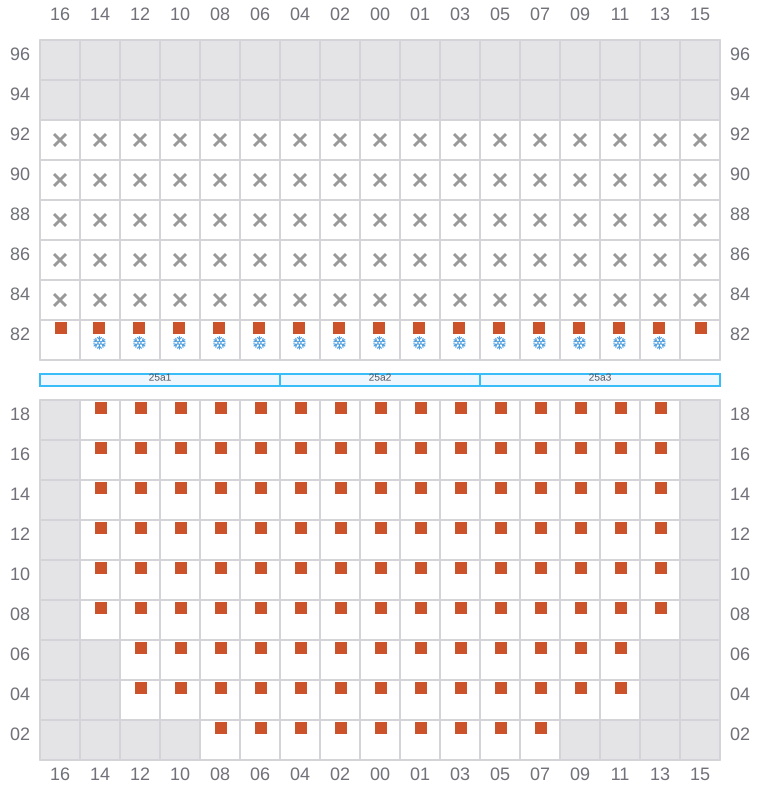

Bay 025 view and slots of COLOMBO EXPRESS

027 (028)

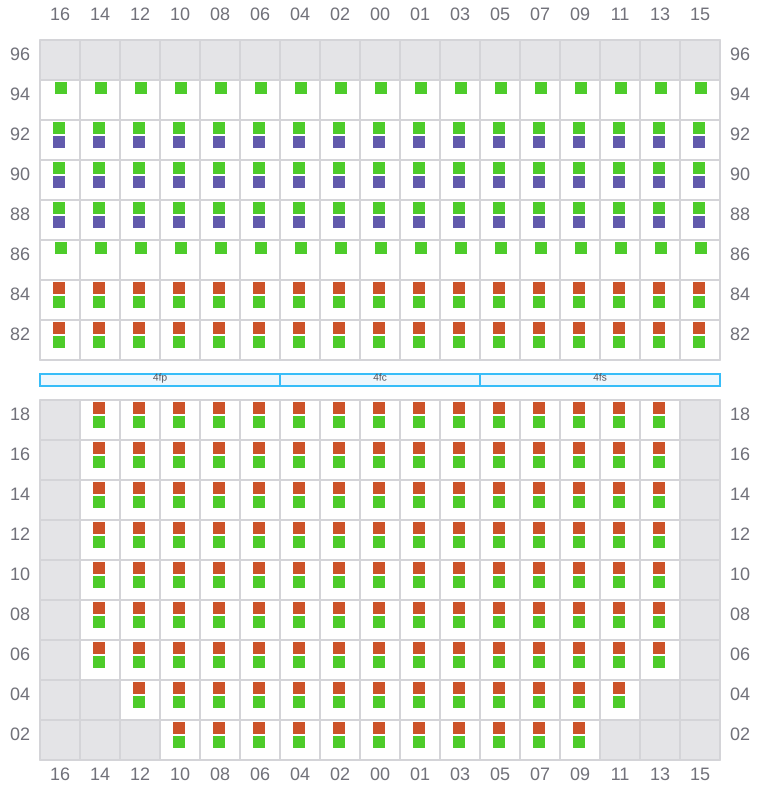

Bay 027 view and slots of COLOMBO EXPRESS

029

  • / ?

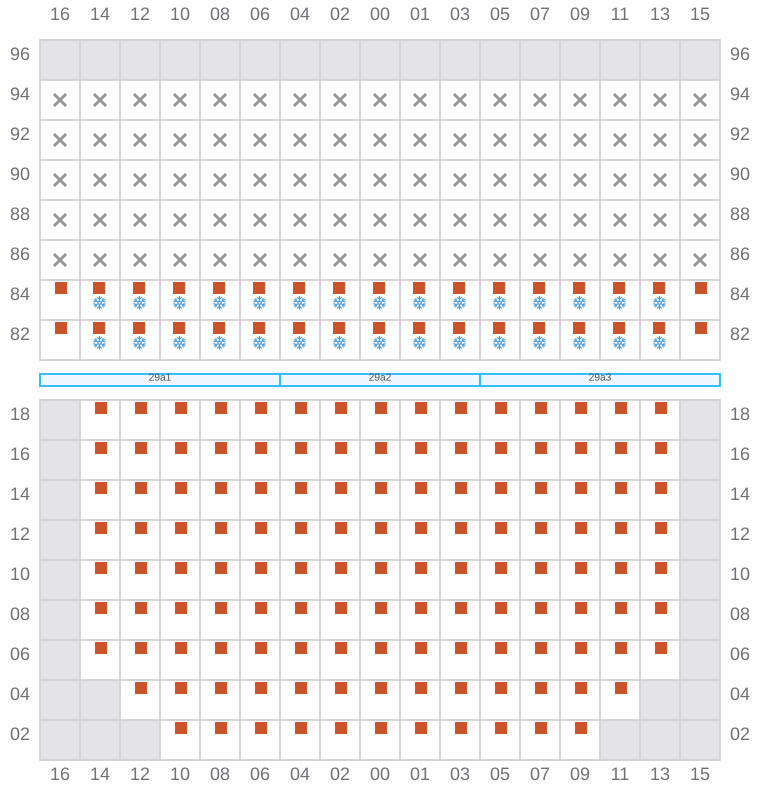

Bay 029 view and slots of COLOMBO EXPRESS

031

  • / ?

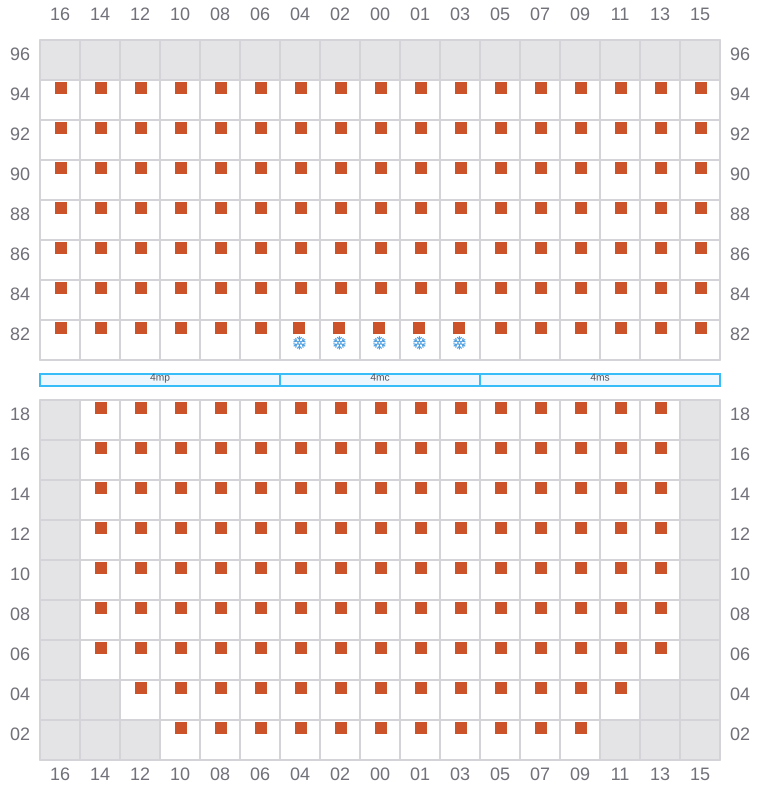

Bay 031 view and slots of COLOMBO EXPRESS

033 (034)

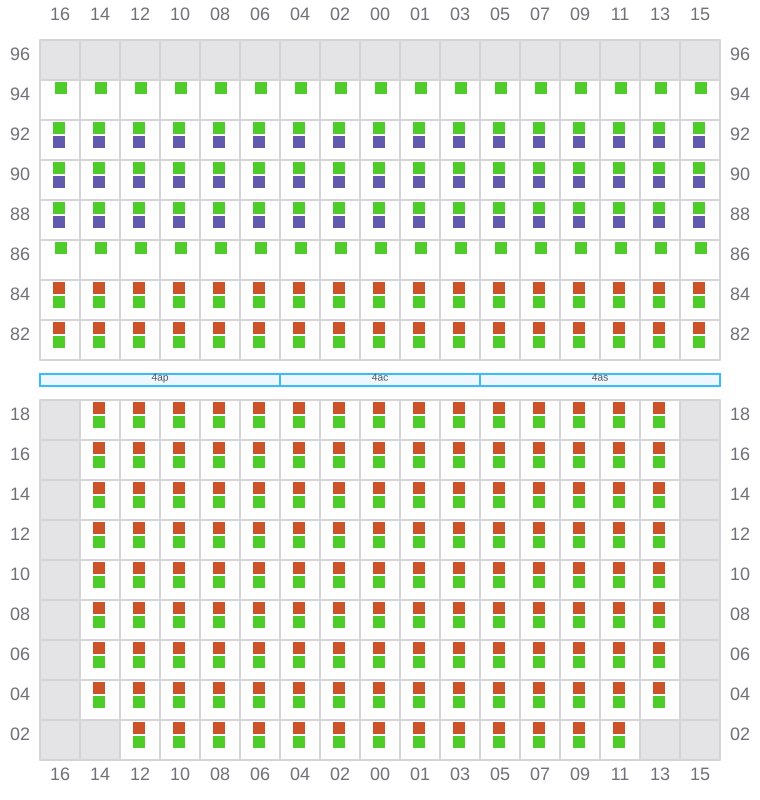

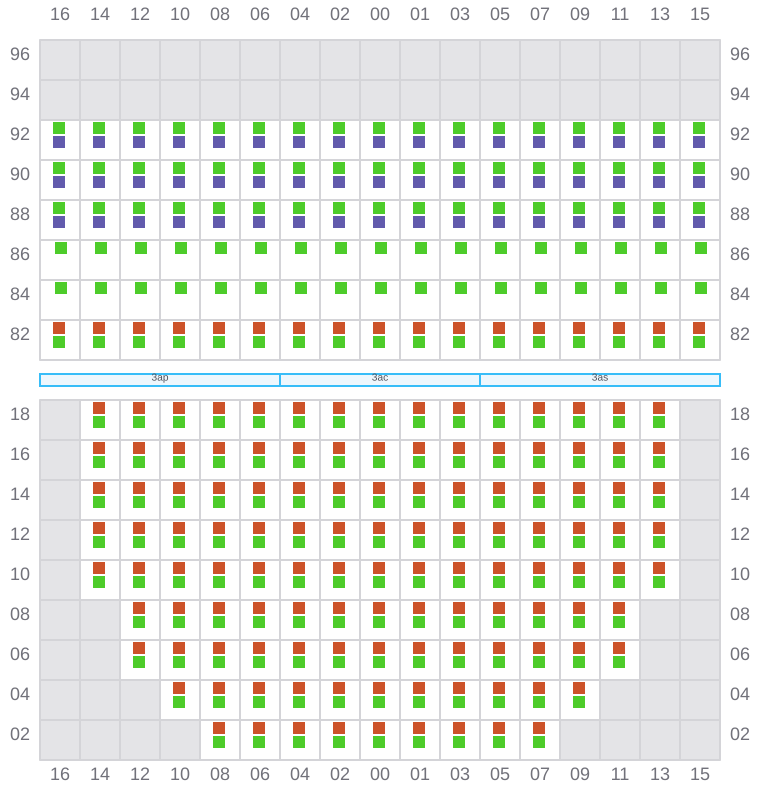

Bay 033 view and slots of COLOMBO EXPRESS

035

  • / ?

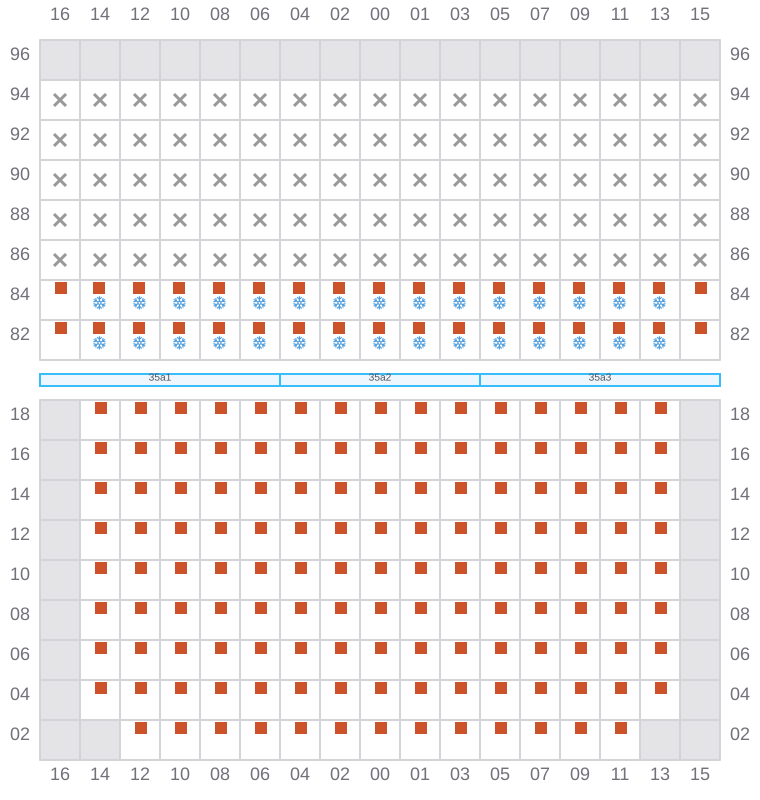

Bay 035 view and slots of COLOMBO EXPRESS

037 (038)

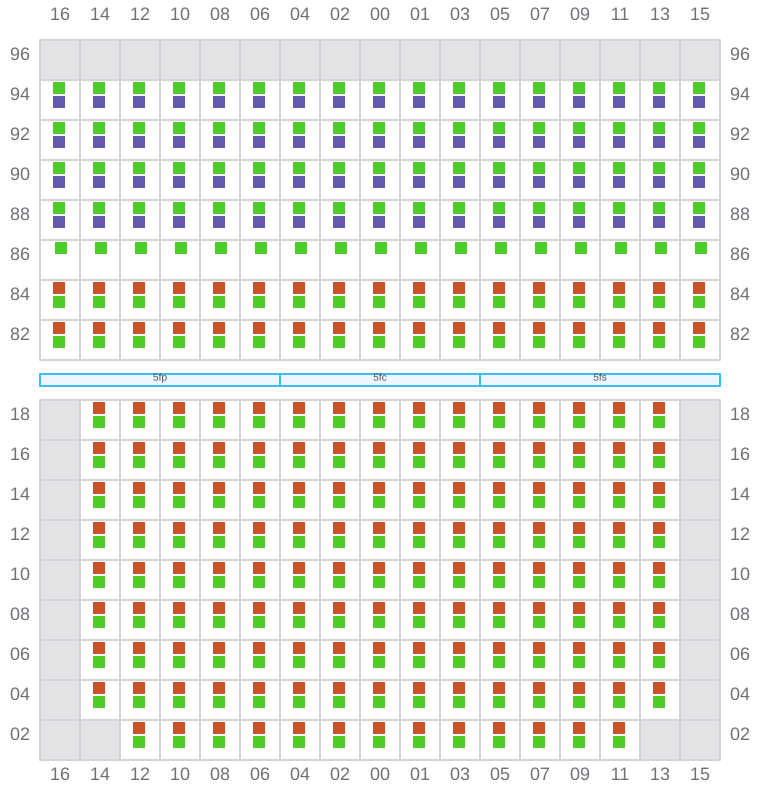

Bay 037 view and slots of COLOMBO EXPRESS

039

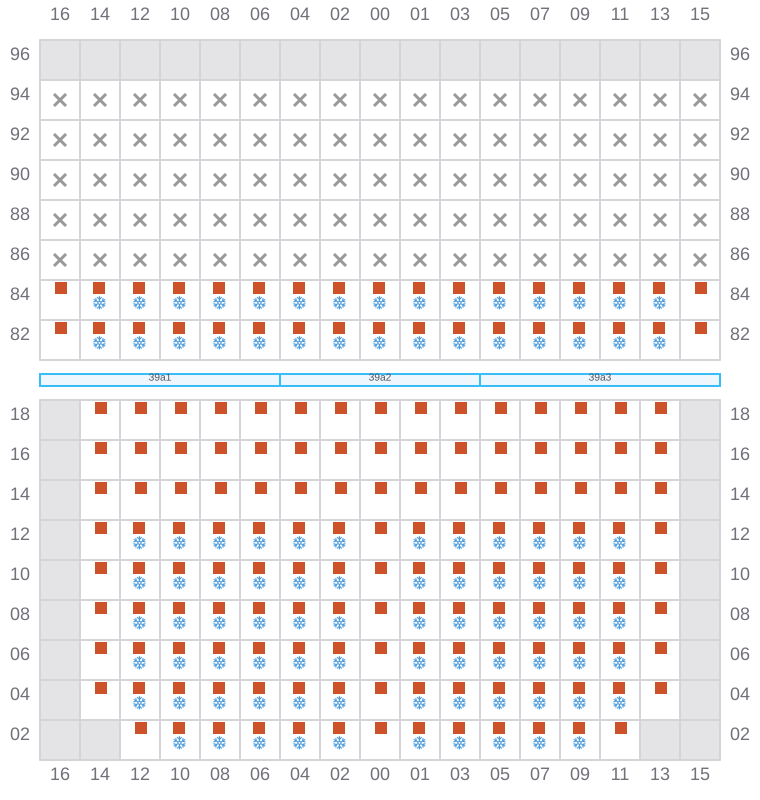

Bay 039 view and slots of COLOMBO EXPRESS

041 (042)

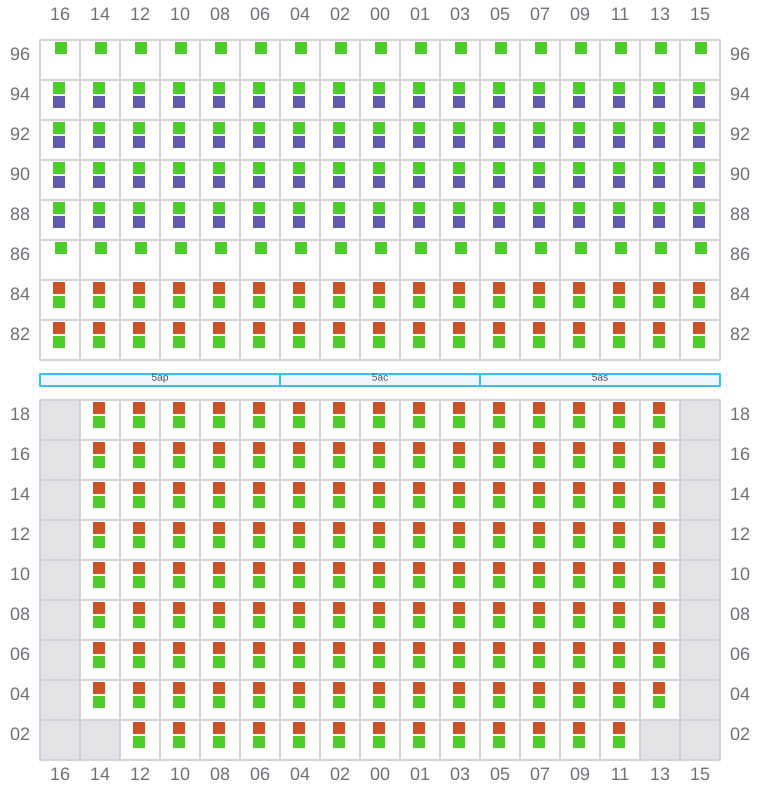

Bay 041 view and slots of COLOMBO EXPRESS

043

  • / ?

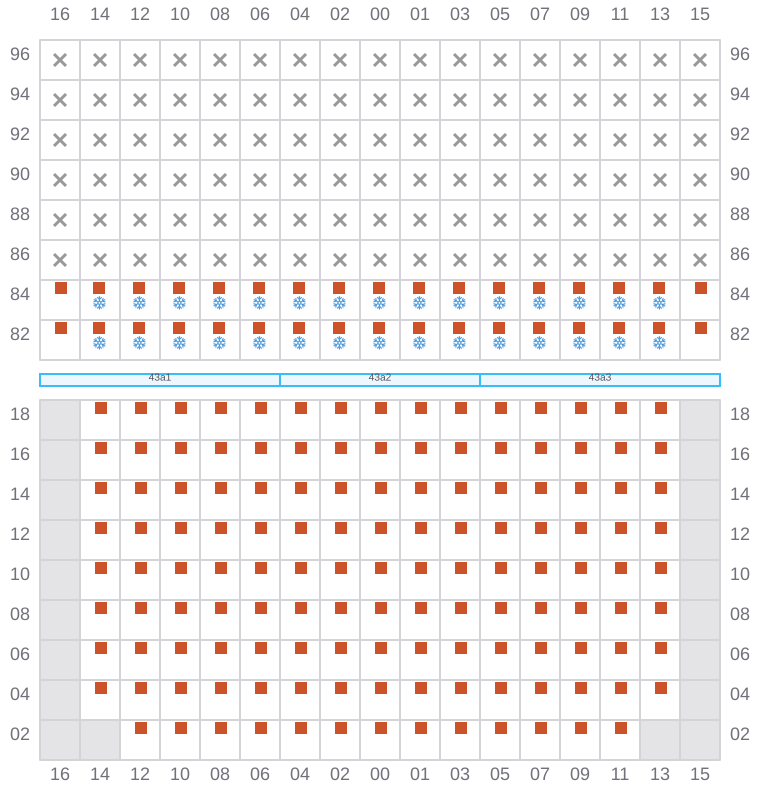

Bay 043 view and slots of COLOMBO EXPRESS

045 (046)

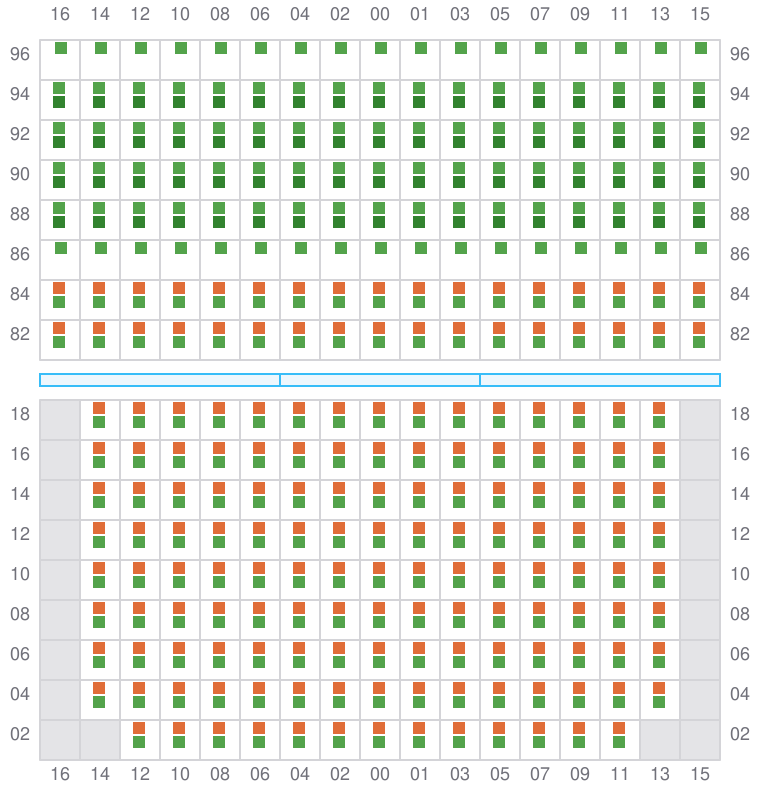

Bay 045 view and slots of COLOMBO EXPRESS

047

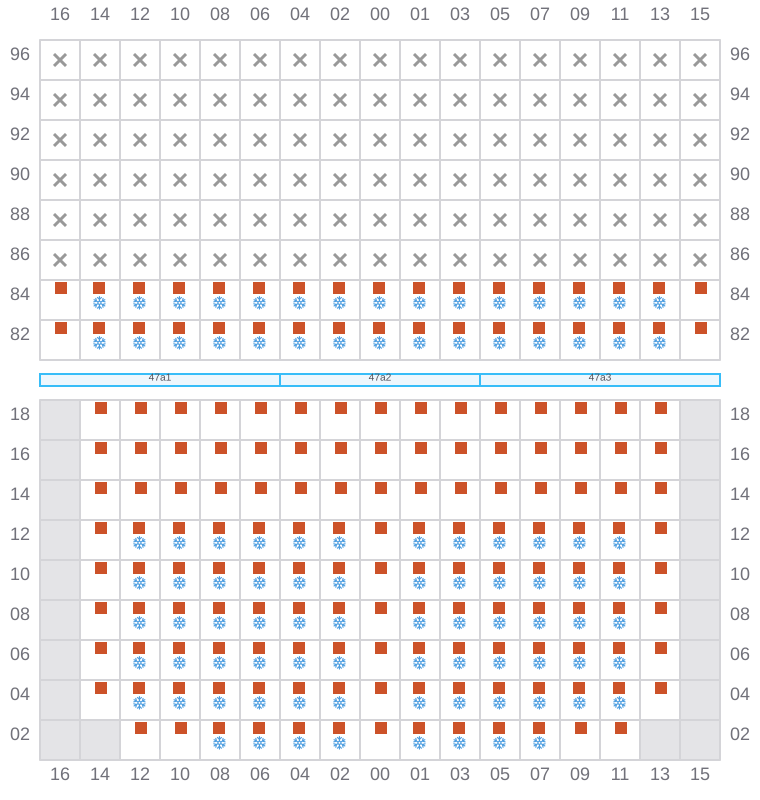

Bay 047 view and slots of COLOMBO EXPRESS

049 (050)

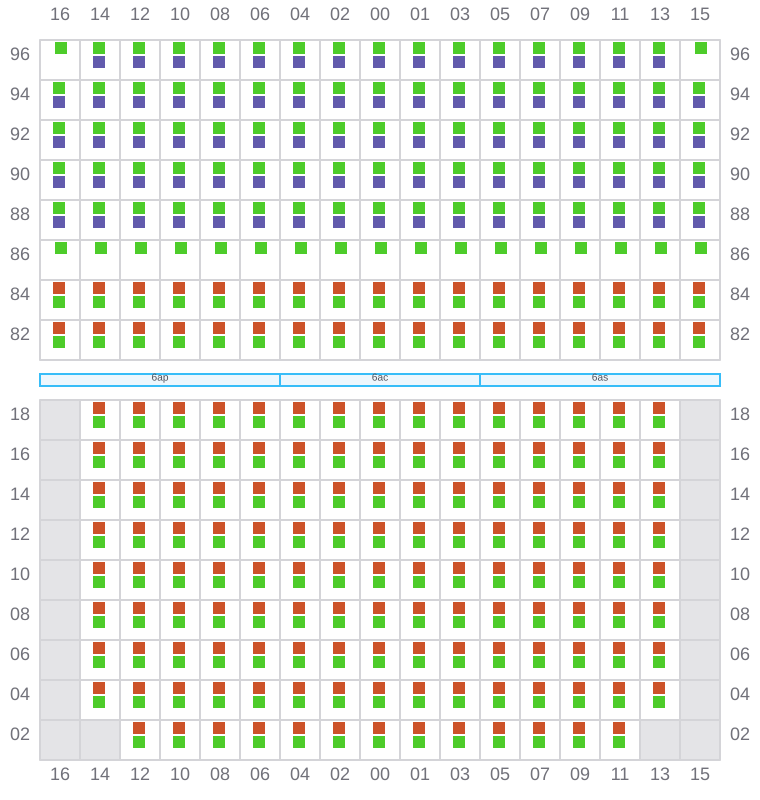

Bay 049 view and slots of COLOMBO EXPRESS

051

  • / ?

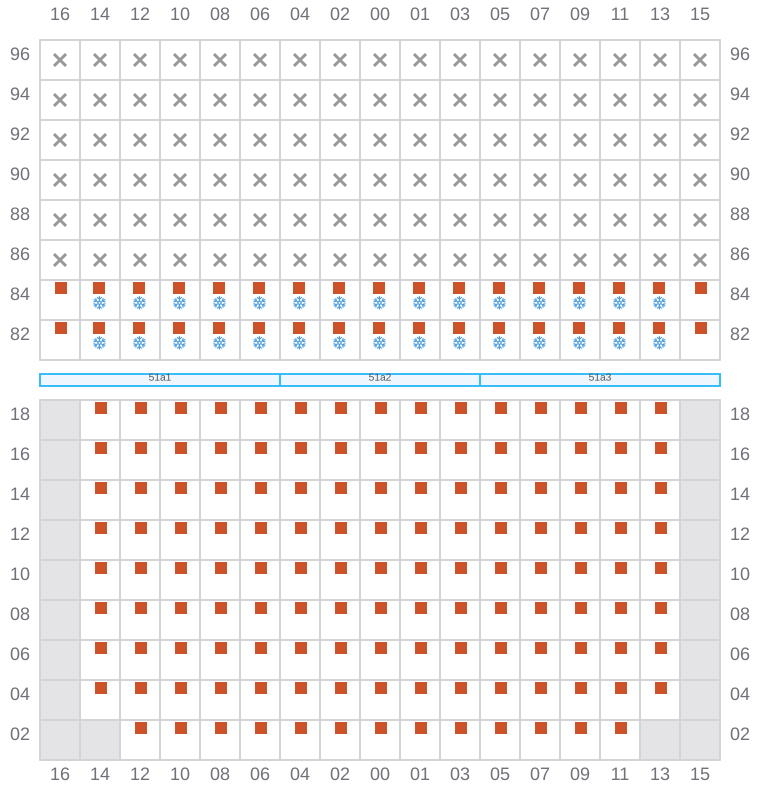

Bay 051 view and slots of COLOMBO EXPRESS

053 (054)

Bay 053 view and slots of COLOMBO EXPRESS

055

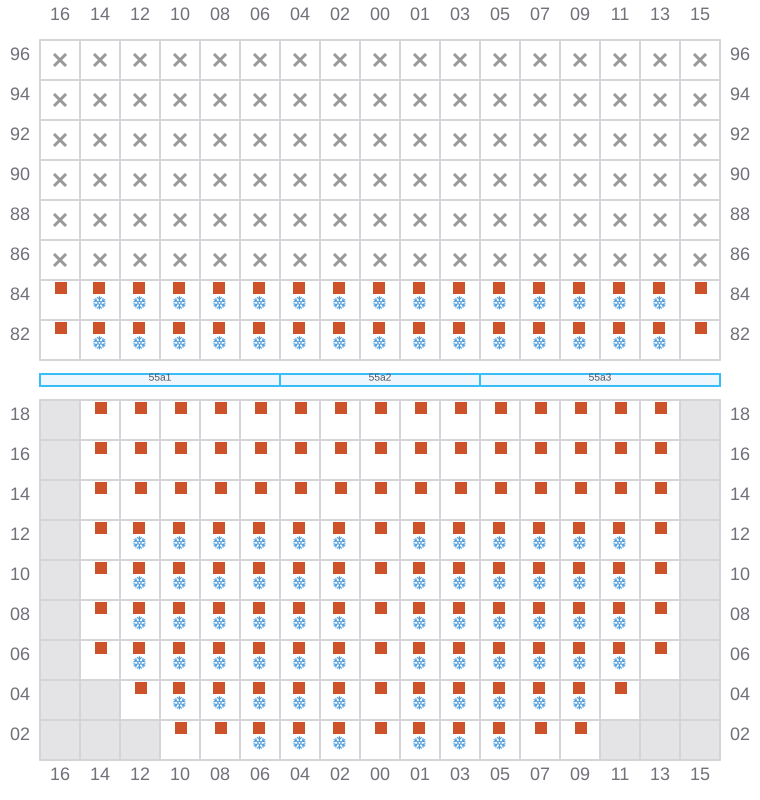

Bay 055 view and slots of COLOMBO EXPRESS

057 (058)

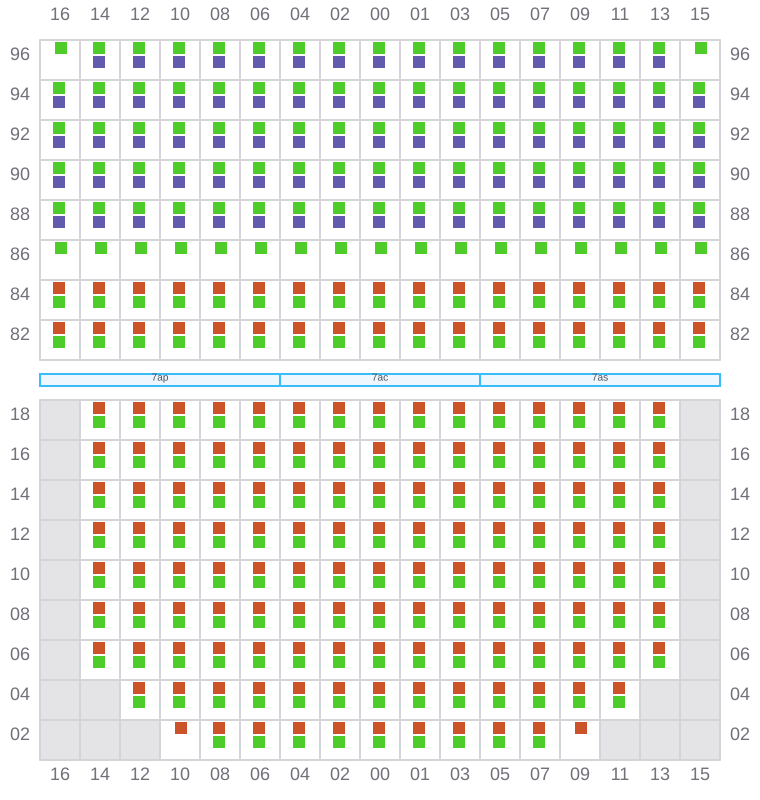

Bay 057 view and slots of COLOMBO EXPRESS

059

  • / ?

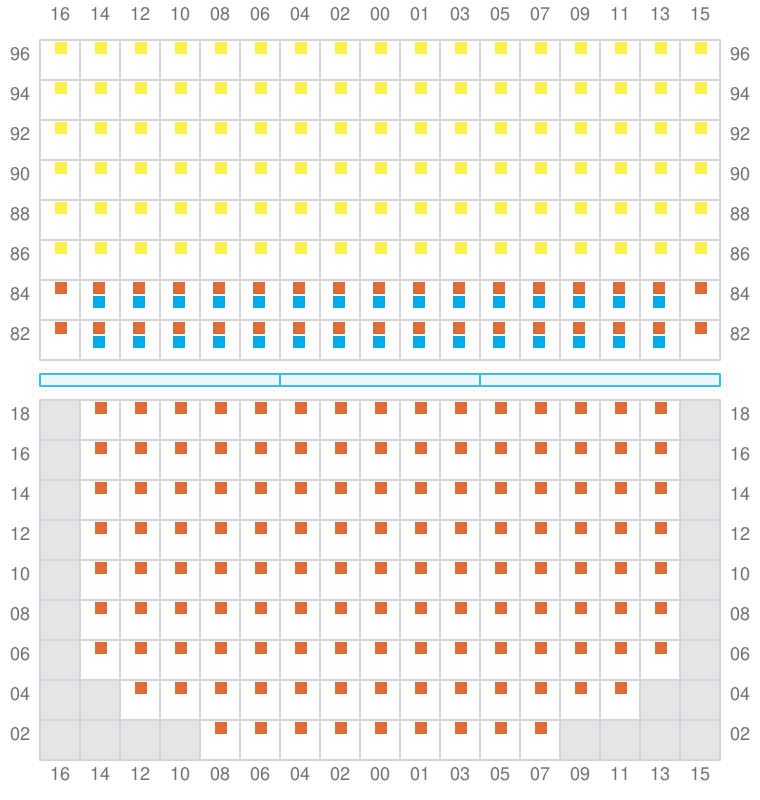

Bay 059 view and slots of COLOMBO EXPRESS

061 (062)

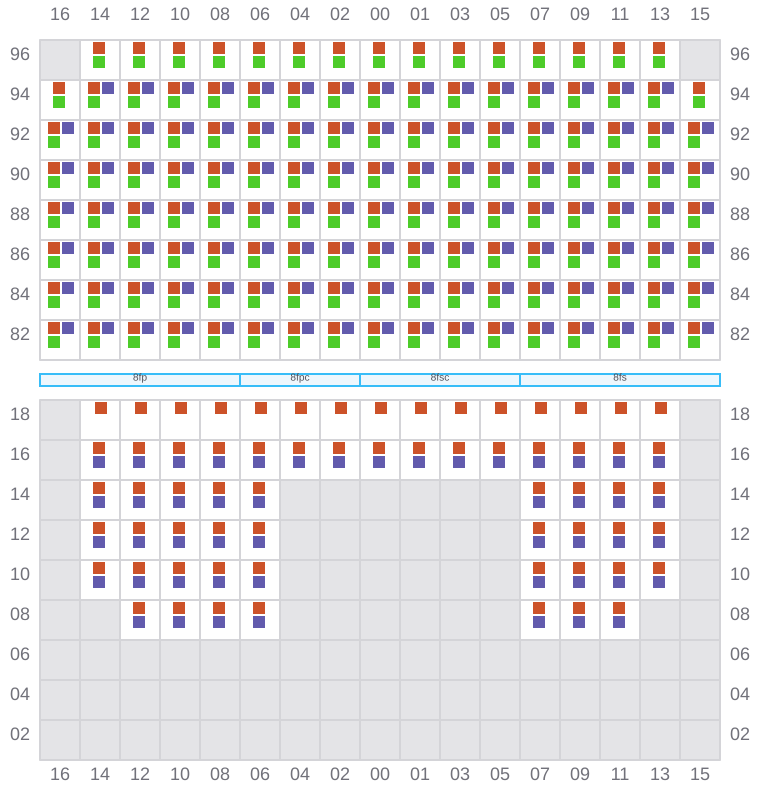

Bay 061 view and slots of COLOMBO EXPRESS

063

  • / ?

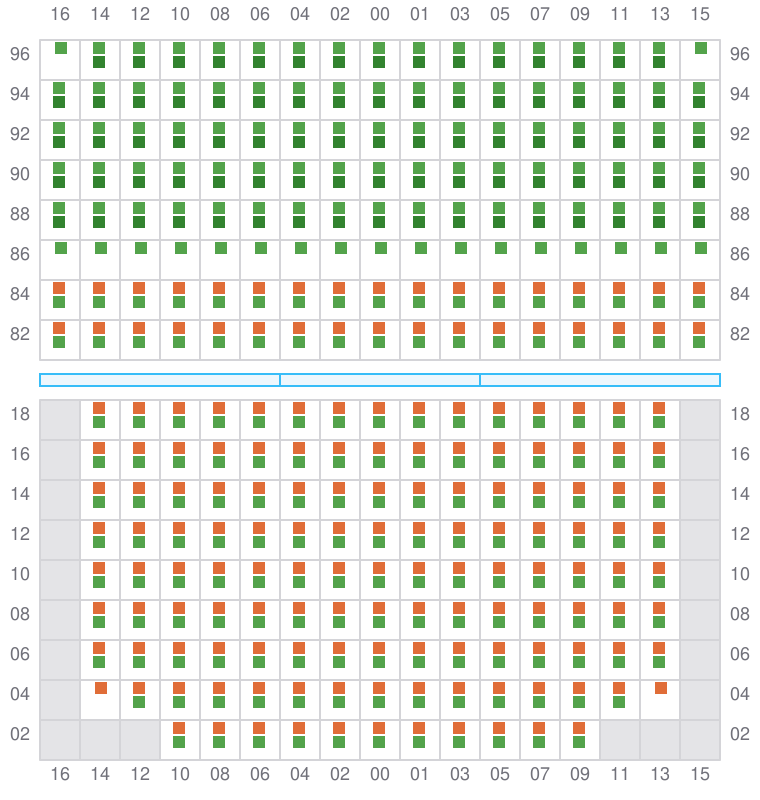

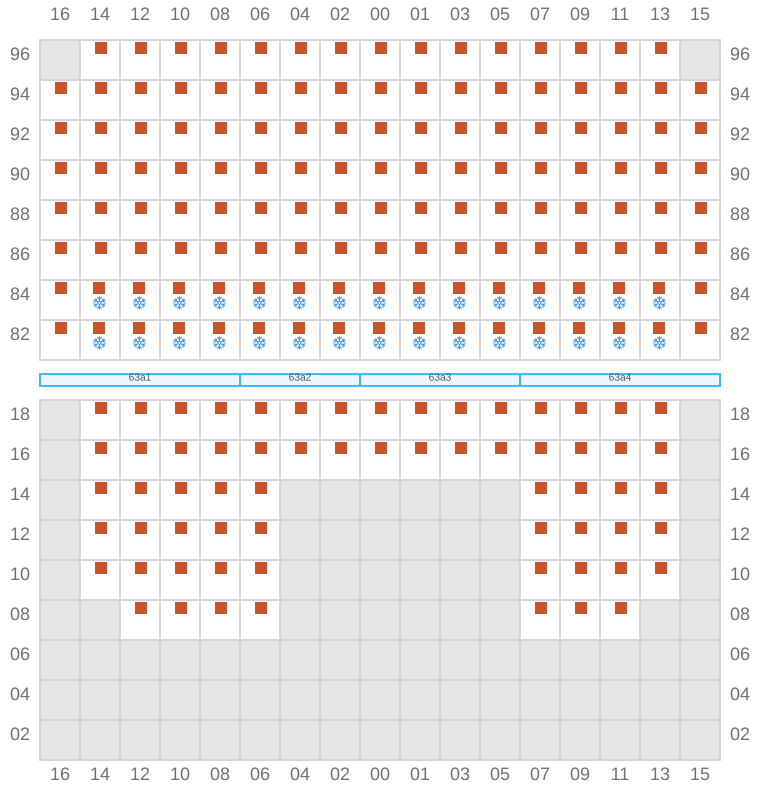

Bay 063 view and slots of COLOMBO EXPRESS

065 (066)

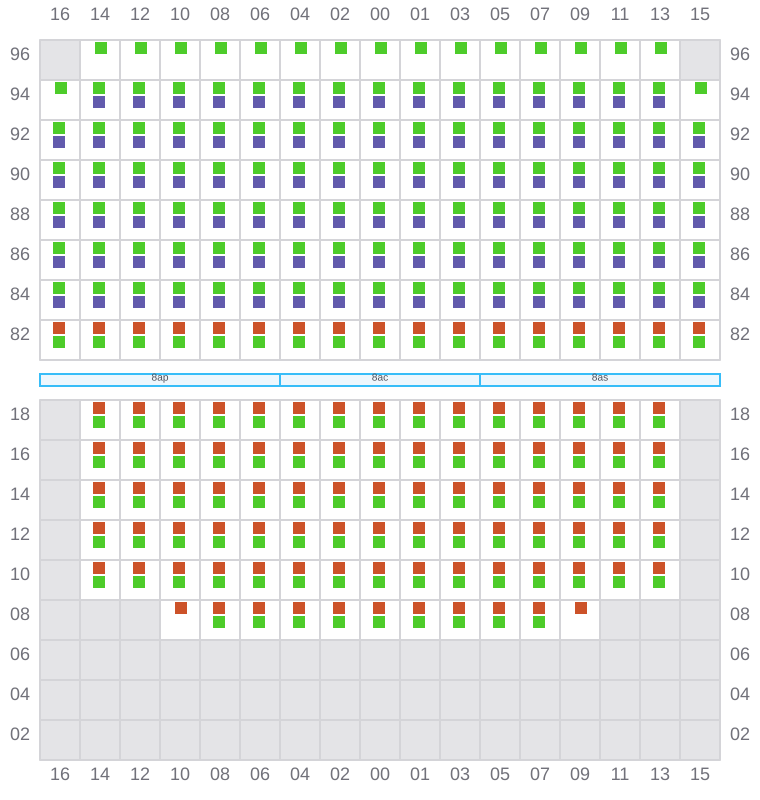

Bay 065 view and slots of COLOMBO EXPRESS

067

  • / ?

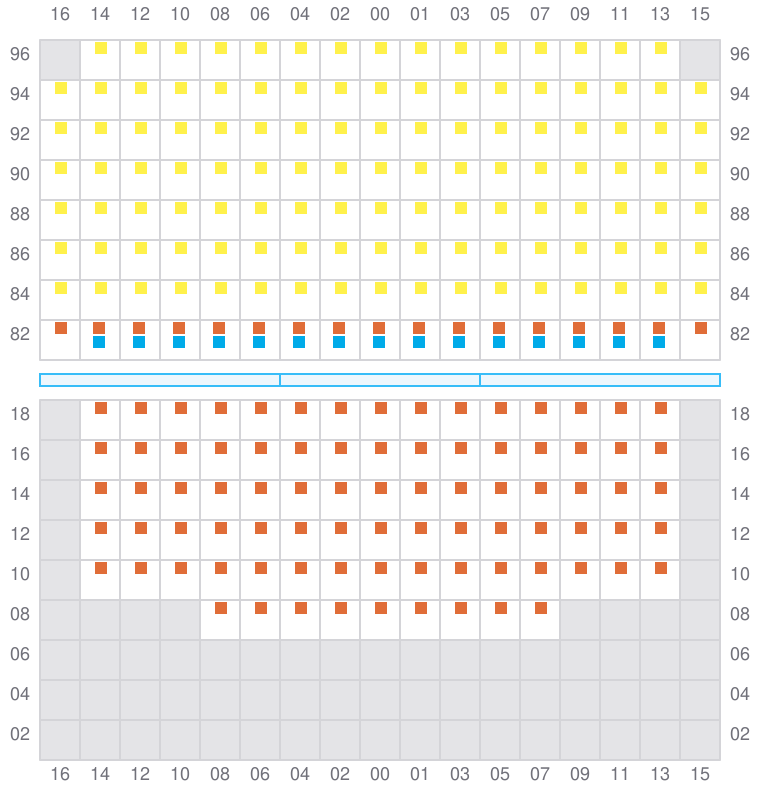

Bay 067 view and slots of COLOMBO EXPRESS

069 (070)

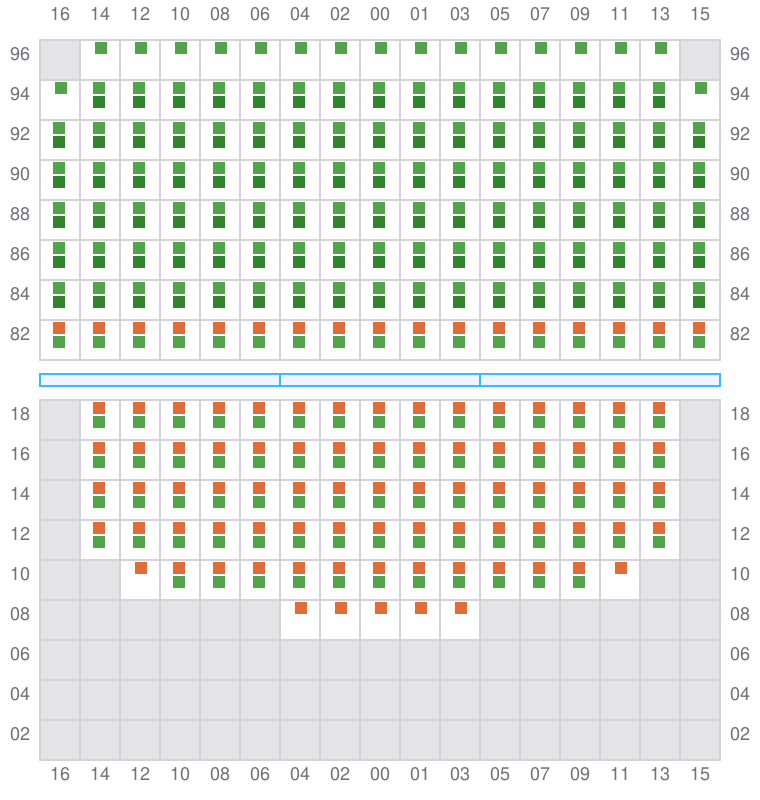

Bay 069 view and slots of COLOMBO EXPRESS

071

  • / ?

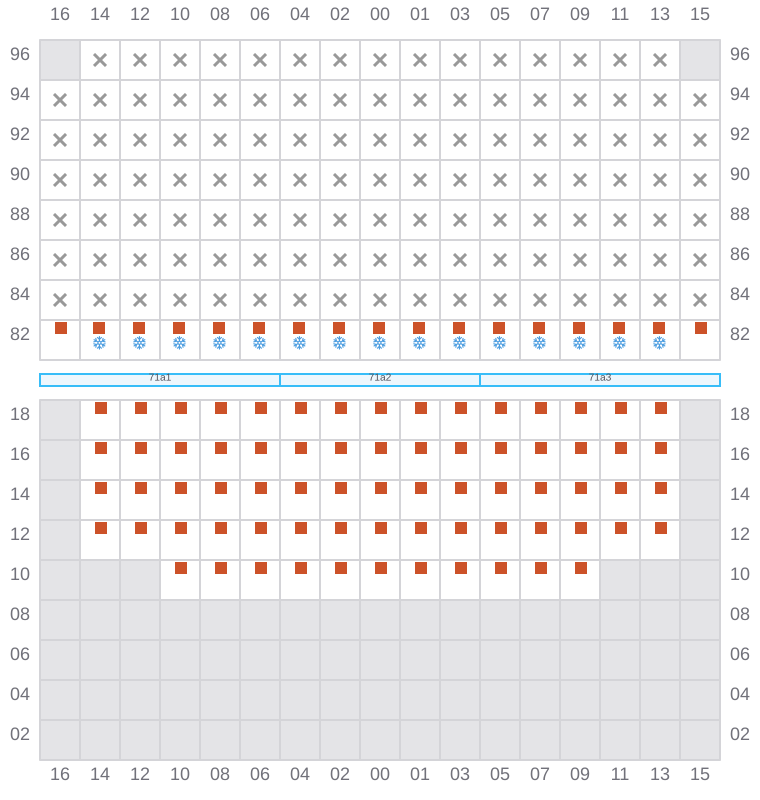

Bay 071 view and slots of COLOMBO EXPRESS

073 (074)

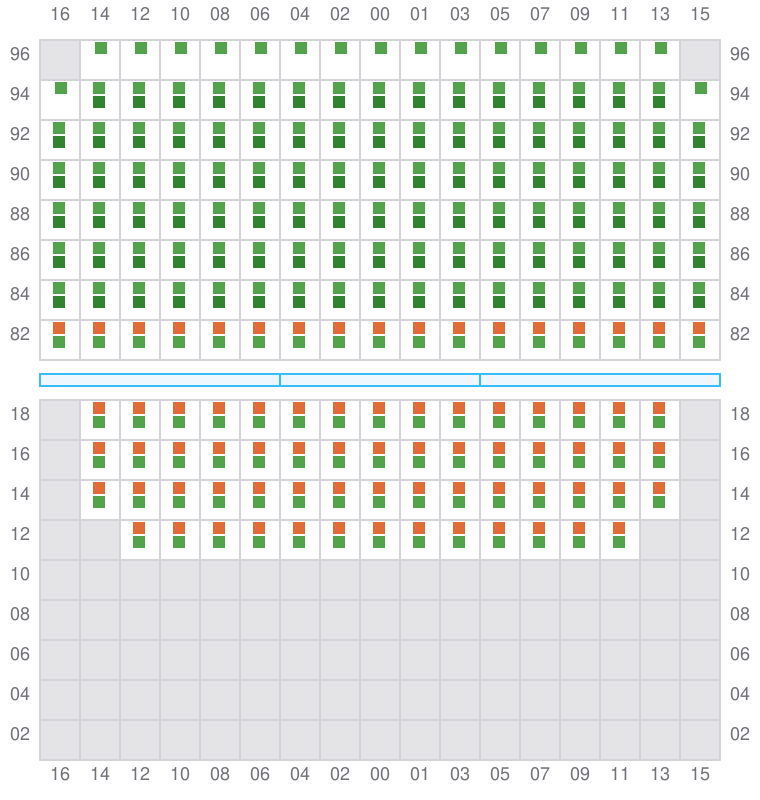

Bay 073 view and slots of COLOMBO EXPRESS

075

  • / ?

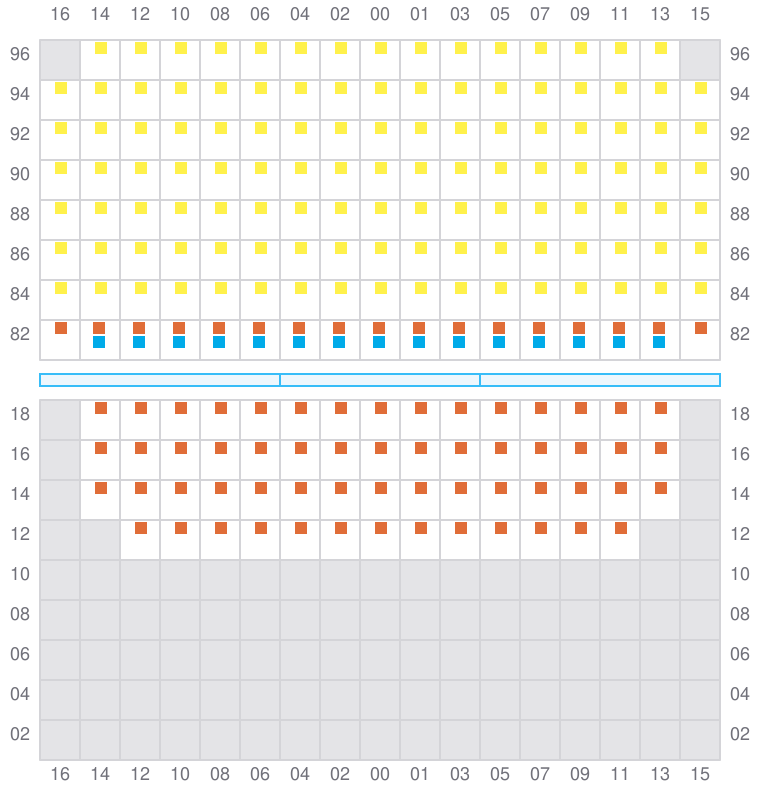

Bay 075 view and slots of COLOMBO EXPRESS

077 (078)

  • / ?

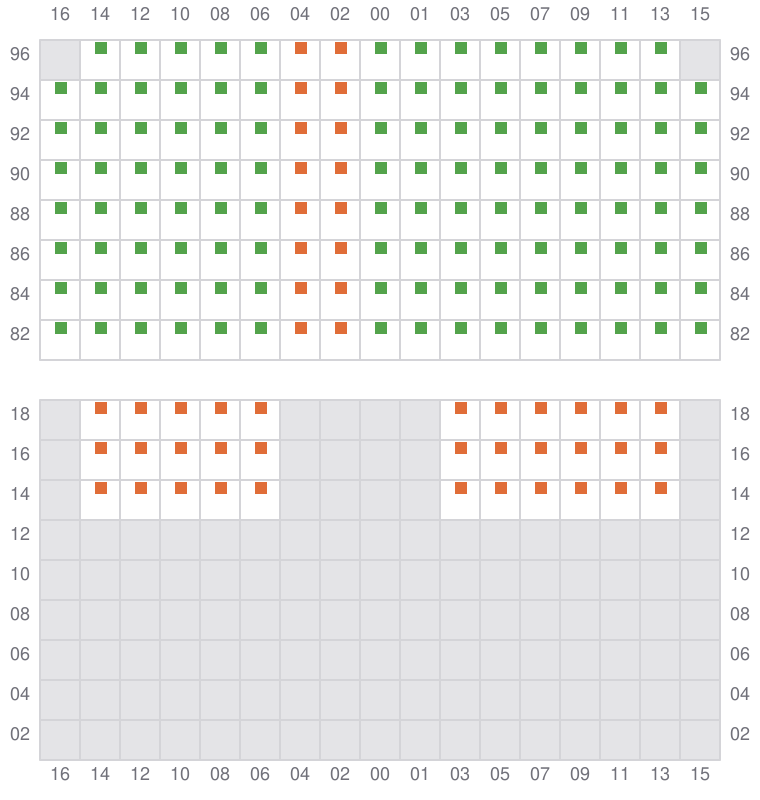

Bay 077 view and slots of COLOMBO EXPRESS

079

  • / ?

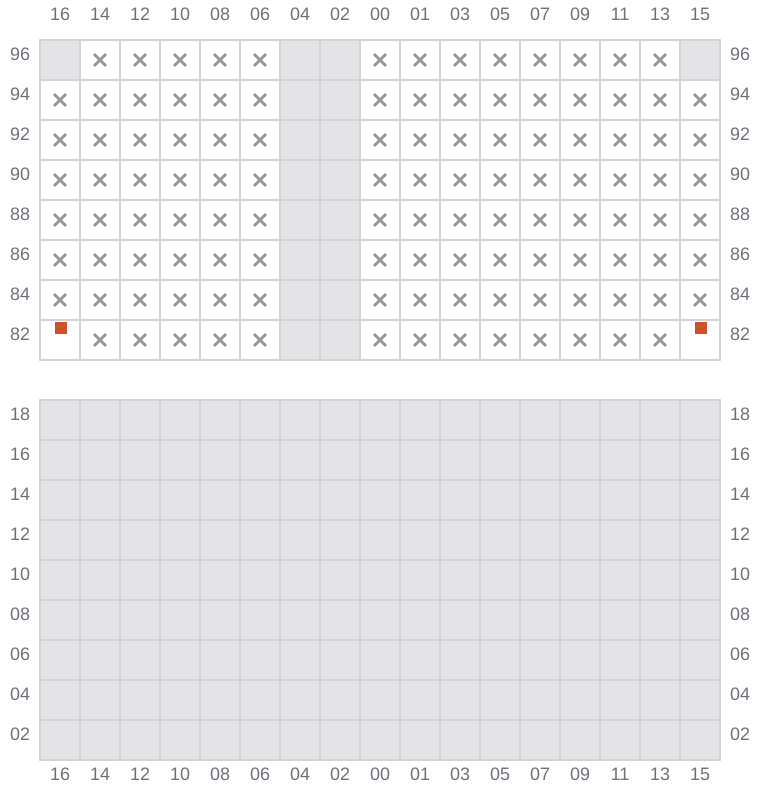

Bay 079 view and slots of COLOMBO EXPRESS
