COLORADO
9973690 | CQ2146 | MPC CONTAINER SHIPS ASA by ********** Last update: Mon Apr 21 2025

General Info

Ship Name:COLORADO

IMO Code:9973690

Call Sign:CQ2146

Line Operator:MPC CONTAINER SHIPS ASA

Class Name for Sister Ships:COLORADO

Year Built:2024

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):244.51

LOA (Length Overall):255.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:059

Max ISO Row:15

Center Line Row:Yes

Max Above ISO Tier:90

Min Above ISO Tier:70

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:5,536

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of COLORADO

Hatch-Covers View

Deck view of COLORADO

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
→
→
✓

Bay 001 view and slots of COLORADO

003 (002)

←
→
→
✓

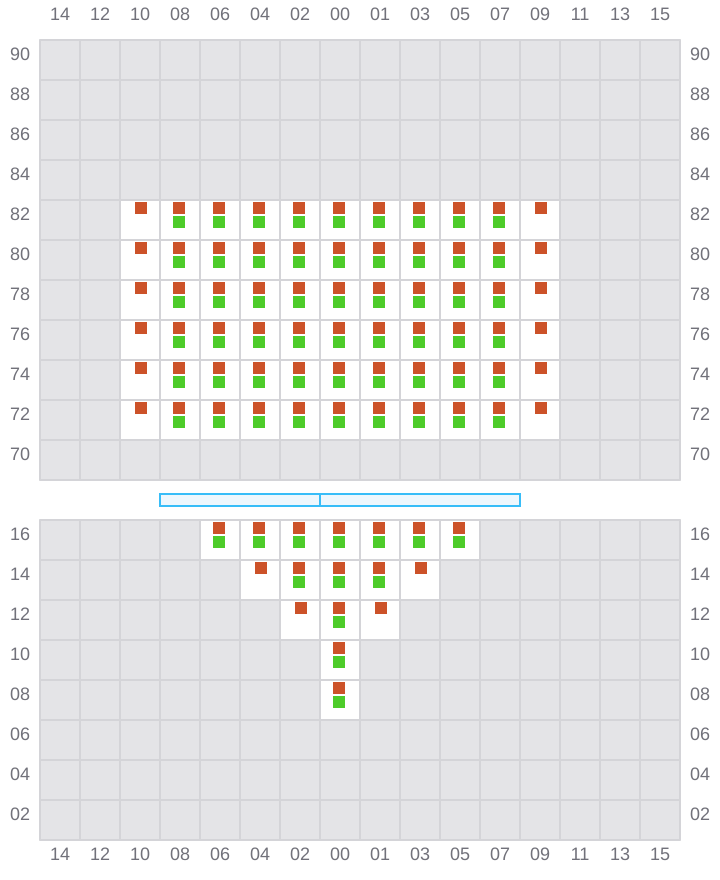

Bay 003 view and slots of COLORADO

005

→
→
→
✓

Bay 005 view and slots of COLORADO

007 (006)

←
→
→
✓

Bay 007 view and slots of COLORADO

009

→
→
→
✓

Bay 009 view and slots of COLORADO

011 (010)

←
→
→
✓

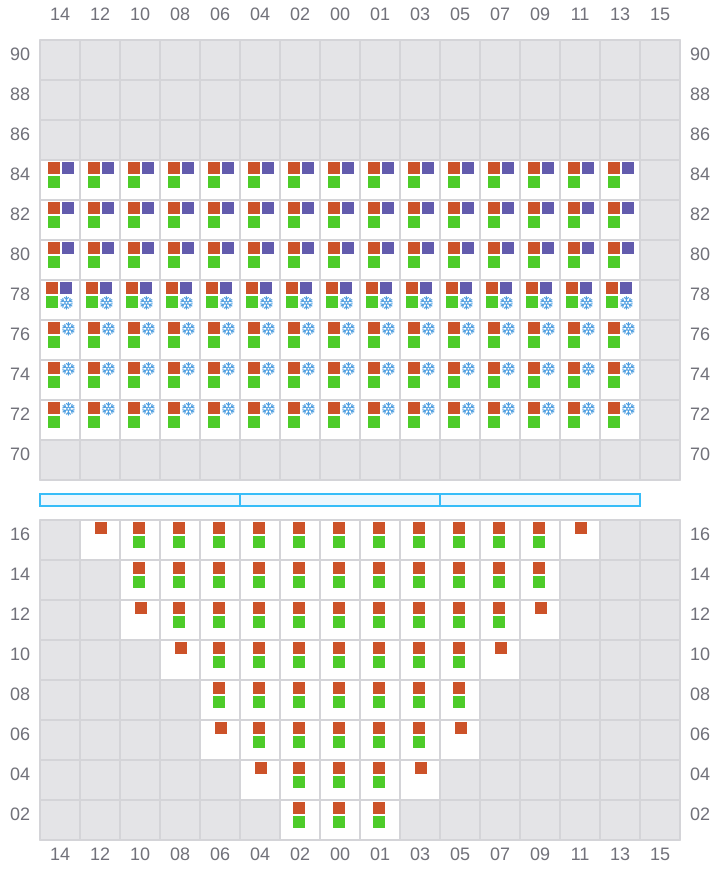

Bay 011 view and slots of COLORADO

013

→
→
→
✓

Bay 013 view and slots of COLORADO

015 (014)

←
→
→
✓

Bay 015 view and slots of COLORADO

017

→
→
→
✓

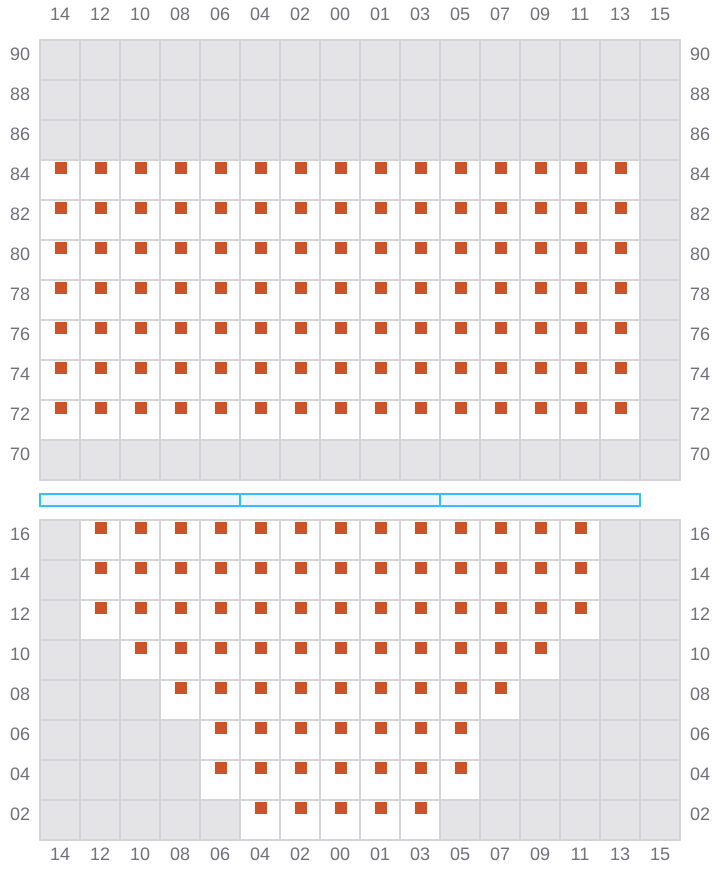

Bay 017 view and slots of COLORADO

019 (018)

←
→
→
✓

Bay 019 view and slots of COLORADO

021

→
→
→
✓

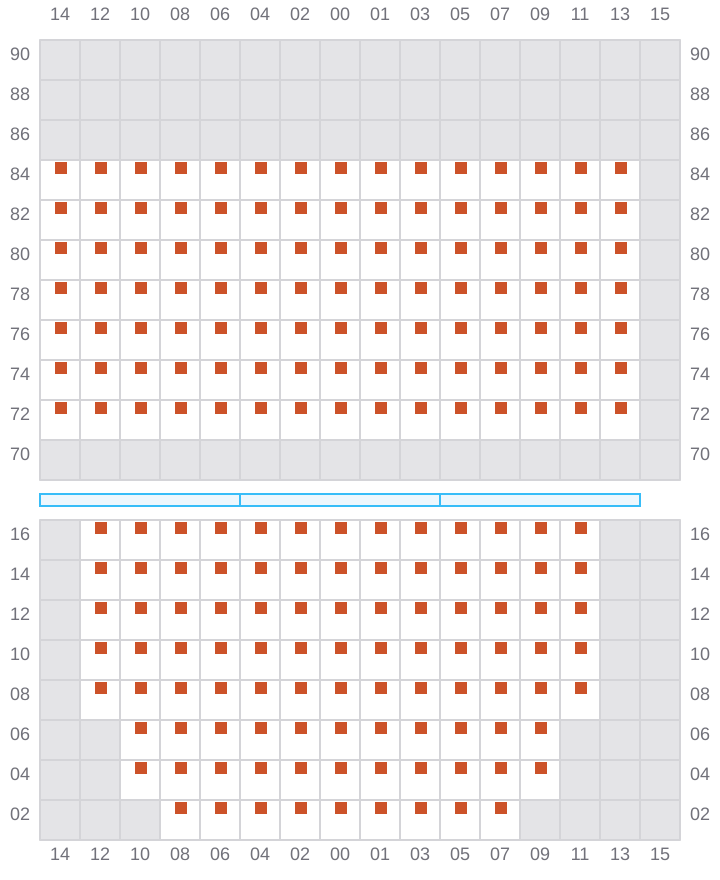

Bay 021 view and slots of COLORADO

023 (022)

←
→
→
✓

Bay 023 view and slots of COLORADO

025

→
→
→
✓

Bay 025 view and slots of COLORADO

027 (026)

←
→
→
✓

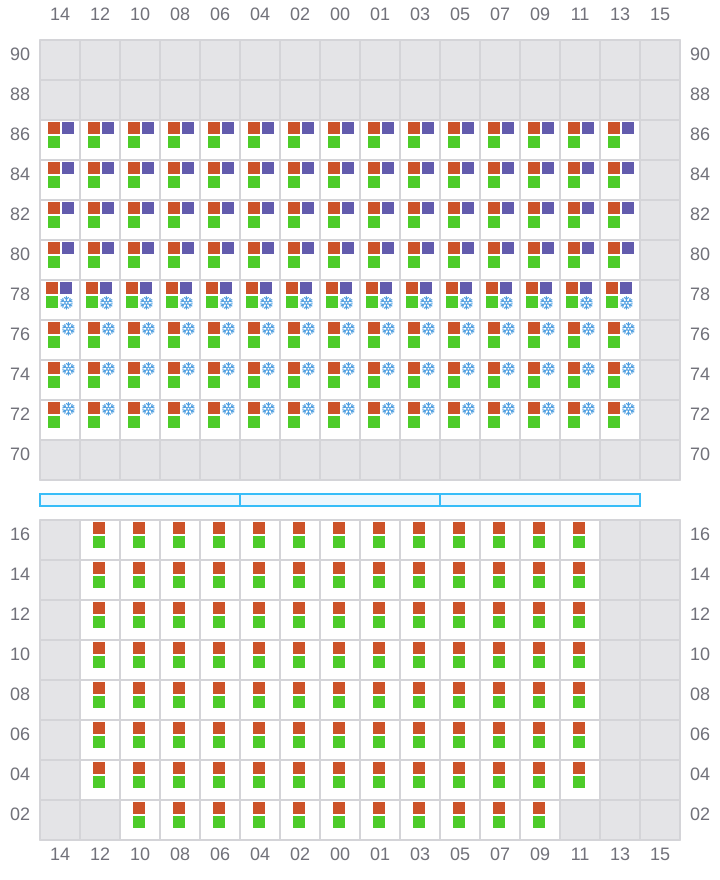

Bay 027 view and slots of COLORADO

029

→
→
→
✓

Bay 029 view and slots of COLORADO

031 (030)

←
→
→
✓

Bay 031 view and slots of COLORADO

033

→
→
→
✓

Bay 033 view and slots of COLORADO

035 (034)

←
→
→
✓

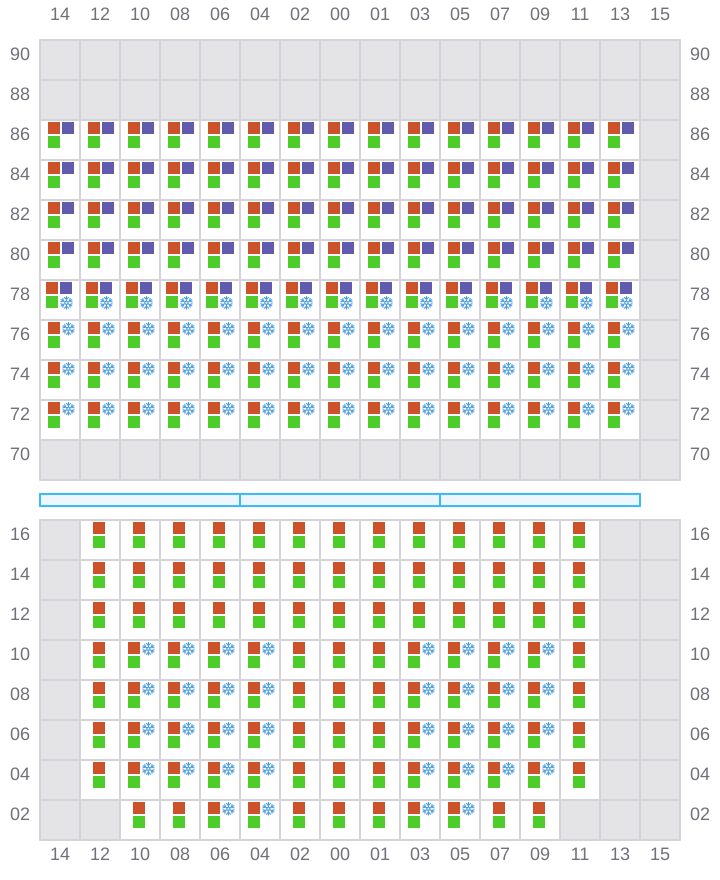

Bay 035 view and slots of COLORADO

037

→
→
→
✓

Bay 037 view and slots of COLORADO

039 (038)

←
→
→
✓

Bay 039 view and slots of COLORADO

041

→
→
→
✓

Bay 041 view and slots of COLORADO

043 (042)

←
→
→
✓

Bay 043 view and slots of COLORADO

045

→
→
→
✓

Bay 045 view and slots of COLORADO

047 (046)

←
→
→
✓

Bay 047 view and slots of COLORADO

049

^→ / _?
→
→
✓

Bay 049 view and slots of COLORADO

051 (050)

^← / _?
→
→
✓

Bay 051 view and slots of COLORADO

053 (054)

→
→
→
✓

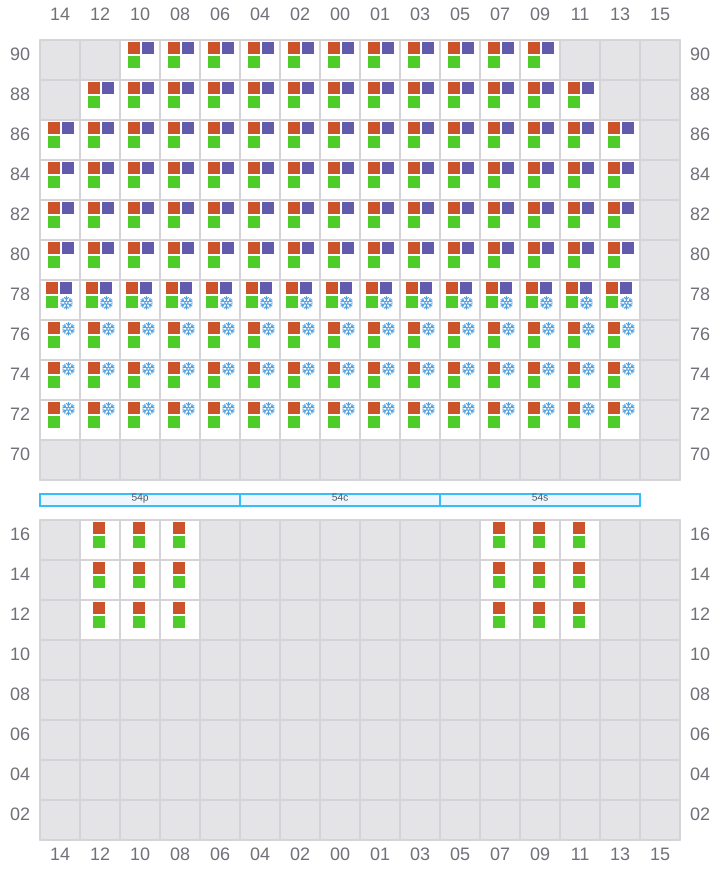

Bay 053 view and slots of COLORADO

055

←
→
→
✓

Bay 055 view and slots of COLORADO

057 (058)

^→ / _?
→
→
✓

Bay 057 view and slots of COLORADO

059

^← / _?
→
→
✓

Bay 059 view and slots of COLORADO
