COLUMBIA BOSTON
8646654 | N/A | COLUMBIA by ********* Last update: Mon Apr 08 2024

General Info

Ship Name:COLUMBIA BOSTON
IMO Code:8646654
Call Sign:N/A
Line Operator:COLUMBIA
Class Name for Sister Ships:BARGE
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:019
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:-
Min Below ISO Tier:-
Total TEU:560

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

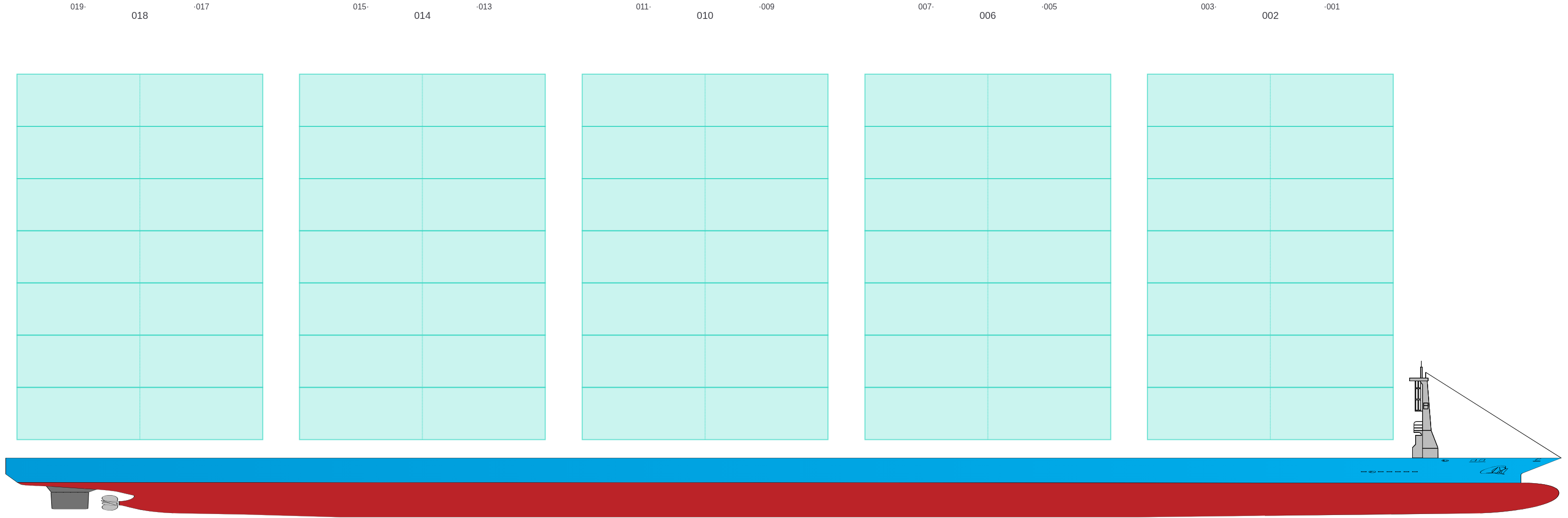

Side View

Side view of COLUMBIA BOSTON

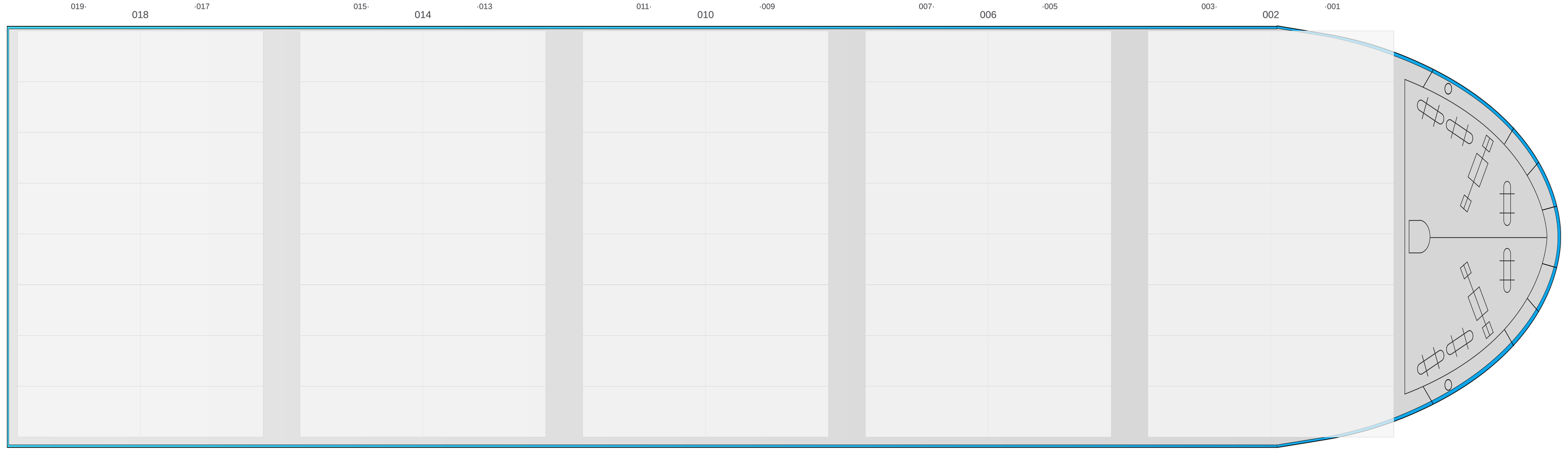

Hatch-Covers View

Deck view of COLUMBIA BOSTON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

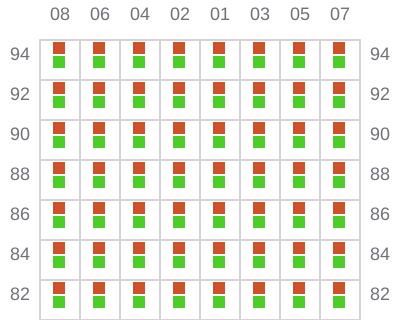

001 (002)

Bay 001 view and slots of COLUMBIA BOSTON

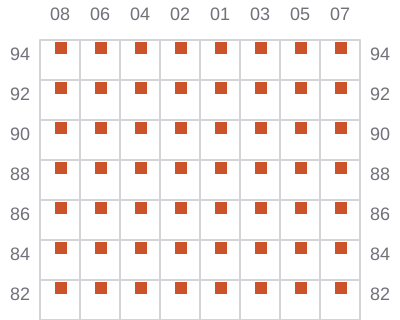

003

Bay 003 view and slots of COLUMBIA BOSTON

005 (006)

Bay 005 view and slots of COLUMBIA BOSTON

007

Bay 007 view and slots of COLUMBIA BOSTON

009 (010)

Bay 009 view and slots of COLUMBIA BOSTON

011

Bay 011 view and slots of COLUMBIA BOSTON

013 (014)

Bay 013 view and slots of COLUMBIA BOSTON

015

Bay 015 view and slots of COLUMBIA BOSTON

017 (018)

Bay 017 view and slots of COLUMBIA BOSTON

019

Bay 019 view and slots of COLUMBIA BOSTON
