CONSTANTINOS P II
9461623 | V7EY8 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:CONSTANTINOS P II
IMO Code:9461623
Call Sign:V7EY8
Line Operator:MSK
Class Name for Sister Ships:CTT
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.63
LOA (Length Overall):261.03
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

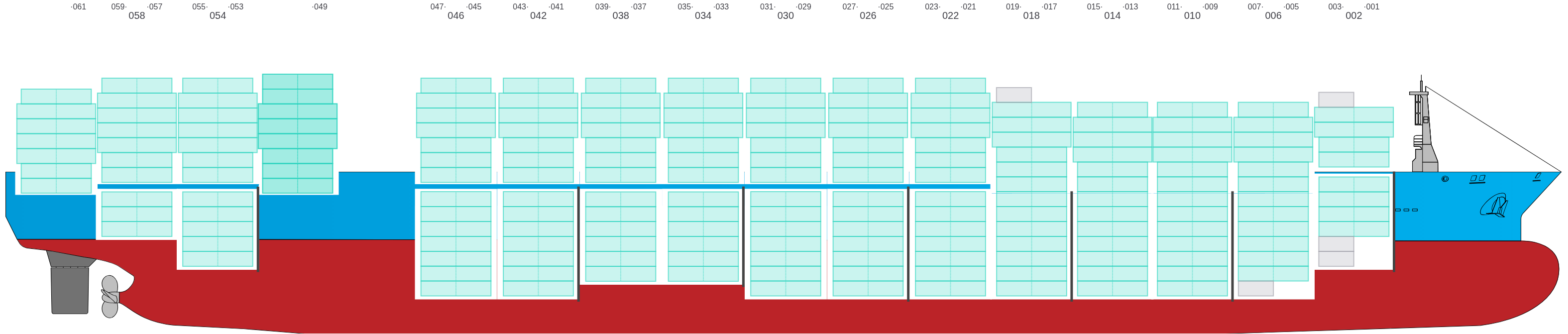

Side view of CONSTANTINOS P II

Hatch-Covers View

Deck view of CONSTANTINOS P II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

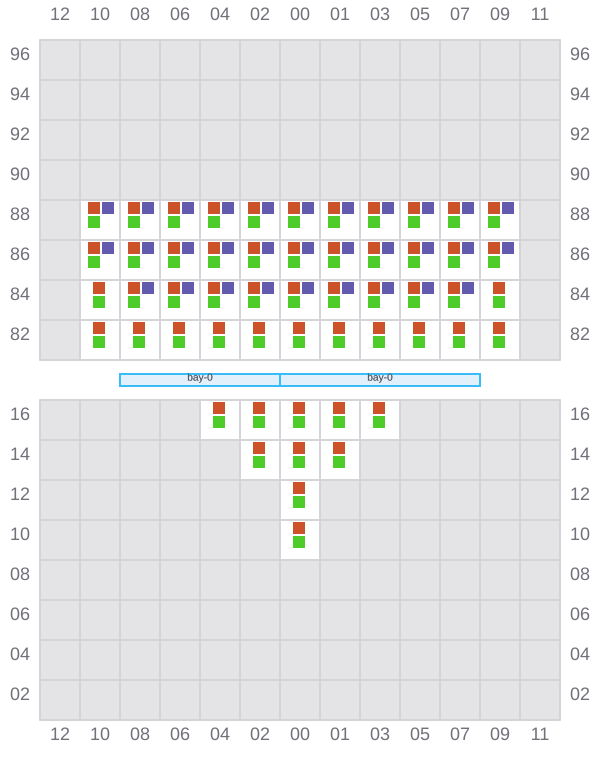

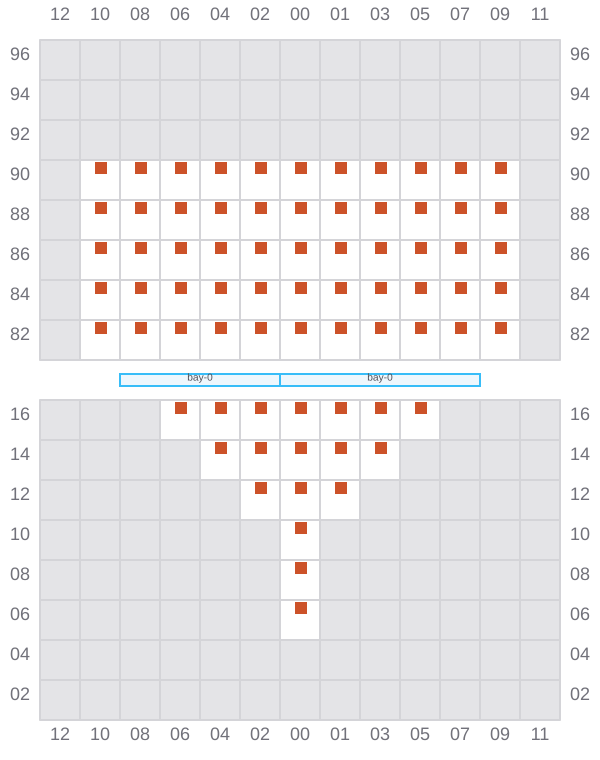

Bay 001 view and slots of CONSTANTINOS P II

003

  • ←
Bay 003 view and slots of CONSTANTINOS P II

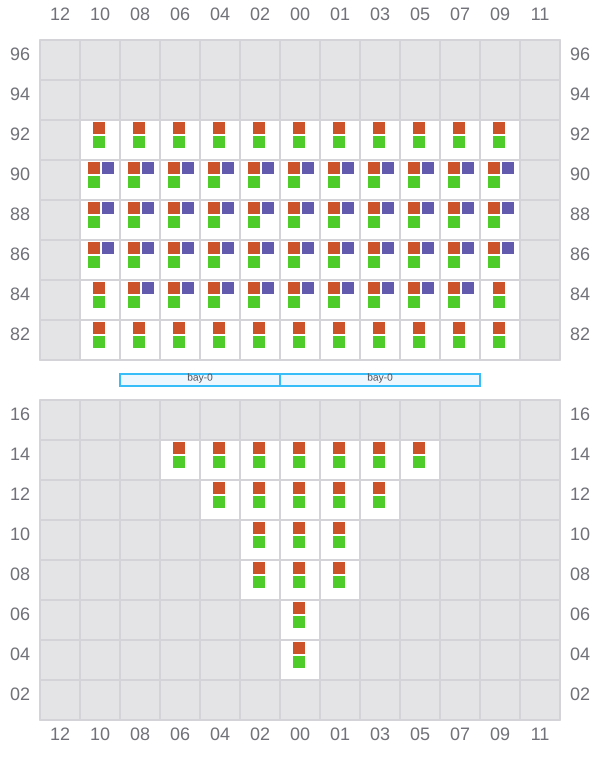

005 (006)

  • →
Bay 005 view and slots of CONSTANTINOS P II

007

  • ←
  • → / ?

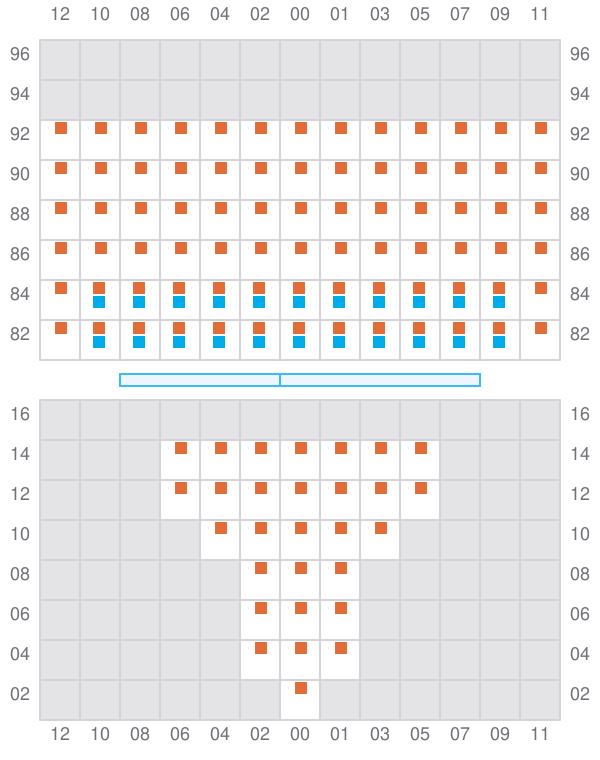

Bay 007 view and slots of CONSTANTINOS P II

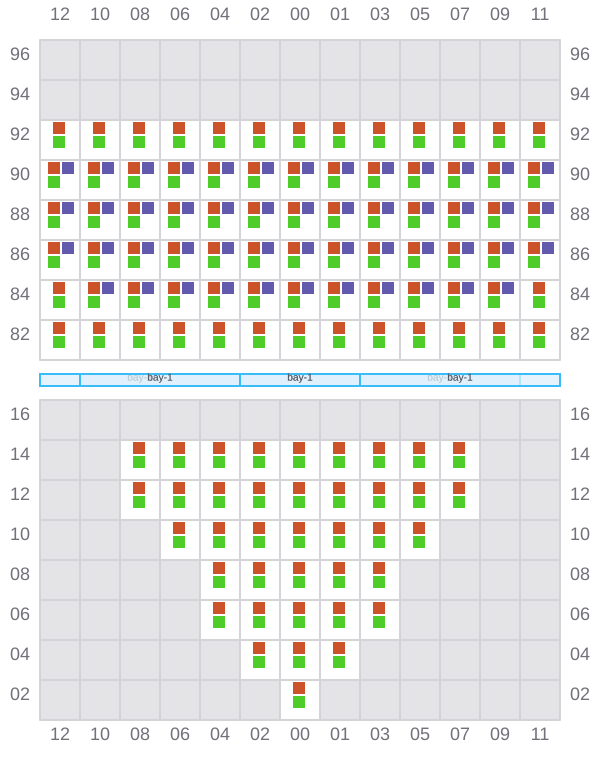

009 (010)

  • →
Bay 009 view and slots of CONSTANTINOS P II

011

  • ←
  • → / ?
Bay 011 view and slots of CONSTANTINOS P II

013 (014)

  • →

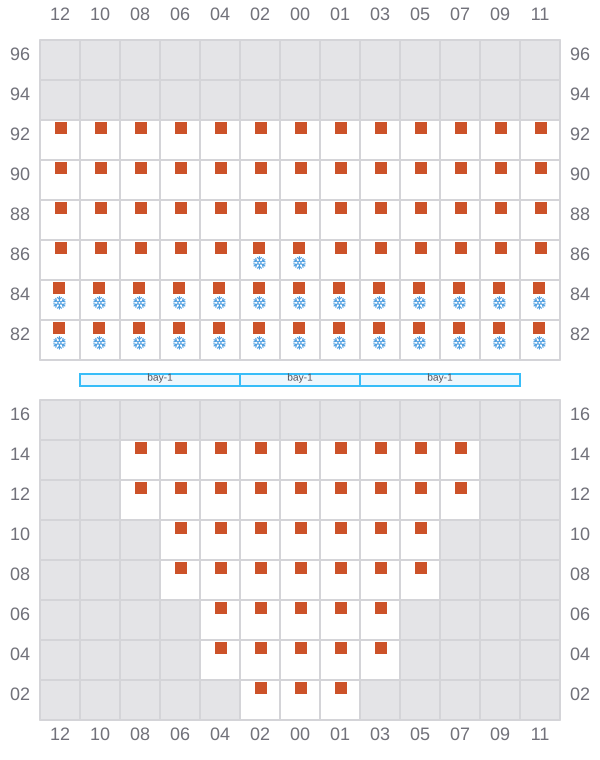

Bay 013 view and slots of CONSTANTINOS P II

015

  • ←
  • → / ?
Bay 015 view and slots of CONSTANTINOS P II

017 (018)

  • →

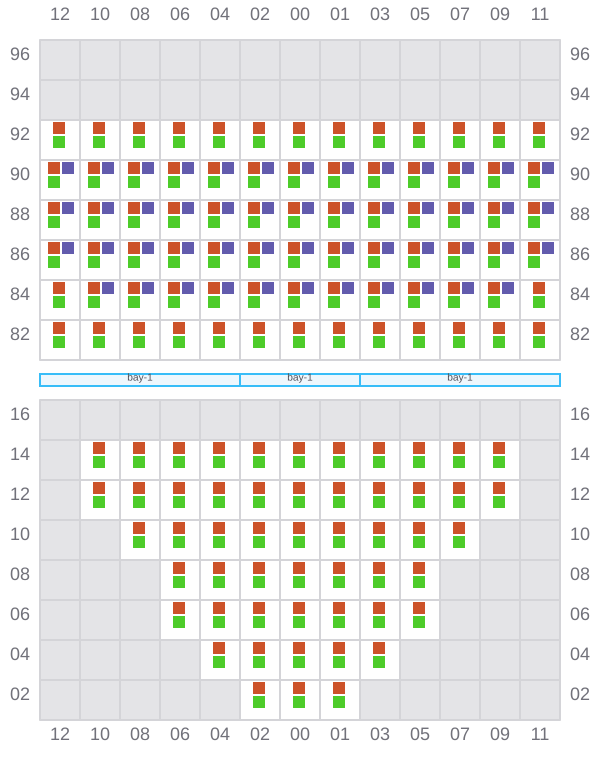

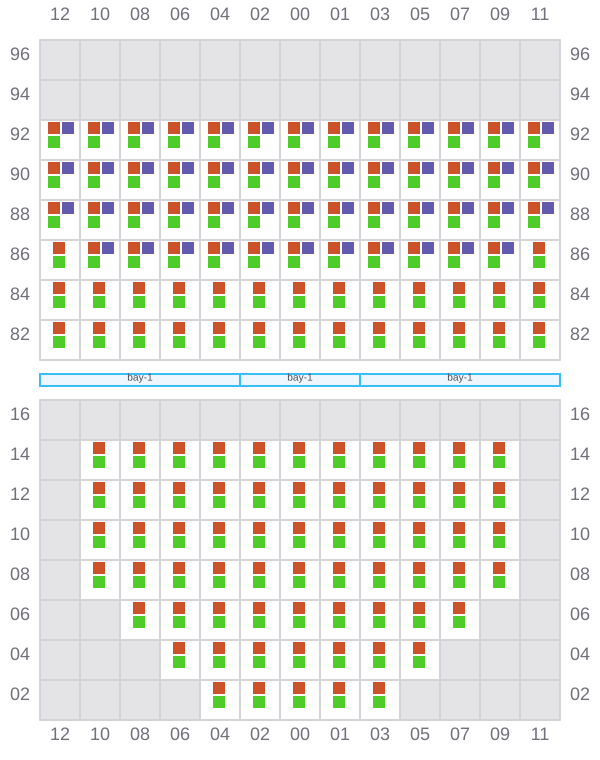

Bay 017 view and slots of CONSTANTINOS P II

019

  • ←
  • → / ?

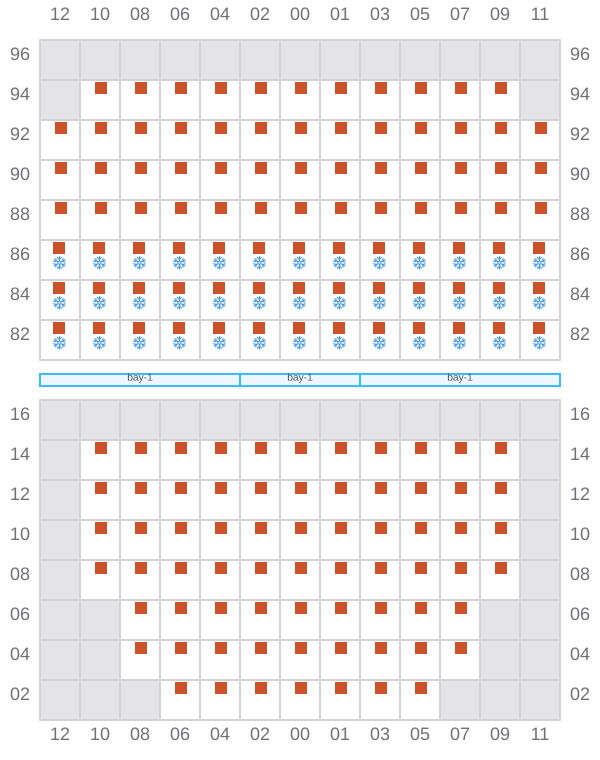

Bay 019 view and slots of CONSTANTINOS P II

021 (022)

  • →
Bay 021 view and slots of CONSTANTINOS P II

023

  • ←
  • → / ?
Bay 023 view and slots of CONSTANTINOS P II

025 (026)

  • →

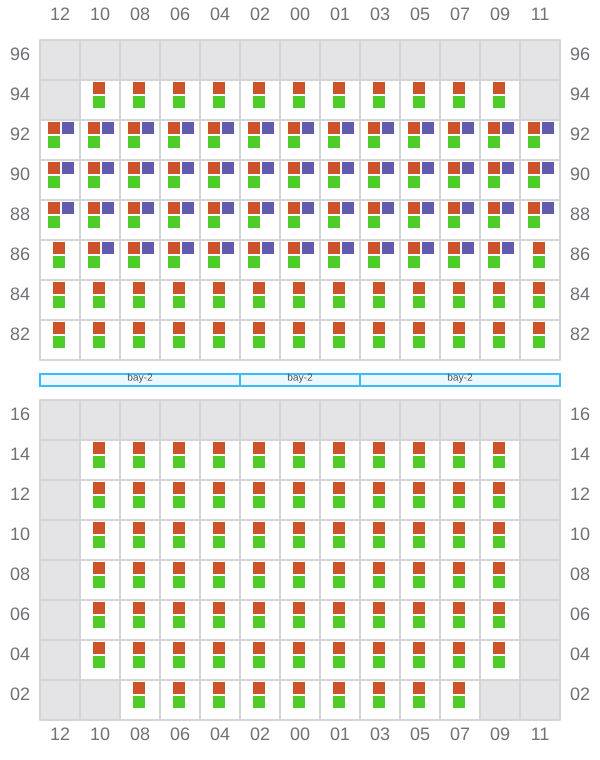

Bay 025 view and slots of CONSTANTINOS P II

027

  • ←
  • →

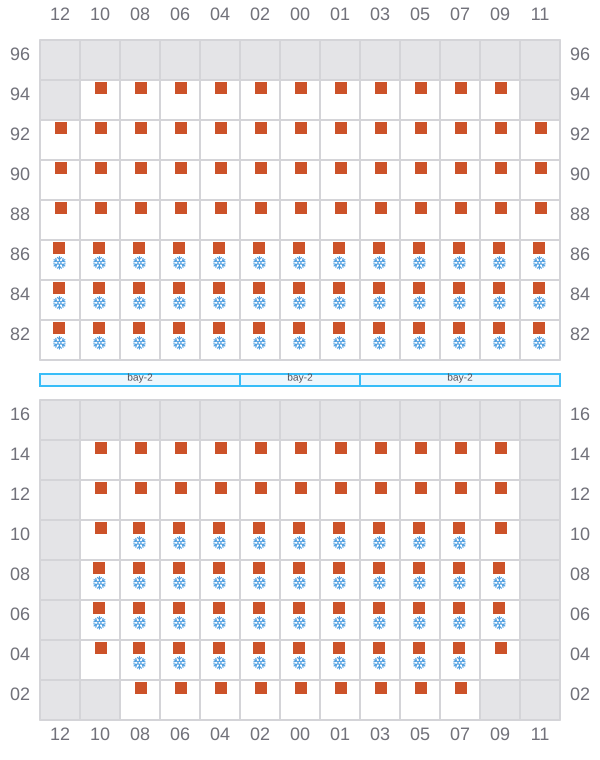

Bay 027 view and slots of CONSTANTINOS P II

029 (030)

  • →
Bay 029 view and slots of CONSTANTINOS P II

031

  • ←
  • → / ?

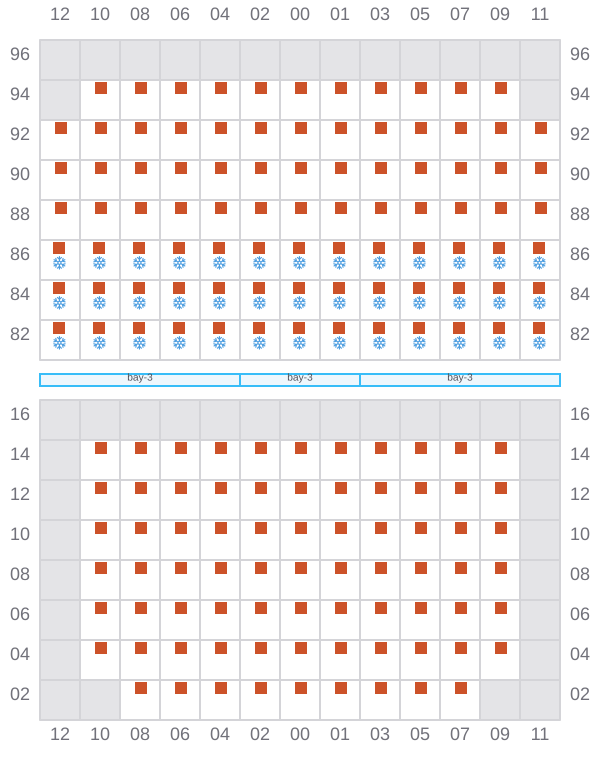

Bay 031 view and slots of CONSTANTINOS P II

033 (034)

  • →
Bay 033 view and slots of CONSTANTINOS P II

035

  • ←
  • →

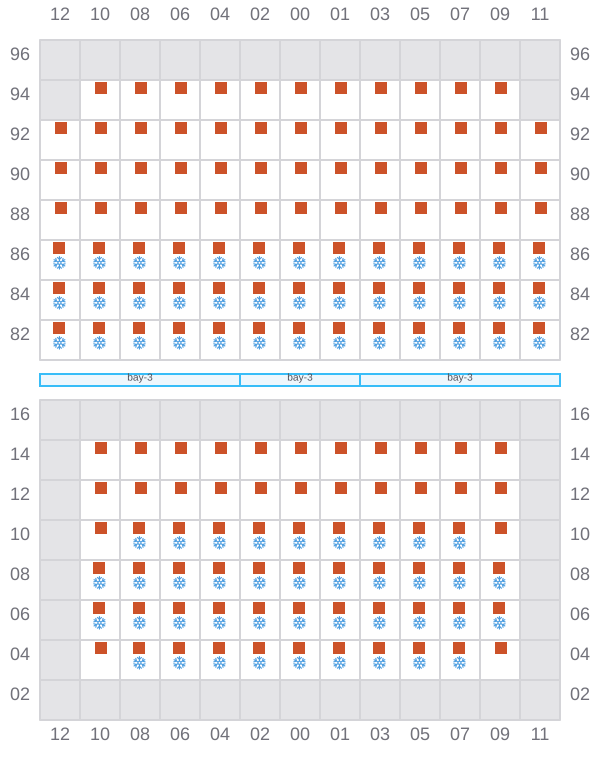

Bay 035 view and slots of CONSTANTINOS P II

037 (038)

  • →
Bay 037 view and slots of CONSTANTINOS P II

039

  • ←
  • → / ?
Bay 039 view and slots of CONSTANTINOS P II

041 (042)

  • →
Bay 041 view and slots of CONSTANTINOS P II

043

  • ←
  • →

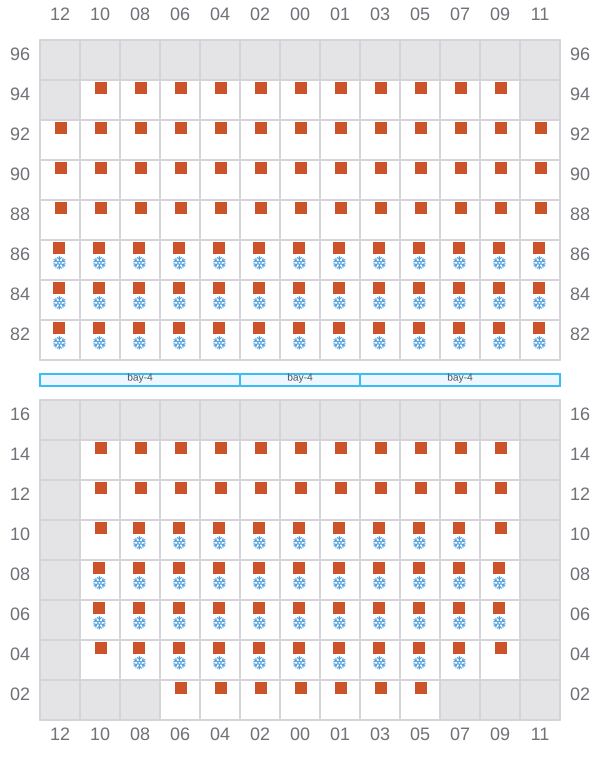

Bay 043 view and slots of CONSTANTINOS P II

045 (046)

  • →
Bay 045 view and slots of CONSTANTINOS P II

047

  • ←
  • →

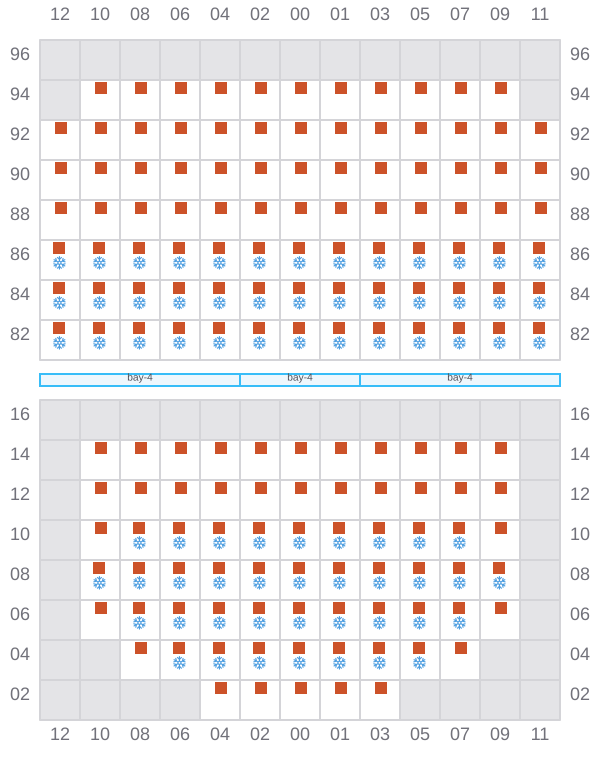

Bay 047 view and slots of CONSTANTINOS P II

049 (050)

  • → / ?
  • → / ?

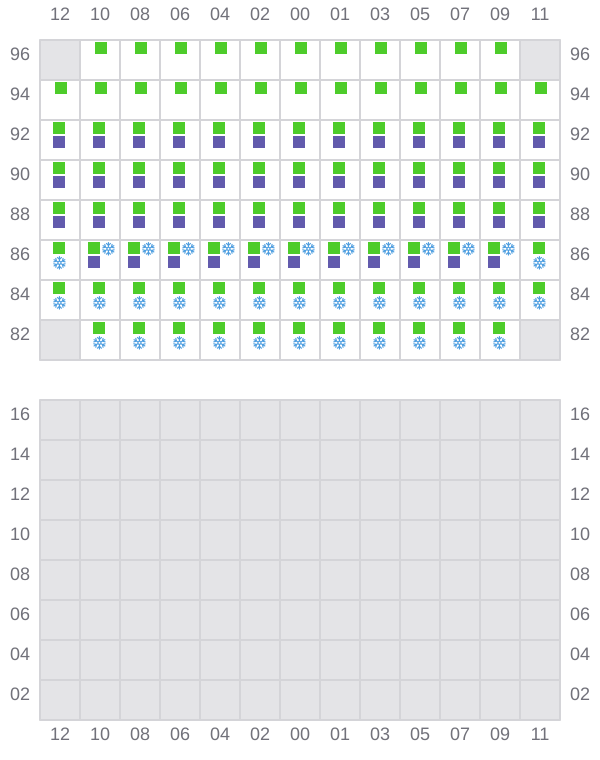

Bay 049 view and slots of CONSTANTINOS P II

051

Bay 051 view and slots of CONSTANTINOS P II

053 (054)

  • →

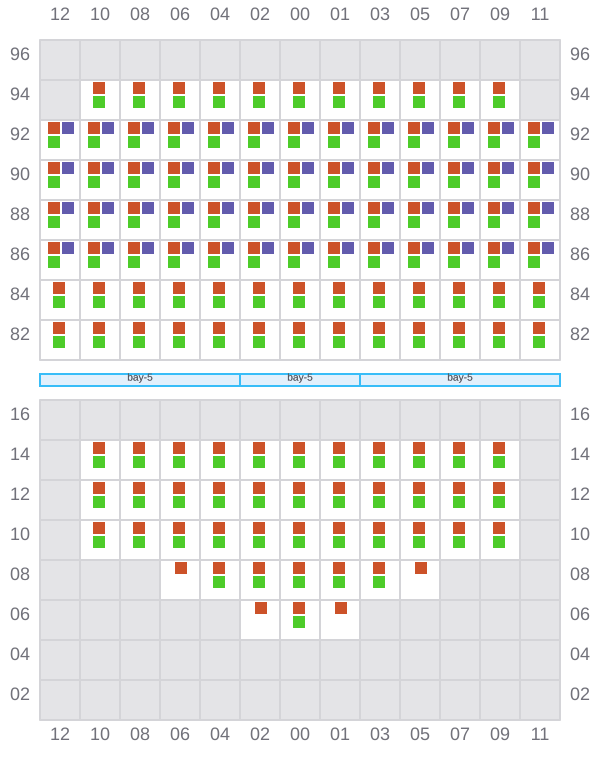

Bay 053 view and slots of CONSTANTINOS P II

055

  • ←
  • → / ?
Bay 055 view and slots of CONSTANTINOS P II

057 (058)

  • →

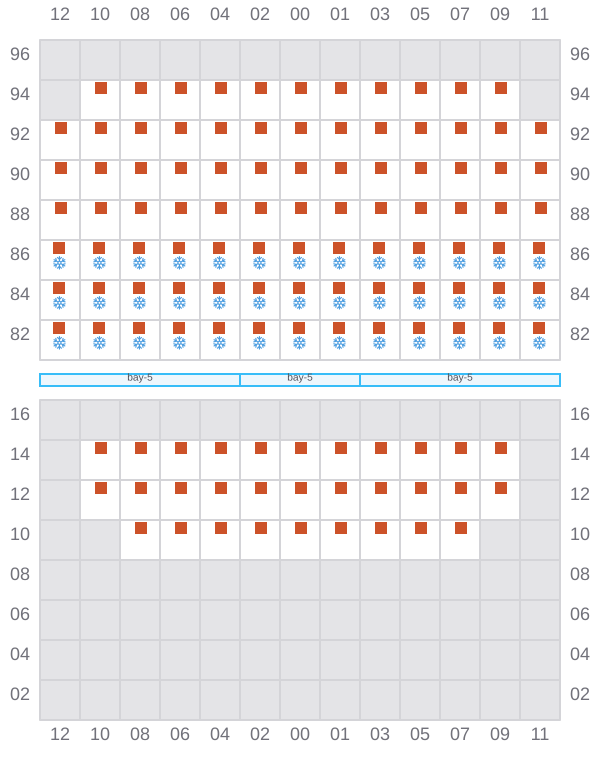

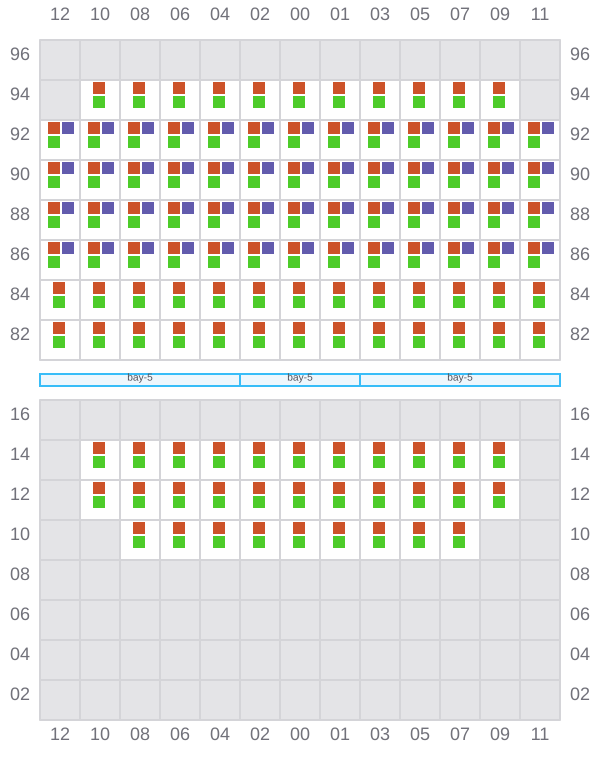

Bay 057 view and slots of CONSTANTINOS P II

059

  • ←
  • → / ?
Bay 059 view and slots of CONSTANTINOS P II

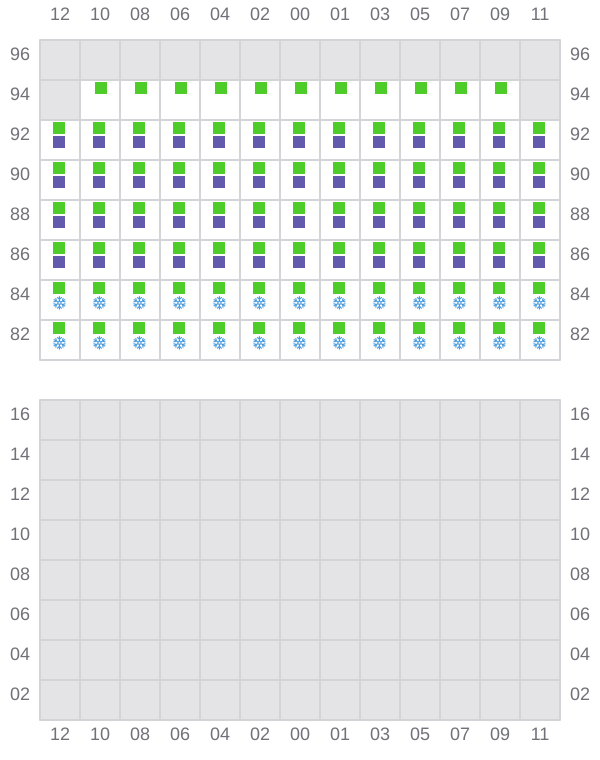

061 (062)

  • → / ?
  • ← / ?
Bay 061 view and slots of CONSTANTINOS P II
