CONTAINERSHIPS AURORA
9814014 | 5BGU5 | CMA by *********************** Last update: Tue Feb 11 2025

General Info

Ship Name:CONTAINERSHIPS AURORA
IMO Code:9814014
Call Sign:5BGU5
Line Operator:CMA
Class Name for Sister Ships:FCCA
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,348

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CONTAINERSHIPS AURORA

Hatch-Covers View

Deck view of CONTAINERSHIPS AURORA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of CONTAINERSHIPS AURORA

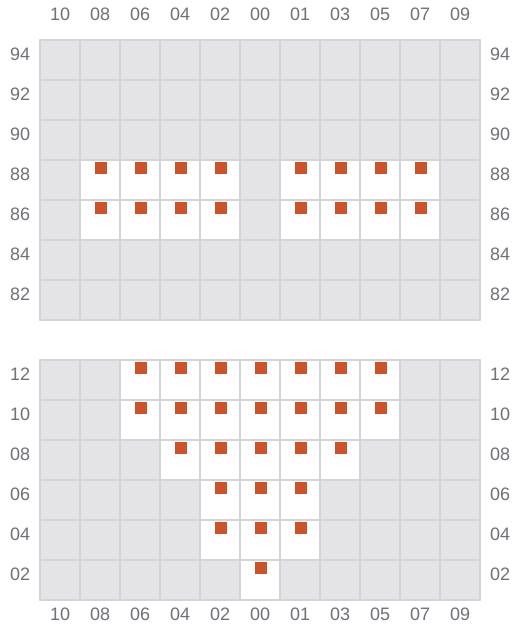

003

  • ←
  • →
Bay 003 view and slots of CONTAINERSHIPS AURORA

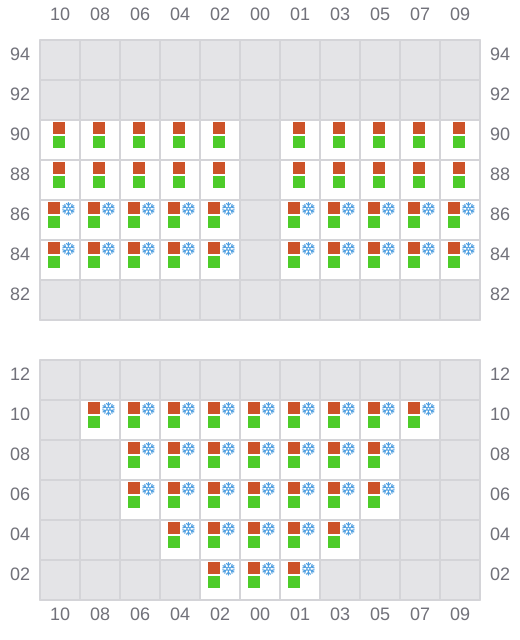

005 (006)

  • →
  • ←
  • →
Bay 005 view and slots of CONTAINERSHIPS AURORA

007

  • ←
  • →
Bay 007 view and slots of CONTAINERSHIPS AURORA

009 (010)

  • →
  • →
  • →
Bay 009 view and slots of CONTAINERSHIPS AURORA

011

  • ←
  • →
Bay 011 view and slots of CONTAINERSHIPS AURORA

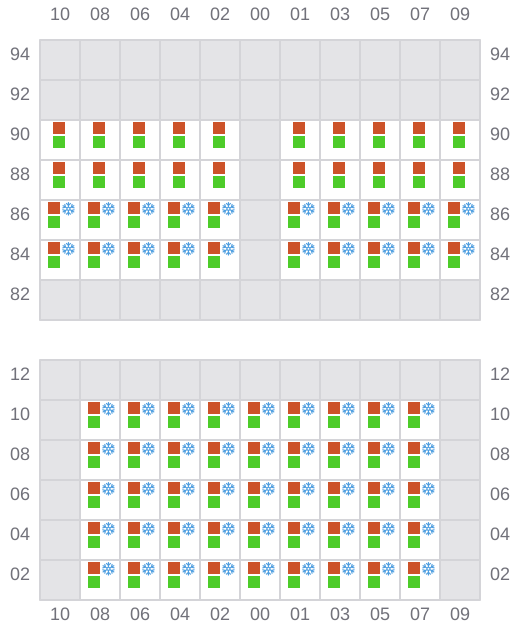

013 (014)

  • →
  • → / ←
  • →
Bay 013 view and slots of CONTAINERSHIPS AURORA

015

  • ←
  • →
Bay 015 view and slots of CONTAINERSHIPS AURORA

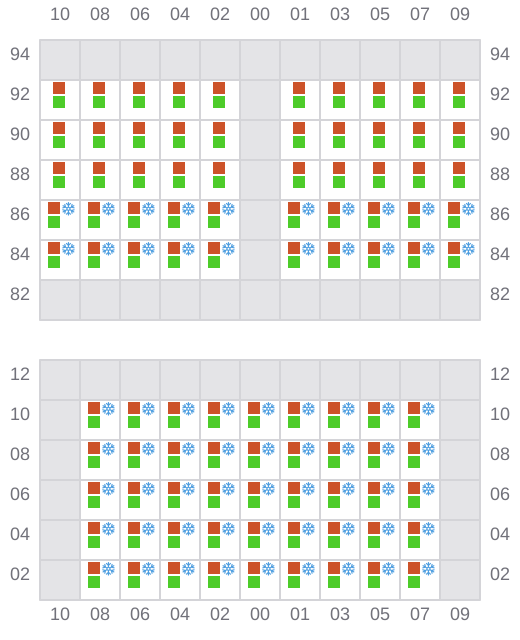

017 (018)

  • →
  • ← / →
  • →
Bay 017 view and slots of CONTAINERSHIPS AURORA

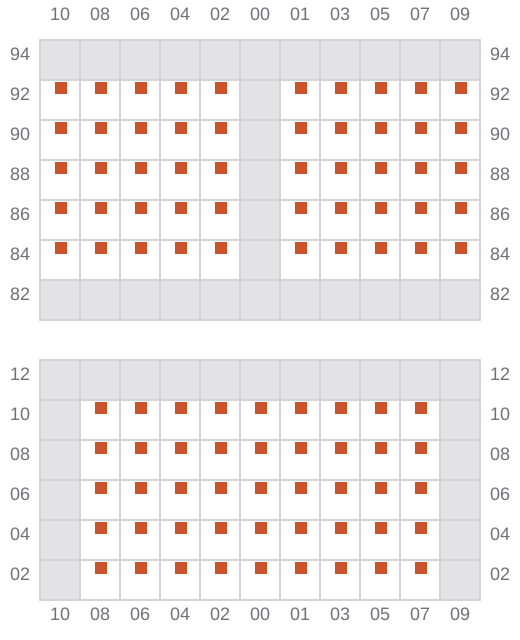

019

  • ←
  • →
Bay 019 view and slots of CONTAINERSHIPS AURORA

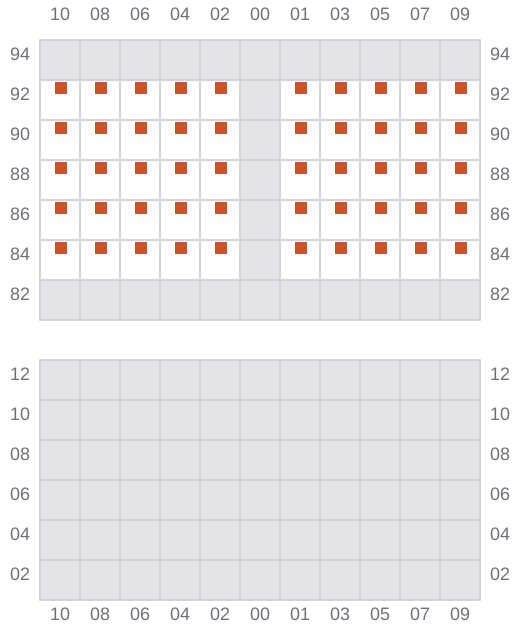

021

  • → / ?
  • → / ?
Bay 021 view and slots of CONTAINERSHIPS AURORA

023 (024)

  • →
  • → / ←
  • →
Bay 023 view and slots of CONTAINERSHIPS AURORA

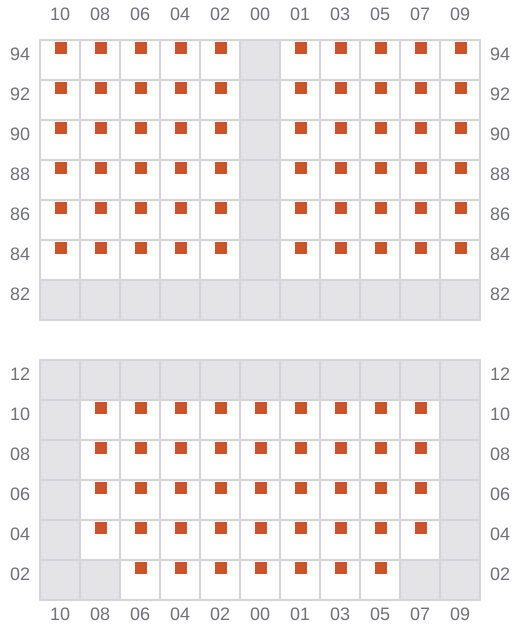

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of CONTAINERSHIPS AURORA

027 (028)

  • →
  • →
  • →
Bay 027 view and slots of CONTAINERSHIPS AURORA

029

  • ←
  • →
Bay 029 view and slots of CONTAINERSHIPS AURORA

031 (032)

  • → / ?
  • → / ?
  • → / ?
Bay 031 view and slots of CONTAINERSHIPS AURORA

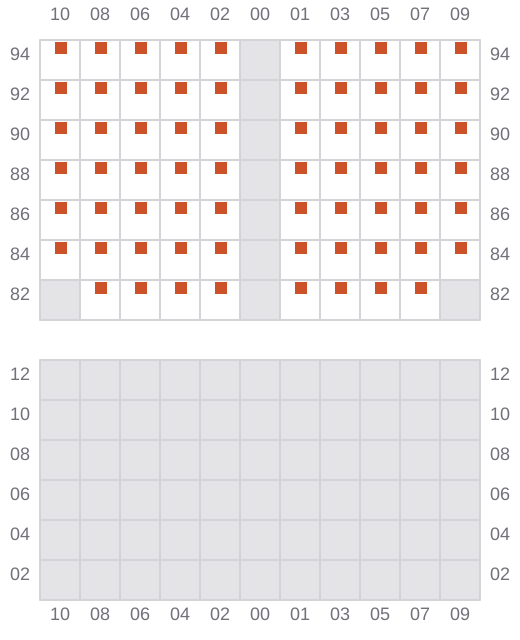

033

  • ← / ?
  • → / ?
Bay 033 view and slots of CONTAINERSHIPS AURORA
