CONTAINERSHIPS VI
9188518 | DABH | CMA by *********************** Last update: Mon Jan 13 2025

General Info

Ship Name:CONTAINERSHIPS VI
IMO Code:9188518
Call Sign:DABH
Line Operator:CMA
Class Name for Sister Ships:FCNS
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:916

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

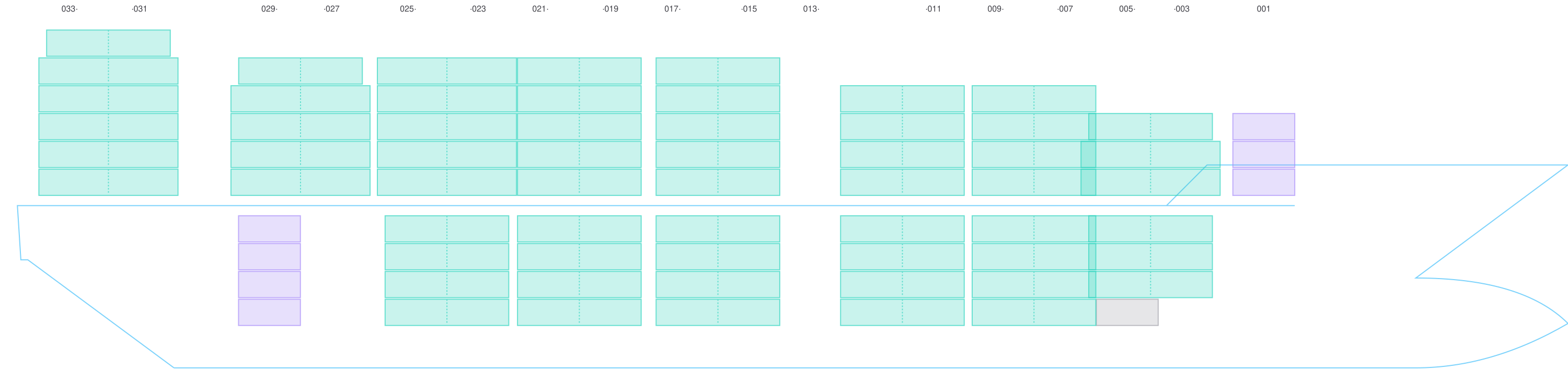

Side View

Side view of CONTAINERSHIPS VI

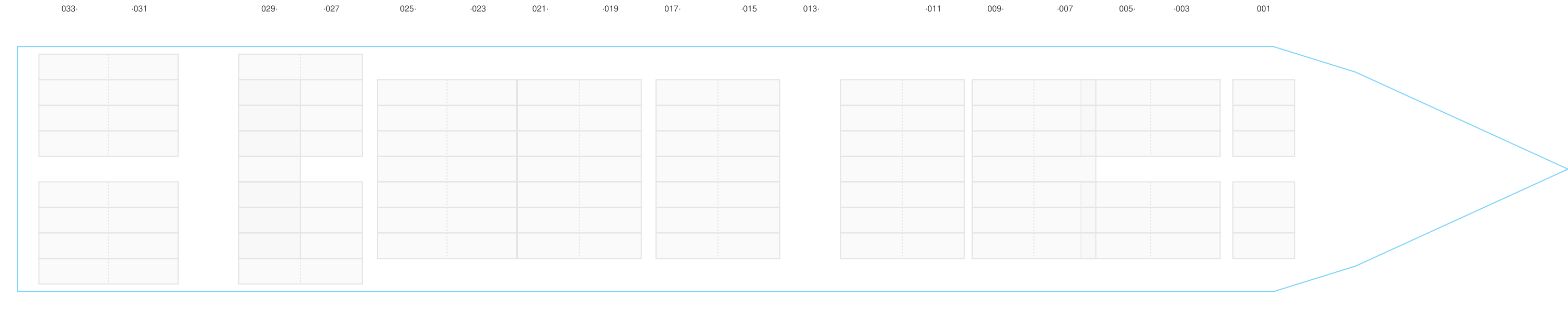

Hatch-Covers View

Deck view of CONTAINERSHIPS VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

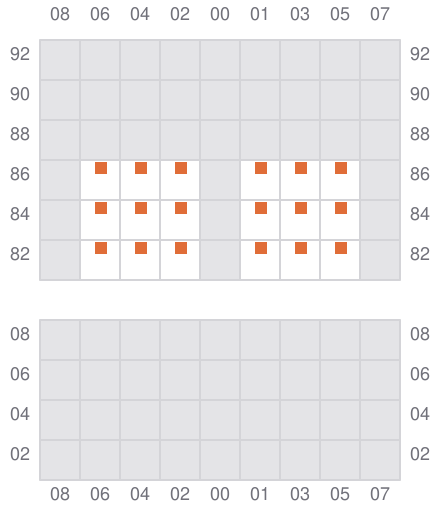

001

  • / ?
Bay 001 view and slots of CONTAINERSHIPS VI

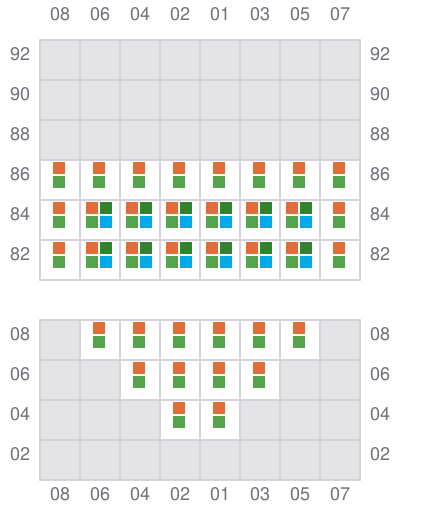

003 (004)

  • / ?
Bay 003 view and slots of CONTAINERSHIPS VI

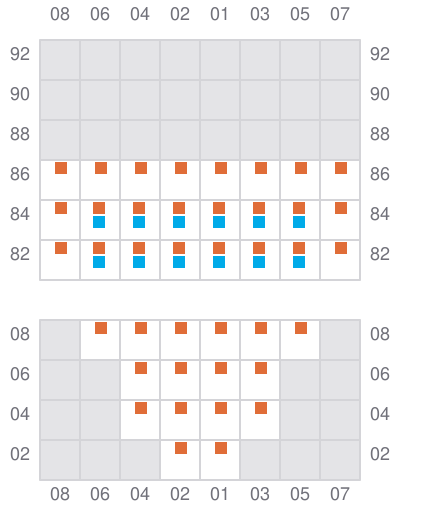

005

  • / ?
Bay 005 view and slots of CONTAINERSHIPS VI

007 (008)

  • / ?

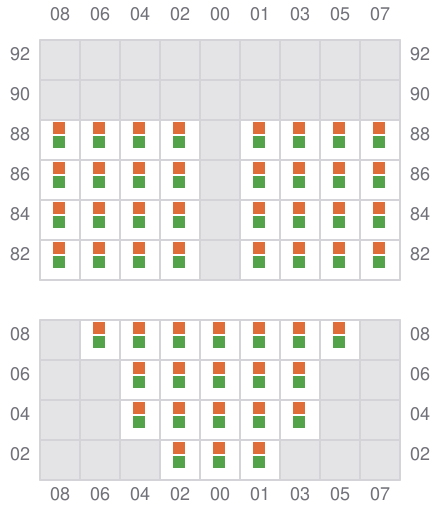

Bay 007 view and slots of CONTAINERSHIPS VI

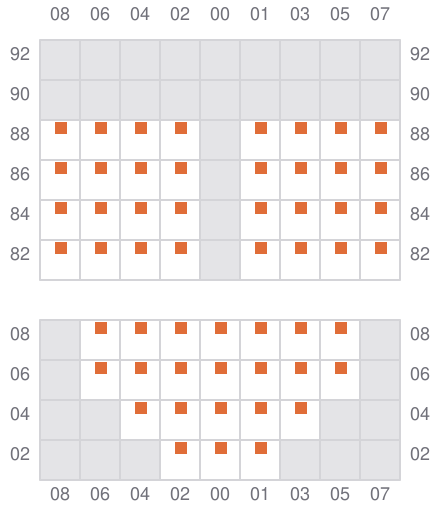

009

  • / ?
Bay 009 view and slots of CONTAINERSHIPS VI

011 (012)

  • / ?

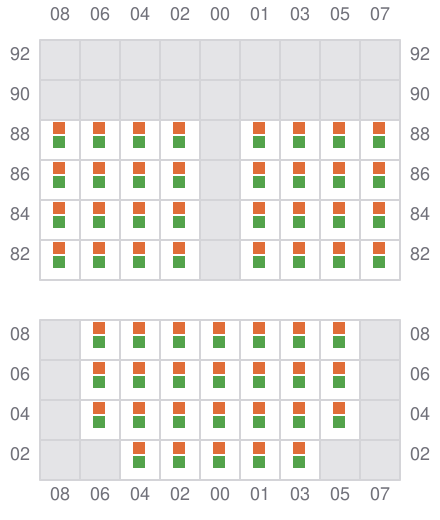

Bay 011 view and slots of CONTAINERSHIPS VI

013

  • / ?

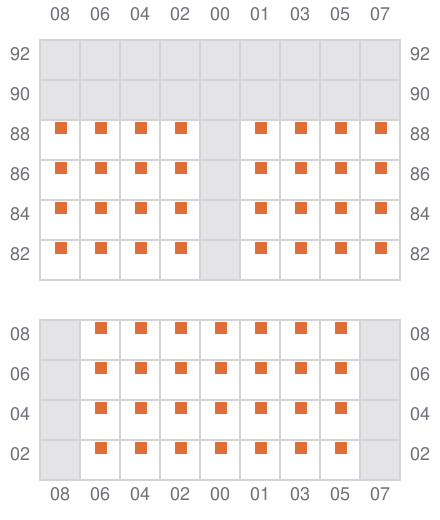

Bay 013 view and slots of CONTAINERSHIPS VI

015 (016)

  • / ?

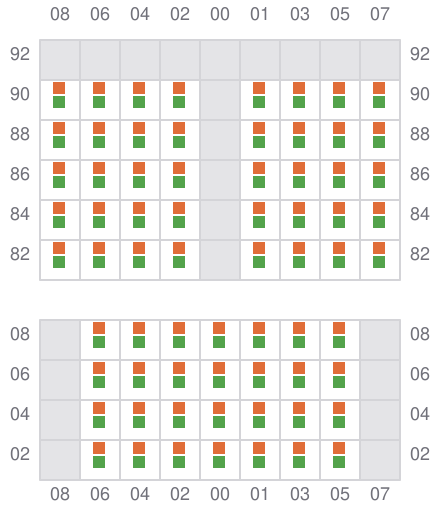

Bay 015 view and slots of CONTAINERSHIPS VI

017

  • / ?

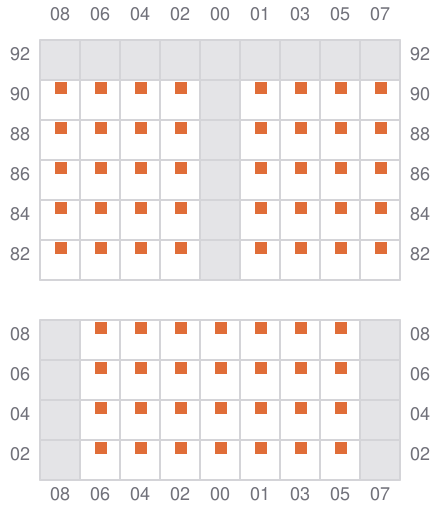

Bay 017 view and slots of CONTAINERSHIPS VI

019 (020)

  • / ?
Bay 019 view and slots of CONTAINERSHIPS VI

021

  • / ?
  • / ?
Bay 021 view and slots of CONTAINERSHIPS VI

023 (024)

  • / ?

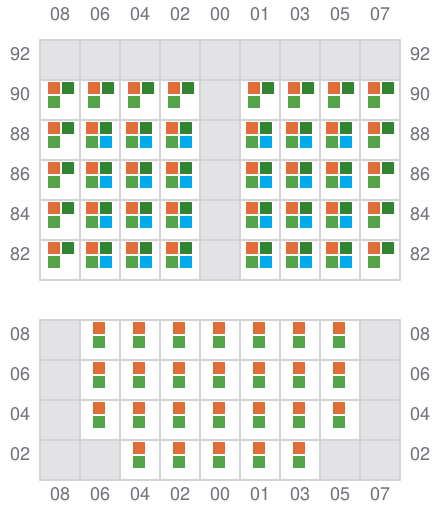

Bay 023 view and slots of CONTAINERSHIPS VI

025

  • / ?

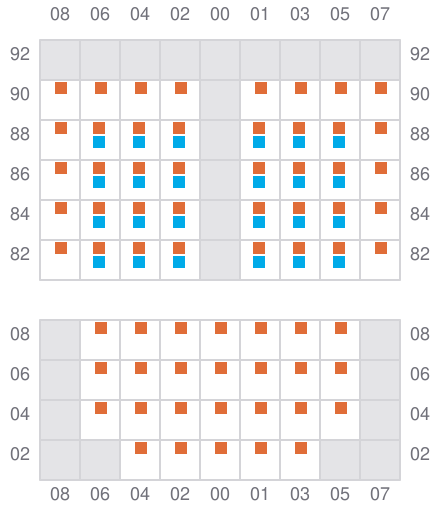

Bay 025 view and slots of CONTAINERSHIPS VI

027 (028)

  • / ?
  • / ?

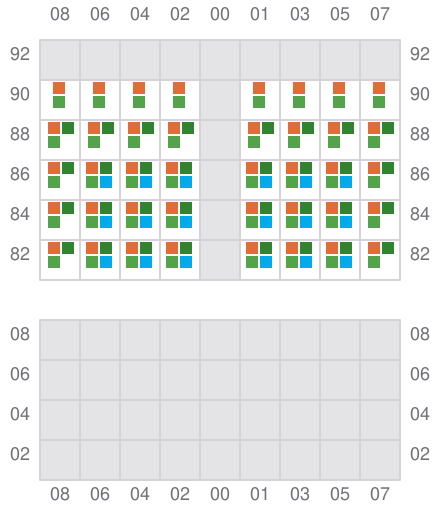

Bay 027 view and slots of CONTAINERSHIPS VI

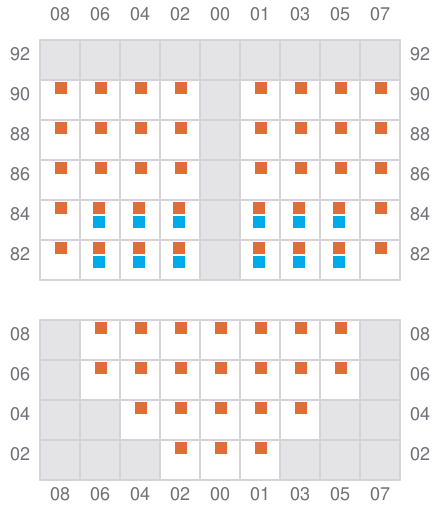

029

  • / ?
Bay 029 view and slots of CONTAINERSHIPS VI

031 (032)

  • / ?
  • / ?

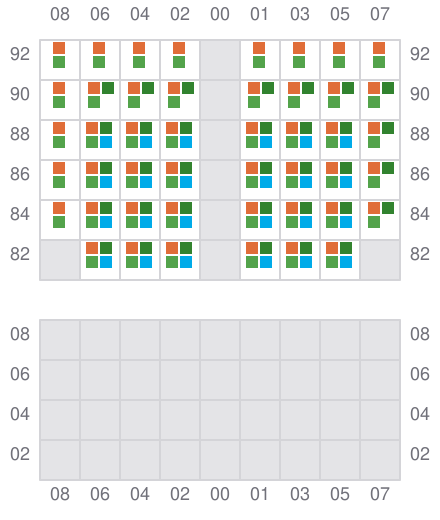

Bay 031 view and slots of CONTAINERSHIPS VI

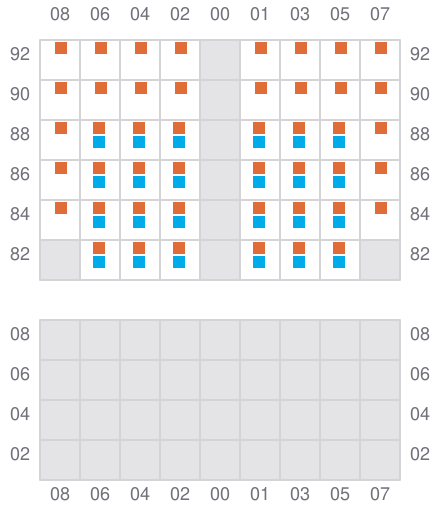

033

  • / ?
  • / ?
Bay 033 view and slots of CONTAINERSHIPS VI
