CONTAINERSHIPS VIII
9336244 | DDAF2 | CMA by *********************** Last update: Fri Jan 24 2025

General Info

Ship Name:CONTAINERSHIPS VIII
IMO Code:9336244
Call Sign:DDAF2
Line Operator:CMA
Class Name for Sister Ships:FCSV
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:860

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of CONTAINERSHIPS VIII

Hatch-Covers View

Deck view of CONTAINERSHIPS VIII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • → / ?

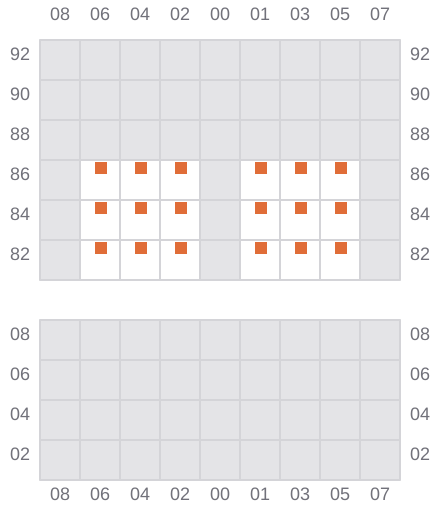

Bay 001 view and slots of CONTAINERSHIPS VIII

003 (004)

  • →
  • → / ?
  • →

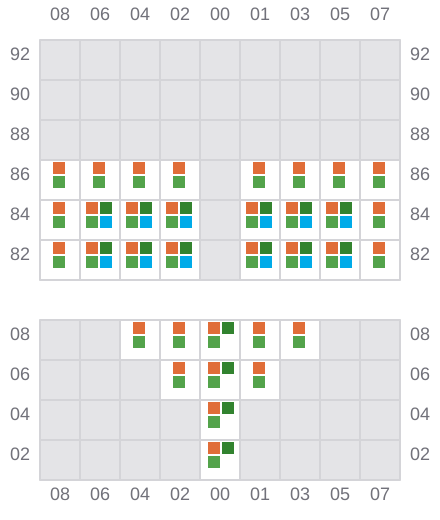

Bay 003 view and slots of CONTAINERSHIPS VIII

005

  • ←
  • → / ?
  • →
Bay 005 view and slots of CONTAINERSHIPS VIII

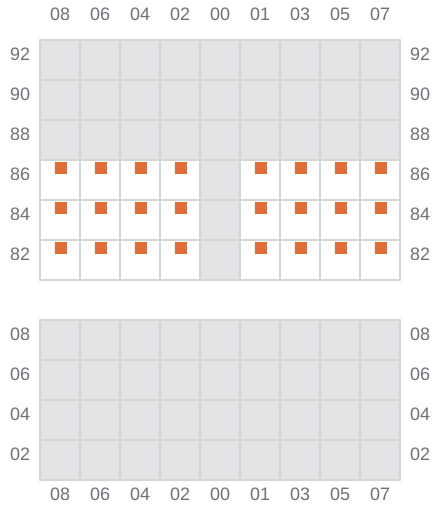

007

  • → / ?
  • → / ?
Bay 007 view and slots of CONTAINERSHIPS VIII

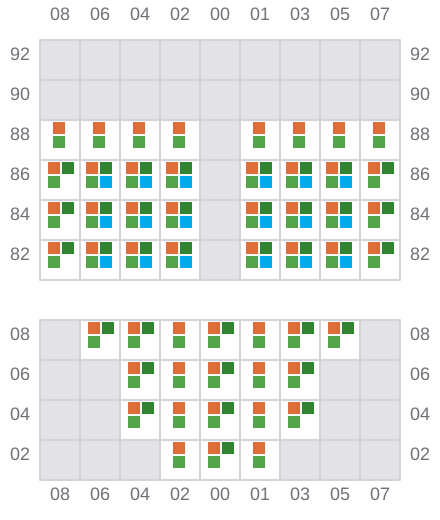

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of CONTAINERSHIPS VIII

011

  • ←
  • → / ?
  • →

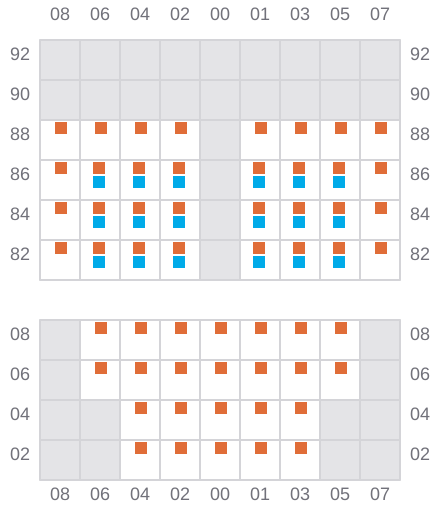

Bay 011 view and slots of CONTAINERSHIPS VIII

013 (014)

  • →
  • → / ?
  • →

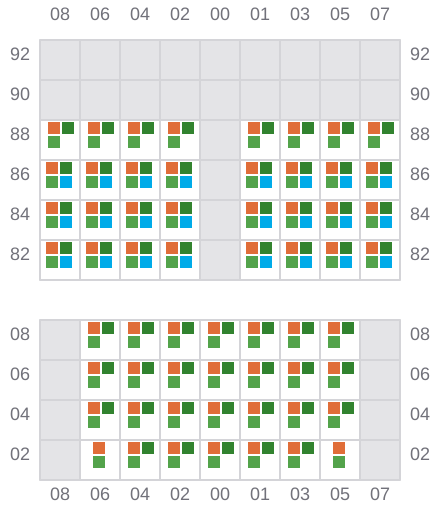

Bay 013 view and slots of CONTAINERSHIPS VIII

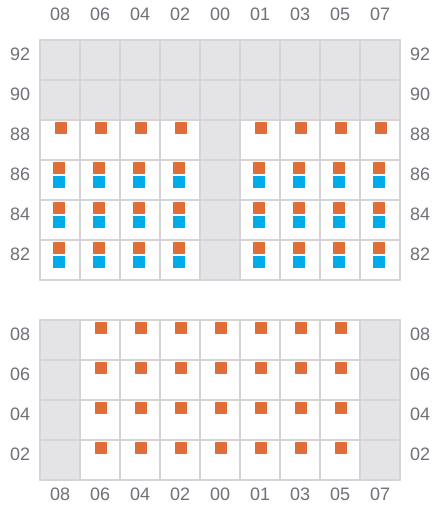

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of CONTAINERSHIPS VIII

017 (018)

  • →
  • → / ?
  • →

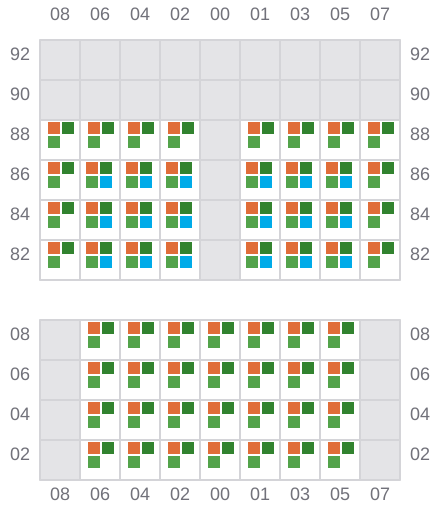

Bay 017 view and slots of CONTAINERSHIPS VIII

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CONTAINERSHIPS VIII

021

  • ← / ?
  • → / ?

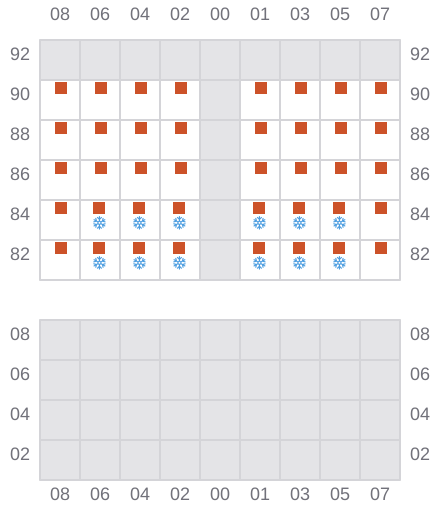

Bay 021 view and slots of CONTAINERSHIPS VIII

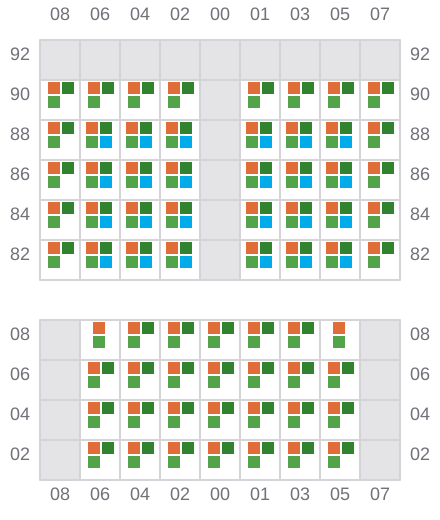

023 (024)

  • →
  • → / ?
  • →
Bay 023 view and slots of CONTAINERSHIPS VIII

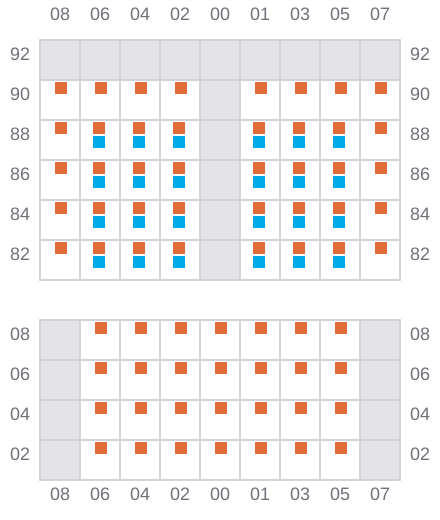

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of CONTAINERSHIPS VIII

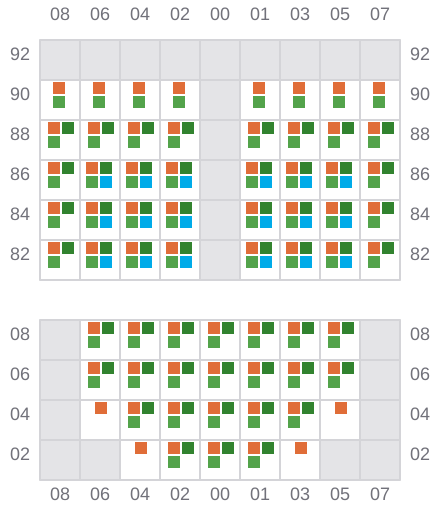

027 (028)

  • →
  • → / ?
  • →
Bay 027 view and slots of CONTAINERSHIPS VIII

029

  • ←
  • → / ?
  • →

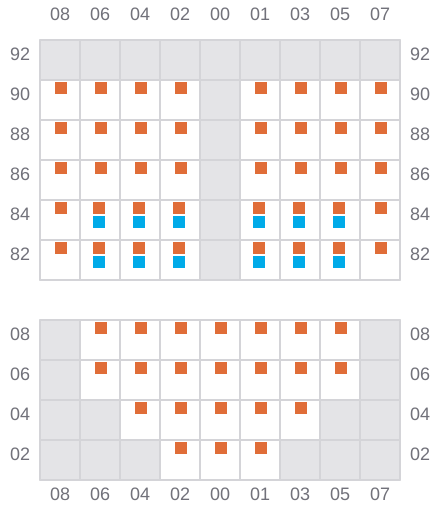

Bay 029 view and slots of CONTAINERSHIPS VIII

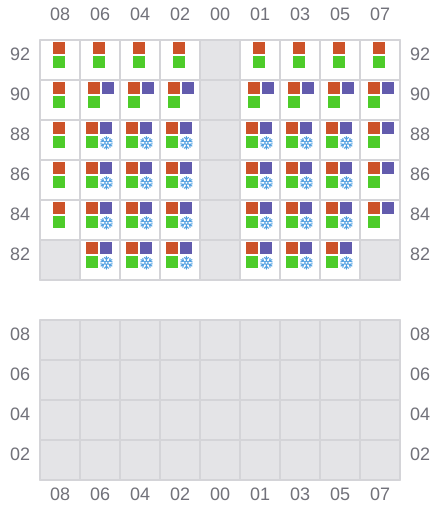

031 (032)

  • → / ?
  • → / ?
  • → / ?
Bay 031 view and slots of CONTAINERSHIPS VIII

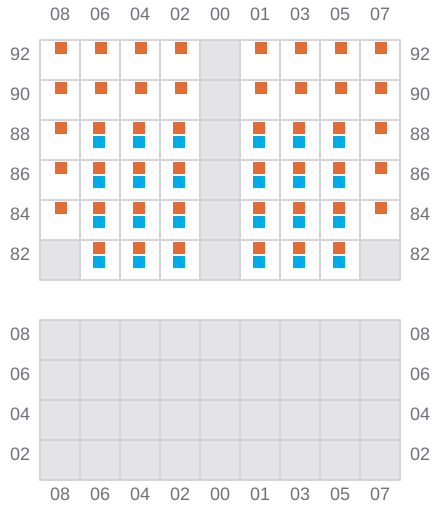

033

  • ← / ?
  • → / ?
  • → / ?
Bay 033 view and slots of CONTAINERSHIPS VIII
