CONTI CHIVALRY
9293791 | 5LFC5 | 9293791 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:CONTI CHIVALRY
IMO Code:9293791
Call Sign:5LFC5
Line Operator:9293791
Class Name for Sister Ships:EVER CHIVALRY
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):333.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:11,483
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

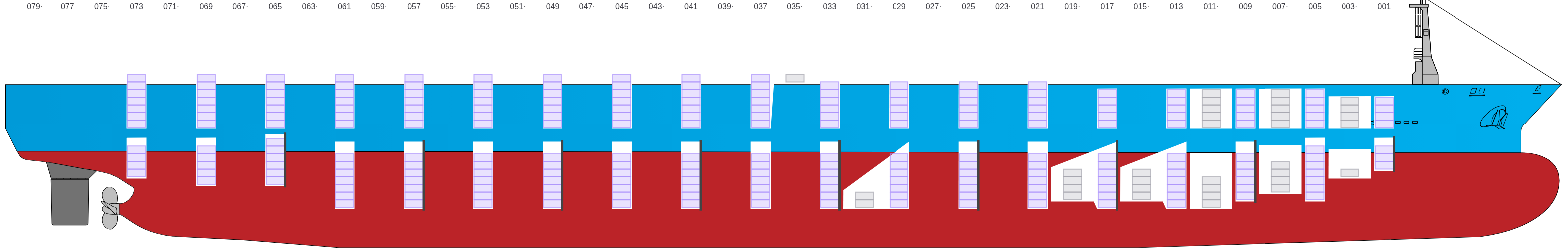

Side View
![Side view of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-sideView.png?v=1713981153711)

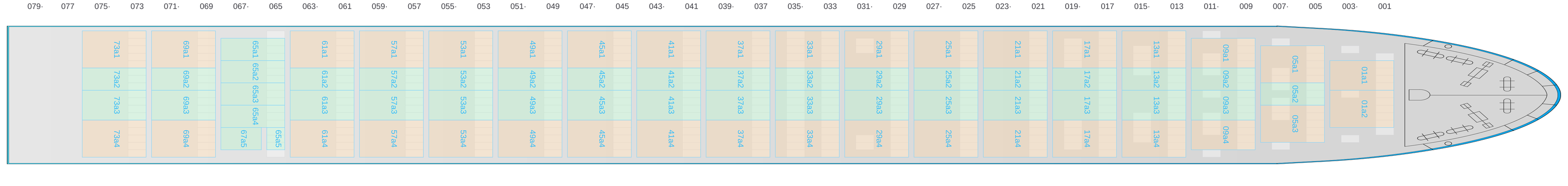

Hatch-Covers View
![Deck view of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-deckView.png?v=1713981153711)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

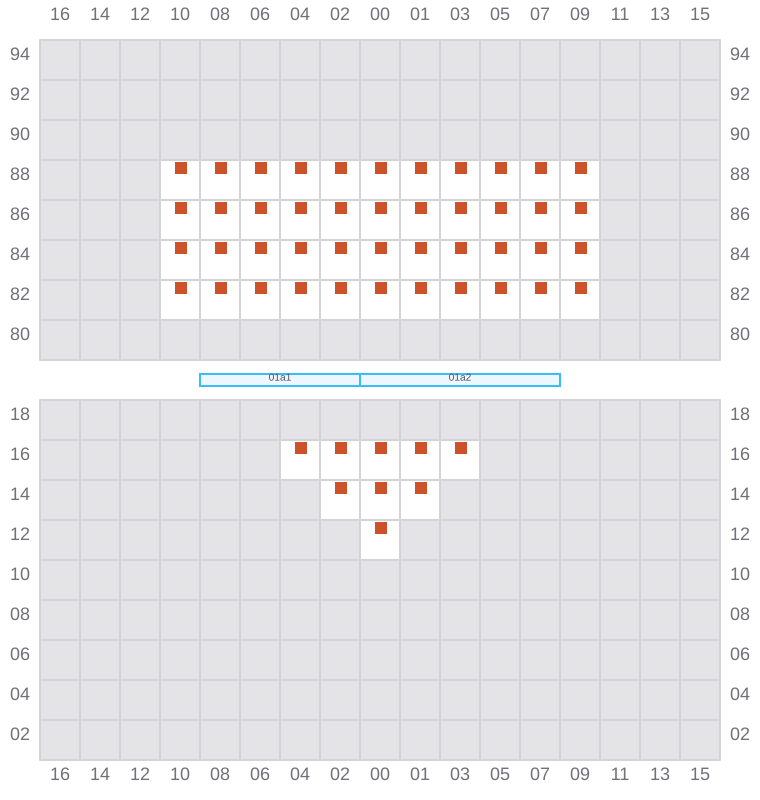

001
- →
![Bay 001 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b001.png?v=1713981153711)

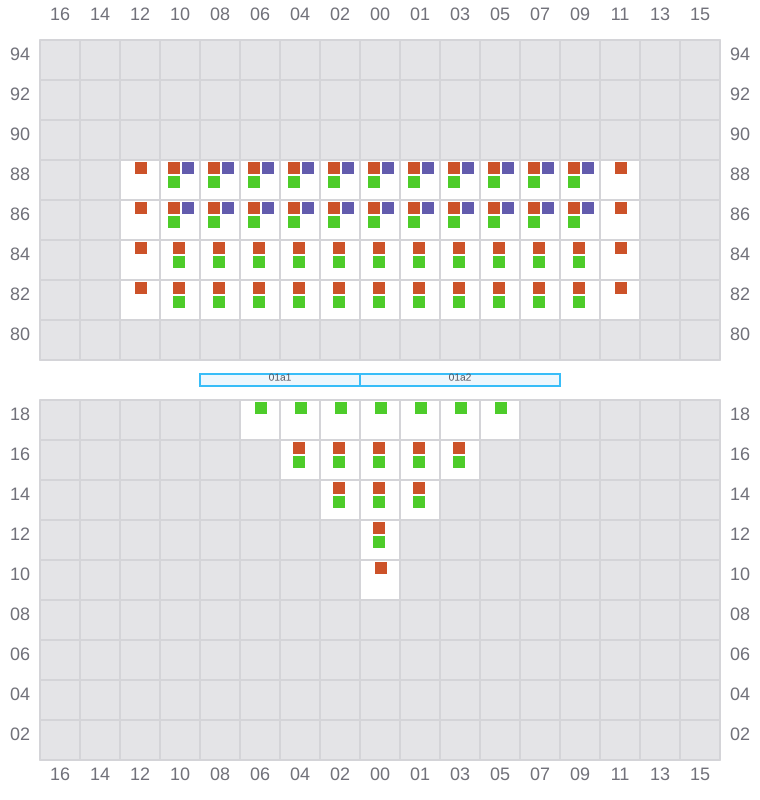

003 (002)
- ←
- →
![Bay 003 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b003.png?v=1713981153711)

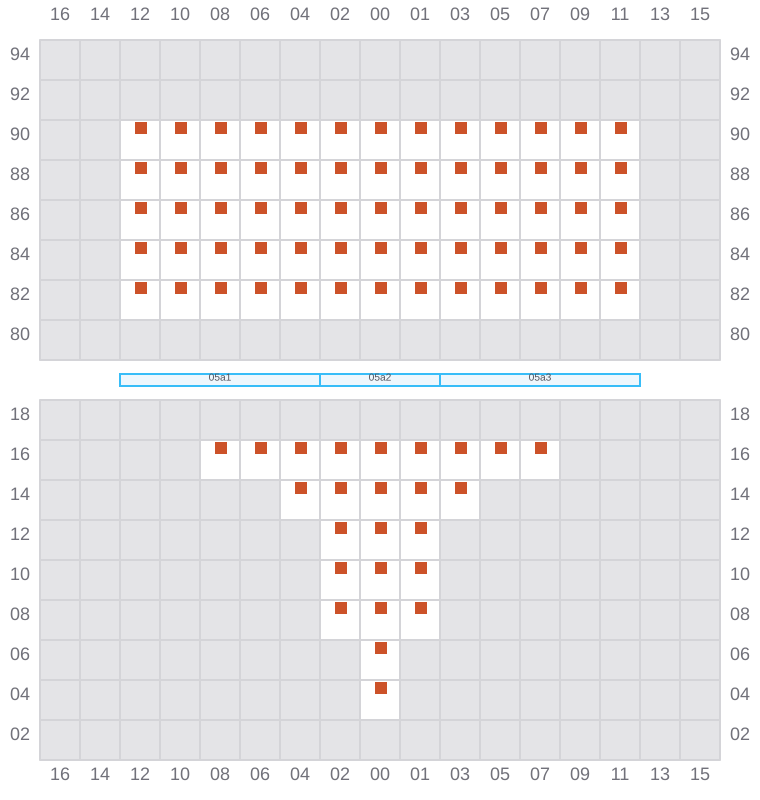

005
- →
![Bay 005 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b005.png?v=1713981153711)

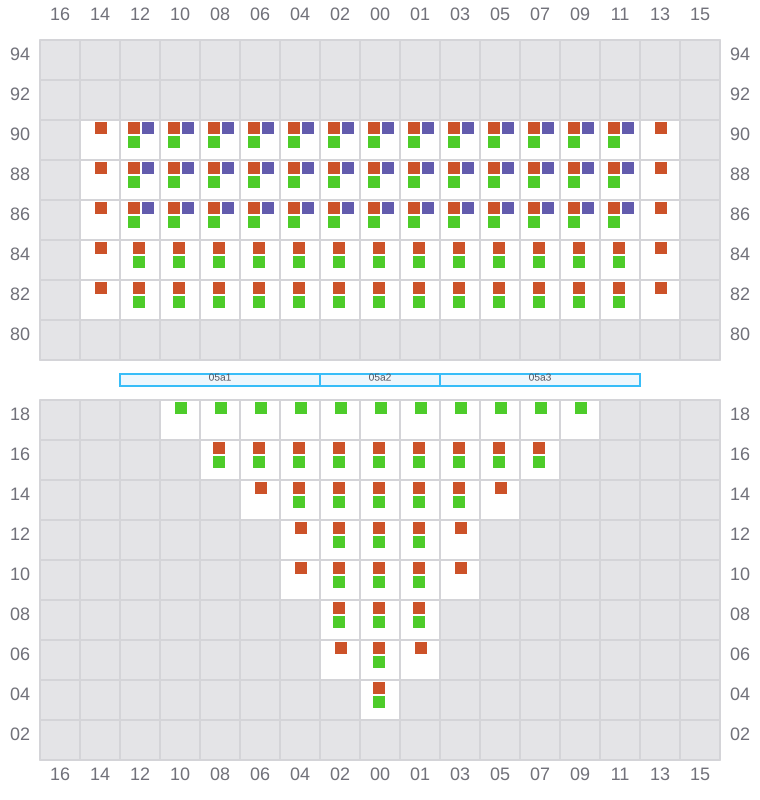

007 (006)
- ←
- →
![Bay 007 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b007.png?v=1713981153711)

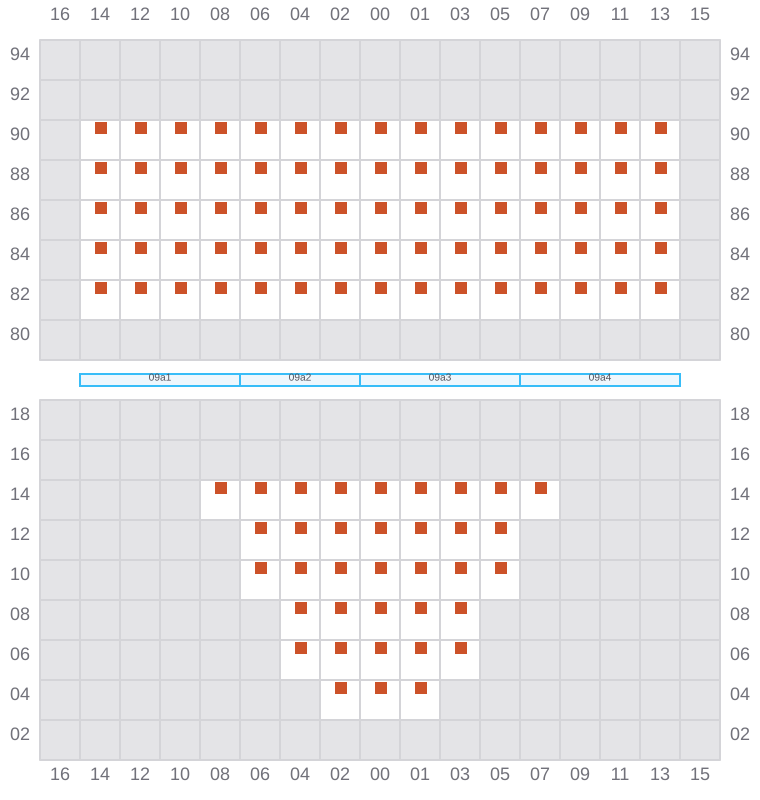

009
- →
![Bay 009 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b009.png?v=1713981153711)

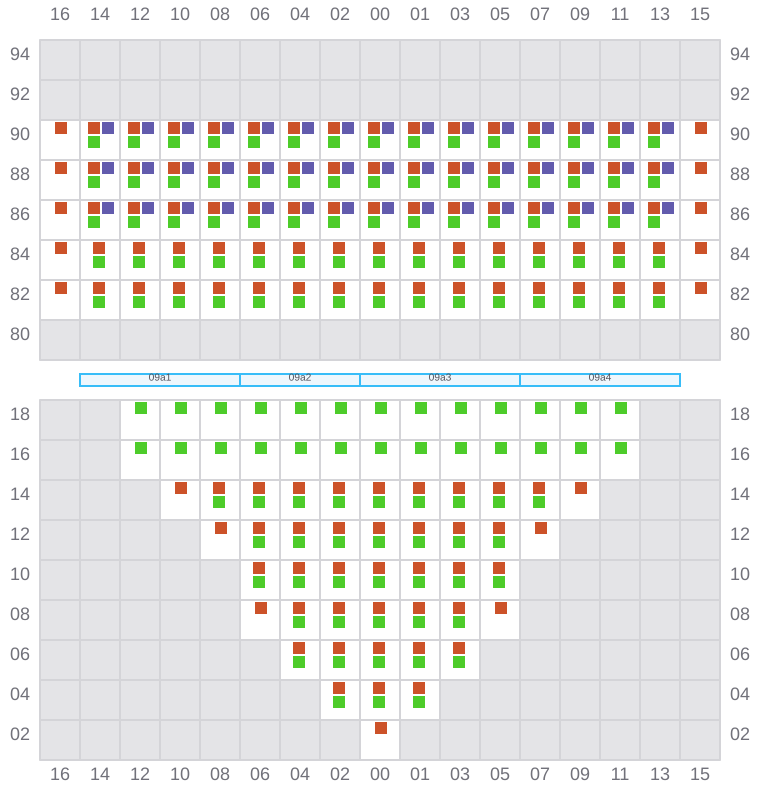

011 (010)
- ←
- →
![Bay 011 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b011.png?v=1713981153711)

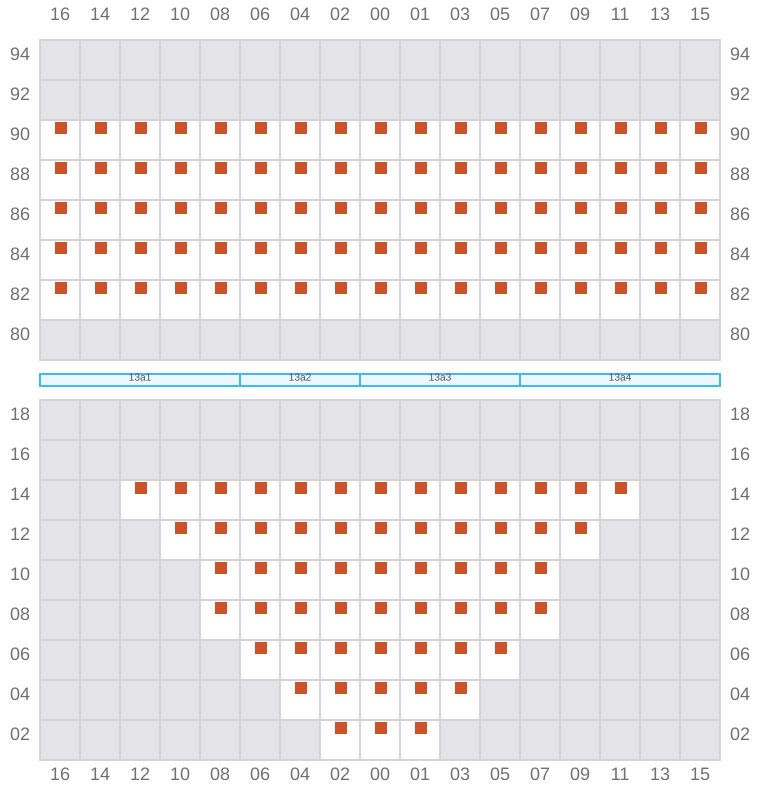

013
- →
![Bay 013 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b013.png?v=1713981153711)

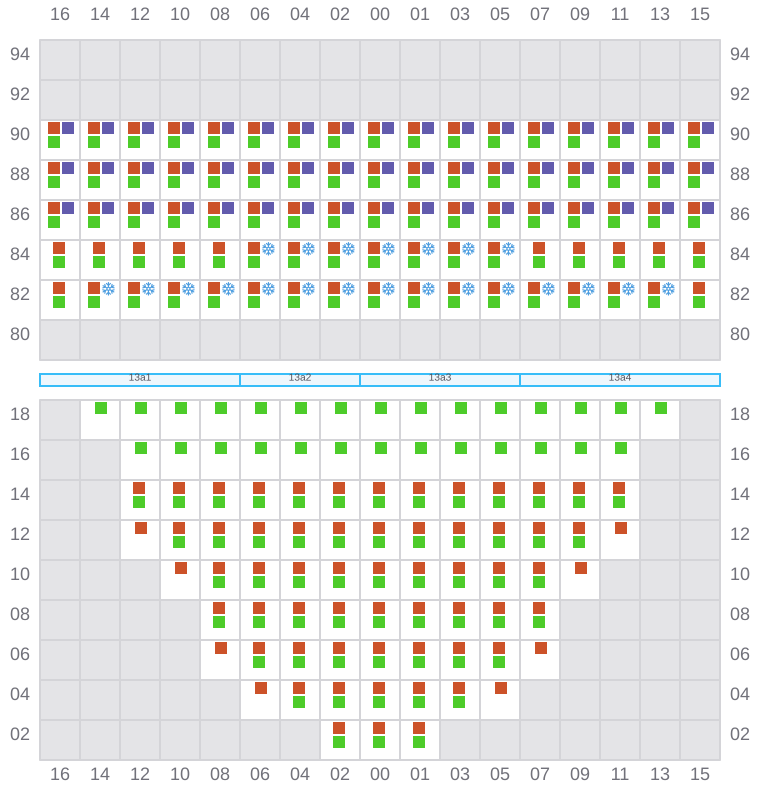

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b015.png?v=1713981153711)

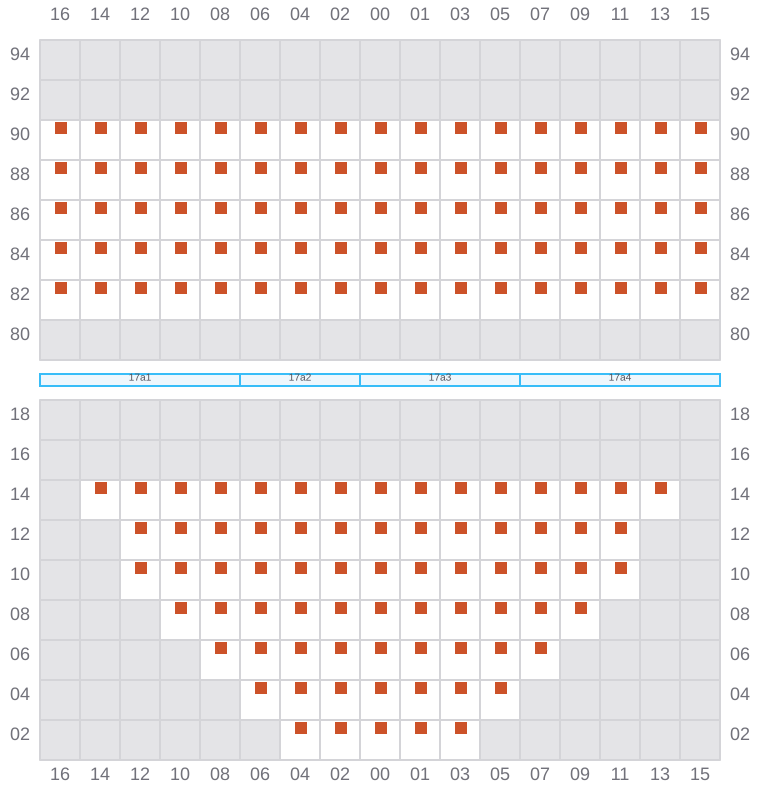

017
- →
![Bay 017 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b017.png?v=1713981153711)

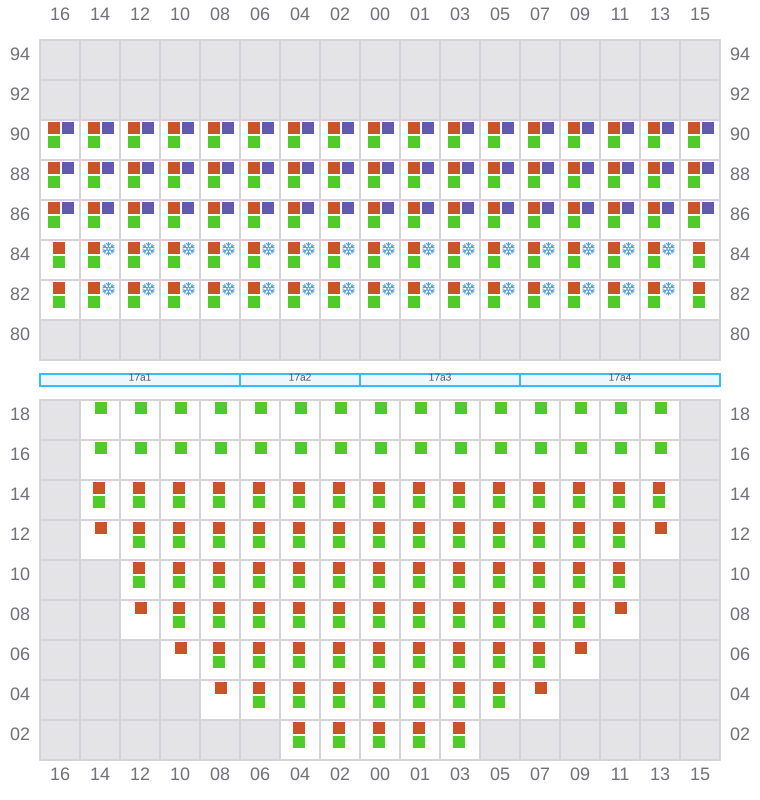

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b019.png?v=1713981153711)

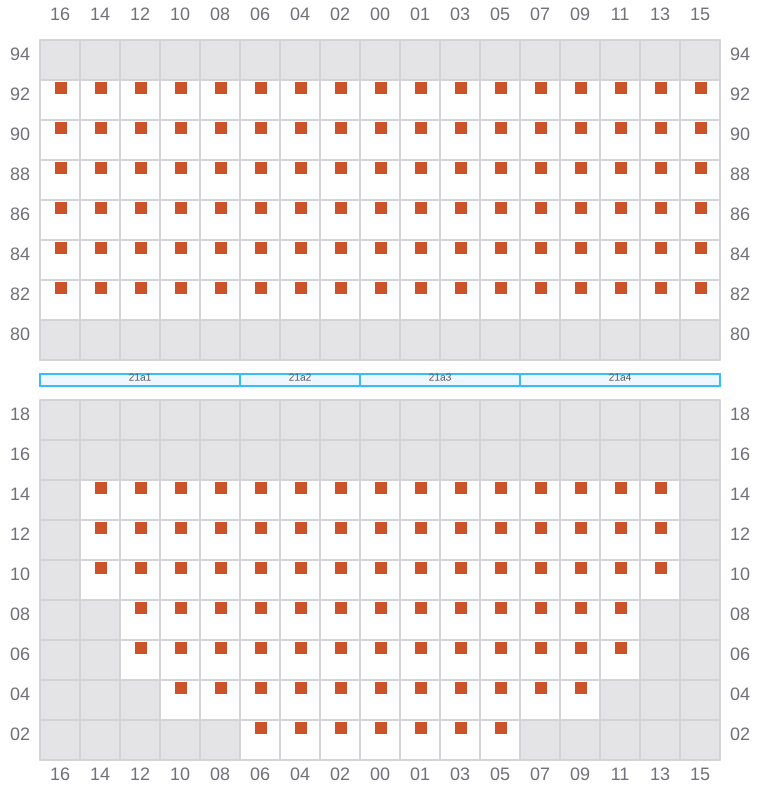

021
- →
![Bay 021 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b021.png?v=1713981153711)

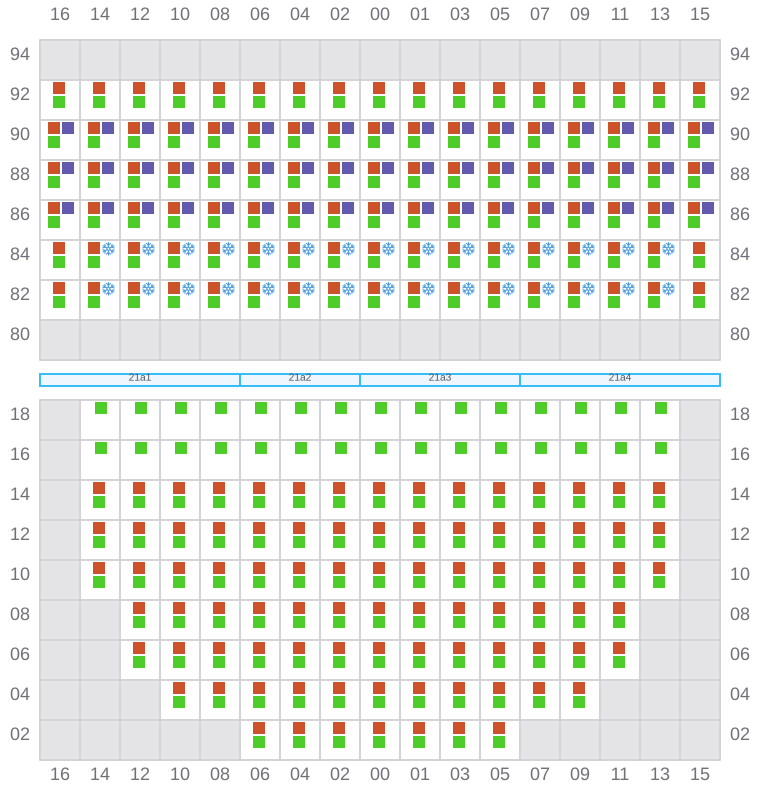

023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b023.png?v=1713981153711)

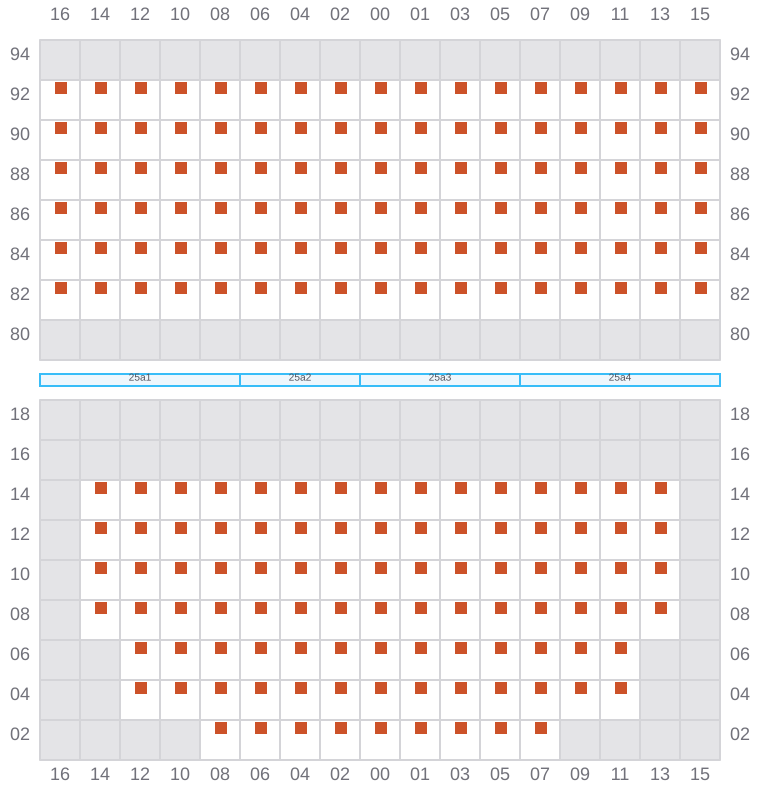

025
- →
![Bay 025 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b025.png?v=1713981153711)

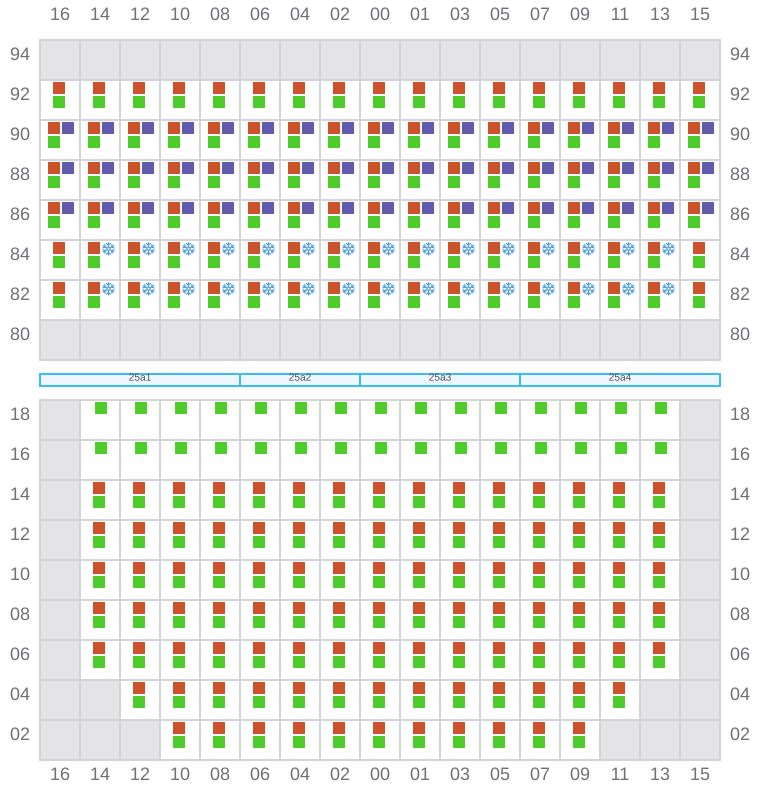

027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b027.png?v=1713981153711)

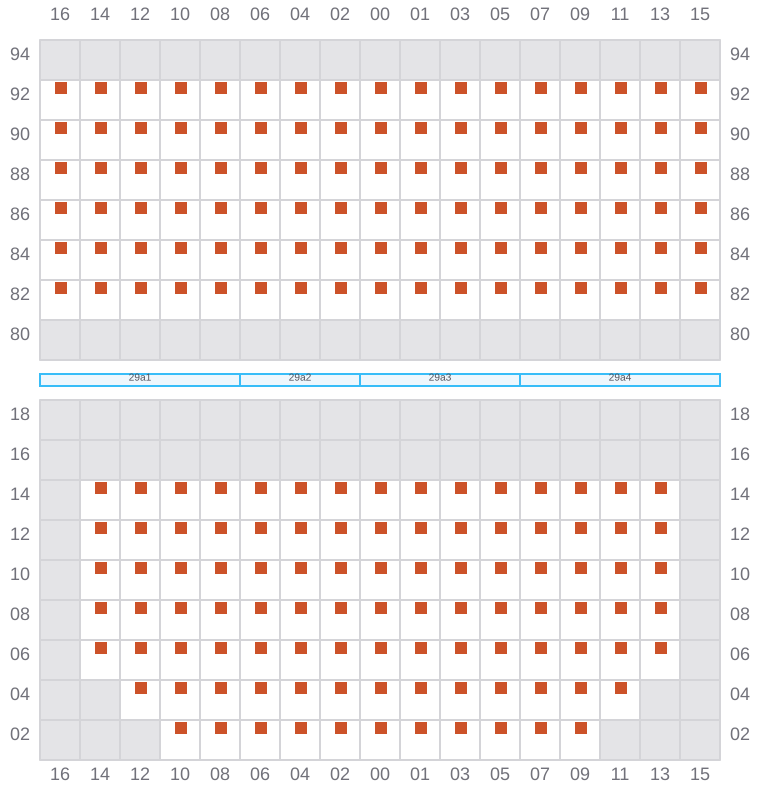

029
- →
![Bay 029 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b029.png?v=1713981153711)

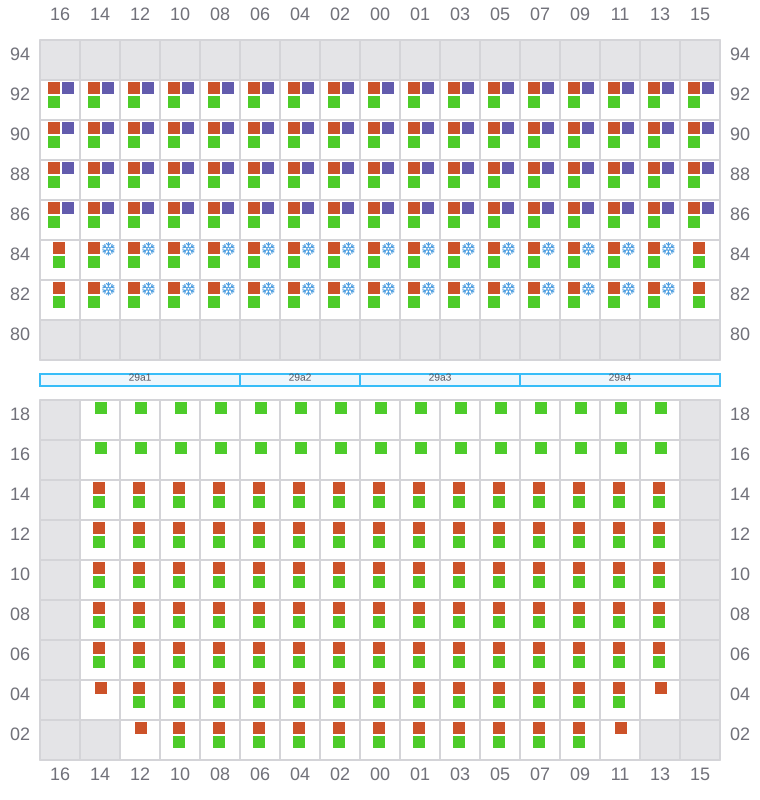

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b031.png?v=1713981153711)

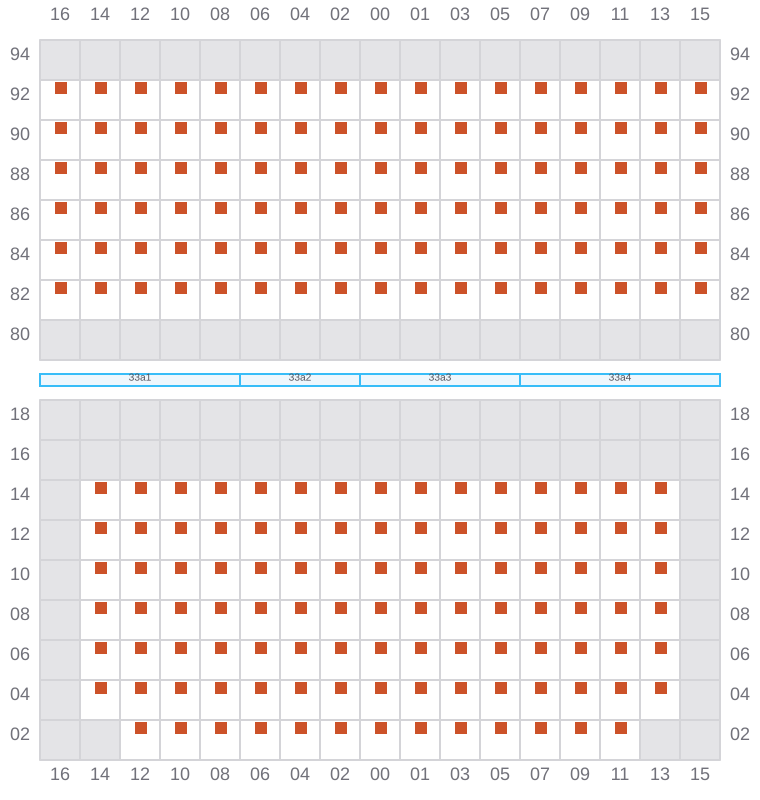

033
- →
![Bay 033 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b033.png?v=1713981153711)

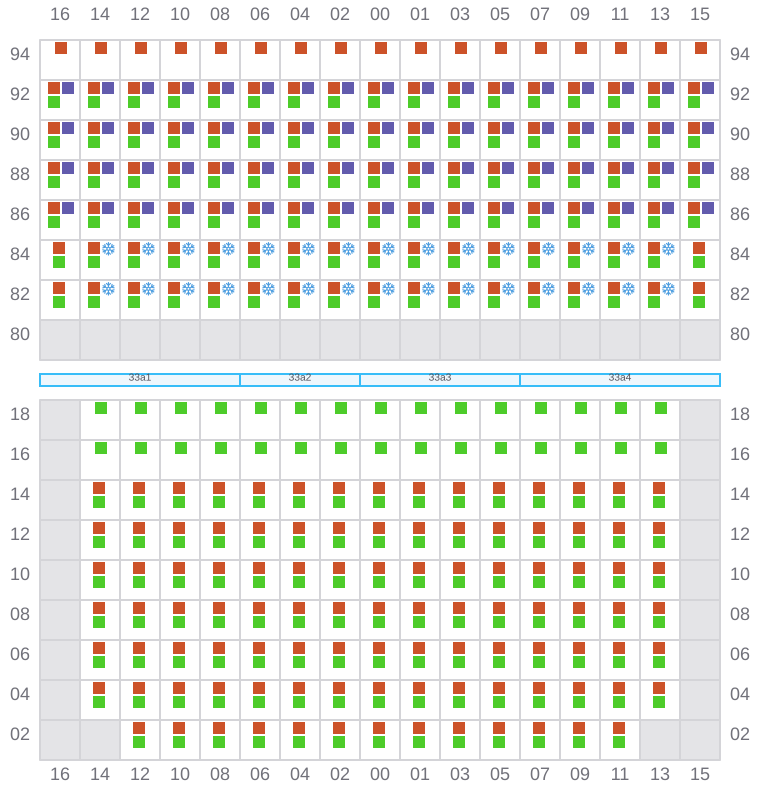

035 (034)
- ←
- → / ?
- →
![Bay 035 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b035.png?v=1713981153711)
037
- →
![Bay 037 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b037.png?v=1713981153711)
039 (038)
- ←
- → / ?
- →
![Bay 039 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b039.png?v=1713981153711)

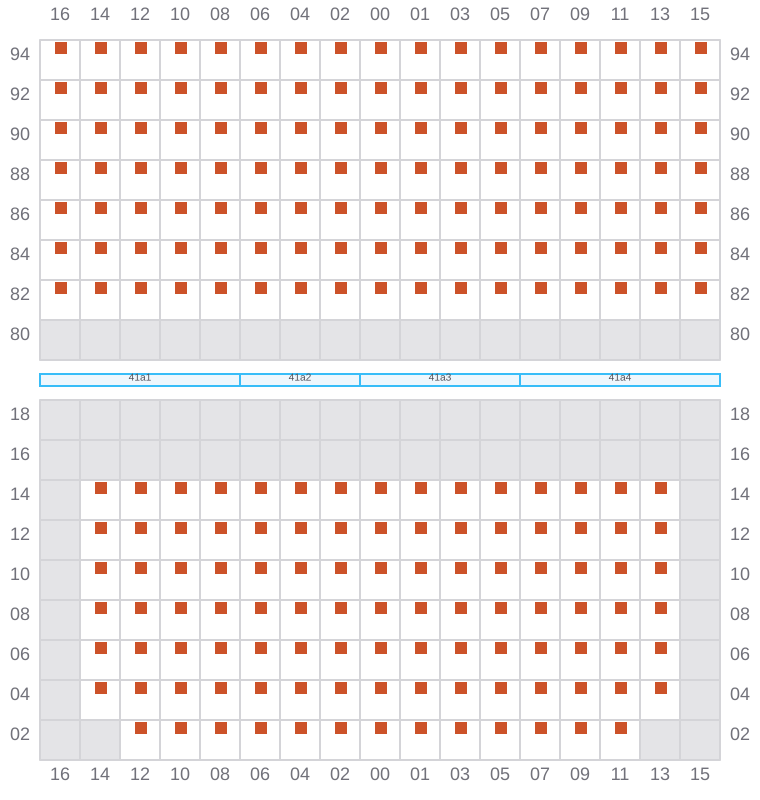

041
- →
![Bay 041 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b041.png?v=1713981153711)
043 (042)
- ←
- → / ?
- →
![Bay 043 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b043.png?v=1713981153711)
045
- →
![Bay 045 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b045.png?v=1713981153711)
047 (046)
- ←
- → / ?
- →
![Bay 047 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b047.png?v=1713981153711)

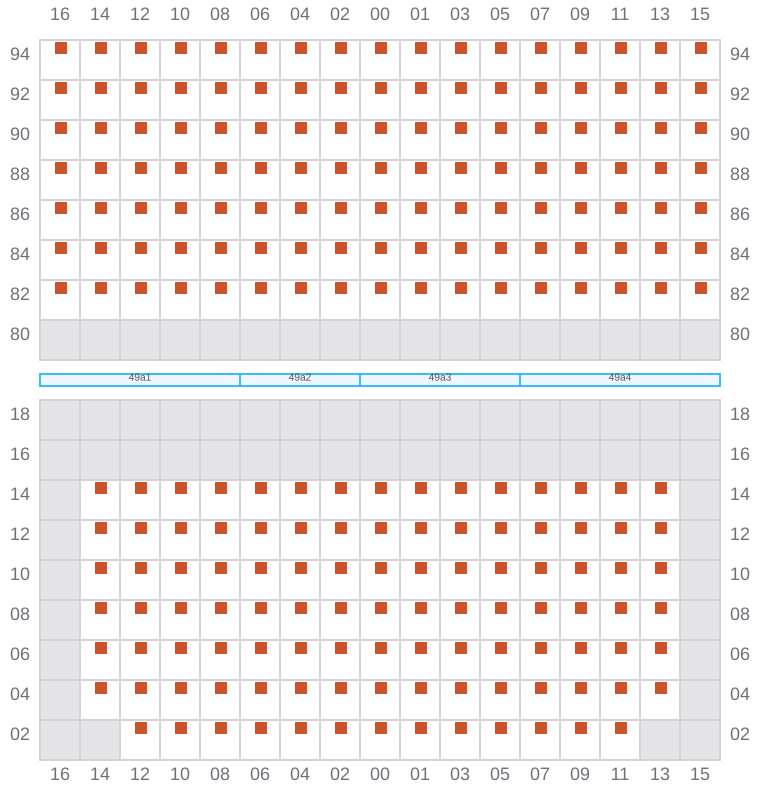

049
- →
![Bay 049 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b049.png?v=1713981153711)
051 (050)
- ←
- → / ?
- →
![Bay 051 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b051.png?v=1713981153711)

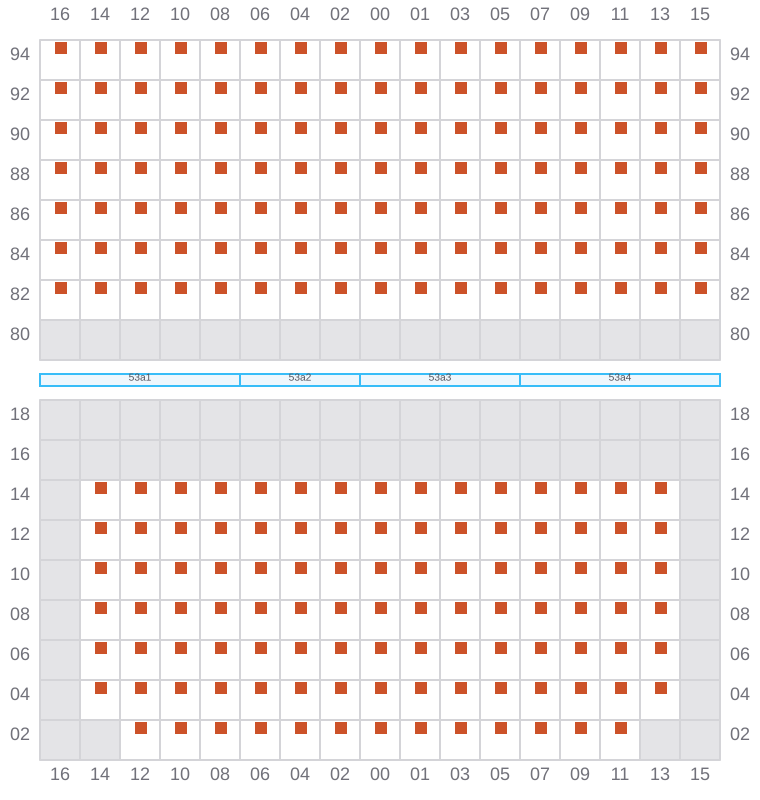

053
- →
![Bay 053 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b053.png?v=1713981153711)

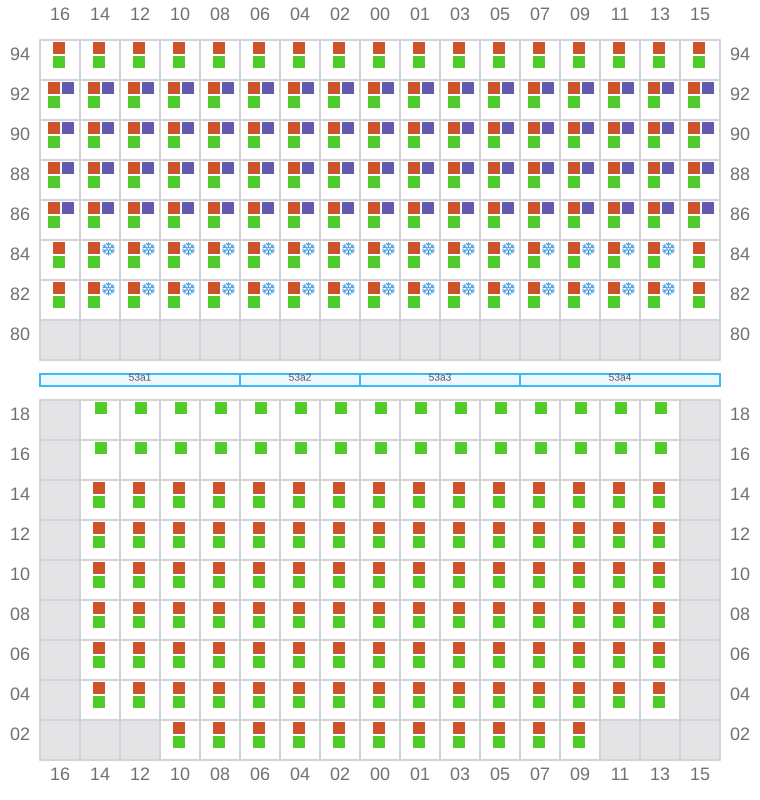

055 (054)
- ←
- → / ?
- →
![Bay 055 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b055.png?v=1713981153711)

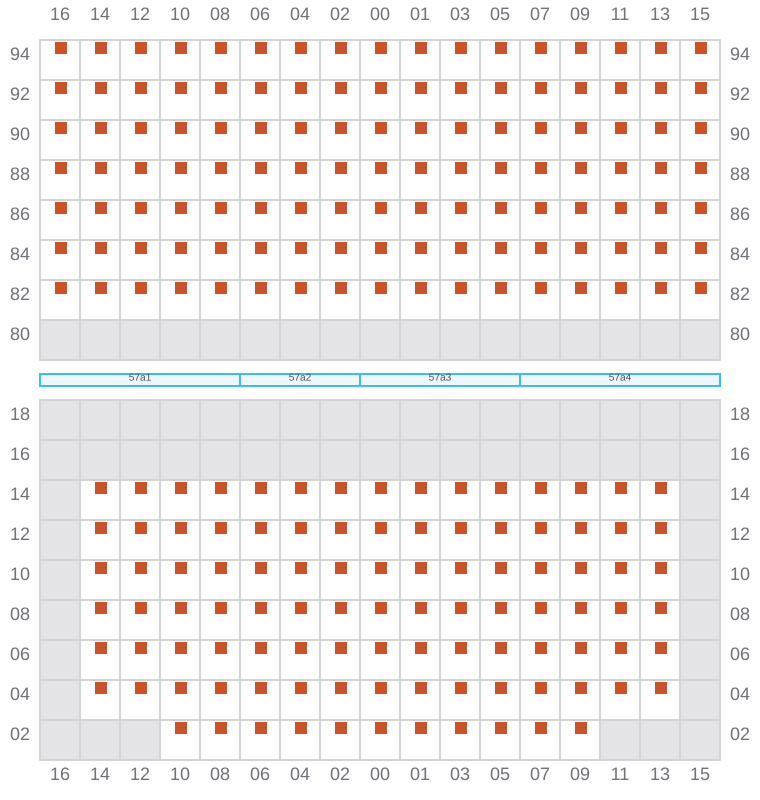

057
- →
![Bay 057 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b057.png?v=1713981153711)

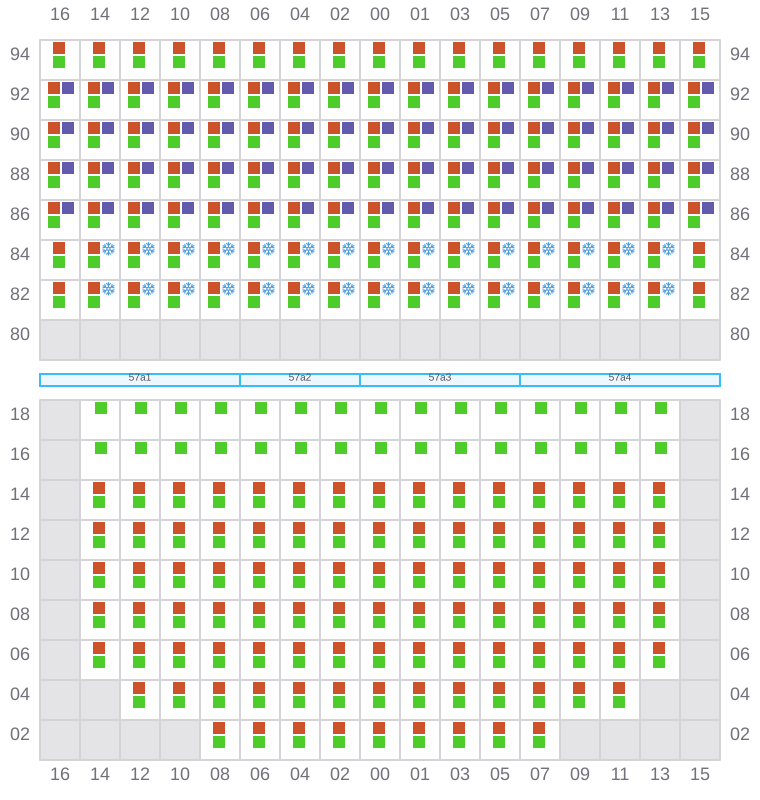

059 (058)
- ←
- → / ?
- →
![Bay 059 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b059.png?v=1713981153711)

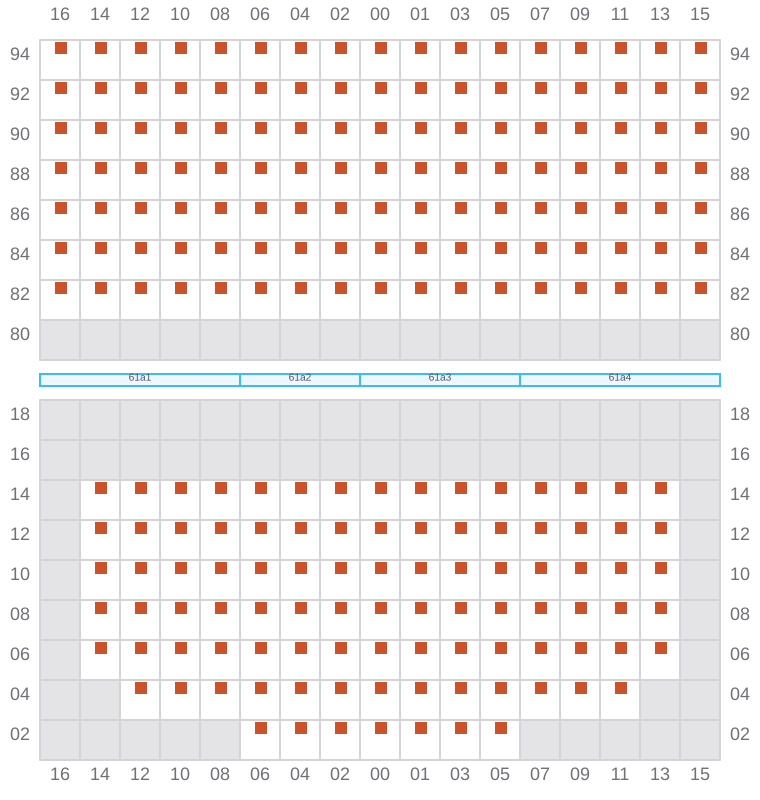

061
- →
![Bay 061 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b061.png?v=1713981153711)

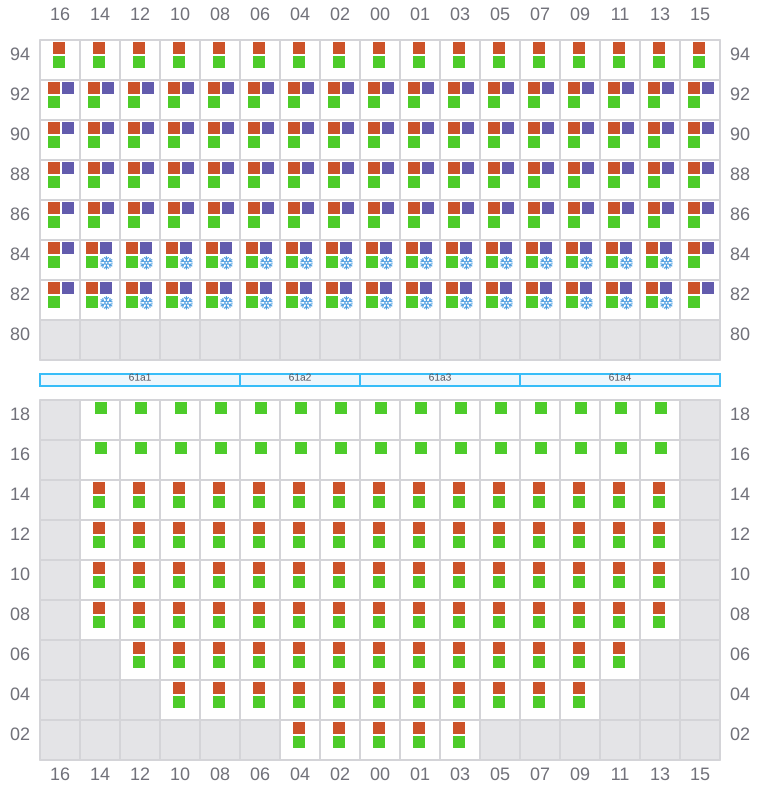

063 (062)
- ←
- → / ?
- →
![Bay 063 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b063.png?v=1713981153711)

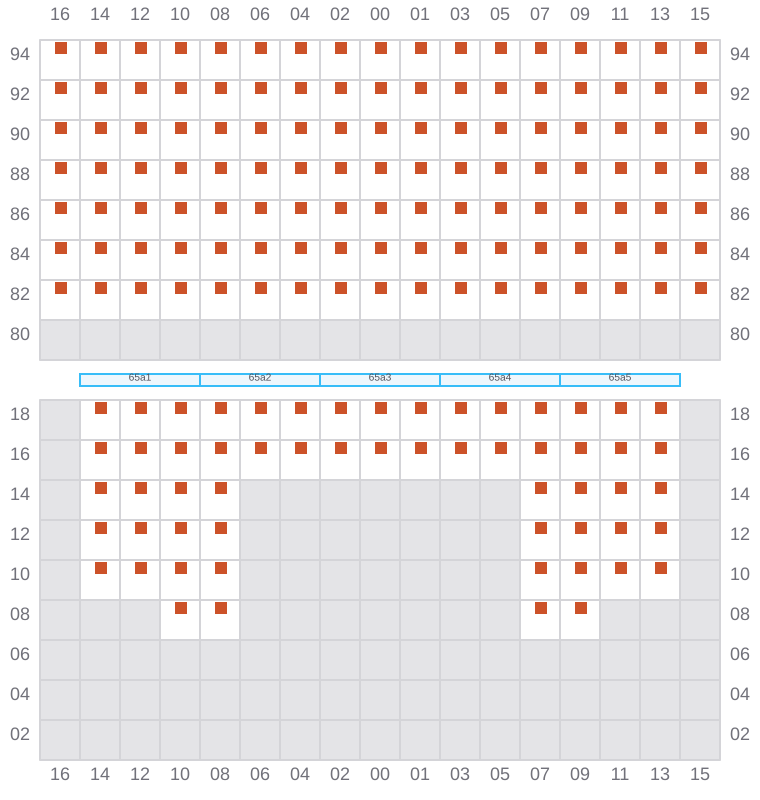

065
- →
![Bay 065 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b065.png?v=1713981153711)

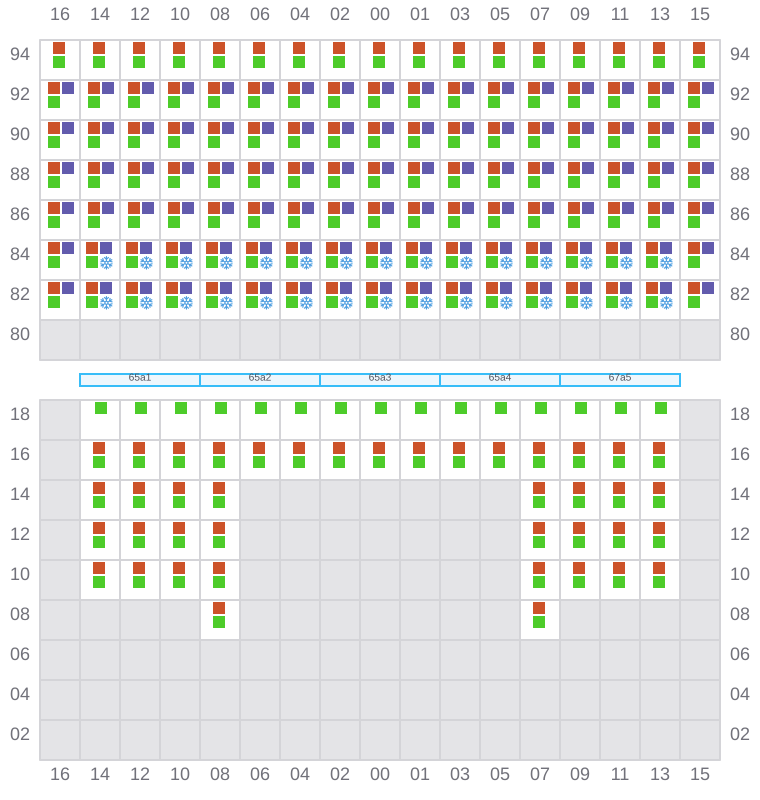

067 (066)
- ←
- → / ?
- →
![Bay 067 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b067.png?v=1713981153711)

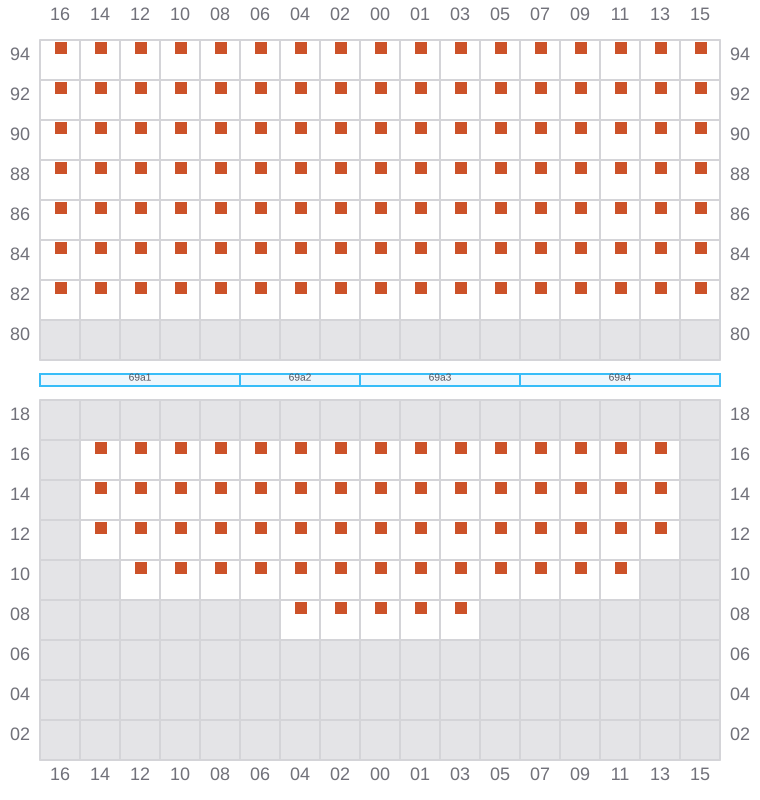

069
- →
![Bay 069 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b069.png?v=1713981153711)

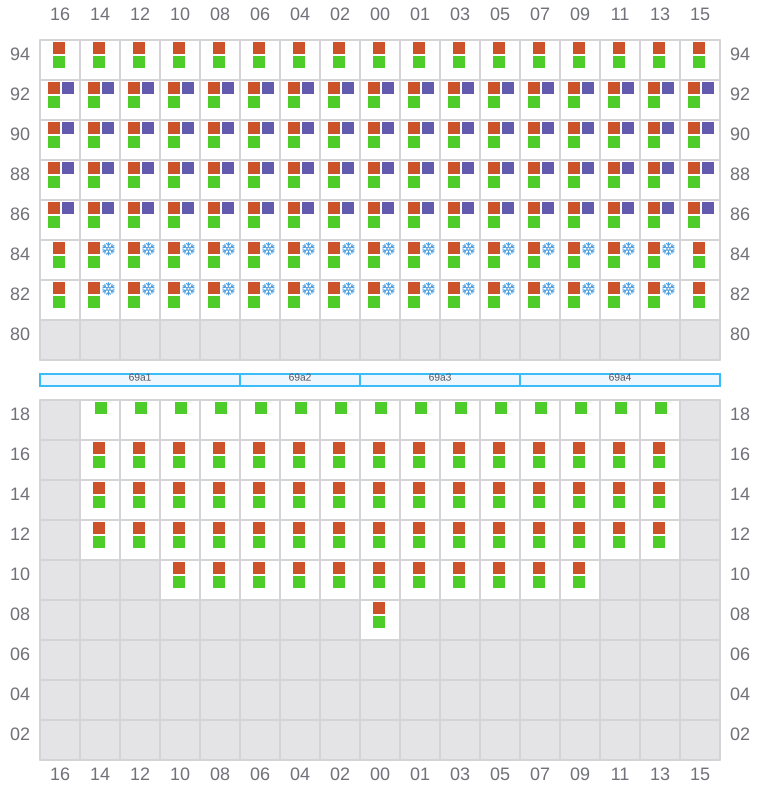

071 (070)
- ←
- → / ?
- →
![Bay 071 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b071.png?v=1713981153711)

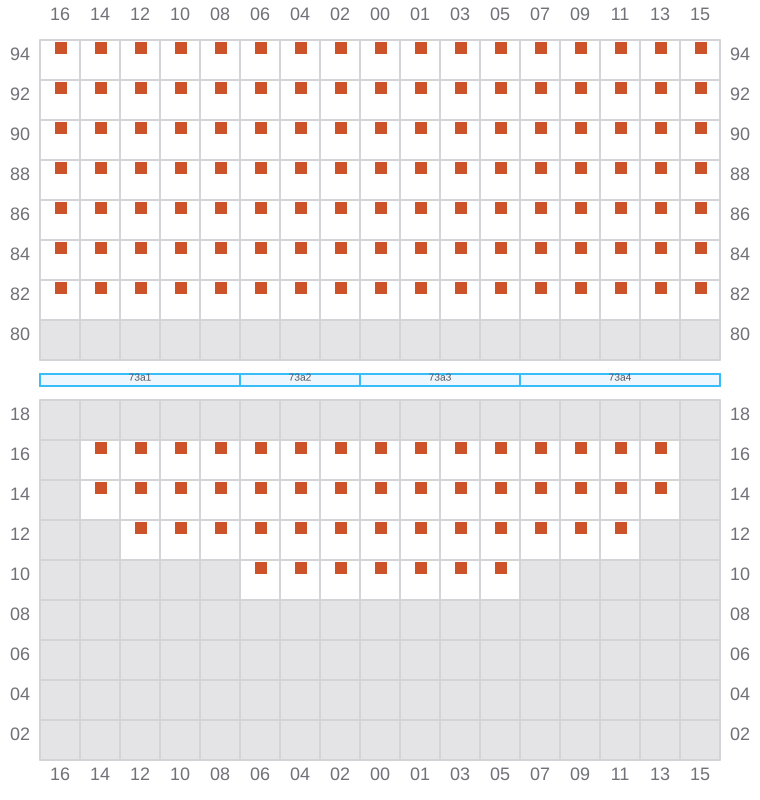

073
- →
![Bay 073 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b073.png?v=1713981153711)
075 (074)
- ←
- → / ?
- →
![Bay 075 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b075.png?v=1713981153711)

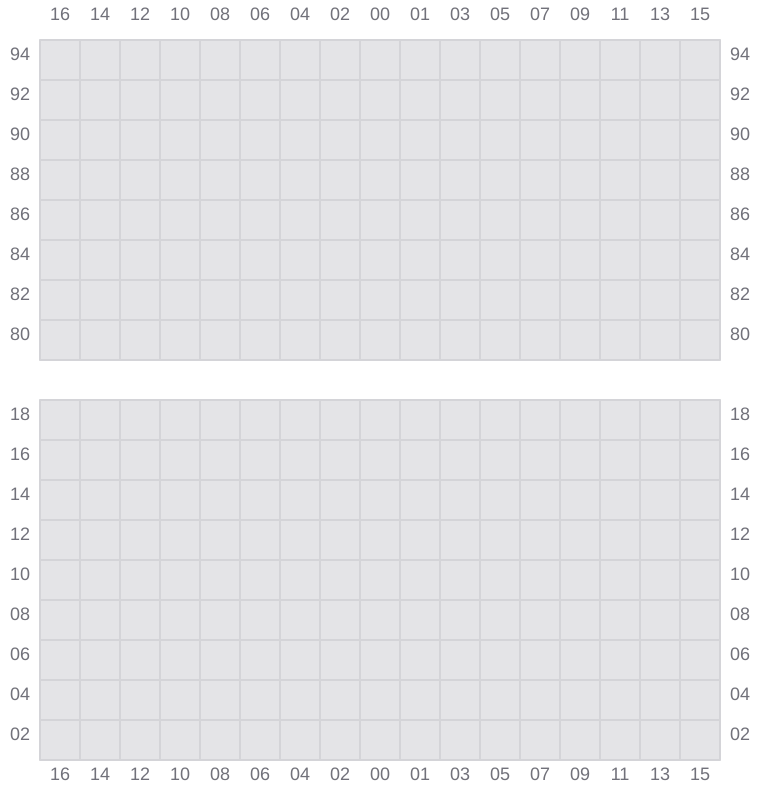

077
![Bay 077 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b077.png?v=1713981153711)

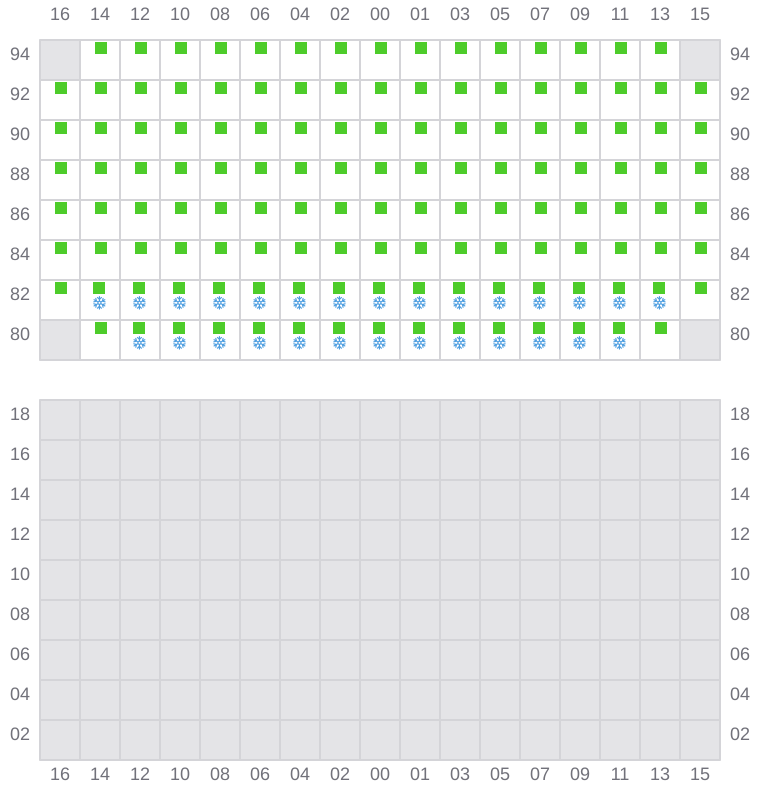

079 (078)
- ← / ?
- ← / ?
- → / ?
![Bay 079 view and slots of CONTI CHIVALRY](/vessel-images/bf3dd52e-84ae-4a8c-976e-7e203abe2975-b079.png?v=1713981153711)
