CONTI CORTESIA
9293753 | 9HA5641 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:CONTI CORTESIA
IMO Code:9293753
Call Sign:9HA5641
Line Operator:MSC
Class Name for Sister Ships:CCT
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,071
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

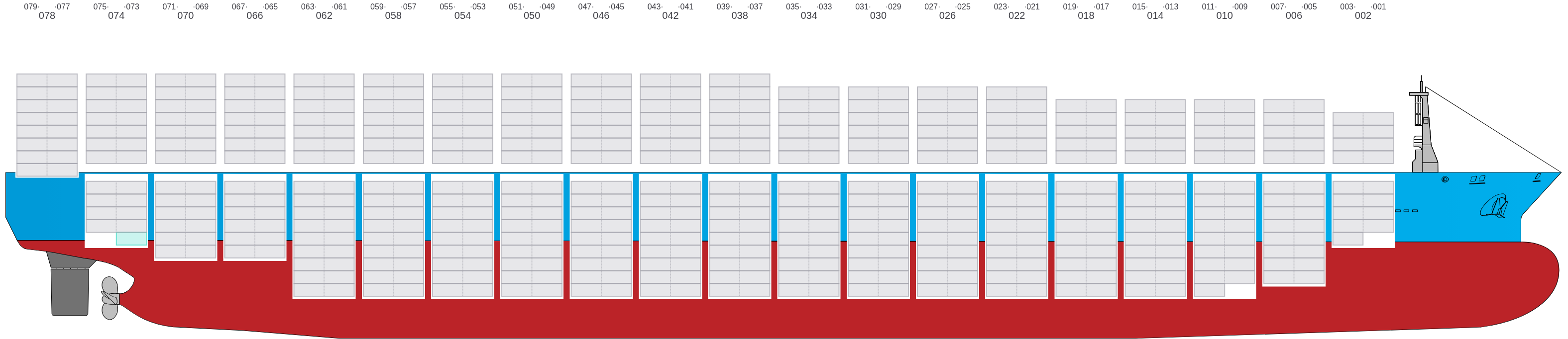

Side View
![Side view of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-sideView.png?v=1686940499713)
Hatch-Covers View
![Deck view of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-deckView.png?v=1686940499713)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

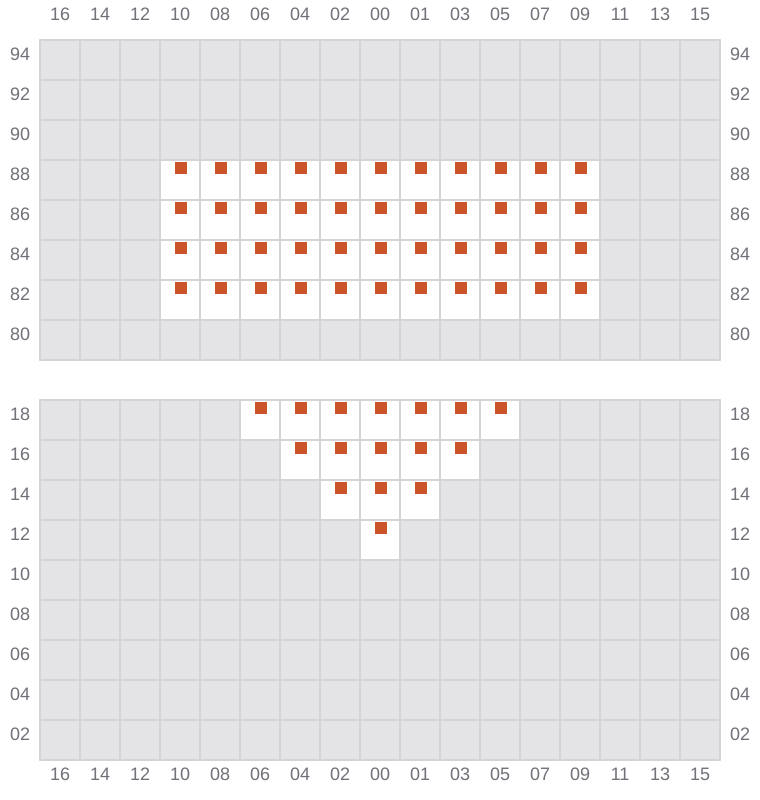

001
- →
![Bay 001 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b001.png?v=1686940499713)
003 (002)
- ←
![Bay 003 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b003.png?v=1686940499713)

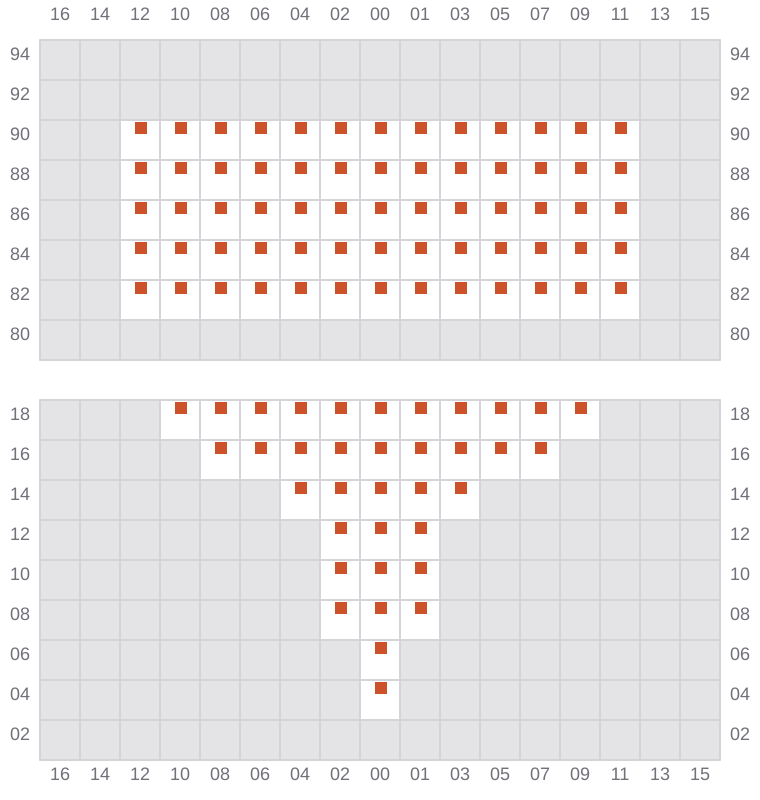

005
- →
![Bay 005 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b005.png?v=1686940499713)

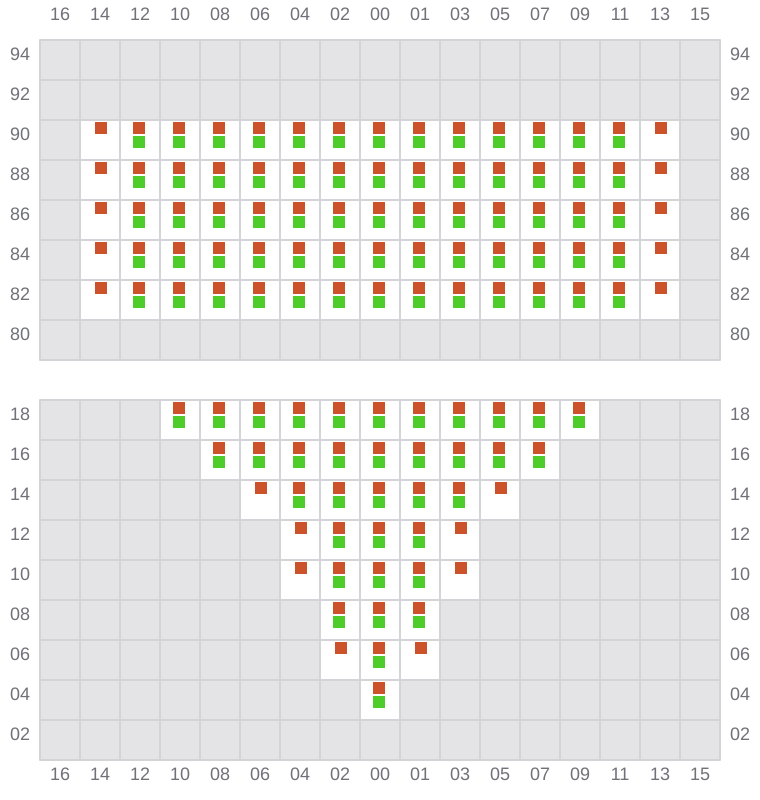

007 (006)
- ←
![Bay 007 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b007.png?v=1686940499713)

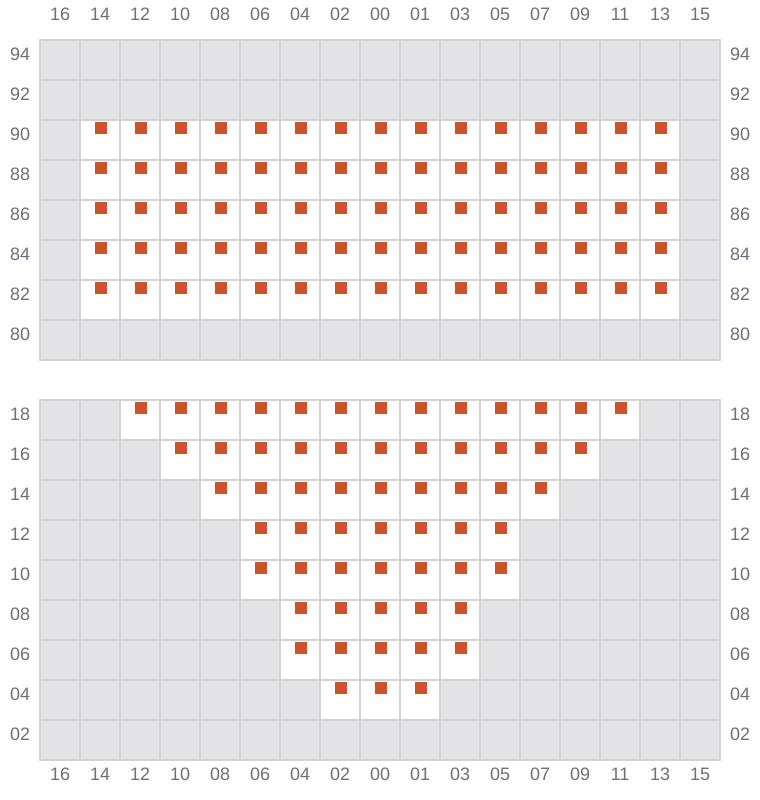

009
- →
![Bay 009 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b009.png?v=1686940499713)

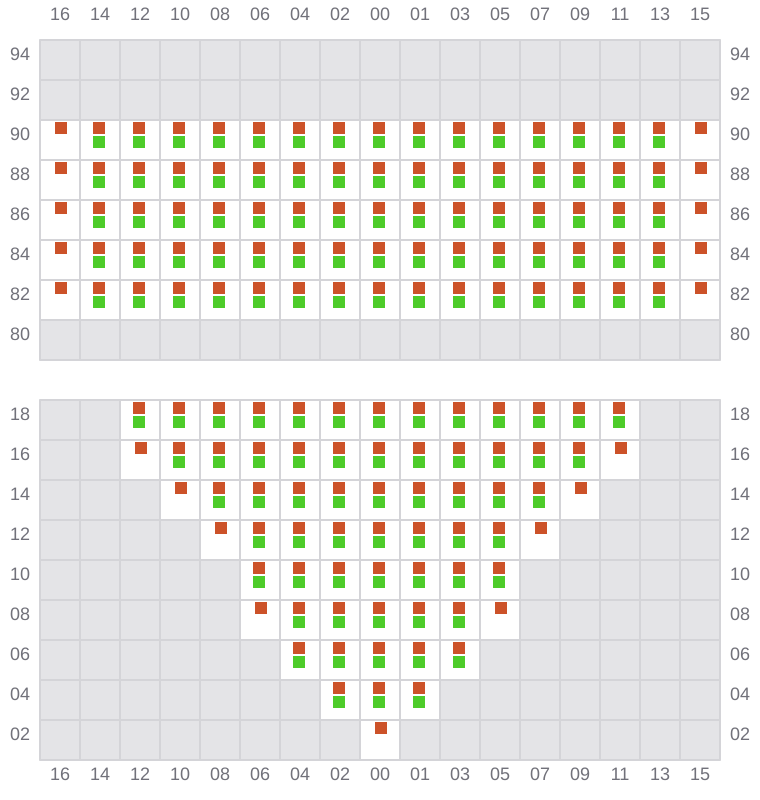

011 (010)
- ←
![Bay 011 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b011.png?v=1686940499713)

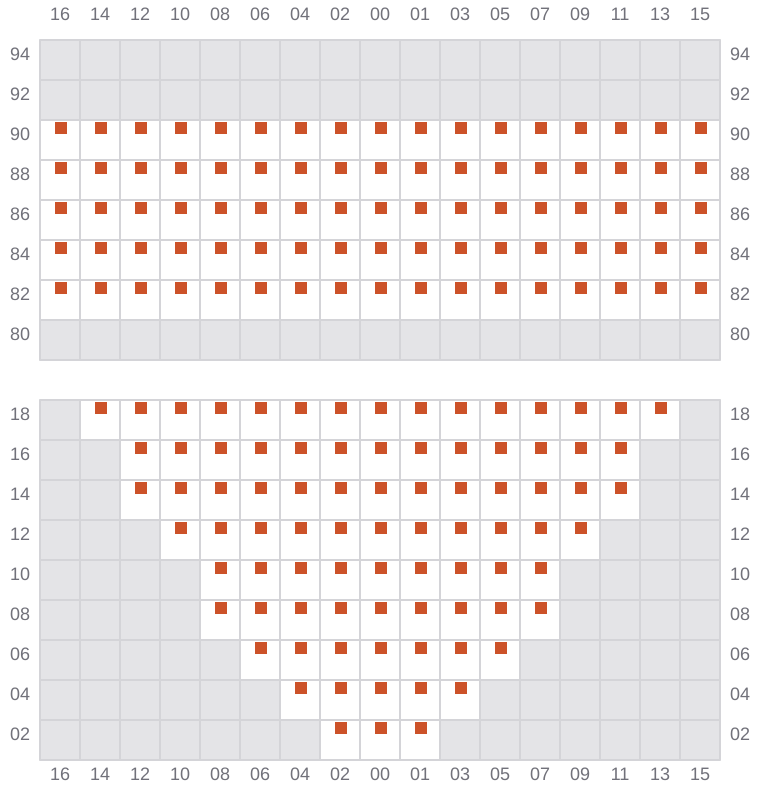

013
- →
![Bay 013 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b013.png?v=1686940499713)

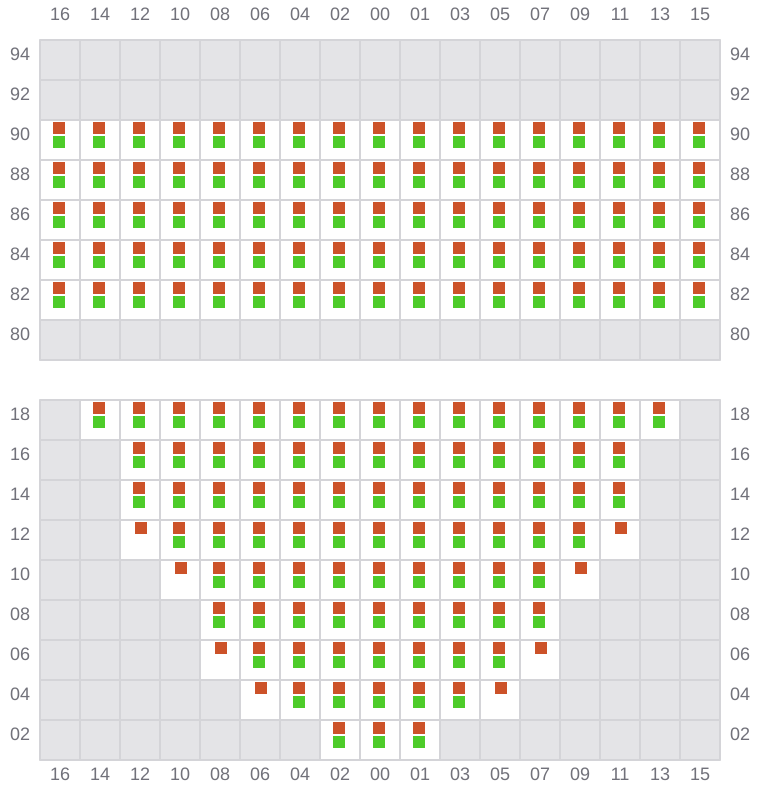

015 (014)
- ←
![Bay 015 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b015.png?v=1686940499713)

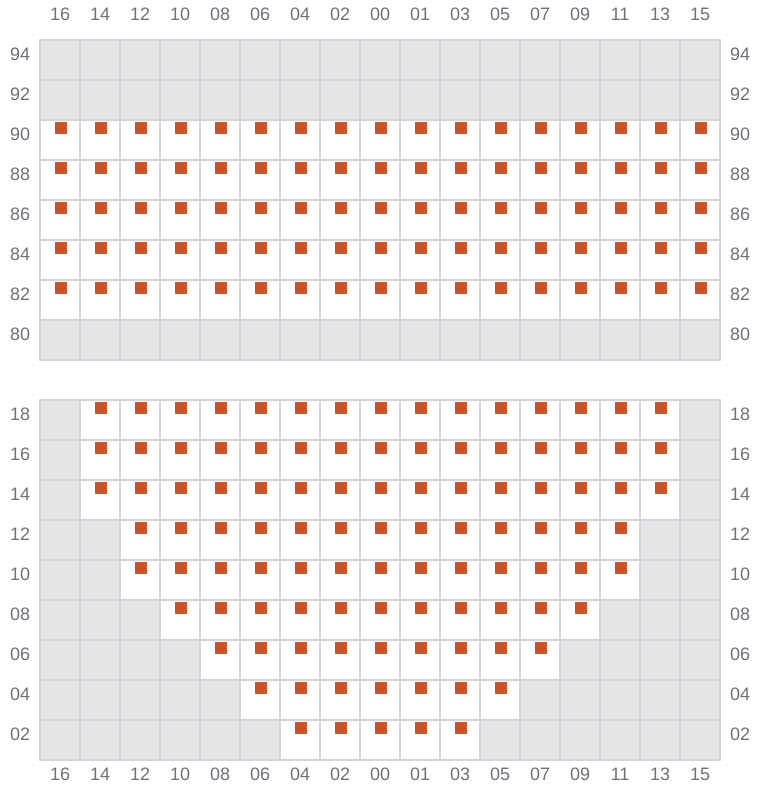

017
- →
![Bay 017 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b017.png?v=1686940499713)

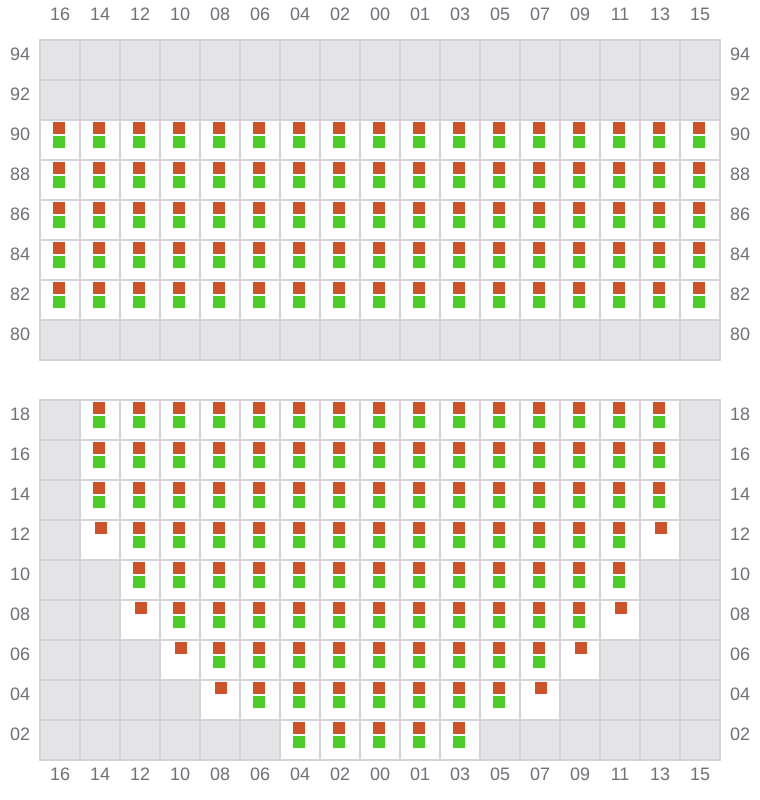

019 (018)
- ←
![Bay 019 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b019.png?v=1686940499713)

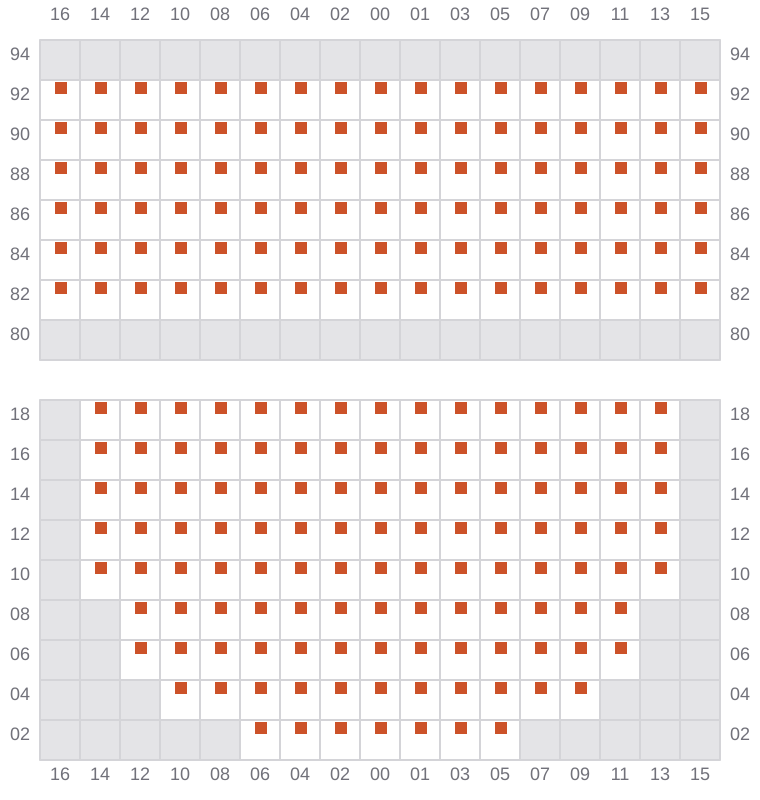

021
- →
![Bay 021 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b021.png?v=1686940499713)

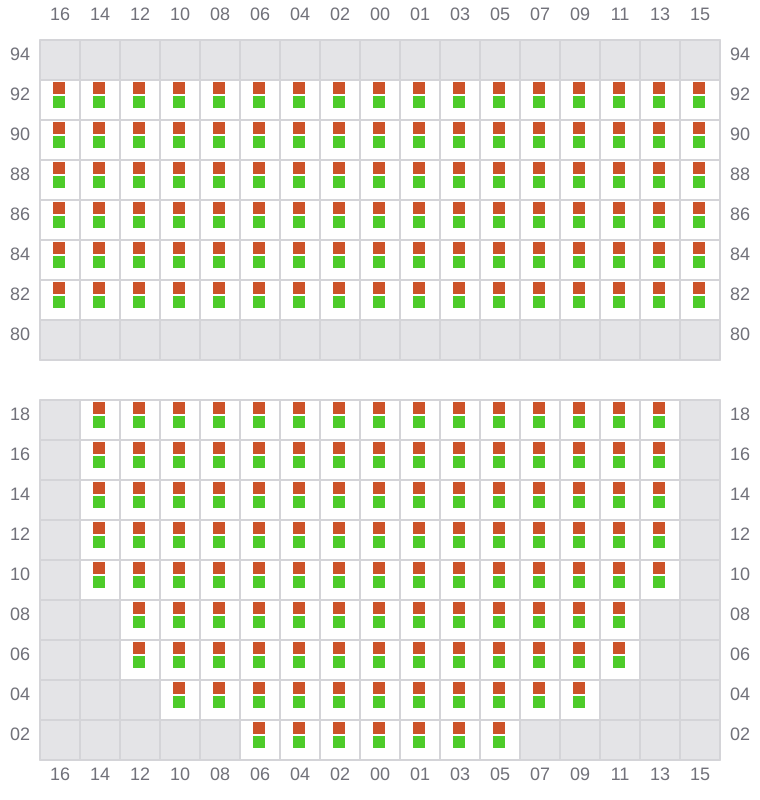

023 (022)
- ←
![Bay 023 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b023.png?v=1686940499713)

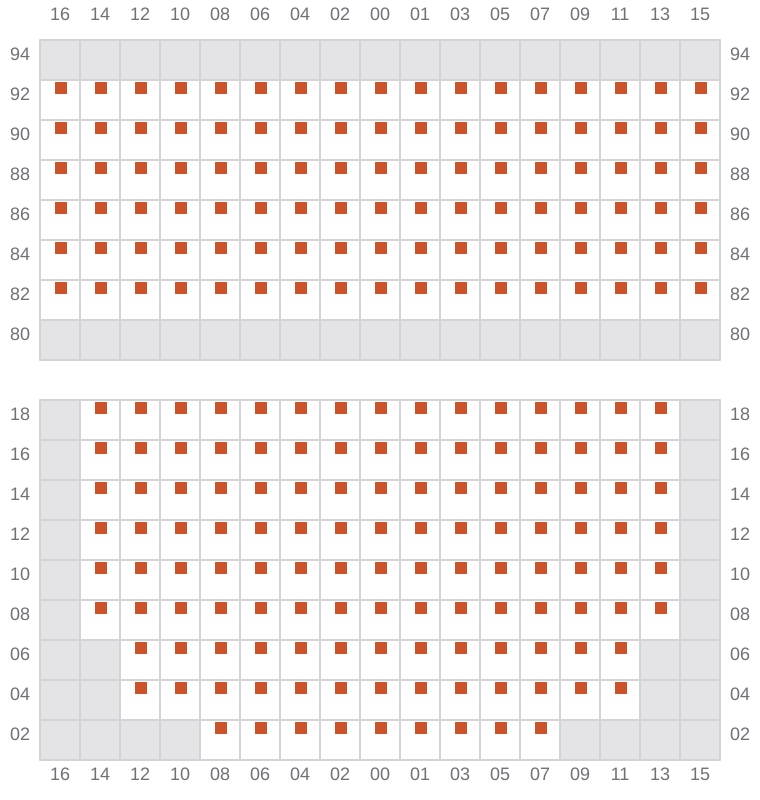

025
- →
![Bay 025 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b025.png?v=1686940499713)

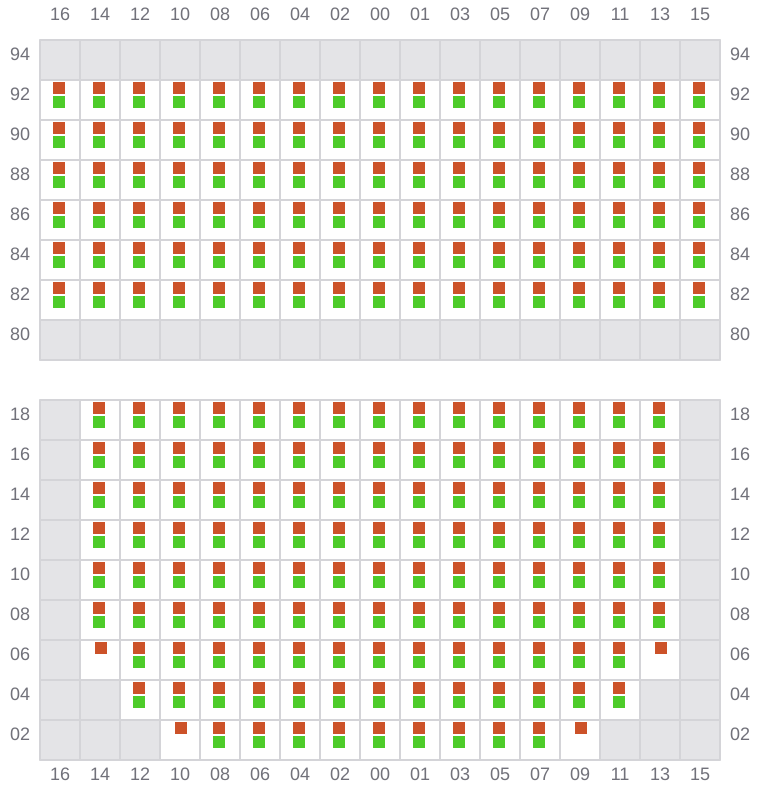

027 (026)
- ←
![Bay 027 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b027.png?v=1686940499713)

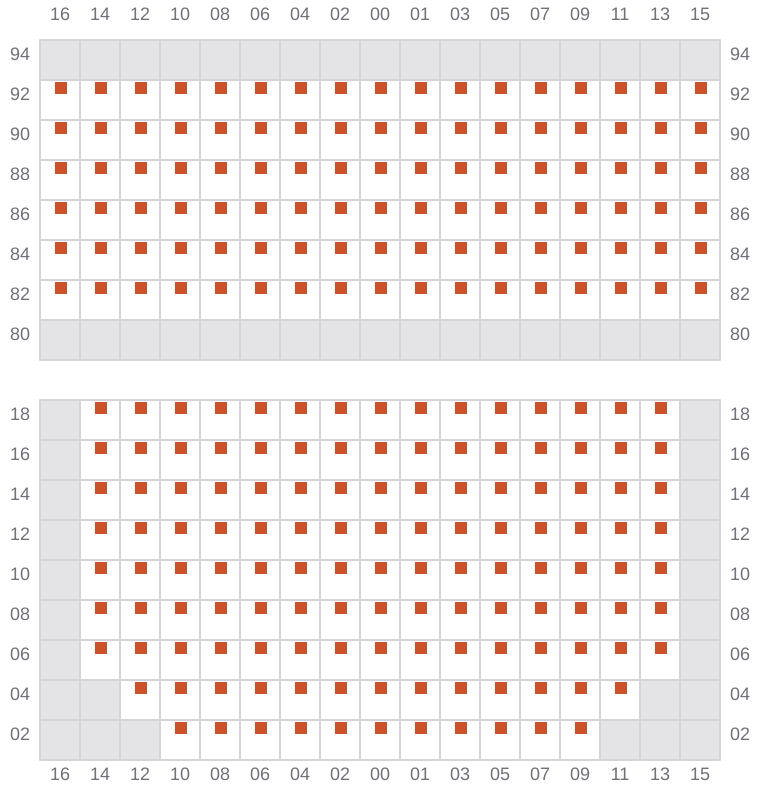

029
- →
![Bay 029 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b029.png?v=1686940499713)

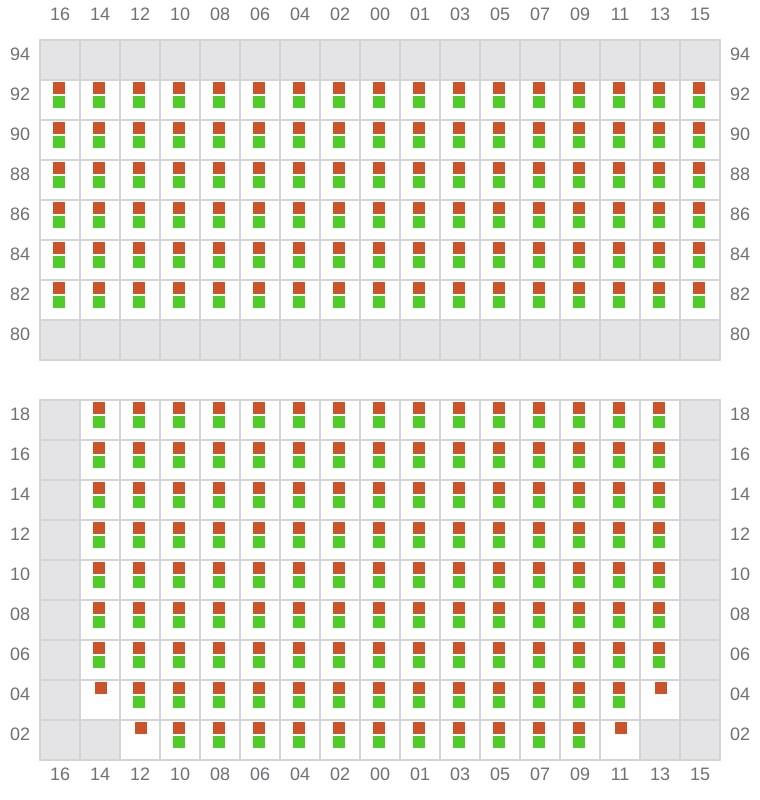

031 (030)
- ←
![Bay 031 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b031.png?v=1686940499713)

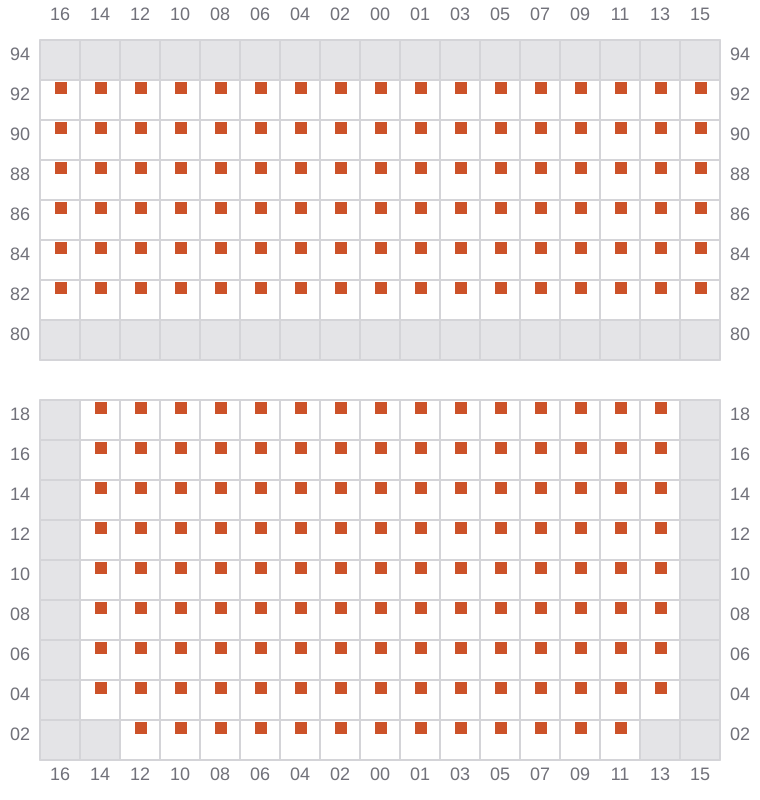

033
- →
![Bay 033 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b033.png?v=1686940499713)

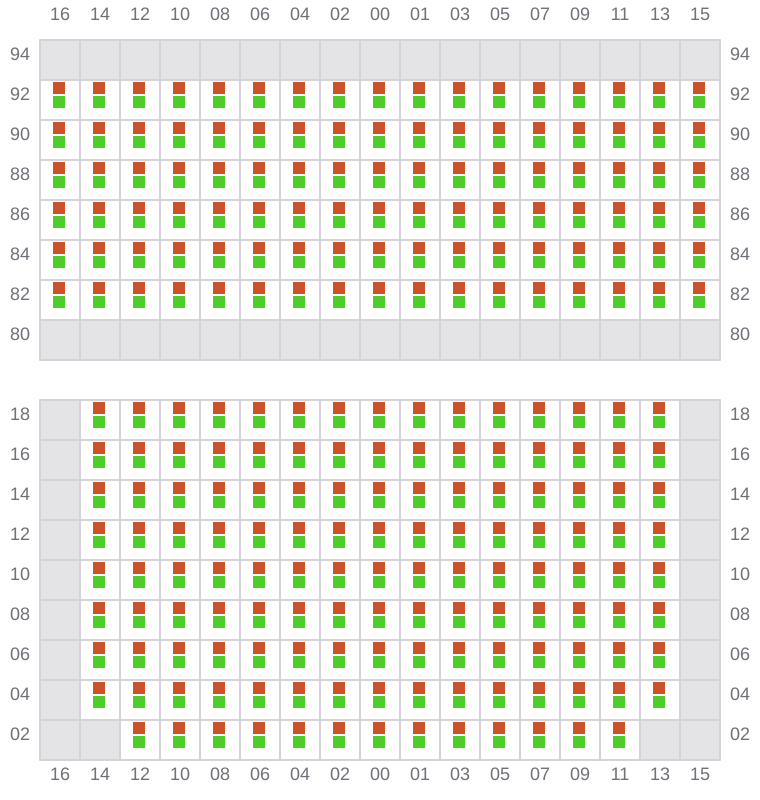

035 (034)
- ←
![Bay 035 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b035.png?v=1686940499713)
037
- →
![Bay 037 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b037.png?v=1686940499713)
039 (038)
- ←
![Bay 039 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b039.png?v=1686940499713)
041
- →
![Bay 041 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b041.png?v=1686940499713)
043 (042)
- ←
![Bay 043 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b043.png?v=1686940499713)
045
- →
![Bay 045 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b045.png?v=1686940499713)
047 (046)
- ←
![Bay 047 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b047.png?v=1686940499713)
049
- →
![Bay 049 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b049.png?v=1686940499713)

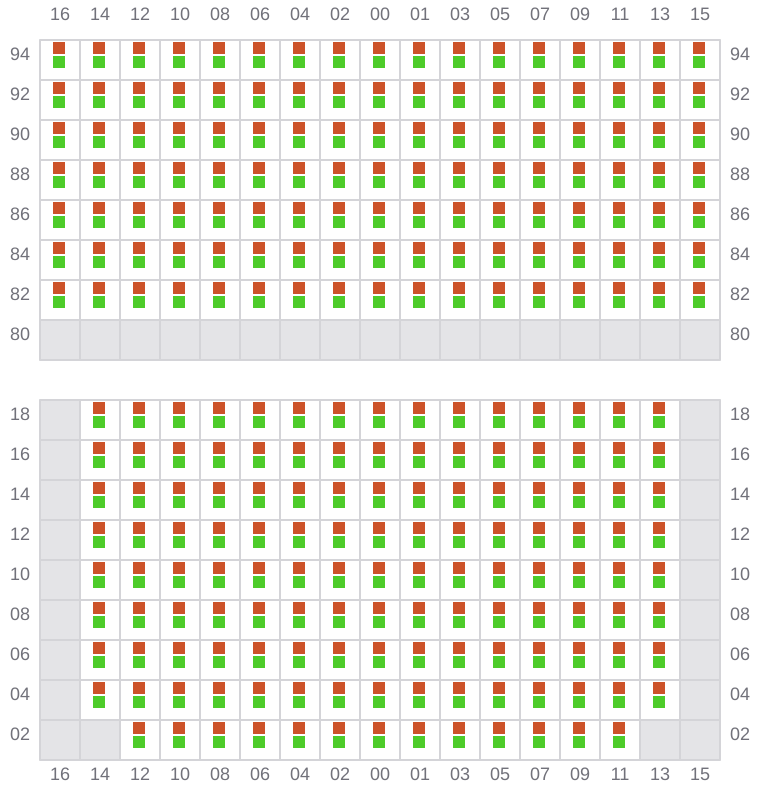

051 (050)
- ←
![Bay 051 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b051.png?v=1686940499713)
053
- →
![Bay 053 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b053.png?v=1686940499713)

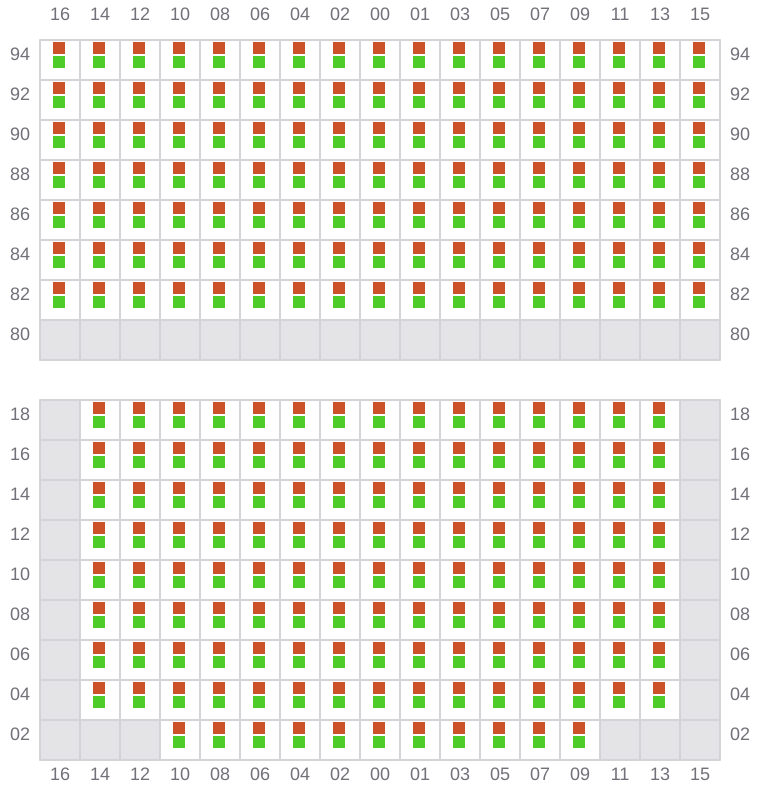

055 (054)
- ←
![Bay 055 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b055.png?v=1686940499713)

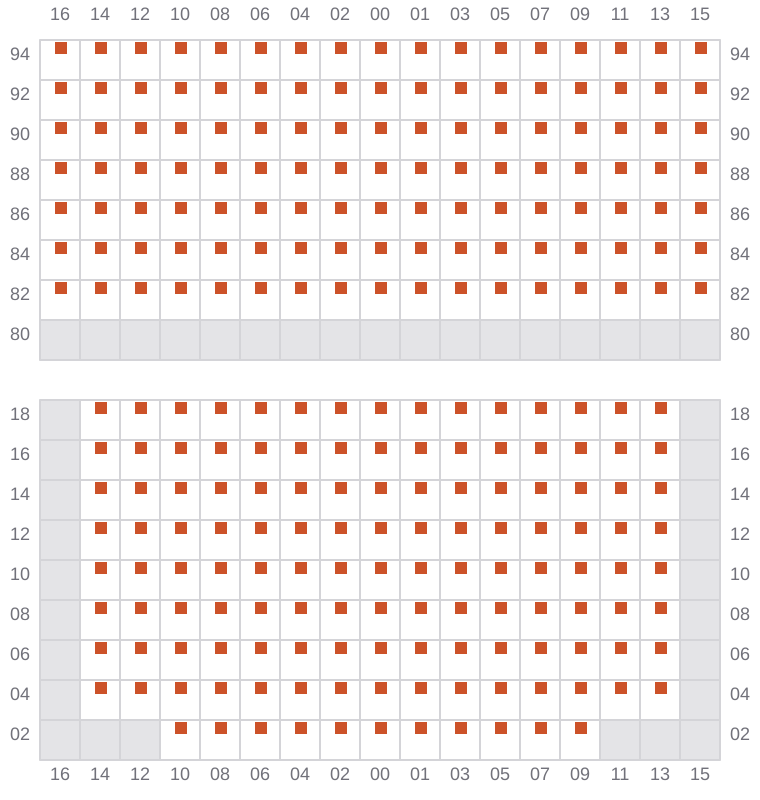

057
- →
![Bay 057 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b057.png?v=1686940499713)

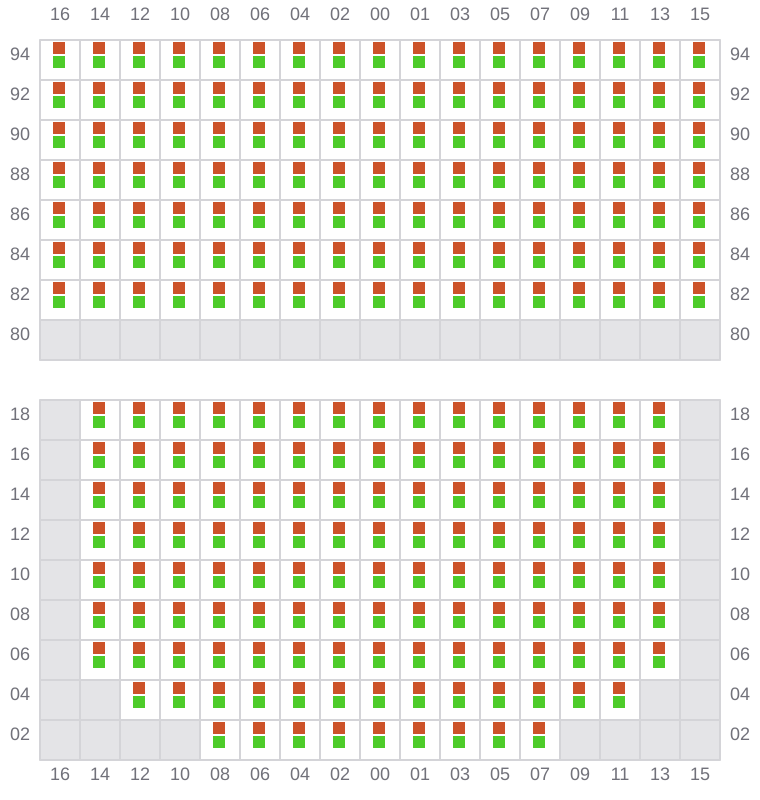

059 (058)
- ←
![Bay 059 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b059.png?v=1686940499713)

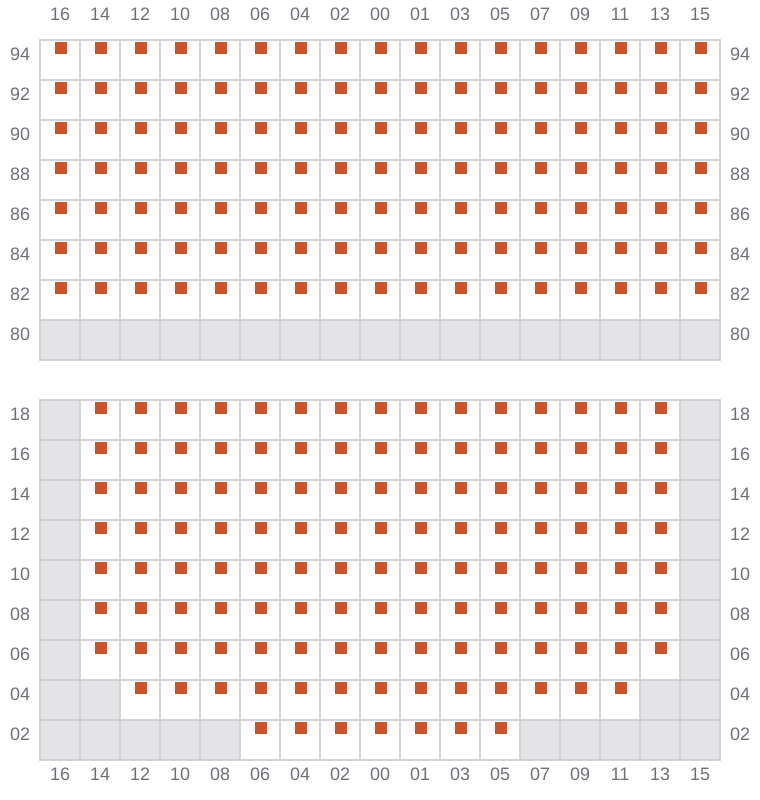

061
- →
![Bay 061 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b061.png?v=1686940499713)

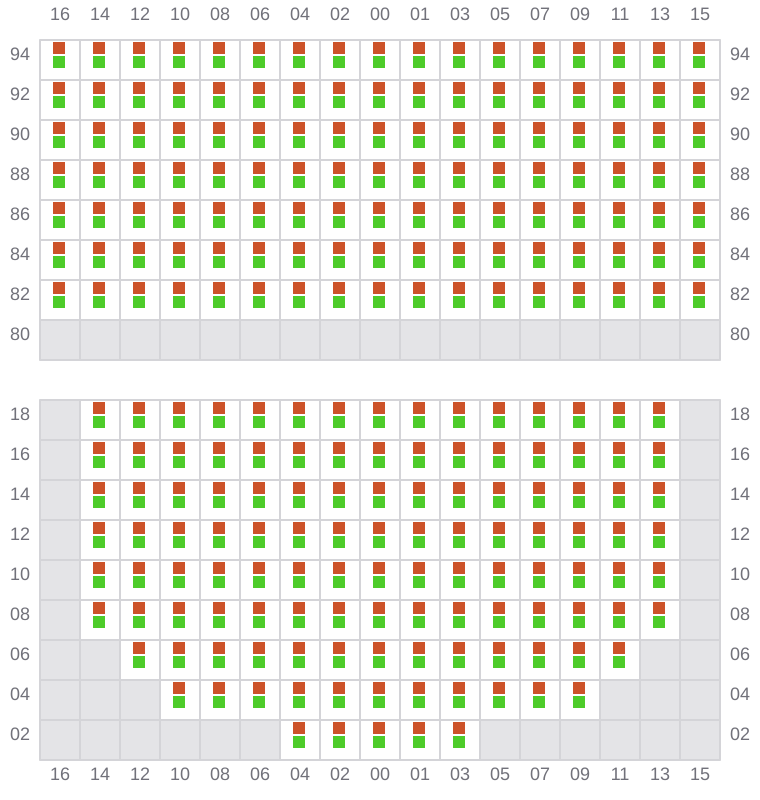

063 (062)
- ←
![Bay 063 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b063.png?v=1686940499713)

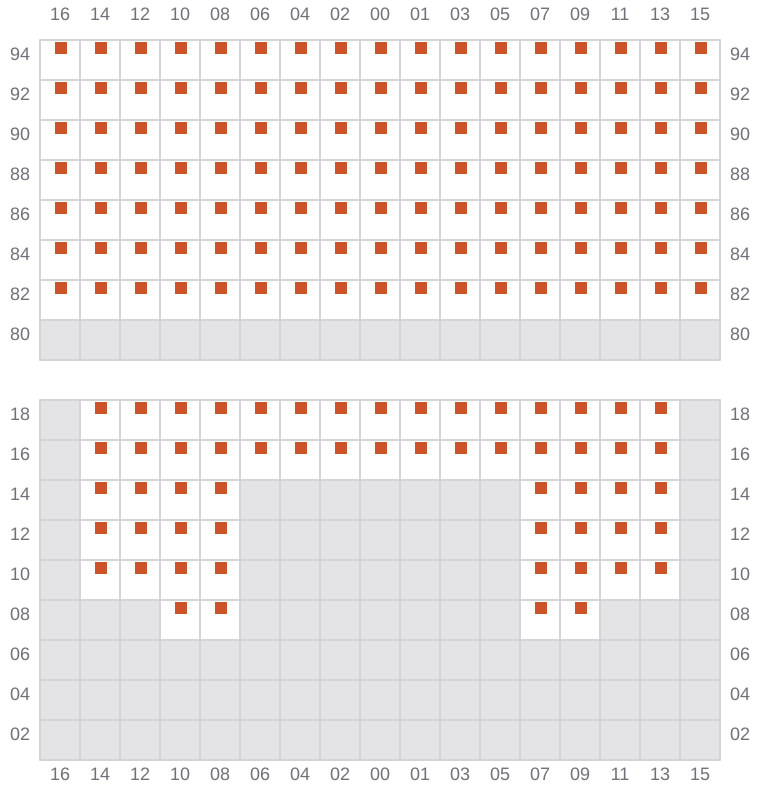

065
- →
![Bay 065 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b065.png?v=1686940499713)

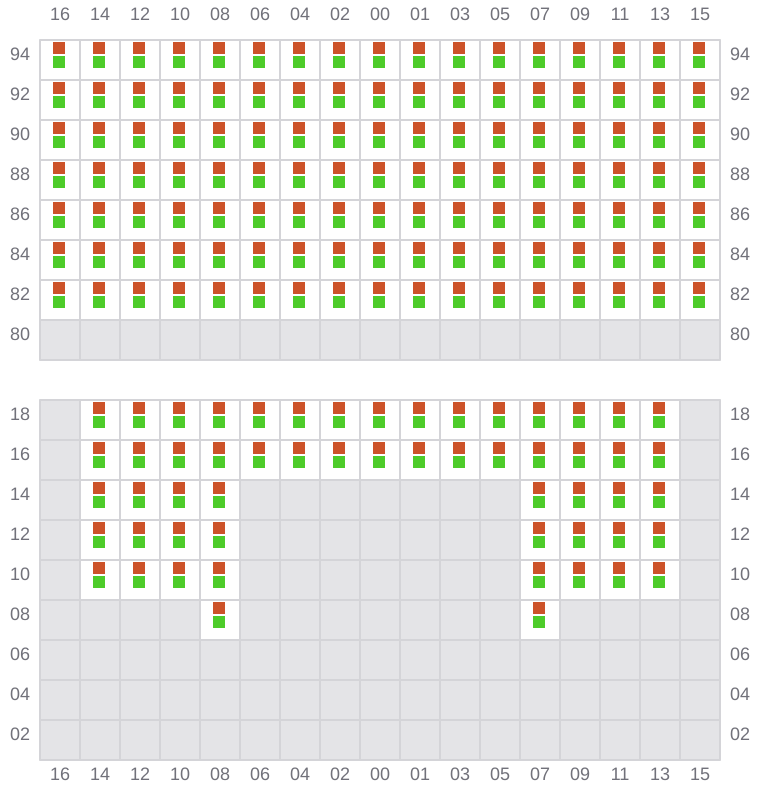

067 (066)
- ←
![Bay 067 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b067.png?v=1686940499713)

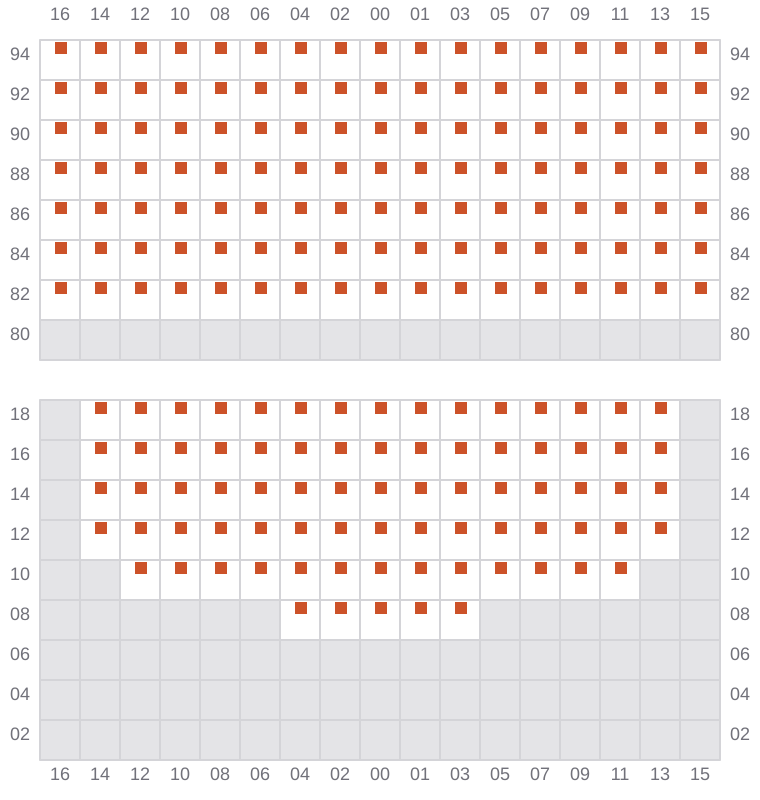

069
- →
![Bay 069 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b069.png?v=1686940499713)
071 (070)
- ←
![Bay 071 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b071.png?v=1686940499713)

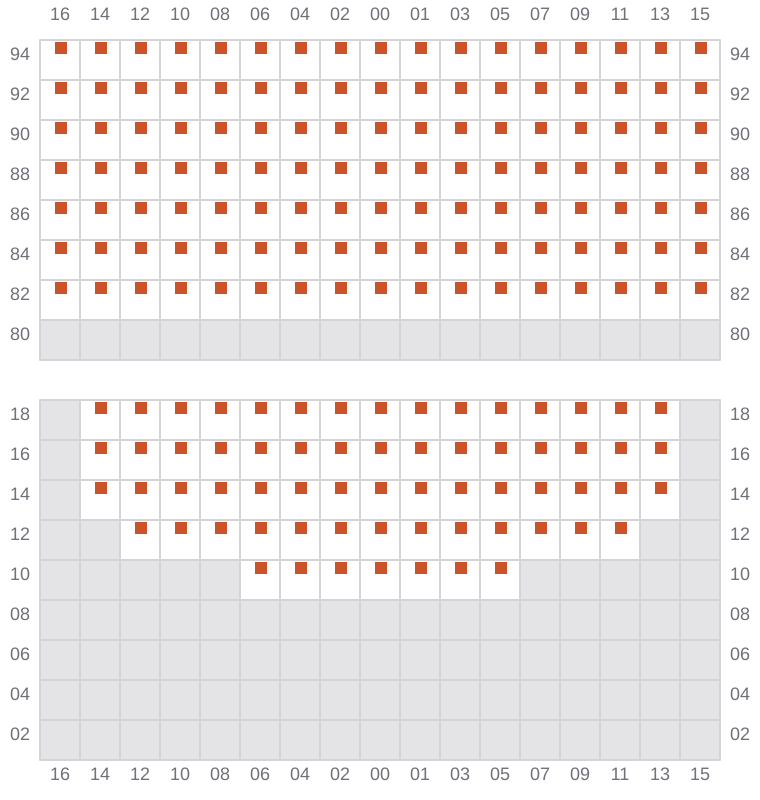

073
- →
![Bay 073 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b073.png?v=1686940499713)

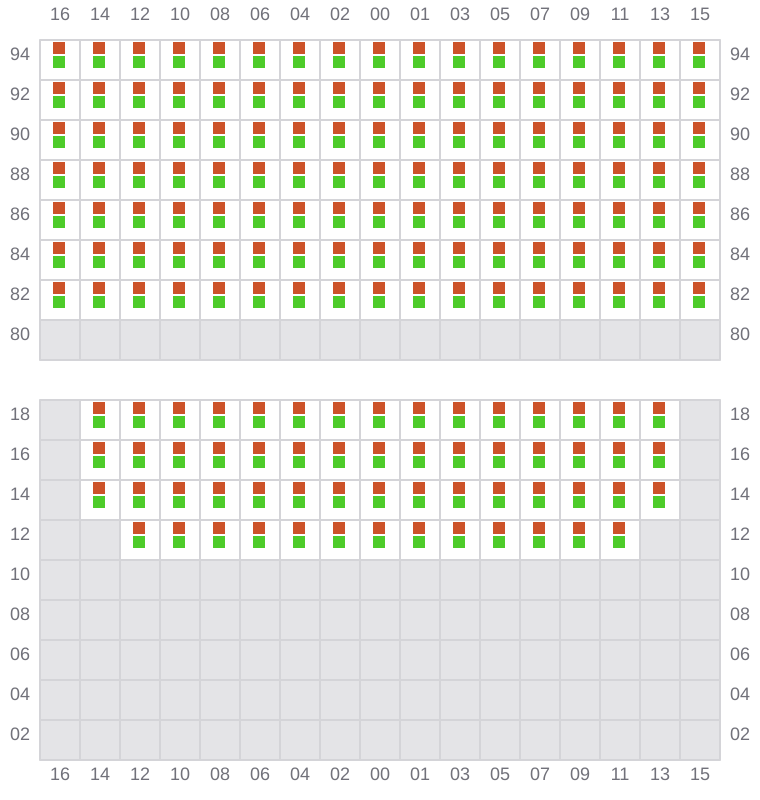

075 (074)
- ←
![Bay 075 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b075.png?v=1686940499713)

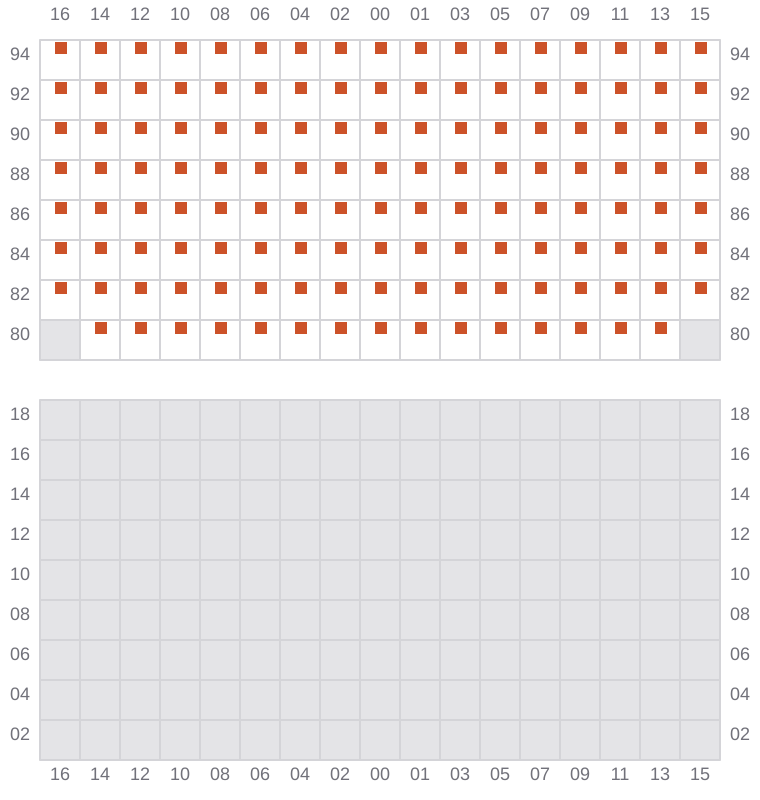

077
- → / ?
![Bay 077 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b077.png?v=1686940499713)

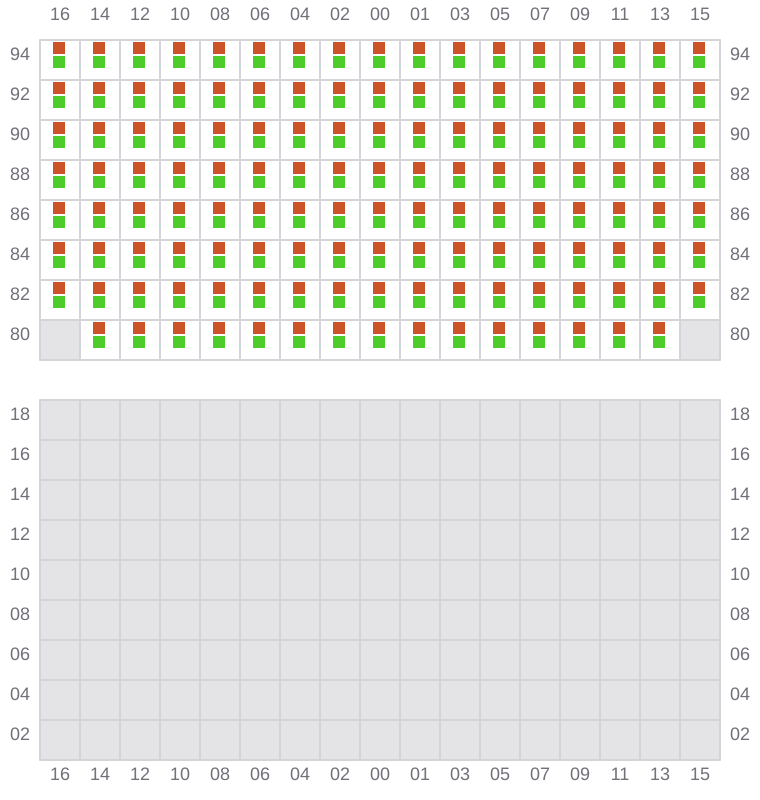

079 (078)
- ← / ?
![Bay 079 view and slots of CONTI CORTESIA](/vessel-images/1c638d8b-9d5a-4e17-8ac7-b9d00e1c1a51-b079.png?v=1686940499713)
