CONTI COURAGE
9293789 | 5LCJ9 | 929378 by ********* Last update: Tue Jun 11 2024

General Info

Ship Name:CONTI COURAGE

IMO Code:9293789

Call Sign:5LCJ9

Line Operator:929378

Class Name for Sister Ships:MAE

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,084

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

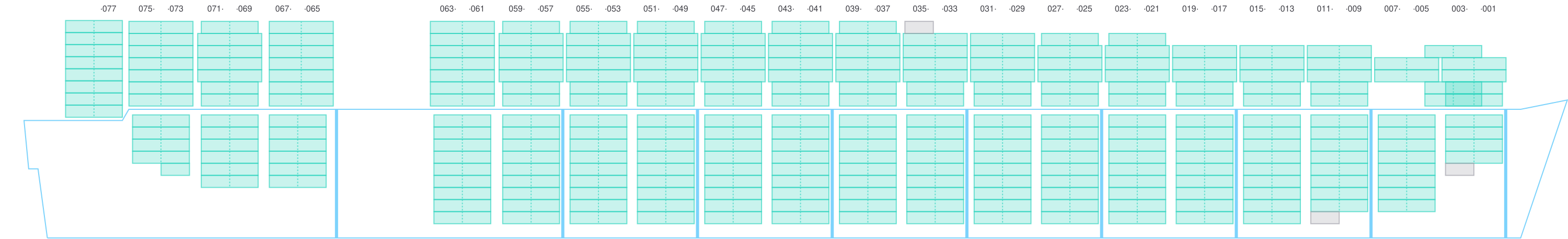

Side view of CONTI COURAGE

Hatch-Covers View

Deck view of CONTI COURAGE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

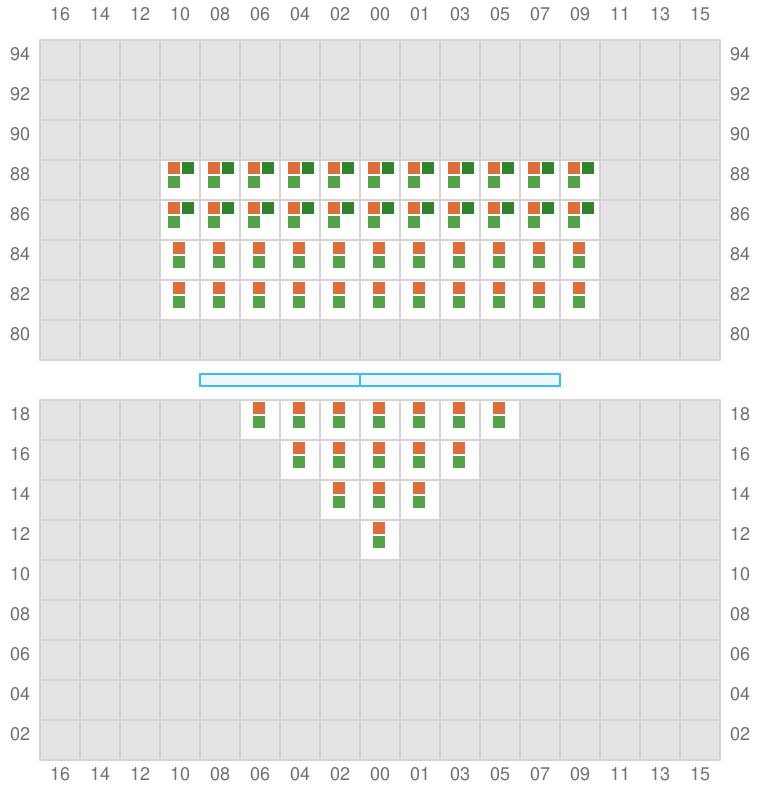

Bay 001 view and slots of CONTI COURAGE

003

←

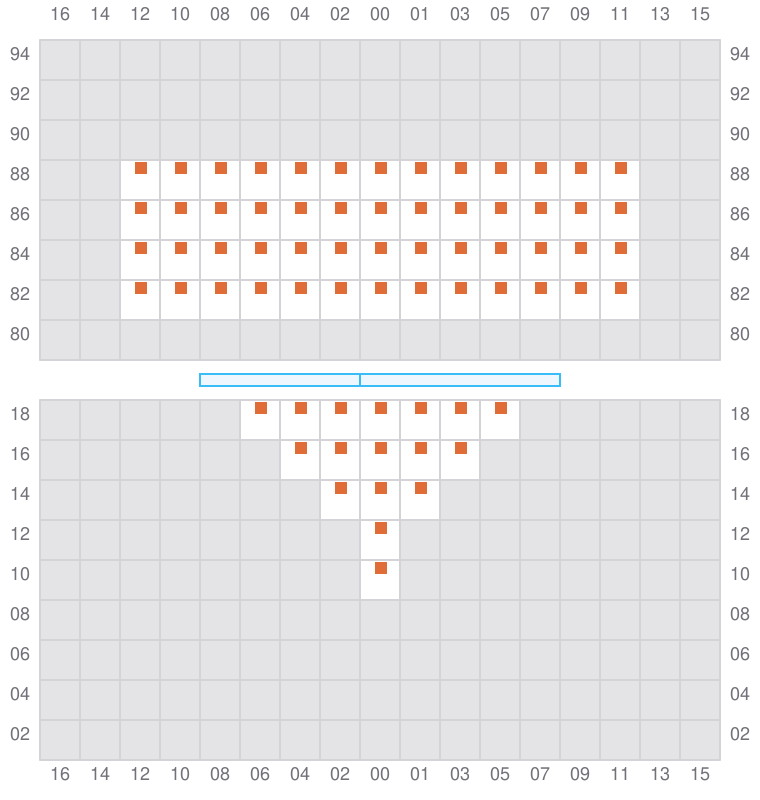

Bay 003 view and slots of CONTI COURAGE

005 (006)

→

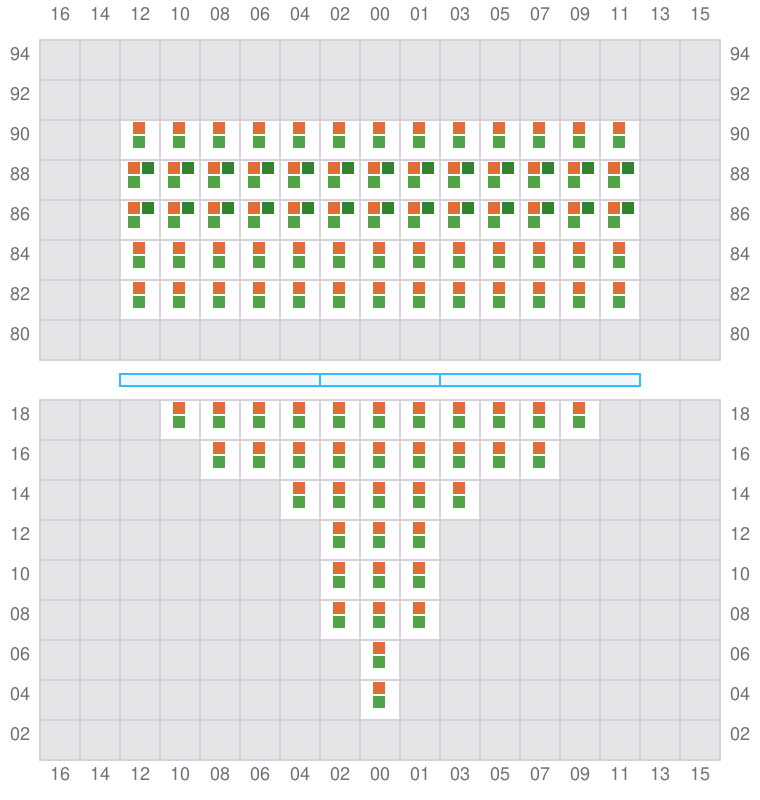

Bay 005 view and slots of CONTI COURAGE

007

←

Bay 007 view and slots of CONTI COURAGE

009 (010)

→

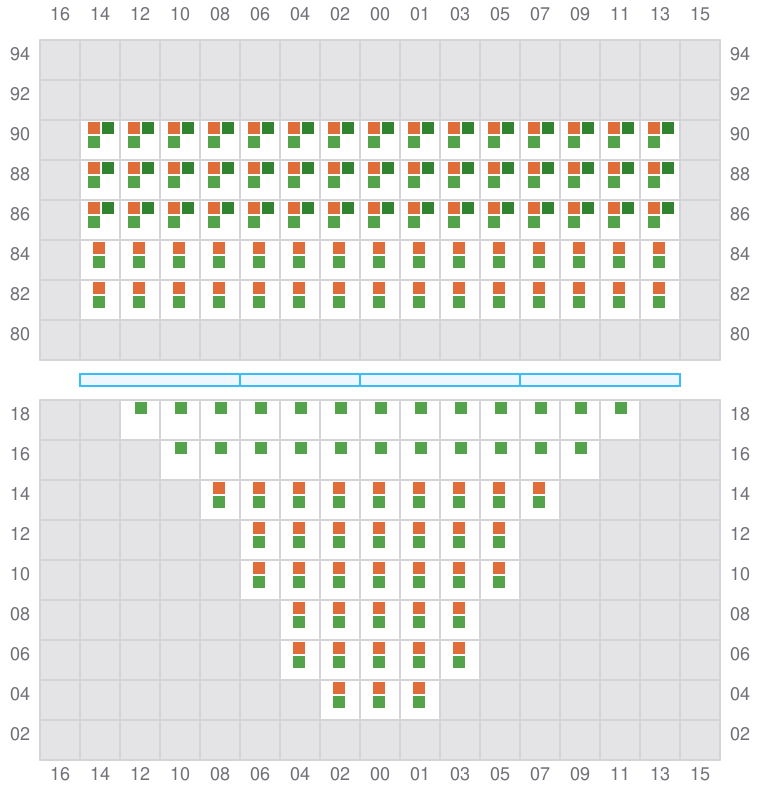

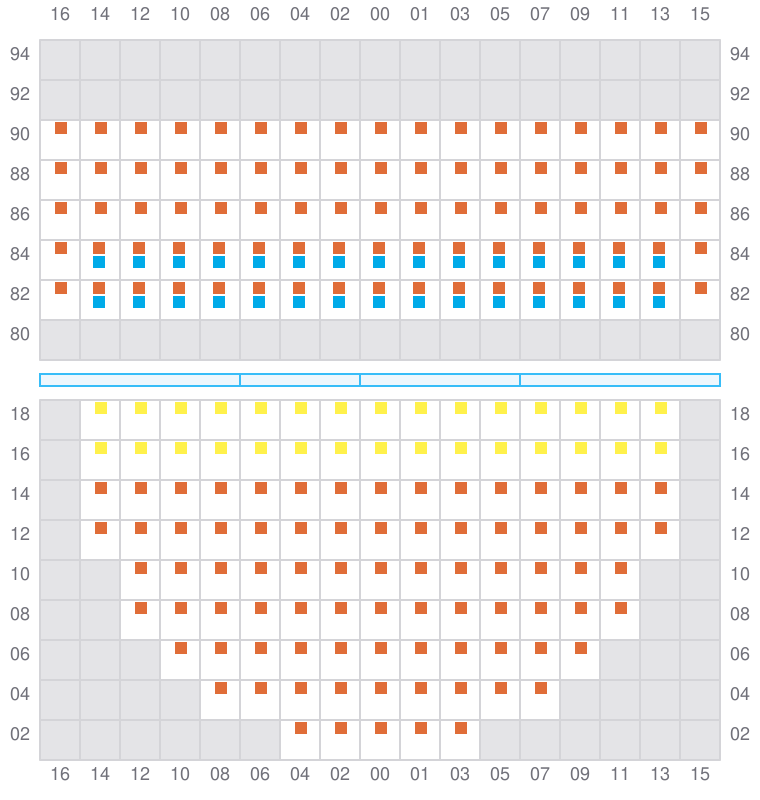

Bay 009 view and slots of CONTI COURAGE

011

←

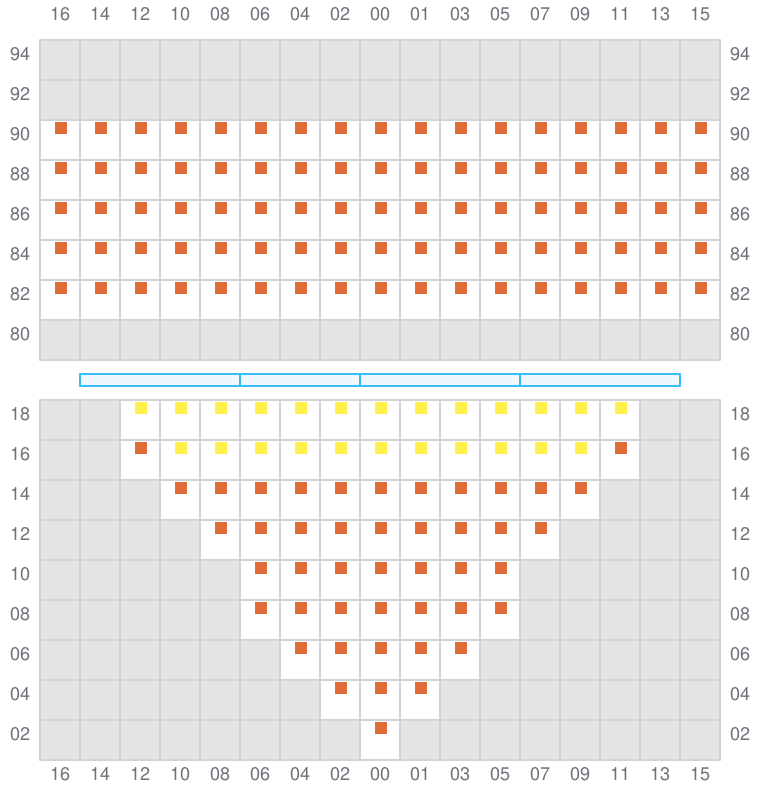

Bay 011 view and slots of CONTI COURAGE

013 (014)

→

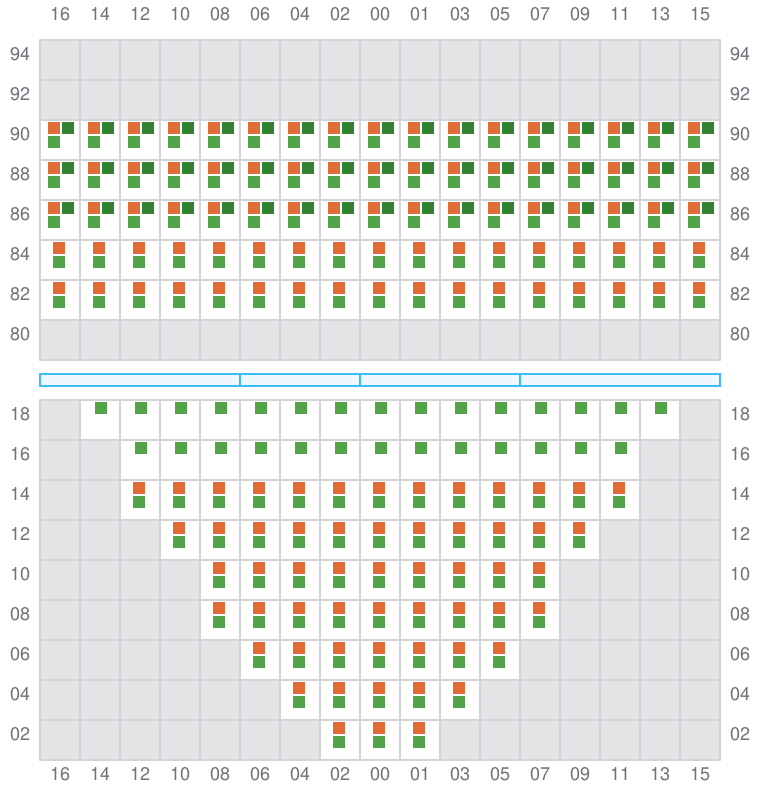

Bay 013 view and slots of CONTI COURAGE

015

←
^→ / _?

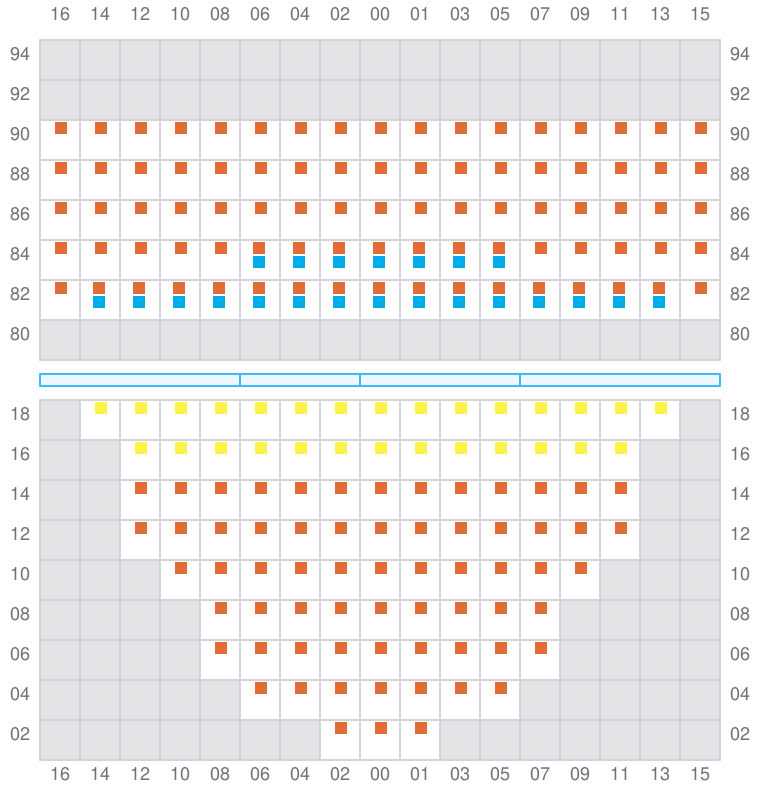

Bay 015 view and slots of CONTI COURAGE

017 (018)

→

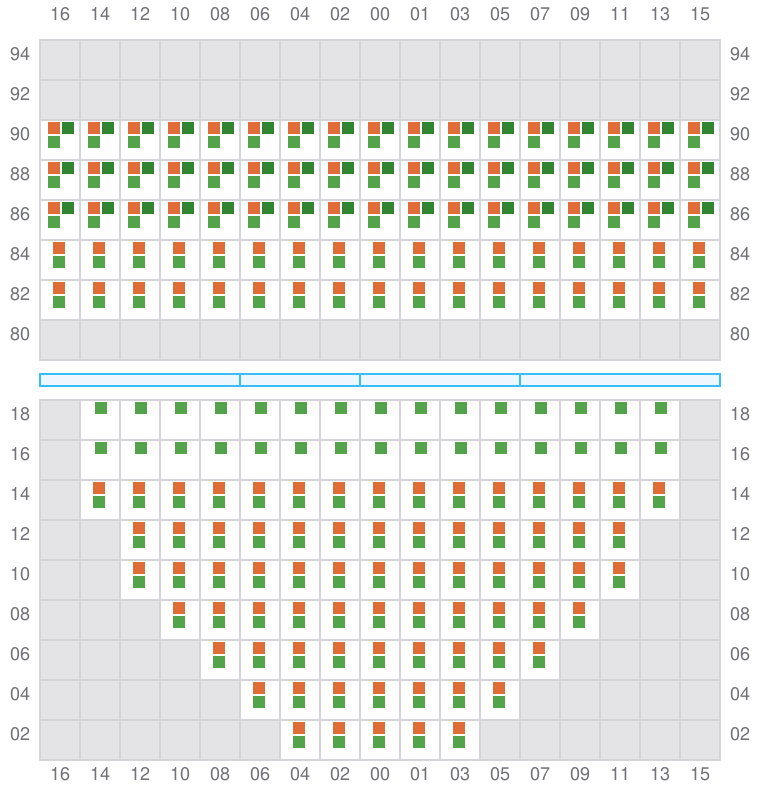

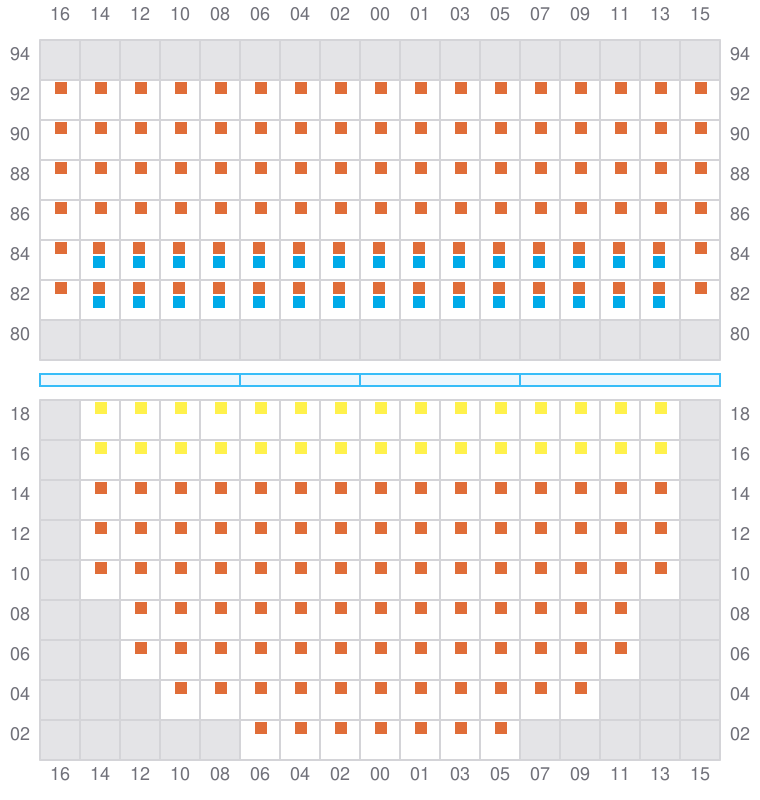

Bay 017 view and slots of CONTI COURAGE

019

←
^→ / _?

Bay 019 view and slots of CONTI COURAGE

021 (022)

→

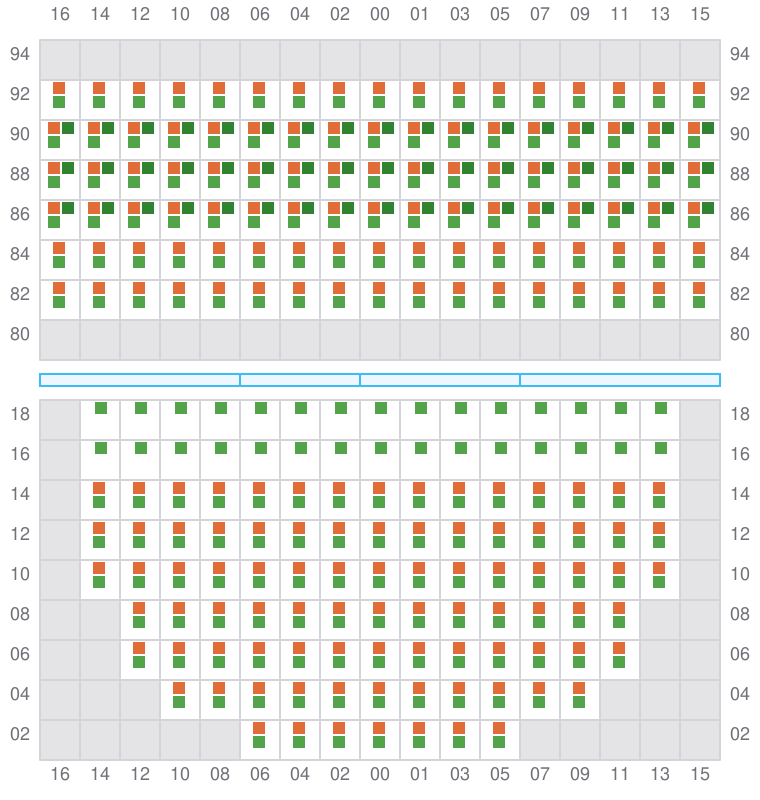

Bay 021 view and slots of CONTI COURAGE

023

←
^→ / _?

Bay 023 view and slots of CONTI COURAGE

025 (026)

→

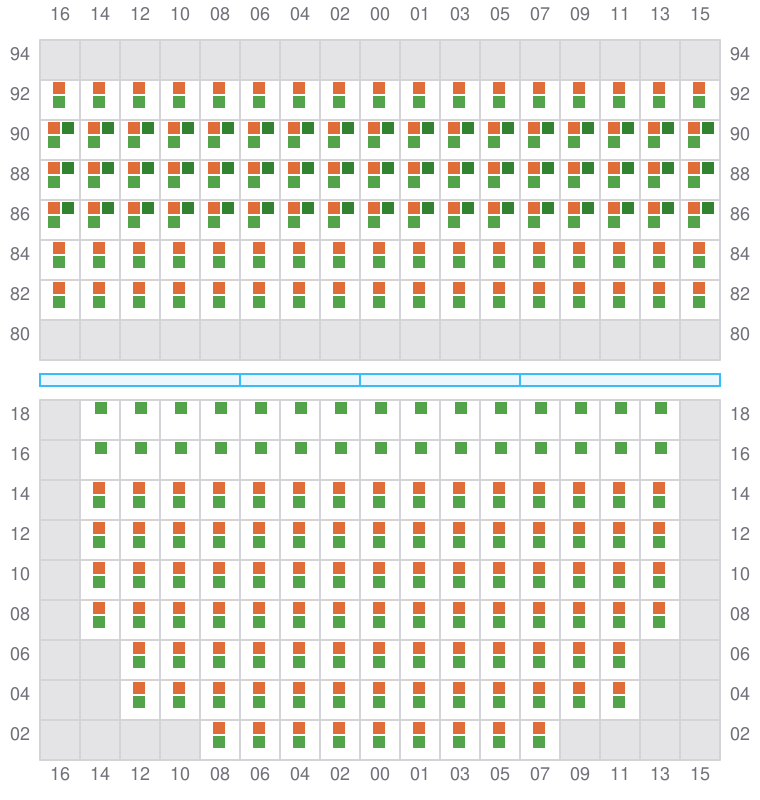

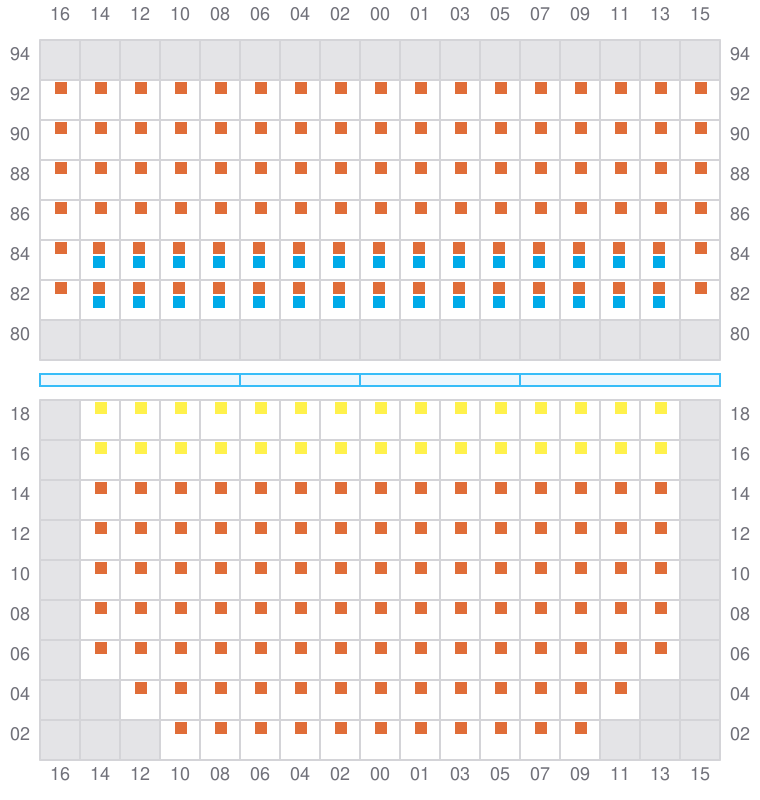

Bay 025 view and slots of CONTI COURAGE

027

←
^→ / _?

Bay 027 view and slots of CONTI COURAGE

029 (030)

→

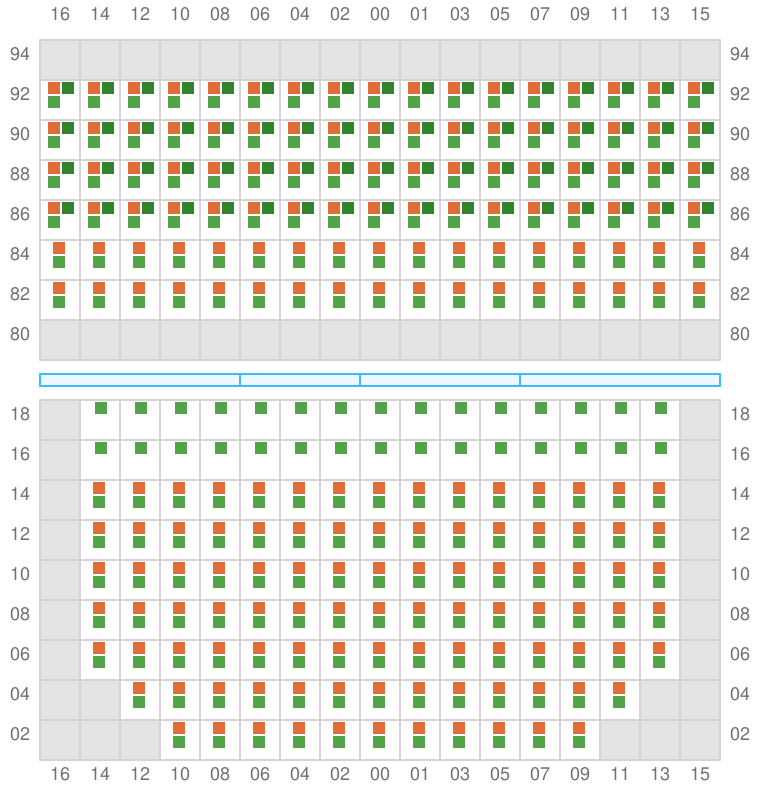

Bay 029 view and slots of CONTI COURAGE

031

←
^→ / _?

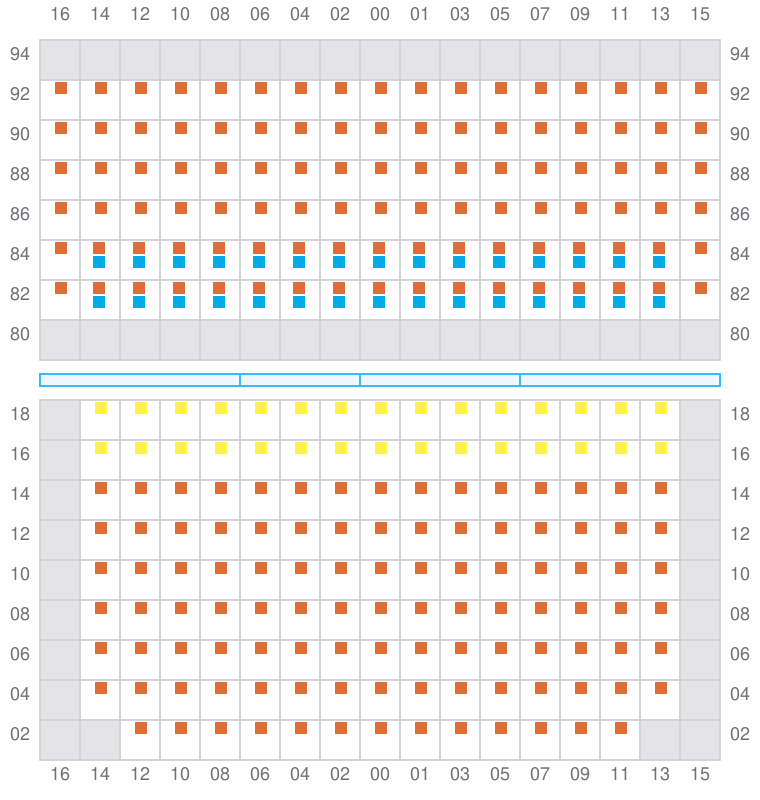

Bay 031 view and slots of CONTI COURAGE

033 (034)

→

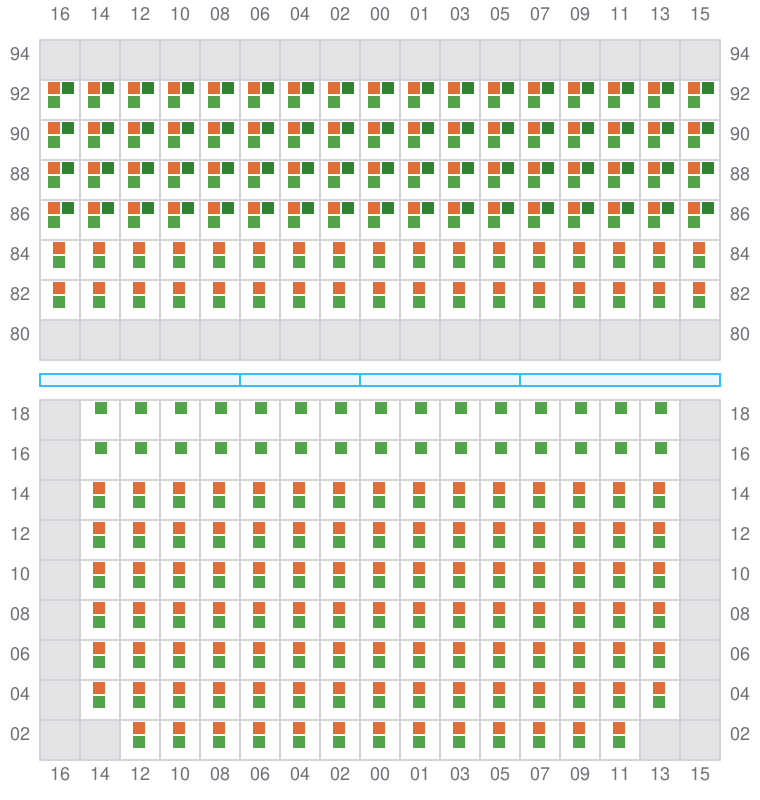

Bay 033 view and slots of CONTI COURAGE

035

←
^→ / _?

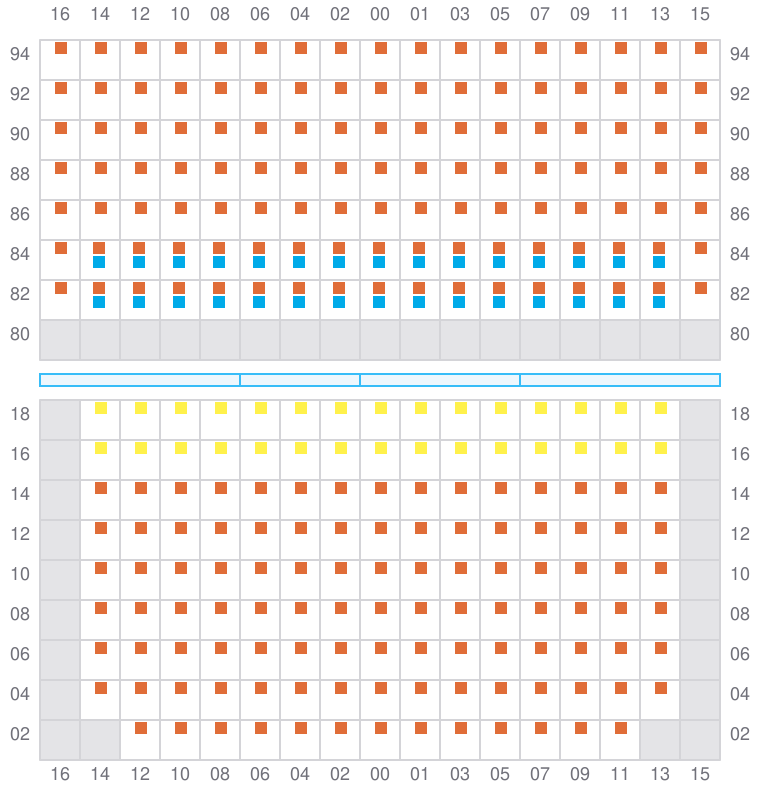

Bay 035 view and slots of CONTI COURAGE

037 (038)

→

Bay 037 view and slots of CONTI COURAGE

039

←
^→ / _?

Bay 039 view and slots of CONTI COURAGE

041 (042)

→

Bay 041 view and slots of CONTI COURAGE

043

←
^→ / _?

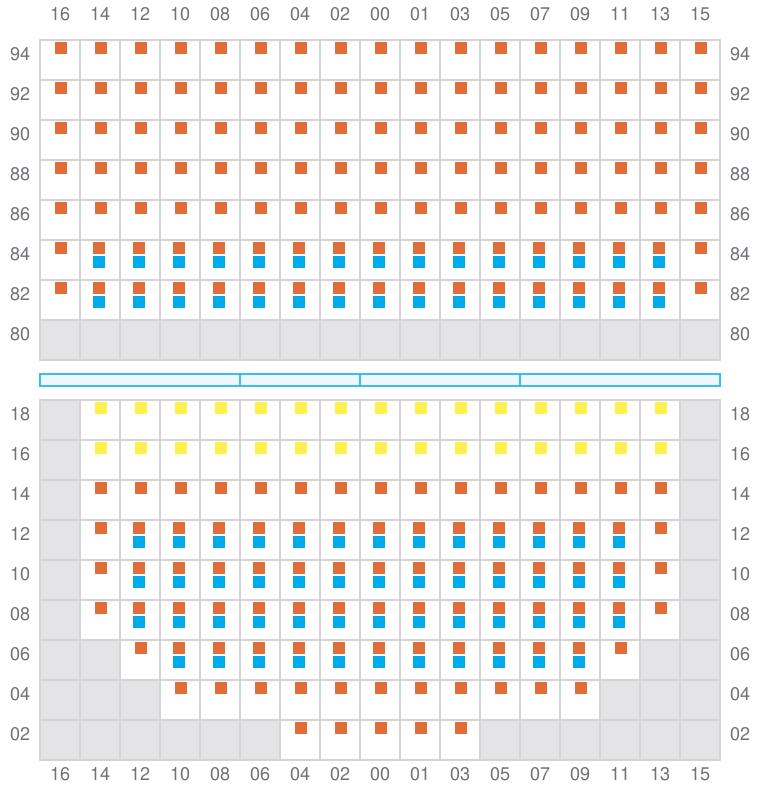

Bay 043 view and slots of CONTI COURAGE

045 (046)

→

Bay 045 view and slots of CONTI COURAGE

047

←
^→ / _?

Bay 047 view and slots of CONTI COURAGE

049 (050)

→

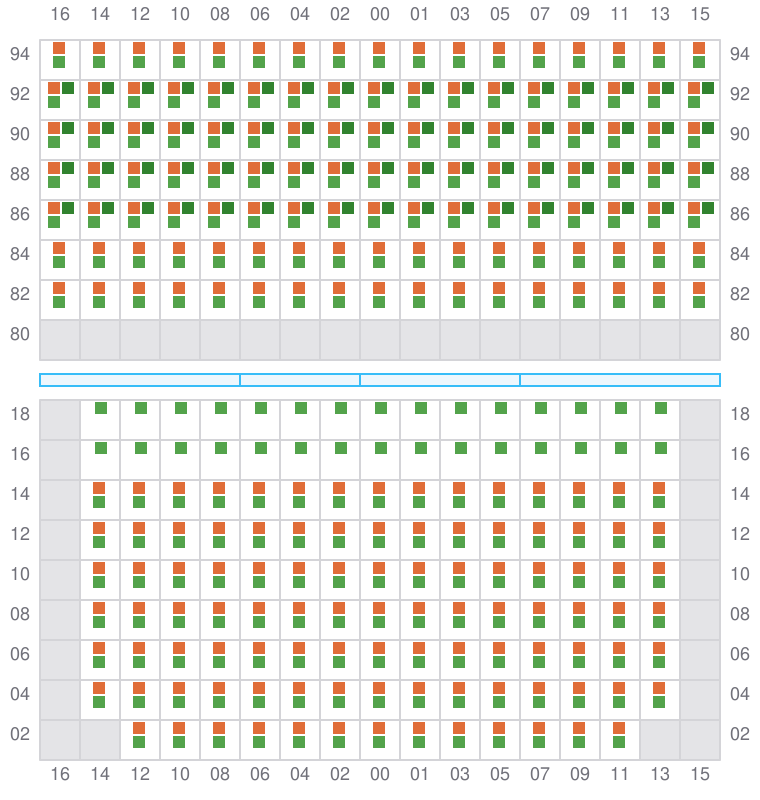

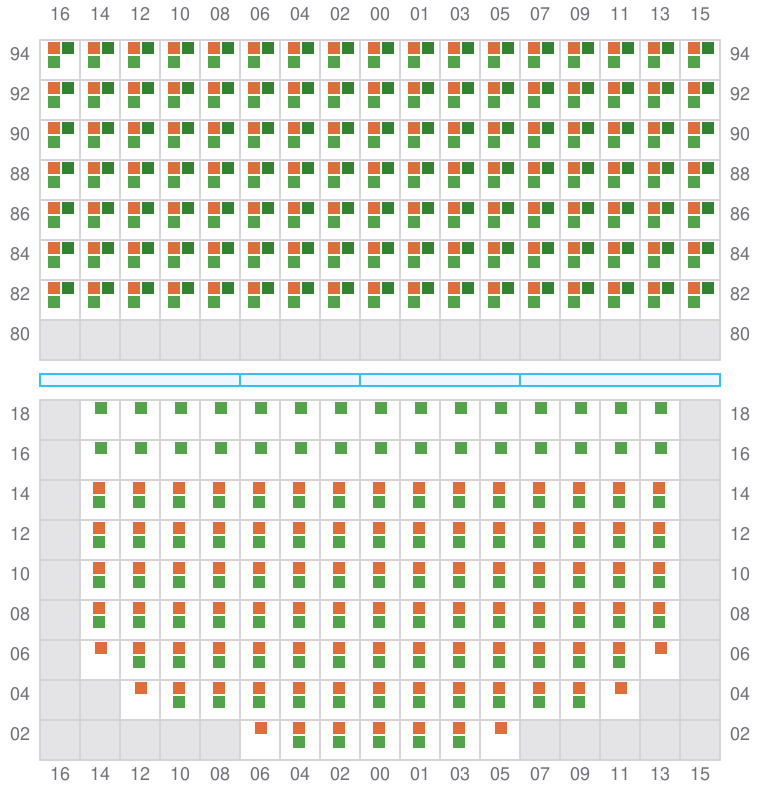

Bay 049 view and slots of CONTI COURAGE

051

←
→

Bay 051 view and slots of CONTI COURAGE

053 (054)

→

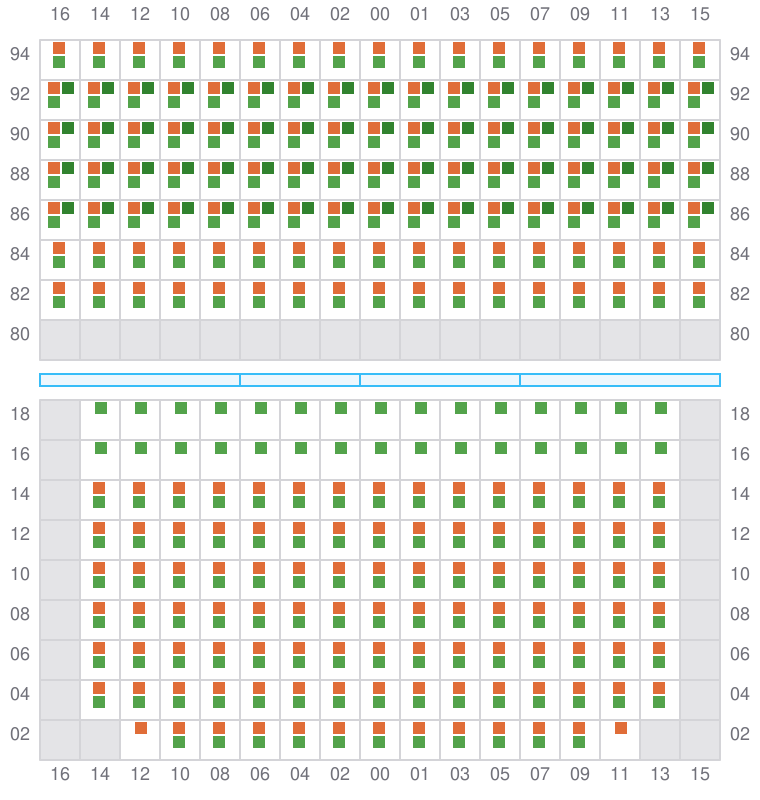

Bay 053 view and slots of CONTI COURAGE

055

←
→

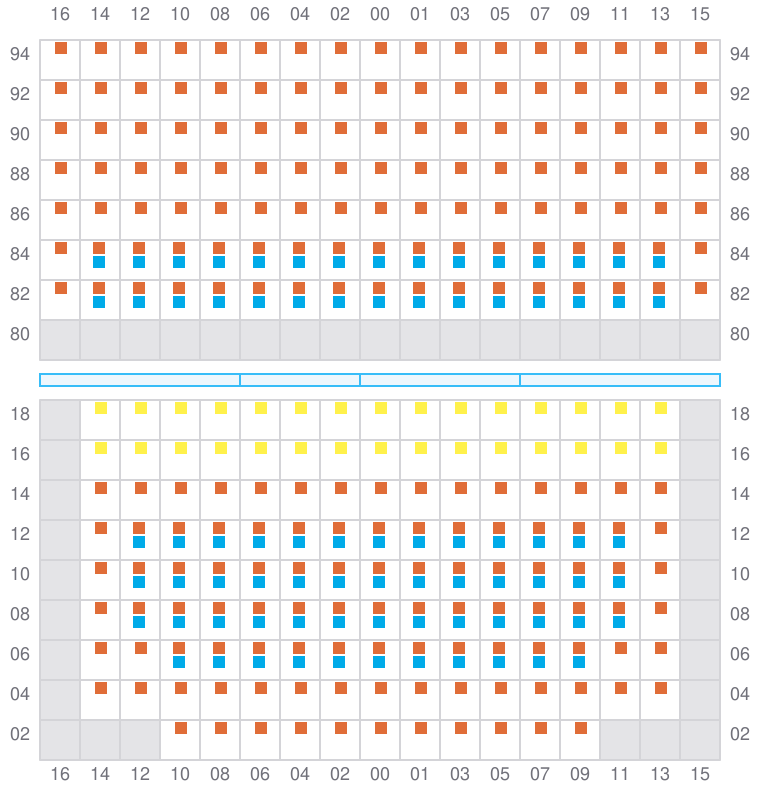

Bay 055 view and slots of CONTI COURAGE

057 (058)

→

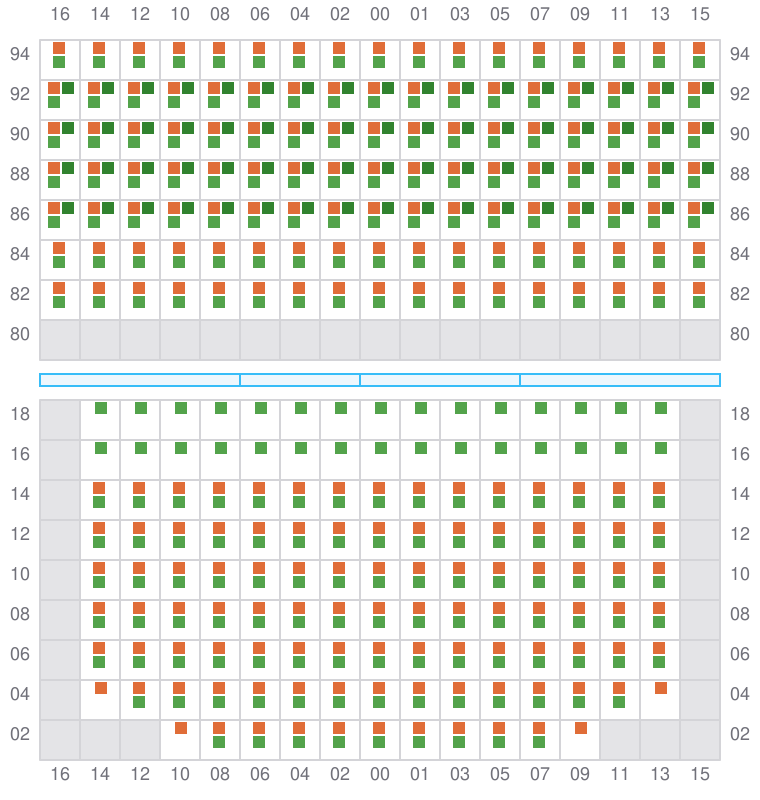

Bay 057 view and slots of CONTI COURAGE

059

←
→

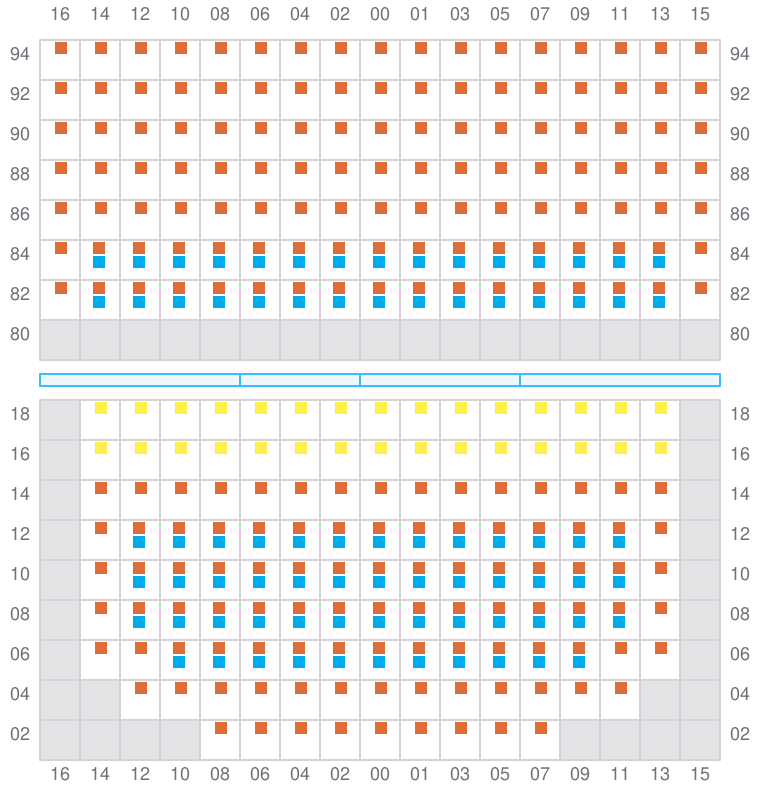

Bay 059 view and slots of CONTI COURAGE

061 (062)

→

Bay 061 view and slots of CONTI COURAGE

063

←
→

Bay 063 view and slots of CONTI COURAGE

065 (066)

→
^← / _?

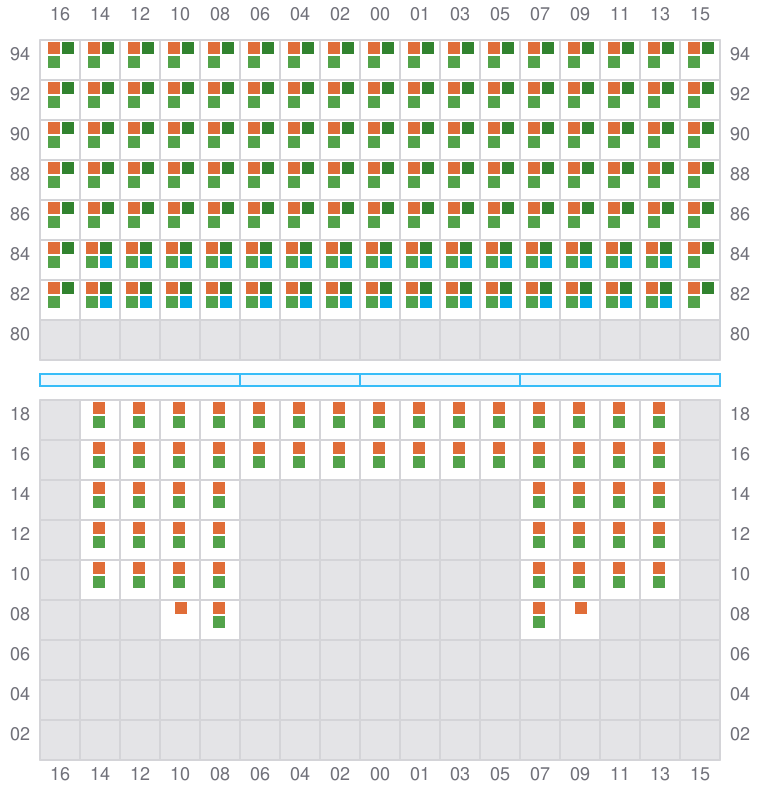

Bay 065 view and slots of CONTI COURAGE

067

←

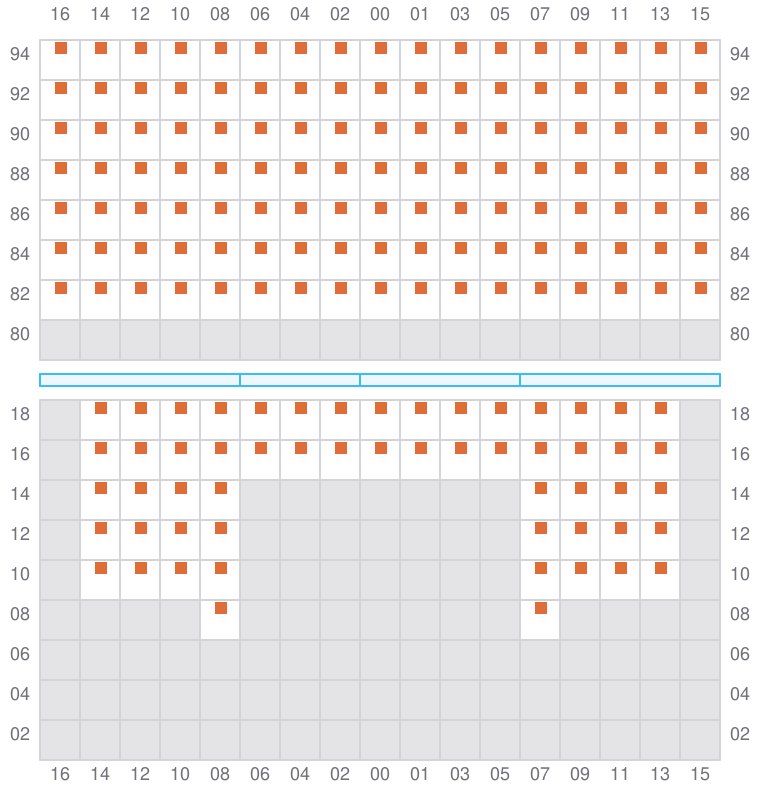

Bay 067 view and slots of CONTI COURAGE

069 (070)

→
^← / _?

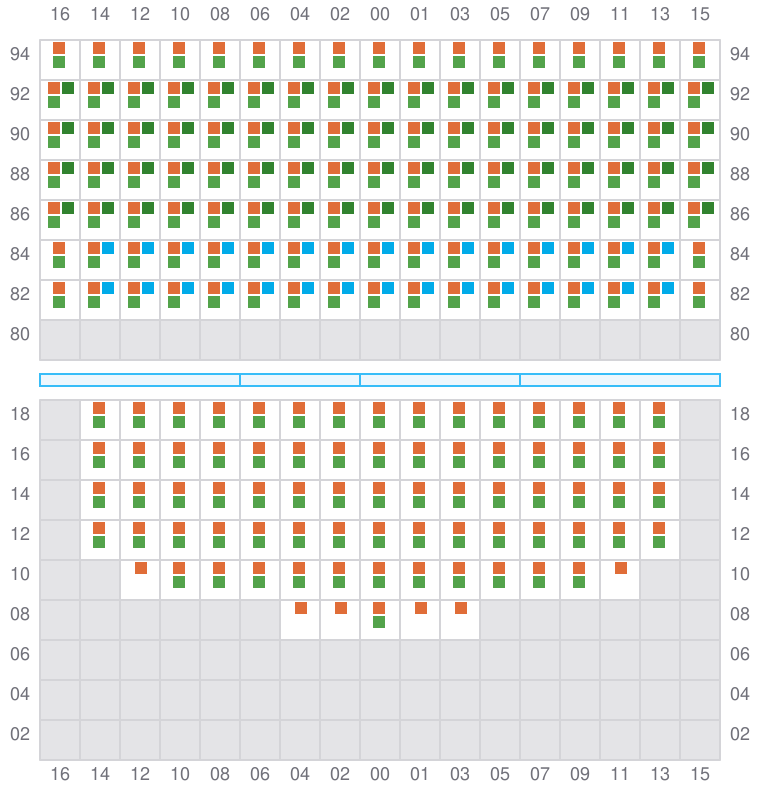

Bay 069 view and slots of CONTI COURAGE

071

←

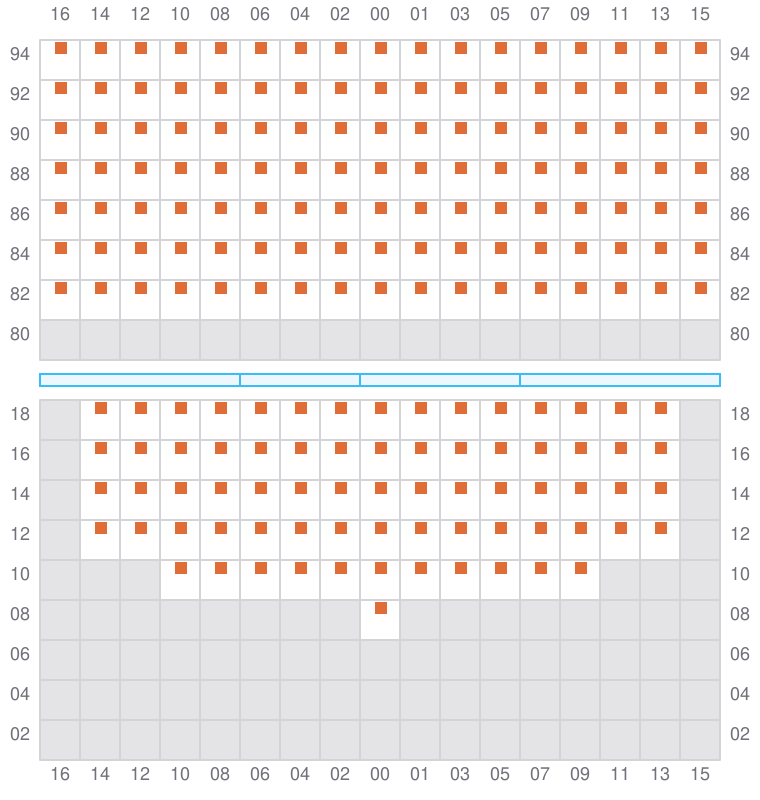

Bay 071 view and slots of CONTI COURAGE

073 (074)

→
^← / _?

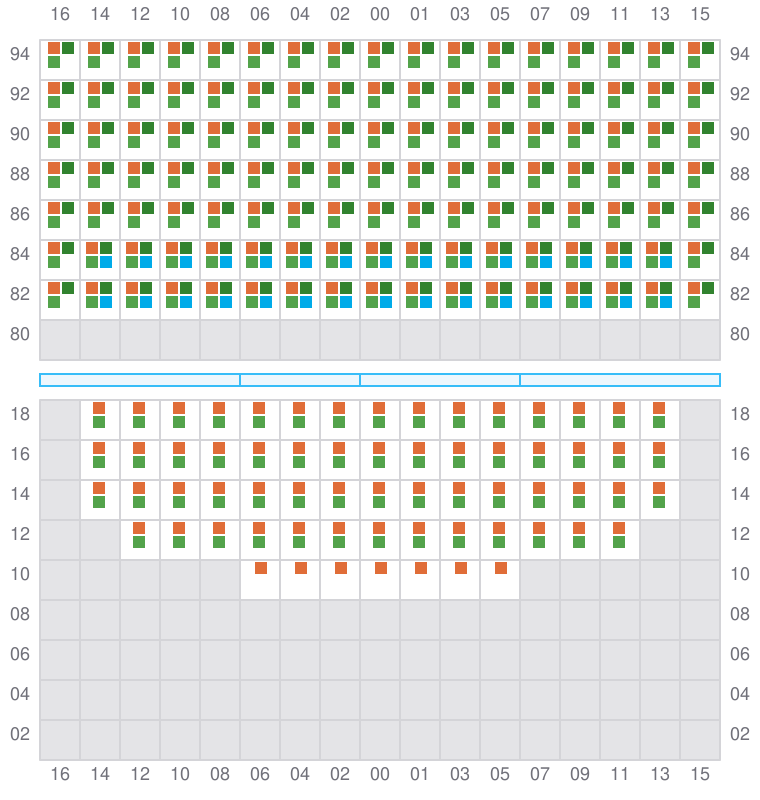

Bay 073 view and slots of CONTI COURAGE

075

←

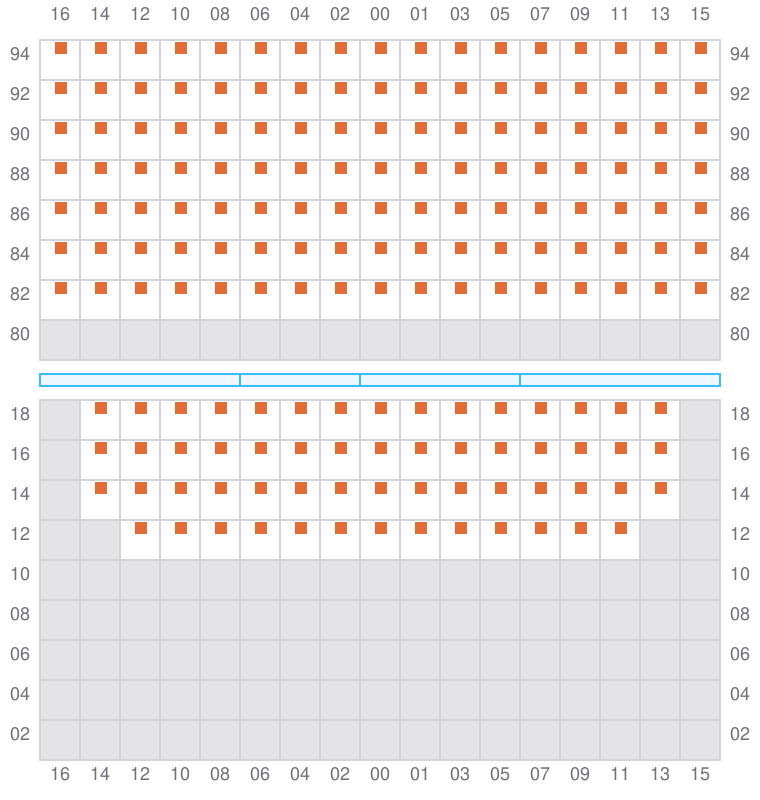

Bay 075 view and slots of CONTI COURAGE

077 (078)

^→ / _?
^← / _?

Bay 077 view and slots of CONTI COURAGE
