CONTSHIP BEE
9364344 | 5BHF6 | 9364344 by ********* Last update: Fri Jun 21 2024

General Info

Ship Name:CONTSHIP BEE
IMO Code:9364344
Call Sign:5BHF6
Line Operator:9364344
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,092

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

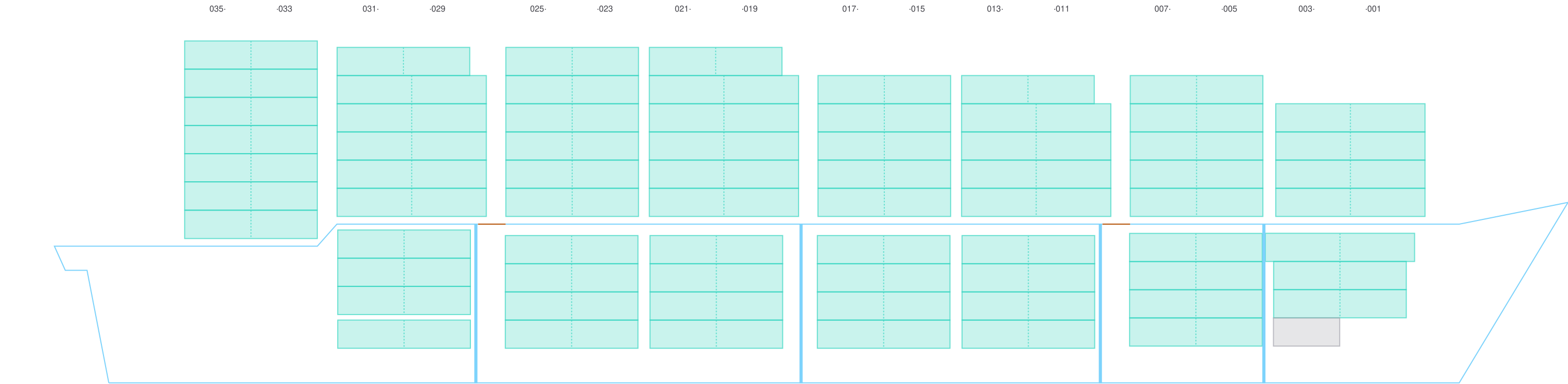

Side View

Side view of CONTSHIP BEE

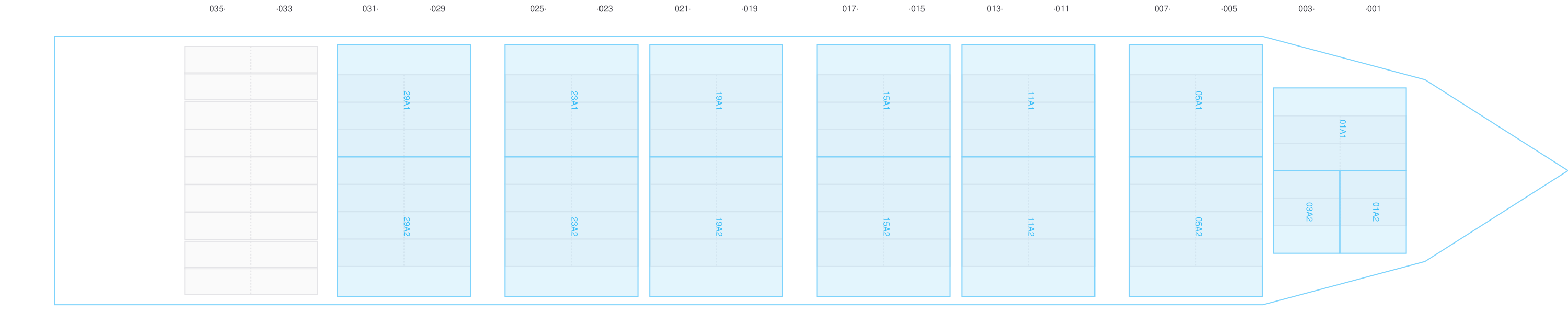

Hatch-Covers View

Deck view of CONTSHIP BEE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?
Bay 001 view and slots of CONTSHIP BEE

003

  • / ?
Bay 003 view and slots of CONTSHIP BEE

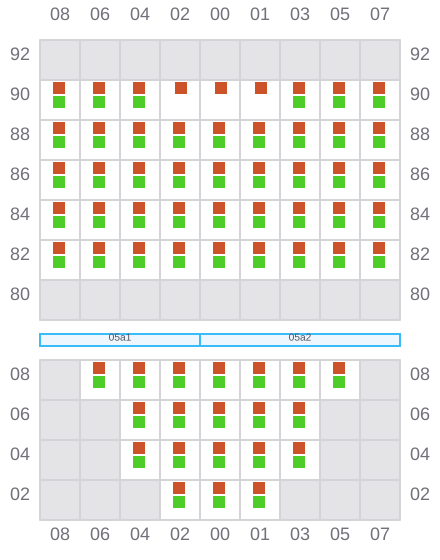

005 (006)

  • /
Bay 005 view and slots of CONTSHIP BEE

007

Bay 007 view and slots of CONTSHIP BEE

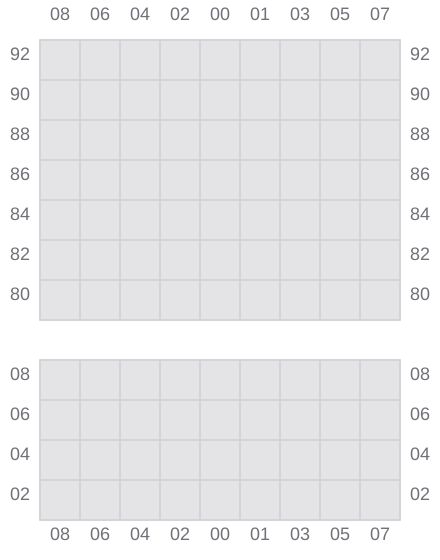

009

Bay 009 view and slots of CONTSHIP BEE

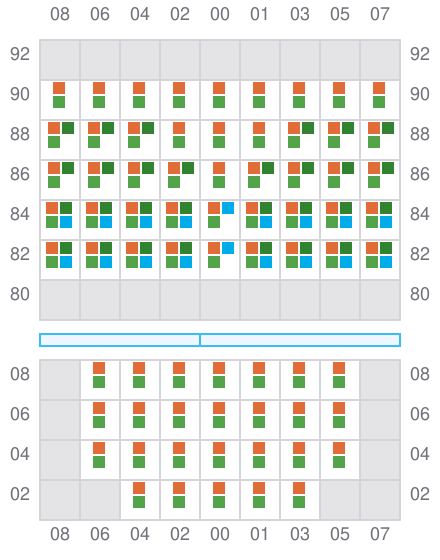

011 (012)

  • / ?
Bay 011 view and slots of CONTSHIP BEE

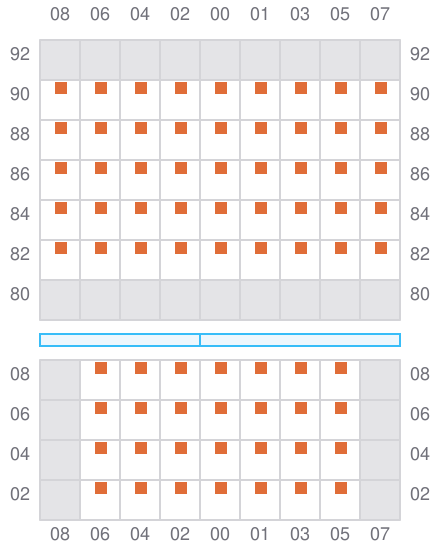

013

Bay 013 view and slots of CONTSHIP BEE

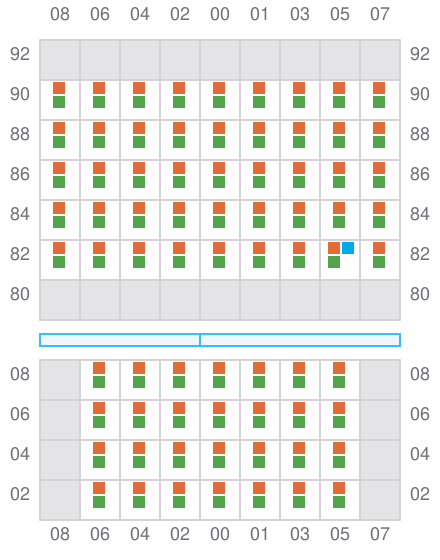

015 (016)

Bay 015 view and slots of CONTSHIP BEE

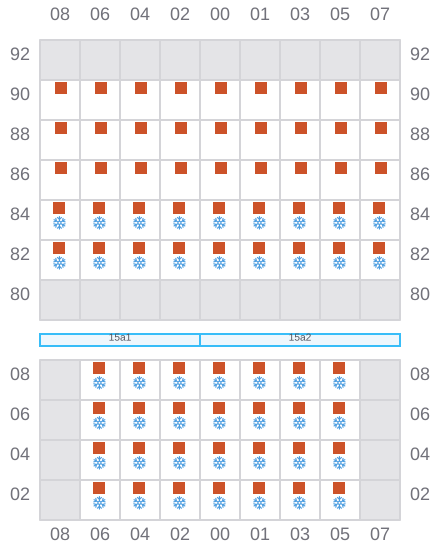

017

Bay 017 view and slots of CONTSHIP BEE

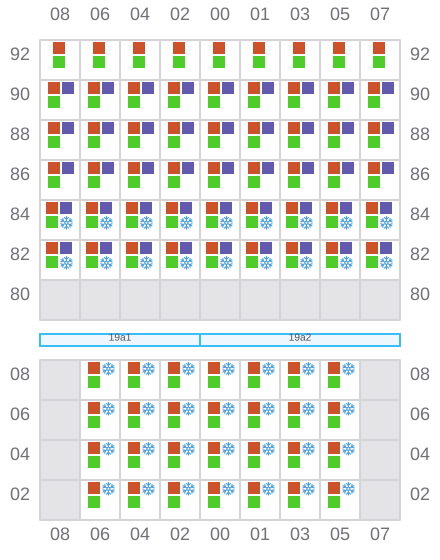

019 (020)

Bay 019 view and slots of CONTSHIP BEE

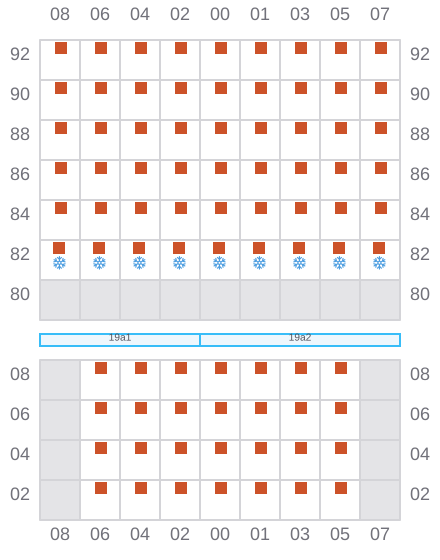

021

Bay 021 view and slots of CONTSHIP BEE

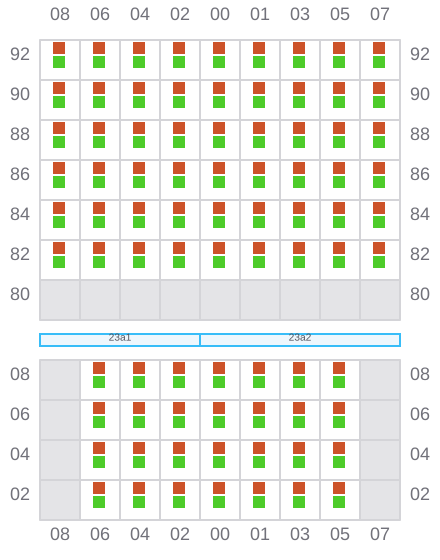

023 (024)

  • / ?
Bay 023 view and slots of CONTSHIP BEE

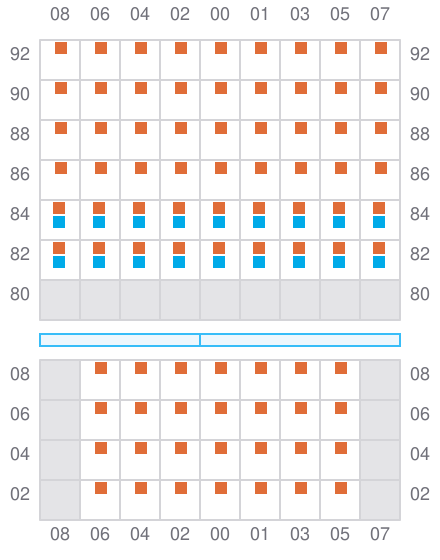

025

  • / ?
Bay 025 view and slots of CONTSHIP BEE

027

Bay 027 view and slots of CONTSHIP BEE

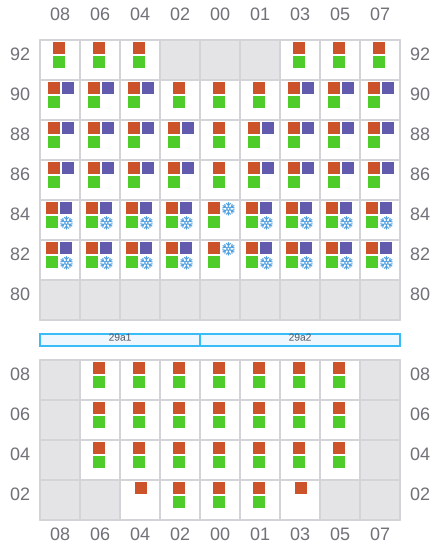

029 (030)

Bay 029 view and slots of CONTSHIP BEE

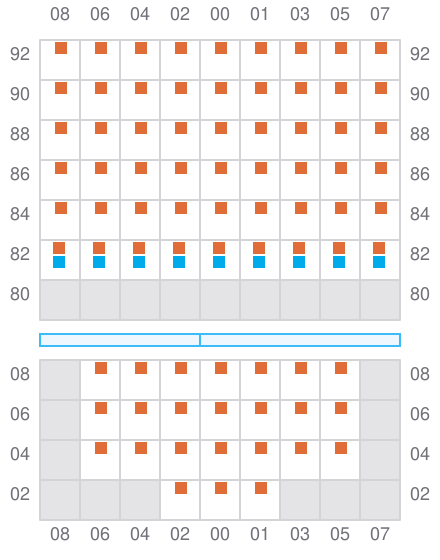

031

Bay 031 view and slots of CONTSHIP BEE

033 (034)

  • / ?
Bay 033 view and slots of CONTSHIP BEE

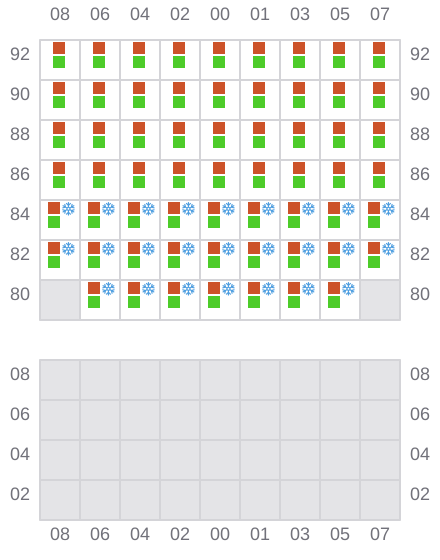

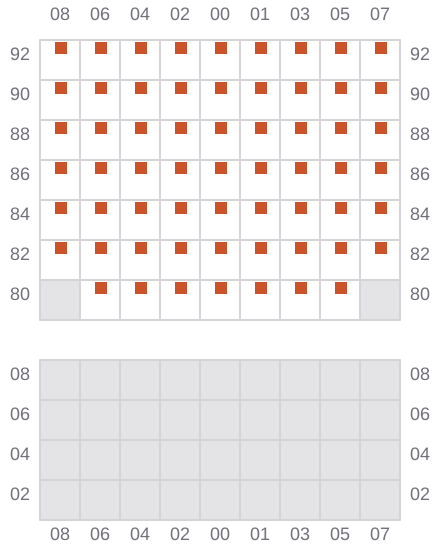

035

Bay 035 view and slots of CONTSHIP BEE
