CONTSHIP GEM
9491599 | 5BKK6 | 9491599 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:CONTSHIP GEM
IMO Code:9491599
Call Sign:5BKK6
Line Operator:9491599
Class Name for Sister Ships:MSC
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,020

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

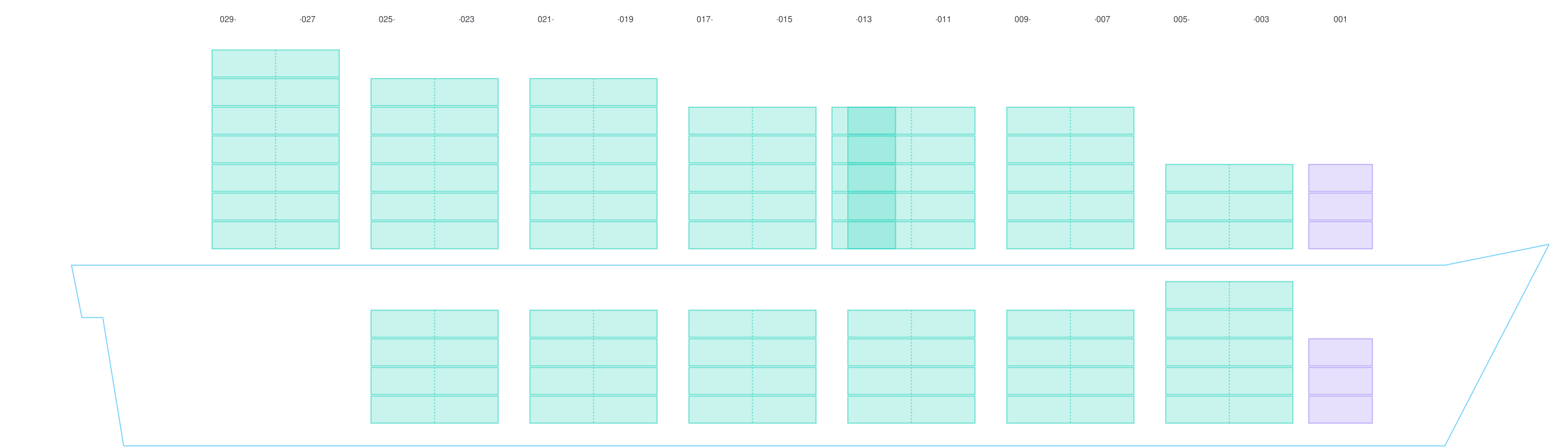

Side view of CONTSHIP GEM

Hatch-Covers View

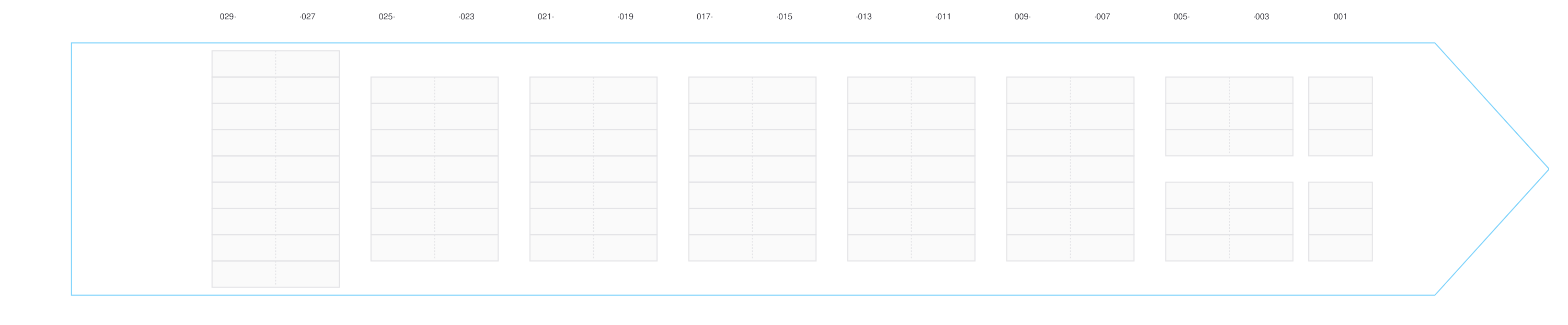

Deck view of CONTSHIP GEM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

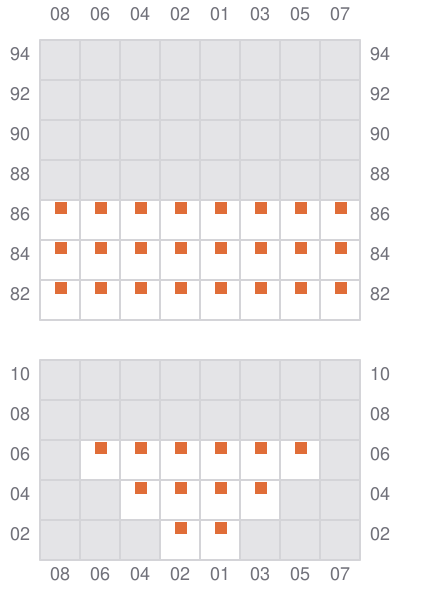

001

Bay 001 view and slots of CONTSHIP GEM

003 (004)

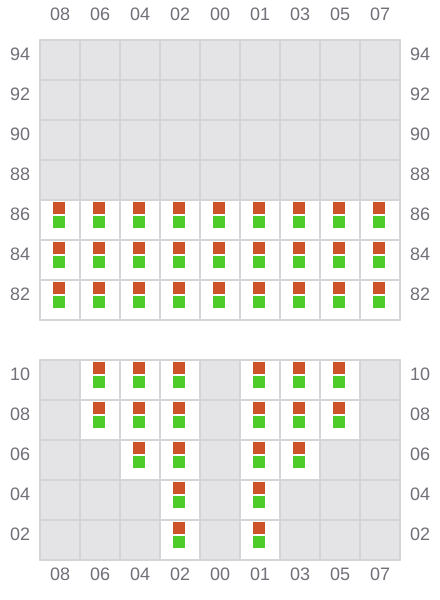

Bay 003 view and slots of CONTSHIP GEM

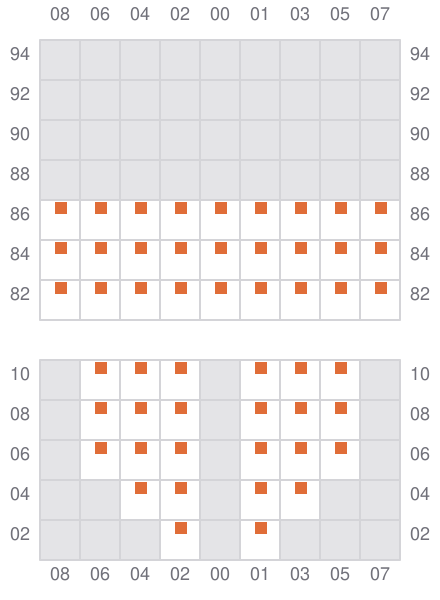

005

Bay 005 view and slots of CONTSHIP GEM

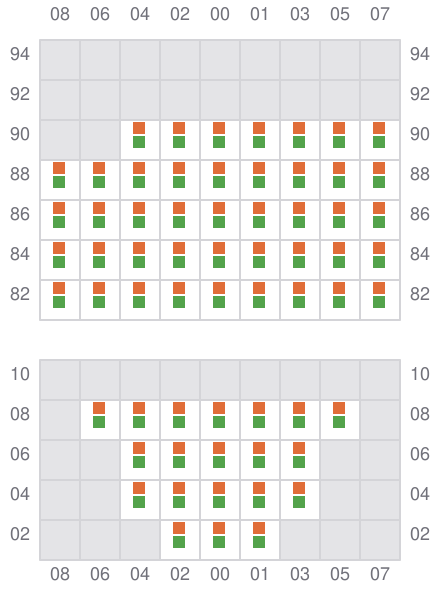

007 (008)

Bay 007 view and slots of CONTSHIP GEM

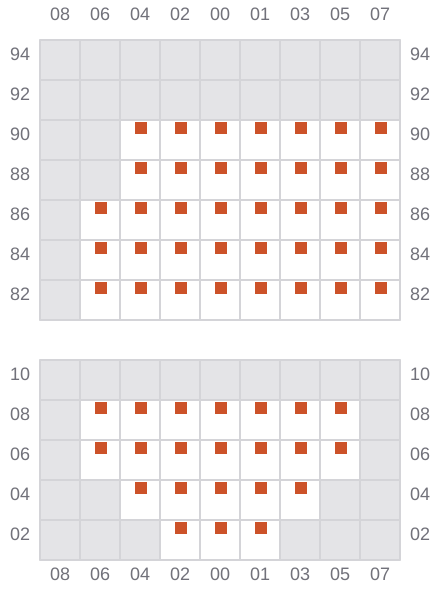

009

Bay 009 view and slots of CONTSHIP GEM

011 (012)

Bay 011 view and slots of CONTSHIP GEM

013

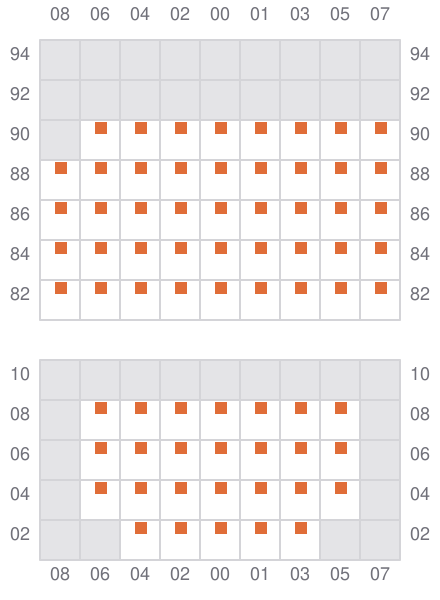

Bay 013 view and slots of CONTSHIP GEM

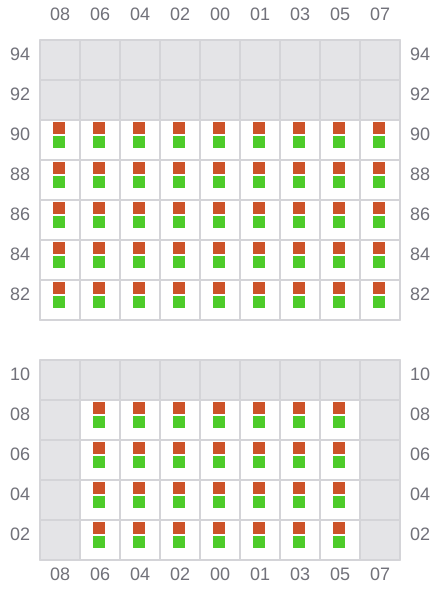

015 (016)

Bay 015 view and slots of CONTSHIP GEM

017

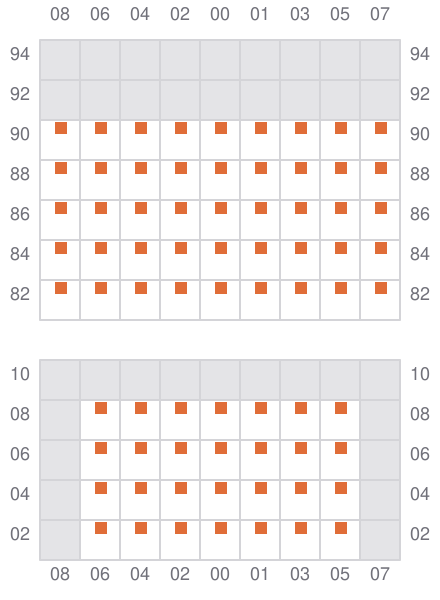

Bay 017 view and slots of CONTSHIP GEM

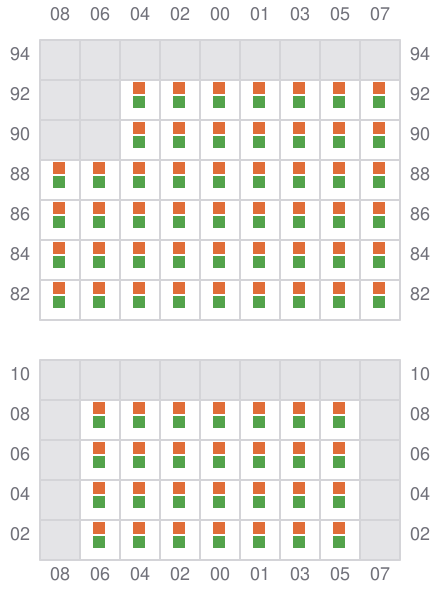

019 (020)

Bay 019 view and slots of CONTSHIP GEM

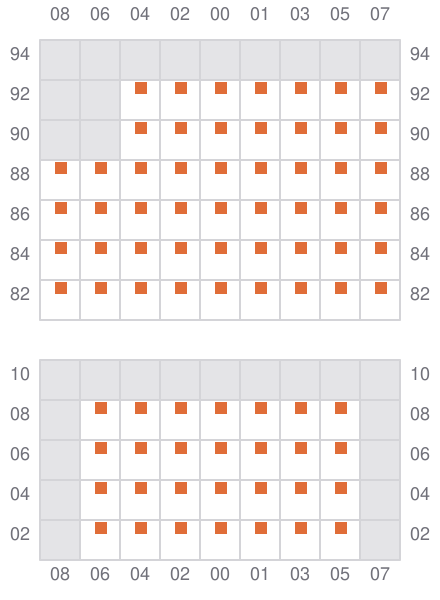

021

Bay 021 view and slots of CONTSHIP GEM

023 (024)

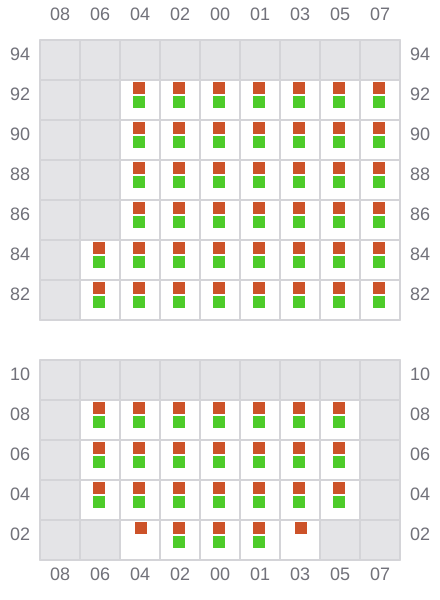

Bay 023 view and slots of CONTSHIP GEM

025

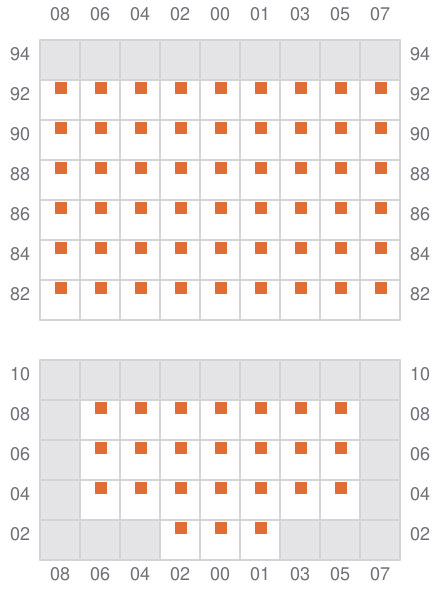

Bay 025 view and slots of CONTSHIP GEM

027 (028)

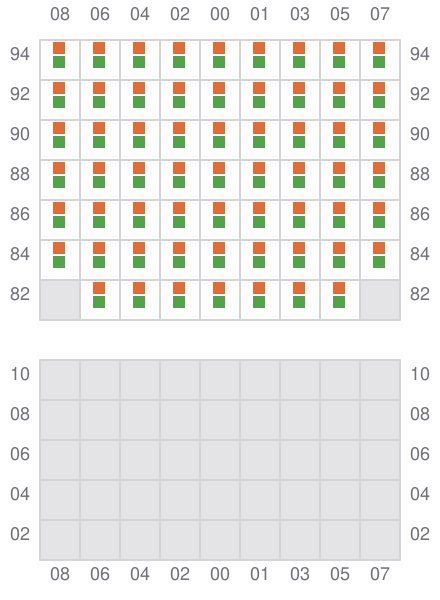

Bay 027 view and slots of CONTSHIP GEM

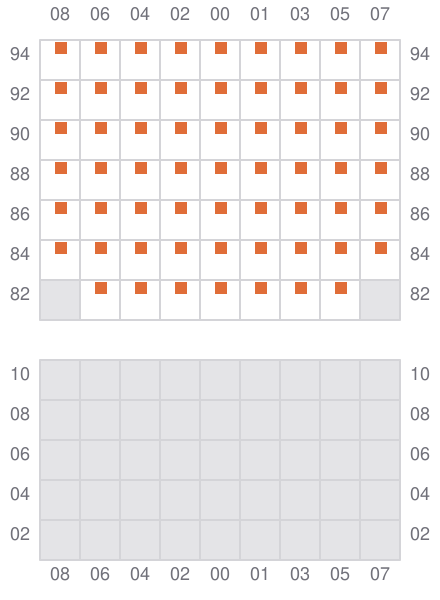

029

Bay 029 view and slots of CONTSHIP GEM
