CONTSHIP JET
9348625 | D5UX8 | 9348625 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:CONTSHIP JET
IMO Code:9348625
Call Sign:D5UX8
Line Operator:9348625
Class Name for Sister Ships:89A
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,267
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-sideView.png?v=1711142978535)
Hatch-Covers View
![Deck view of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-deckView.png?v=1711142978535)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

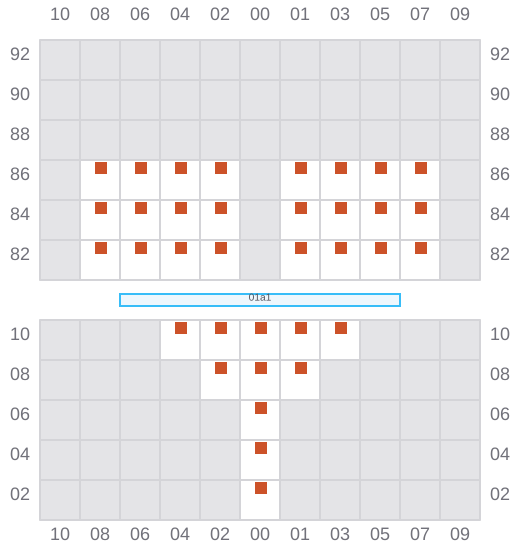

001
![Bay 001 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b001.png?v=1711142978535)
003 (004)
- →
![Bay 003 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b003.png?v=1711142978535)
005
- ←
- → / ?
![Bay 005 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b005.png?v=1711142978535)
007 (008)
- →
![Bay 007 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b007.png?v=1711142978535)
009
- ←
- → / ?
![Bay 009 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b009.png?v=1711142978535)
011 (012)
- →
![Bay 011 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b011.png?v=1711142978535)
013
- ←
- →
![Bay 013 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b013.png?v=1711142978535)

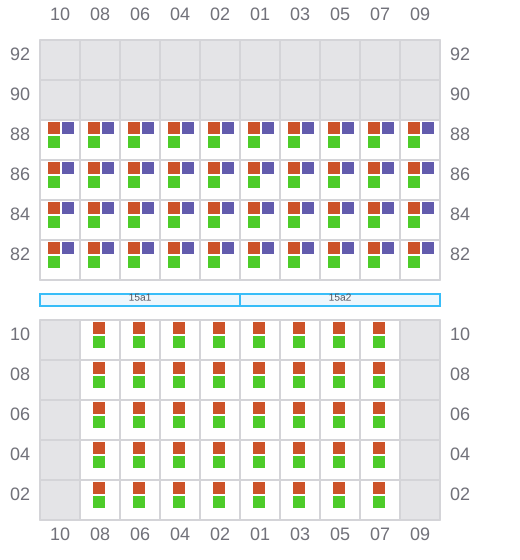

015 (016)
- →
![Bay 015 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b015.png?v=1711142978535)

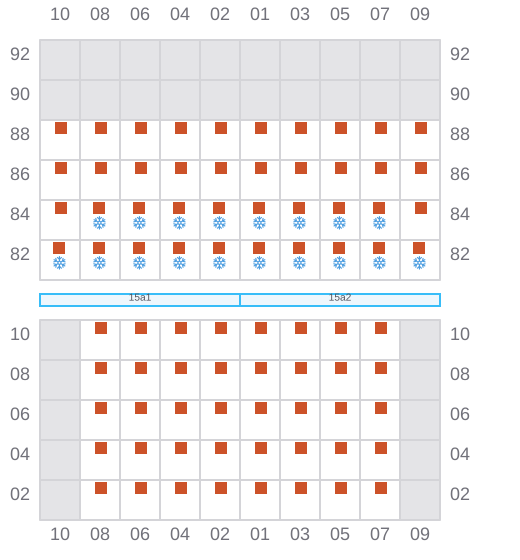

017
- ←
- → / ?
![Bay 017 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b017.png?v=1711142978535)
019 (020)
- →
![Bay 019 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b019.png?v=1711142978535)
021
- ←
- →
![Bay 021 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b021.png?v=1711142978535)
023 (024)
- →
![Bay 023 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b023.png?v=1711142978535)
025
- ←
- → / ?
![Bay 025 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b025.png?v=1711142978535)
027 (028)
- →
![Bay 027 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b027.png?v=1711142978535)
029
- ←
- → / ?
![Bay 029 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b029.png?v=1711142978535)
031 (032)
- → / ?
![Bay 031 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b031.png?v=1711142978535)
033
- ← / ?
- → / ?
![Bay 033 view and slots of CONTSHIP JET](/vessel-images/392114d7-c4d2-46e4-baf1-8d90abc92b30-b033.png?v=1711142978535)
