CONTSHIP MED
9306249 | D5VY6 | 9306249 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:CONTSHIP MED
IMO Code:9306249
Call Sign:D5VY6
Line Operator:9306249
Class Name for Sister Ships:43C
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,096
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

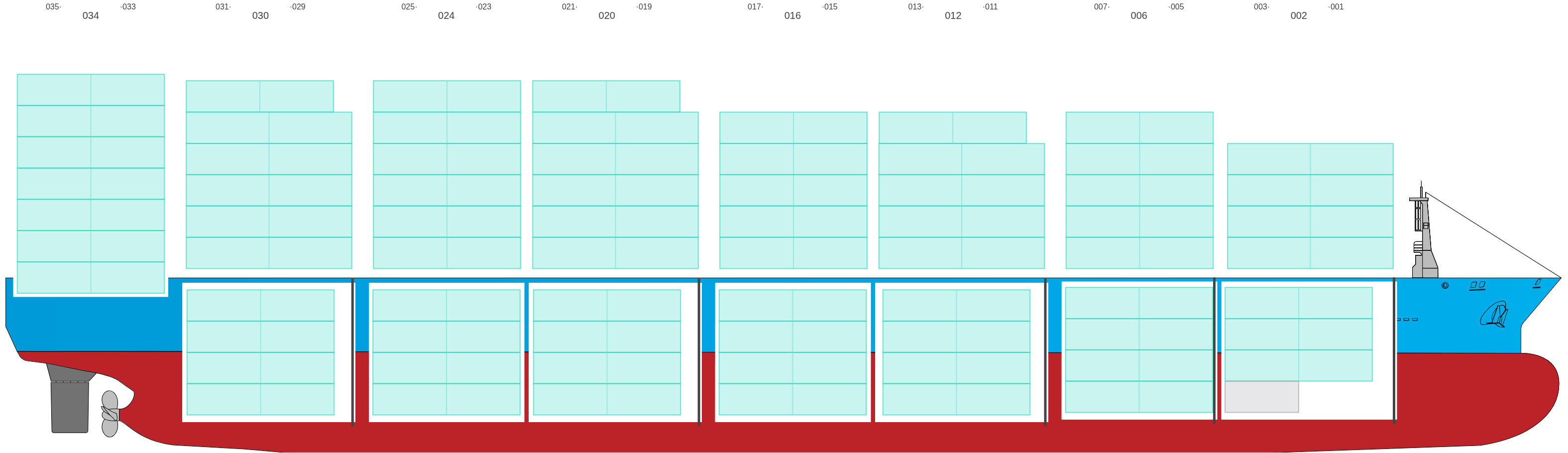

Side View
![Side view of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-sideView.png?v=1710790314012)

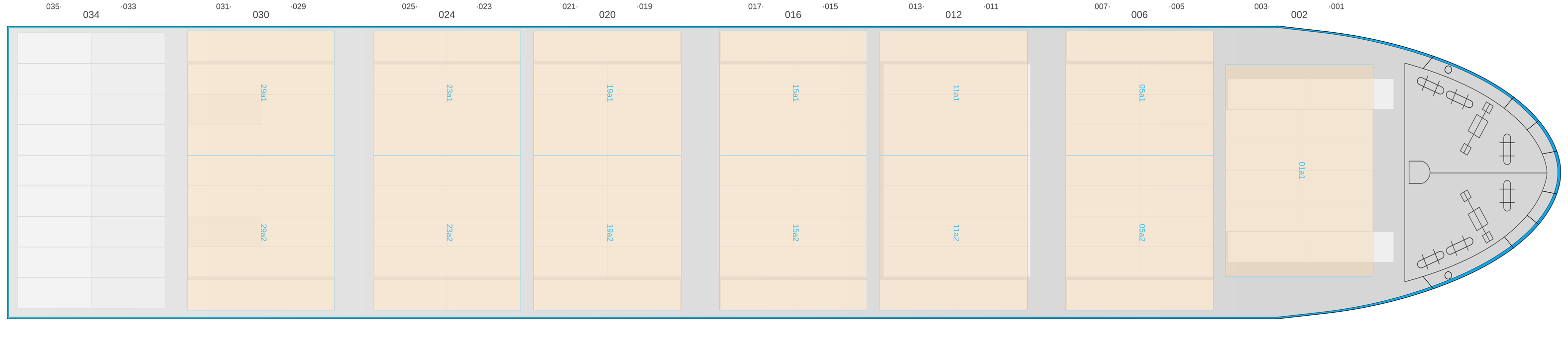

Hatch-Covers View
![Deck view of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-deckView.png?v=1710790314012)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
![Bay 001 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b001.png?v=1710790314012)
003
- ←
![Bay 003 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b003.png?v=1710790314012)

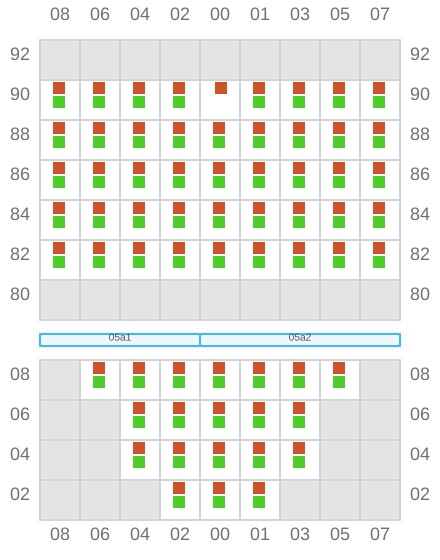

005 (006)
- →
![Bay 005 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b005.png?v=1710790314012)

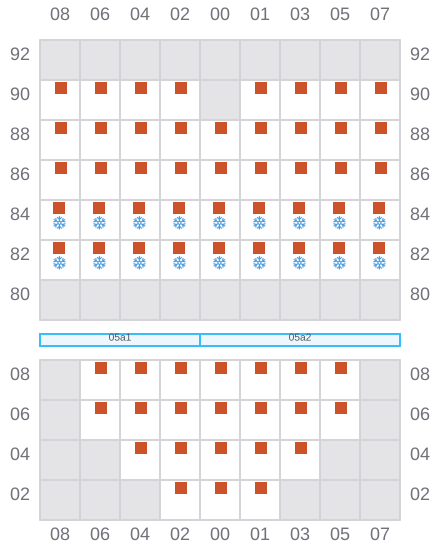

007
- ←
- → / ?
![Bay 007 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b007.png?v=1710790314012)

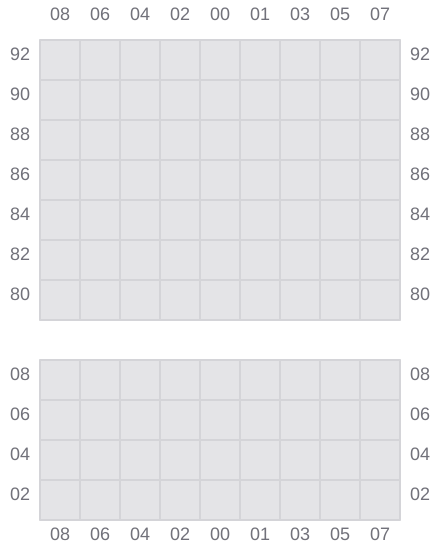

009
![Bay 009 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b009.png?v=1710790314012)

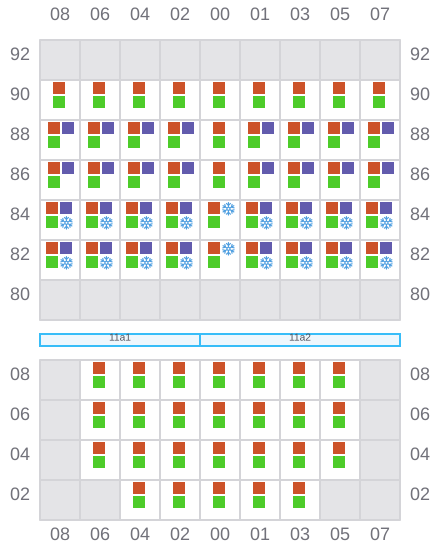

011 (012)
- →
- ← / ?
![Bay 011 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b011.png?v=1710790314012)

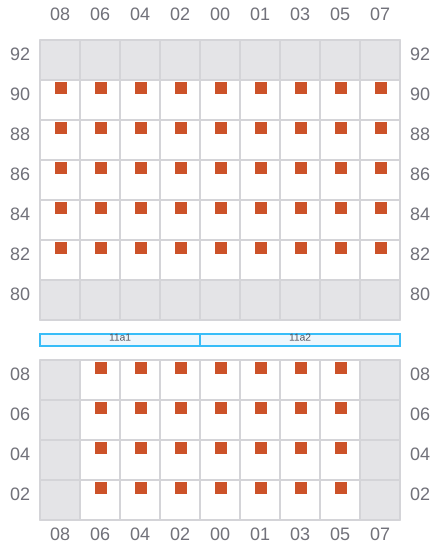

013
- ←
![Bay 013 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b013.png?v=1710790314012)

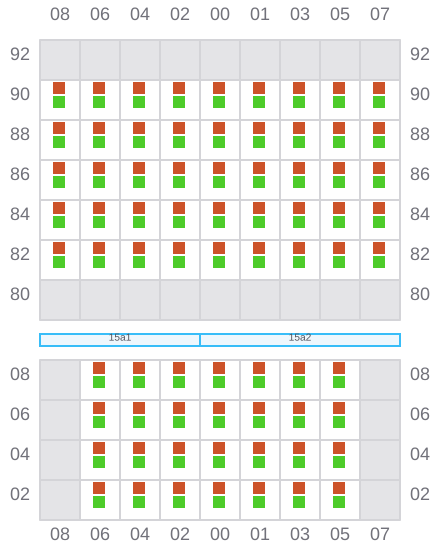

015 (016)
- →
![Bay 015 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b015.png?v=1710790314012)

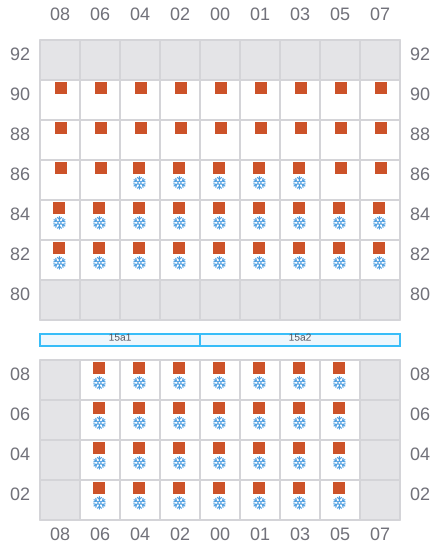

017
- ←
- →
![Bay 017 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b017.png?v=1710790314012)

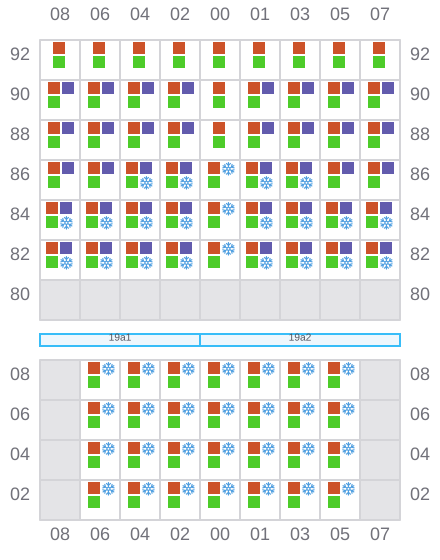

019 (020)
- →
- ←
![Bay 019 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b019.png?v=1710790314012)

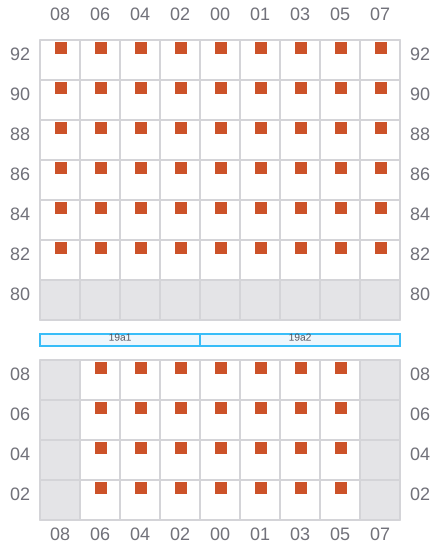

021
- ←
- → / ?
![Bay 021 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b021.png?v=1710790314012)

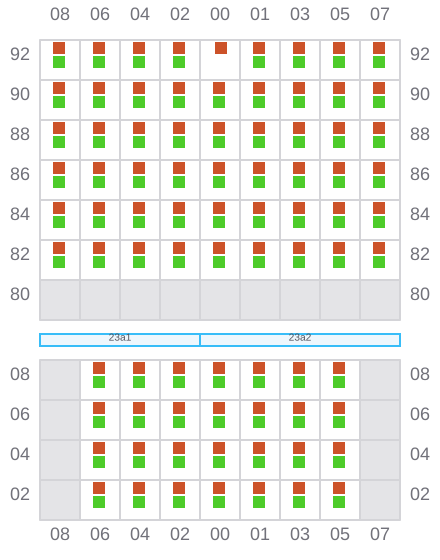

023 (024)
- →
![Bay 023 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b023.png?v=1710790314012)

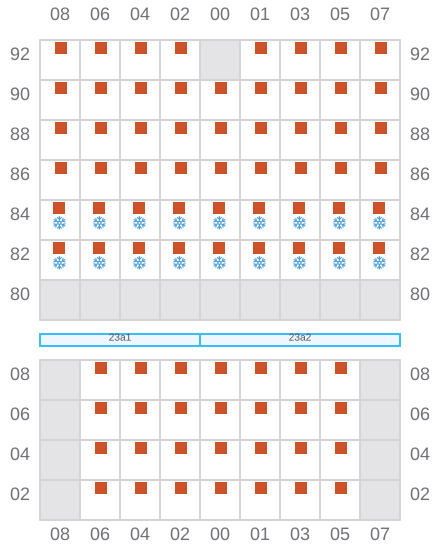

025
- ←
- → / ?
![Bay 025 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b025.png?v=1710790314012)
027
![Bay 027 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b027.png?v=1710790314012)

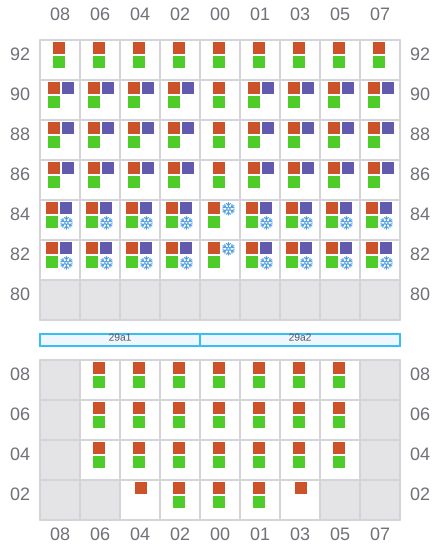

029 (030)
- →
- ← / ?
![Bay 029 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b029.png?v=1710790314012)

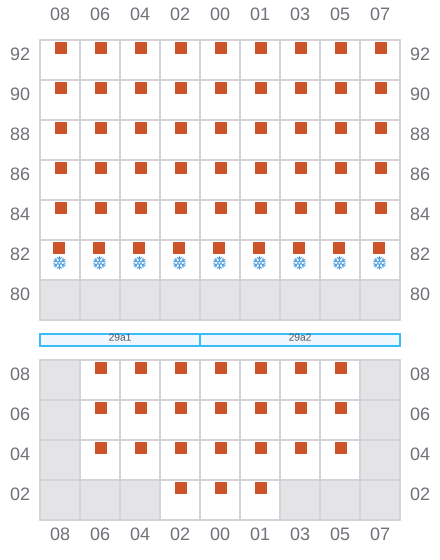

031
- ←
- → / ?
![Bay 031 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b031.png?v=1710790314012)

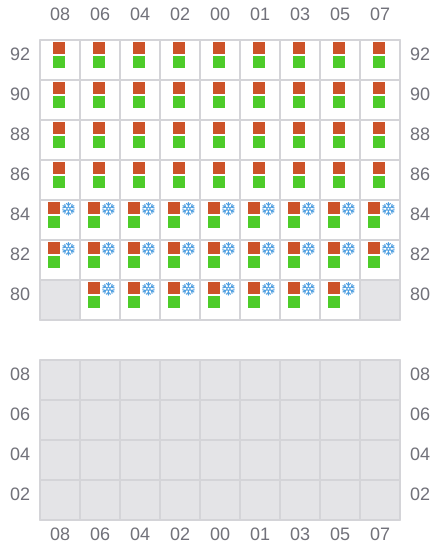

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b033.png?v=1710790314012)

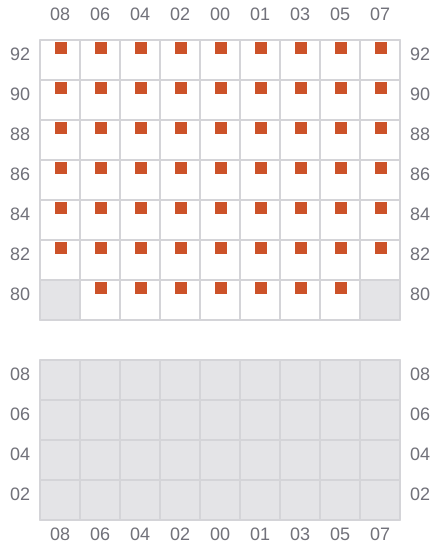

035
- ← / ?
![Bay 035 view and slots of CONTSHIP MED](/vessel-images/05672d99-8cb9-4c8f-b417-cfe986b25f03-b035.png?v=1710790314012)
