CONTSHIP NEW
9373905 | 5BBD5 | 9373905 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:CONTSHIP NEW
IMO Code:9373905
Call Sign:5BBD5
Line Operator:9373905
Class Name for Sister Ships:97B
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,114
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

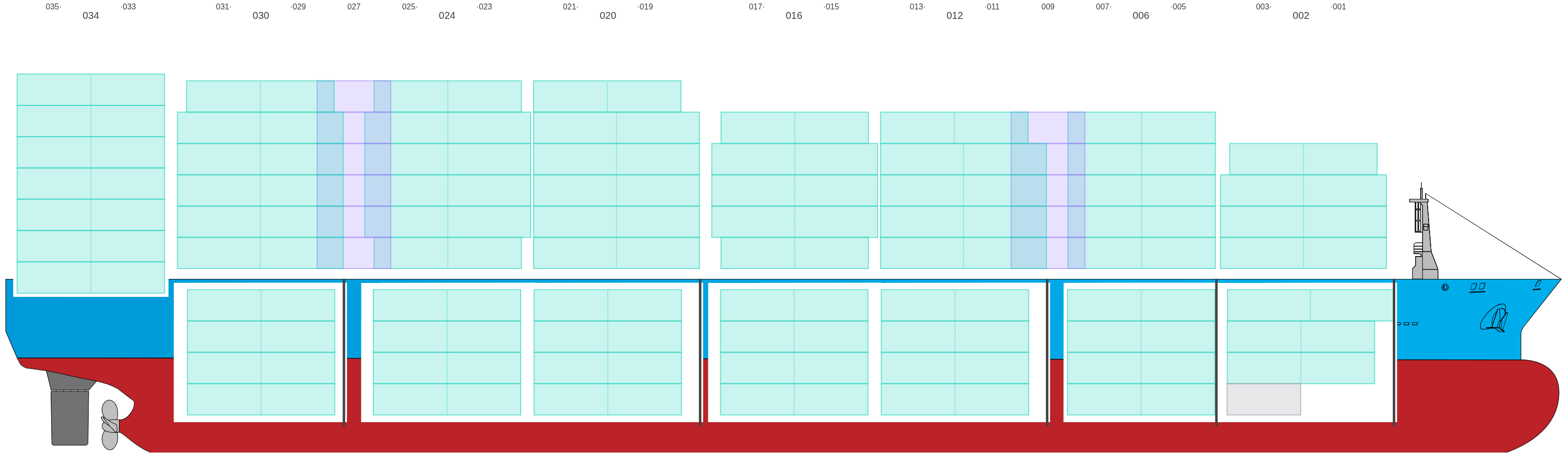

Side View
![Side view of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-sideView.png?v=1711218866026)

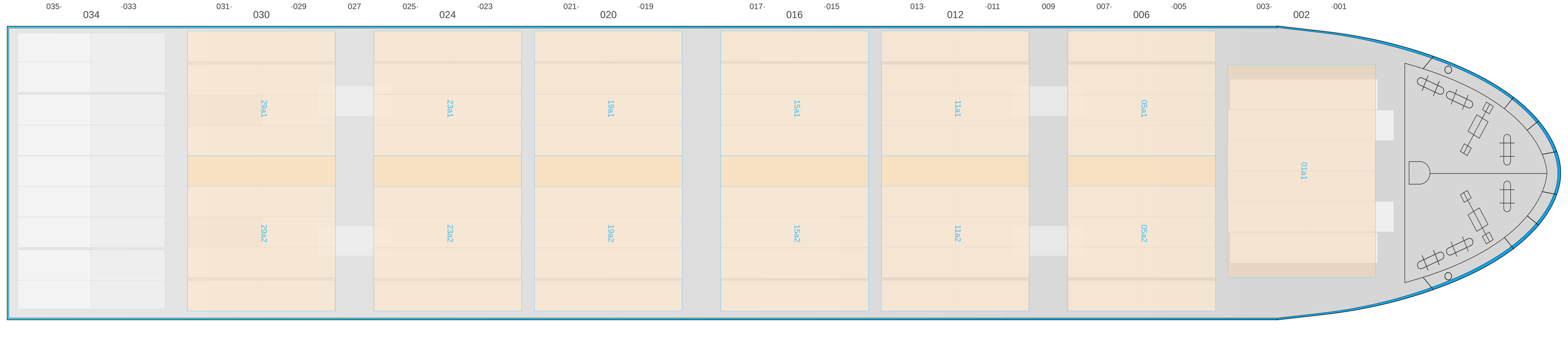

Hatch-Covers View
![Deck view of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-deckView.png?v=1711218866026)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
![Bay 001 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b001.png?v=1711218866026)
003
- ←
- → / ?
![Bay 003 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b003.png?v=1711218866026)

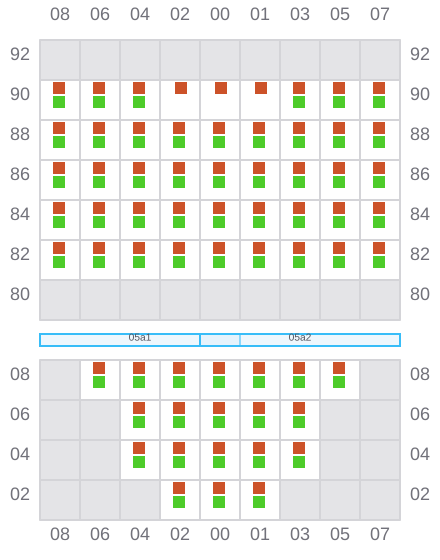

005 (006)
- →
![Bay 005 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b005.png?v=1711218866026)

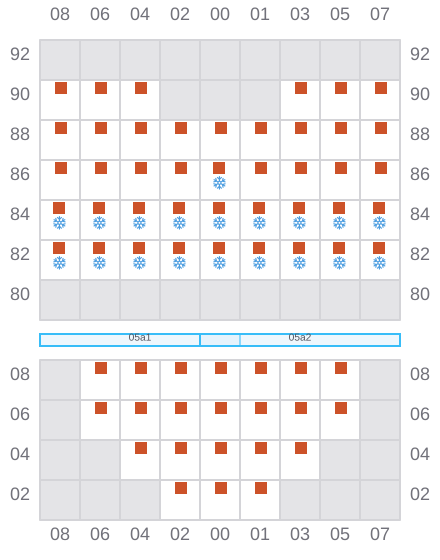

007
- ←
- →
![Bay 007 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b007.png?v=1711218866026)

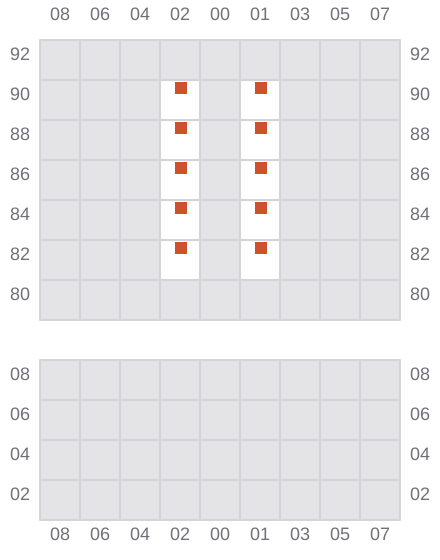

009
![Bay 009 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b009.png?v=1711218866026)

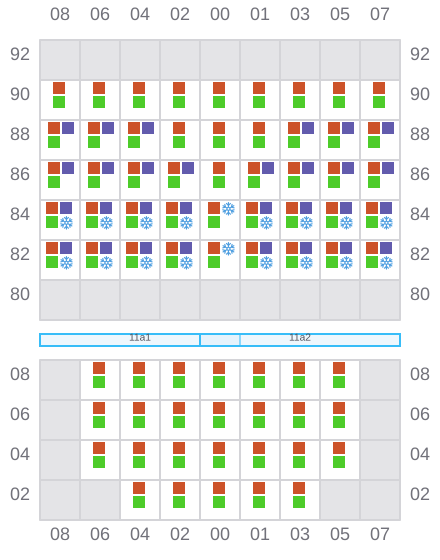

011 (012)
- →
- ← / ?
![Bay 011 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b011.png?v=1711218866026)

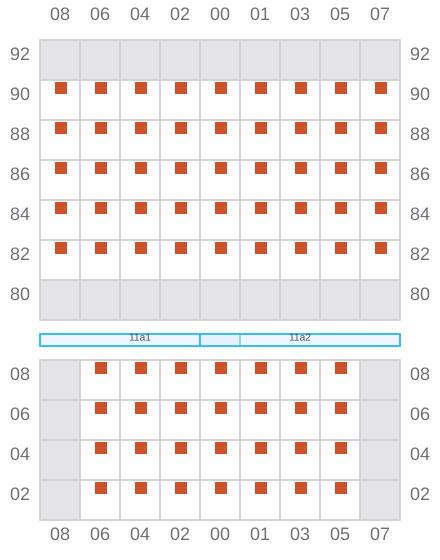

013
- ←
![Bay 013 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b013.png?v=1711218866026)

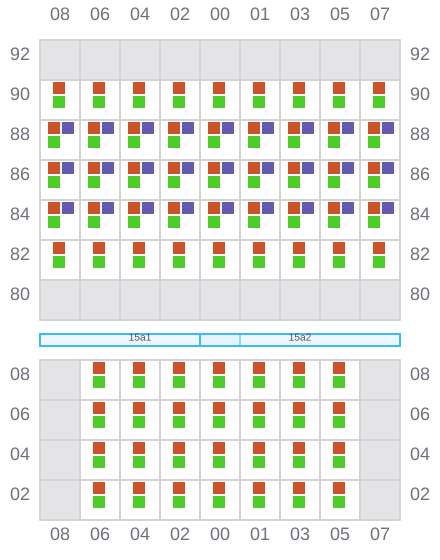

015 (016)
- →
![Bay 015 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b015.png?v=1711218866026)

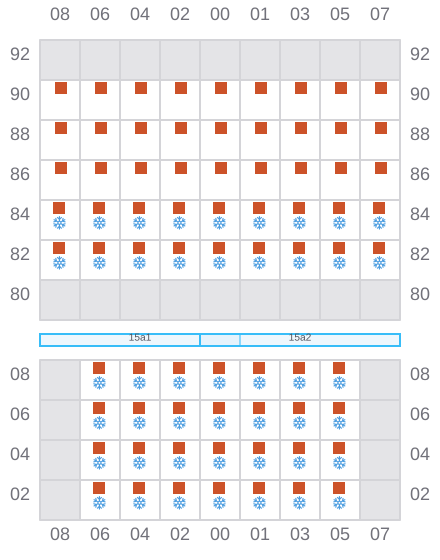

017
- ←
- →
![Bay 017 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b017.png?v=1711218866026)

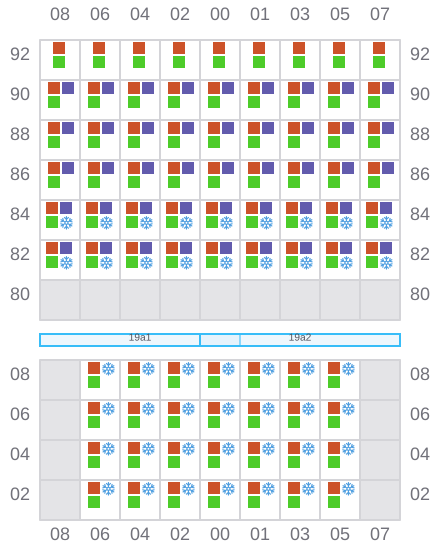

019 (020)
- →
- ←
![Bay 019 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b019.png?v=1711218866026)

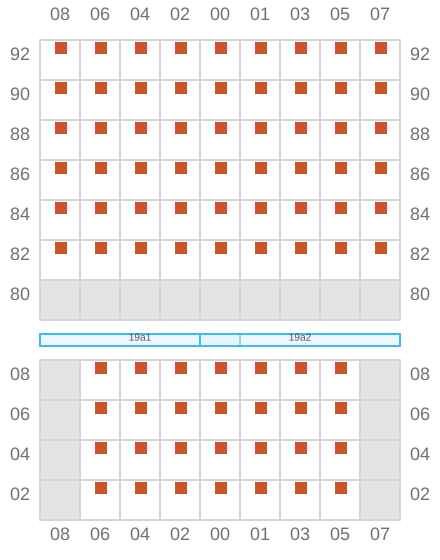

021
- ←
- → / ?
![Bay 021 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b021.png?v=1711218866026)

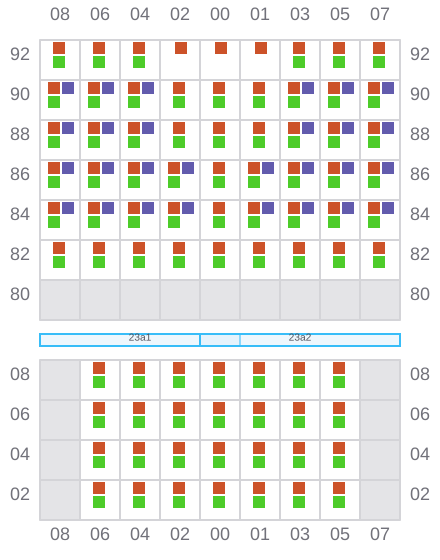

023 (024)
- →
![Bay 023 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b023.png?v=1711218866026)

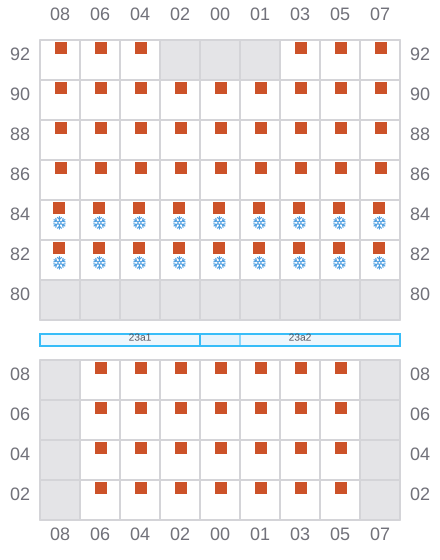

025
- ←
- → / ?
![Bay 025 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b025.png?v=1711218866026)

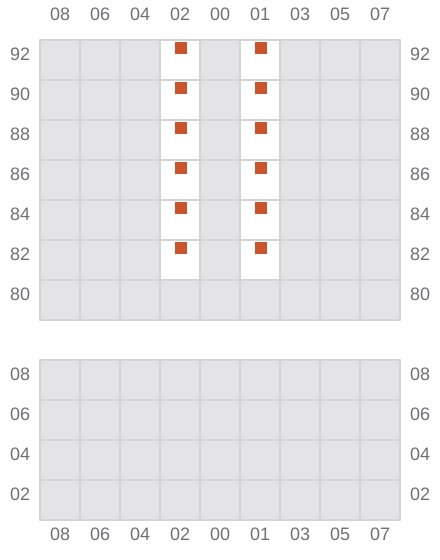

027
![Bay 027 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b027.png?v=1711218866026)

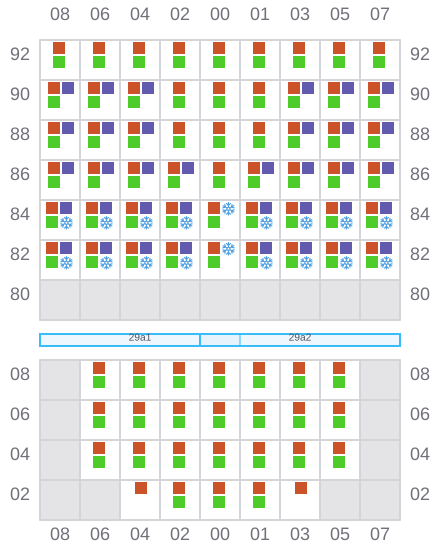

029 (030)
- →
- ← / ?
![Bay 029 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b029.png?v=1711218866026)
031
- ←
- →
![Bay 031 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b031.png?v=1711218866026)

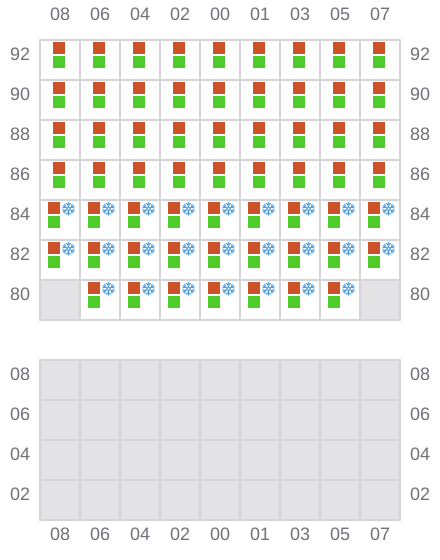

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b033.png?v=1711218866026)

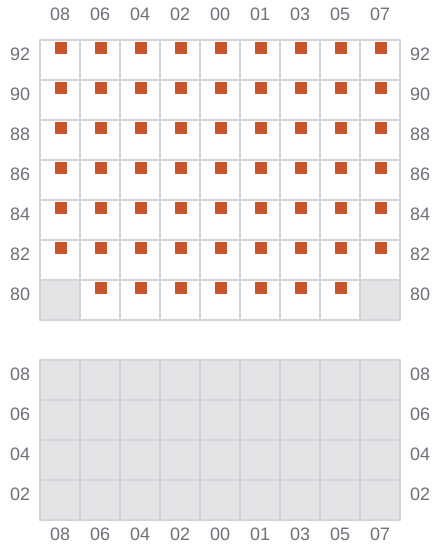

035
- ← / ?
![Bay 035 view and slots of CONTSHIP NEW](/vessel-images/ae917b1f-9a3a-4362-aa14-fb6af22cf4fa-b035.png?v=1711218866026)
