CONTSHIP TEN
9347982 | 5BFN5 | 9347982 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:CONTSHIP TEN
IMO Code:9347982
Call Sign:5BFN5
Line Operator:9347982
Class Name for Sister Ships:MCC
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,092

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

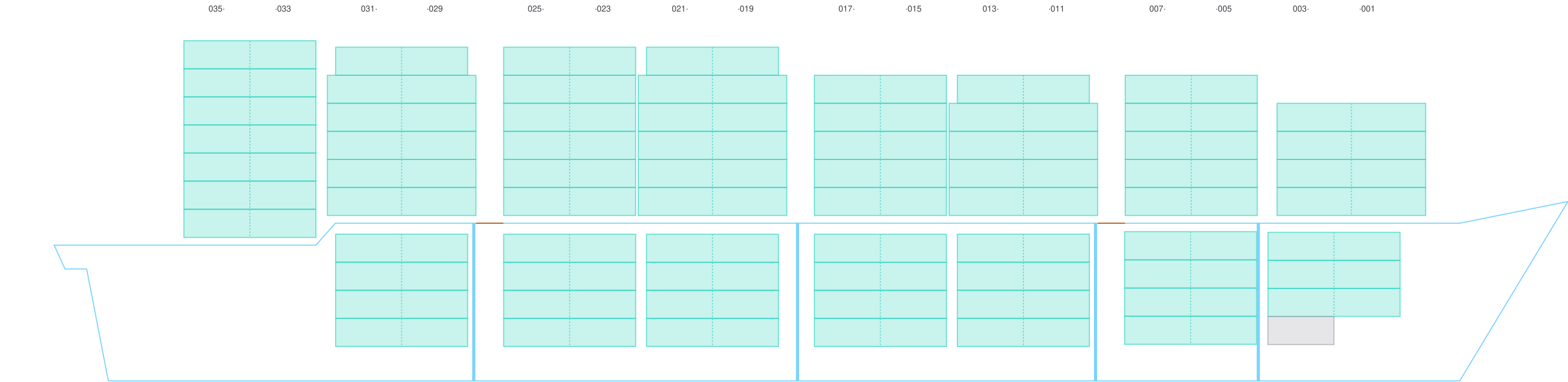

Side view of CONTSHIP TEN

Hatch-Covers View

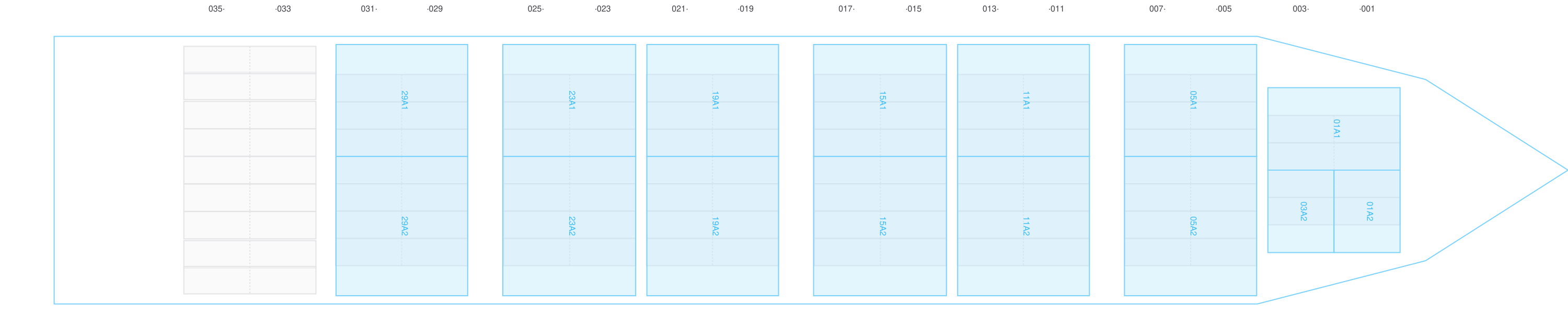

Deck view of CONTSHIP TEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?
Bay 001 view and slots of CONTSHIP TEN

003

  • / ?
Bay 003 view and slots of CONTSHIP TEN

005 (006)

  • /

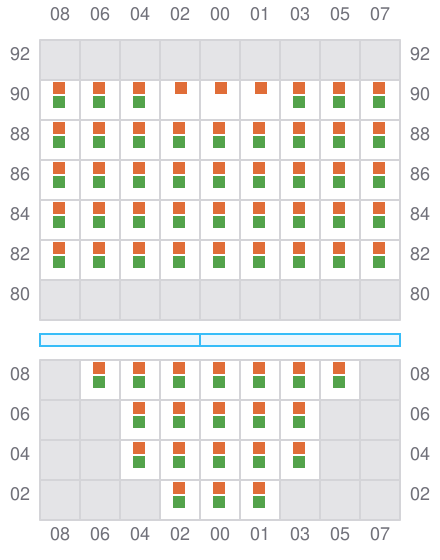

Bay 005 view and slots of CONTSHIP TEN

007

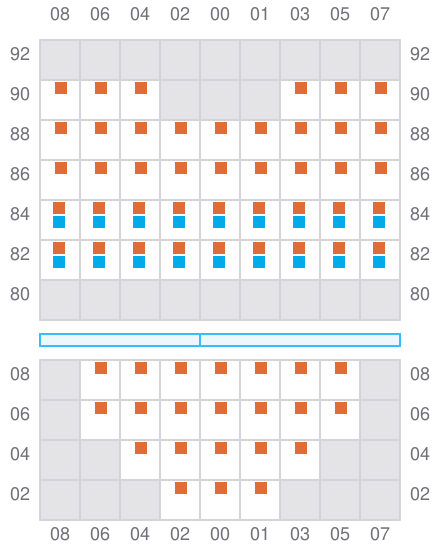

Bay 007 view and slots of CONTSHIP TEN

009

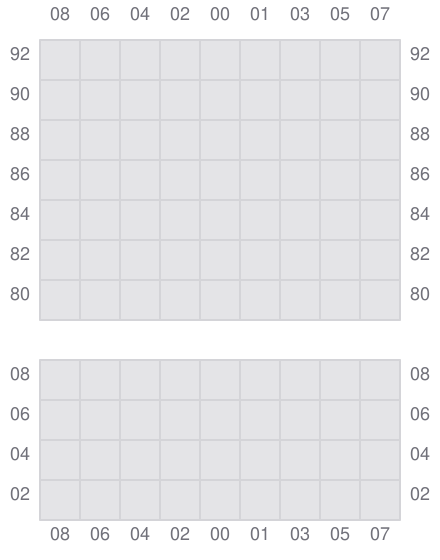

Bay 009 view and slots of CONTSHIP TEN

011 (012)

  • / ?

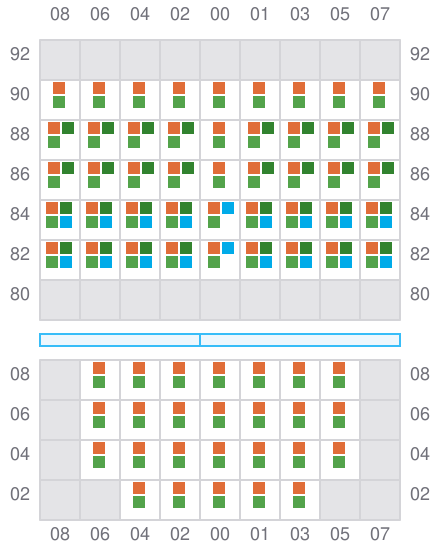

Bay 011 view and slots of CONTSHIP TEN

013

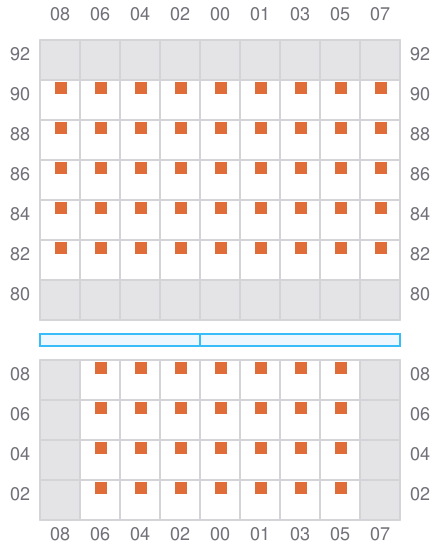

Bay 013 view and slots of CONTSHIP TEN

015 (016)

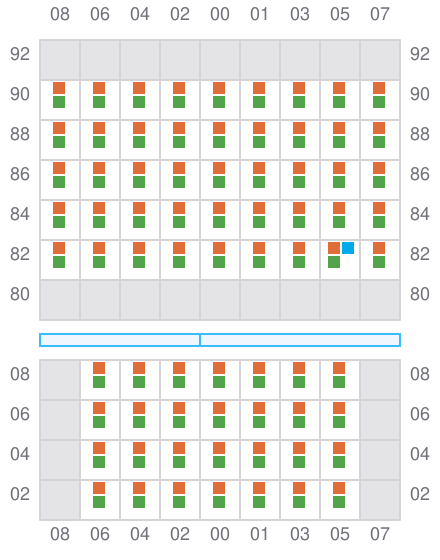

Bay 015 view and slots of CONTSHIP TEN

017

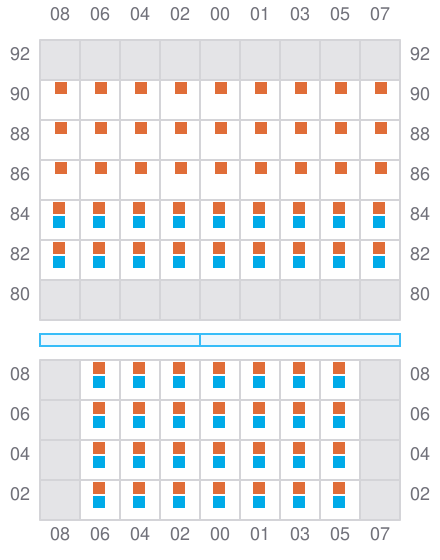

Bay 017 view and slots of CONTSHIP TEN

019 (020)

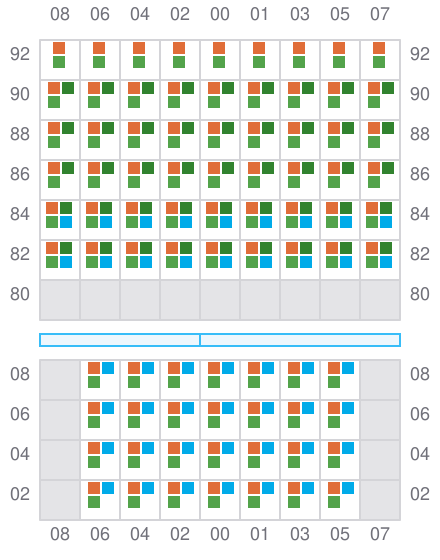

Bay 019 view and slots of CONTSHIP TEN

021

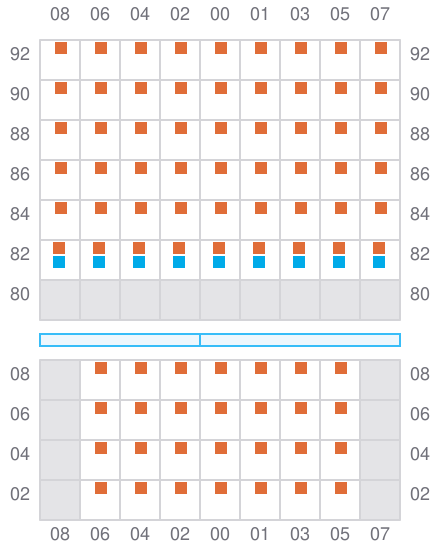

Bay 021 view and slots of CONTSHIP TEN

023 (024)

  • / ?

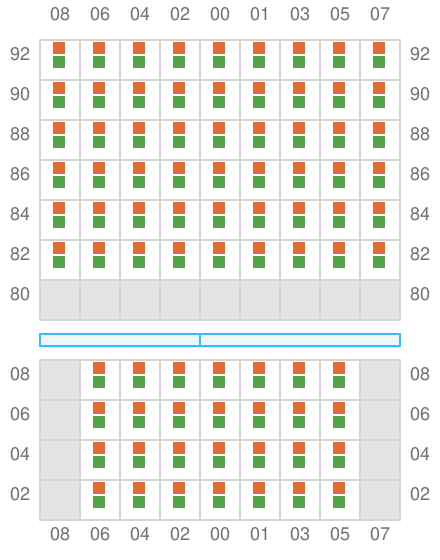

Bay 023 view and slots of CONTSHIP TEN

025

  • / ?

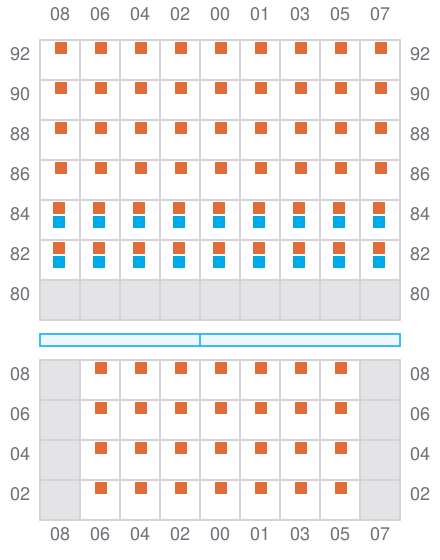

Bay 025 view and slots of CONTSHIP TEN

027

Bay 027 view and slots of CONTSHIP TEN

029 (030)

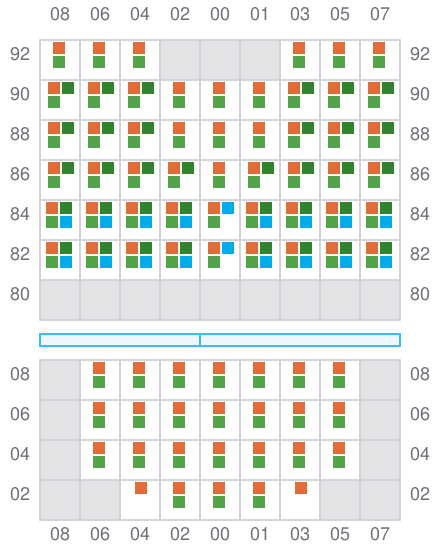

Bay 029 view and slots of CONTSHIP TEN

031

Bay 031 view and slots of CONTSHIP TEN

033 (034)

  • / ?

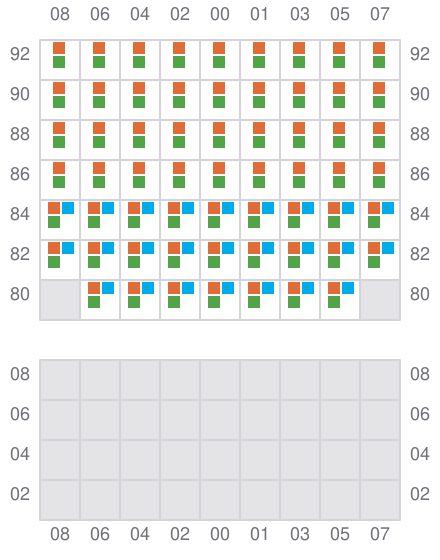

Bay 033 view and slots of CONTSHIP TEN

035

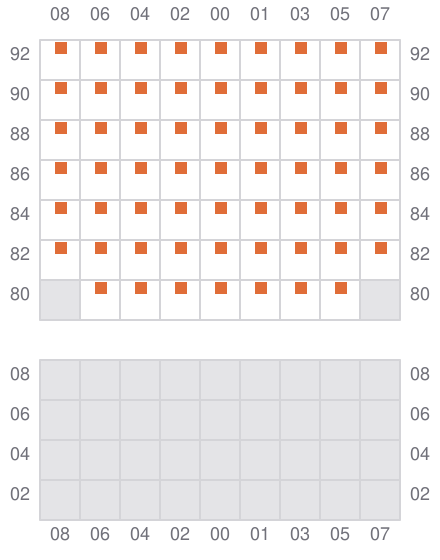

Bay 035 view and slots of CONTSHIP TEN
