CONTSHIP VIE
9434802 | 5BFM5 | 9434802 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:CONTSHIP VIE
IMO Code:9434802
Call Sign:5BFM5
Line Operator:9434802
Class Name for Sister Ships:MCC
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,092

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

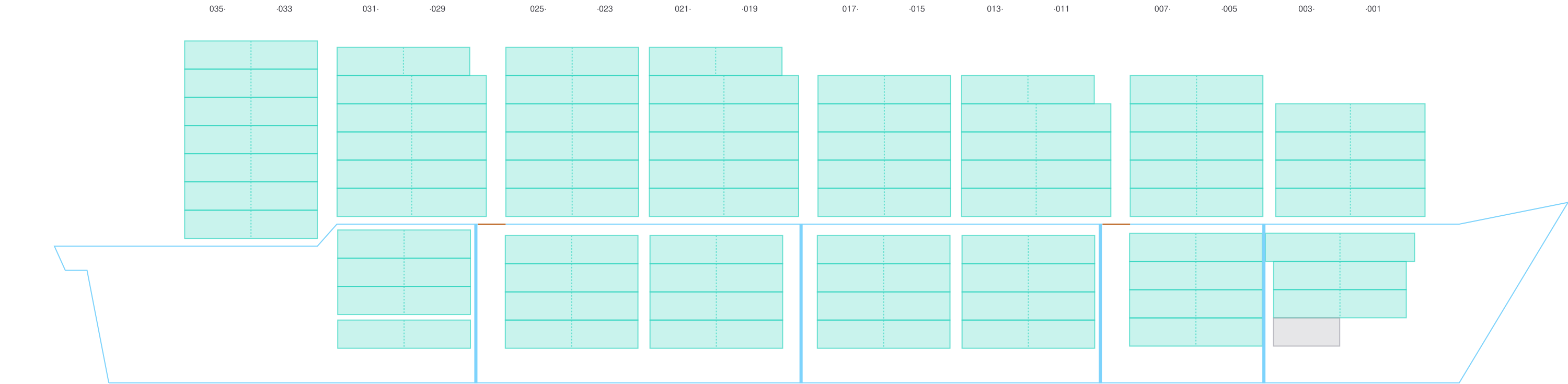

Side View

Side view of CONTSHIP VIE

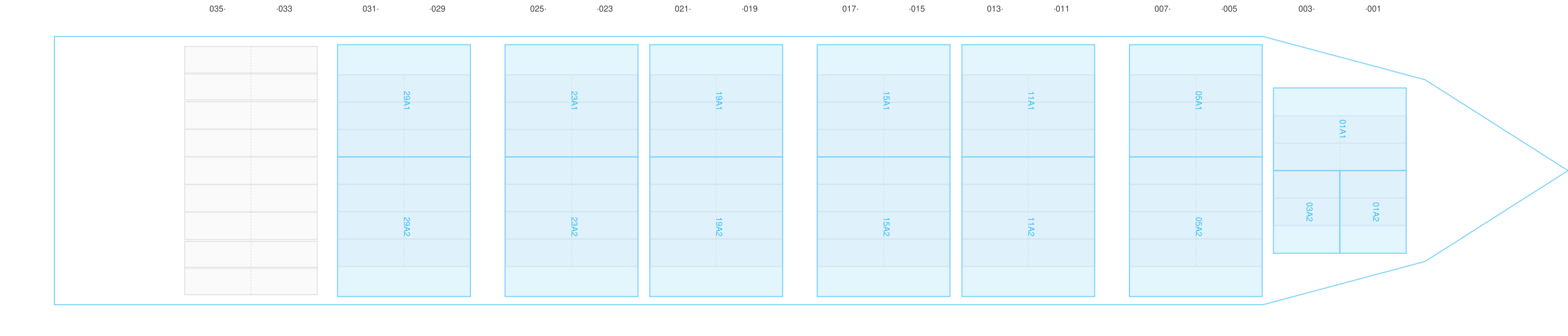

Hatch-Covers View

Deck view of CONTSHIP VIE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?
Bay 001 view and slots of CONTSHIP VIE

003

  • / ?
Bay 003 view and slots of CONTSHIP VIE

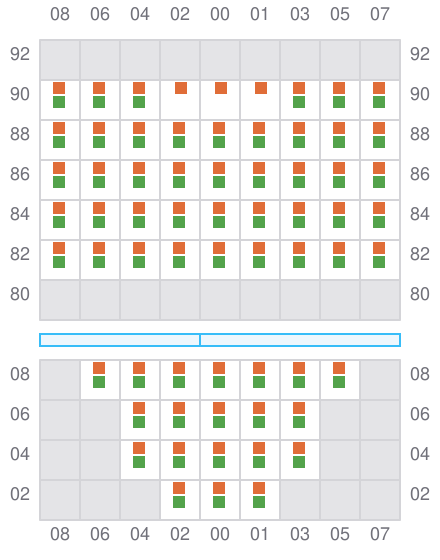

005 (006)

  • /
Bay 005 view and slots of CONTSHIP VIE

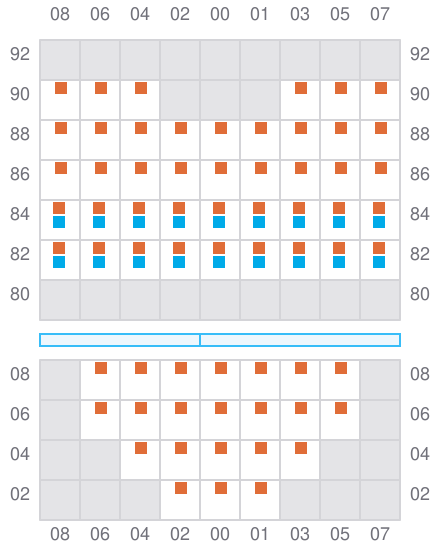

007

Bay 007 view and slots of CONTSHIP VIE

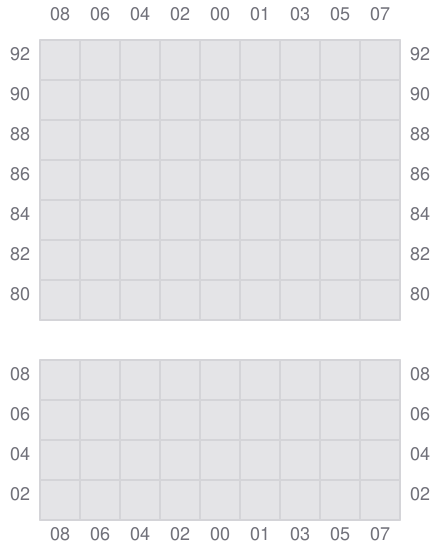

009

Bay 009 view and slots of CONTSHIP VIE

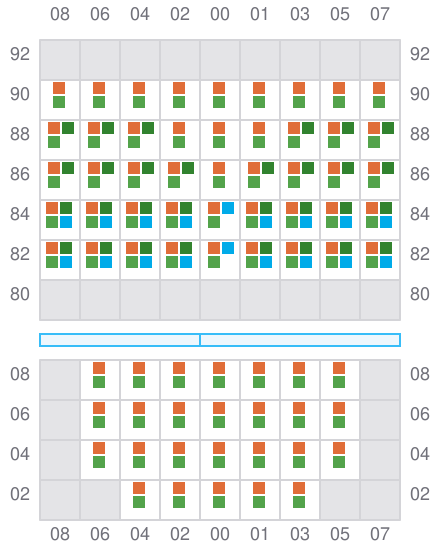

011 (012)

  • / ?
Bay 011 view and slots of CONTSHIP VIE

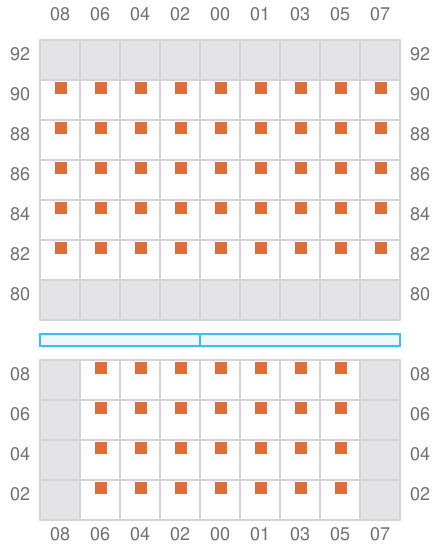

013

Bay 013 view and slots of CONTSHIP VIE

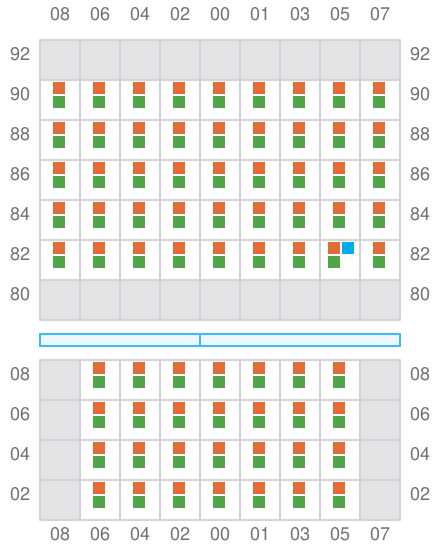

015 (016)

Bay 015 view and slots of CONTSHIP VIE

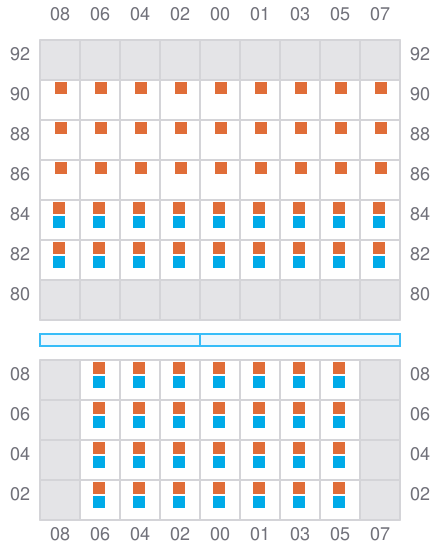

017

Bay 017 view and slots of CONTSHIP VIE

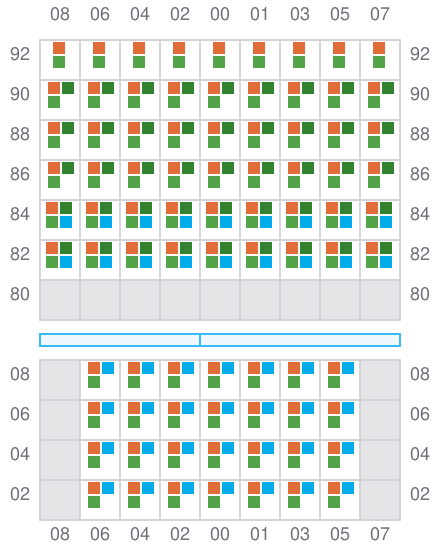

019 (020)

Bay 019 view and slots of CONTSHIP VIE

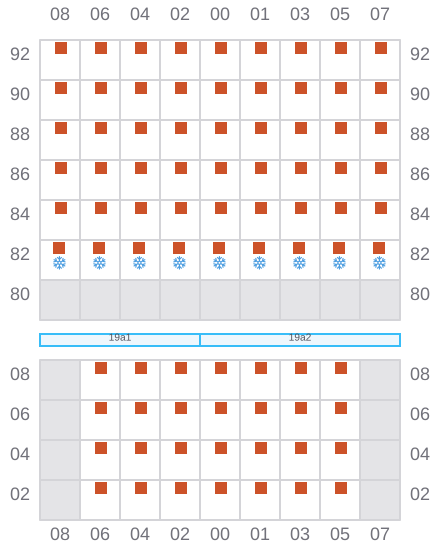

021

Bay 021 view and slots of CONTSHIP VIE

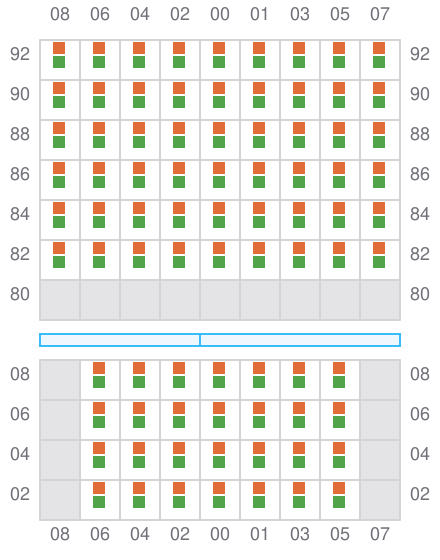

023 (024)

  • / ?
Bay 023 view and slots of CONTSHIP VIE

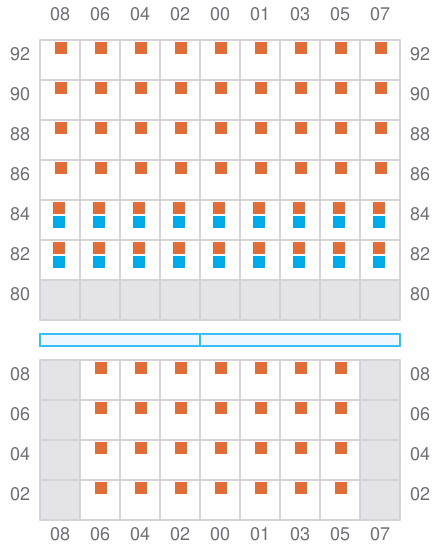

025

  • / ?
Bay 025 view and slots of CONTSHIP VIE

027

Bay 027 view and slots of CONTSHIP VIE

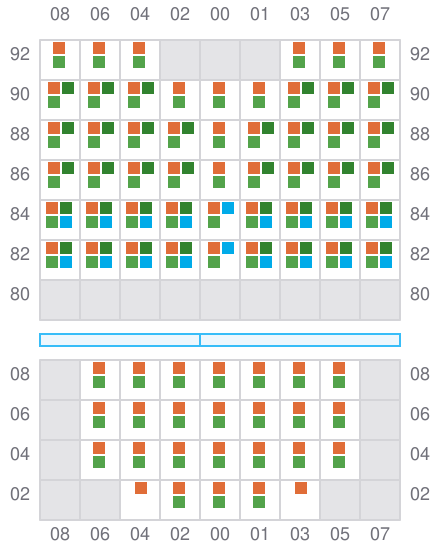

029 (030)

Bay 029 view and slots of CONTSHIP VIE

031

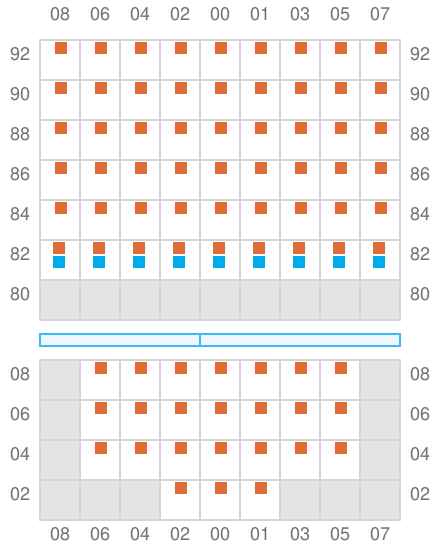

Bay 031 view and slots of CONTSHIP VIE

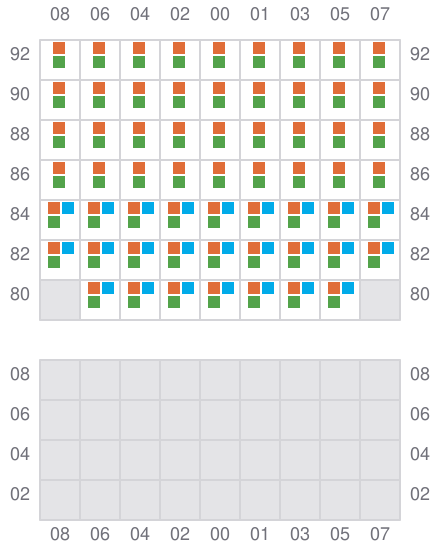

033 (034)

  • / ?
Bay 033 view and slots of CONTSHIP VIE

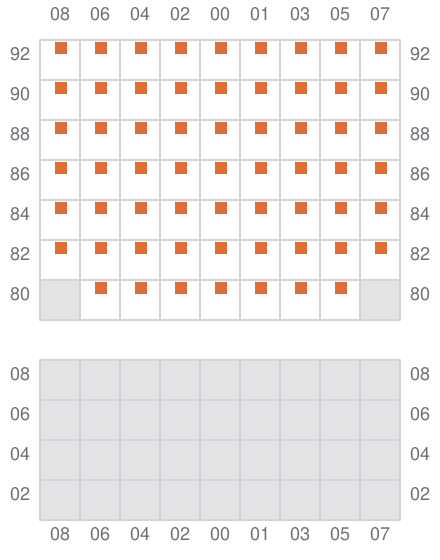

035

Bay 035 view and slots of CONTSHIP VIE
