CONTSHIP WAY
9435533 | 5BFP5 | 9435533 by ********* Last update: Thu May 02 2024
General Info
Ship Name:CONTSHIP WAY
IMO Code:9435533
Call Sign:5BFP5
Line Operator:9435533
Class Name for Sister Ships:FRISIA LAHN
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,098
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-sideView.png?v=1714692015663)
Hatch-Covers View
![Deck view of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-deckView.png?v=1714692015663)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

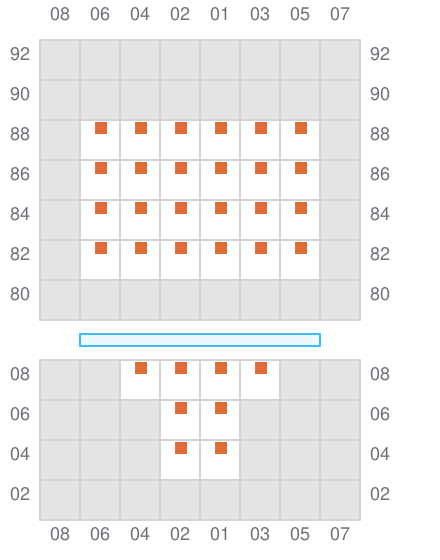

001
- →
![Bay 001 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b001.png?v=1714692015663)
003 (002)
- ←
![Bay 003 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b003.png?v=1714692015663)

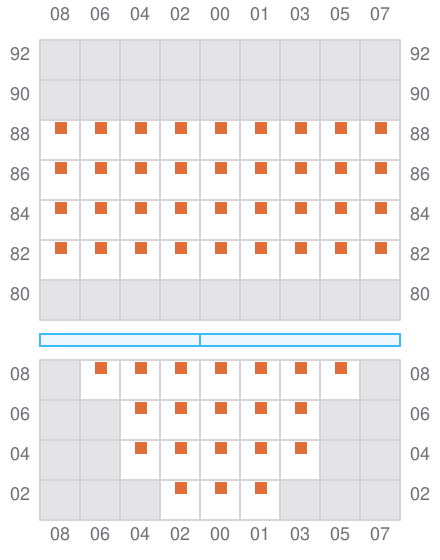

005
- →
![Bay 005 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b005.png?v=1714692015663)

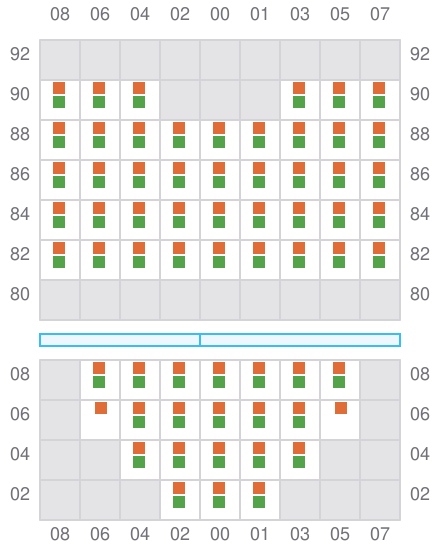

007 (006)
- ←
![Bay 007 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b007.png?v=1714692015663)

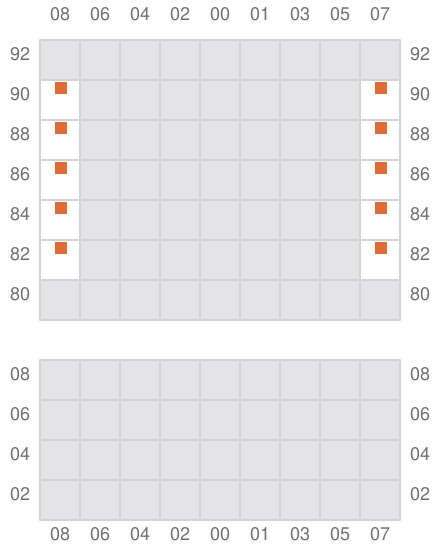

009
![Bay 009 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b009.png?v=1714692015663)
011
- →
![Bay 011 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b011.png?v=1714692015663)
013 (012)
- ←
![Bay 013 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b013.png?v=1714692015663)

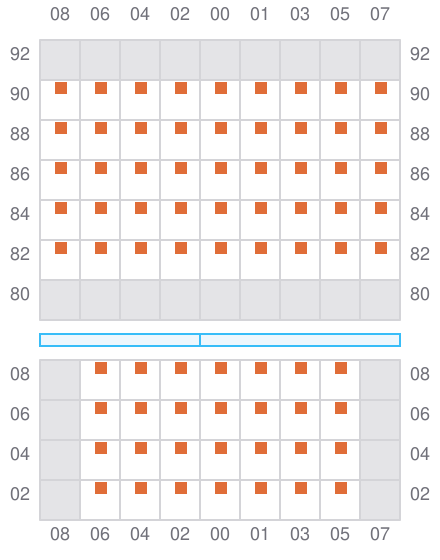

015
- →
![Bay 015 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b015.png?v=1714692015663)
017 (016)
- ←
![Bay 017 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b017.png?v=1714692015663)
019
- →
![Bay 019 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b019.png?v=1714692015663)

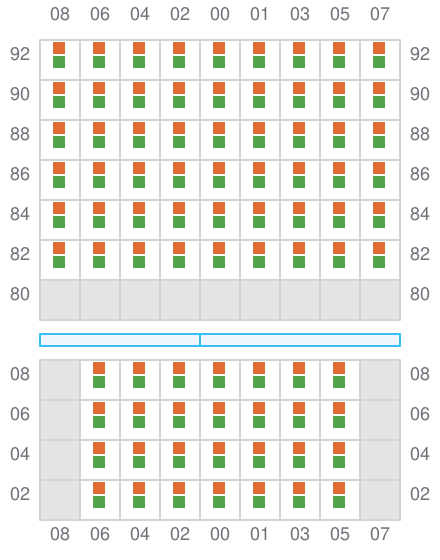

021 (020)
- ←
![Bay 021 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b021.png?v=1714692015663)
023
- →
![Bay 023 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b023.png?v=1714692015663)
025 (024)
- ←
![Bay 025 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b025.png?v=1714692015663)
027
![Bay 027 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b027.png?v=1714692015663)
029
- →
![Bay 029 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b029.png?v=1714692015663)

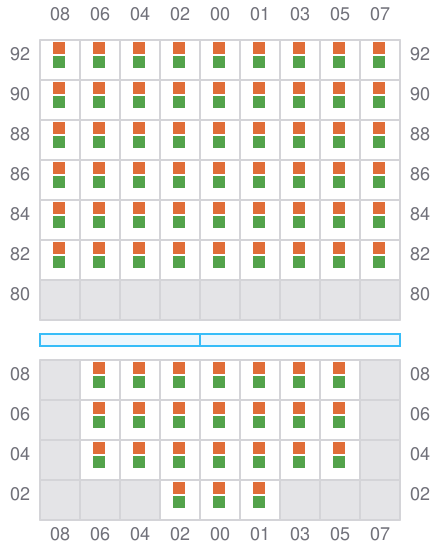

031 (030)
- ←
![Bay 031 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b031.png?v=1714692015663)

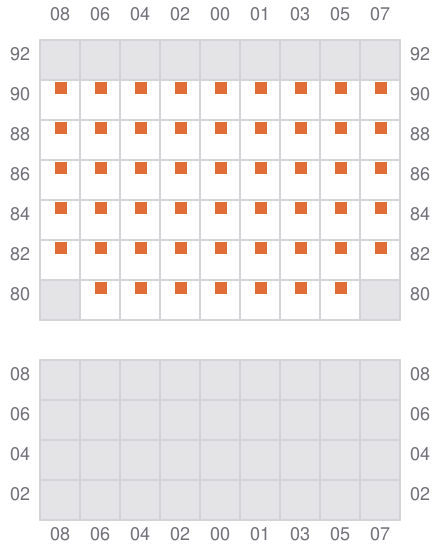

033
- → / ?
![Bay 033 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b033.png?v=1714692015663)

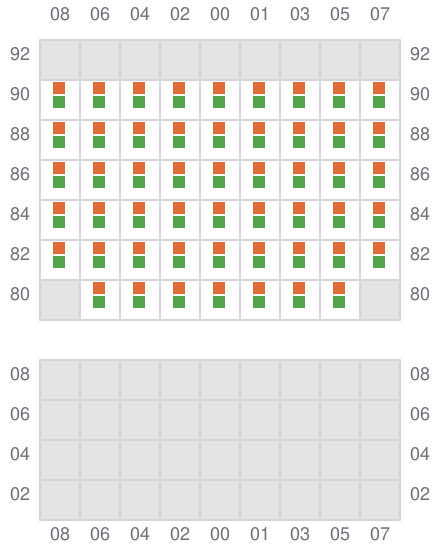

035 (034)
- ← / ?
![Bay 035 view and slots of CONTSHIP WAY](/vessel-images/b9916830-5cfb-4b3f-841a-21e806ed7b37-b035.png?v=1714692015663)
