CONTSHIP YEN
9664263 | 5BHC6 | 9664263 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:CONTSHIP YEN
IMO Code:9664263
Call Sign:5BHC6
Line Operator:9664263
Class Name for Sister Ships:M41
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,110
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

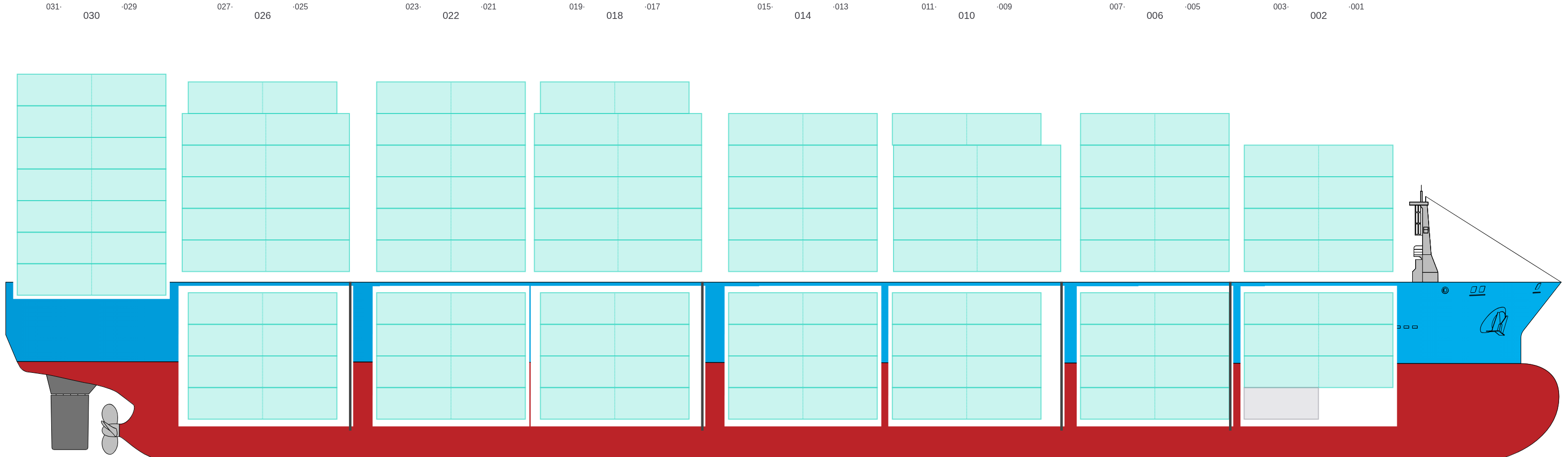

Side View
![Side view of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-sideView.png?v=1711663449189)
Hatch-Covers View
![Deck view of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-deckView.png?v=1711663449189)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

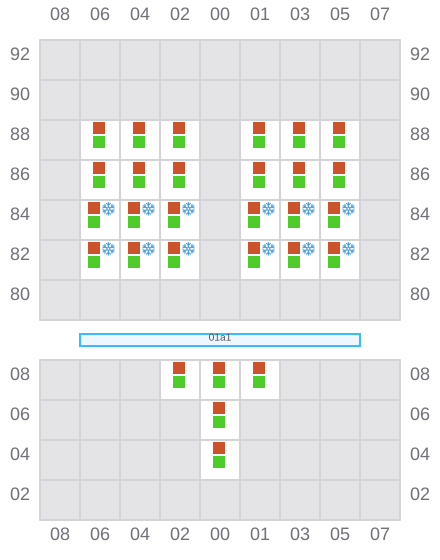

001 (002)
- →
![Bay 001 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b001.png?v=1711663449189)

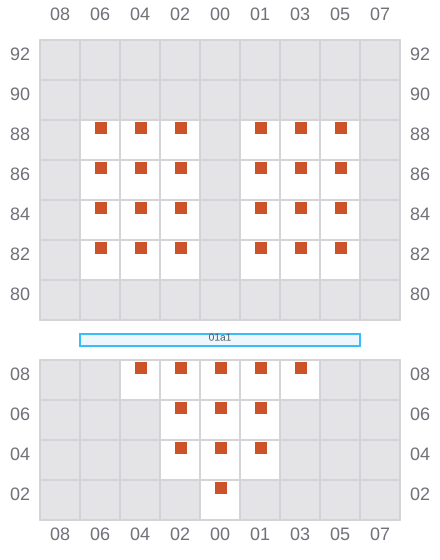

003
- ←
![Bay 003 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b003.png?v=1711663449189)

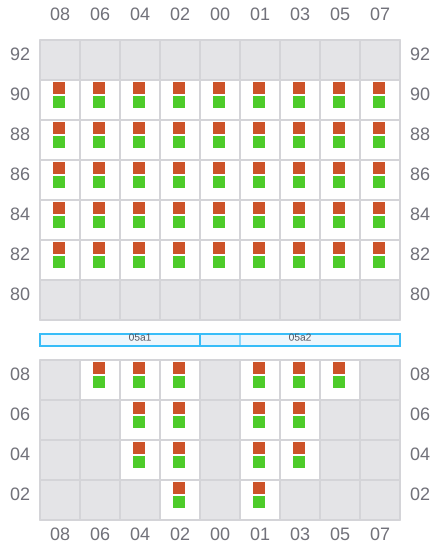

005 (006)
- →
![Bay 005 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b005.png?v=1711663449189)
007
- ←
- → / ?
![Bay 007 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b007.png?v=1711663449189)

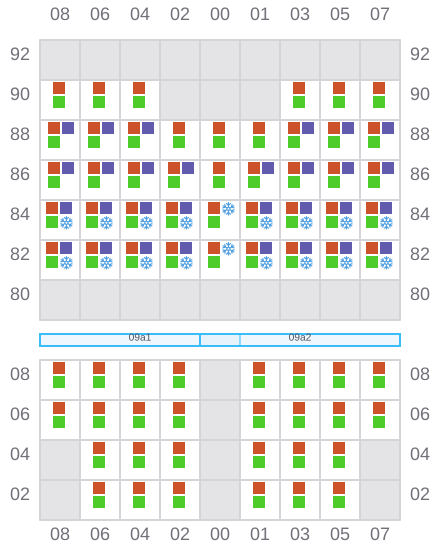

009 (010)
- →
- ← / ?
![Bay 009 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b009.png?v=1711663449189)

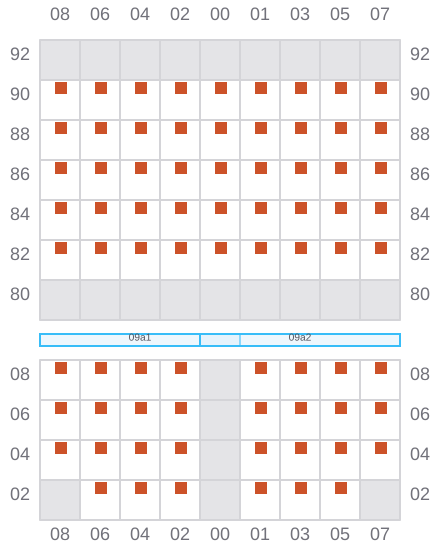

011
- ←
![Bay 011 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b011.png?v=1711663449189)

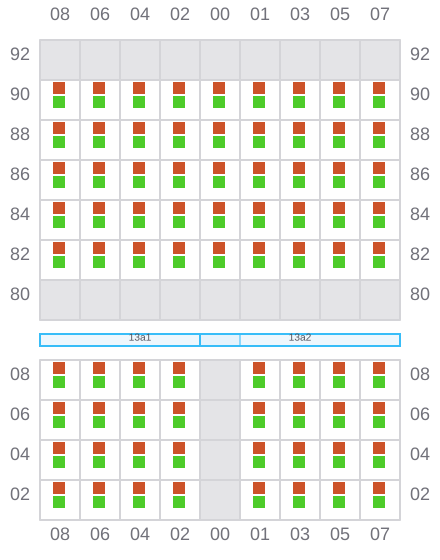

013 (014)
- →
![Bay 013 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b013.png?v=1711663449189)

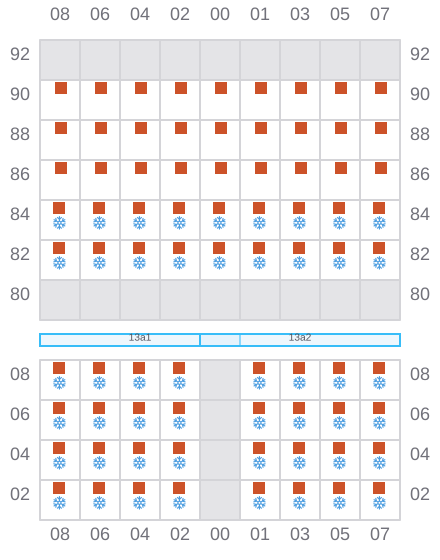

015
- ←
- → / ←
![Bay 015 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b015.png?v=1711663449189)

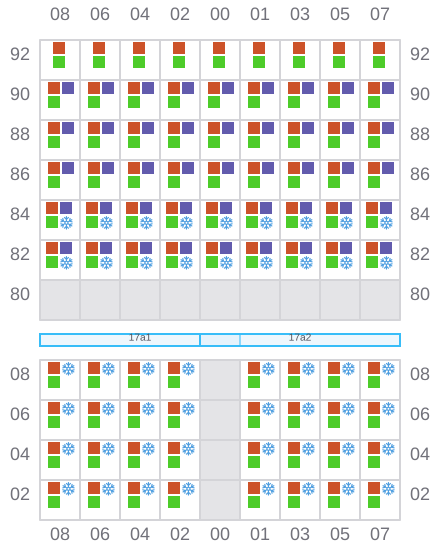

017 (018)
- →
- ←
![Bay 017 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b017.png?v=1711663449189)

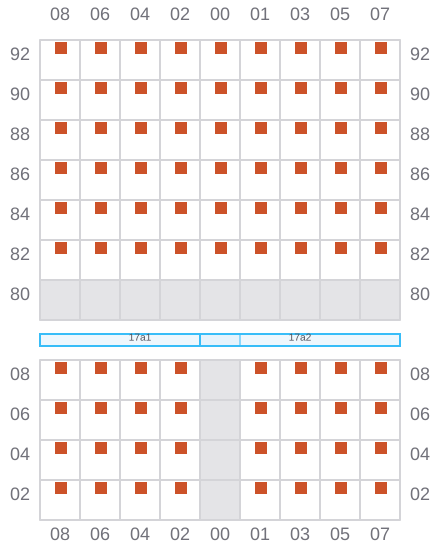

019
- ←
![Bay 019 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b019.png?v=1711663449189)

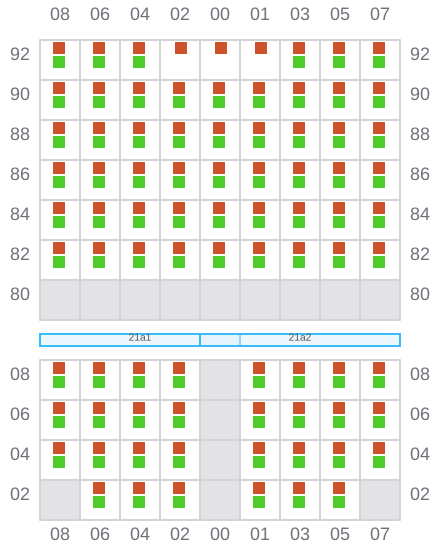

021 (022)
- →
![Bay 021 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b021.png?v=1711663449189)

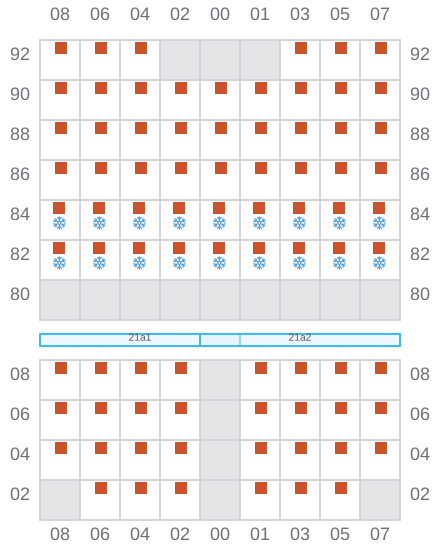

023
- ←
- → / ?
![Bay 023 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b023.png?v=1711663449189)

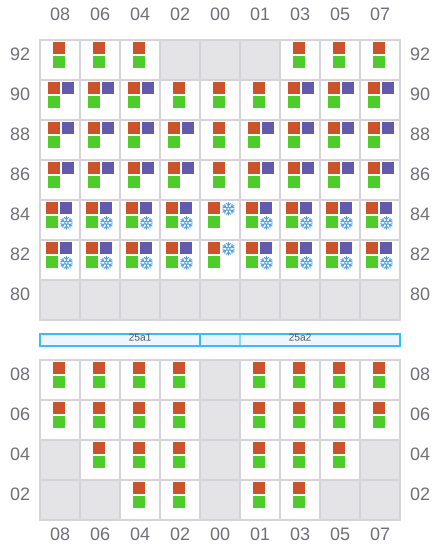

025 (026)
- →
- ← / ?
![Bay 025 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b025.png?v=1711663449189)

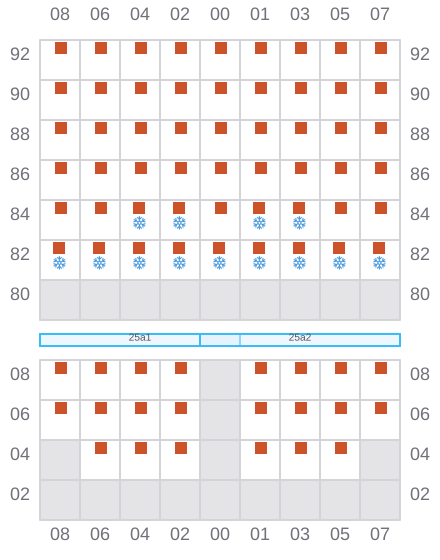

027
- ←
![Bay 027 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b027.png?v=1711663449189)

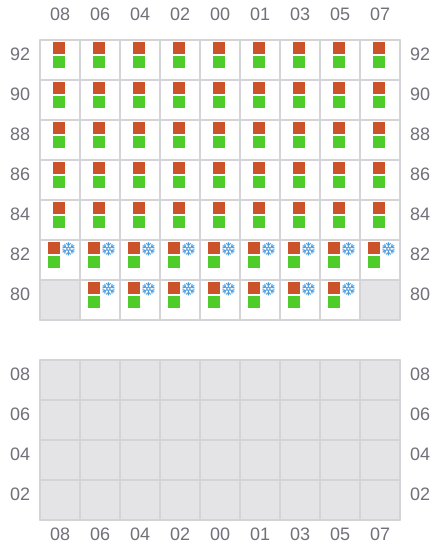

029 (030)
- → / ?
- ← / ?
![Bay 029 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b029.png?v=1711663449189)

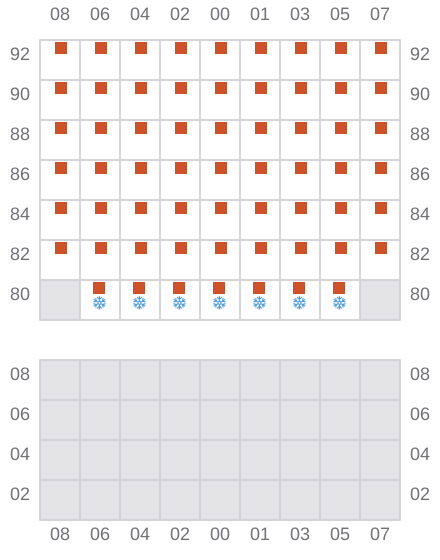

031
- ← / ?
- → / ?
![Bay 031 view and slots of CONTSHIP YEN](/vessel-images/93683048-57a1-4906-b5b3-97ab8bef1177-b031.png?v=1711663449189)
