CORCOVADO III
9241463 | 3E3603 | CHI by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:CORCOVADO III
IMO Code:9241463
Call Sign:3E3603
Line Operator:CHI
Class Name for Sister Ships:COR
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,598
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-sideView.png?v=1688151368541)

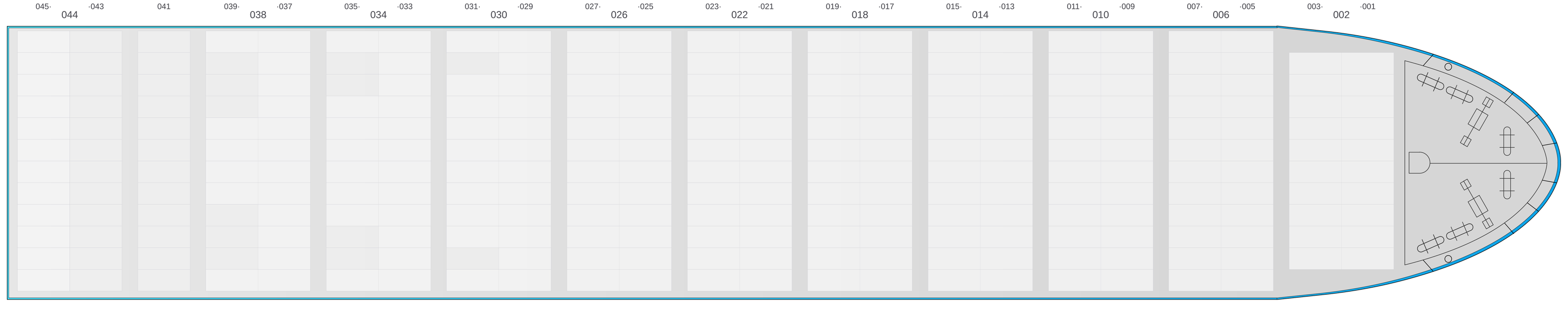

Hatch-Covers View
![Deck view of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-deckView.png?v=1688151368541)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

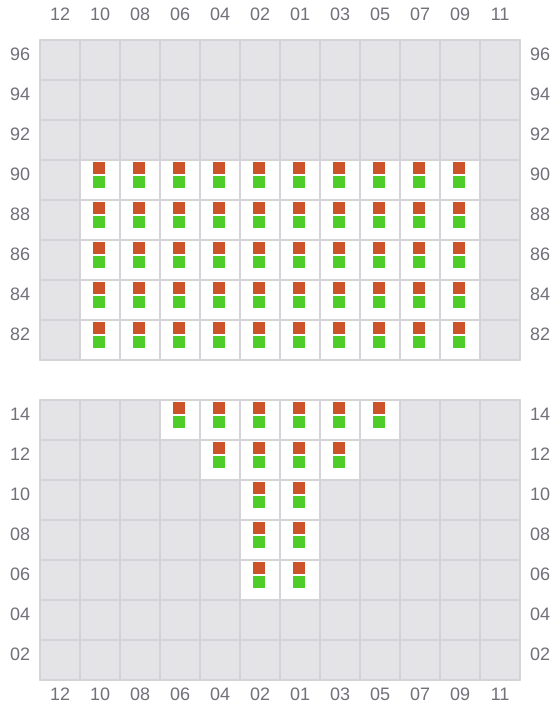

001 (002)
- →
![Bay 001 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b001.png?v=1688151368541)

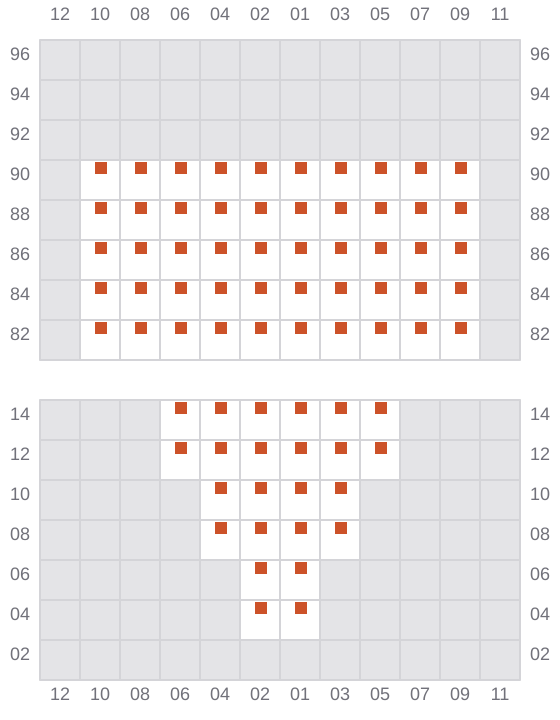

003
- ←
![Bay 003 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b003.png?v=1688151368541)

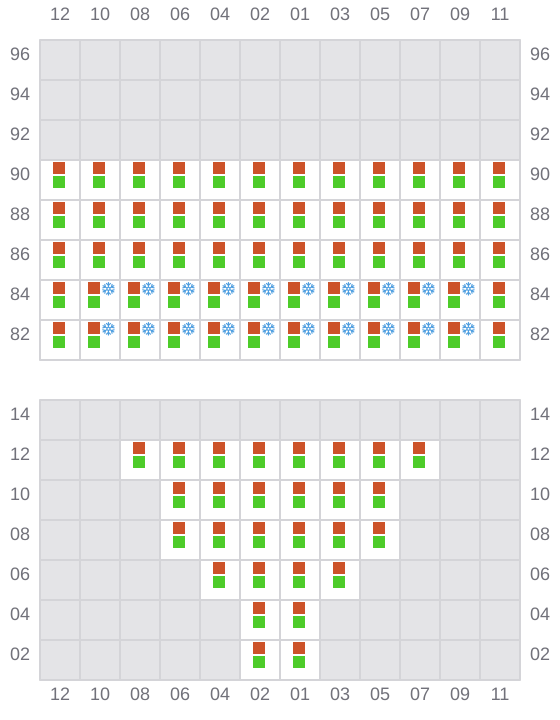

005 (006)
- →
![Bay 005 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b005.png?v=1688151368541)

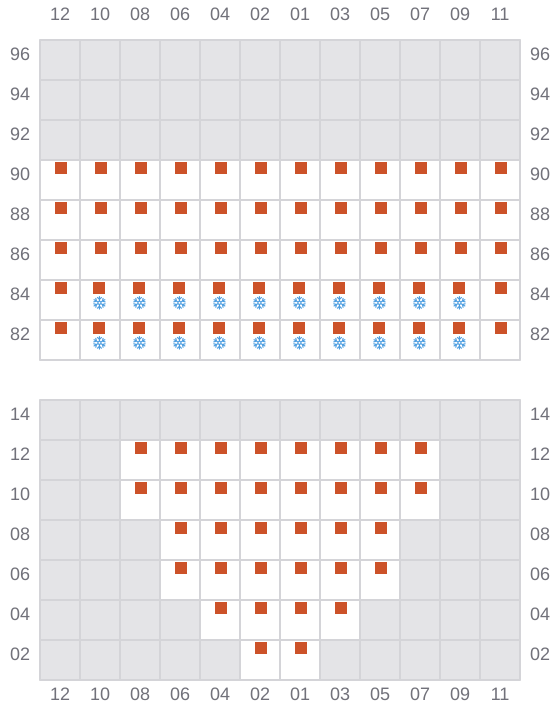

007
- ←
![Bay 007 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b007.png?v=1688151368541)

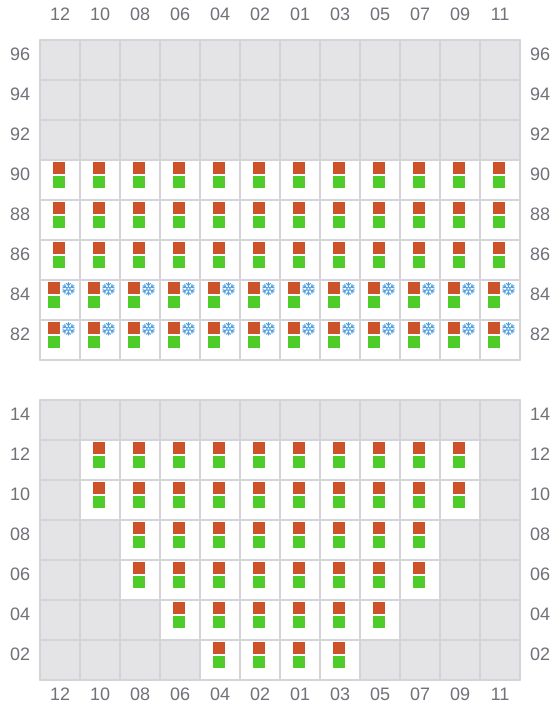

009 (010)
- →
![Bay 009 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b009.png?v=1688151368541)

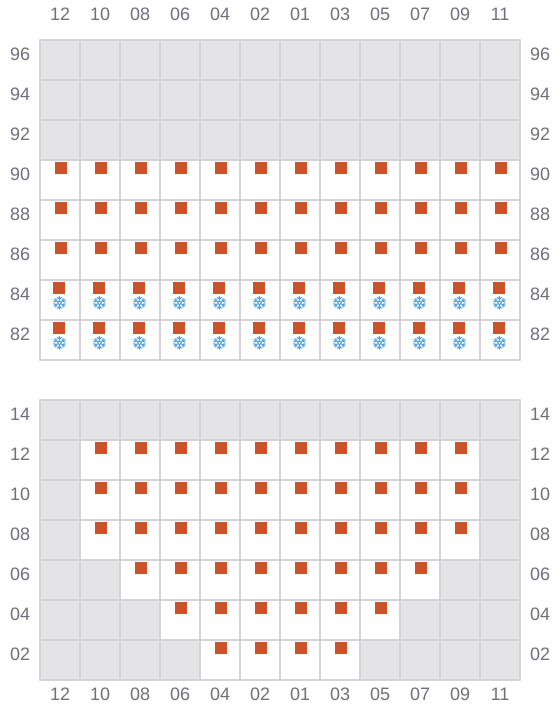

011
- ←
![Bay 011 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b011.png?v=1688151368541)

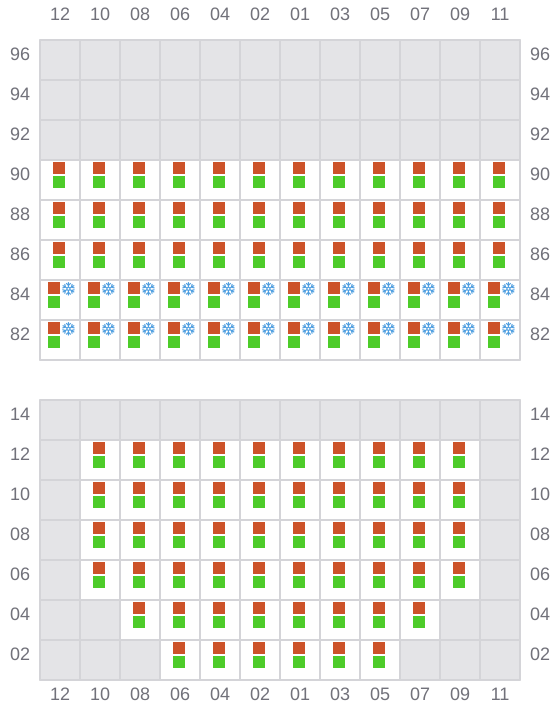

013 (014)
- →
![Bay 013 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b013.png?v=1688151368541)

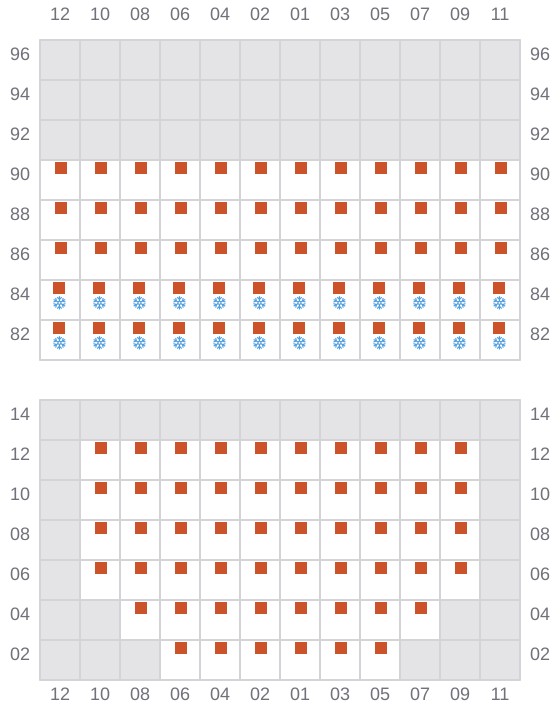

015
- ←
![Bay 015 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b015.png?v=1688151368541)

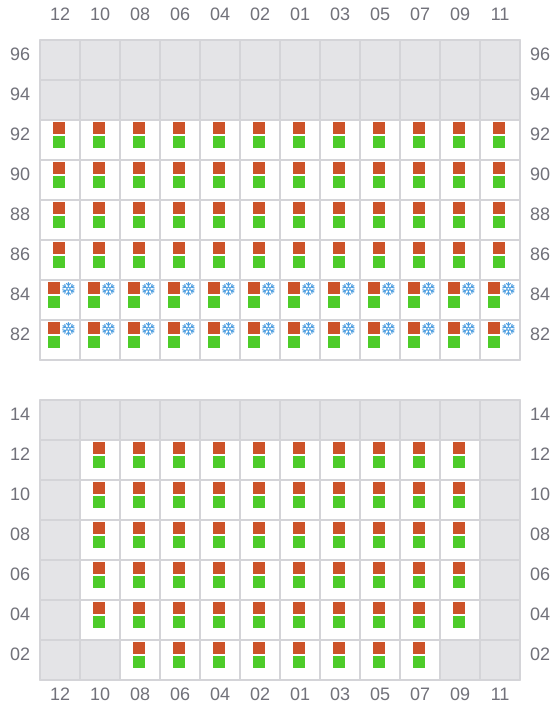

017 (018)
- →
![Bay 017 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b017.png?v=1688151368541)

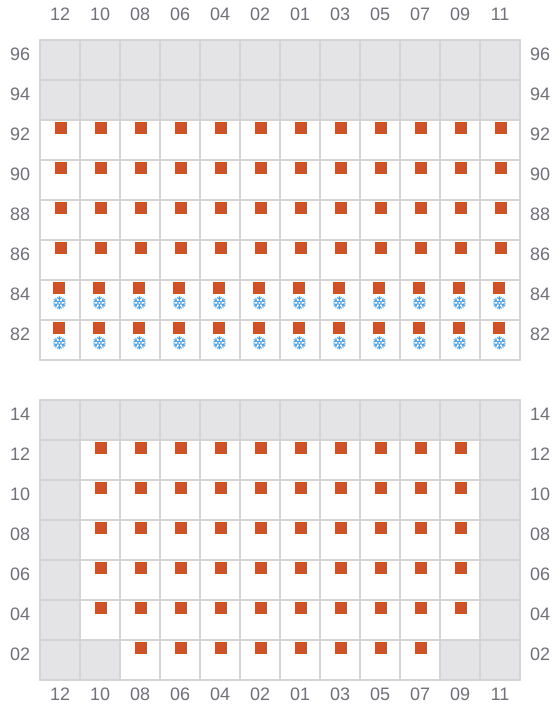

019
- ←
![Bay 019 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b019.png?v=1688151368541)
021 (022)
- →
![Bay 021 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b021.png?v=1688151368541)
023
- ←
![Bay 023 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b023.png?v=1688151368541)
025 (026)
- →
![Bay 025 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b025.png?v=1688151368541)

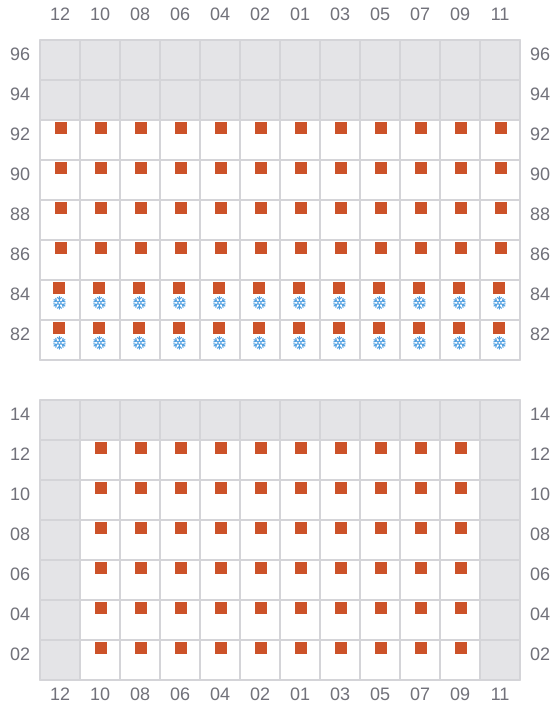

027
- ←
![Bay 027 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b027.png?v=1688151368541)

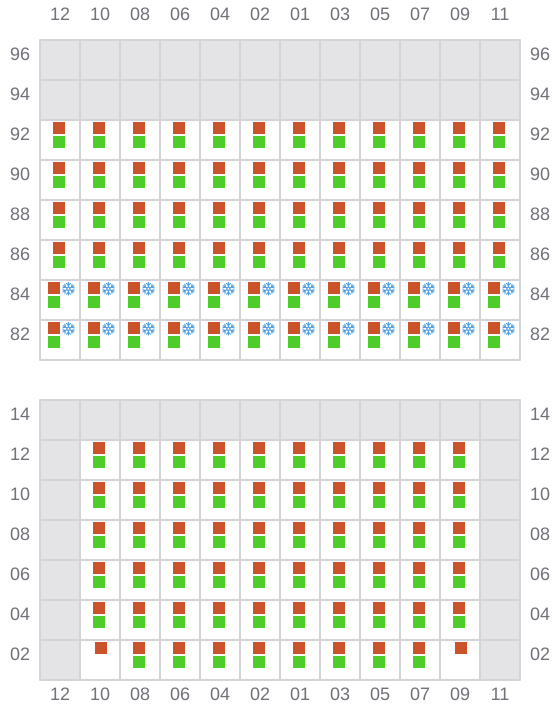

029 (030)
- →
![Bay 029 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b029.png?v=1688151368541)
031
- ←
![Bay 031 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b031.png?v=1688151368541)

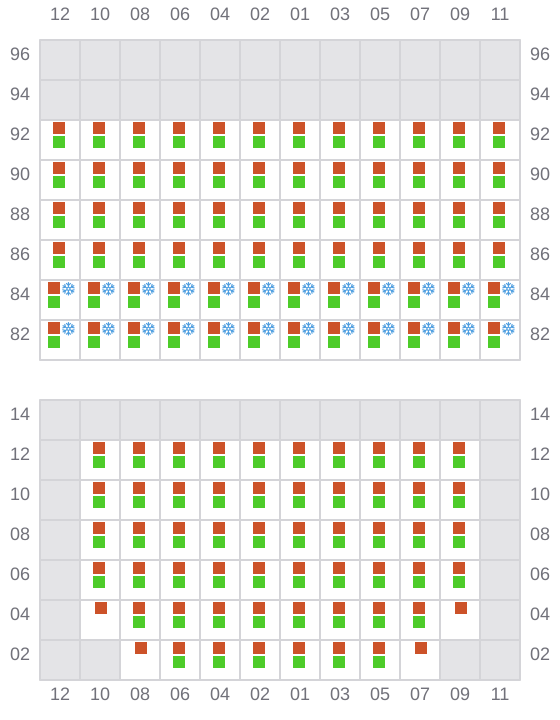

033 (034)
- →
![Bay 033 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b033.png?v=1688151368541)
035
- ←
![Bay 035 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b035.png?v=1688151368541)

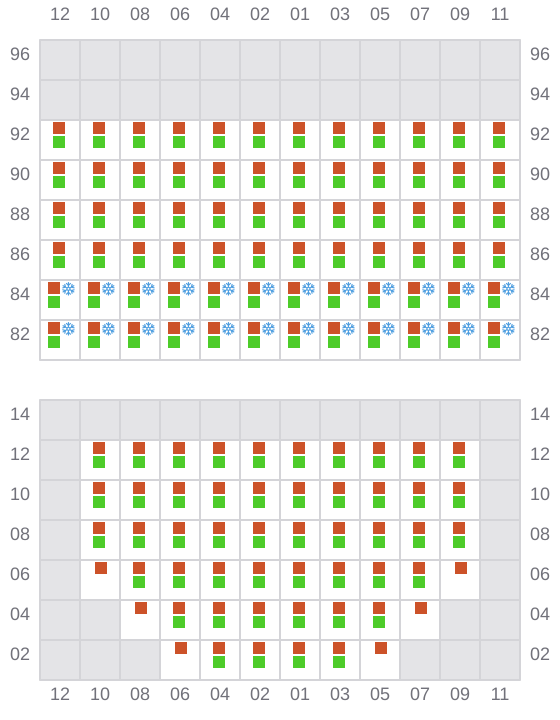

037 (038)
- →
![Bay 037 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b037.png?v=1688151368541)

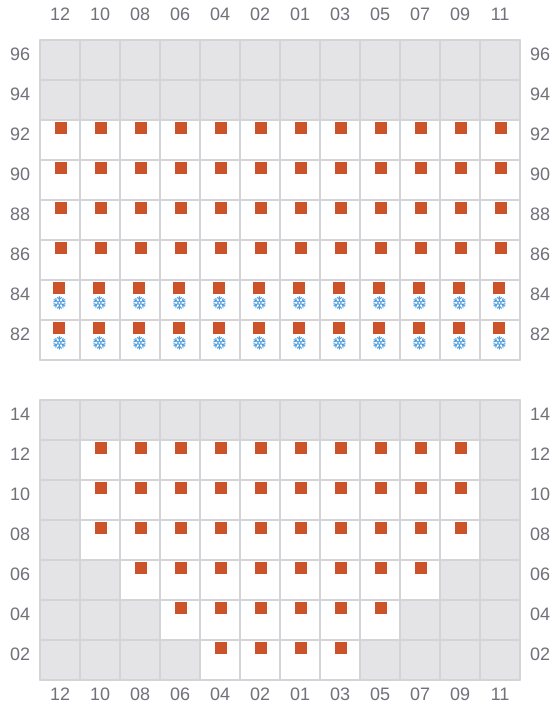

039
- ←
![Bay 039 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b039.png?v=1688151368541)

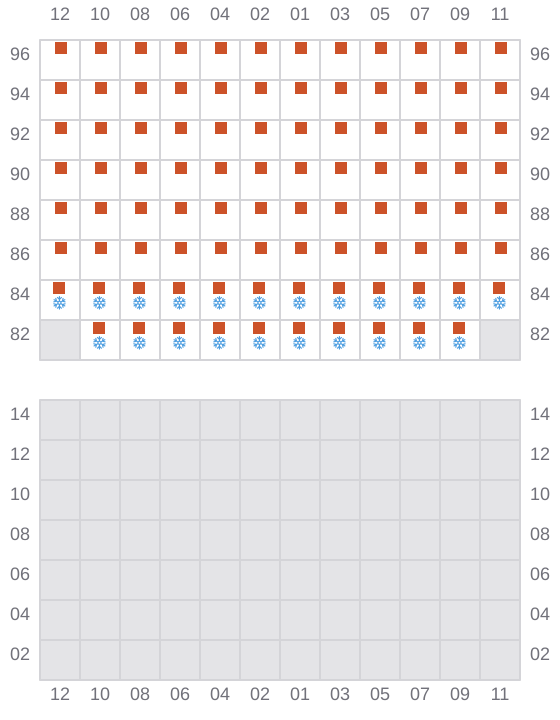

041
![Bay 041 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b041.png?v=1688151368541)

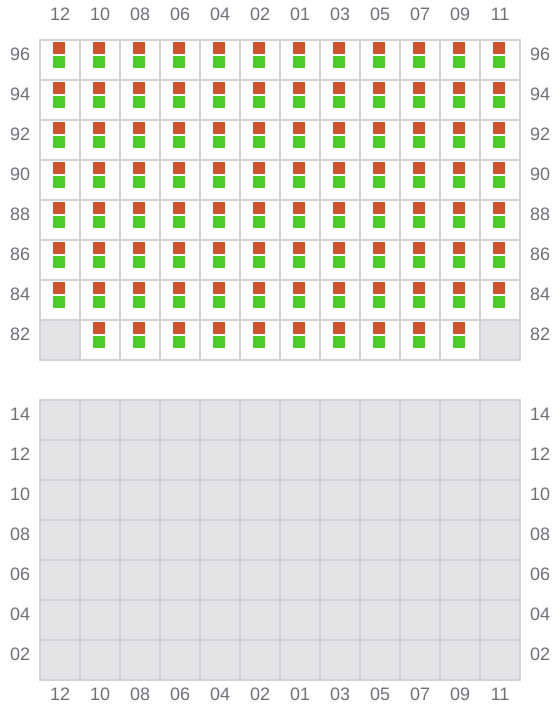

043 (044)
- → / ?
![Bay 043 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b043.png?v=1688151368541)

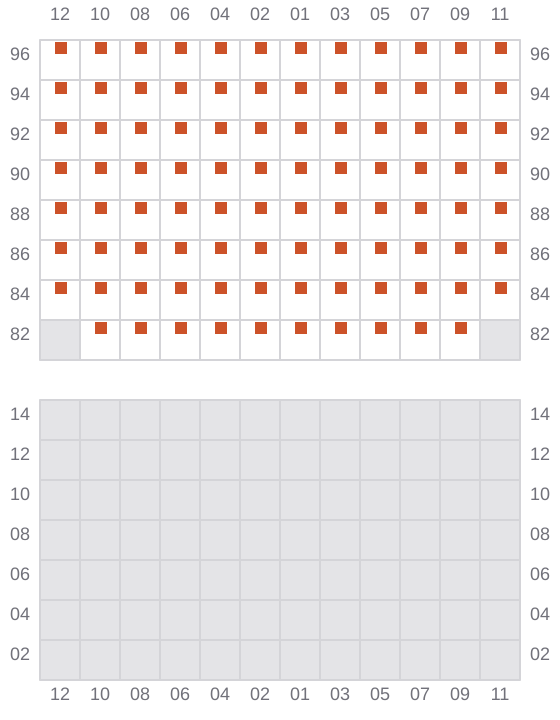

045
- ← / ?
![Bay 045 view and slots of CORCOVADO III](/vessel-images/3d1c8b50-1844-4682-8396-f378059a02a7-b045.png?v=1688151368541)
