CORNELIUS MAERSK
9198587 | OUMO2 | 9198587 by ********* Last update: Mon Mar 11 2024

General Info

Ship Name:CORNELIUS MAERSK
IMO Code:9198587
Call Sign:OUMO2
Line Operator:9198587
Class Name for Sister Ships:781
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

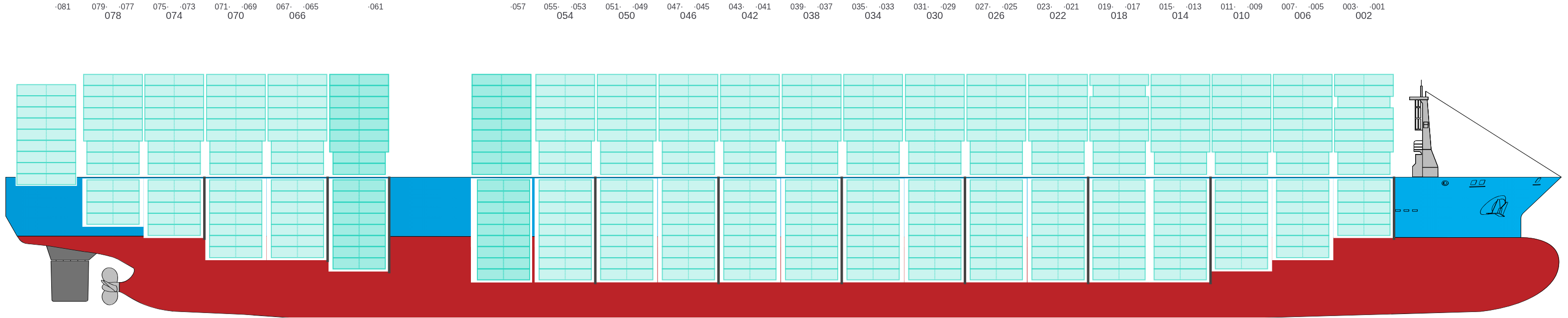

Side view of CORNELIUS MAERSK

Hatch-Covers View

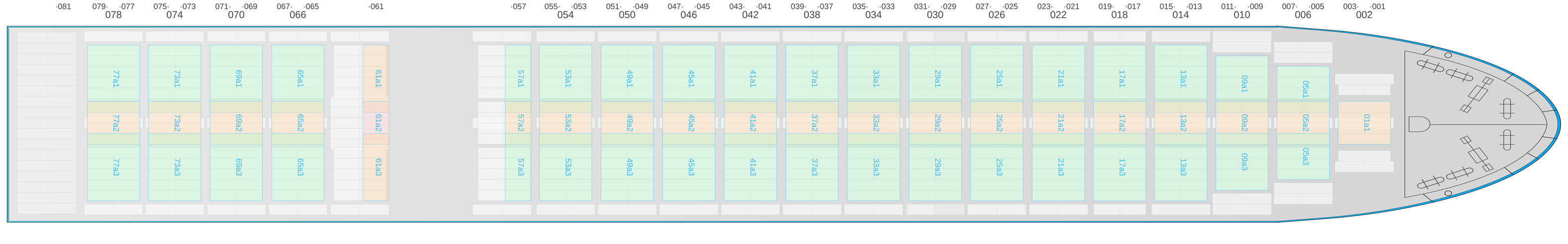

Deck view of CORNELIUS MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

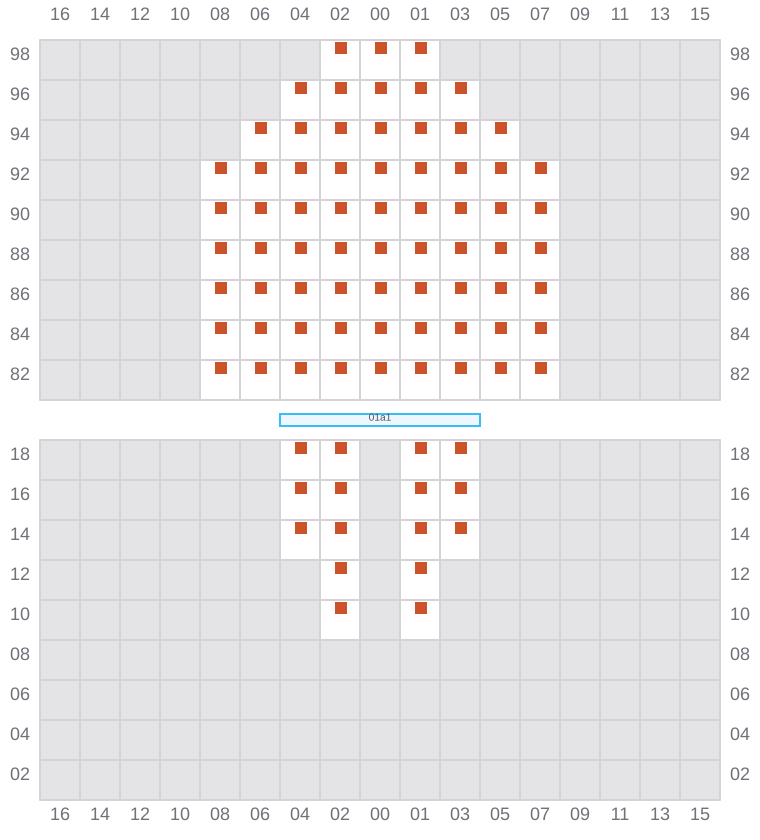

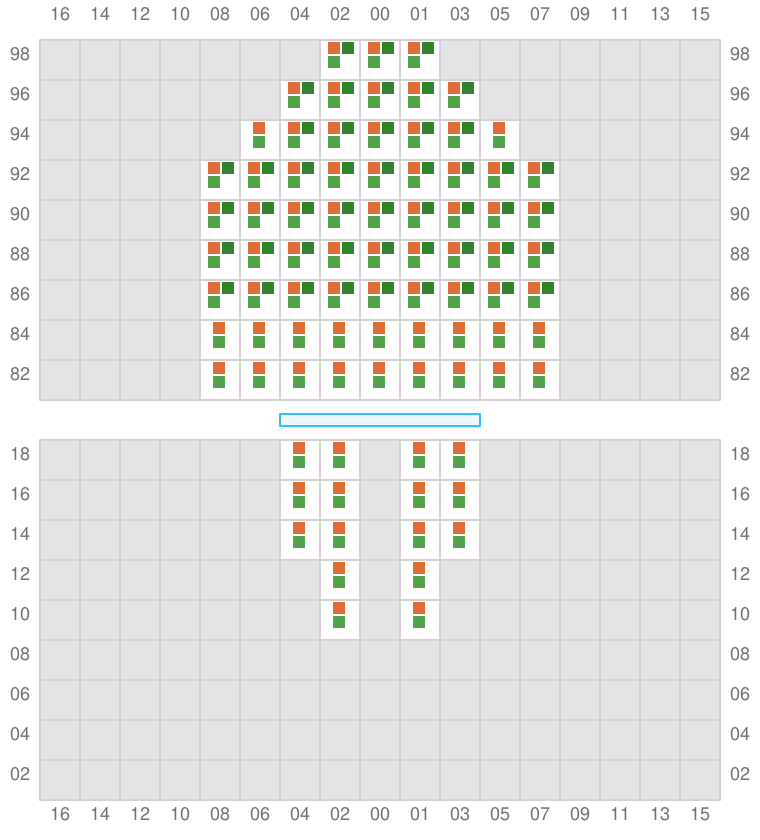

Bay 001 view and slots of CORNELIUS MAERSK

003

  • ←
Bay 003 view and slots of CORNELIUS MAERSK

005 (006)

  • →

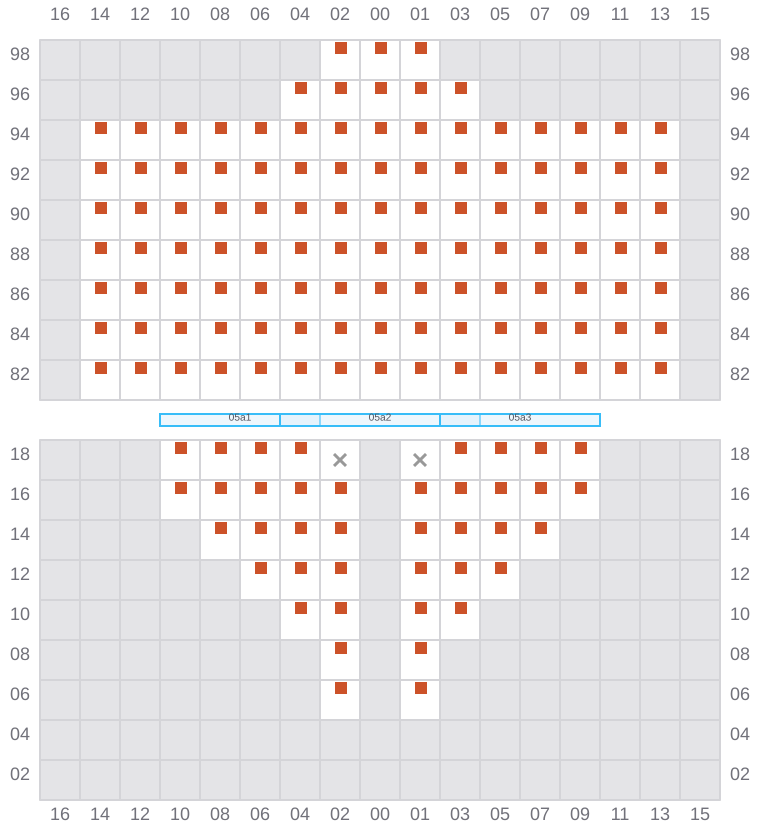

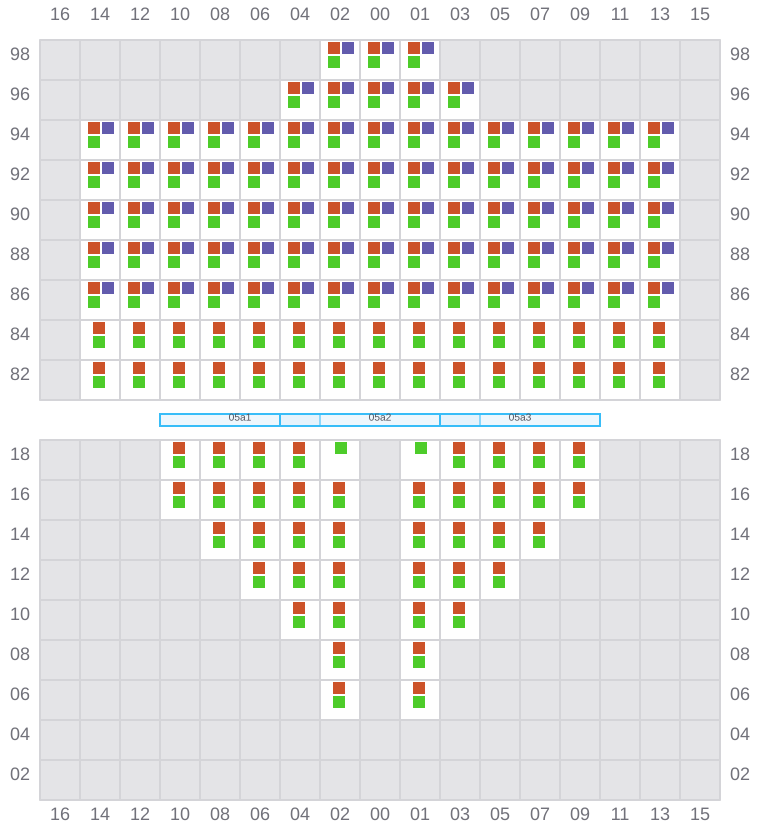

Bay 005 view and slots of CORNELIUS MAERSK

007

  • ←
Bay 007 view and slots of CORNELIUS MAERSK

009 (010)

  • →

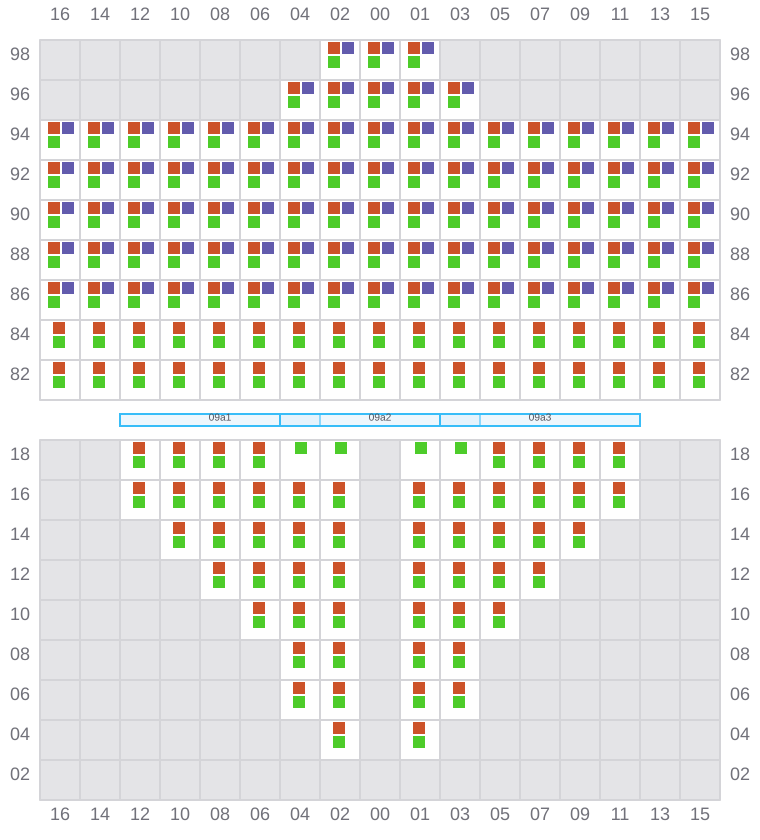

Bay 009 view and slots of CORNELIUS MAERSK

011

  • ←

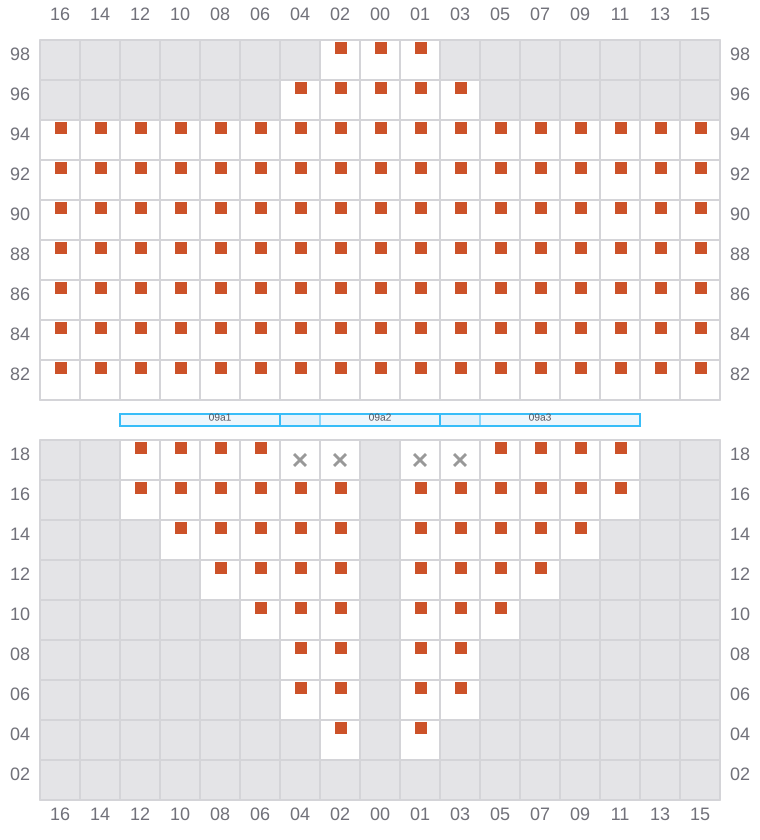

Bay 011 view and slots of CORNELIUS MAERSK

013 (014)

  • →

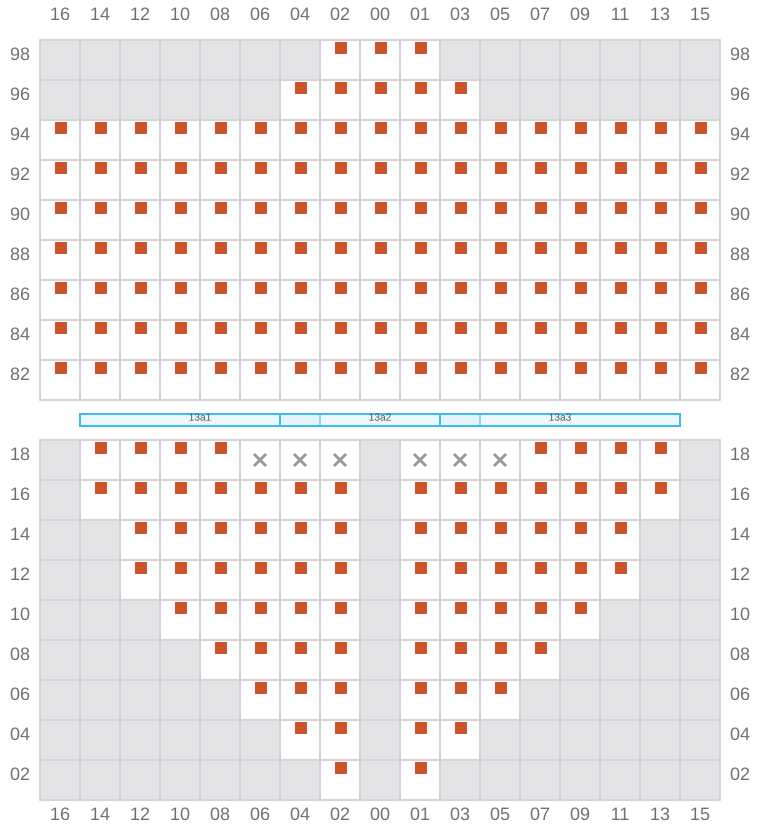

Bay 013 view and slots of CORNELIUS MAERSK

015

  • ←
Bay 015 view and slots of CORNELIUS MAERSK

017 (018)

  • →

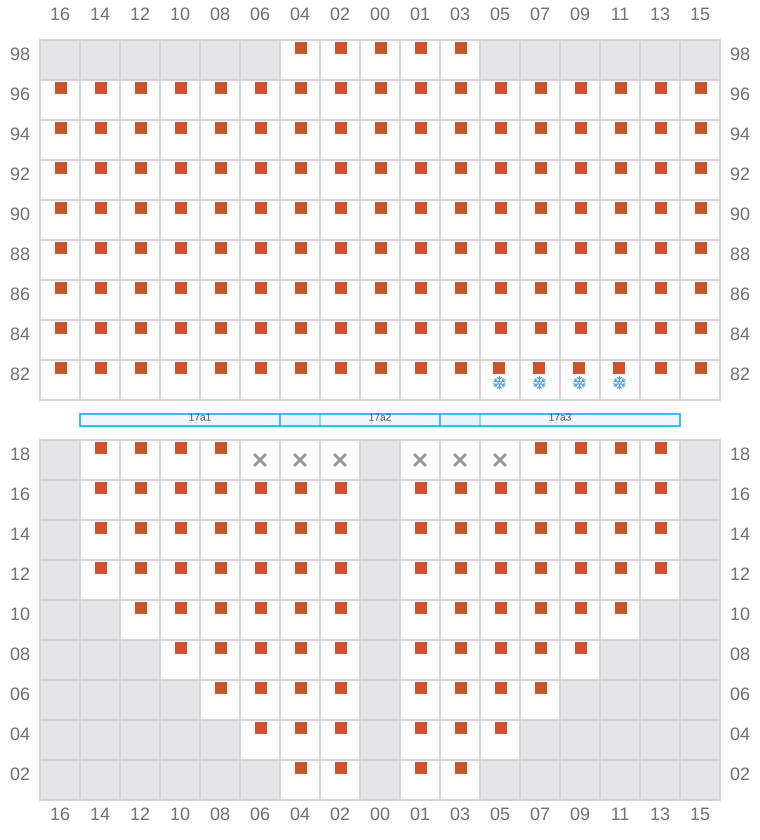

Bay 017 view and slots of CORNELIUS MAERSK

019

  • ←
  • → / ?
Bay 019 view and slots of CORNELIUS MAERSK

021 (022)

  • →

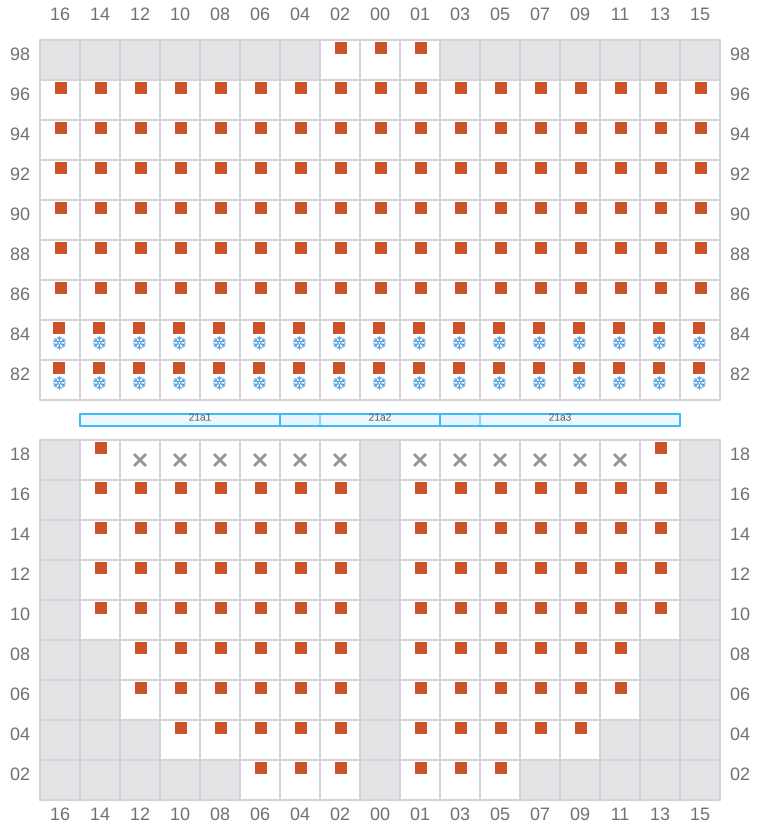

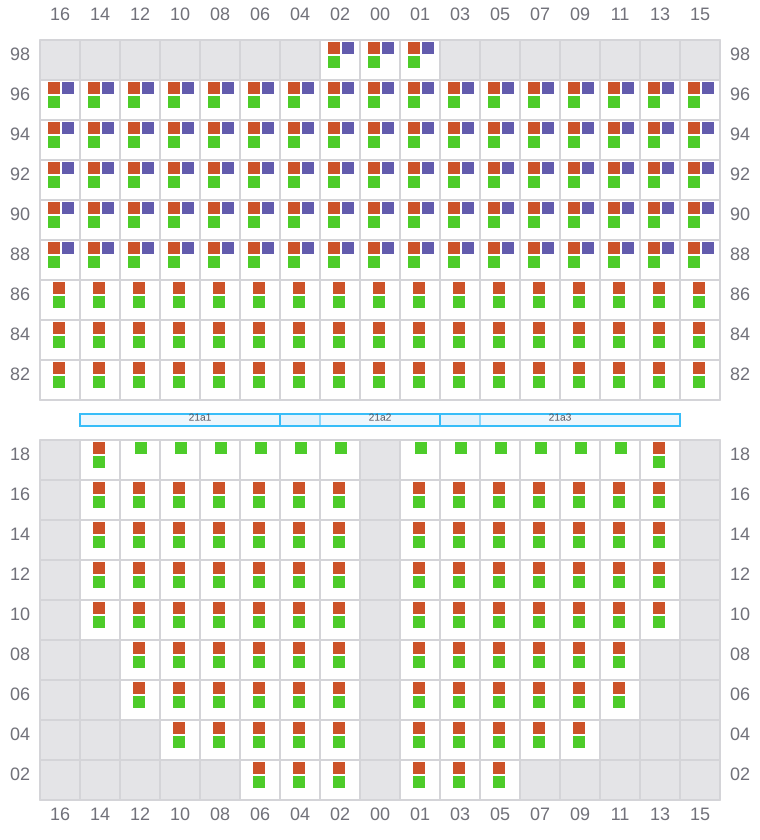

Bay 021 view and slots of CORNELIUS MAERSK

023

  • ←
  • → / ?
Bay 023 view and slots of CORNELIUS MAERSK

025 (026)

  • →

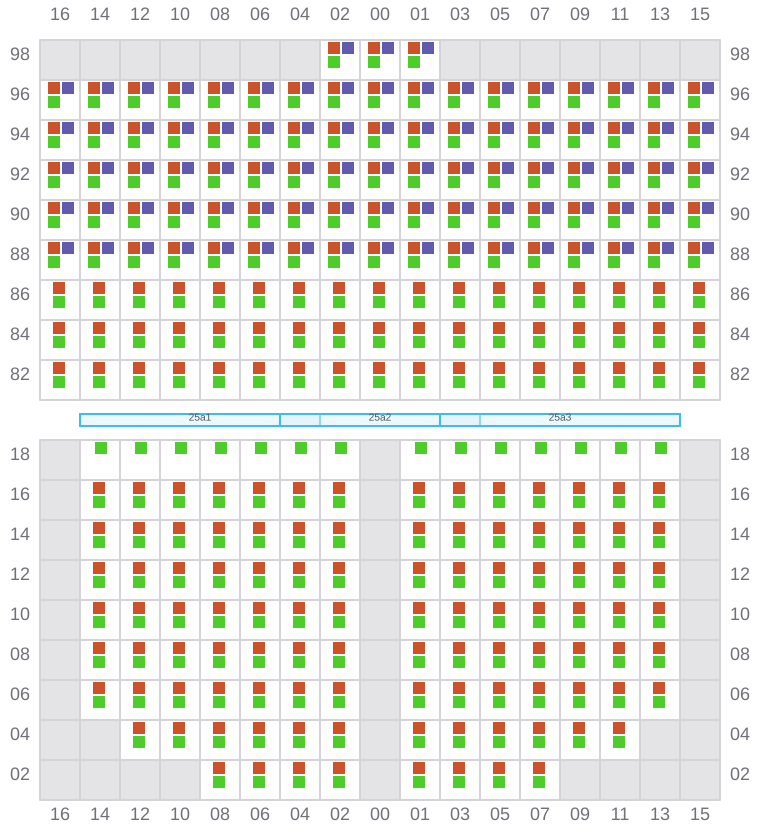

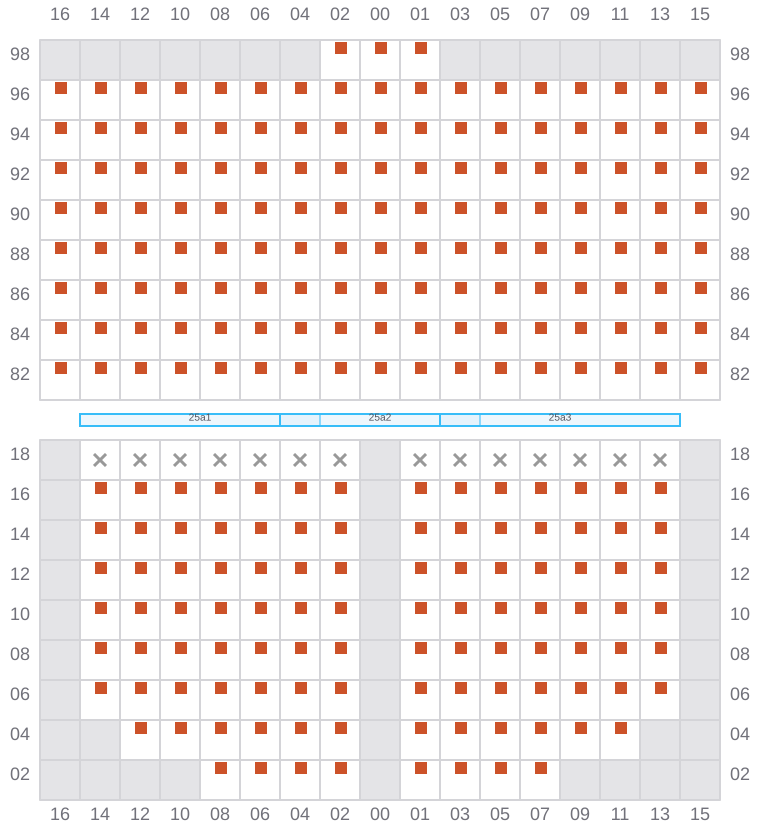

Bay 025 view and slots of CORNELIUS MAERSK

027

  • ←
Bay 027 view and slots of CORNELIUS MAERSK

029 (030)

  • →
  • ? / →

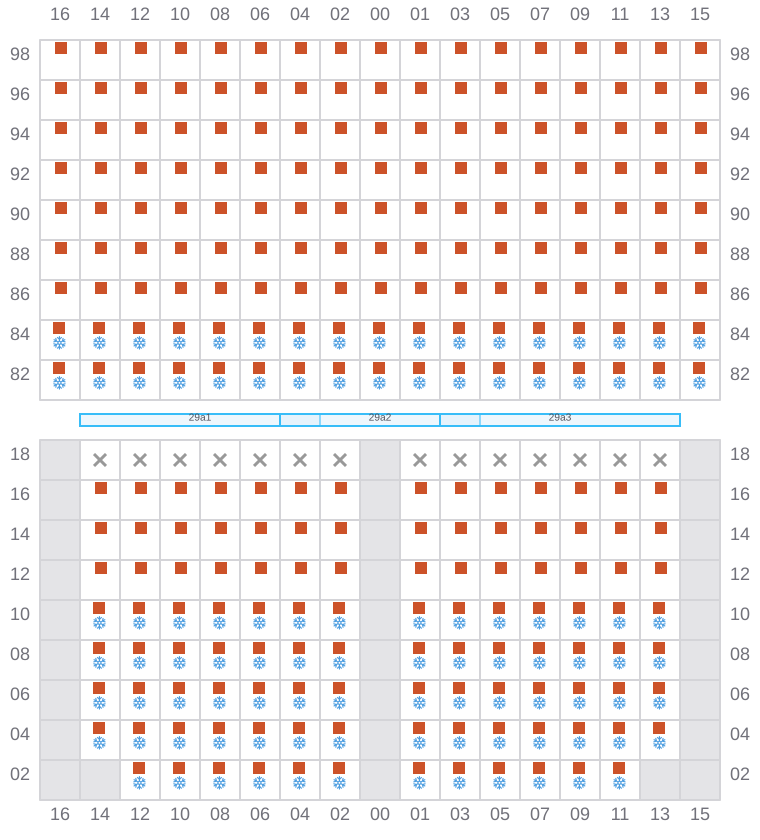

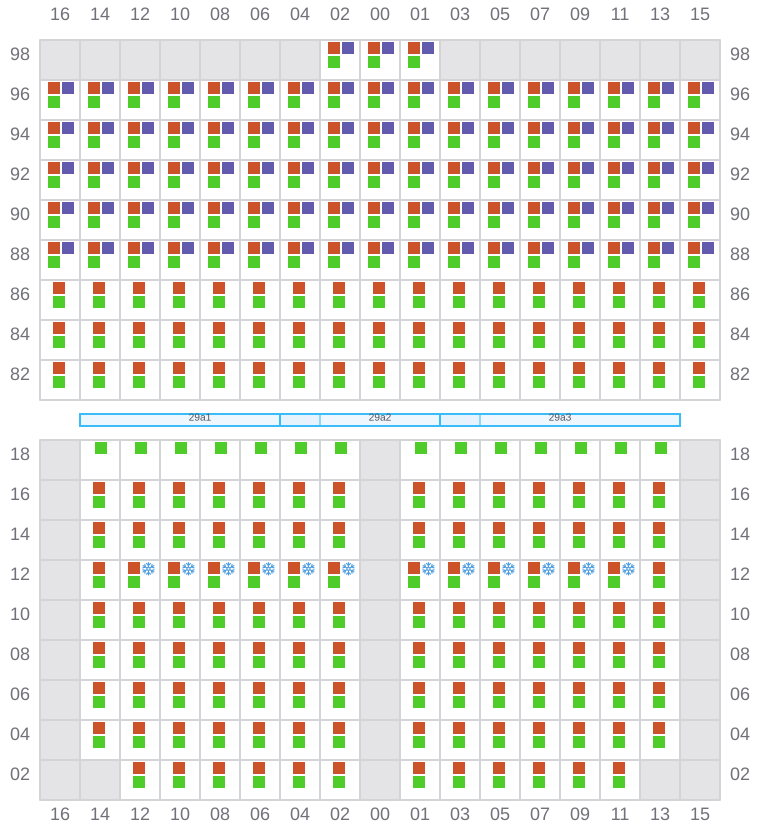

Bay 029 view and slots of CORNELIUS MAERSK

031

  • ←
  • →
Bay 031 view and slots of CORNELIUS MAERSK

033 (034)

  • →

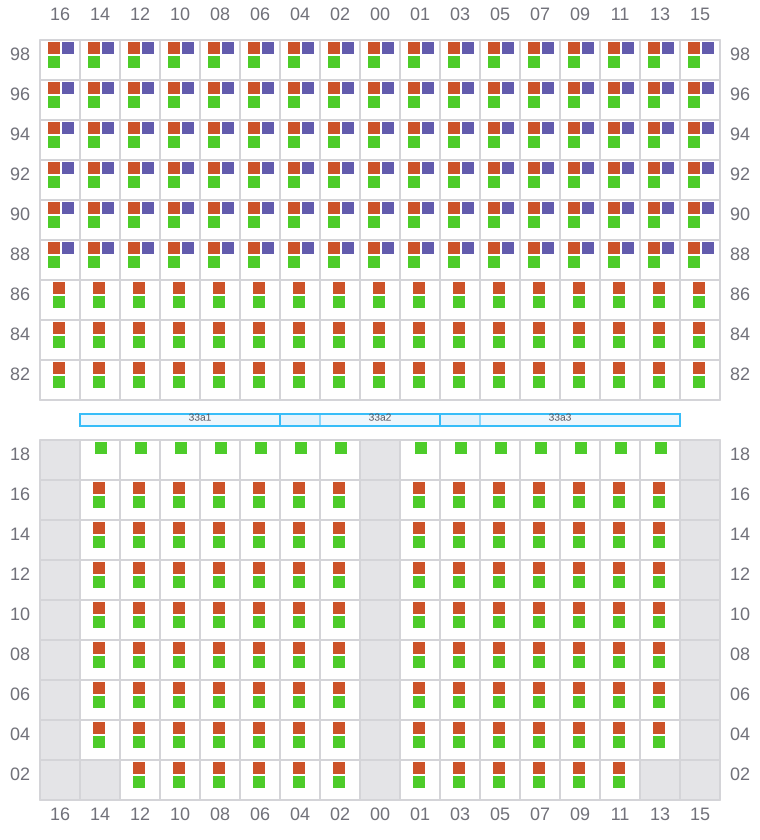

Bay 033 view and slots of CORNELIUS MAERSK

035

  • ←
Bay 035 view and slots of CORNELIUS MAERSK

037 (038)

  • →
  • ? / →

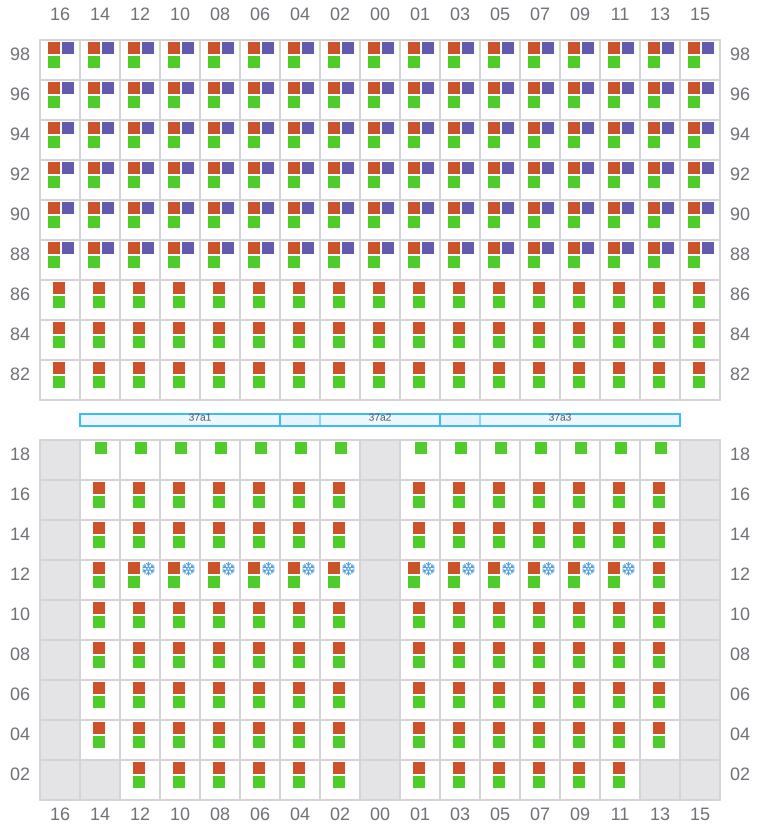

Bay 037 view and slots of CORNELIUS MAERSK

039

  • ←
  • →
Bay 039 view and slots of CORNELIUS MAERSK

041 (042)

  • →

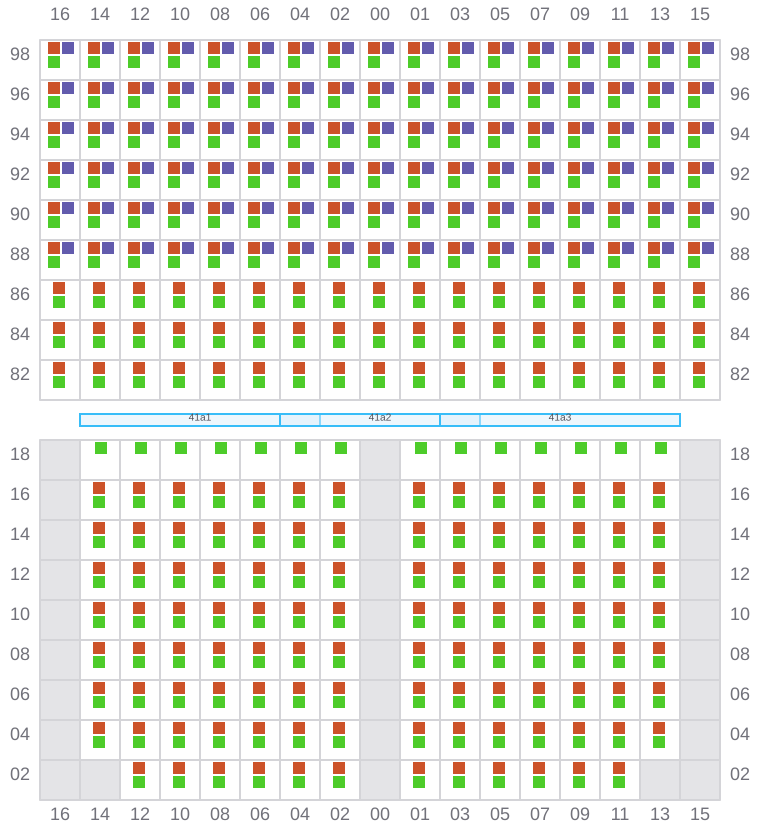

Bay 041 view and slots of CORNELIUS MAERSK

043

  • ←

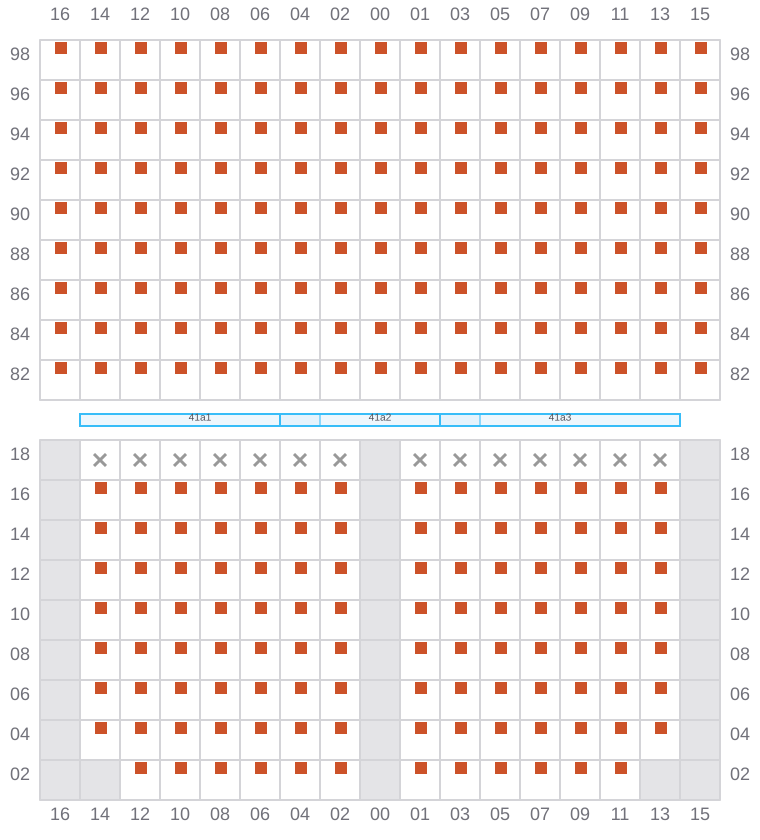

Bay 043 view and slots of CORNELIUS MAERSK

045 (046)

  • →
  • ? / →

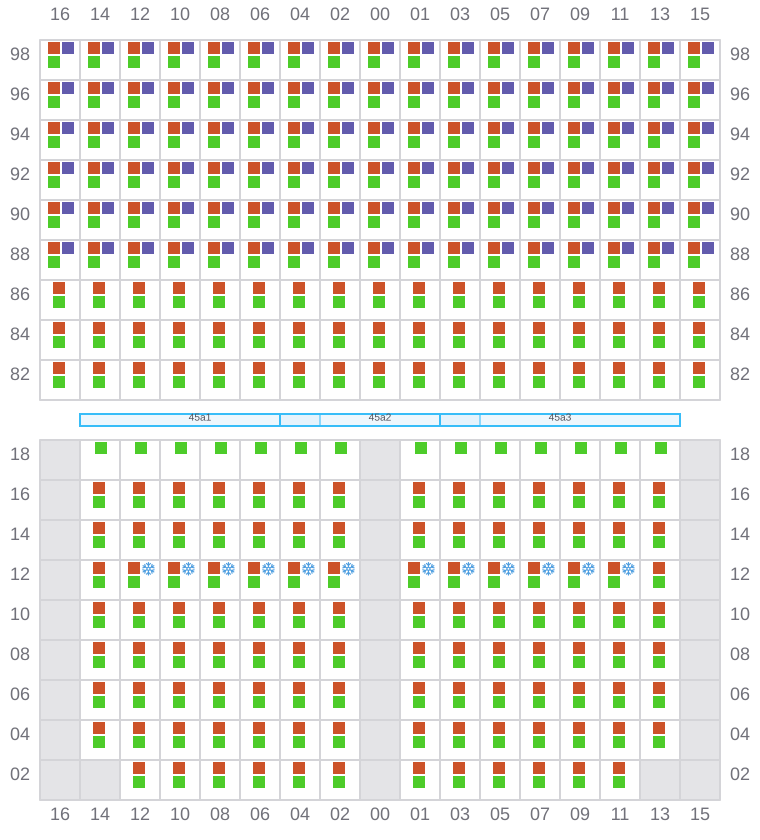

Bay 045 view and slots of CORNELIUS MAERSK

047

  • ←
  • →
Bay 047 view and slots of CORNELIUS MAERSK

049 (050)

  • →

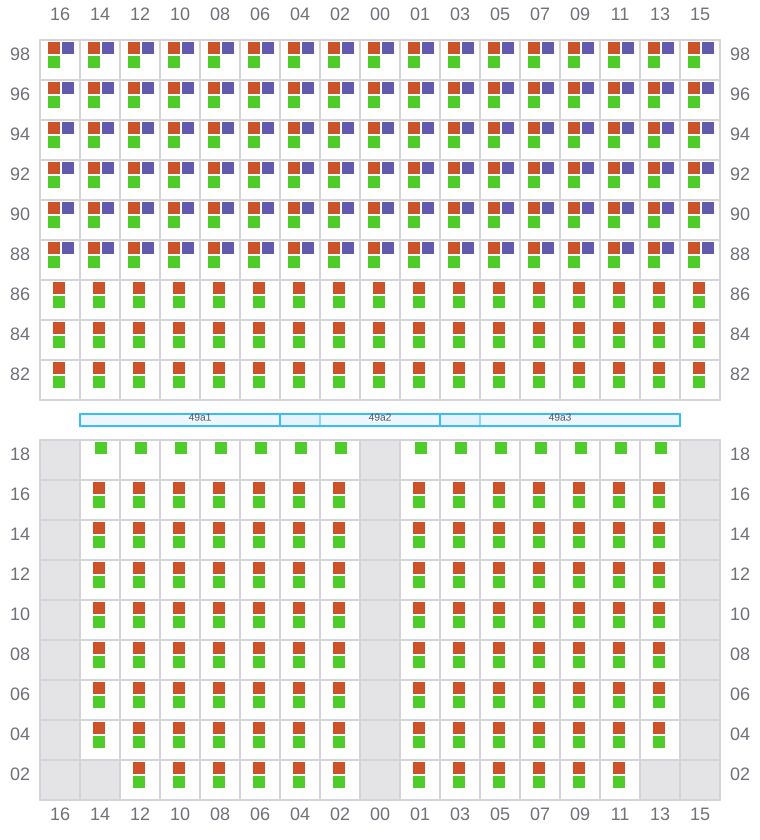

Bay 049 view and slots of CORNELIUS MAERSK

051

  • ←

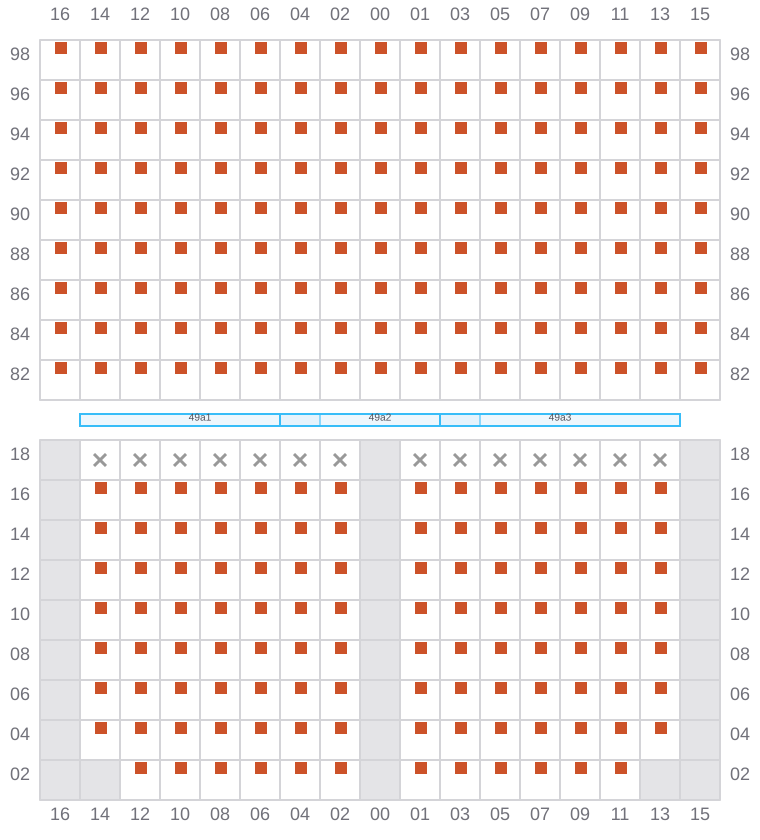

Bay 051 view and slots of CORNELIUS MAERSK

053 (054)

  • →
  • ? / →

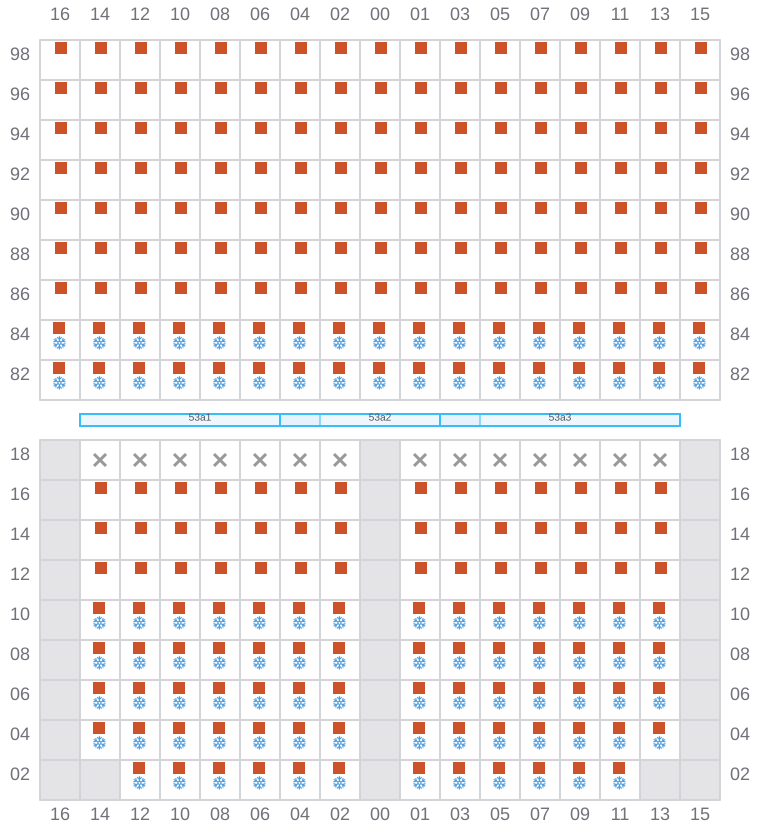

Bay 053 view and slots of CORNELIUS MAERSK

055

  • ←
  • →
Bay 055 view and slots of CORNELIUS MAERSK

057 (058)

  • →
  • → / ?

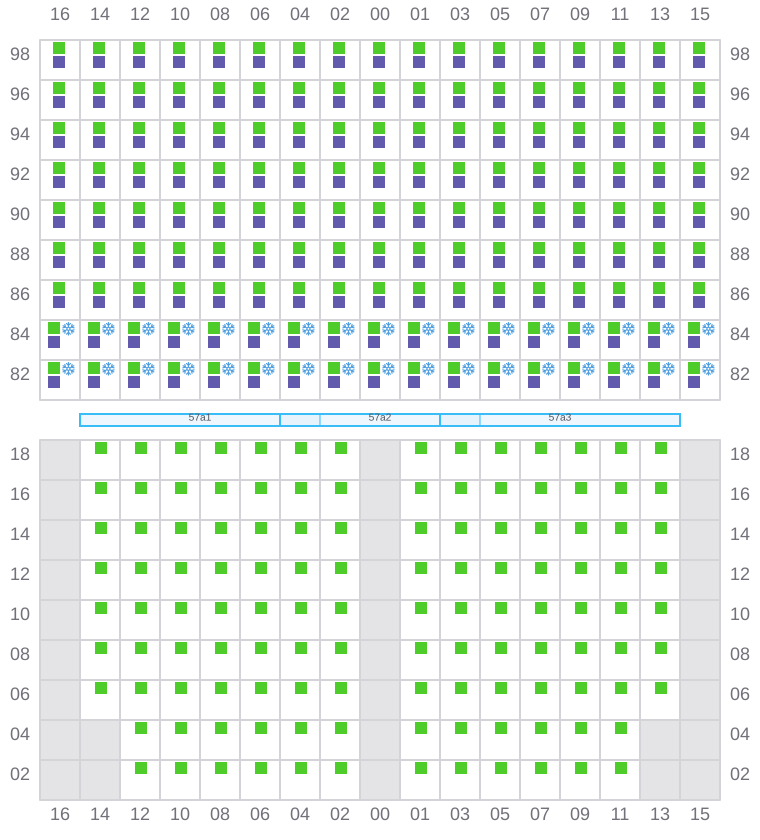

Bay 057 view and slots of CORNELIUS MAERSK

059

Bay 059 view and slots of CORNELIUS MAERSK

061 (062)

  • →
  • ← / ?

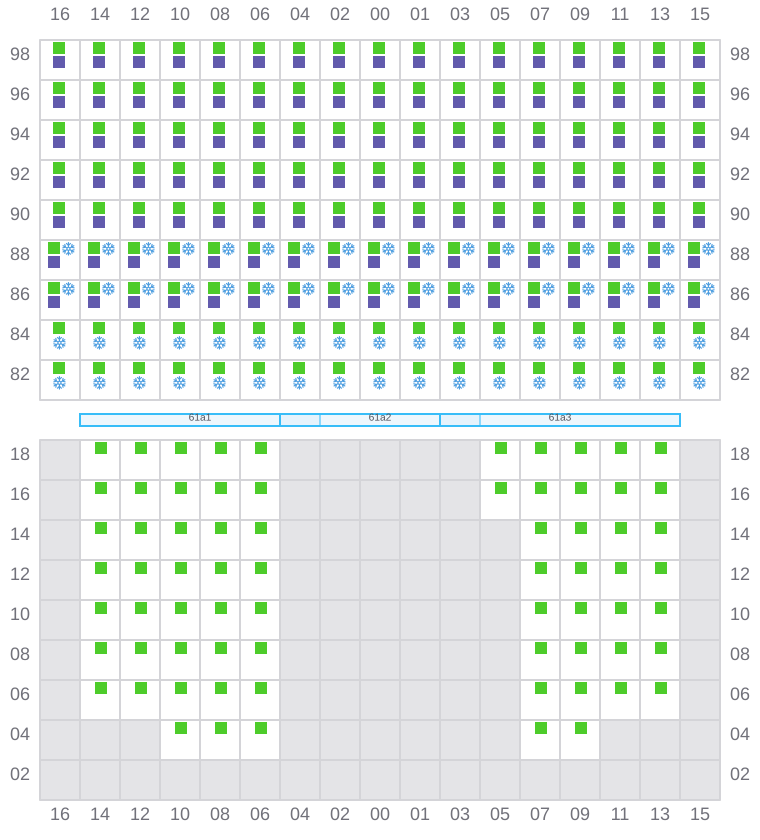

Bay 061 view and slots of CORNELIUS MAERSK

063

Bay 063 view and slots of CORNELIUS MAERSK

065 (066)

  • →
  • ← / →

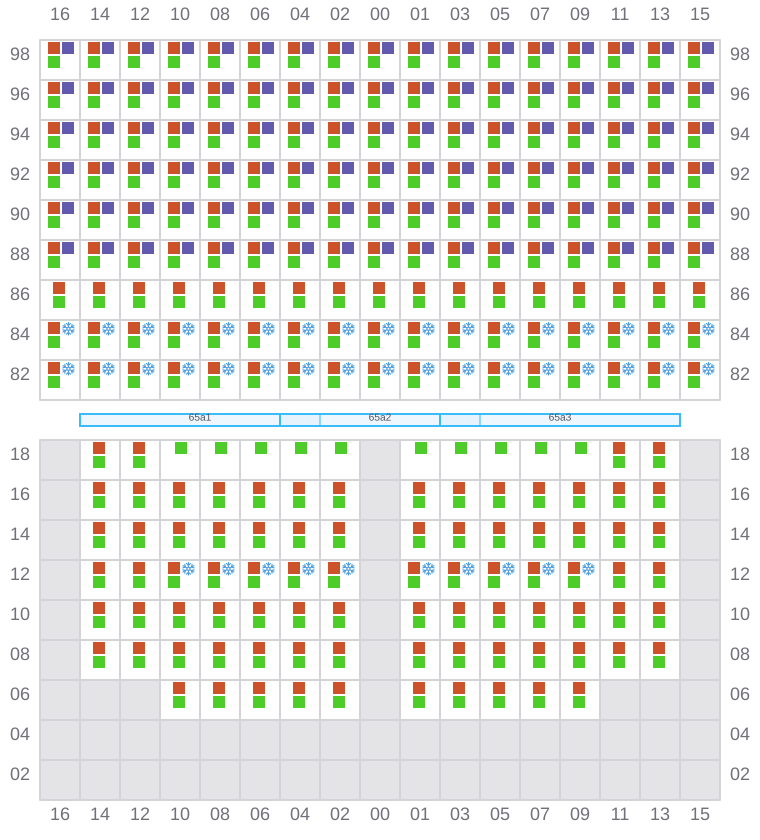

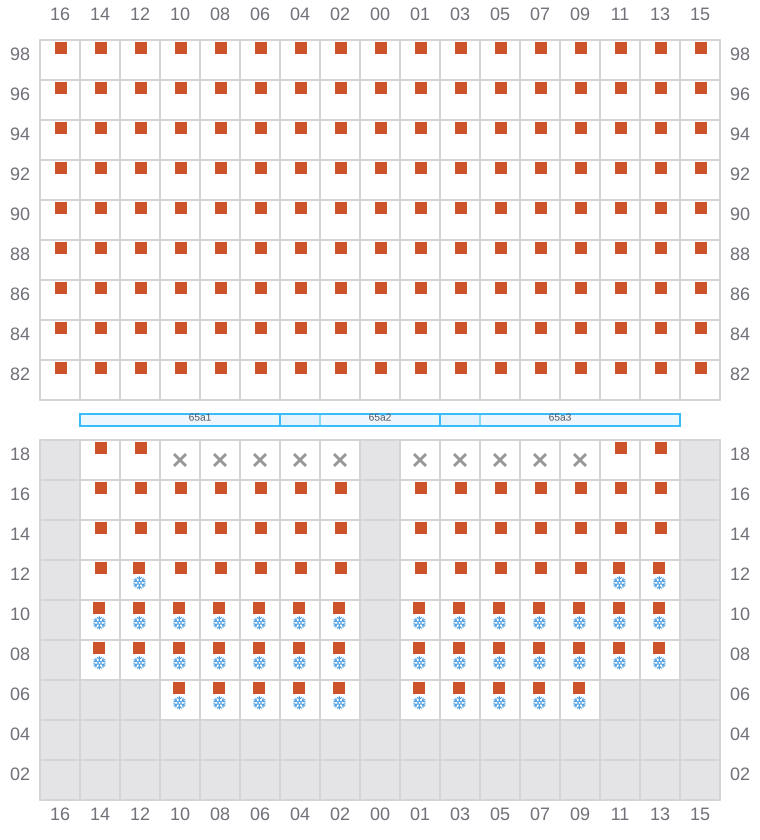

Bay 065 view and slots of CORNELIUS MAERSK

067

  • ←
  • ? / →
Bay 067 view and slots of CORNELIUS MAERSK

069 (070)

  • →
  • ← / ?

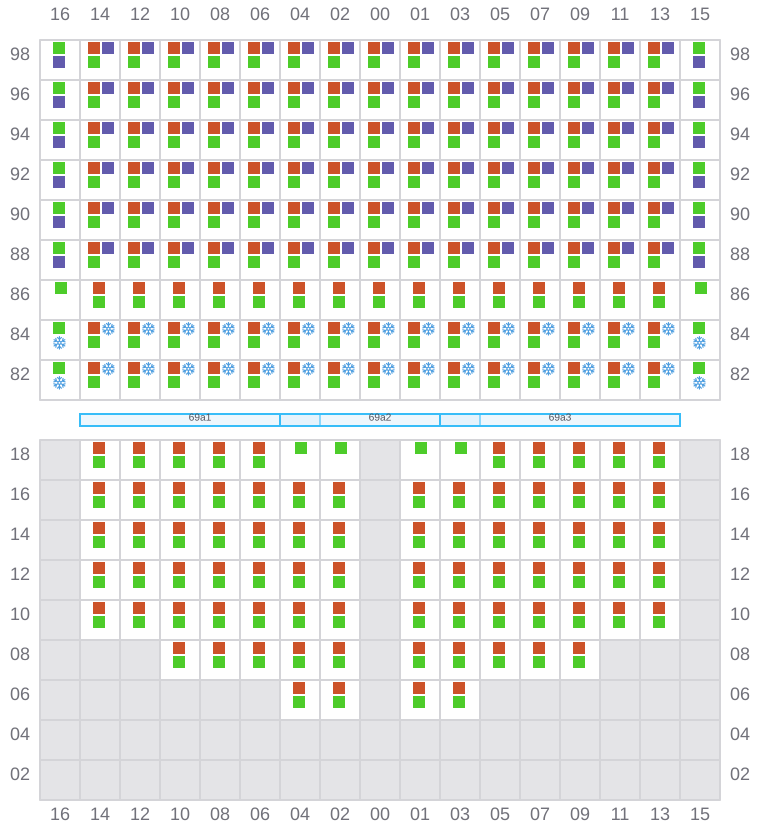

Bay 069 view and slots of CORNELIUS MAERSK

071

  • ←

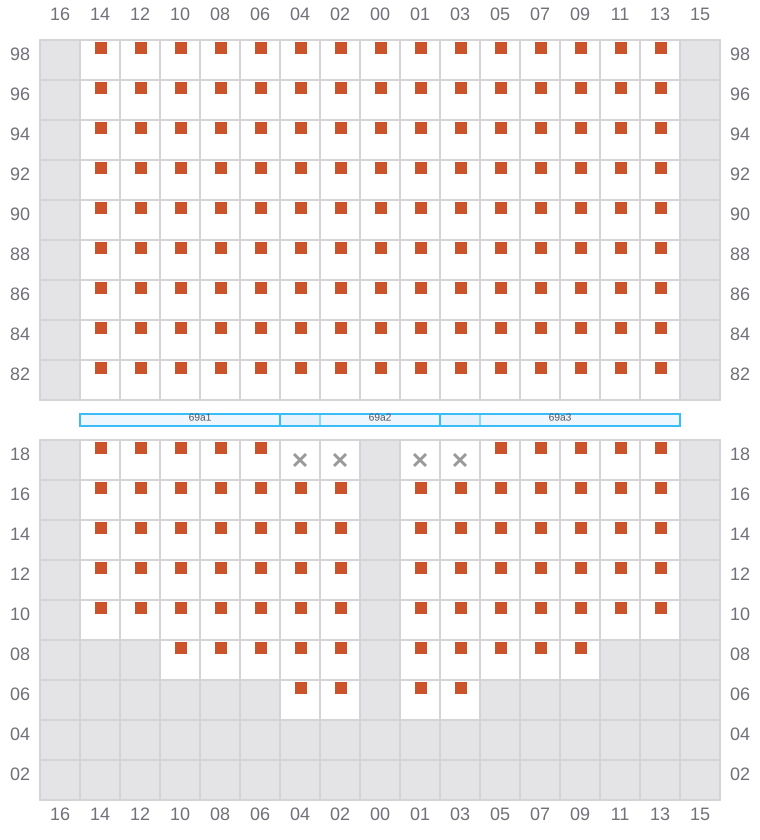

Bay 071 view and slots of CORNELIUS MAERSK

073 (074)

  • →
  • ← / ?

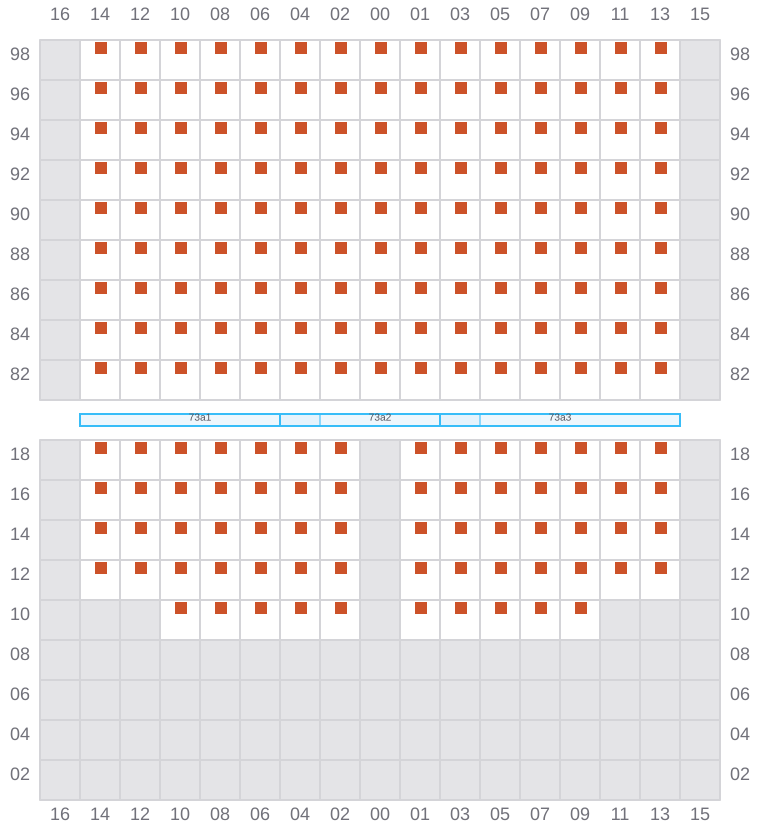

Bay 073 view and slots of CORNELIUS MAERSK

075

  • ←
Bay 075 view and slots of CORNELIUS MAERSK

077 (078)

  • →
  • ← / ?

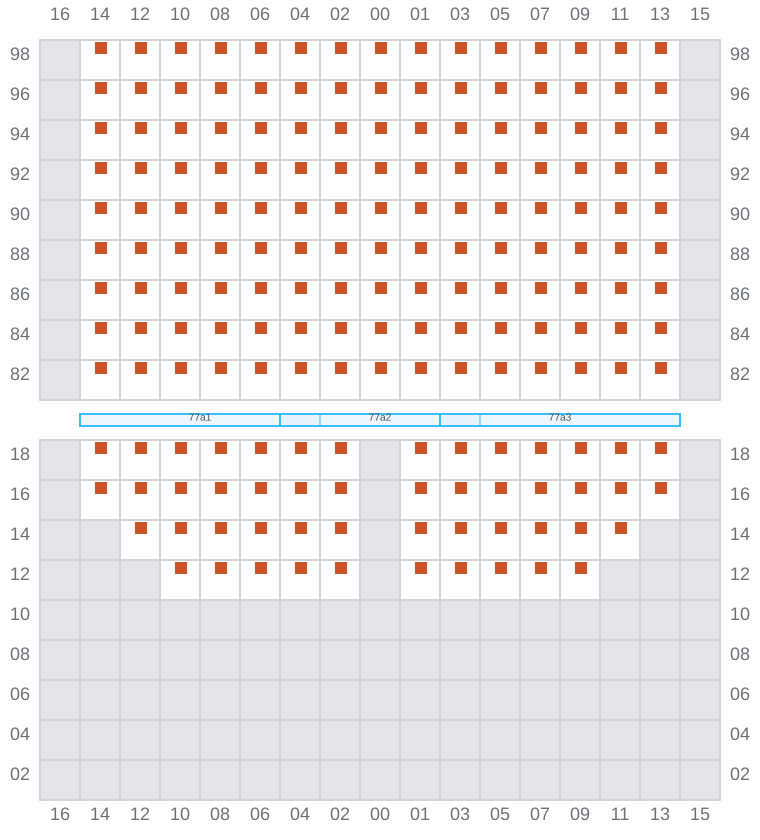

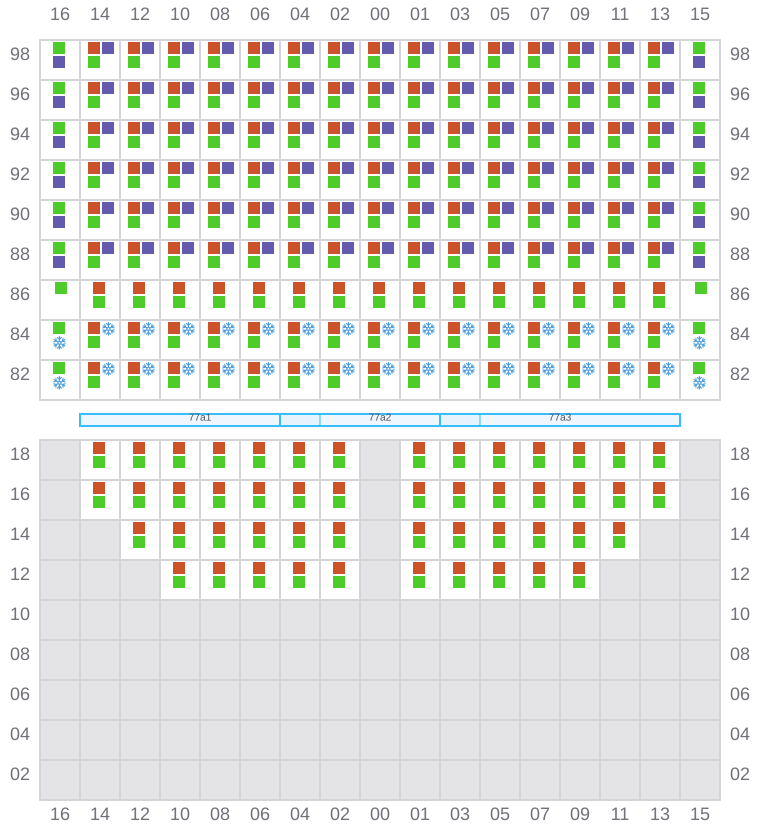

Bay 077 view and slots of CORNELIUS MAERSK

079

  • ←
Bay 079 view and slots of CORNELIUS MAERSK

081 (082)

  • → / ?

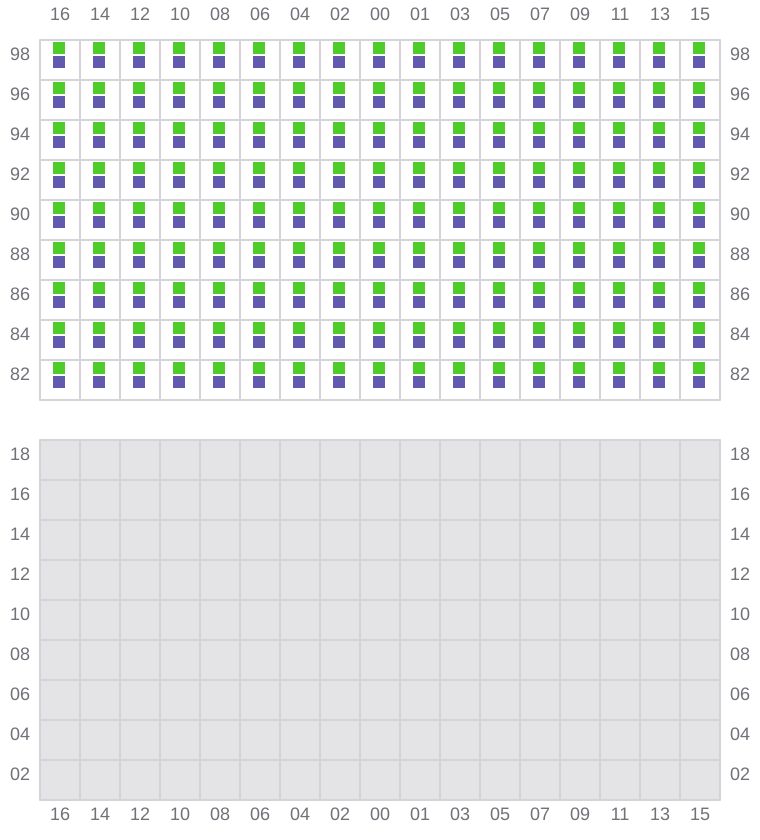

Bay 081 view and slots of CORNELIUS MAERSK
