COSCO ANTWERP
9246396 | 2BOV9 | 9246396 by ********* Last update: Thu May 09 2024
General Info
Ship Name:COSCO ANTWERP
IMO Code:9246396
Call Sign:2BOV9
Line Operator:9246396
Class Name for Sister Ships:COSCO ANTWERP
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,546
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

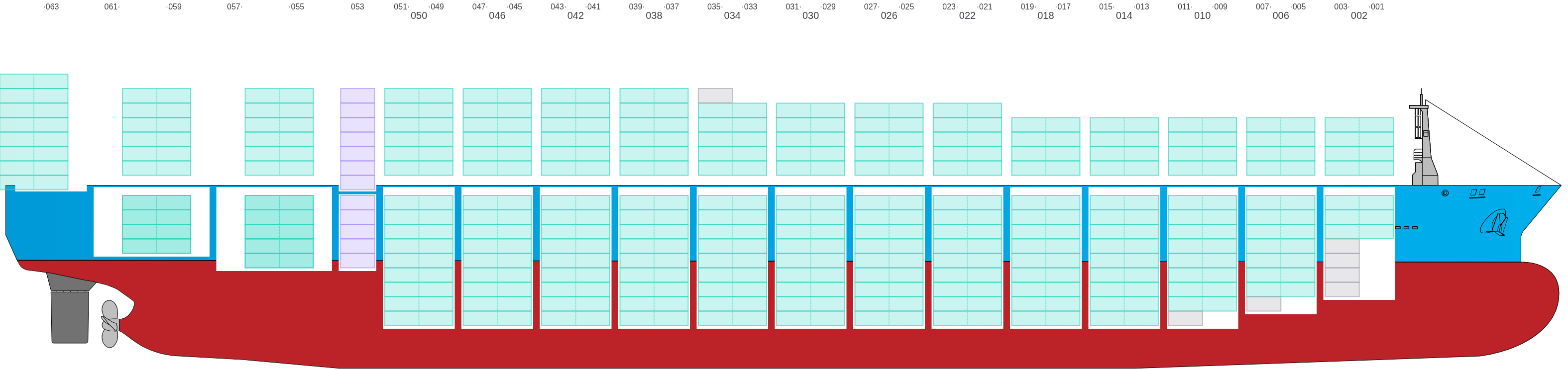

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

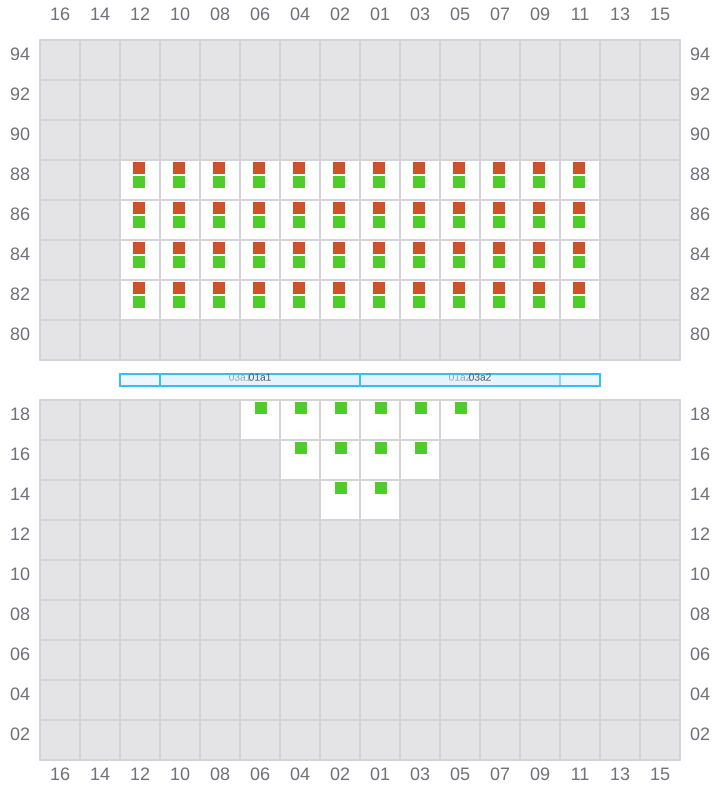

001 (002)
- →

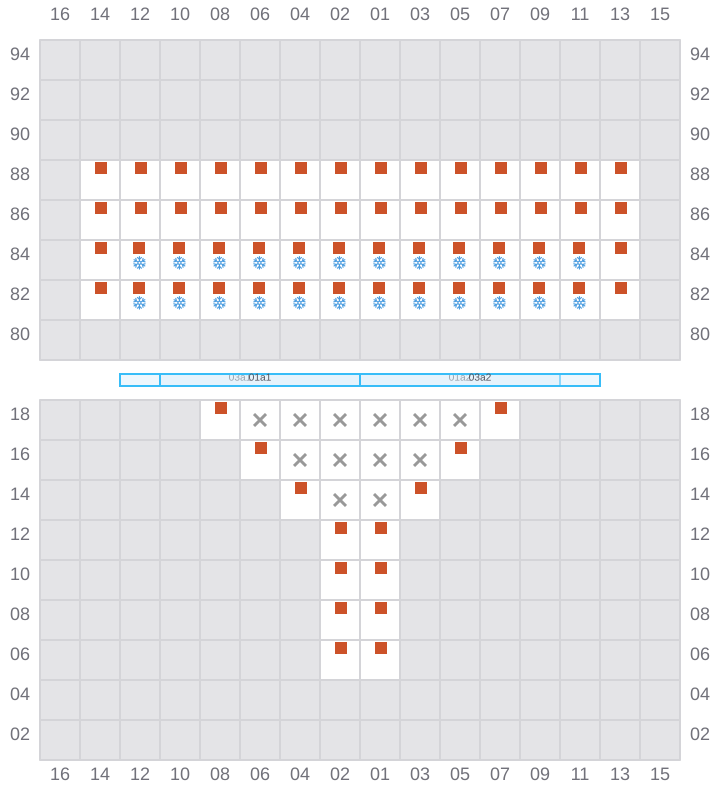

003
- ←

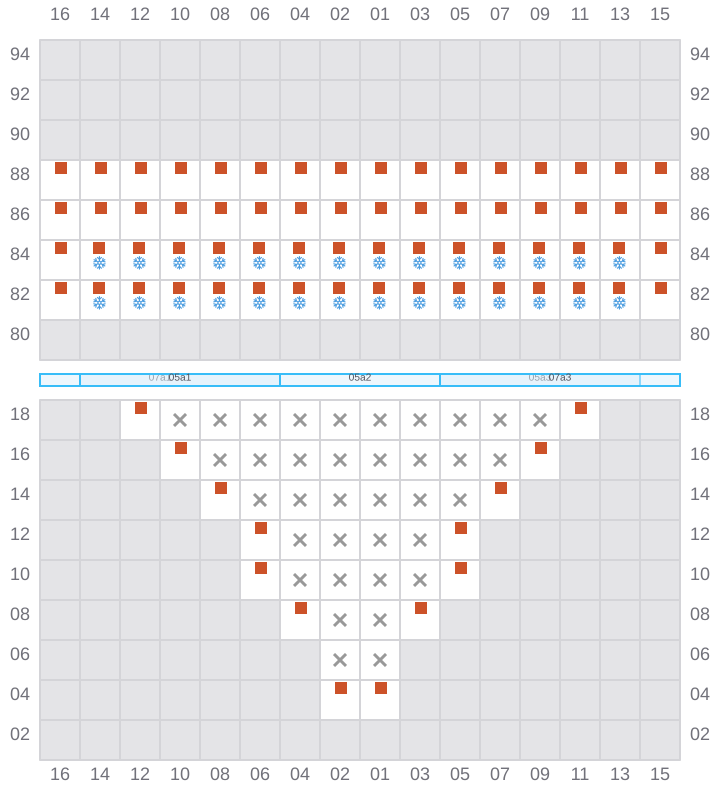

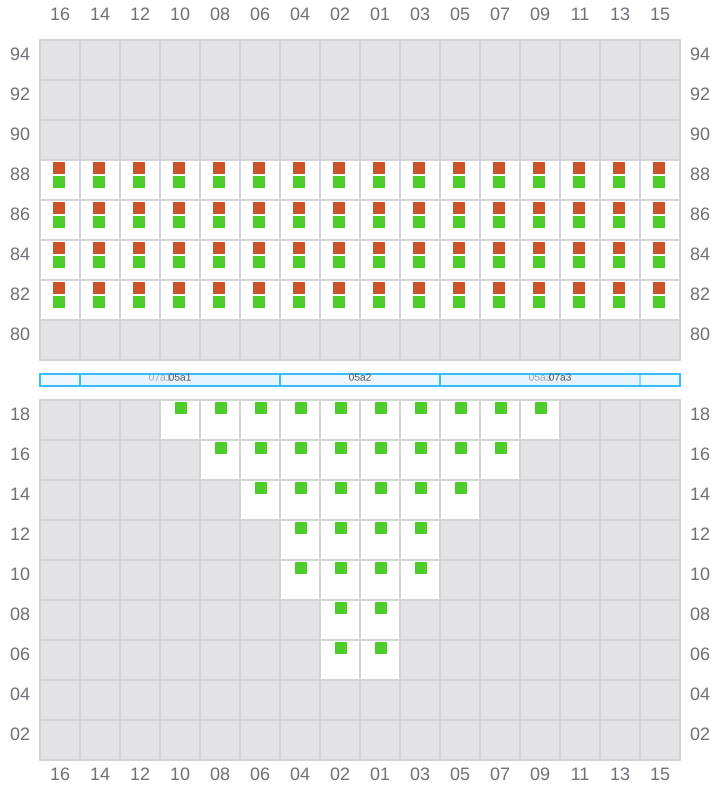

005 (006)
- →
007
- ←

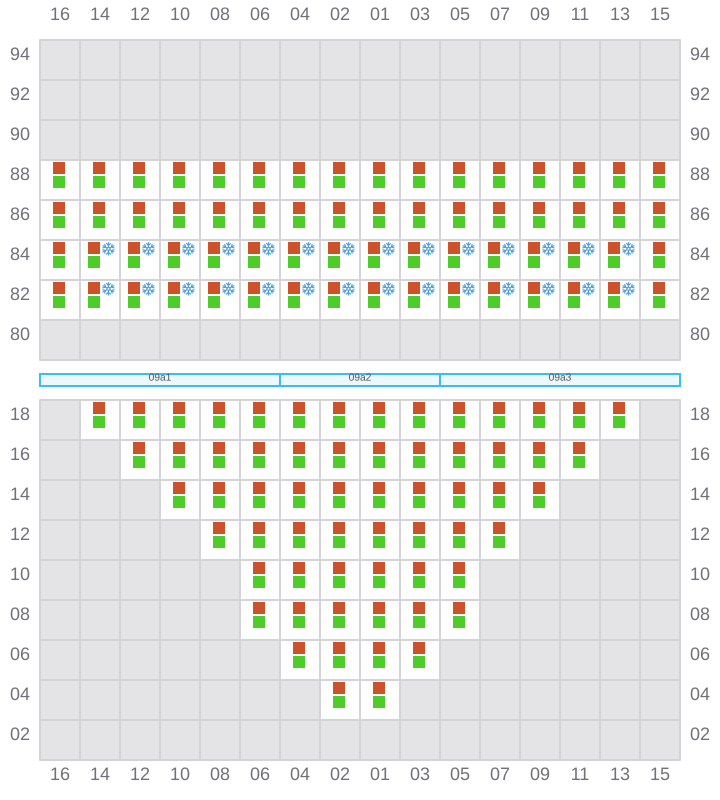

009 (010)
- →
011
- ←

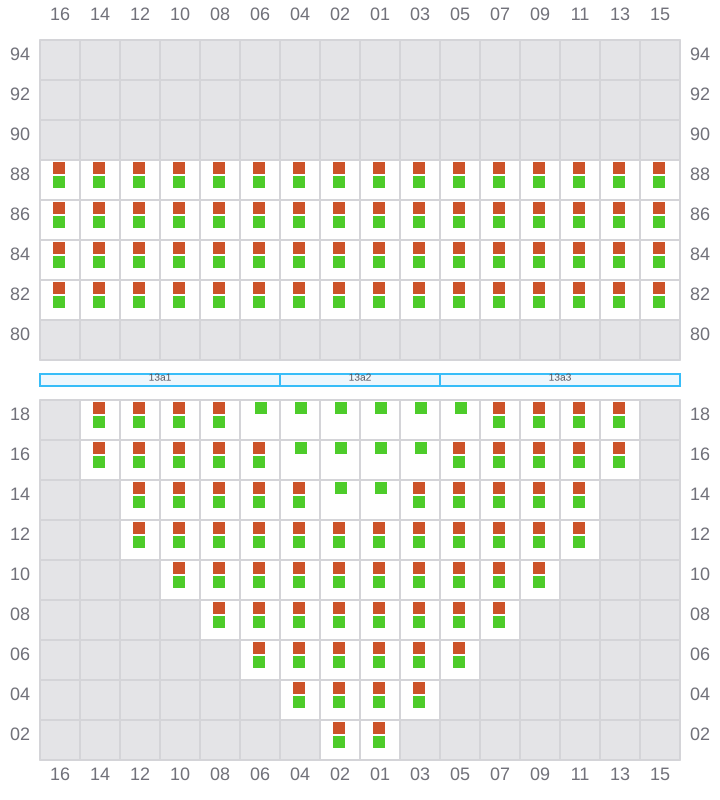

013 (014)
- →

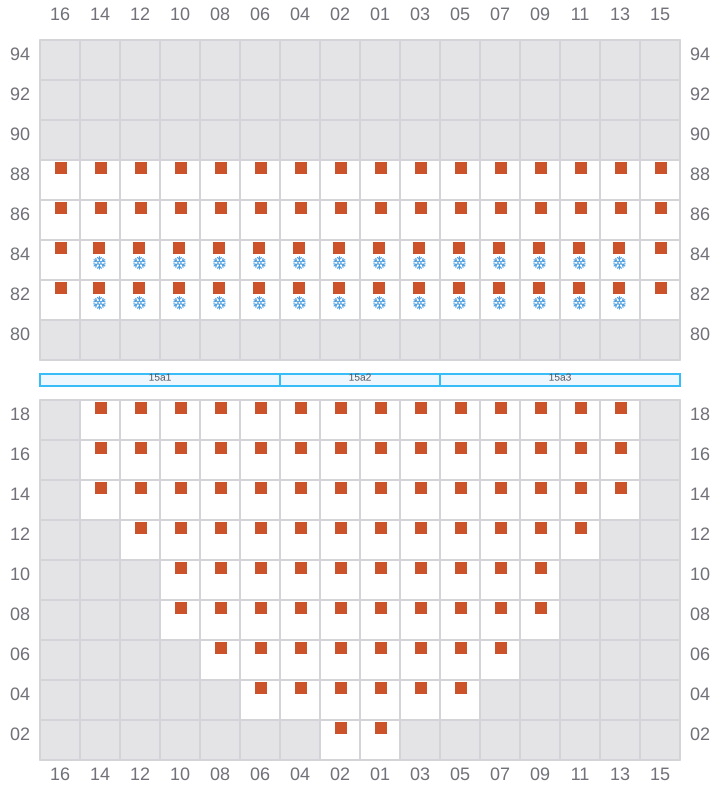

015
- ←

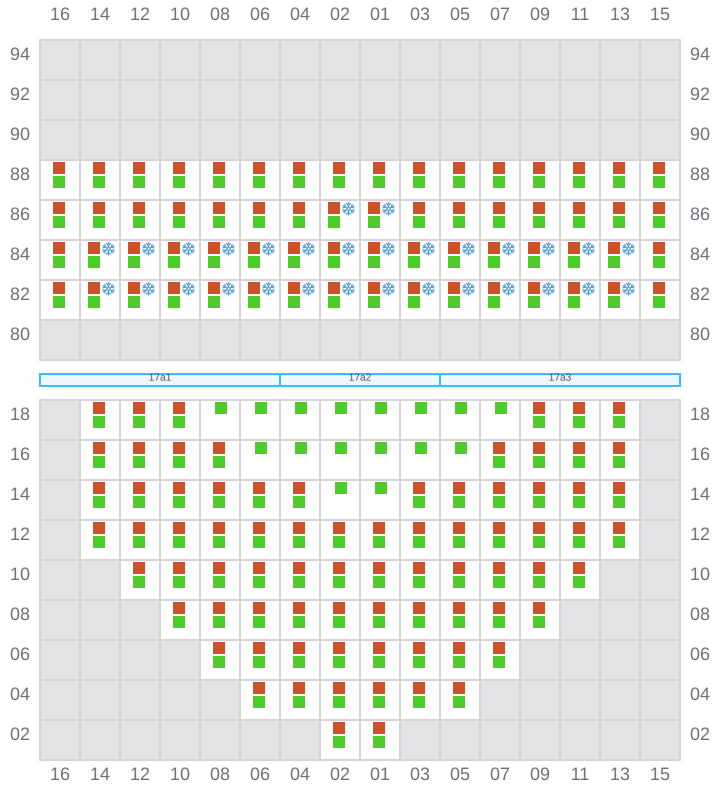

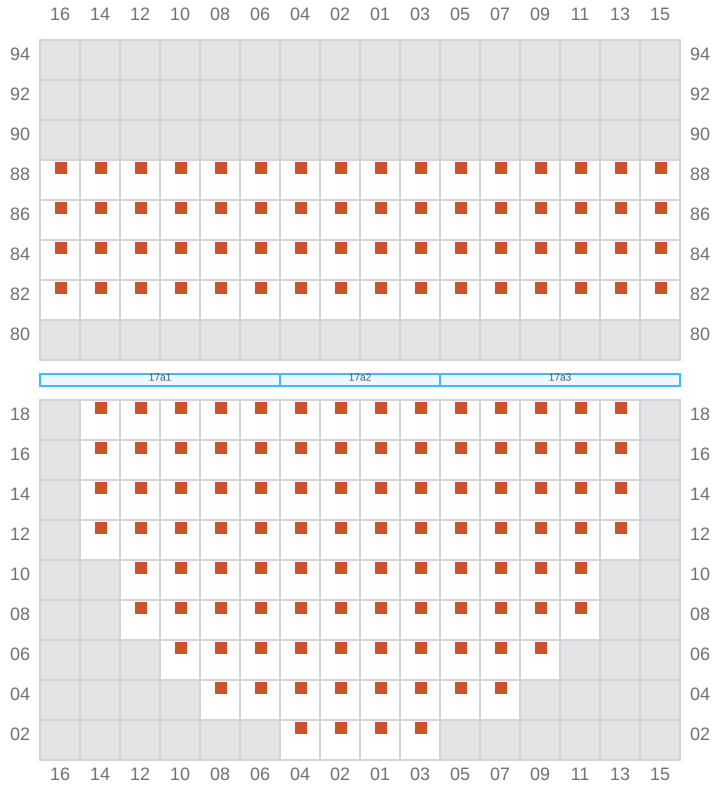

017 (018)
- →
019
- ←

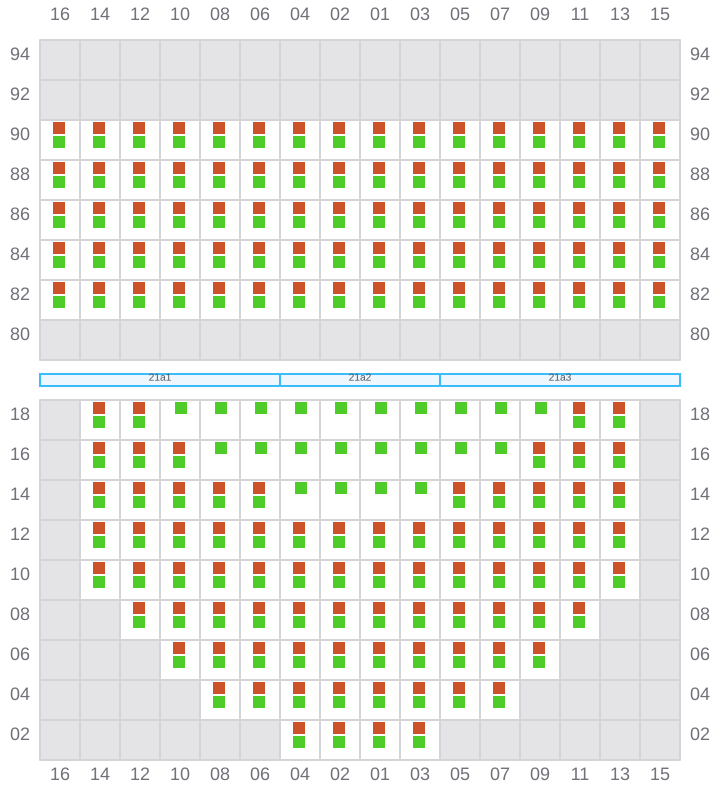

021 (022)
- →

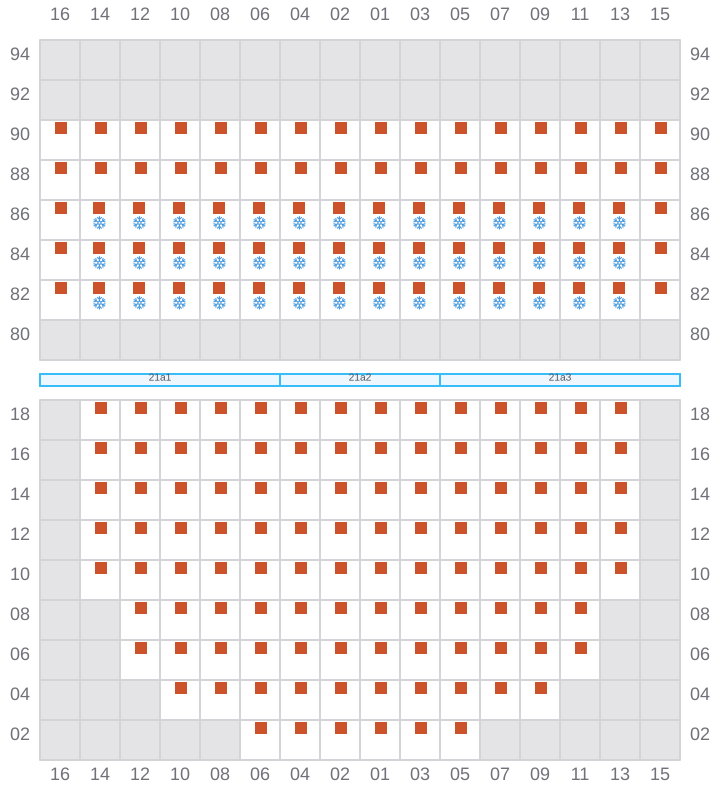

023
- ←

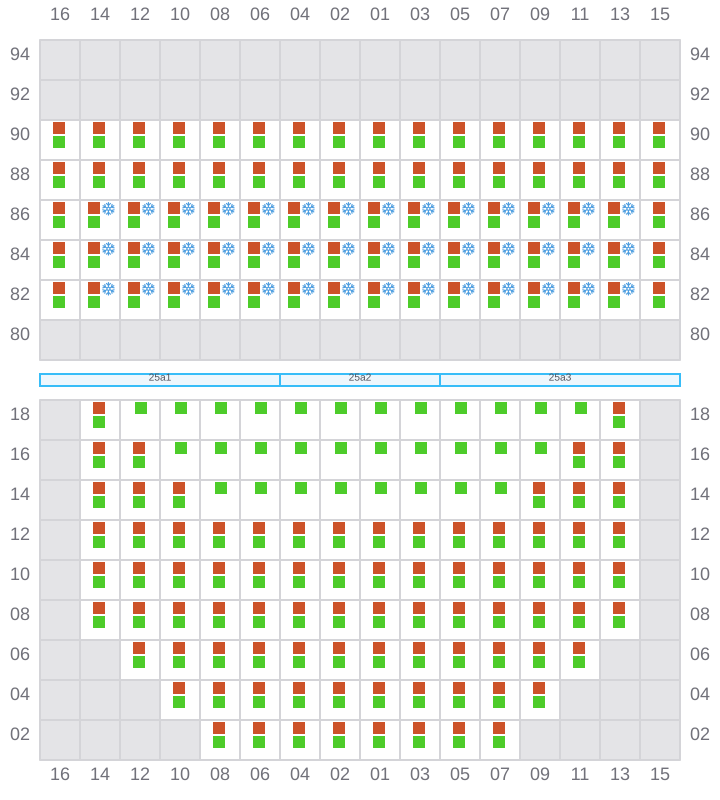

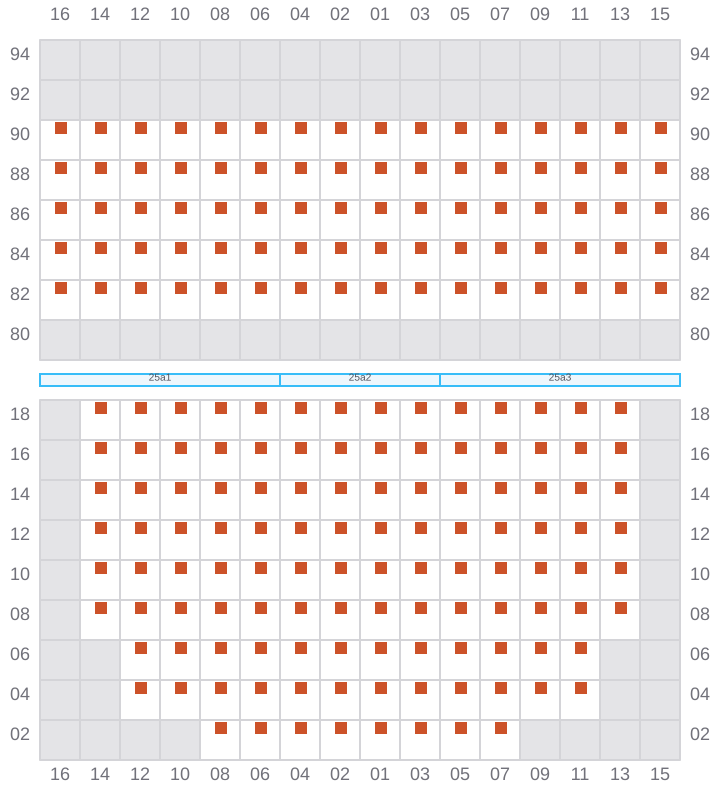

025 (026)
- →
027
- ←

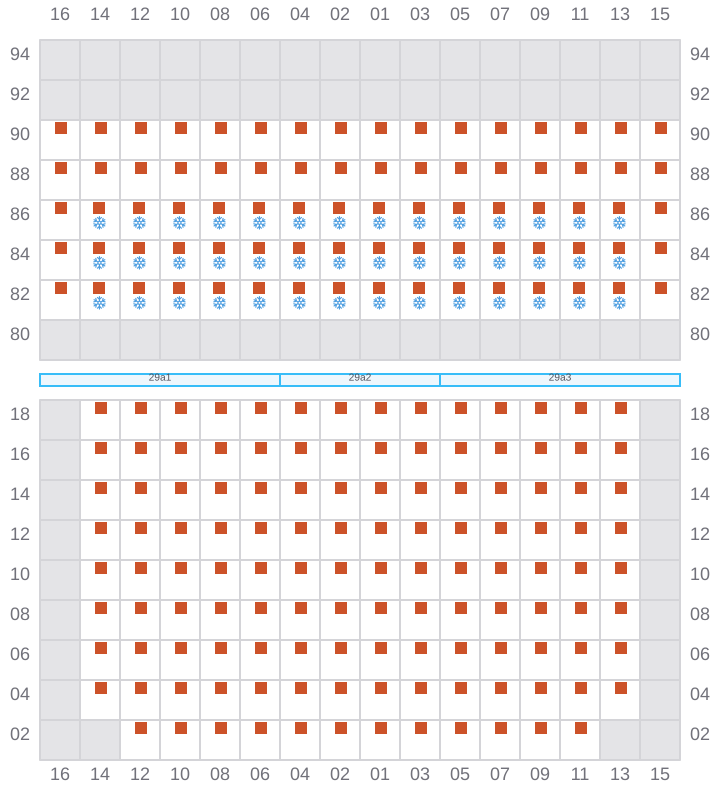

029 (030)
- →
031
- ←

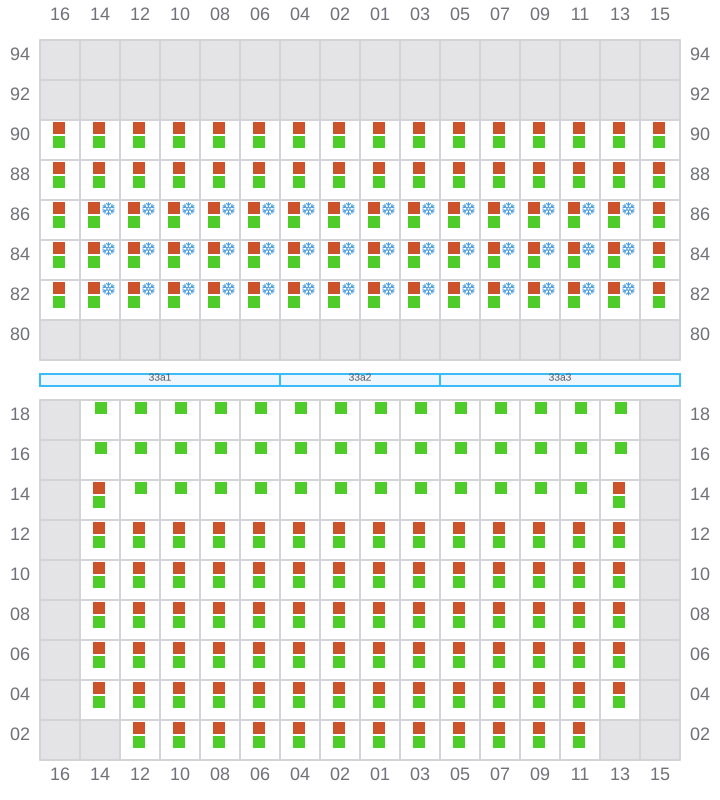

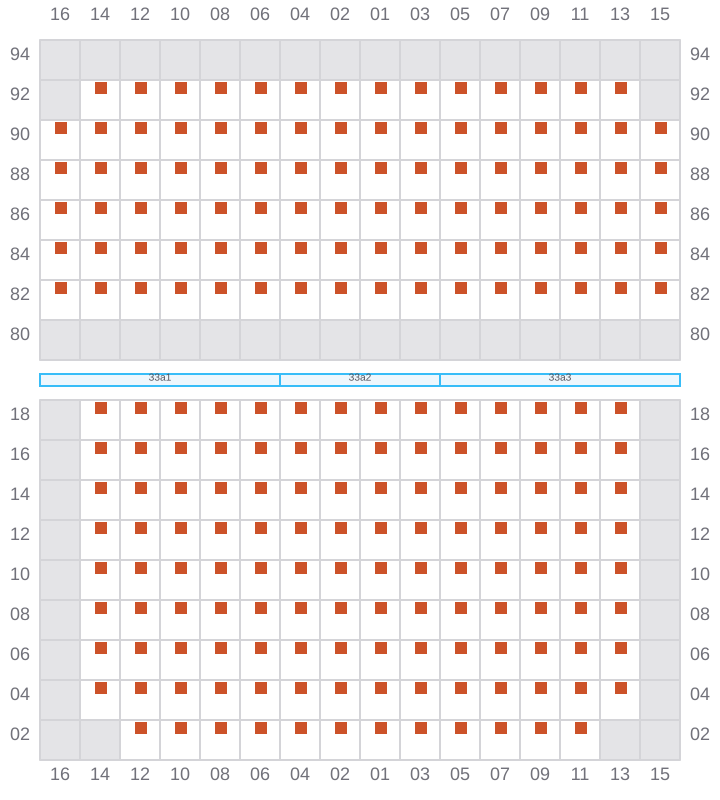

033 (034)
- →
035
- ←

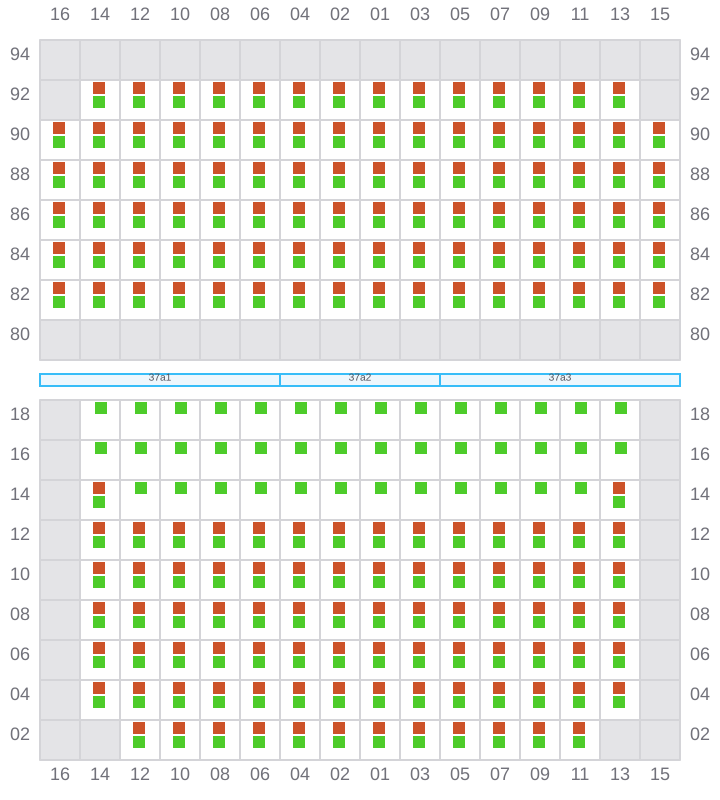

037 (038)
- →

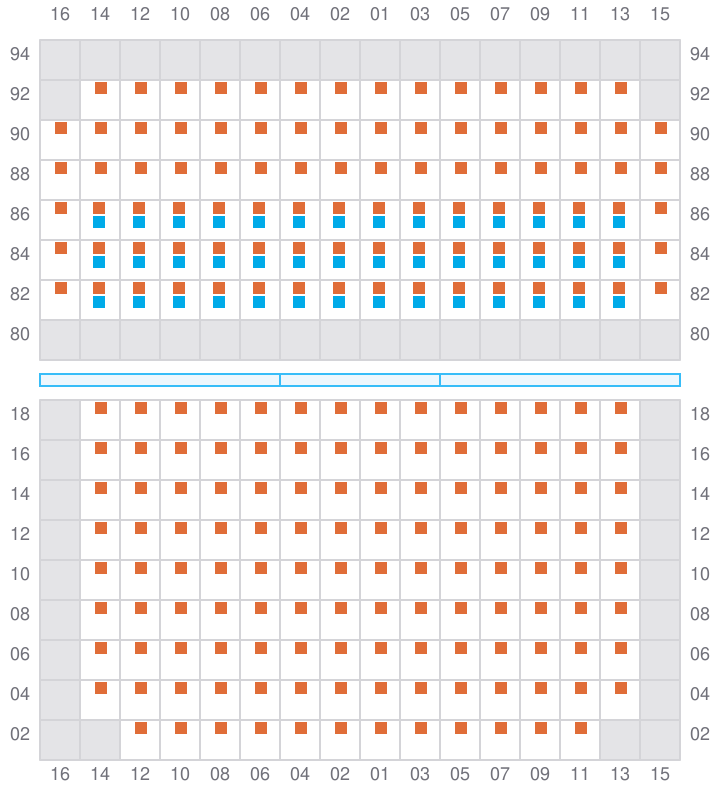

039
- ←
041 (042)
- →
043
- ←

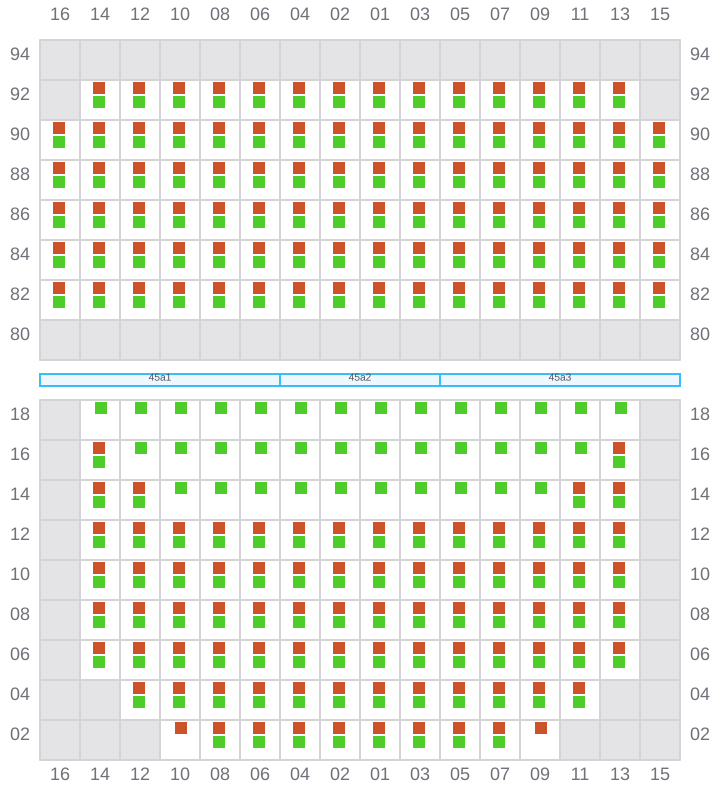

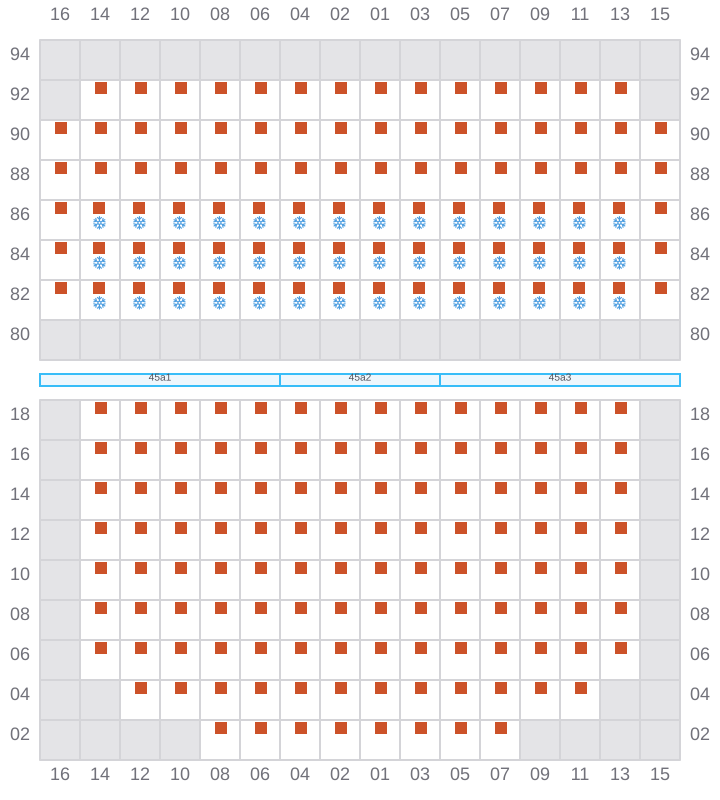

045 (046)
- →
047
- ←

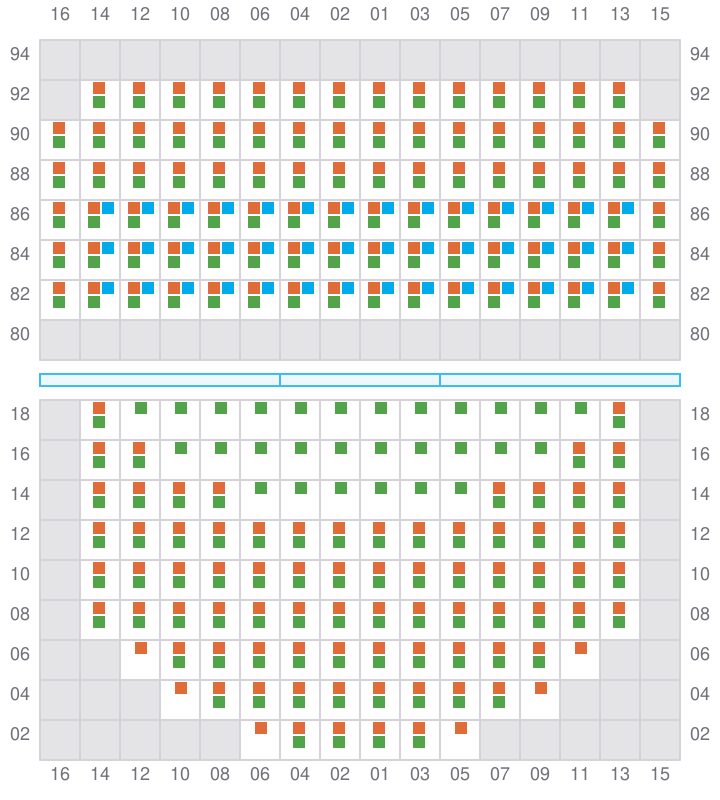

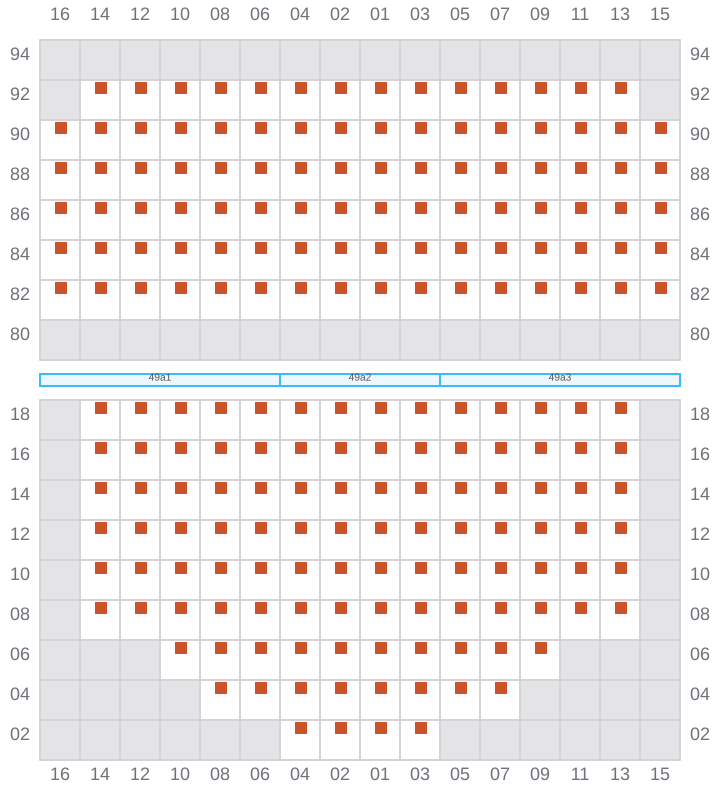

049 (050)
- →
051
- ←
053

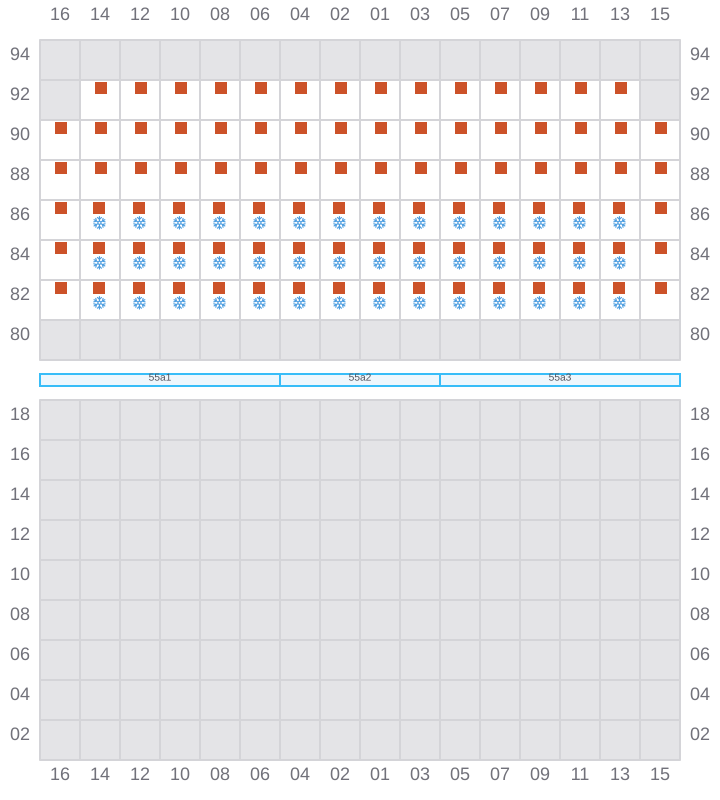

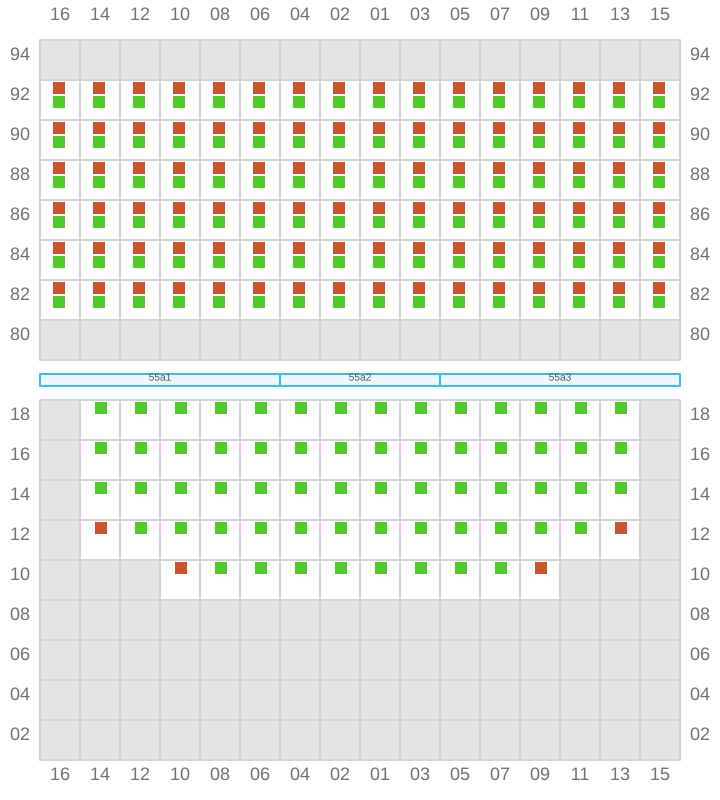

055 (056)
- →
057
- ← / ?

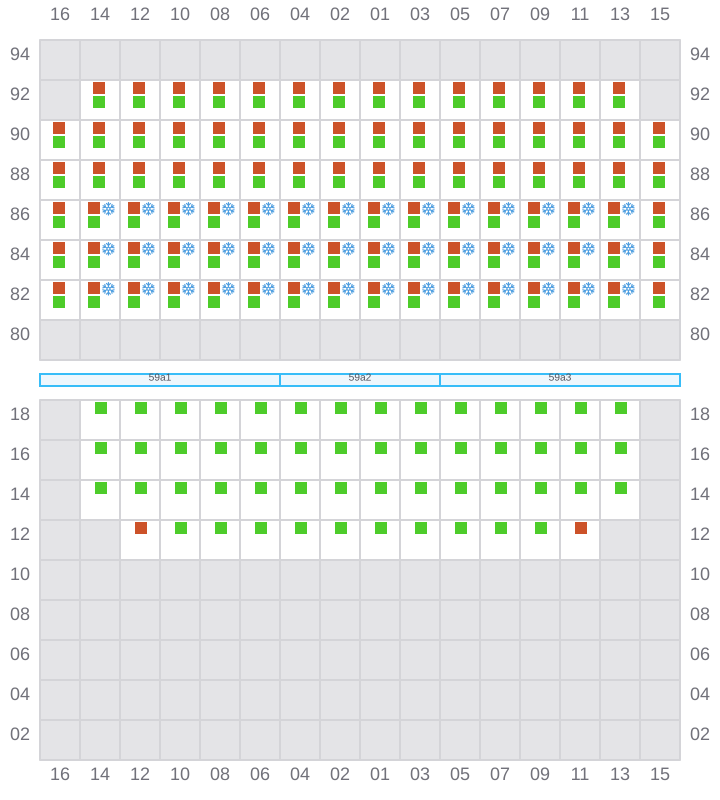

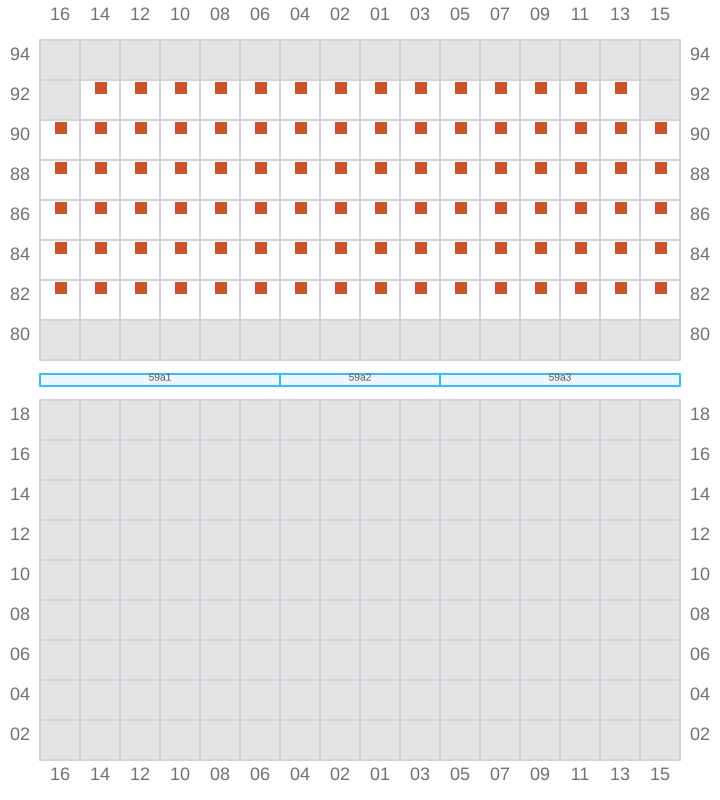

059 (060)
- →
061
- ← / ?

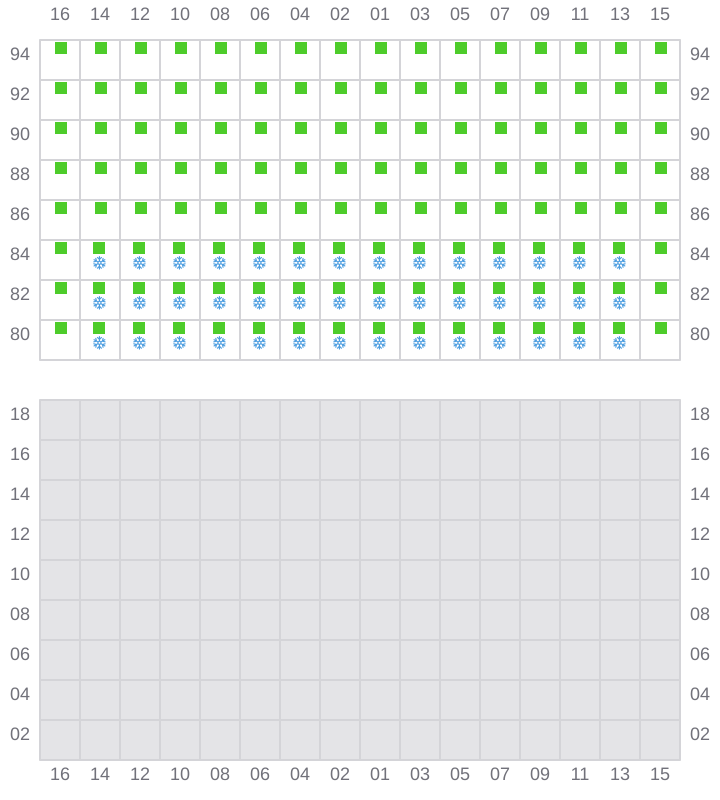

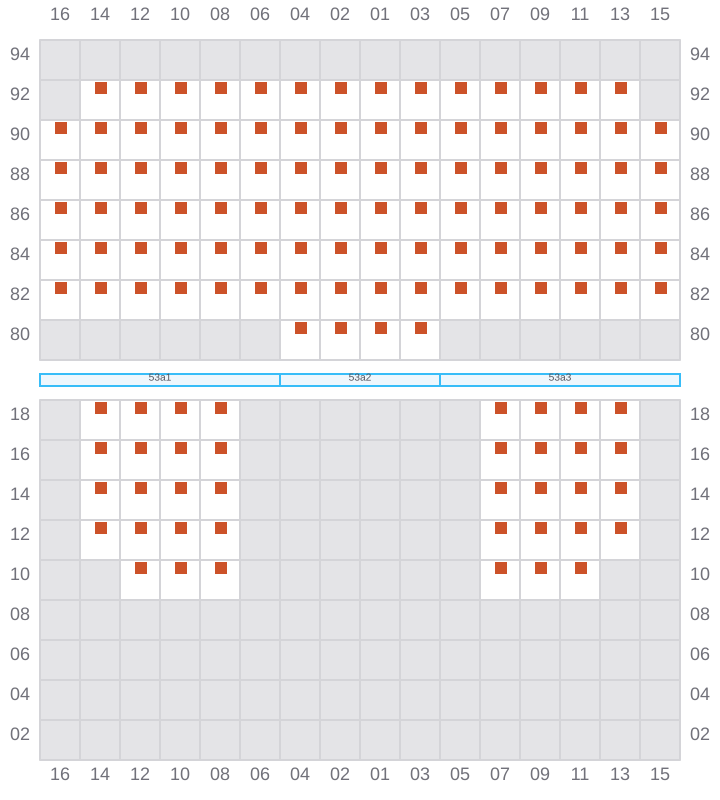

063 (064)
- → / ?
