COSCO BOSTON
9335173 | 3ELF2 | 9335173 by ********* Last update: Thu May 09 2024
General Info
Ship Name:COSCO BOSTON
IMO Code:9335173
Call Sign:3ELF2
Line Operator:9335173
Class Name for Sister Ships:COSCO BOSTON
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,091
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

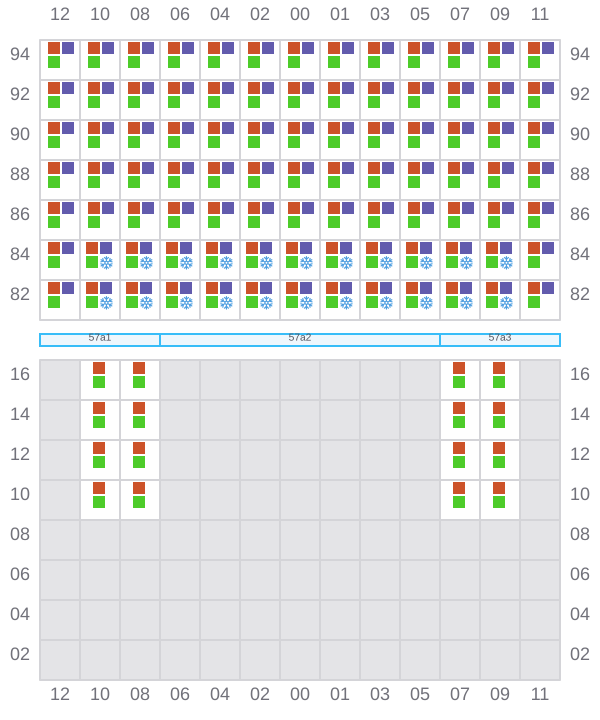

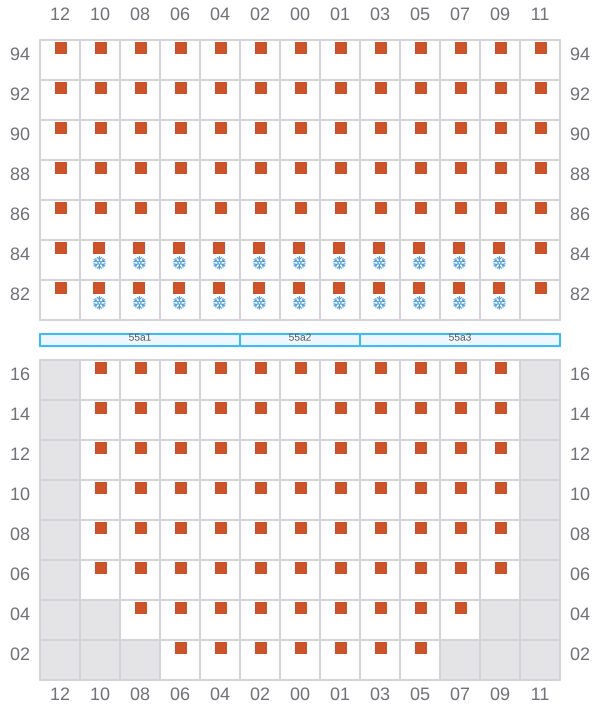

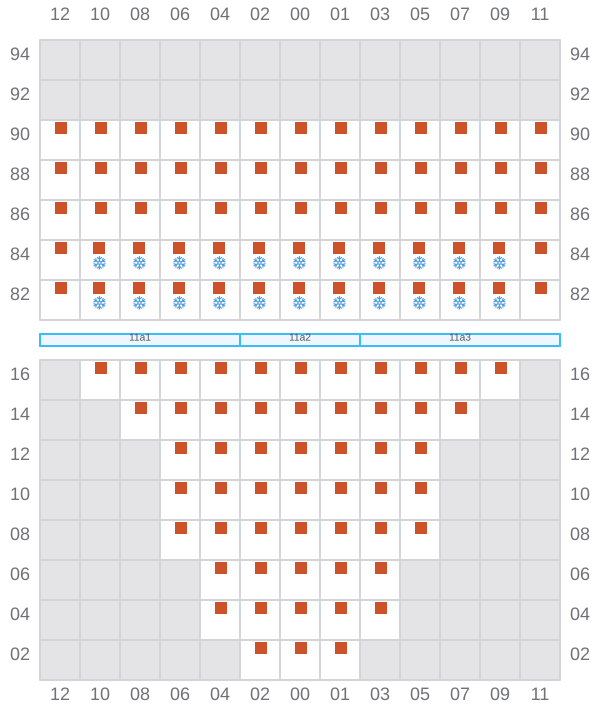

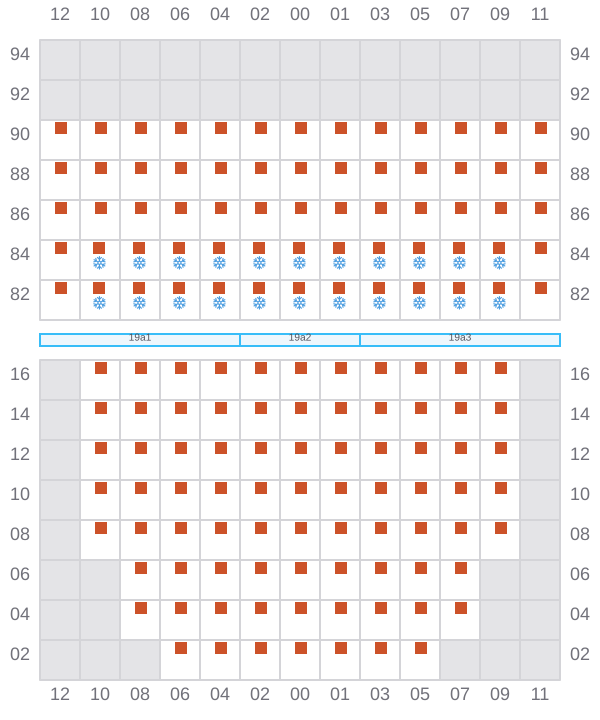

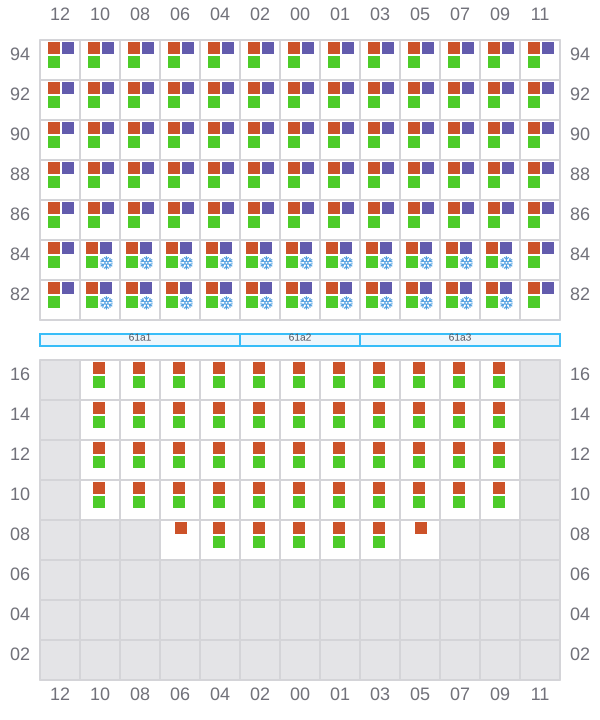

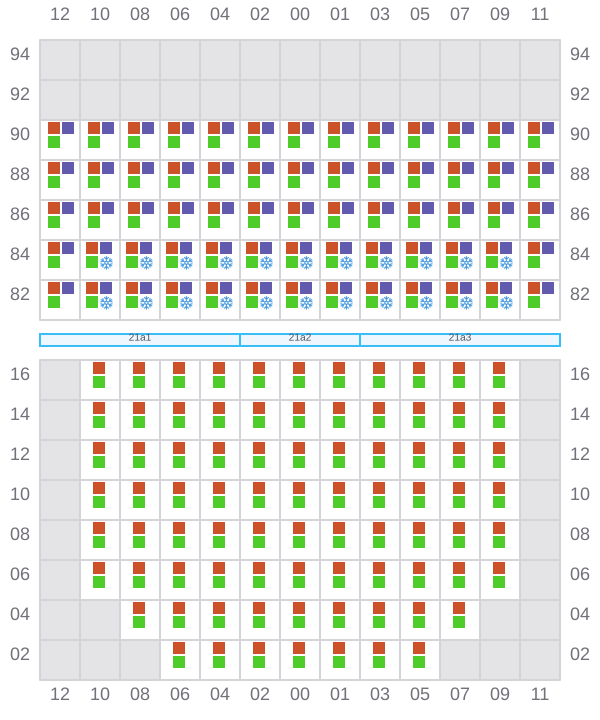

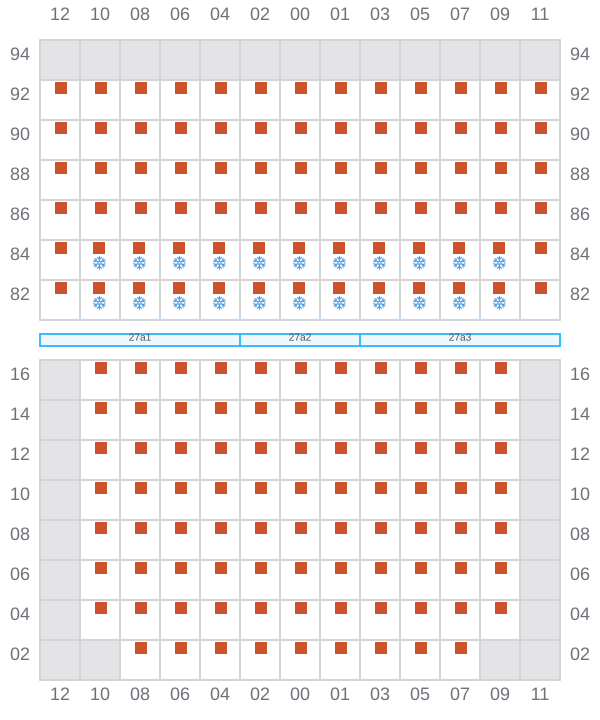

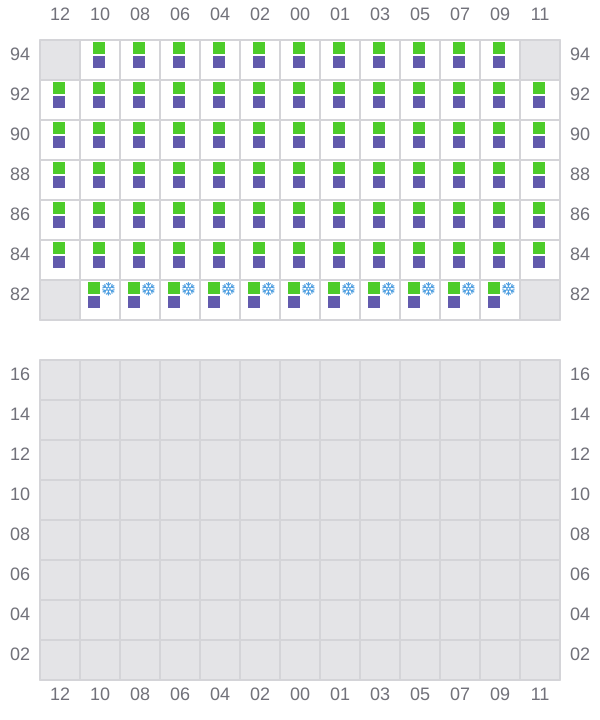

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

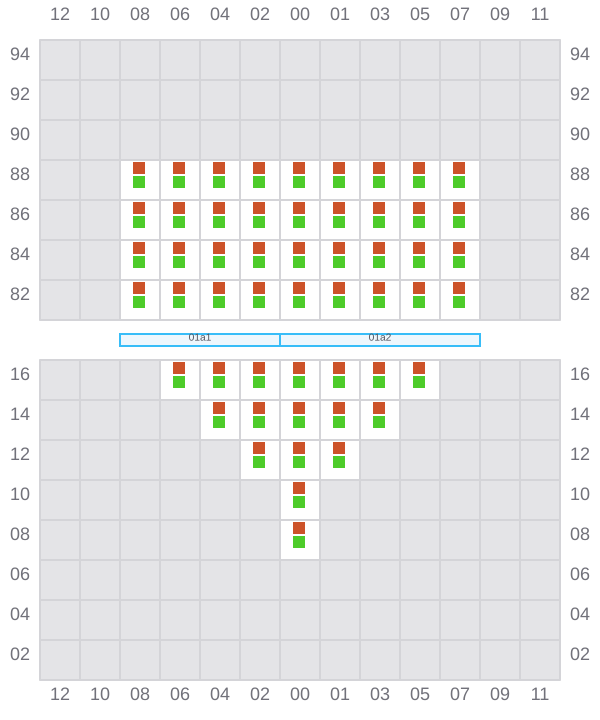

001 (002)
- →

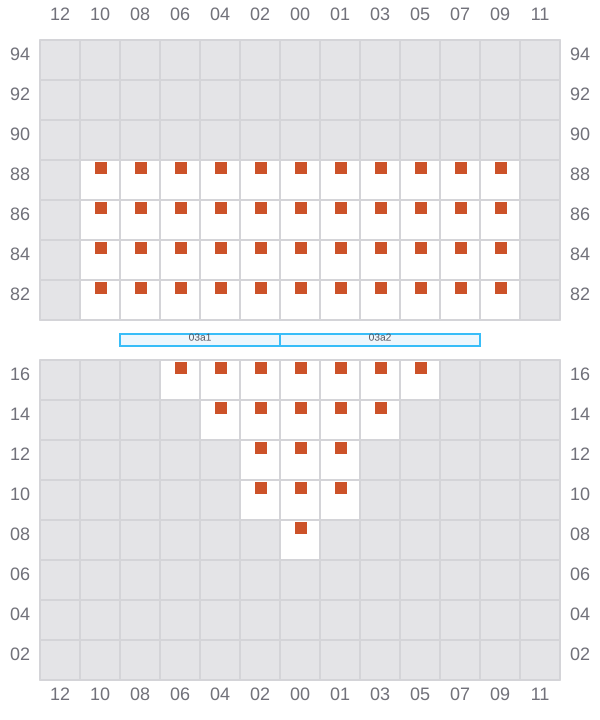

003
- ←

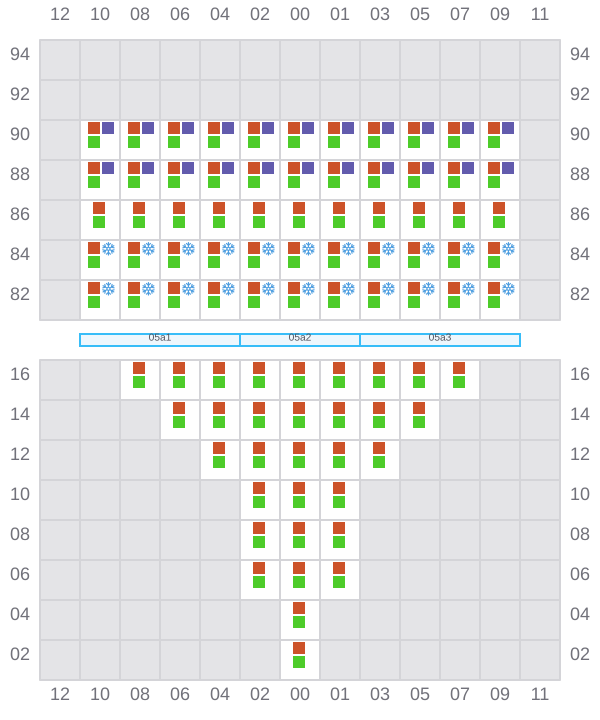

005 (006)
- →
007
- ←

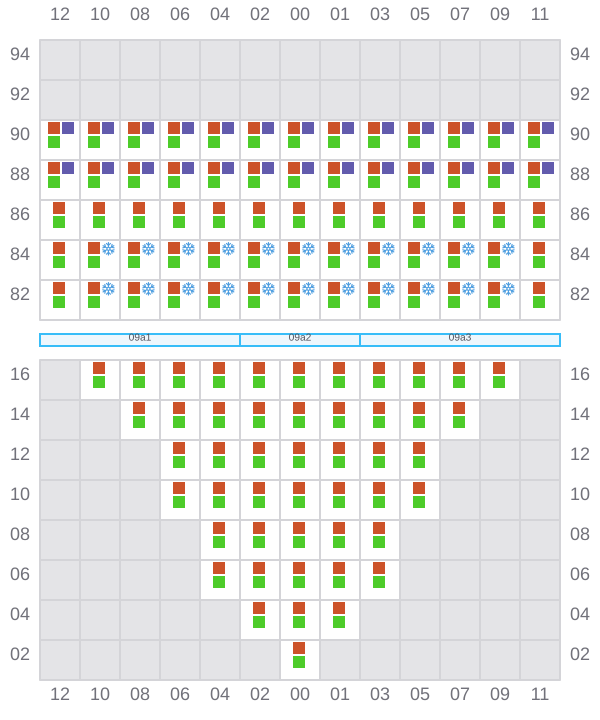

009 (010)
- →
011
- ←

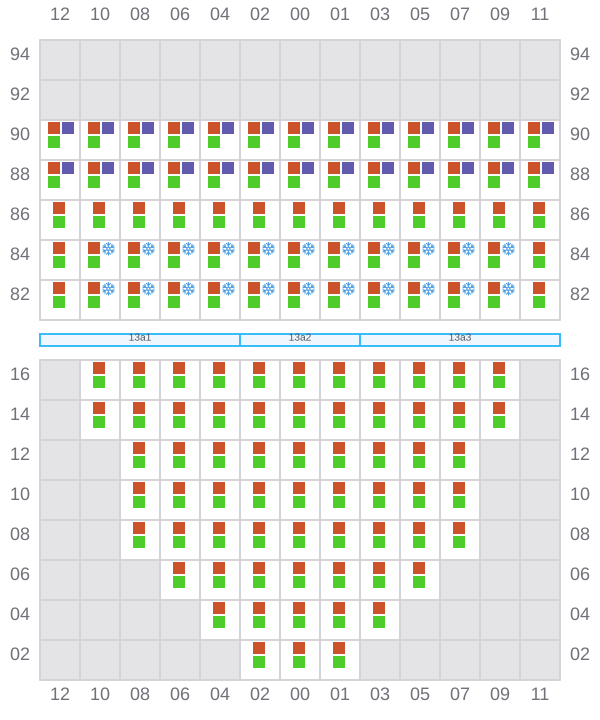

013 (014)
- →
015
- ←
017 (018)
- →

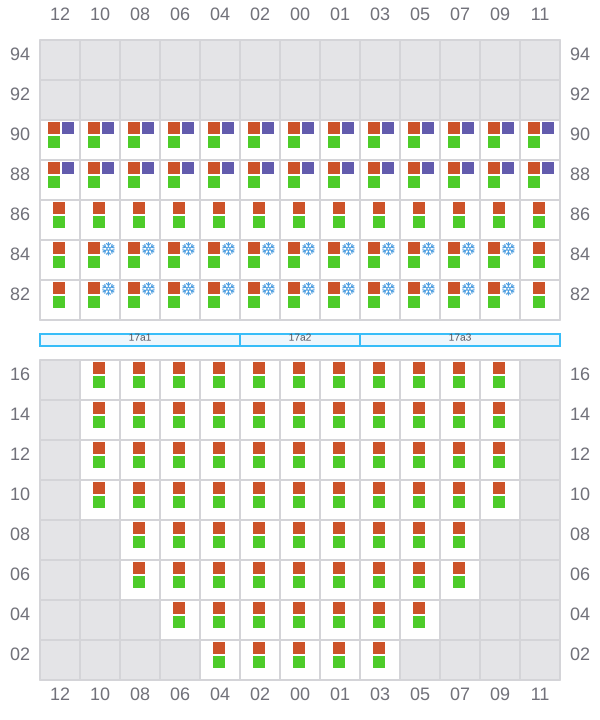

019
- ←
021 (022)
- →
023
- ←

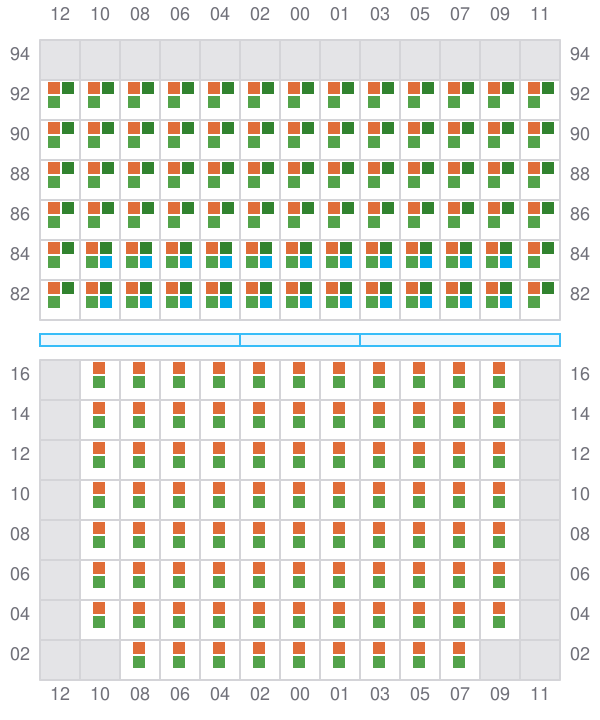

025 (026)
- →
027
- ←
029 (030)
- →

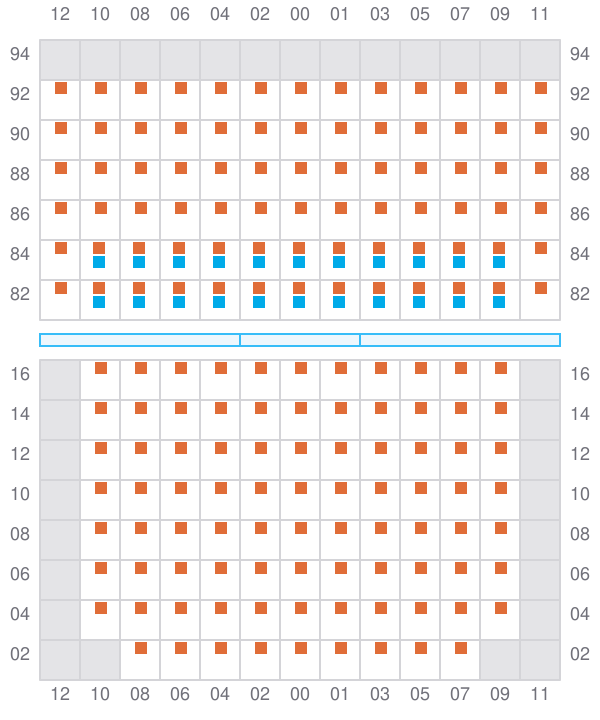

031
- ←

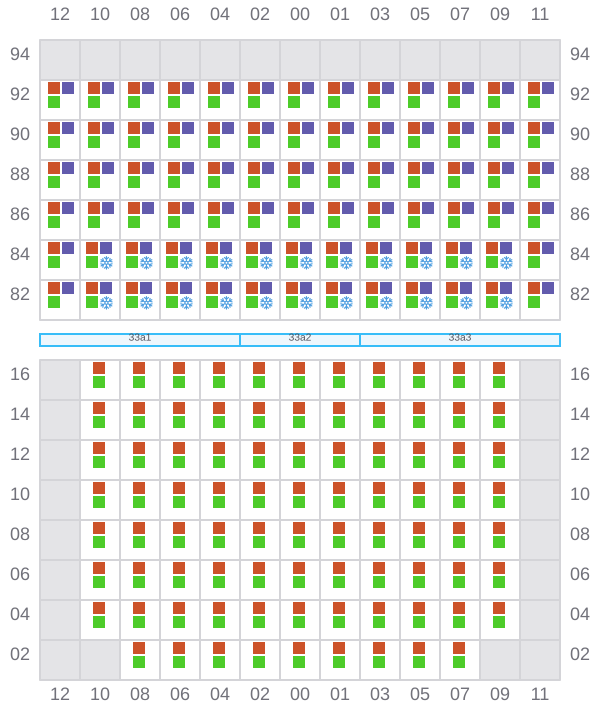

033 (034)
- →

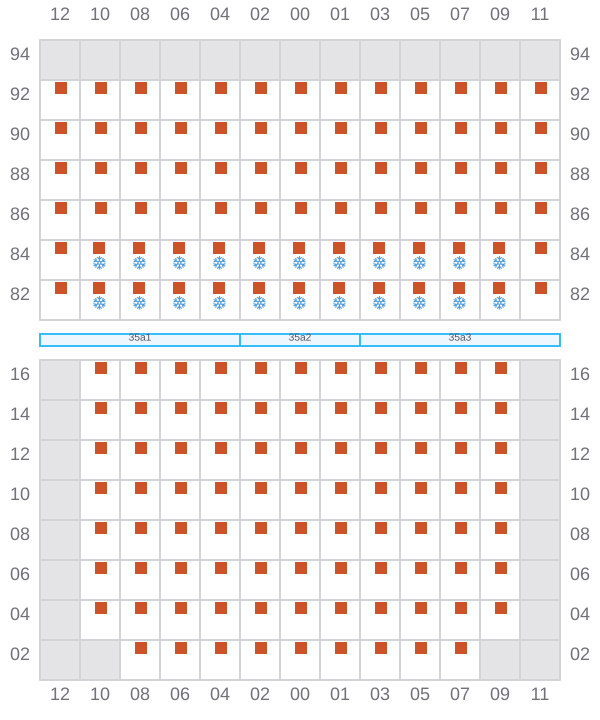

035
- ←

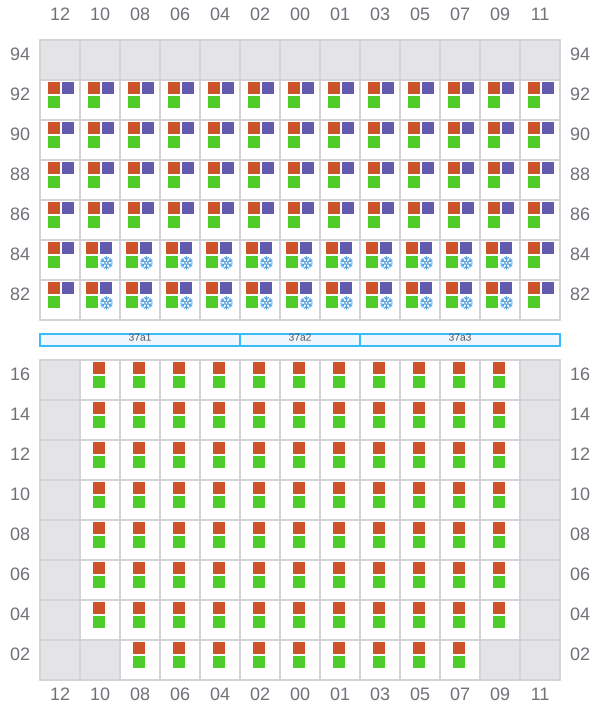

037 (038)
- →
039
- ←

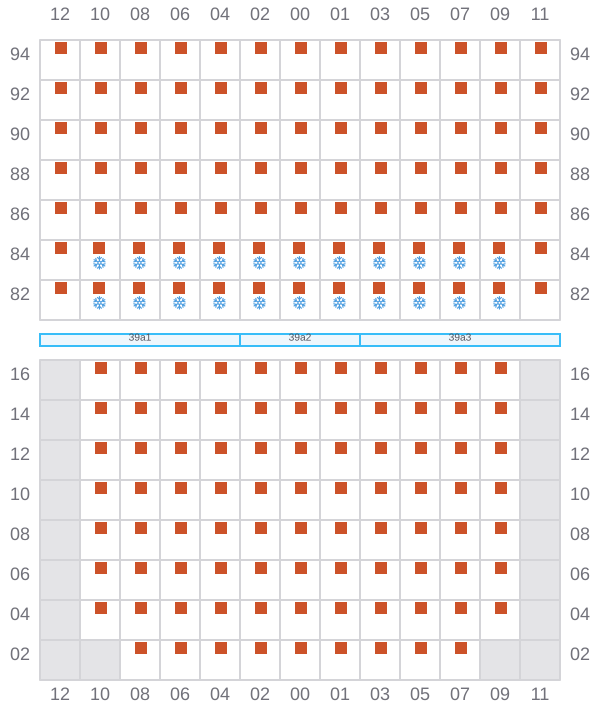

041 (042)
- →

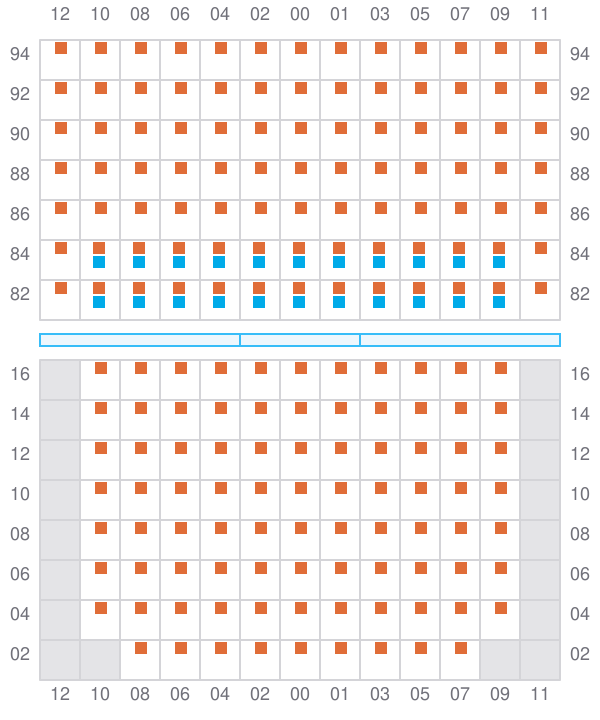

043
- ←

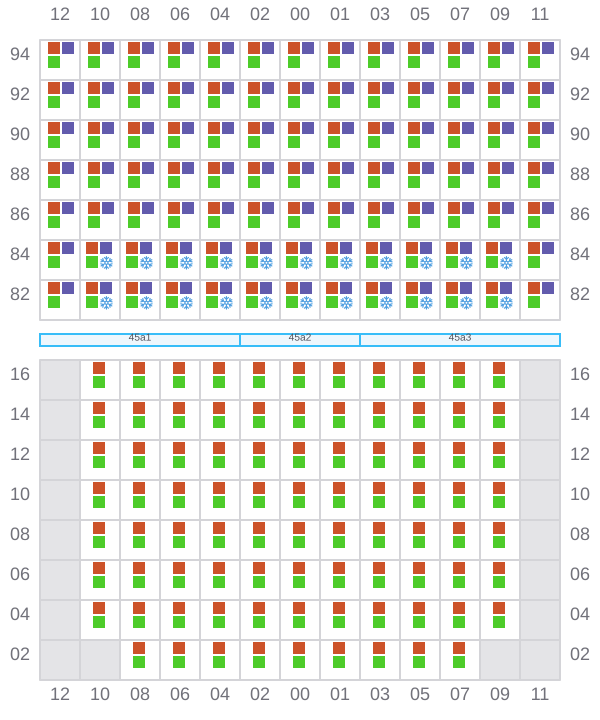

045 (046)
- →

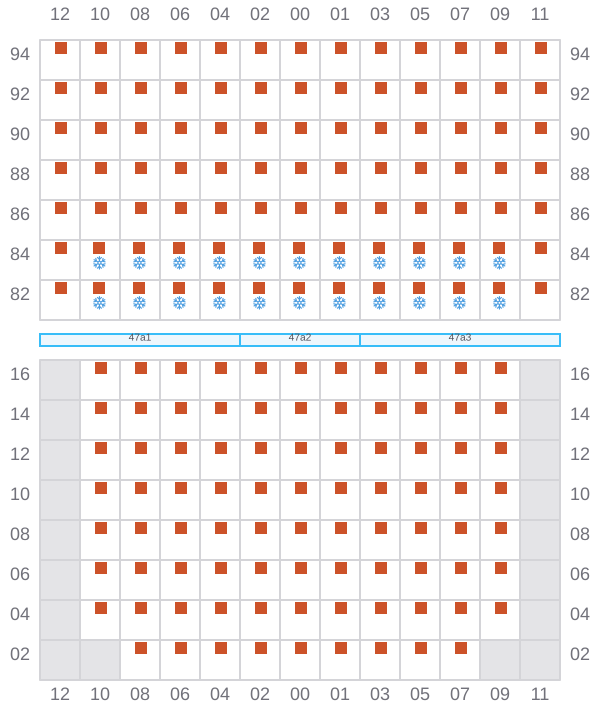

047
- ←

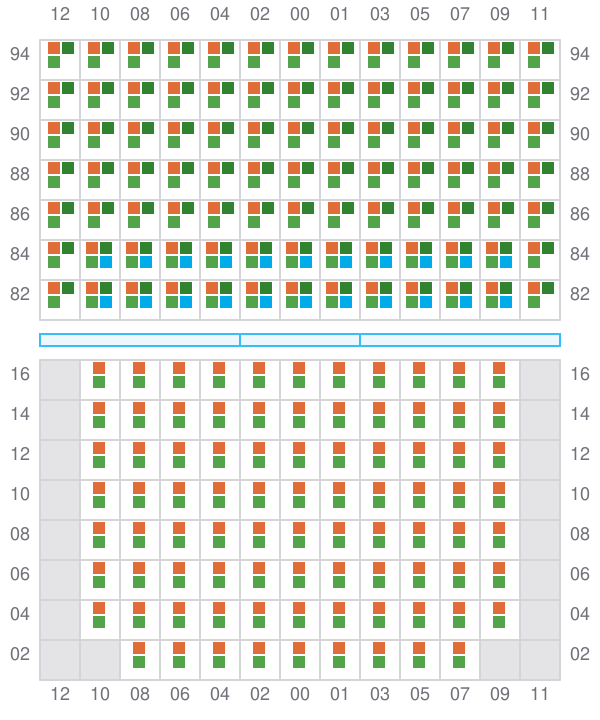

049 (050)
- →
051
- ←

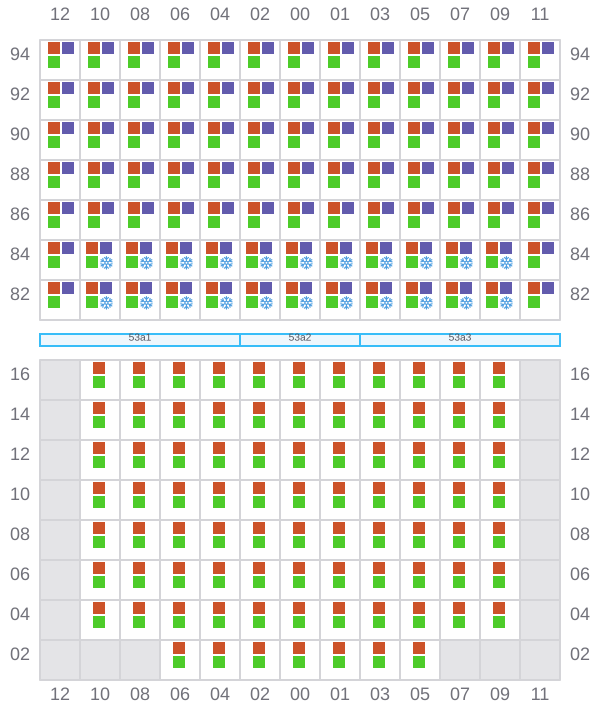

053 (054)
- →
055
- ←
057 (058)
- →

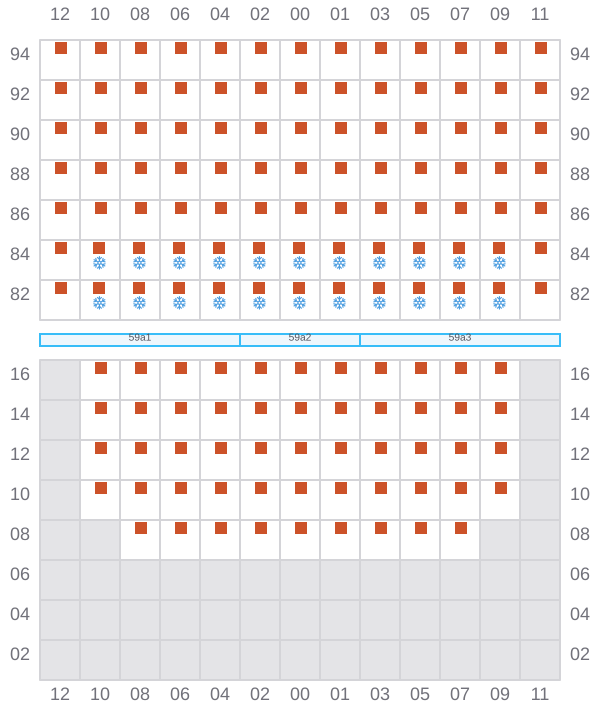

059
- ←
061 (062)
- →

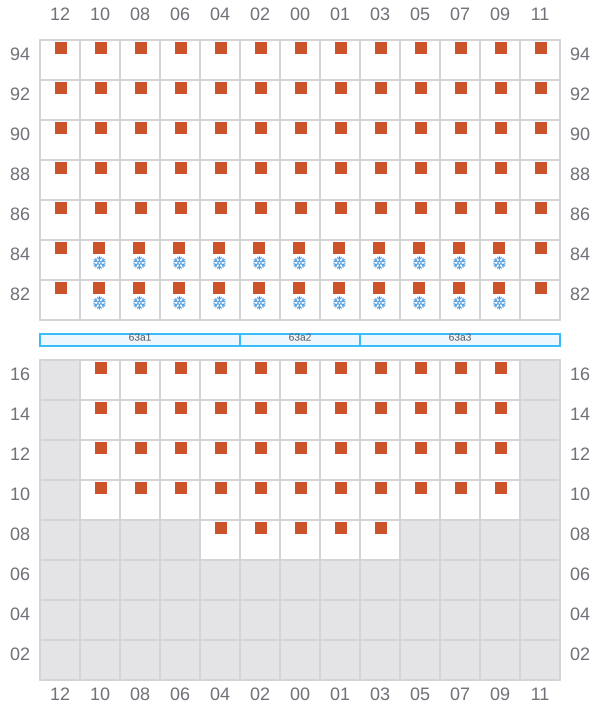

063
- ←

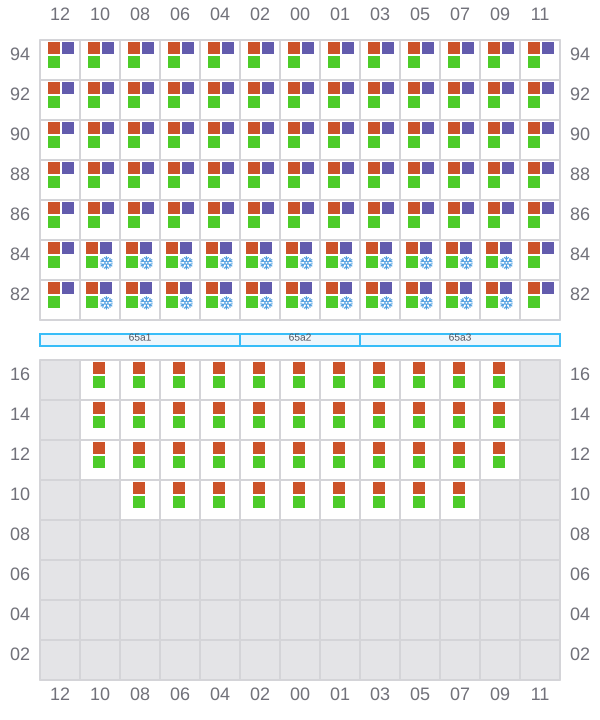

065 (066)
- →

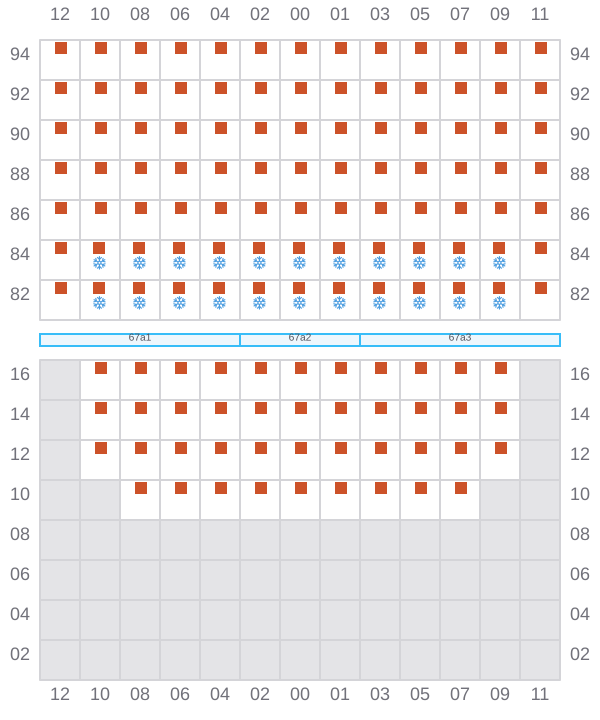

067
- ←
069 (070)
- → / ?
