COSCO DENMARK
9516478 | VRNP8 | COS by ***************************** Last update: Sat Jun 10 2023

General Info

Ship Name:COSCO DENMARK
IMO Code:9516478
Call Sign:VRNP8
Line Operator:COS
Class Name for Sister Ships:CENG
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):348.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,404

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

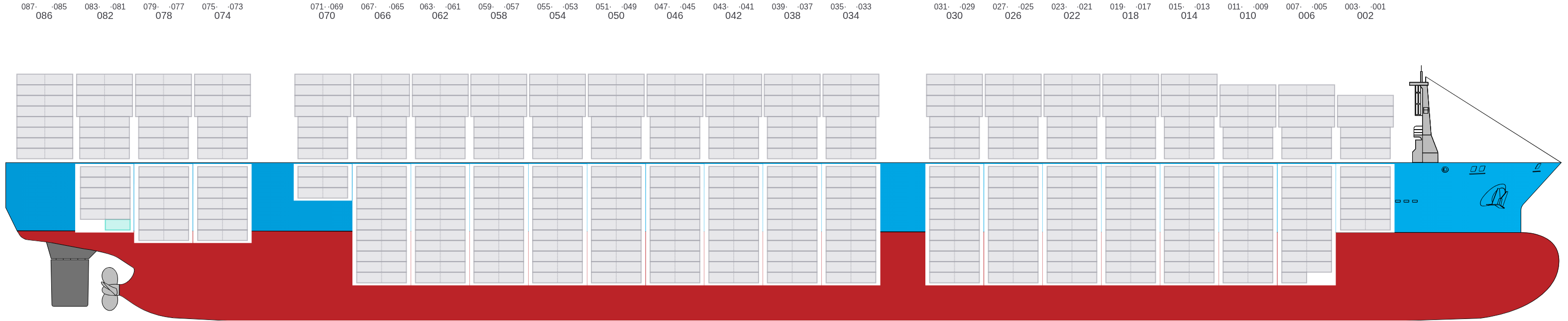

Side view of COSCO DENMARK

Hatch-Covers View

Deck view of COSCO DENMARK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

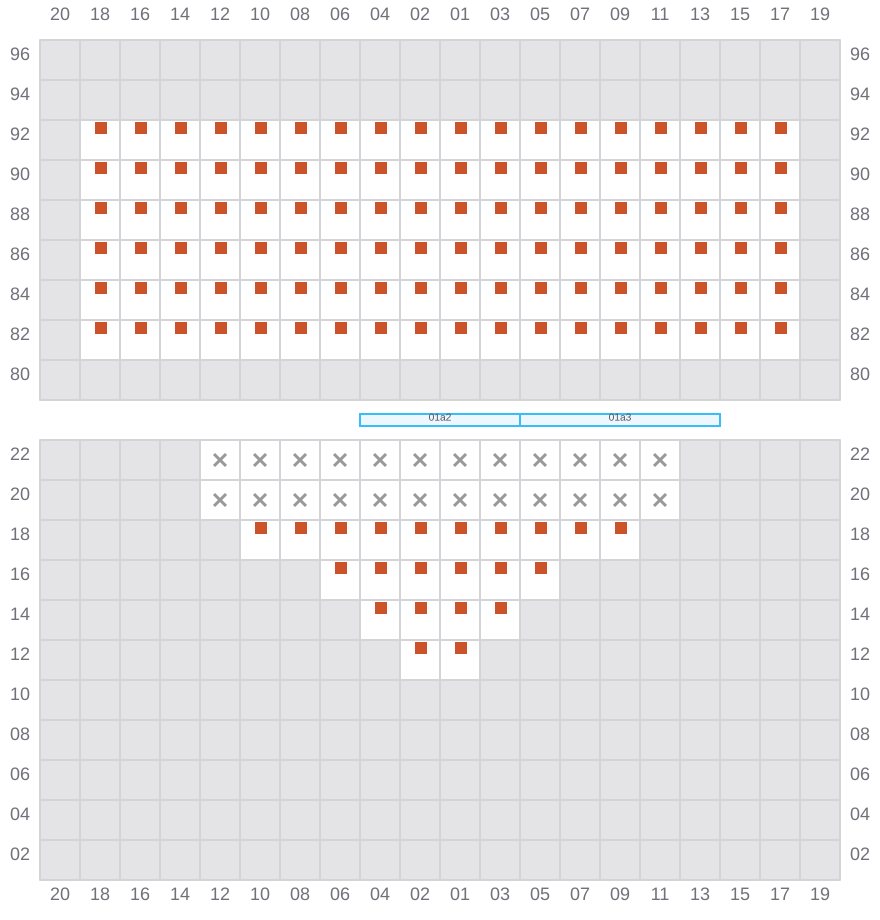

Bay 001 view and slots of COSCO DENMARK

003 (002)

  • ←
  • →

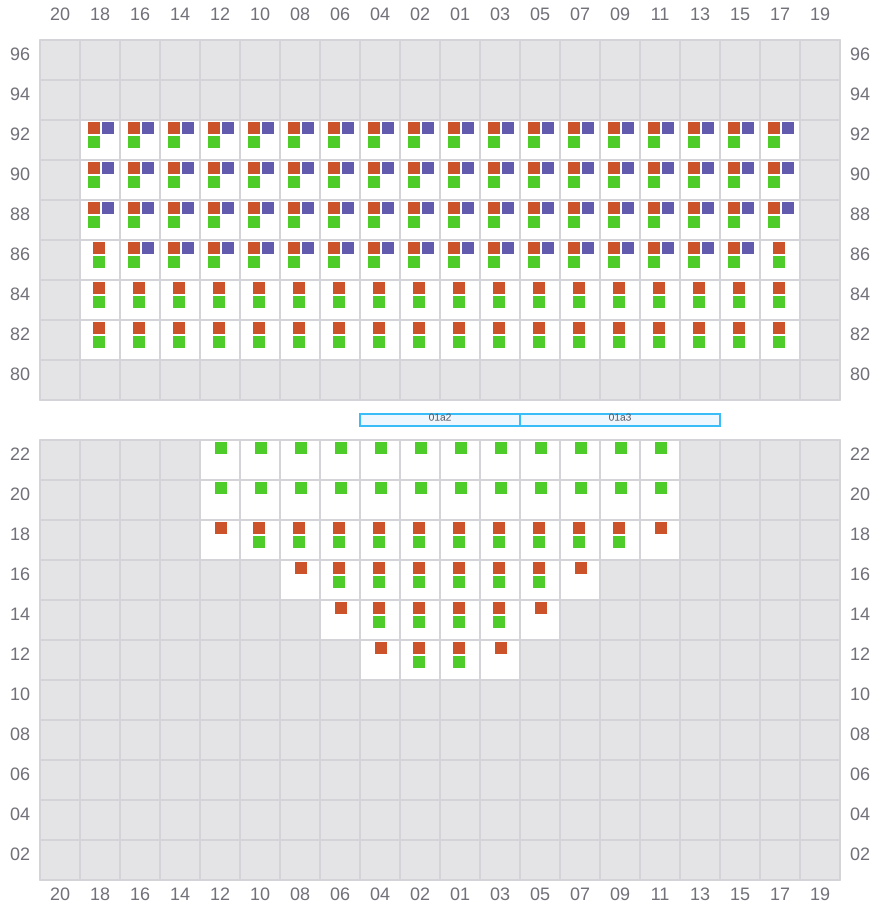

Bay 003 view and slots of COSCO DENMARK

005

  • →
  • →

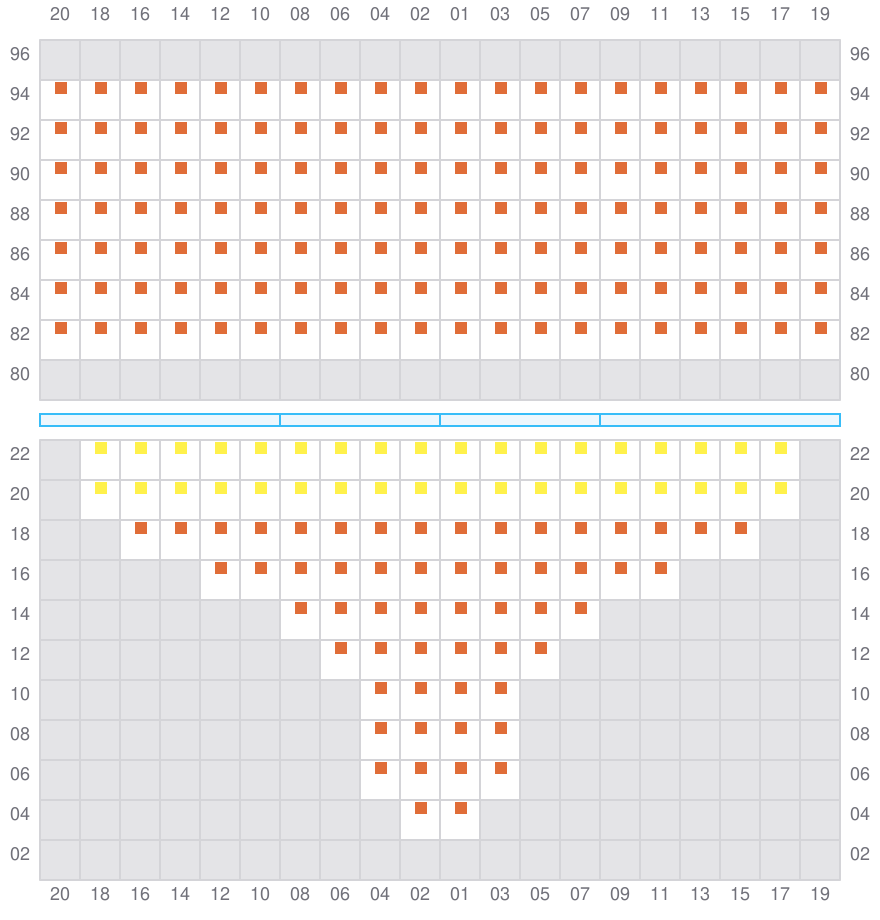

Bay 005 view and slots of COSCO DENMARK

007 (006)

  • ←
  • →

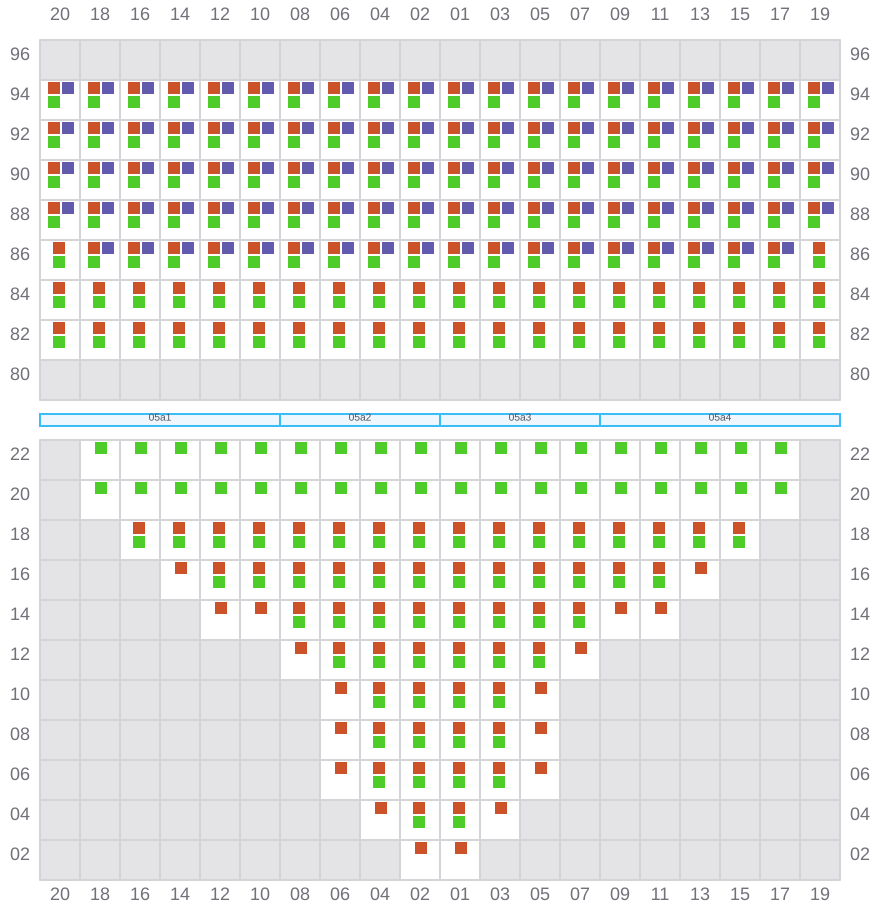

Bay 007 view and slots of COSCO DENMARK

009

  • →
  • ← / ?
  • →

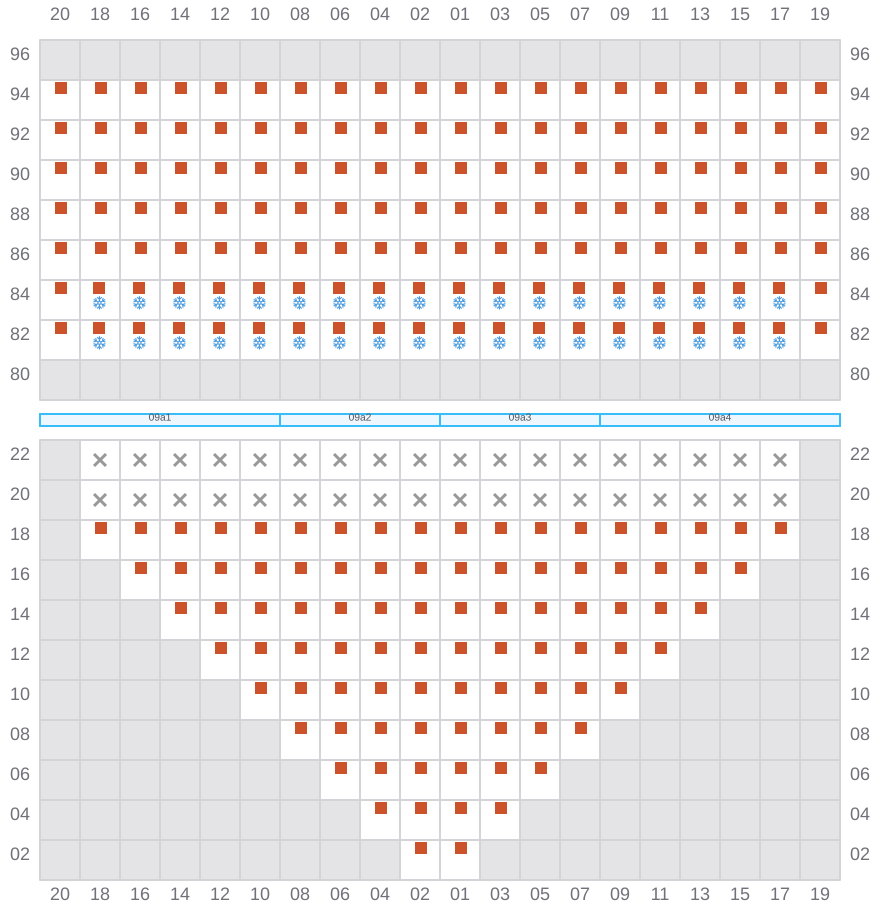

Bay 009 view and slots of COSCO DENMARK

011 (010)

  • ←
  • →

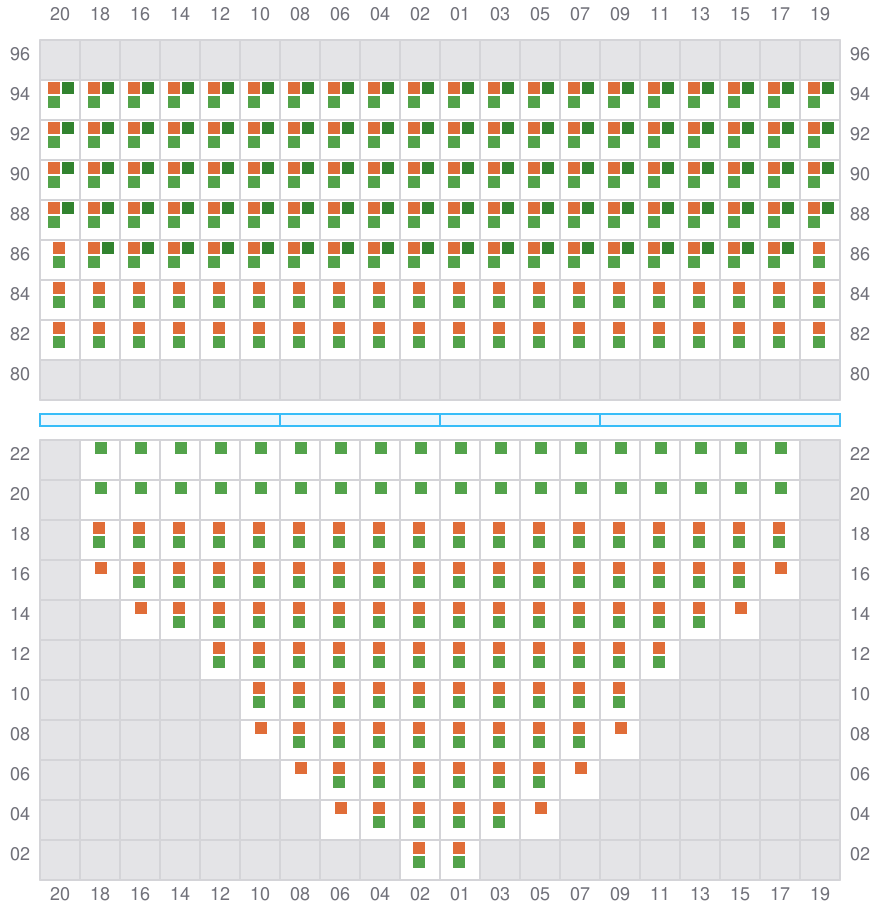

Bay 011 view and slots of COSCO DENMARK

013

  • →
  • → / ?
  • →

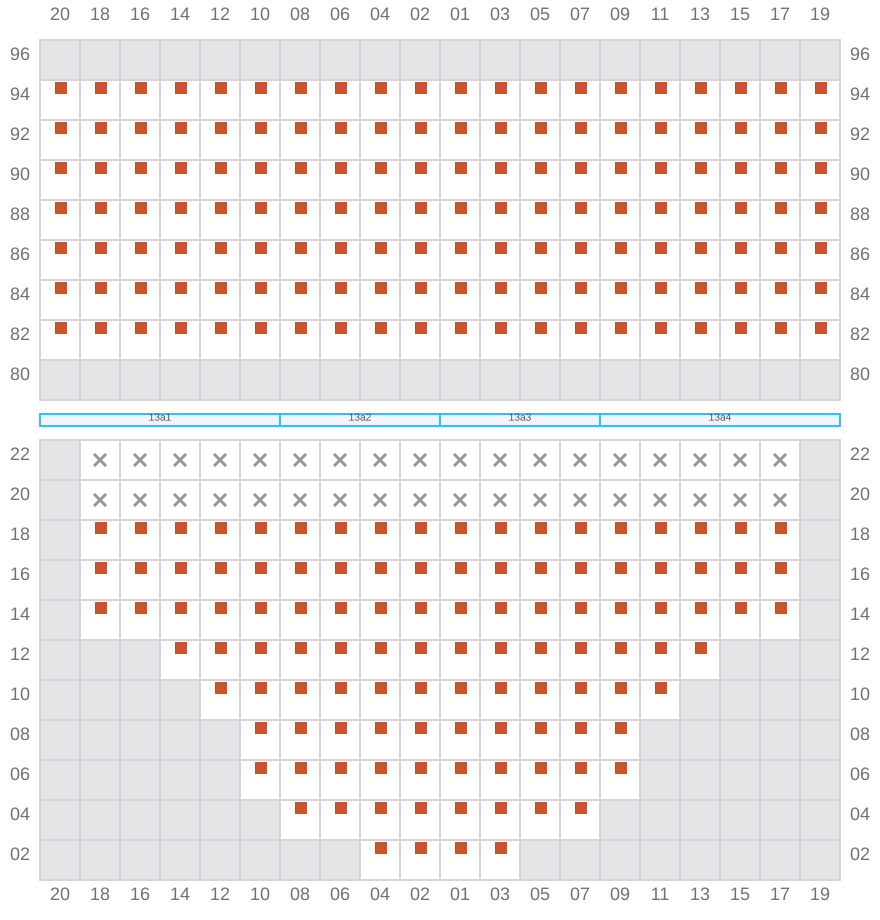

Bay 013 view and slots of COSCO DENMARK

015 (014)

  • ←
  • → / ?
  • →

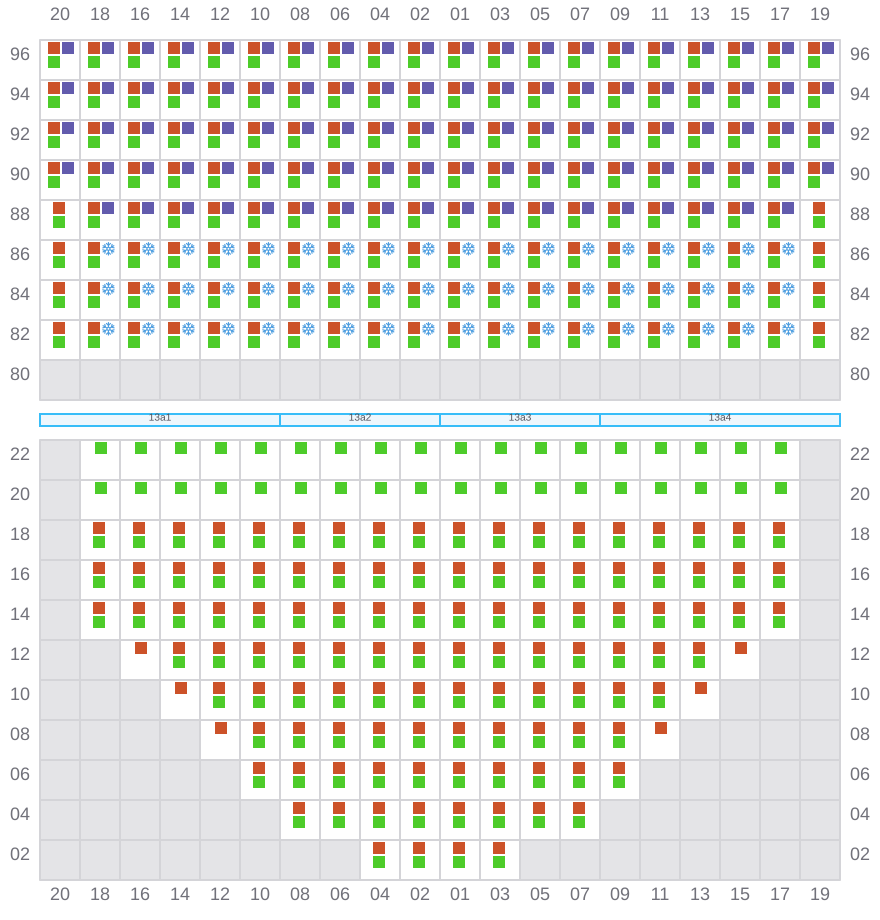

Bay 015 view and slots of COSCO DENMARK

017

  • →
  • ← / ?
  • →

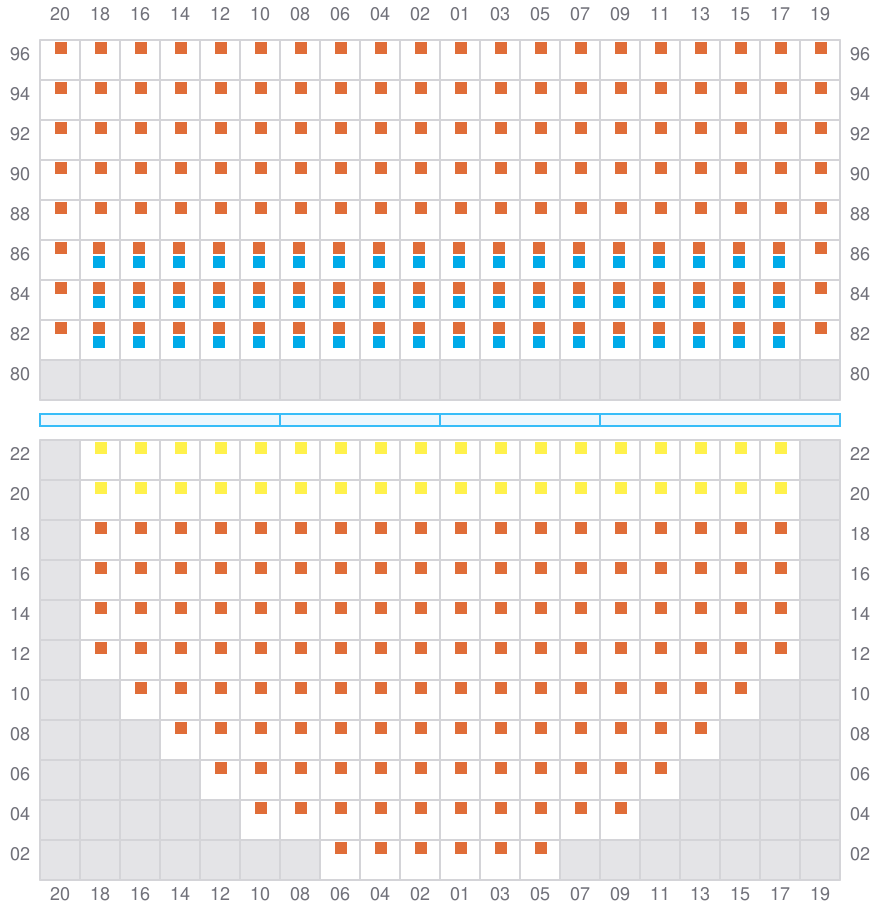

Bay 017 view and slots of COSCO DENMARK

019 (018)

  • ←
  • →

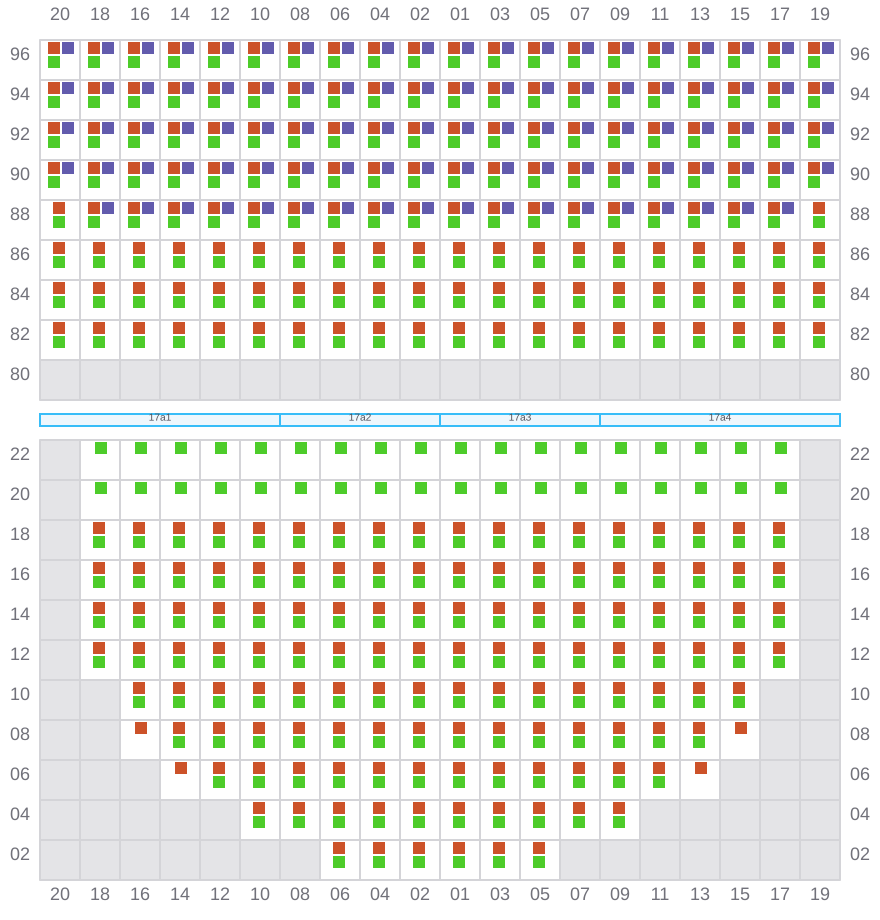

Bay 019 view and slots of COSCO DENMARK

021

  • →
  • → / ?
  • →

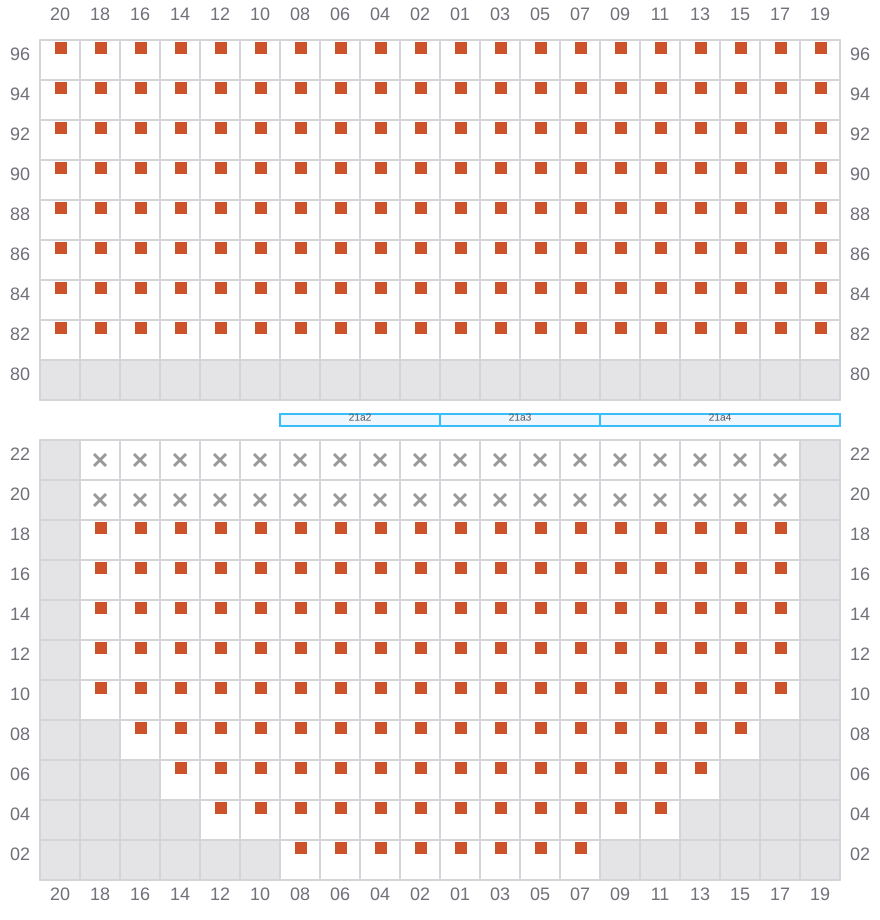

Bay 021 view and slots of COSCO DENMARK

023 (022)

  • ←
  • → / ?
  • →

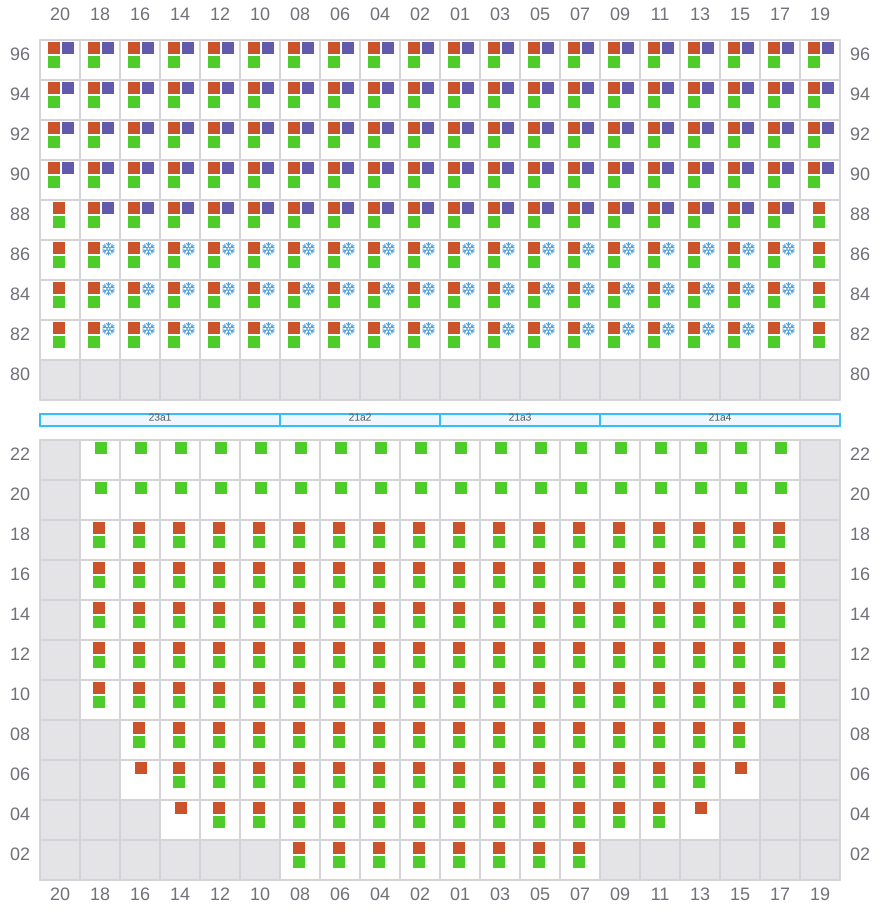

Bay 023 view and slots of COSCO DENMARK

025

  • →
  • ← / ?
  • →

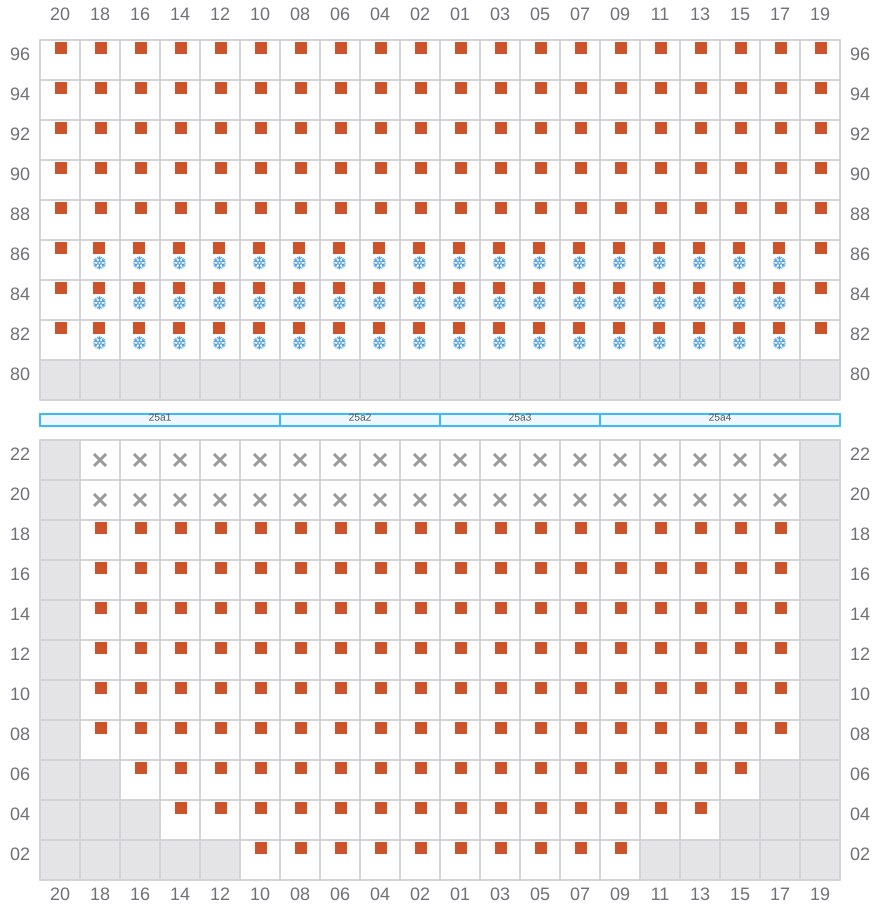

Bay 025 view and slots of COSCO DENMARK

027 (026)

  • ←
  • →

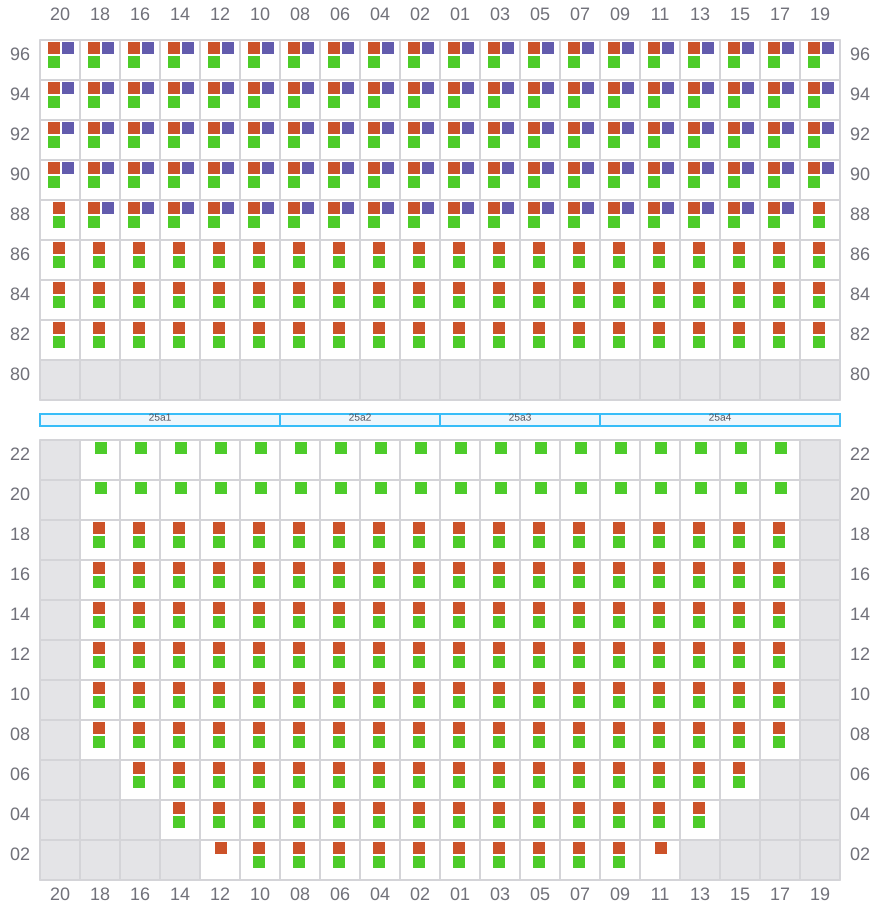

Bay 027 view and slots of COSCO DENMARK

029

  • →
  • ← / ?
  • →

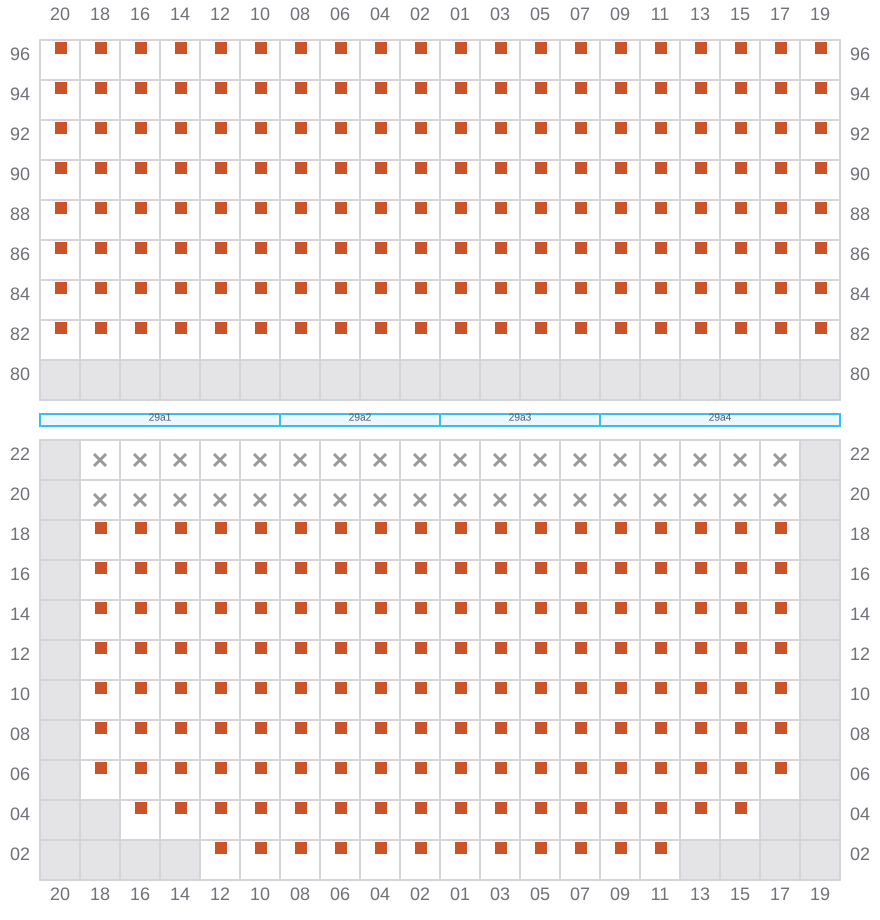

Bay 029 view and slots of COSCO DENMARK

031 (030)

  • ←
  • → / ?
  • →

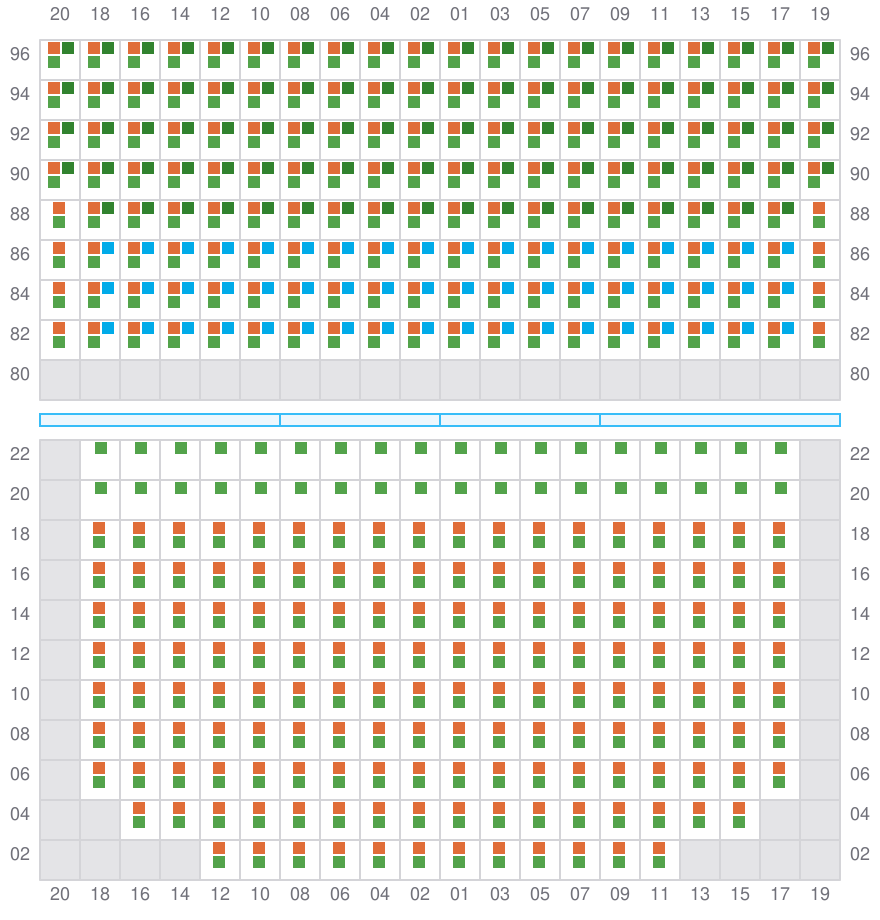

Bay 031 view and slots of COSCO DENMARK

033

  • →
  • ← / ?
  • →

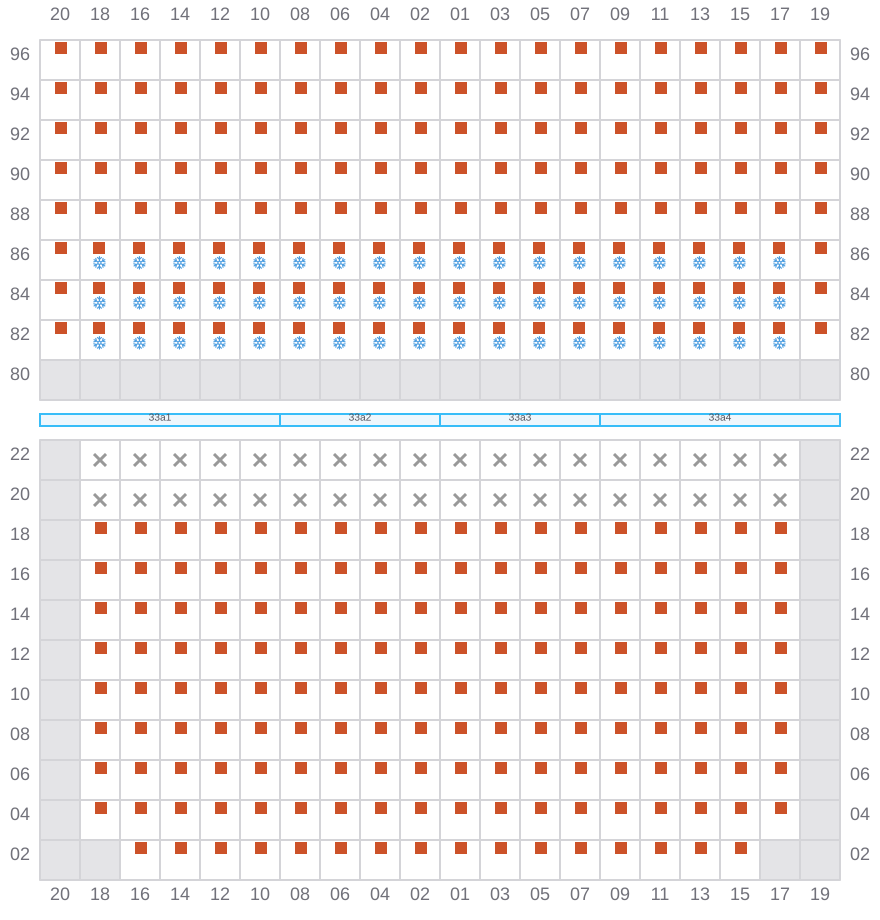

Bay 033 view and slots of COSCO DENMARK

035 (034)

  • ←
  • →
Bay 035 view and slots of COSCO DENMARK

037

  • →
  • → / ?
  • →

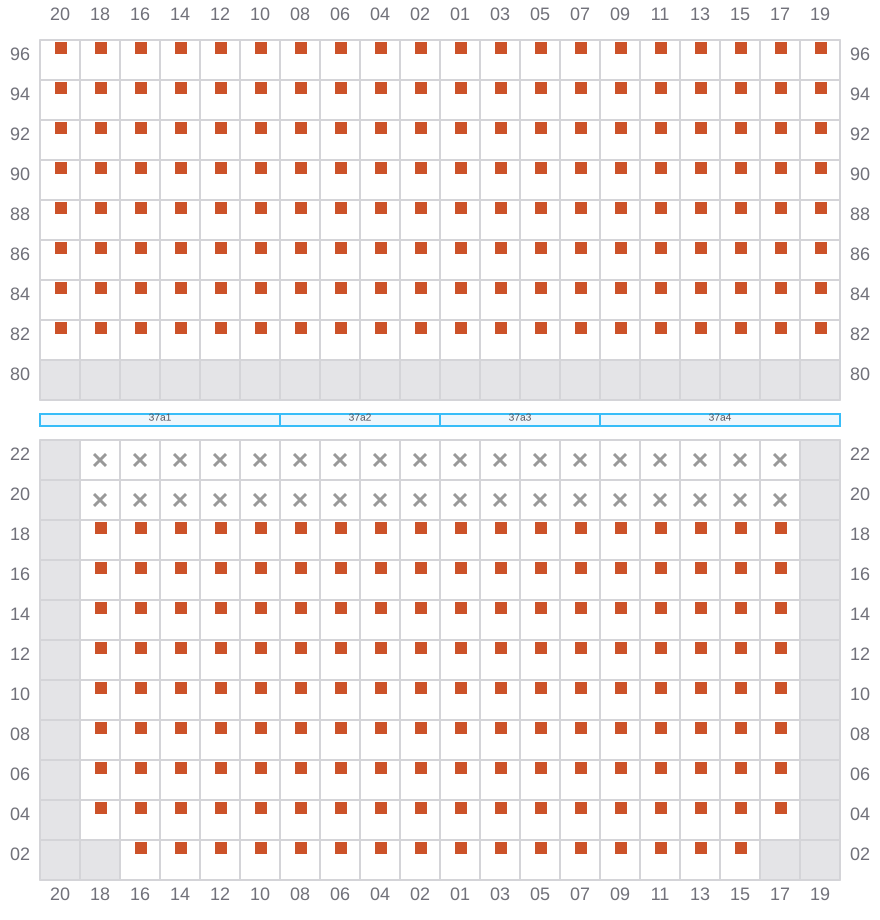

Bay 037 view and slots of COSCO DENMARK

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of COSCO DENMARK

041

  • →
  • ← / ?
  • →
Bay 041 view and slots of COSCO DENMARK

043 (042)

  • ←
  • →
Bay 043 view and slots of COSCO DENMARK

045

  • →
  • → / ?
  • →

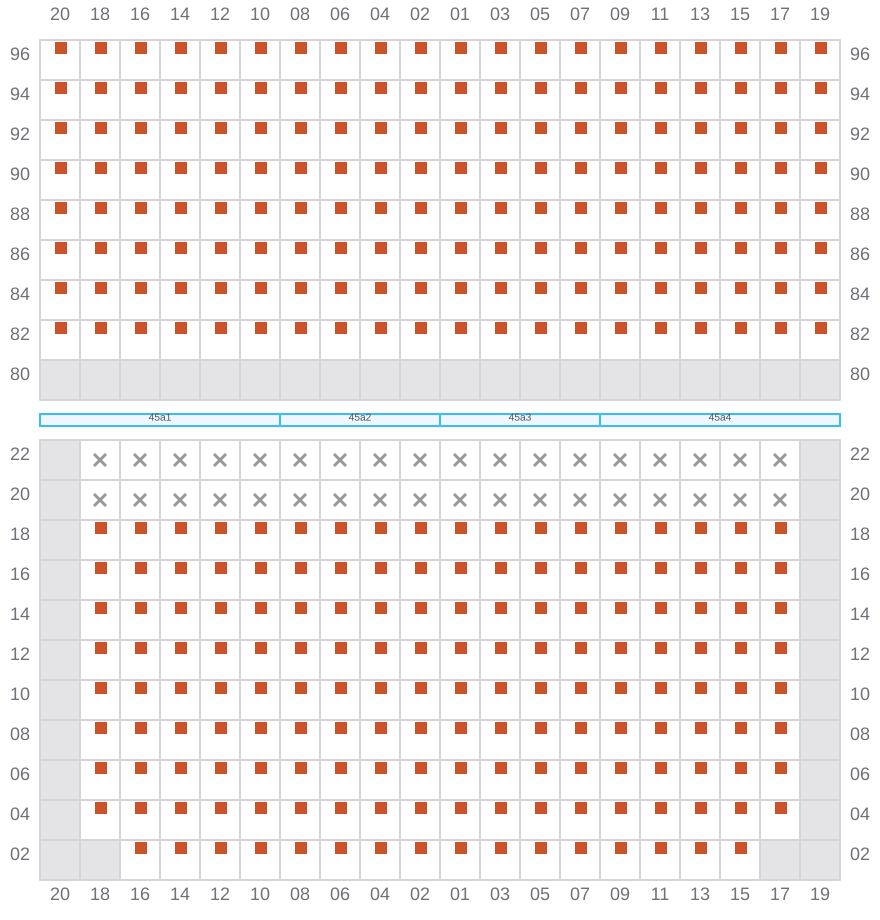

Bay 045 view and slots of COSCO DENMARK

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of COSCO DENMARK

049

  • →
  • ← / ?
  • →

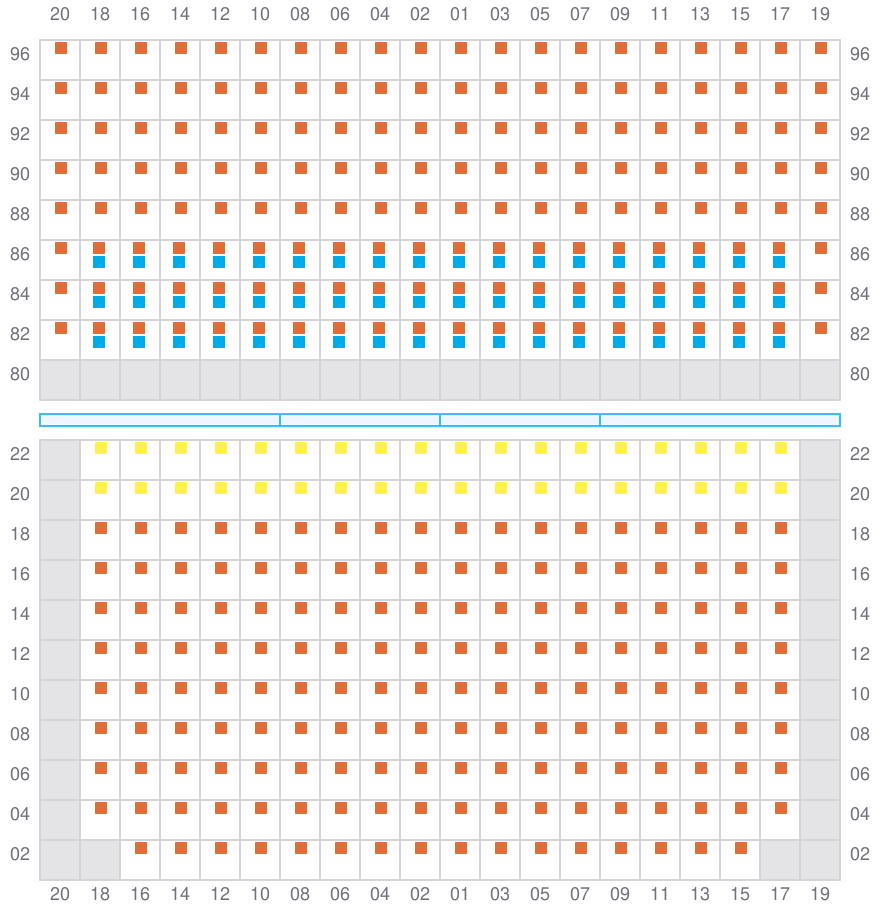

Bay 049 view and slots of COSCO DENMARK

051 (050)

  • ←
  • →

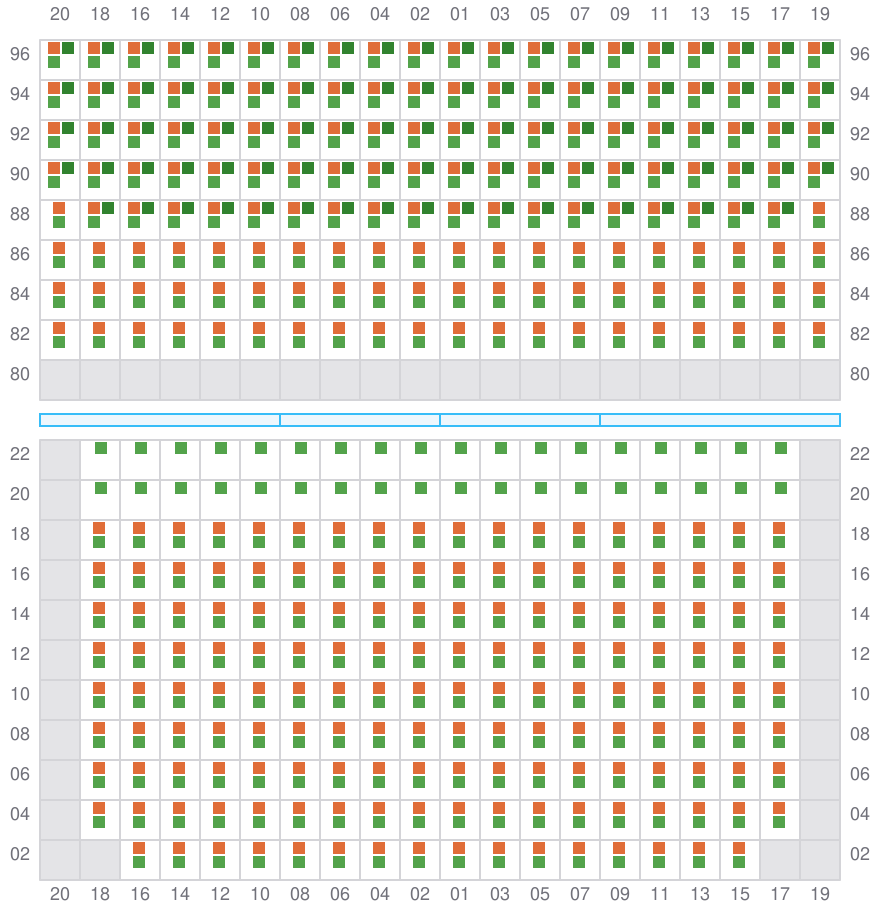

Bay 051 view and slots of COSCO DENMARK

053

  • →
  • → / ?
  • →

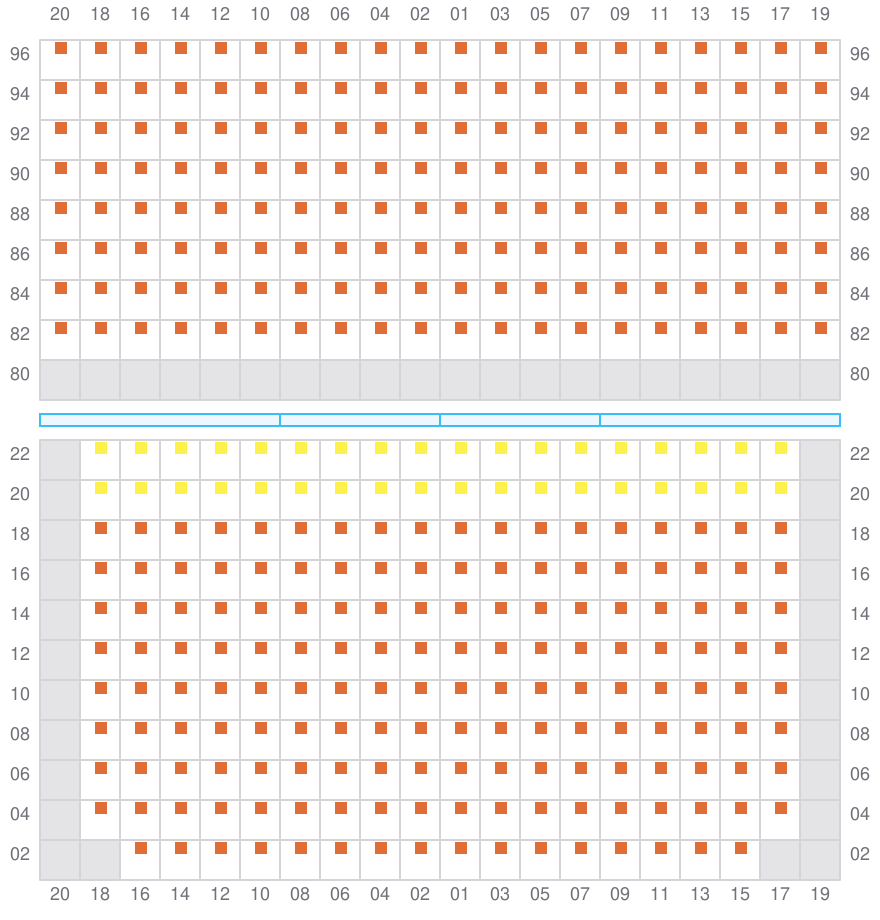

Bay 053 view and slots of COSCO DENMARK

055 (054)

  • ←
  • → / ?
  • →

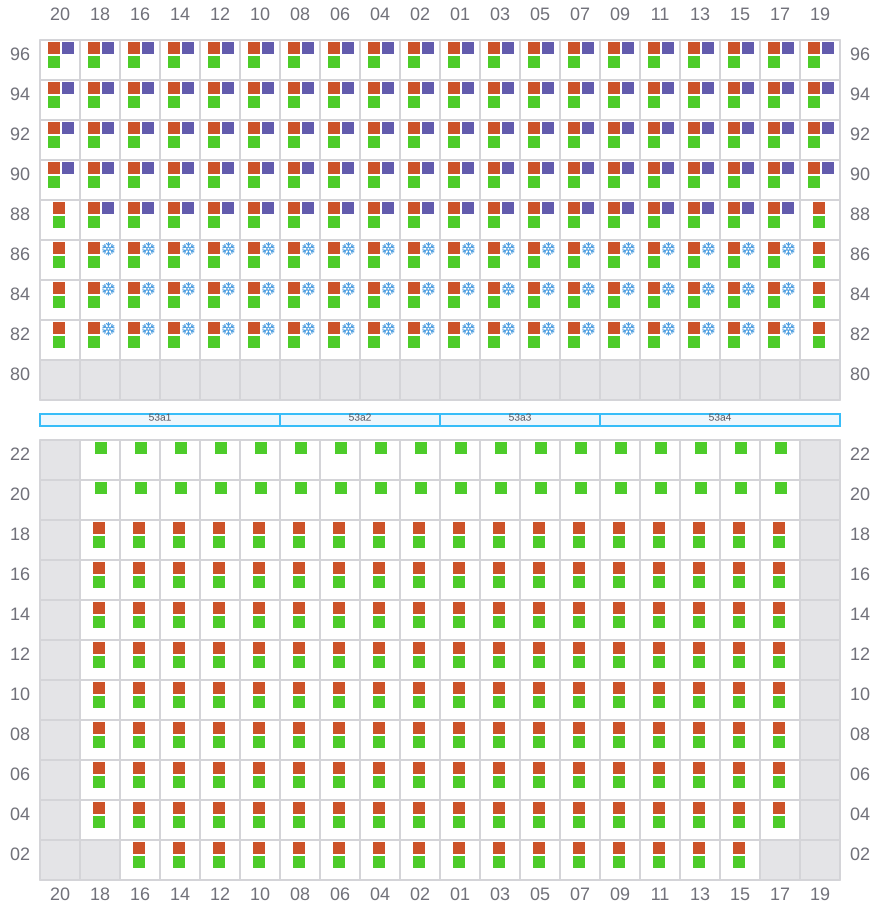

Bay 055 view and slots of COSCO DENMARK

057

  • →
  • ← / ?
  • →

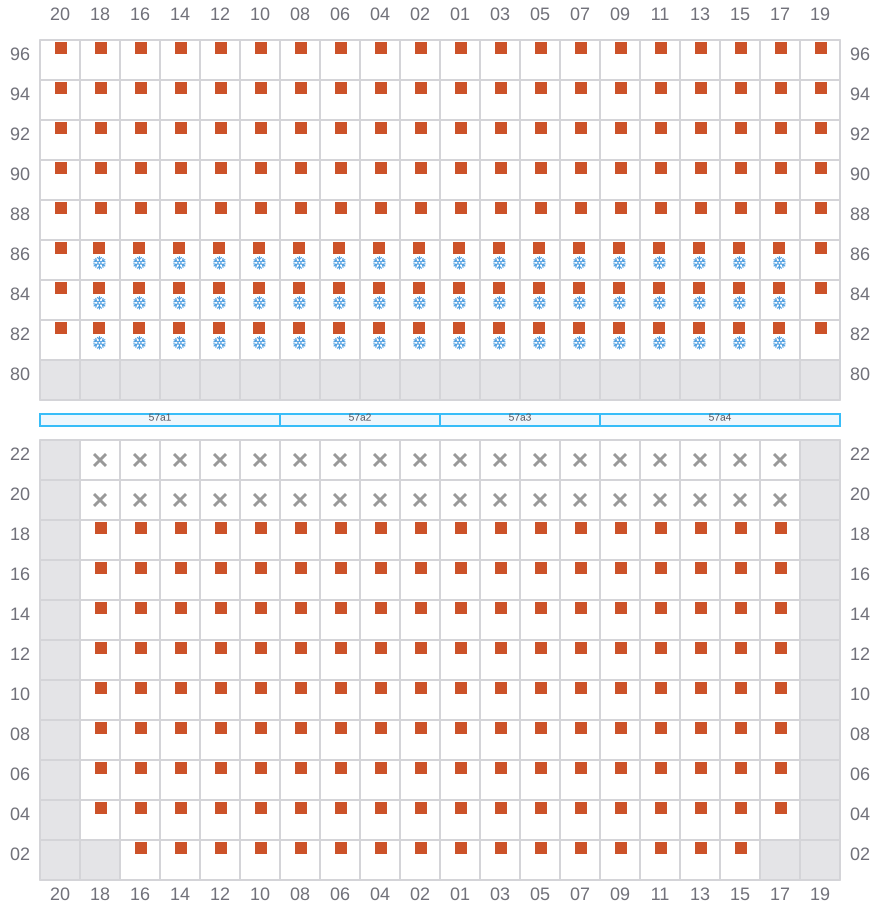

Bay 057 view and slots of COSCO DENMARK

059 (058)

  • ←
  • →

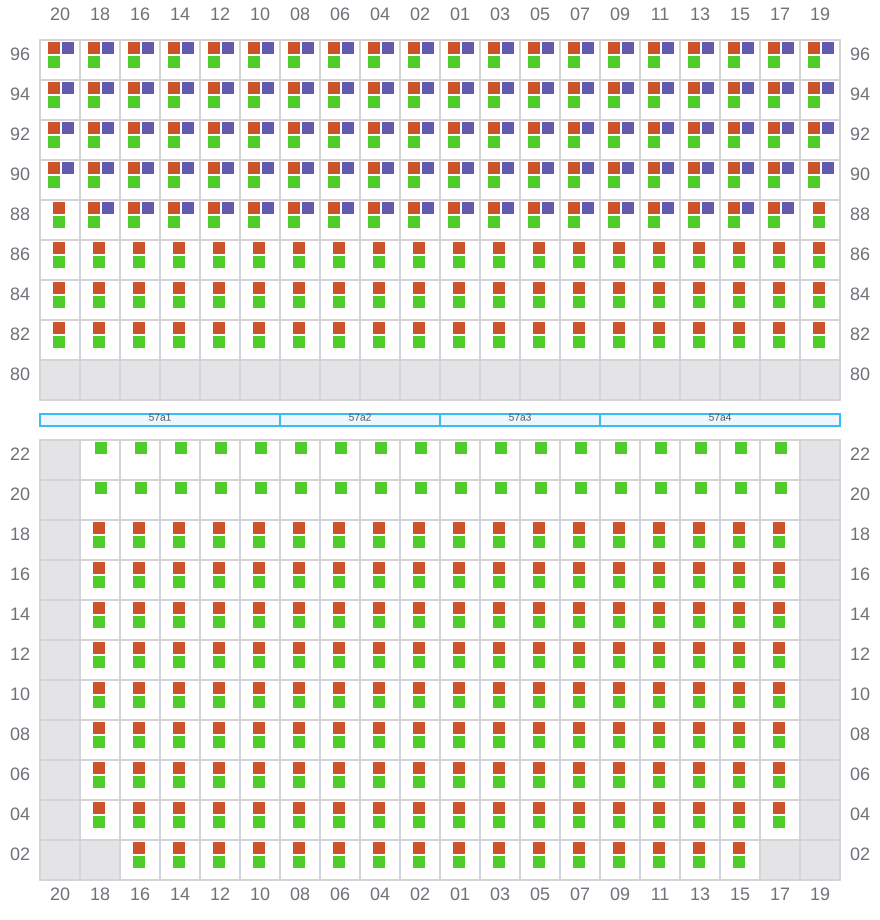

Bay 059 view and slots of COSCO DENMARK

061

  • →
  • → / ?
  • →
Bay 061 view and slots of COSCO DENMARK

063 (062)

  • ←
  • → / ?
  • →

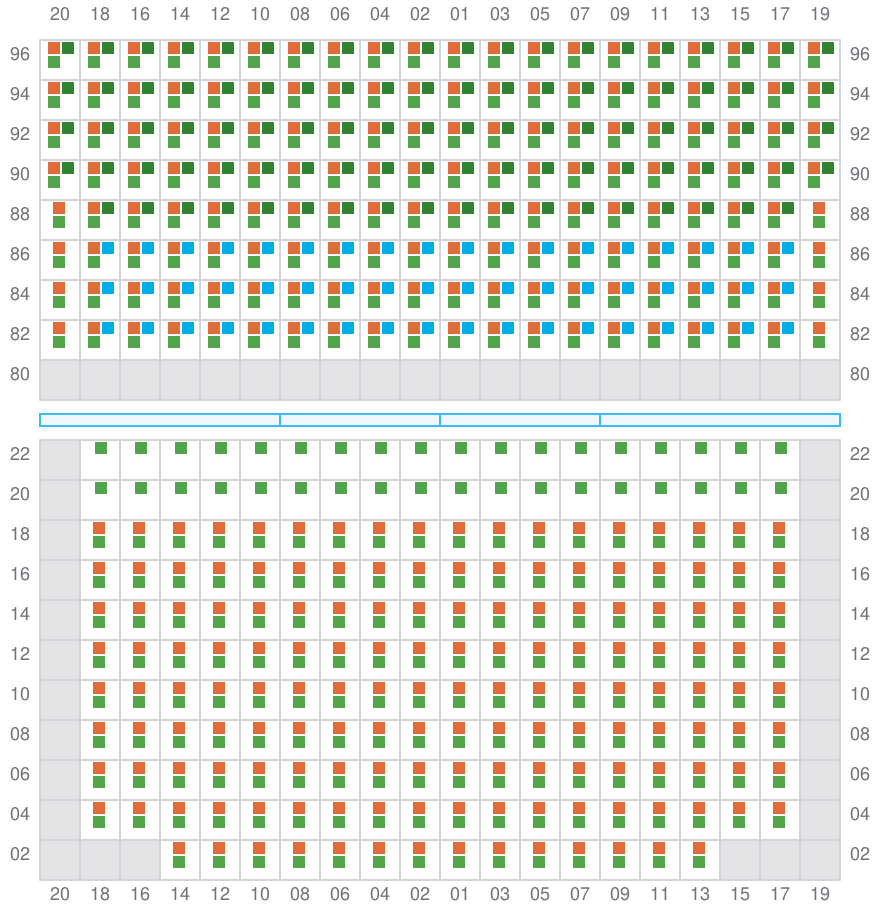

Bay 063 view and slots of COSCO DENMARK

065

  • →
  • ← / ?
  • →

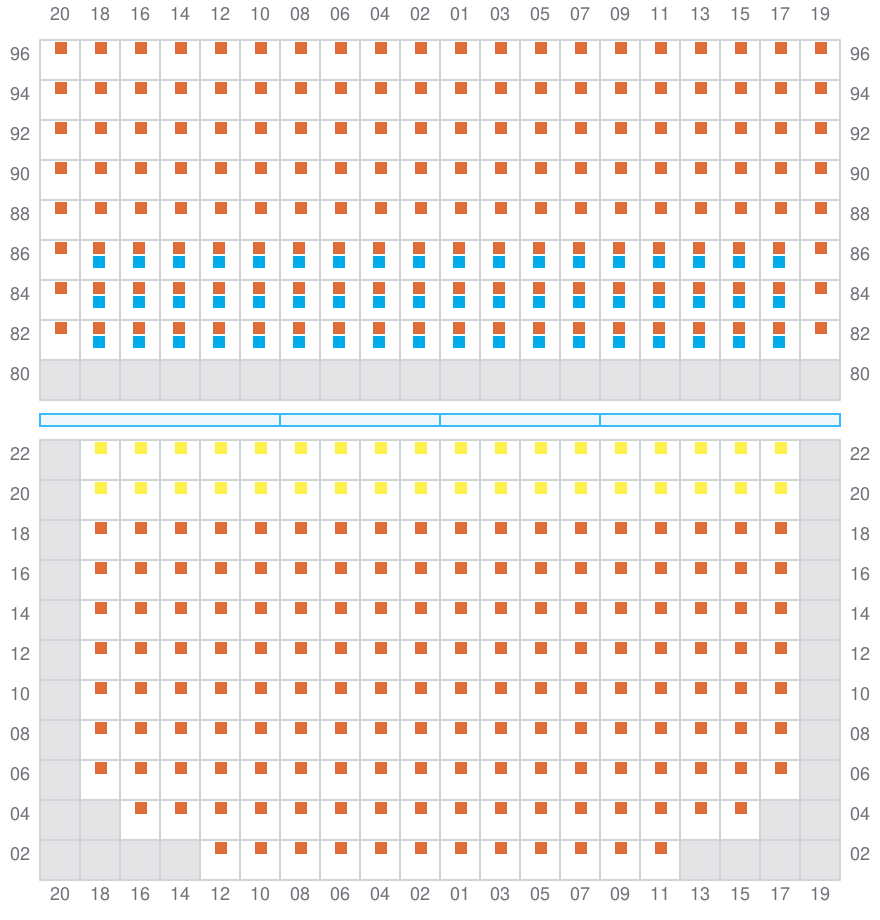

Bay 065 view and slots of COSCO DENMARK

067 (066)

  • ←
  • →

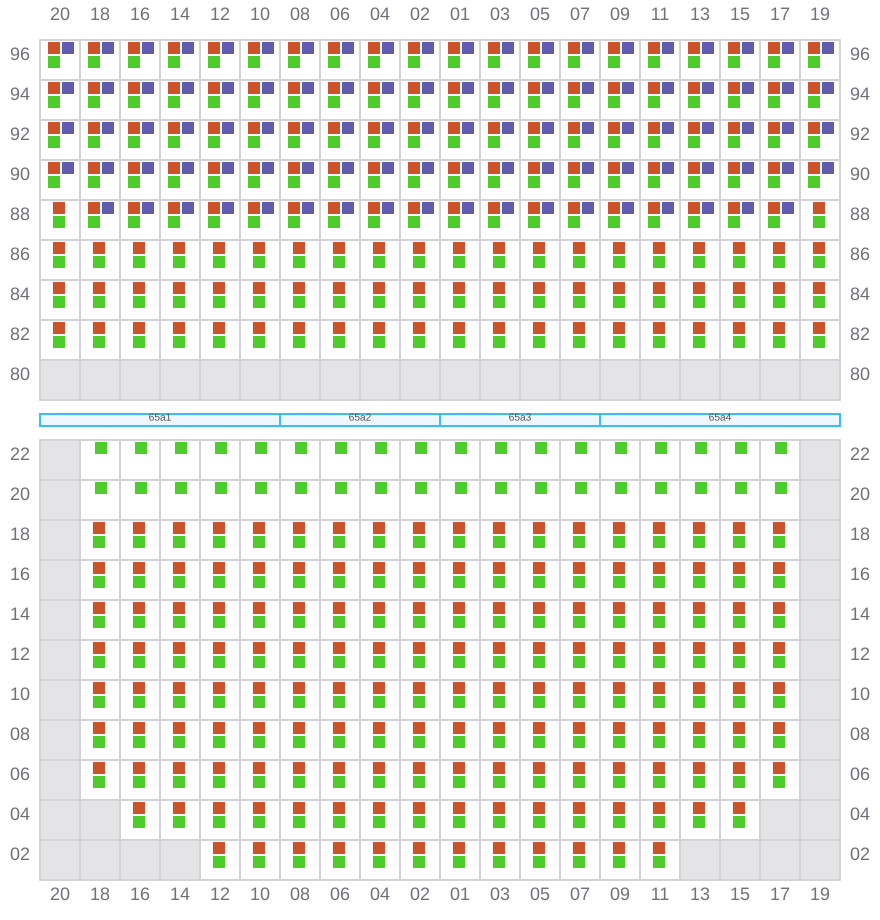

Bay 067 view and slots of COSCO DENMARK

069

  • →
  • → / ?
  • →

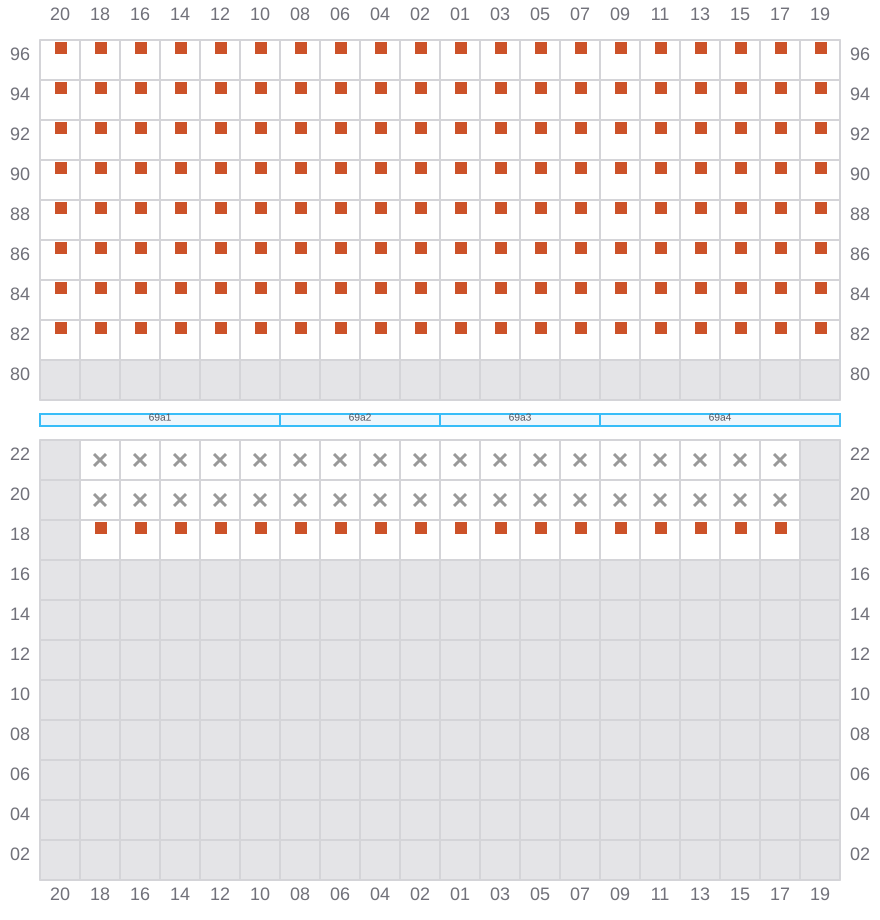

Bay 069 view and slots of COSCO DENMARK

071 (070)

  • ←
  • → / ?
  • →

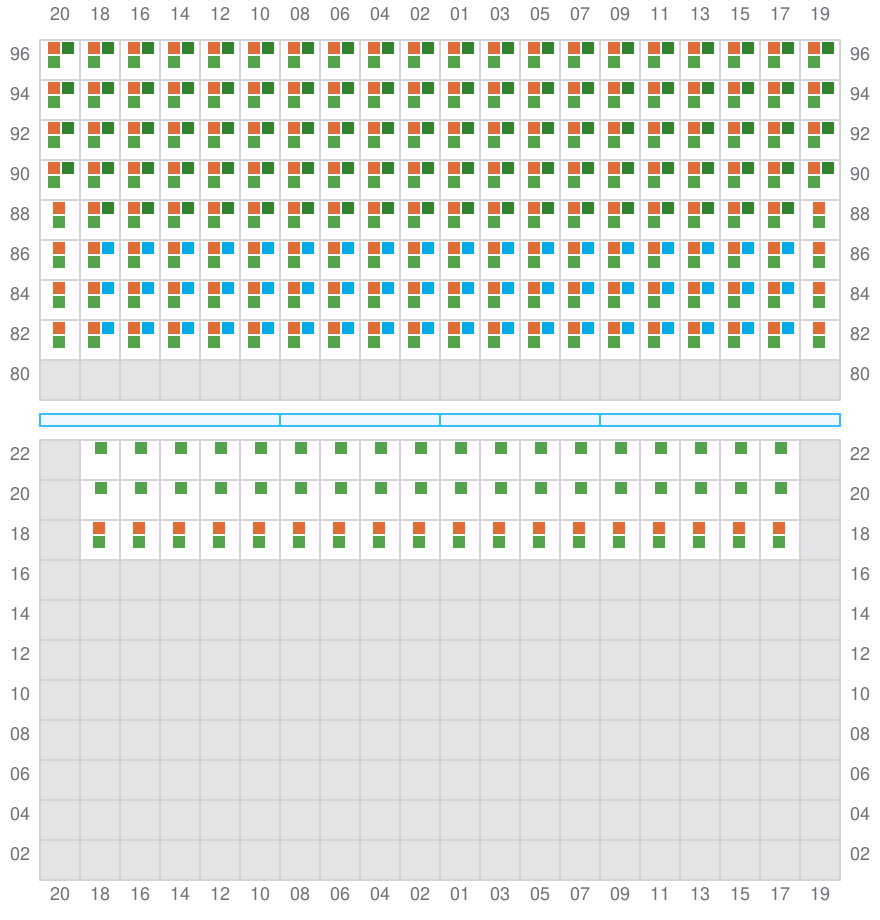

Bay 071 view and slots of COSCO DENMARK

073

  • →
  • ← / ?
  • →

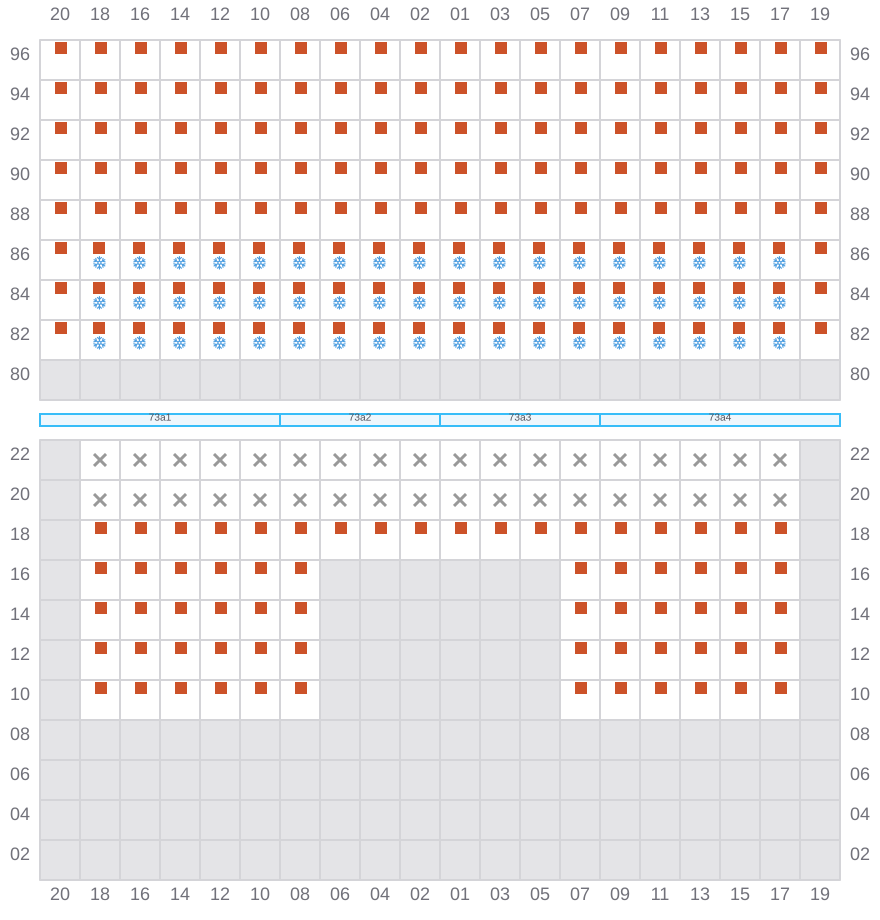

Bay 073 view and slots of COSCO DENMARK

075 (074)

  • ←
  • →

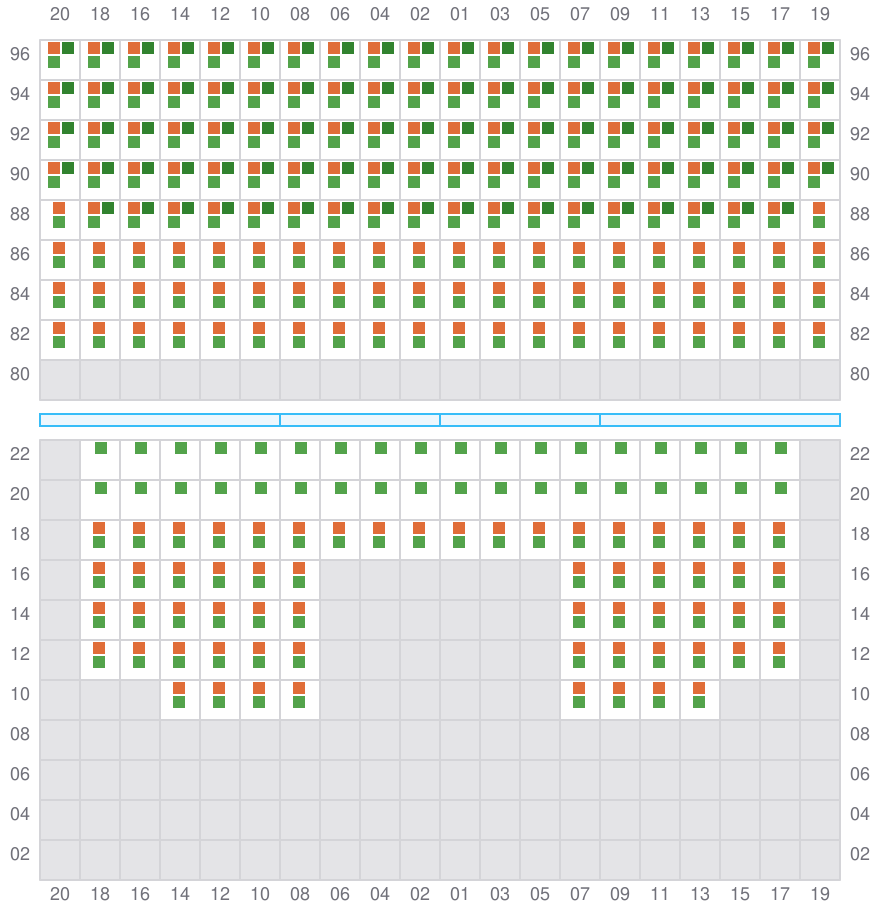

Bay 075 view and slots of COSCO DENMARK

077

  • →
  • → / ?
  • →

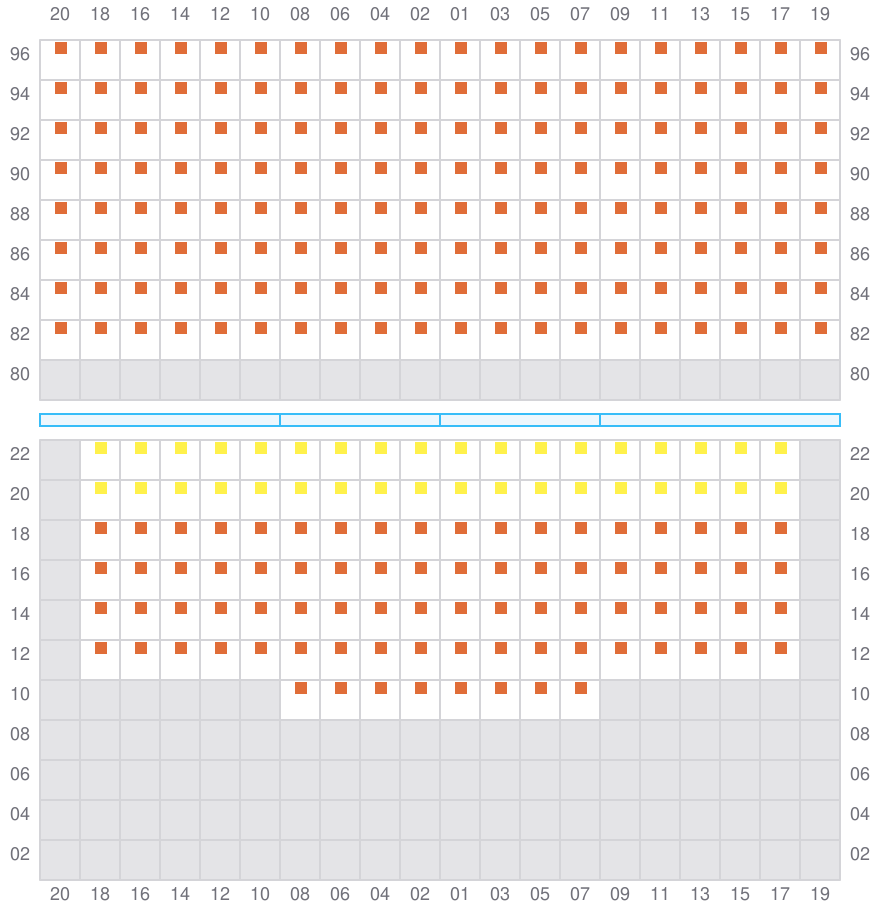

Bay 077 view and slots of COSCO DENMARK

079 (078)

  • ←
  • → / ?
  • →

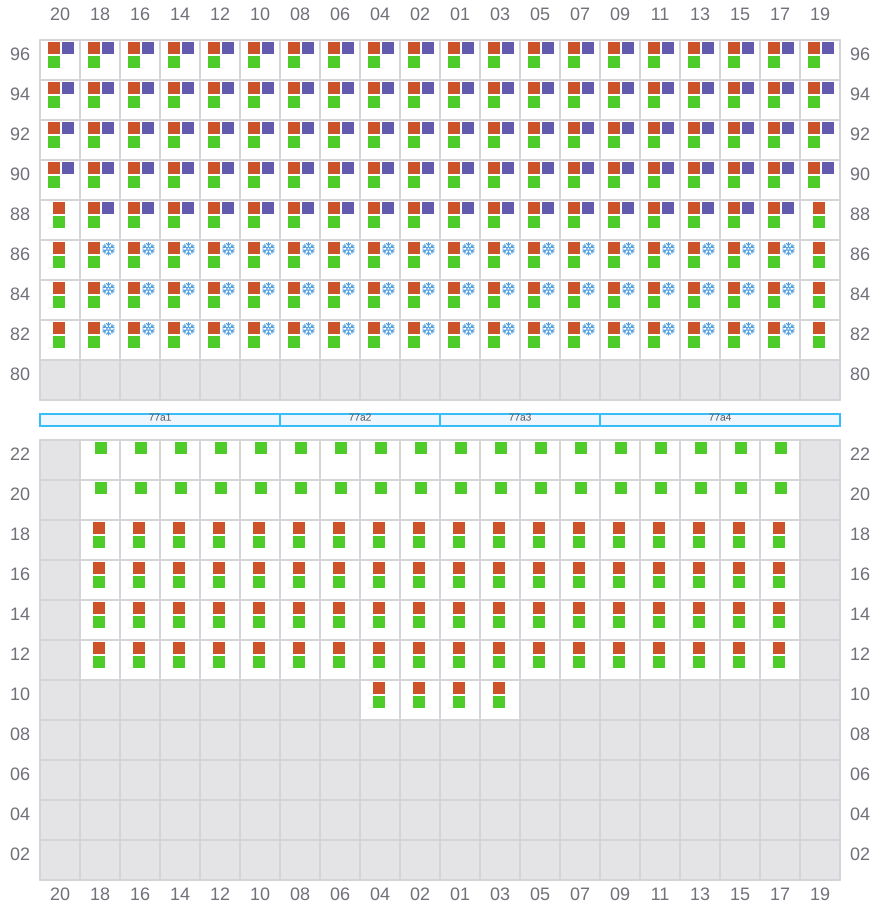

Bay 079 view and slots of COSCO DENMARK

081

  • →
  • ← / ?
  • →

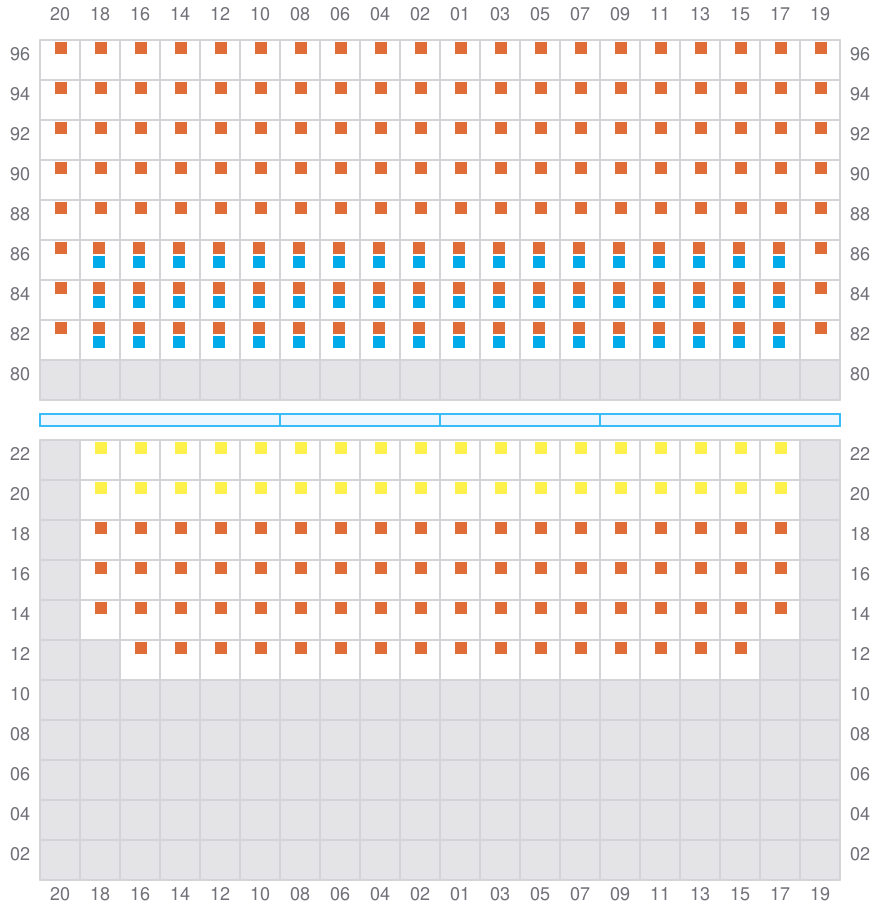

Bay 081 view and slots of COSCO DENMARK

083 (082)

  • ←
  • →

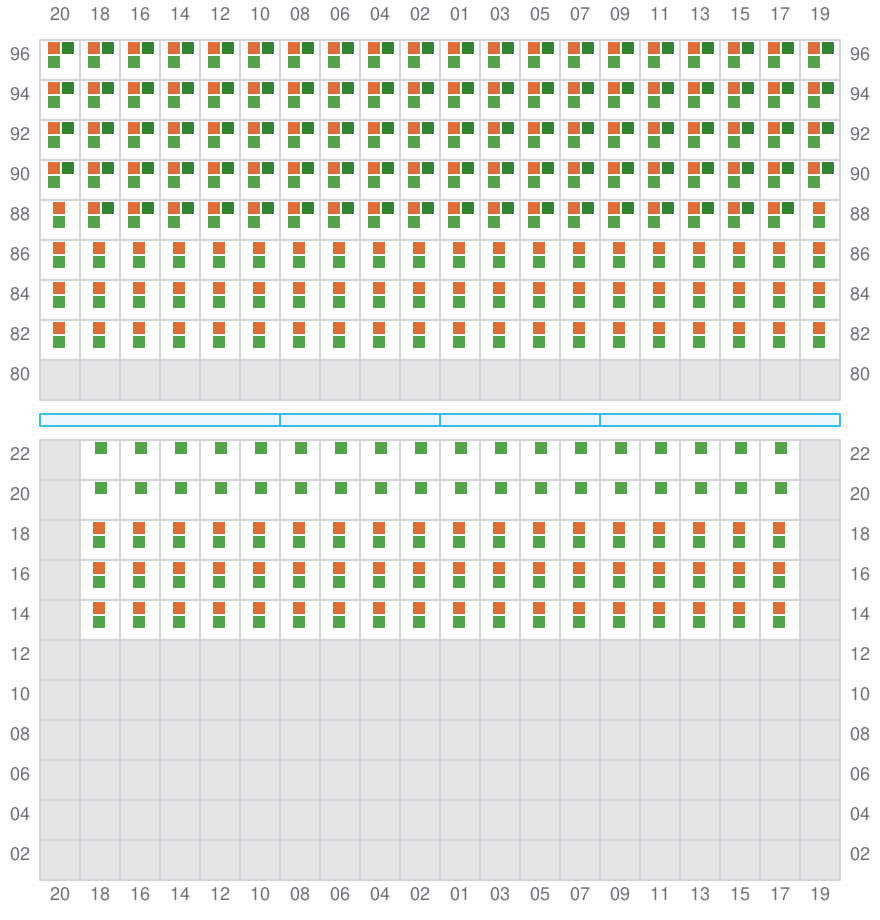

Bay 083 view and slots of COSCO DENMARK

085

  • → / ?
  • → / ?

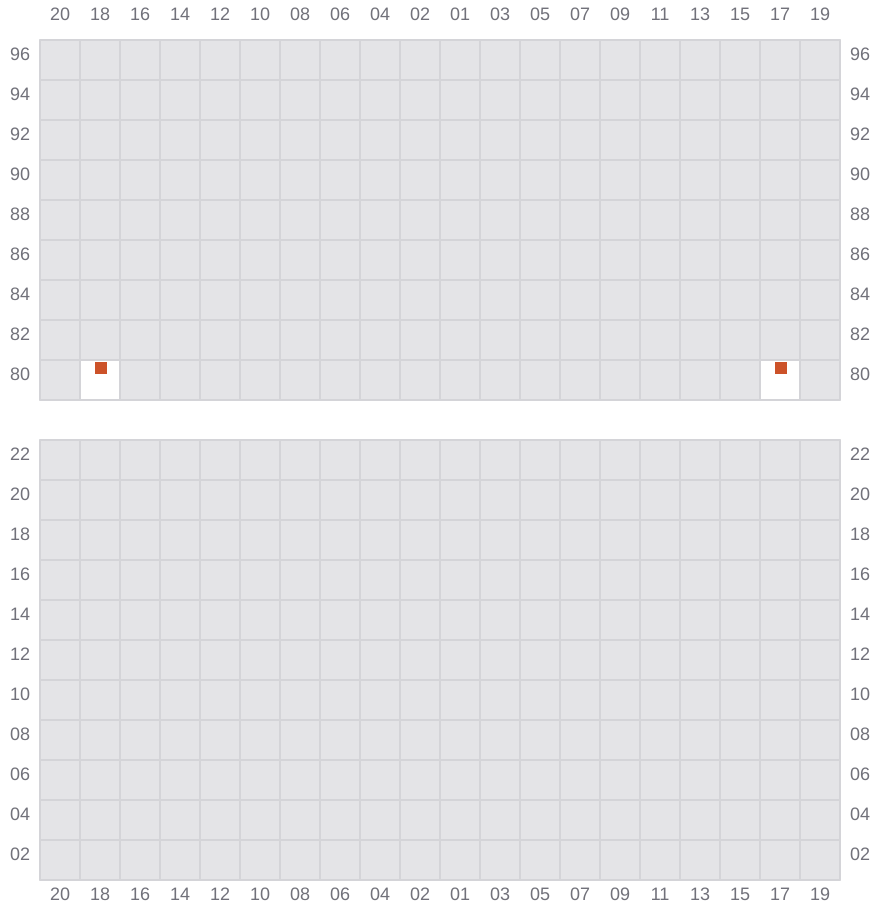

Bay 085 view and slots of COSCO DENMARK

087 (086)

  • ← / ?
  • → / ?

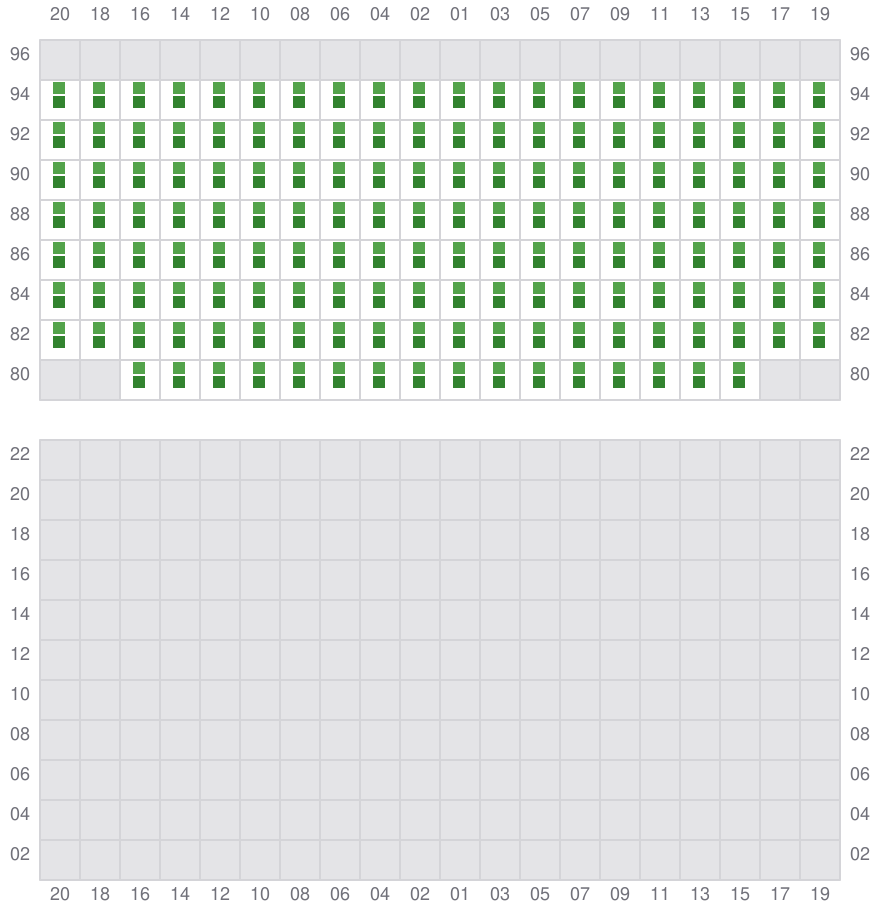

Bay 087 view and slots of COSCO DENMARK
