COSCO ENGLAND
9516428 | VRML8 | 9516428 by ********* Last update: Thu May 09 2024

General Info

Ship Name:COSCO ENGLAND
IMO Code:9516428
Call Sign:VRML8
Line Operator:9516428
Class Name for Sister Ships:COSCO ENGLAND
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,384

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

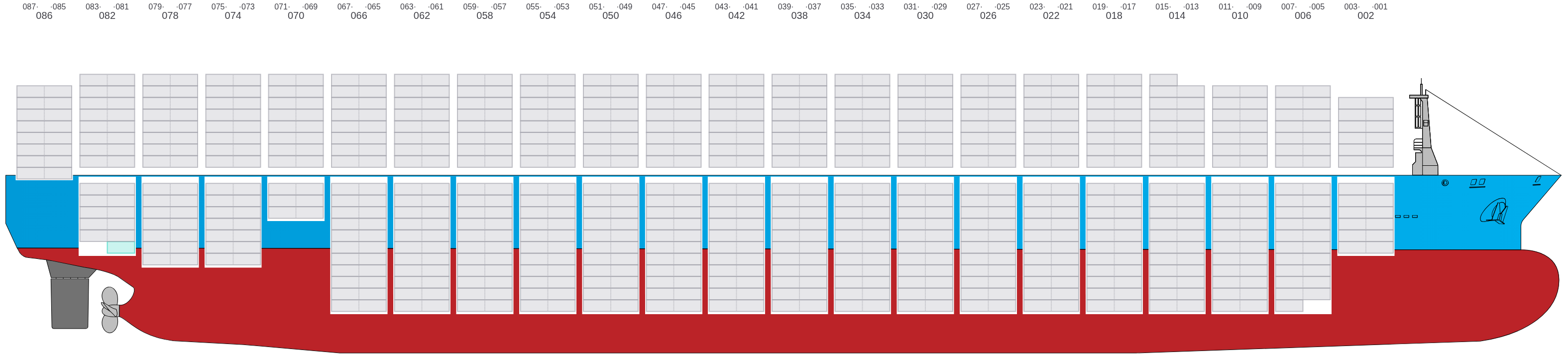

Side view of COSCO ENGLAND

Hatch-Covers View

Deck view of COSCO ENGLAND

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

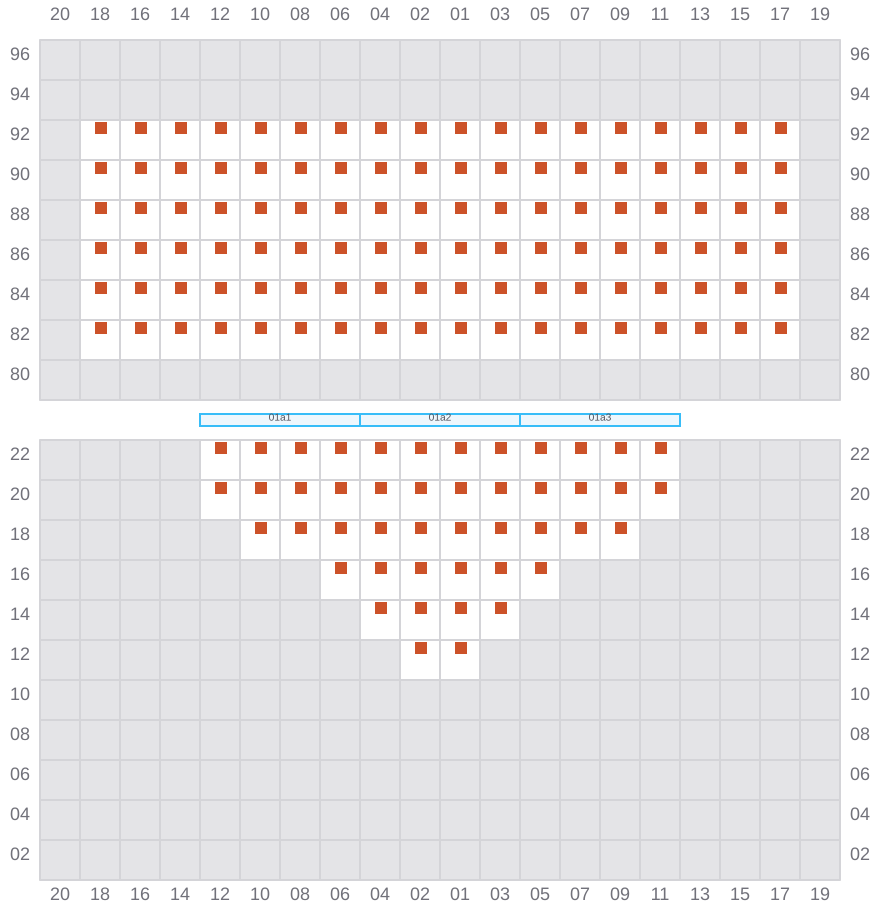

Bay 001 view and slots of COSCO ENGLAND

003 (002)

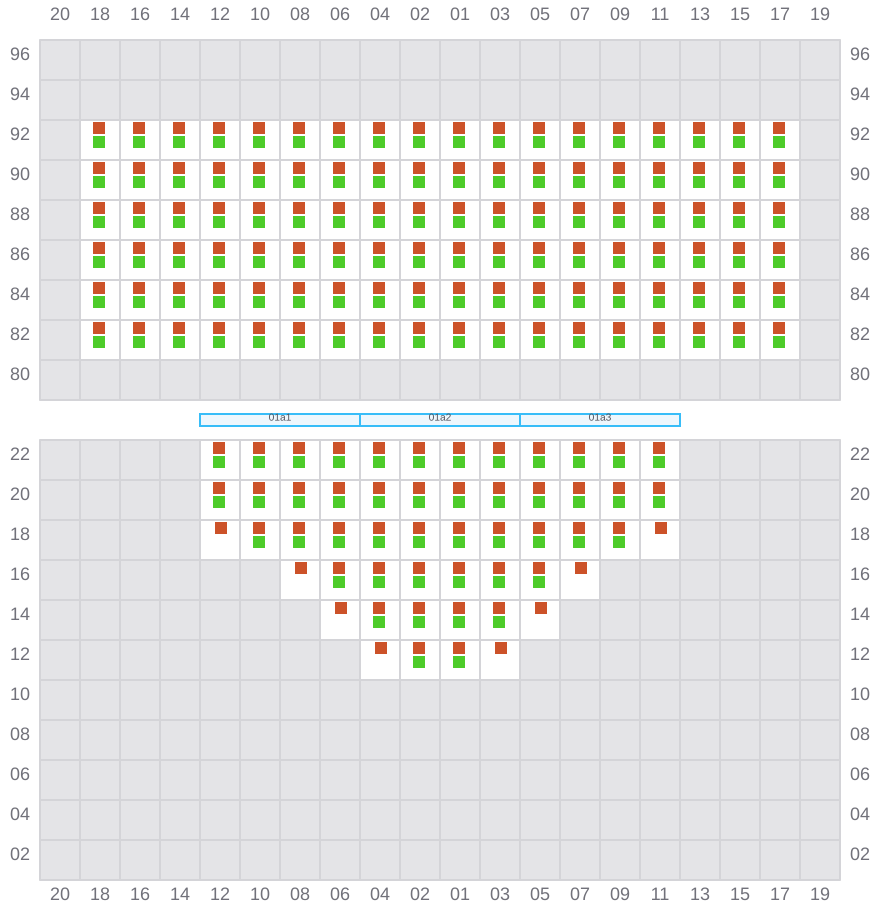

Bay 003 view and slots of COSCO ENGLAND

005

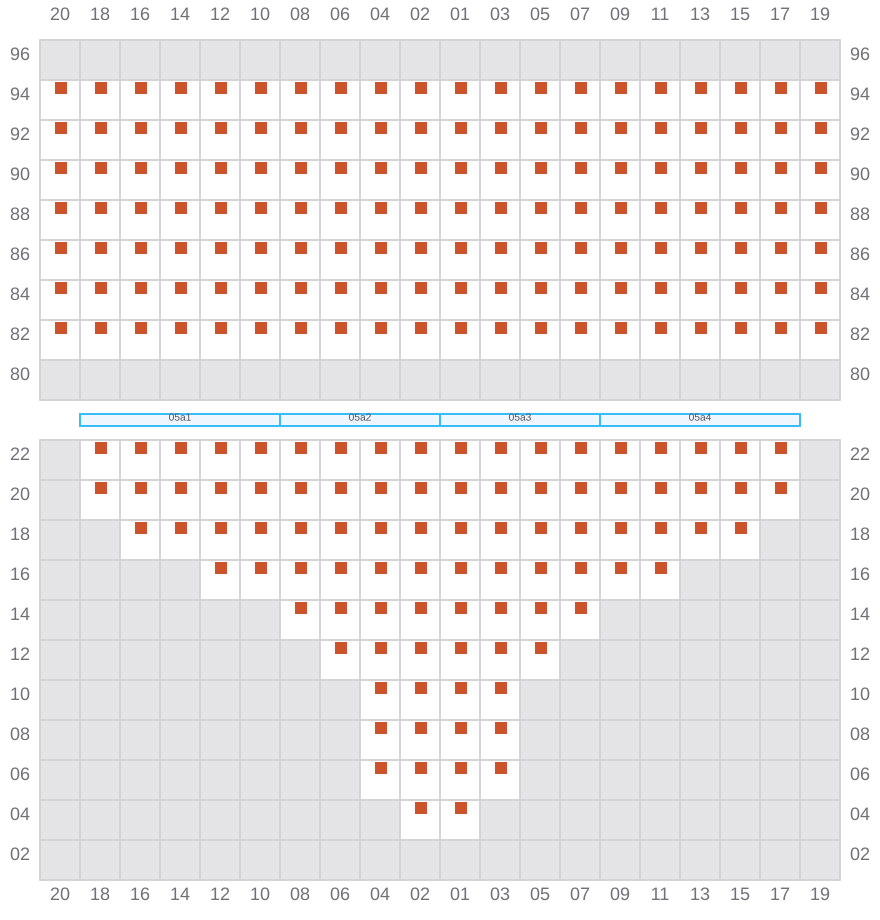

Bay 005 view and slots of COSCO ENGLAND

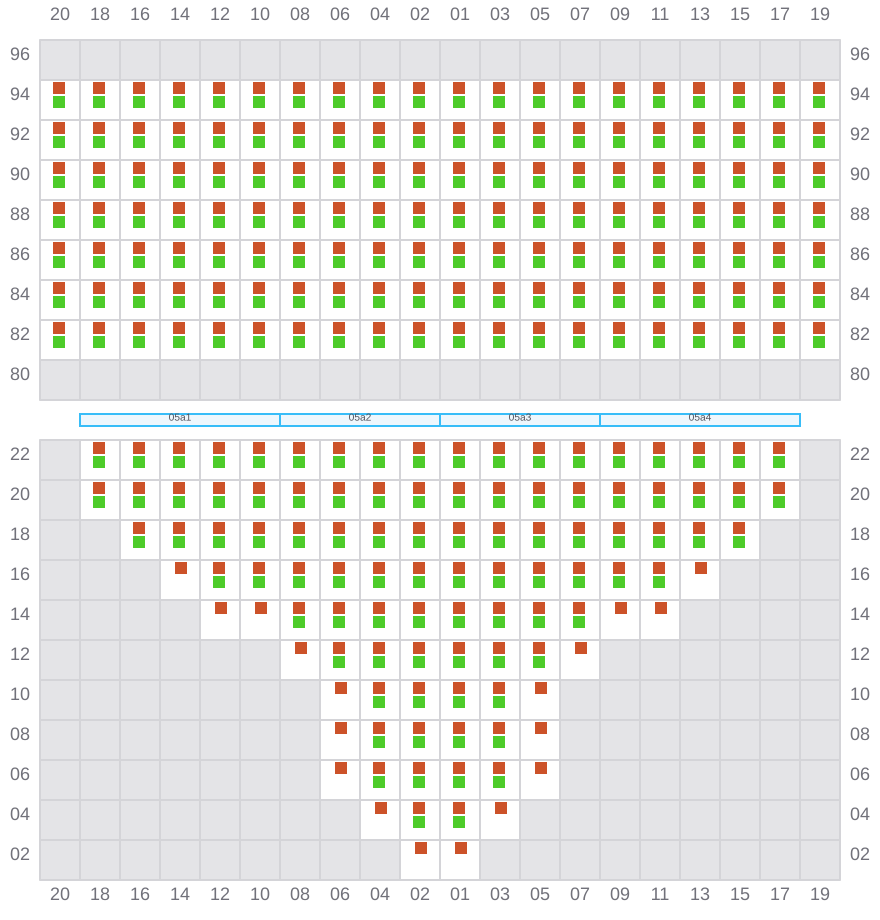

007 (006)

Bay 007 view and slots of COSCO ENGLAND

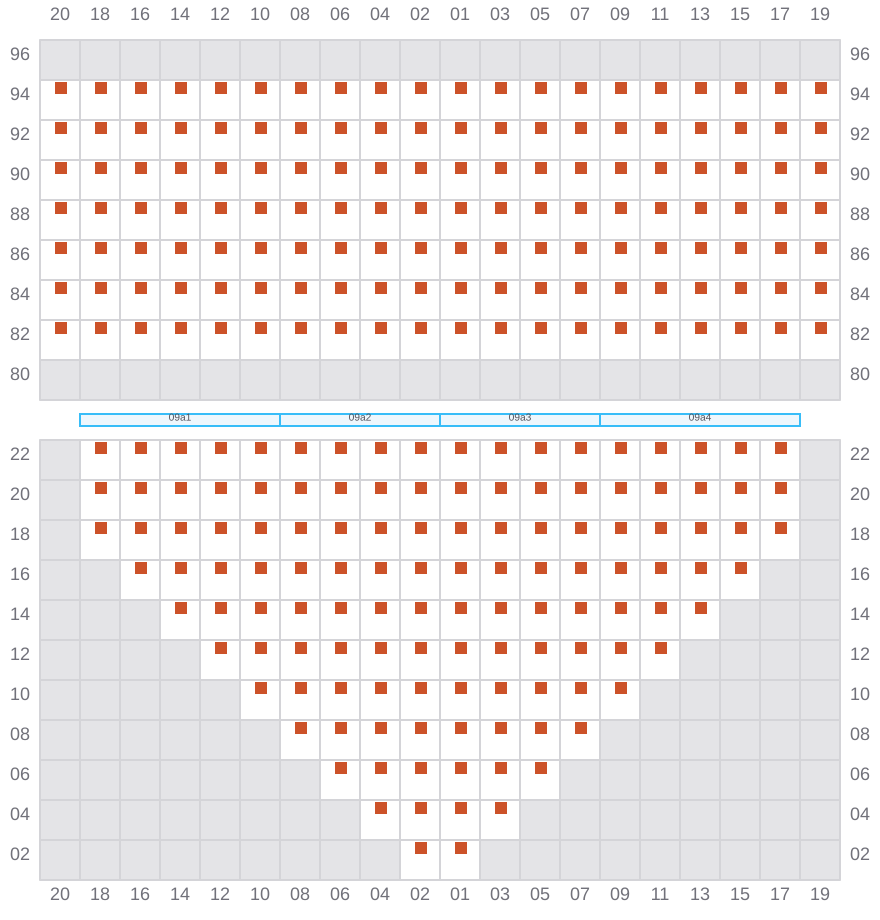

009

Bay 009 view and slots of COSCO ENGLAND

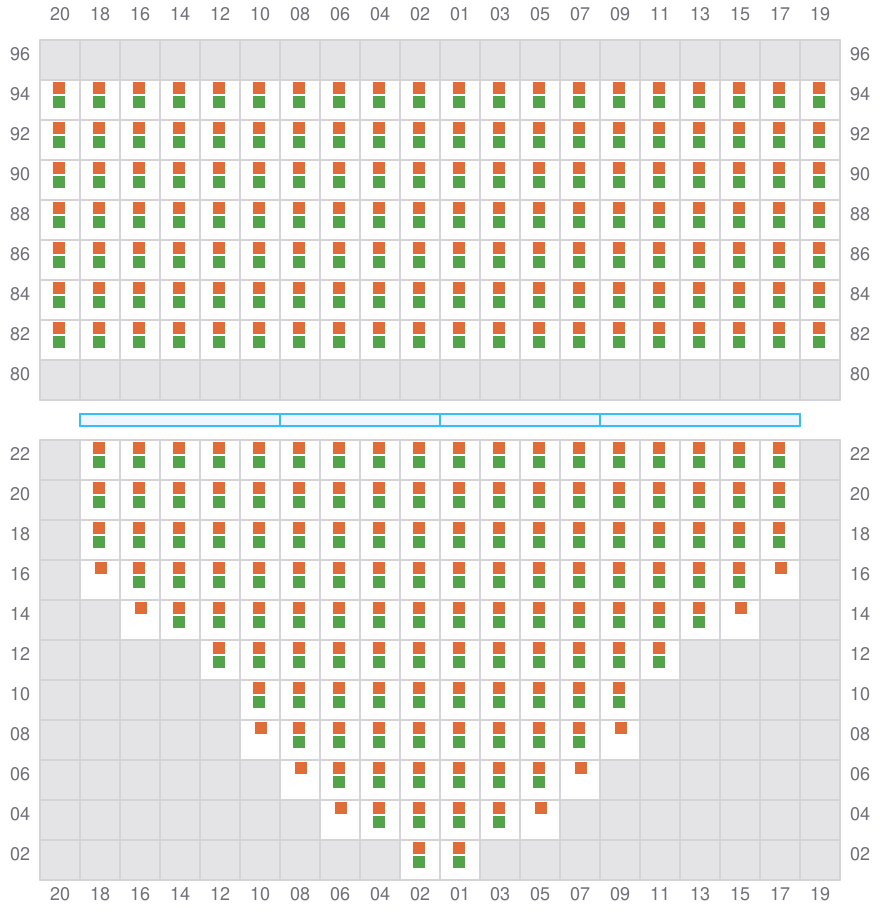

011 (010)

Bay 011 view and slots of COSCO ENGLAND

013

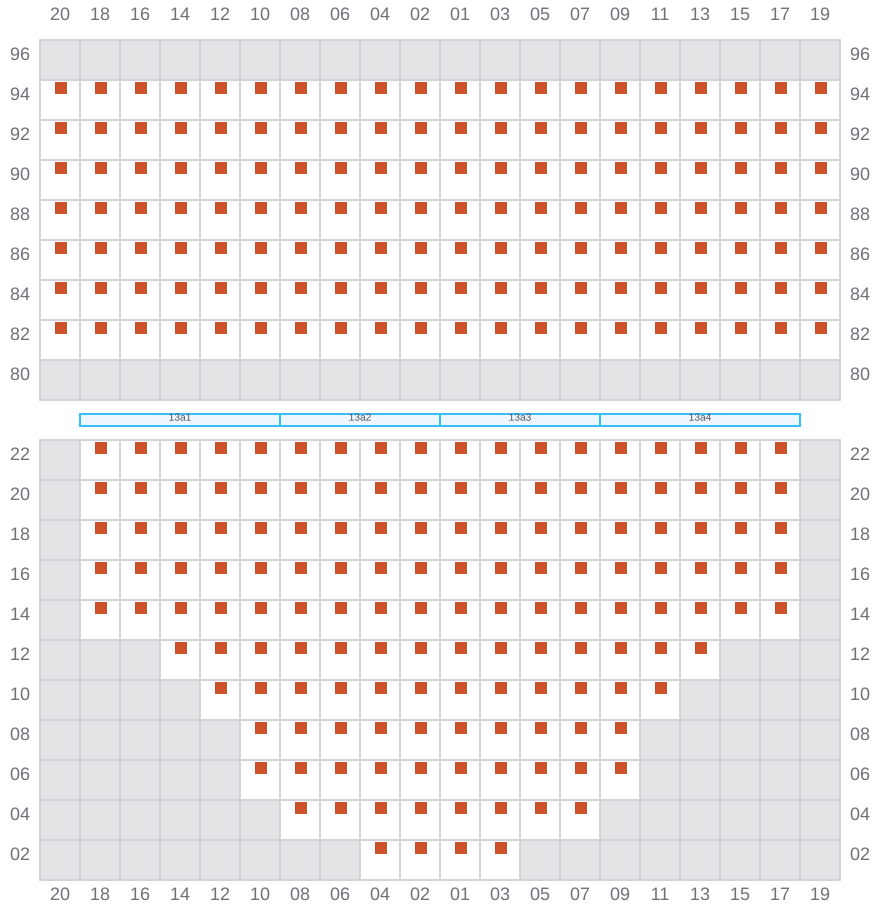

Bay 013 view and slots of COSCO ENGLAND

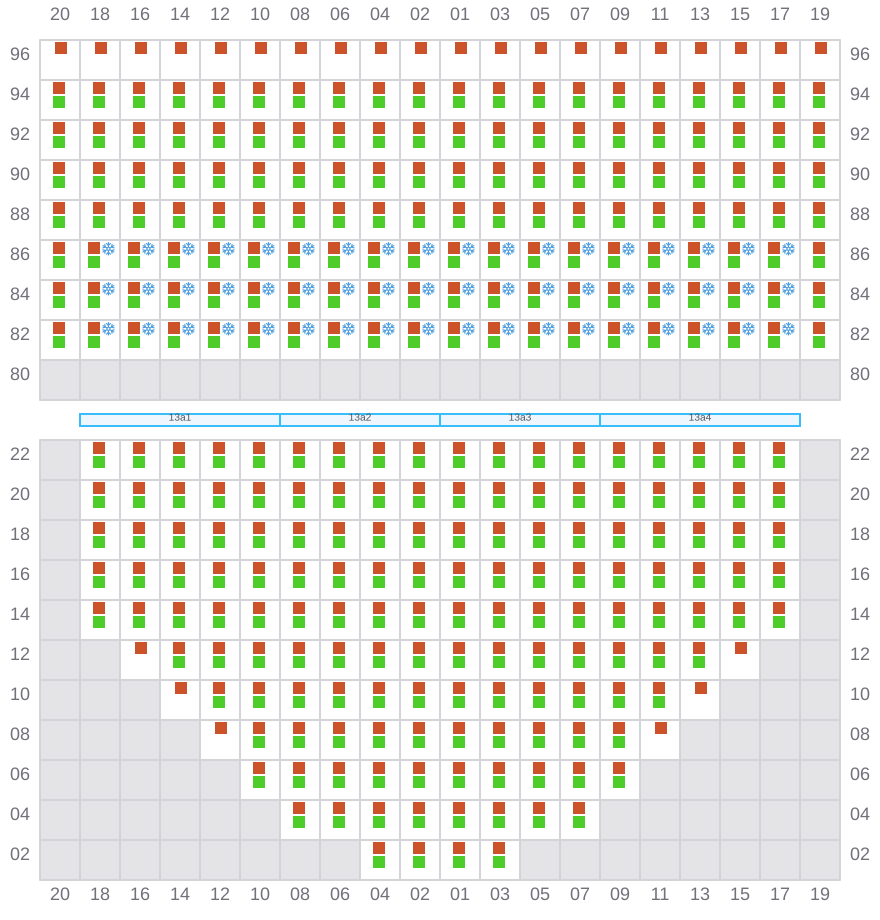

015 (014)

Bay 015 view and slots of COSCO ENGLAND

017

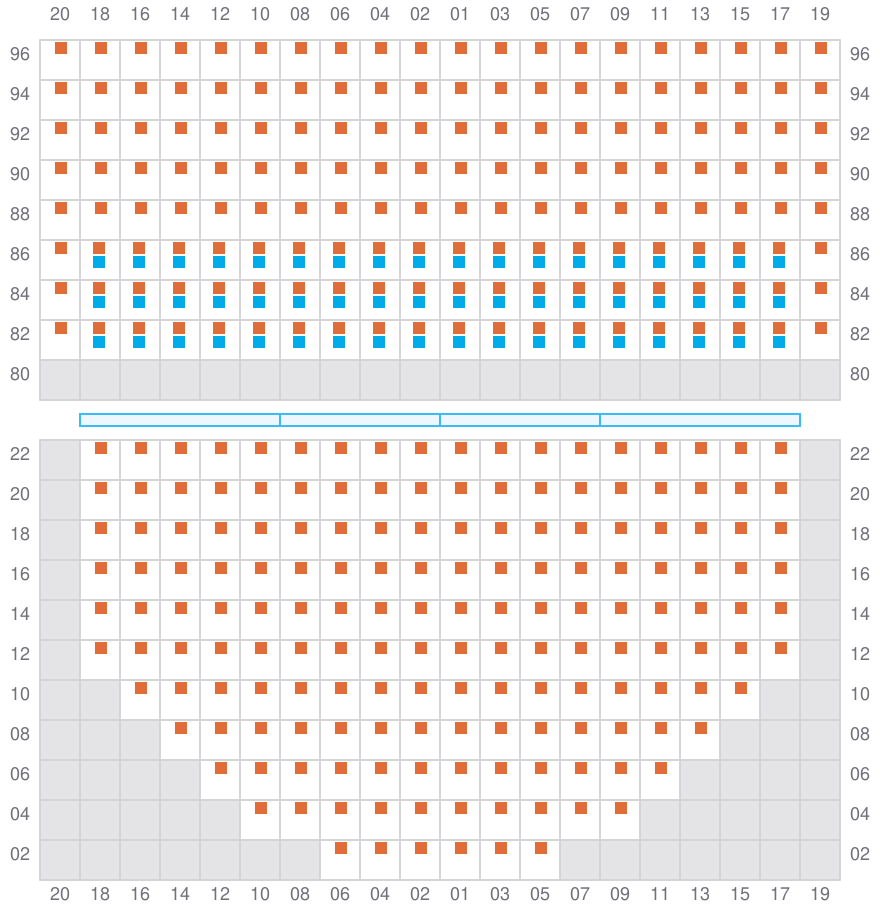

Bay 017 view and slots of COSCO ENGLAND

019 (018)

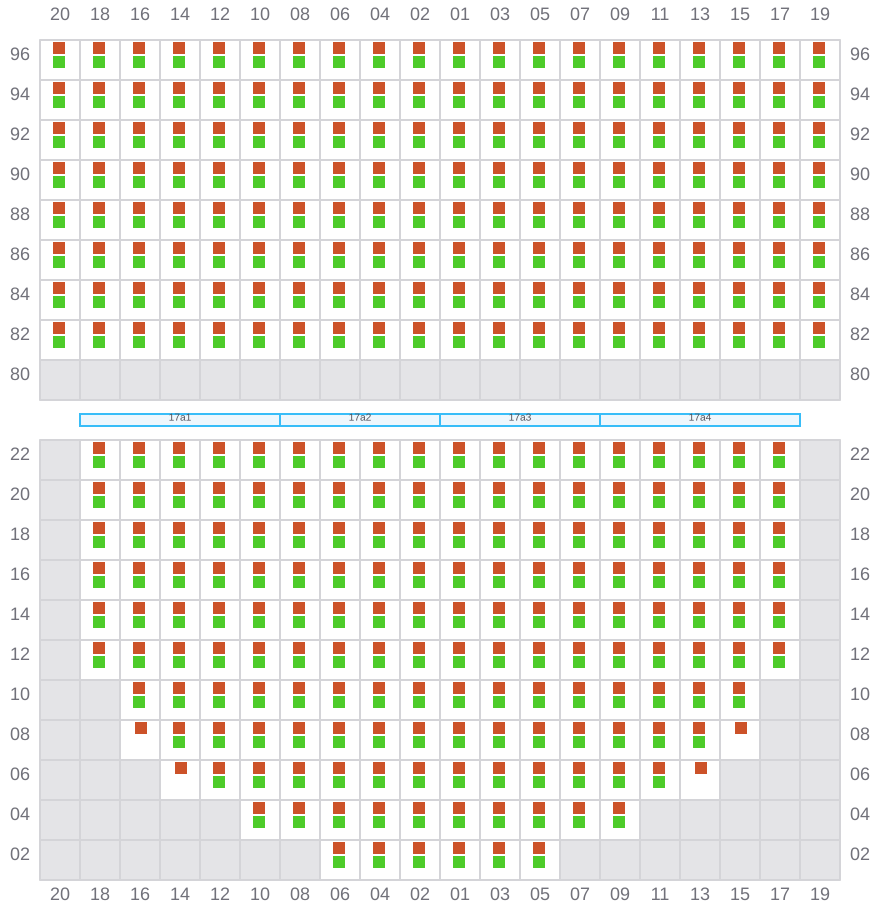

Bay 019 view and slots of COSCO ENGLAND

021

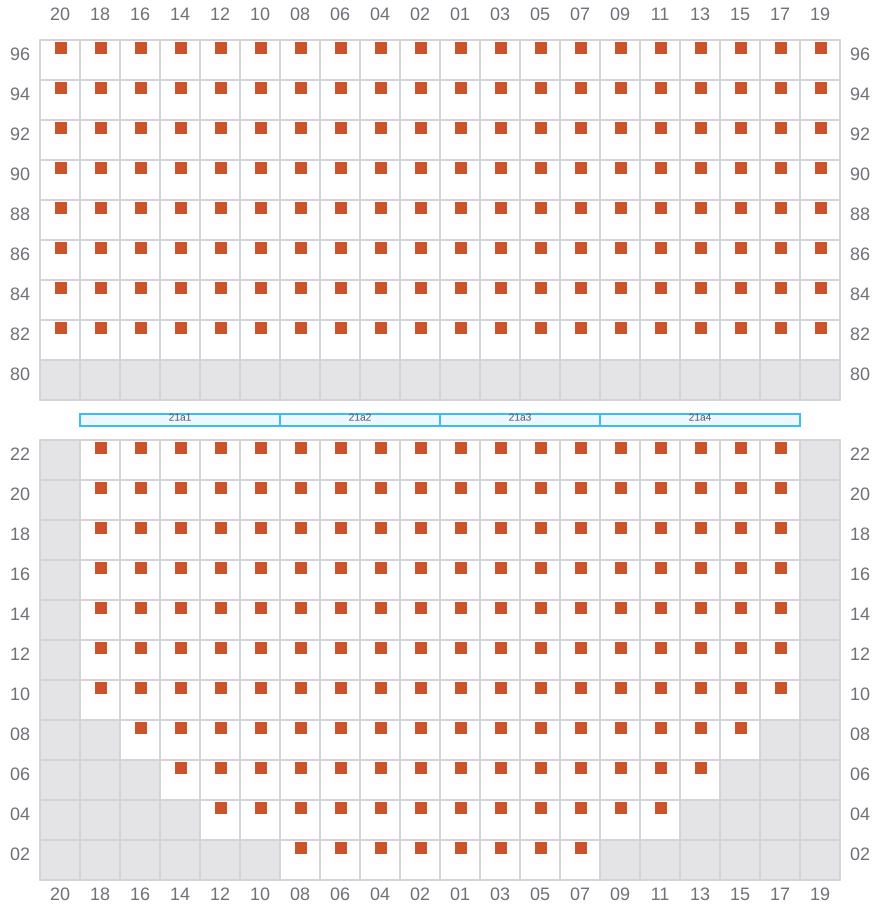

Bay 021 view and slots of COSCO ENGLAND

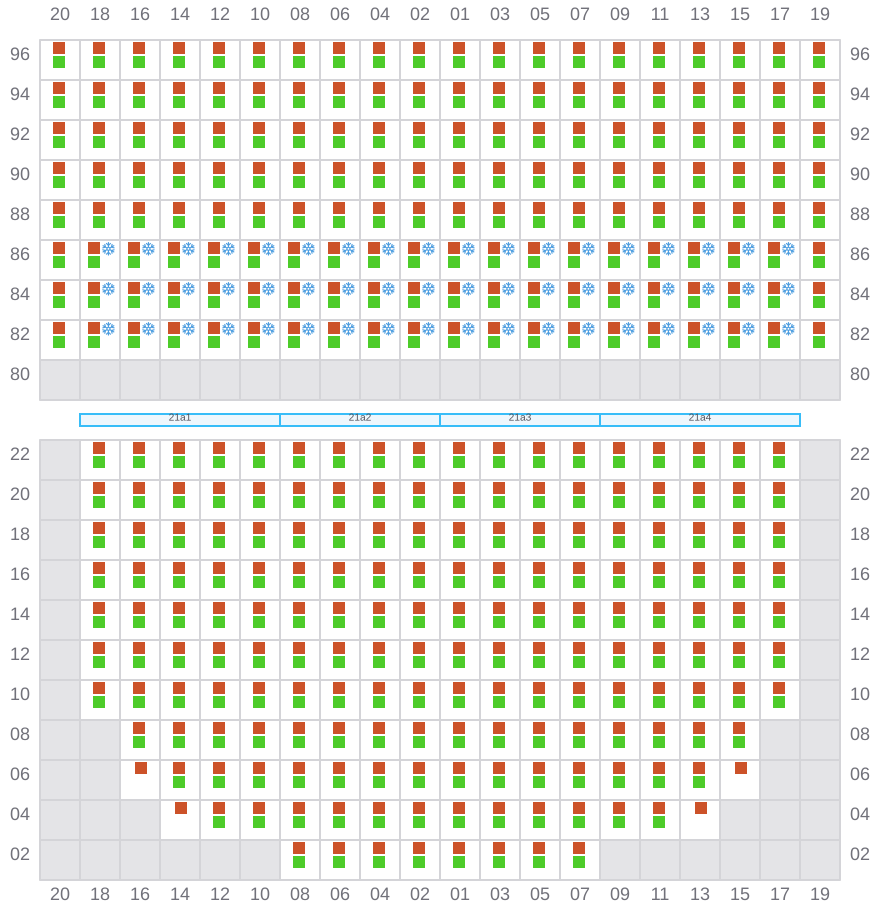

023 (022)

Bay 023 view and slots of COSCO ENGLAND

025

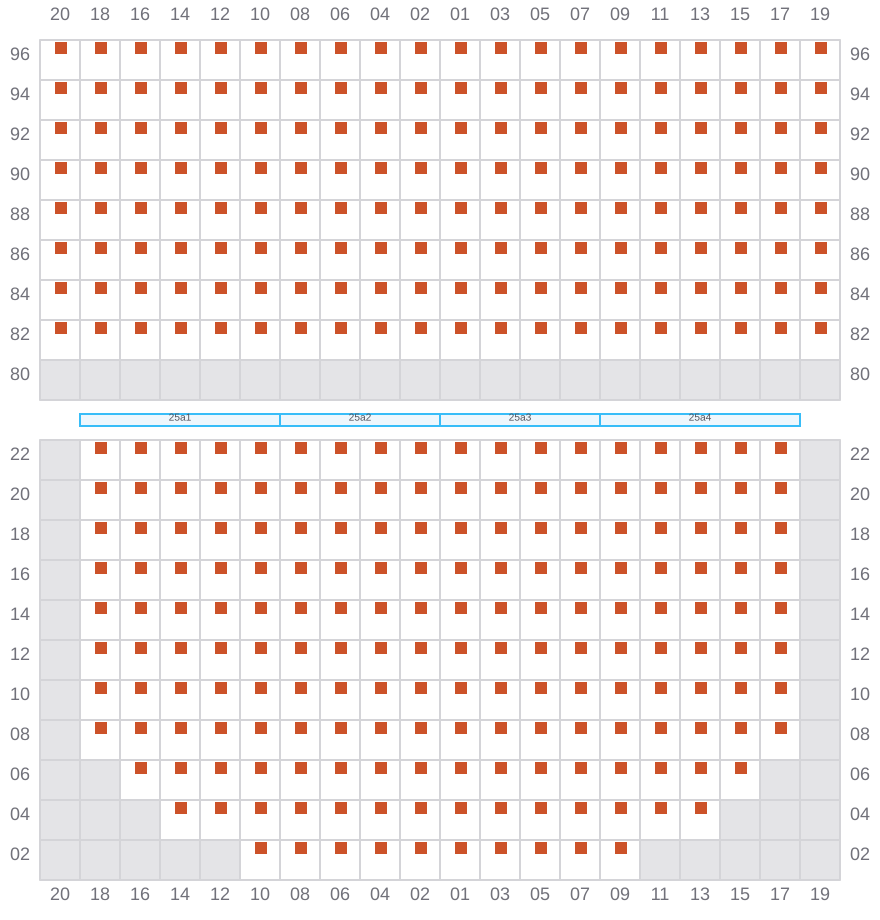

Bay 025 view and slots of COSCO ENGLAND

027 (026)

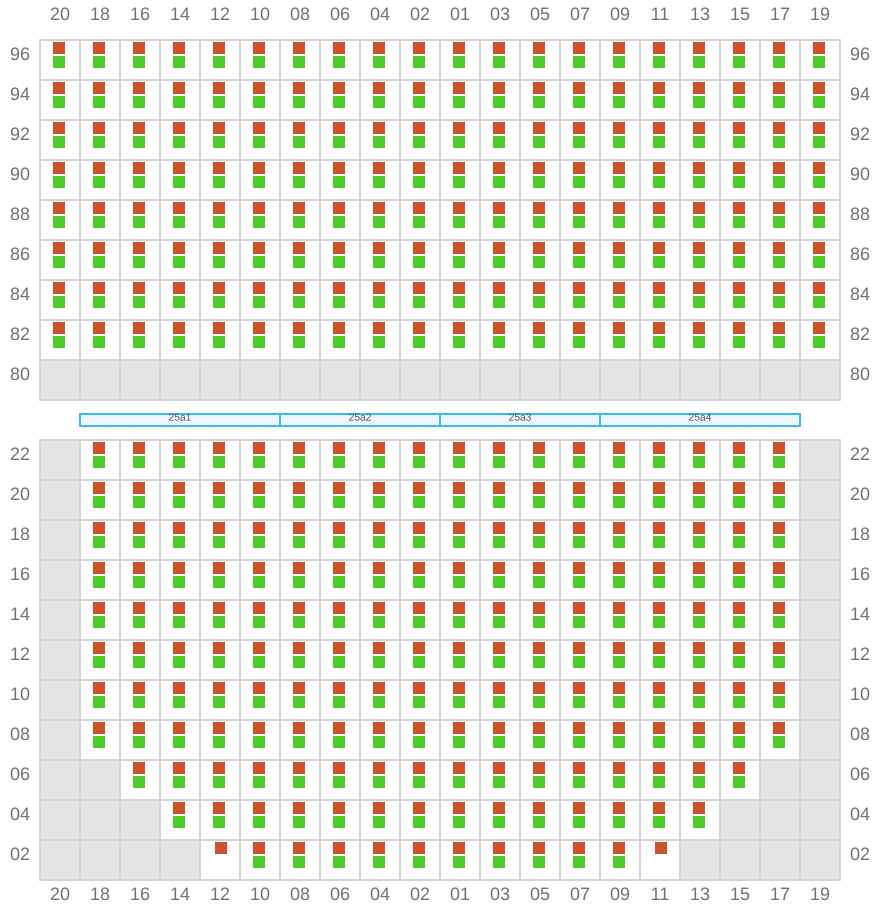

Bay 027 view and slots of COSCO ENGLAND

029

Bay 029 view and slots of COSCO ENGLAND

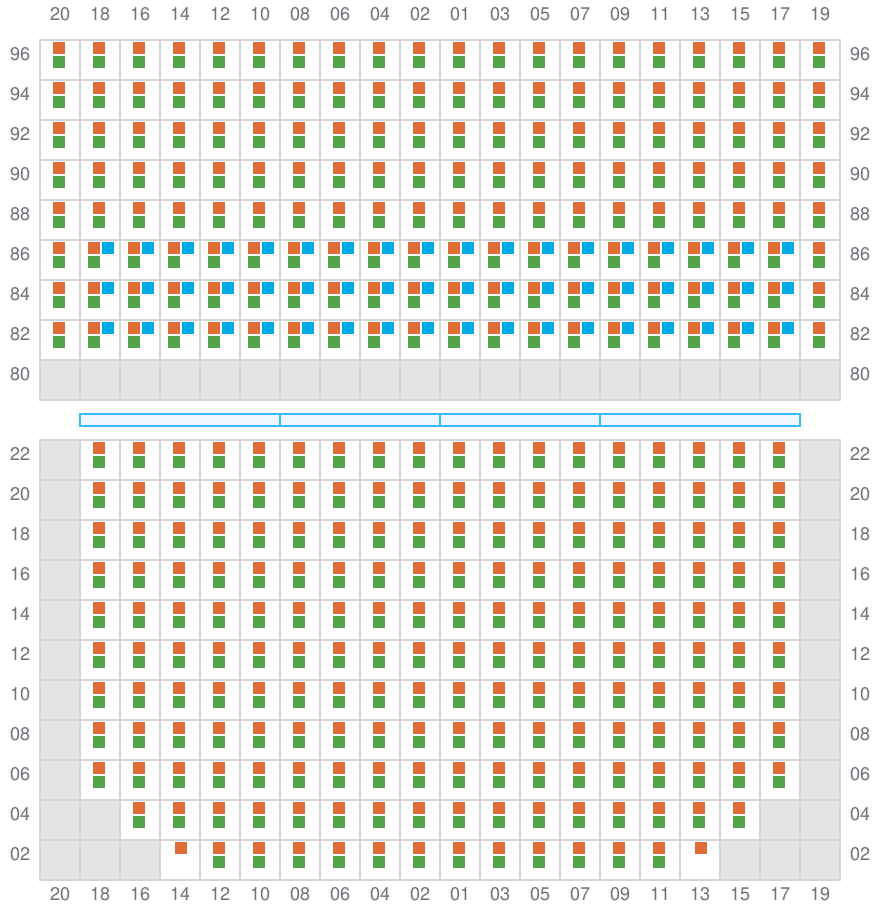

031 (030)

Bay 031 view and slots of COSCO ENGLAND

033

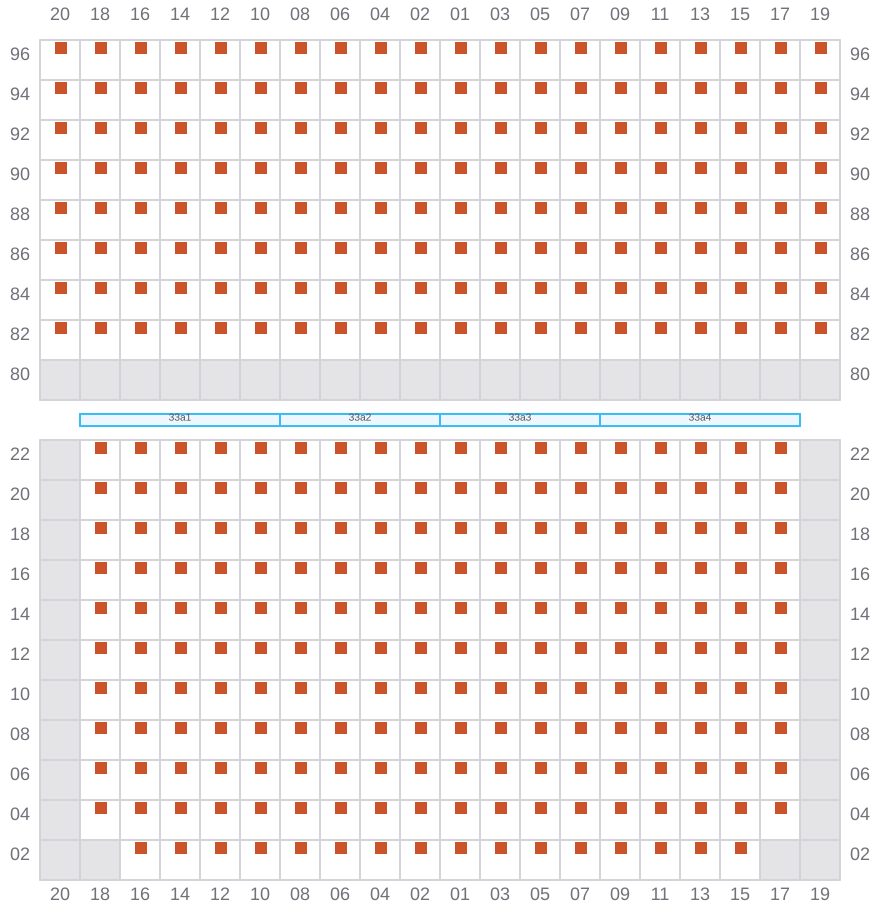

Bay 033 view and slots of COSCO ENGLAND

035 (034)

Bay 035 view and slots of COSCO ENGLAND

037

Bay 037 view and slots of COSCO ENGLAND

039 (038)

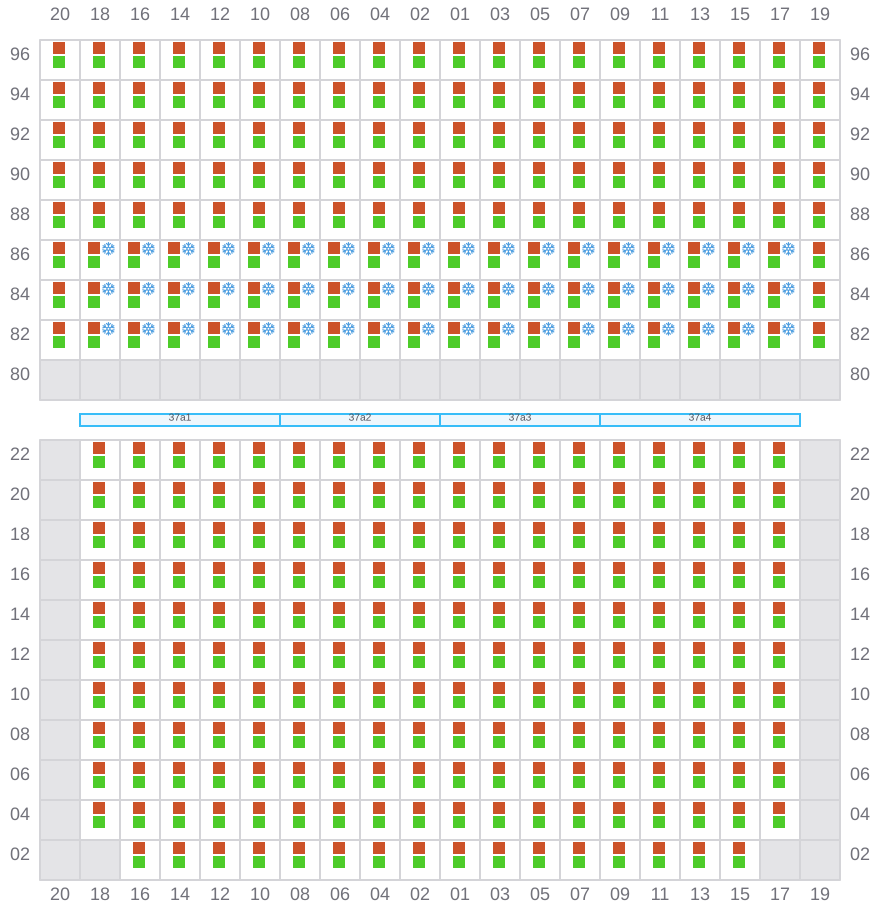

Bay 039 view and slots of COSCO ENGLAND

041

Bay 041 view and slots of COSCO ENGLAND

043 (042)

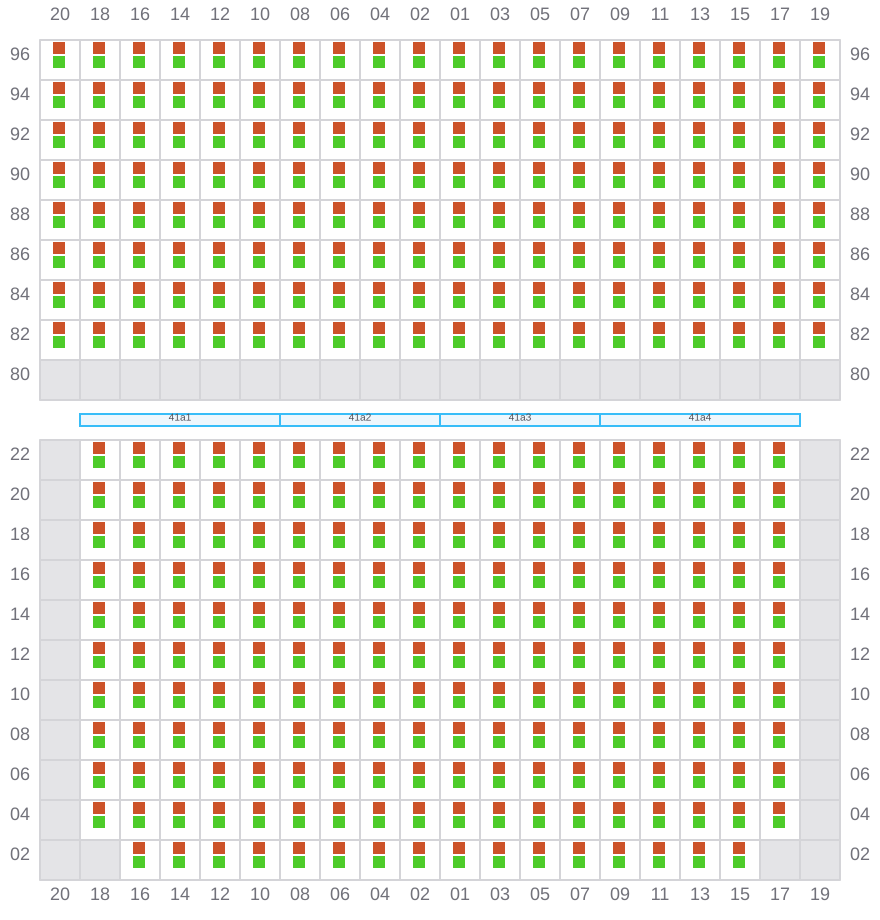

Bay 043 view and slots of COSCO ENGLAND

045

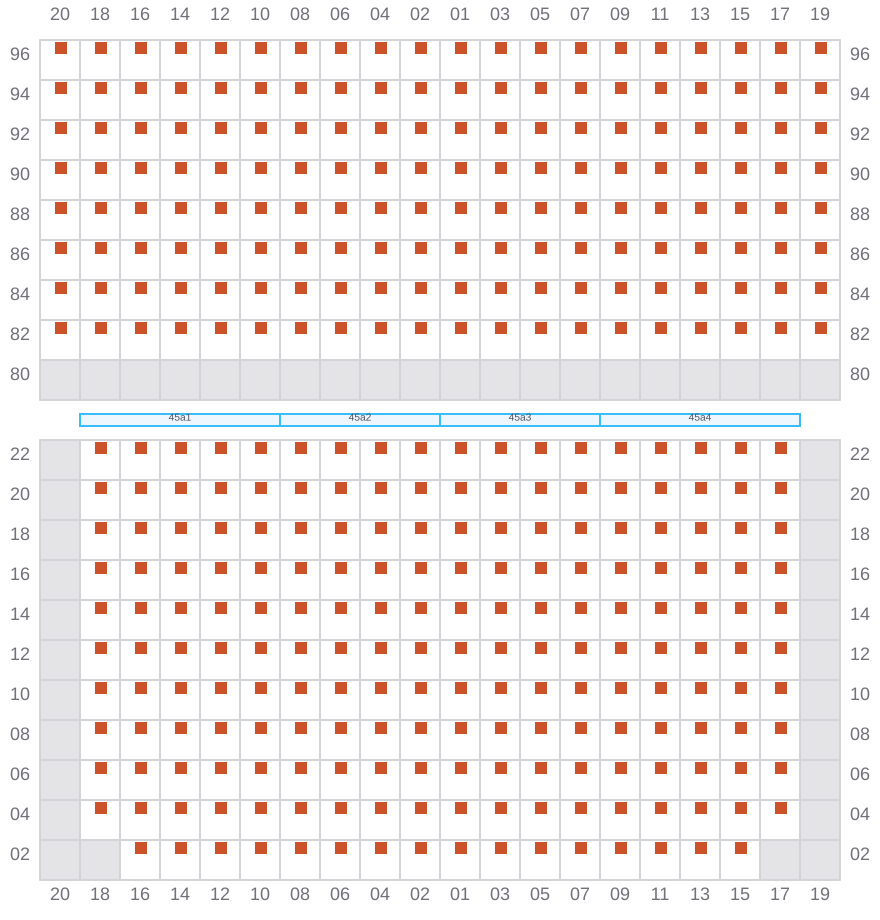

Bay 045 view and slots of COSCO ENGLAND

047 (046)

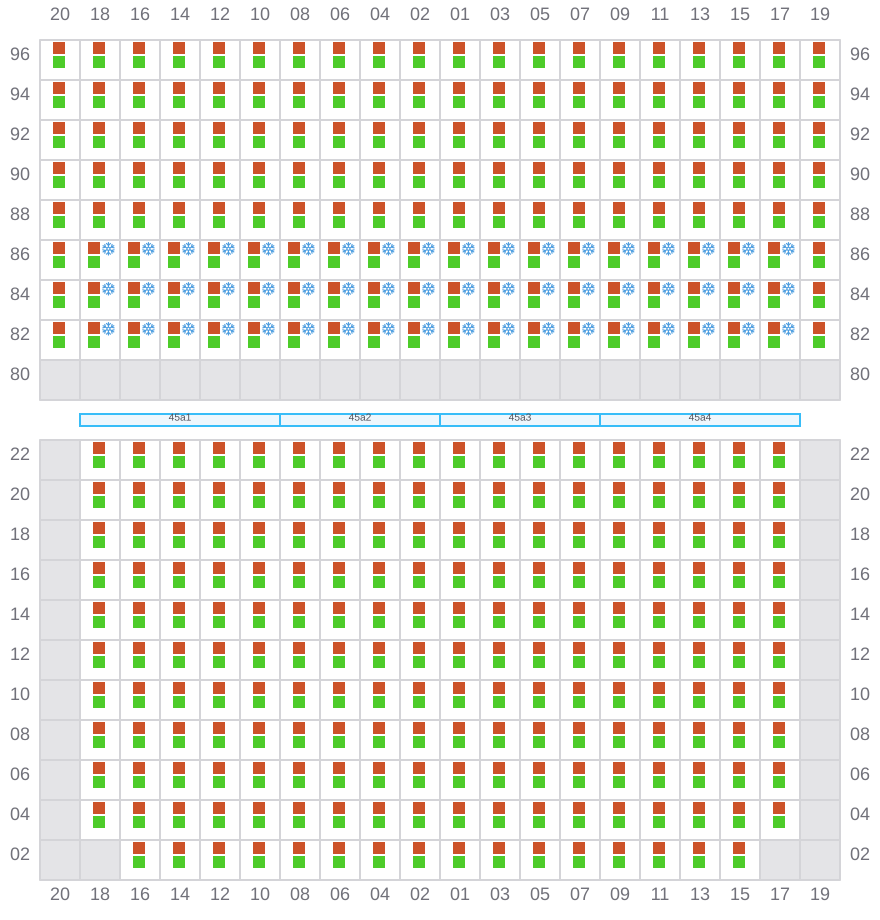

Bay 047 view and slots of COSCO ENGLAND

049

Bay 049 view and slots of COSCO ENGLAND

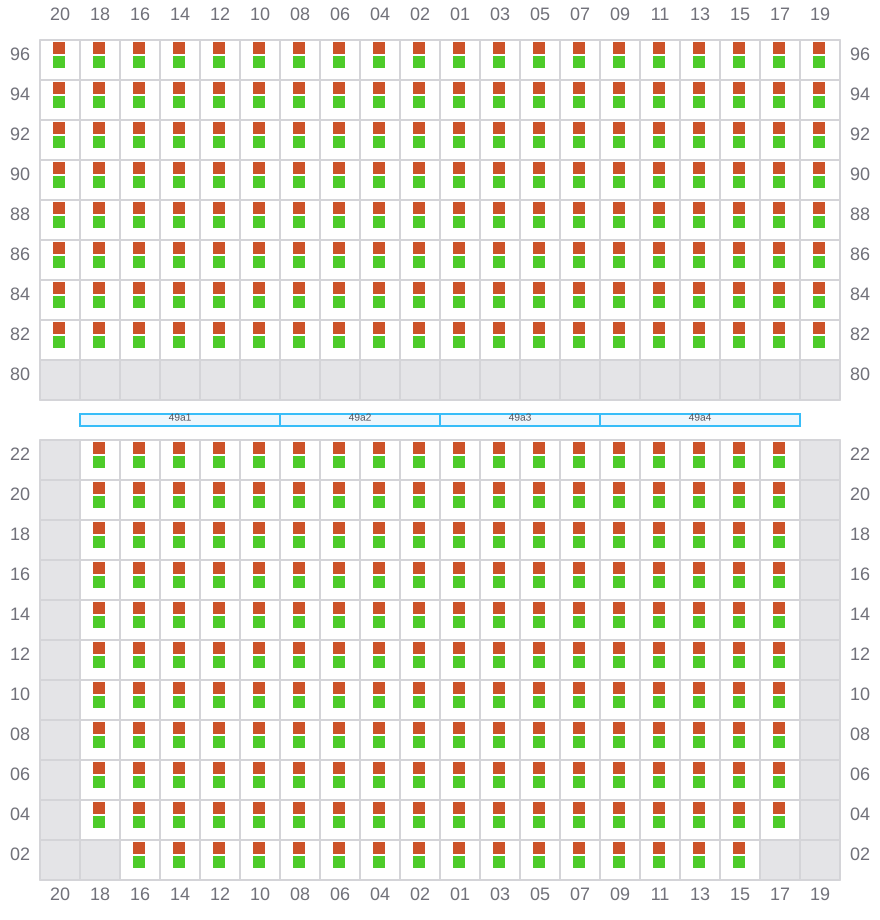

051 (050)

Bay 051 view and slots of COSCO ENGLAND

053

Bay 053 view and slots of COSCO ENGLAND

055 (054)

Bay 055 view and slots of COSCO ENGLAND

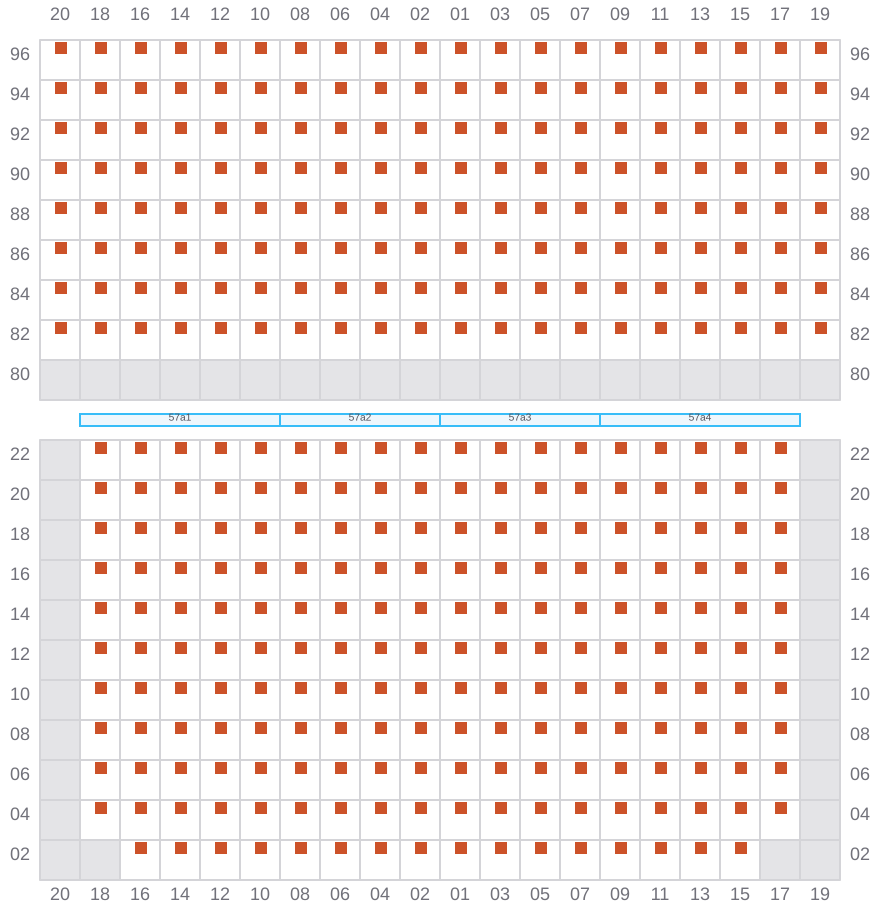

057

Bay 057 view and slots of COSCO ENGLAND

059 (058)

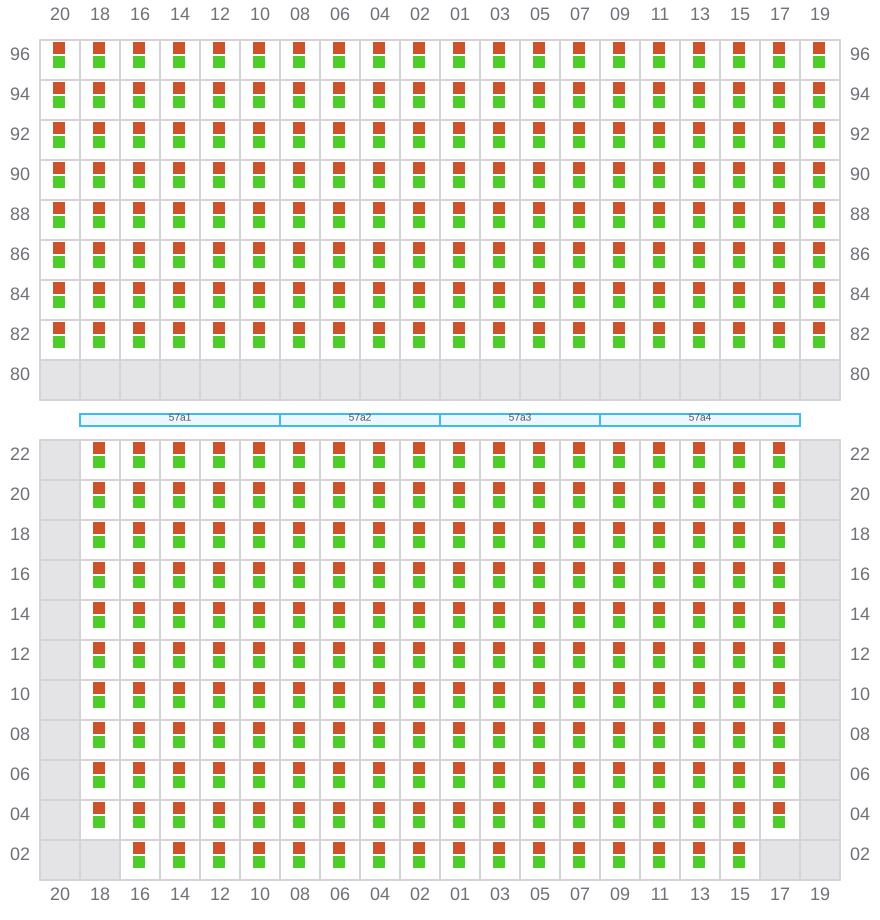

Bay 059 view and slots of COSCO ENGLAND

061

Bay 061 view and slots of COSCO ENGLAND

063 (062)

Bay 063 view and slots of COSCO ENGLAND

065

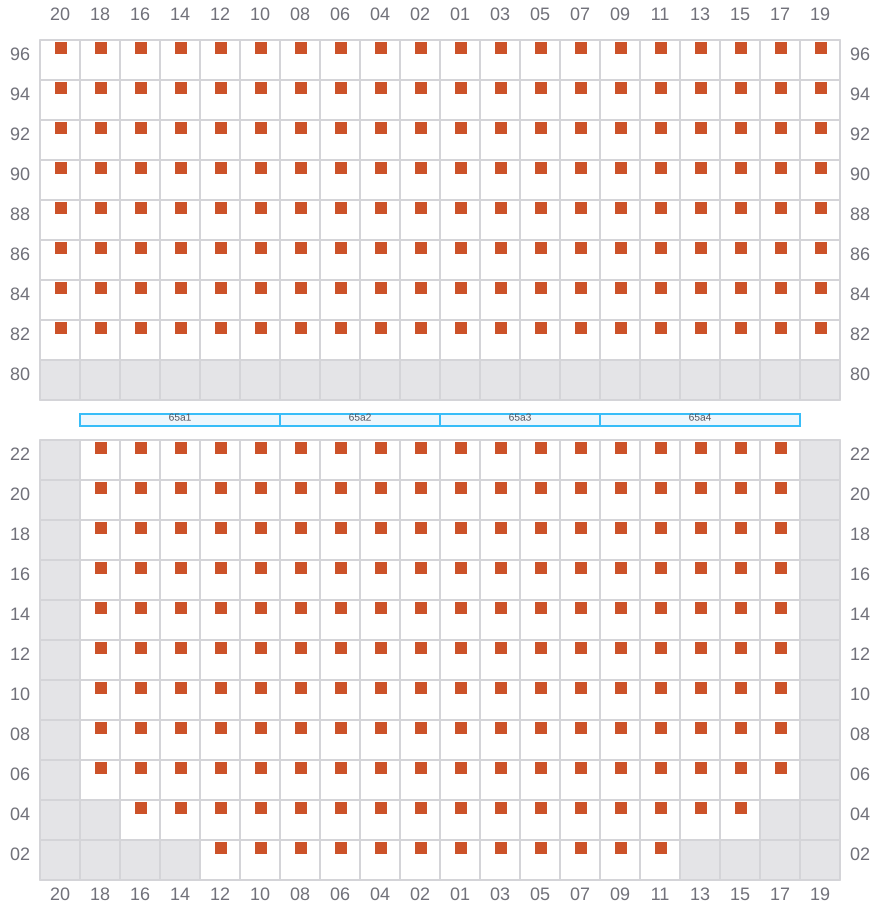

Bay 065 view and slots of COSCO ENGLAND

067 (066)

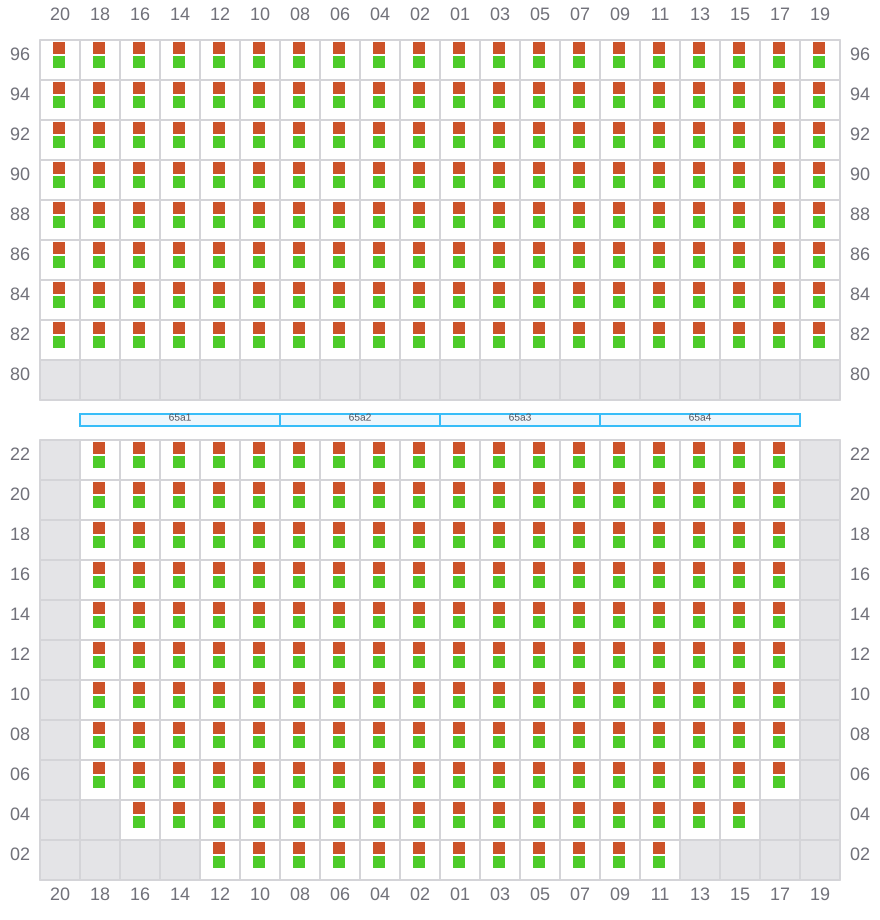

Bay 067 view and slots of COSCO ENGLAND

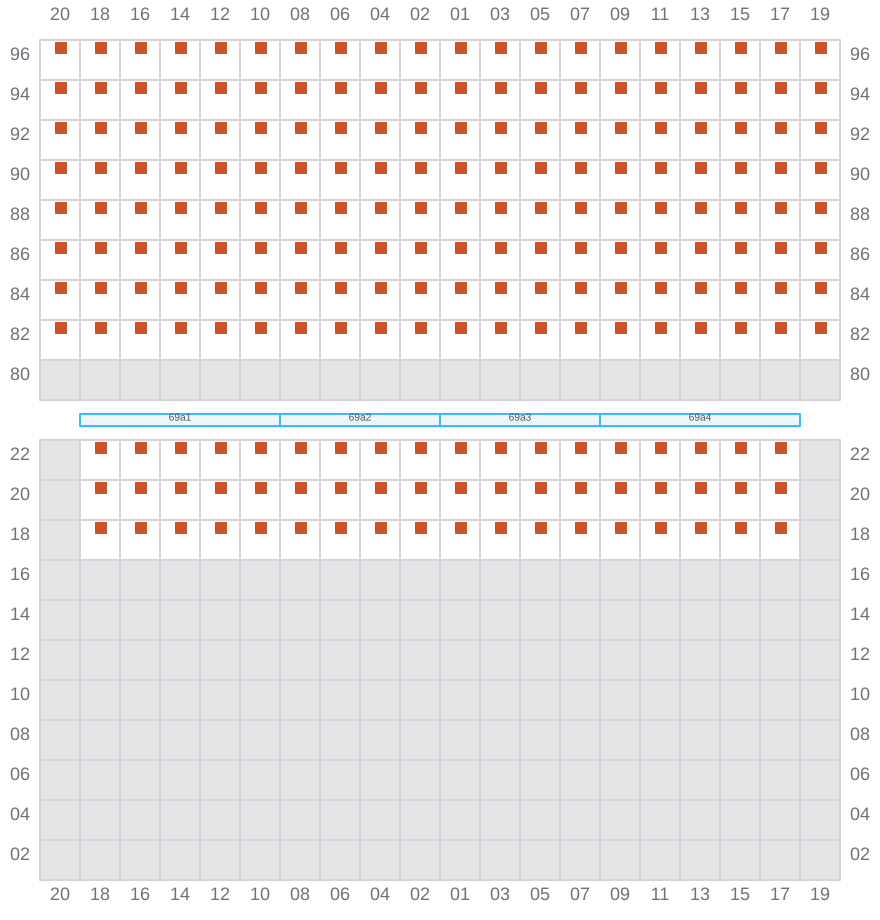

069

Bay 069 view and slots of COSCO ENGLAND

071 (070)

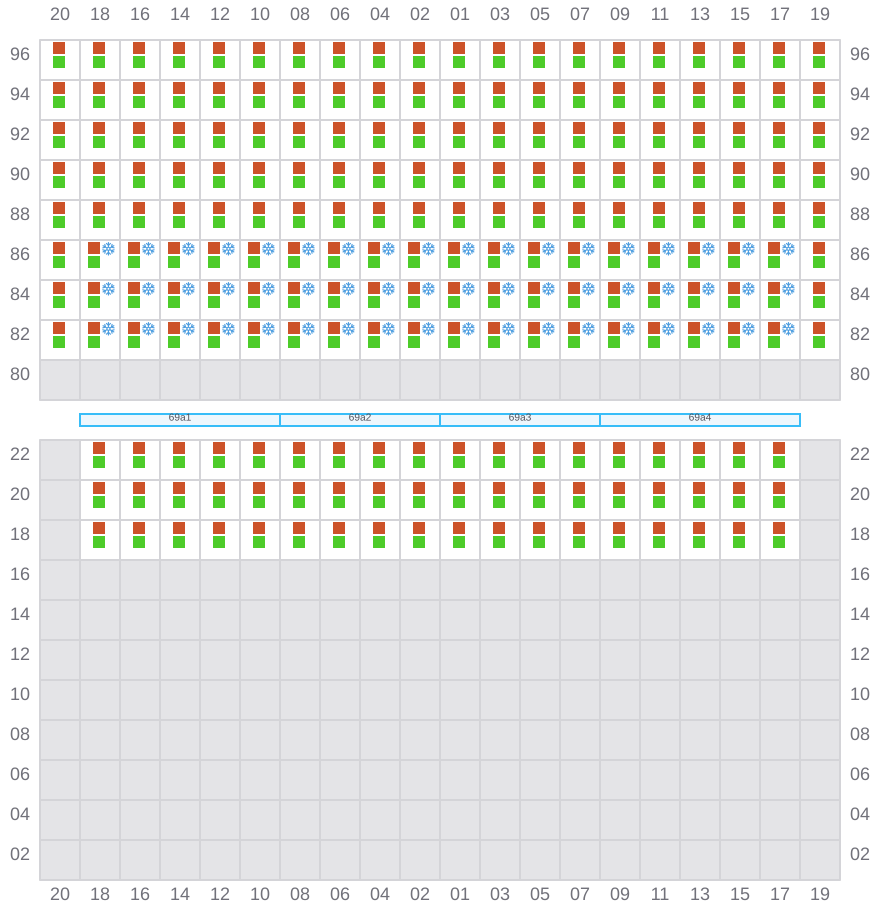

Bay 071 view and slots of COSCO ENGLAND

073

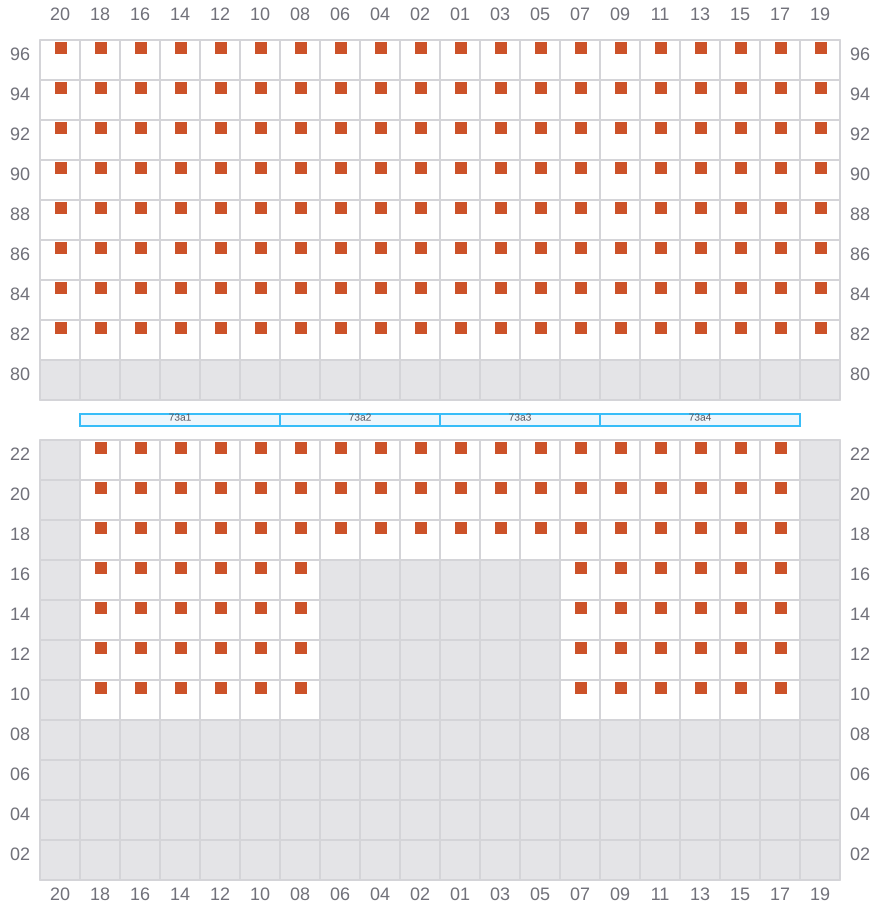

Bay 073 view and slots of COSCO ENGLAND

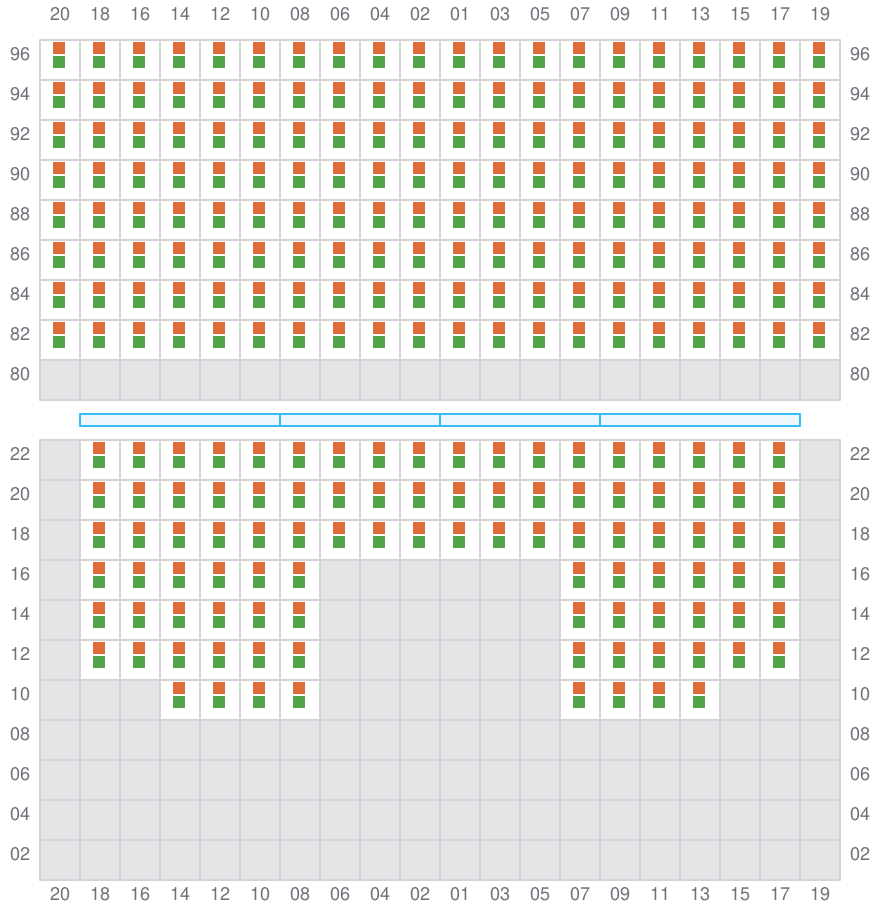

075 (074)

Bay 075 view and slots of COSCO ENGLAND

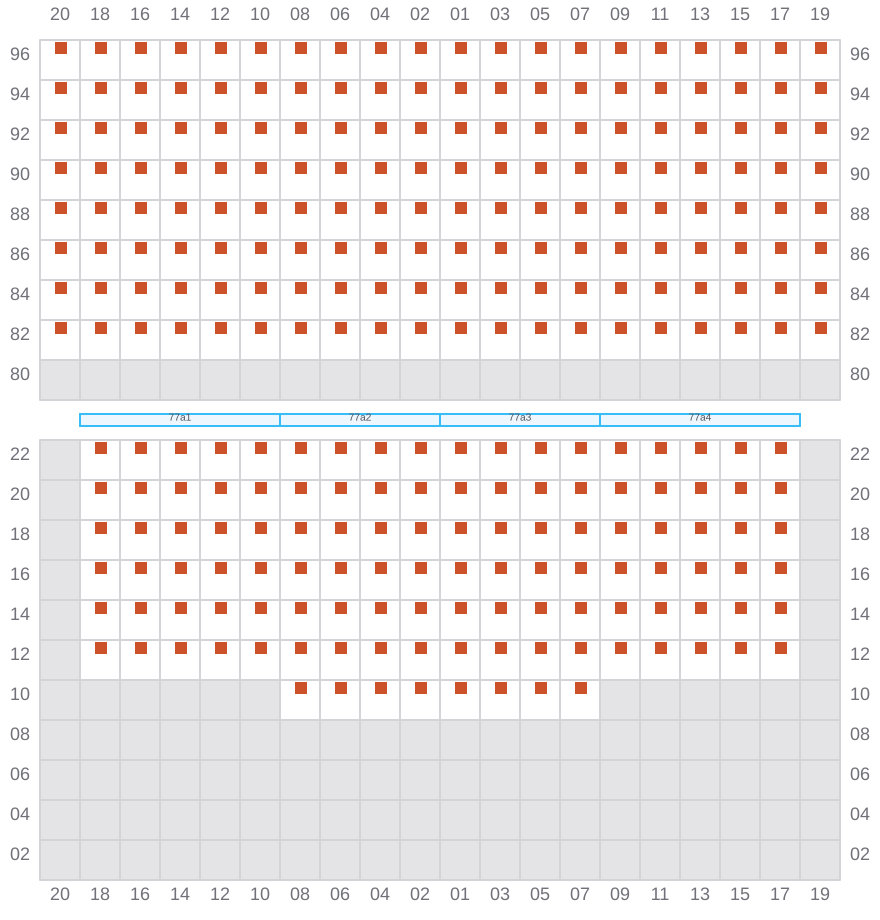

077

Bay 077 view and slots of COSCO ENGLAND

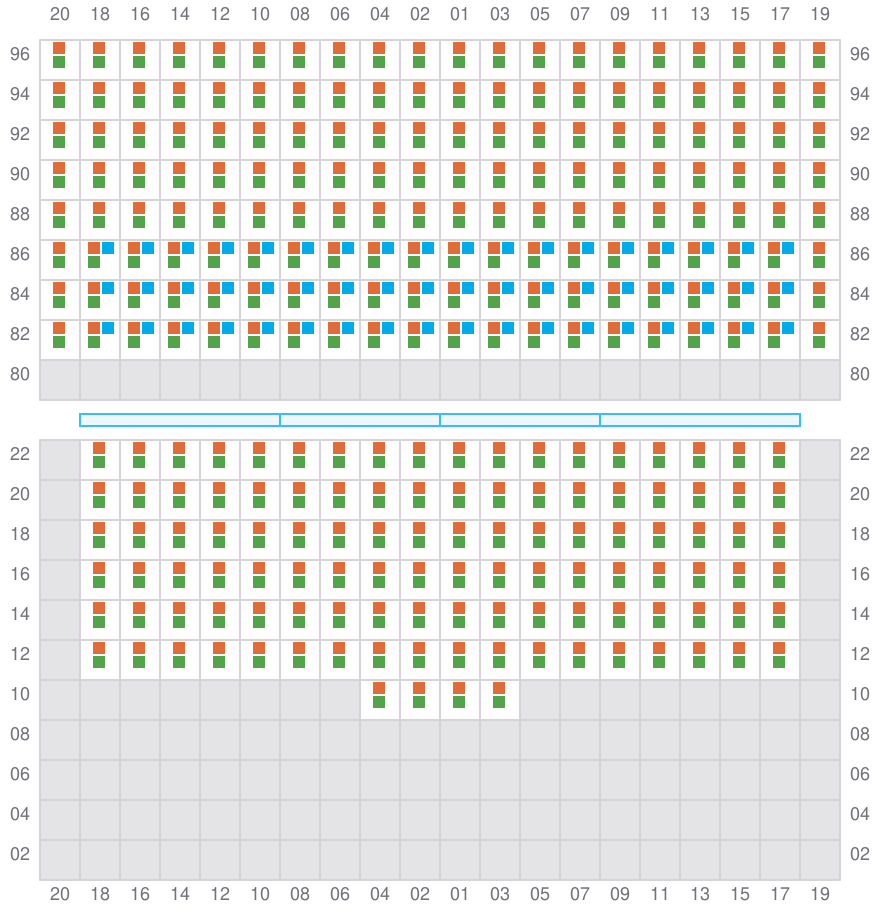

079 (078)

Bay 079 view and slots of COSCO ENGLAND

081

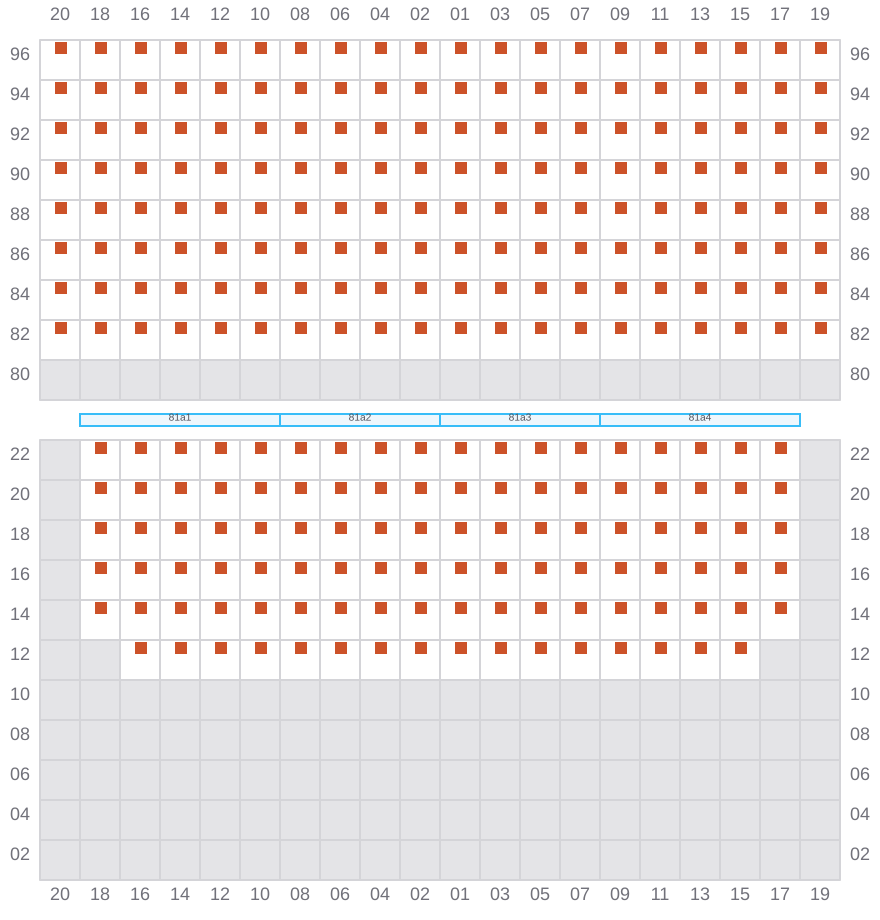

Bay 081 view and slots of COSCO ENGLAND

083 (082)

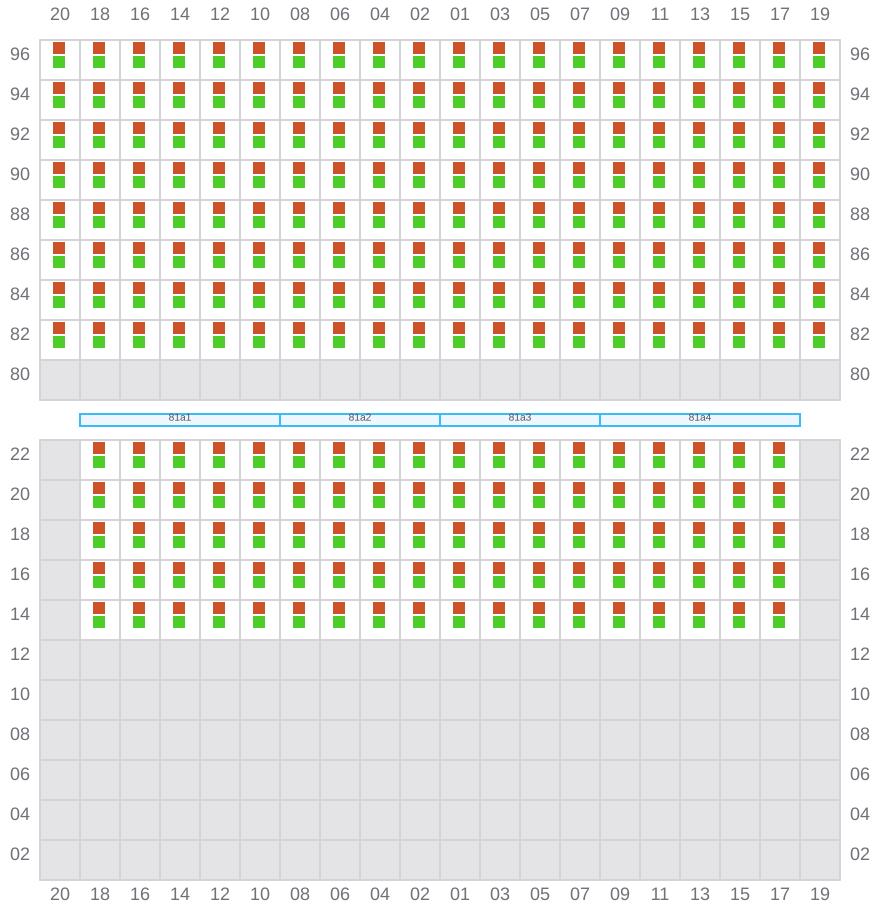

Bay 083 view and slots of COSCO ENGLAND

085

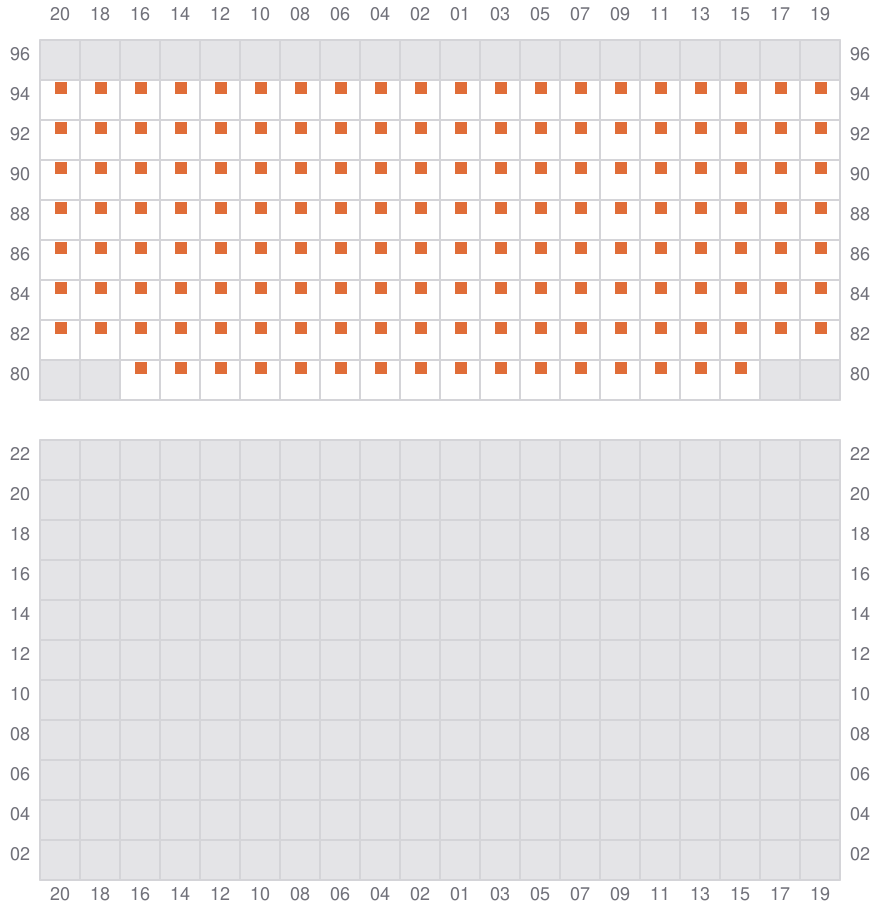

Bay 085 view and slots of COSCO ENGLAND

087 (086)

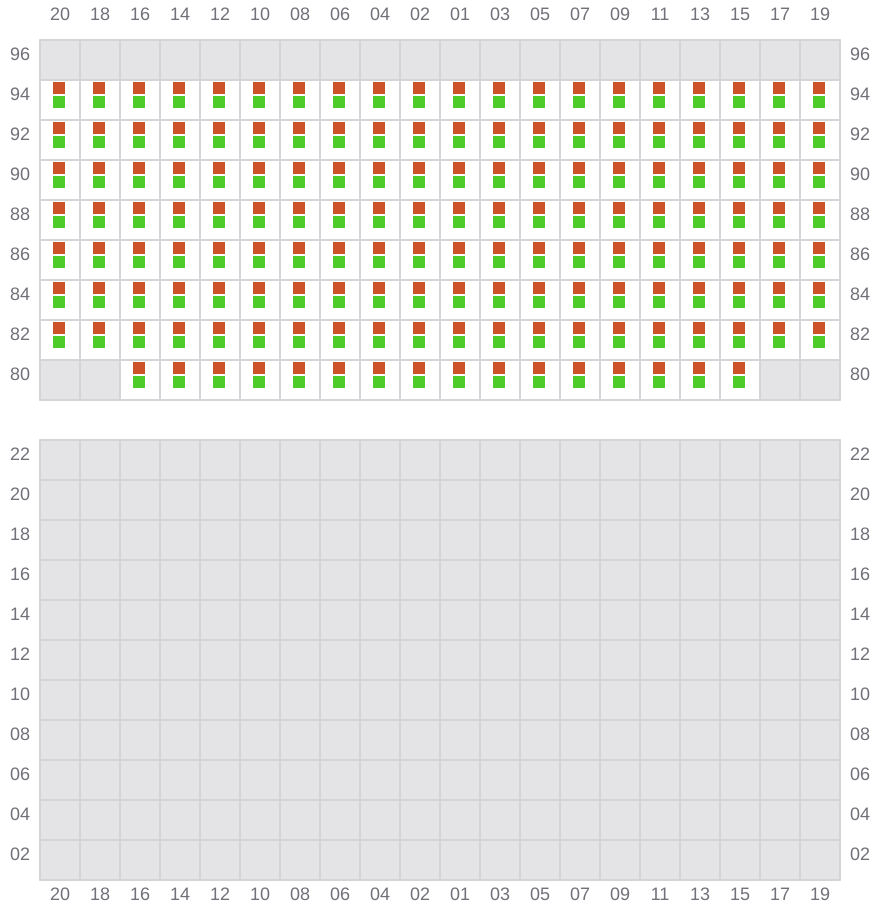

Bay 087 view and slots of COSCO ENGLAND
