COSCO FELIXSTOWE
9246401 | 2BOW3 | 924640 by ********* Last update: Wed Jul 03 2024

General Info

Ship Name:COSCO FELIXSTOWE
IMO Code:9246401
Call Sign:2BOW3
Line Operator:924640
Class Name for Sister Ships:COS
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,492

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of COSCO FELIXSTOWE

Hatch-Covers View

Deck view of COSCO FELIXSTOWE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

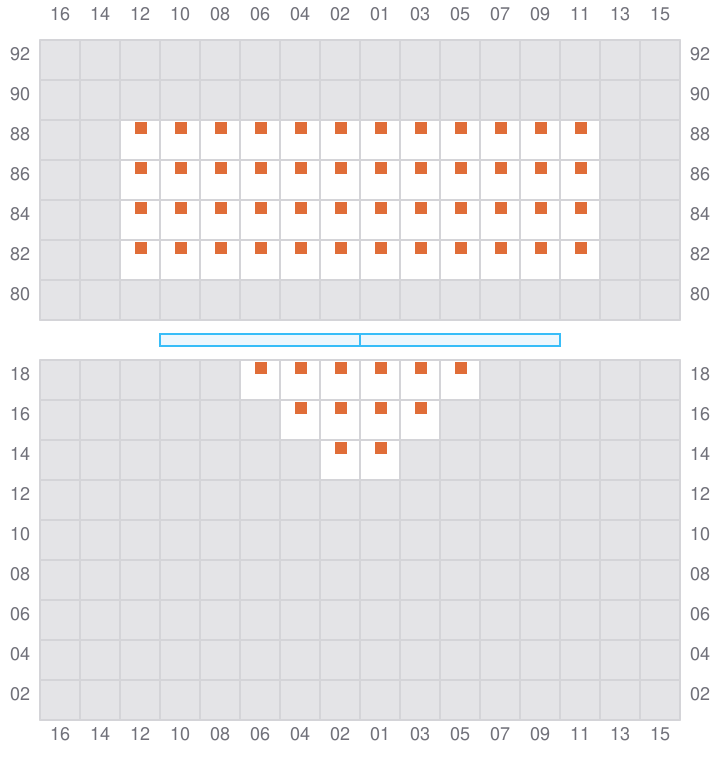

Bay 001 view and slots of COSCO FELIXSTOWE

003 (002)

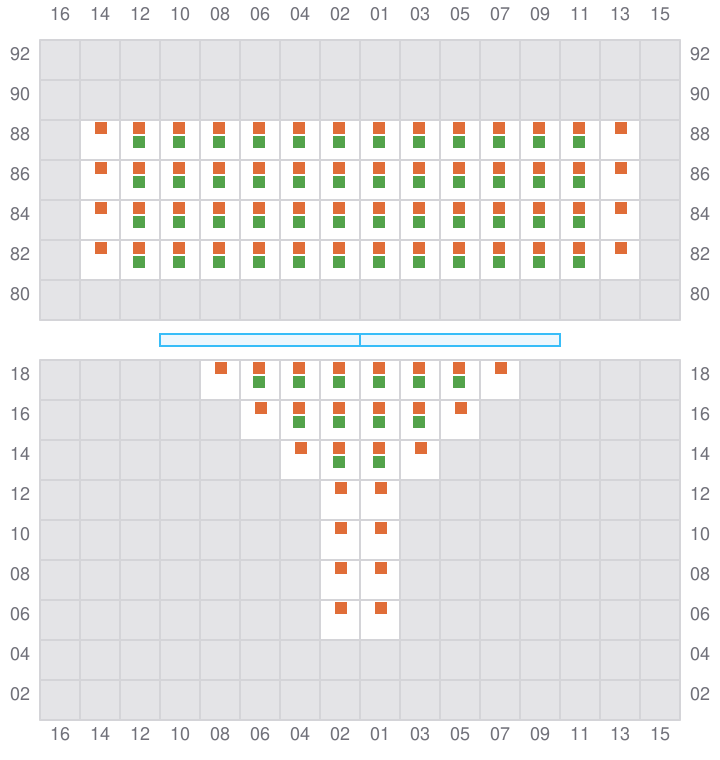

Bay 003 view and slots of COSCO FELIXSTOWE

005

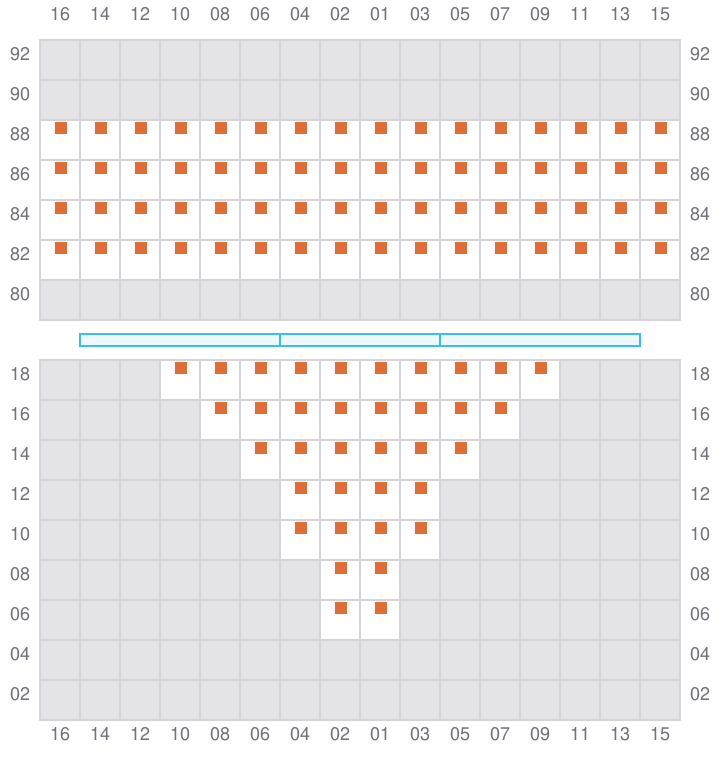

Bay 005 view and slots of COSCO FELIXSTOWE

007 (006)

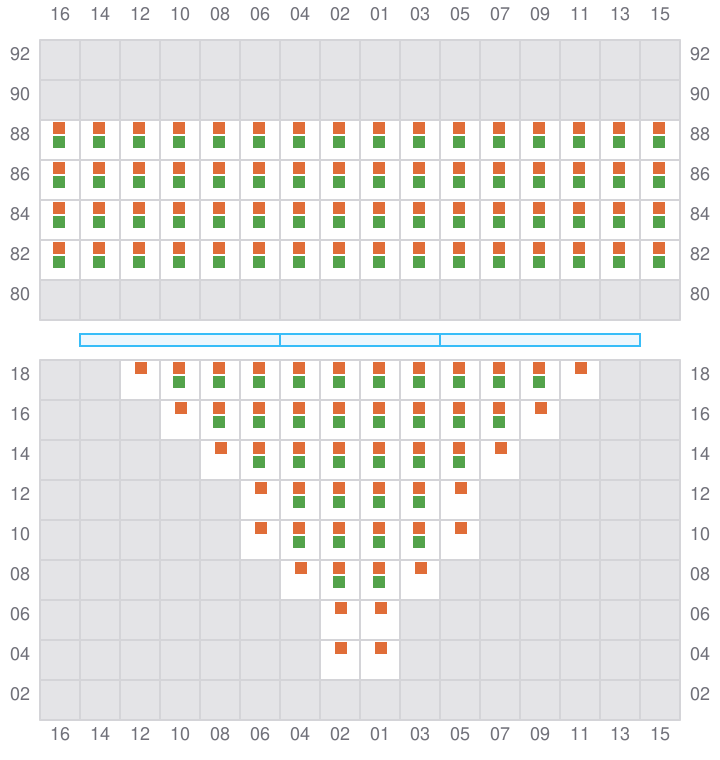

Bay 007 view and slots of COSCO FELIXSTOWE

009

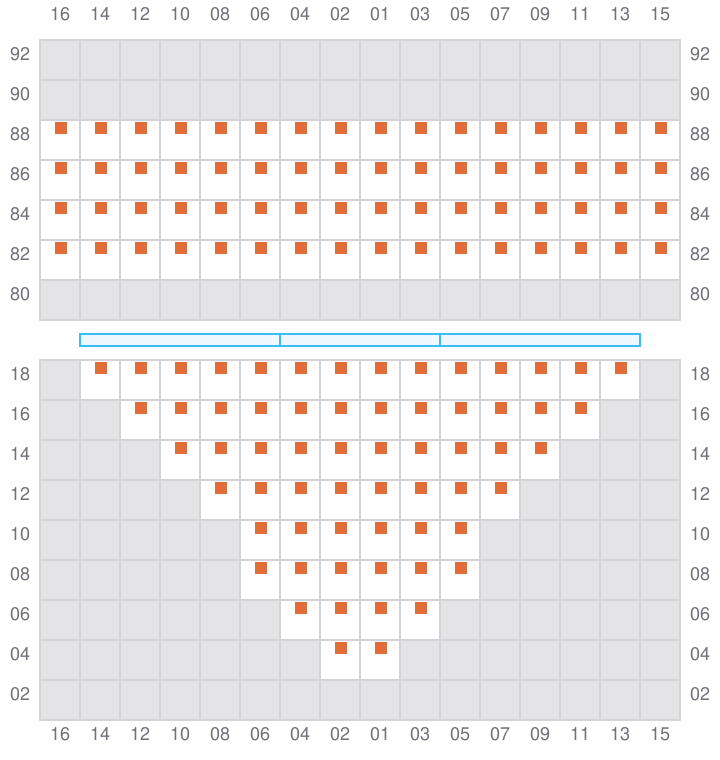

Bay 009 view and slots of COSCO FELIXSTOWE

011 (010)

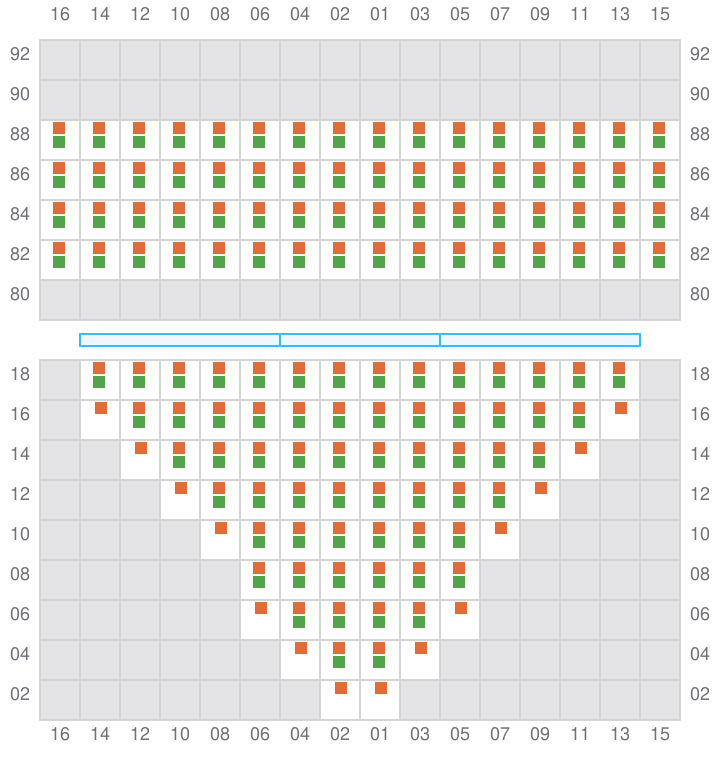

Bay 011 view and slots of COSCO FELIXSTOWE

013

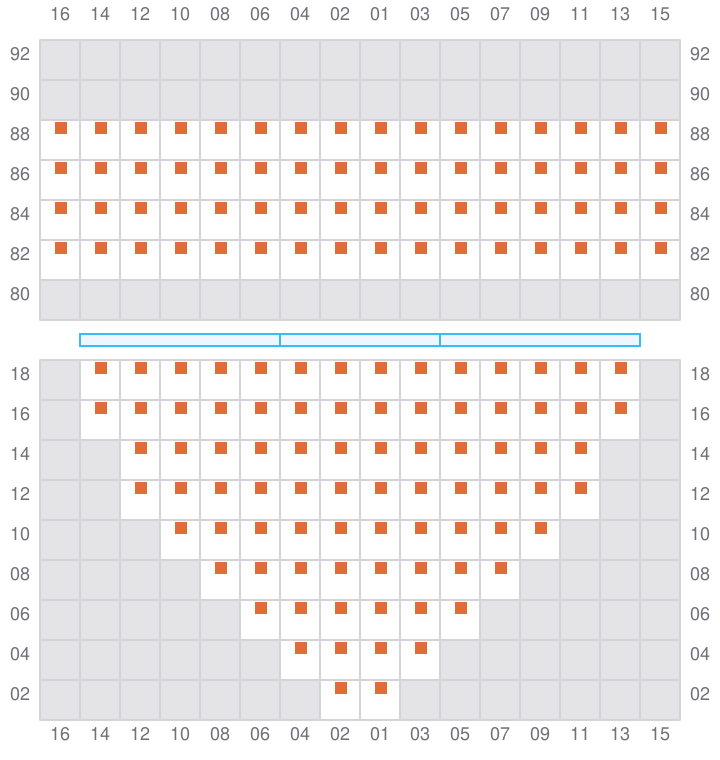

Bay 013 view and slots of COSCO FELIXSTOWE

015 (014)

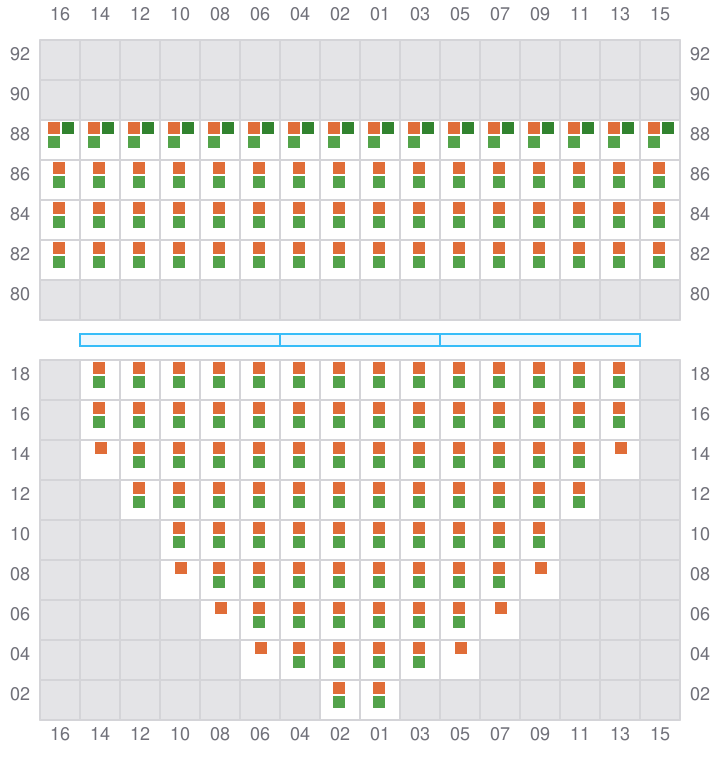

Bay 015 view and slots of COSCO FELIXSTOWE

017

Bay 017 view and slots of COSCO FELIXSTOWE

019 (018)

Bay 019 view and slots of COSCO FELIXSTOWE

021

Bay 021 view and slots of COSCO FELIXSTOWE

023 (022)

Bay 023 view and slots of COSCO FELIXSTOWE

025

Bay 025 view and slots of COSCO FELIXSTOWE

027 (026)

Bay 027 view and slots of COSCO FELIXSTOWE

029

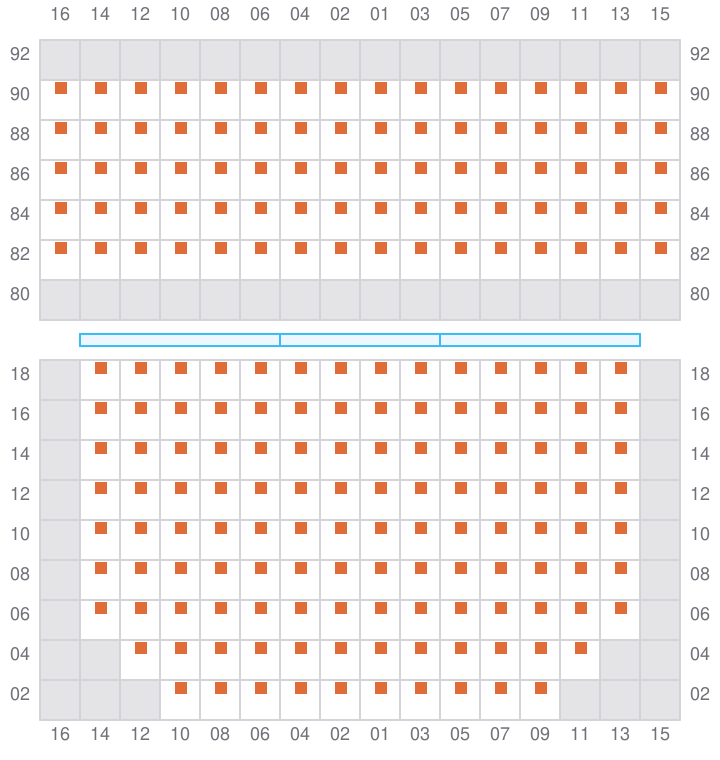

Bay 029 view and slots of COSCO FELIXSTOWE

031 (030)

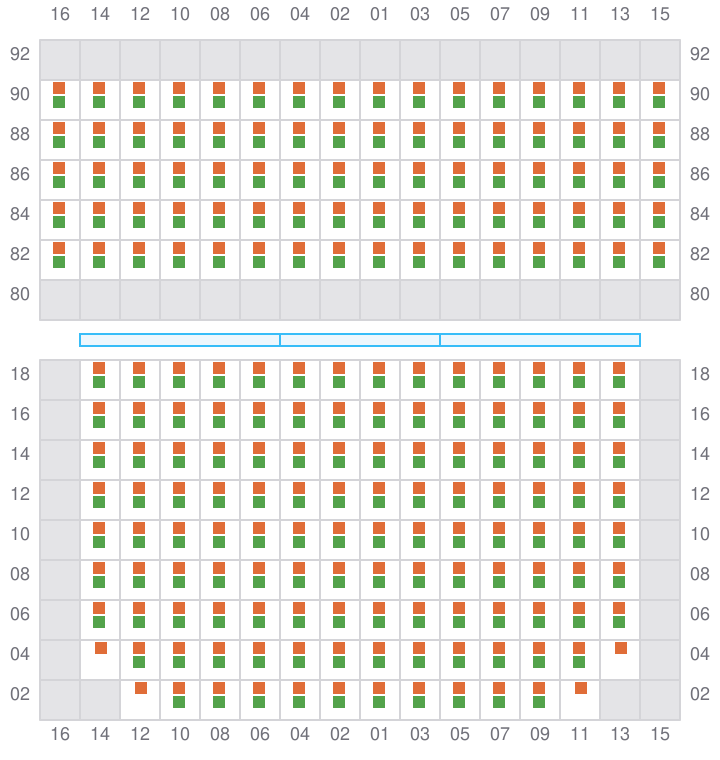

Bay 031 view and slots of COSCO FELIXSTOWE

033

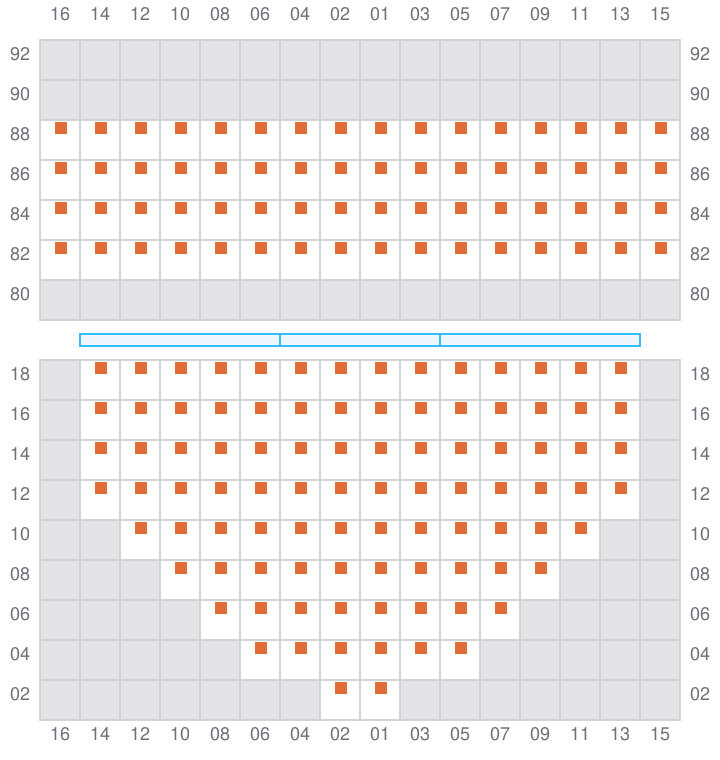

Bay 033 view and slots of COSCO FELIXSTOWE

035 (034)

Bay 035 view and slots of COSCO FELIXSTOWE

037

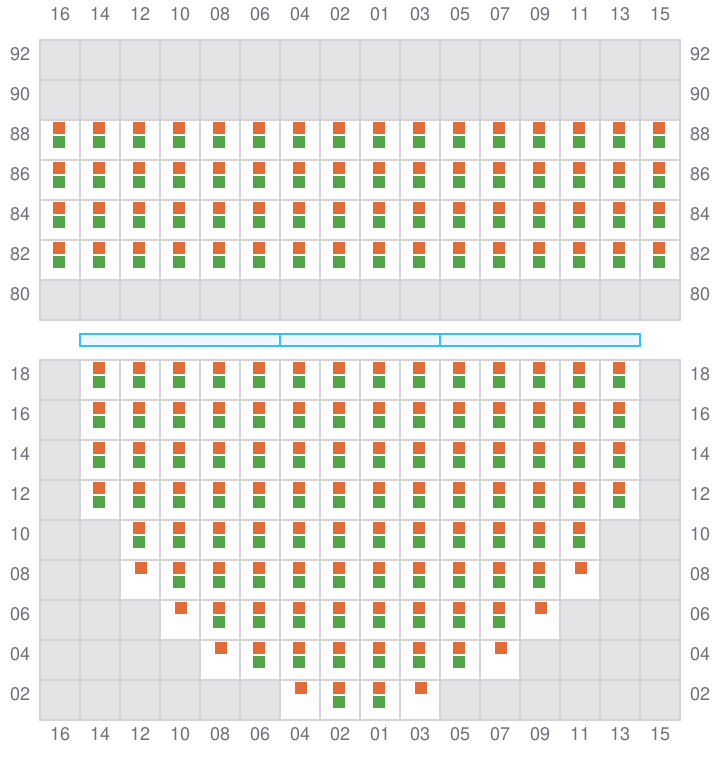

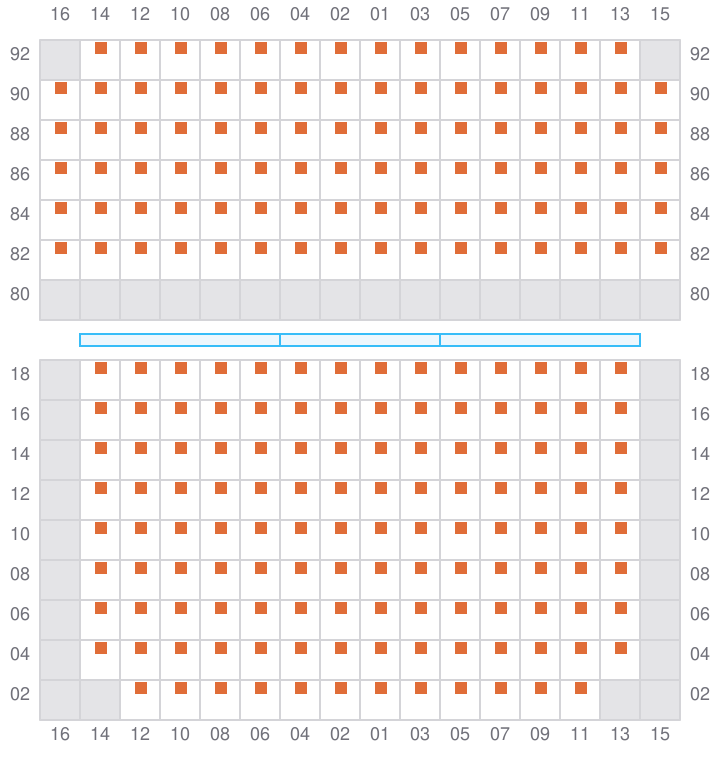

Bay 037 view and slots of COSCO FELIXSTOWE

039 (038)

Bay 039 view and slots of COSCO FELIXSTOWE

041

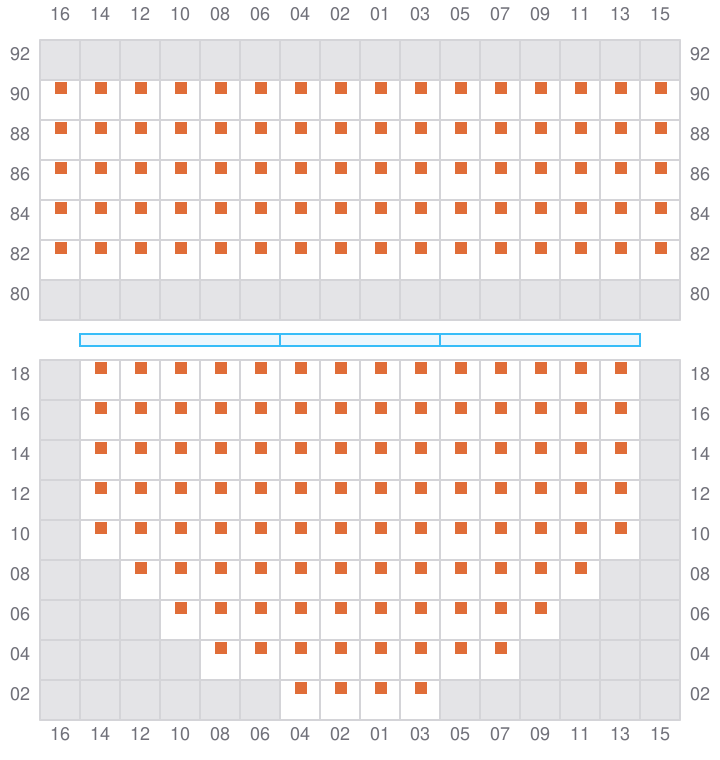

Bay 041 view and slots of COSCO FELIXSTOWE

043 (042)

Bay 043 view and slots of COSCO FELIXSTOWE

045

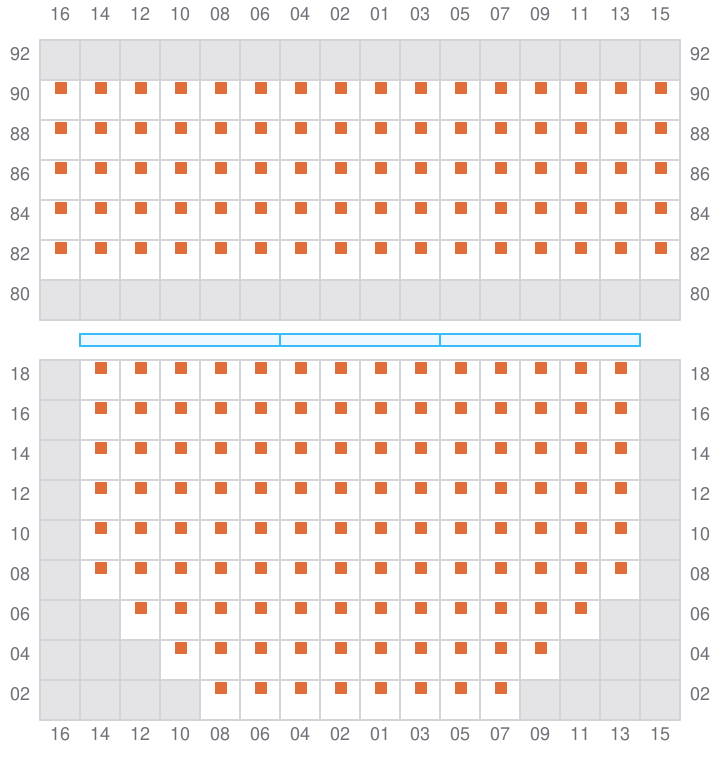

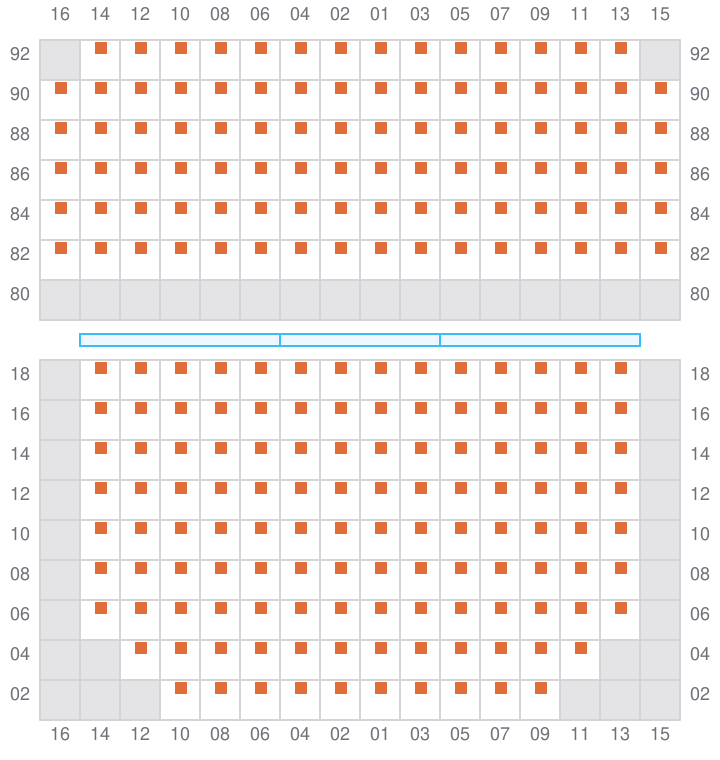

Bay 045 view and slots of COSCO FELIXSTOWE

047 (046)

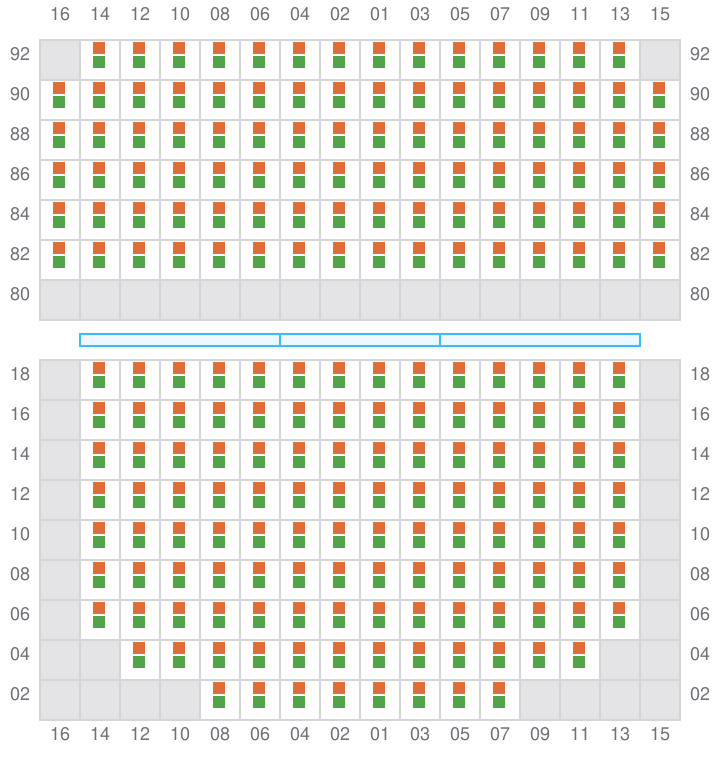

Bay 047 view and slots of COSCO FELIXSTOWE

049

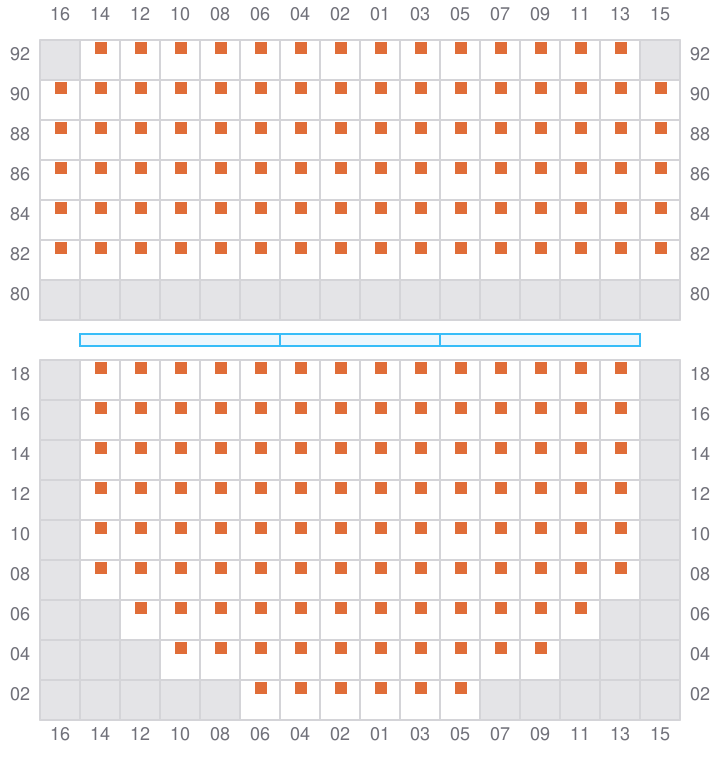

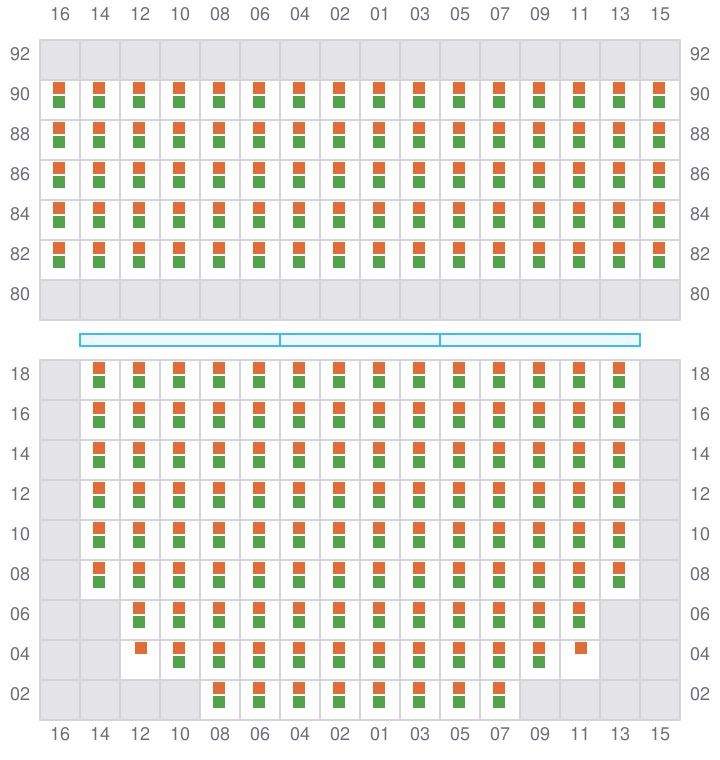

Bay 049 view and slots of COSCO FELIXSTOWE

051 (050)

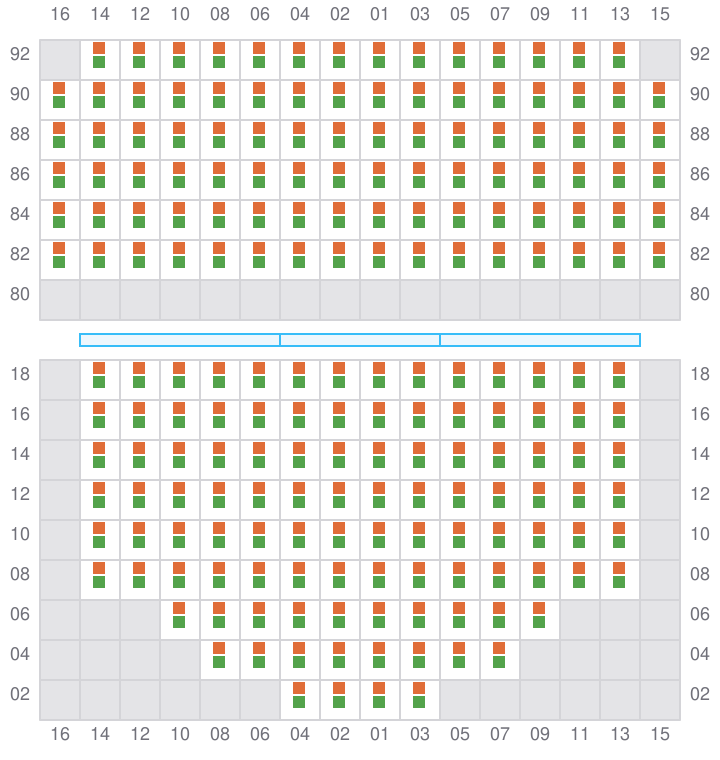

Bay 051 view and slots of COSCO FELIXSTOWE

053

Bay 053 view and slots of COSCO FELIXSTOWE

055

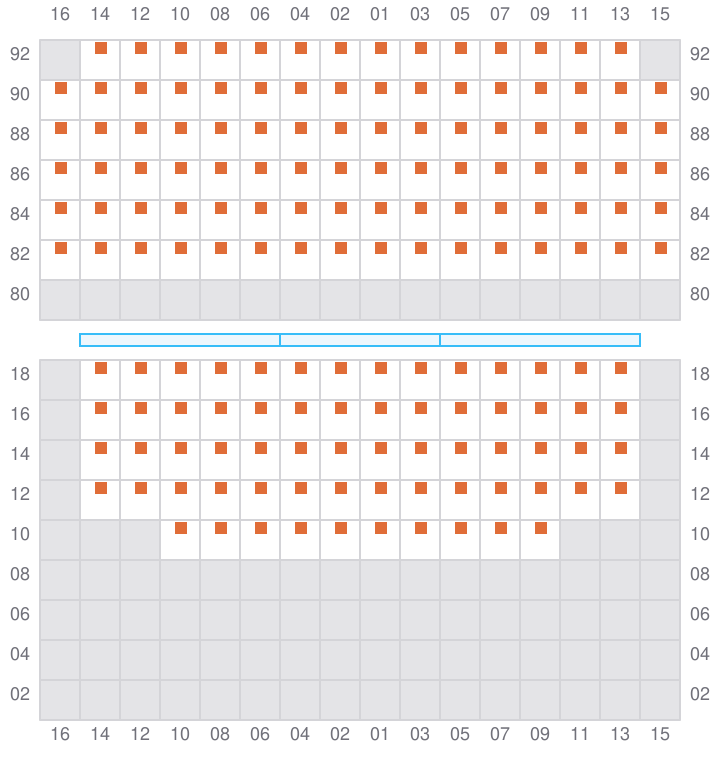

Bay 055 view and slots of COSCO FELIXSTOWE

057 (056)

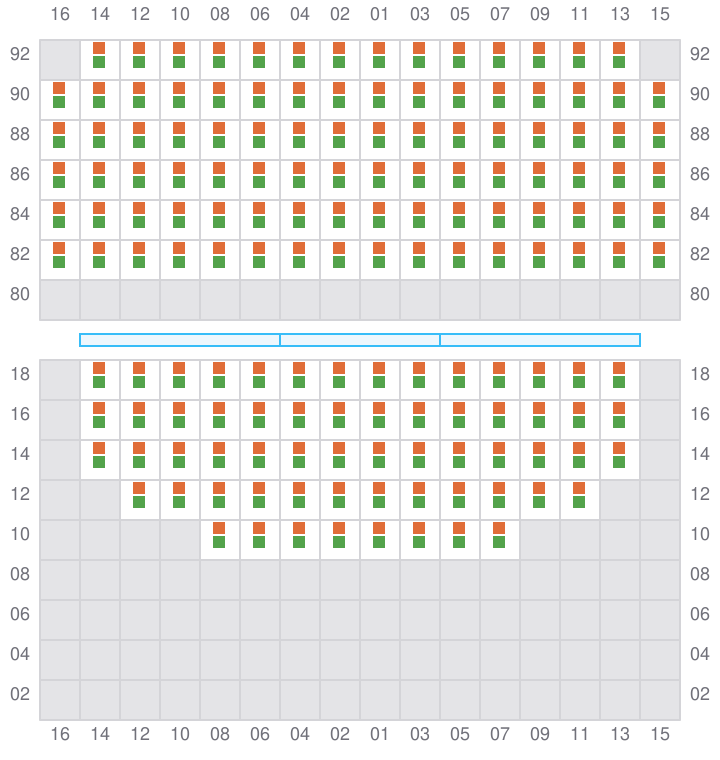

Bay 057 view and slots of COSCO FELIXSTOWE

059

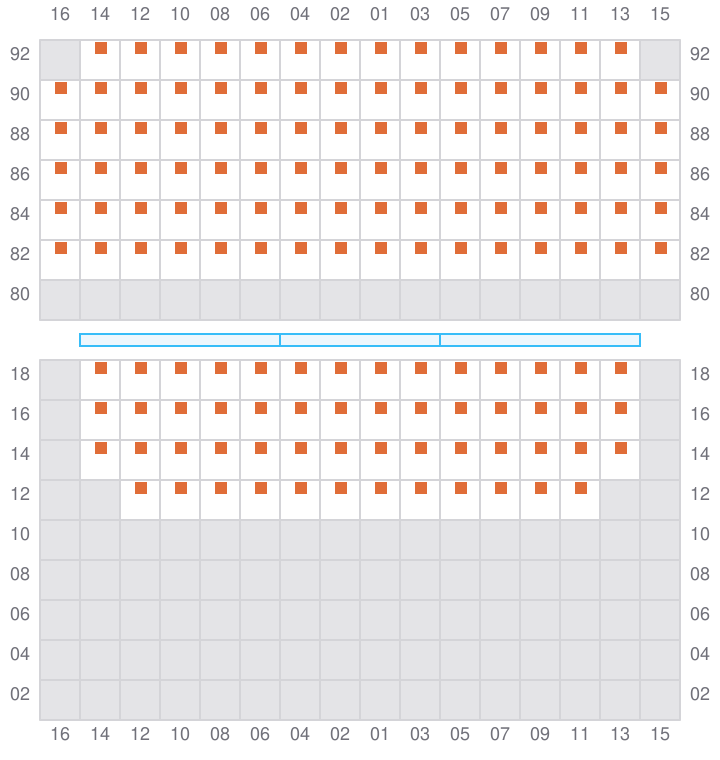

Bay 059 view and slots of COSCO FELIXSTOWE

061 (060)

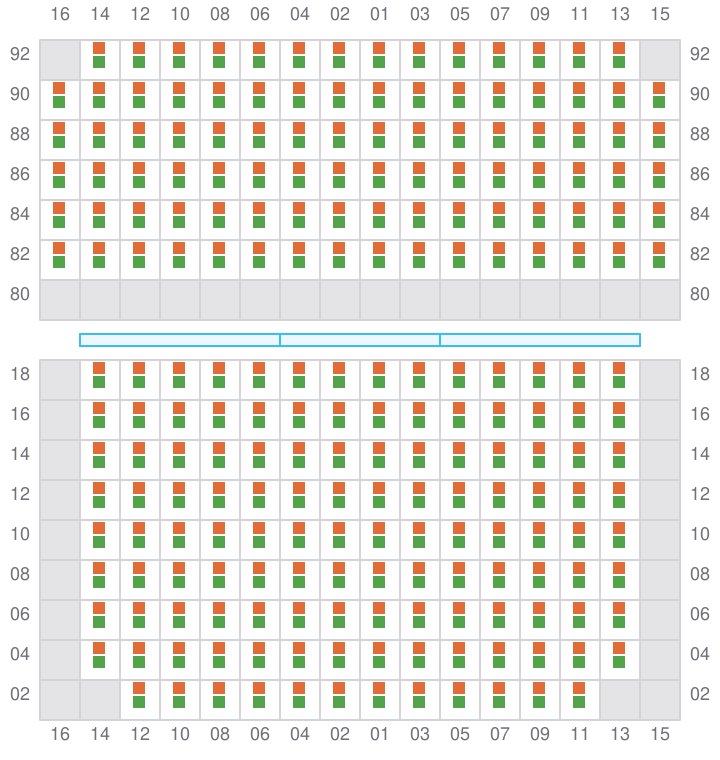

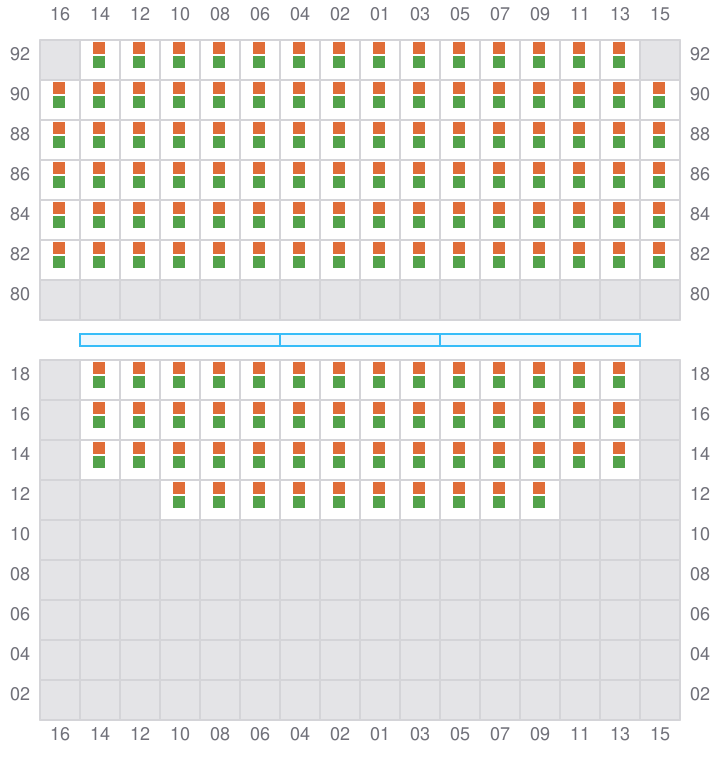

Bay 061 view and slots of COSCO FELIXSTOWE

063

Bay 063 view and slots of COSCO FELIXSTOWE

065 (064)

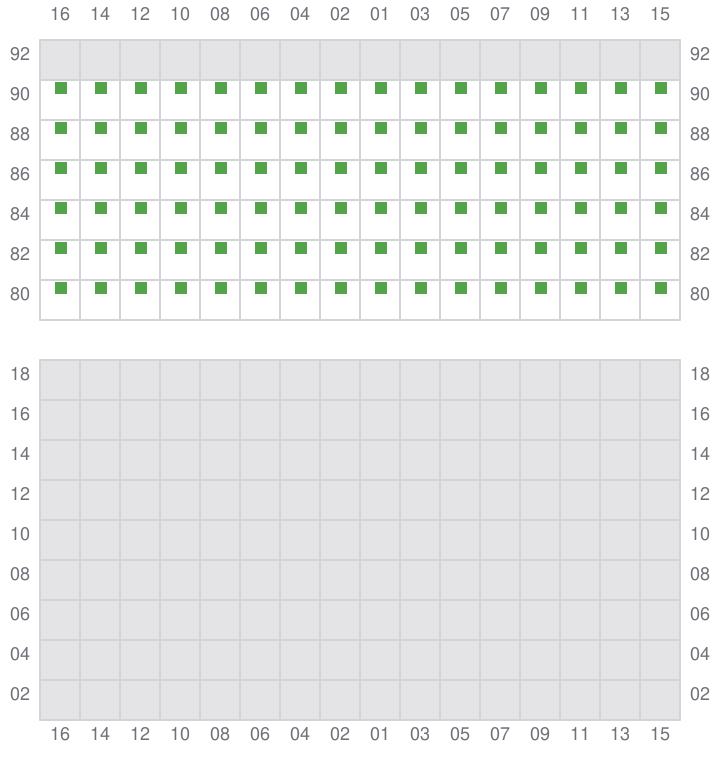

Bay 065 view and slots of COSCO FELIXSTOWE
