COSCO HAMBURG
9221085 | 2BOX9 | 9221085 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:COSCO HAMBURG
IMO Code:9221085
Call Sign:2BOX9
Line Operator:9221085
Class Name for Sister Ships:COSCO HAMBURG
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,470
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

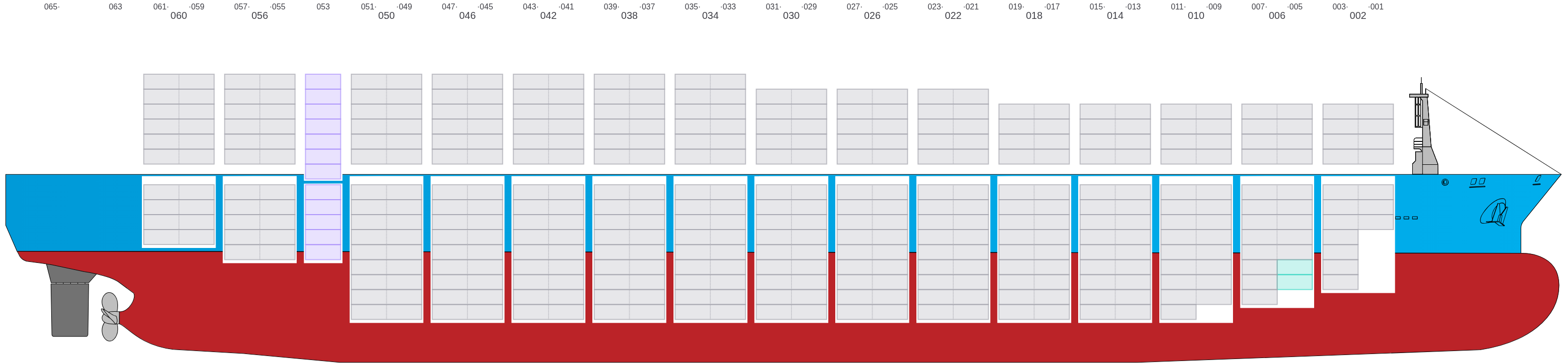

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

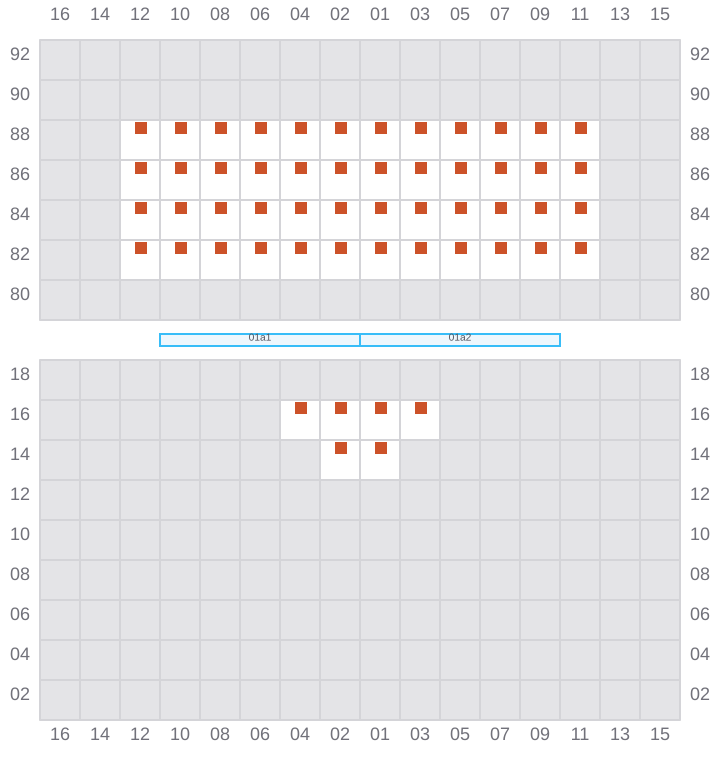

001
- →

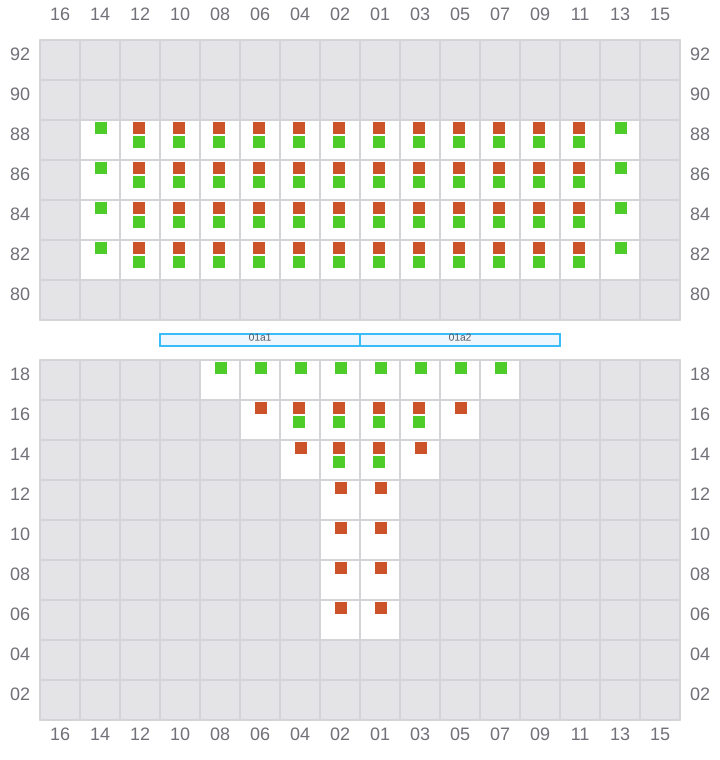

003 (002)
- ←

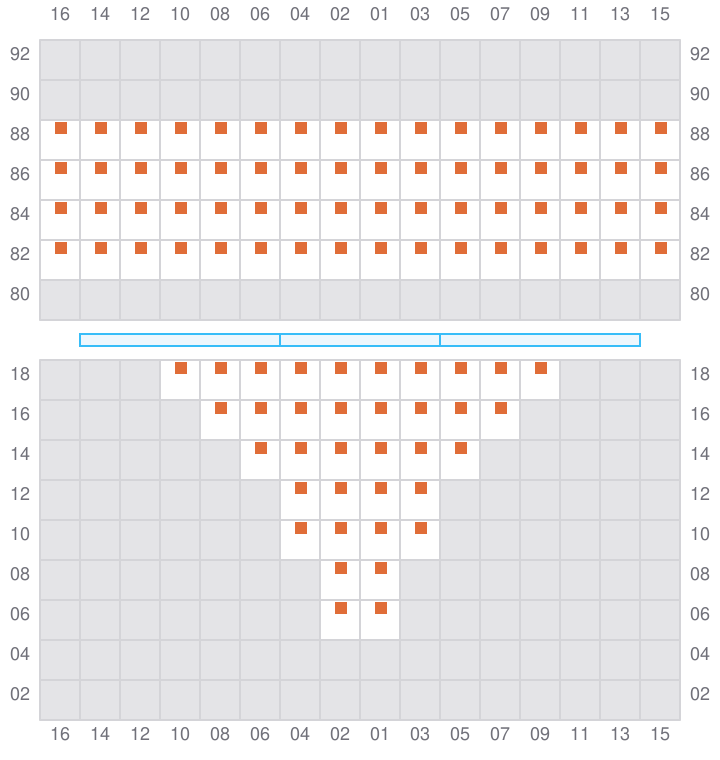

005
- →

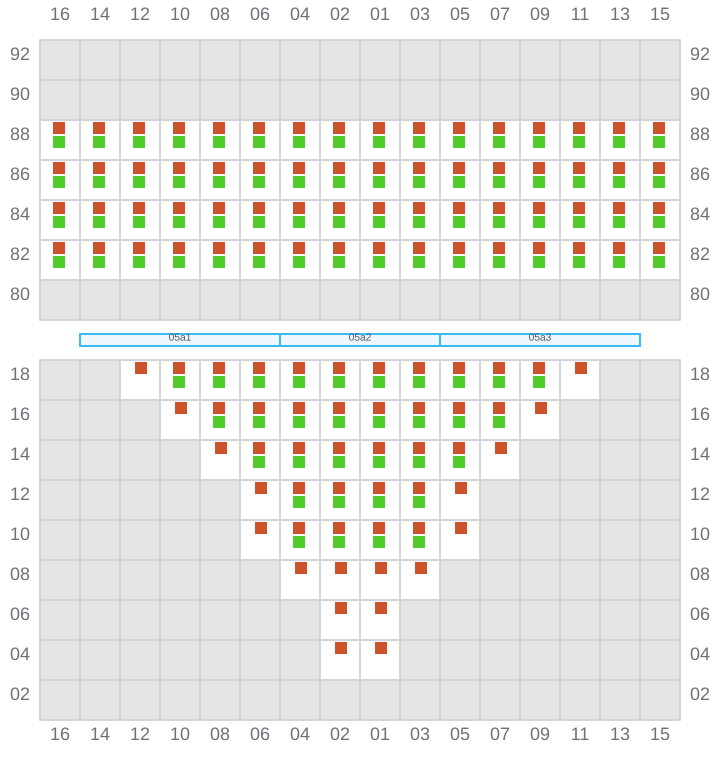

007 (006)
- ←

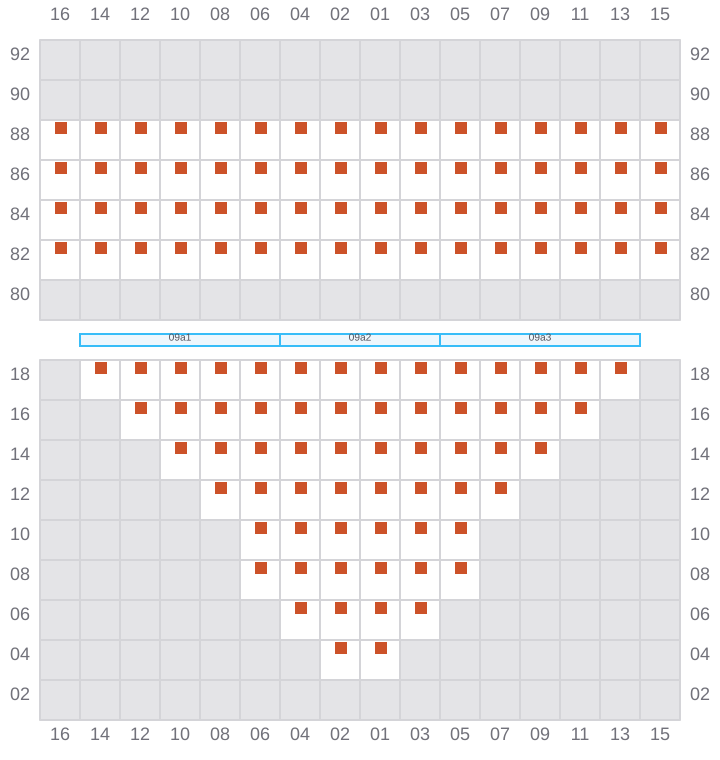

009
- →

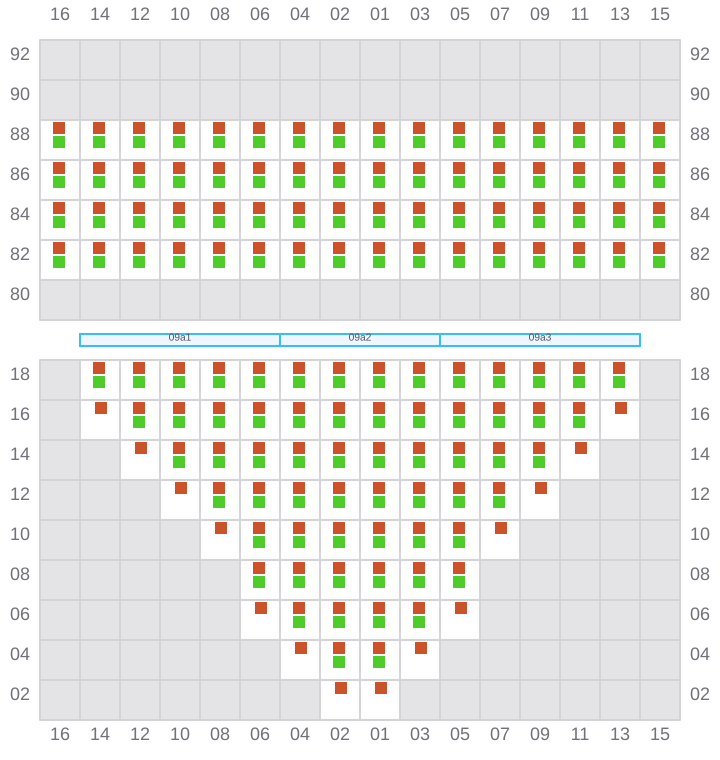

011 (010)
- ←

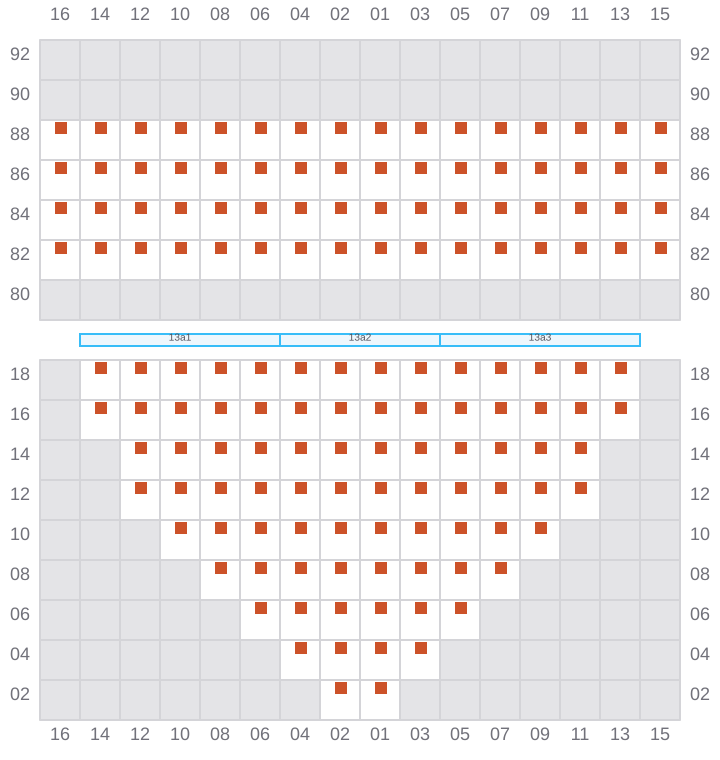

013
- →
015 (014)
- ←

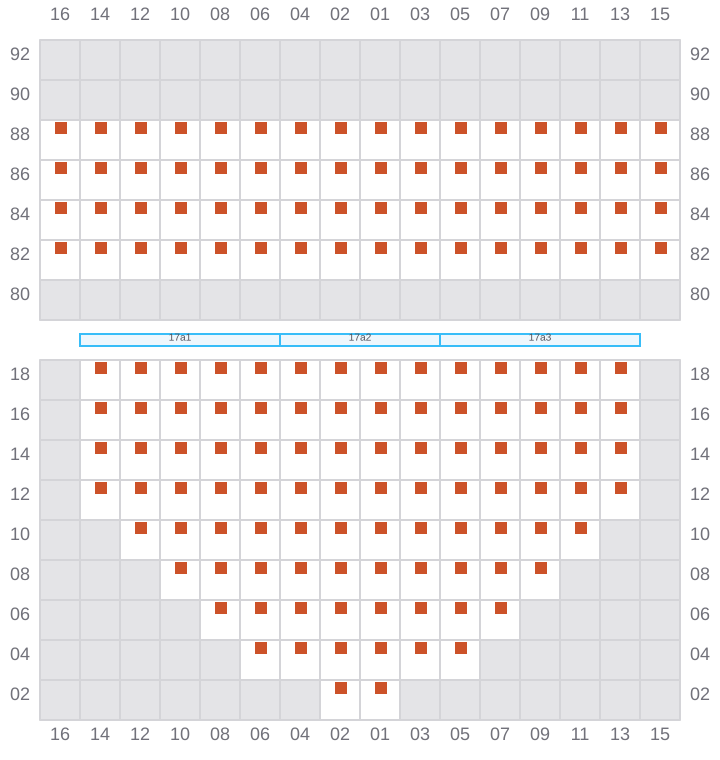

017
- →

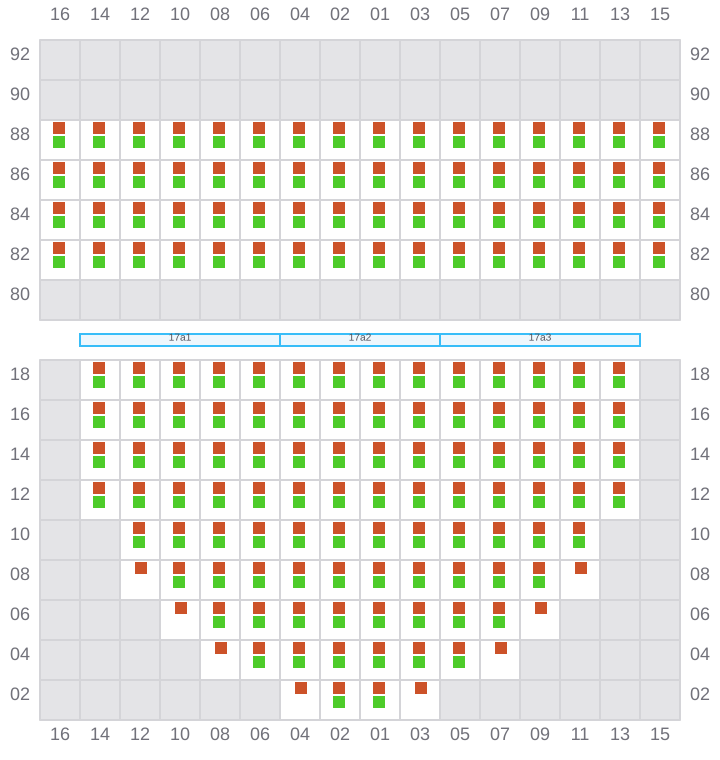

019 (018)
- ←

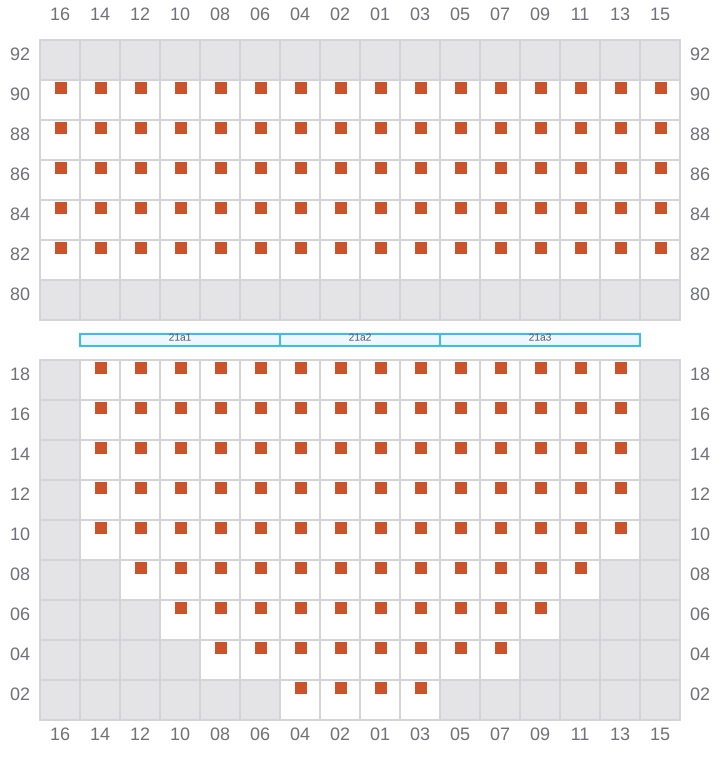

021
- →

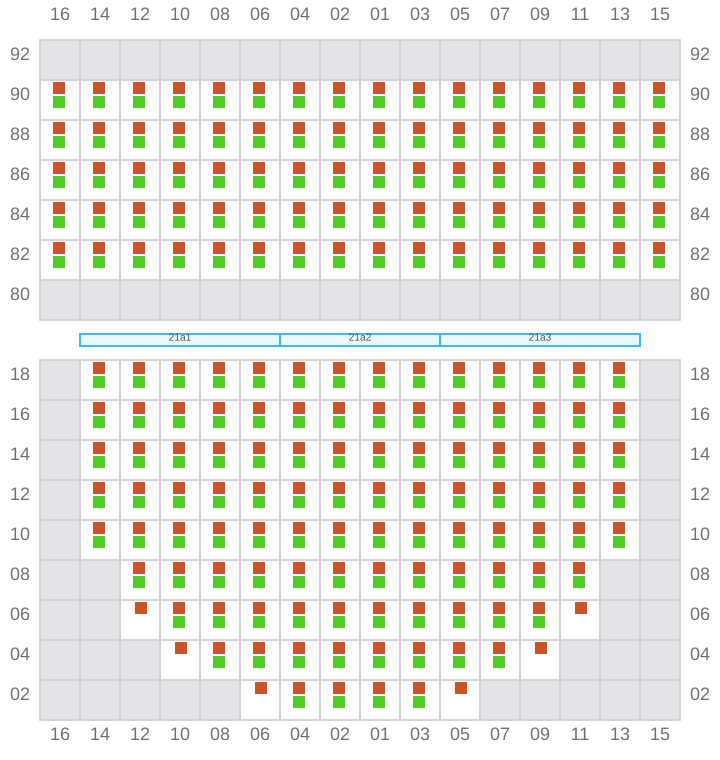

023 (022)
- ←

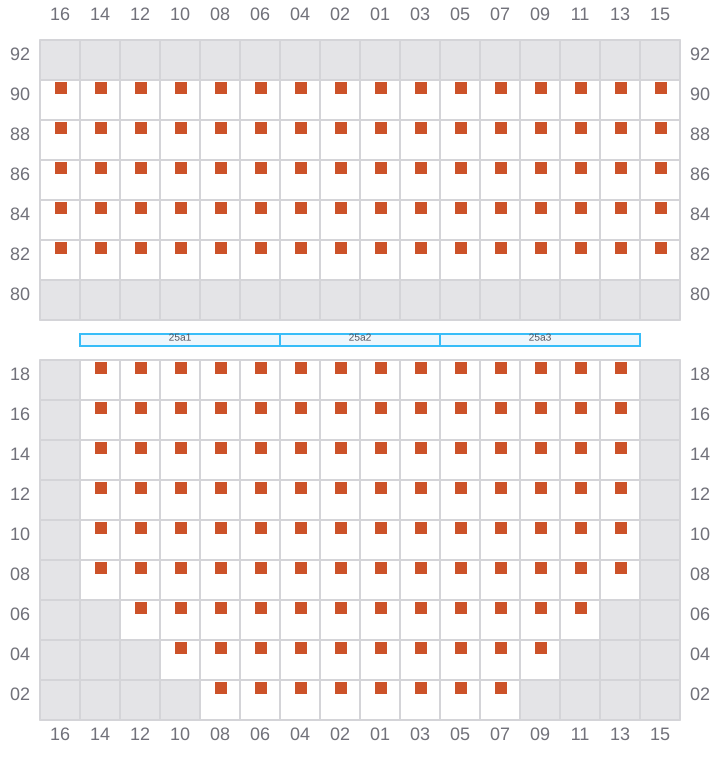

025
- →

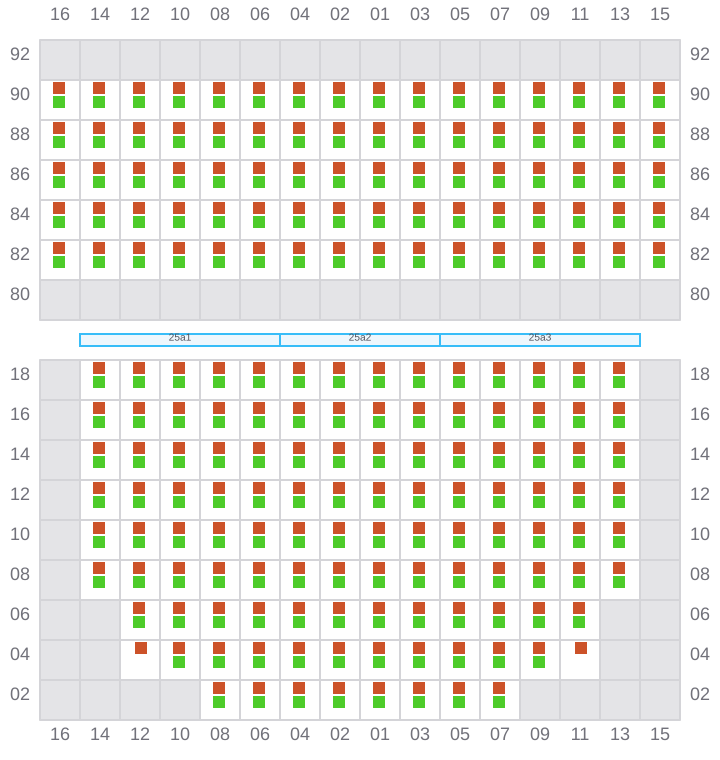

027 (026)
- ←

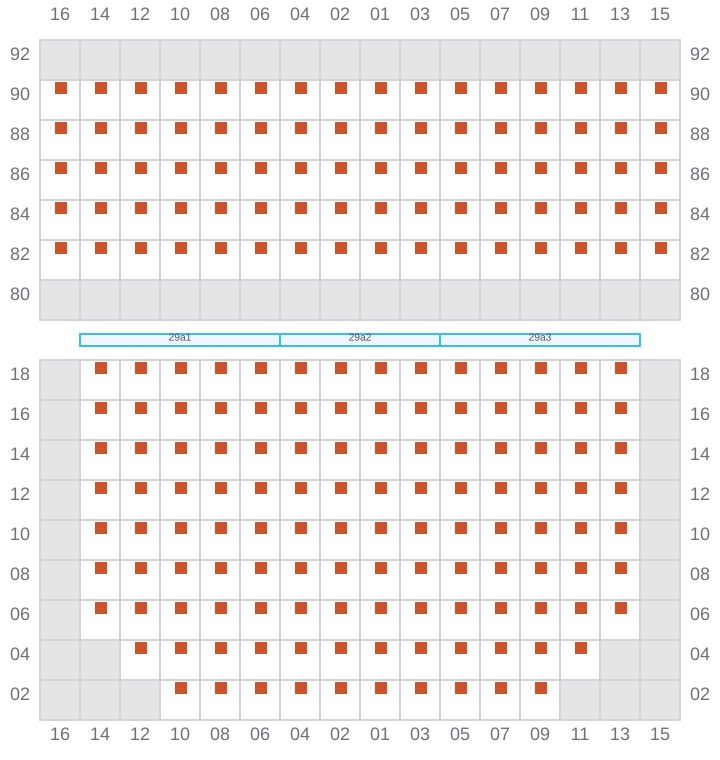

029
- →
031 (030)
- ←

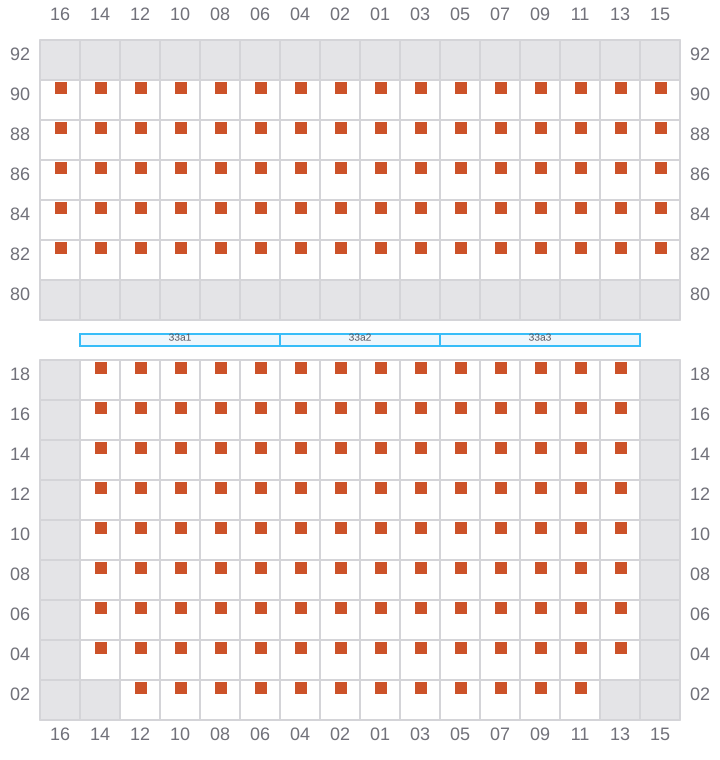

033
- →

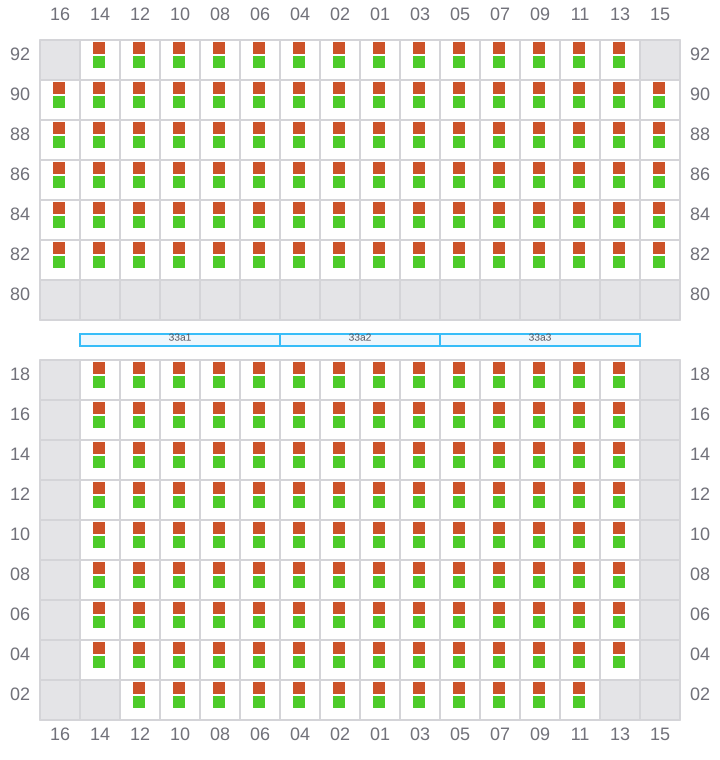

035 (034)
- ←

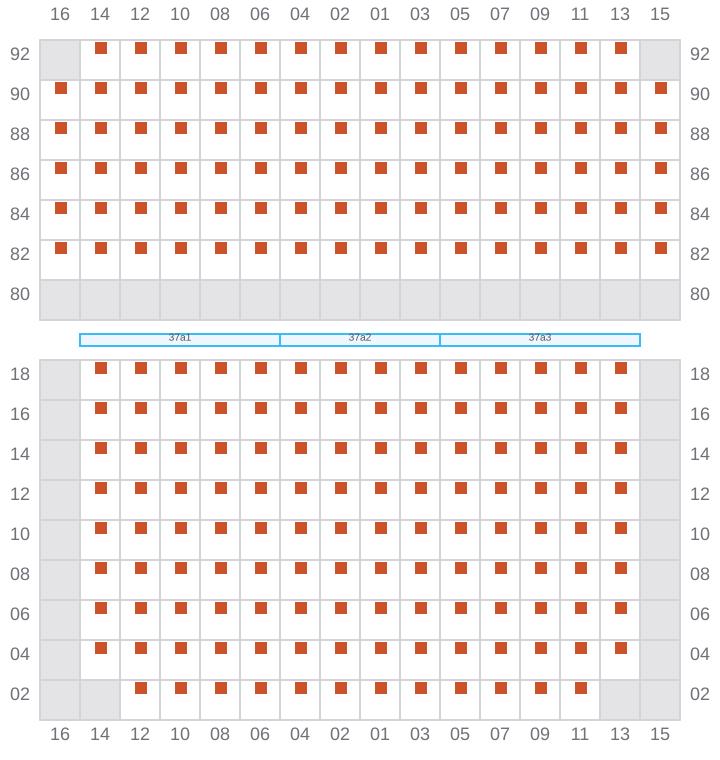

037
- →
039 (038)
- ←

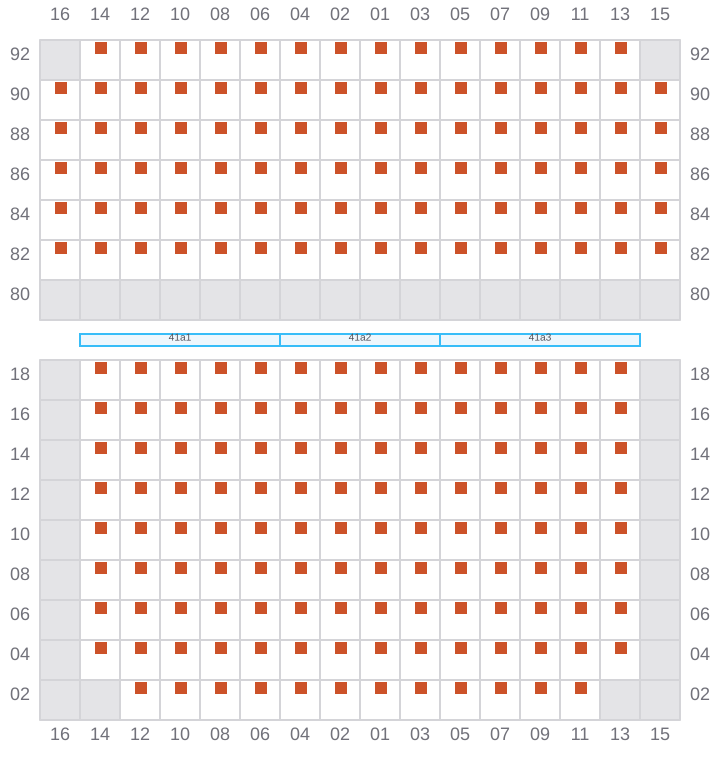

041
- →
043 (042)
- ←
045
- →

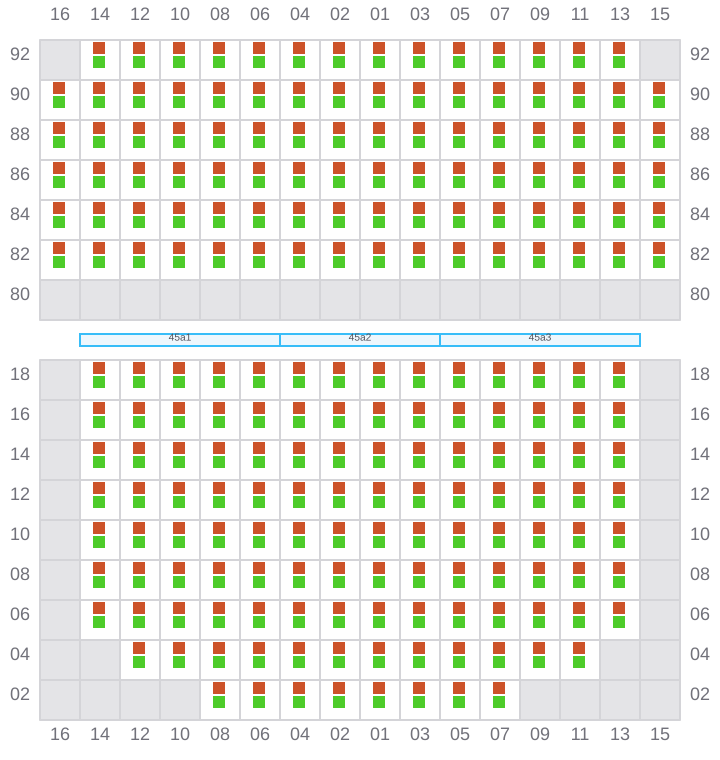

047 (046)
- ←

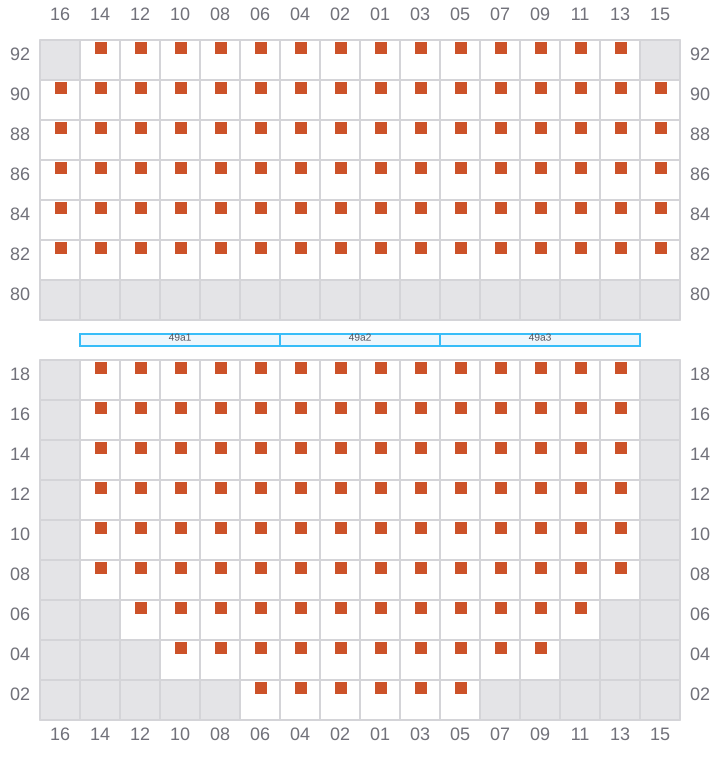

049
- →
051 (050)
- ←

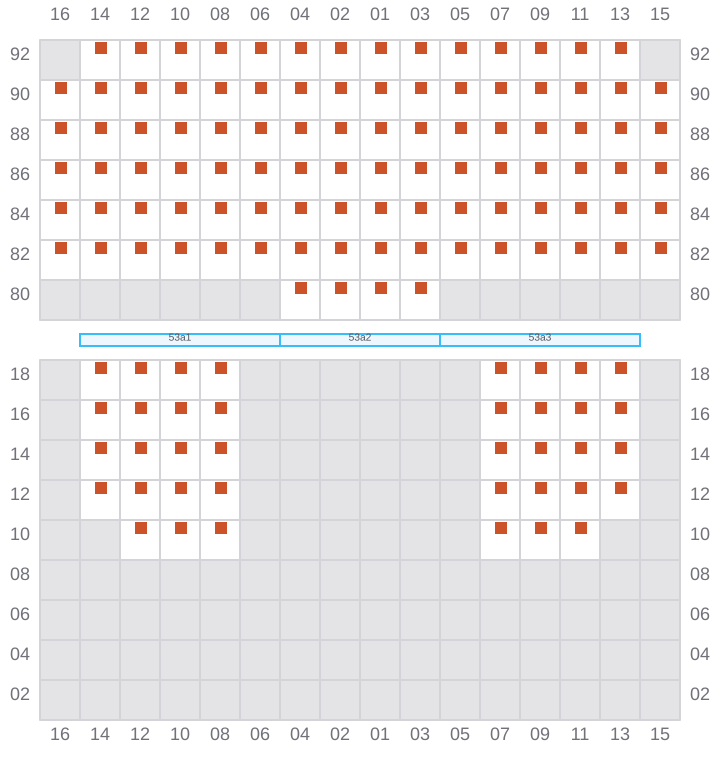

053

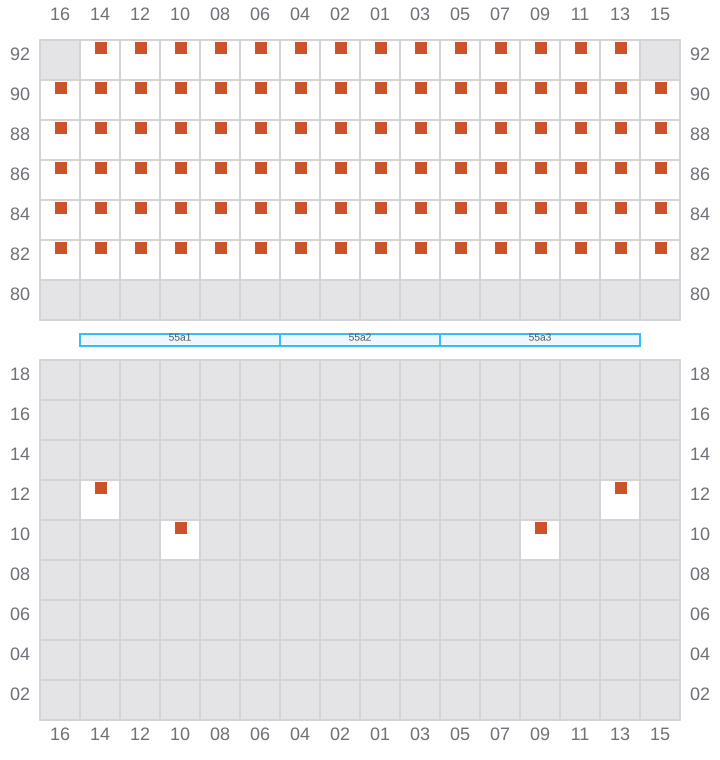

055
- →

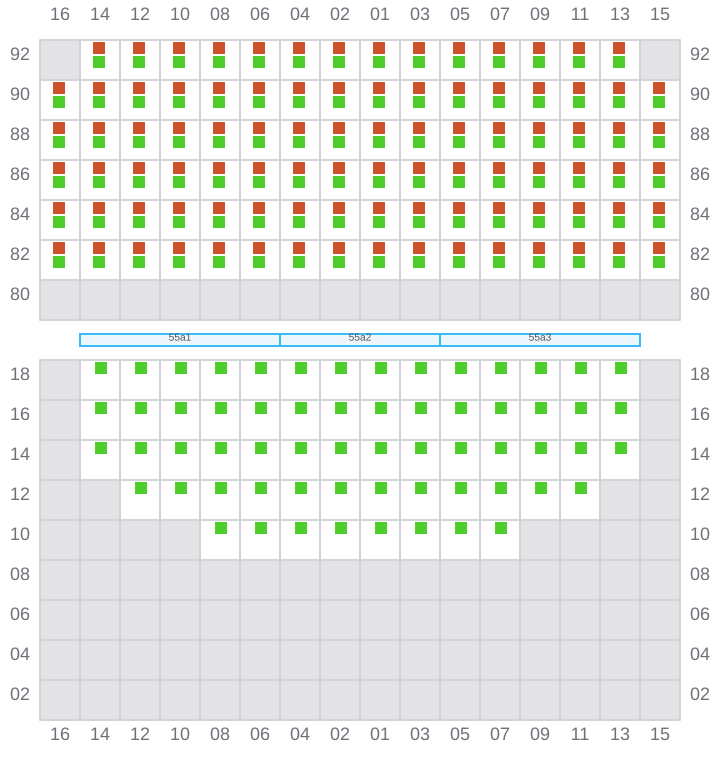

057 (056)
- ←
059
- →

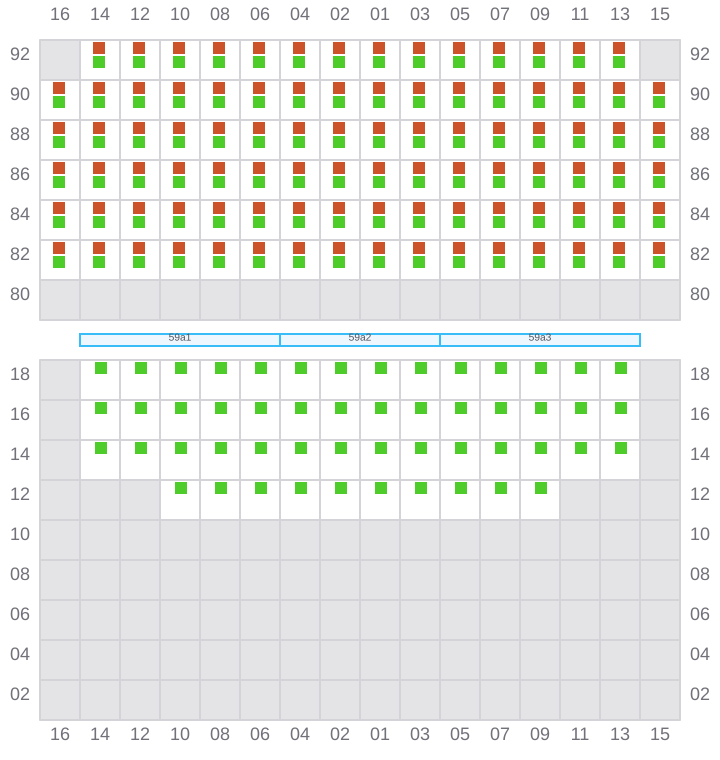

061 (060)
- ←

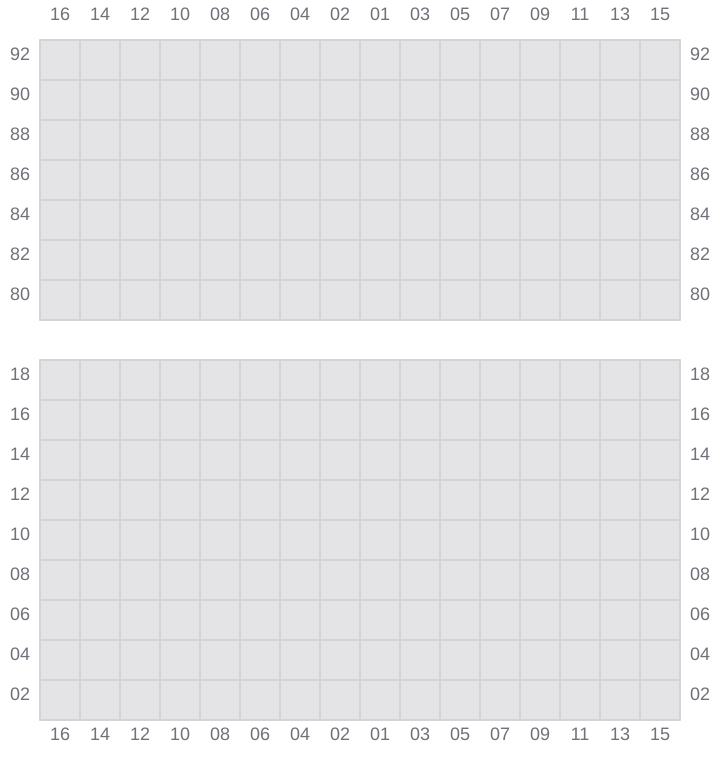

063

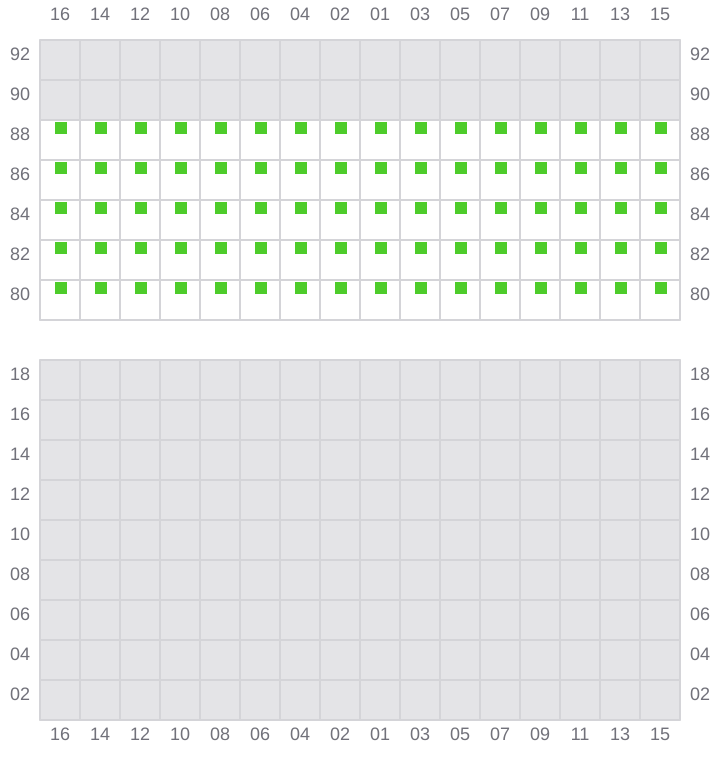

065 (064)
- ← / ?
