COSCO IZMIR
9484508 | VRMJ7 | 9484508 by ********* Last update: Thu May 09 2024
General Info
Ship Name:COSCO IZMIR
IMO Code:9484508
Call Sign:VRMJ7
Line Operator:9484508
Class Name for Sister Ships:COSCO IZMIR
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,257
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

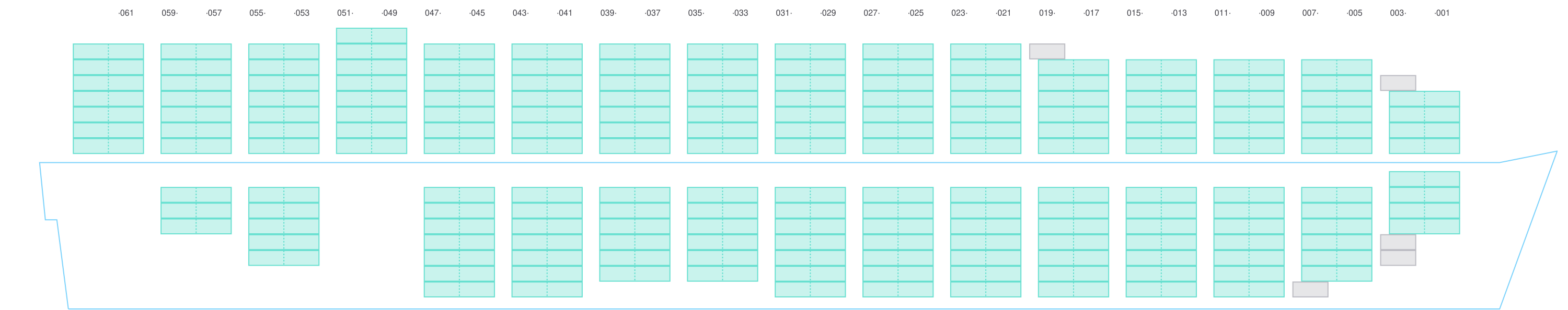

Side View
![Side view of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-sideView.png?v=1715275946509)

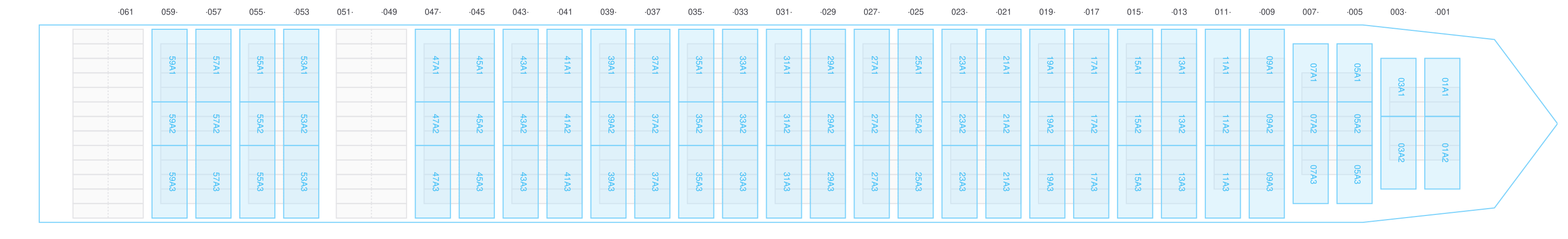

Hatch-Covers View
![Deck view of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-deckView.png?v=1715275946509)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

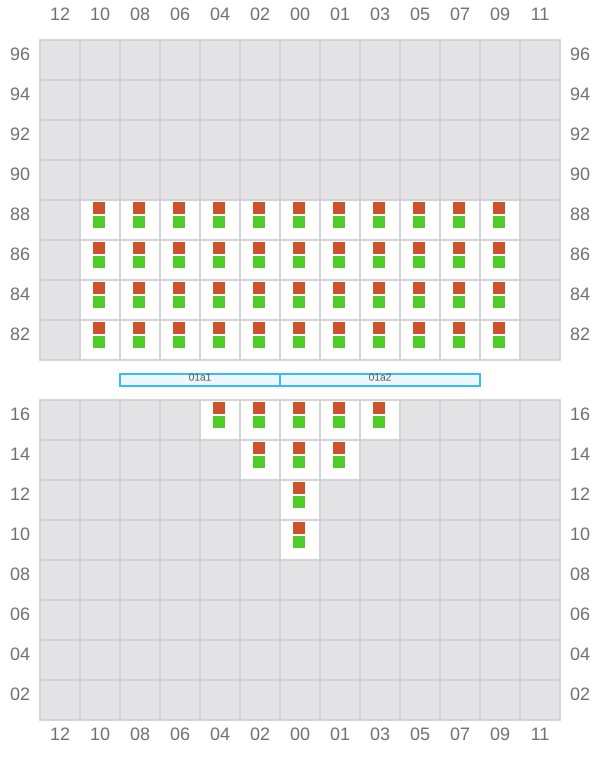

001 (002)
- →
![Bay 001 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b001.png?v=1715275946509)

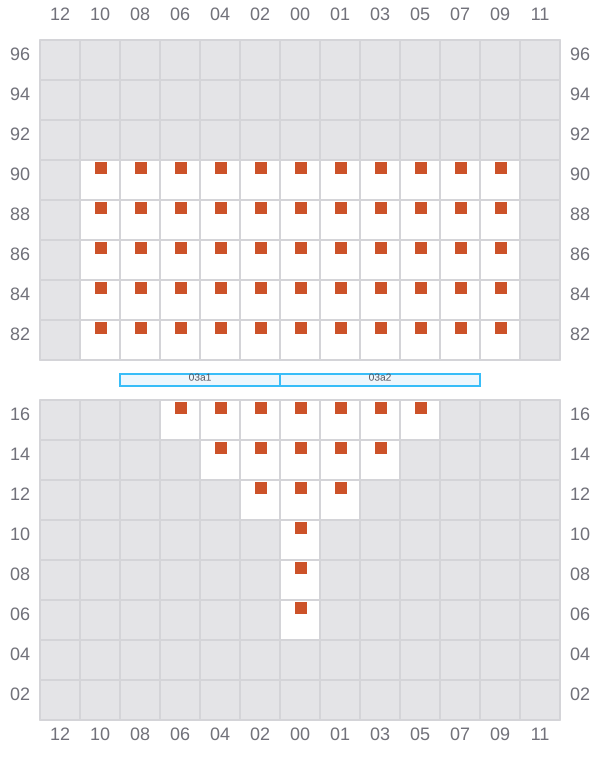

003
- ←
![Bay 003 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b003.png?v=1715275946509)

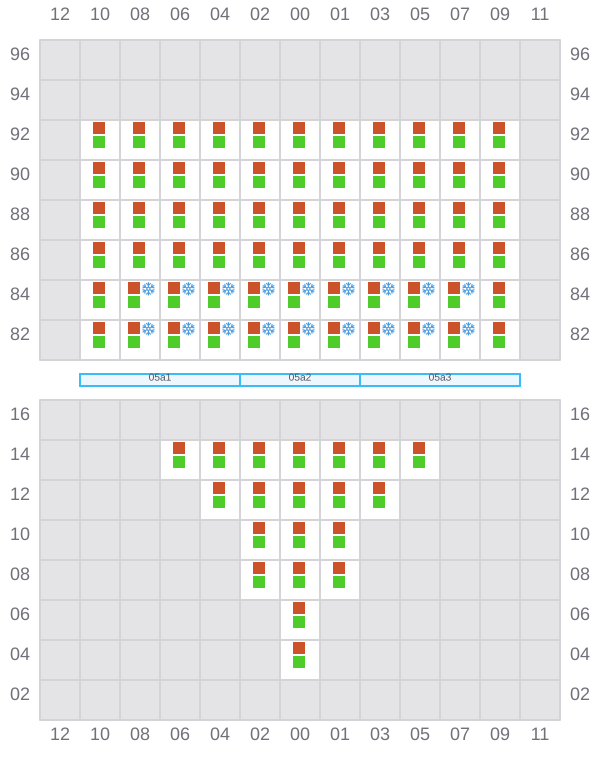

005 (006)
- →
![Bay 005 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b005.png?v=1715275946509)

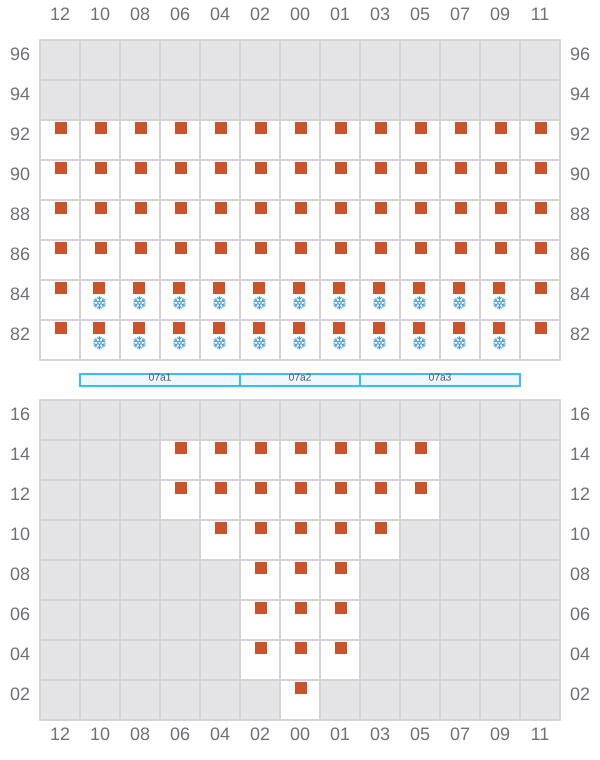

007
- ←
![Bay 007 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b007.png?v=1715275946509)
009 (010)
- →
![Bay 009 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b009.png?v=1715275946509)

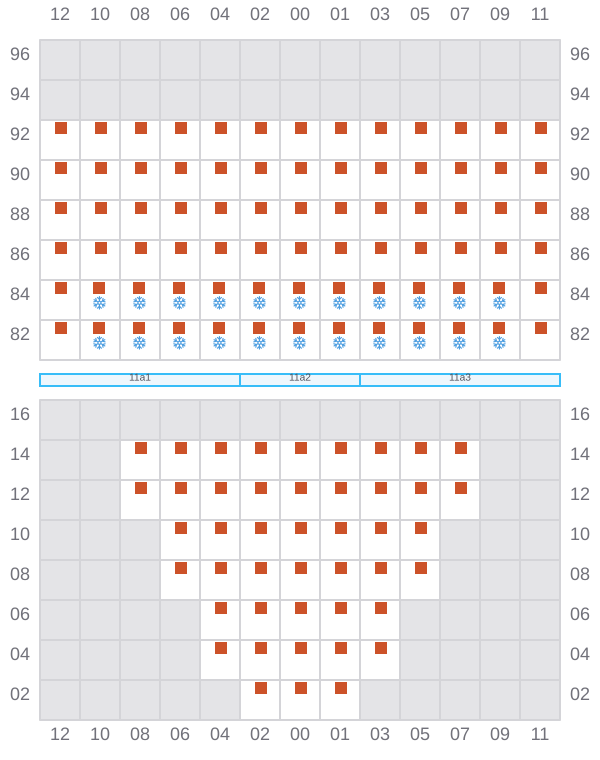

011
- ←
![Bay 011 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b011.png?v=1715275946509)

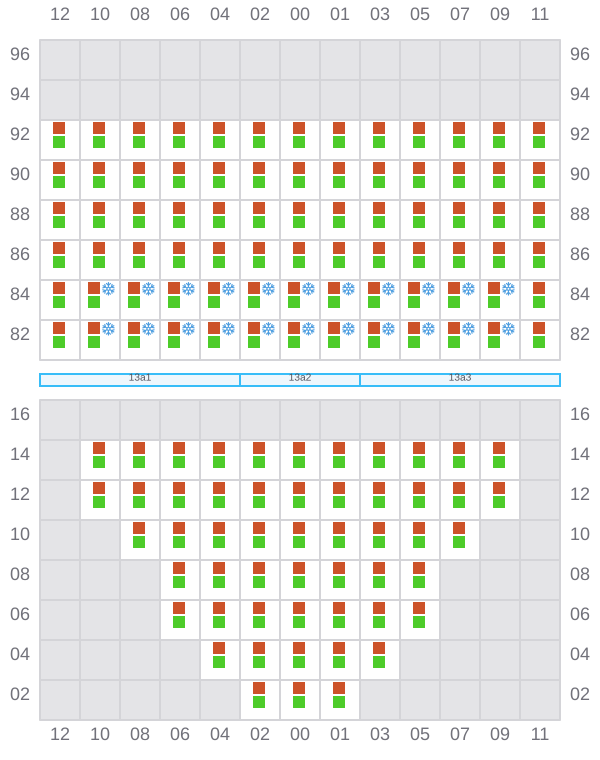

013 (014)
- →
![Bay 013 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b013.png?v=1715275946509)

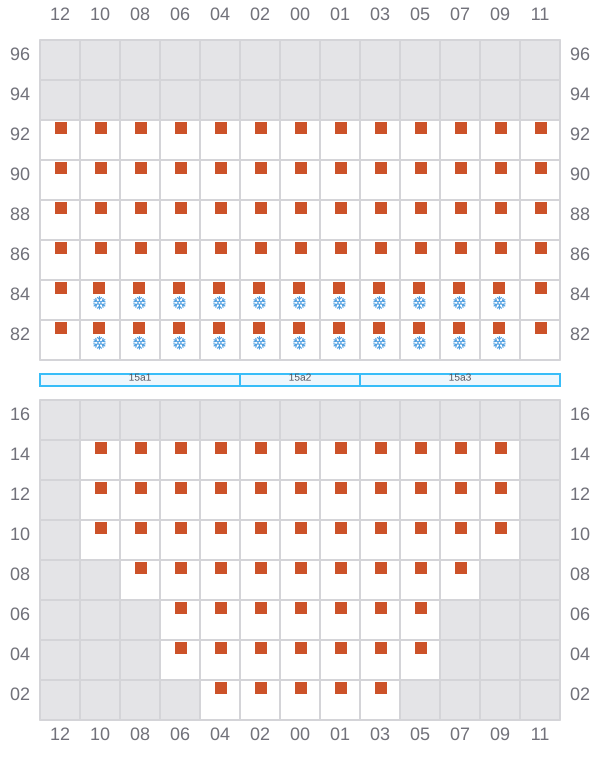

015
- ←
![Bay 015 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b015.png?v=1715275946509)

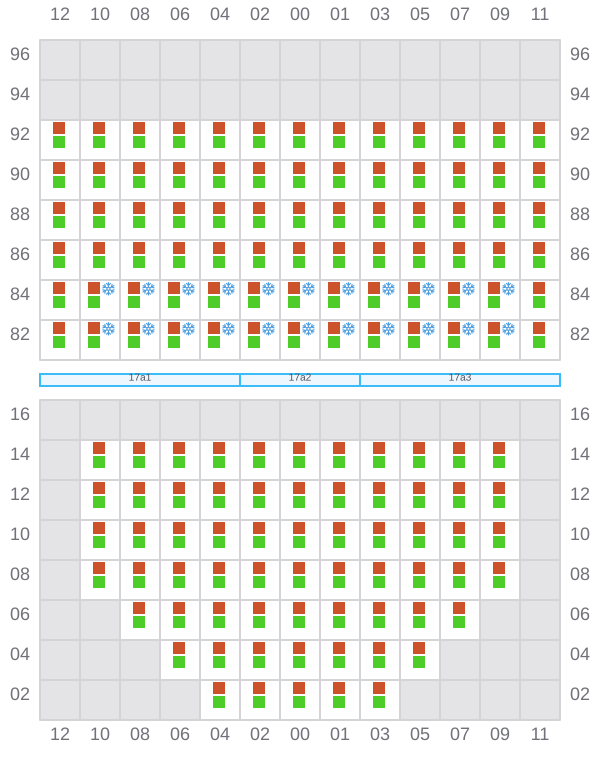

017 (018)
- →
![Bay 017 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b017.png?v=1715275946509)

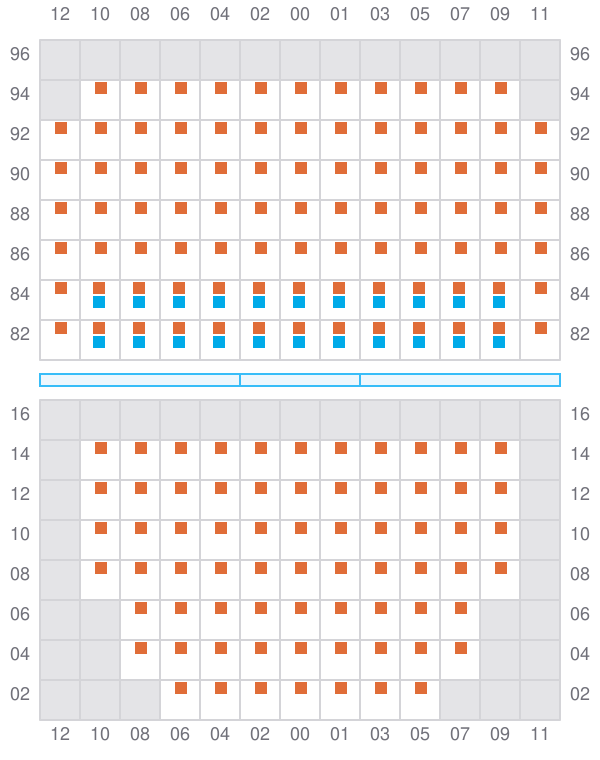

019
- ←
![Bay 019 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b019.png?v=1715275946509)

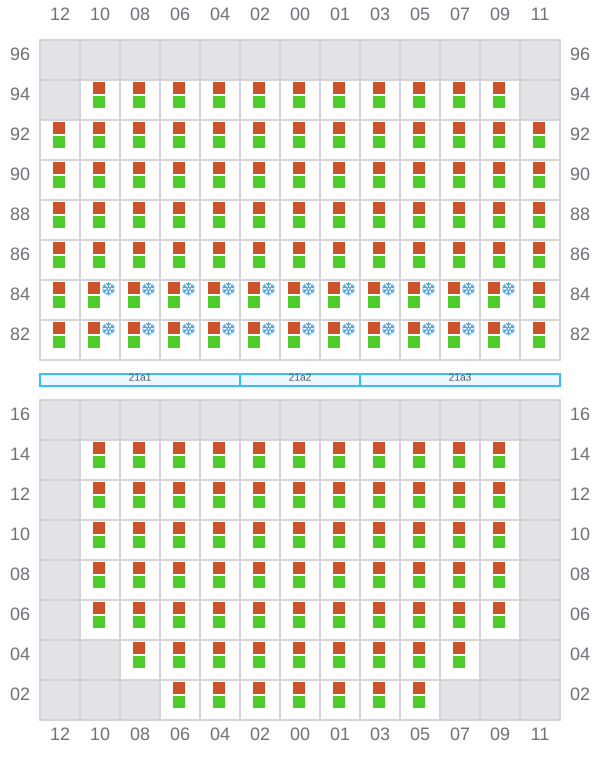

021 (022)
- →
![Bay 021 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b021.png?v=1715275946509)

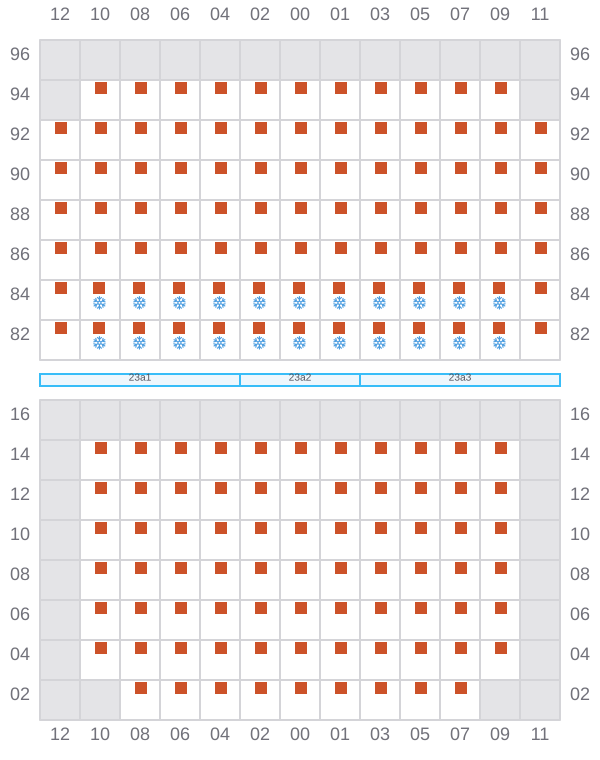

023
- ←
![Bay 023 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b023.png?v=1715275946509)

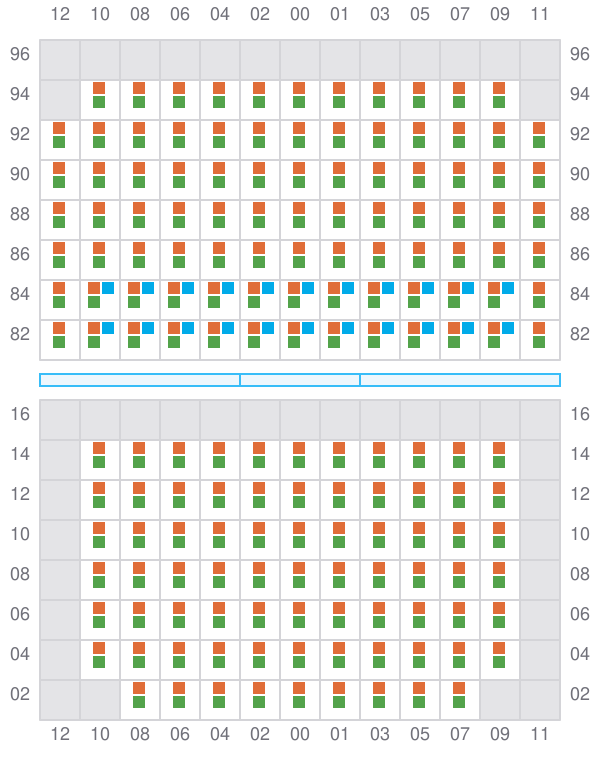

025 (026)
- →
![Bay 025 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b025.png?v=1715275946509)

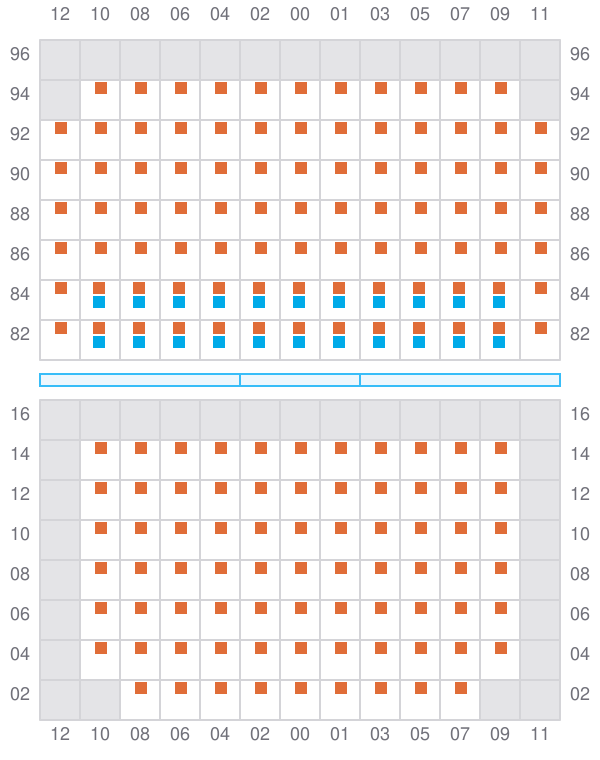

027
- ←
![Bay 027 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b027.png?v=1715275946509)

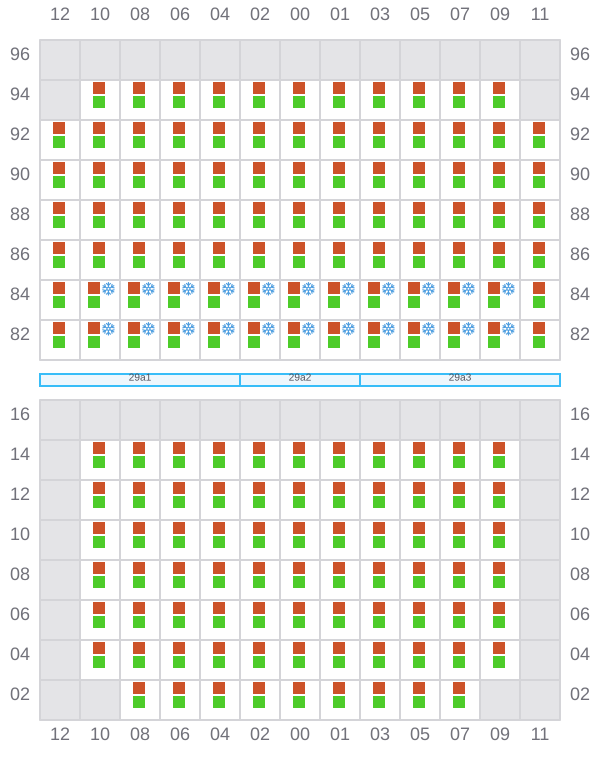

029 (030)
- →
![Bay 029 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b029.png?v=1715275946509)

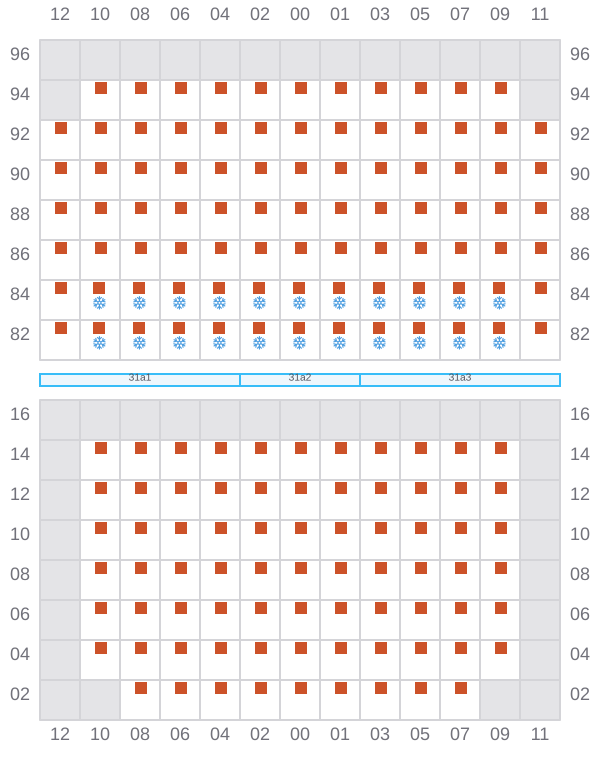

031
- ←
![Bay 031 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b031.png?v=1715275946509)

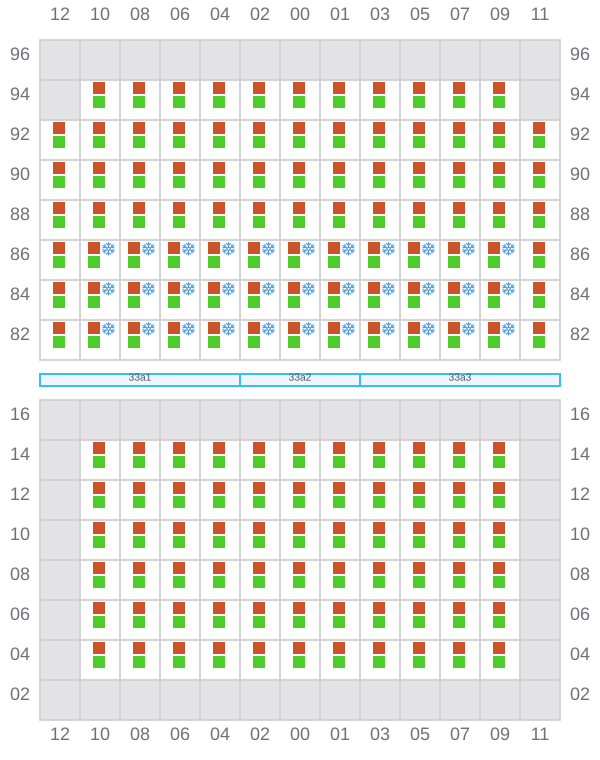

033 (034)
- →
![Bay 033 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b033.png?v=1715275946509)
035
- ←
![Bay 035 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b035.png?v=1715275946509)

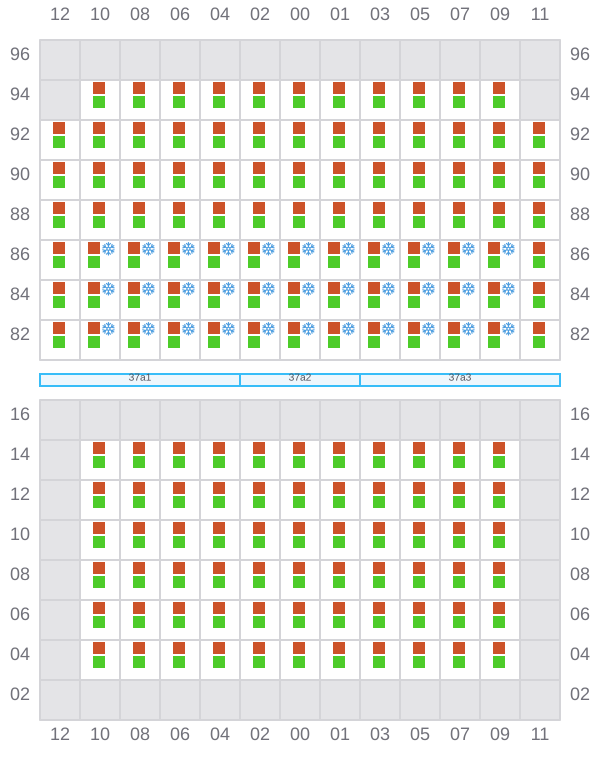

037 (038)
- →
![Bay 037 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b037.png?v=1715275946509)

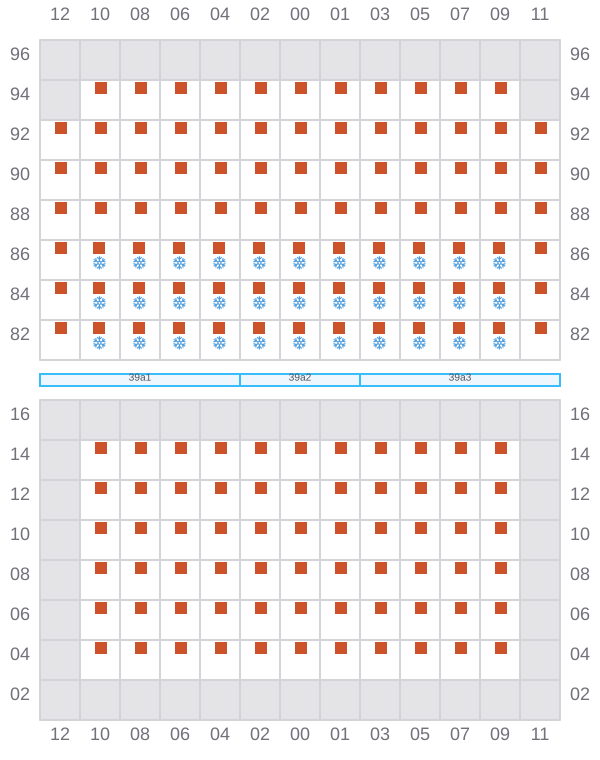

039
- ←
![Bay 039 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b039.png?v=1715275946509)
041 (042)
- →
![Bay 041 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b041.png?v=1715275946509)

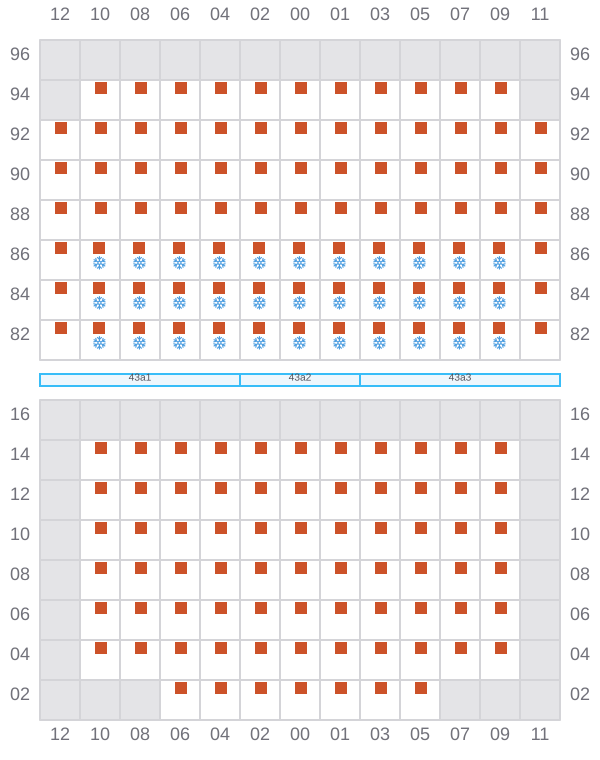

043
- ←
![Bay 043 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b043.png?v=1715275946509)

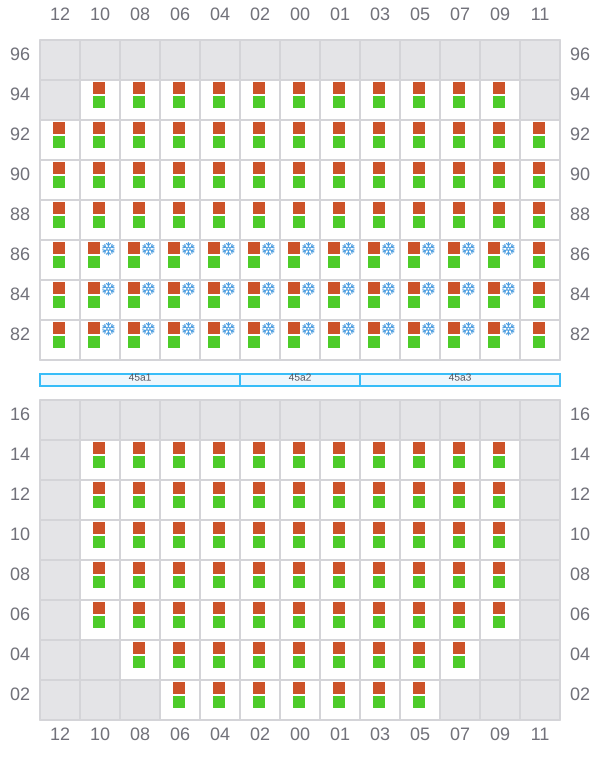

045 (046)
- →
![Bay 045 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b045.png?v=1715275946509)
047
- ←
![Bay 047 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b047.png?v=1715275946509)

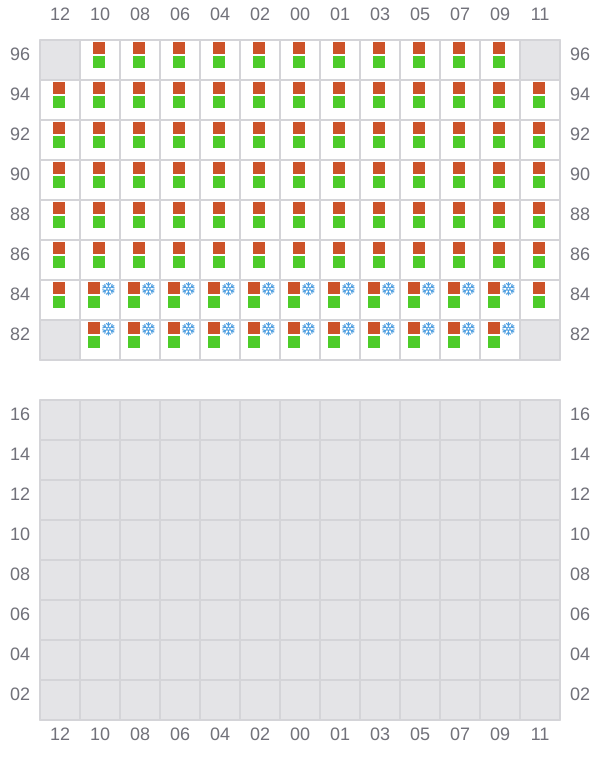

049 (050)
- → / ?
![Bay 049 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b049.png?v=1715275946509)

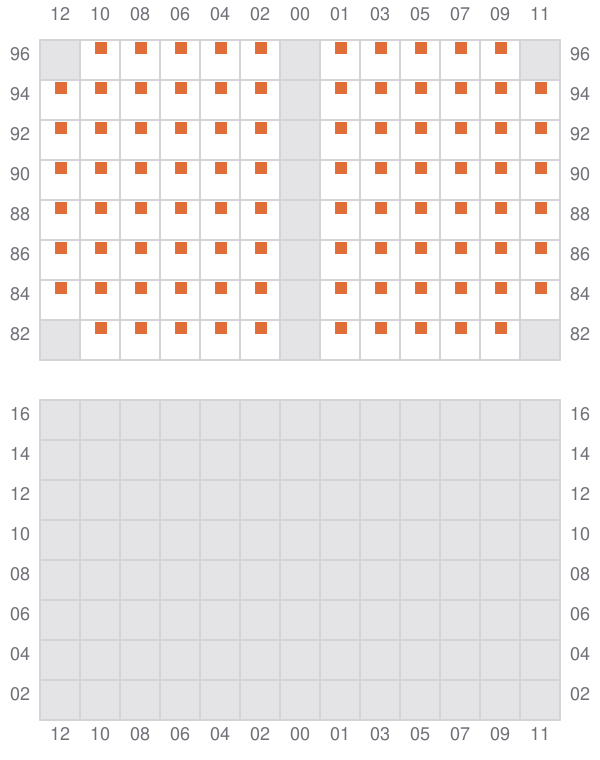

051
- ← / ?
![Bay 051 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b051.png?v=1715275946509)

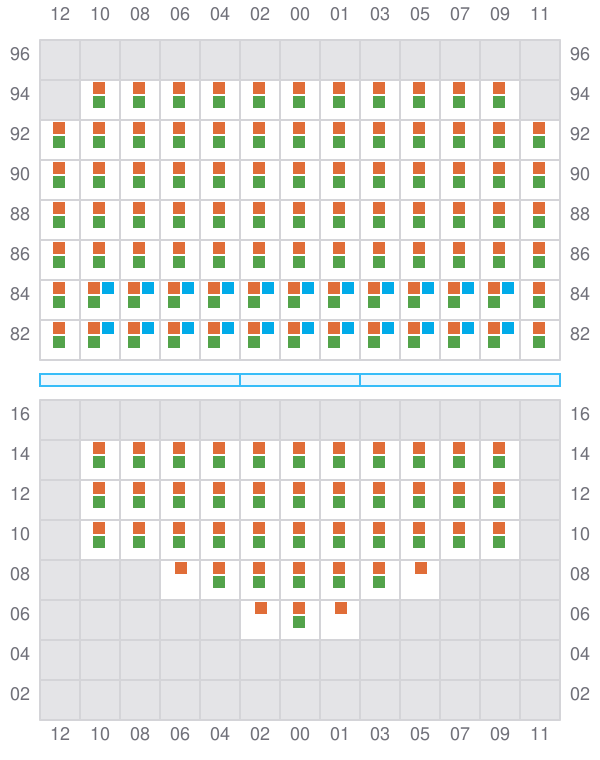

053 (054)
- →
![Bay 053 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b053.png?v=1715275946509)

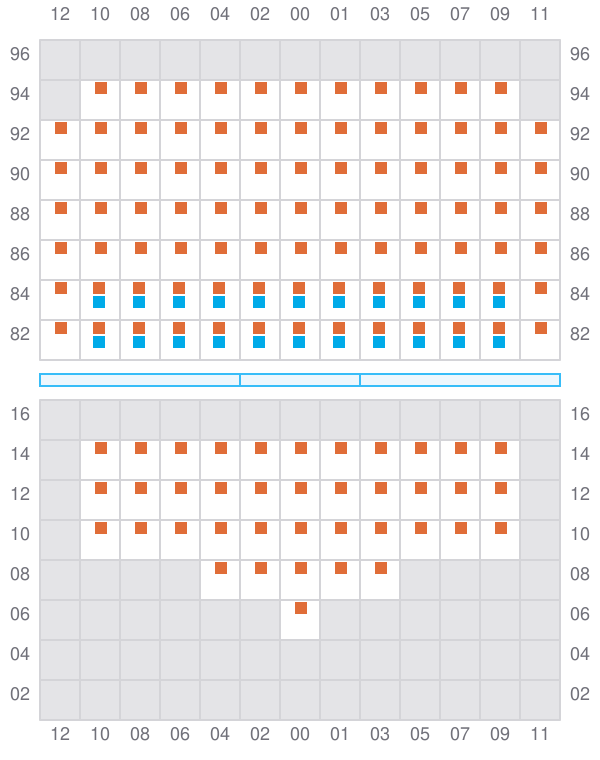

055
- ←
![Bay 055 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b055.png?v=1715275946509)

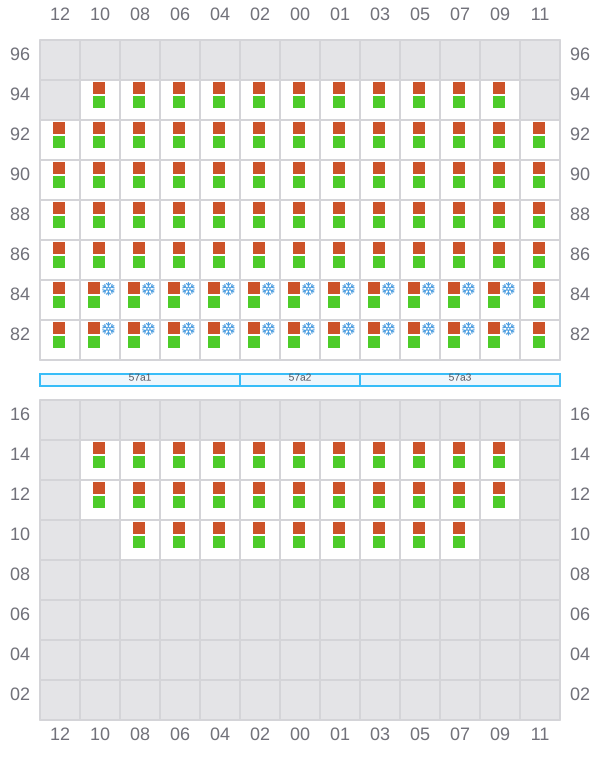

057 (058)
- →
![Bay 057 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b057.png?v=1715275946509)

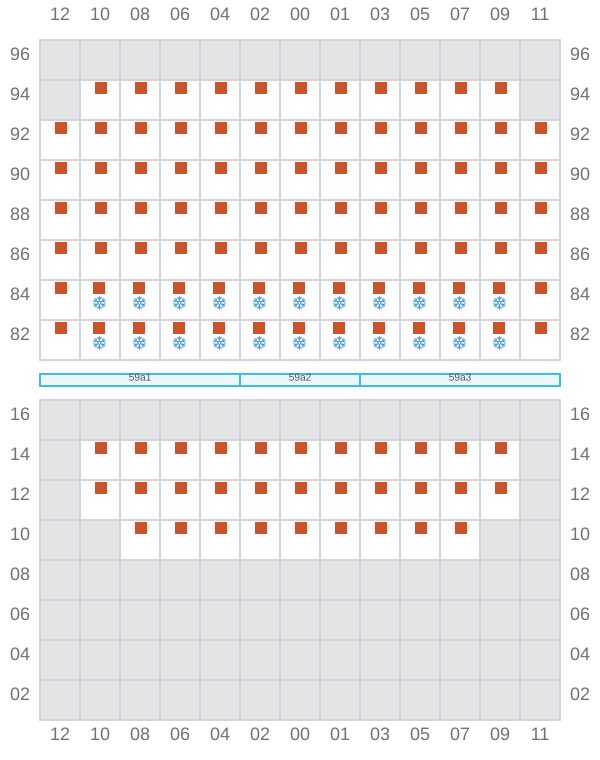

059
- ←
![Bay 059 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b059.png?v=1715275946509)

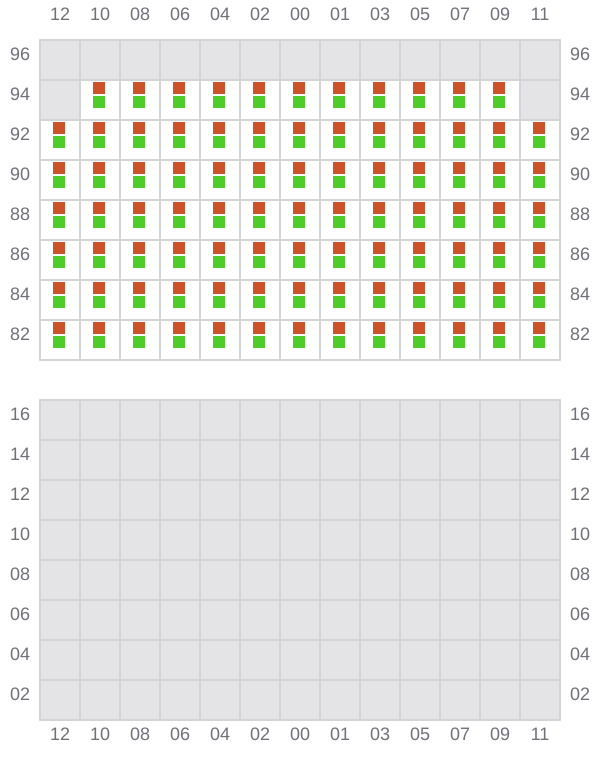

061 (062)
- → / ?
![Bay 061 view and slots of COSCO IZMIR](/vessel-images/4fed8500-e555-4ab6-99a2-6082169a9685-b061.png?v=1715275946509)
