COSCO NEW YORK
9335185 | 3ELZ8 | COS by ************************** Last update: Fri Jun 30 2023

General Info

Ship Name:COSCO NEW YORK
IMO Code:9335185
Call Sign:3ELZ8
Line Operator:COS
Class Name for Sister Ships:CNY
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,894

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of COSCO NEW YORK

Hatch-Covers View

Deck view of COSCO NEW YORK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

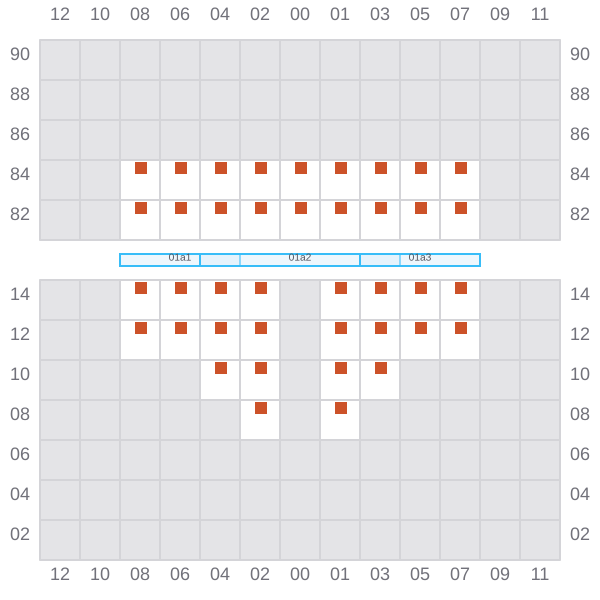

Bay 001 view and slots of COSCO NEW YORK

003 (002)

  • ←
  • ←

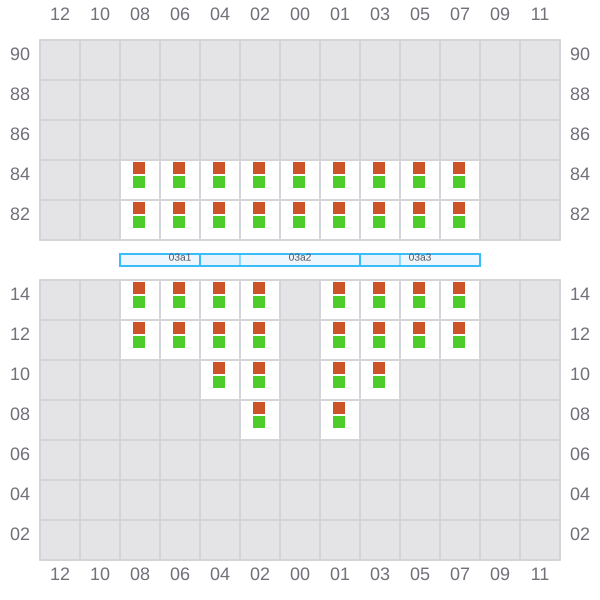

Bay 003 view and slots of COSCO NEW YORK

005

  • →

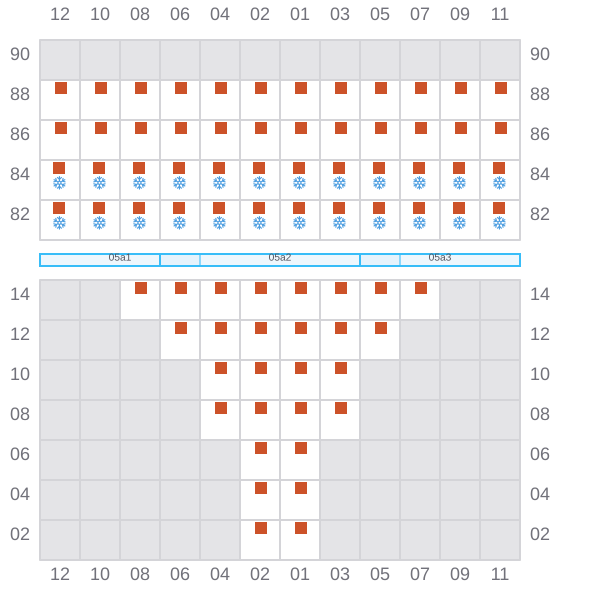

Bay 005 view and slots of COSCO NEW YORK

007 (006)

  • ←

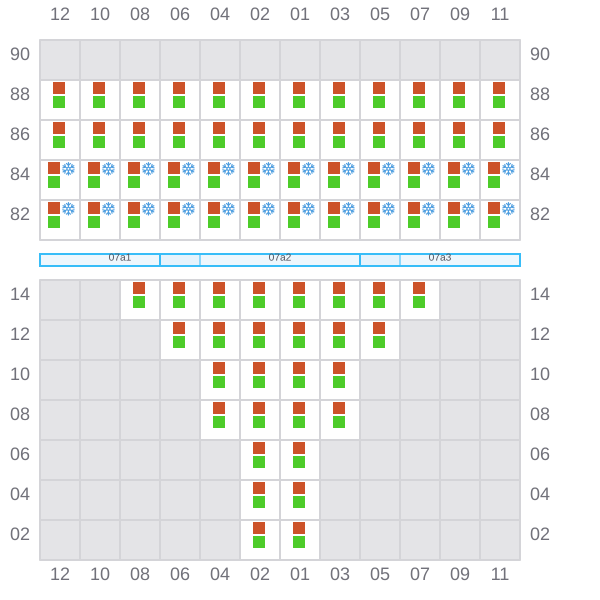

Bay 007 view and slots of COSCO NEW YORK

009

  • →

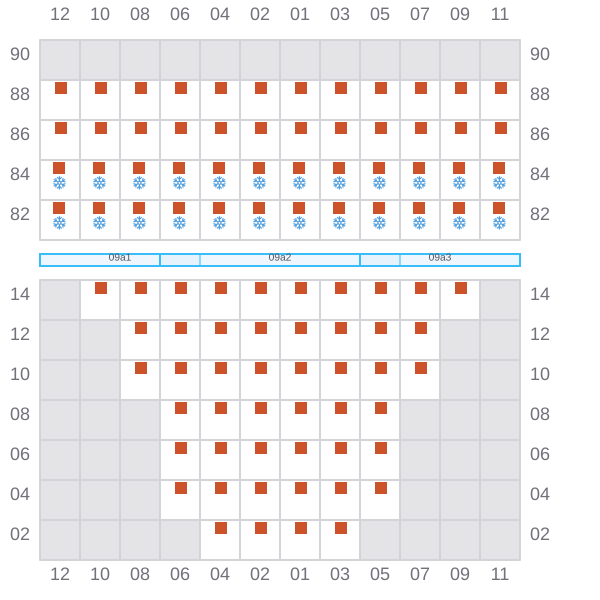

Bay 009 view and slots of COSCO NEW YORK

011 (010)

  • ←

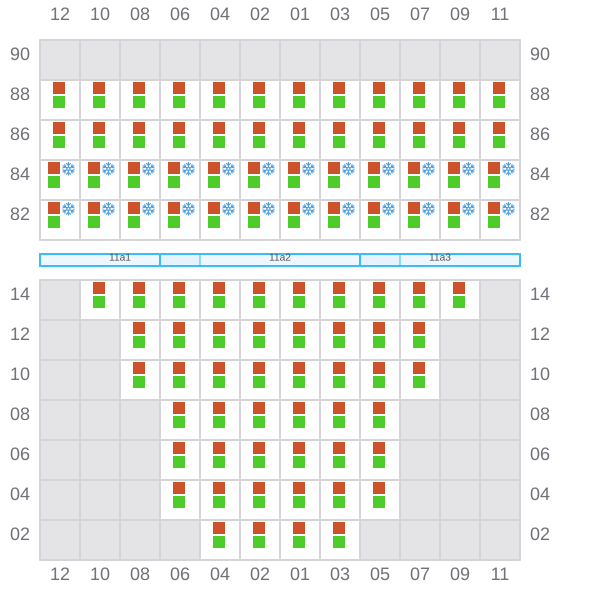

Bay 011 view and slots of COSCO NEW YORK

013

  • →

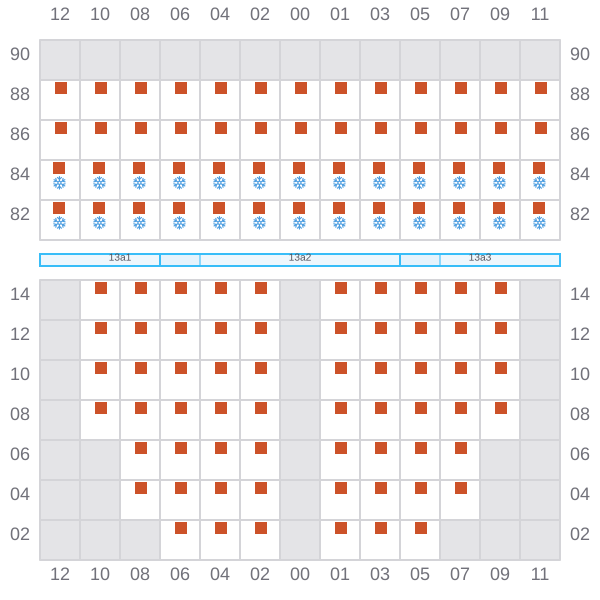

Bay 013 view and slots of COSCO NEW YORK

015 (014)

  • ←
Bay 015 view and slots of COSCO NEW YORK

017

  • →

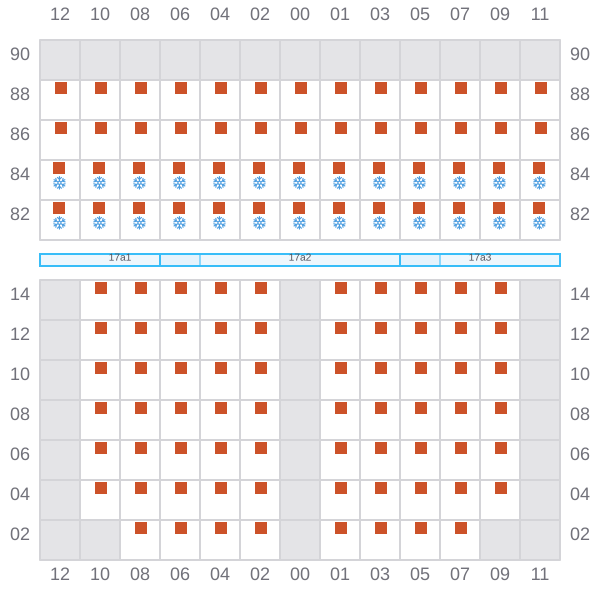

Bay 017 view and slots of COSCO NEW YORK

019 (018)

  • ←

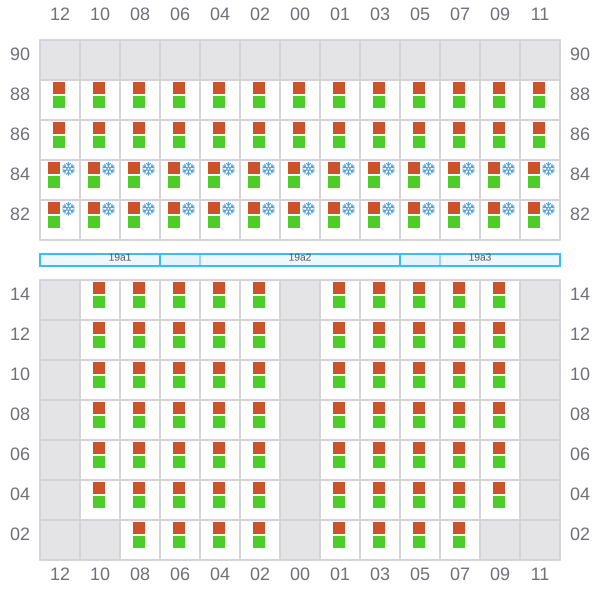

Bay 019 view and slots of COSCO NEW YORK

021

  • →

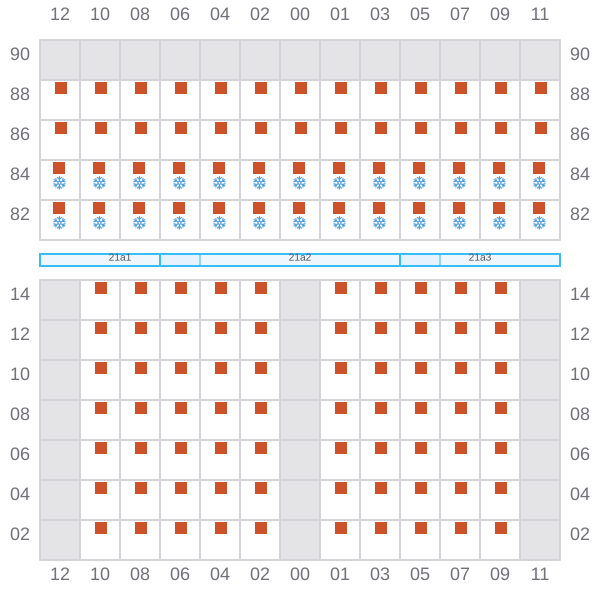

Bay 021 view and slots of COSCO NEW YORK

023 (022)

  • ←

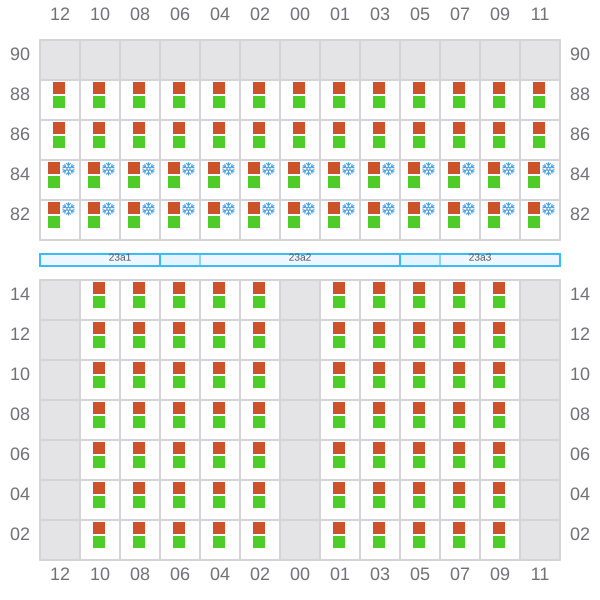

Bay 023 view and slots of COSCO NEW YORK

025

  • →
Bay 025 view and slots of COSCO NEW YORK

027 (026)

  • ←
Bay 027 view and slots of COSCO NEW YORK

029

  • →

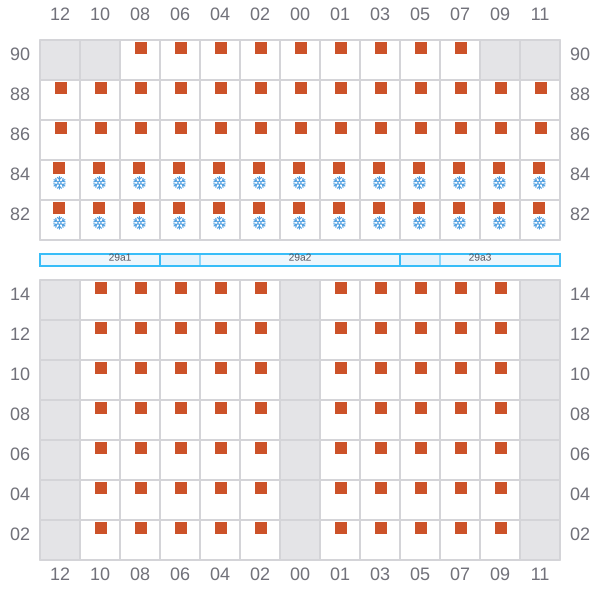

Bay 029 view and slots of COSCO NEW YORK

031 (030)

  • ←

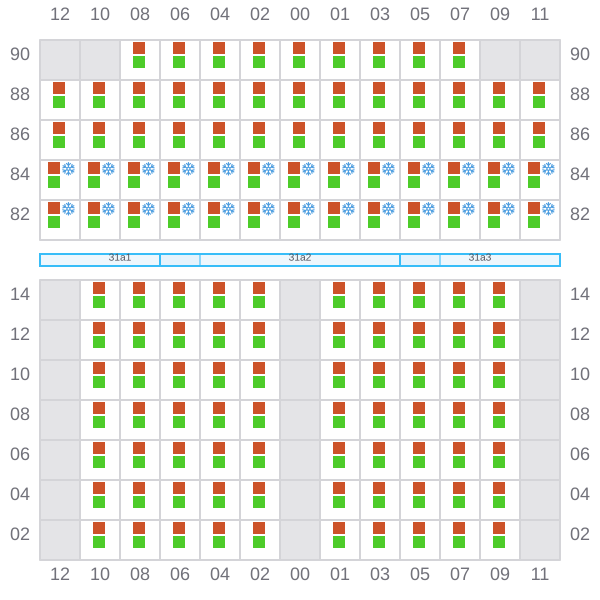

Bay 031 view and slots of COSCO NEW YORK

033

  • →

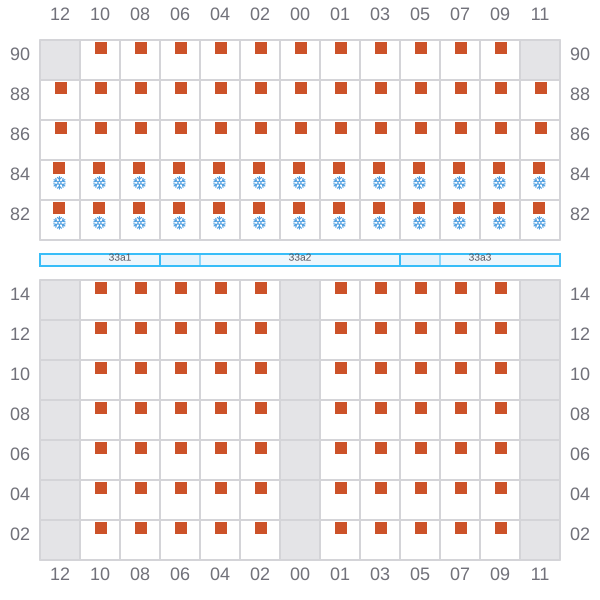

Bay 033 view and slots of COSCO NEW YORK

035 (034)

  • ←

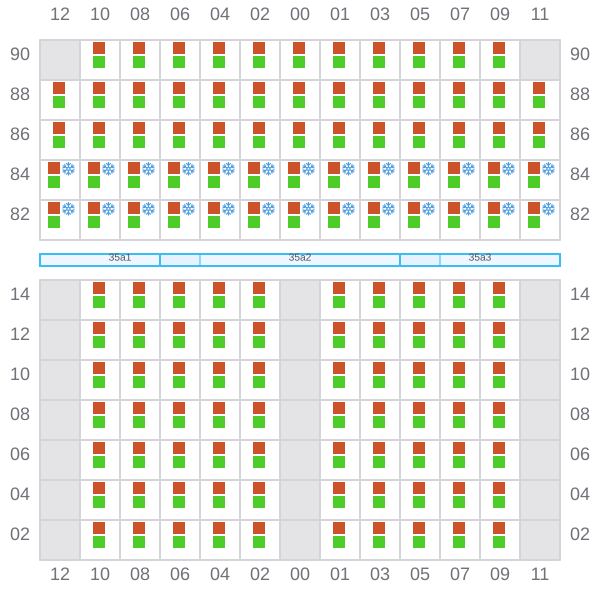

Bay 035 view and slots of COSCO NEW YORK

037

  • →

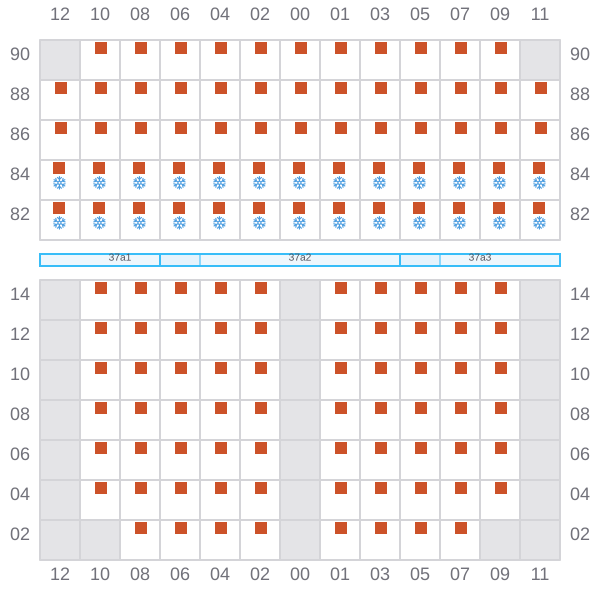

Bay 037 view and slots of COSCO NEW YORK

039 (038)

  • ←
Bay 039 view and slots of COSCO NEW YORK

041

  • →

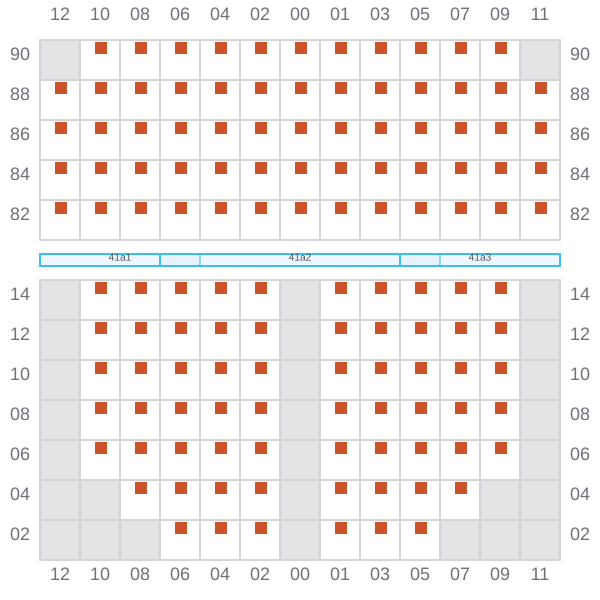

Bay 041 view and slots of COSCO NEW YORK

043 (042)

  • ←
Bay 043 view and slots of COSCO NEW YORK

045

  • →
Bay 045 view and slots of COSCO NEW YORK

047 (046)

  • ←

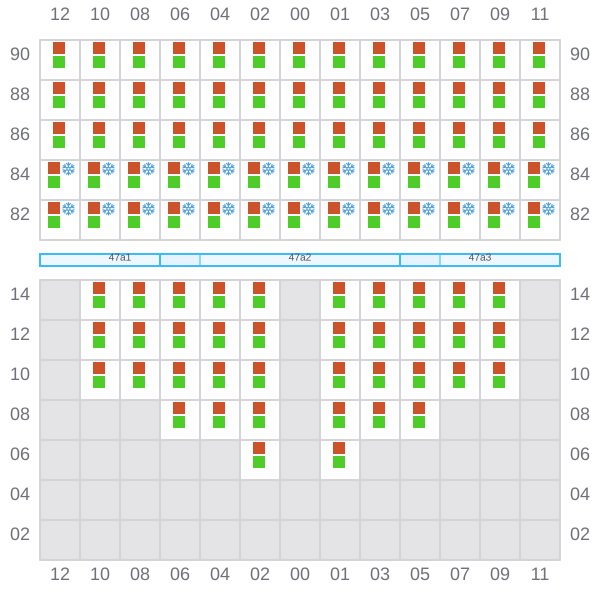

Bay 047 view and slots of COSCO NEW YORK

049

  • →

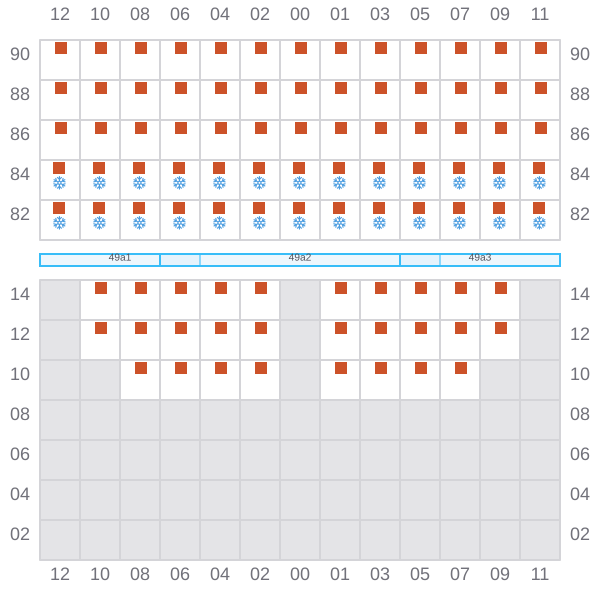

Bay 049 view and slots of COSCO NEW YORK

051 (050)

  • ←

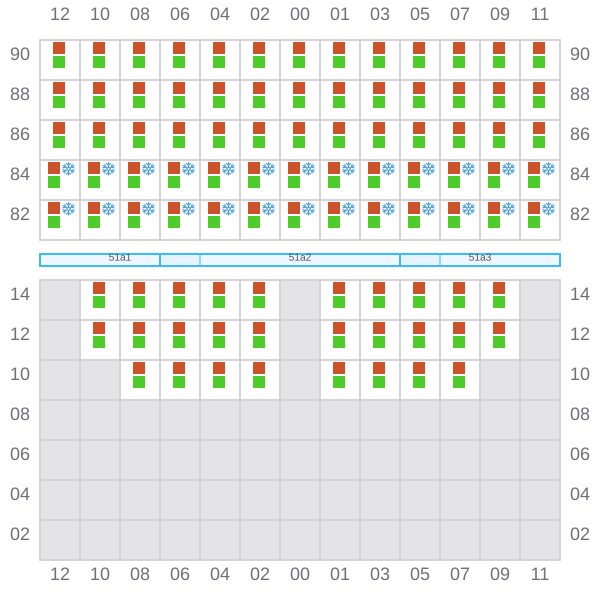

Bay 051 view and slots of COSCO NEW YORK

053

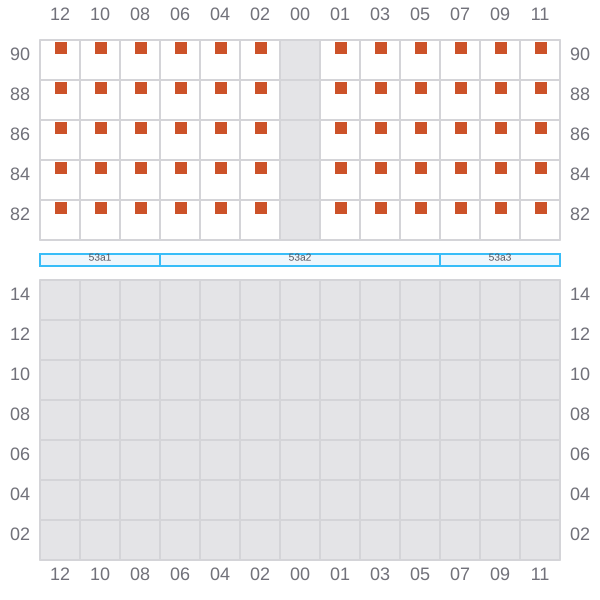

Bay 053 view and slots of COSCO NEW YORK
