COSCO OCEANIA
9334923 | VRDQ5 | COS by ***************************** Last update: Sat Jun 10 2023
General Info
Ship Name:COSCO OCEANIA
IMO Code:9334923
Call Sign:VRDQ5
Line Operator:COS
Class Name for Sister Ships:TAIC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,020
Centers of Gravity
LCG Values:Known
LCG Data:85%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

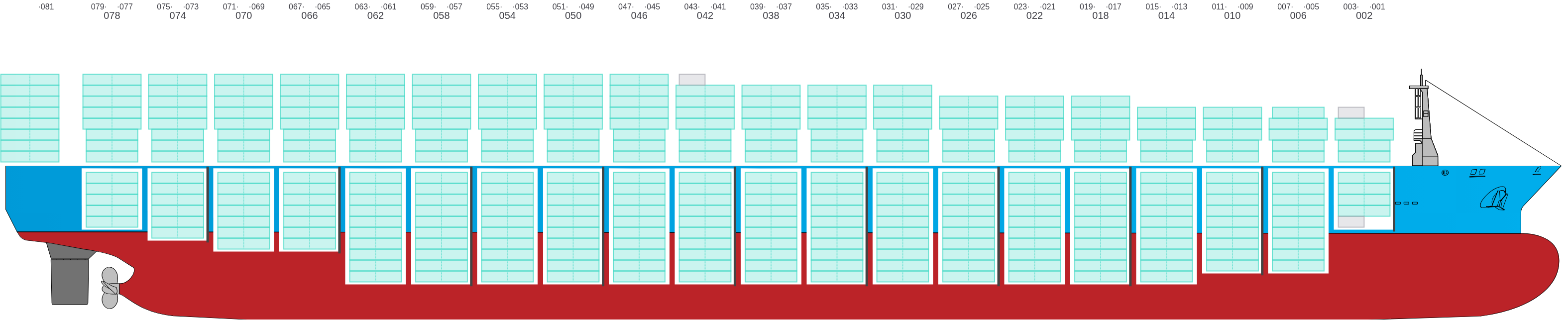

Side View
![Side view of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-sideView.png?v=1686435379690)
Hatch-Covers View
![Deck view of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-deckView.png?v=1686435379690)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

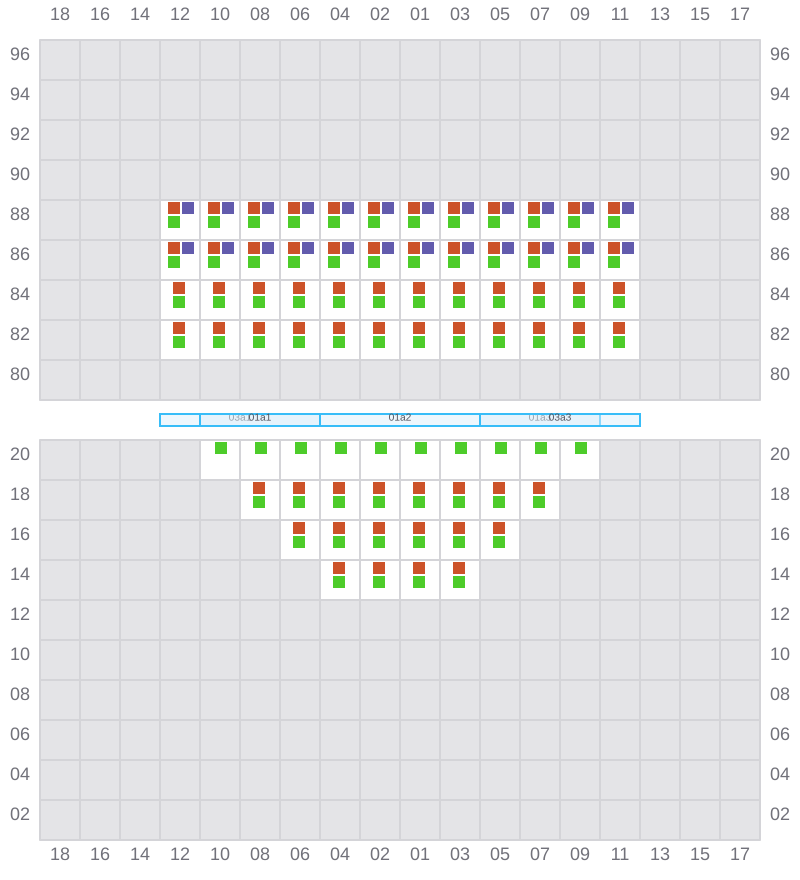

001 (002)
- →
- →
![Bay 001 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b001.png?v=1686435379690)

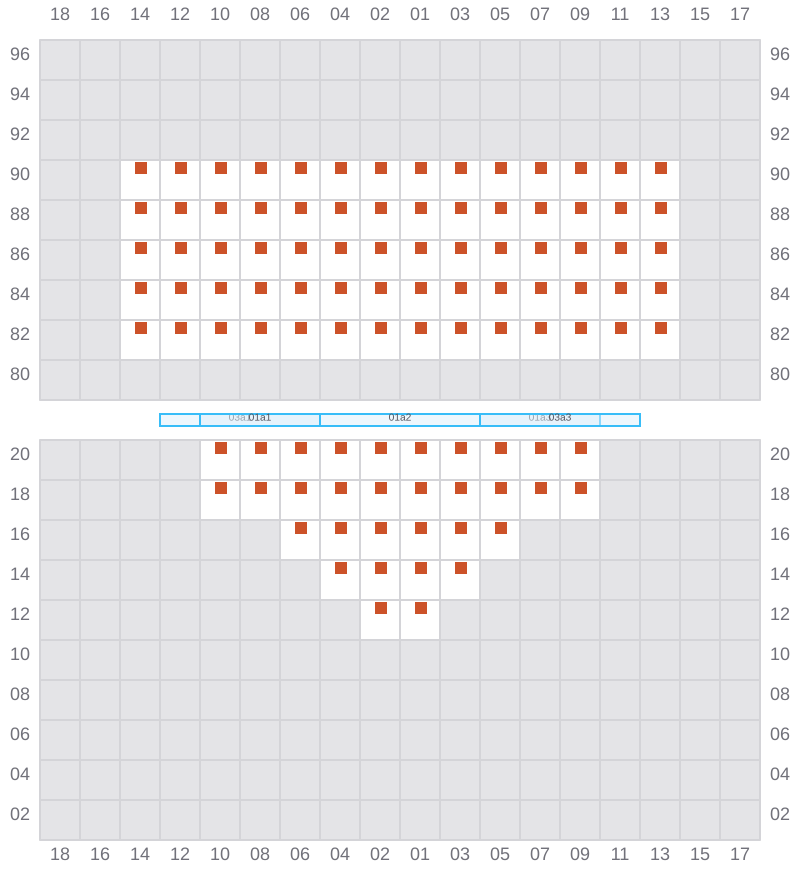

003
- ←
- →
![Bay 003 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b003.png?v=1686435379690)

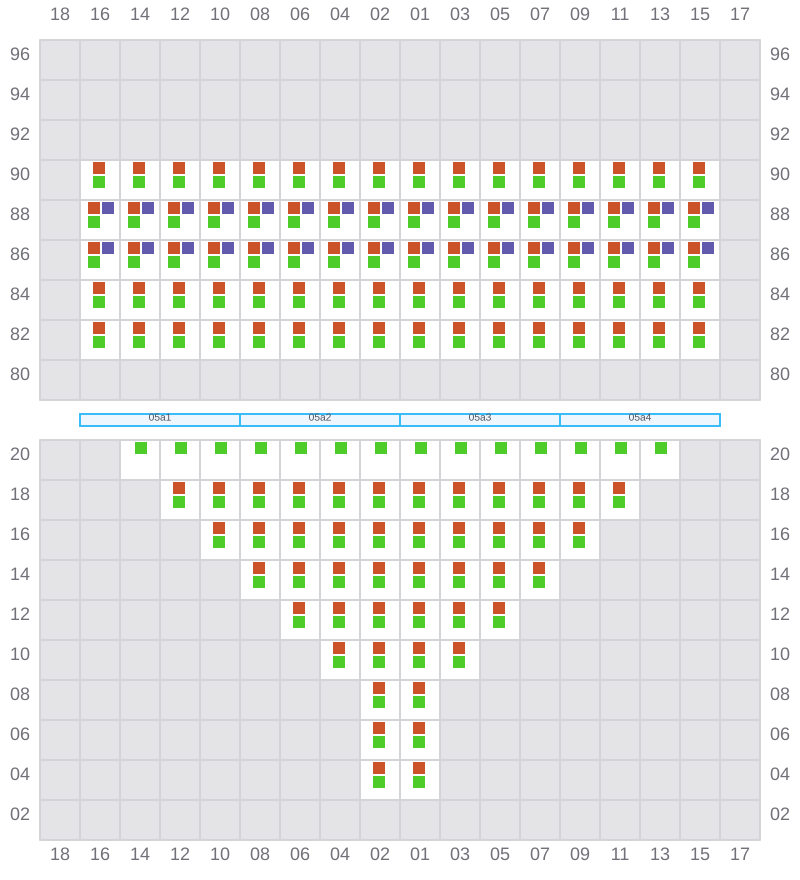

005 (006)
- →
- →
![Bay 005 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b005.png?v=1686435379690)

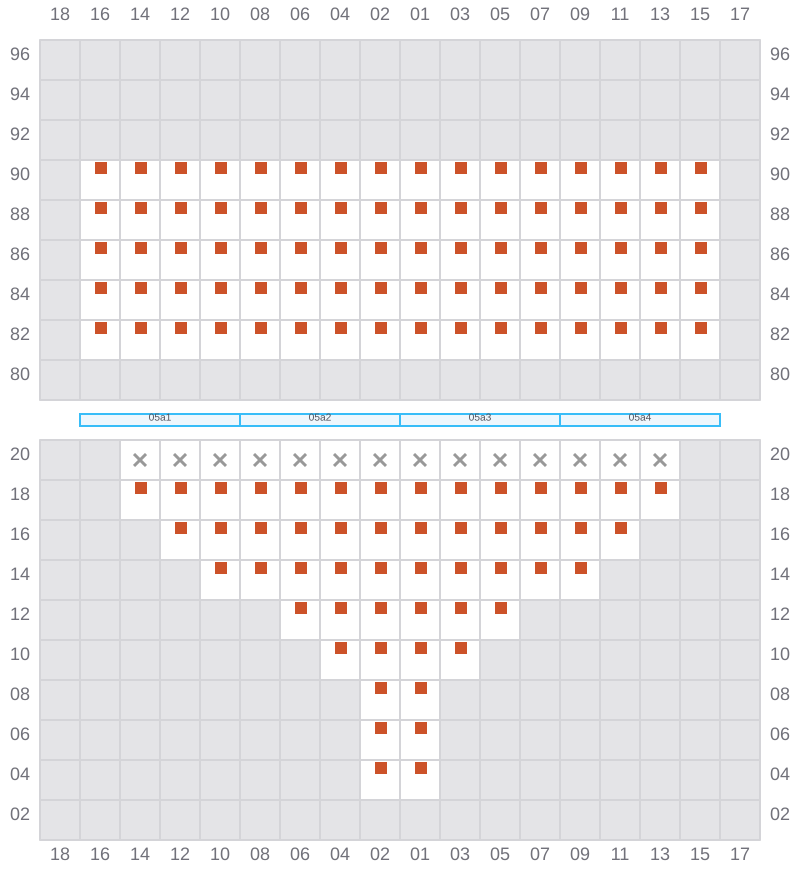

007
- ←
- →
![Bay 007 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b007.png?v=1686435379690)

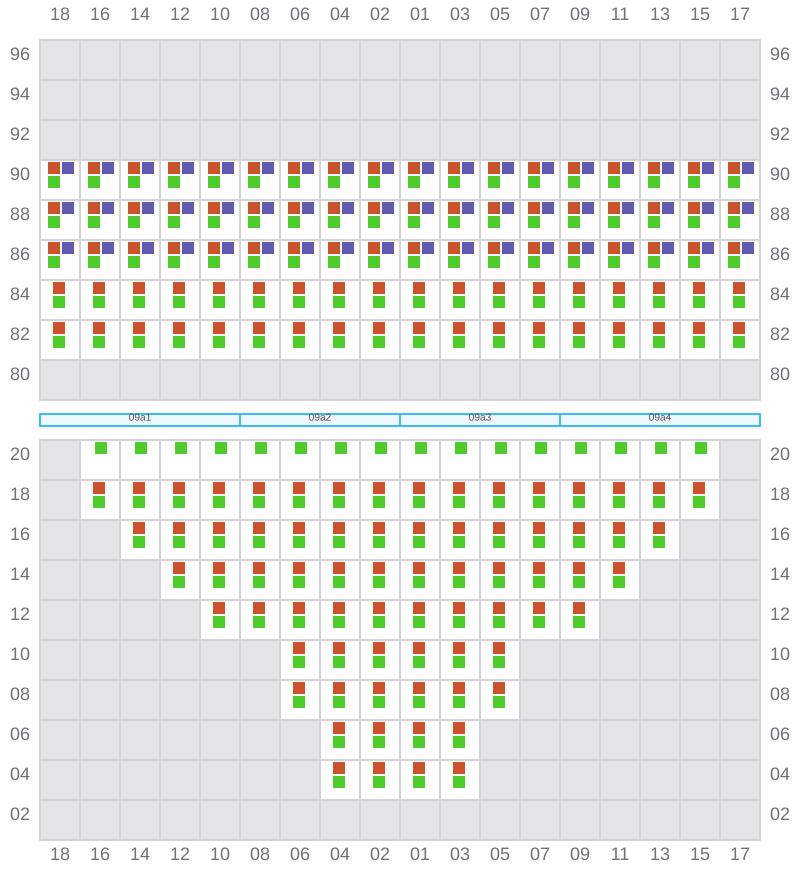

009 (010)
- →
- →
![Bay 009 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b009.png?v=1686435379690)

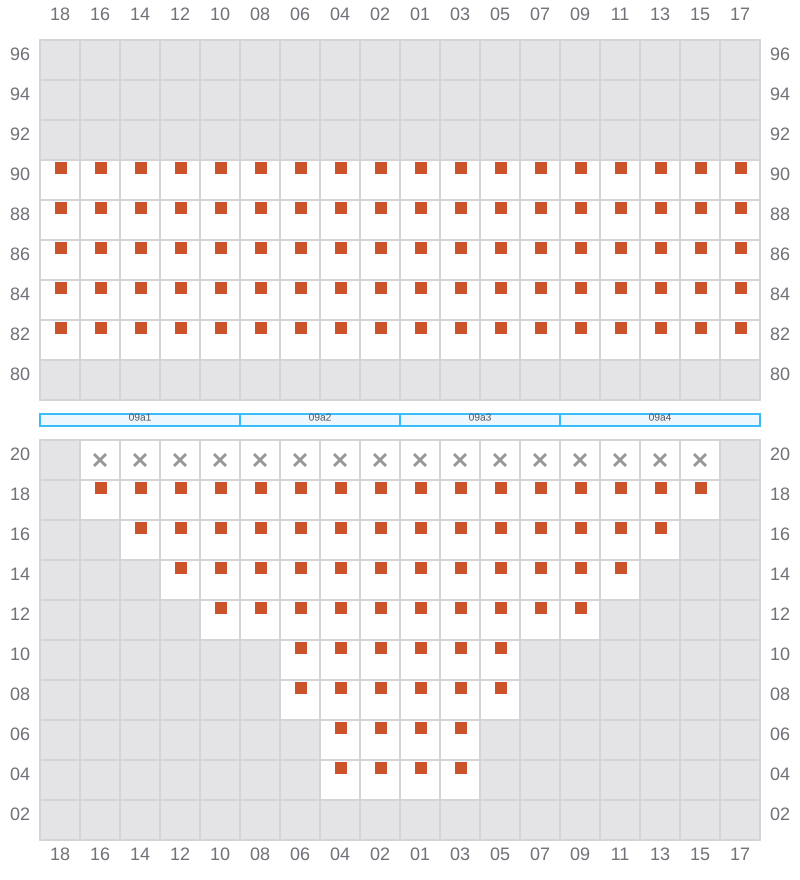

011
- ←
- →
![Bay 011 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b011.png?v=1686435379690)

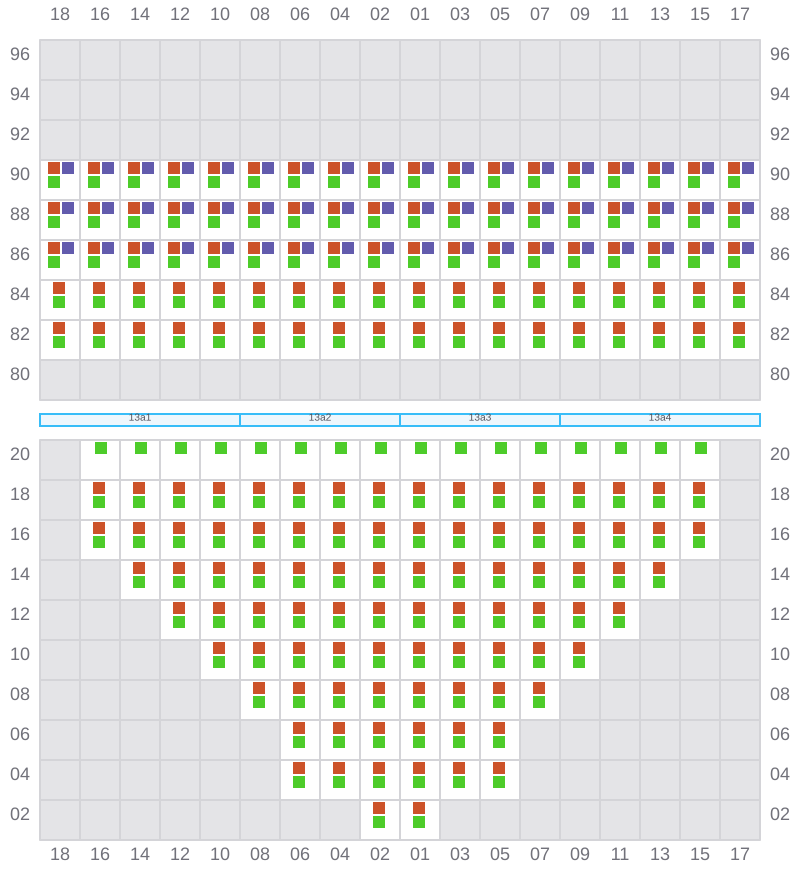

013 (014)
- →
- → / ?
- →
![Bay 013 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b013.png?v=1686435379690)

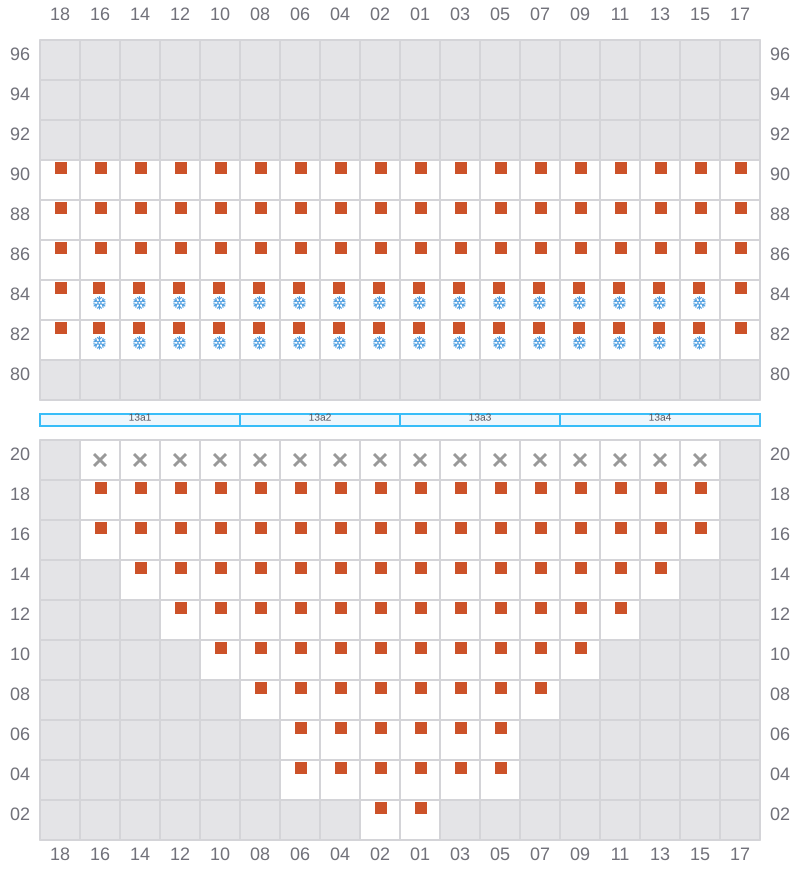

015
- ←
- → / ?
- →
![Bay 015 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b015.png?v=1686435379690)
017 (018)
- →
- ← / ?
- →
![Bay 017 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b017.png?v=1686435379690)

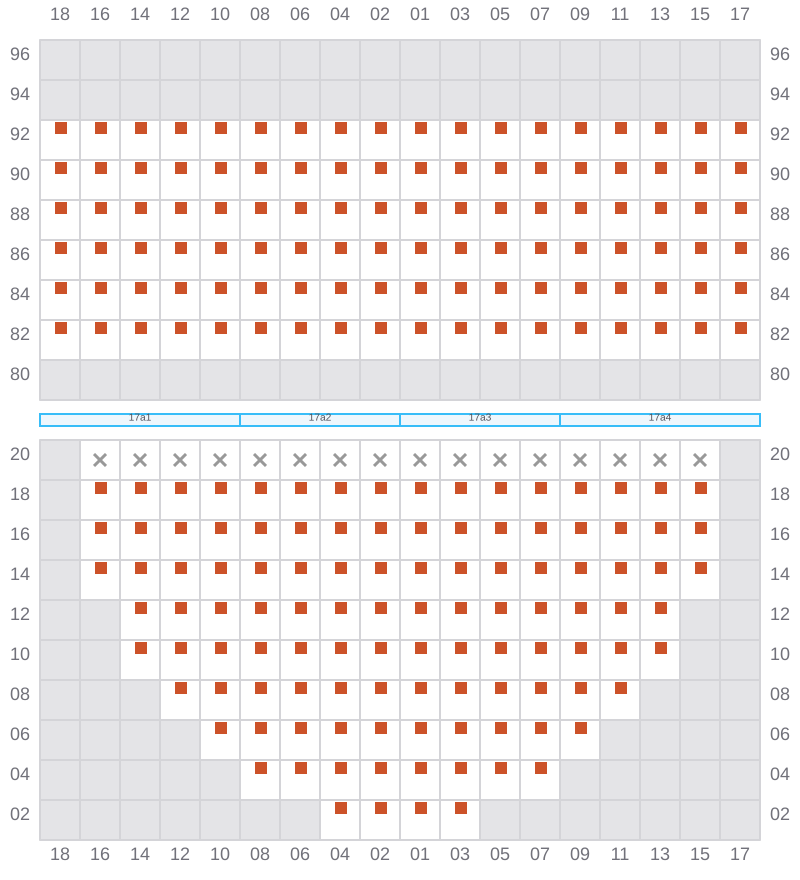

019
- ←
- ← / ?
- →
![Bay 019 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b019.png?v=1686435379690)

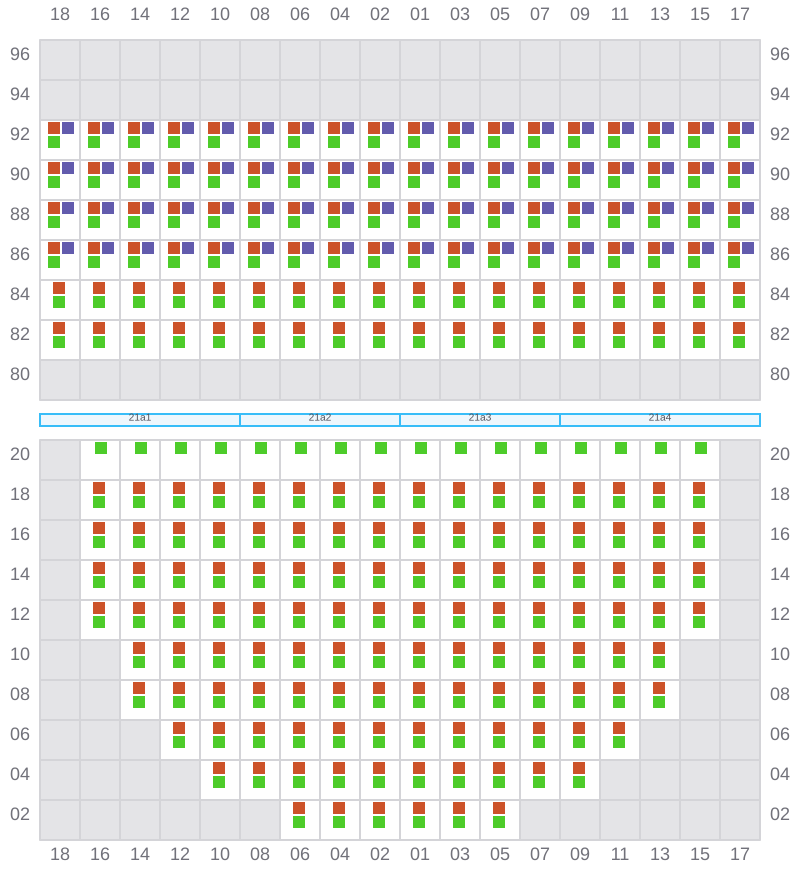

021 (022)
- →
- → / ?
- →
![Bay 021 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b021.png?v=1686435379690)
023
- ←
- → / ?
- →
![Bay 023 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b023.png?v=1686435379690)

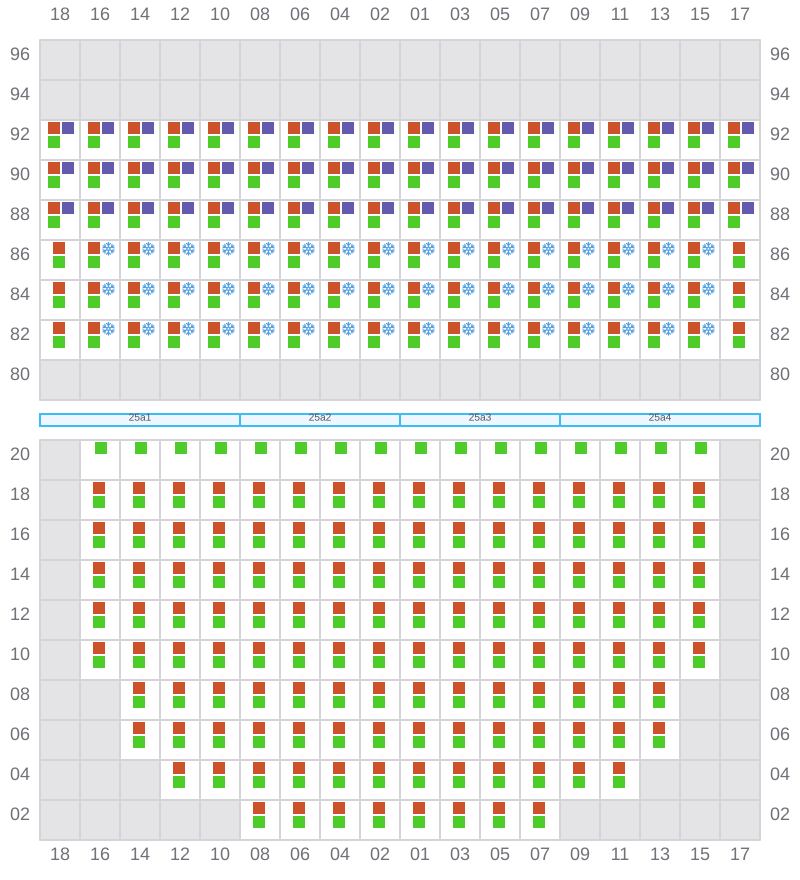

025 (026)
- →
- ← / ?
- →
![Bay 025 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b025.png?v=1686435379690)

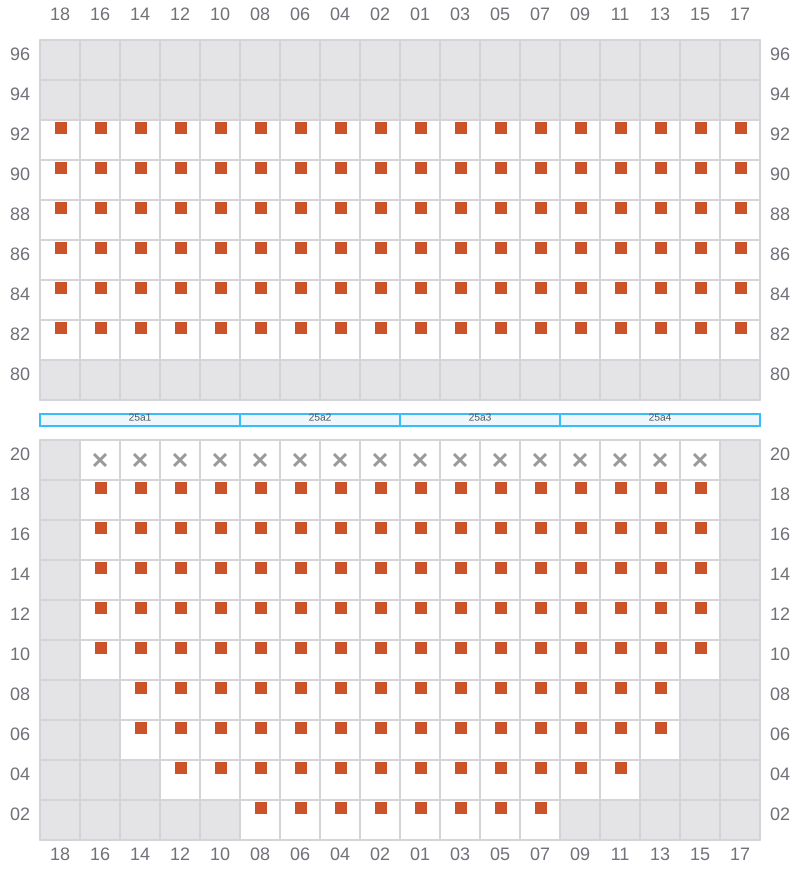

027
- ←
- ← / ?
- →
![Bay 027 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b027.png?v=1686435379690)

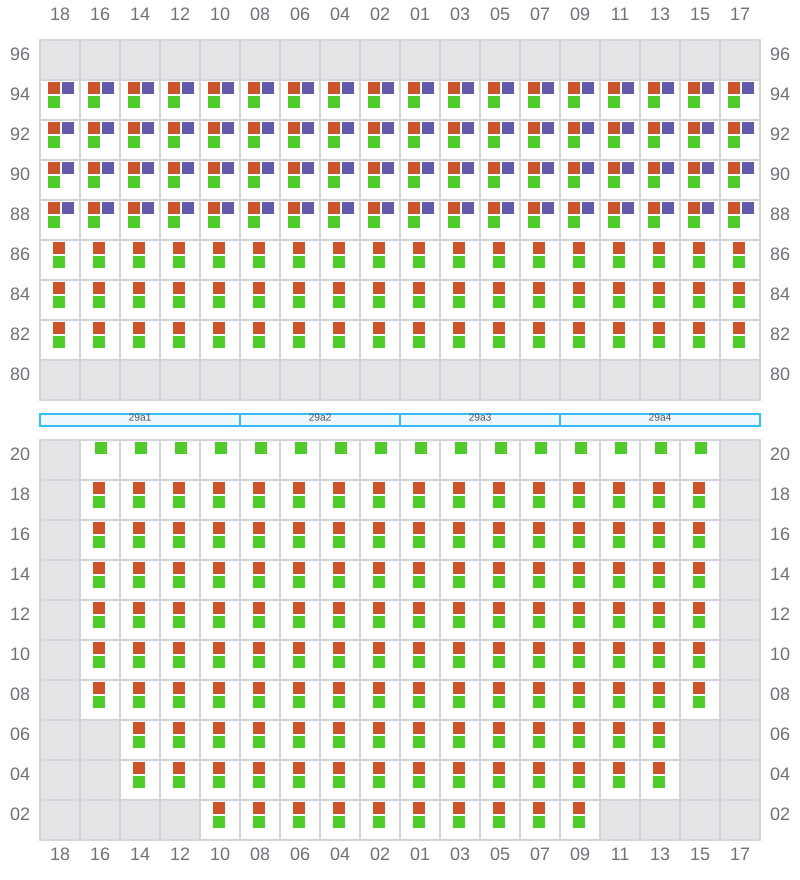

029 (030)
- →
- → / ?
- →
![Bay 029 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b029.png?v=1686435379690)

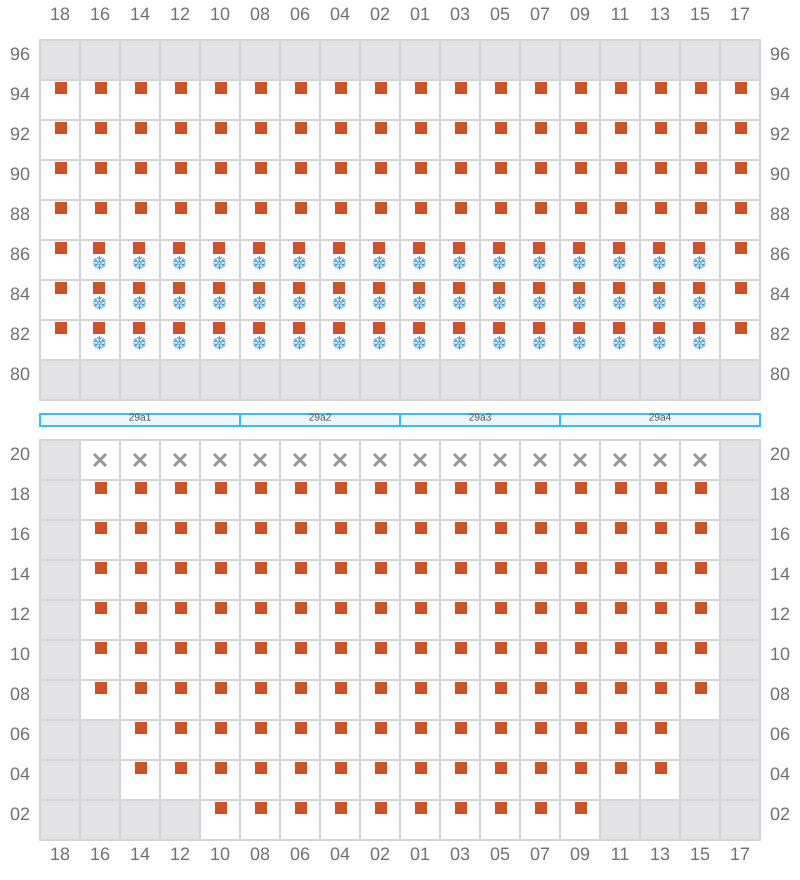

031
- ←
- → / ?
- →
![Bay 031 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b031.png?v=1686435379690)

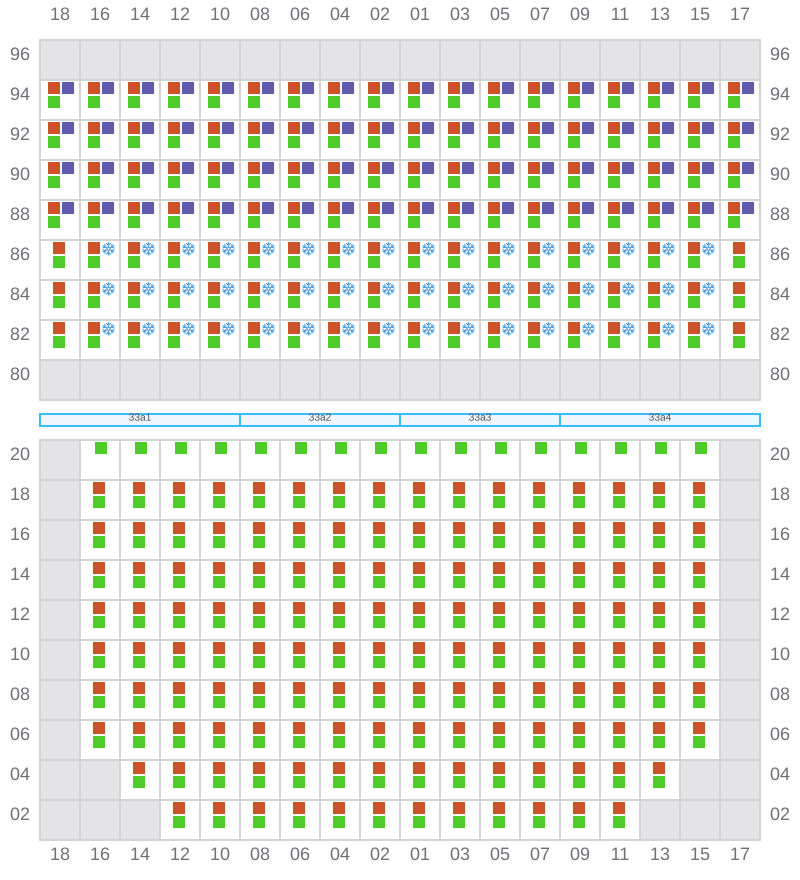

033 (034)
- →
- ← / ?
- →
![Bay 033 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b033.png?v=1686435379690)

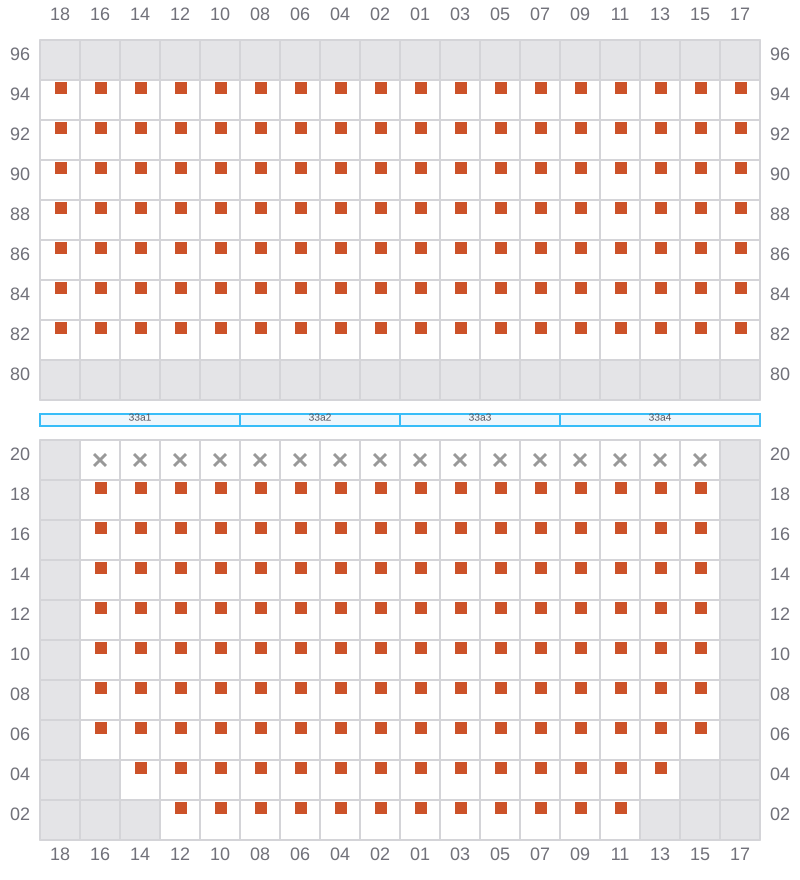

035
- ←
- ← / ?
- →
![Bay 035 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b035.png?v=1686435379690)

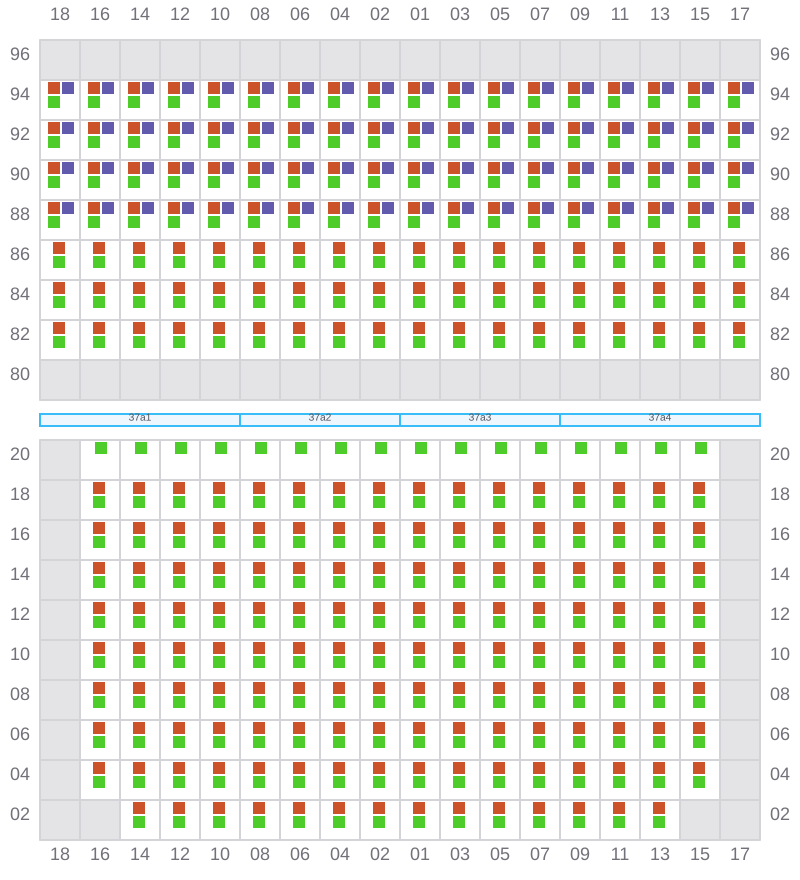

037 (038)
- →
- → / ?
- →
![Bay 037 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b037.png?v=1686435379690)
039
- ←
- → / ?
- →
![Bay 039 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b039.png?v=1686435379690)

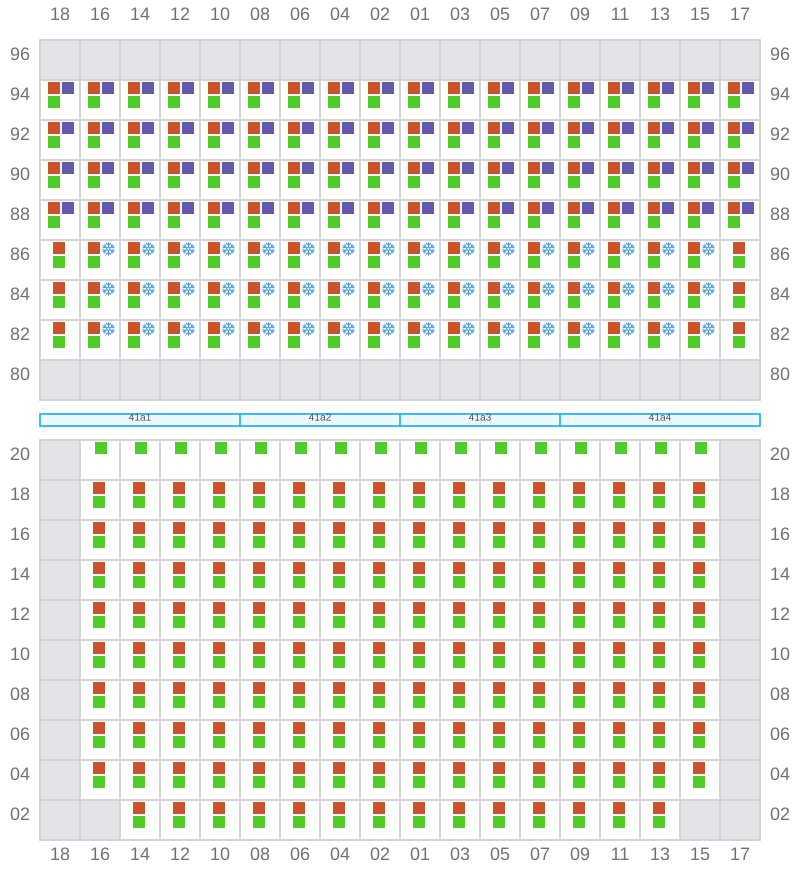

041 (042)
- →
- ← / ?
- →
![Bay 041 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b041.png?v=1686435379690)

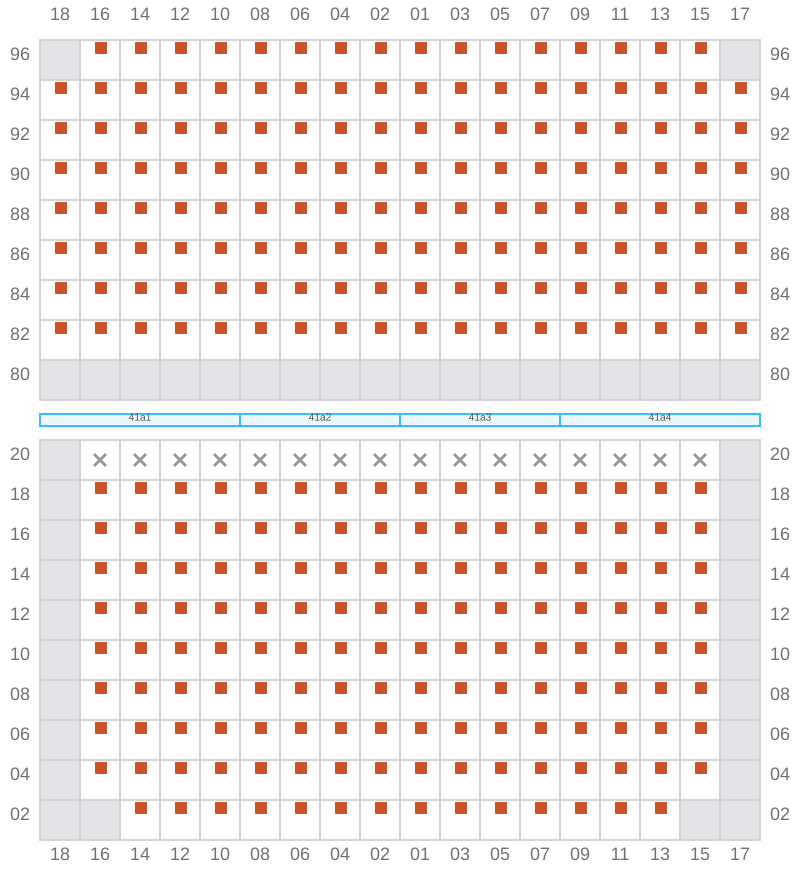

043
- ←
- ← / ?
- →
![Bay 043 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b043.png?v=1686435379690)

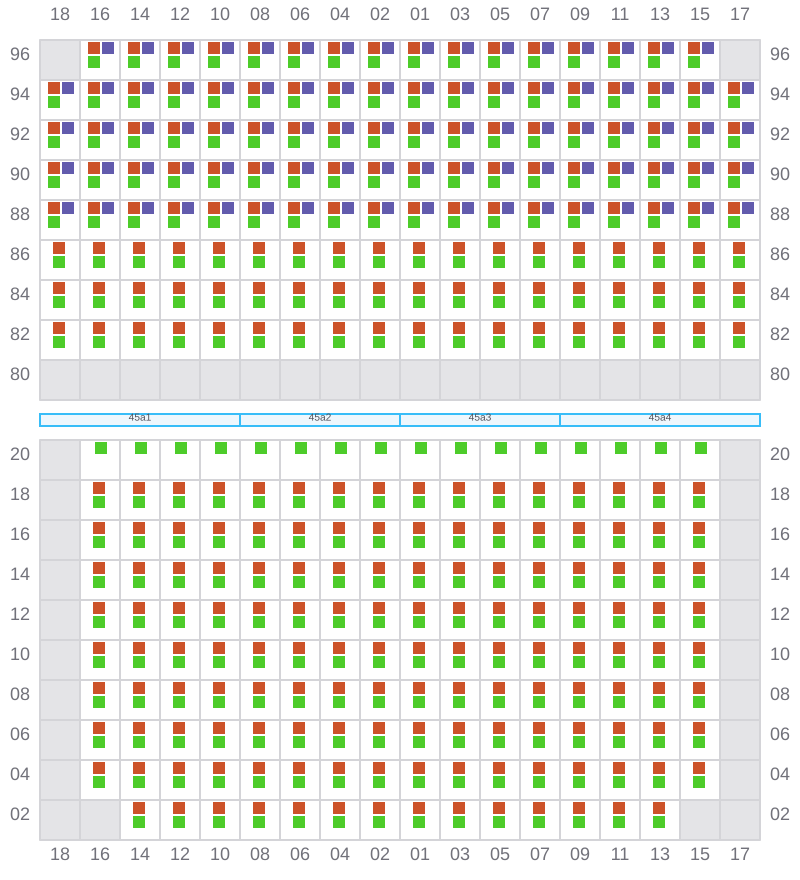

045 (046)
- →
- → / ?
- →
![Bay 045 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b045.png?v=1686435379690)
047
- ←
- → / ?
- →
![Bay 047 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b047.png?v=1686435379690)

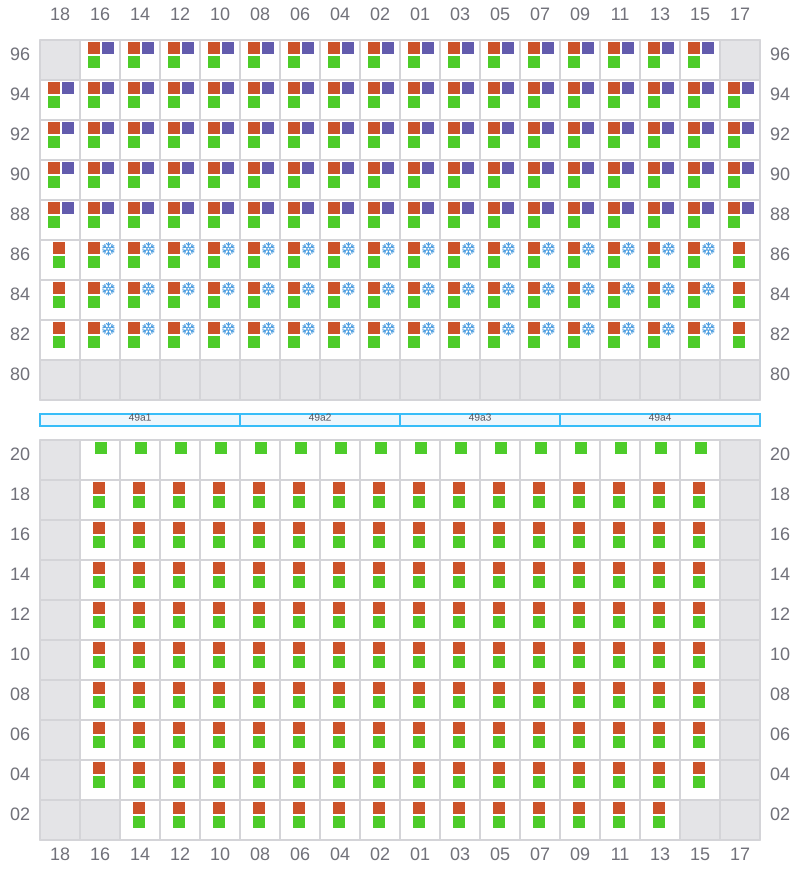

049 (050)
- →
- ← / ?
- →
![Bay 049 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b049.png?v=1686435379690)

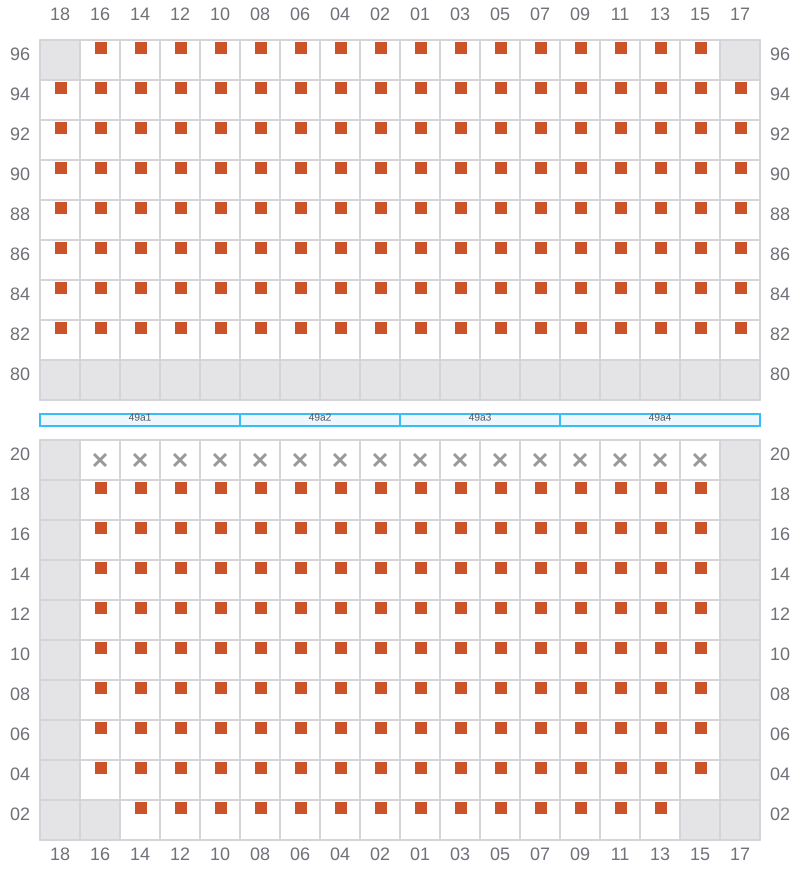

051
- ←
- ← / ?
- →
![Bay 051 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b051.png?v=1686435379690)

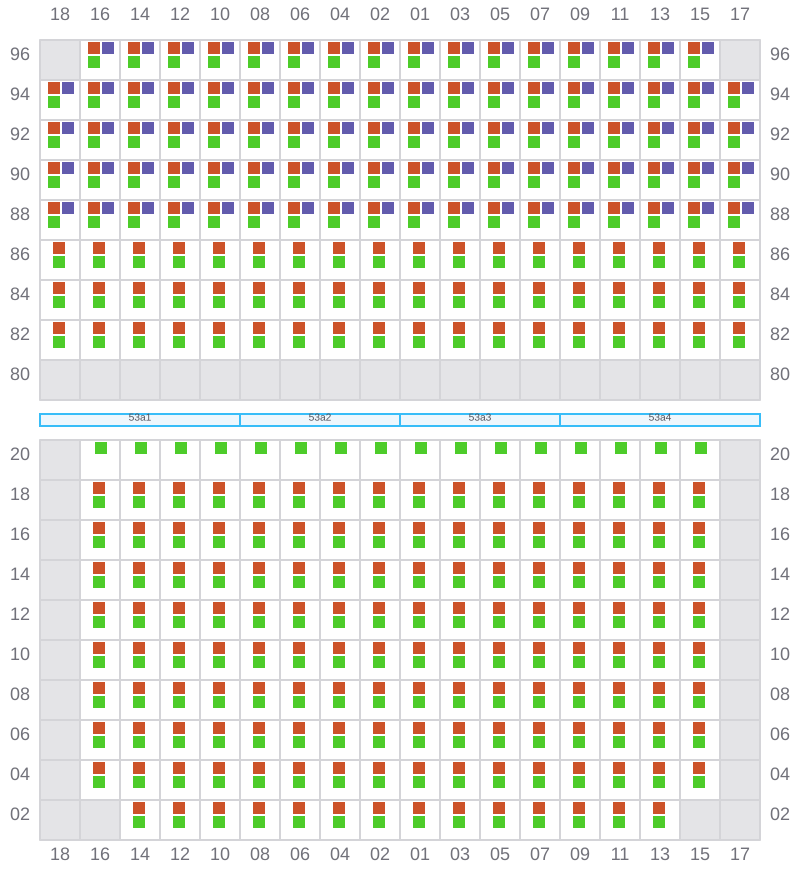

053 (054)
- →
- → / ?
- →
![Bay 053 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b053.png?v=1686435379690)

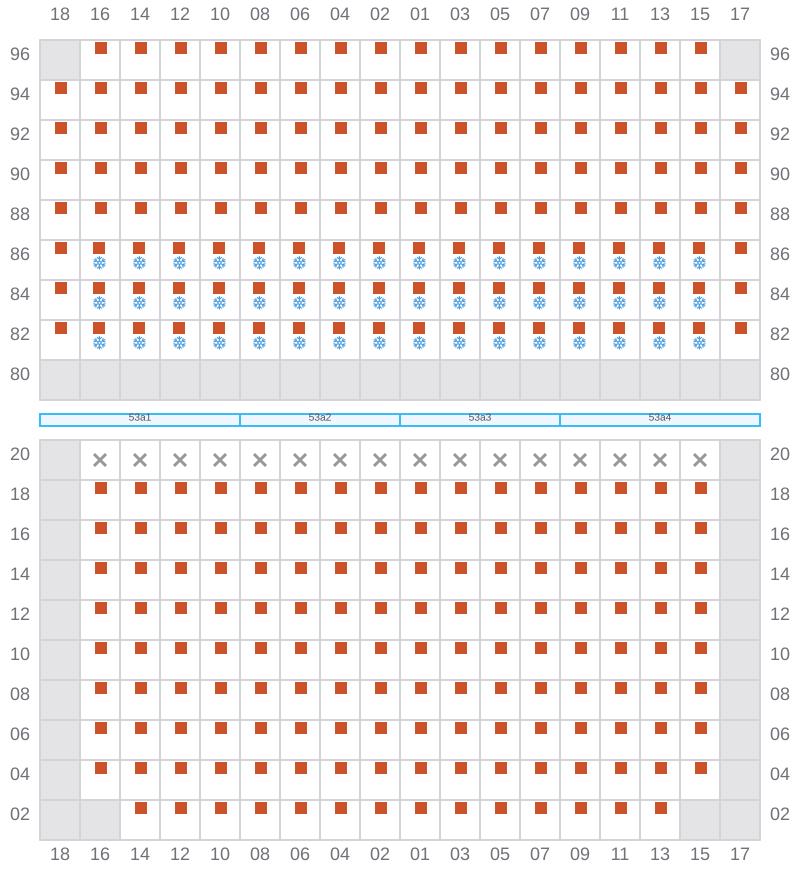

055
- ←
- → / ?
- →
![Bay 055 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b055.png?v=1686435379690)

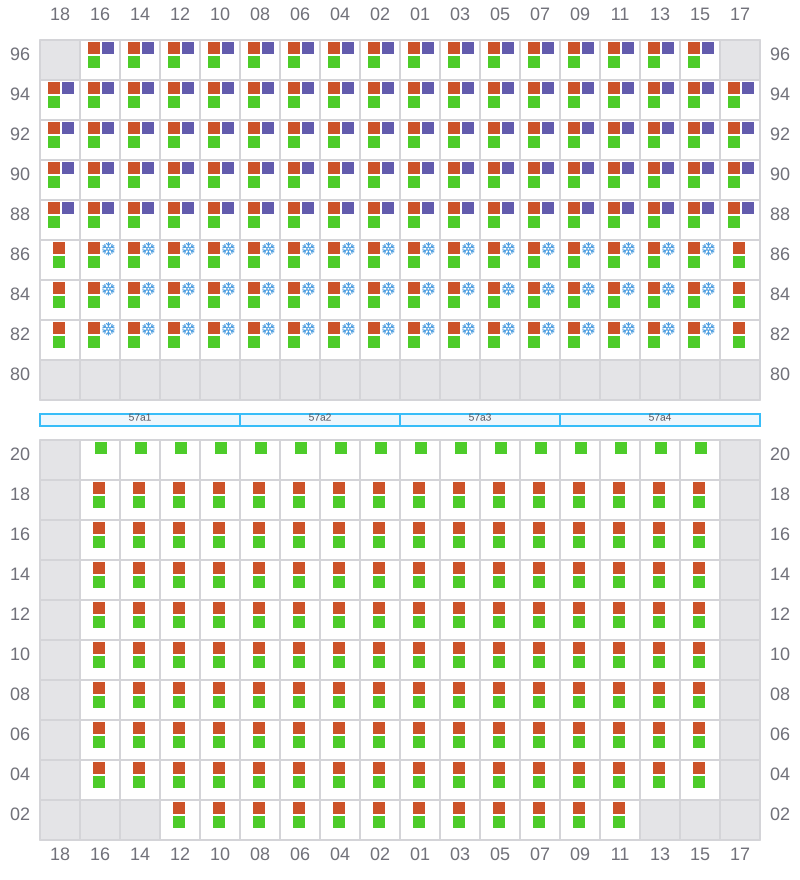

057 (058)
- →
- ← / ?
- →
![Bay 057 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b057.png?v=1686435379690)

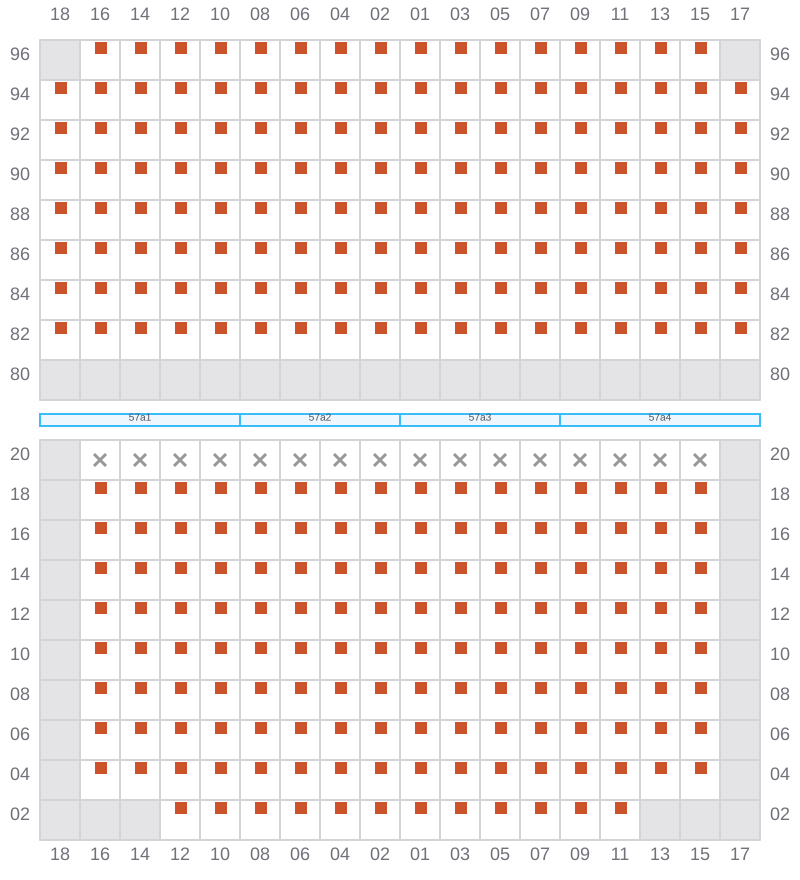

059
- ←
- ← / ?
- →
![Bay 059 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b059.png?v=1686435379690)

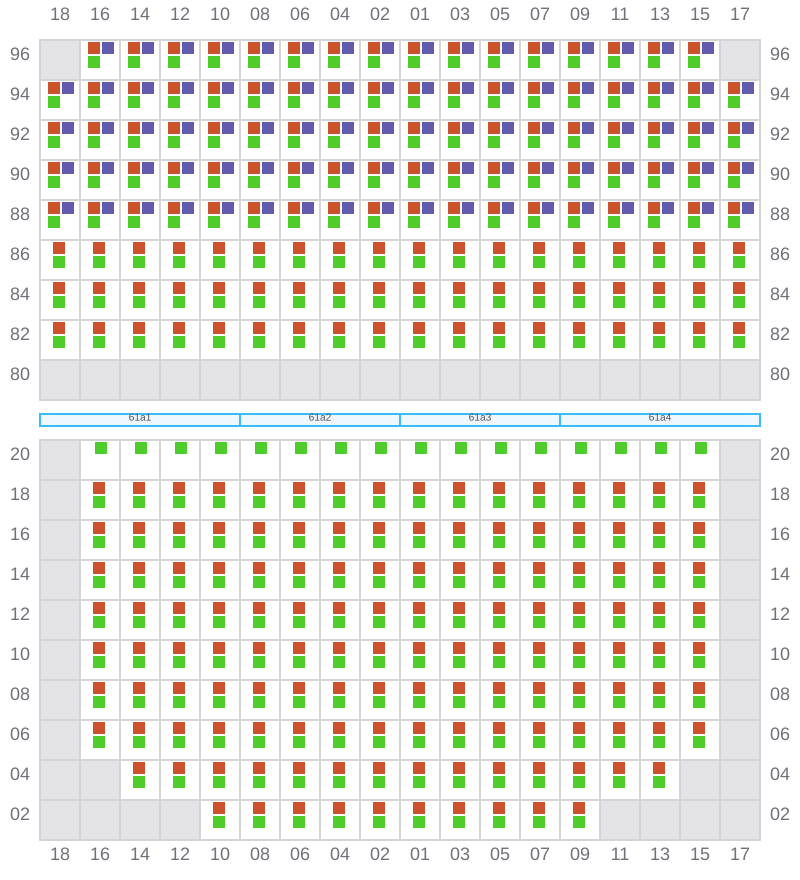

061 (062)
- →
- → / ?
- →
![Bay 061 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b061.png?v=1686435379690)

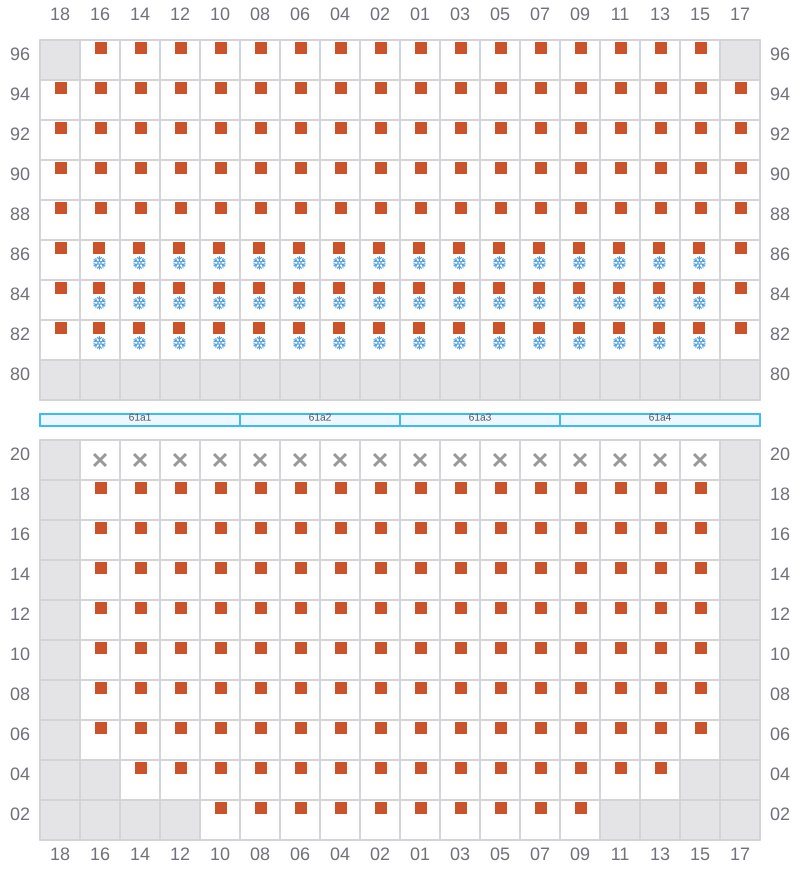

063
- ←
- → / ?
- →
![Bay 063 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b063.png?v=1686435379690)

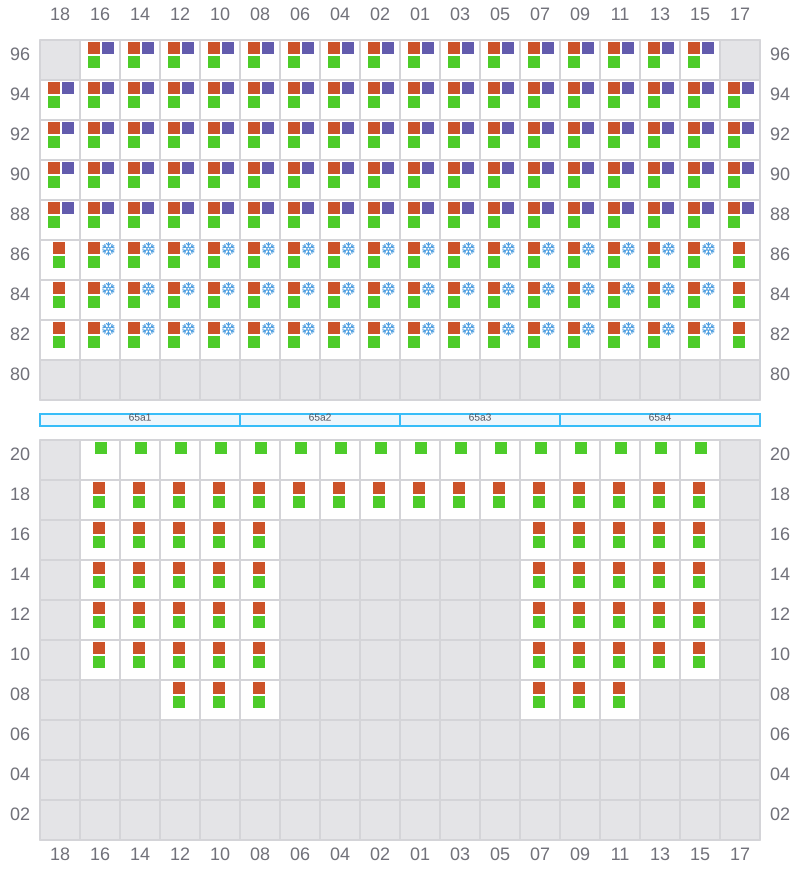

065 (066)
- →
- ← / ?
- →
![Bay 065 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b065.png?v=1686435379690)

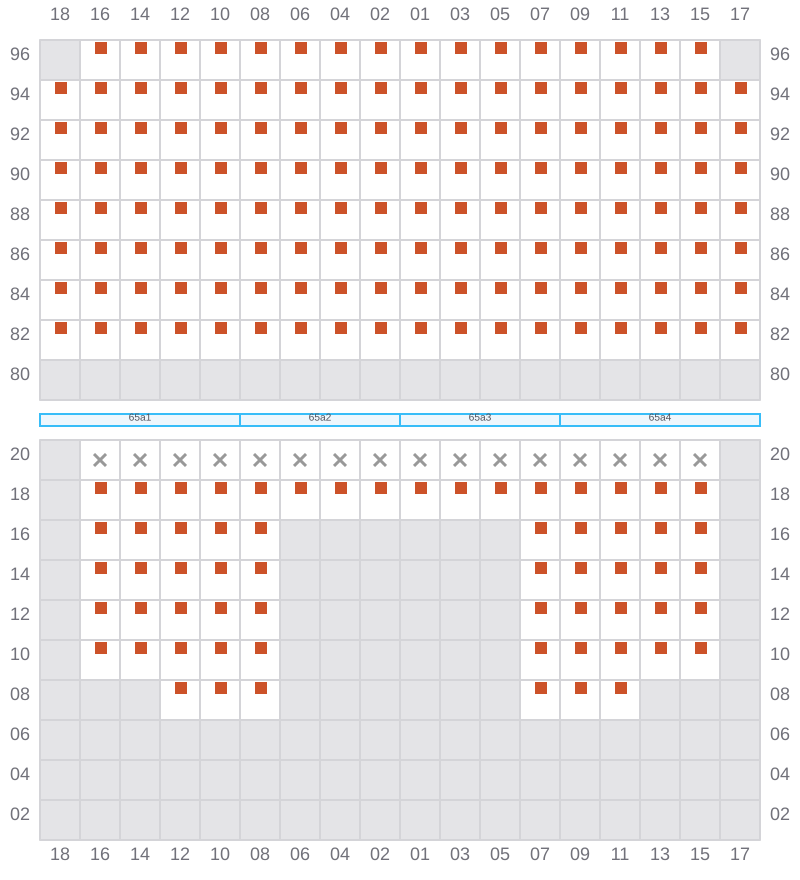

067
- ←
- ← / ?
- →
![Bay 067 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b067.png?v=1686435379690)
069 (070)
- →
- → / ?
- →
![Bay 069 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b069.png?v=1686435379690)

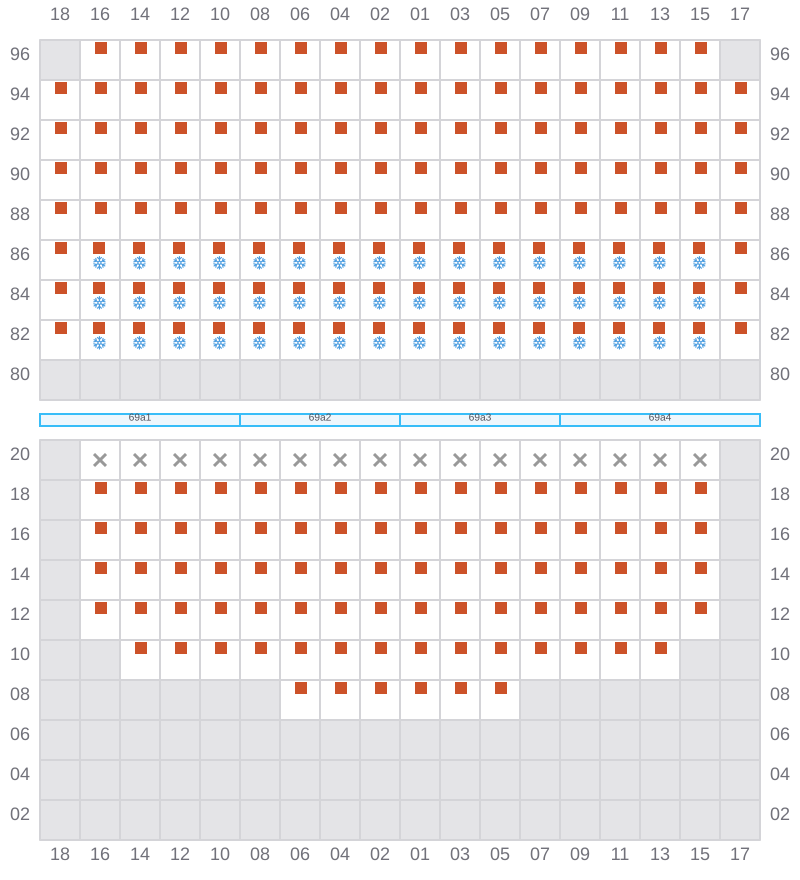

071
- ←
- → / ?
- →
![Bay 071 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b071.png?v=1686435379690)
073 (074)
- →
- ← / ?
- →
![Bay 073 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b073.png?v=1686435379690)

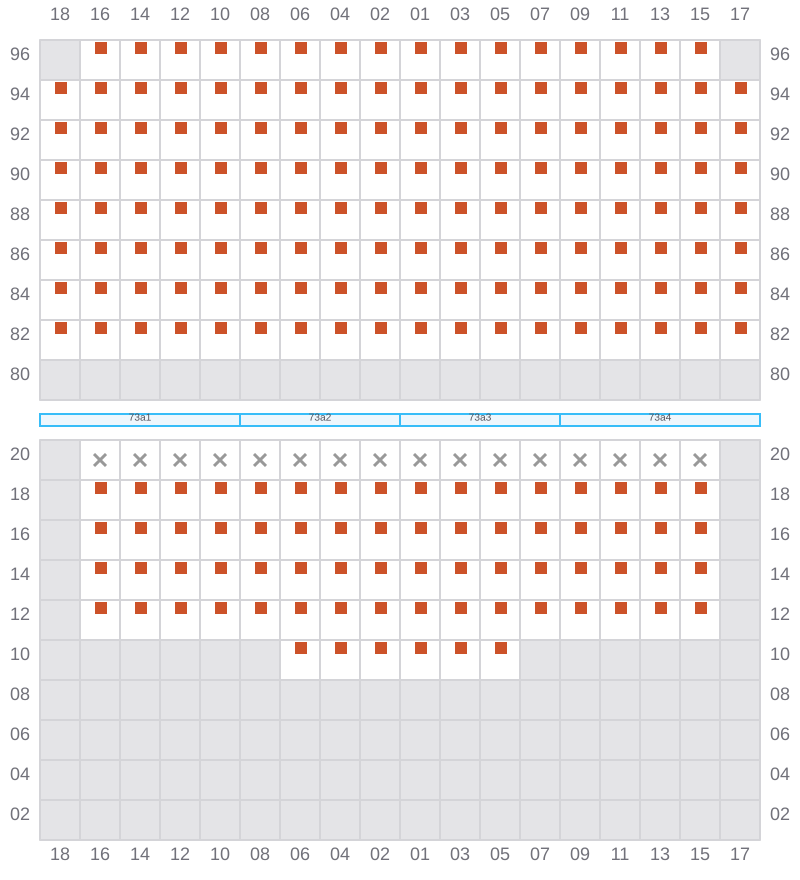

075
- ←
- ← / ?
- →
![Bay 075 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b075.png?v=1686435379690)

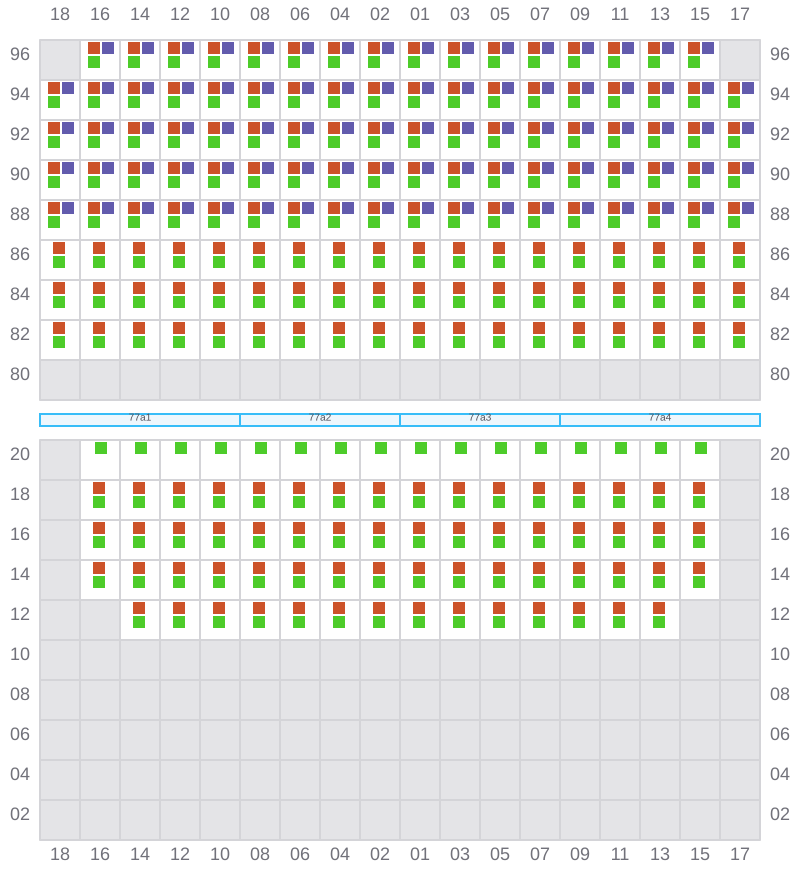

077 (078)
- →
- → / ?
- →
![Bay 077 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b077.png?v=1686435379690)
079
- ←
- → / ?
- →
![Bay 079 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b079.png?v=1686435379690)

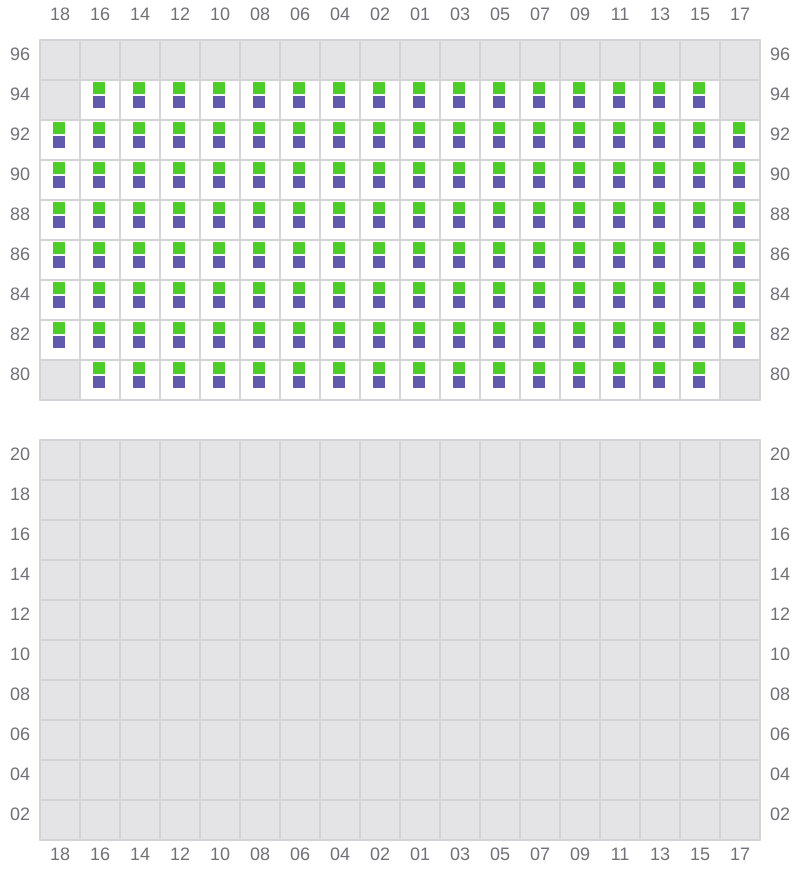

081 (082)
- → / ?
- → / ?
![Bay 081 view and slots of COSCO OCEANIA](/vessel-images/813ce51d-0748-4444-8d8a-2e9c32975408-b081.png?v=1686435379690)
