COSCO OCEANIA
9334923 | VRDQ5 | COS by ******** Last update: Tue Oct 08 2024

General Info

Ship Name:COSCO OCEANIA
IMO Code:9334923
Call Sign:VRDQ5
Line Operator:COS
Class Name for Sister Ships:TAIC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,020

Centers of Gravity

LCG Values:Known
LCG Data:89%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

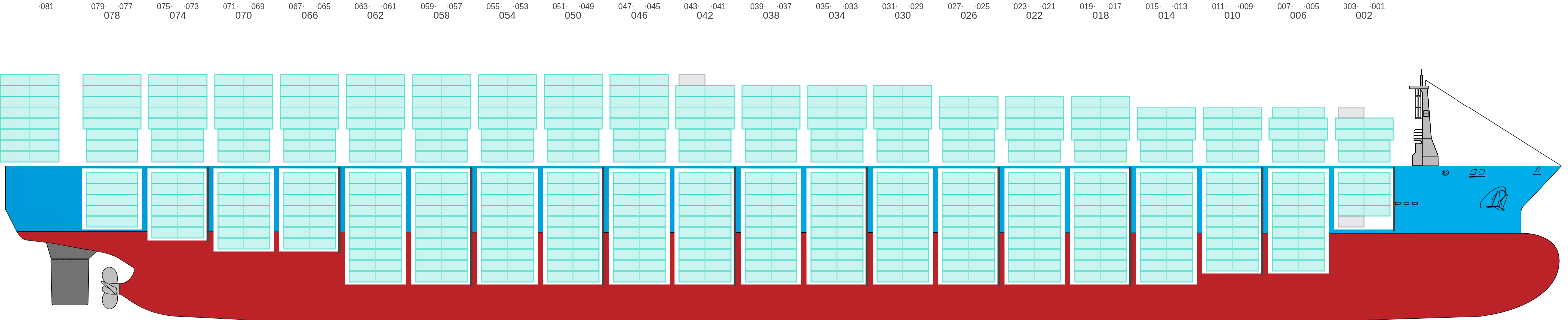

Side view of COSCO OCEANIA

Hatch-Covers View

Deck view of COSCO OCEANIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

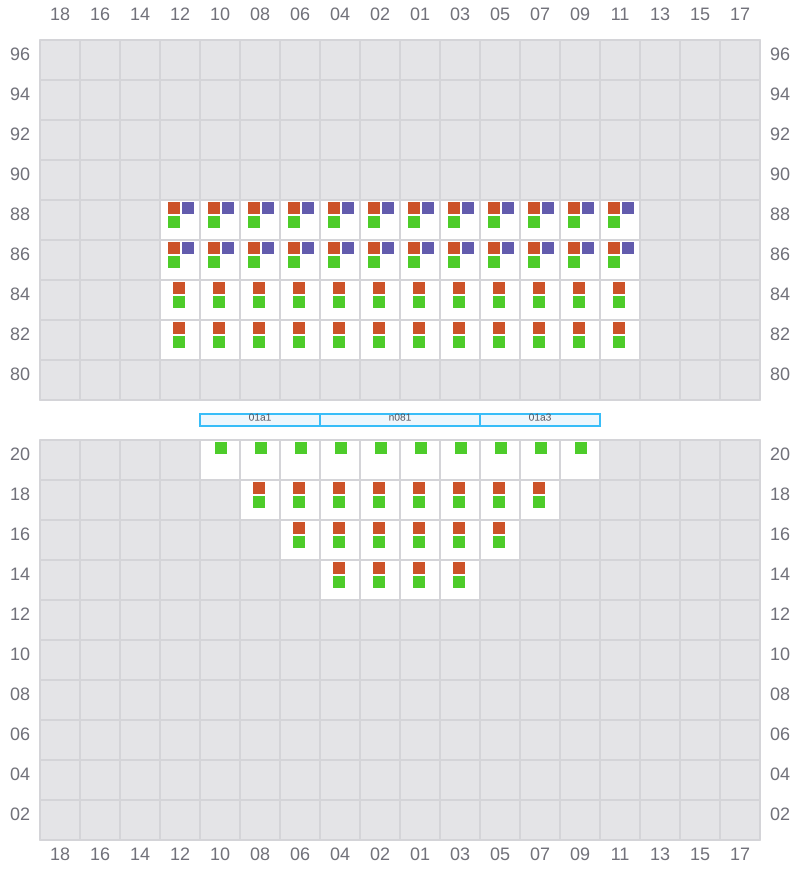

001 (002)

  • →
  • →
Bay 001 view and slots of COSCO OCEANIA

003

  • ←
  • →

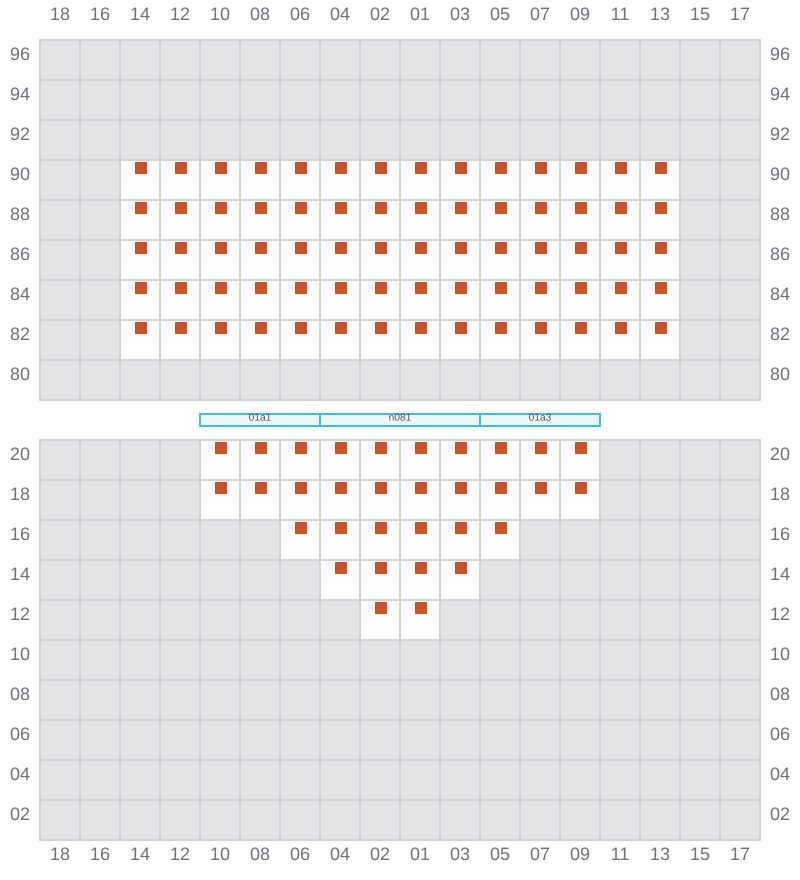

Bay 003 view and slots of COSCO OCEANIA

005 (006)

  • →
  • →

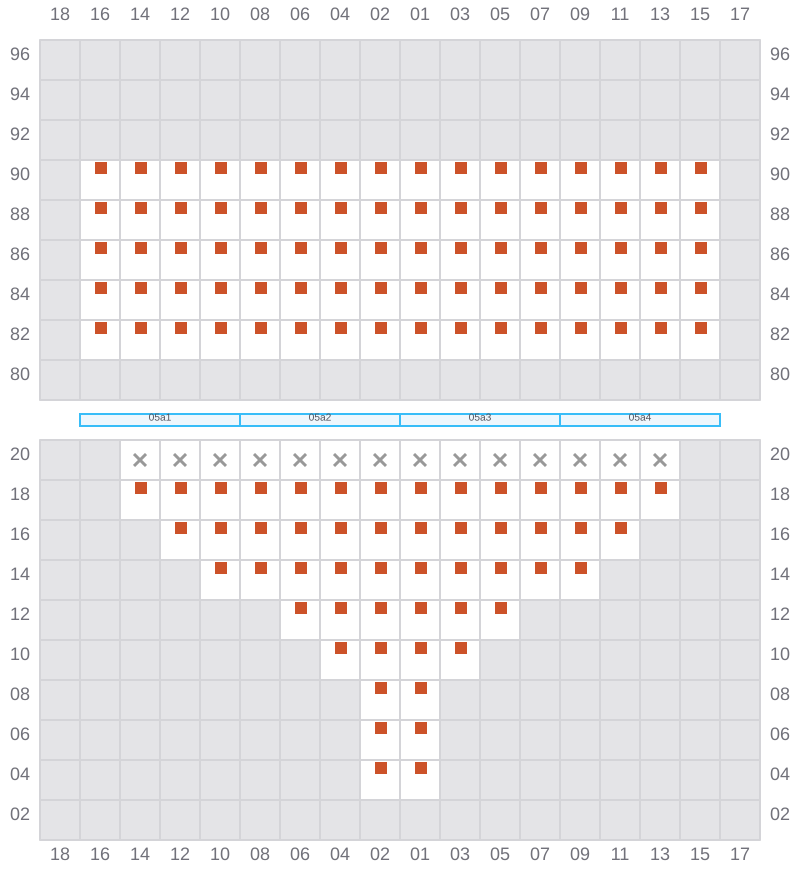

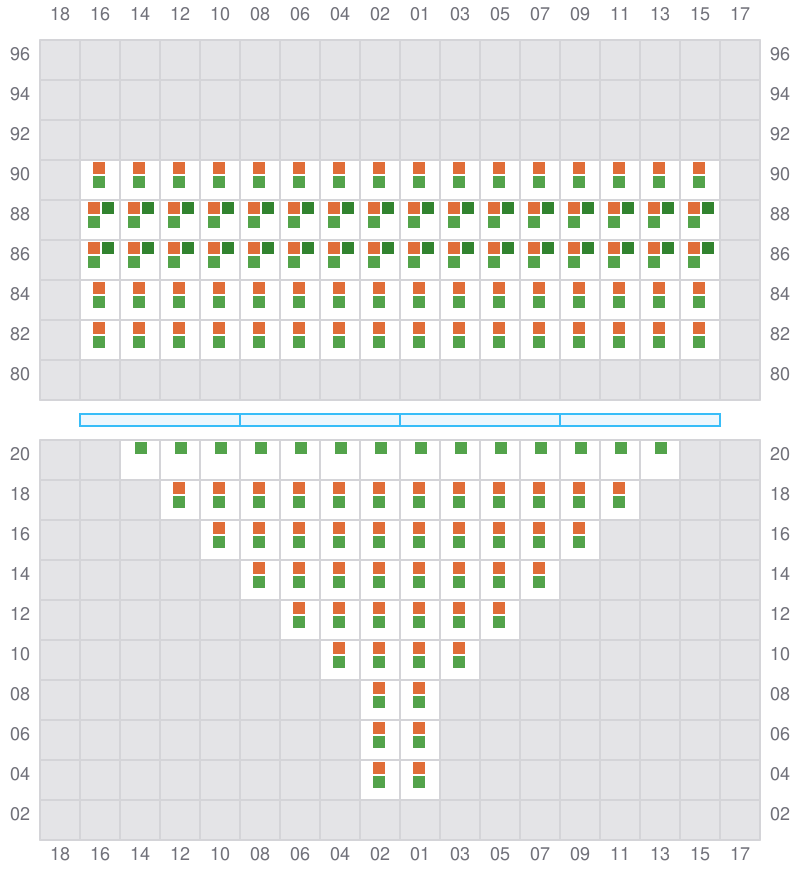

Bay 005 view and slots of COSCO OCEANIA

007

  • ←
  • →
Bay 007 view and slots of COSCO OCEANIA

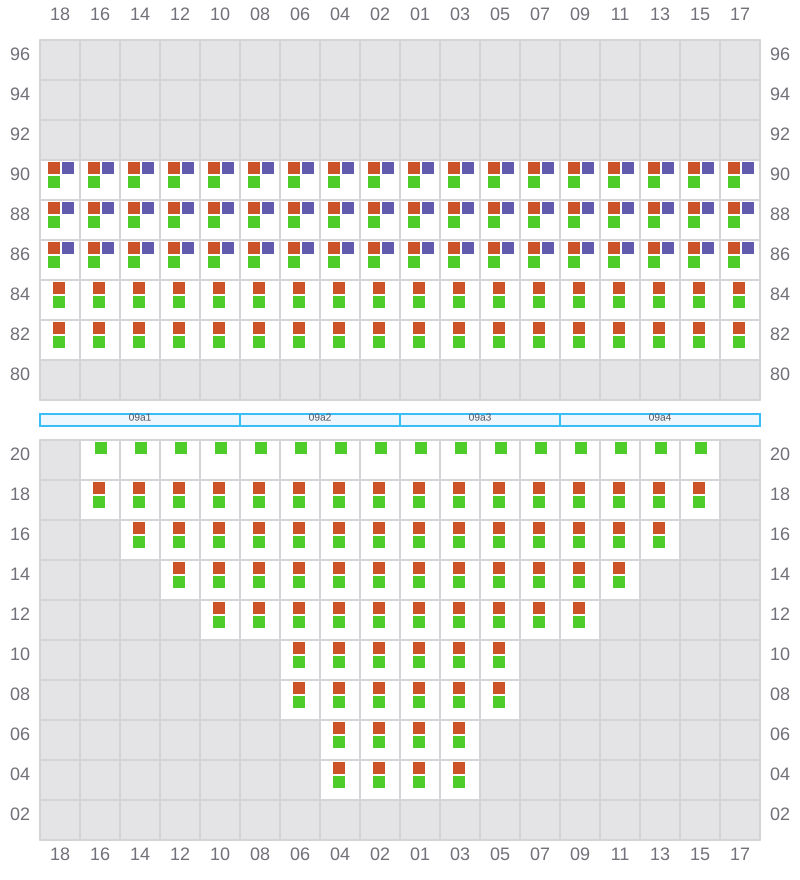

009 (010)

  • →
  • →
Bay 009 view and slots of COSCO OCEANIA

011

  • ←
  • →

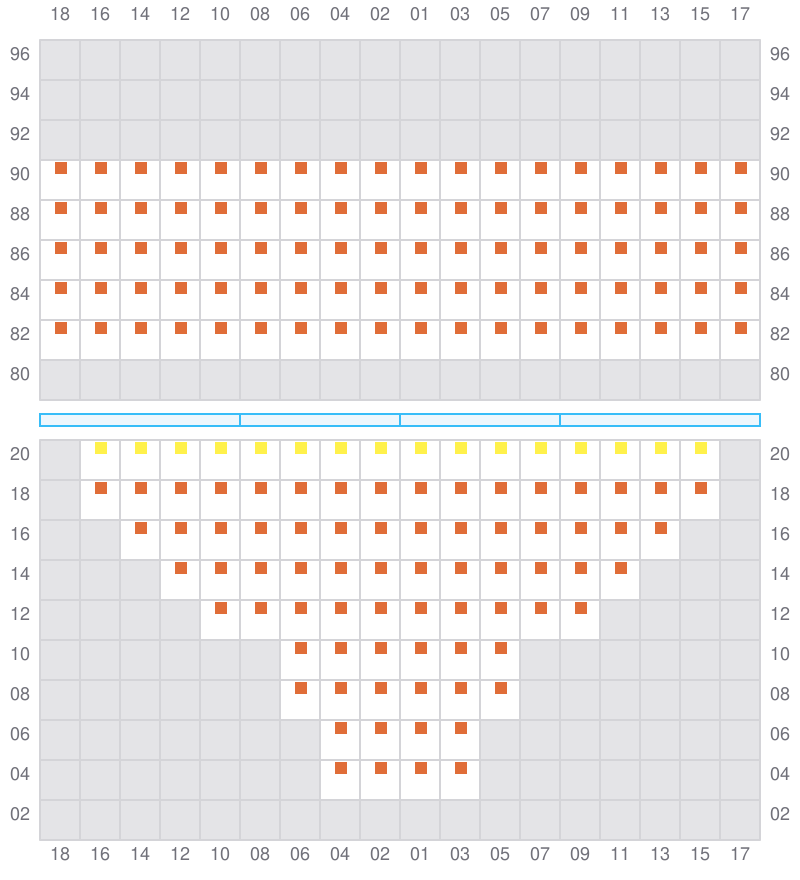

Bay 011 view and slots of COSCO OCEANIA

013 (014)

  • →
  • → / ?
  • →

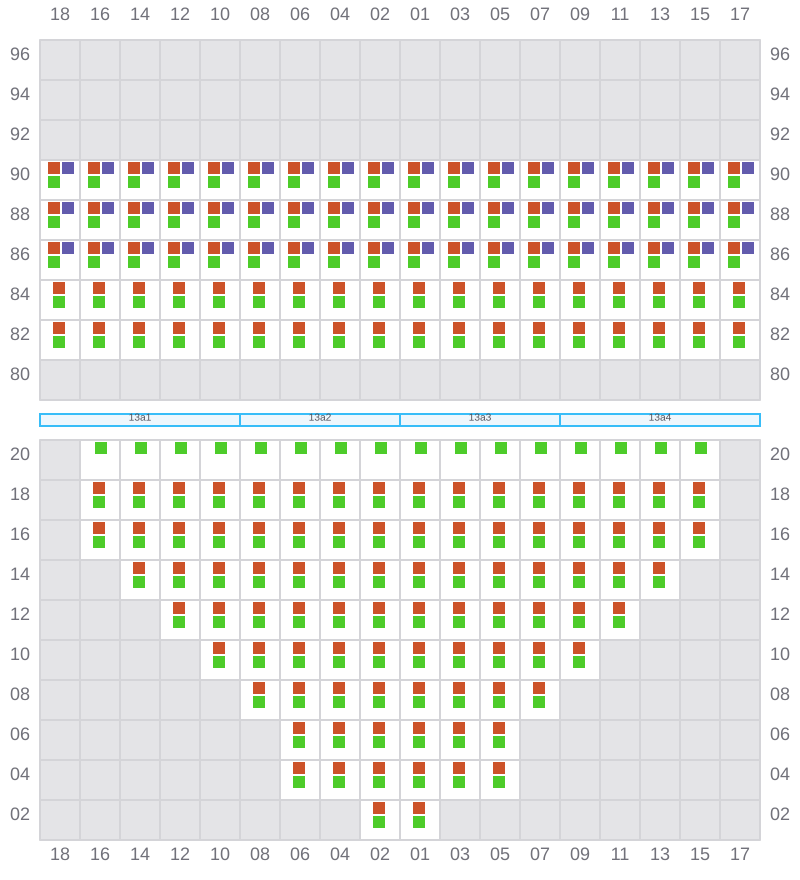

Bay 013 view and slots of COSCO OCEANIA

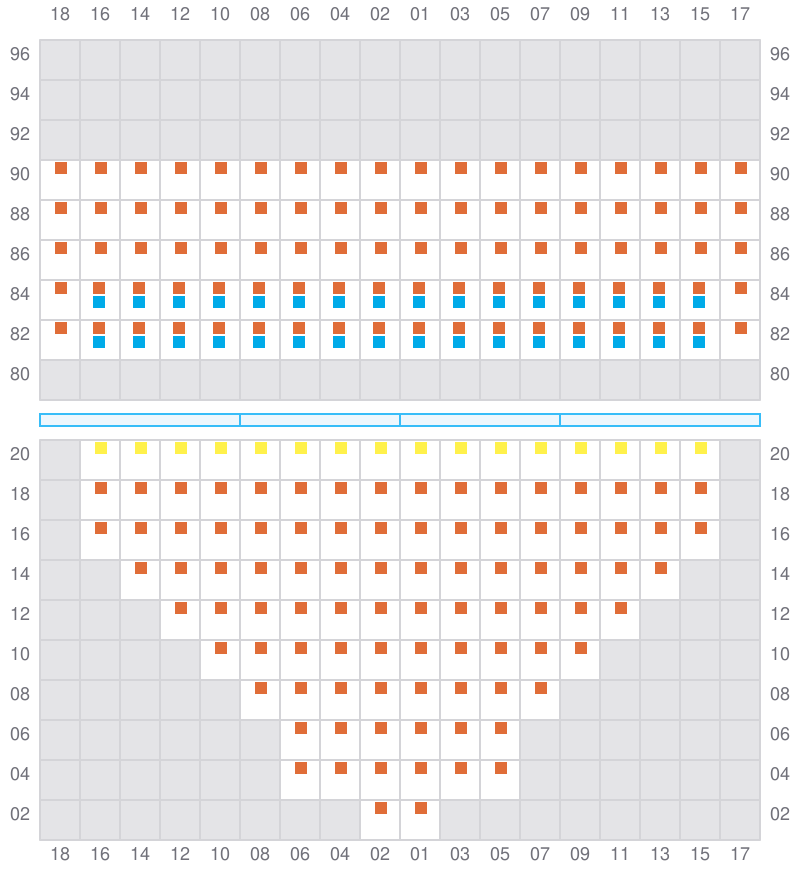

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of COSCO OCEANIA

017 (018)

  • →
  • ← / ?
  • →

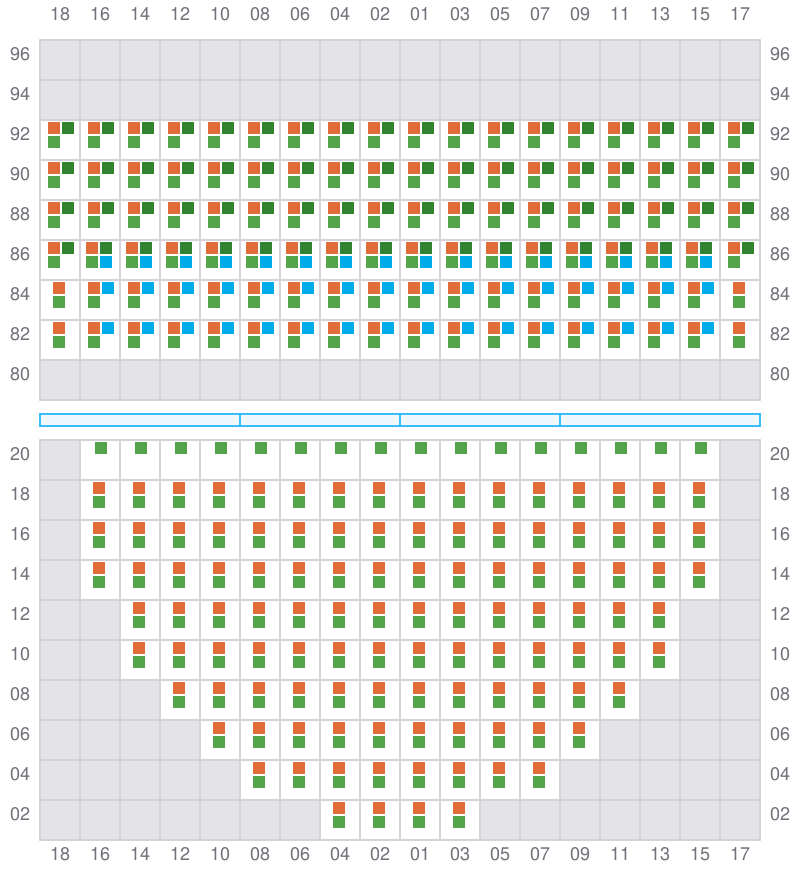

Bay 017 view and slots of COSCO OCEANIA

019

  • ←
  • ← / ?
  • →

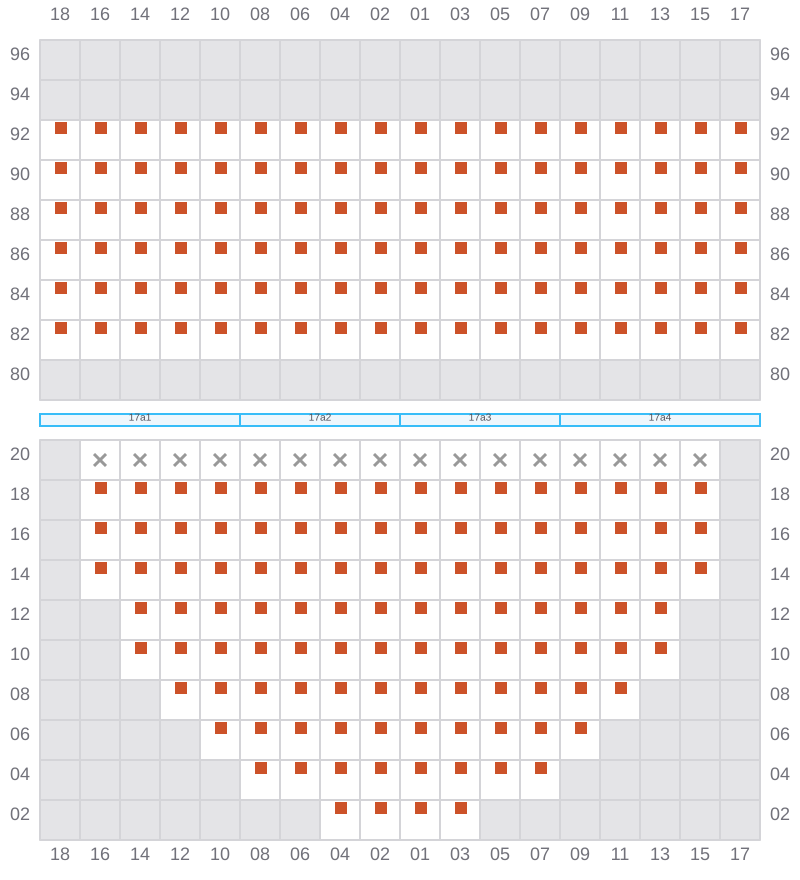

Bay 019 view and slots of COSCO OCEANIA

021 (022)

  • →
  • → / ?
  • →

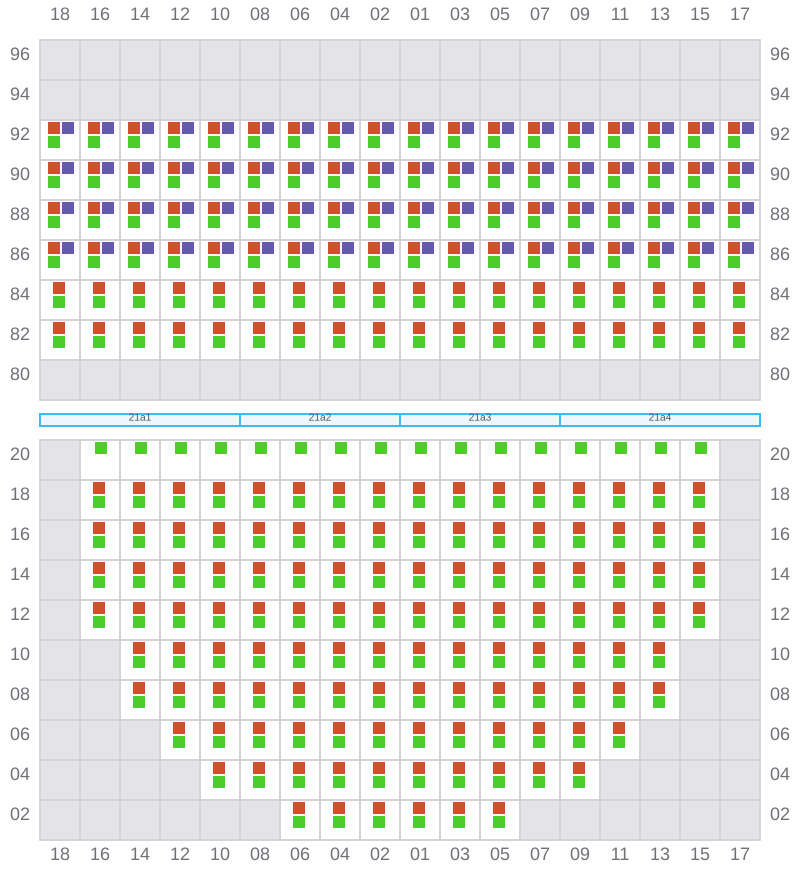

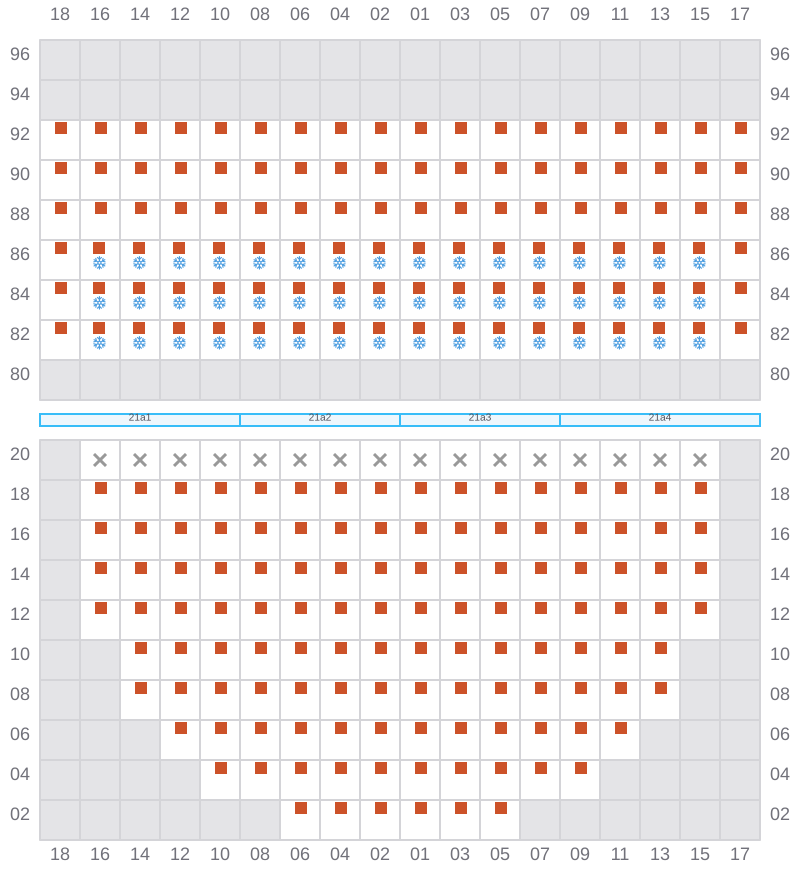

Bay 021 view and slots of COSCO OCEANIA

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of COSCO OCEANIA

025 (026)

  • →
  • ← / ?
  • →

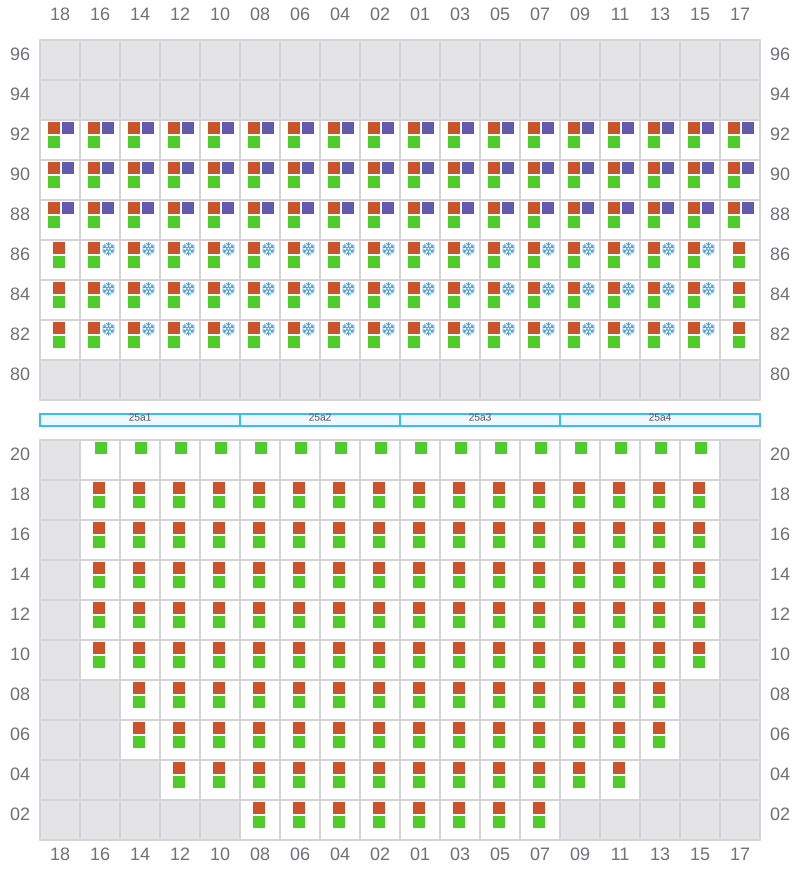

Bay 025 view and slots of COSCO OCEANIA

027

  • ←
  • ← / ?
  • →
Bay 027 view and slots of COSCO OCEANIA

029 (030)

  • →
  • → / ?
  • →

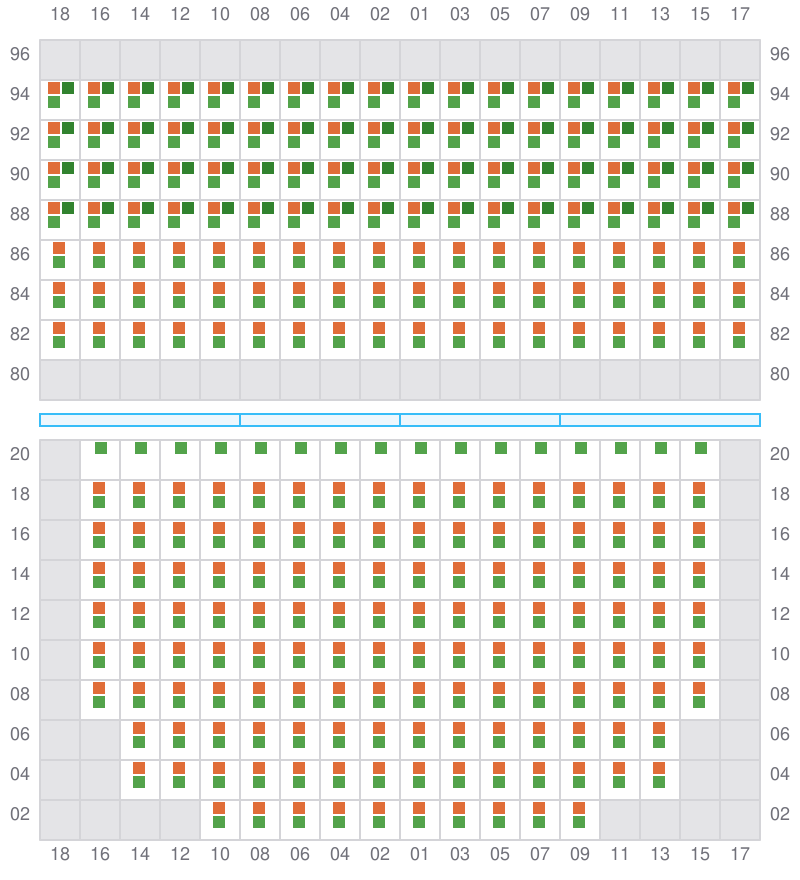

Bay 029 view and slots of COSCO OCEANIA

031

  • ←
  • → / ?
  • →

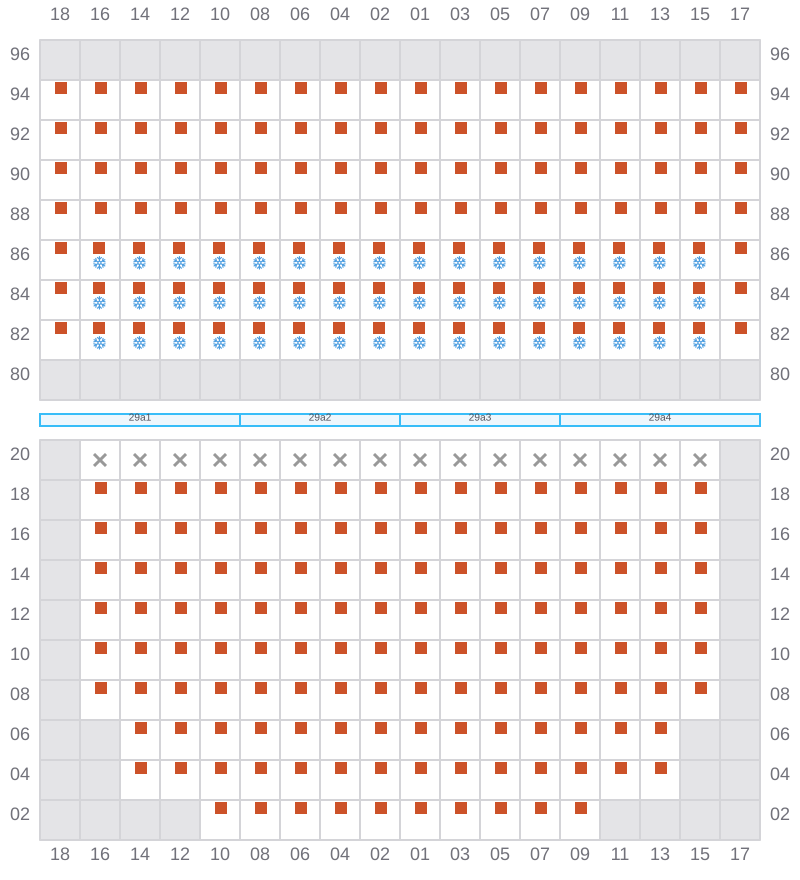

Bay 031 view and slots of COSCO OCEANIA

033 (034)

  • →
  • ← / ?
  • →

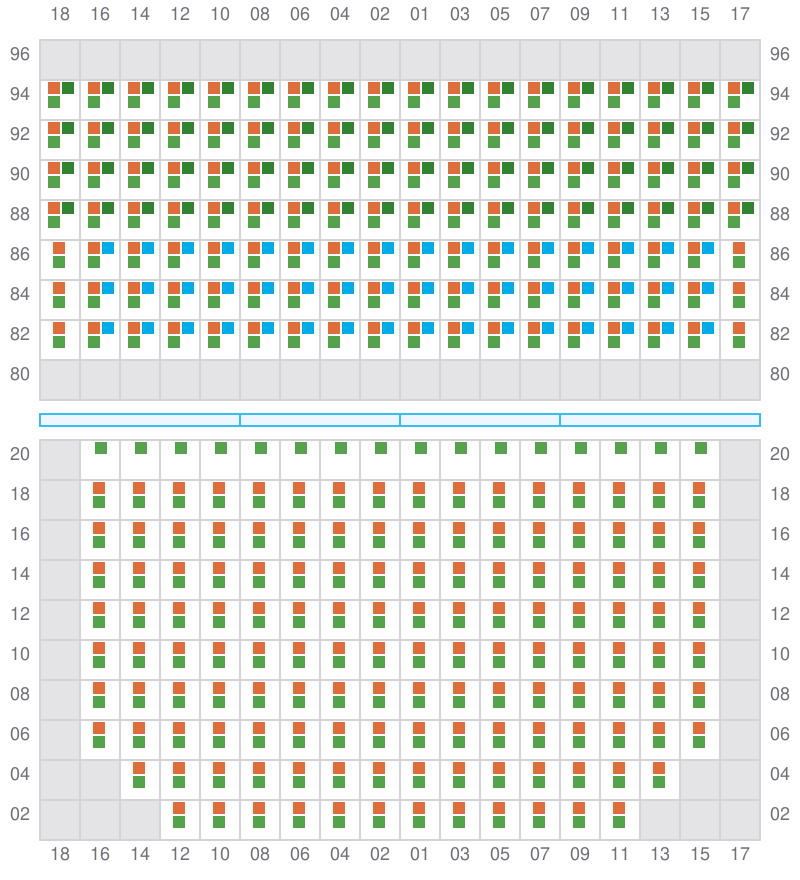

Bay 033 view and slots of COSCO OCEANIA

035

  • ←
  • ← / ?
  • →

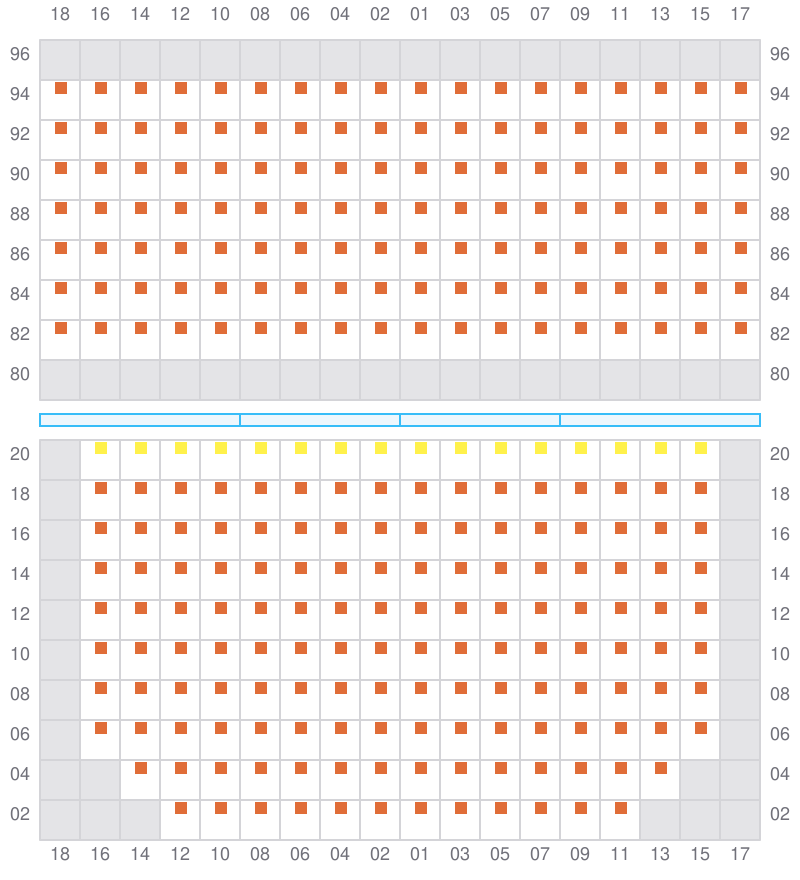

Bay 035 view and slots of COSCO OCEANIA

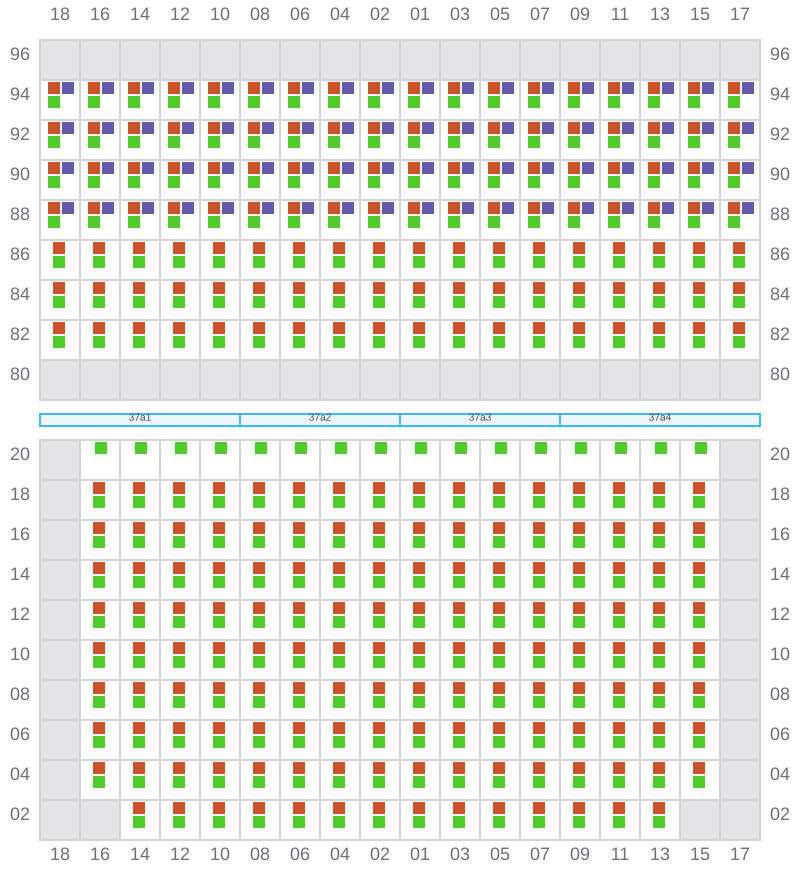

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of COSCO OCEANIA

039

  • ←
  • → / ?
  • →

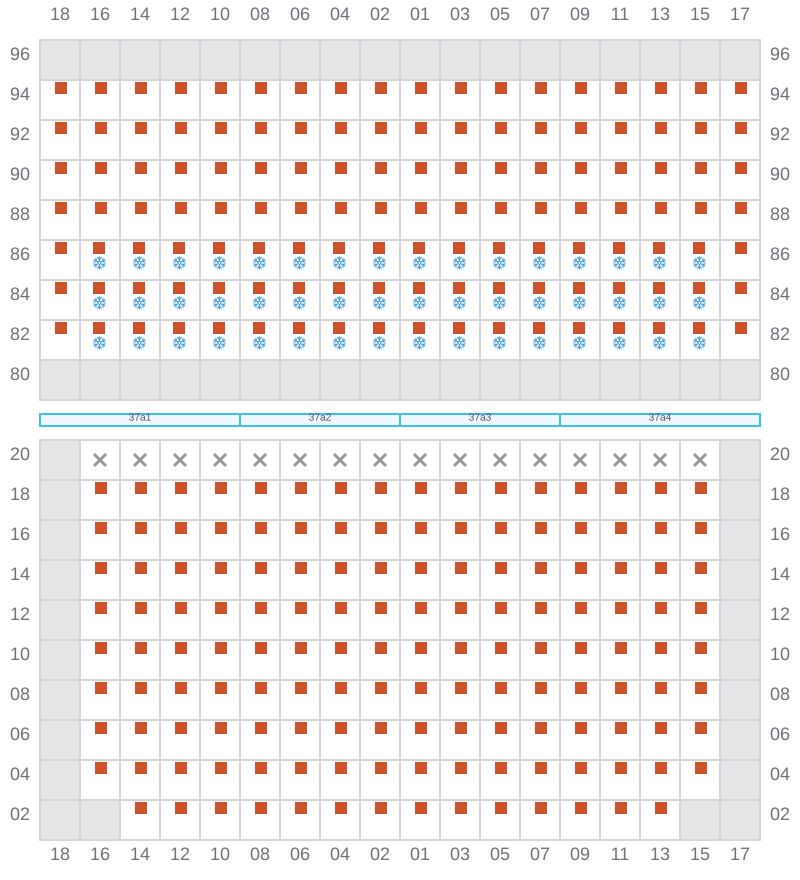

Bay 039 view and slots of COSCO OCEANIA

041 (042)

  • →
  • ← / ?
  • →

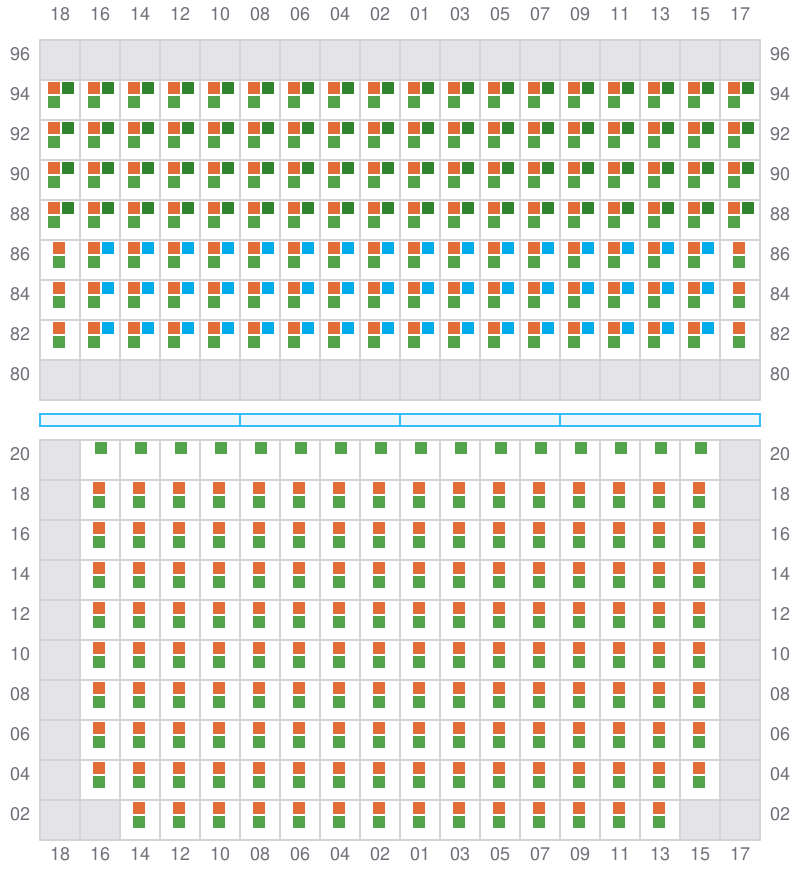

Bay 041 view and slots of COSCO OCEANIA

043

  • ←
  • ← / ?
  • →

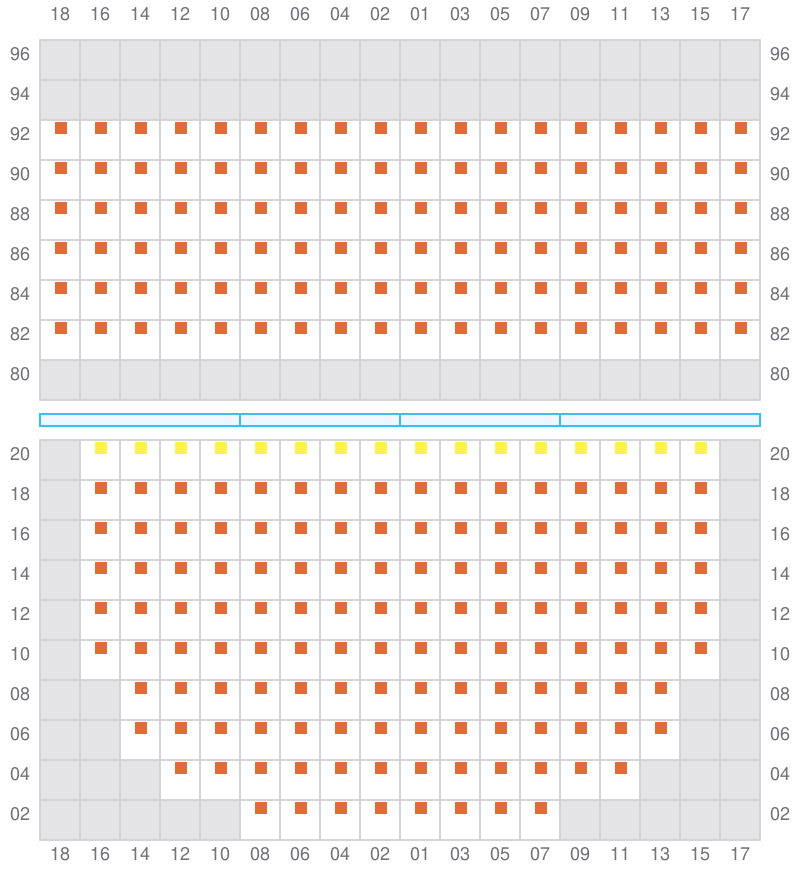

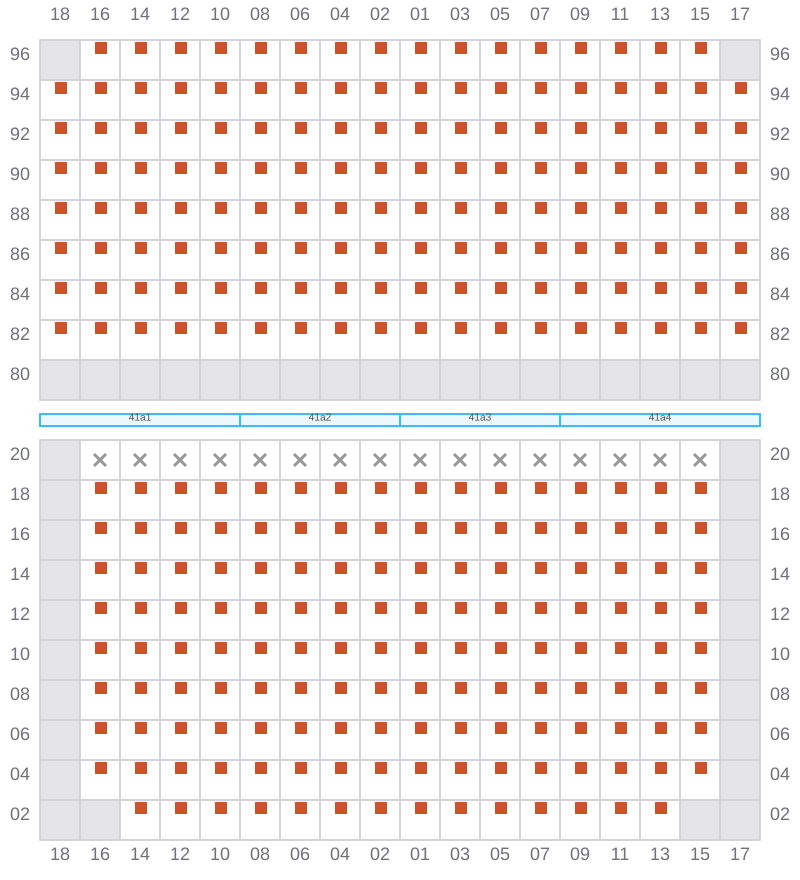

Bay 043 view and slots of COSCO OCEANIA

045 (046)

  • →
  • → / ?
  • →

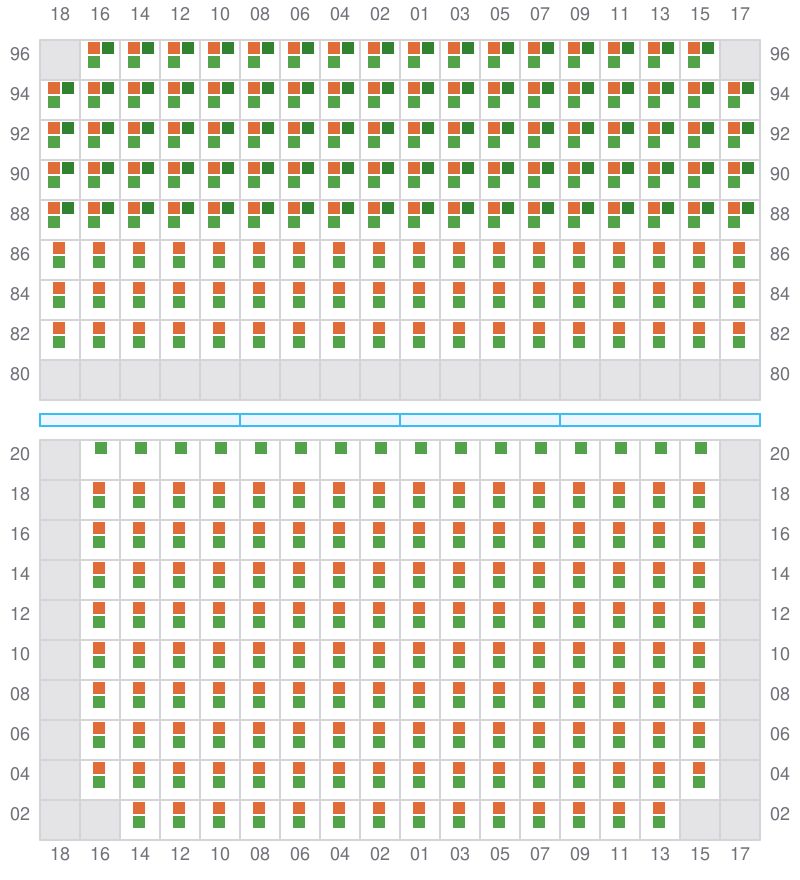

Bay 045 view and slots of COSCO OCEANIA

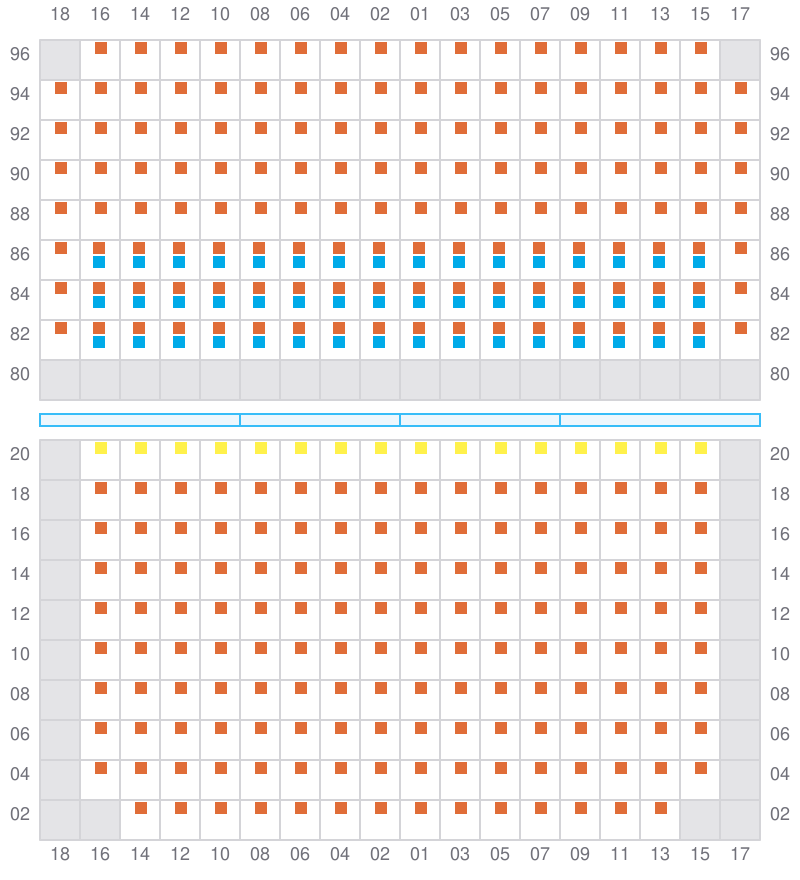

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of COSCO OCEANIA

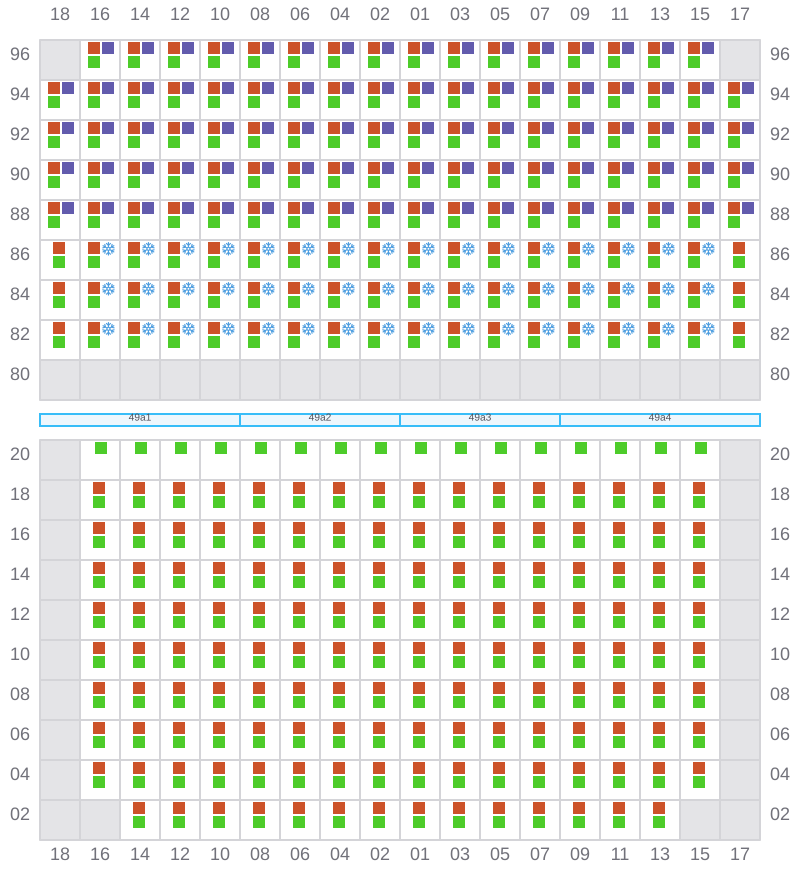

049 (050)

  • →
  • ← / ?
  • →

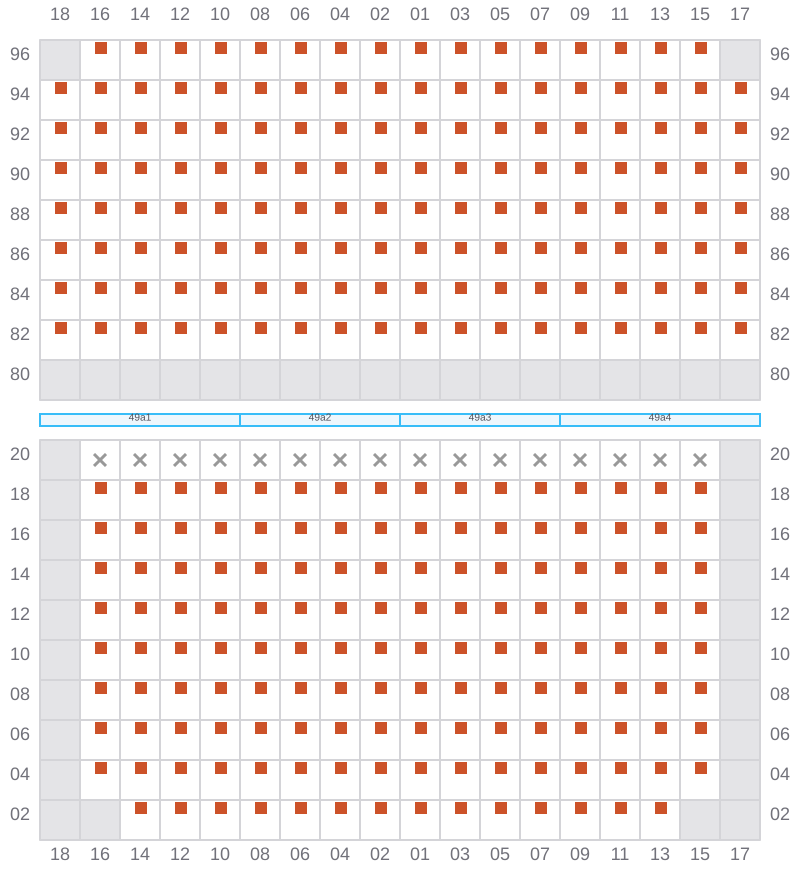

Bay 049 view and slots of COSCO OCEANIA

051

  • ←
  • ← / ?
  • →
Bay 051 view and slots of COSCO OCEANIA

053 (054)

  • →
  • → / ?
  • →

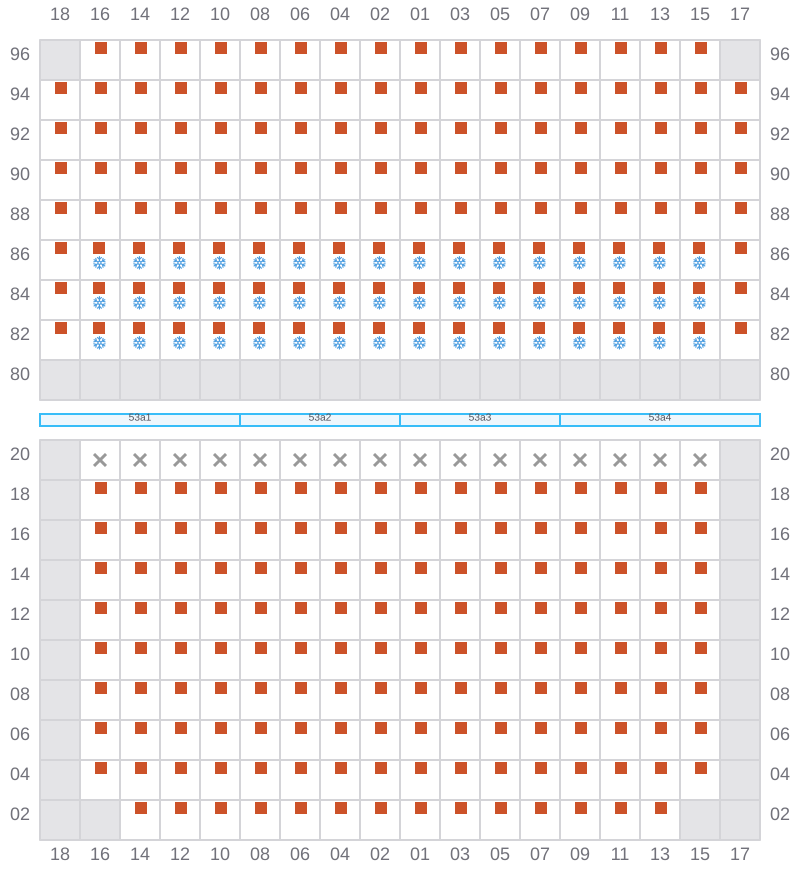

Bay 053 view and slots of COSCO OCEANIA

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of COSCO OCEANIA

057 (058)

  • →
  • ← / ?
  • →

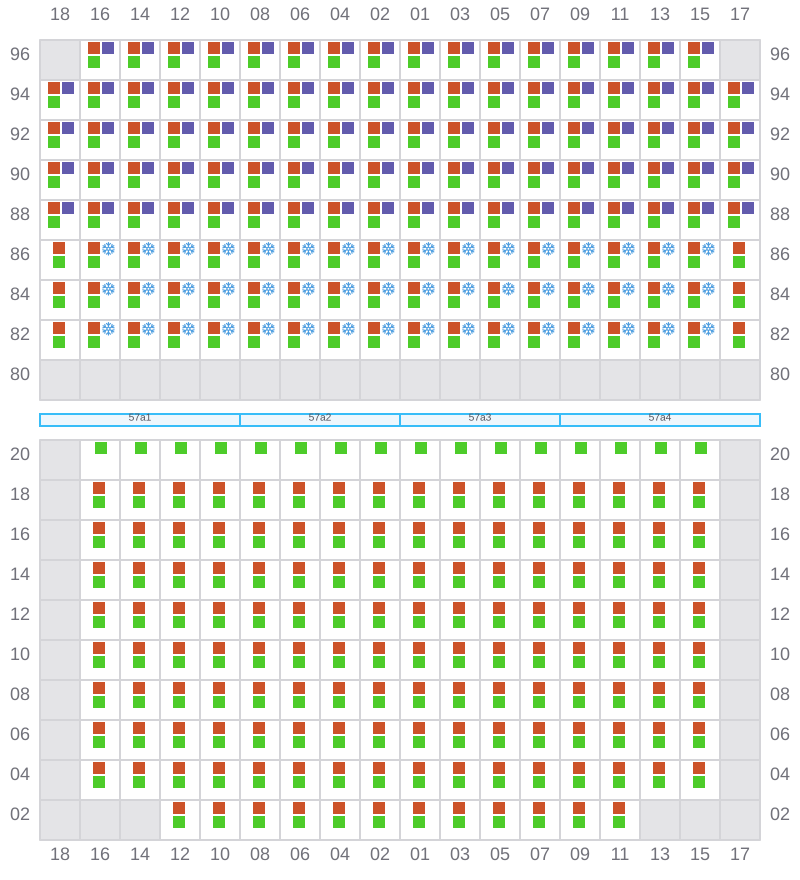

Bay 057 view and slots of COSCO OCEANIA

059

  • ←
  • ← / ?
  • →

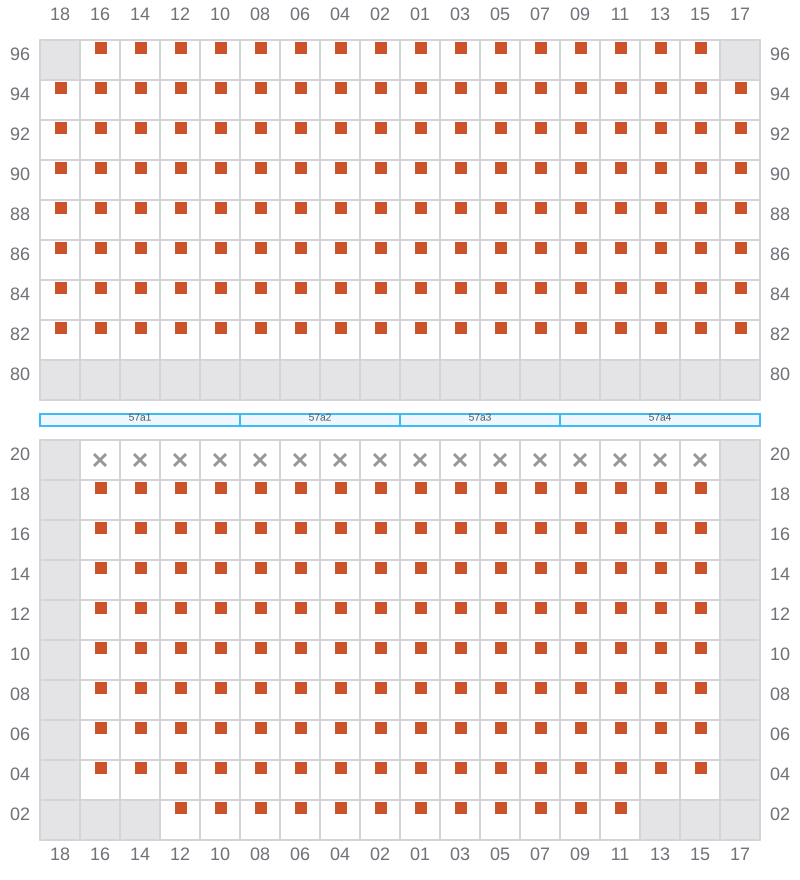

Bay 059 view and slots of COSCO OCEANIA

061 (062)

  • →
  • → / ?
  • →

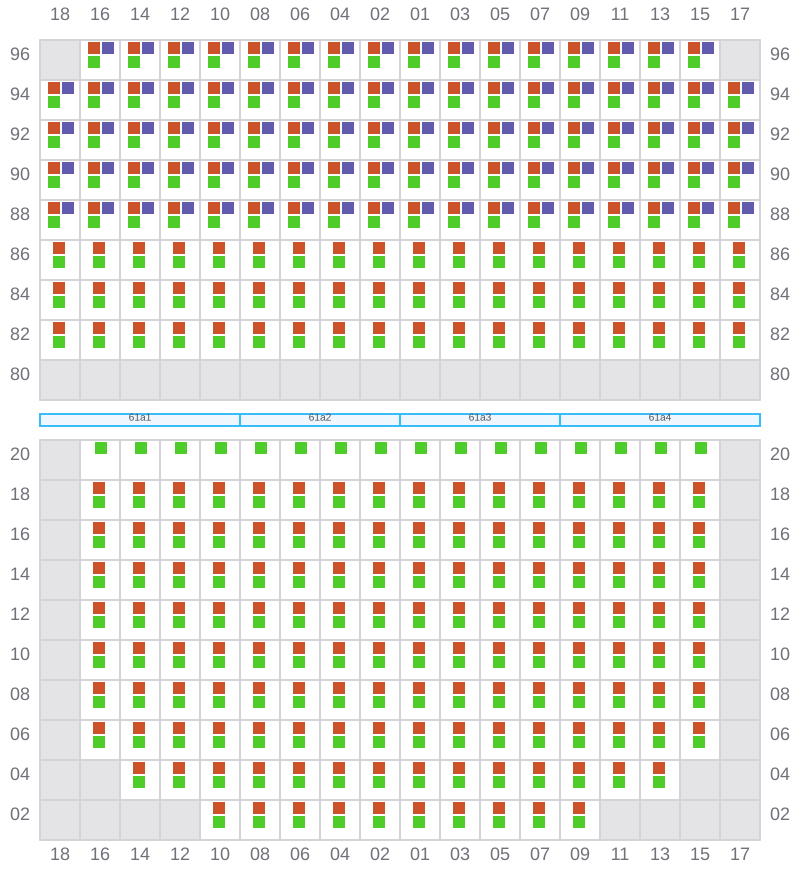

Bay 061 view and slots of COSCO OCEANIA

063

  • ←
  • → / ?
  • →

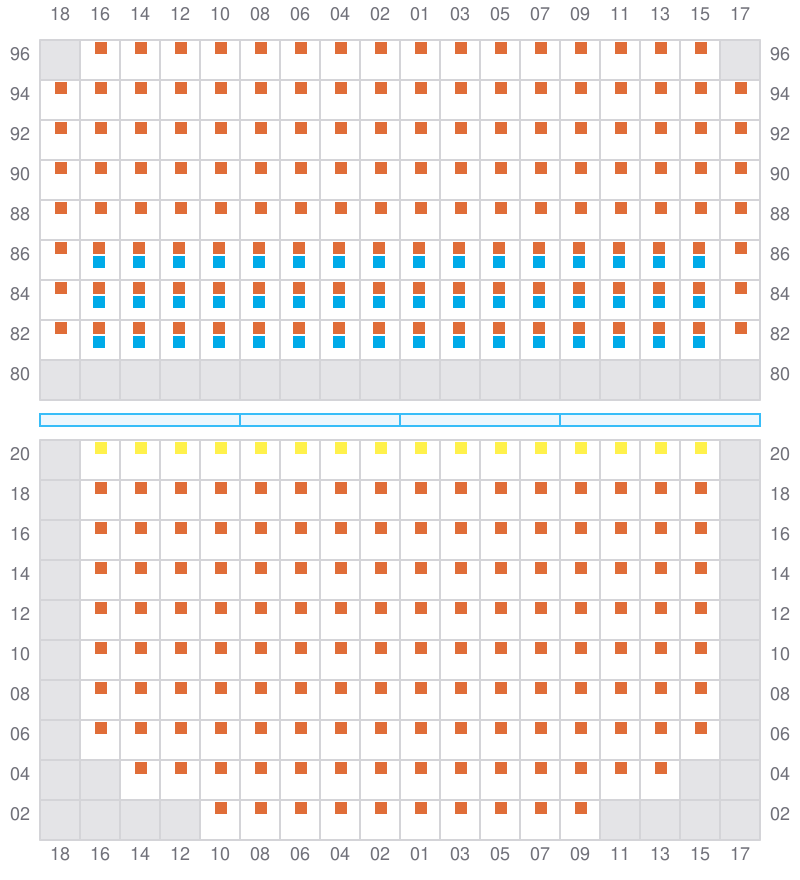

Bay 063 view and slots of COSCO OCEANIA

065 (066)

  • →
  • ← / ?
  • →

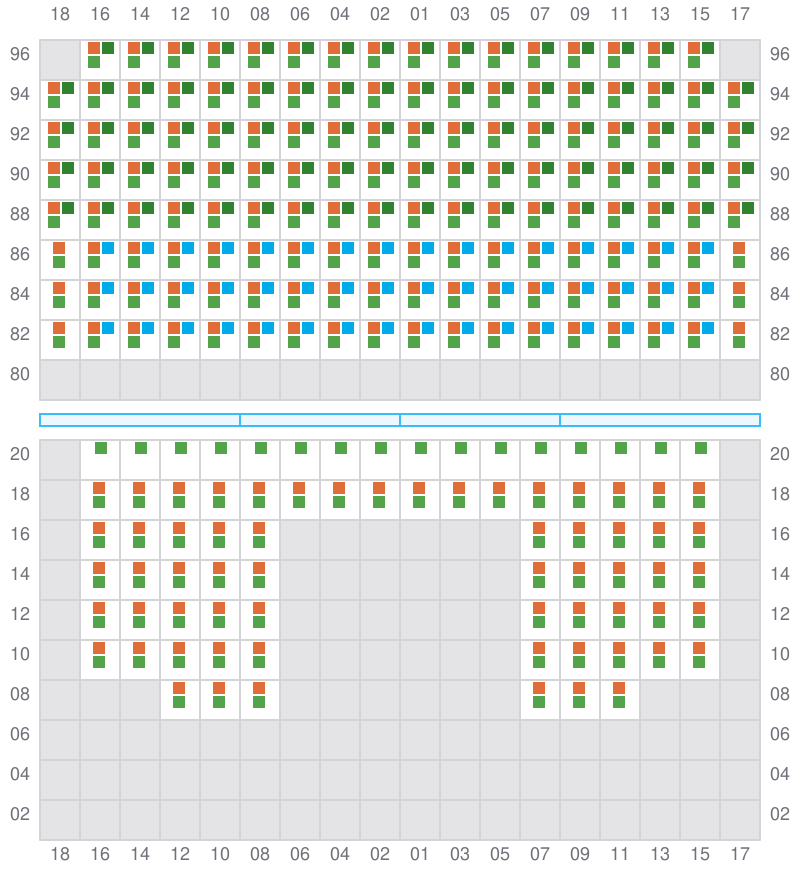

Bay 065 view and slots of COSCO OCEANIA

067

  • ←
  • ← / ?
  • →

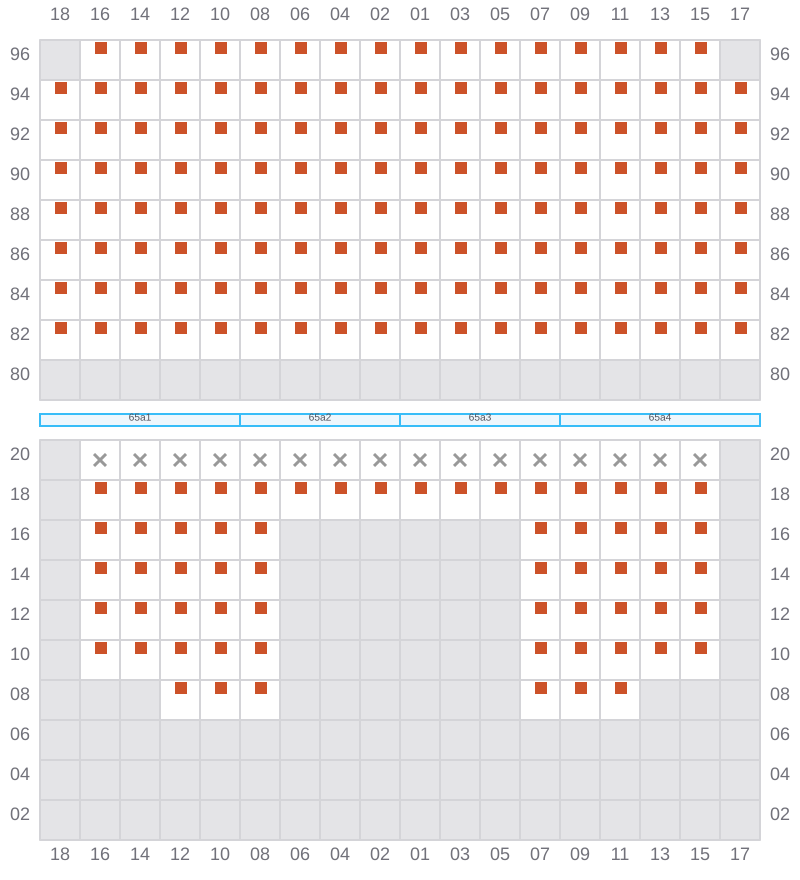

Bay 067 view and slots of COSCO OCEANIA

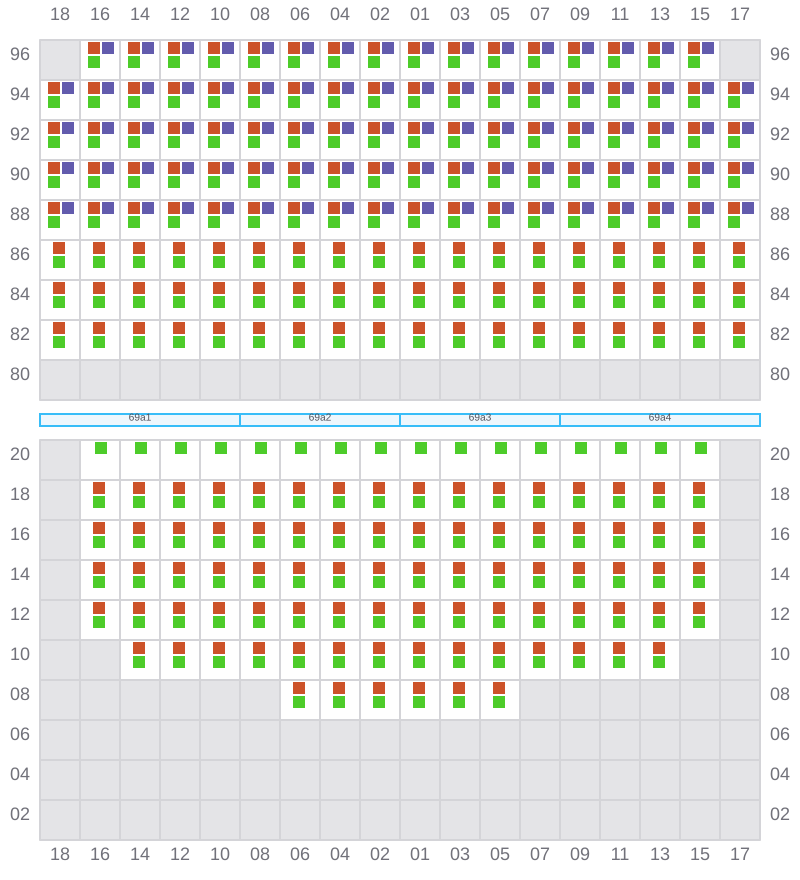

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of COSCO OCEANIA

071

  • ←
  • → / ?
  • →

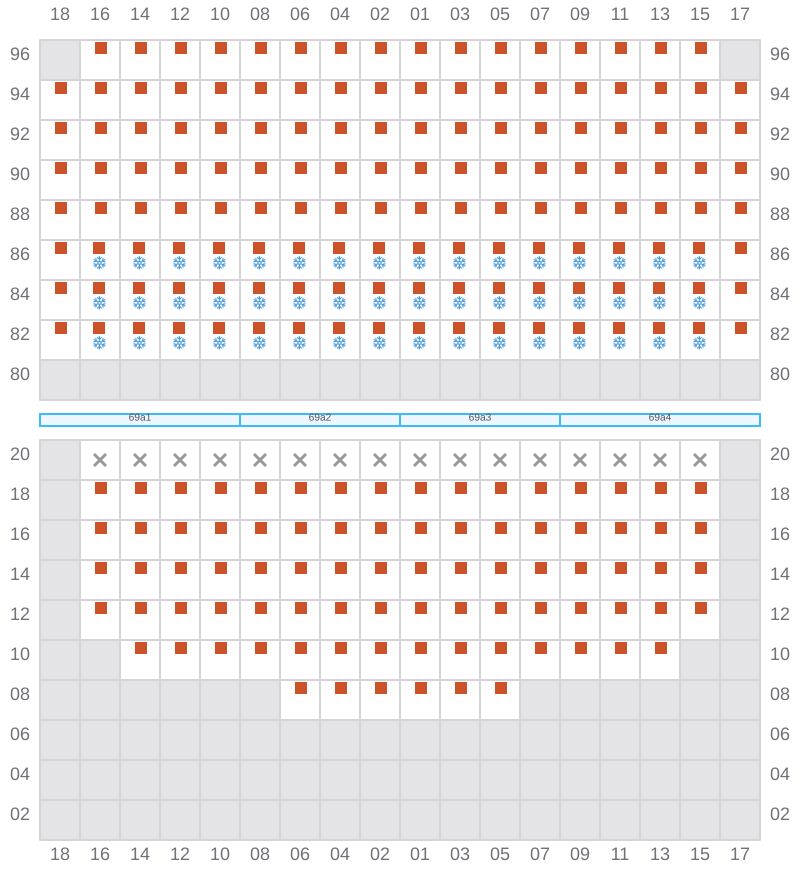

Bay 071 view and slots of COSCO OCEANIA

073 (074)

  • →
  • ← / ?
  • →
Bay 073 view and slots of COSCO OCEANIA

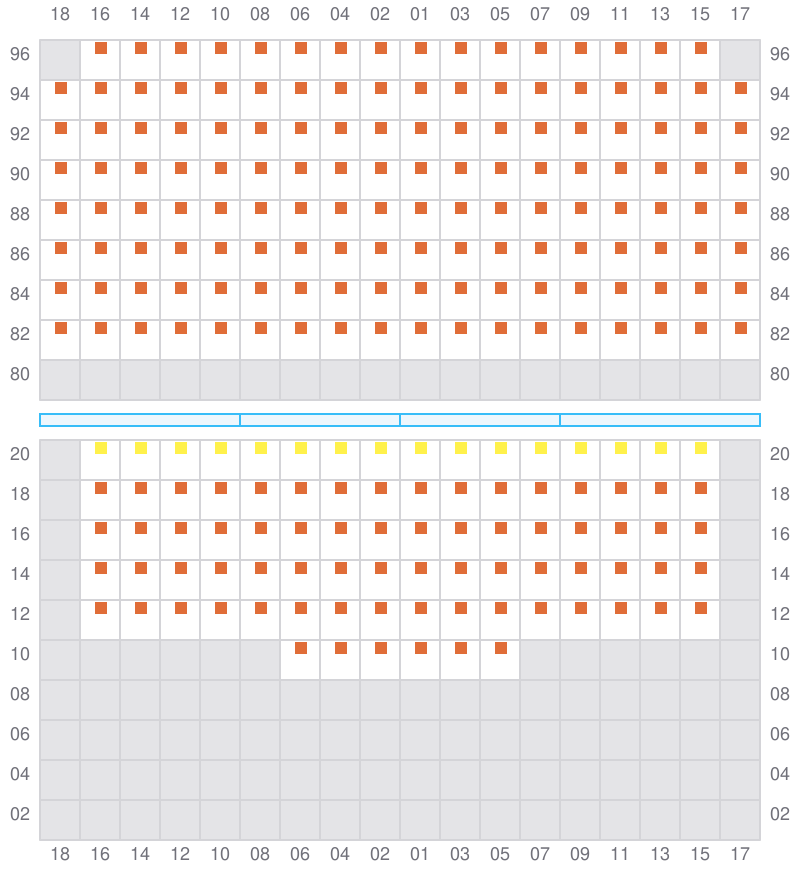

075

  • ←
  • ← / ?
  • →
Bay 075 view and slots of COSCO OCEANIA

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of COSCO OCEANIA

079

  • ←
  • → / ?
  • →

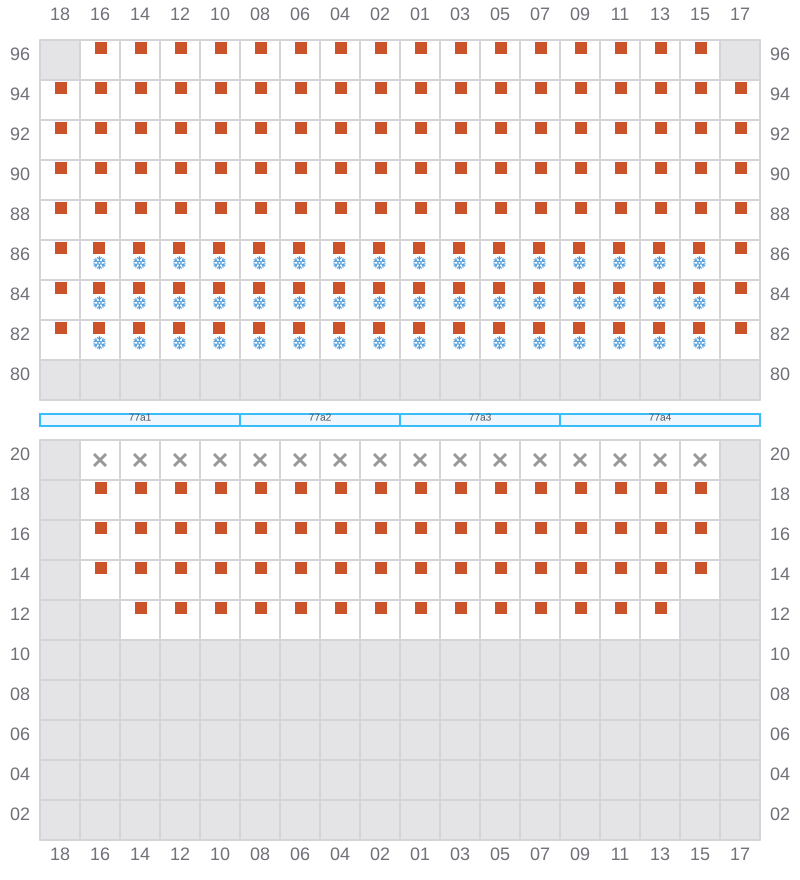

Bay 079 view and slots of COSCO OCEANIA

081 (082)

  • → / ?
  • → / ?

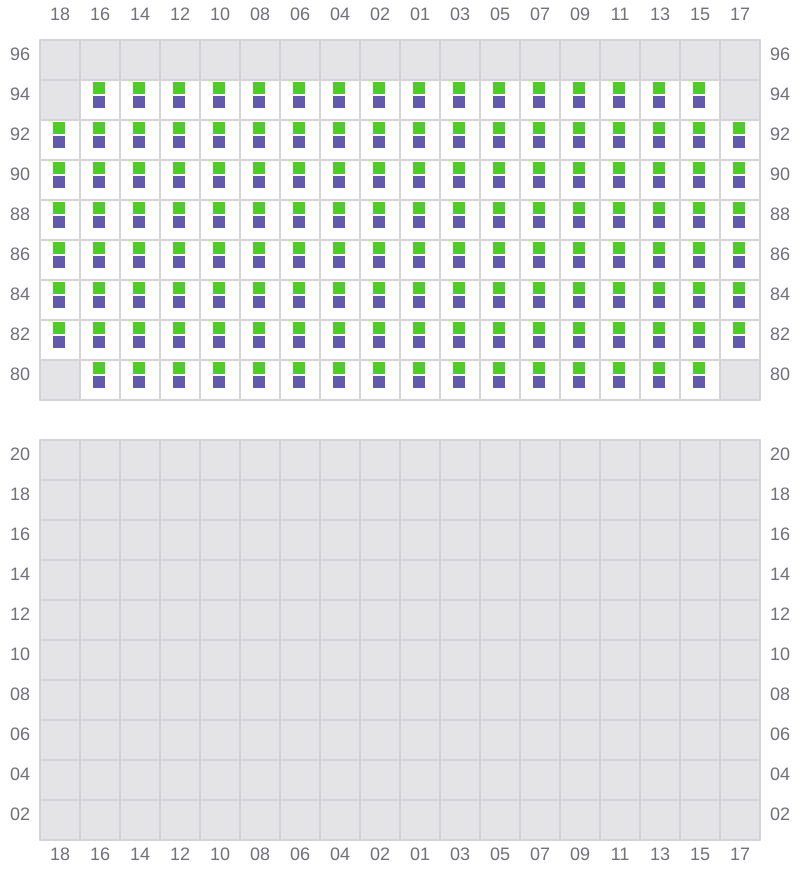

Bay 081 view and slots of COSCO OCEANIA
