COSCO PRINCE RUPERT
9448803 | VRID6 | COS by ********* Last update: Wed Jul 03 2024

General Info

Ship Name:COSCO PRINCE RUPERT
IMO Code:9448803
Call Sign:VRID6
Line Operator:COS
Class Name for Sister Ships:COS
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,514

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

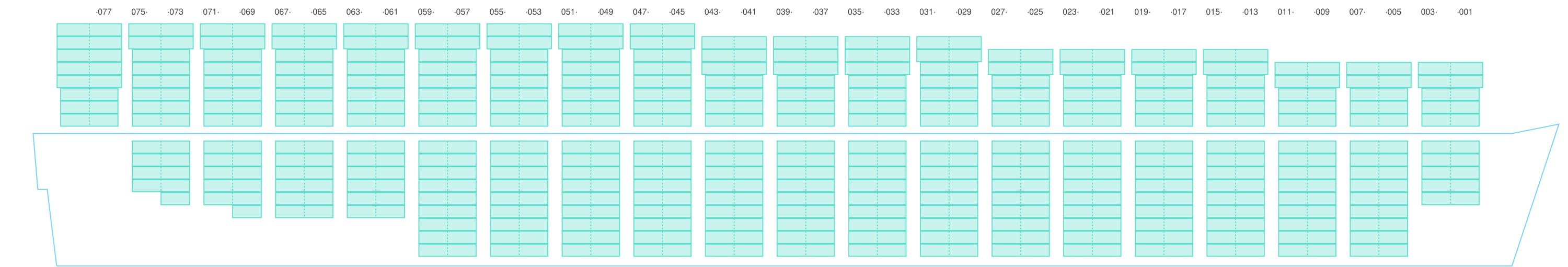

Side view of COSCO PRINCE RUPERT

Hatch-Covers View

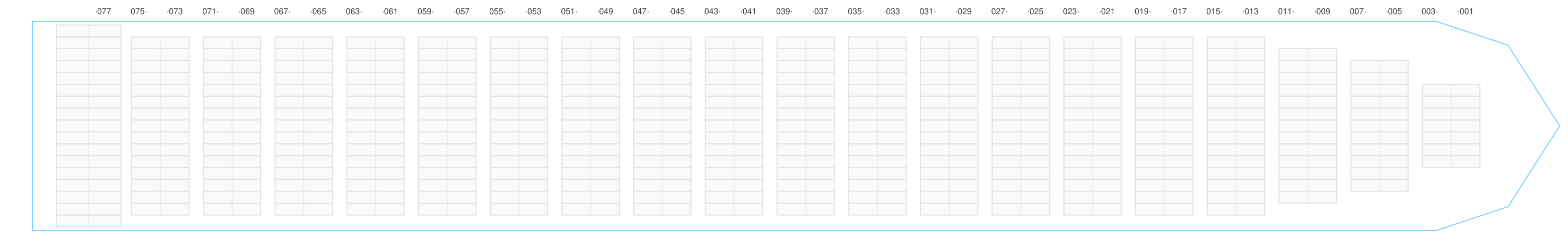

Deck view of COSCO PRINCE RUPERT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

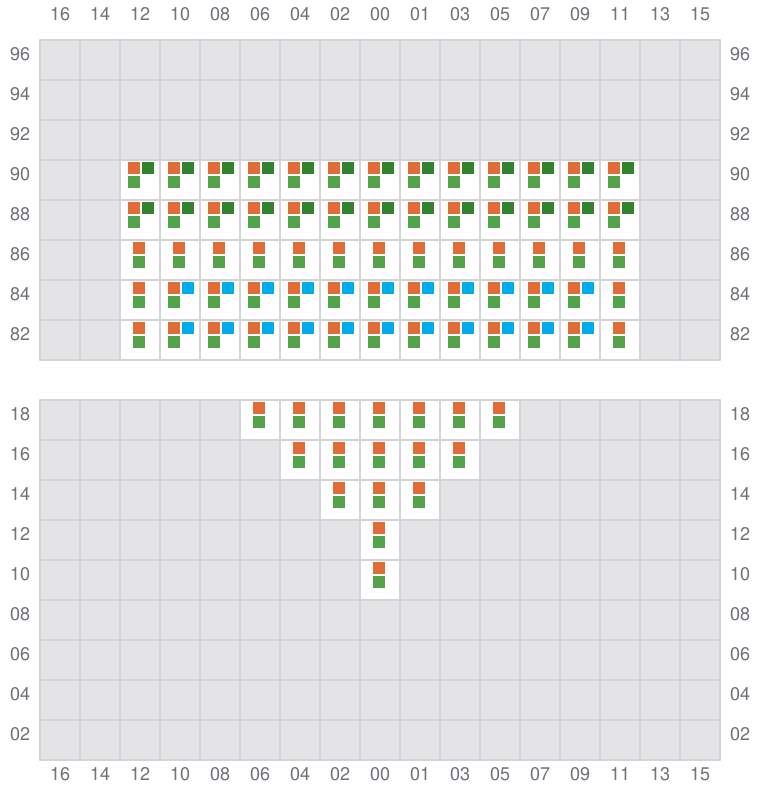

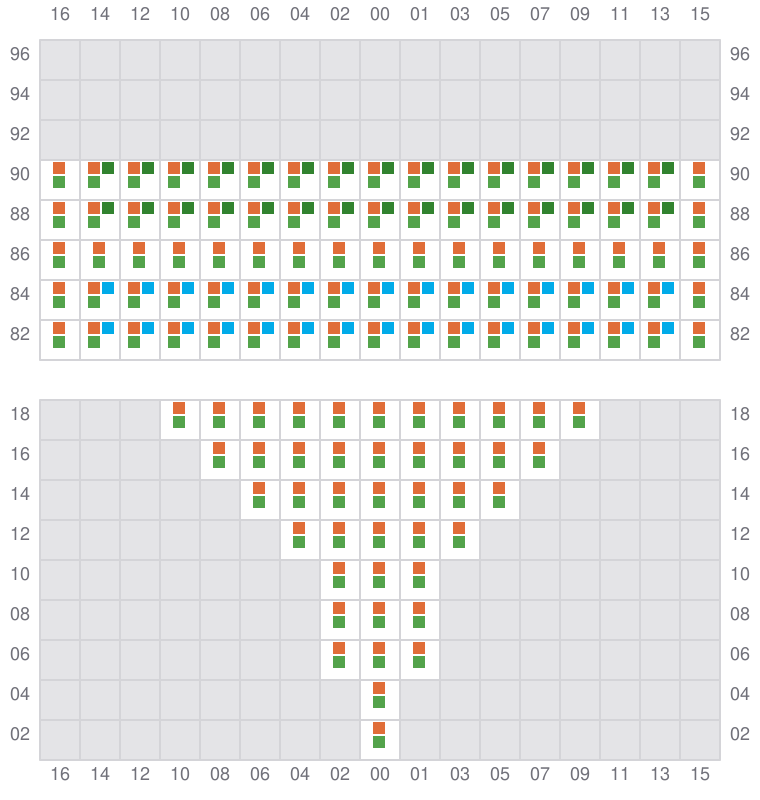

Bay 001 view and slots of COSCO PRINCE RUPERT

003

  • ←

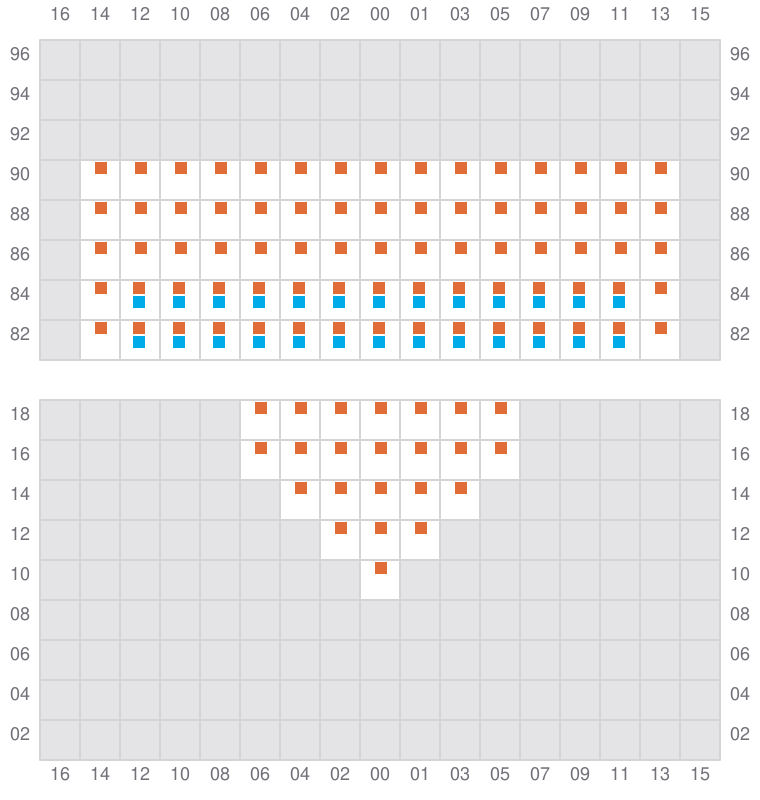

Bay 003 view and slots of COSCO PRINCE RUPERT

005 (006)

  • →
Bay 005 view and slots of COSCO PRINCE RUPERT

007

  • ←

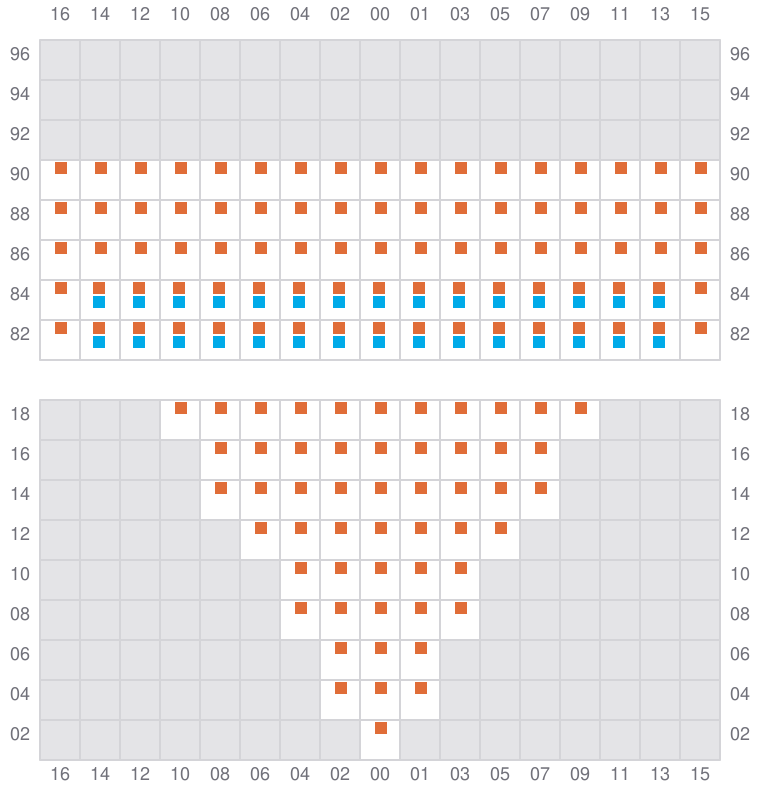

Bay 007 view and slots of COSCO PRINCE RUPERT

009 (010)

  • →

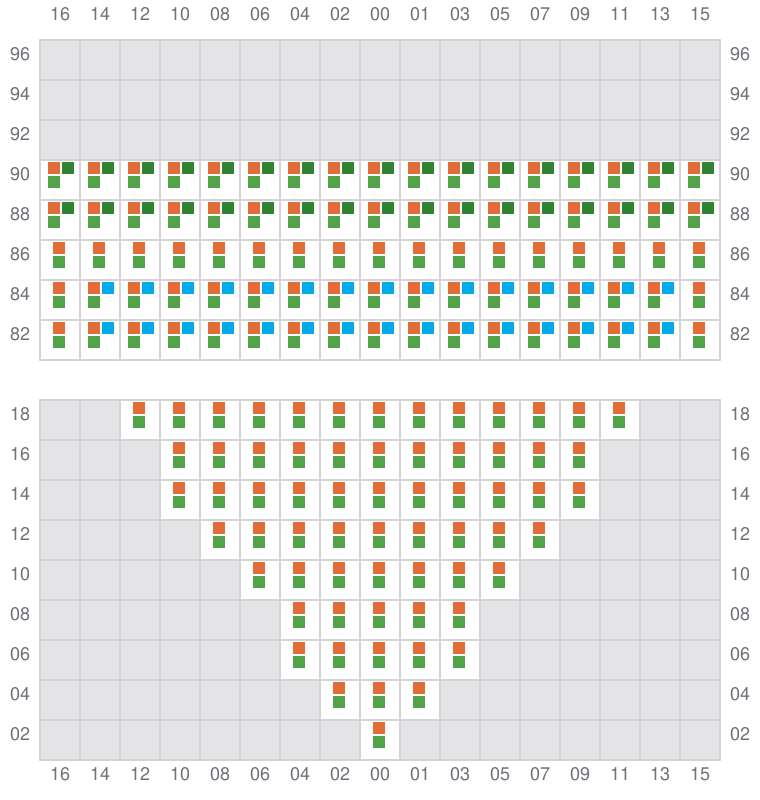

Bay 009 view and slots of COSCO PRINCE RUPERT

011

  • ←

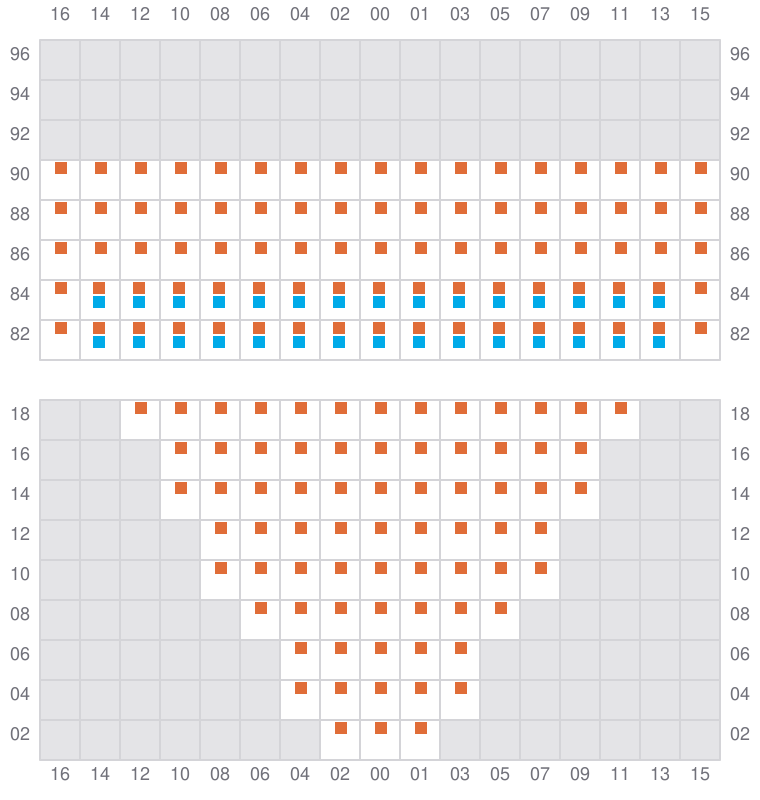

Bay 011 view and slots of COSCO PRINCE RUPERT

013 (014)

  • →

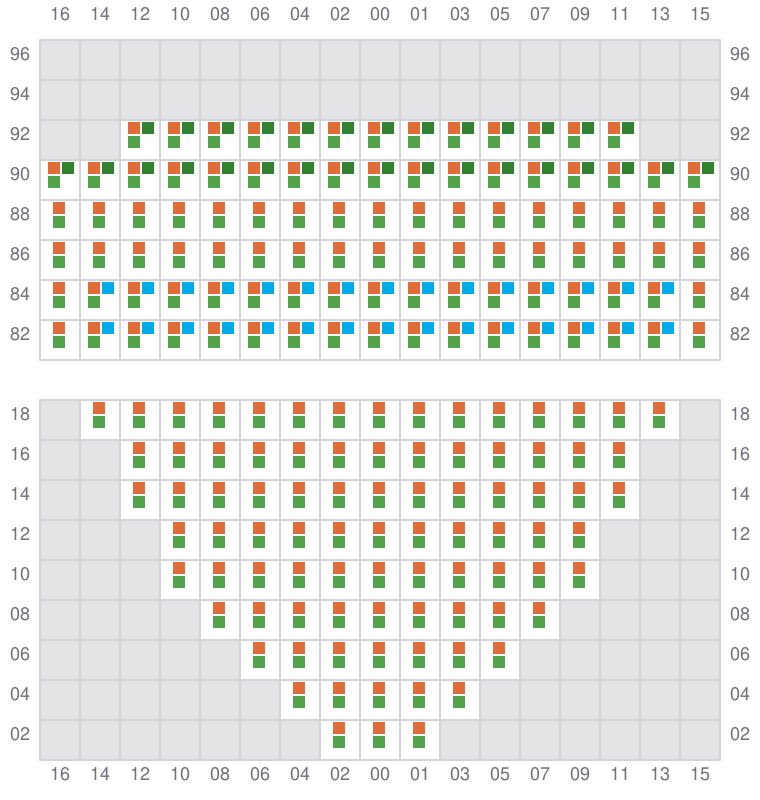

Bay 013 view and slots of COSCO PRINCE RUPERT

015

  • ←

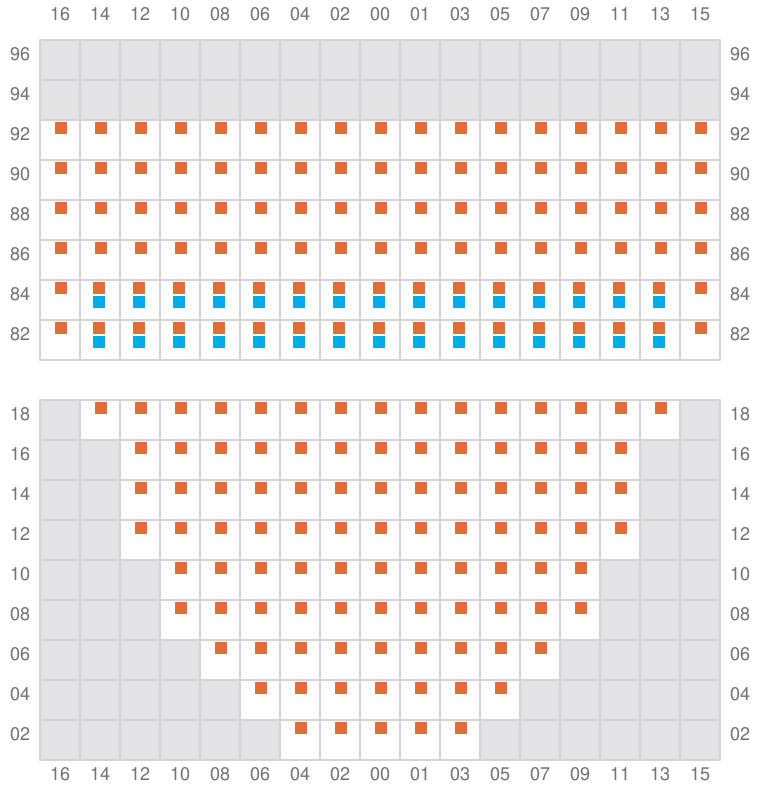

Bay 015 view and slots of COSCO PRINCE RUPERT

017 (018)

  • →

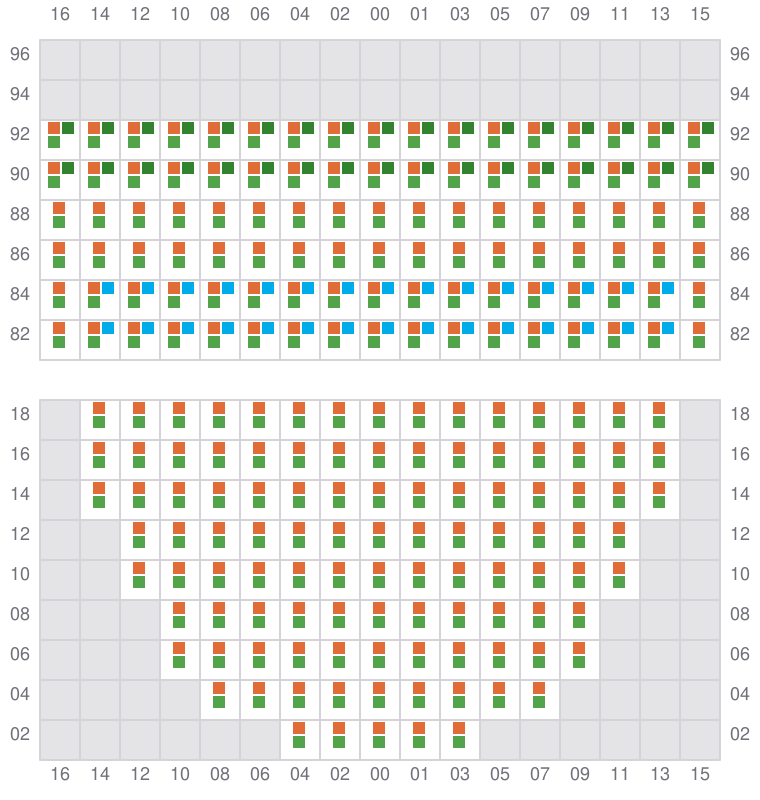

Bay 017 view and slots of COSCO PRINCE RUPERT

019

  • ←

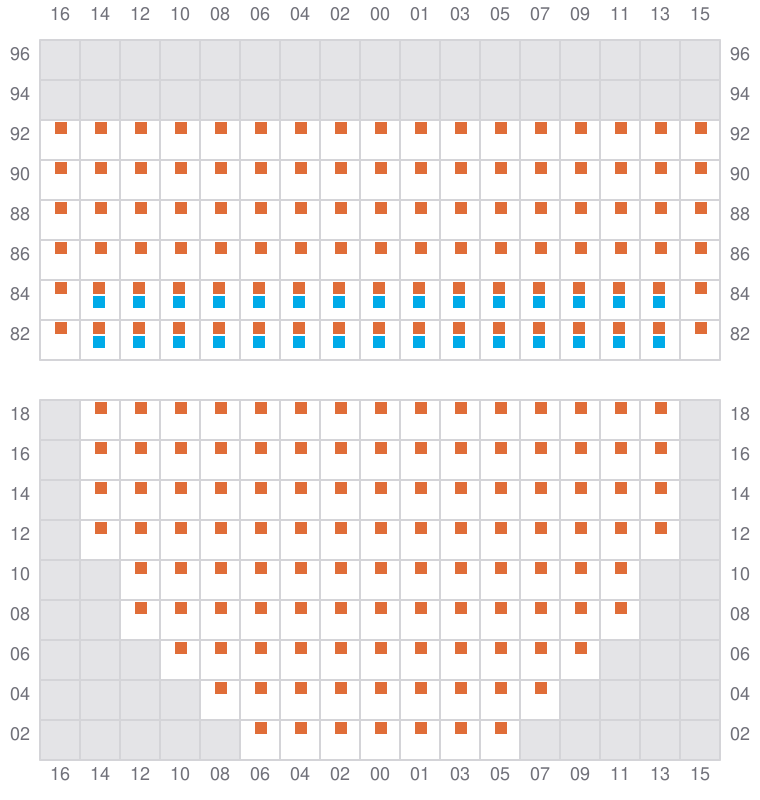

Bay 019 view and slots of COSCO PRINCE RUPERT

021 (022)

  • →

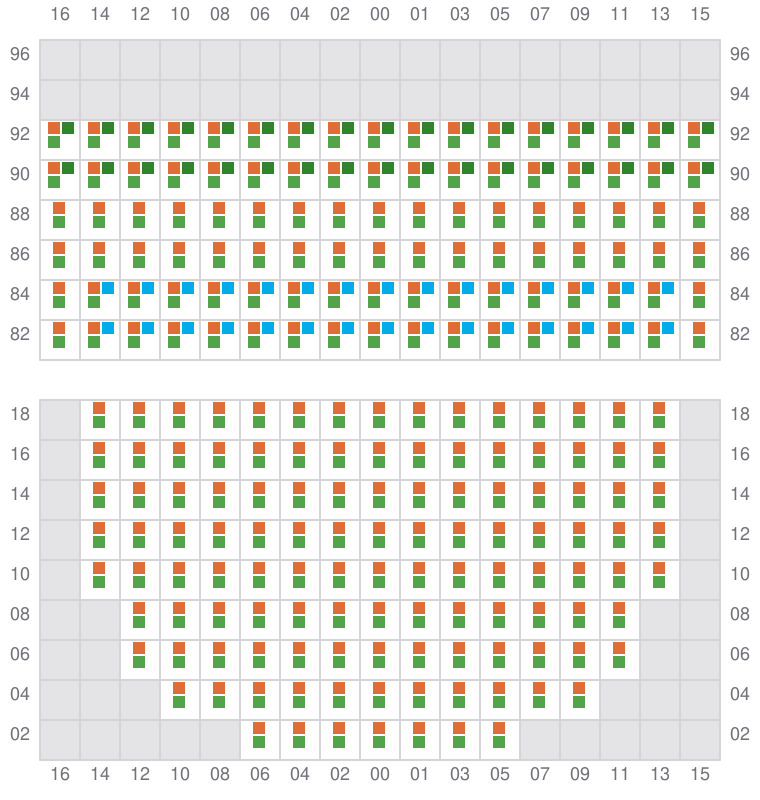

Bay 021 view and slots of COSCO PRINCE RUPERT

023

  • ←

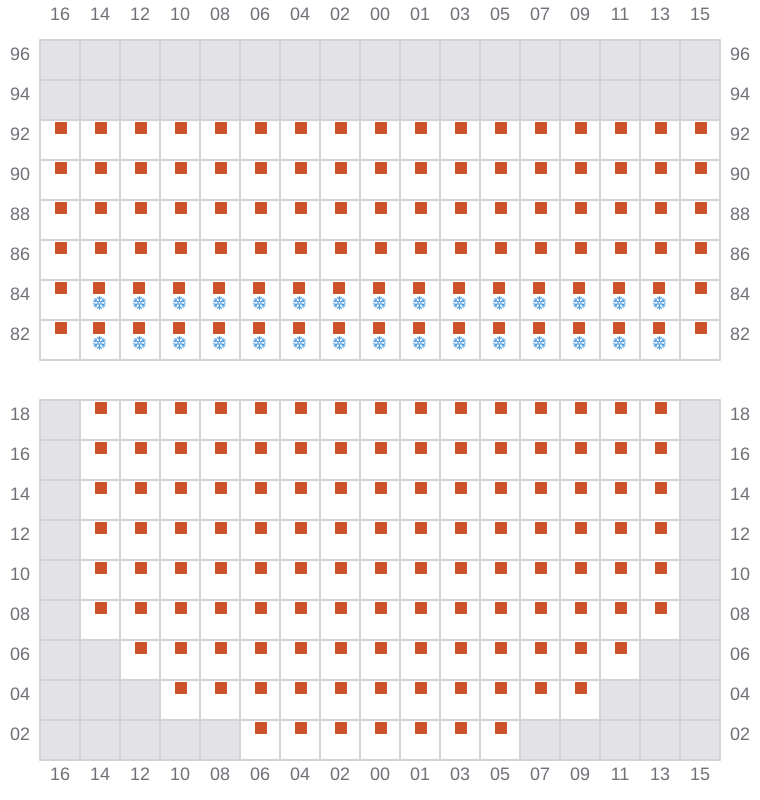

Bay 023 view and slots of COSCO PRINCE RUPERT

025 (026)

  • →

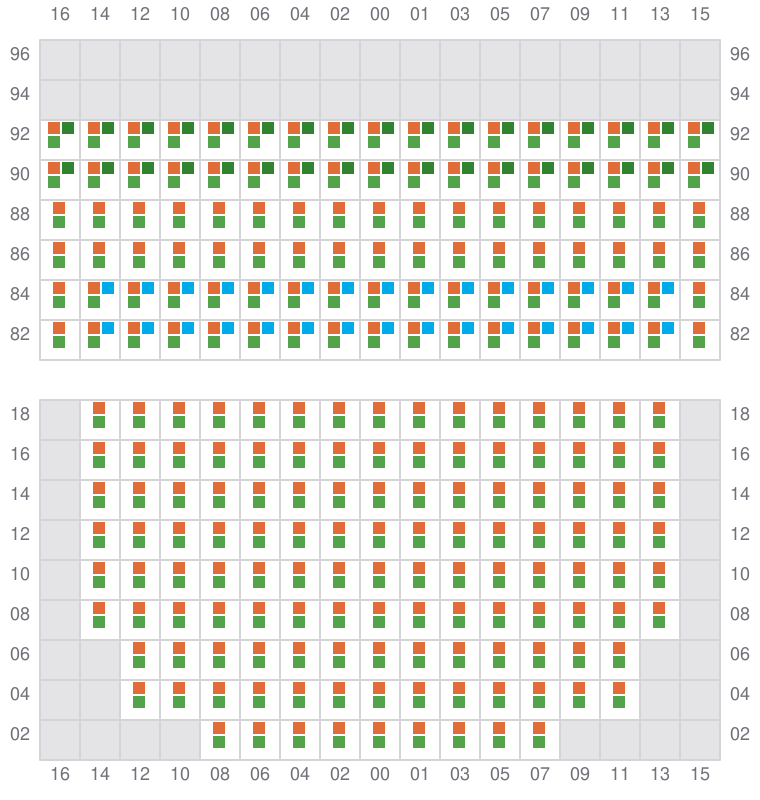

Bay 025 view and slots of COSCO PRINCE RUPERT

027

  • ←
Bay 027 view and slots of COSCO PRINCE RUPERT

029 (030)

  • →

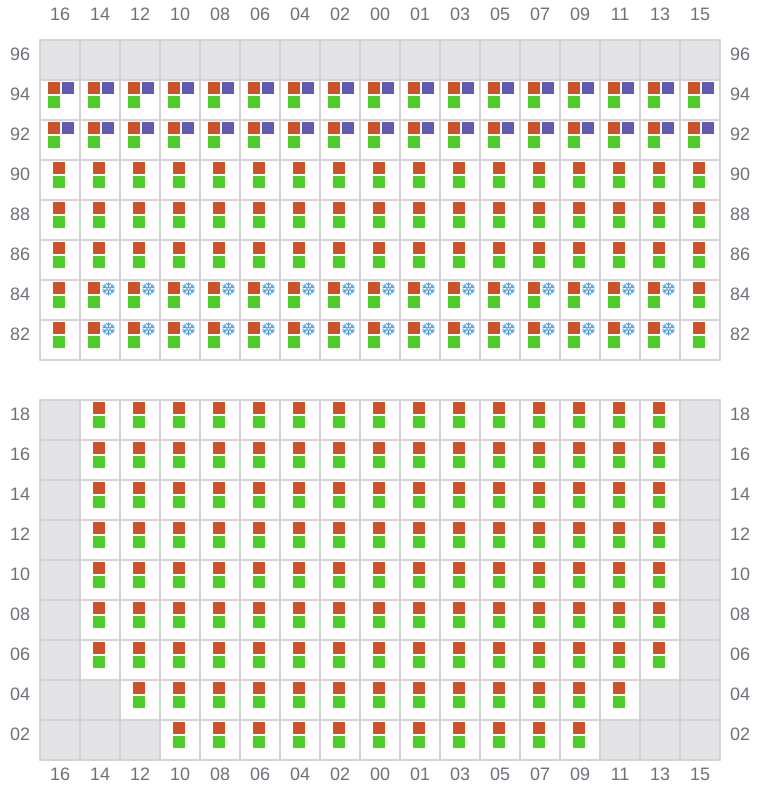

Bay 029 view and slots of COSCO PRINCE RUPERT

031

  • ←

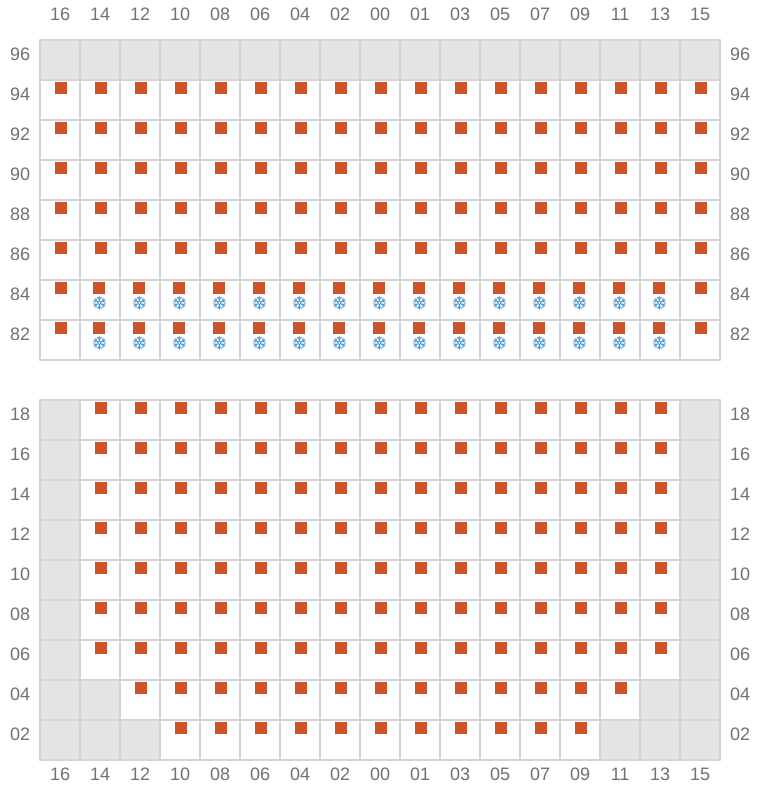

Bay 031 view and slots of COSCO PRINCE RUPERT

033 (034)

  • →
Bay 033 view and slots of COSCO PRINCE RUPERT

035

  • ←
Bay 035 view and slots of COSCO PRINCE RUPERT

037 (038)

  • →
Bay 037 view and slots of COSCO PRINCE RUPERT

039

  • ←

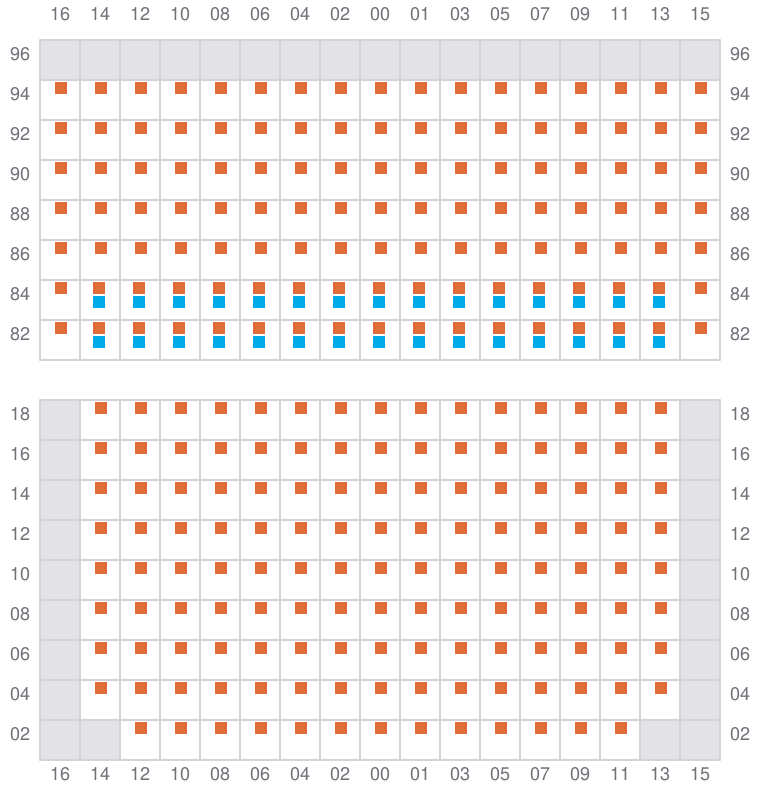

Bay 039 view and slots of COSCO PRINCE RUPERT

041 (042)

  • →

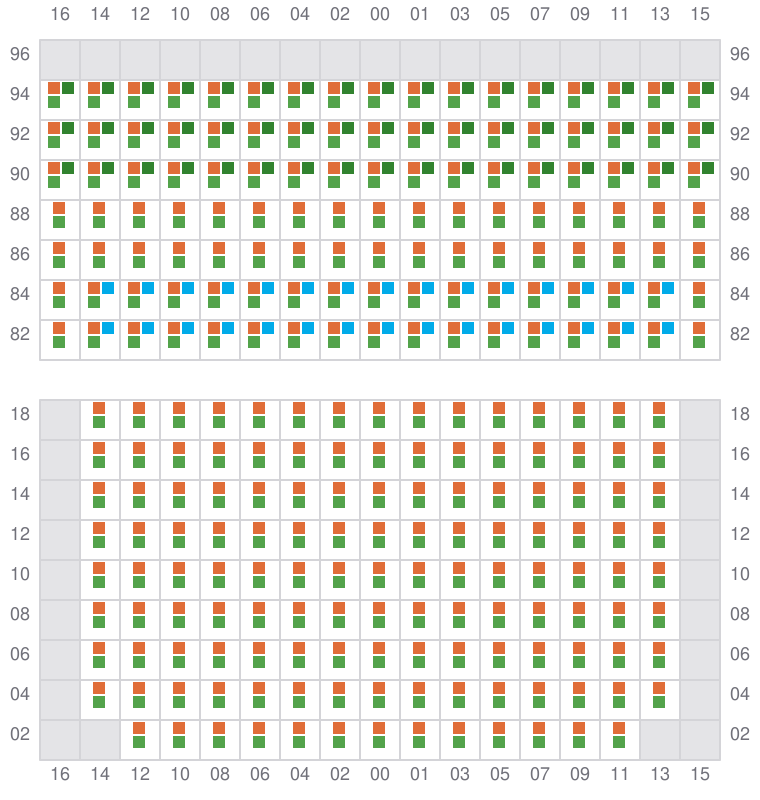

Bay 041 view and slots of COSCO PRINCE RUPERT

043

  • ←
Bay 043 view and slots of COSCO PRINCE RUPERT

045 (046)

  • →
Bay 045 view and slots of COSCO PRINCE RUPERT

047

  • ←
Bay 047 view and slots of COSCO PRINCE RUPERT

049 (050)

  • →

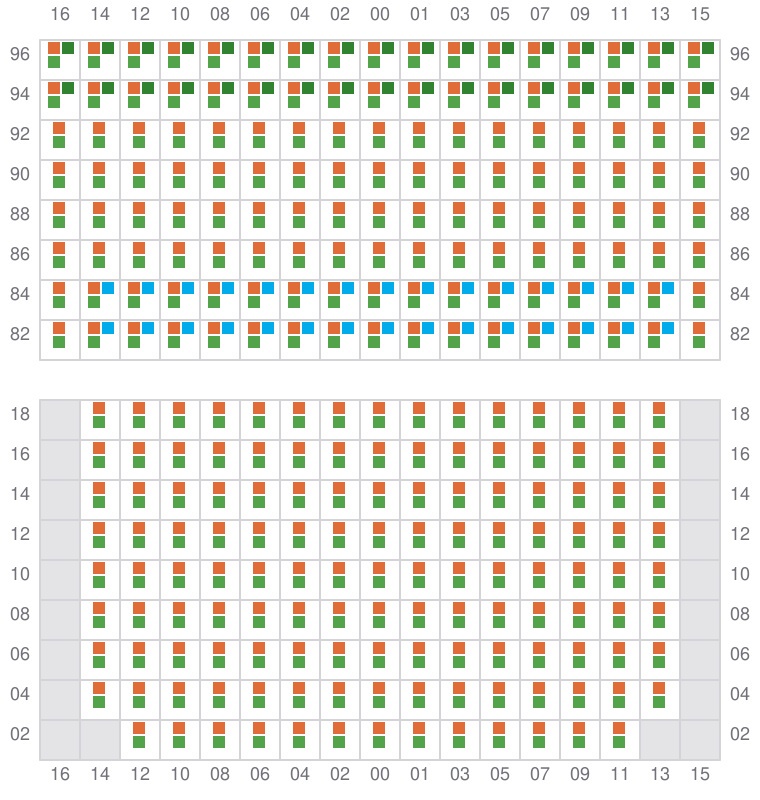

Bay 049 view and slots of COSCO PRINCE RUPERT

051

  • ←

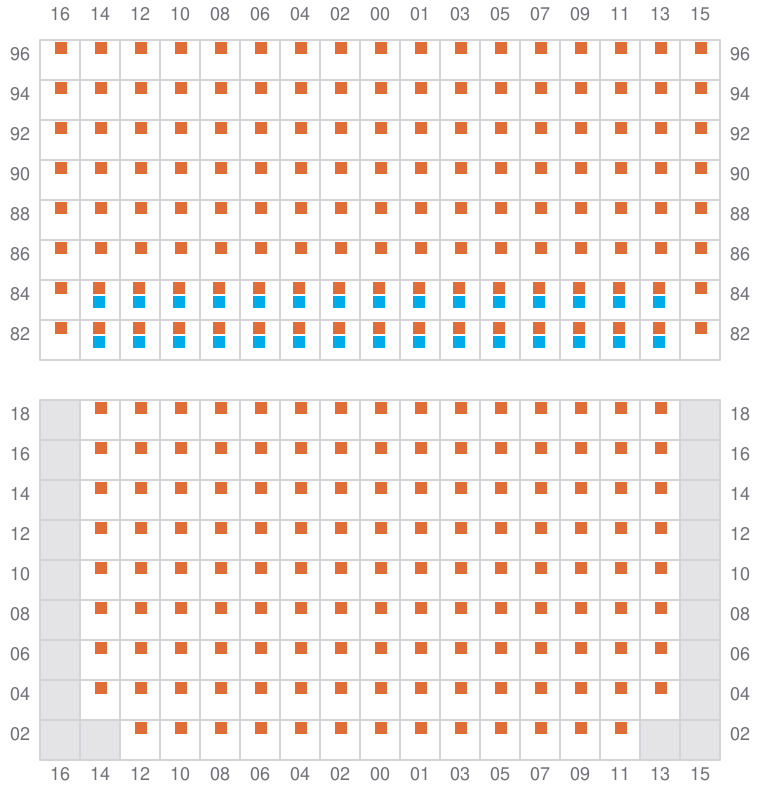

Bay 051 view and slots of COSCO PRINCE RUPERT

053 (054)

  • →

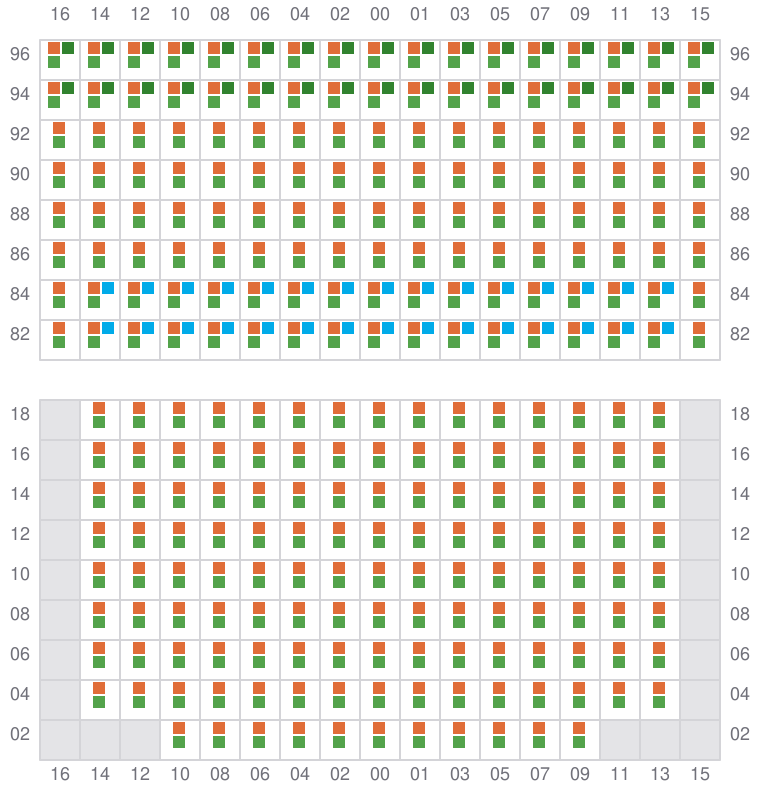

Bay 053 view and slots of COSCO PRINCE RUPERT

055

  • ←

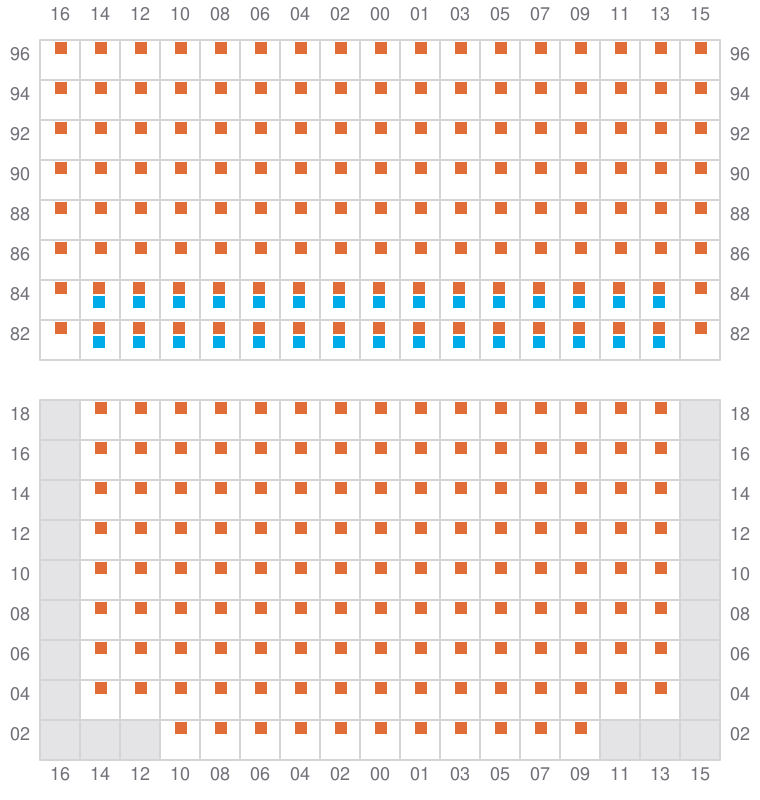

Bay 055 view and slots of COSCO PRINCE RUPERT

057 (058)

  • →

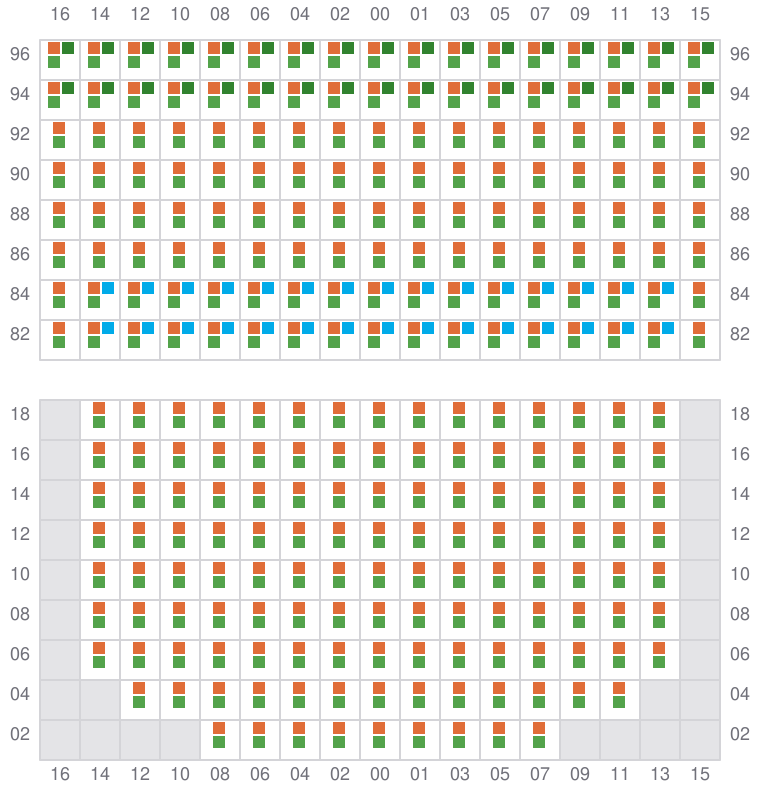

Bay 057 view and slots of COSCO PRINCE RUPERT

059

  • ←

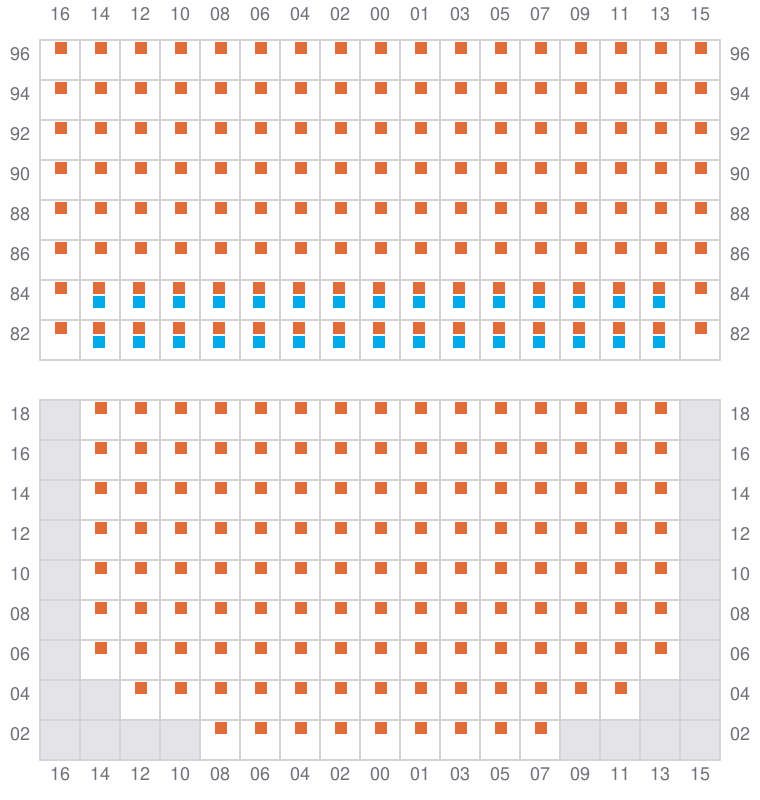

Bay 059 view and slots of COSCO PRINCE RUPERT

061 (062)

  • →

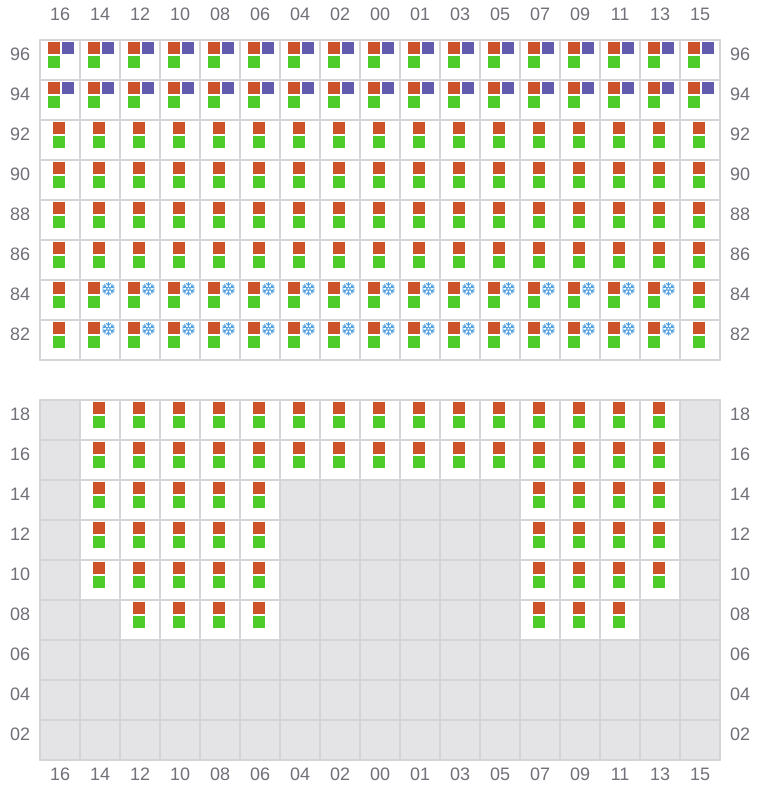

Bay 061 view and slots of COSCO PRINCE RUPERT

063

  • ←

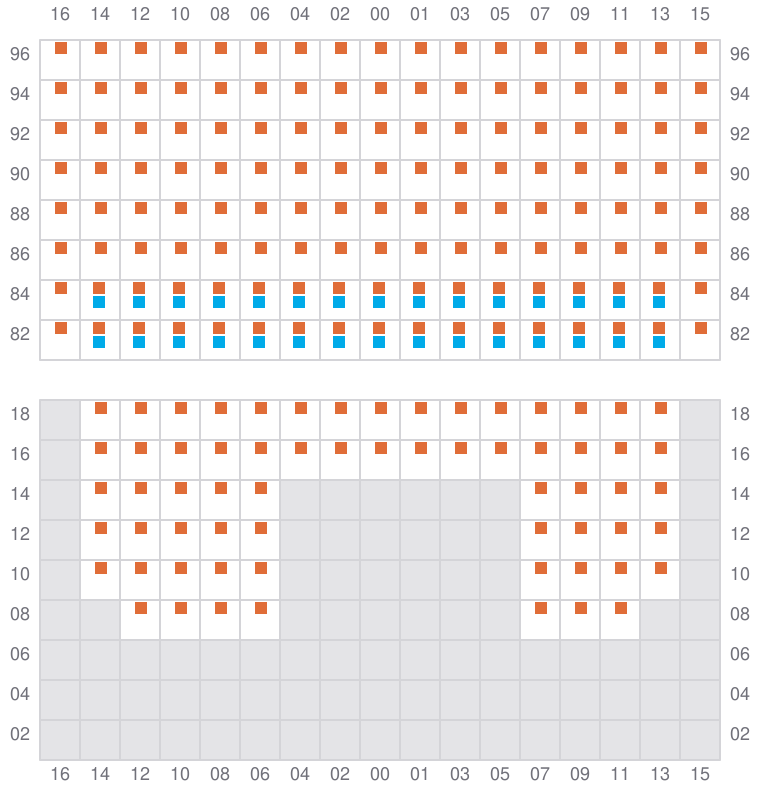

Bay 063 view and slots of COSCO PRINCE RUPERT

065 (066)

  • →

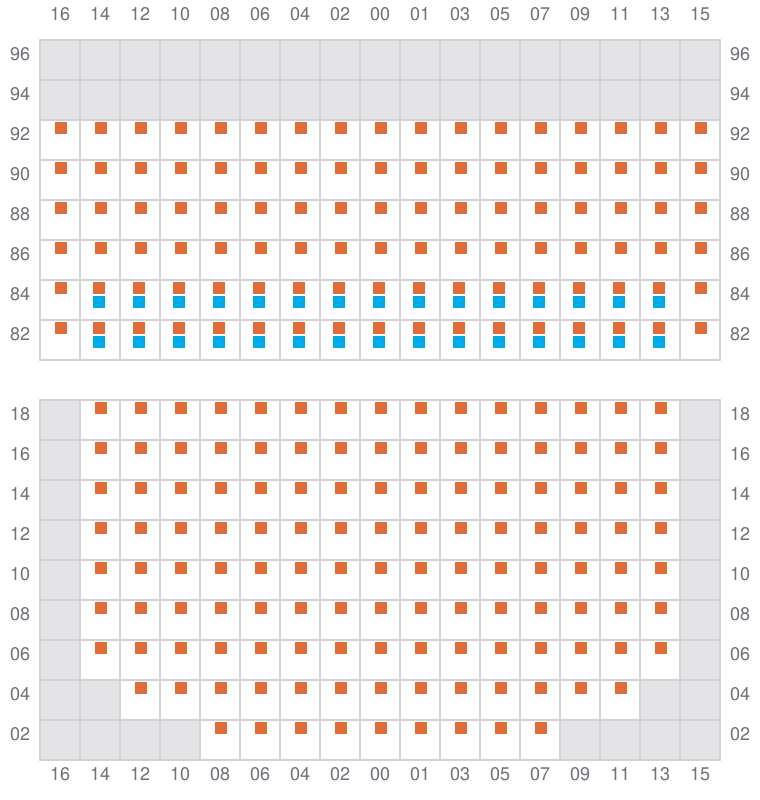

Bay 065 view and slots of COSCO PRINCE RUPERT

067

  • ←

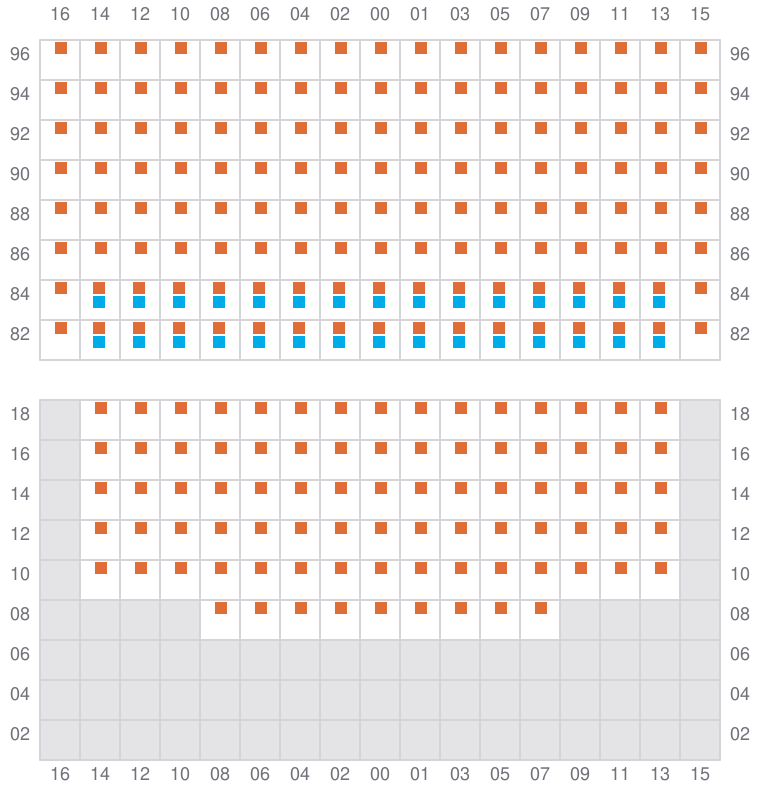

Bay 067 view and slots of COSCO PRINCE RUPERT

069 (070)

  • →

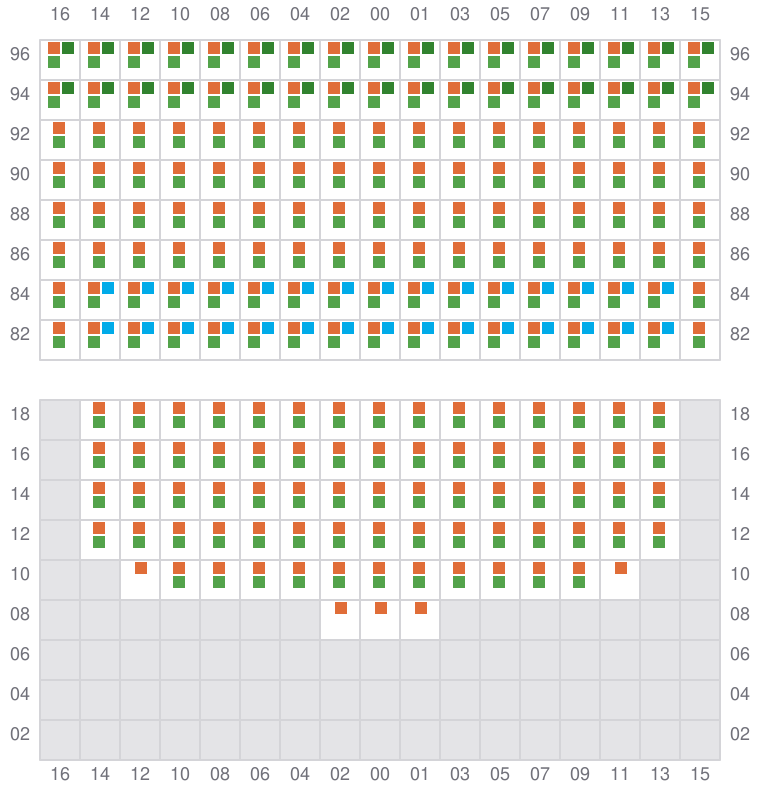

Bay 069 view and slots of COSCO PRINCE RUPERT

071

  • ←
Bay 071 view and slots of COSCO PRINCE RUPERT

073 (074)

  • →

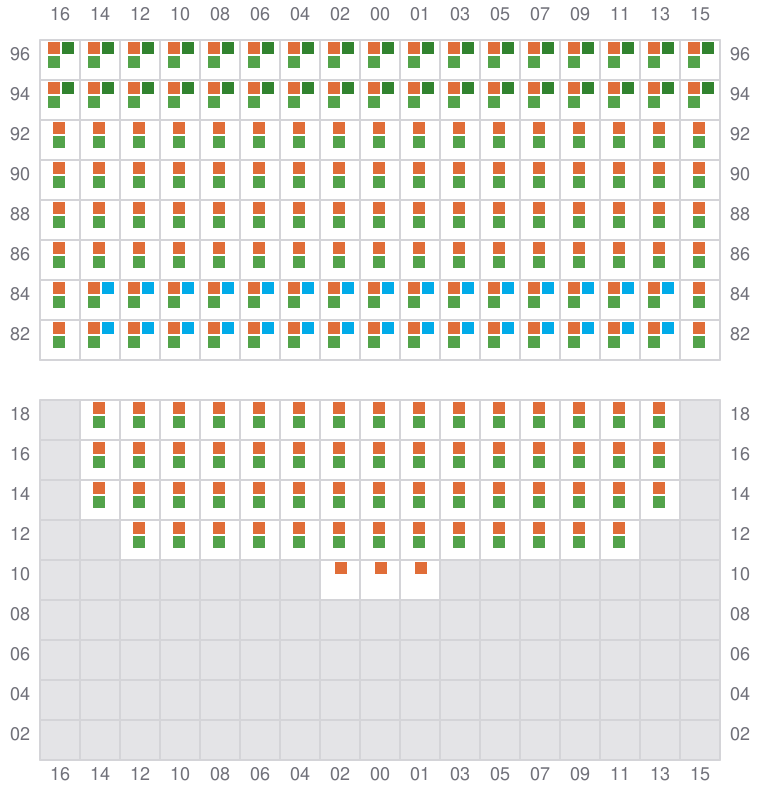

Bay 073 view and slots of COSCO PRINCE RUPERT

075

  • ←

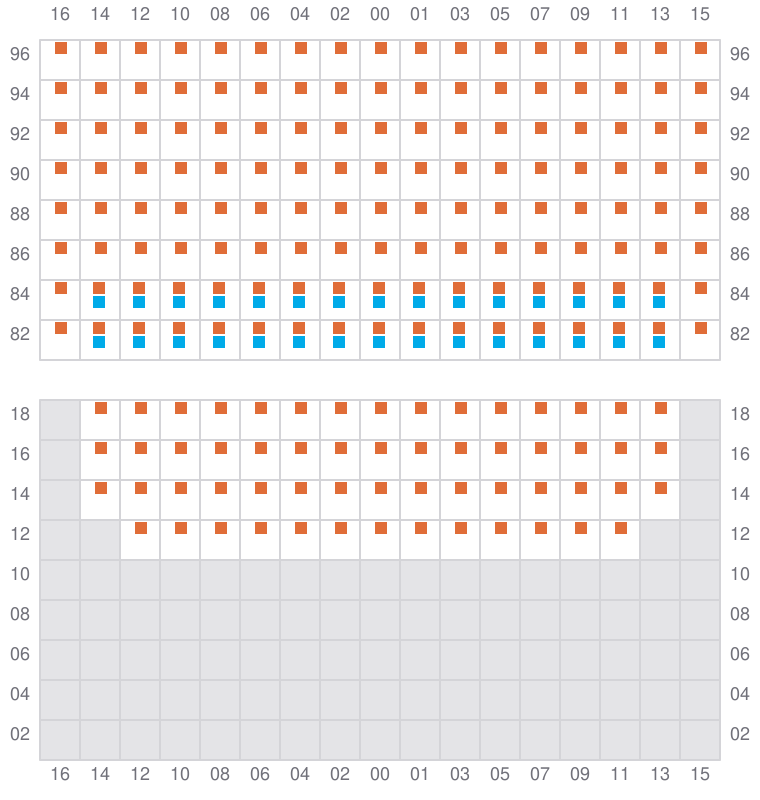

Bay 075 view and slots of COSCO PRINCE RUPERT

077 (078)

  • → / ?

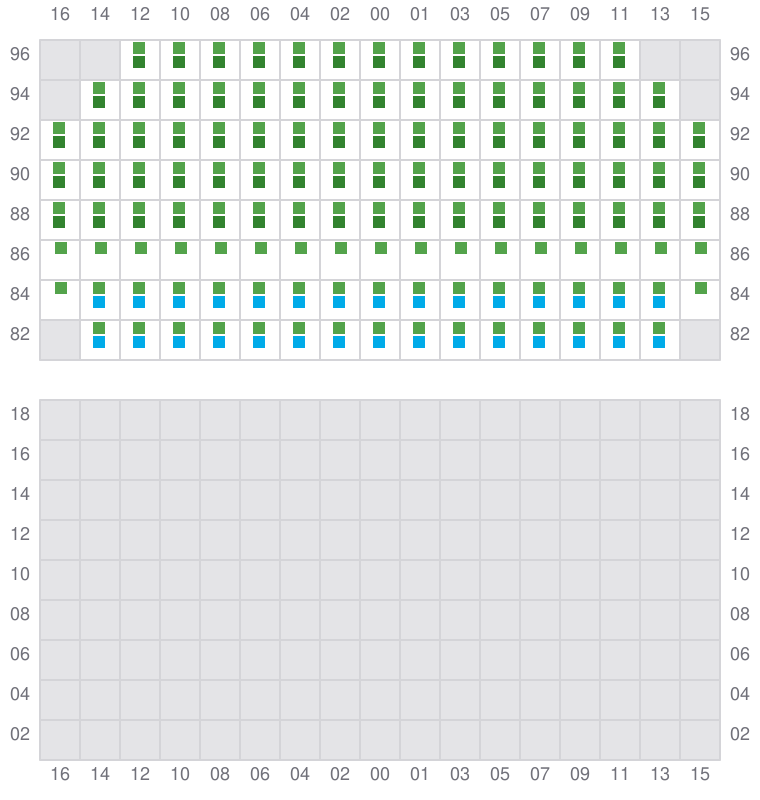

Bay 077 view and slots of COSCO PRINCE RUPERT
