COSCO ROTTERDAM
9221073 | 2BOK5 | 9221073 by ********* Last update: Wed Apr 24 2024

General Info

Ship Name:COSCO ROTTERDAM
IMO Code:9221073
Call Sign:2BOK5
Line Operator:9221073
Class Name for Sister Ships:COSCO ROTTERDAM
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,480

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

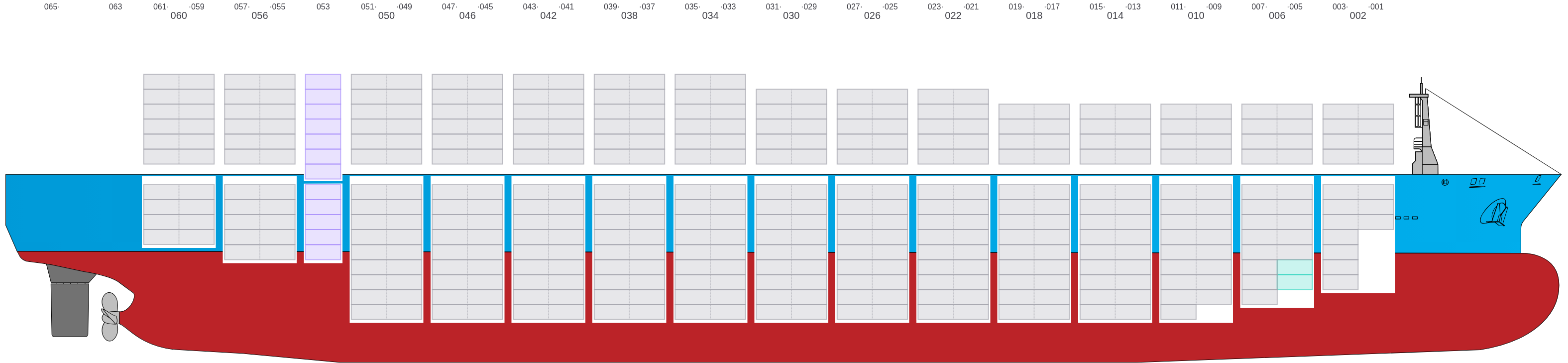

Side View

Side view of COSCO ROTTERDAM

Hatch-Covers View

Deck view of COSCO ROTTERDAM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

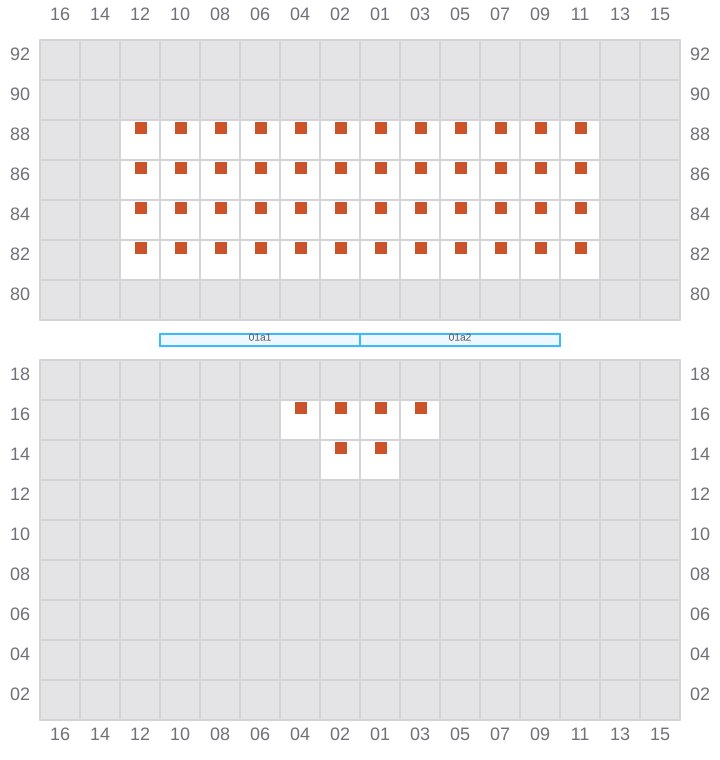

Bay 001 view and slots of COSCO ROTTERDAM

003 (002)

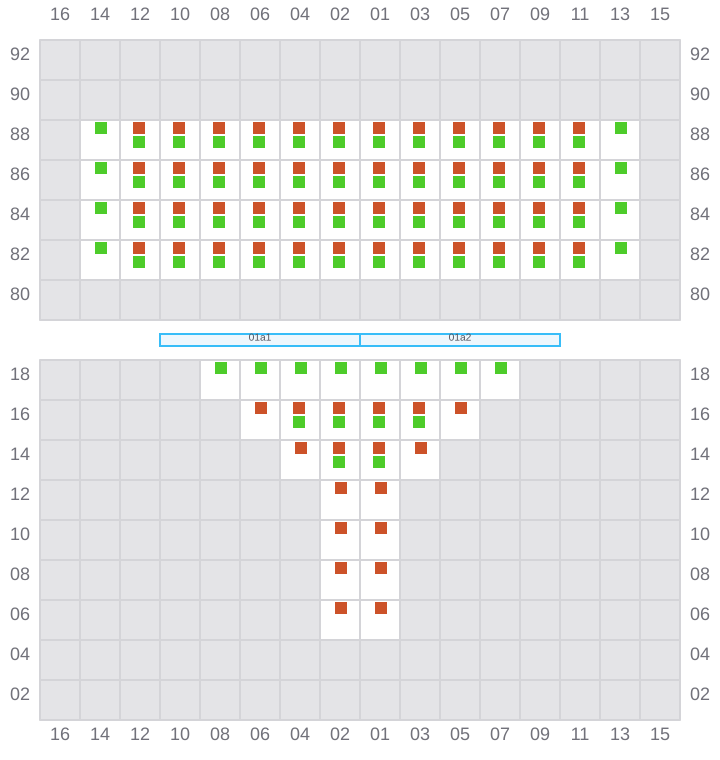

Bay 003 view and slots of COSCO ROTTERDAM

005

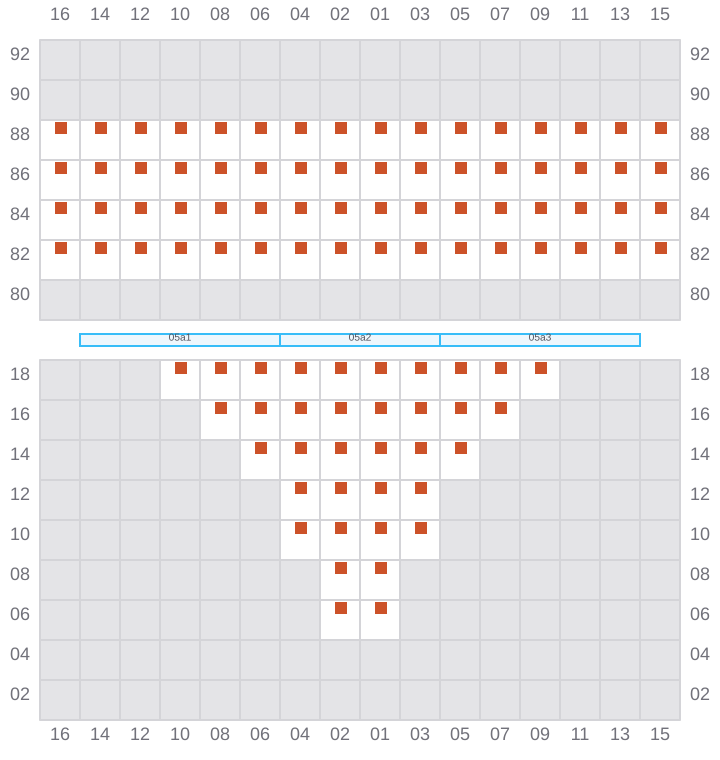

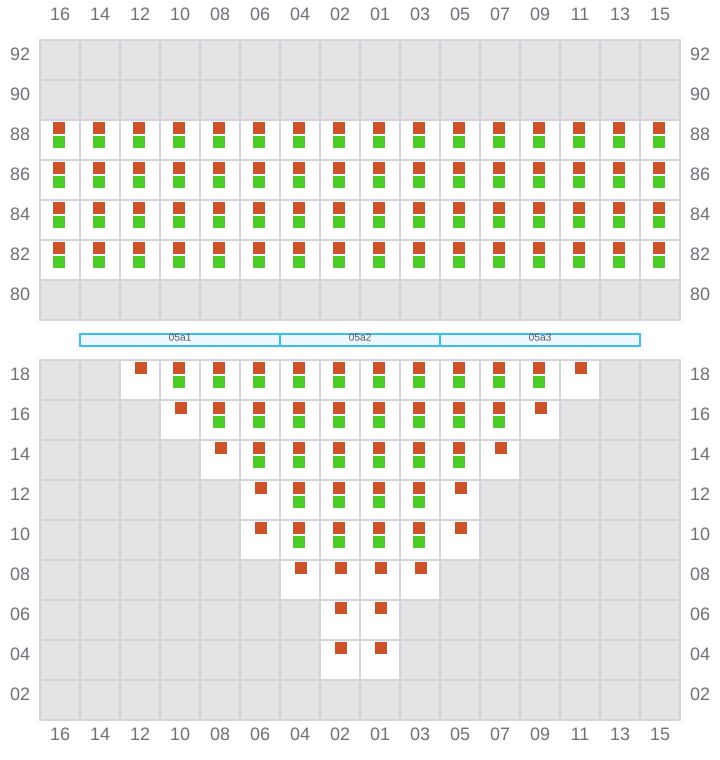

Bay 005 view and slots of COSCO ROTTERDAM

007 (006)

Bay 007 view and slots of COSCO ROTTERDAM

009

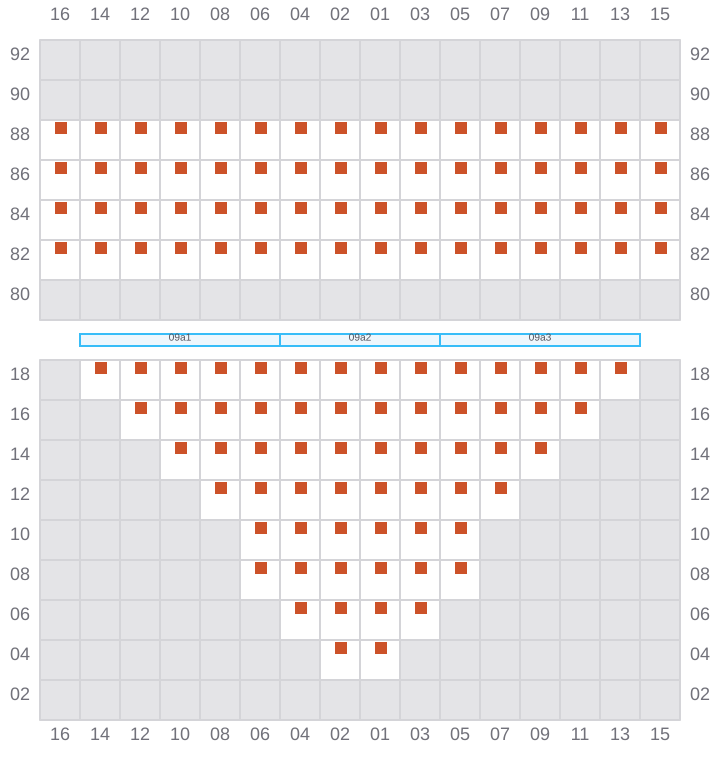

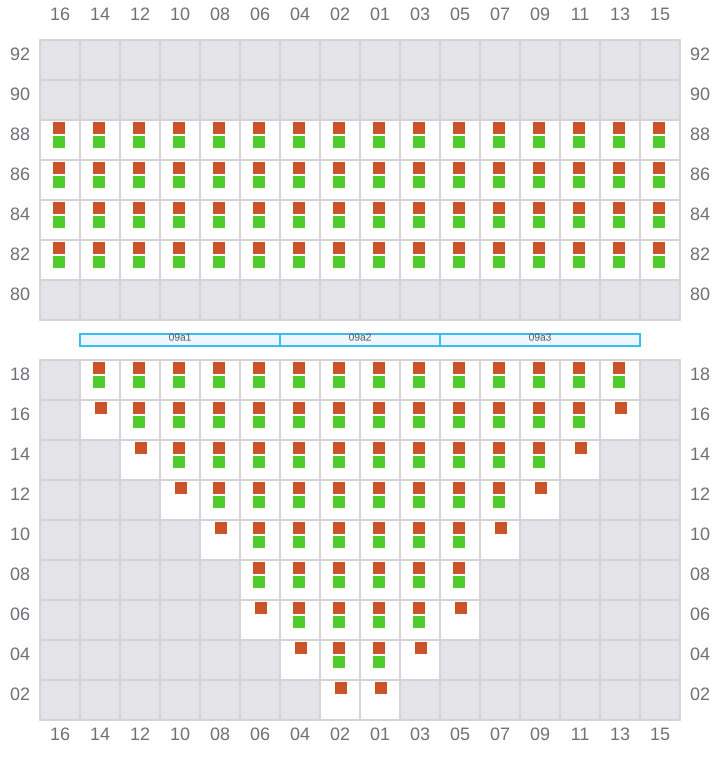

Bay 009 view and slots of COSCO ROTTERDAM

011 (010)

Bay 011 view and slots of COSCO ROTTERDAM

013

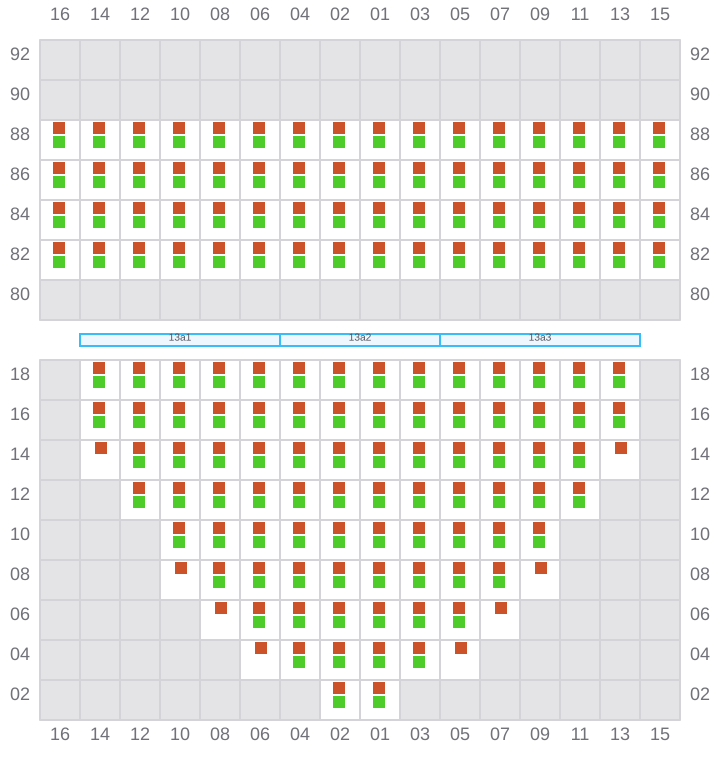

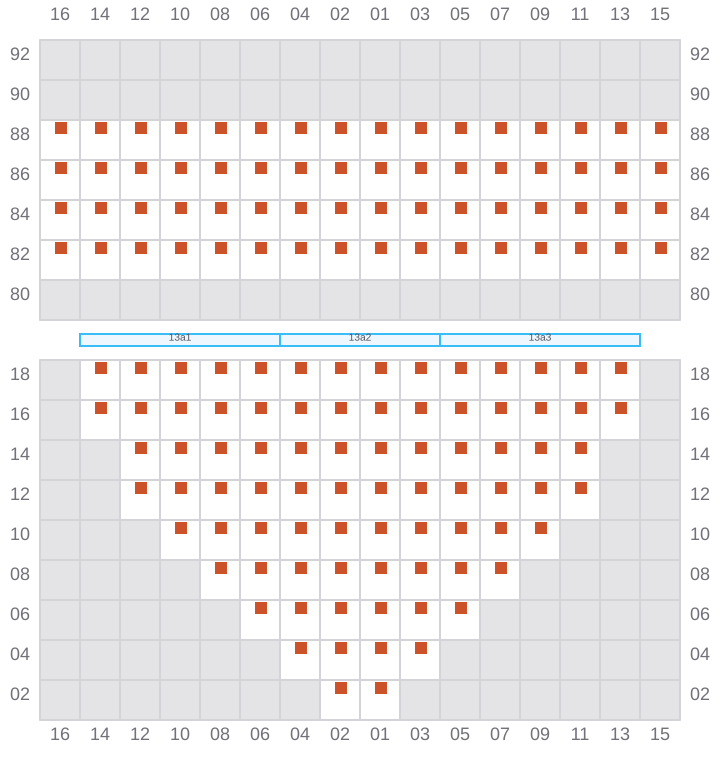

Bay 013 view and slots of COSCO ROTTERDAM

015 (014)

Bay 015 view and slots of COSCO ROTTERDAM

017

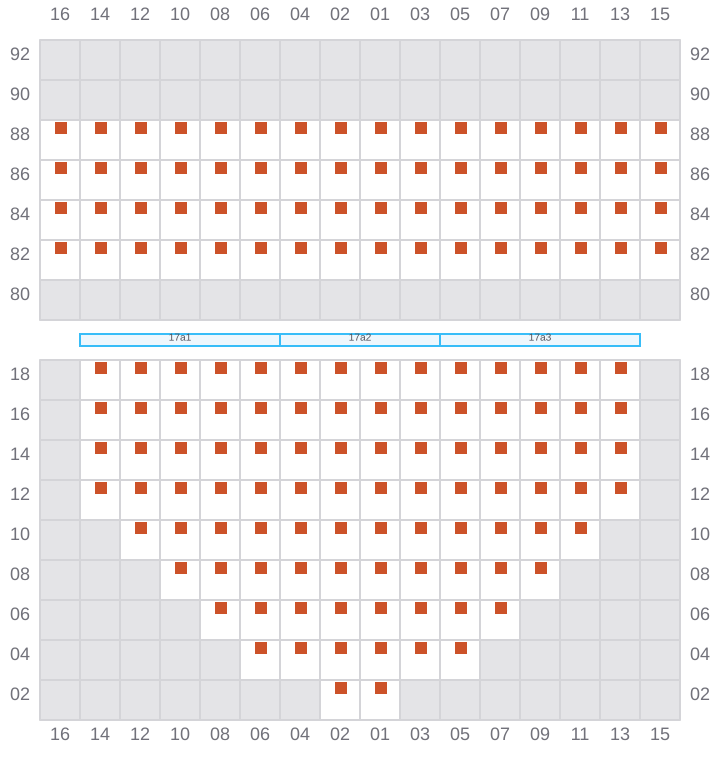

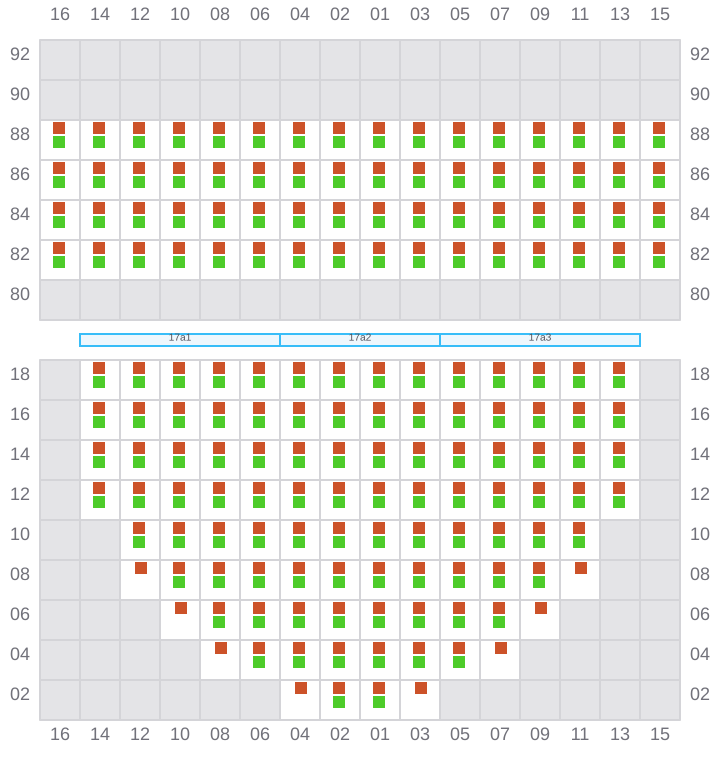

Bay 017 view and slots of COSCO ROTTERDAM

019 (018)

Bay 019 view and slots of COSCO ROTTERDAM

021

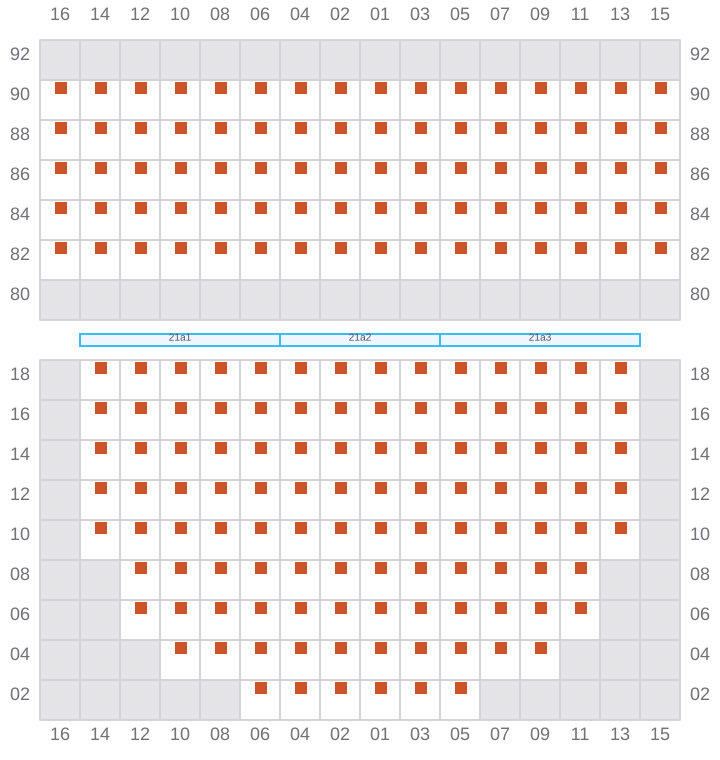

Bay 021 view and slots of COSCO ROTTERDAM

023 (022)

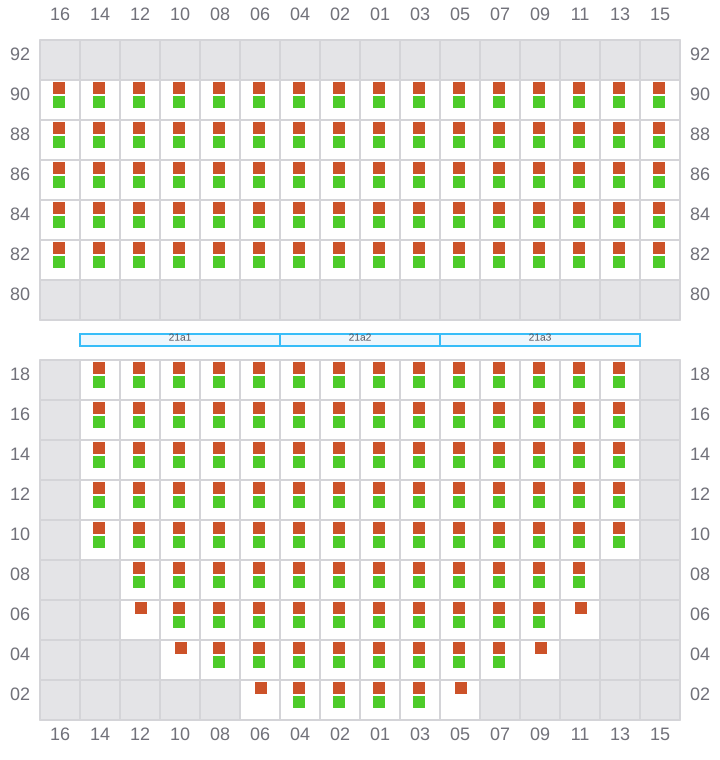

Bay 023 view and slots of COSCO ROTTERDAM

025

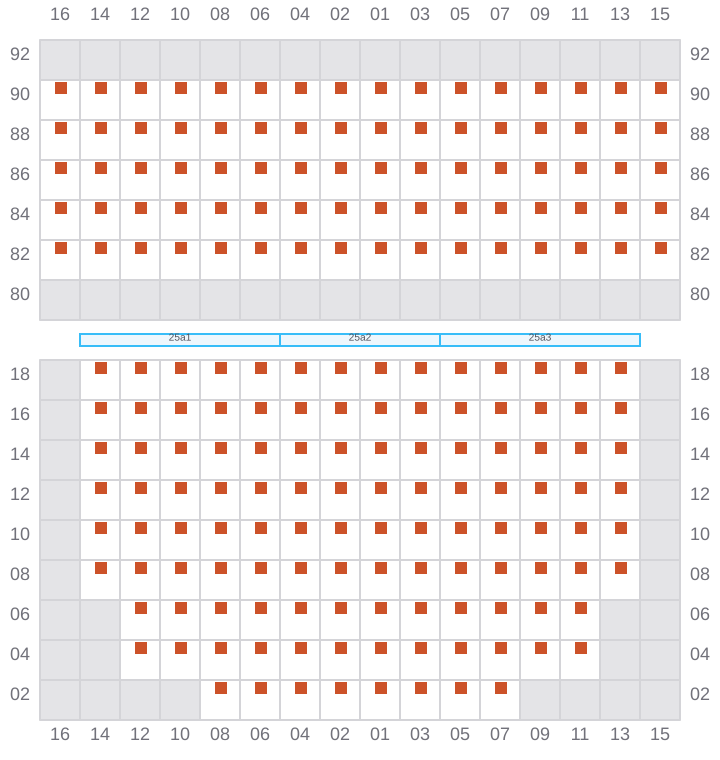

Bay 025 view and slots of COSCO ROTTERDAM

027 (026)

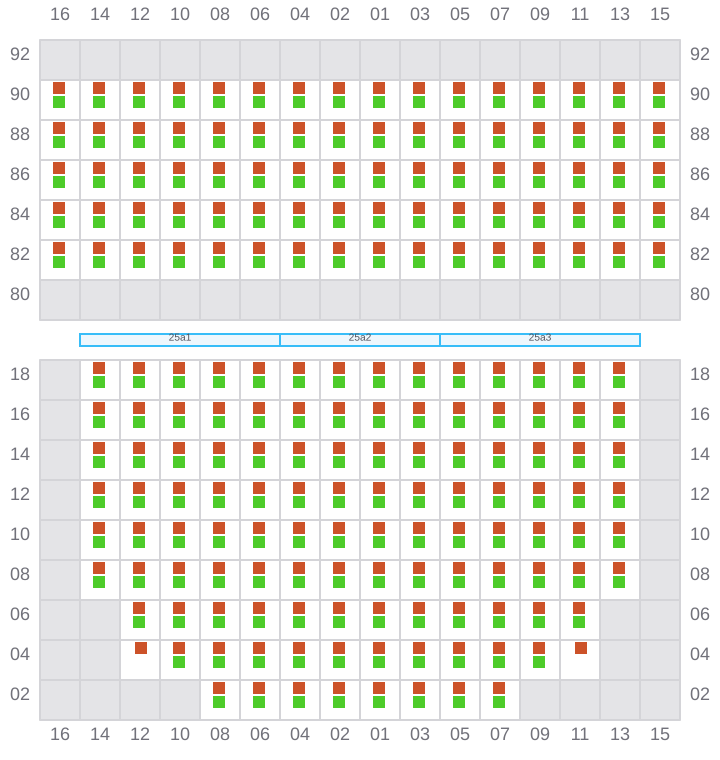

Bay 027 view and slots of COSCO ROTTERDAM

029

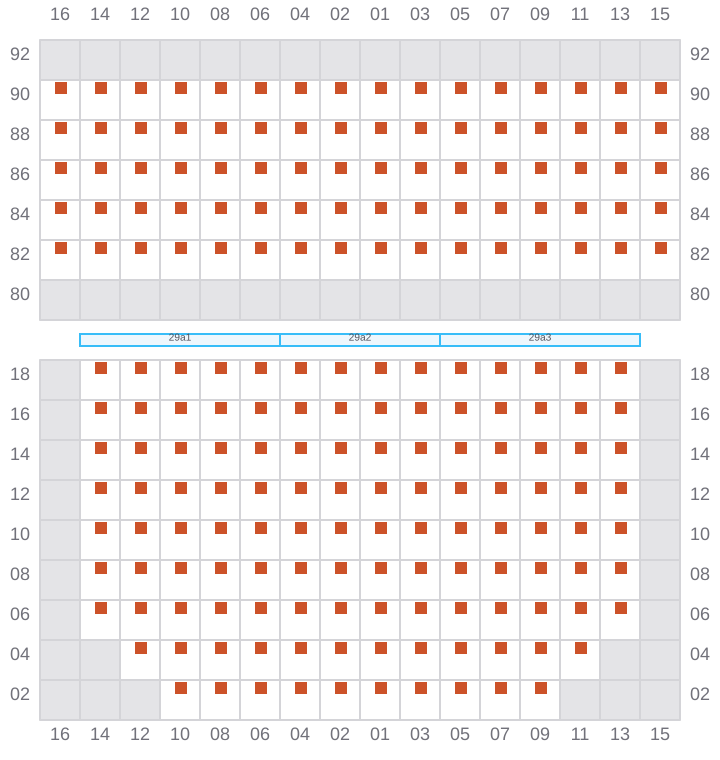

Bay 029 view and slots of COSCO ROTTERDAM

031 (030)

Bay 031 view and slots of COSCO ROTTERDAM

033

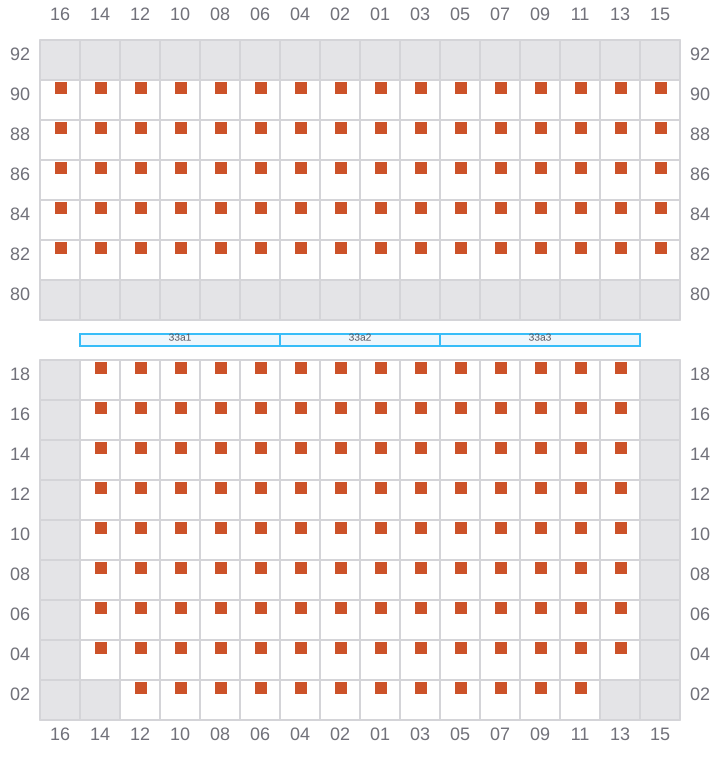

Bay 033 view and slots of COSCO ROTTERDAM

035 (034)

Bay 035 view and slots of COSCO ROTTERDAM

037

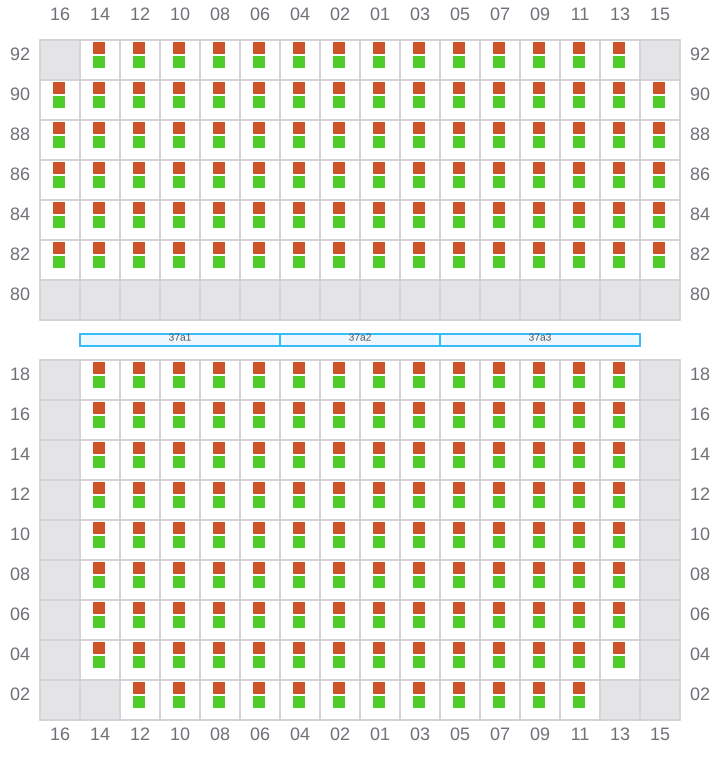

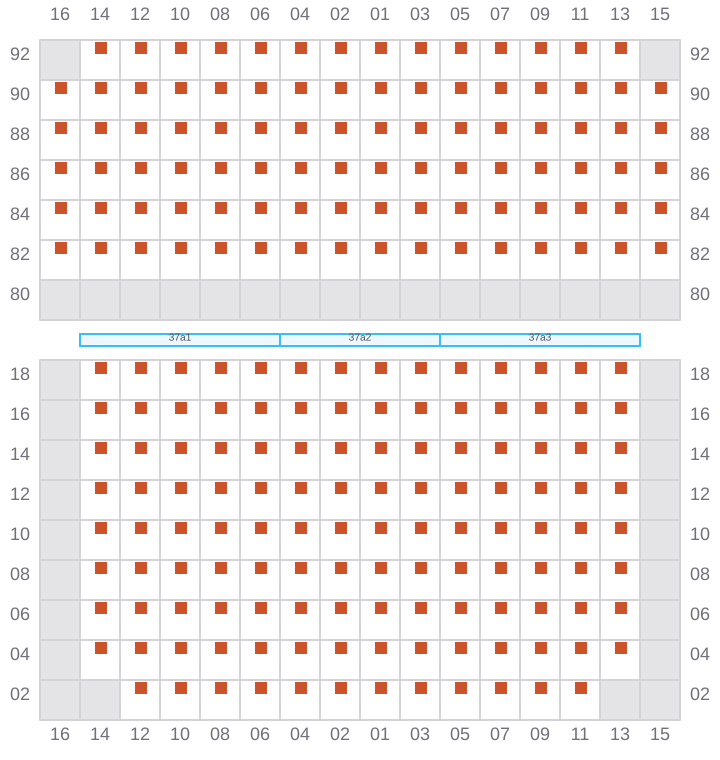

Bay 037 view and slots of COSCO ROTTERDAM

039 (038)

Bay 039 view and slots of COSCO ROTTERDAM

041

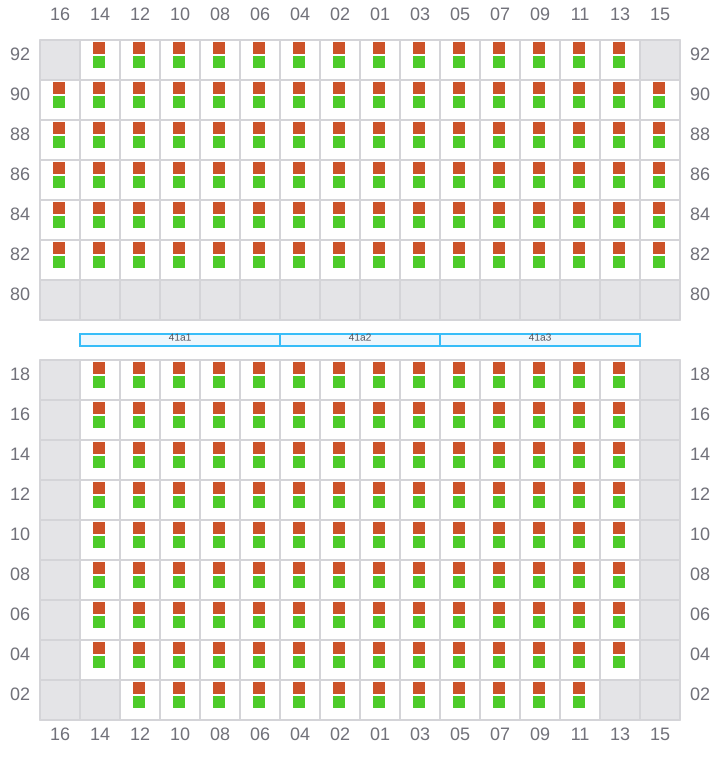

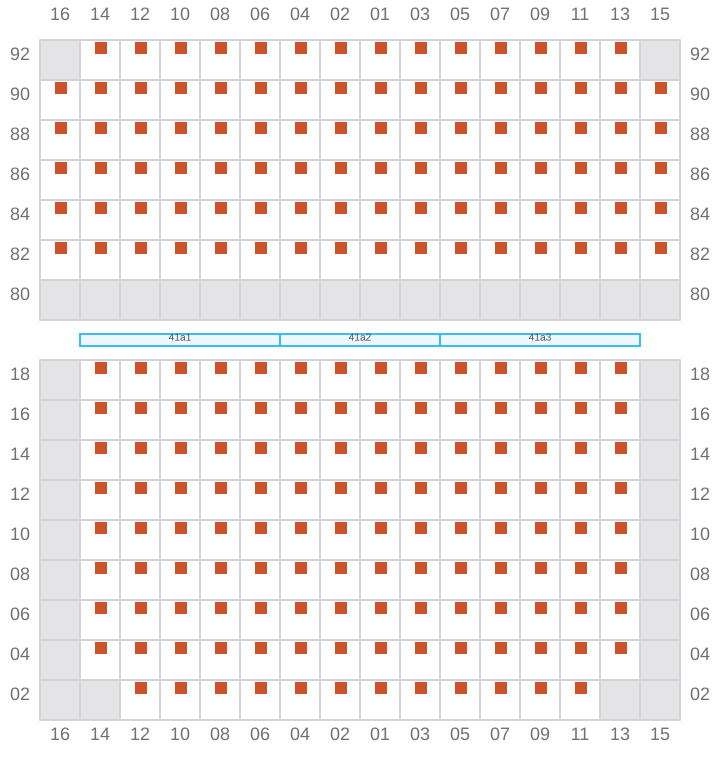

Bay 041 view and slots of COSCO ROTTERDAM

043 (042)

Bay 043 view and slots of COSCO ROTTERDAM

045

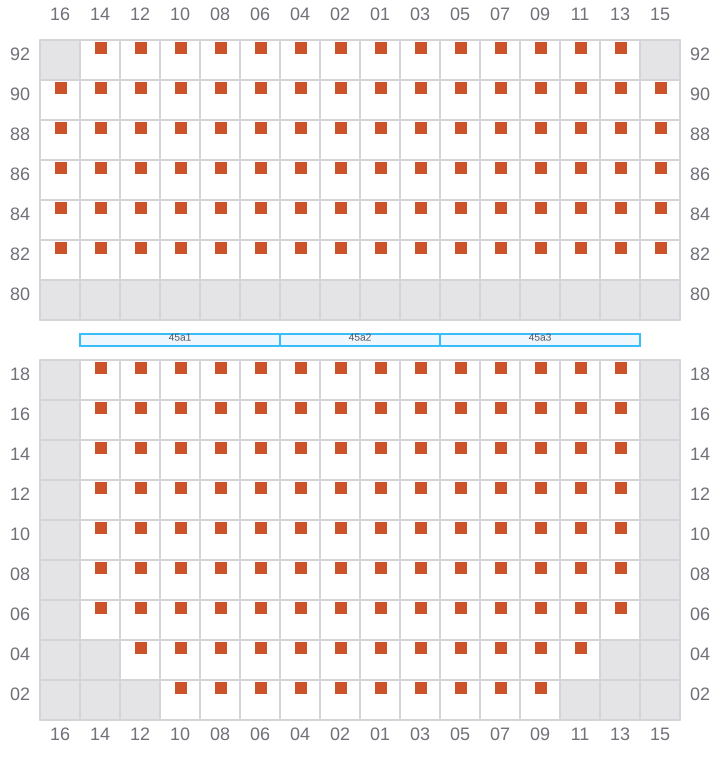

Bay 045 view and slots of COSCO ROTTERDAM

047 (046)

Bay 047 view and slots of COSCO ROTTERDAM

049

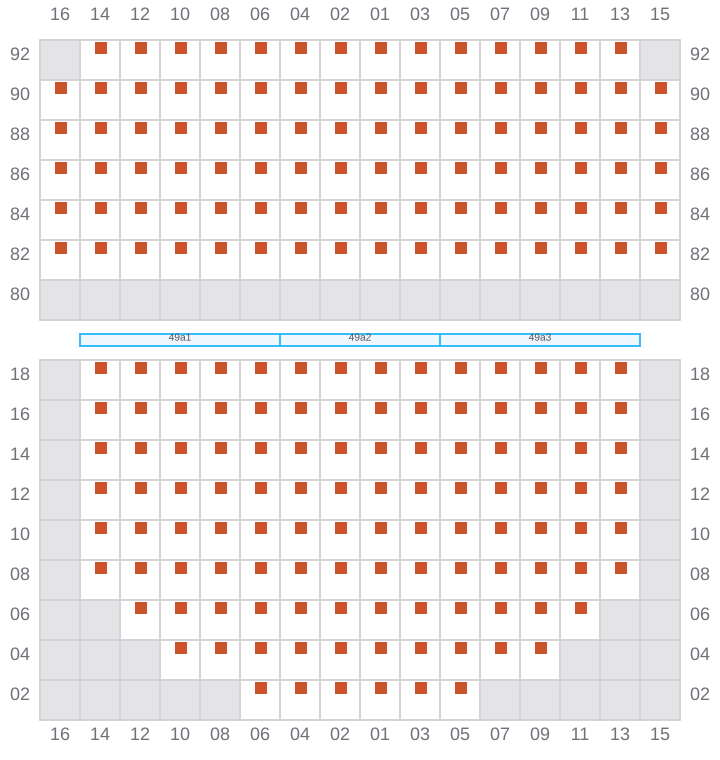

Bay 049 view and slots of COSCO ROTTERDAM

051 (050)

Bay 051 view and slots of COSCO ROTTERDAM

053

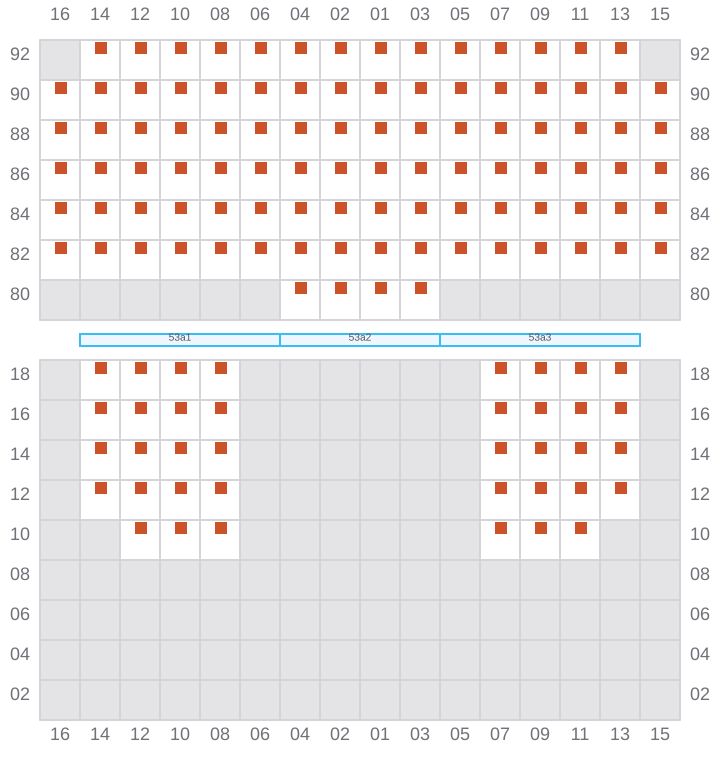

Bay 053 view and slots of COSCO ROTTERDAM

055

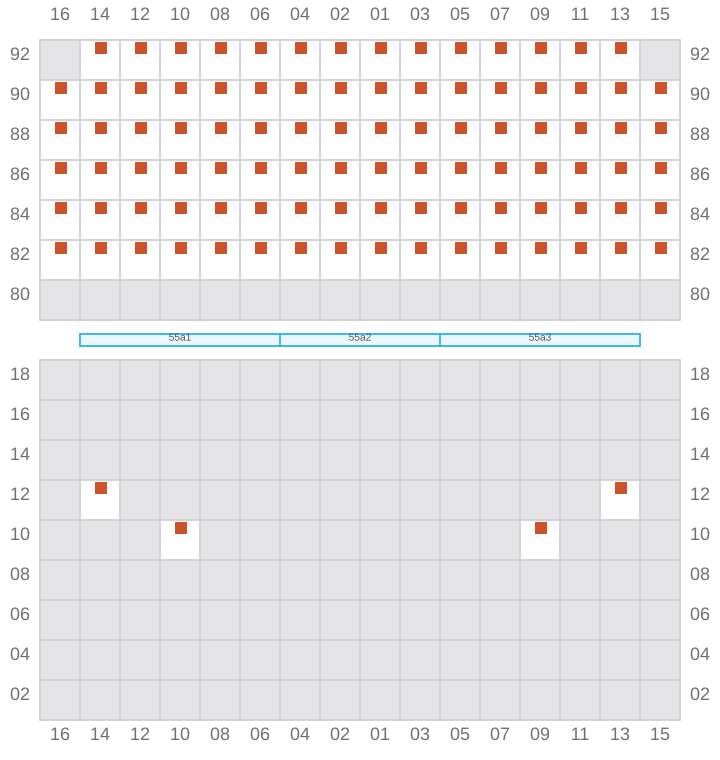

Bay 055 view and slots of COSCO ROTTERDAM

057 (056)

Bay 057 view and slots of COSCO ROTTERDAM

059

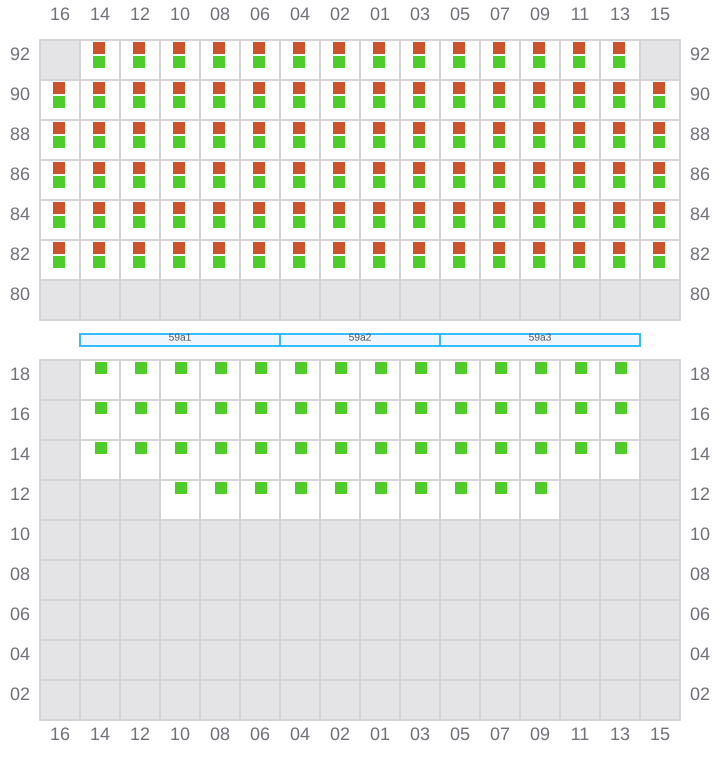

Bay 059 view and slots of COSCO ROTTERDAM

061 (060)

Bay 061 view and slots of COSCO ROTTERDAM

063

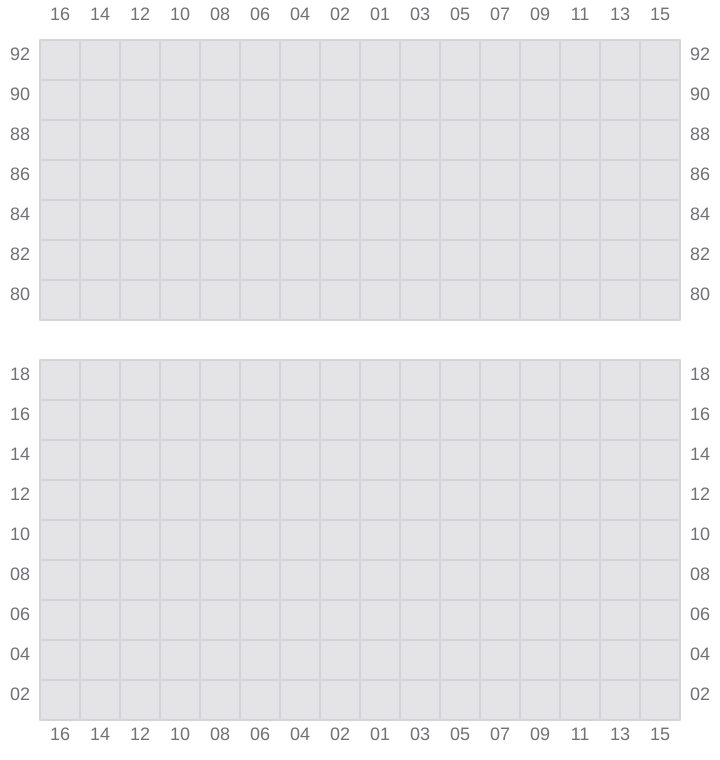

Bay 063 view and slots of COSCO ROTTERDAM

065 (064)

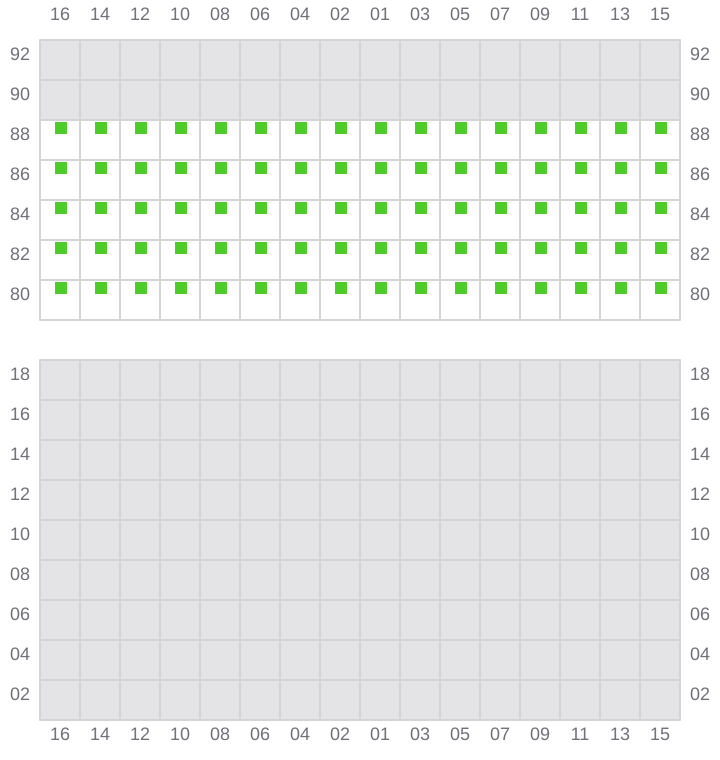

Bay 065 view and slots of COSCO ROTTERDAM
