COSCO SINGAPORE
9221102 | 2BOW4 | 9221102 by ********* Last update: Wed May 08 2024

General Info

Ship Name:COSCO SINGAPORE
IMO Code:9221102
Call Sign:2BOW4
Line Operator:9221102
Class Name for Sister Ships:COSCO SINGAPORE
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,546

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

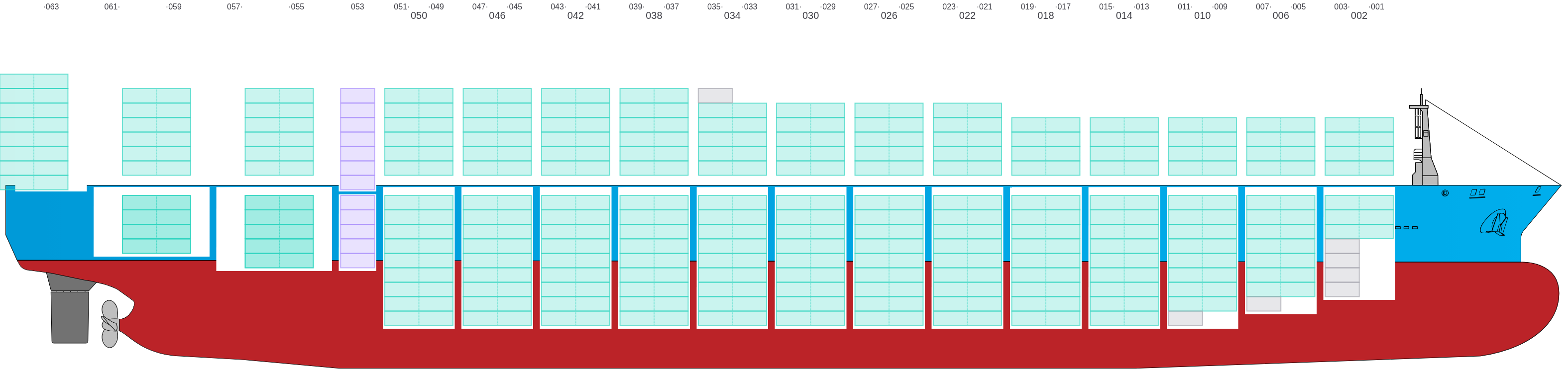

Side view of COSCO SINGAPORE

Hatch-Covers View

Deck view of COSCO SINGAPORE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

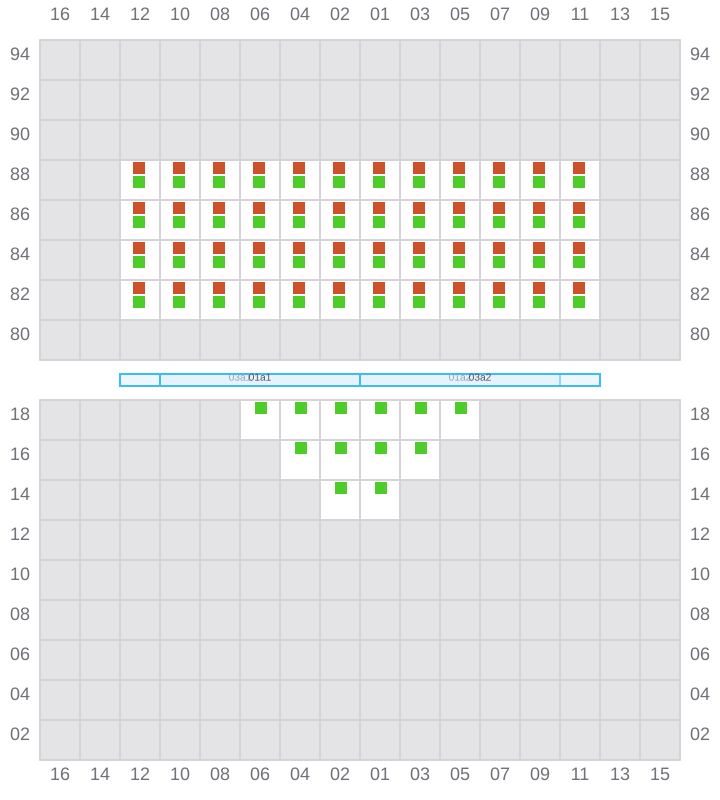

Bay 001 view and slots of COSCO SINGAPORE

003

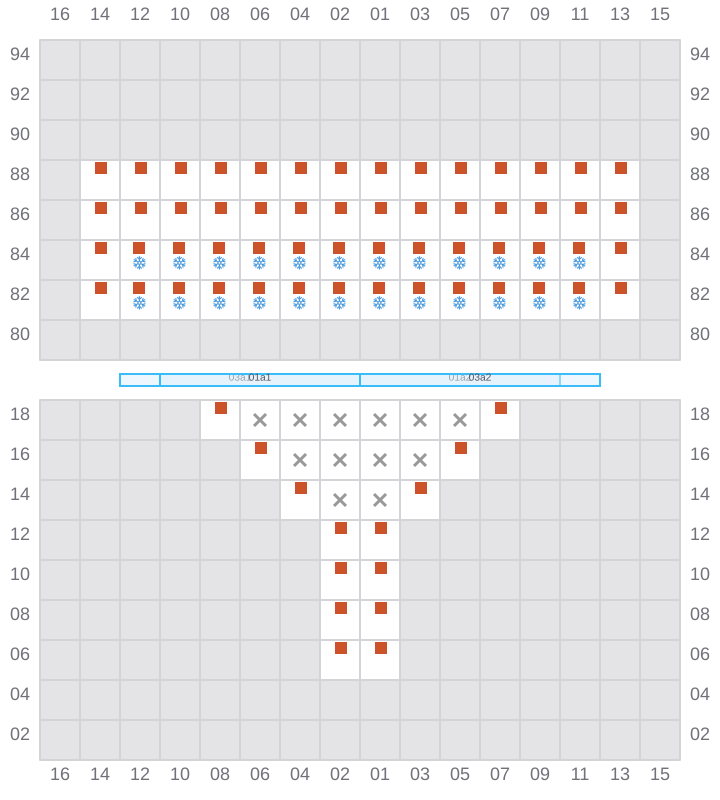

Bay 003 view and slots of COSCO SINGAPORE

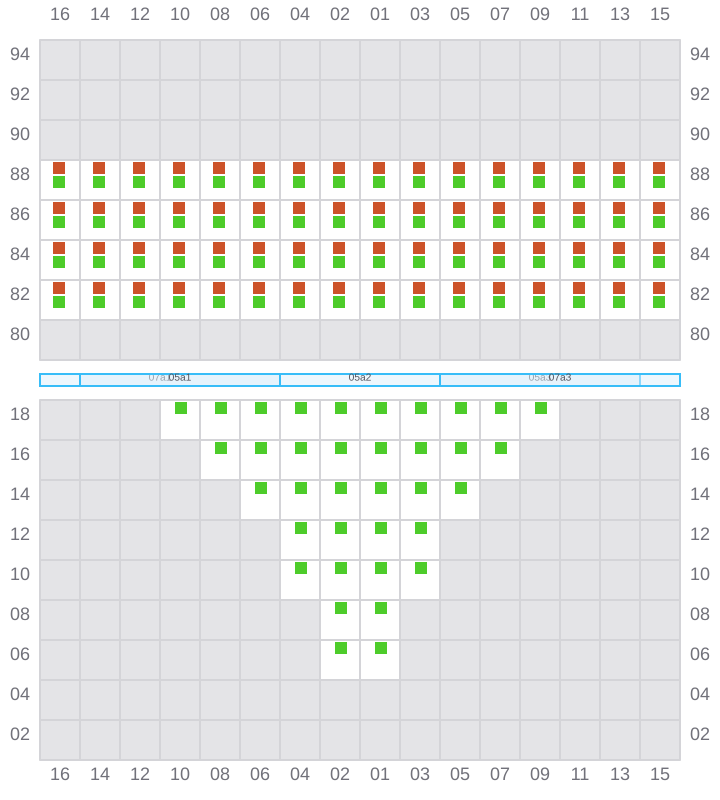

005 (006)

Bay 005 view and slots of COSCO SINGAPORE

007

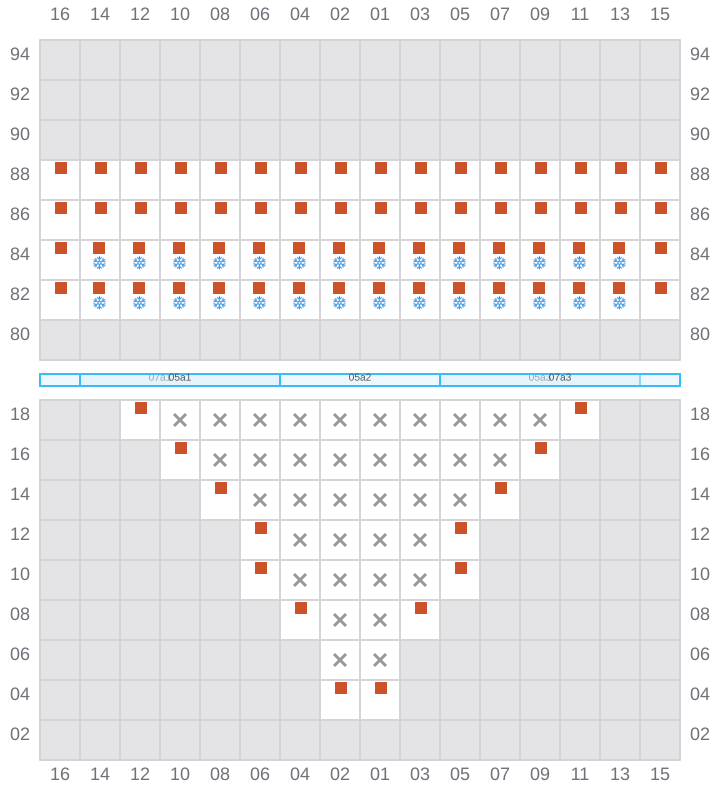

Bay 007 view and slots of COSCO SINGAPORE

009 (010)

Bay 009 view and slots of COSCO SINGAPORE

011

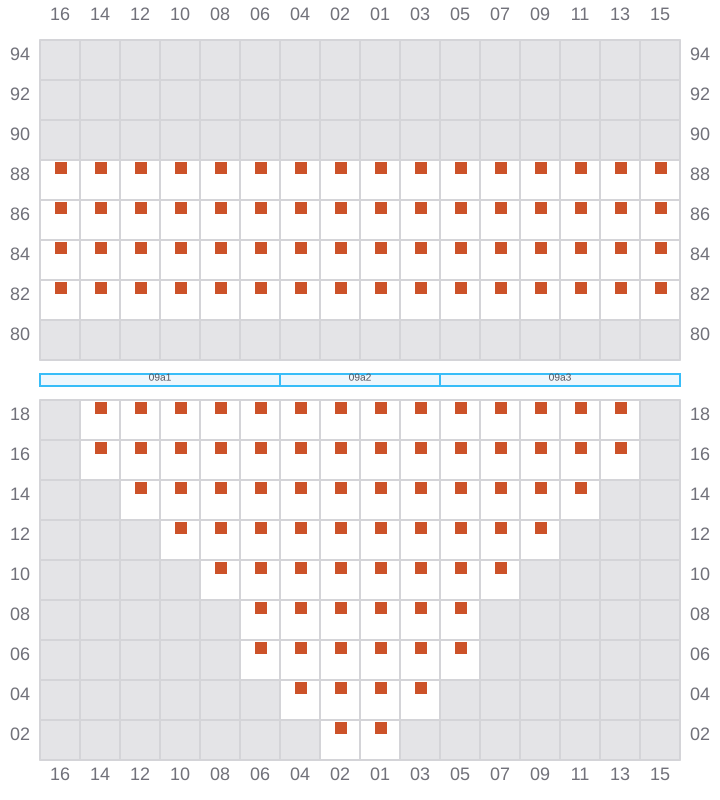

Bay 011 view and slots of COSCO SINGAPORE

013 (014)

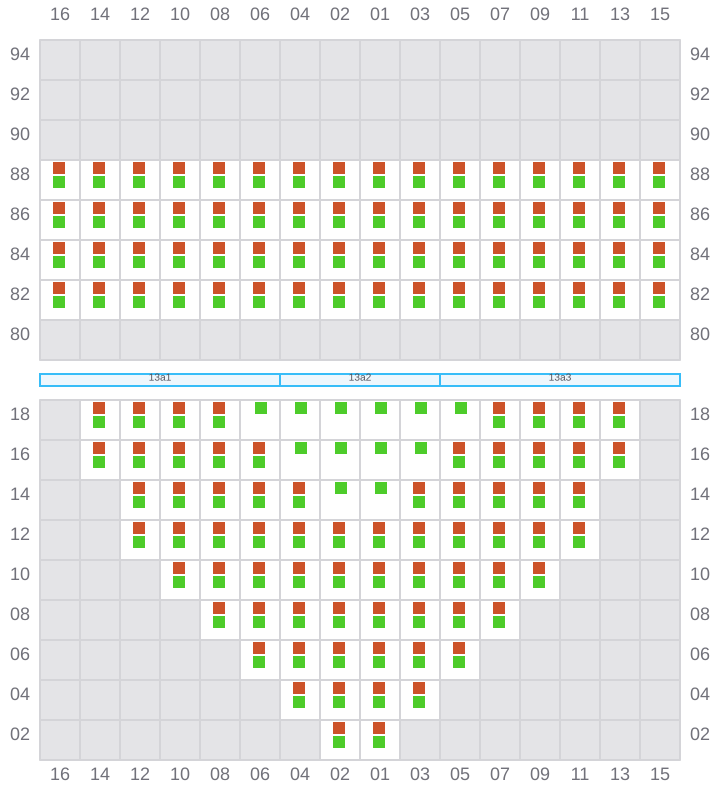

Bay 013 view and slots of COSCO SINGAPORE

015

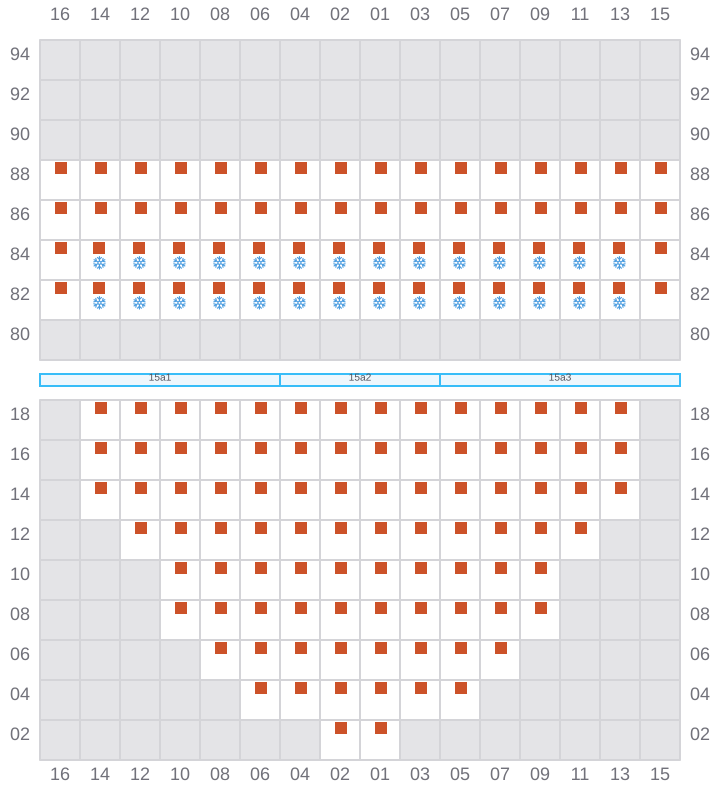

Bay 015 view and slots of COSCO SINGAPORE

017 (018)

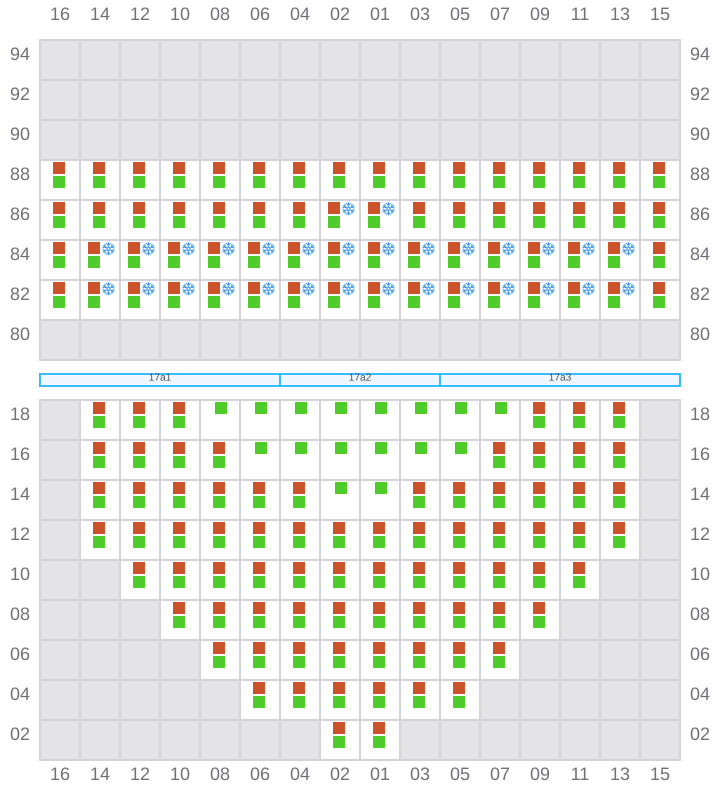

Bay 017 view and slots of COSCO SINGAPORE

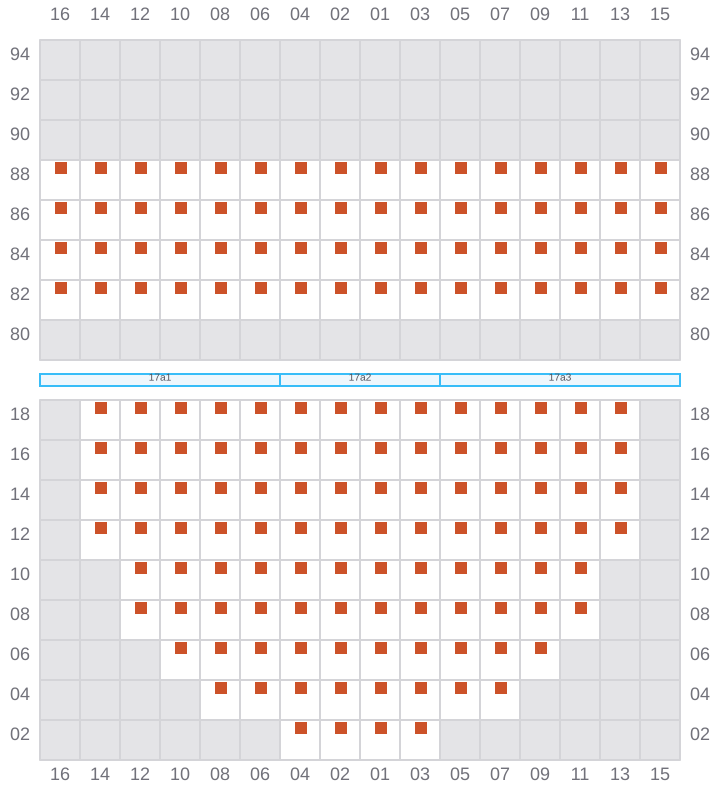

019

Bay 019 view and slots of COSCO SINGAPORE

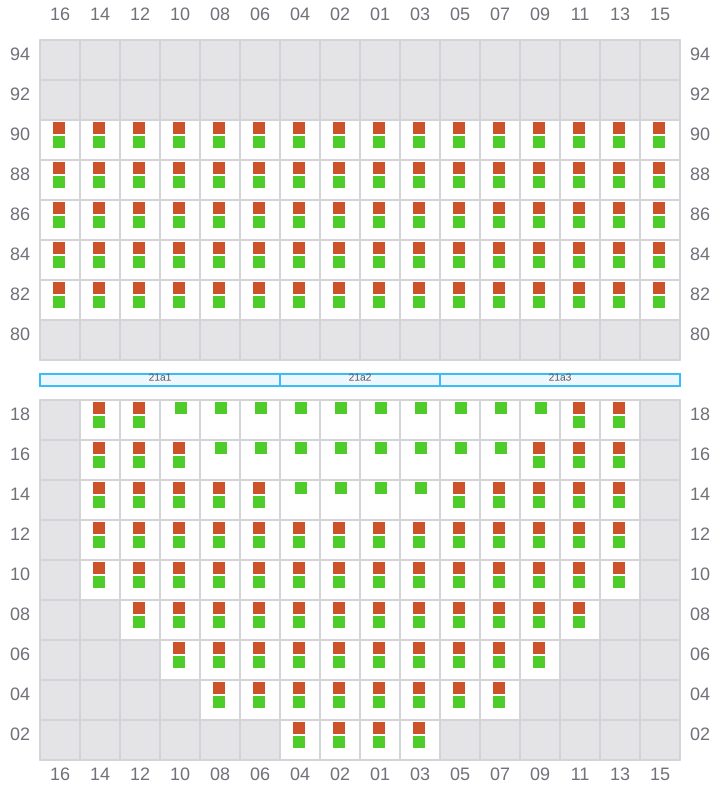

021 (022)

Bay 021 view and slots of COSCO SINGAPORE

023

Bay 023 view and slots of COSCO SINGAPORE

025 (026)

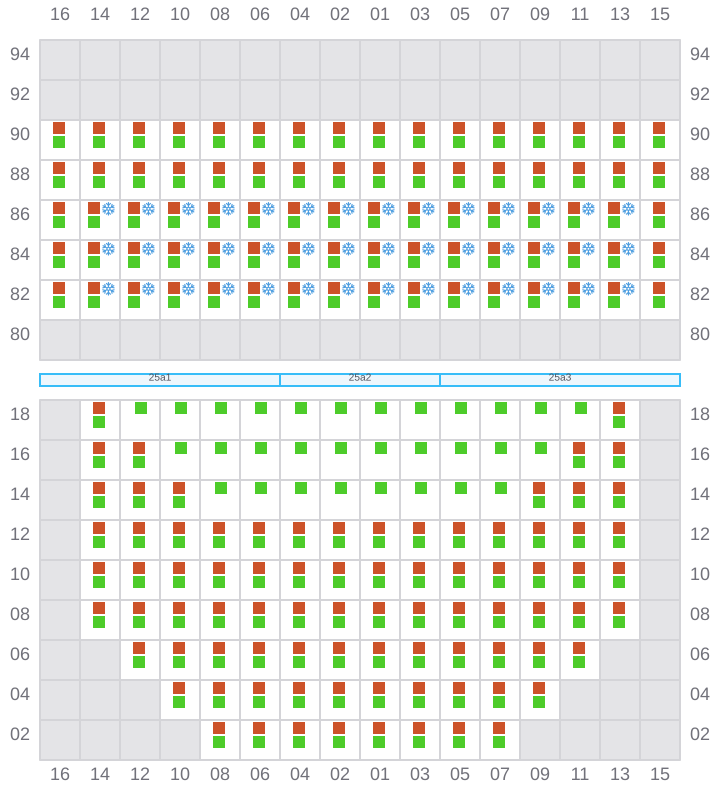

Bay 025 view and slots of COSCO SINGAPORE

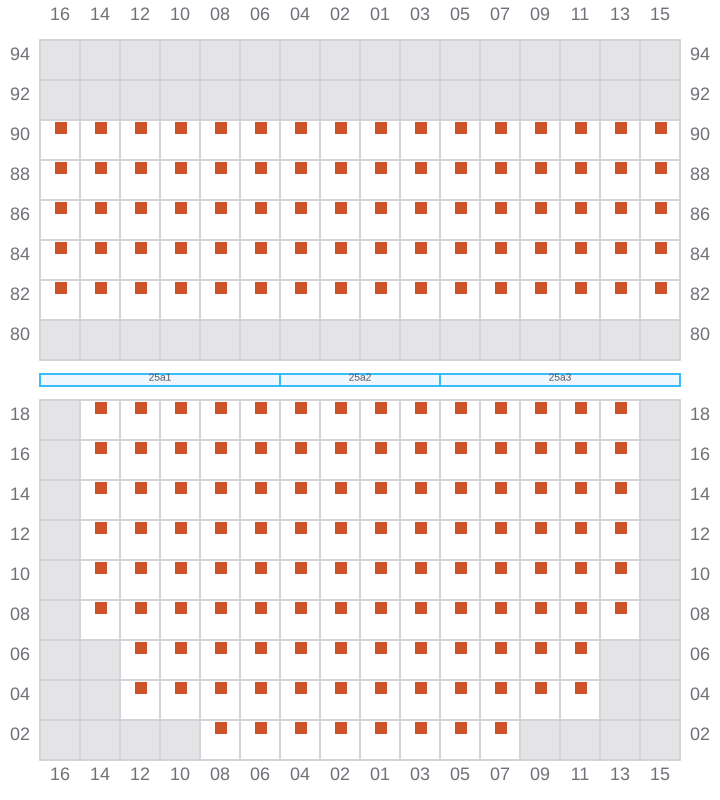

027

Bay 027 view and slots of COSCO SINGAPORE

029 (030)

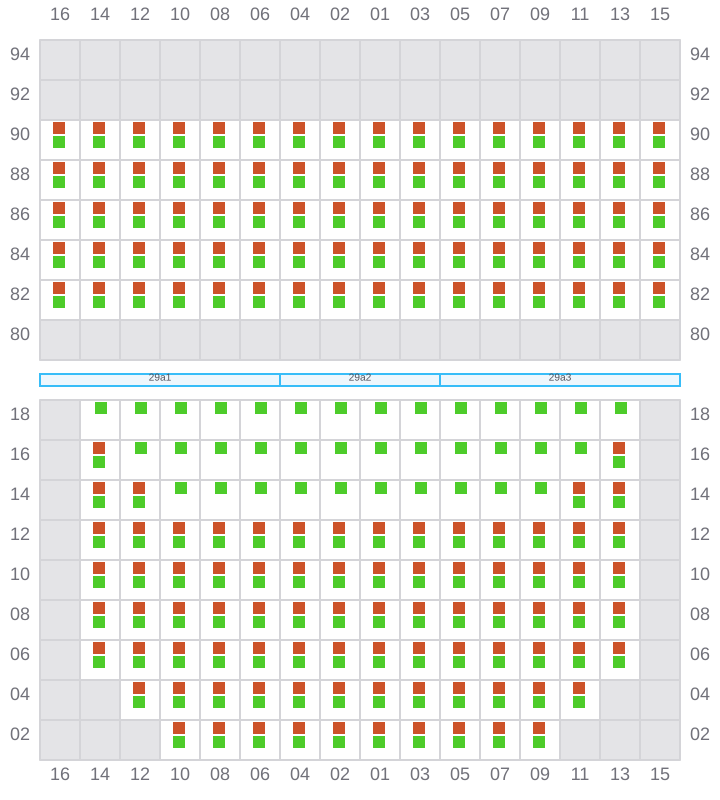

Bay 029 view and slots of COSCO SINGAPORE

031

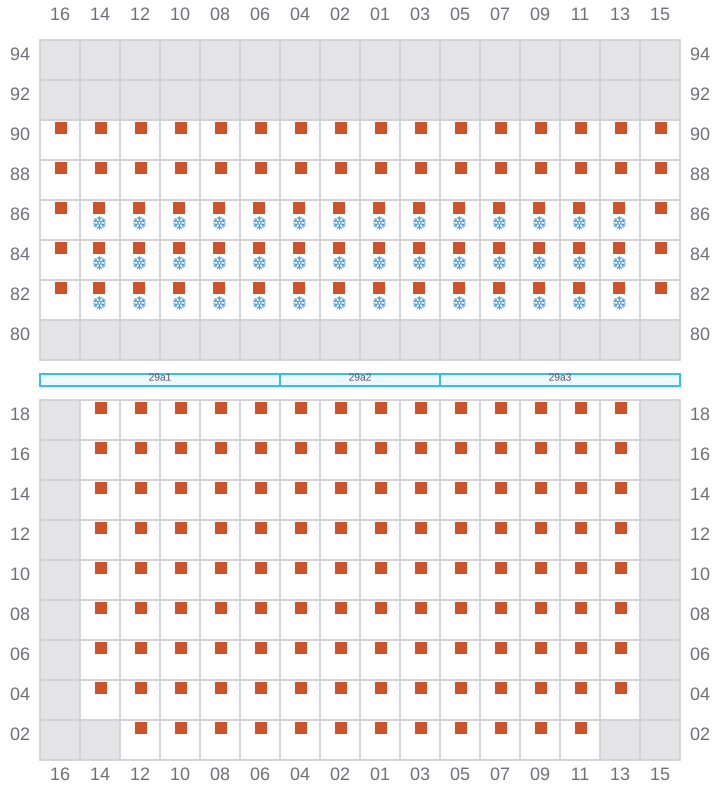

Bay 031 view and slots of COSCO SINGAPORE

033 (034)

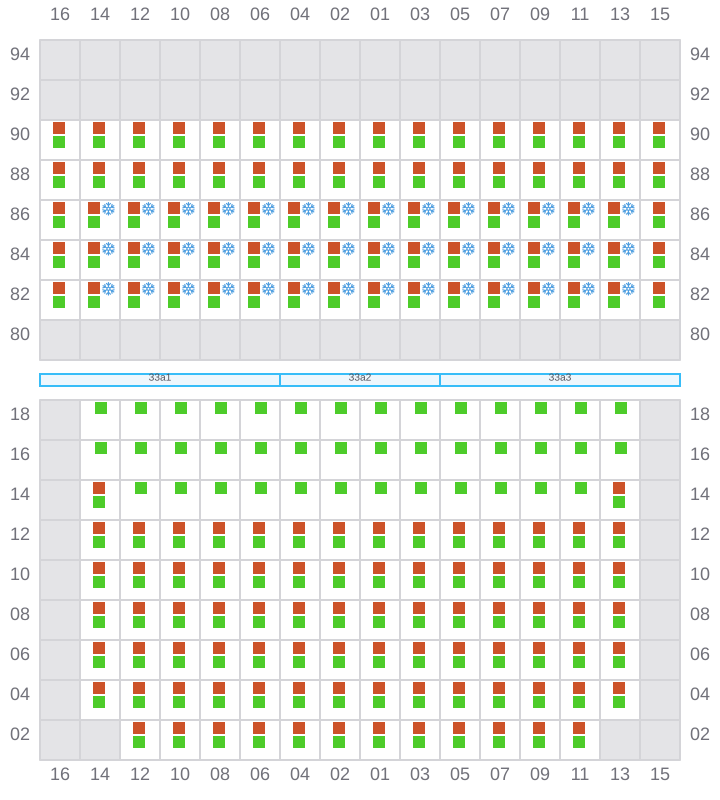

Bay 033 view and slots of COSCO SINGAPORE

035

Bay 035 view and slots of COSCO SINGAPORE

037 (038)

Bay 037 view and slots of COSCO SINGAPORE

039

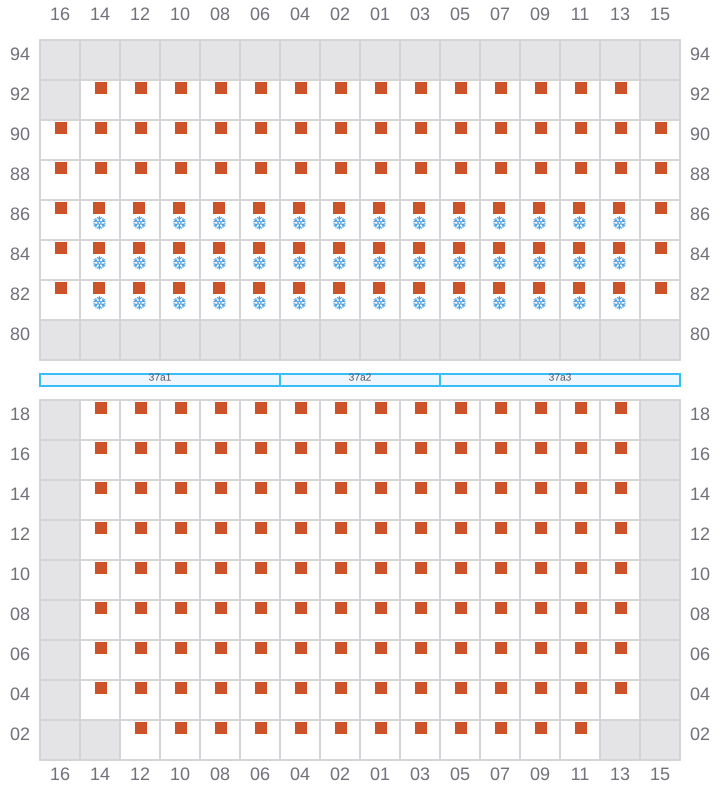

Bay 039 view and slots of COSCO SINGAPORE

041 (042)

Bay 041 view and slots of COSCO SINGAPORE

043

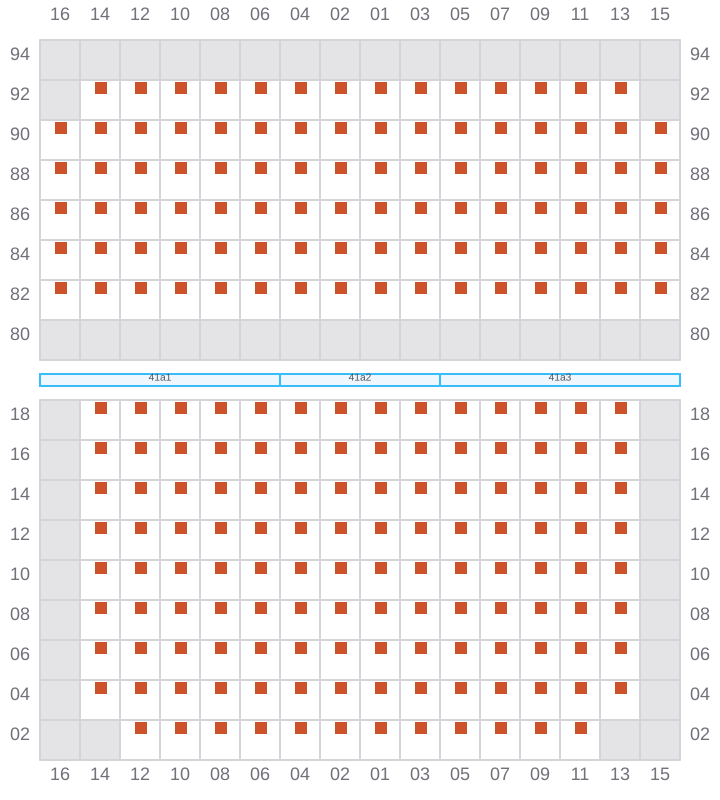

Bay 043 view and slots of COSCO SINGAPORE

045 (046)

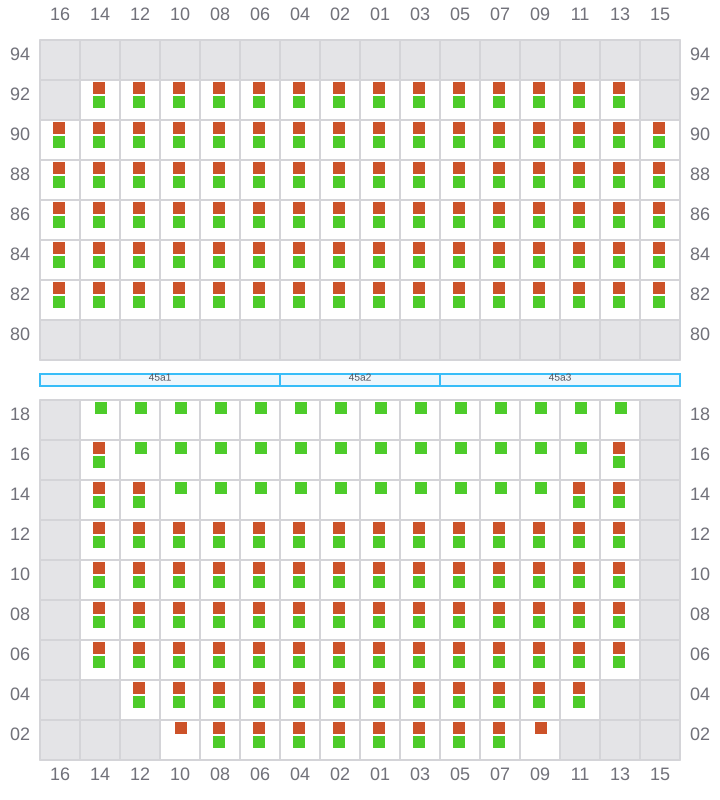

Bay 045 view and slots of COSCO SINGAPORE

047

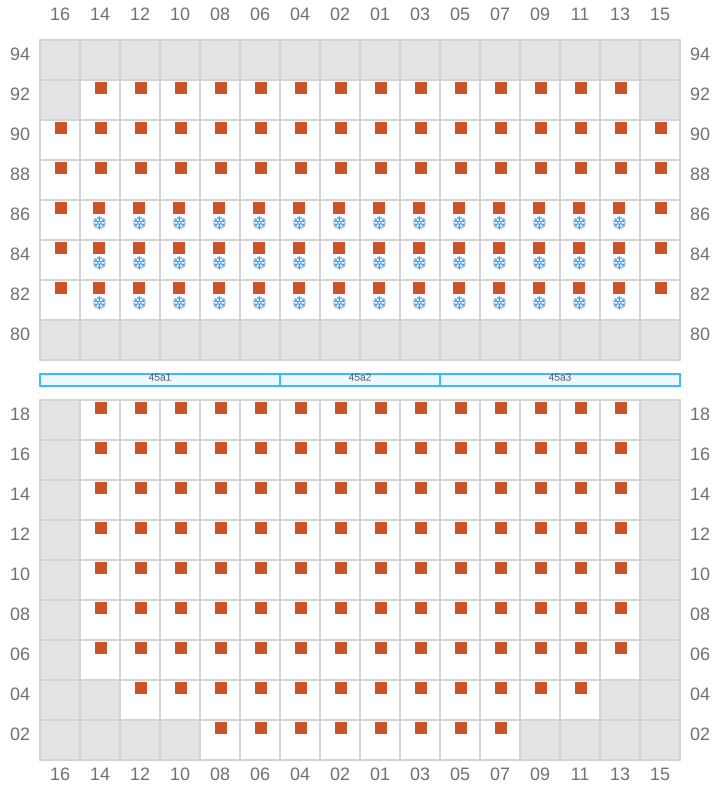

Bay 047 view and slots of COSCO SINGAPORE

049 (050)

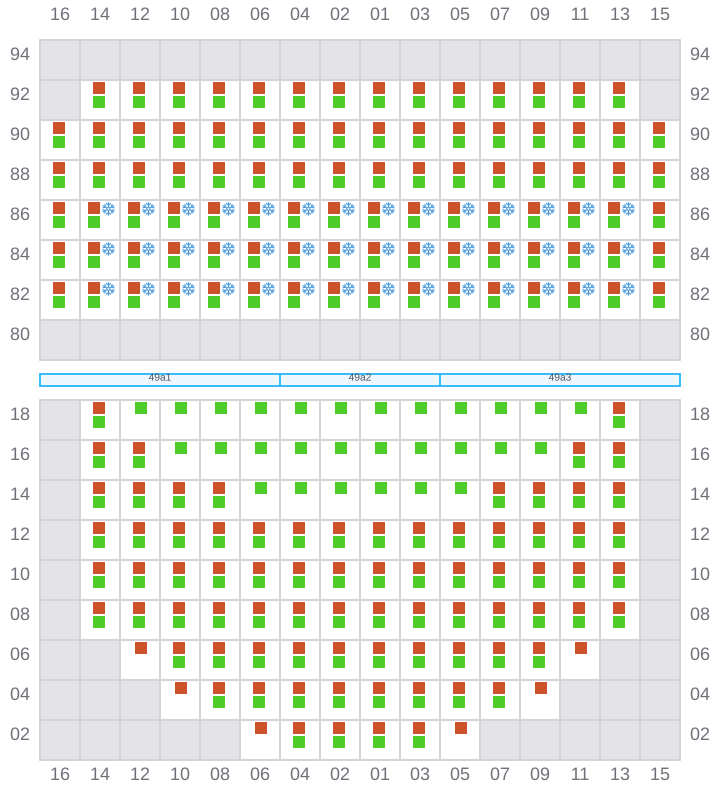

Bay 049 view and slots of COSCO SINGAPORE

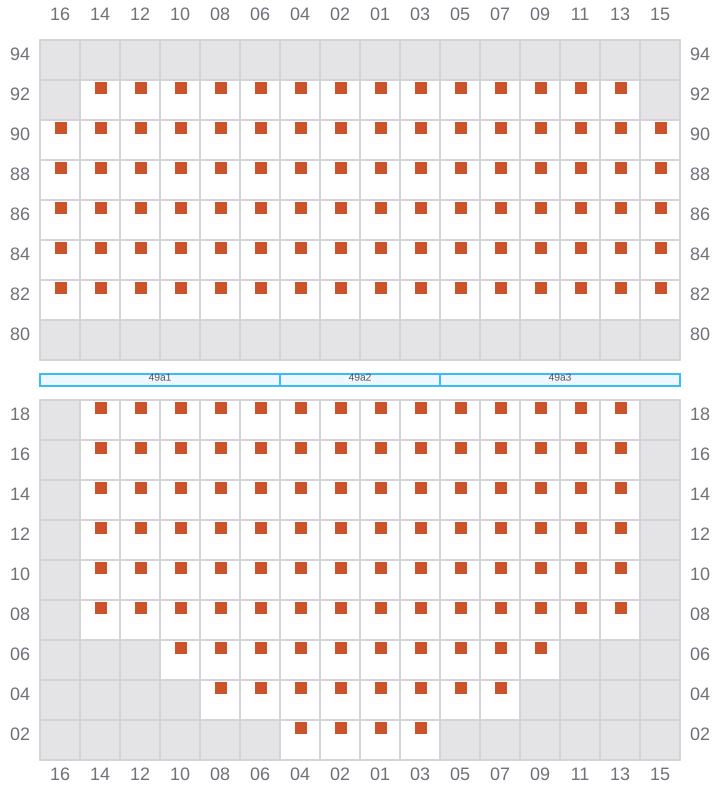

051

Bay 051 view and slots of COSCO SINGAPORE

053

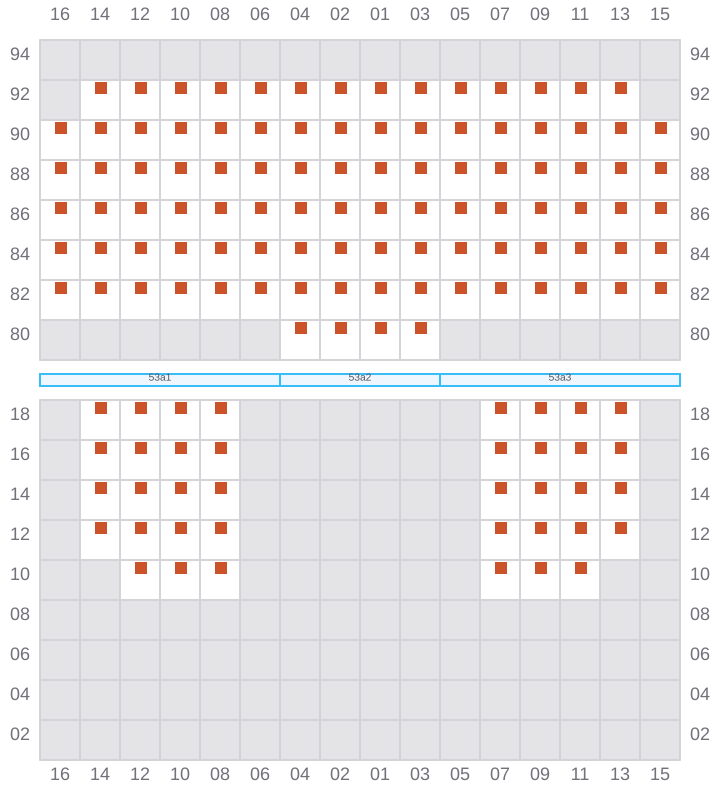

Bay 053 view and slots of COSCO SINGAPORE

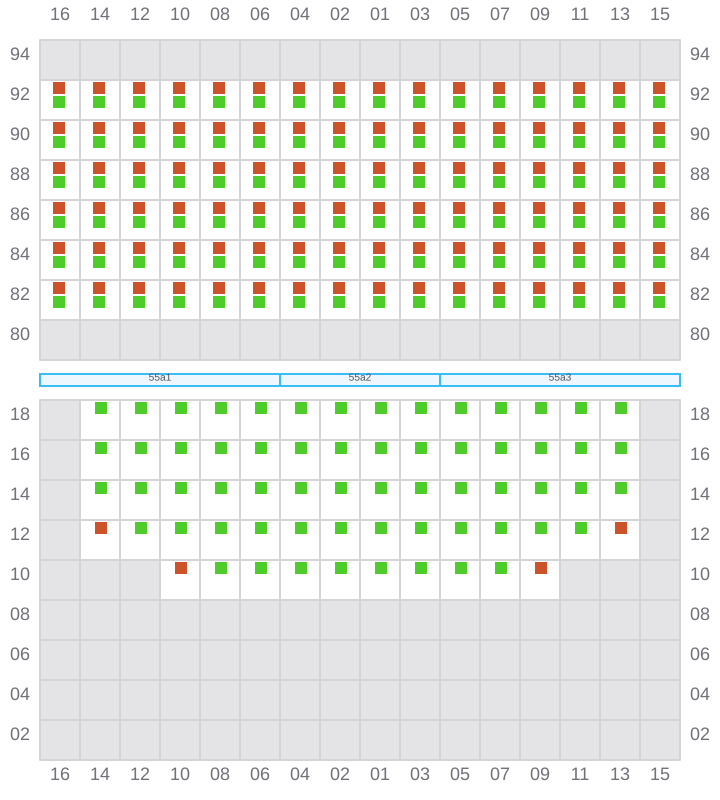

055 (056)

Bay 055 view and slots of COSCO SINGAPORE

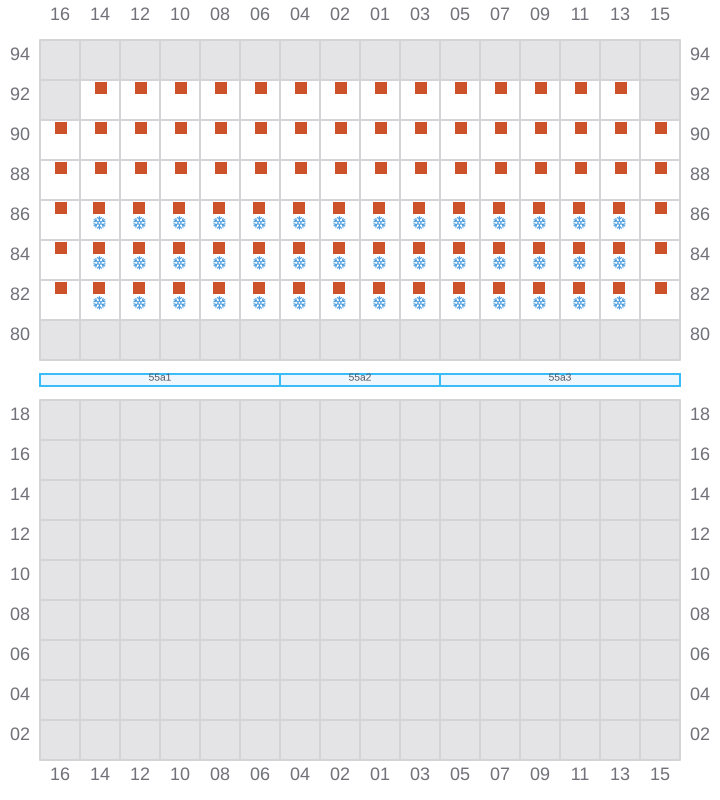

057

Bay 057 view and slots of COSCO SINGAPORE

059 (060)

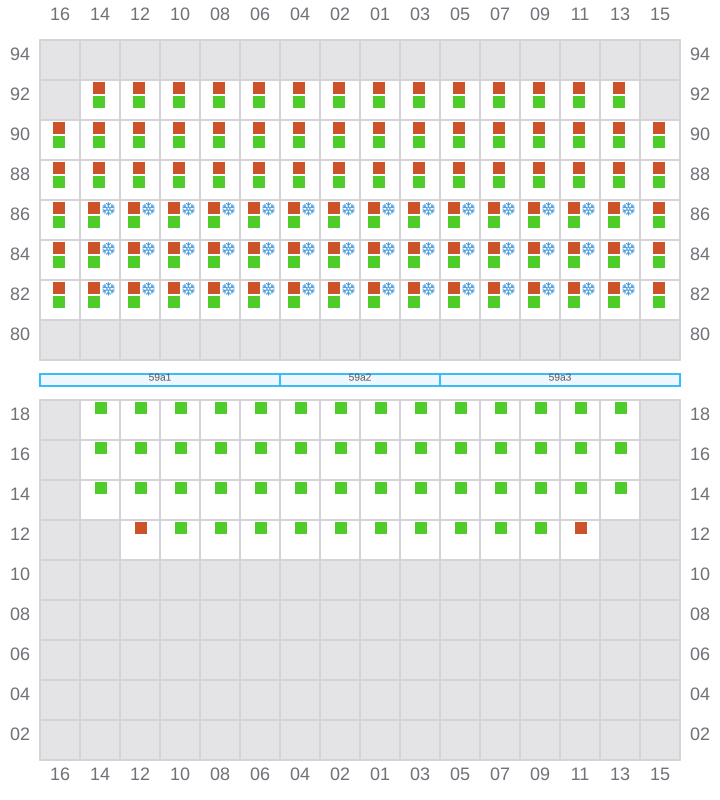

Bay 059 view and slots of COSCO SINGAPORE

061

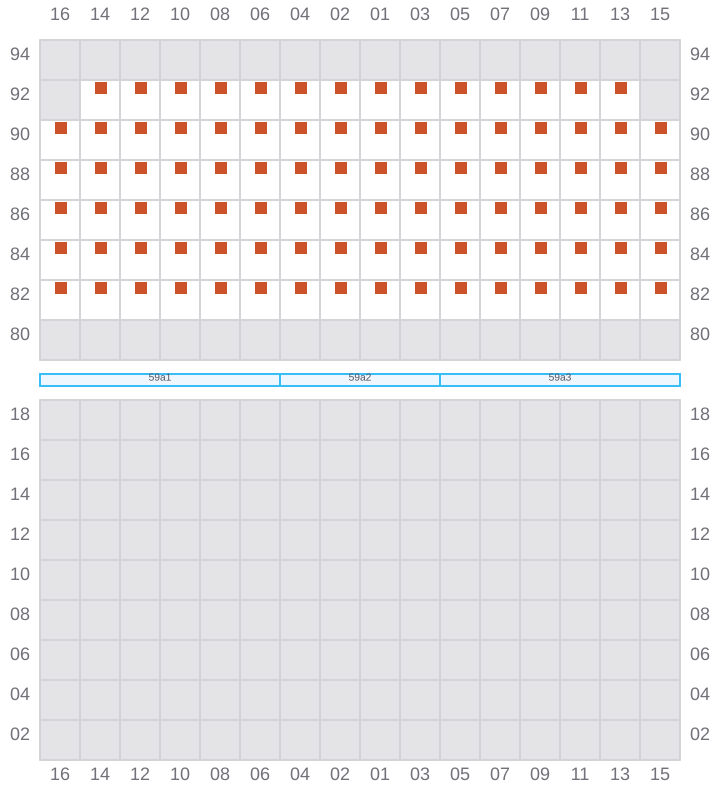

Bay 061 view and slots of COSCO SINGAPORE

063 (064)

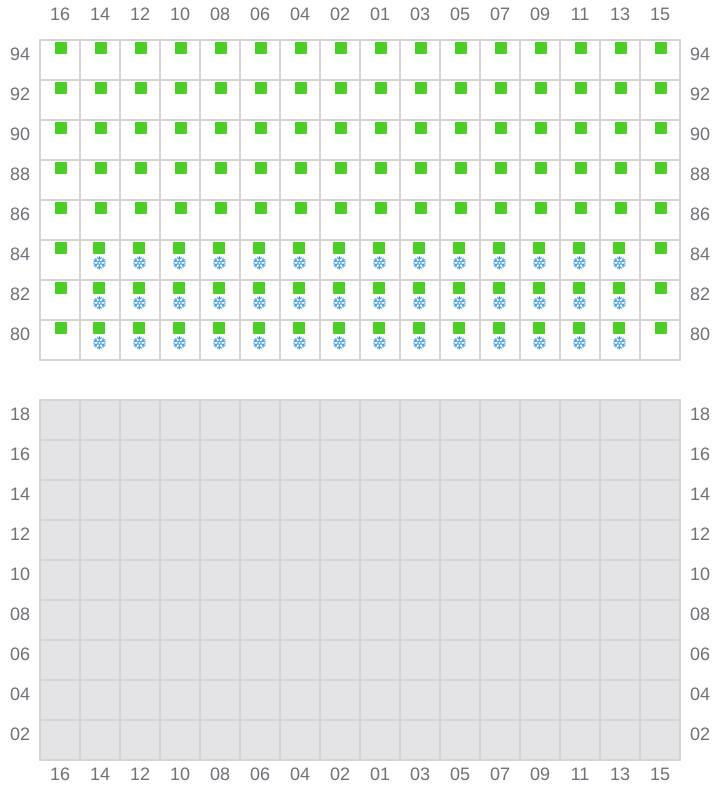

Bay 063 view and slots of COSCO SINGAPORE
