COSCO TAICANG
9355575 | VREV9 | COS by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:COSCO TAICANG
IMO Code:9355575
Call Sign:VREV9
Line Operator:COS
Class Name for Sister Ships:TAIC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,020

Centers of Gravity

LCG Values:Known
LCG Data:85%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

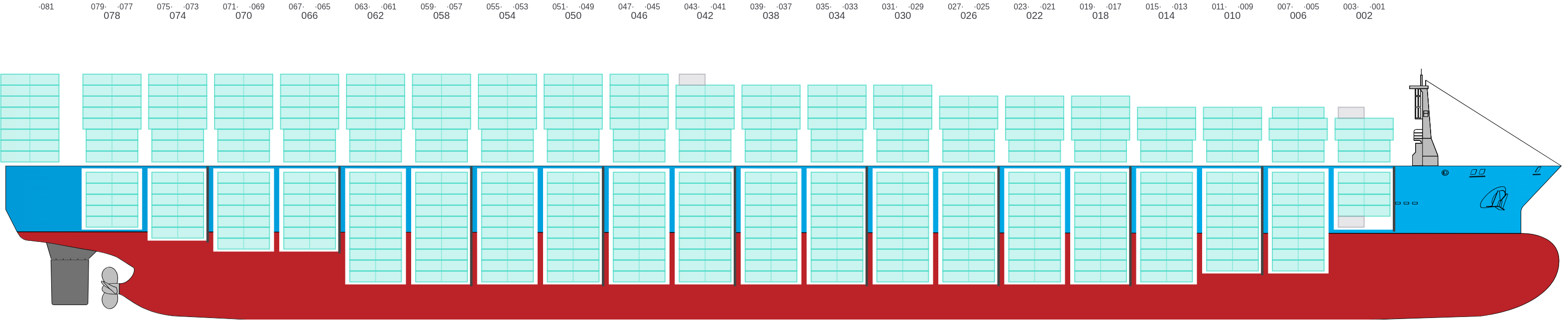

Side view of COSCO TAICANG

Hatch-Covers View

Deck view of COSCO TAICANG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

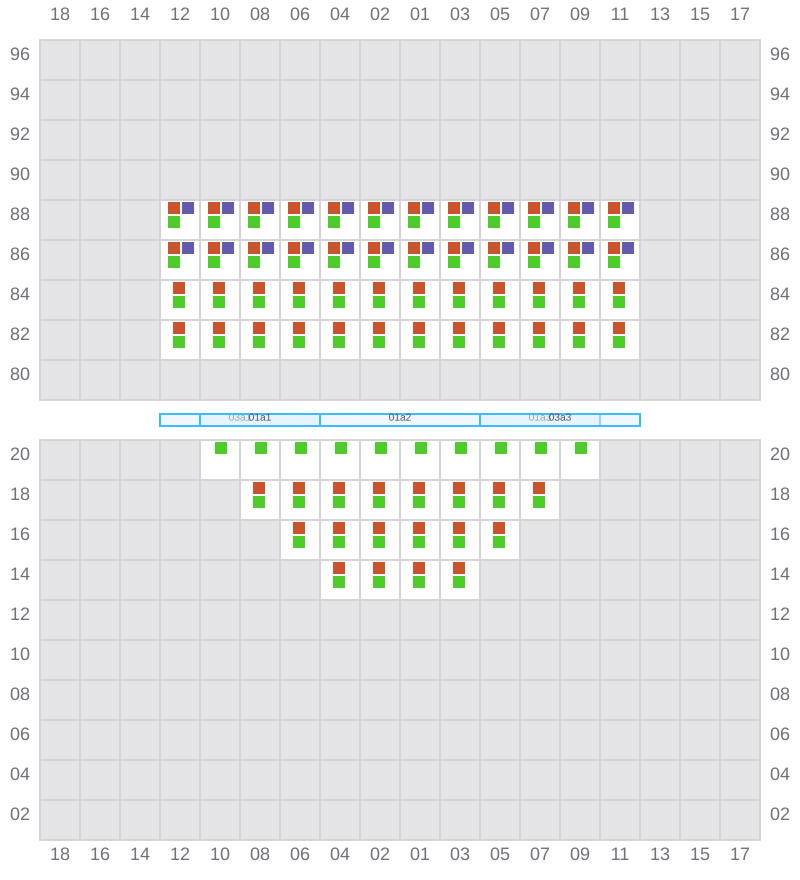

Bay 001 view and slots of COSCO TAICANG

003

  • ←
  • →

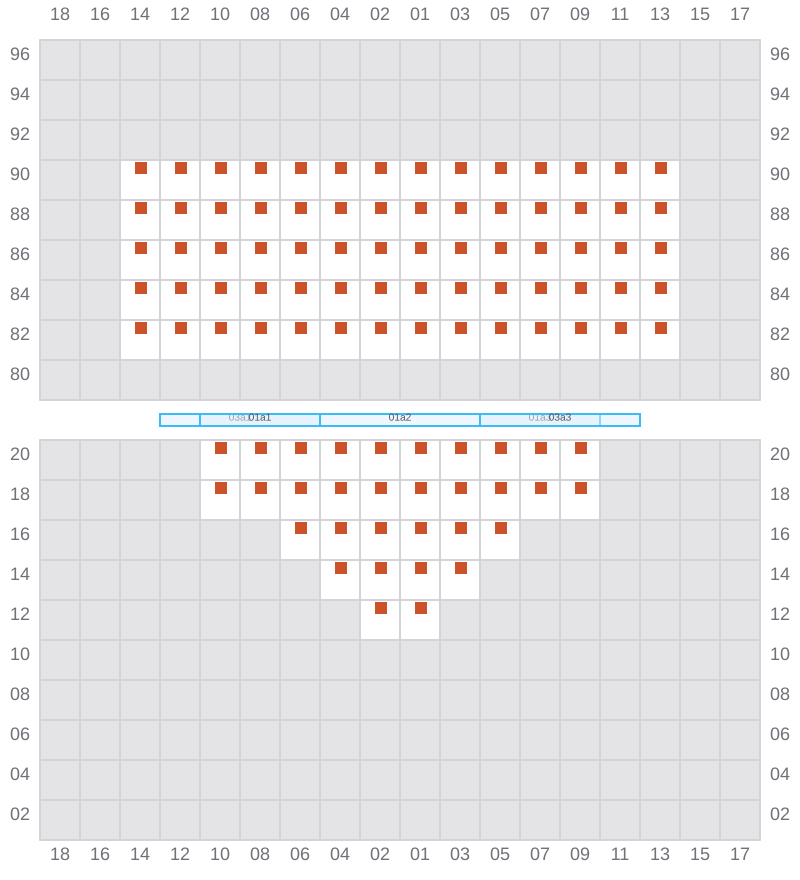

Bay 003 view and slots of COSCO TAICANG

005 (006)

  • →
  • →

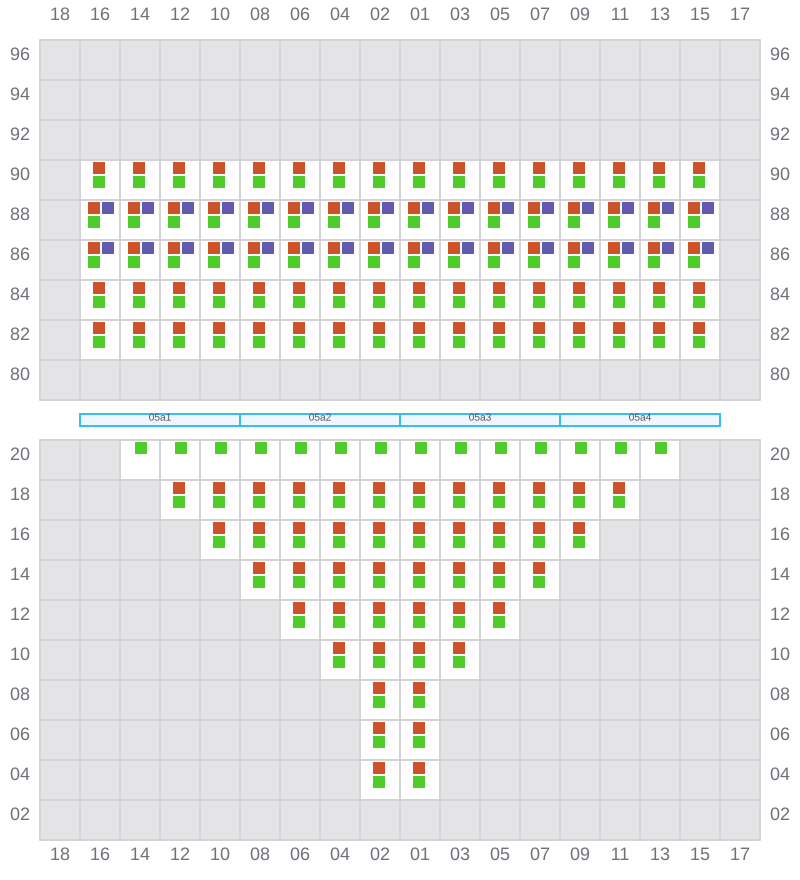

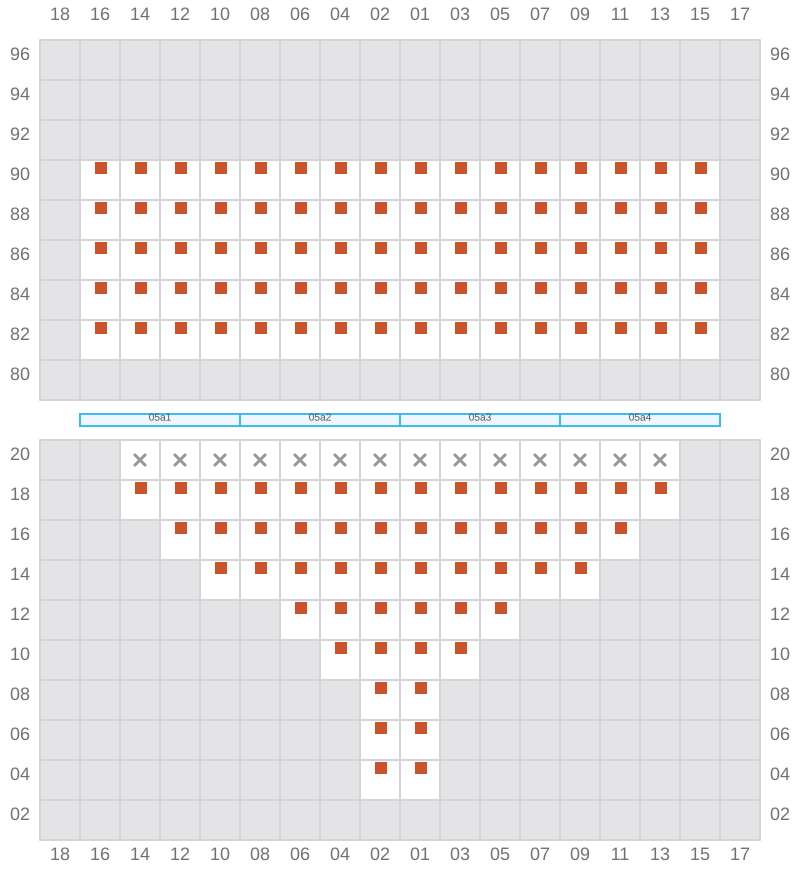

Bay 005 view and slots of COSCO TAICANG

007

  • ←
  • →
Bay 007 view and slots of COSCO TAICANG

009 (010)

  • →
  • →

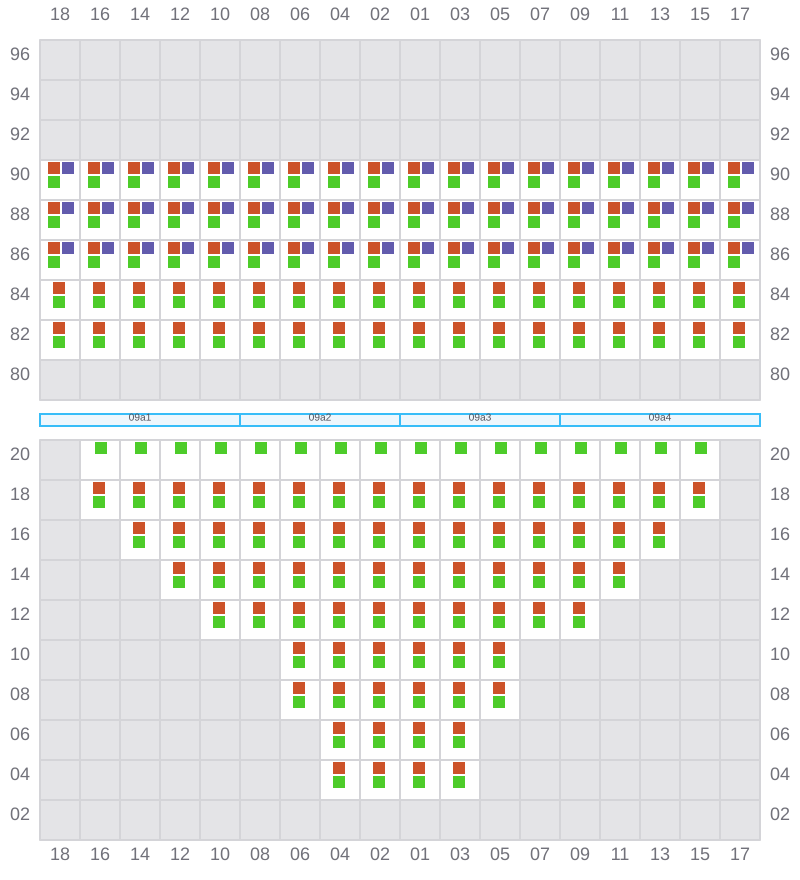

Bay 009 view and slots of COSCO TAICANG

011

  • ←
  • →

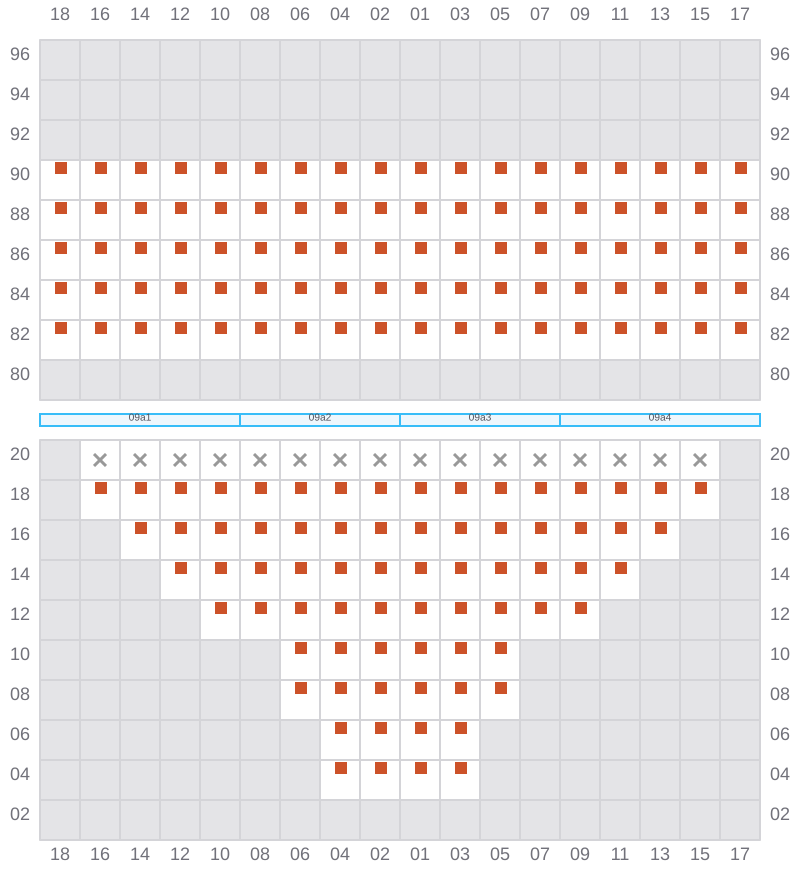

Bay 011 view and slots of COSCO TAICANG

013 (014)

  • →
  • → / ?
  • →

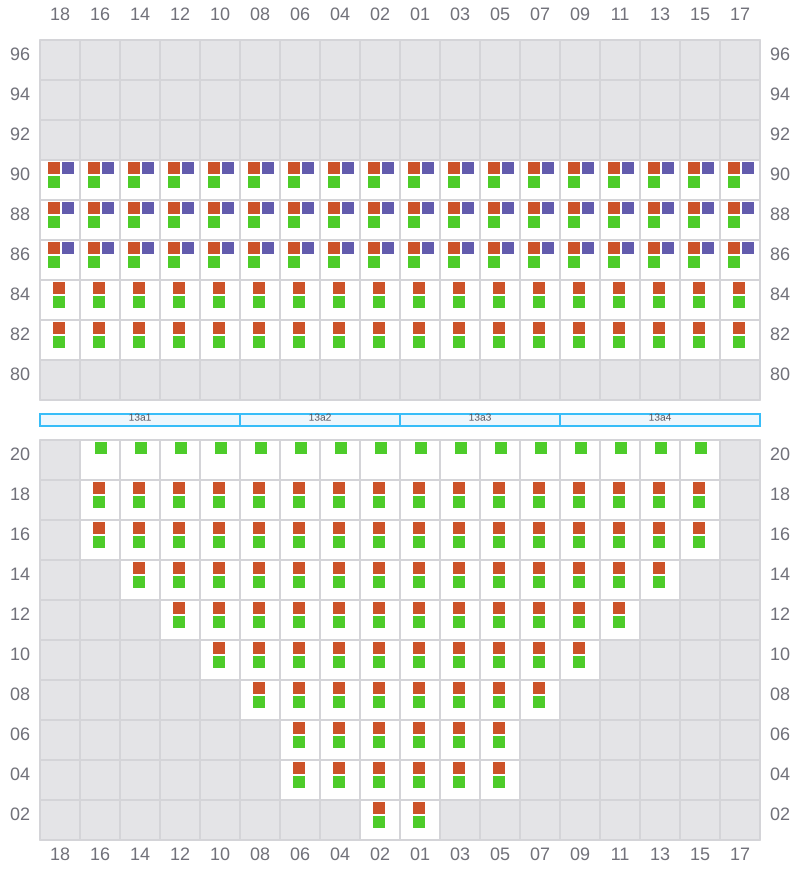

Bay 013 view and slots of COSCO TAICANG

015

  • ←
  • → / ?
  • →

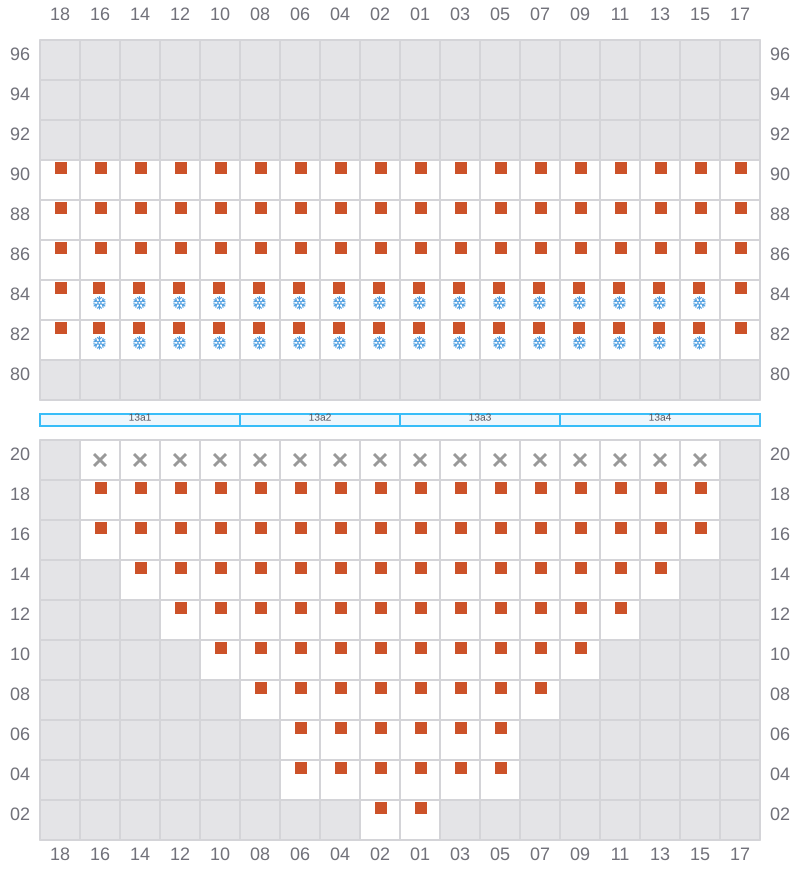

Bay 015 view and slots of COSCO TAICANG

017 (018)

  • →
  • ← / ?
  • →

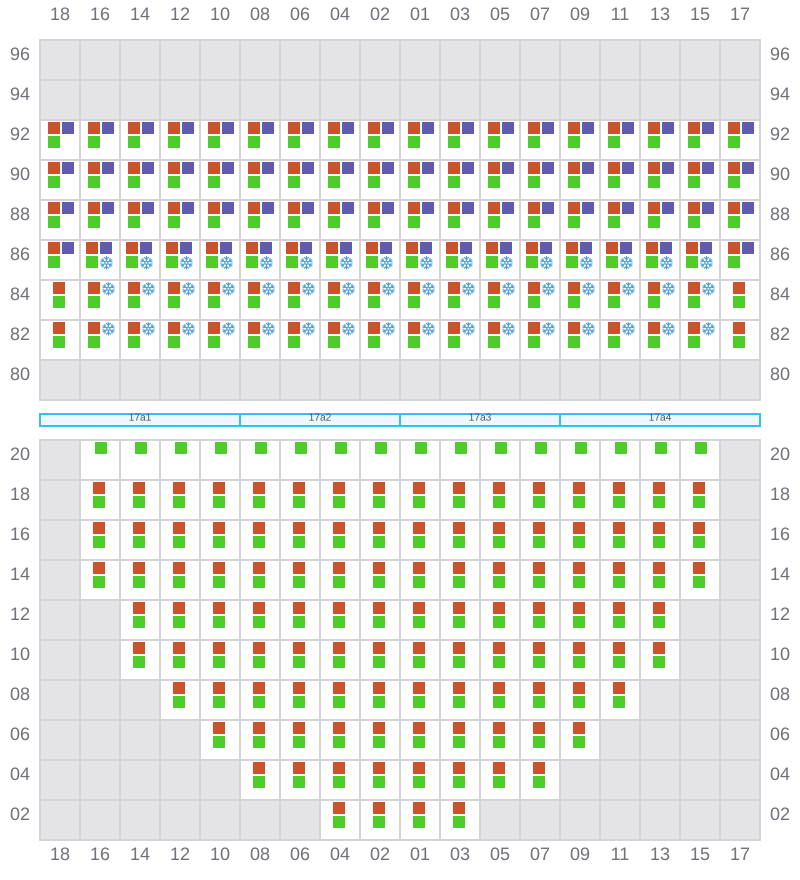

Bay 017 view and slots of COSCO TAICANG

019

  • ←
  • ← / ?
  • →

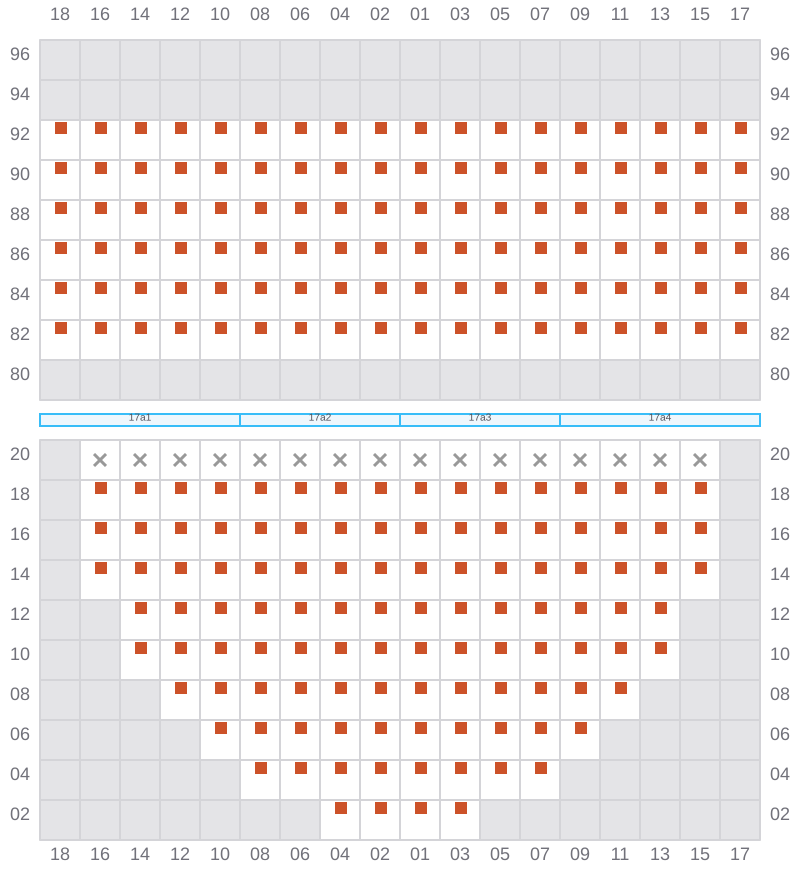

Bay 019 view and slots of COSCO TAICANG

021 (022)

  • →
  • → / ?
  • →

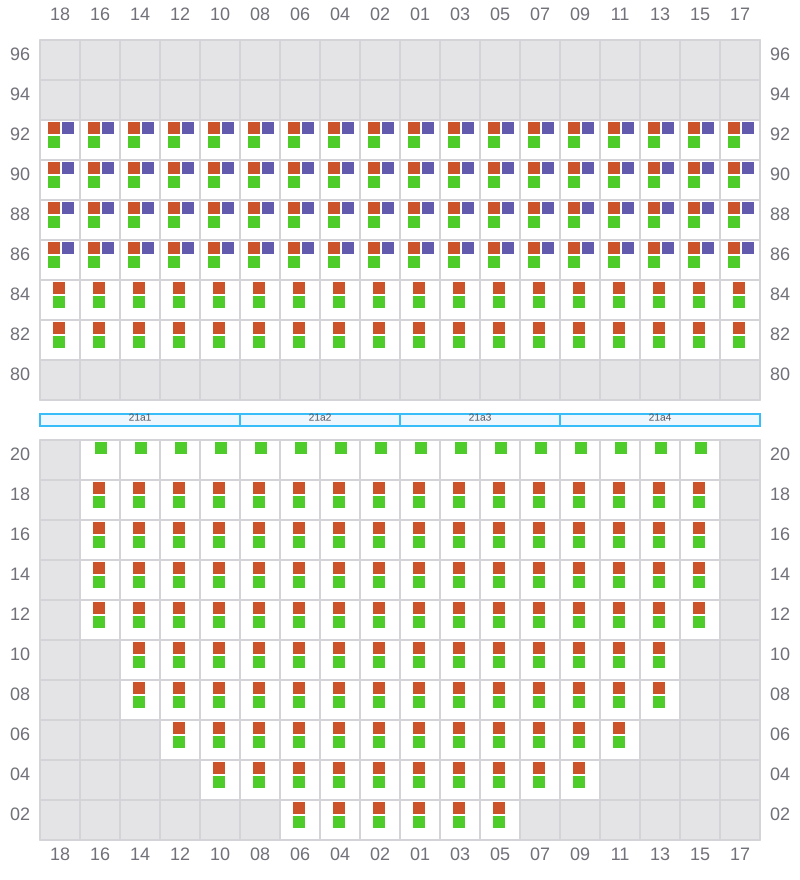

Bay 021 view and slots of COSCO TAICANG

023

  • ←
  • → / ?
  • →

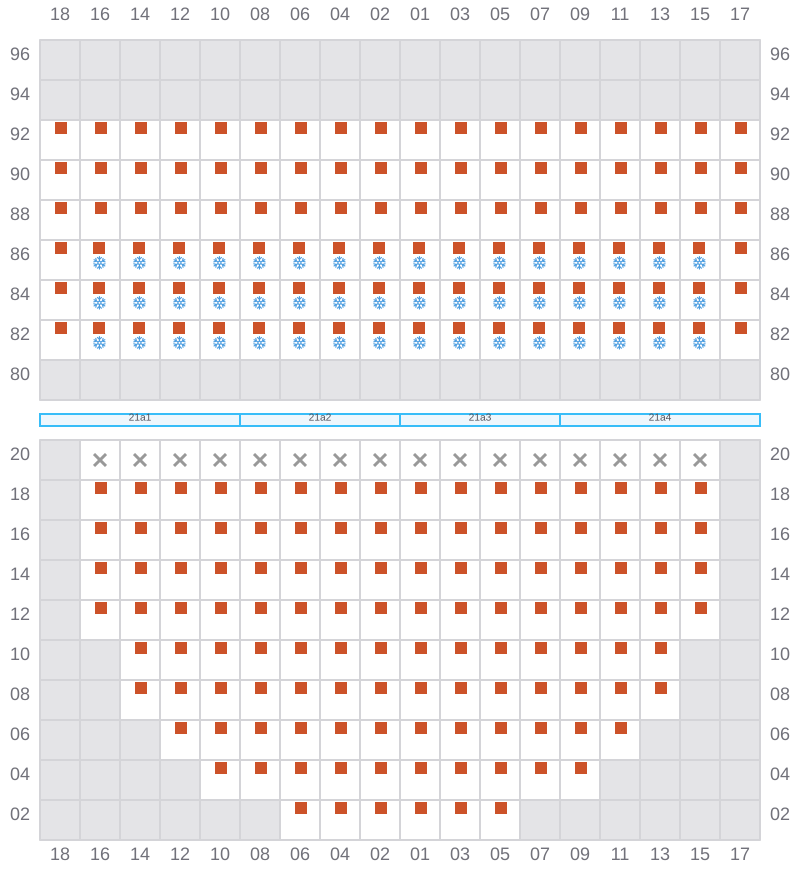

Bay 023 view and slots of COSCO TAICANG

025 (026)

  • →
  • ← / ?
  • →

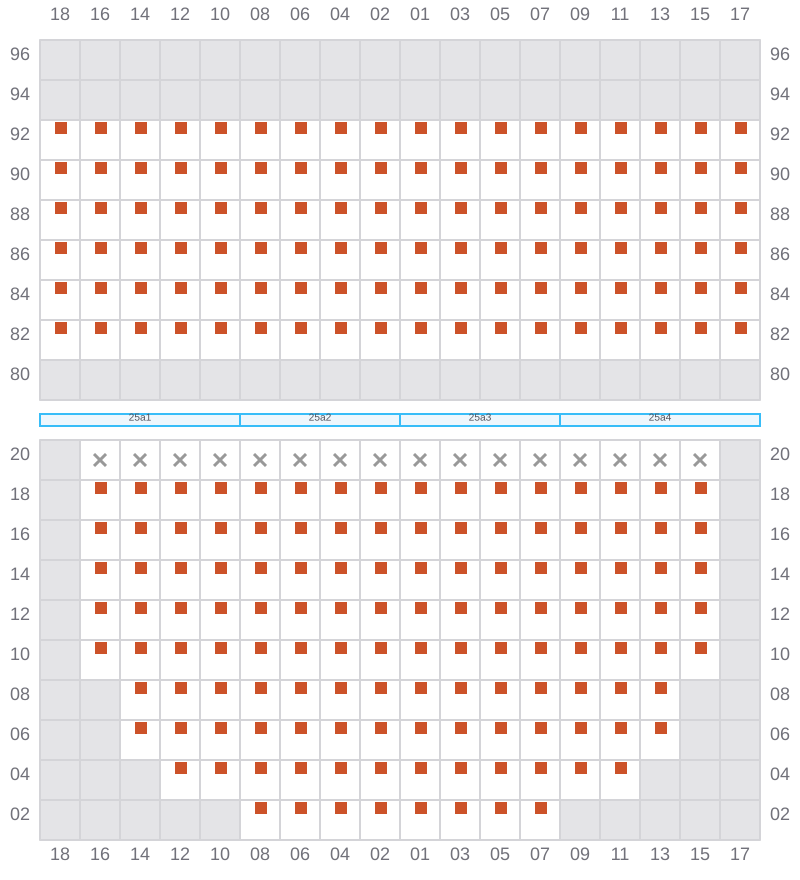

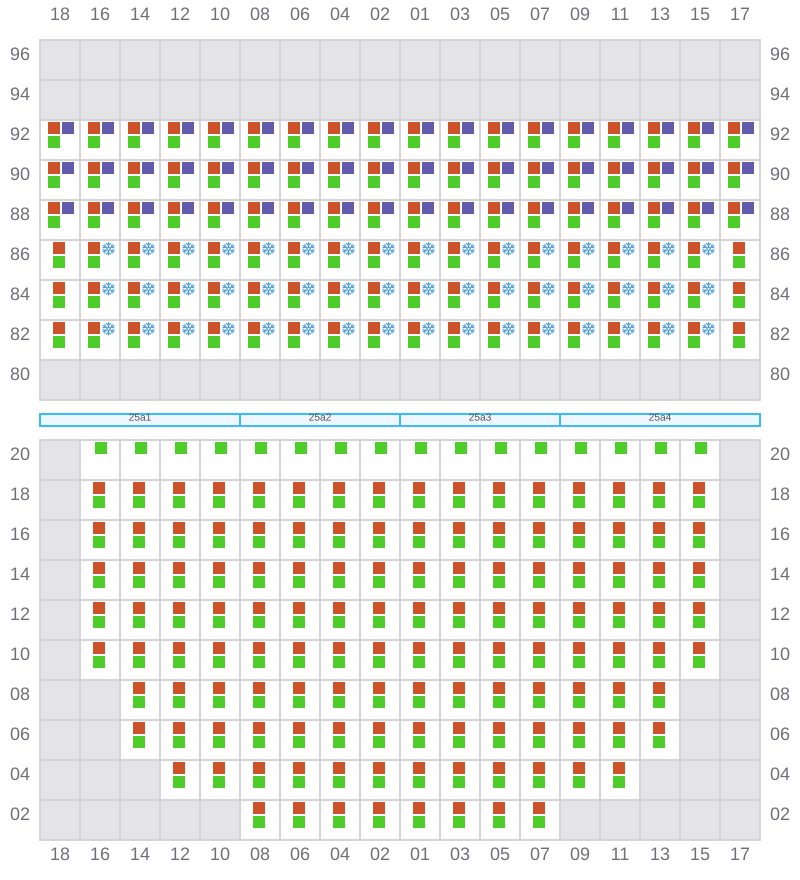

Bay 025 view and slots of COSCO TAICANG

027

  • ←
  • ← / ?
  • →
Bay 027 view and slots of COSCO TAICANG

029 (030)

  • →
  • → / ?
  • →

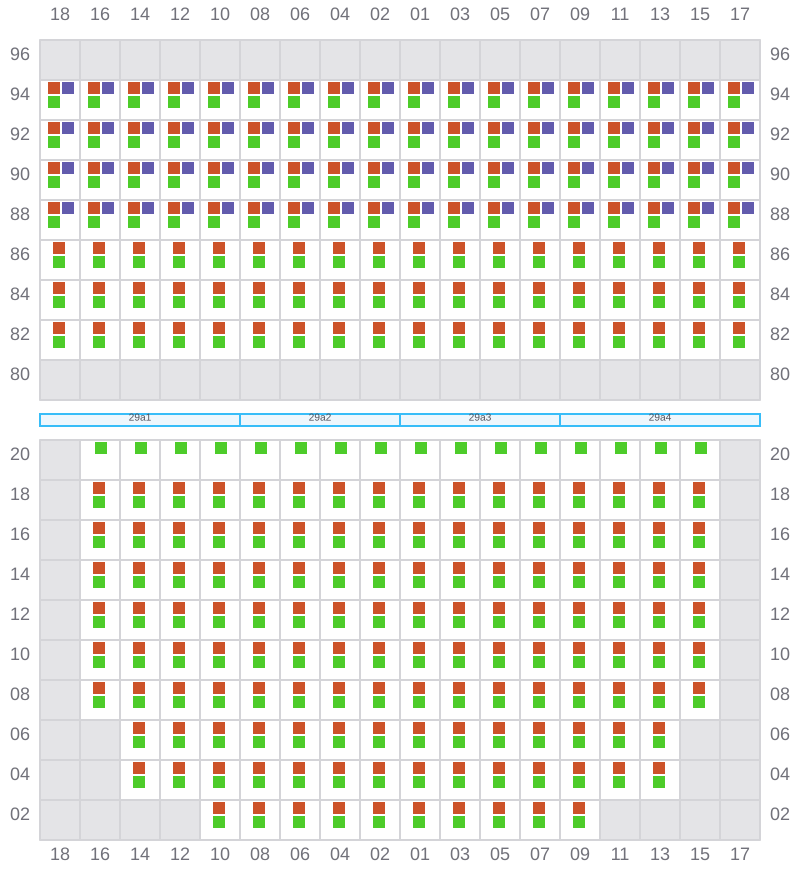

Bay 029 view and slots of COSCO TAICANG

031

  • ←
  • → / ?
  • →

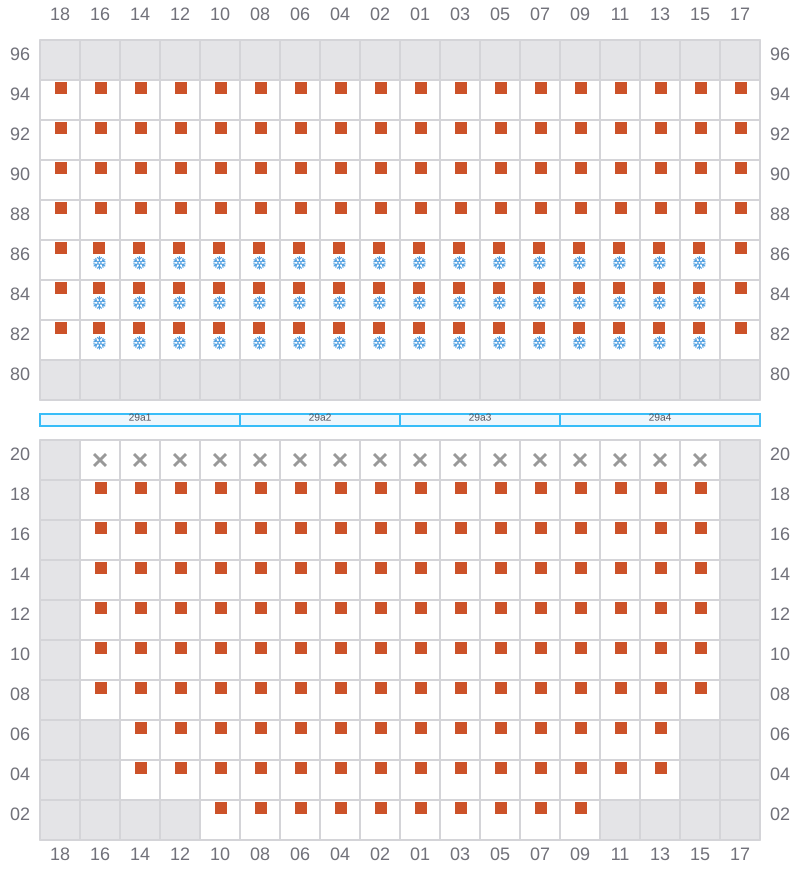

Bay 031 view and slots of COSCO TAICANG

033 (034)

  • →
  • ← / ?
  • →

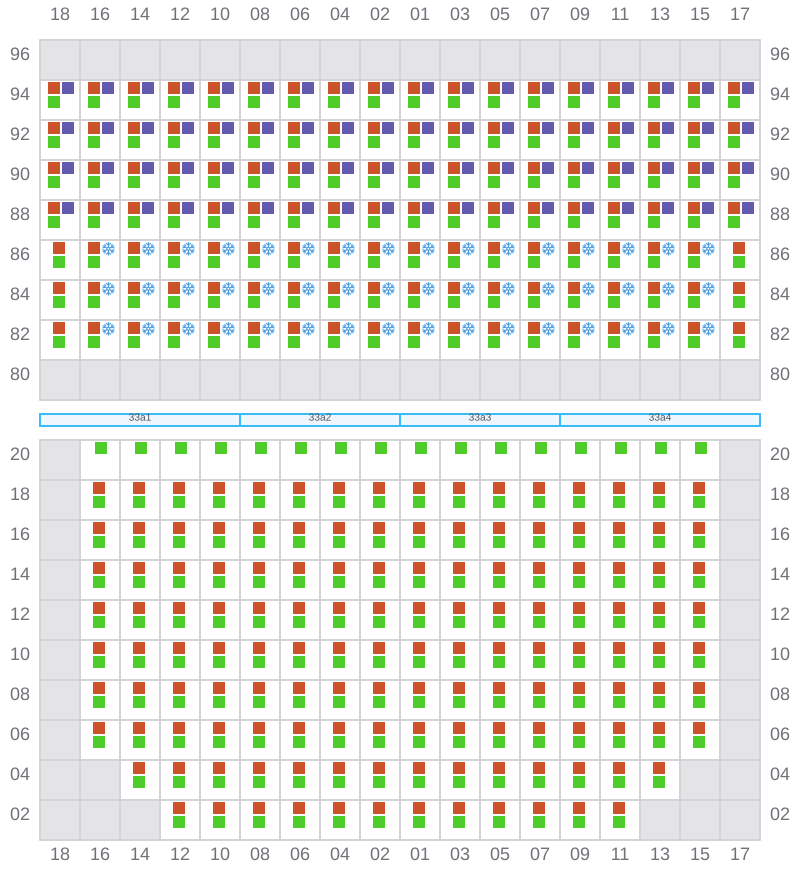

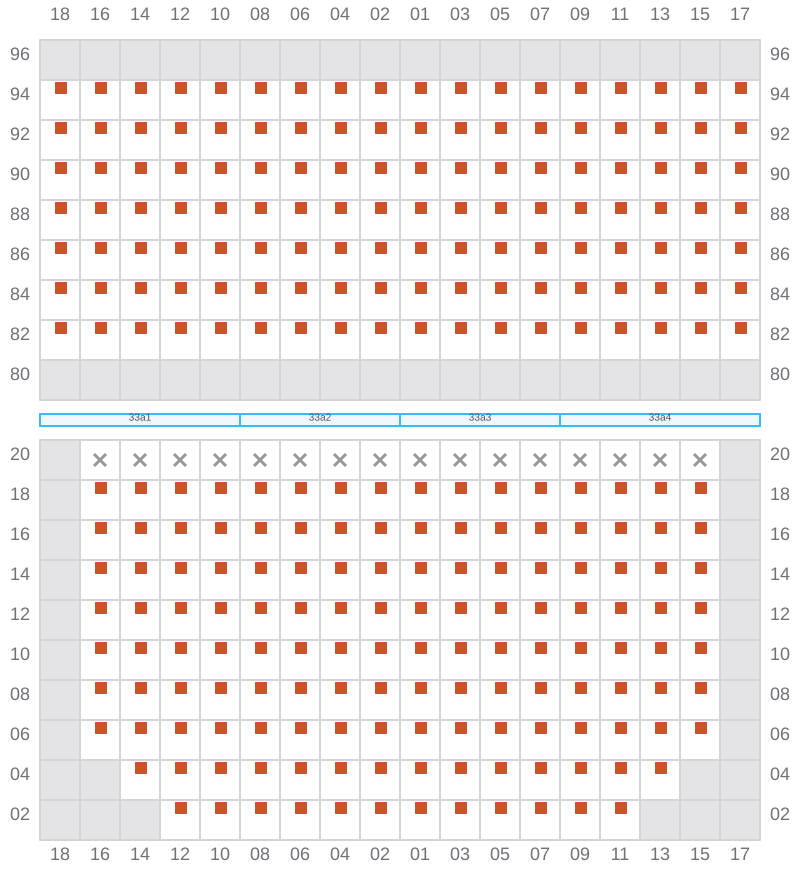

Bay 033 view and slots of COSCO TAICANG

035

  • ←
  • ← / ?
  • →
Bay 035 view and slots of COSCO TAICANG

037 (038)

  • →
  • → / ?
  • →

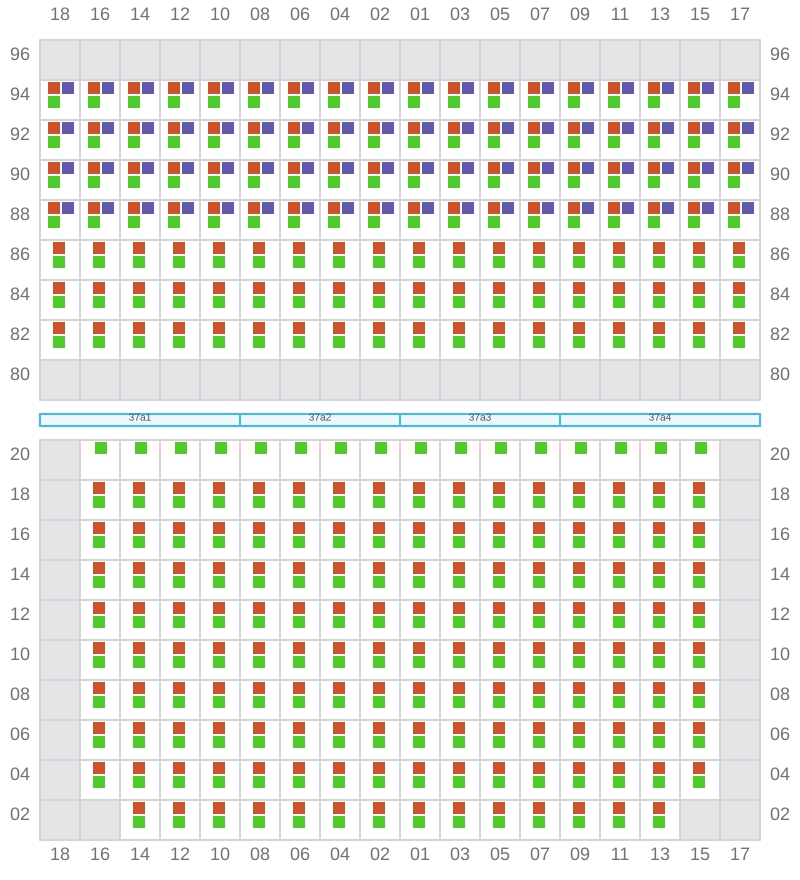

Bay 037 view and slots of COSCO TAICANG

039

  • ←
  • → / ?
  • →

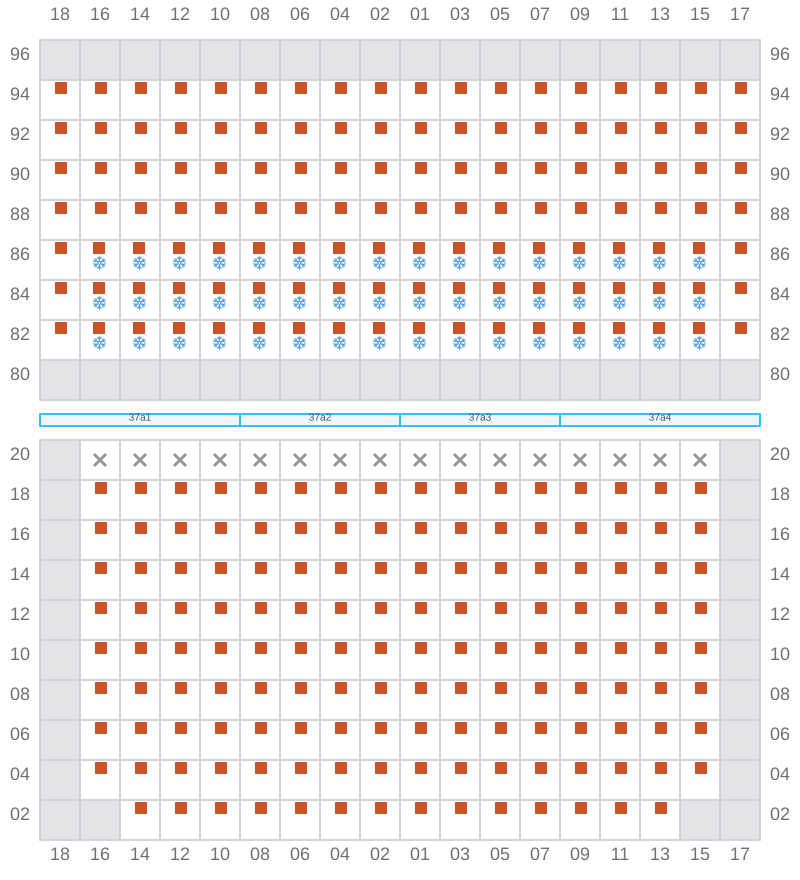

Bay 039 view and slots of COSCO TAICANG

041 (042)

  • →
  • ← / ?
  • →

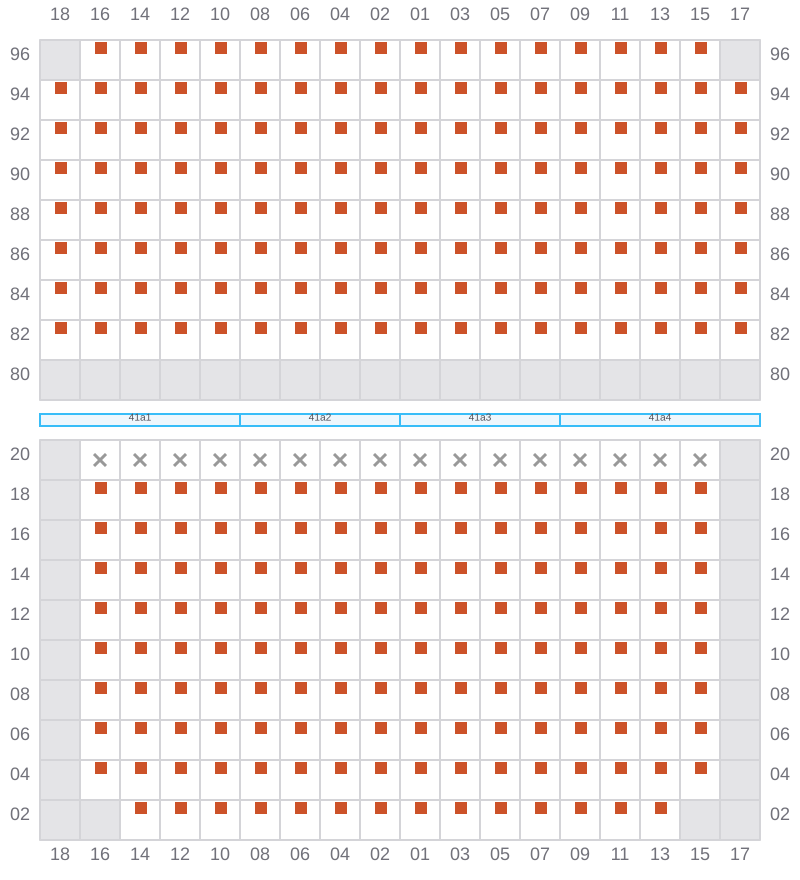

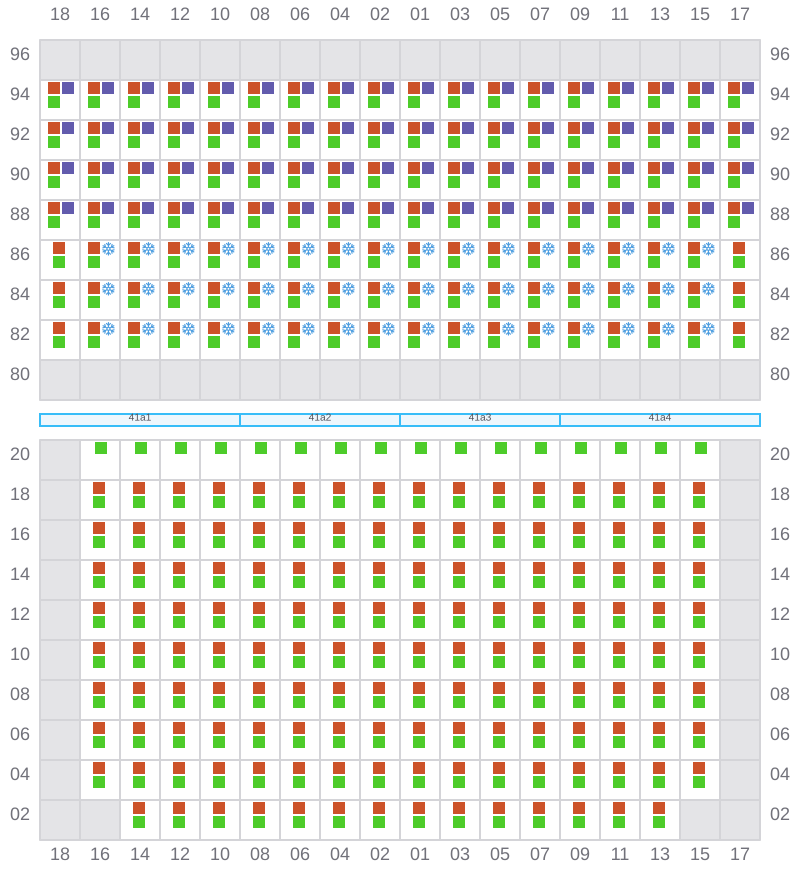

Bay 041 view and slots of COSCO TAICANG

043

  • ←
  • ← / ?
  • →
Bay 043 view and slots of COSCO TAICANG

045 (046)

  • →
  • → / ?
  • →

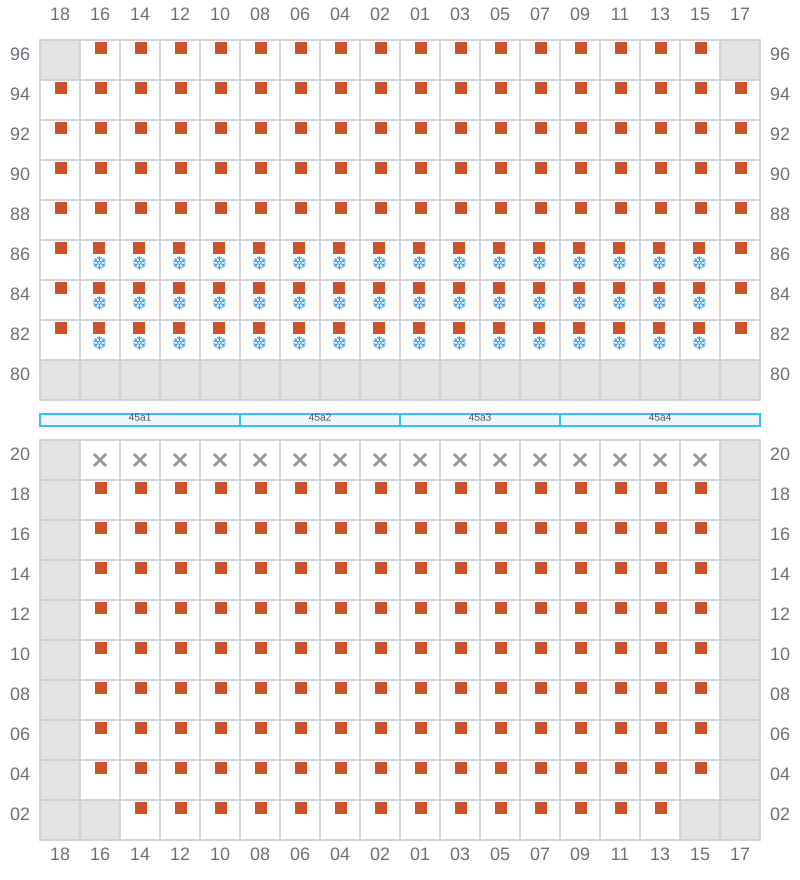

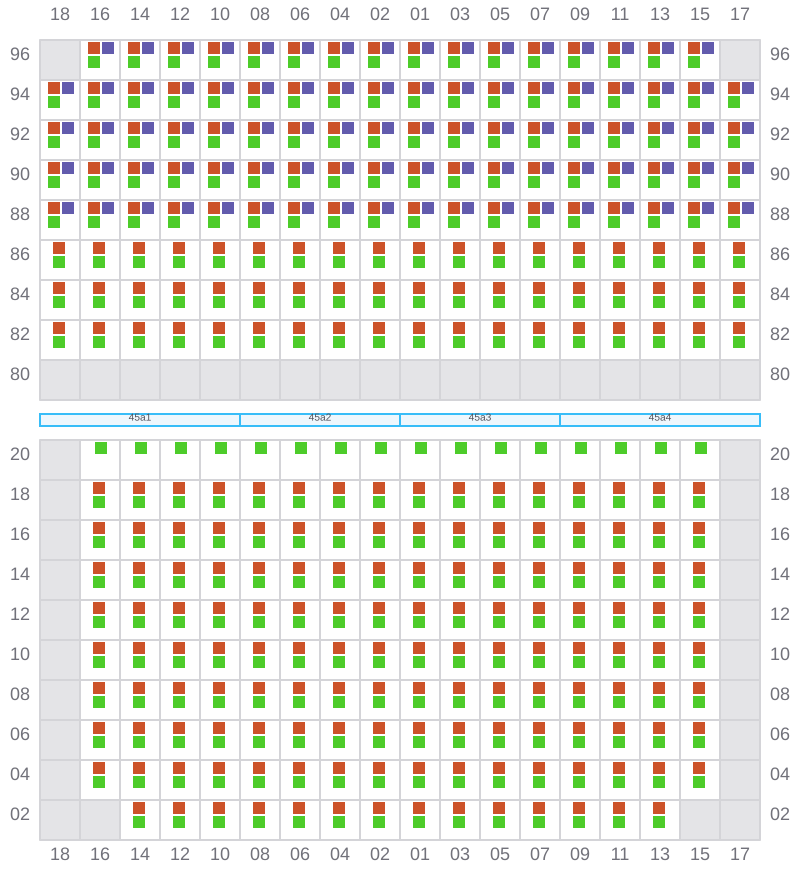

Bay 045 view and slots of COSCO TAICANG

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of COSCO TAICANG

049 (050)

  • →
  • ← / ?
  • →

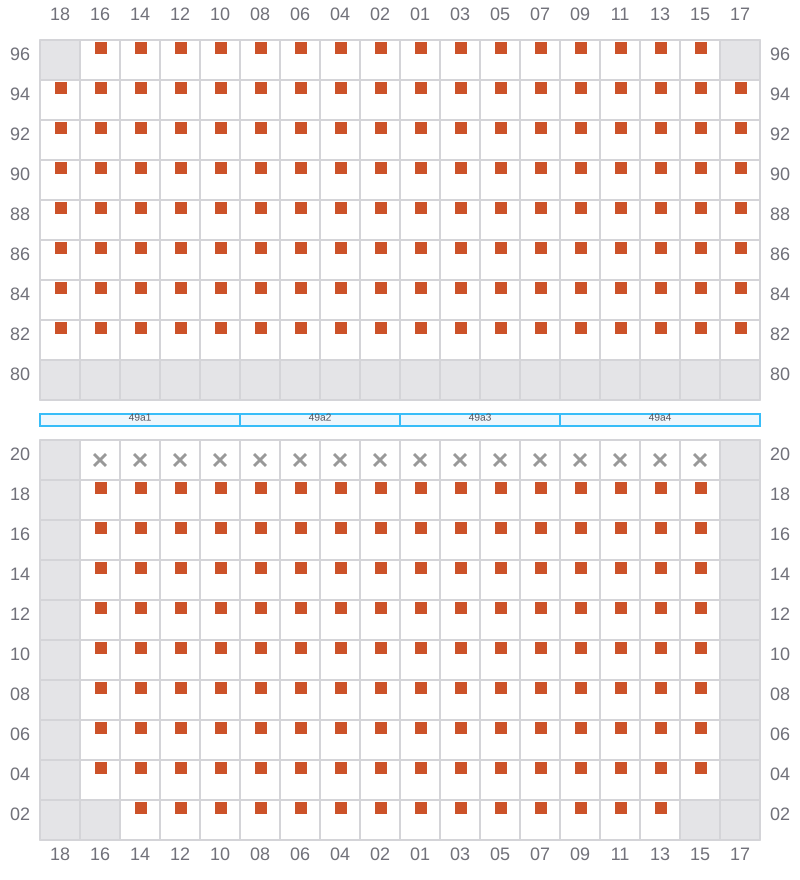

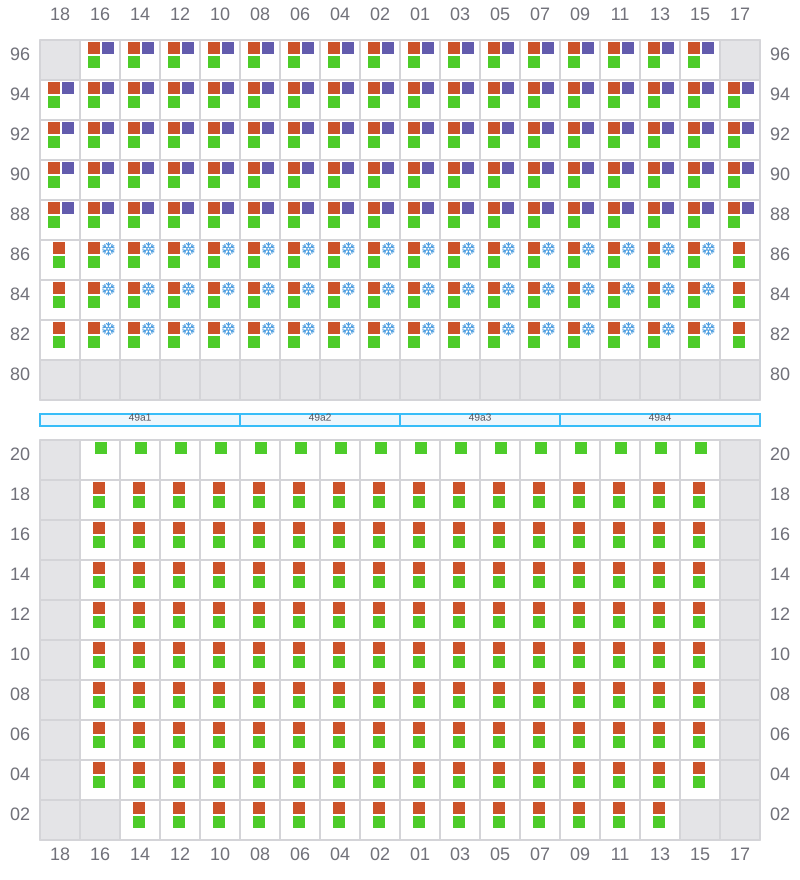

Bay 049 view and slots of COSCO TAICANG

051

  • ←
  • ← / ?
  • →
Bay 051 view and slots of COSCO TAICANG

053 (054)

  • →
  • → / ?
  • →

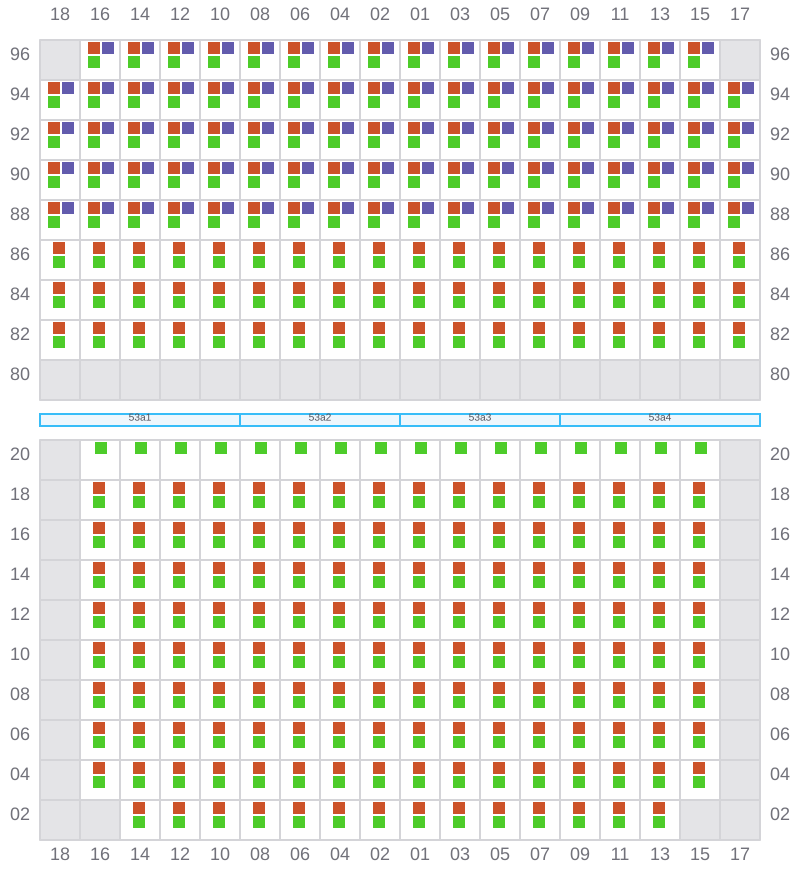

Bay 053 view and slots of COSCO TAICANG

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of COSCO TAICANG

057 (058)

  • →
  • ← / ?
  • →

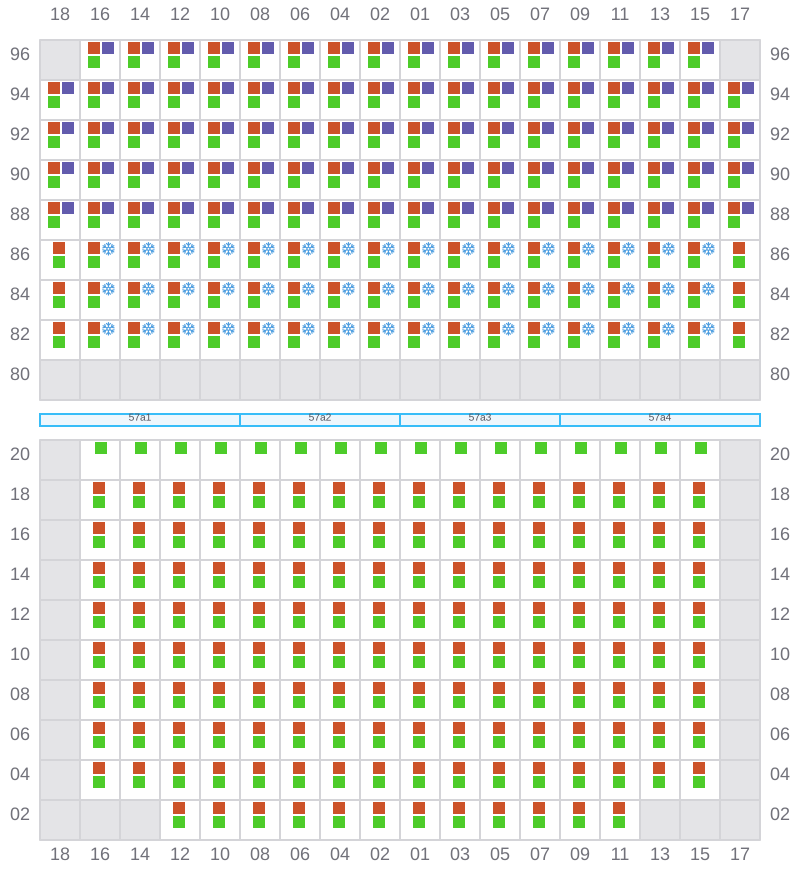

Bay 057 view and slots of COSCO TAICANG

059

  • ←
  • ← / ?
  • →

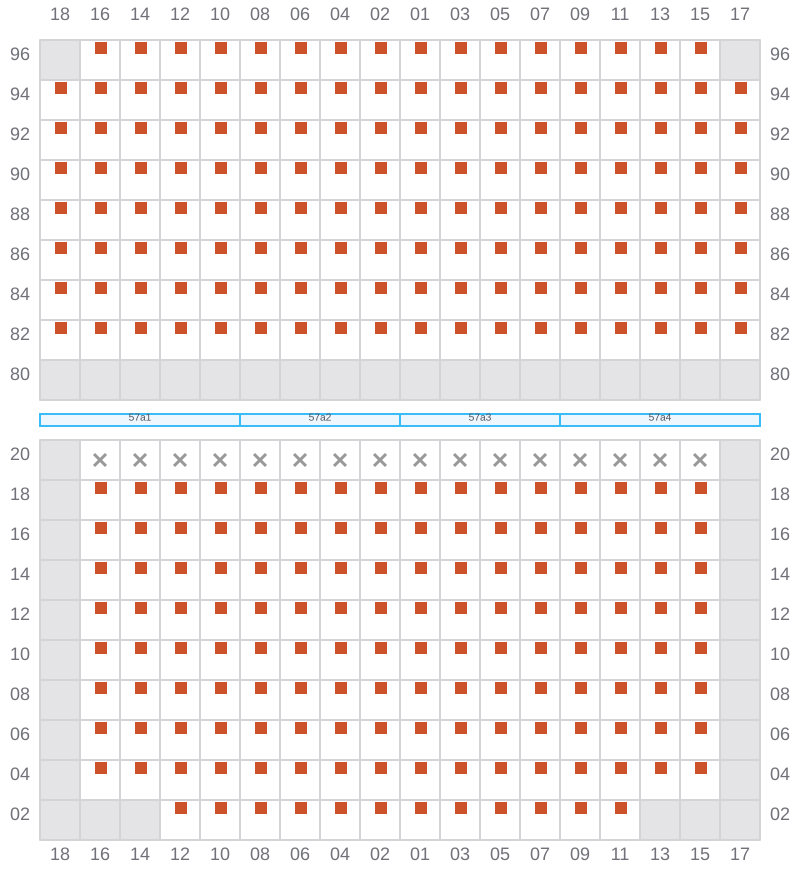

Bay 059 view and slots of COSCO TAICANG

061 (062)

  • →
  • → / ?
  • →

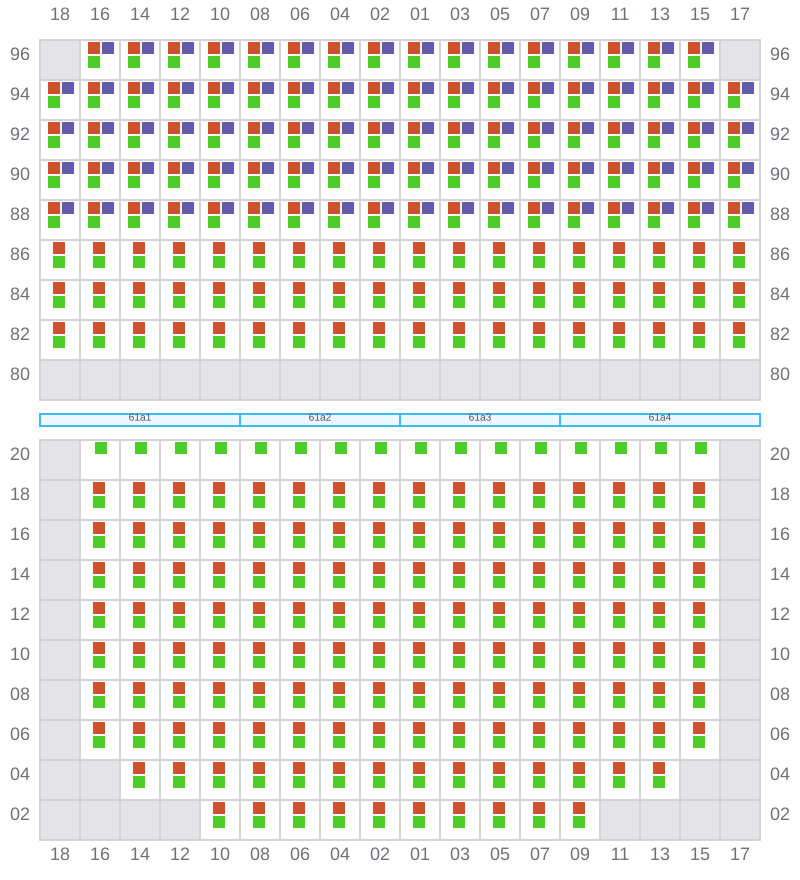

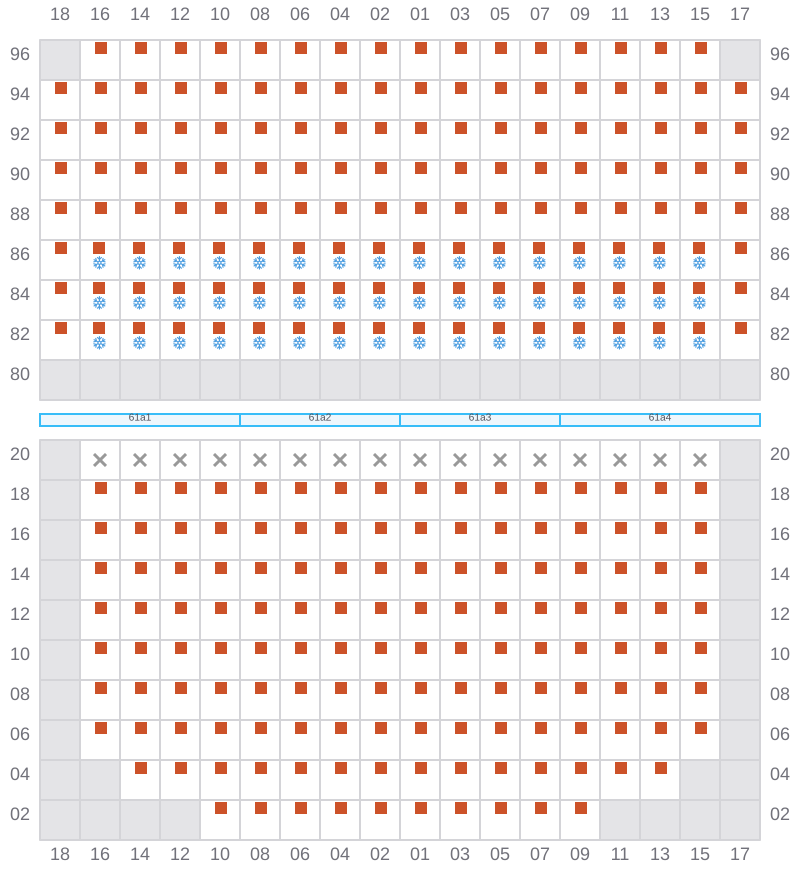

Bay 061 view and slots of COSCO TAICANG

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of COSCO TAICANG

065 (066)

  • →
  • ← / ?
  • →

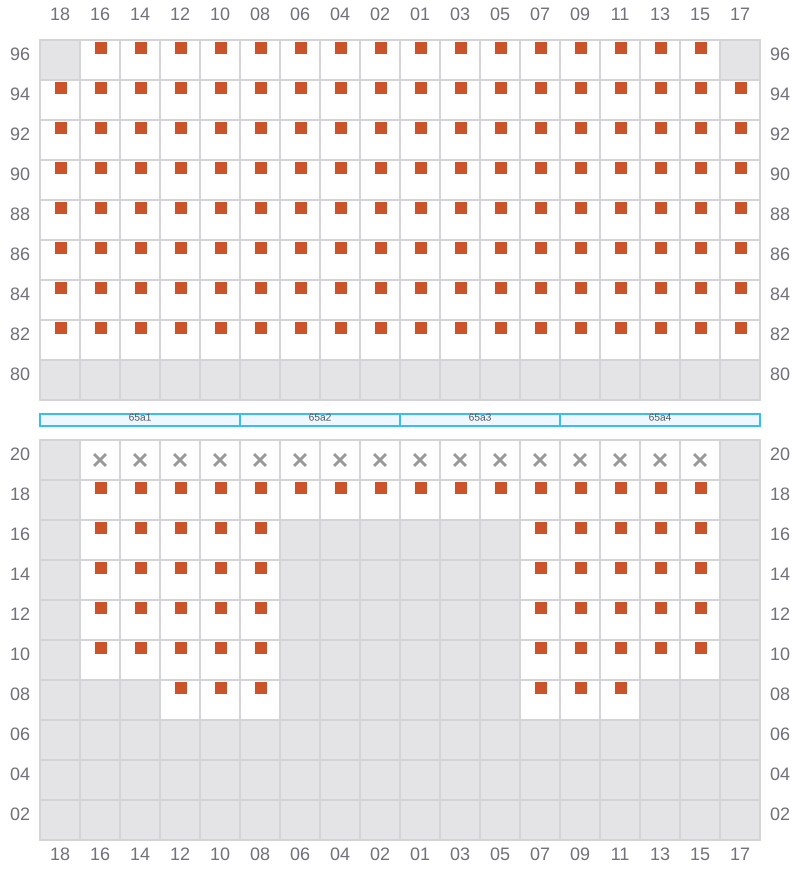

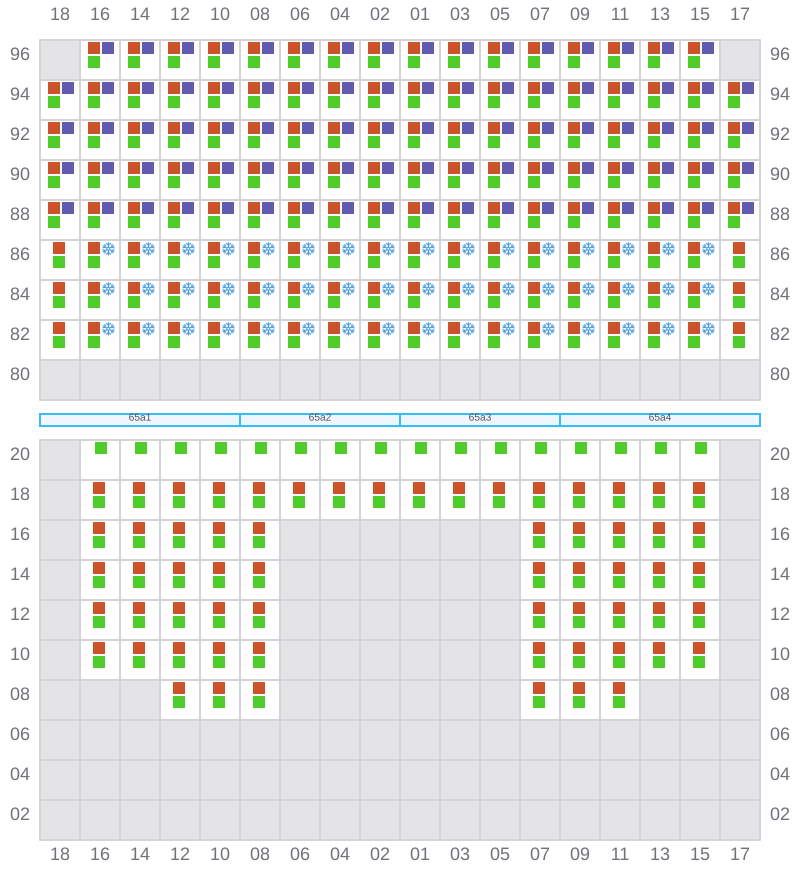

Bay 065 view and slots of COSCO TAICANG

067

  • ←
  • ← / ?
  • →
Bay 067 view and slots of COSCO TAICANG

069 (070)

  • →
  • → / ?
  • →

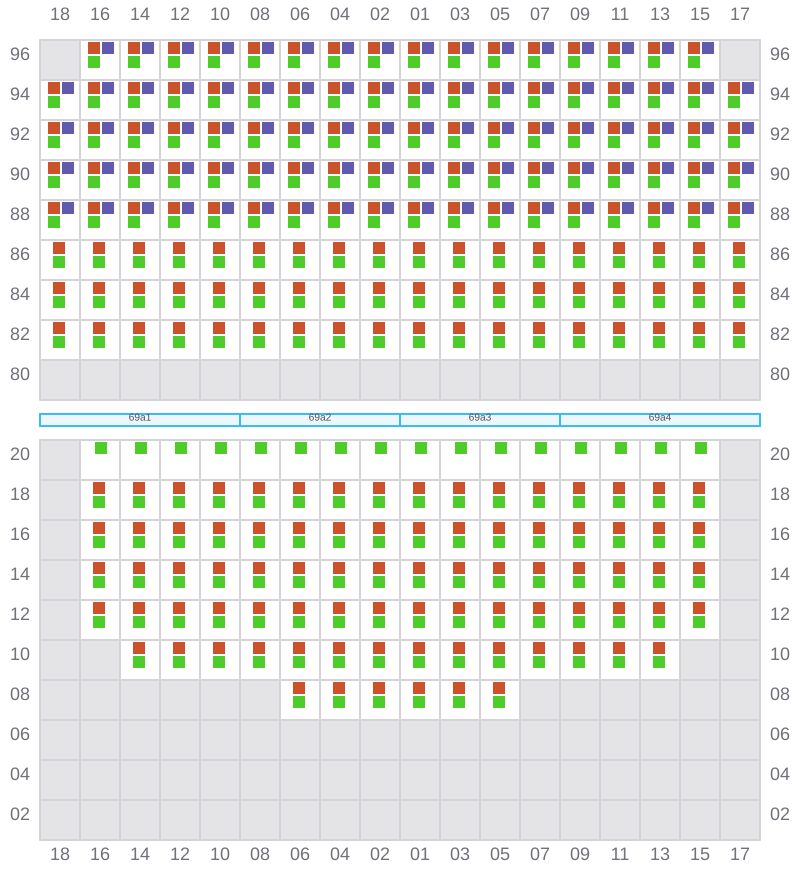

Bay 069 view and slots of COSCO TAICANG

071

  • ←
  • → / ?
  • →

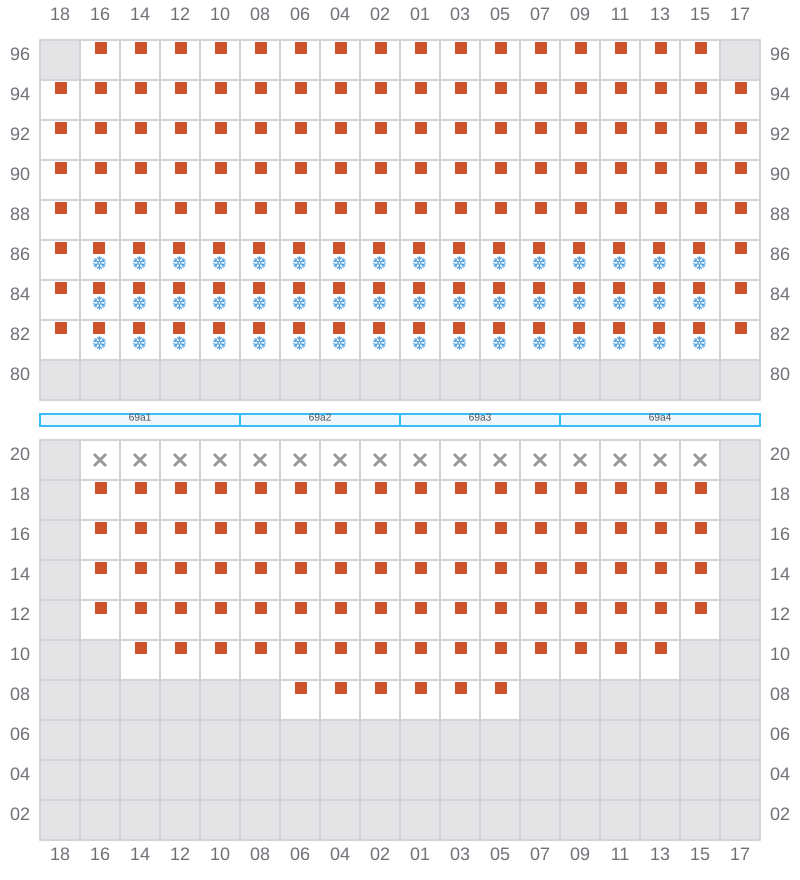

Bay 071 view and slots of COSCO TAICANG

073 (074)

  • →
  • ← / ?
  • →
Bay 073 view and slots of COSCO TAICANG

075

  • ←
  • ← / ?
  • →

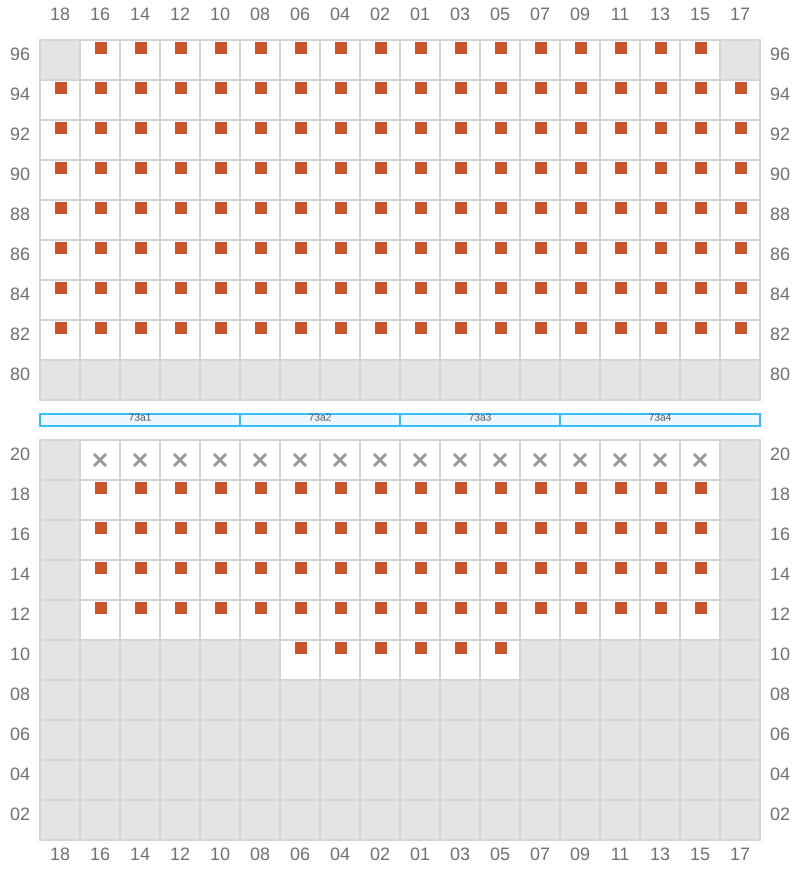

Bay 075 view and slots of COSCO TAICANG

077 (078)

  • →
  • → / ?
  • →

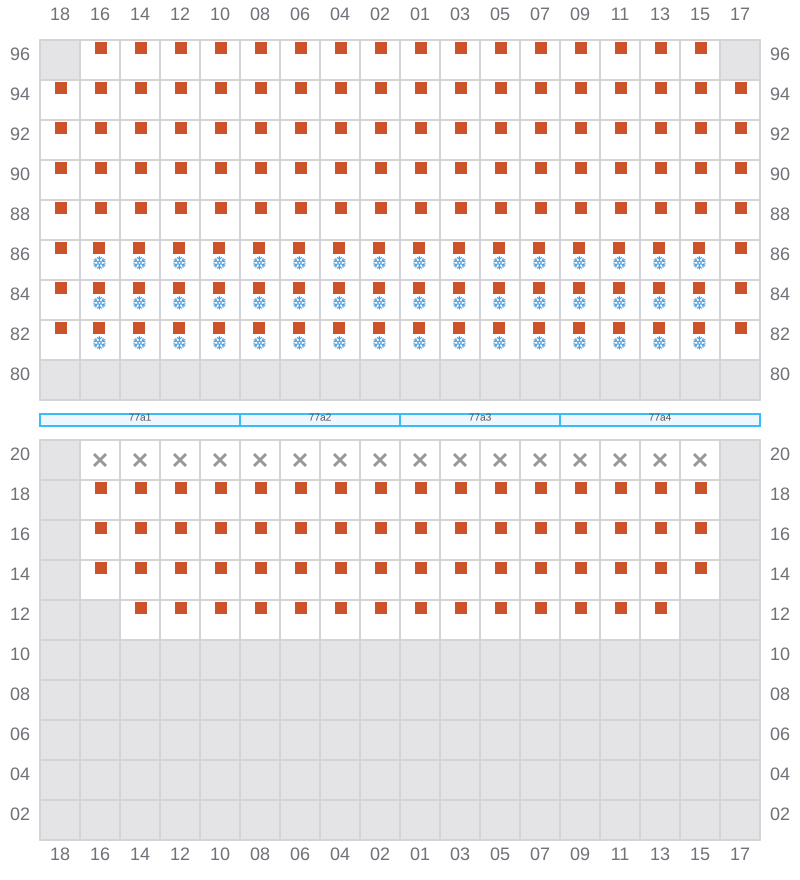

Bay 077 view and slots of COSCO TAICANG

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of COSCO TAICANG

081 (082)

  • → / ?
  • → / ?

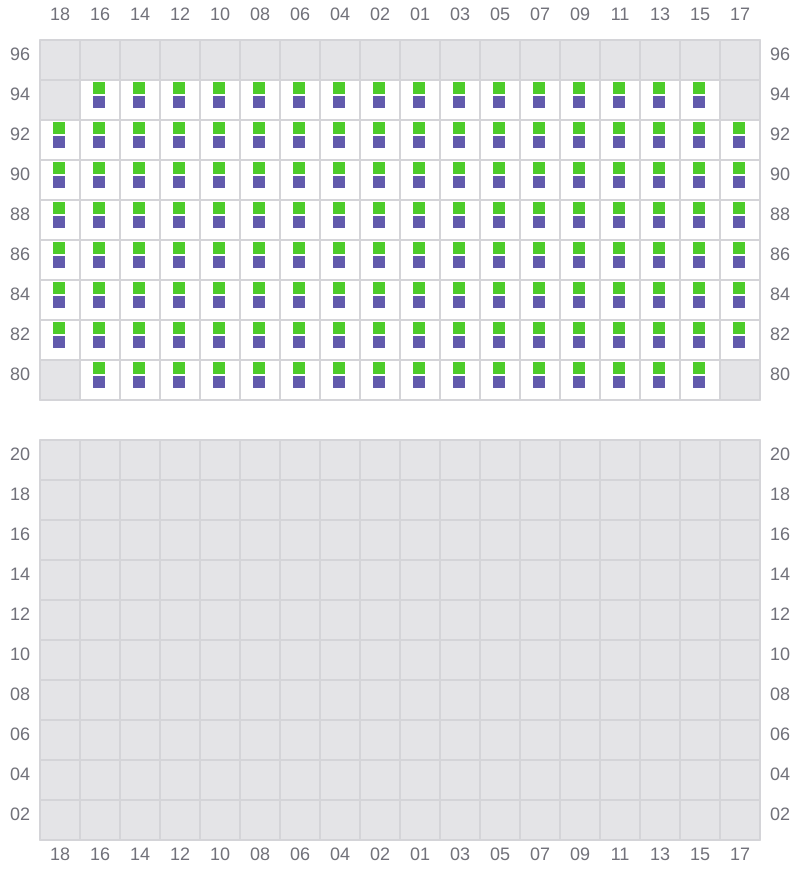

Bay 081 view and slots of COSCO TAICANG
