COSCO VENICE
9484405 | VRME4 | 9484405 by ********* Last update: Tue May 14 2024
General Info
Ship Name:COSCO VENICE
IMO Code:9484405
Call Sign:VRME4
Line Operator:9484405
Class Name for Sister Ships:COSCO VENICE
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,257
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

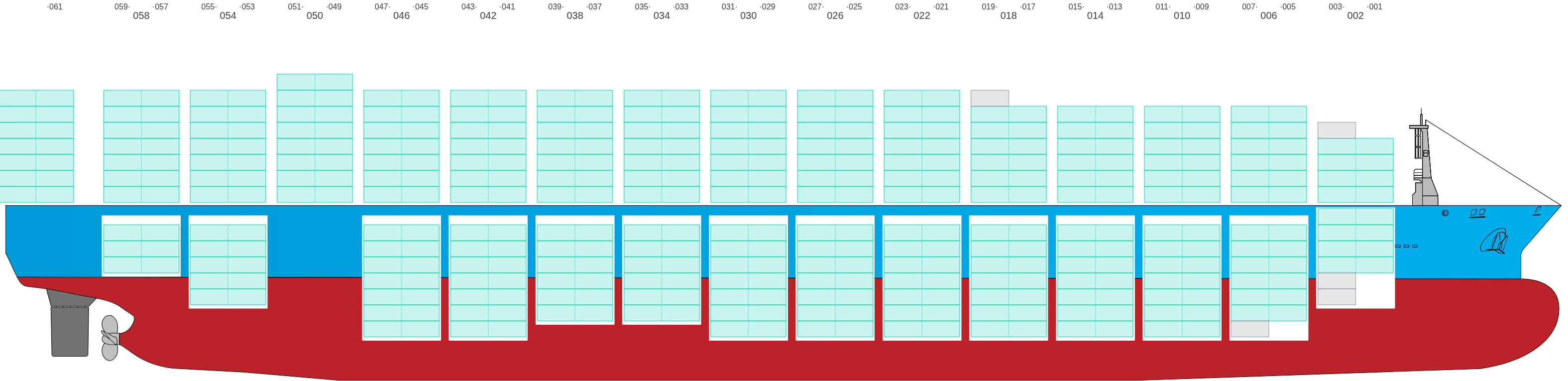

Side View
![Side view of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-sideView.png?v=1715712393454)
Hatch-Covers View
![Deck view of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-deckView.png?v=1715712393454)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

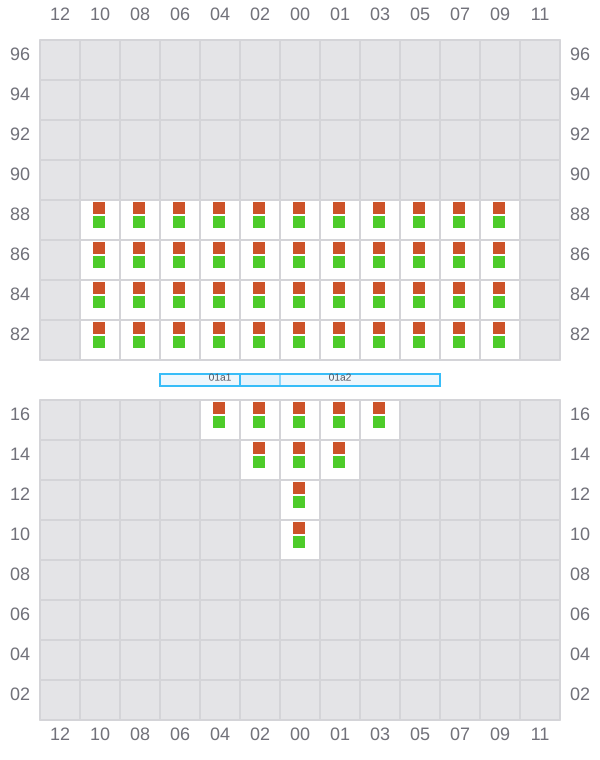

001 (002)
- →
![Bay 001 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b001.png?v=1715712393454)

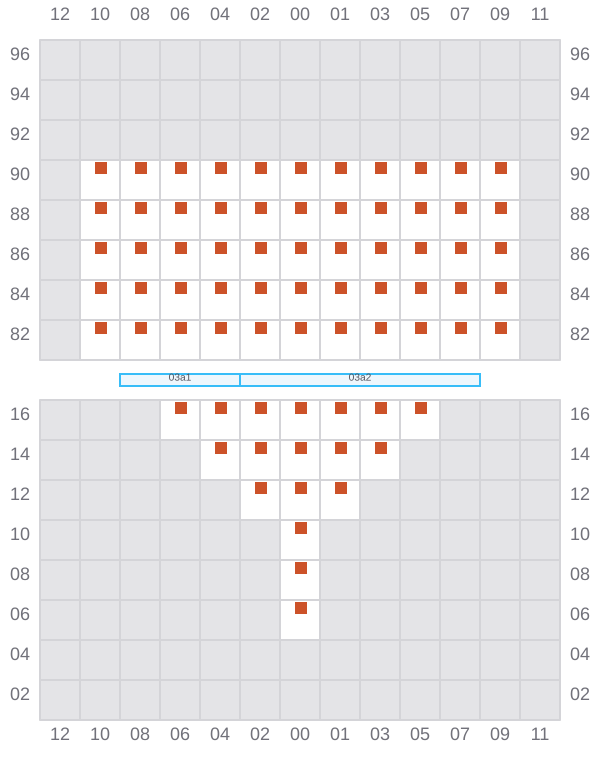

003
- ←
![Bay 003 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b003.png?v=1715712393454)

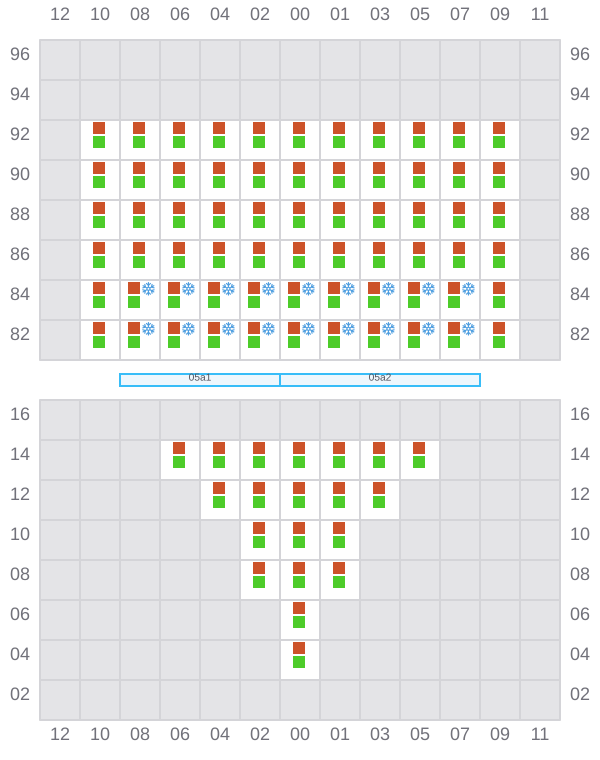

005 (006)
- →
![Bay 005 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b005.png?v=1715712393454)

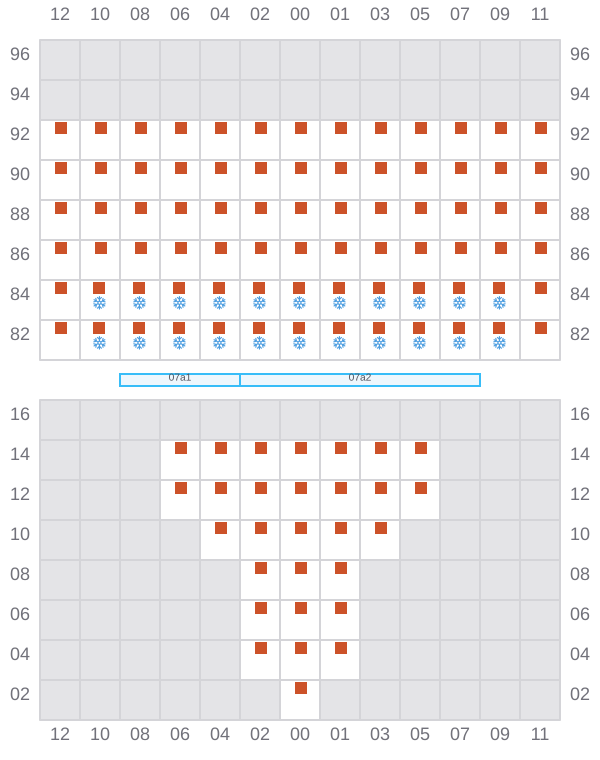

007
- ←
![Bay 007 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b007.png?v=1715712393454)

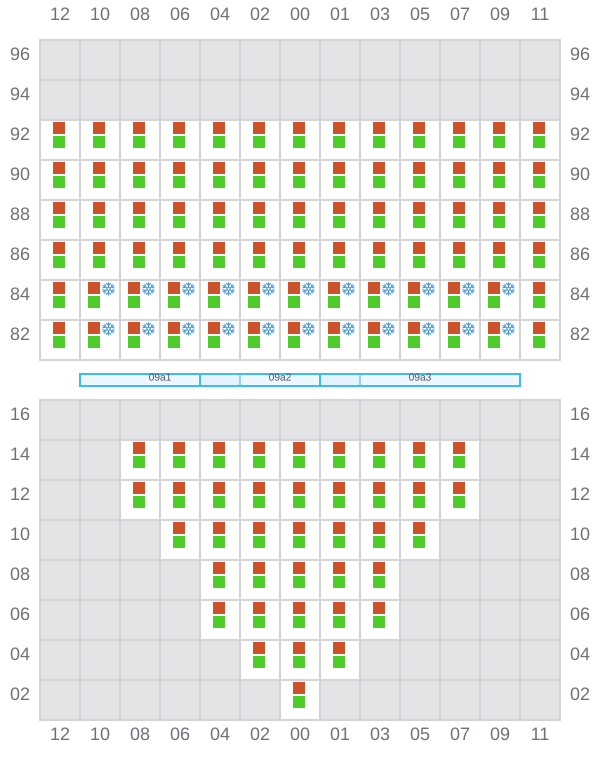

009 (010)
- →
![Bay 009 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b009.png?v=1715712393454)

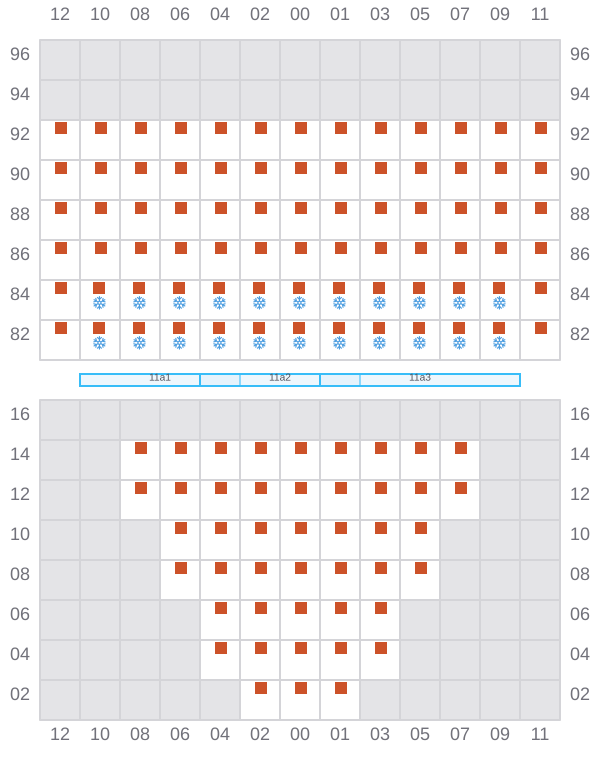

011
- ←
![Bay 011 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b011.png?v=1715712393454)

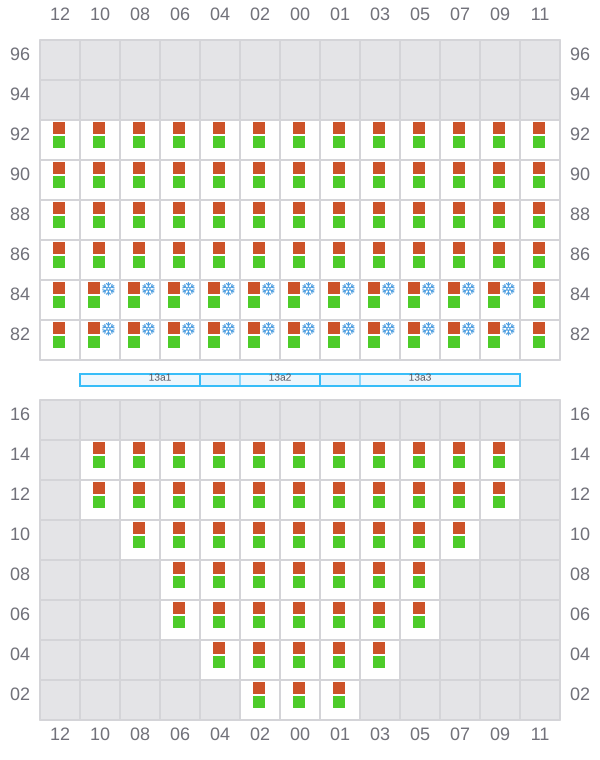

013 (014)
- →
![Bay 013 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b013.png?v=1715712393454)

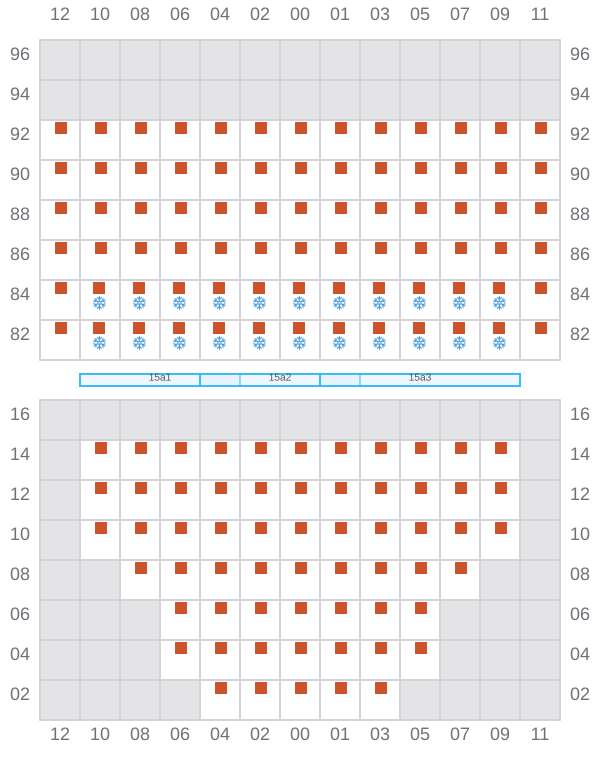

015
- ←
![Bay 015 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b015.png?v=1715712393454)

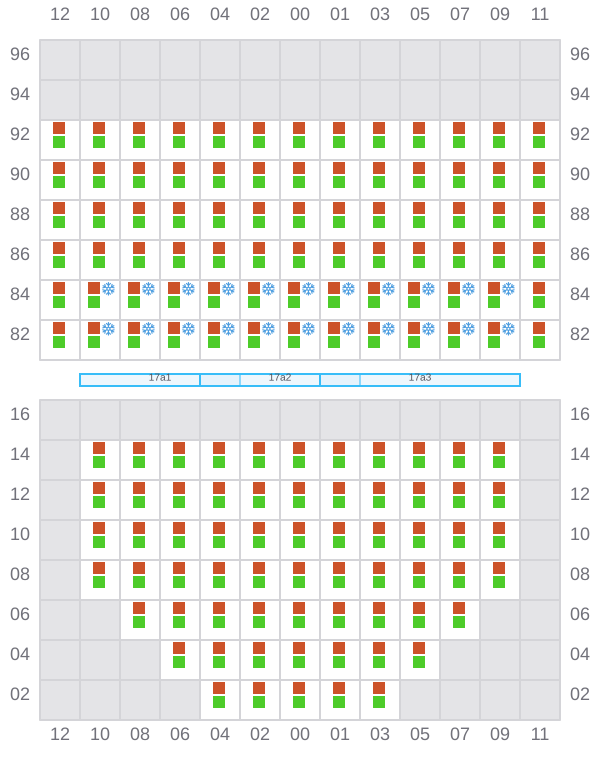

017 (018)
- →
![Bay 017 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b017.png?v=1715712393454)

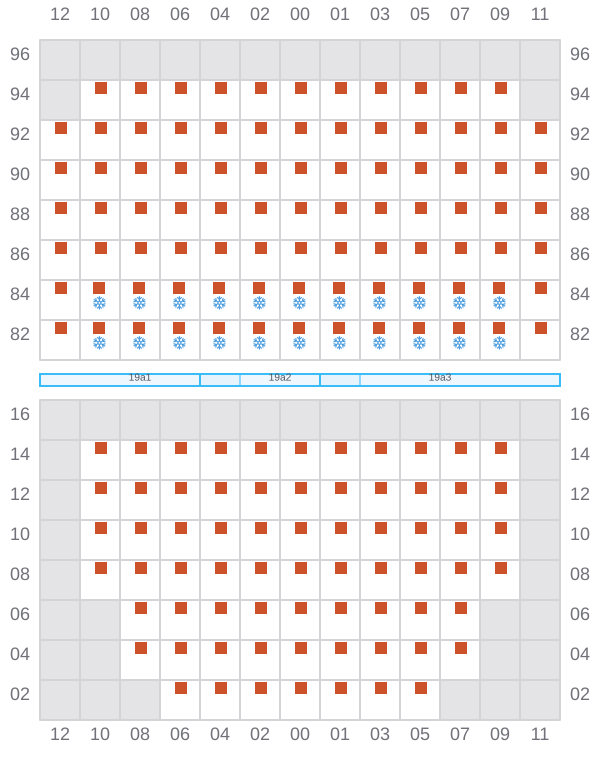

019
- ←
![Bay 019 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b019.png?v=1715712393454)

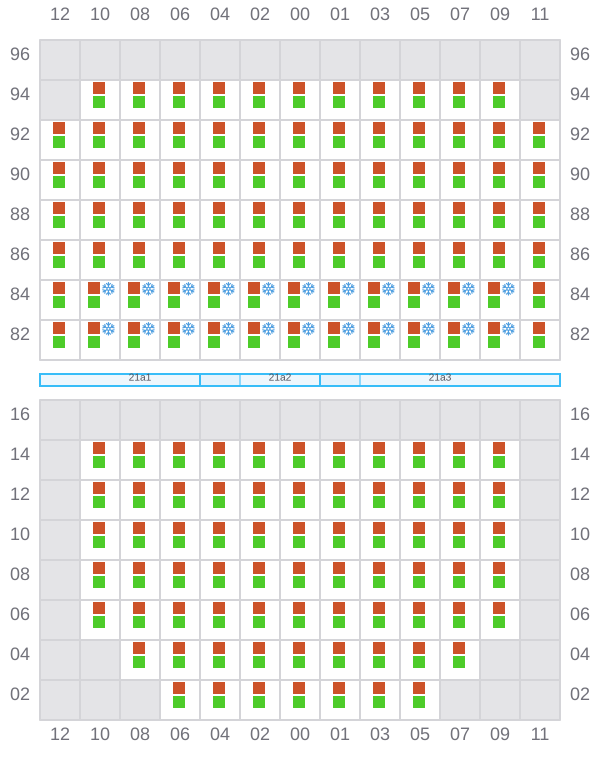

021 (022)
- →
![Bay 021 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b021.png?v=1715712393454)
023
- ←
![Bay 023 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b023.png?v=1715712393454)

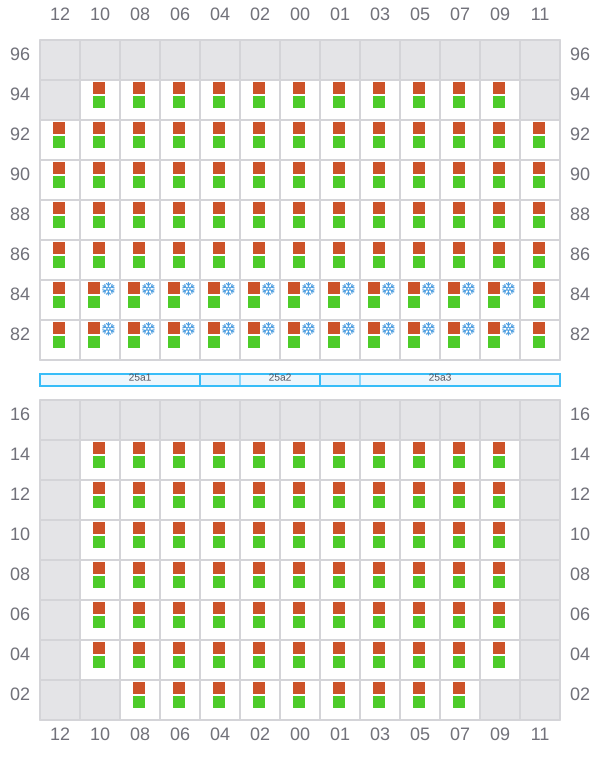

025 (026)
- →
![Bay 025 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b025.png?v=1715712393454)

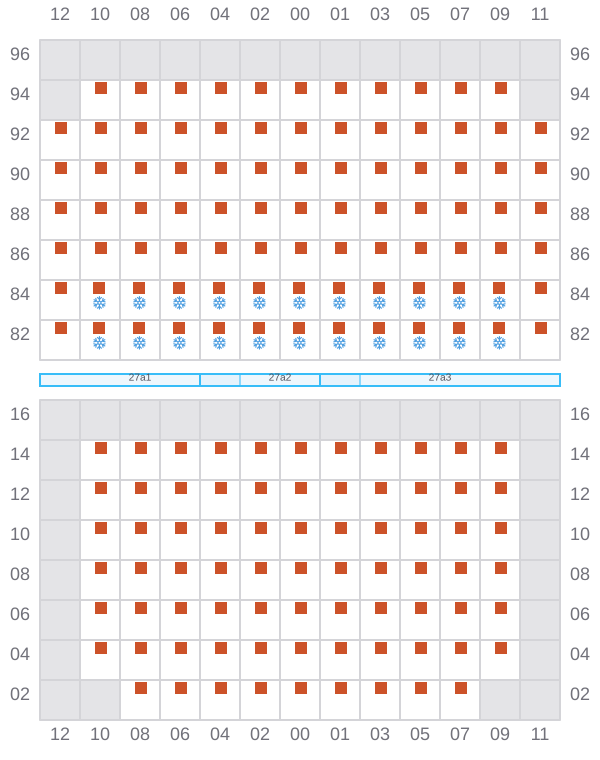

027
- ←
![Bay 027 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b027.png?v=1715712393454)
029 (030)
- →
![Bay 029 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b029.png?v=1715712393454)
031
- ←
![Bay 031 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b031.png?v=1715712393454)

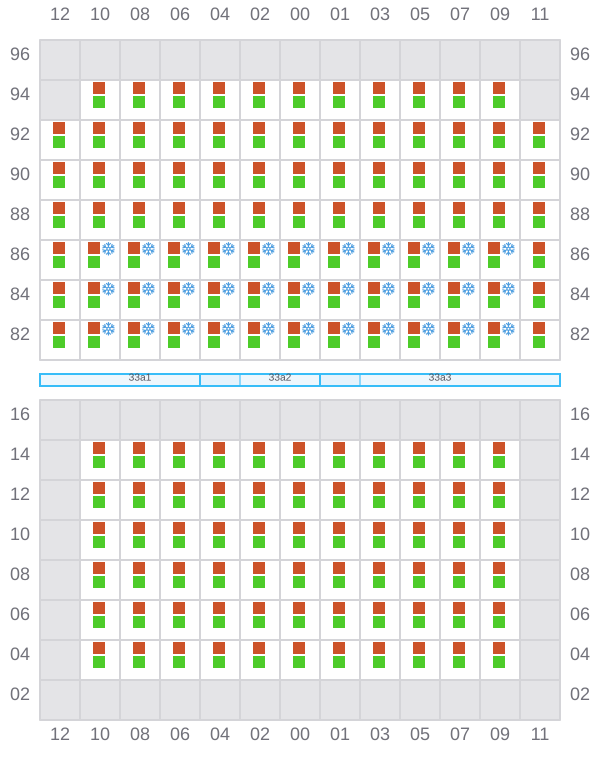

033 (034)
- →
![Bay 033 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b033.png?v=1715712393454)

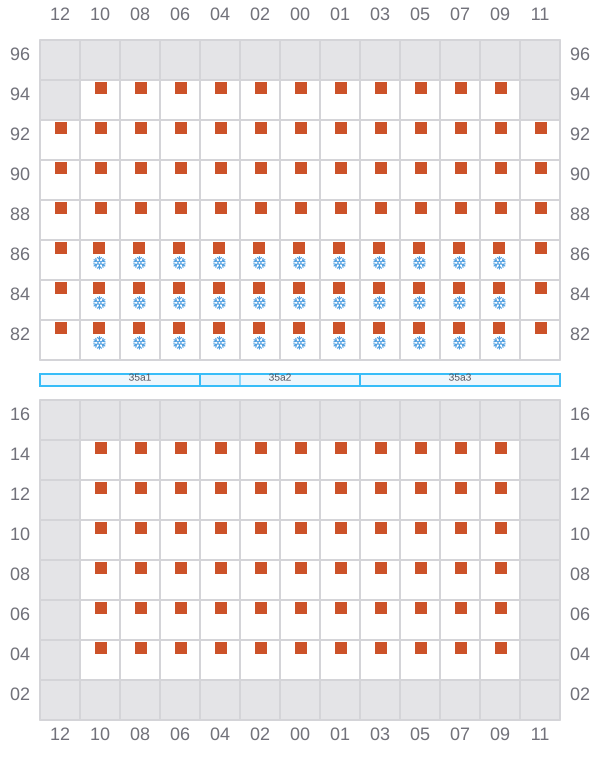

035
- ←
![Bay 035 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b035.png?v=1715712393454)
037 (038)
- →
![Bay 037 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b037.png?v=1715712393454)
039
- ←
![Bay 039 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b039.png?v=1715712393454)

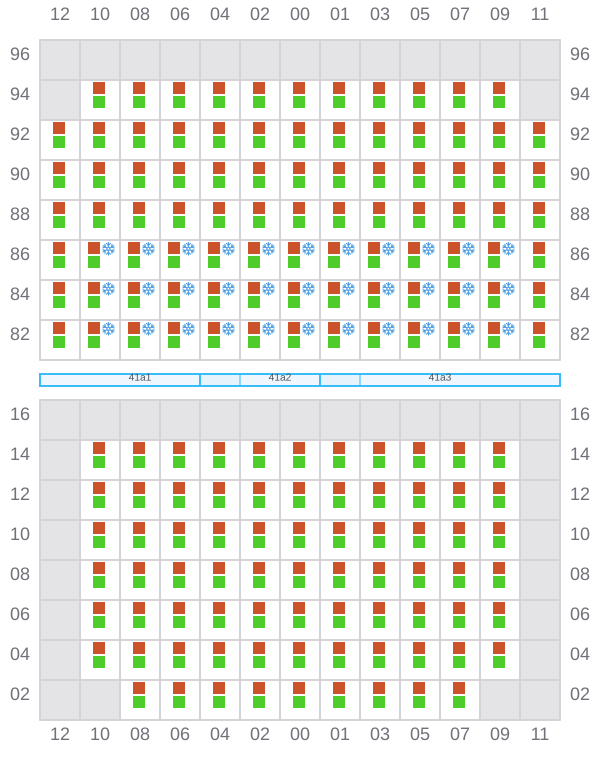

041 (042)
- →
![Bay 041 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b041.png?v=1715712393454)

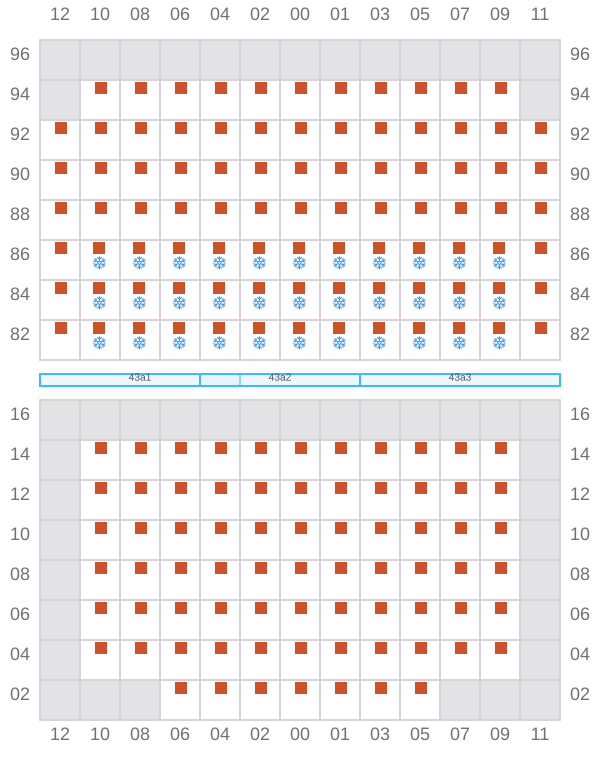

043
- ←
![Bay 043 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b043.png?v=1715712393454)

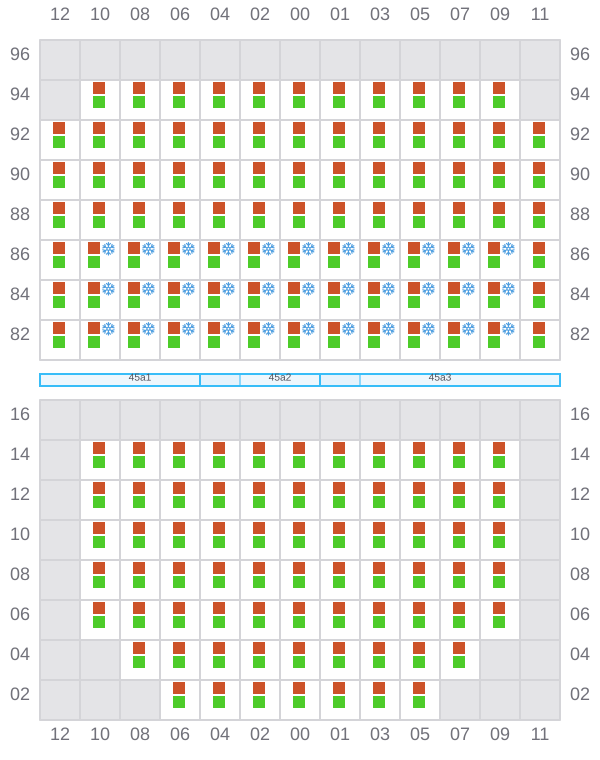

045 (046)
- →
![Bay 045 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b045.png?v=1715712393454)

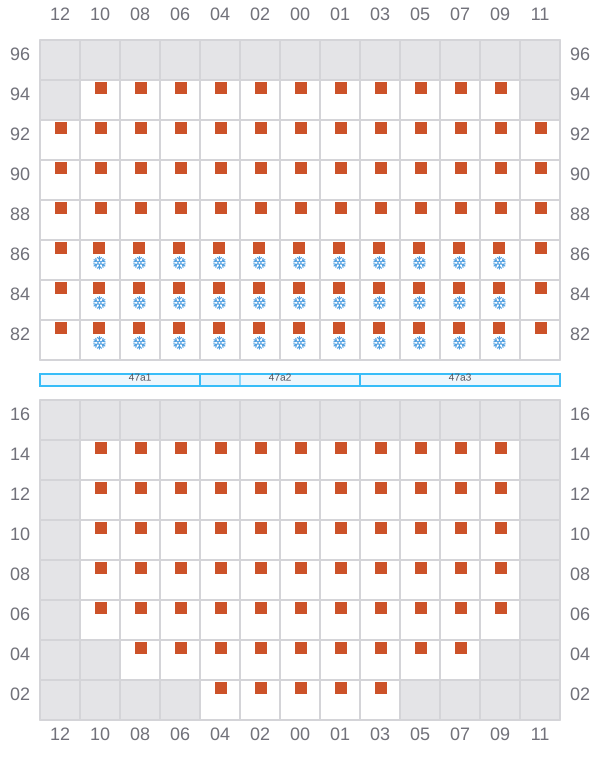

047
- ←
![Bay 047 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b047.png?v=1715712393454)

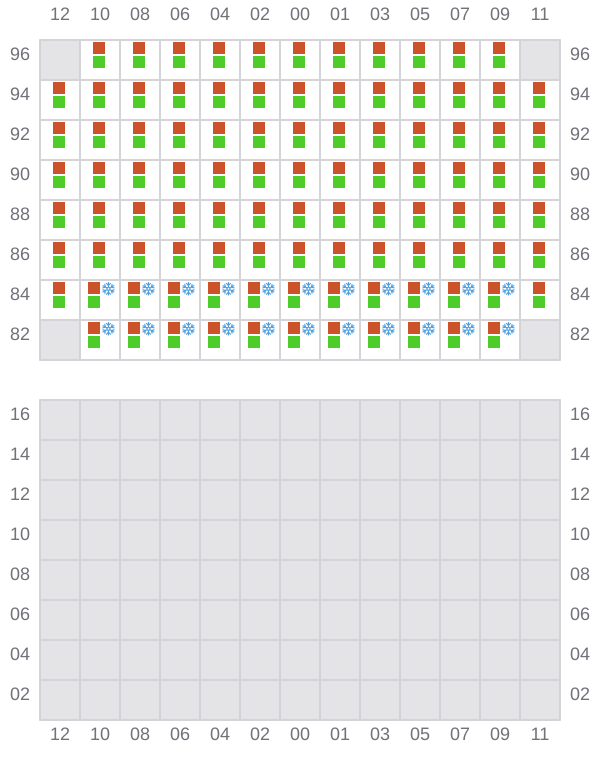

049 (050)
- → / ?
![Bay 049 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b049.png?v=1715712393454)

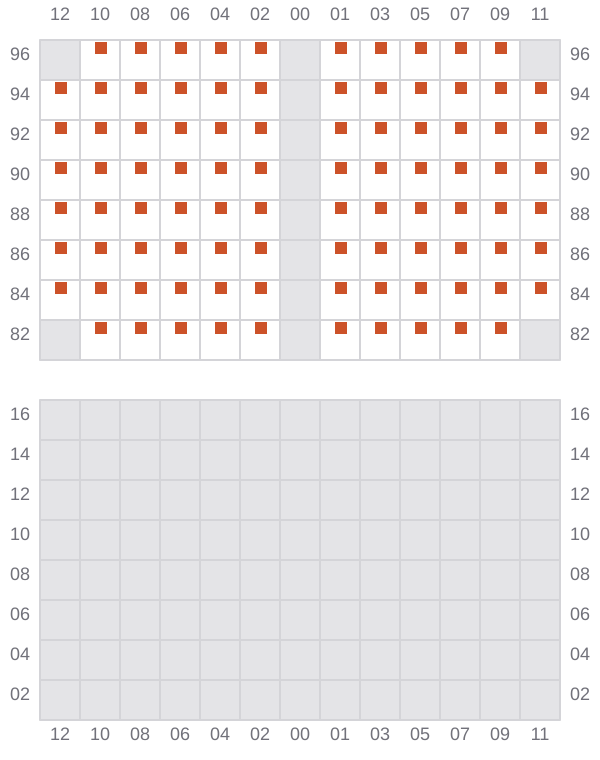

051
- ← / ?
![Bay 051 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b051.png?v=1715712393454)

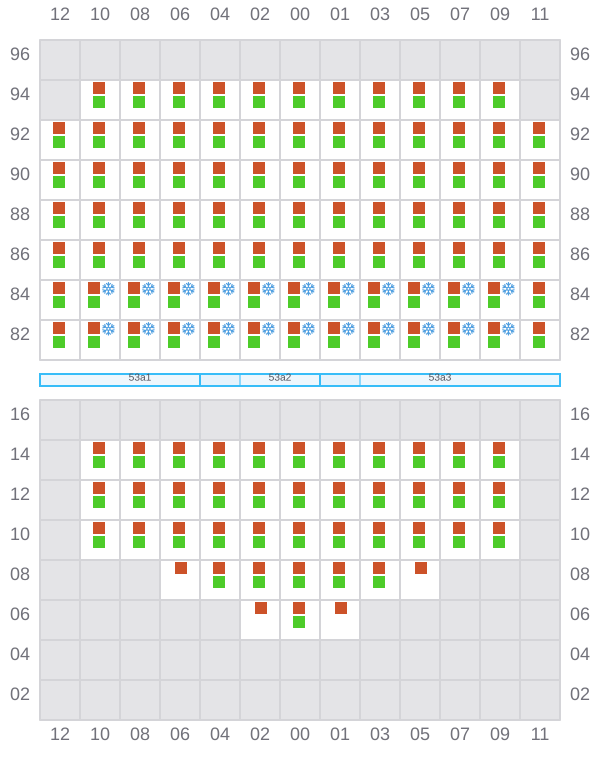

053 (054)
- →
![Bay 053 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b053.png?v=1715712393454)

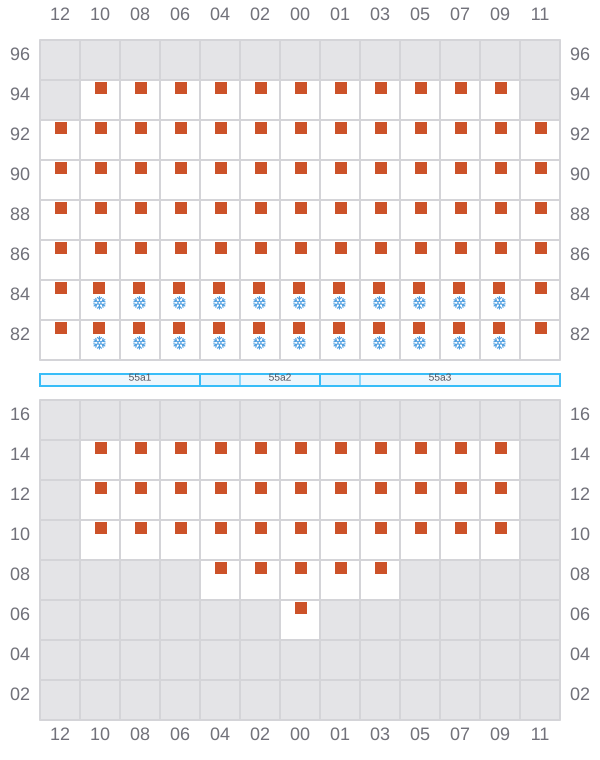

055
- ←
![Bay 055 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b055.png?v=1715712393454)

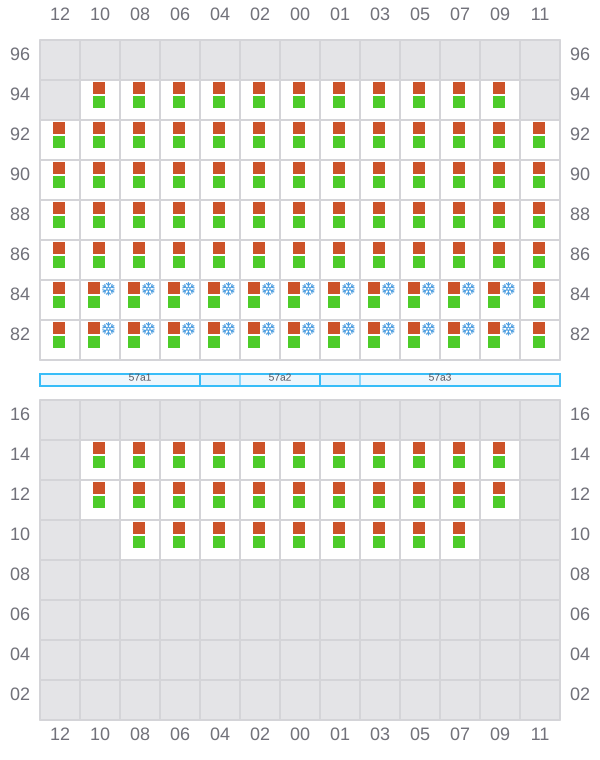

057 (058)
- →
![Bay 057 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b057.png?v=1715712393454)

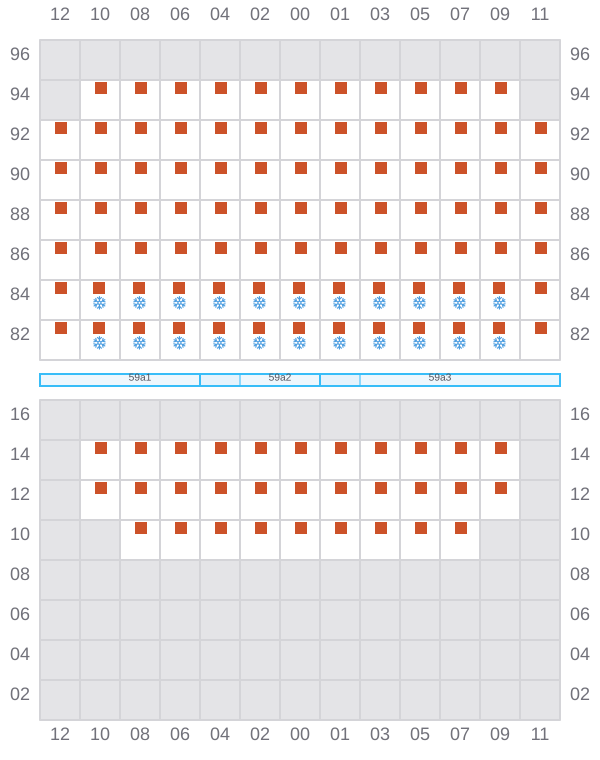

059
- ←
![Bay 059 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b059.png?v=1715712393454)

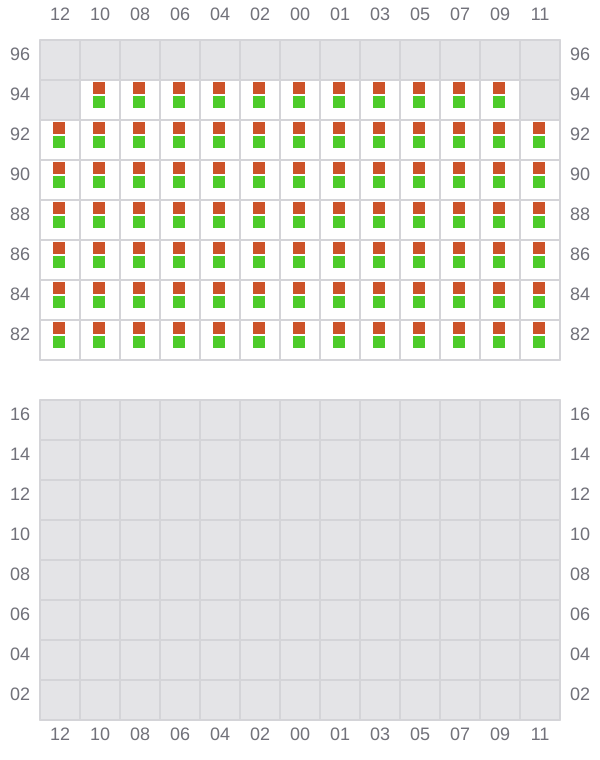

061 (062)
- → / ?
![Bay 061 view and slots of COSCO VENICE](/vessel-images/4bde60b5-1b3a-4982-8ed7-892932532569-b061.png?v=1715712393454)
