COSCO VIETNAM
9448815 | VRID5 | COS by ************************** Last update: Sun Jun 04 2023
General Info
Ship Name:COSCO VIETNAM
IMO Code:9448815
Call Sign:VRID5
Line Operator:COS
Class Name for Sister Ships:VIE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,514
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

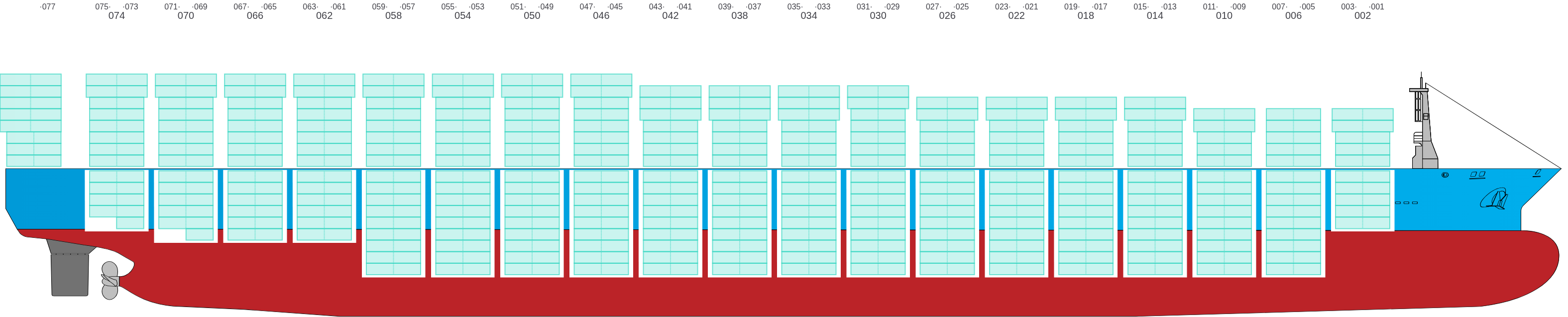

Side View
![Side view of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-sideView.png?v=1685915006067)

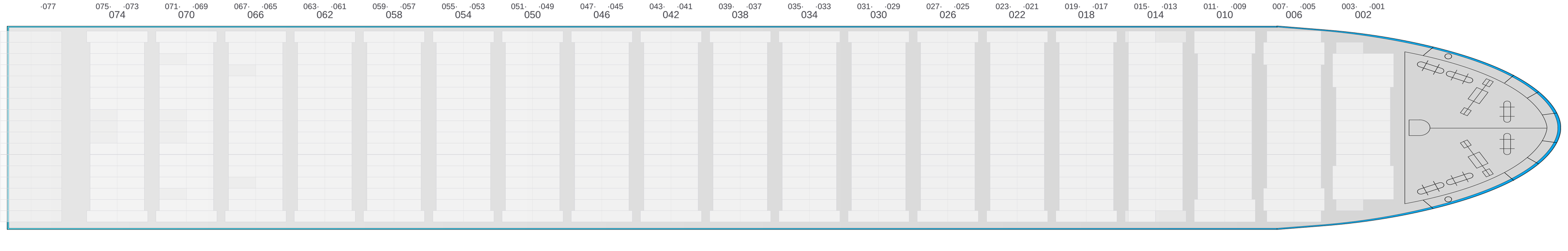

Hatch-Covers View
![Deck view of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-deckView.png?v=1685915006067)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

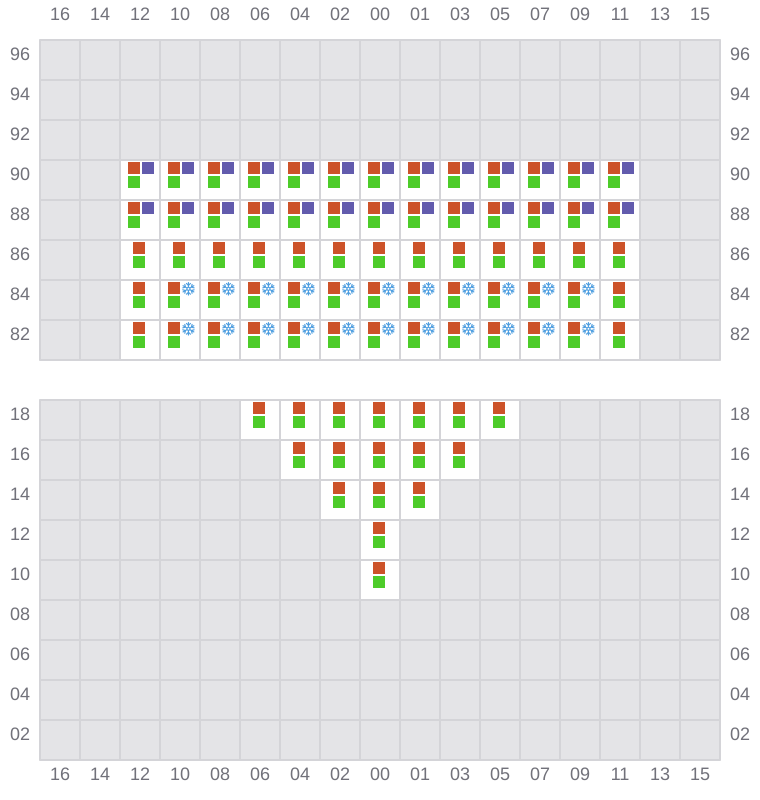

001 (002)
- →
![Bay 001 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b001.png?v=1685915006067)

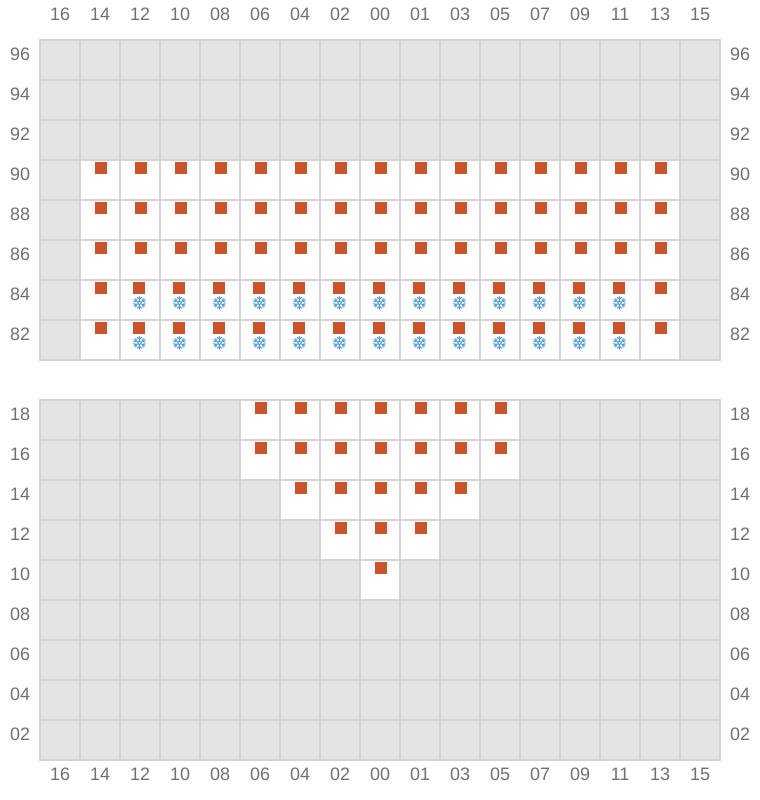

003
- ←
![Bay 003 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b003.png?v=1685915006067)

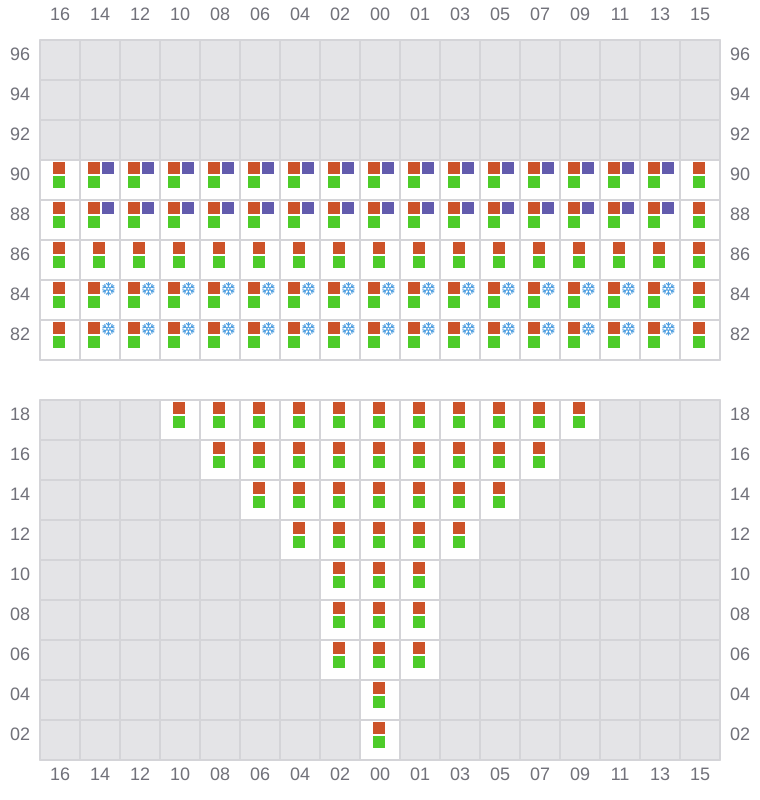

005 (006)
- →
![Bay 005 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b005.png?v=1685915006067)

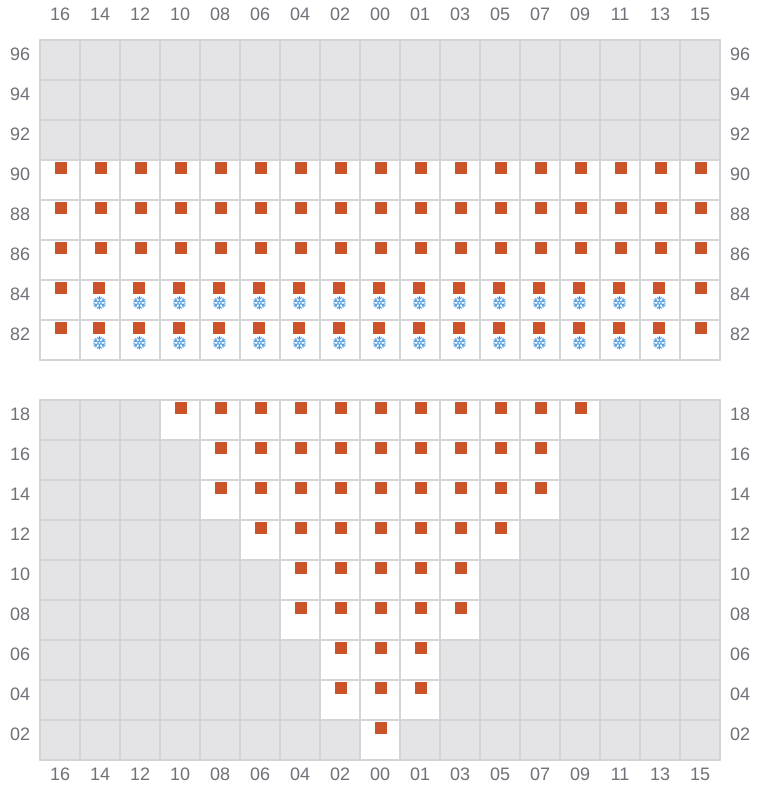

007
- ←
![Bay 007 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b007.png?v=1685915006067)

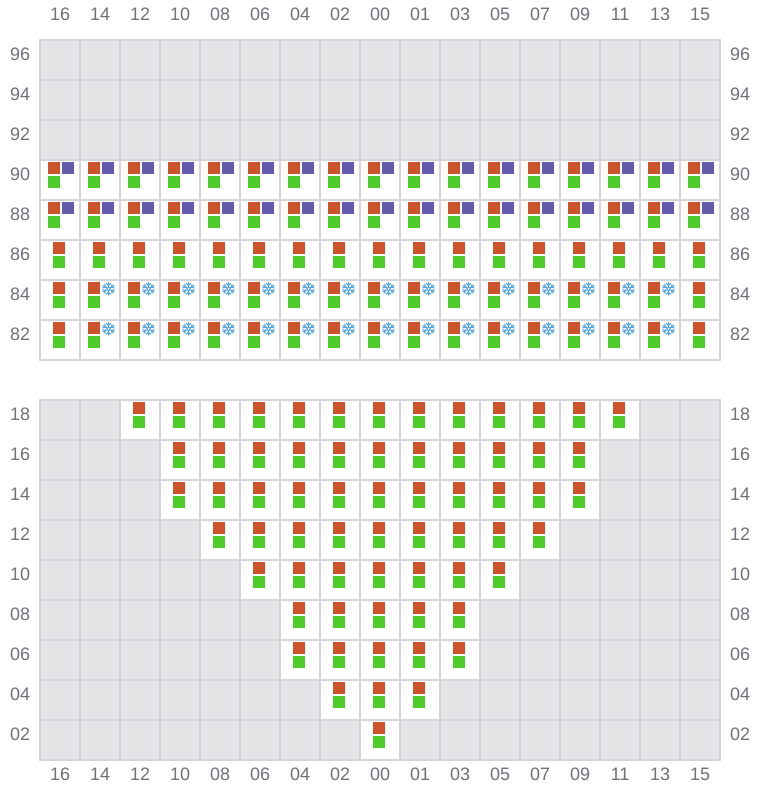

009 (010)
- →
![Bay 009 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b009.png?v=1685915006067)

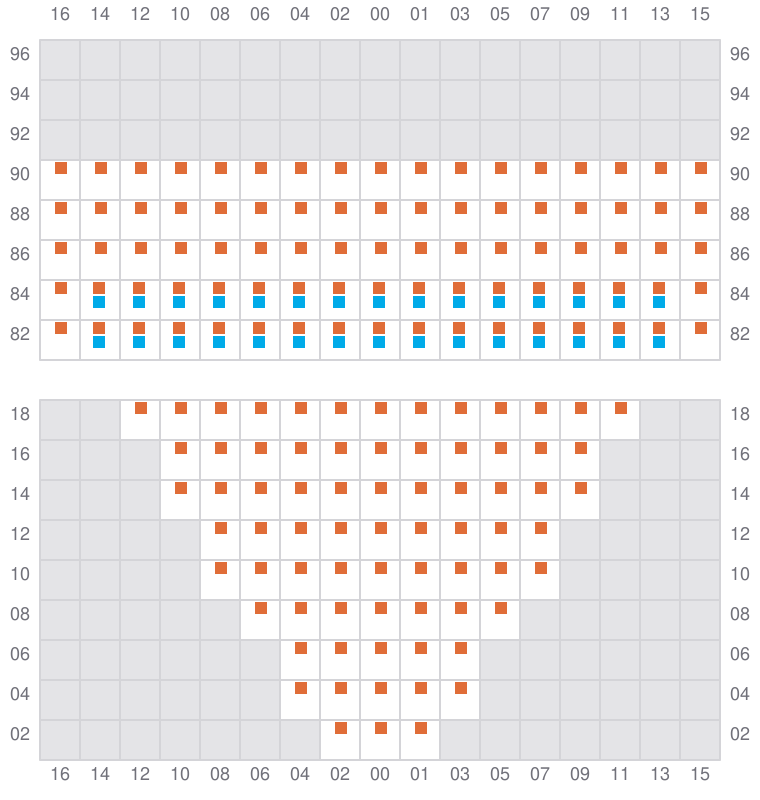

011
- ←
![Bay 011 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b011.png?v=1685915006067)

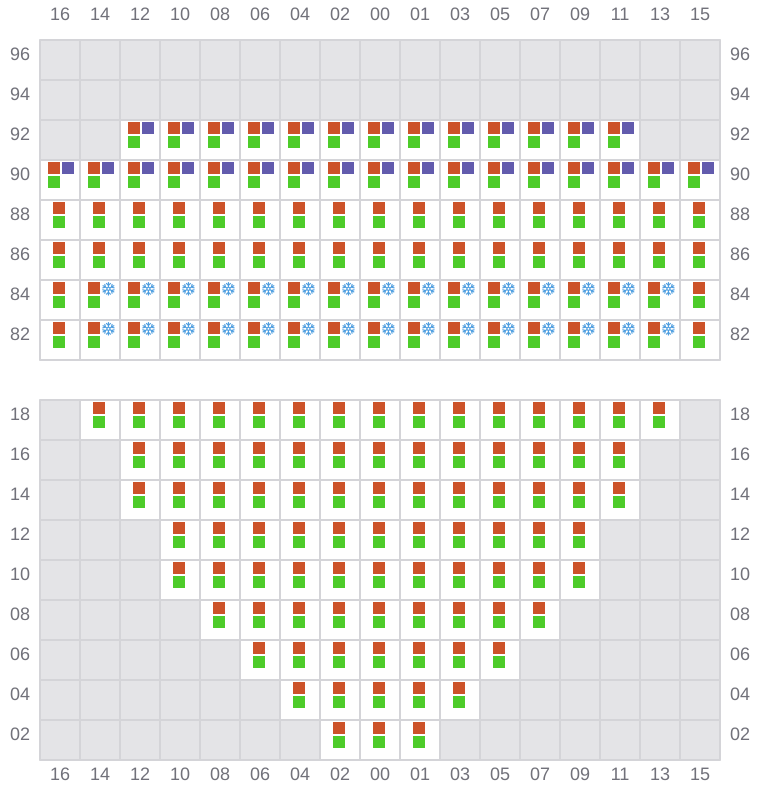

013 (014)
- →
![Bay 013 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b013.png?v=1685915006067)

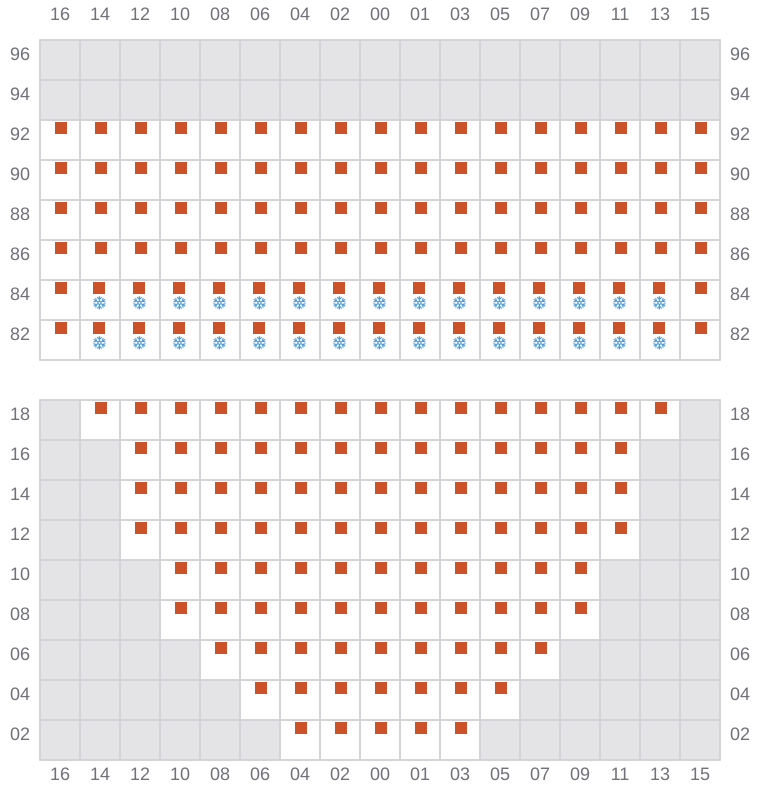

015
- ←
![Bay 015 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b015.png?v=1685915006067)

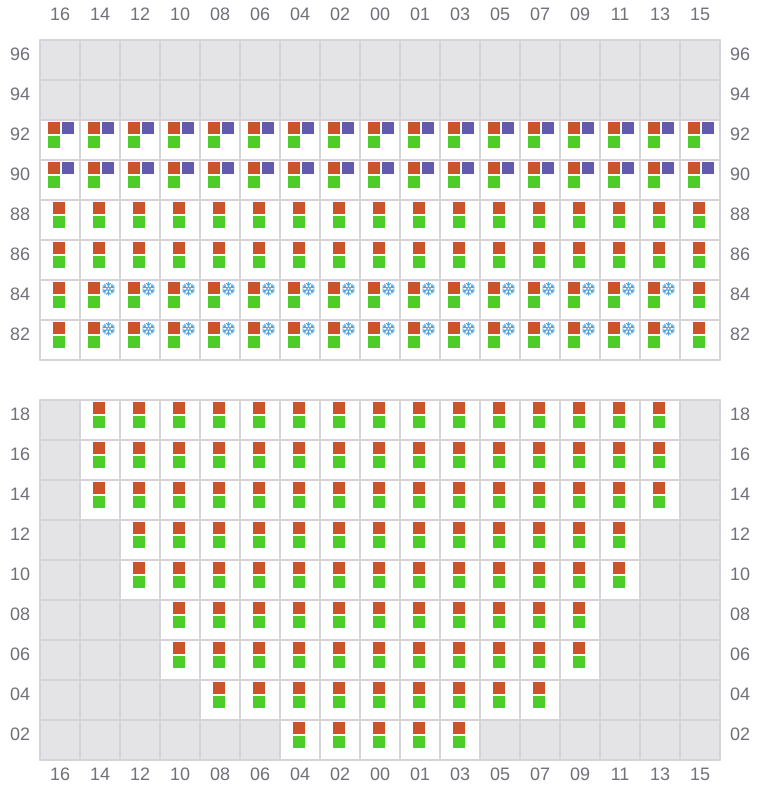

017 (018)
- →
![Bay 017 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b017.png?v=1685915006067)

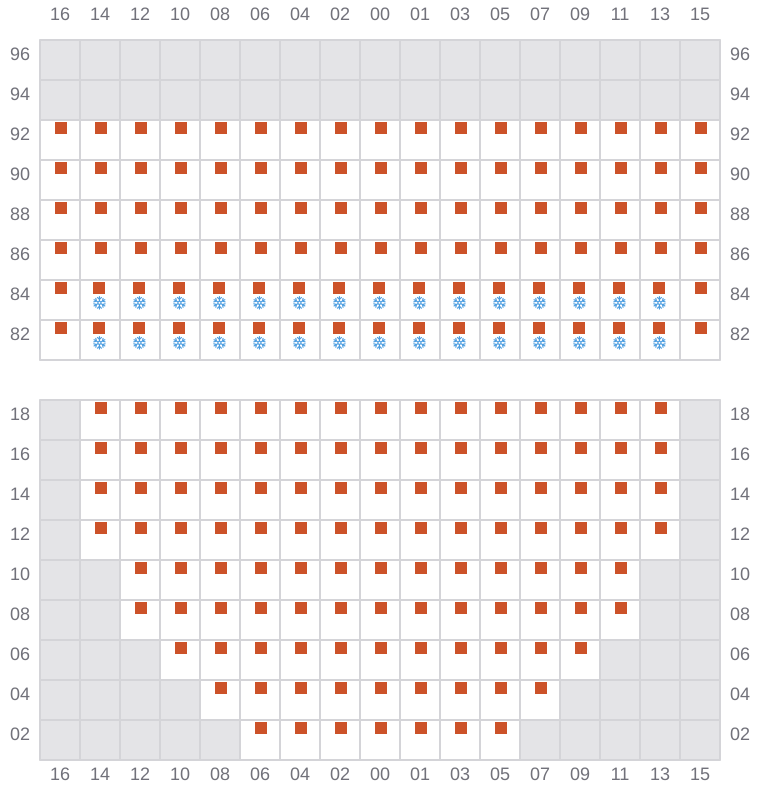

019
- ←
![Bay 019 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b019.png?v=1685915006067)

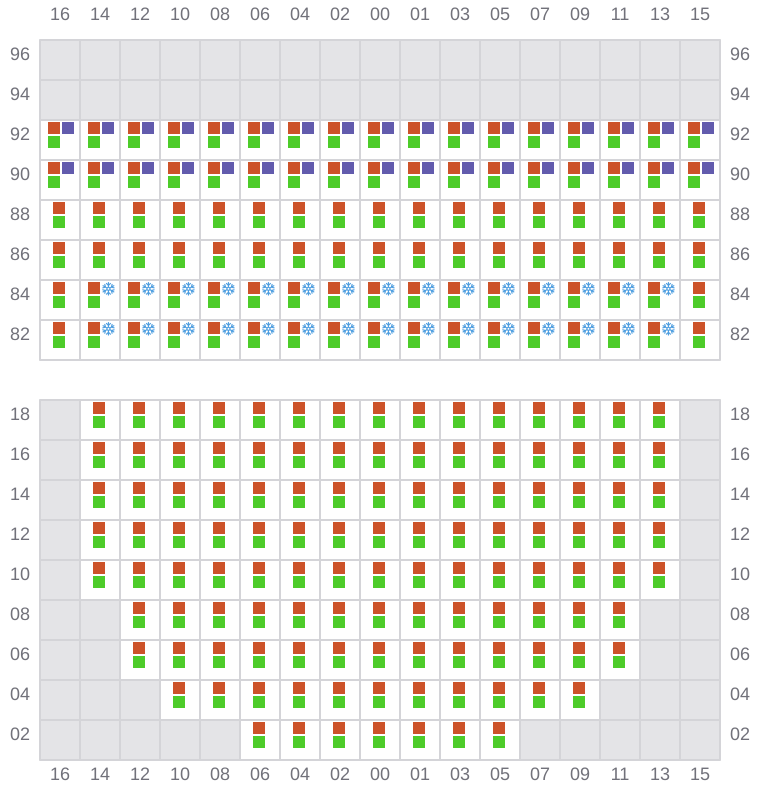

021 (022)
- →
![Bay 021 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b021.png?v=1685915006067)

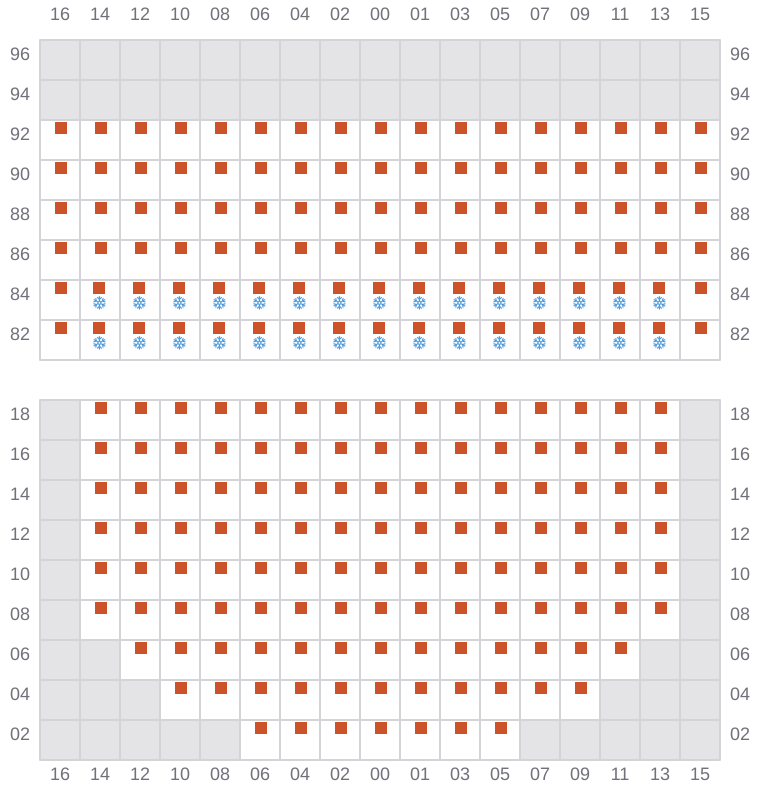

023
- ←
![Bay 023 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b023.png?v=1685915006067)

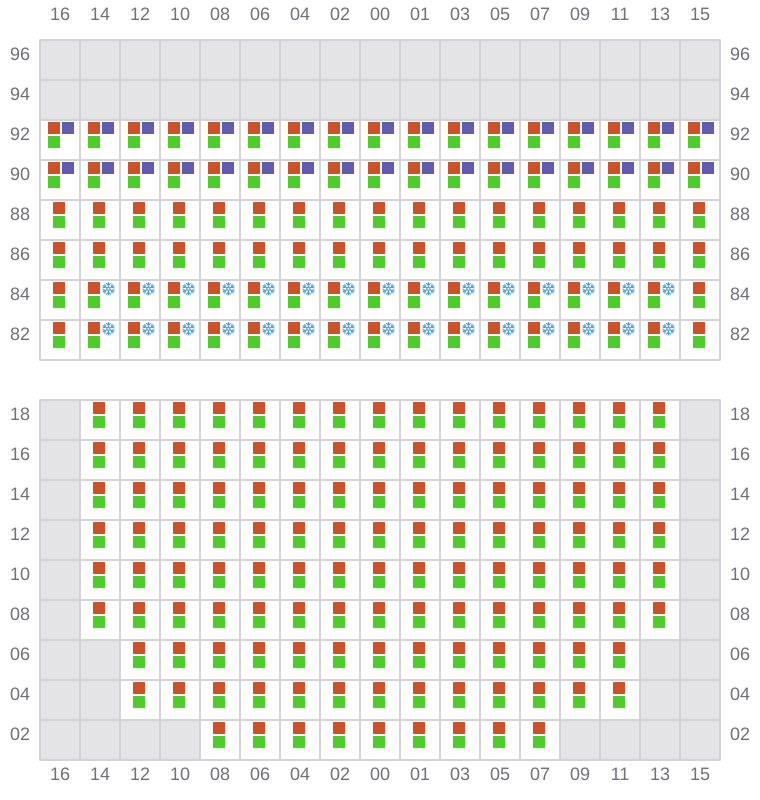

025 (026)
- →
![Bay 025 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b025.png?v=1685915006067)

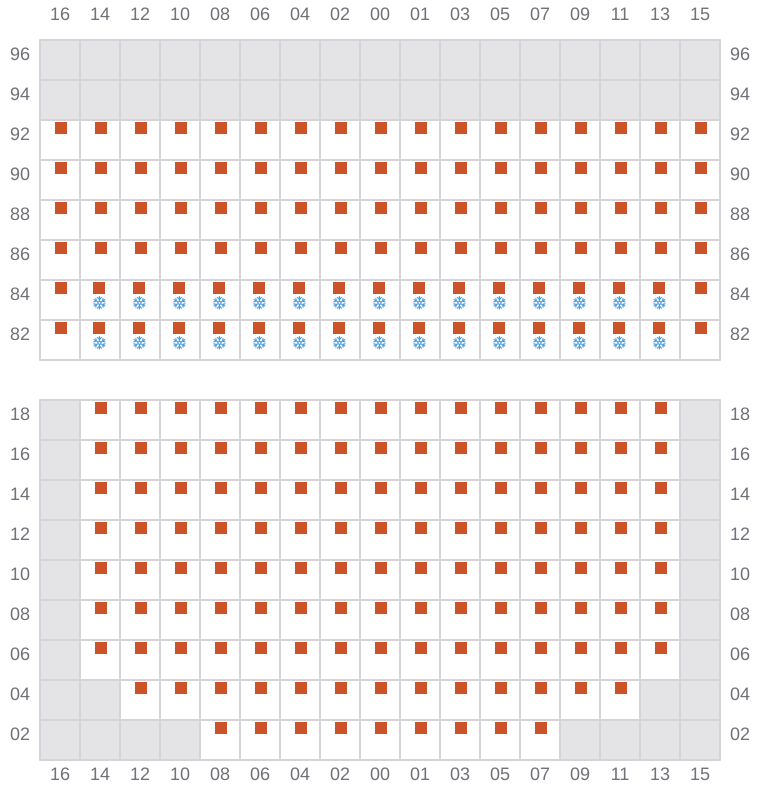

027
- ←
![Bay 027 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b027.png?v=1685915006067)

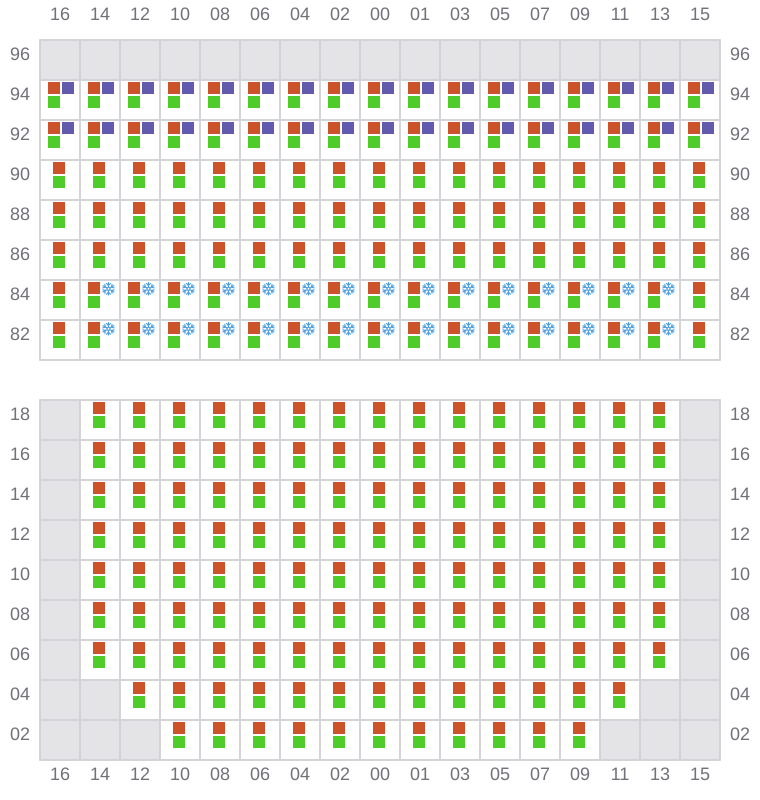

029 (030)
- →
![Bay 029 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b029.png?v=1685915006067)

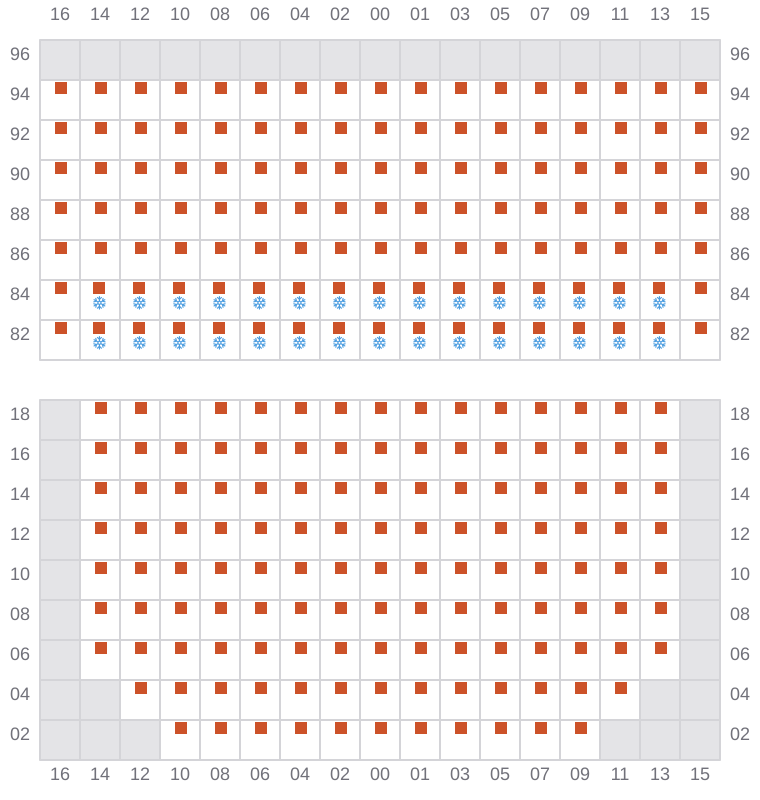

031
- ←
![Bay 031 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b031.png?v=1685915006067)
033 (034)
- →
![Bay 033 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b033.png?v=1685915006067)
035
- ←
![Bay 035 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b035.png?v=1685915006067)
037 (038)
- →
![Bay 037 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b037.png?v=1685915006067)

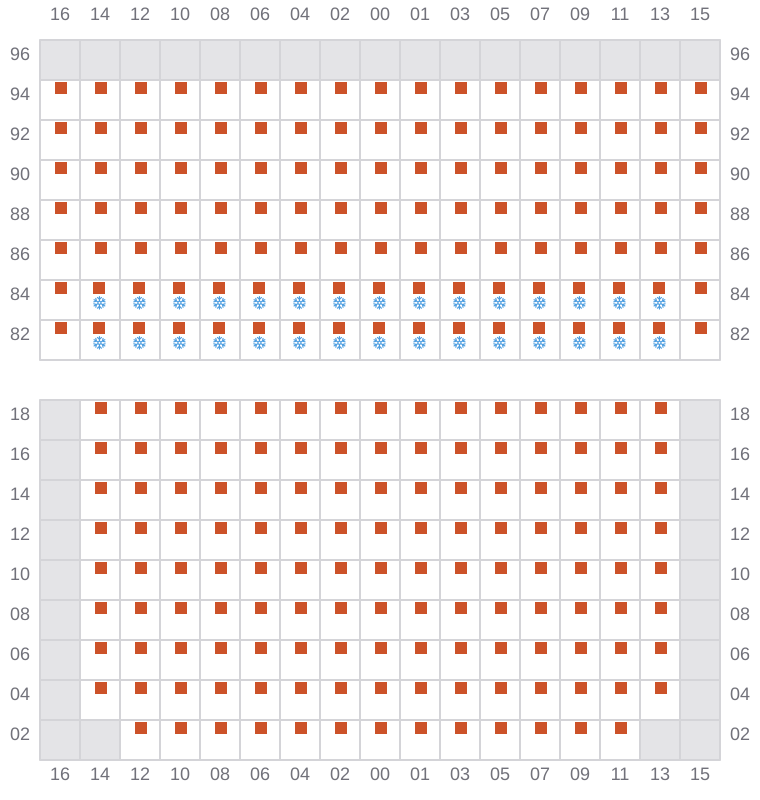

039
- ←
![Bay 039 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b039.png?v=1685915006067)

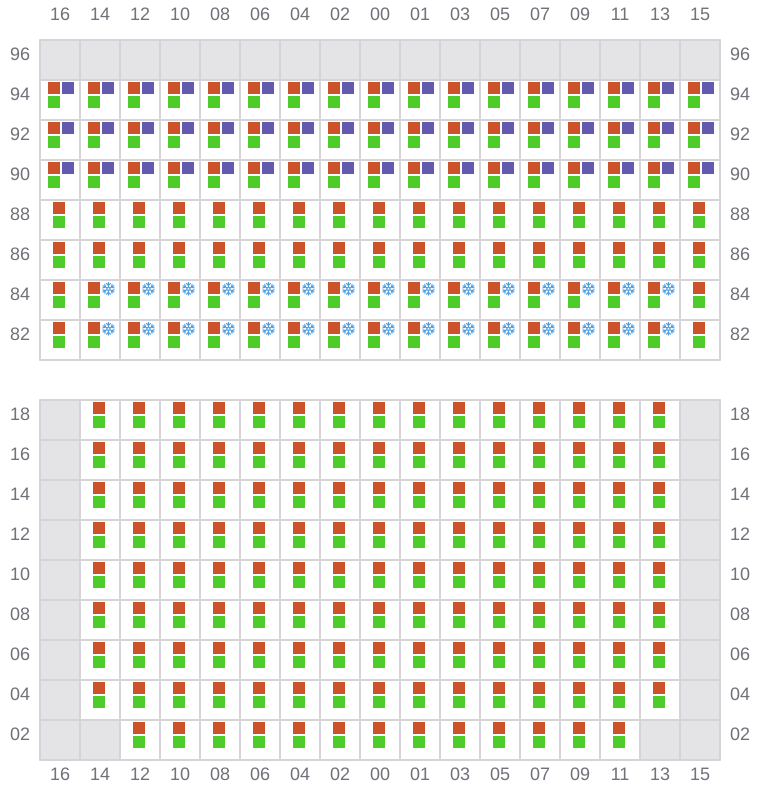

041 (042)
- →
![Bay 041 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b041.png?v=1685915006067)
043
- ←
![Bay 043 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b043.png?v=1685915006067)
045 (046)
- →
![Bay 045 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b045.png?v=1685915006067)

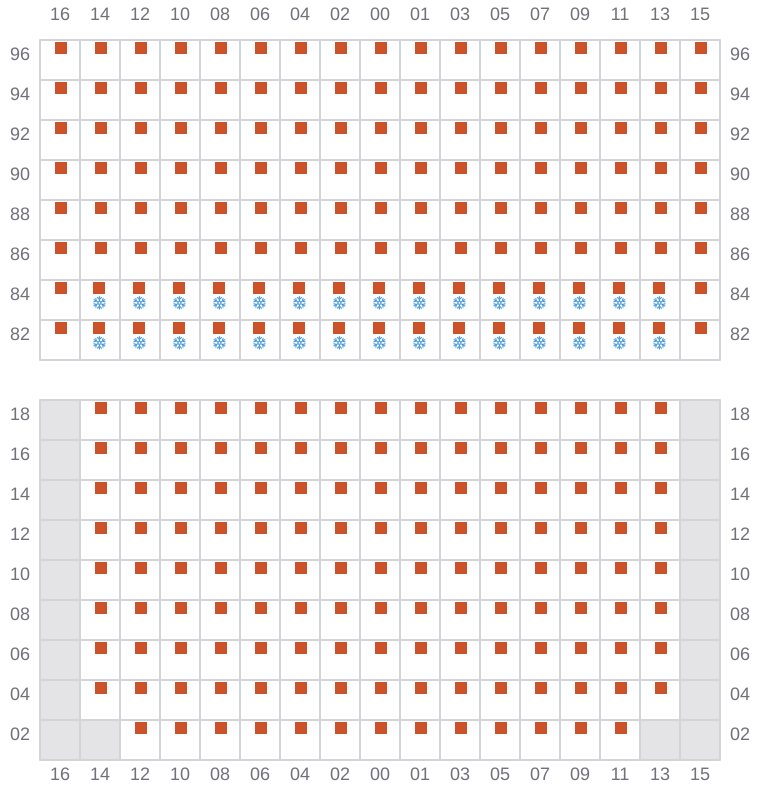

047
- ←
![Bay 047 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b047.png?v=1685915006067)

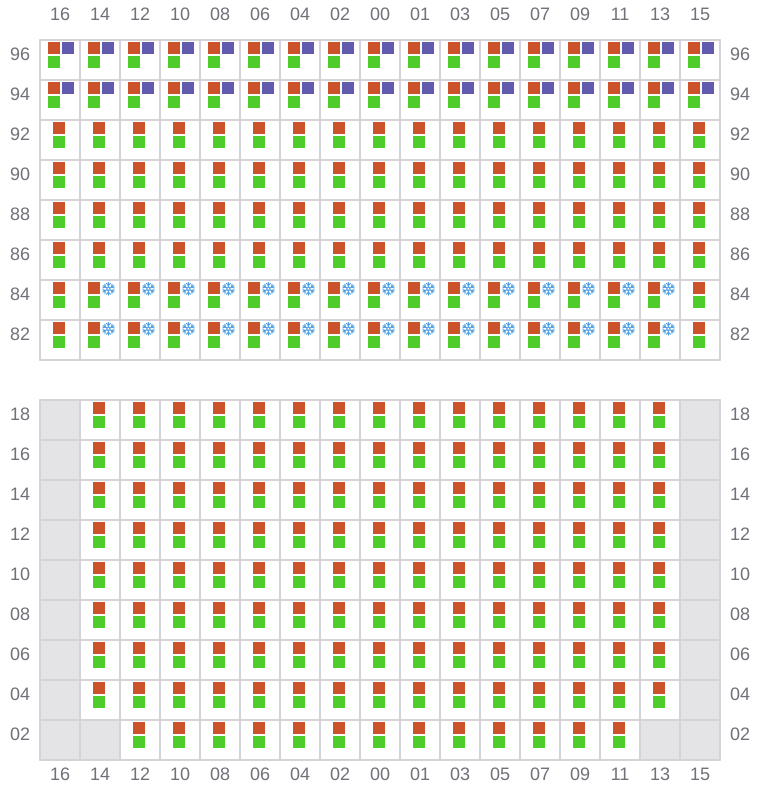

049 (050)
- →
![Bay 049 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b049.png?v=1685915006067)
051
- ←
![Bay 051 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b051.png?v=1685915006067)

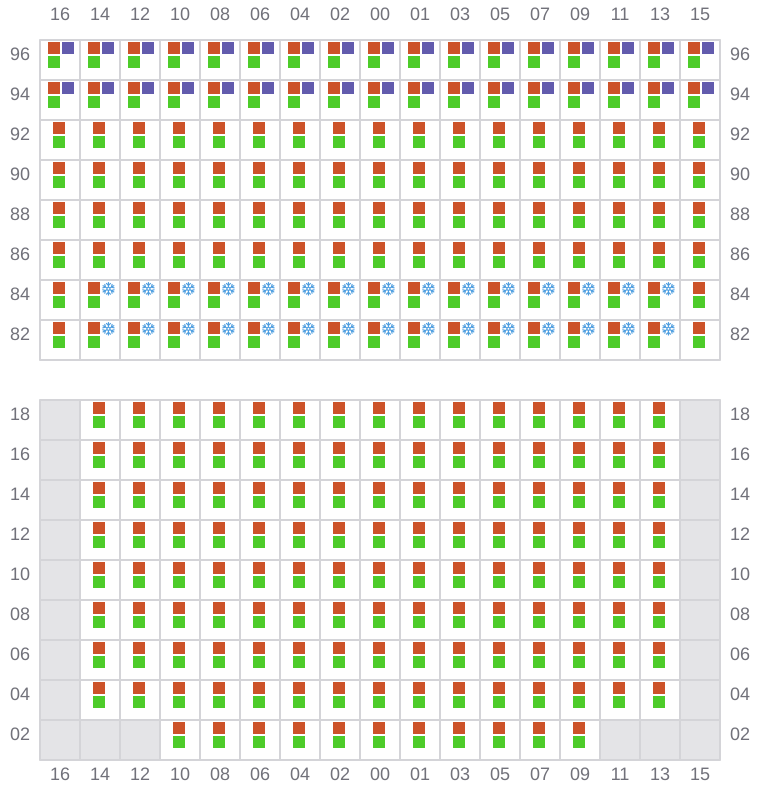

053 (054)
- →
![Bay 053 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b053.png?v=1685915006067)
055
- ←
![Bay 055 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b055.png?v=1685915006067)

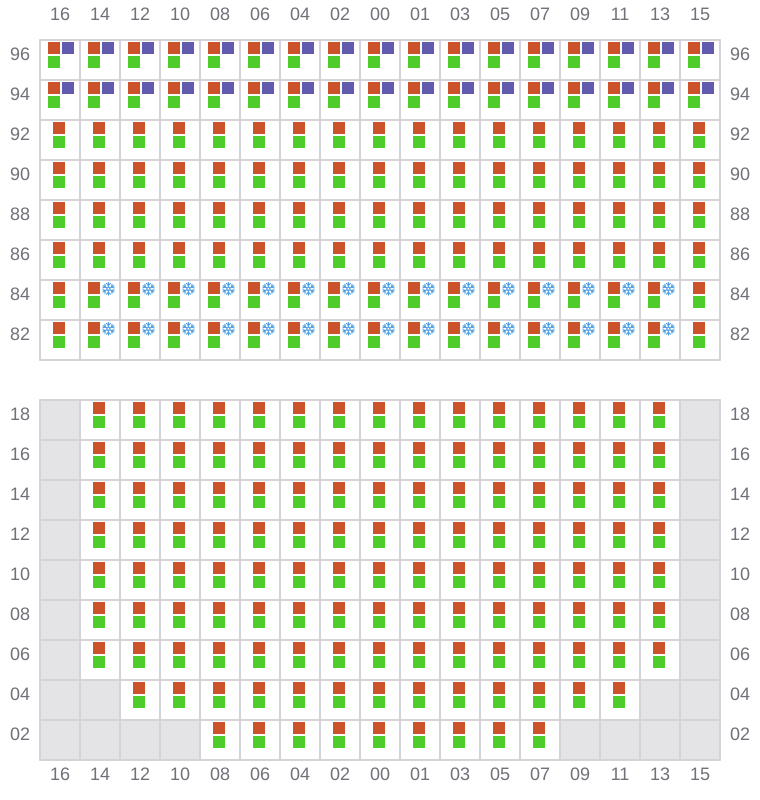

057 (058)
- →
![Bay 057 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b057.png?v=1685915006067)

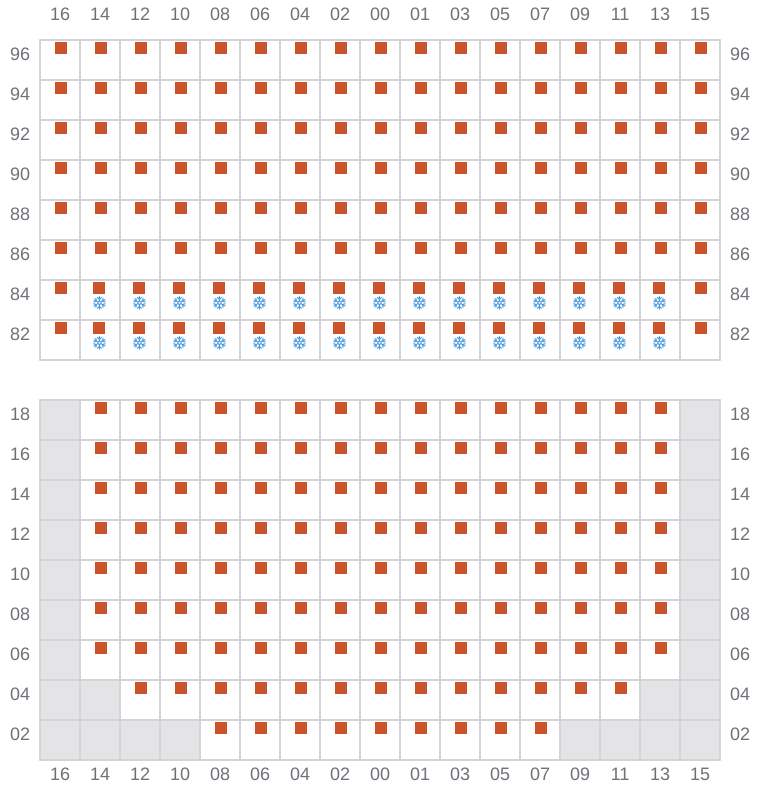

059
- ←
![Bay 059 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b059.png?v=1685915006067)

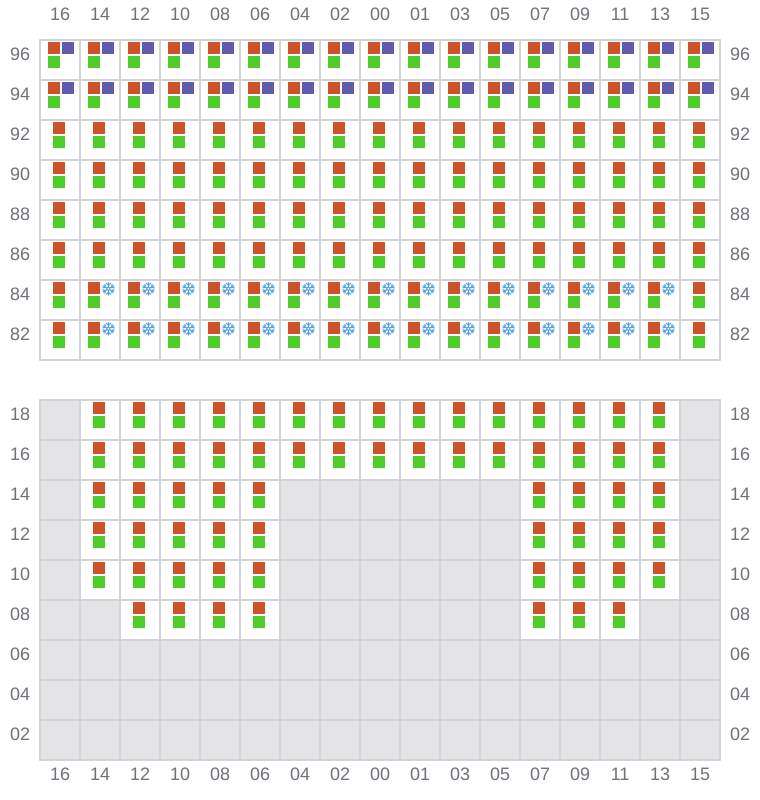

061 (062)
- →
![Bay 061 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b061.png?v=1685915006067)

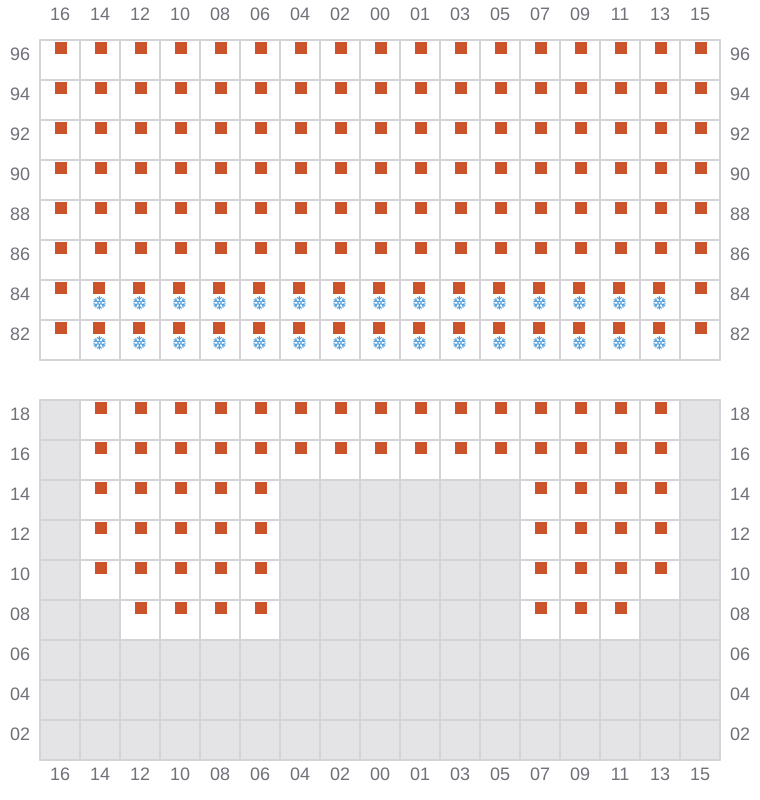

063
- ←
![Bay 063 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b063.png?v=1685915006067)
065 (066)
- →
![Bay 065 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b065.png?v=1685915006067)

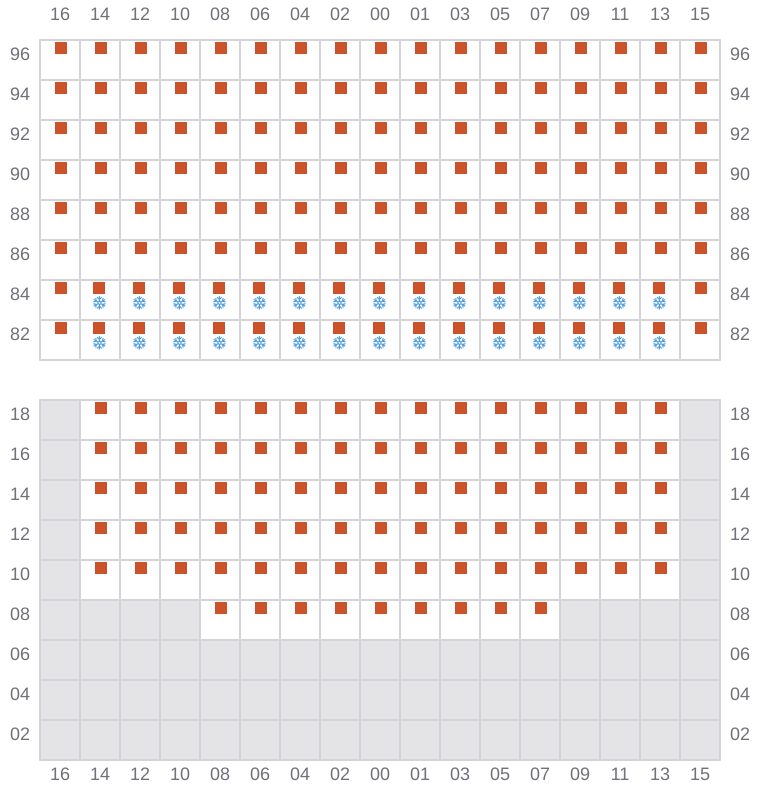

067
- ←
![Bay 067 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b067.png?v=1685915006067)

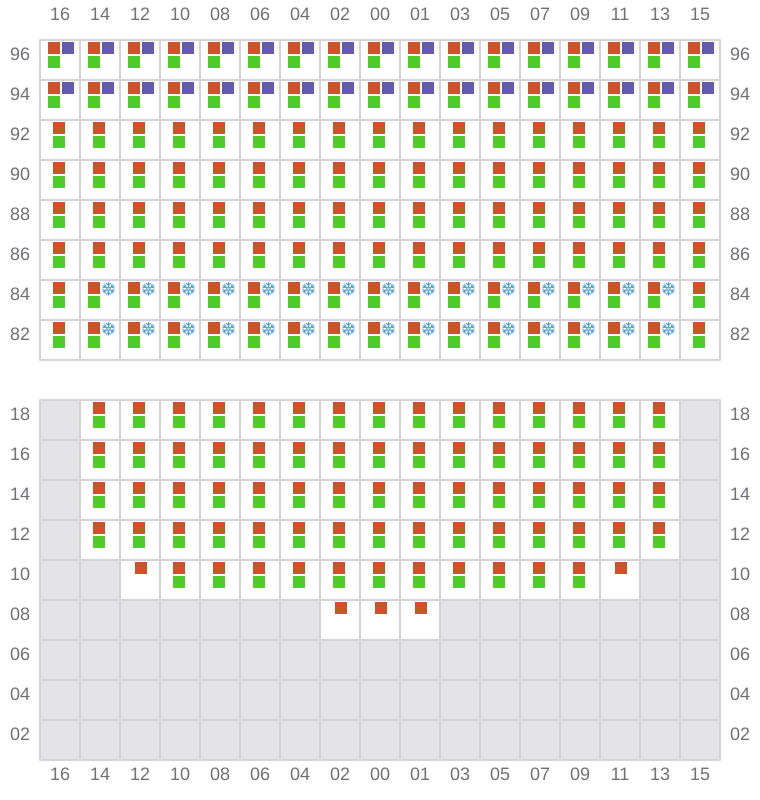

069 (070)
- →
![Bay 069 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b069.png?v=1685915006067)

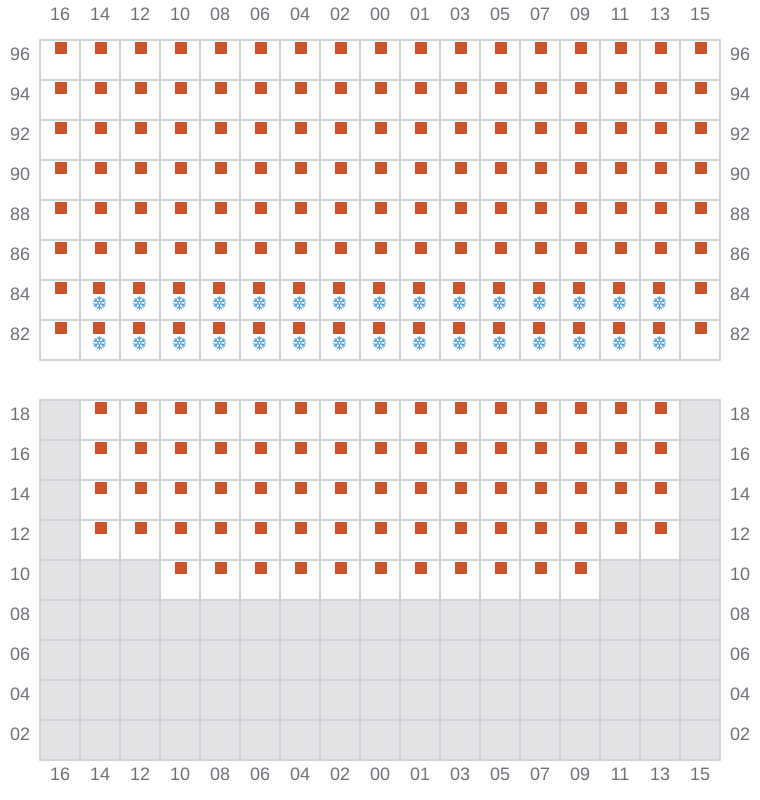

071
- ←
![Bay 071 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b071.png?v=1685915006067)

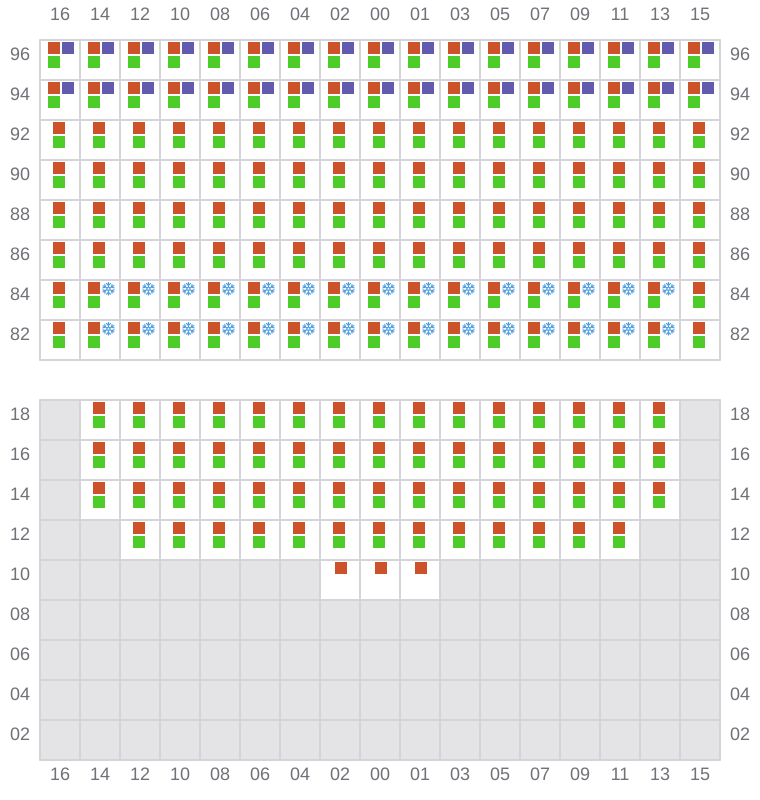

073 (074)
- →
![Bay 073 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b073.png?v=1685915006067)

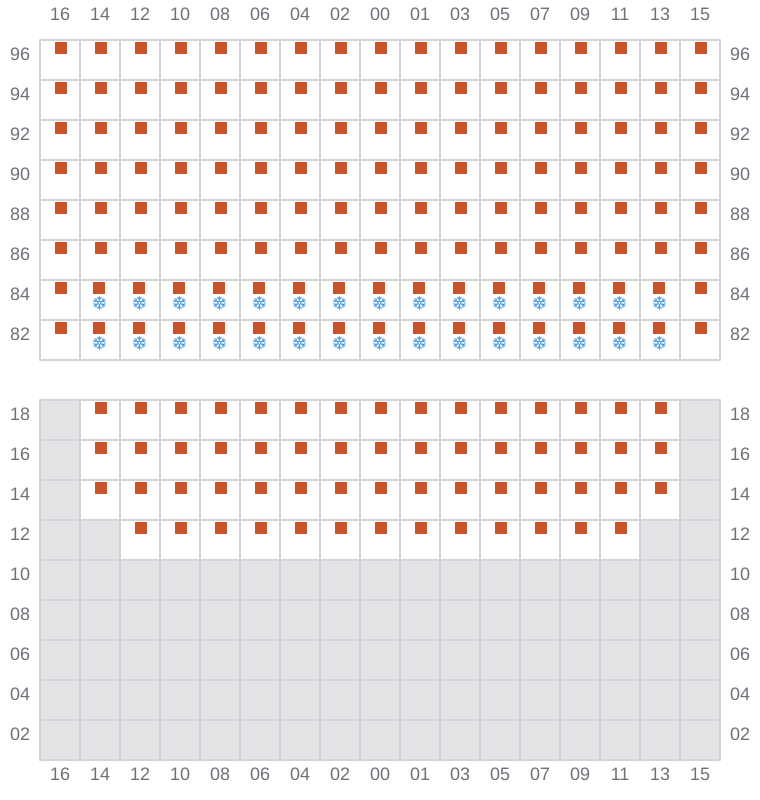

075
- ←
![Bay 075 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b075.png?v=1685915006067)

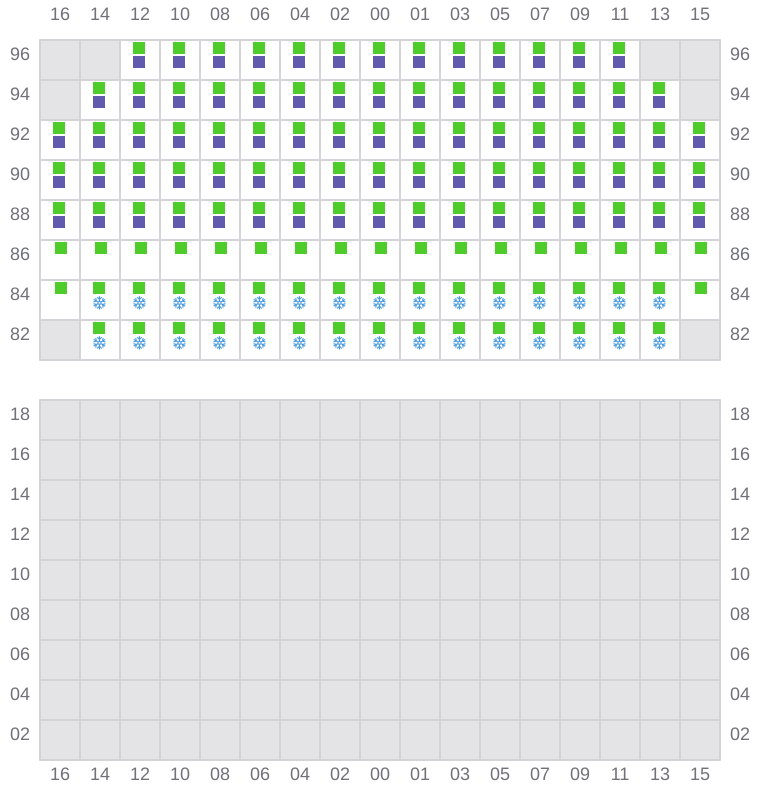

077 (078)
- → / ?
![Bay 077 view and slots of COSCO VIETNAM](/vessel-images/9573af17-2c30-4096-aab6-b88c8a3d4b44-b077.png?v=1685915006067)
